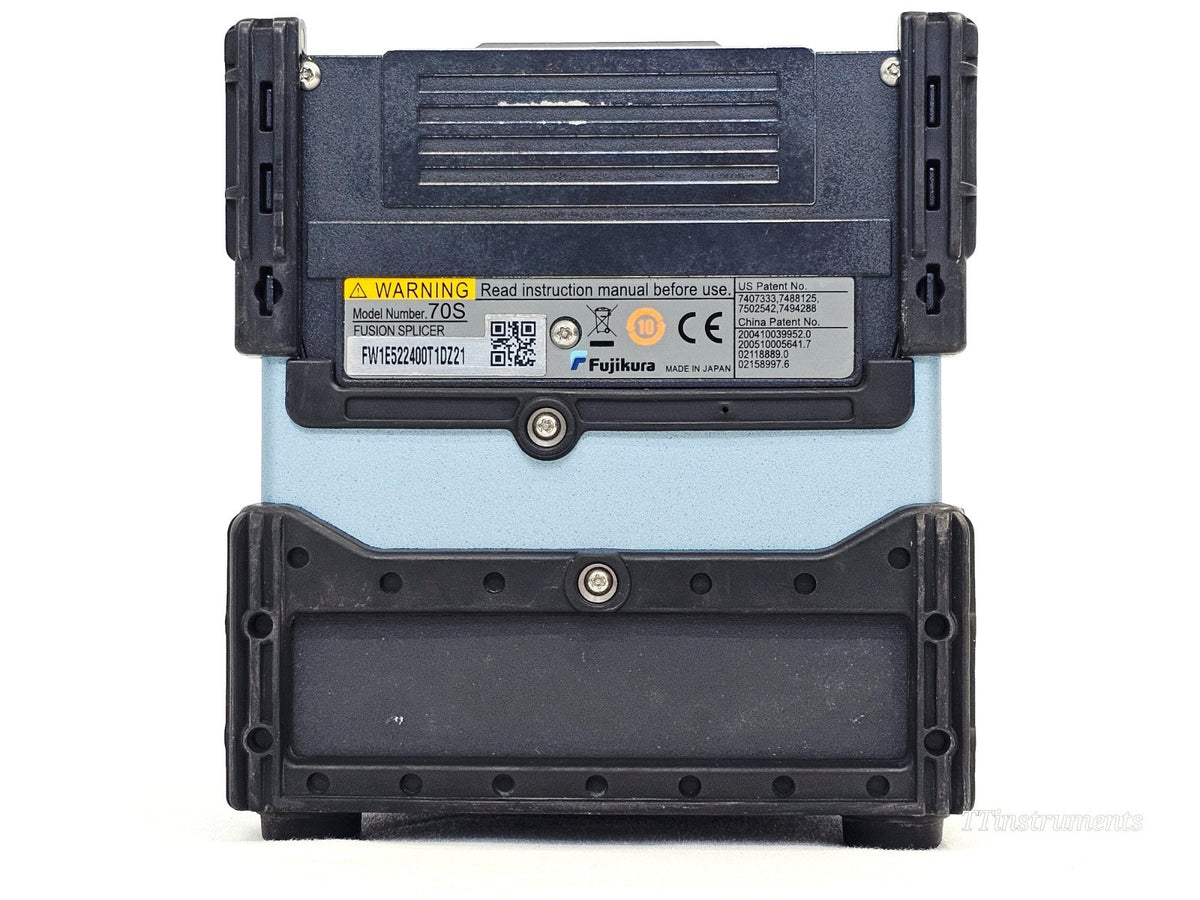

FUJIKURA FSM-70S CORE ALIGNMENT FUSION SPLICER WITH CT-30 CLEAVER

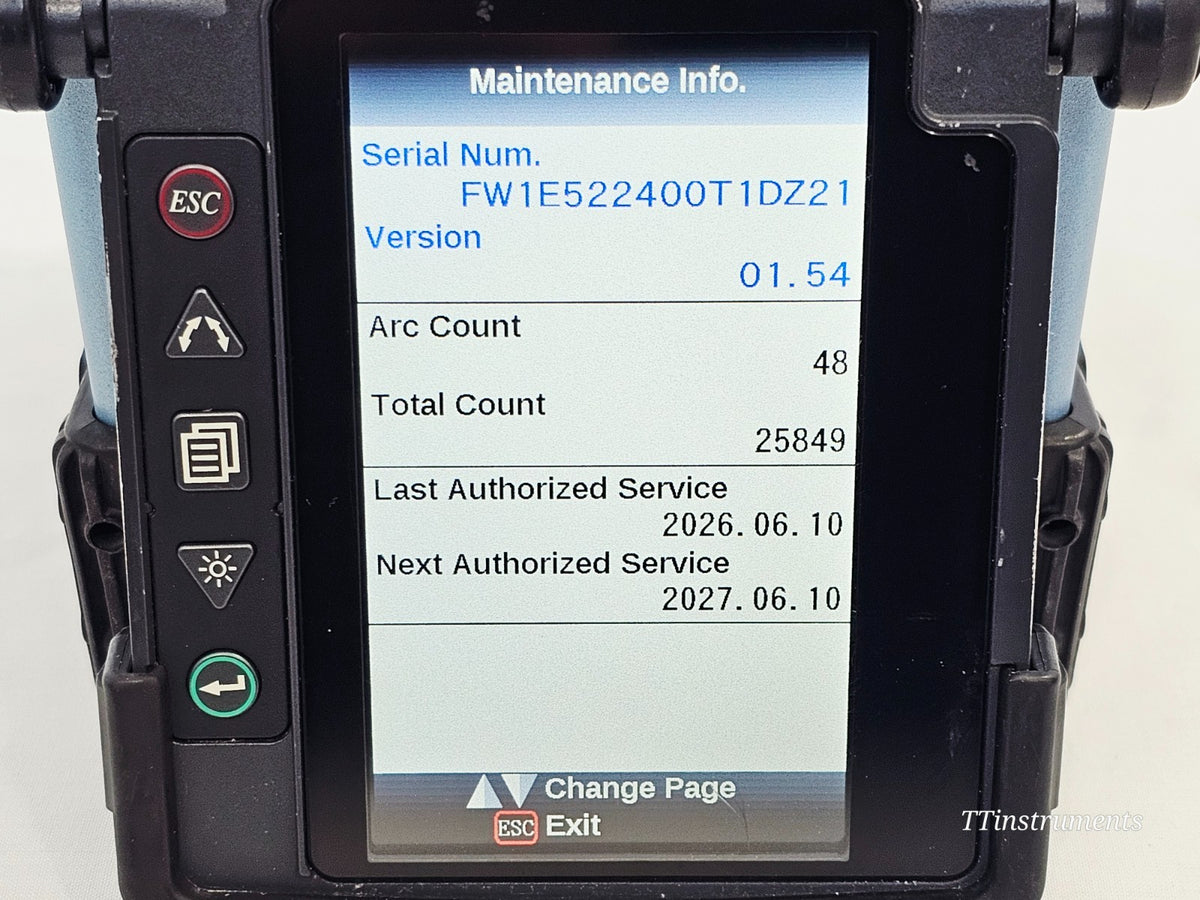

Condition: Used. Serviced

What's Included

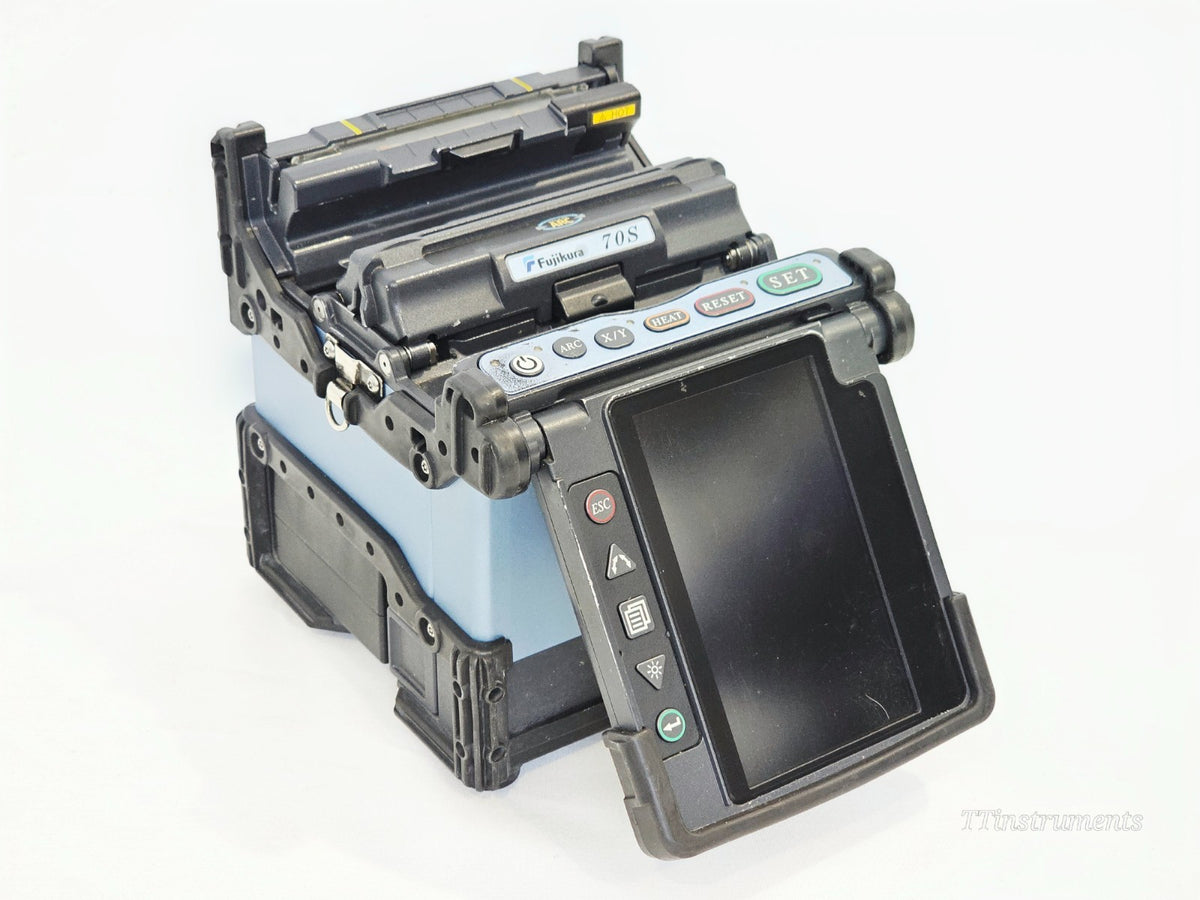

• Fujikura FSM-70S Core Alignment Fusion Splicer

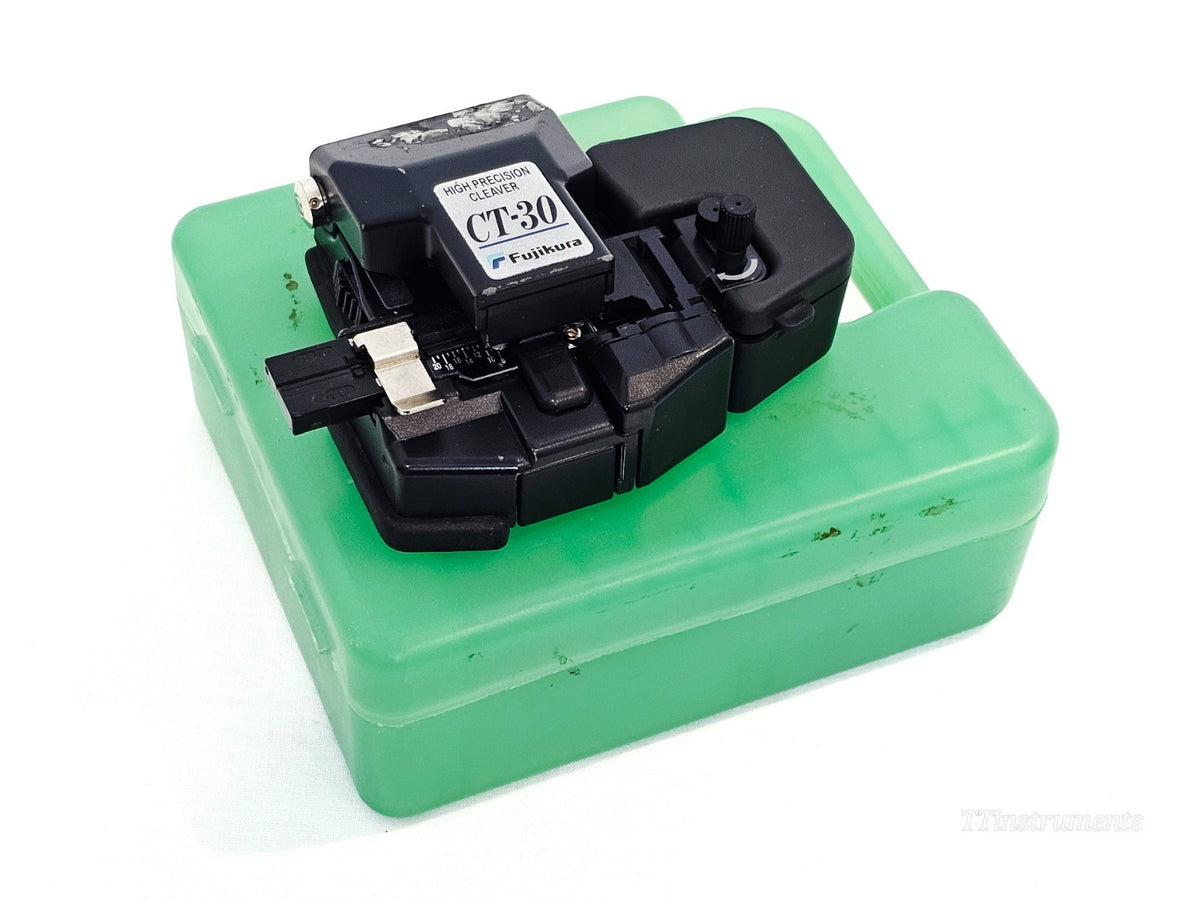

• Fujikura CT-30 High Precision Fibre Cleaver with carry case
• AC Adapter / Battery Charger (ADC-18)

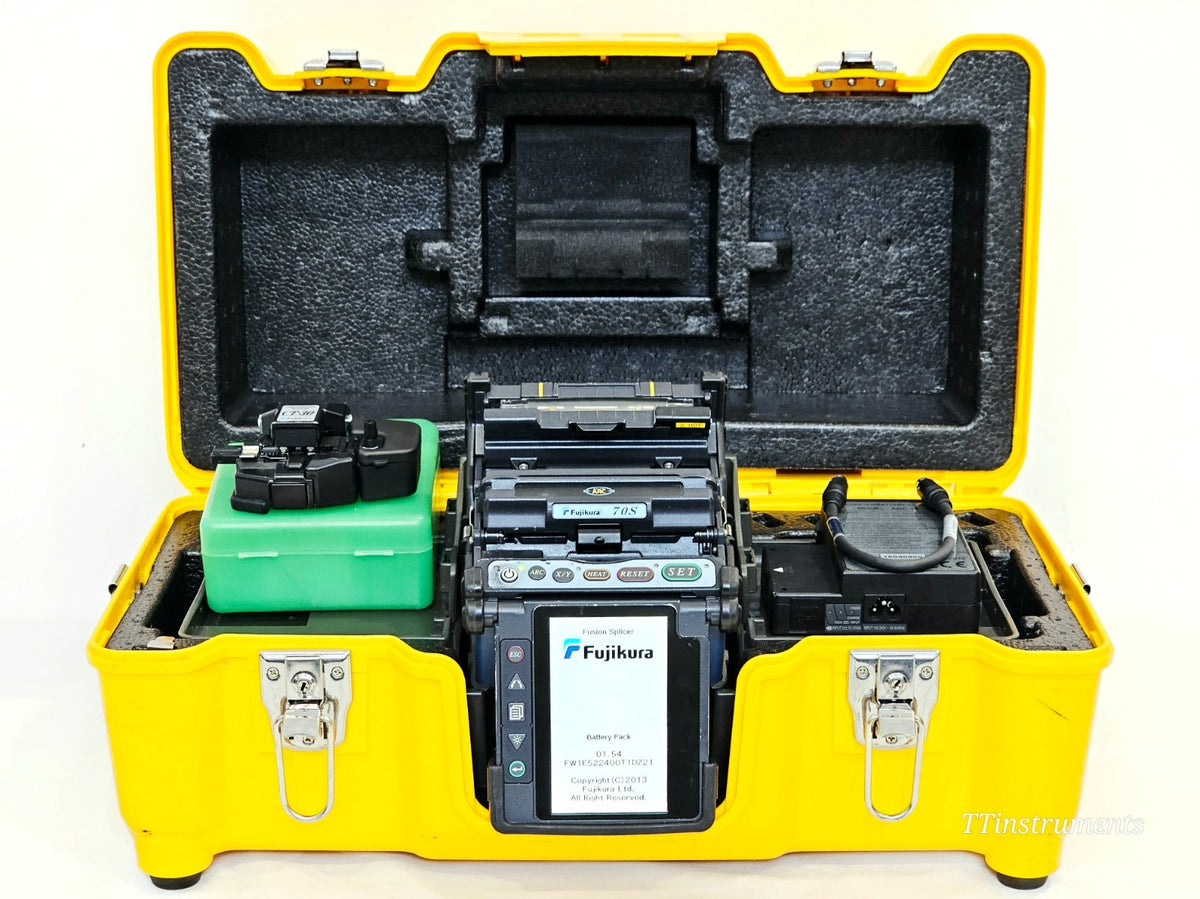

• Transit / Carry Case (CC-30)


The Fujikura FSM-70S is a professional-grade, core-to-core alignment single-fibre fusion splicer designed for high-efficiency splicing of SM, MM, DS, CS, NZDS and erbium-doped fibres.

It delivers a typical splice time of just 7 seconds and tube heating in as little as 13 seconds, making it well suited to field and van-based fibre installation and maintenance.

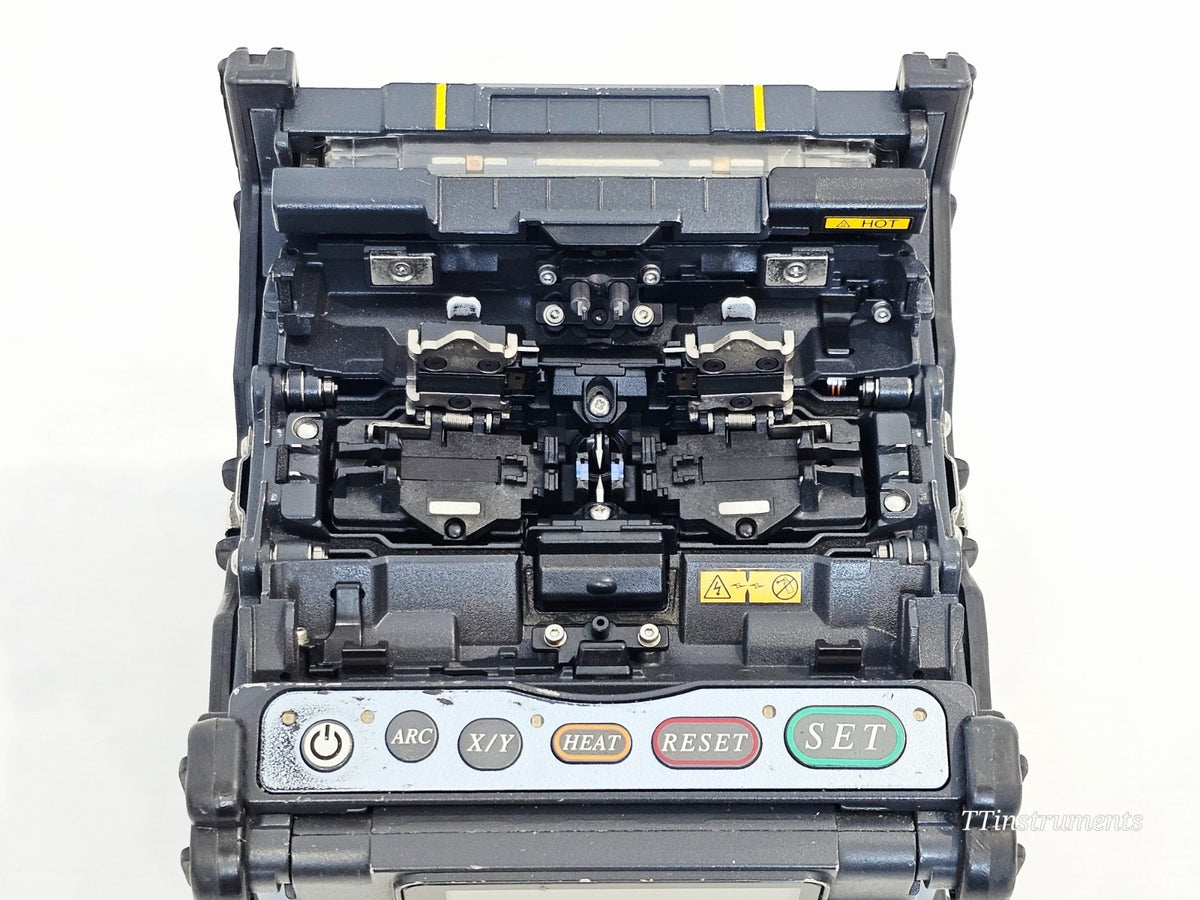

The FSM-70S features an automated programmable wind protector, clamshell tube heater and mirror-less optical system. It also incorporates a 4.7-inch TFT colour LCD monitor and a rugged chassis designed to withstand a 762 mm (30-inch) drop test.

Key Technical Specifications

Applicable Fibres:
SM (G.652 & G.657), MM (G.651.1), DS (G.653), CS (G.654), NZDS (G.655 & G.656), Erbium-doped

Typical Splice Loss:
0.02 dB (SM)
0.01 dB (MM)
0.04 dB (DS)
0.04 dB (NZDS)

Splicing Time:
Ultra Fast: 6 seconds
SM Fast: 7 seconds
SM Auto: 10 seconds
Auto: 15 seconds

Tube Heating Time:
13 seconds (FP-03 sleeve)
17 seconds (FP3-40)
5–16 seconds (micro sleeves)

Splicing Modes:
100 preset and user-programmable modes

Splice Result Storage:
Last 2,000 results stored in internal memory

Display:
4.7-inch TFT colour LCD
320× magnification (single axis)
200× magnification (dual axis)

Arc Calibration:
Automatic real-time calibration
Manual arc calibration also available

Electrode Life:
Up to 5,000 arc discharges per set

Battery (BTR-09):
Typically 200 splice/heat cycles per charge

Power Supply:
100–240 V AC (ADC-18)
10–15 V DC
14.8 V DC (BTR-09)

Wind Resistance:
Up to 15 m/s

Operating Conditions:
Altitude: 0–5,000 m
Temperature: –10 to +50°C
Humidity: 0–95% RH

Connectivity:
USB 1.1 (USB-B)
Mini-DIN 6-pin (HJS-02/03)
Bluetooth on 70S+ models

Dimensions:
146 W × 159 D × 150 H mm

Weight:
2.5 kg with ADC-18
2.7 kg with BTR-09

Drop Resistance:
762 mm (30-inch) drop test

Country of Manufacture:
Japan

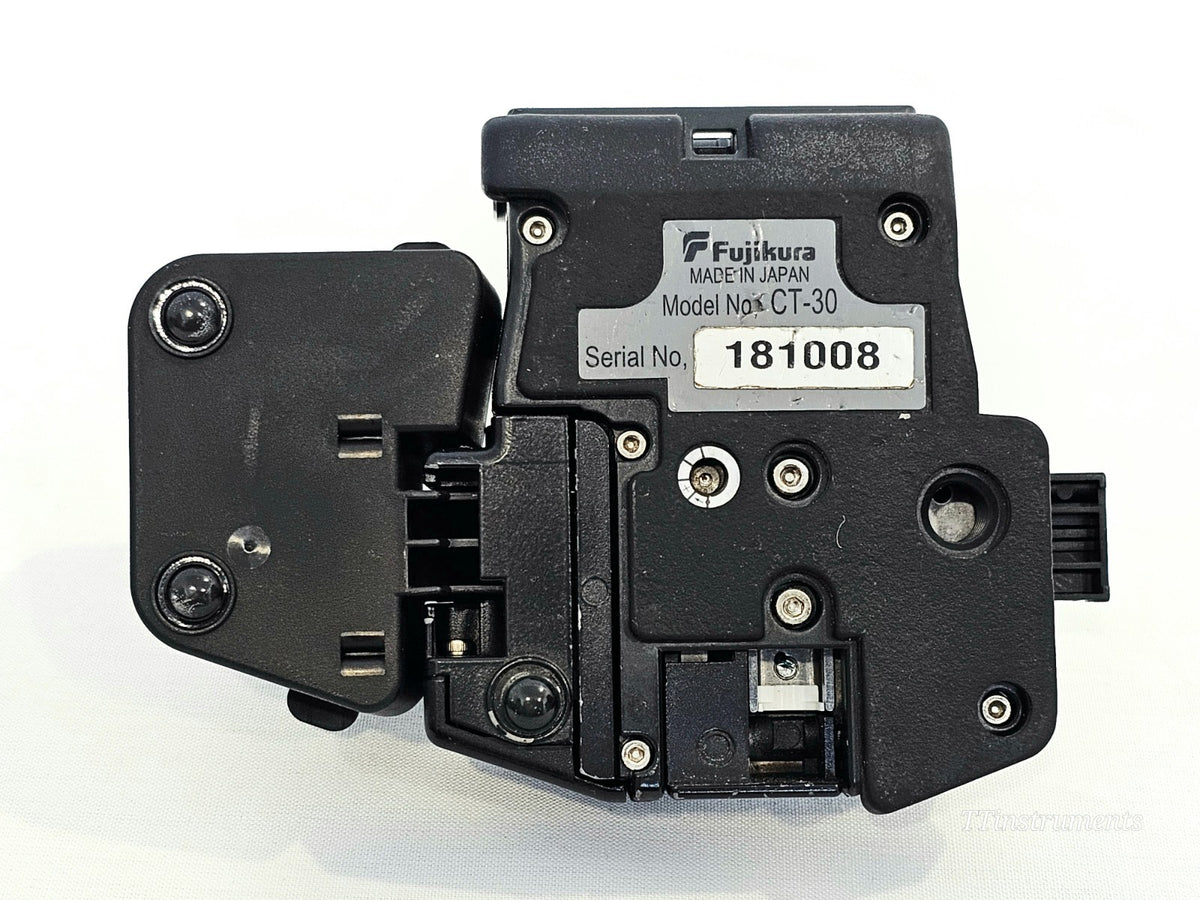

Fujikura CT-30 High Precision Fibre Cleaver

Blade Life:
Up to 48,000 single-fibre cleaves (16 positions × 3 height levels)

Ribbon Capability:
Up to 12-fibre ribbon
Up to 4,000 ribbon cleaves per blade

Cleave Angle:
Typically less than 0.5°

Fibre Compatibility:
250 µm to 900 µm coating
125 µm cladding

Scrap Collection:
Built-in scrap collector

Country of Manufacture:
Japan
