Condition: Used

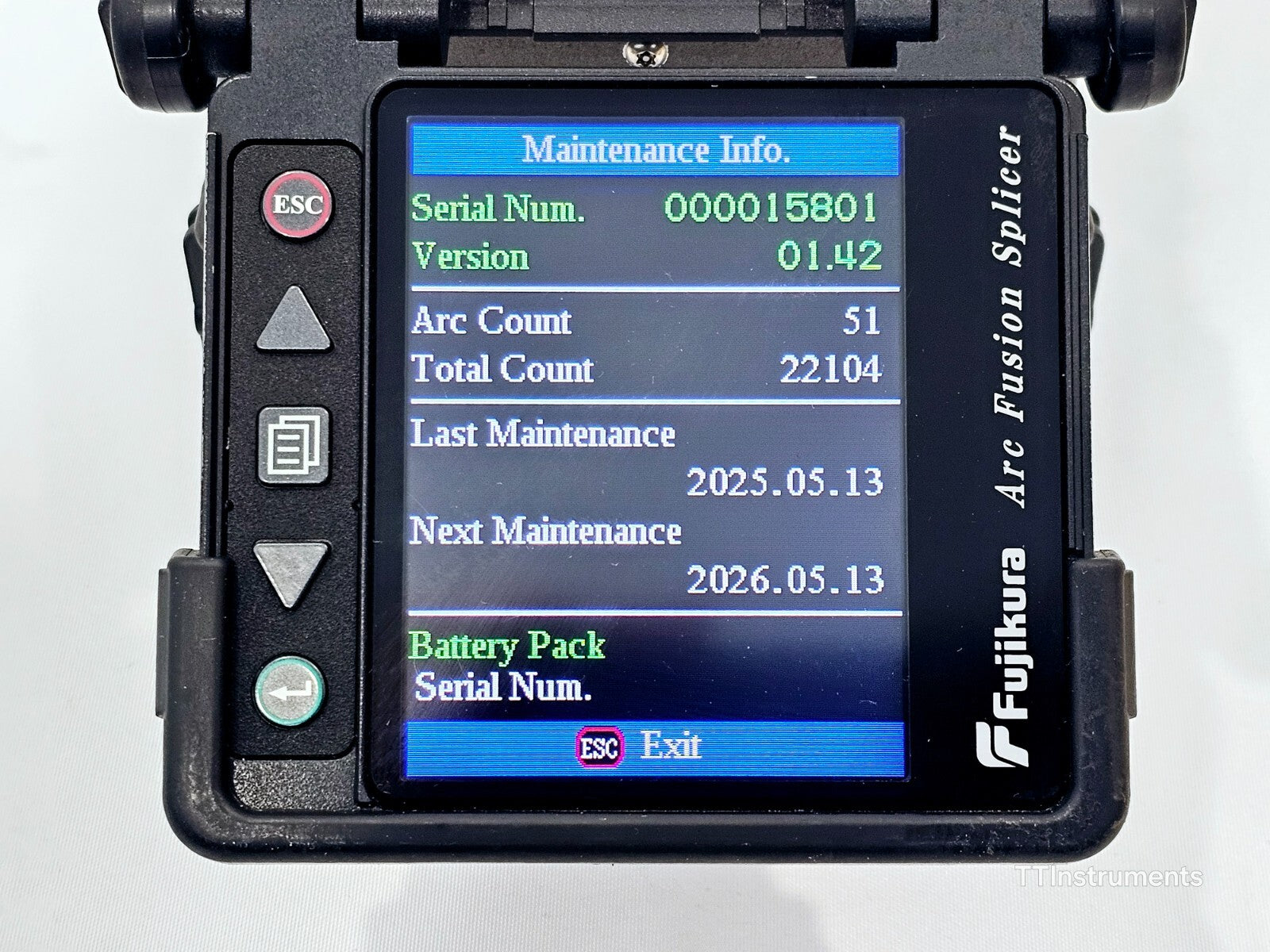

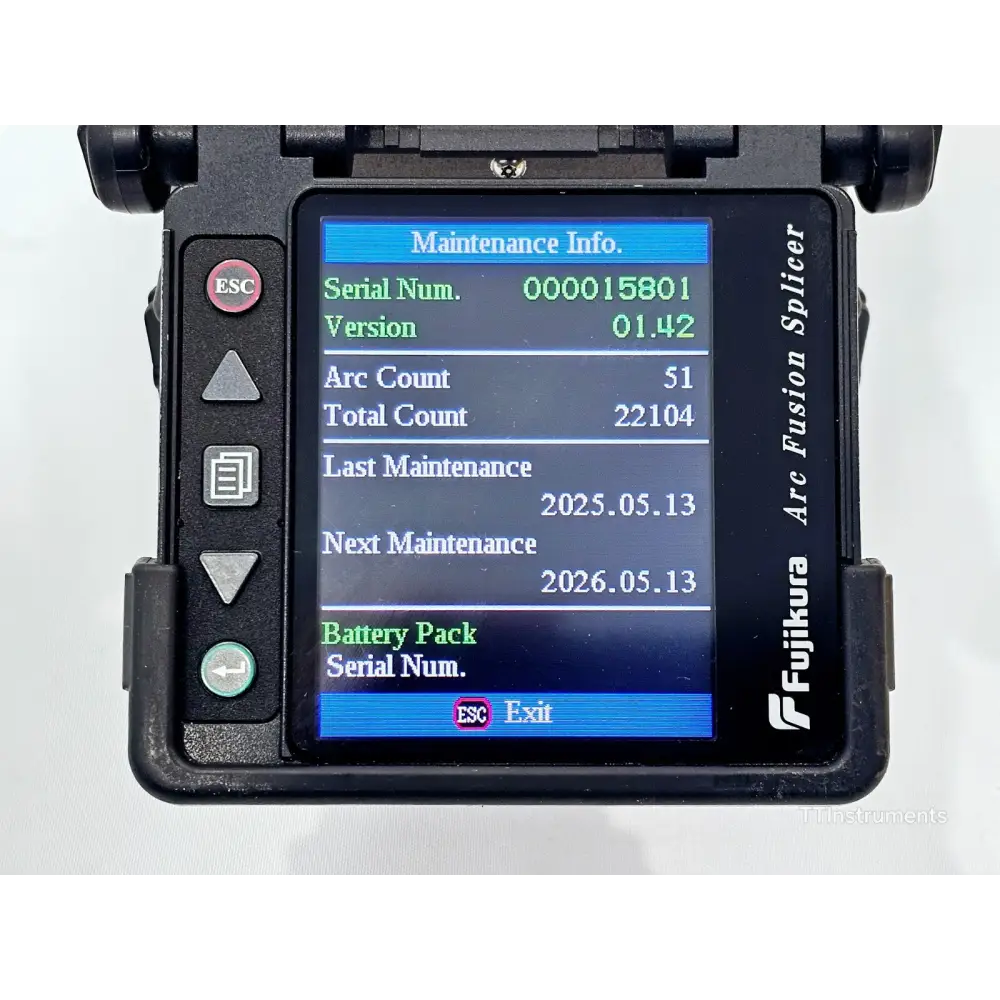

This Fujikura FSM-60S fusion splicer was professionally serviced in May 2025 and carries an ARC count of 22,104. It supports both single-mode and multimode fibre with core alignment technology, making it suitable for FTTx, telecom, and data centre splicing work. Please note that a cleaver is NOT included in this sale.

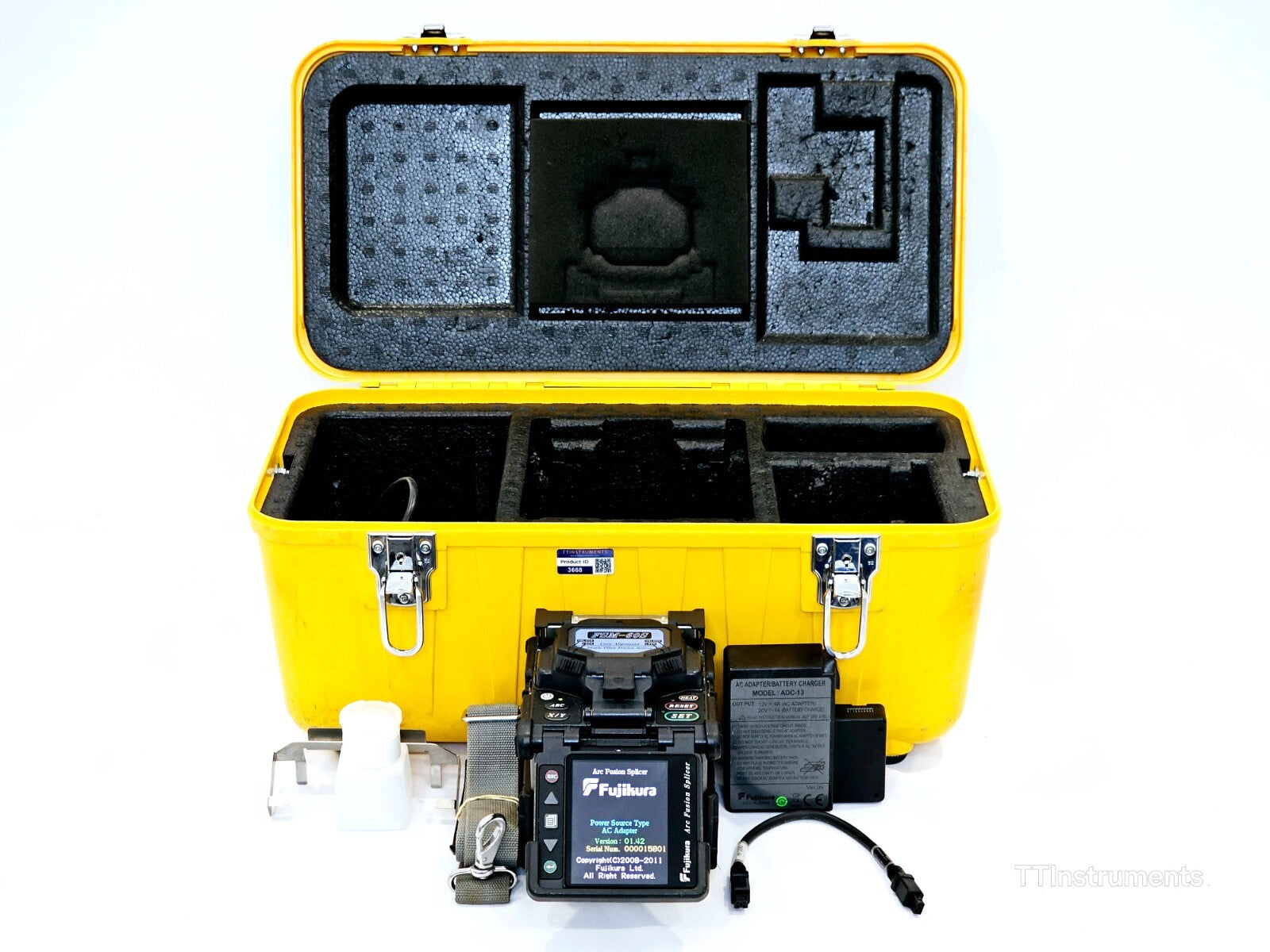

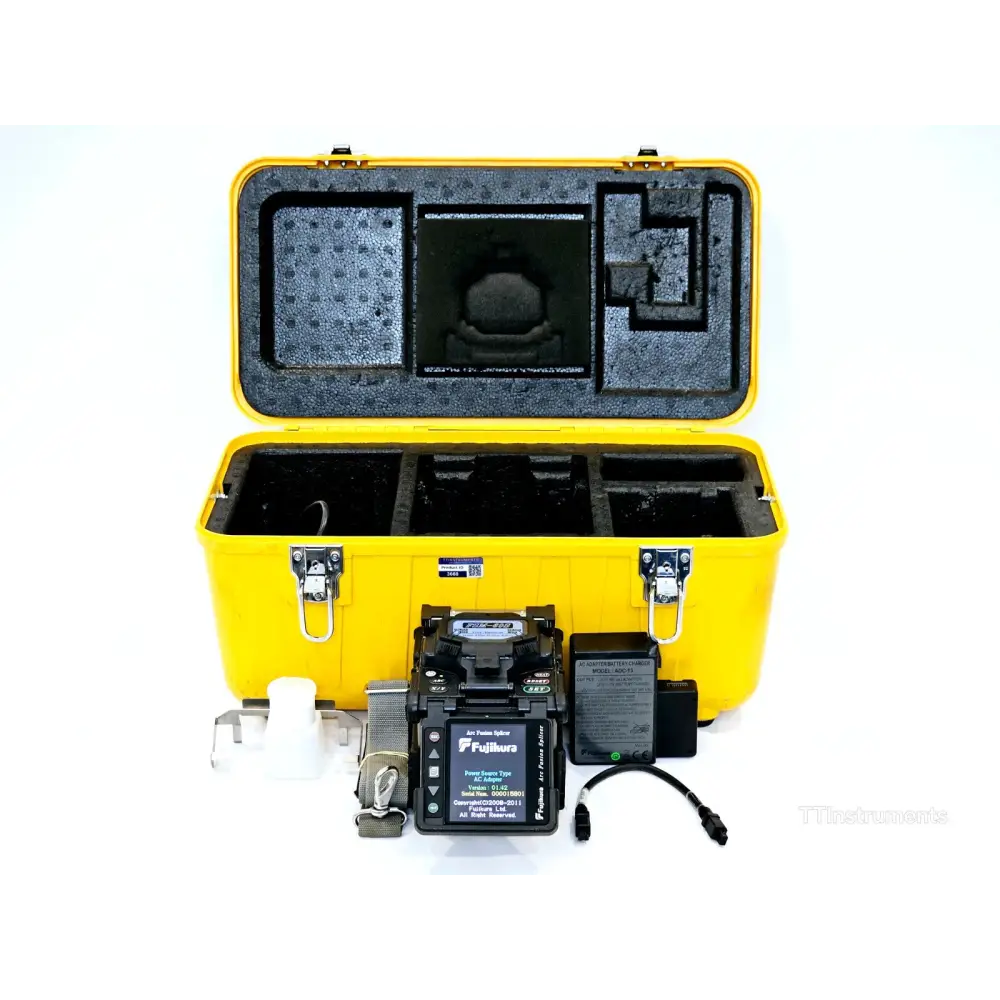

Included in the sale:
• Fujikura FSM-60S Splicer with clamps (ARC count 22,104)
• Battery Charger
• Power Adapter
• Carry Case

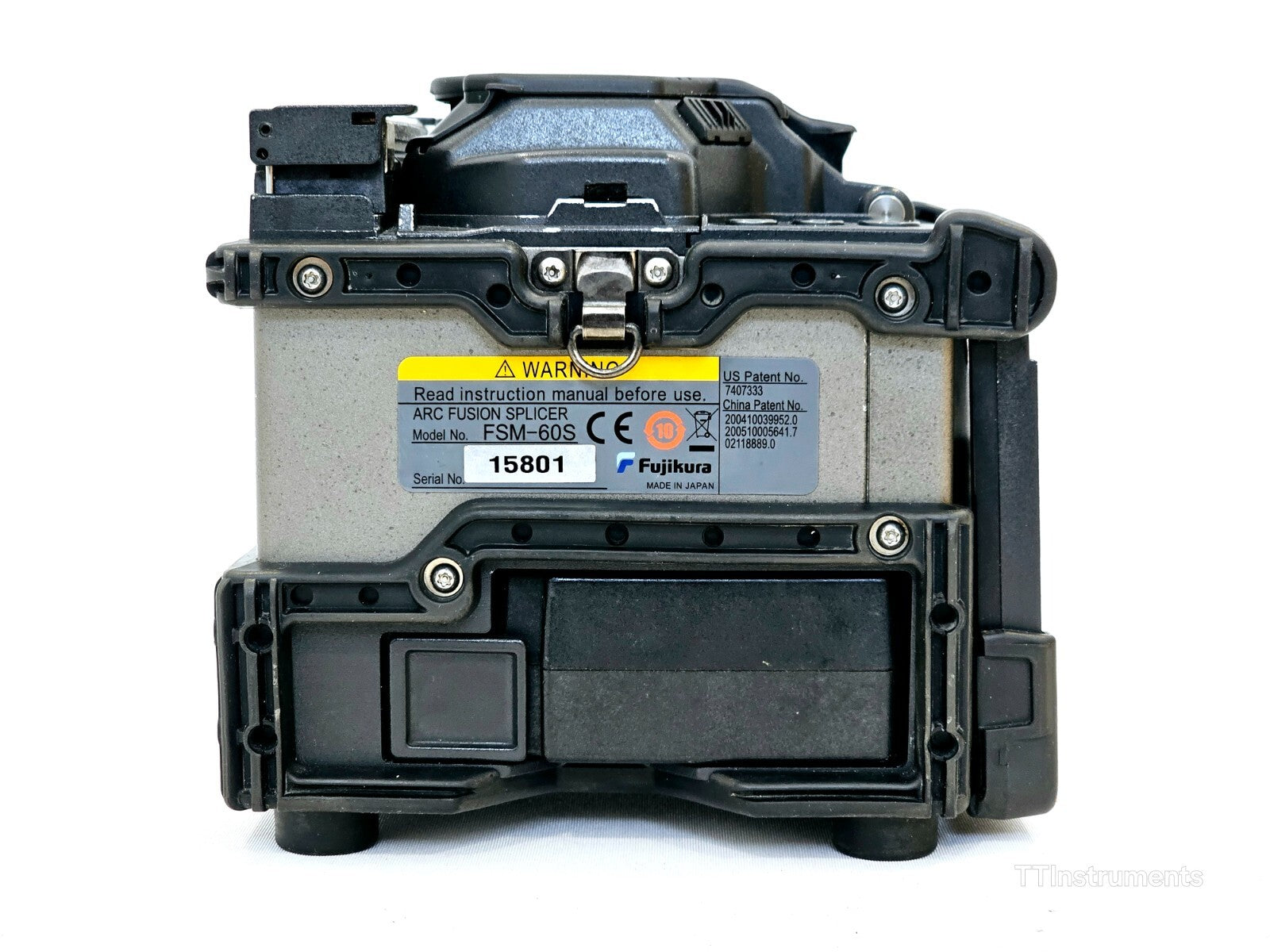

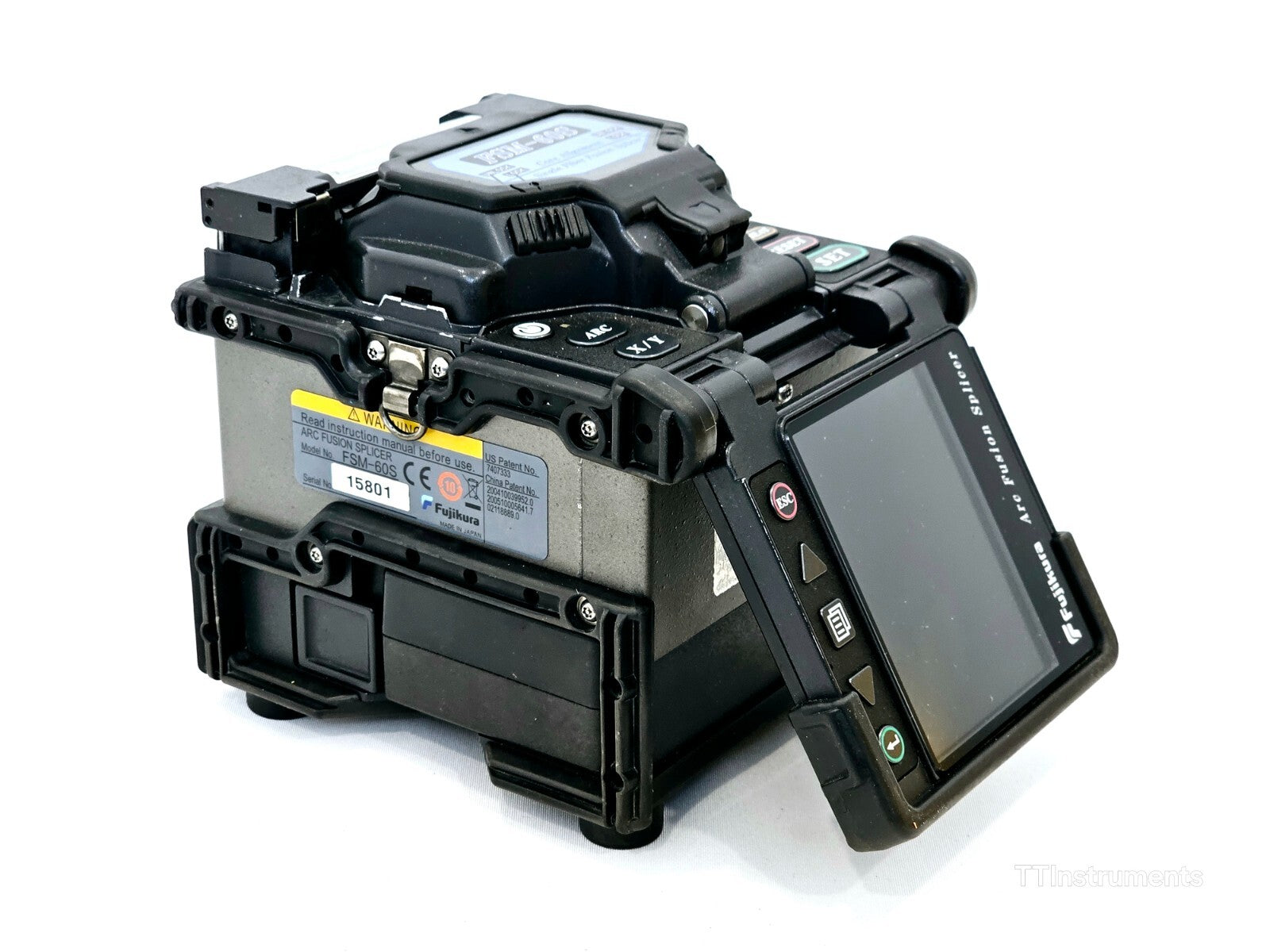

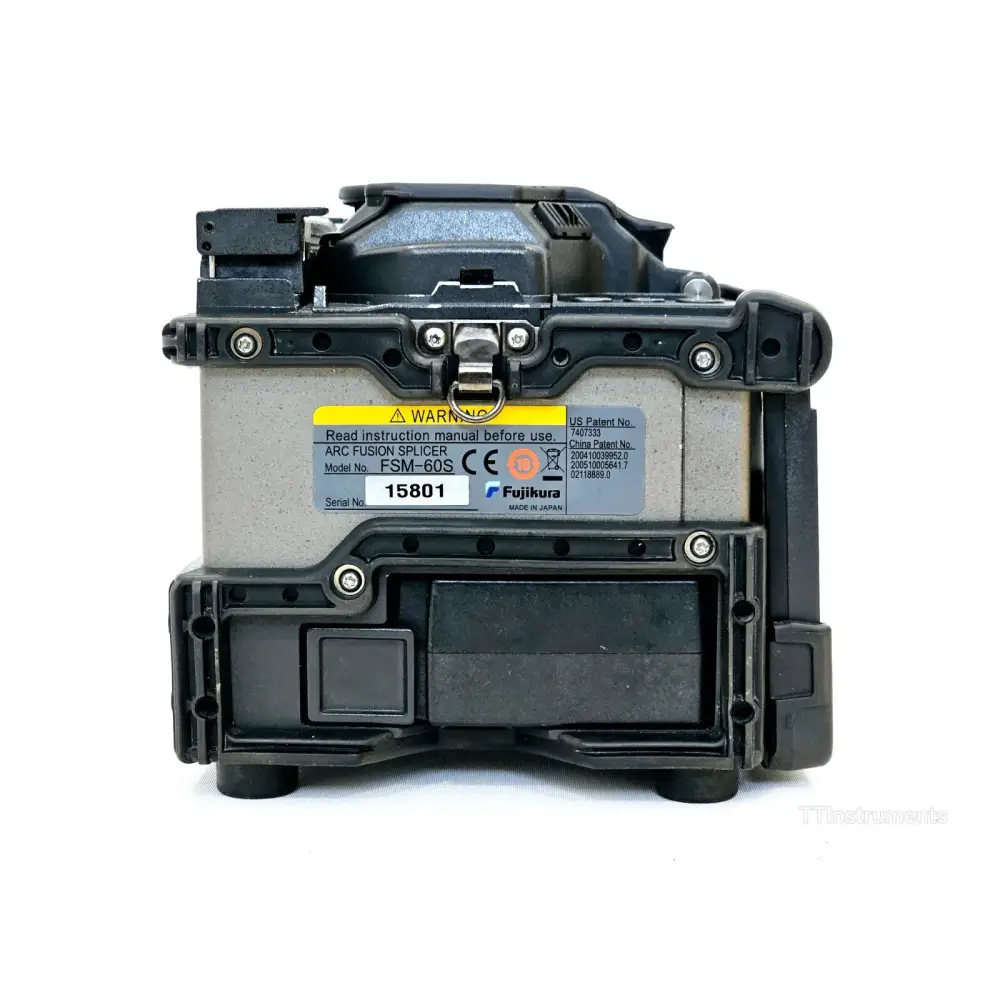

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-60S is a high-performance core alignment fusion splicer designed for professional fibre optic installation and maintenance. Suitable for both single-mode (SM) and multimode (MM) fibres, the FSM-60S delivers fast splice times and low splice loss, making it well suited to FTTx, telecommunications, and data centre applications.

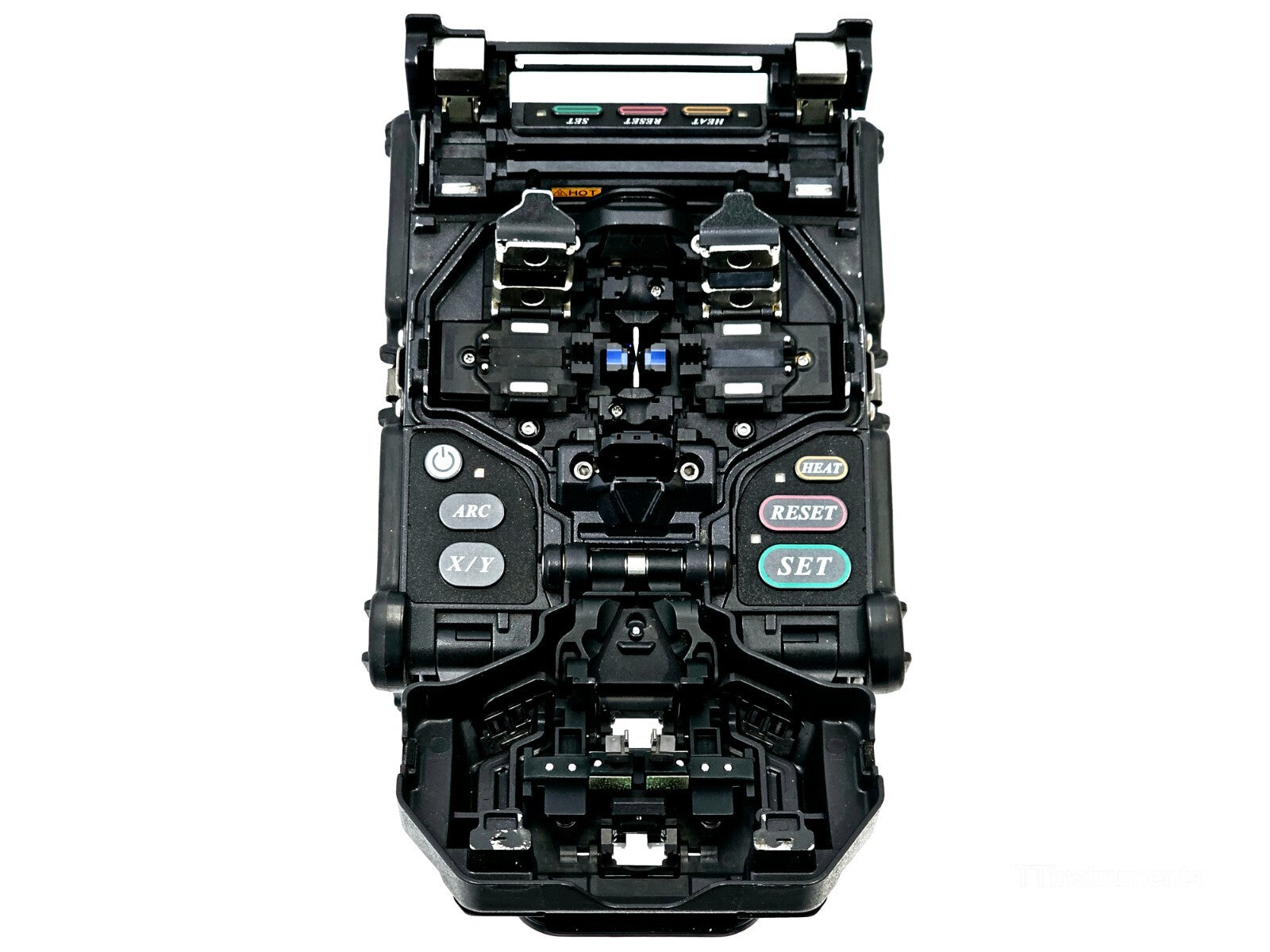

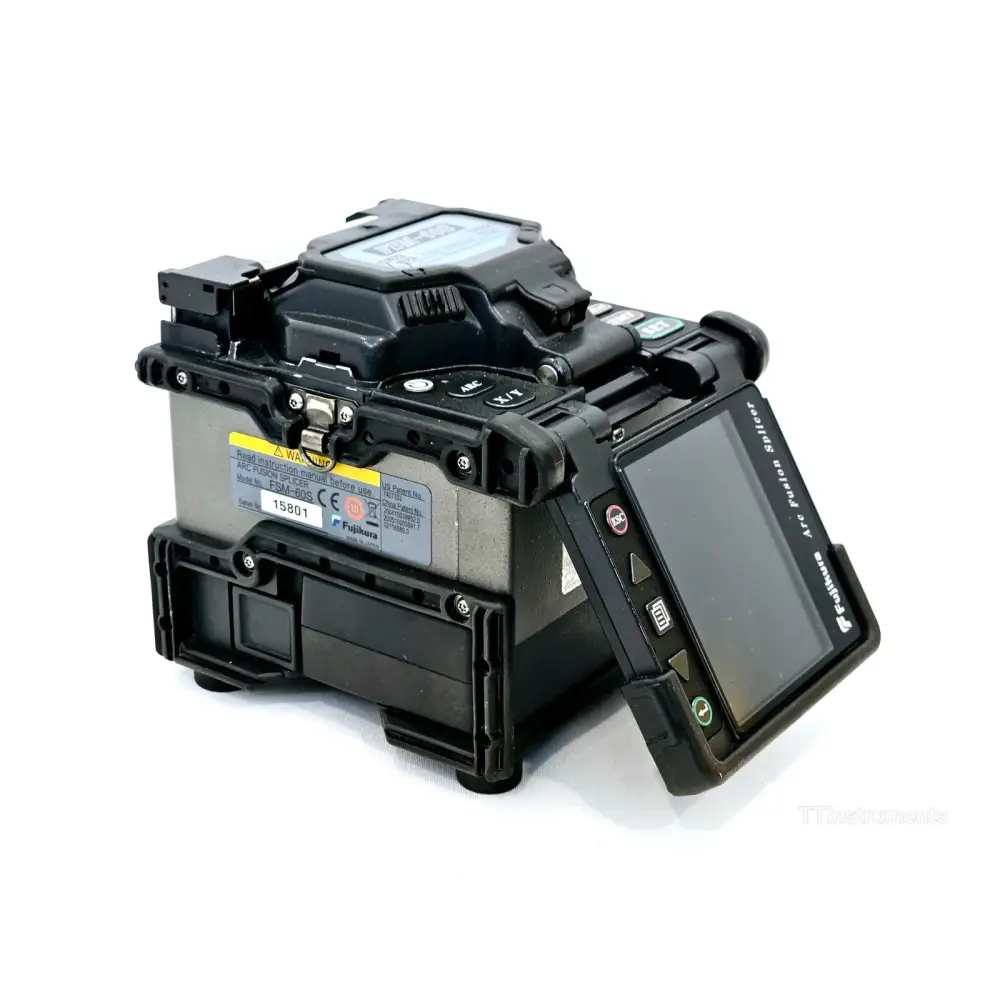

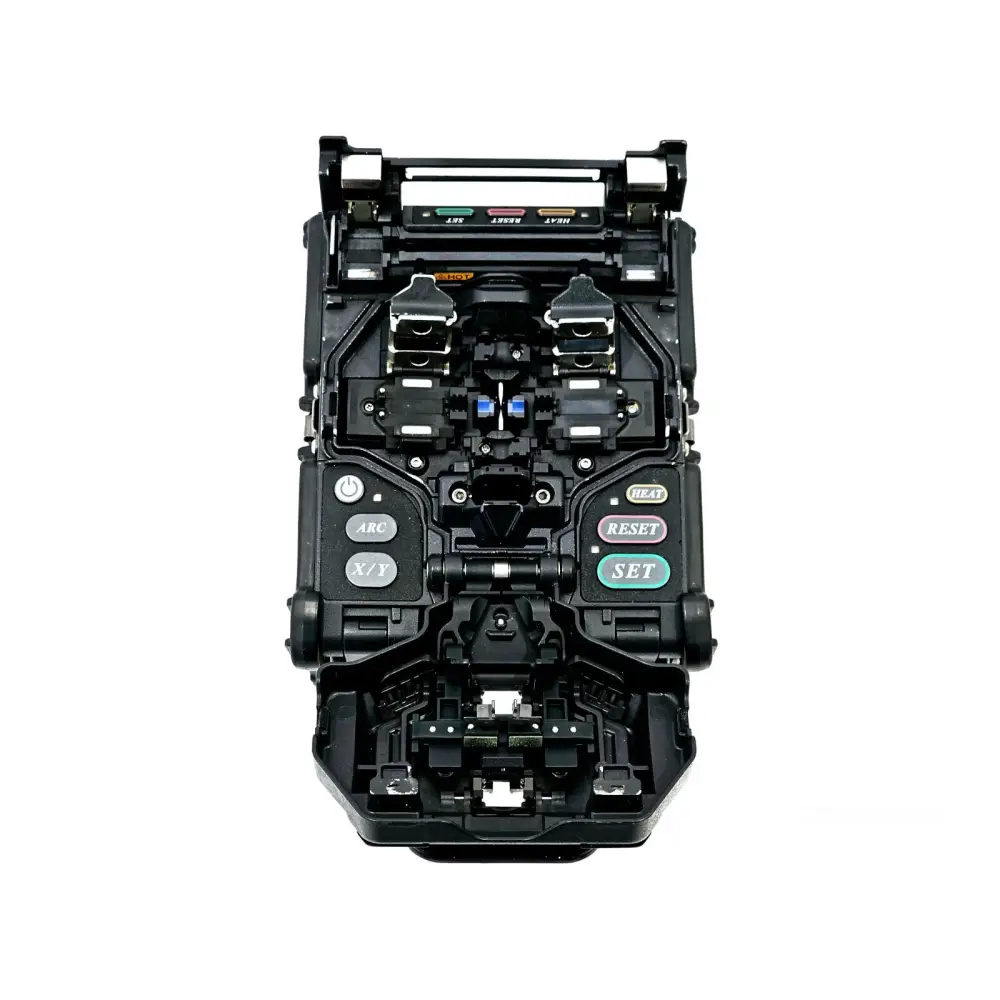

The FSM-60S features Fujikura's proven core alignment technology, automatically aligning fibre cores for optimum splice quality. The large, high-resolution colour LCD touchscreen provides clear image display and easy operation, while the compact and robust enclosure is designed to withstand demanding field environments.

Key Specifications:
Splicing Method: Core alignment
Applicable Fibre: SM, MM, DS, NZDS
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Splice Time: Approx. 9 seconds
Heating Time: Approx. 25 seconds
Tension Test: 1.96 N (standard)
Fibre Outer Diameter: 0.4–3.0 mm
Battery Life: Approx. 200 splice and heat cycles per charge
Display: Large colour LCD with touchscreen
Dimensions: Approx. 130 × 150 × 145 mm
Weight: Approx. 2.1 kg (with battery)
Operating Temperature: −10°C to +50°C
Storage Temperature: −40°C to +80°C

The FSM-60S is engineered for reliability in the field, combining speed, accuracy, and ease of use in a rugged, portable package.
