Condition: Seller refurbished

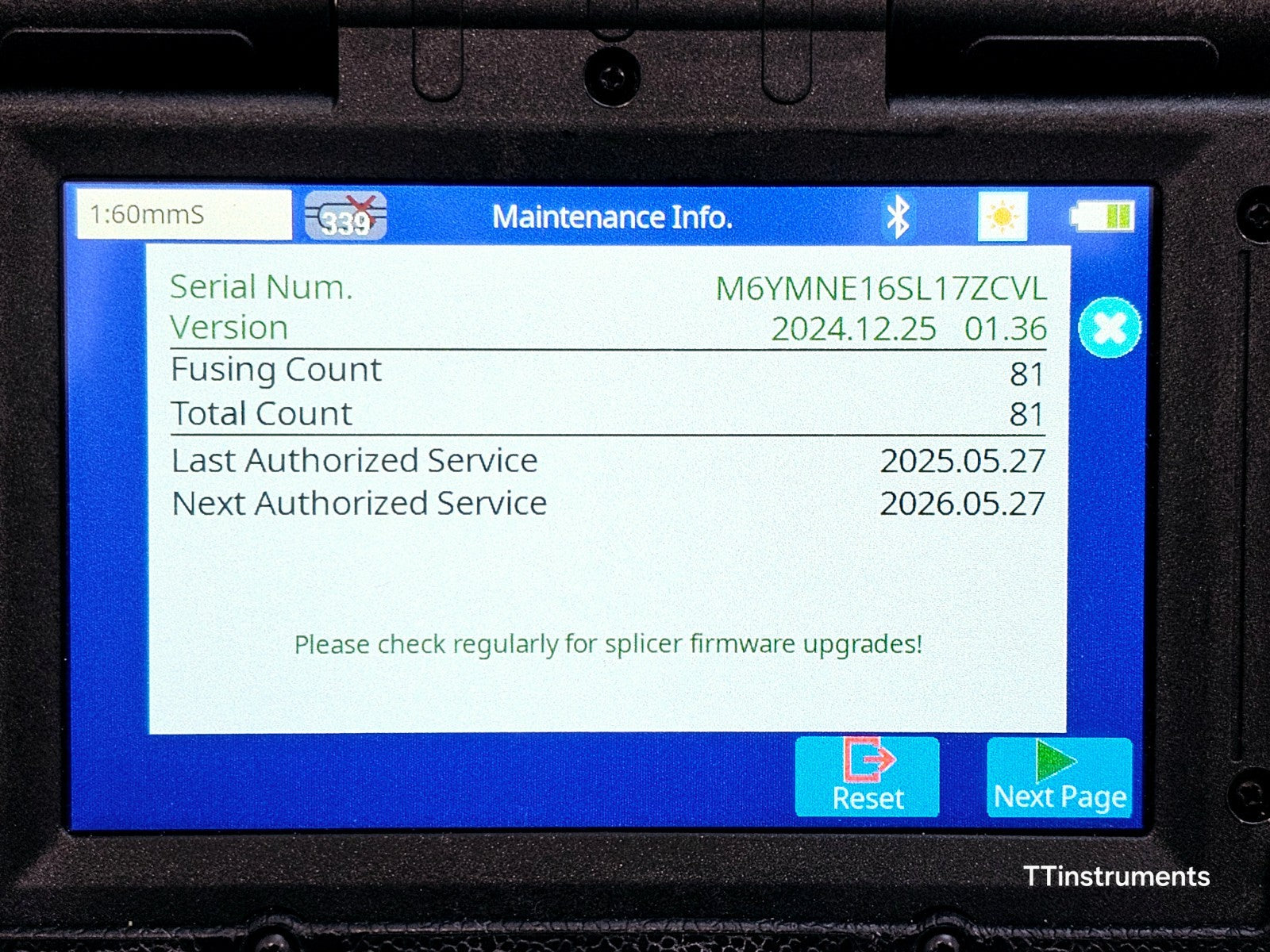

Like NEW, in EXCELLENT condition, barely used with only 81 splices done! ARC Count 81. Note the pictures are of actual product. See description below of what is included.

This item has been cleaned and serviced by an approved service center in May 2025.

This is an EU licensed model.

Included in the sale:

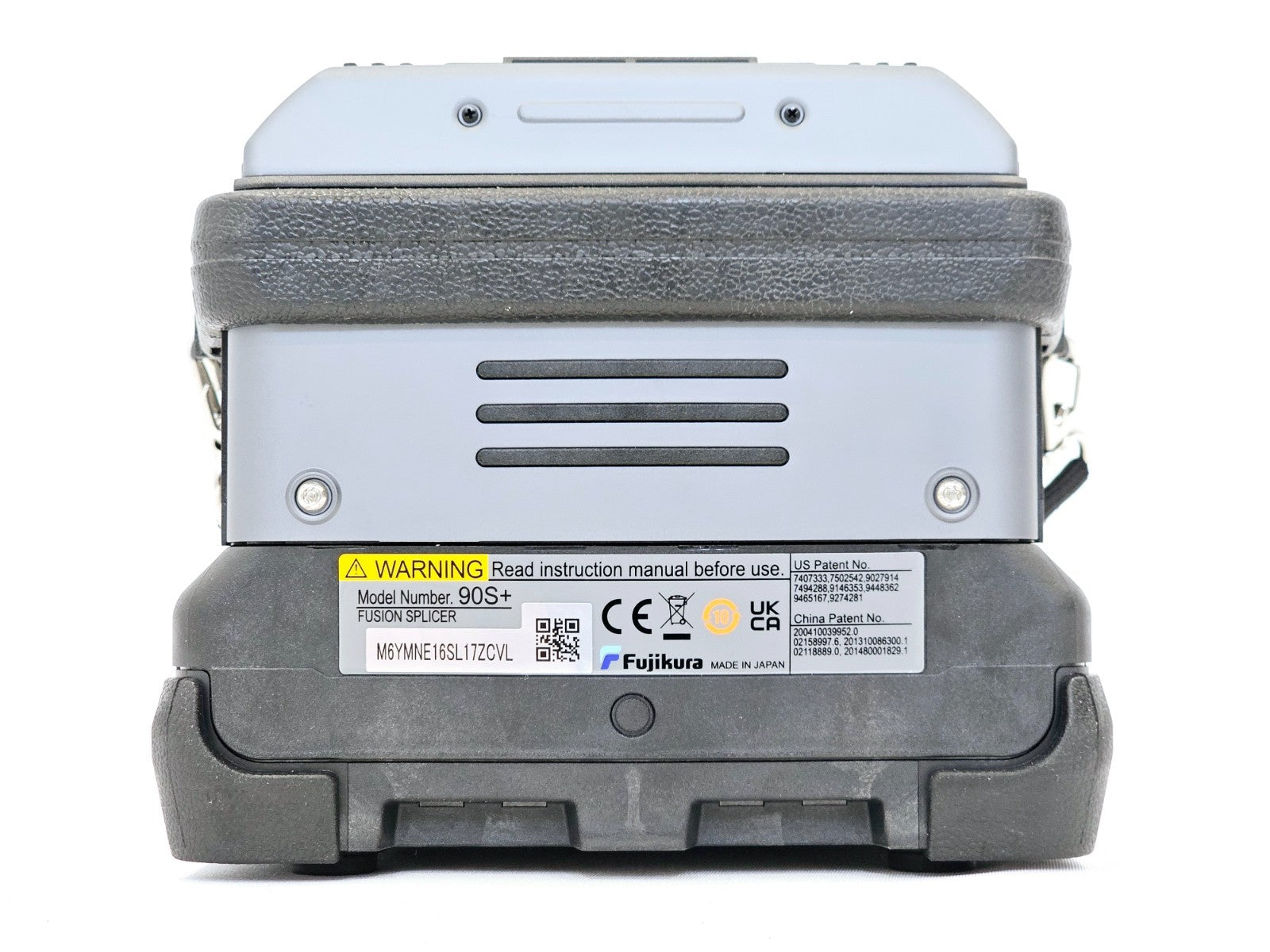

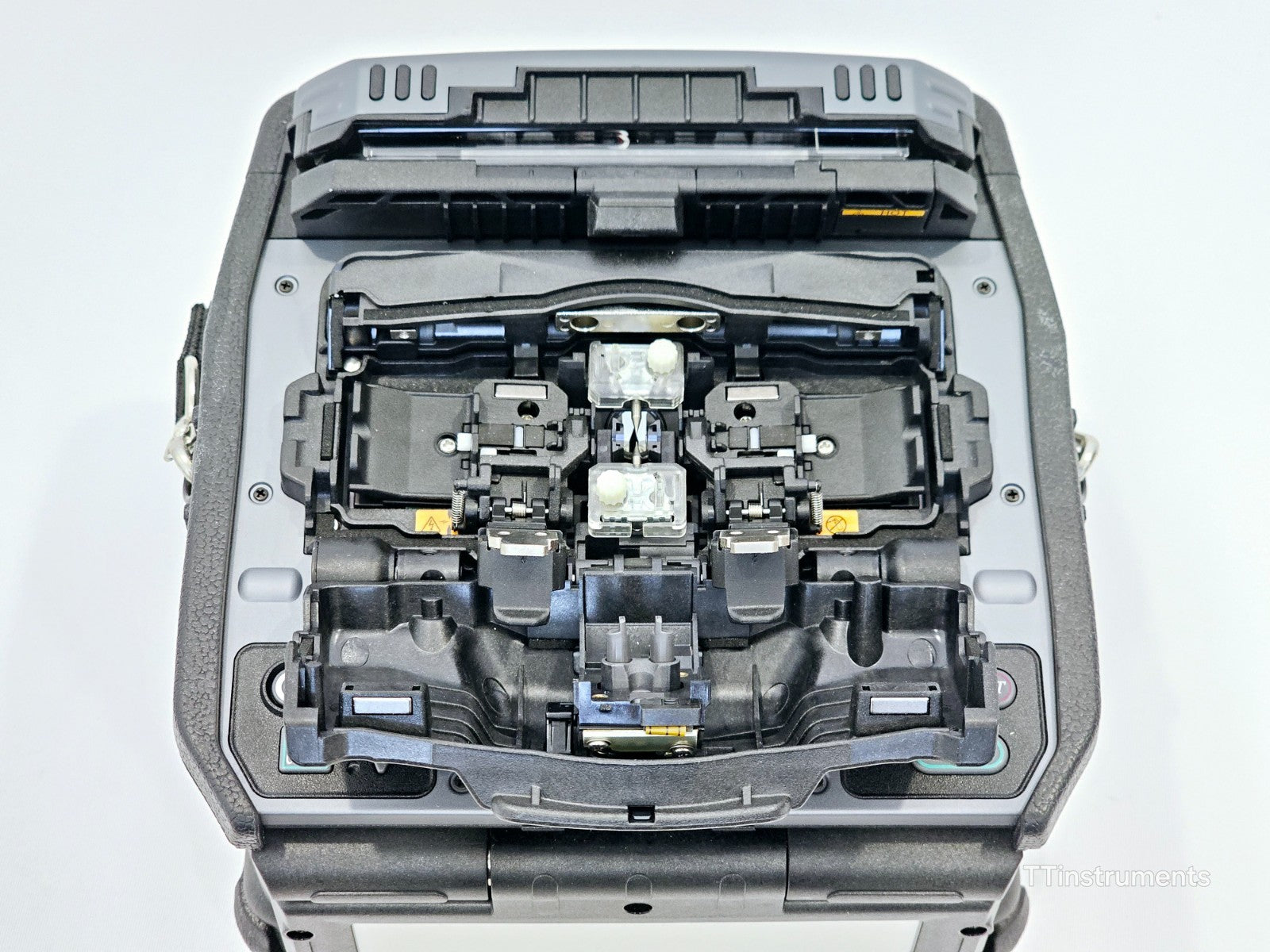

• Fujikura 90S+ SM MM Core Alignment Fiber Fusion Splicer (ARC count only 81)

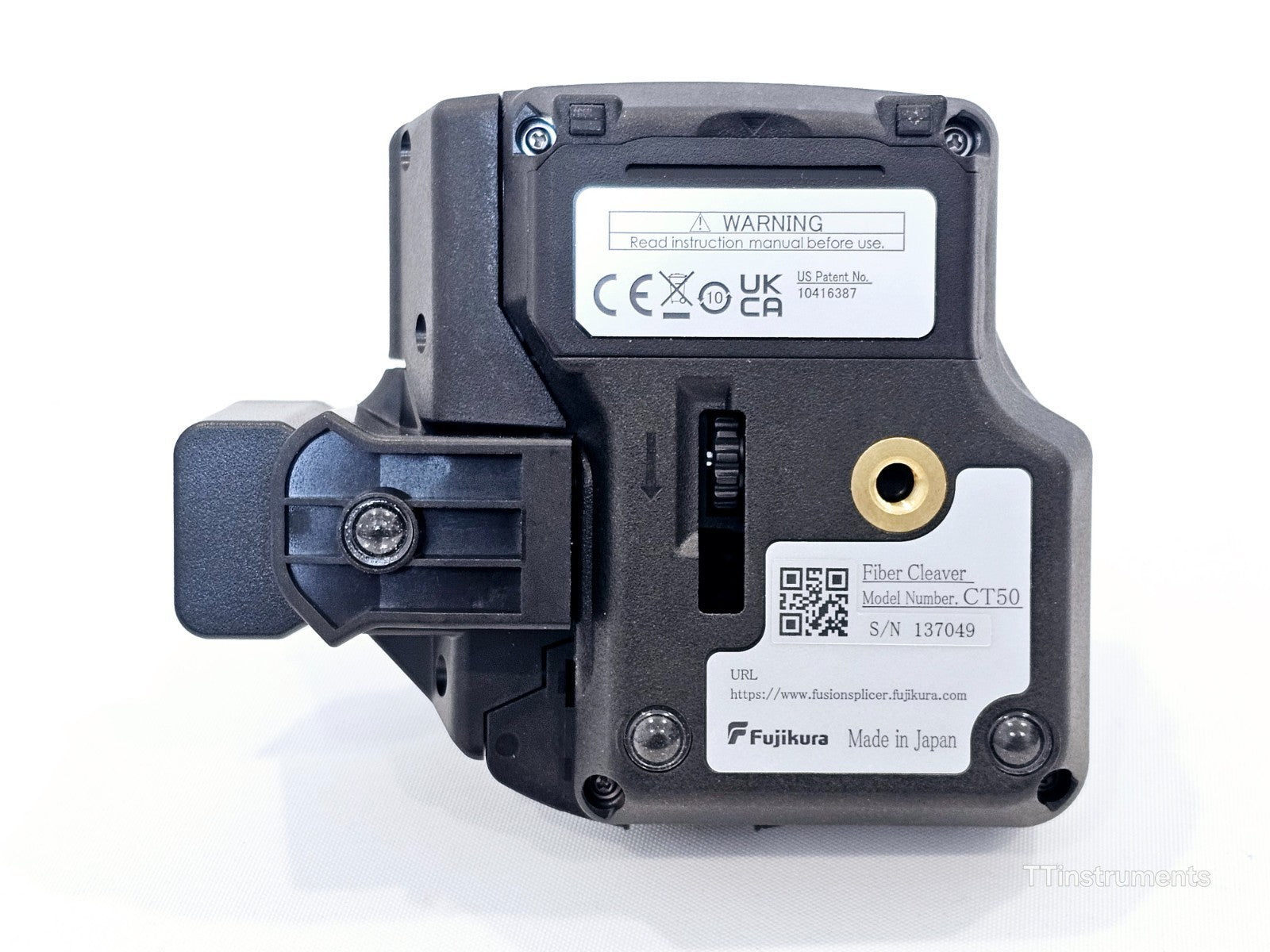

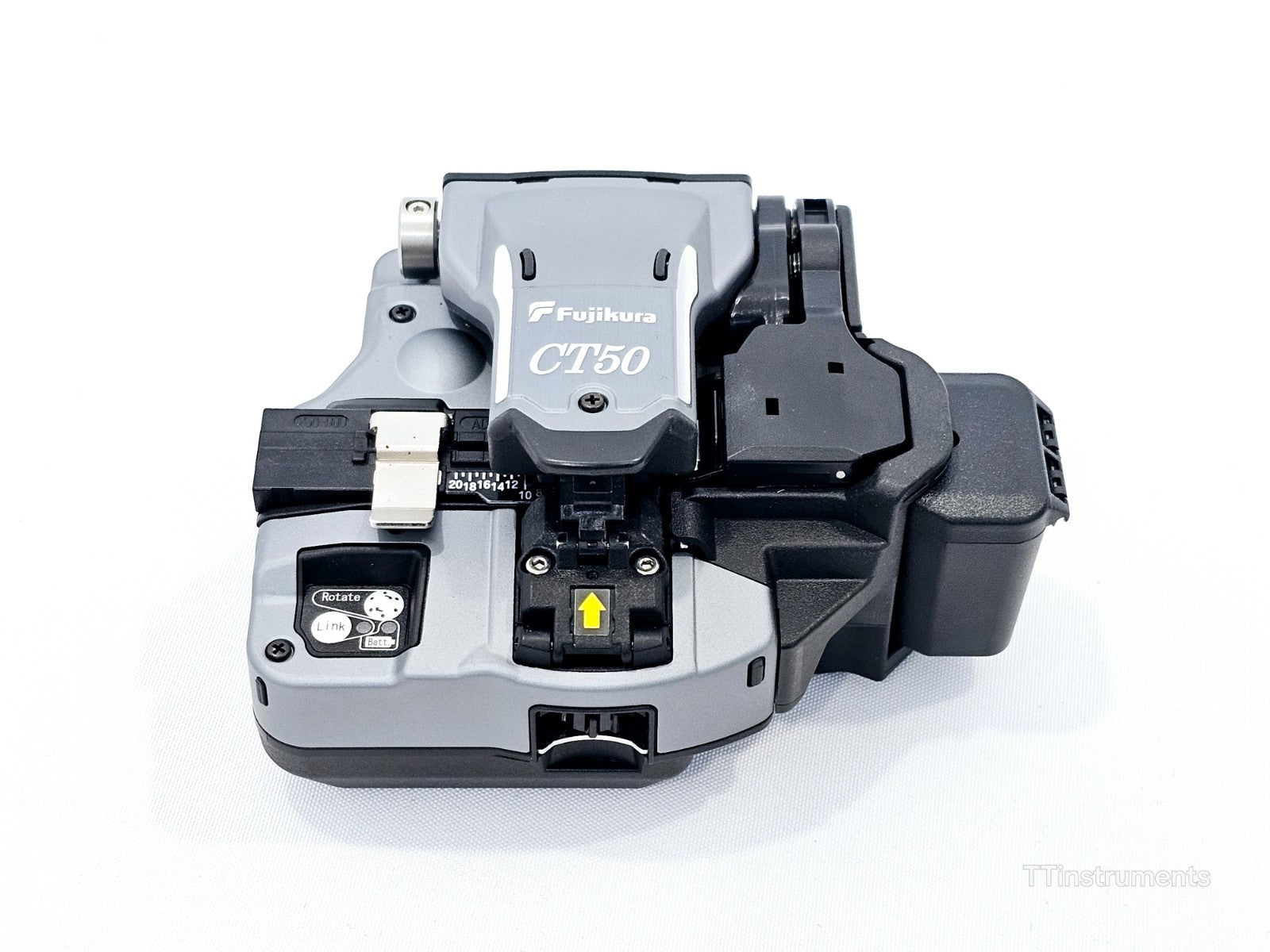

• Fujikura CT-50 High Precision Fiber Cleaver with AD50 guide plate + case
• AC Adapter/Charger
• Battery Pack (BTR-15)
• Hard Carrying Case
• Alcohol Pot
• Work Tray

The 90S+ is a single fibre core alignment fusion splicer setting a new standard in the market for fusion splicing. The 90S+ is bristling with new and enhanced features specifically developed to help users work faster with higher precision.

With market-first fully automated features, the new 90S+ makes the splicing process faster and simpler. Its Active Blade Management Technology (ABMT) improves the efficiency of the CT50 cleaver, resulting in increased productivity and reduced costs. Thanks to Active Fusion Control Technology (AFCT), the 90S+ analyses the condition of the cleave end face to perform optimal fusion control and minimise splice loss.

The 90S+ delivers a reduction in overall splice process time when compared to the previous 70S+ model. Such an achievement has been made possible thanks to a combination of improvements to the reaction time of the automated wind protectors and automated heater, new fibre retention clamps and improved universal sheath clamps. Thanks to a redesigned internal structure which matches the protection sleeve to the fusion splice point, successful splicing is accomplished without the need for the user to touch the 90S+ once the process has started.

FIBRE ALIGNMENT METHOD: Active core alignment

SPLICEABLE FIBRE COUNT: Single fibre

FIBRE TYPE: Single mode and multimode optical fibre

CLADDING DIAMETER: 80μm - 150μm

SHEATH CLAMP COATING: 3000μm maximum coating diameter

SHEATH CLAMP CLEAVE LENGTH1: 5mm - 16mm

ITU-T G.652 SPLICE LOSS2: Avg. 0.02dB

ITU-T G.651 SPLICE LOSS2: Avg. 0.01dB

ITU-T G.653 SPLICE LOSS2: Avg. 0.04dB

ITU-T G.655 SPLICE LOSS2: Avg. 0.04dB

ITU-T G.657 SPLICE LOSS2: Avg. 0.02dB

SM FAST MODE SPLICE TIME3: Avg. 7 to 9 seconds

PROTECTION SLEEVE TYPE: Heat-shrinkable sleeve

SLEEVE LENGTH: Max. 66mm

SLEEVE DIAMETER: Max. 6mm before shrinking

60MM SLIM MODE HEAT TIME4: Avg. 9 to 10 seconds

60MM MODE HEAT TIME4: Avg. 13 to 15 seconds

FIBRE TENSILE TEST FORCE: Approx 2.0N

ELECTRODE LIFE5: Approx 5000 splices

WIDTH: Approx. 170mm without projection

DEPTH: Approx. 173mm without projection

HEIGHT: Approx. 150mm without projection

WEIGHT: Approx. 2.8kg including battery

OPERATING TEMPERATURE: -10 to 50 °C

STORAGE TEMPERATURE: -40 to 80 °C

OPERATING HUMIDITY: 0 to 95% RH non-condensing

OPERATING ALTITUDE: Max. 5000m

AC ADAPTOR INPUT: AC100 to 240V, 50/60Hz, Max. 1.5A

BATTERY TYPE: Rechargeable Lithium Ion

BATTERY OUTPUT: Approx. DC14.4V, 6,380mAh

BATTERY CAPACITY6: Approx. 300 splice and heat cycles

BATTERY RECHARGE TEMPERATURE RANGE: 0 to 40 °C

BATTERY STORAGE TEMPERATURE: -20 to 30 °C

BATTERY LIFE7: Approx. 500 recharge cycles

LCD DISPLAY: 4.9 inch TFT colour souch screen

DISPLAY MAGNIFICATION: Approx. 200x - 320x

V-GROOVE ILLUMINATION: LED lamp

PC INTERFACE: USB 2.0 Mini B connector

EXTERNAL LED LAMP INTERFACE: USB 2.0 A connector Approx. DC5V, 500mA

WIRELESS CONNECTIVITY8: Bluetooth 4.1 LE

SPLICE MODE DATA STORAGE7: 100 splice modes

HEAT MODE DATA STORAGE: 30 heat modes

SPLICE RESULT DATA STORAGE: 20000 splices

SPLICE IMAGE DATA STORAGE: 100 images

TRIPOD SCREW HOLE: 1/4-20UNC
