Condition: Refurbished

This Fujikura 90S+ is in excellent, like-new condition with an arc count of only 124 splices — barely used. The unit has been cleaned and professionally serviced by an approved service centre in June 2025. This is an EU licensed model.

Included in the sale:

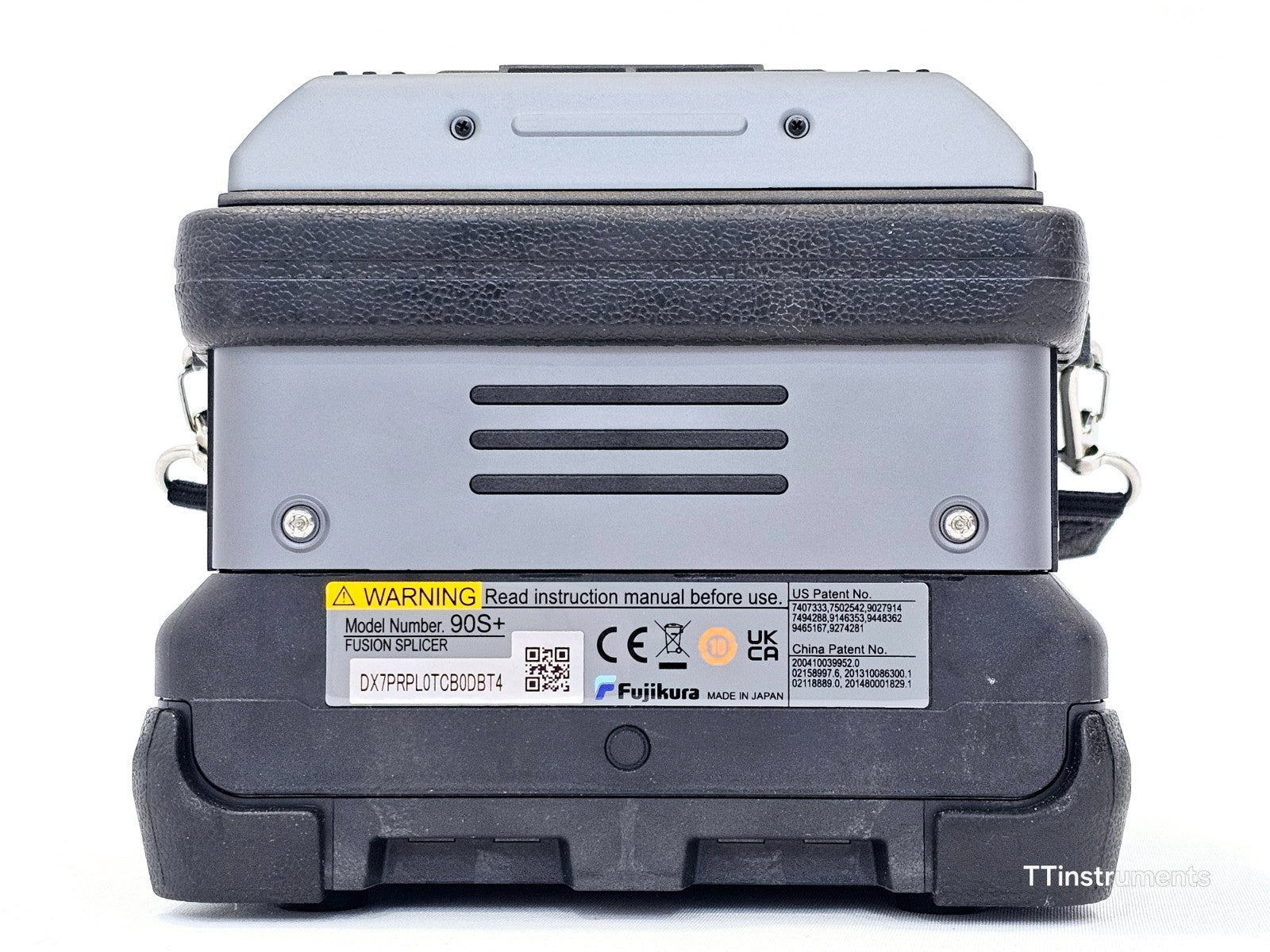

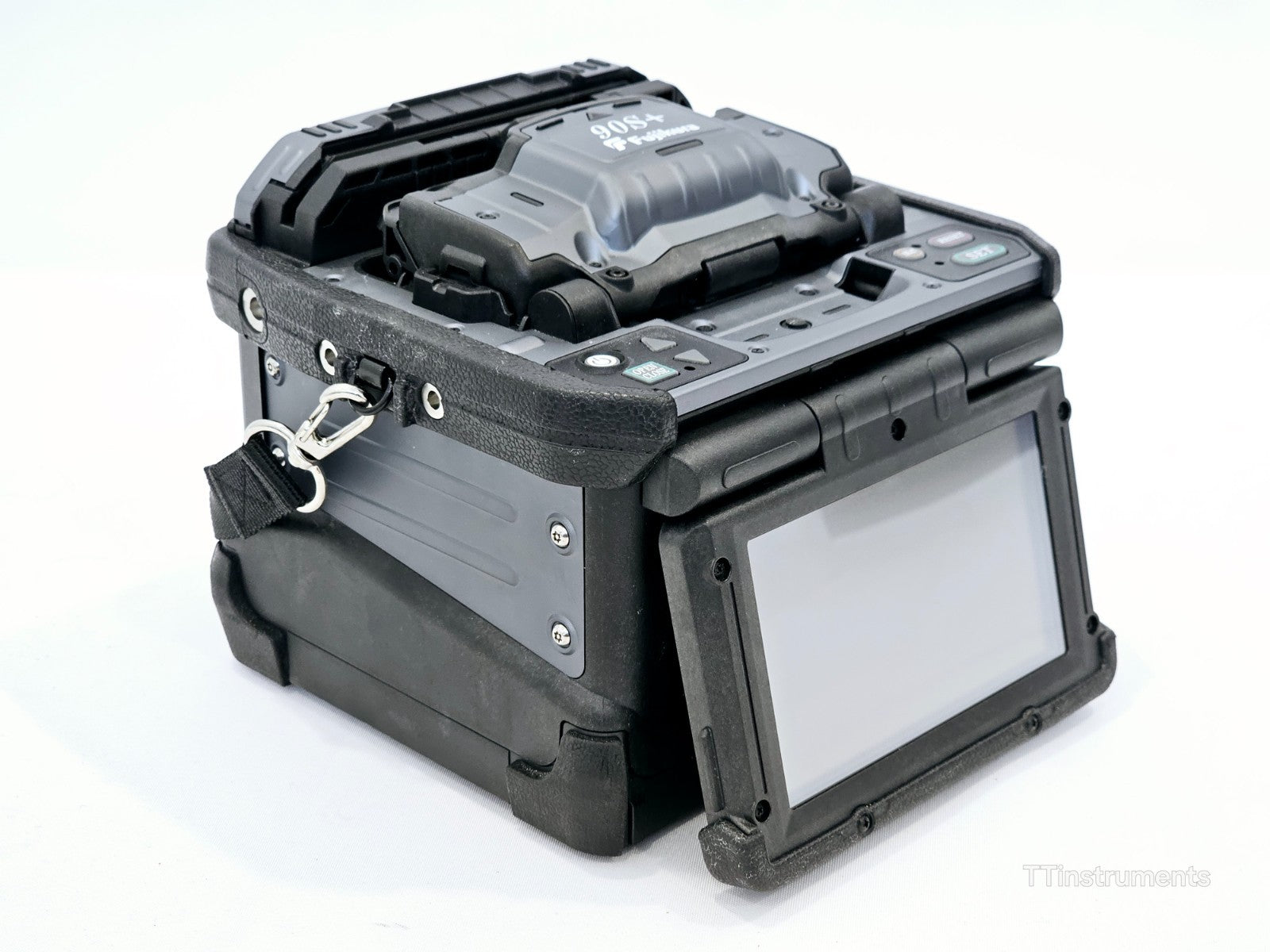

• Fujikura 90S+ SM/MM Core Alignment Fibre Fusion Splicer (arc count: 124)

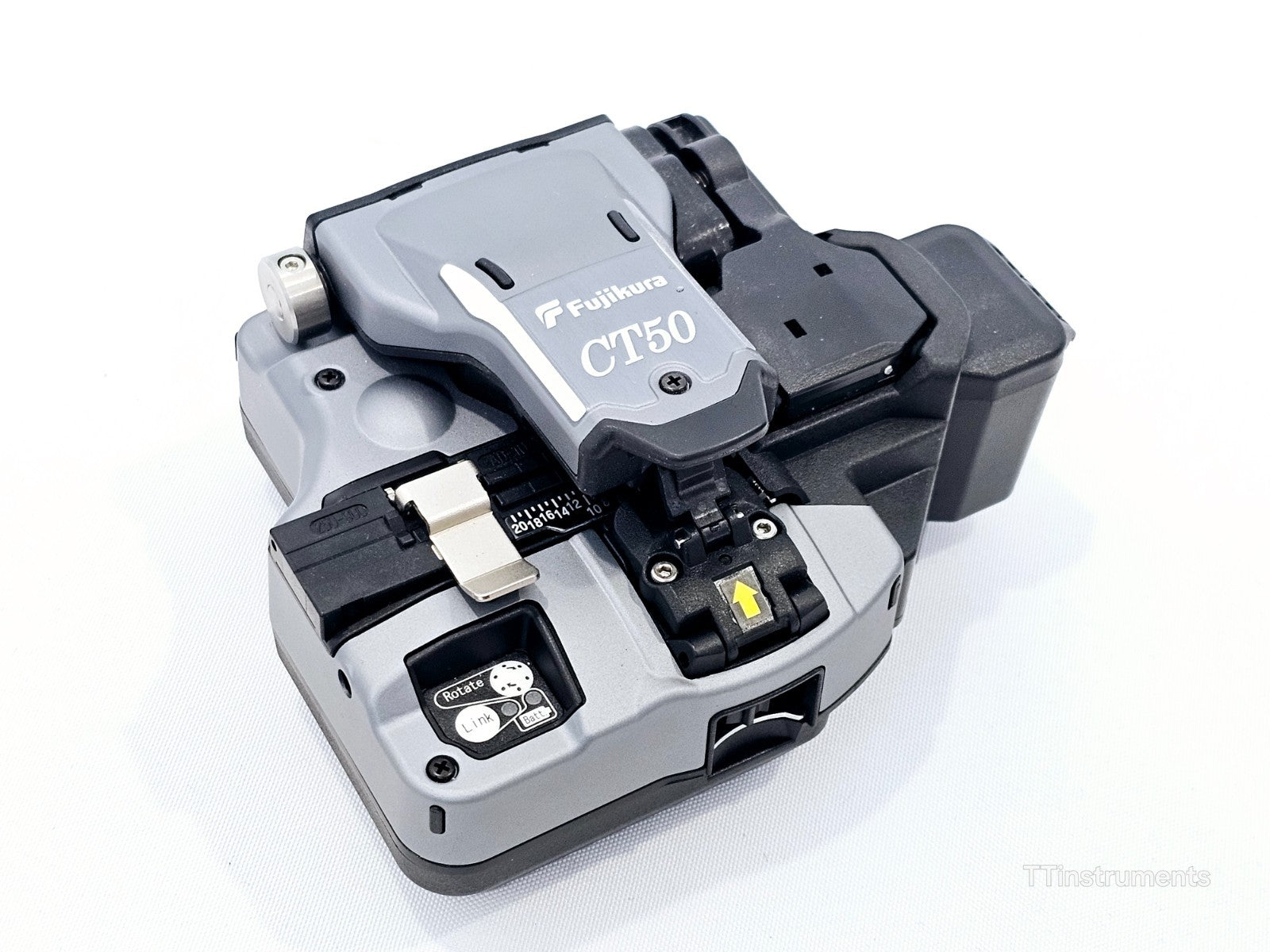

• Fujikura CT-50 High Precision Fibre Cleaver with guide plate and case
• AC Adapter/Charger
• Battery Pack (BTR-15)
• Hard Carrying Case
• Alcohol Pot
• Work Tray

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura 90S+ is a single-fibre core alignment fusion splicer setting a new standard in the market for fusion splicing. Bristling with new and enhanced features specifically developed to help users work faster with higher precision, the 90S+ incorporates market-first fully automated features that make the splicing process faster and simpler.

Its Active Blade Management Technology (ABMT) improves the efficiency of the CT-50 cleaver, resulting in increased productivity and reduced costs. Thanks to Active Fusion Control Technology (AFCT), the 90S+ analyses the condition of the cleave end face to perform optimal fusion control and minimise splice loss.

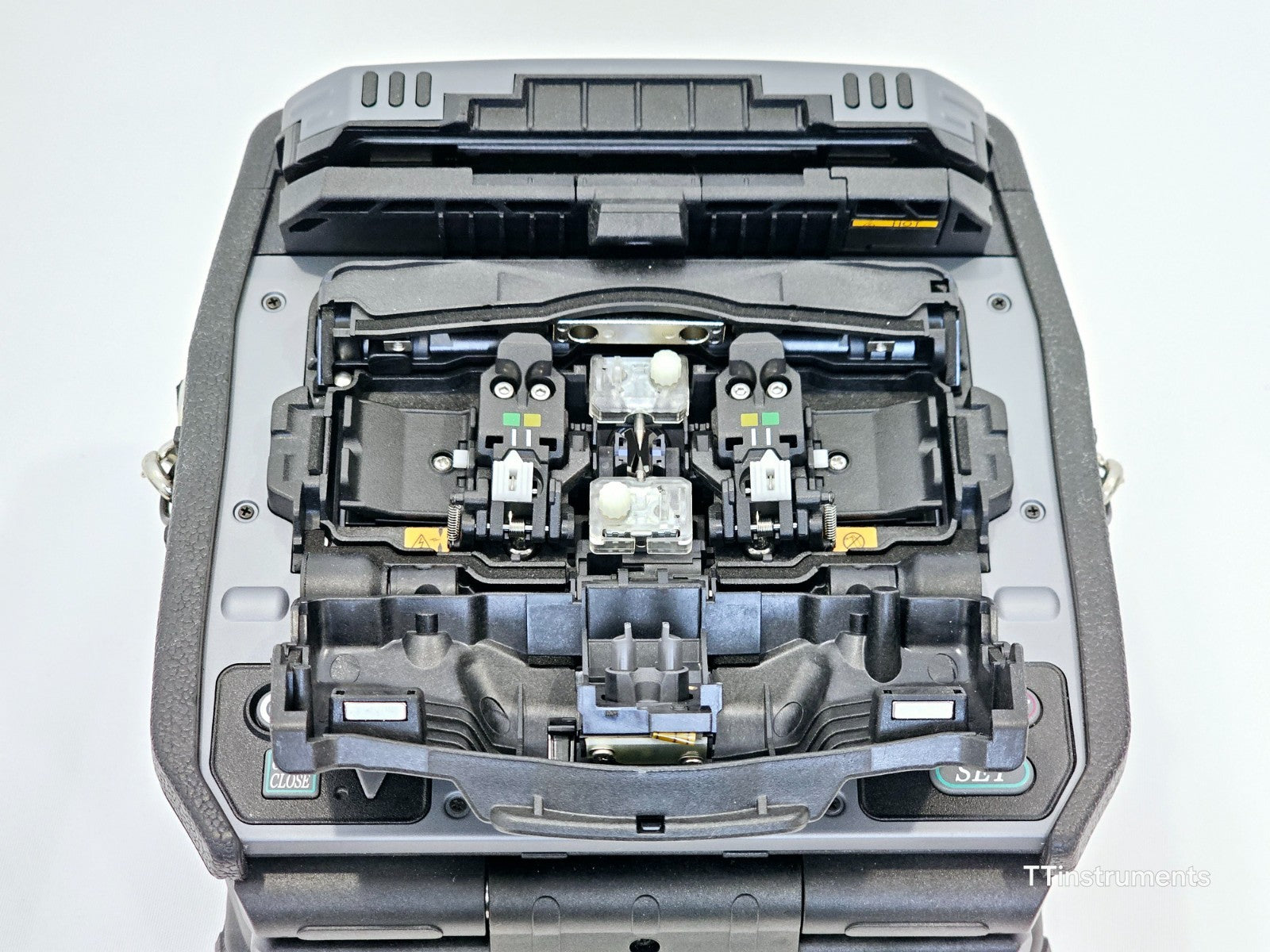

The 90S+ delivers a reduction in overall splice process time compared to the previous 70S+ model, achieved through improvements to the reaction time of automated wind protectors and automated heater, new fibre retention clamps, and improved universal sheath clamps. A redesigned internal structure matches the protection sleeve to the fusion splice point, enabling successful splicing without the need for the user to touch the unit once the process has started.

Fibre Alignment Method: Active core alignment
Spliceable Fibre Count: Single fibre
Fibre Type: Single mode and multimode optical fibre
Cladding Diameter: 80μm – 150μm
Sheath Clamp Coating: 3000μm maximum coating diameter
Sheath Clamp Cleave Length: 5mm – 16mm
ITU-T G.652 Splice Loss: Avg. 0.02dB
ITU-T G.651 Splice Loss: Avg. 0.01dB
ITU-T G.653 Splice Loss: Avg. 0.04dB
ITU-T G.655 Splice Loss: Avg. 0.04dB
ITU-T G.657 Splice Loss: Avg. 0.02dB
SM Fast Mode Splice Time: Avg. 7 to 9 seconds
Protection Sleeve Type: Heat-shrinkable sleeve
Sleeve Length: Max. 66mm
Sleeve Diameter: Max. 6mm before shrinking
60mm Slim Mode Heat Time: Avg. 9 to 10 seconds
60mm Mode Heat Time: Avg. 13 to 15 seconds
Fibre Tensile Test Force: Approx. 2.0N
Electrode Life: Approx. 5000 splices
Width: Approx. 170mm (without projection)
Depth: Approx. 173mm (without projection)
Height: Approx. 150mm (without projection)
Weight: Approx. 2.8kg including battery
Operating Temperature: −10 to 50°C
Storage Temperature: −40 to 80°C
Operating Humidity: 0 to 95% RH, non-condensing
Operating Altitude: Max. 5000m
AC Adaptor Input: AC100 to 240V, 50/60Hz, Max. 1.5A
Battery Type: Rechargeable Lithium-Ion
Battery Output: Approx. DC14.4V, 6,380mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Recharge Temperature Range: 0 to 40°C
Battery Storage Temperature: −20 to 30°C
Battery Life: Approx. 500 recharge cycles
LCD Display: 4.9-inch TFT colour touch screen
Display Magnification: Approx. 200x – 320x
V-Groove Illumination: LED lamp
PC Interface: USB 2.0 Mini-B connector
External LED Lamp Interface: USB 2.0 A connector, Approx. DC5V, 500mA
Wireless Connectivity: Bluetooth 4.1 LE
Splice Mode Data Storage: 100 splice modes
Heat Mode Data Storage: 30 heat modes
Splice Result Data Storage: 20,000 splices
Splice Image Data Storage: 100 images
Tripod Screw Hole: 1/4-20UNC

Product datasheet
