The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

This Fujikura 90S fusion splicer kit is in used condition and is in very good cosmetic condition throughout. The unit has been tested and is confirmed fully functional.

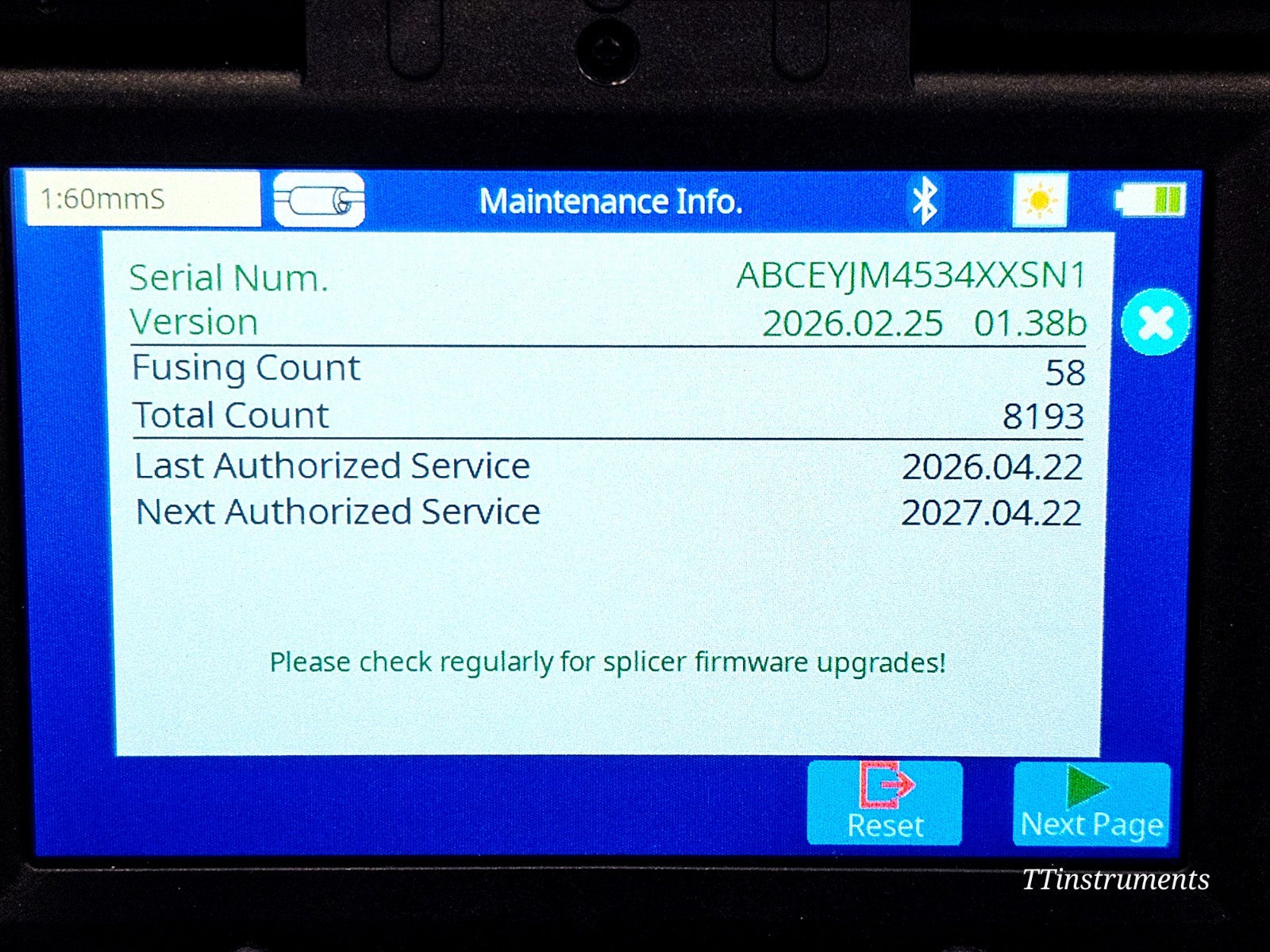

The splicer carries a total arc count of 8,193. It was serviced by a Fujikura authorised service centre on 22 April 2026, with the next scheduled service not due until 22 April 2027. The post-service fusing count stands at just 58, indicating minimal use since that service. Firmware version is 2026.02.25 / 01.38b.

This kit is supplied with:

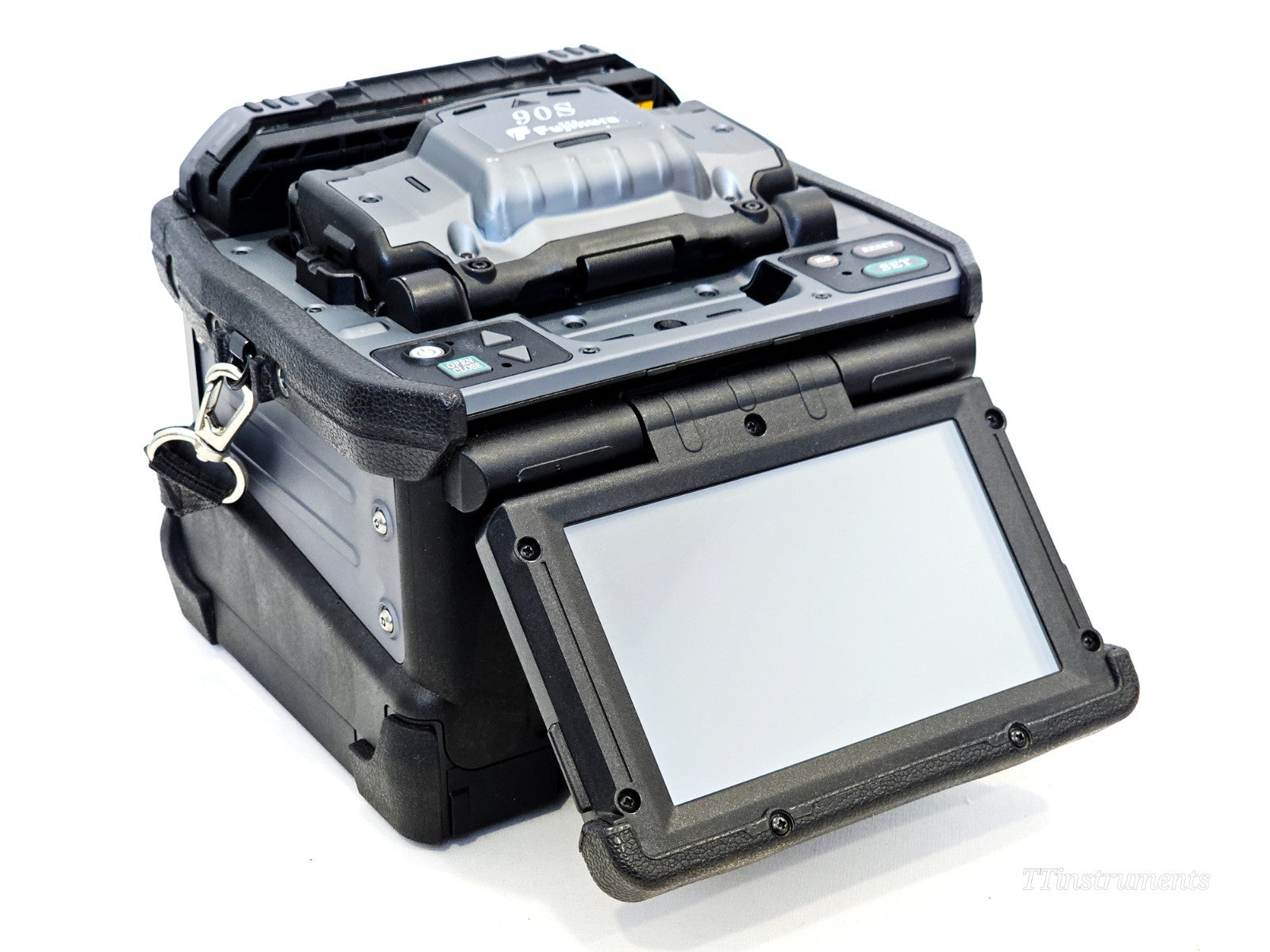

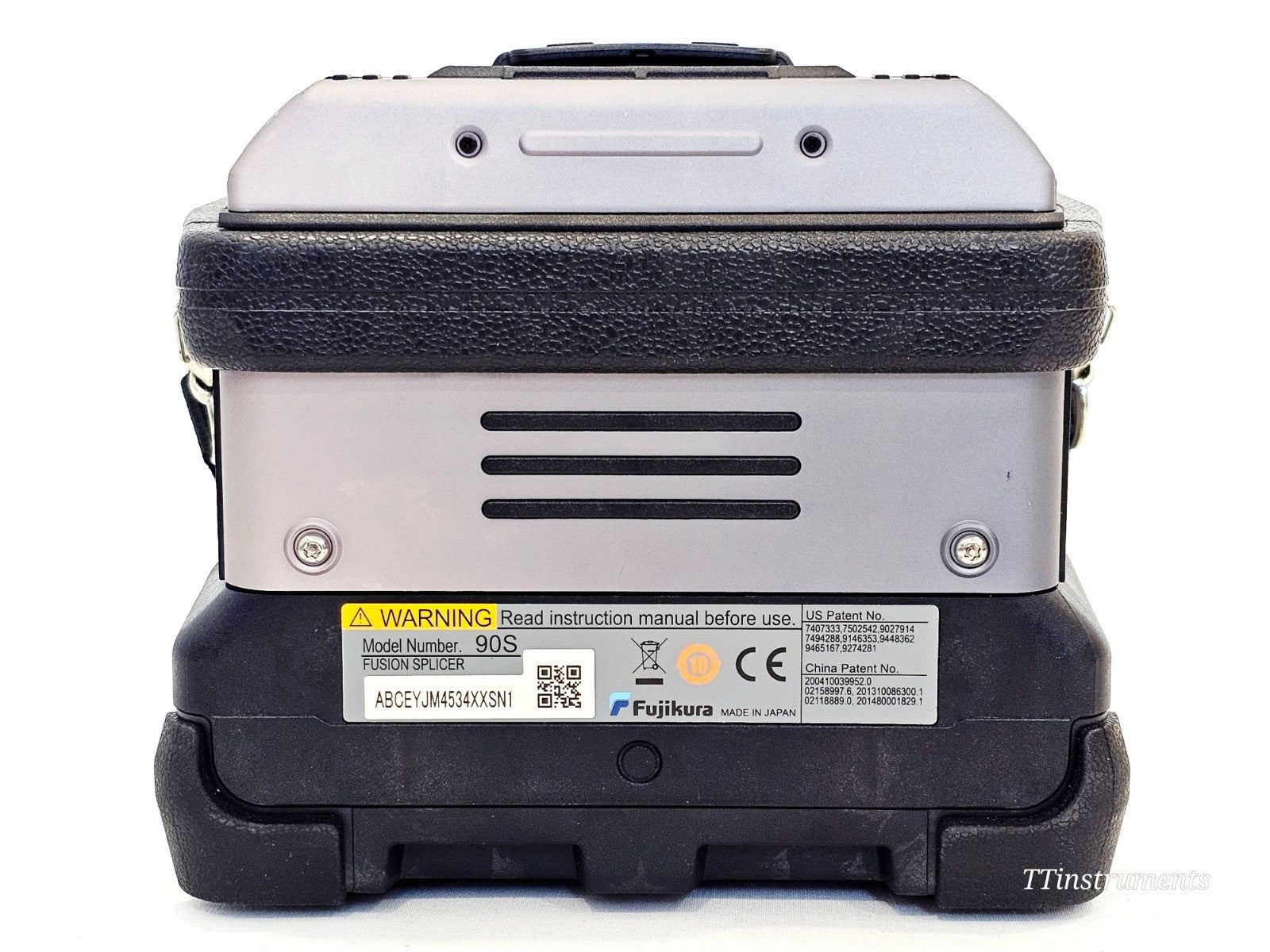

• Fujikura 90S Fusion Splicer

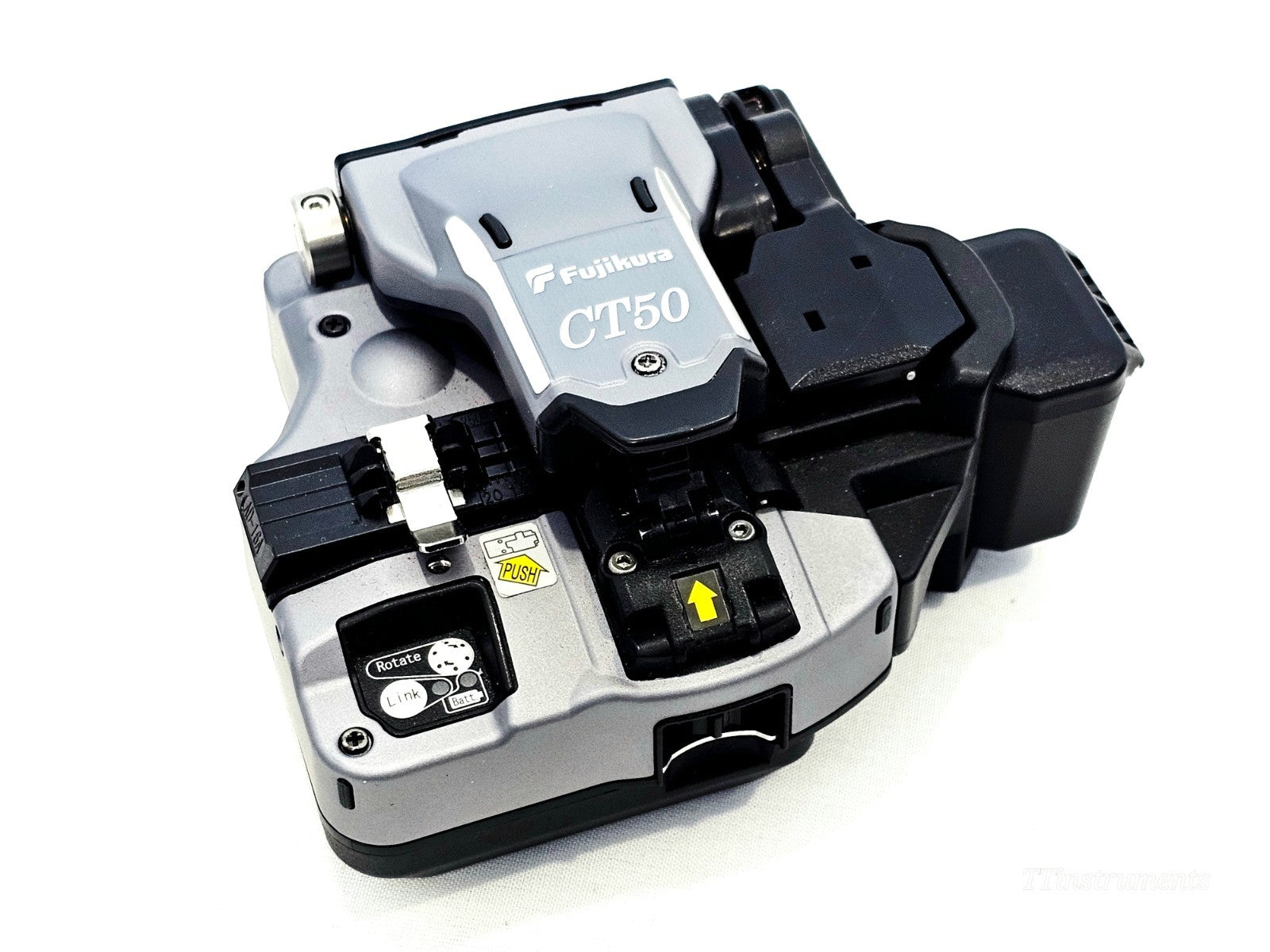

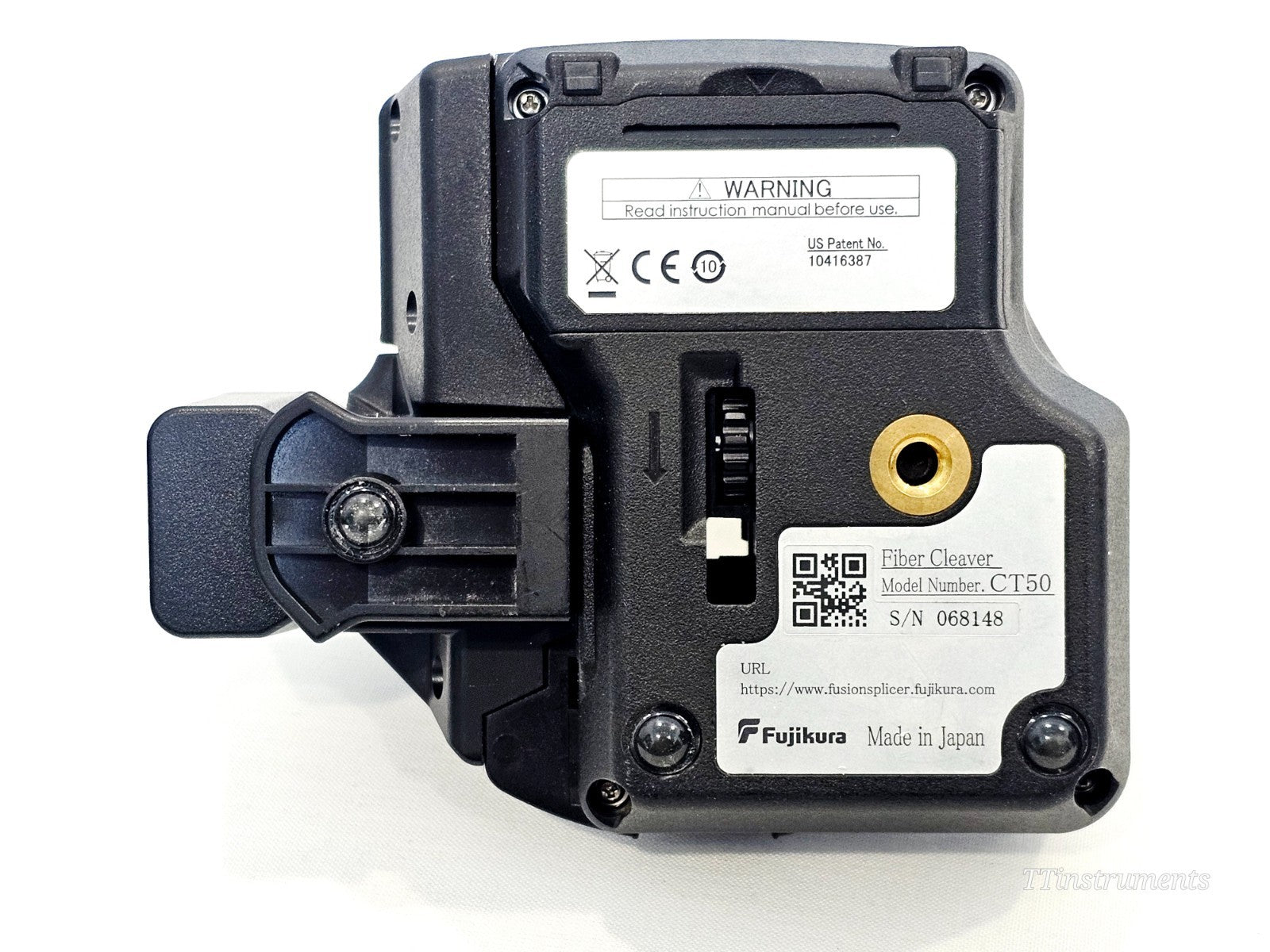

• Fujikura CT50 Fibre Cleaver

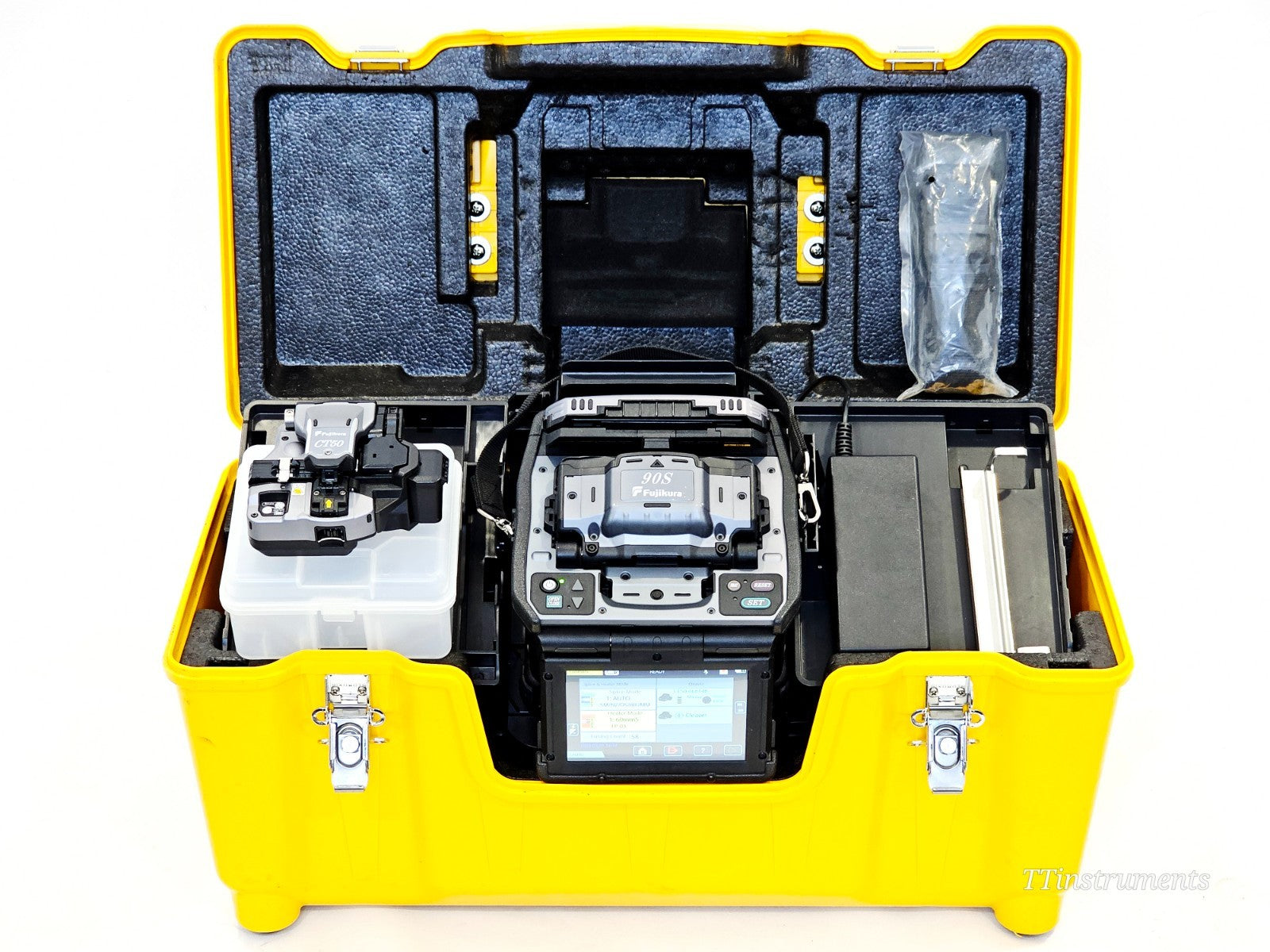

• Fujikura CC-39 Yellow Transit / Workstation Case
• BTR-15 Lithium-Ion Battery Pack
• ADC-20 AC Adapter
• Carrying Strap

⚠ FAO TT Instruments: Please verify and list all additional accessories present in the case before going live.

The Fujikura 90S is a single-fibre core alignment fusion splicer designed to deliver consistent low-loss splice performance across a wide range of field applications, from FTTx installations and splice-on connectors to long-haul terrestrial and submarine LEAF fibre deployments.

Key features and highlights:
- Active Fusion Control (AFC): analyses both cleave end-faces and applies real-time optimal arc power, significantly reducing splice loss even when cleave quality is poor
- Active Blade Management: Bluetooth connectivity with the CT50 cleaver enables automatic blade wear monitoring and motorised blade rotation without operator intervention
- Fastest automated cycle times in its class — wind protector and fibre retention clamps enable a fully hands-free splice process from start to finish

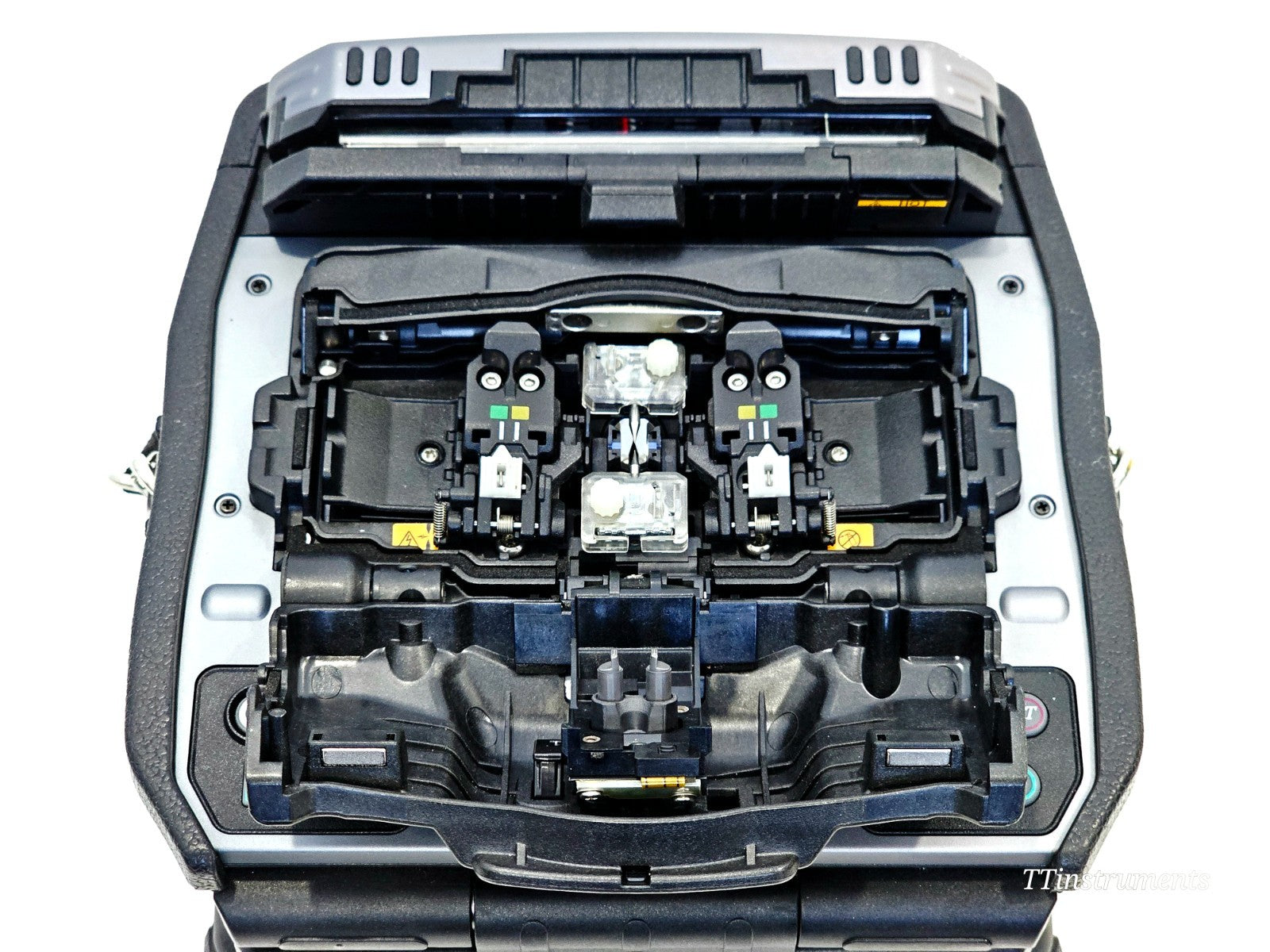

- Universal sheath clamps accommodate both 250 µm and 900 µm loose tube fibre without changing clamps
- 4.9-inch colour TFT touchscreen with 200×–320× magnification
- Rugged construction with precision-machined metal components and rubber impact bumpers
- Iconic yellow CC-39 transit case doubles as an integrated workstation
- Up to 20,000 splice results stored in memory
- CT50 cleaver: 16-position motorised blade, 60,000 single-fibre cleave life, drop-resistant to 30 inches, built-in scrap collector

Alignment method: Core alignment (single fibre)
Typical splice loss SM (G.652): Avg. 0.02 dB
Typical splice loss MM (G.651): Avg. 0.01 dB
Typical splice loss DS (G.653): Avg. 0.04 dB
Typical splice loss NZDS (G.655): Avg. 0.04 dB
Splicing time (SM FAST): 7–9 seconds
Heating time (60 mm sleeve): 13–15 seconds
Battery life: Approx. 300 splice and heat cycles per charge
Battery recharge cycles: Approx. 500
Electrode life: Approx. 5,000 splices per set
Splice memory: Up to 20,000 results
Weight: Approx. 2.8 kg (including battery)
AC input: 100–240 V, 50/60 Hz, Max. 1.5 A
Proof test load: Approx. 2.0 N
