The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

This Fujikura 90S+ Core Alignment Fusion Splicer is in very good cosmetic condition and is fully tested and working. The unit has been recently serviced by a Fujikura authorised service centre, with the last authorised service completed on 22 April 2026 and the next service not due until 22 April 2027. Firmware is version 2026.02.25 / 01.38b.

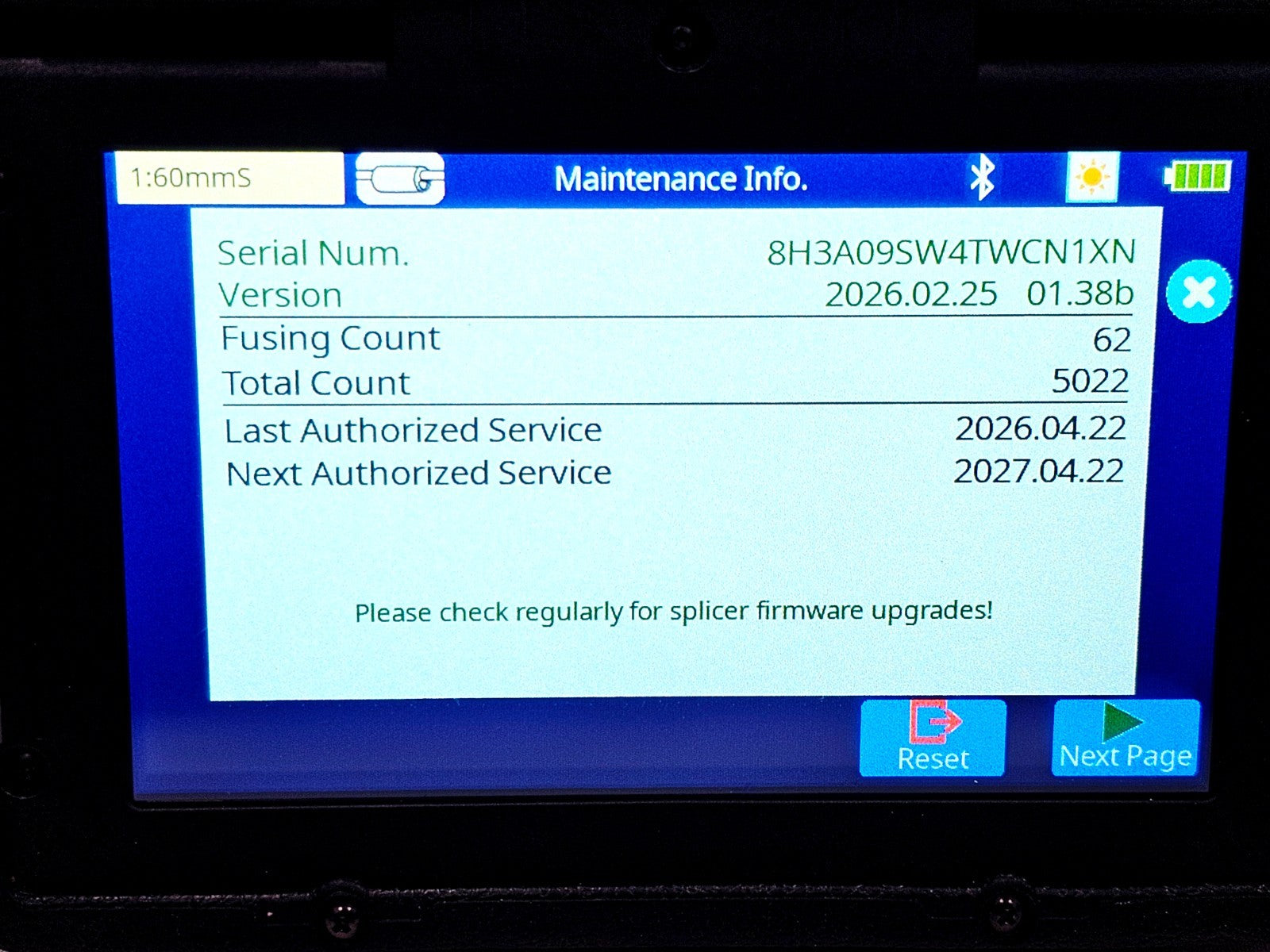

The Maintenance Info screen confirms a current fusing count (arc count since last reset) of 62 and a lifetime total count of 5,022 — indicating a machine that has been regularly maintained and is well within its service life.

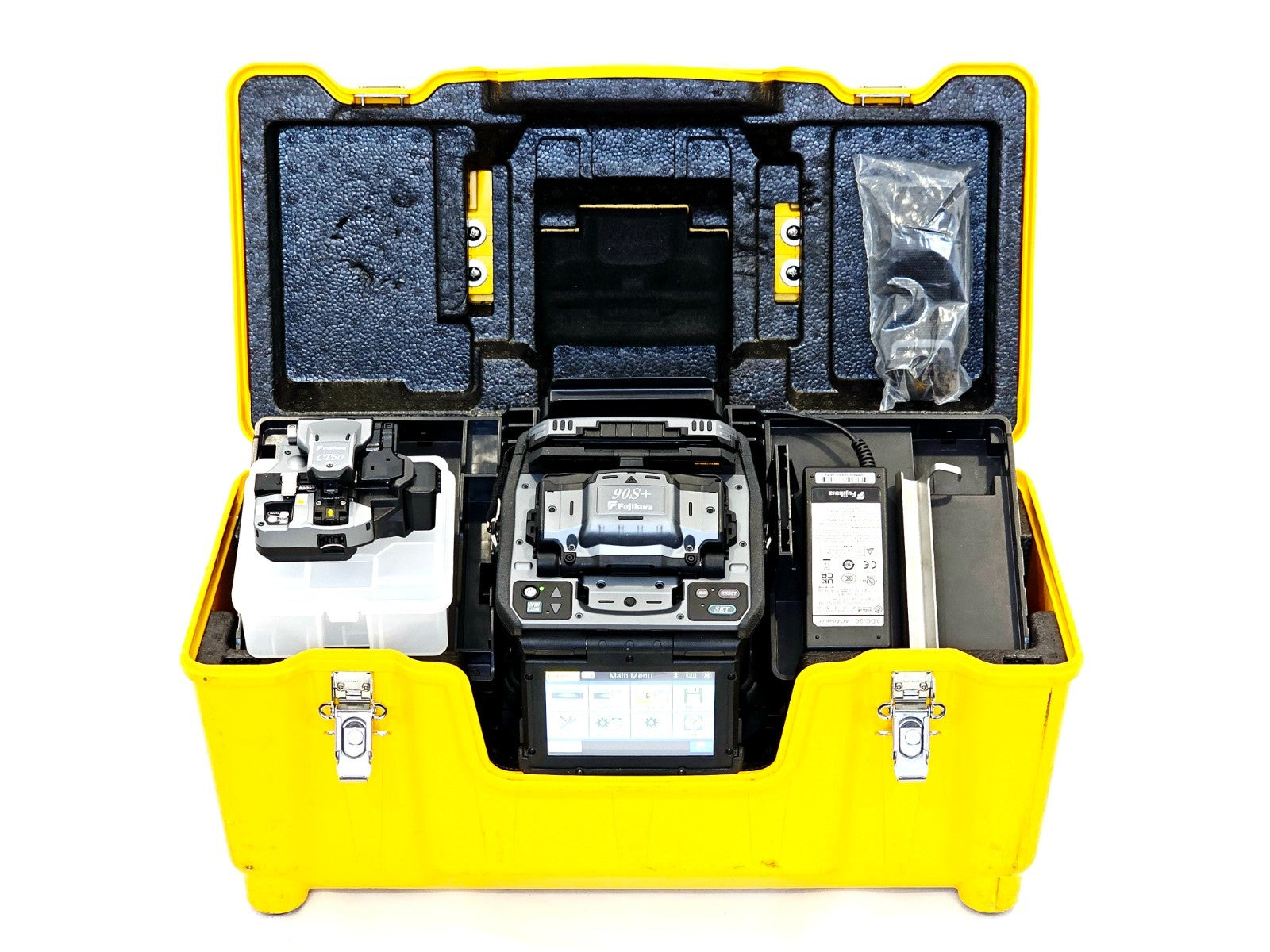

This kit includes:

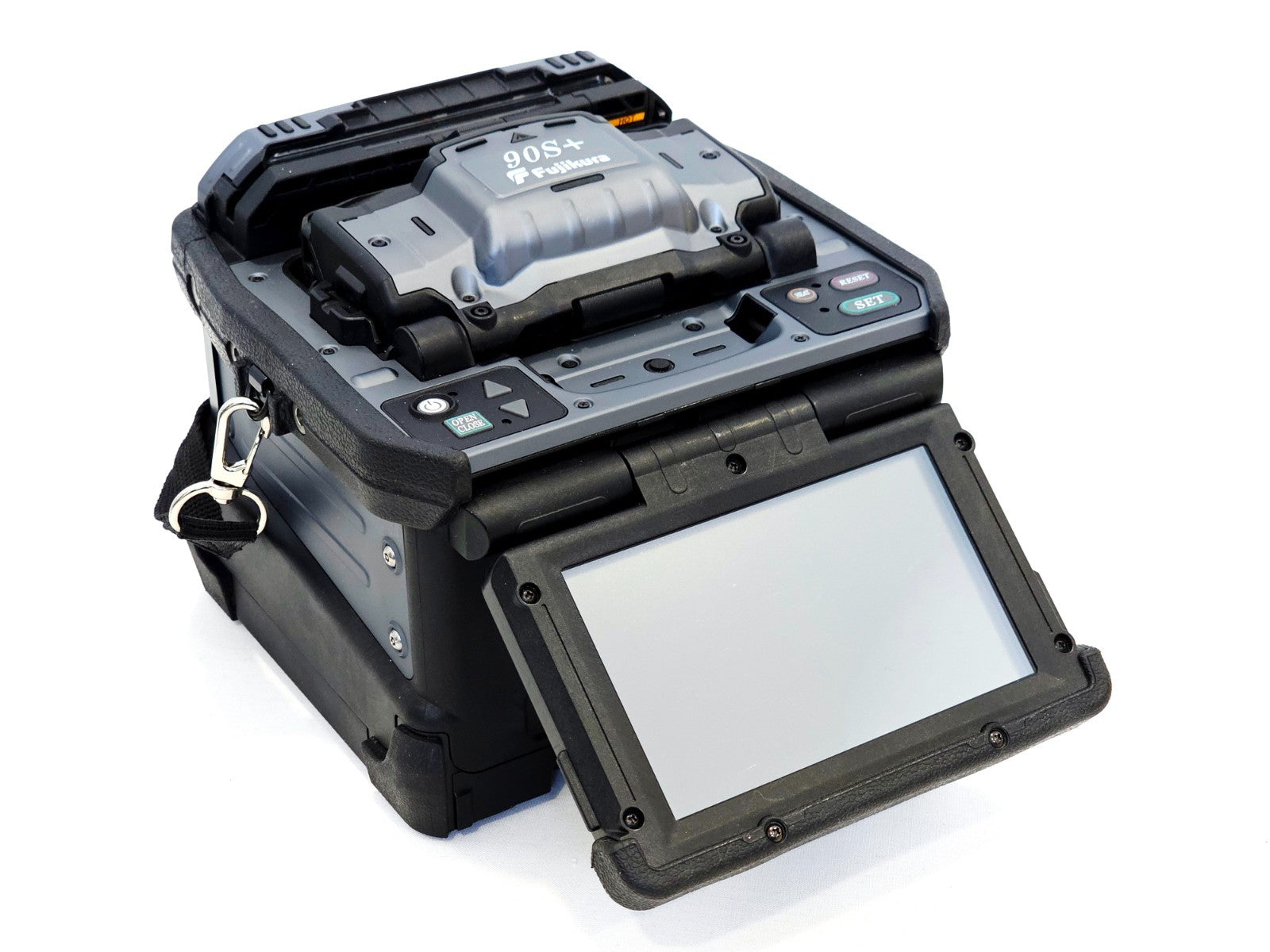

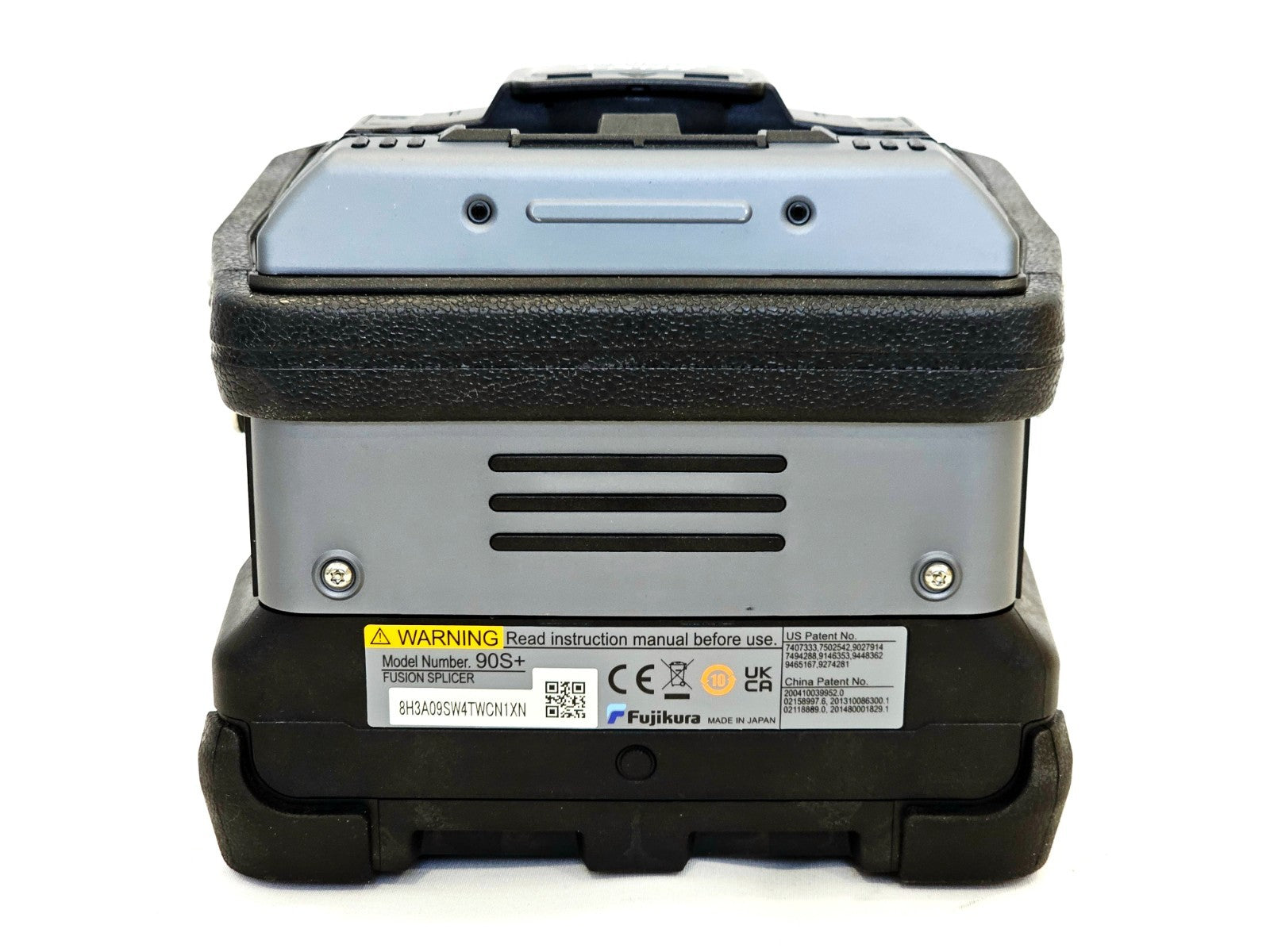

• Fujikura 90S+ Core Alignment Fusion Splicer

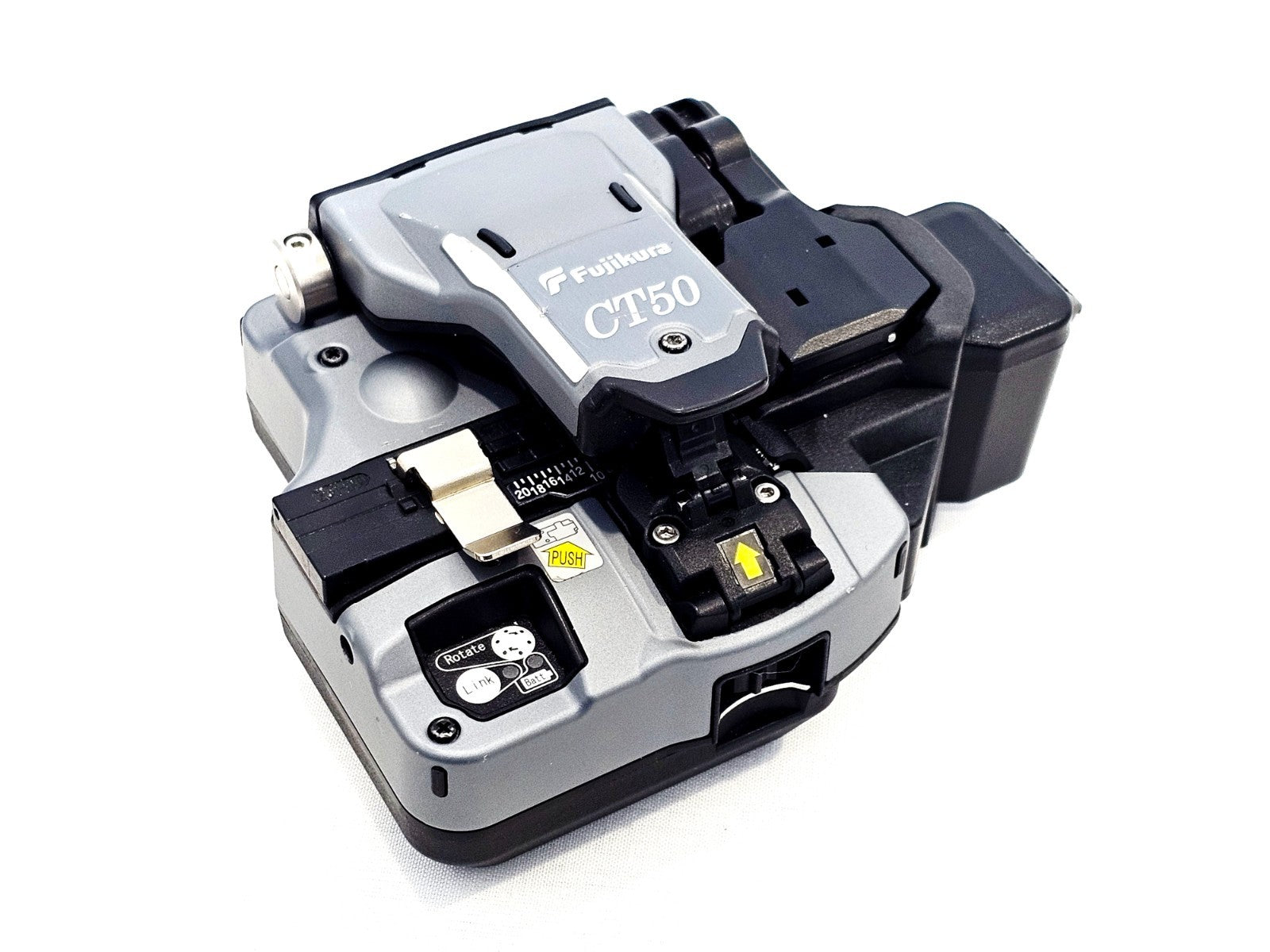

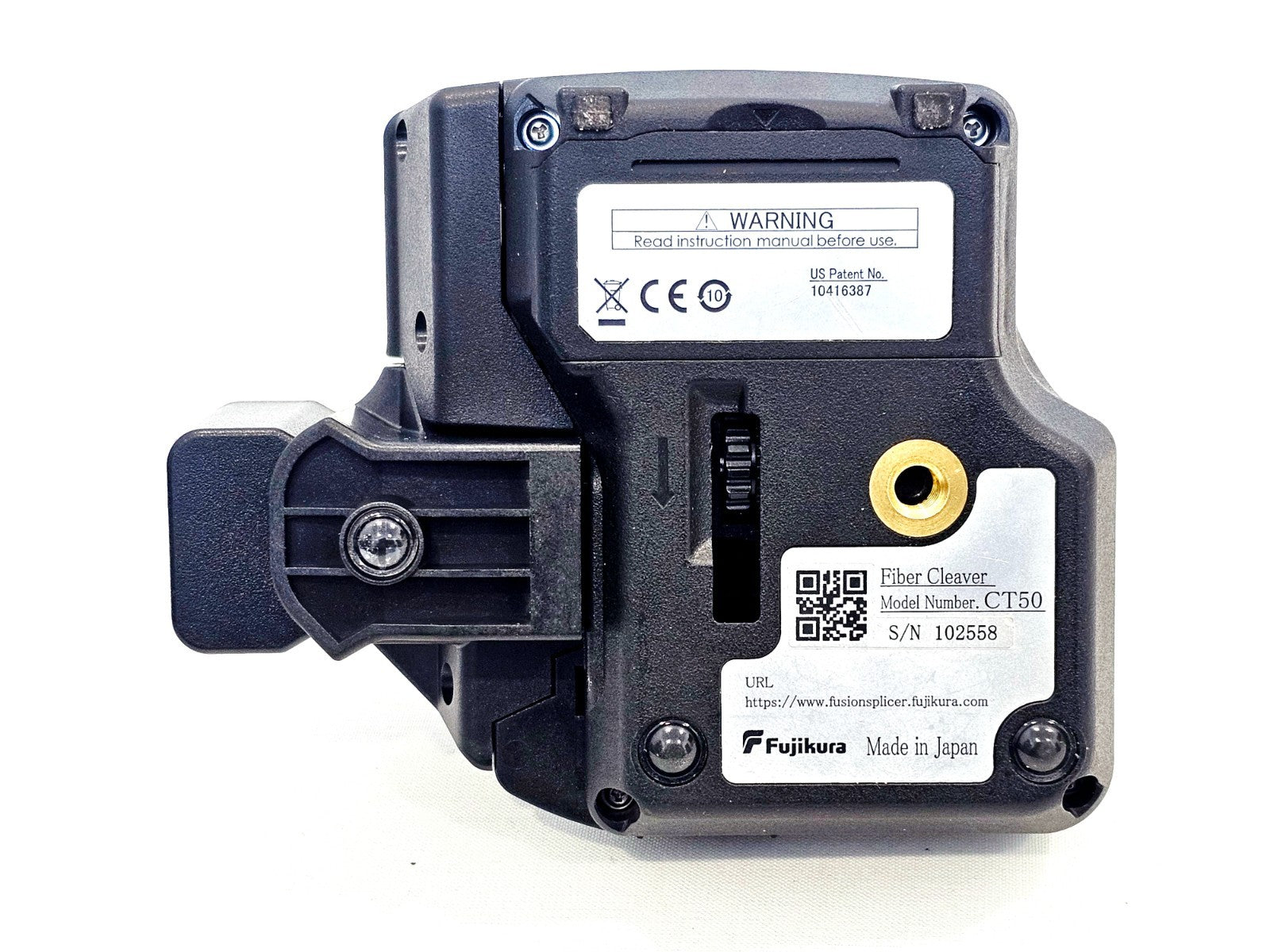

• Fujikura CT50 Fibre Cleaver
• BTR-15 Lithium-ion Battery
• ADC-20 AC Adapter
• Yellow CC-39 Transit / Workstation Case

The Fujikura 90S+ is a single-fibre core alignment fusion splicer that sets a new standard in field splicing, designed to solve common problems from splicing poor-quality legacy fibre to fully automated equipment maintenance and upkeep.

The 90S+ is built around Fujikura's Active Fusion Control (AFC) technology, which analyses both cleave end faces in real time and applies optimal arc power to deliver consistently low splice losses — even when fibre cleave angles are poor. Combined with Active Blade Management via Bluetooth connectivity to the CT50 cleaver, the splicer can automatically trigger blade rotation when wear is detected, eliminating the need for manual cleaver maintenance tracking.

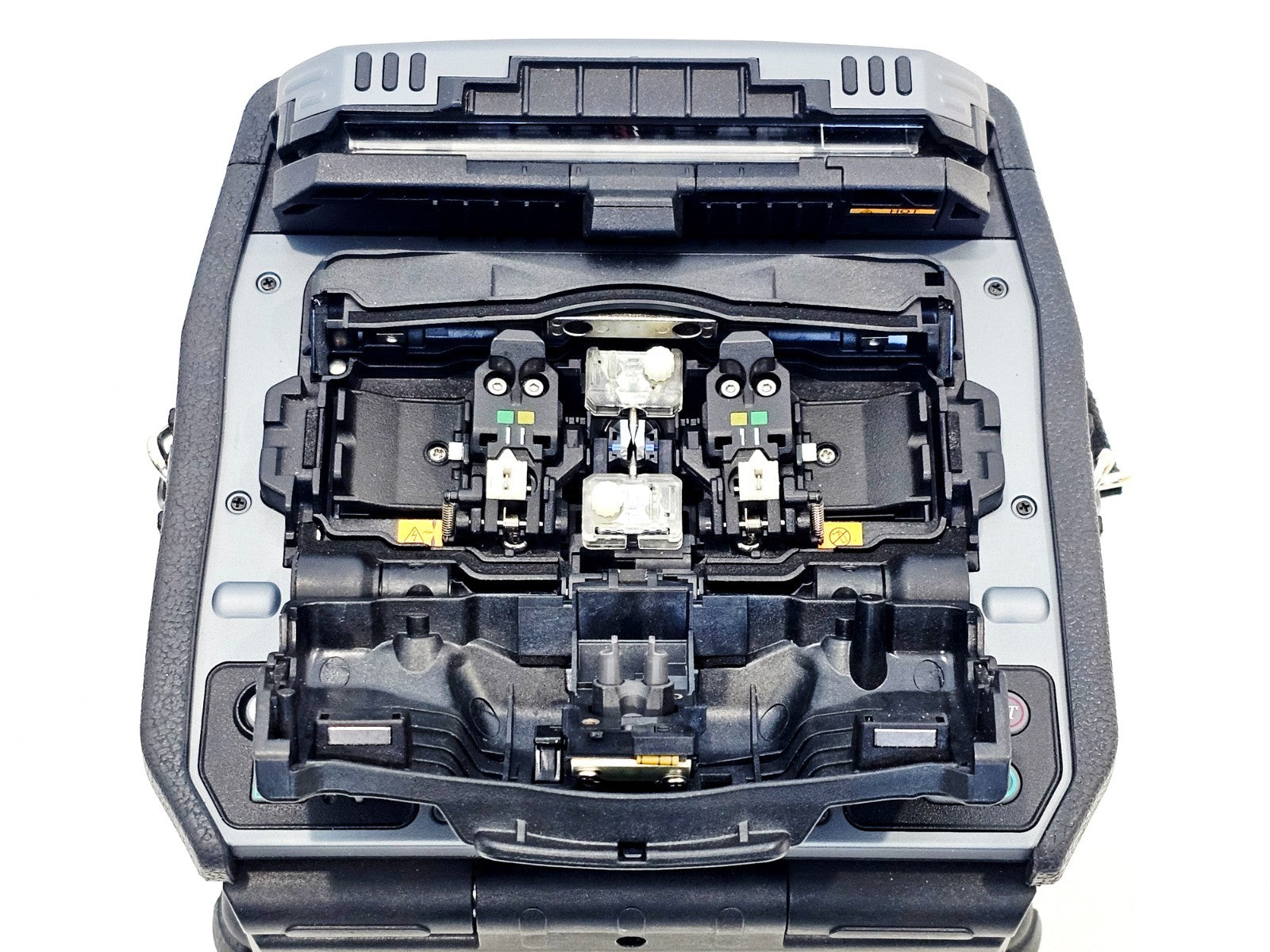

Key features include an automated wind protector and fibre retention clamps that allow the entire splice cycle — from fibre placement to sleeve shrink — to complete without the operator needing to touch the machine. The universal sheath clamp handles both 250 µm and 900 µm coated fibres without adapter changes. A 4.9-inch adjustable colour TFT touchscreen provides clear viewing in all lighting conditions, and tool-free electrode replacement reduces downtime in the field.

Fibre Alignment: Active core alignment
Fibre Type: Single-mode and multimode (SM/MM)
Cladding Diameter: 80 µm – 150 µm
Max Coating Diameter: 3,000 µm
Splice Loss (ITU-T G.652): Avg. 0.02 dB
Splice Loss (ITU-T G.651): Avg. 0.01 dB
Splice Loss (ITU-T G.653 / G.655): Avg. 0.04 dB
Splice Loss (ITU-T G.657): Avg. 0.02 dB
Splice Time (SM FAST): Avg. 8–10 sec
Heat Time (60 mm sleeve): 13–15 sec
Battery Life: Approx. 300 splice and heat cycles
Electrode Life: Approx. 5,000 splices per set
Display: 4.9-inch colour TFT touchscreen
Weight (incl. battery): Approx. 2.8 kg
AC Input: 100–240 V, 50/60 Hz
Battery (BTR-15): DC 14.4 V / 6,380 mAh
Origin: Made in Japan

Fujikura 90S+ datasheet: Download PDF
