The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

This Fujikura 90S fusion splicer kit is in used condition and is cosmetically good overall, with a minor scratch on the touchscreen. The unit has been tested and is confirmed fully working.

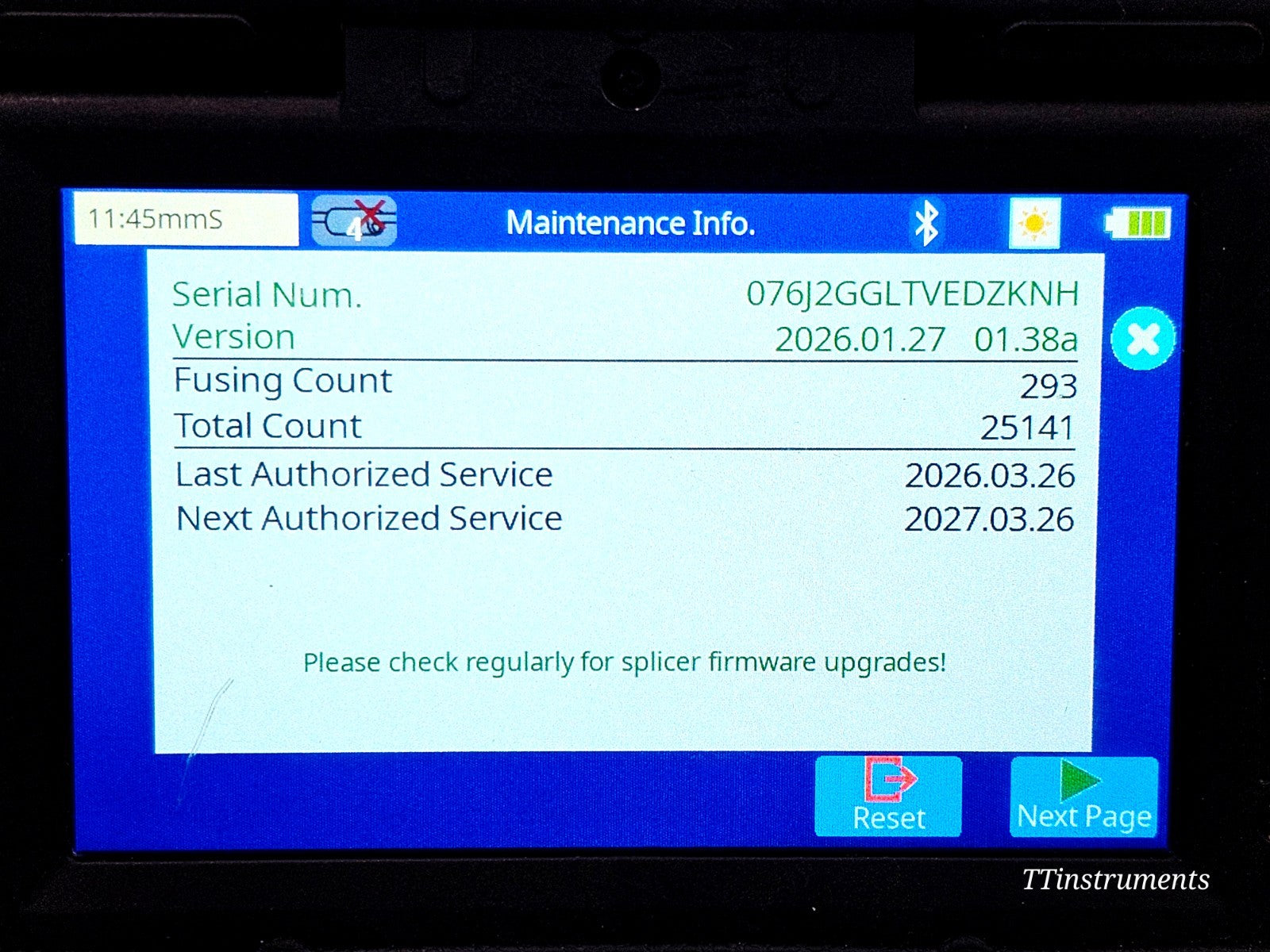

The maintenance screen confirms a total arc count of 25,141 and a fusing count of 293. The unit was last serviced by a Fujikura authorised service centre on 26 March 2026, with the next authorised service due 26 March 2027. Firmware version is 2026.01.27 01.38a.

The kit is supplied with the following items:
• Fujikura 90S Fusion Splicer

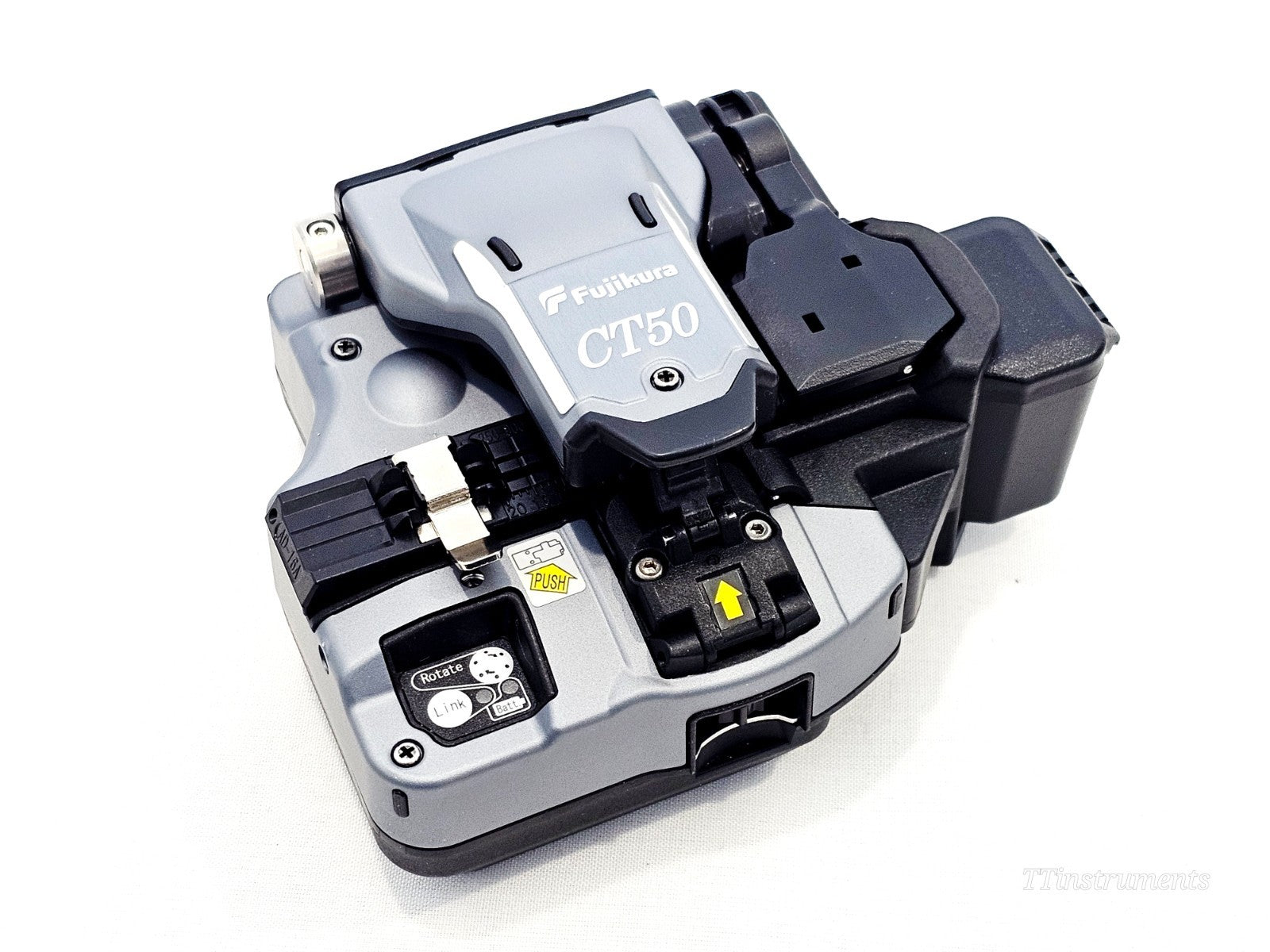

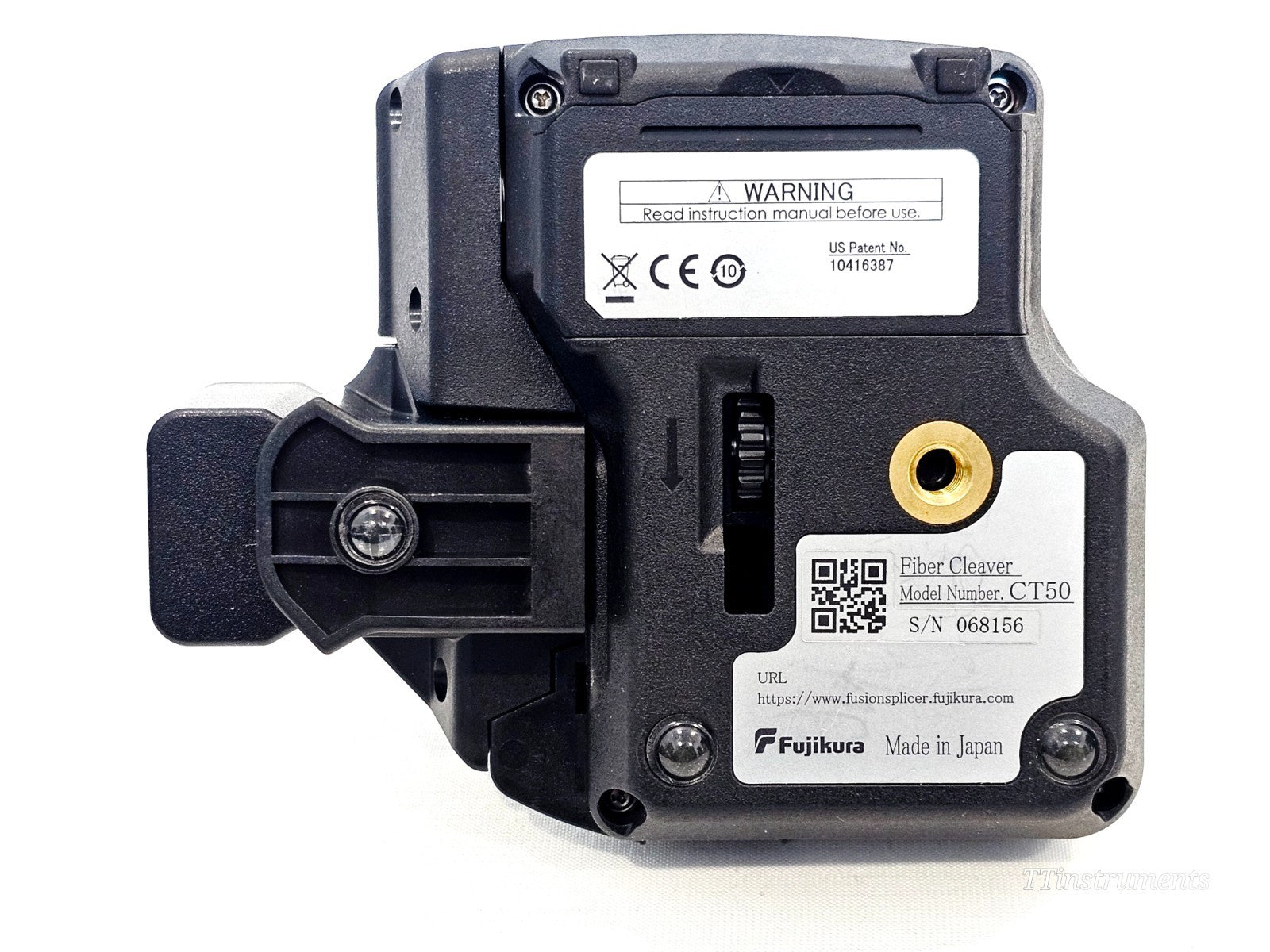

• Fujikura CT50 Automatic Fibre Cleaver
• BTR-15 Lithium-Ion Battery Pack
• ADC-20 AC Adapter and AC Power Cord
• Work Trays (left and right) with J-Plate
• SP-03 Fibre Holder Set Plate
• Carrying Strap
• Quick Reference Guide
• CC-39 Yellow Transit Case / Workstation

The Fujikura 90S is a single-fibre core alignment fusion splicer designed to deliver consistent, low-loss splicing performance across a wide range of field applications — from distribution fibre repair and long-haul network installation to FTTx drop cables, splice-on connectors, and OSP cable work.

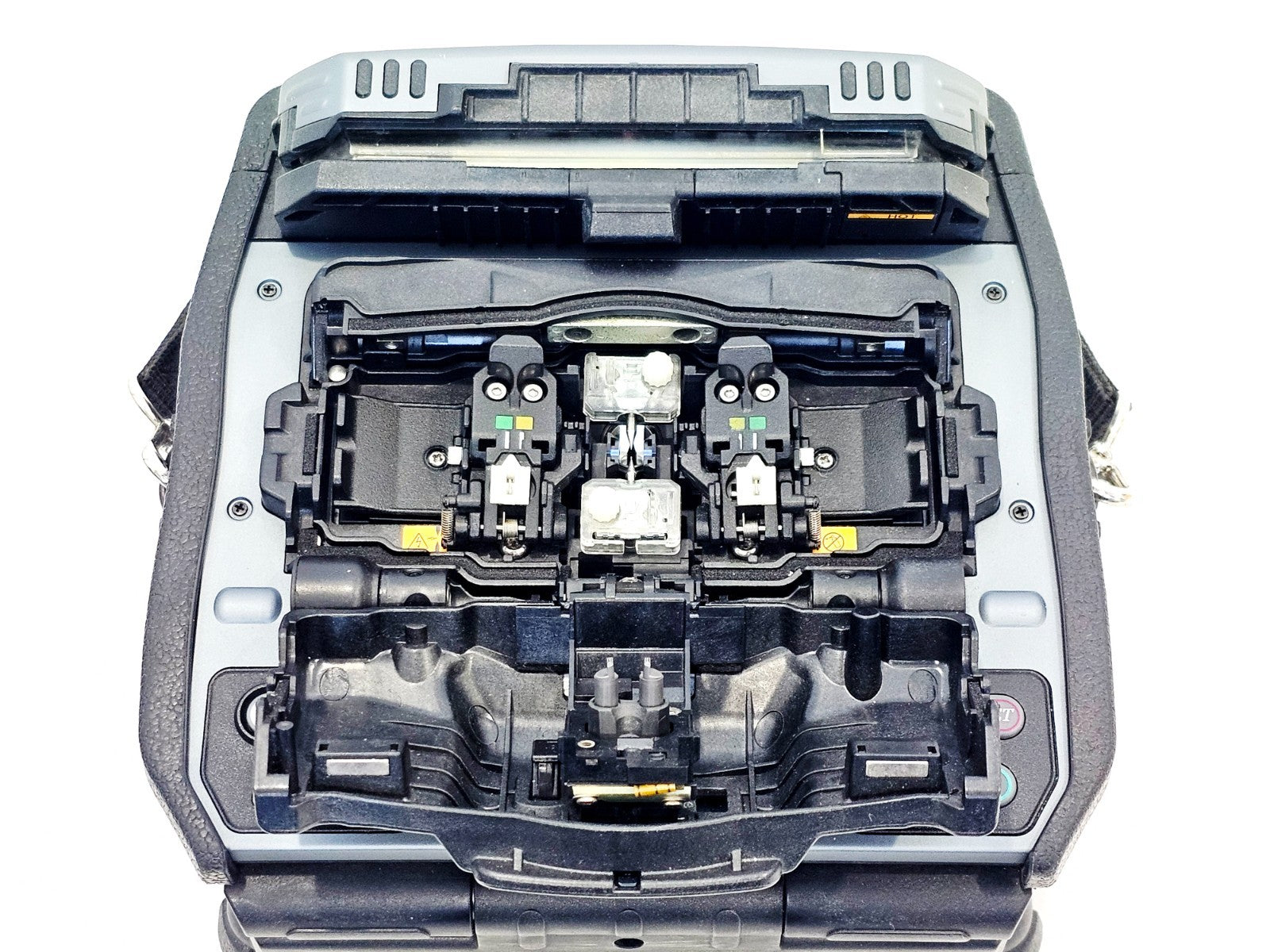

The 90S features Active Fusion Control (AFC) technology, which uses real-time analysis of fibre brightness during the arc to apply optimal fusion parameters and compensate for poor cleave angles. Combined with Active Blade Management, the splicer communicates wirelessly with the Fujikura CT50 cleaver to monitor blade wear and trigger automatic blade rotation, eliminating the need for manual cleaver maintenance. The automated wind protector, sheath clamps, and fibre retention clamps allow the entire splice process — from placement to heating — to be completed without the operator touching the machine.

The universal sheath clamp handles both standard 250 µm and 900 µm loose tube fibres without swapping. The 4.9-inch adjustable colour TFT touchscreen is readable in all lighting conditions, and electrodes are replaced tool-free. The multifunction CC-39 transit case doubles as an integrated workstation.

Fibre Alignment Method: Active core alignment
Applicable Fibre: Single-mode and multi-mode (SM, MM)
Cladding Diameter: 80 µm – 150 µm
Splice Loss (ITU-T G.652): Avg. 0.02 dB
Splice Loss (ITU-T G.651): Avg. 0.01 dB
Splice Loss (ITU-T G.653 / G.655): Avg. 0.04 dB
Splice Time (SM FAST mode): Avg. 7–9 seconds
Heat Time (60 mm sleeve): Avg. 13–15 seconds
Electrode Life: Approx. 5,000 splices per set
Battery Life: Approx. 300 splice and heat cycles per charge
Display: 4.9-inch colour TFT touchscreen, 200×–320× magnification
Interface: USB 2.0, Bluetooth
AC Input: 100–240 V, 50/60 Hz, max. 1.5 A
Weight (inc. battery): Approx. 2.8 kg
Origin: Made in Japan

Fujikura 90S datasheet: Download PDF
