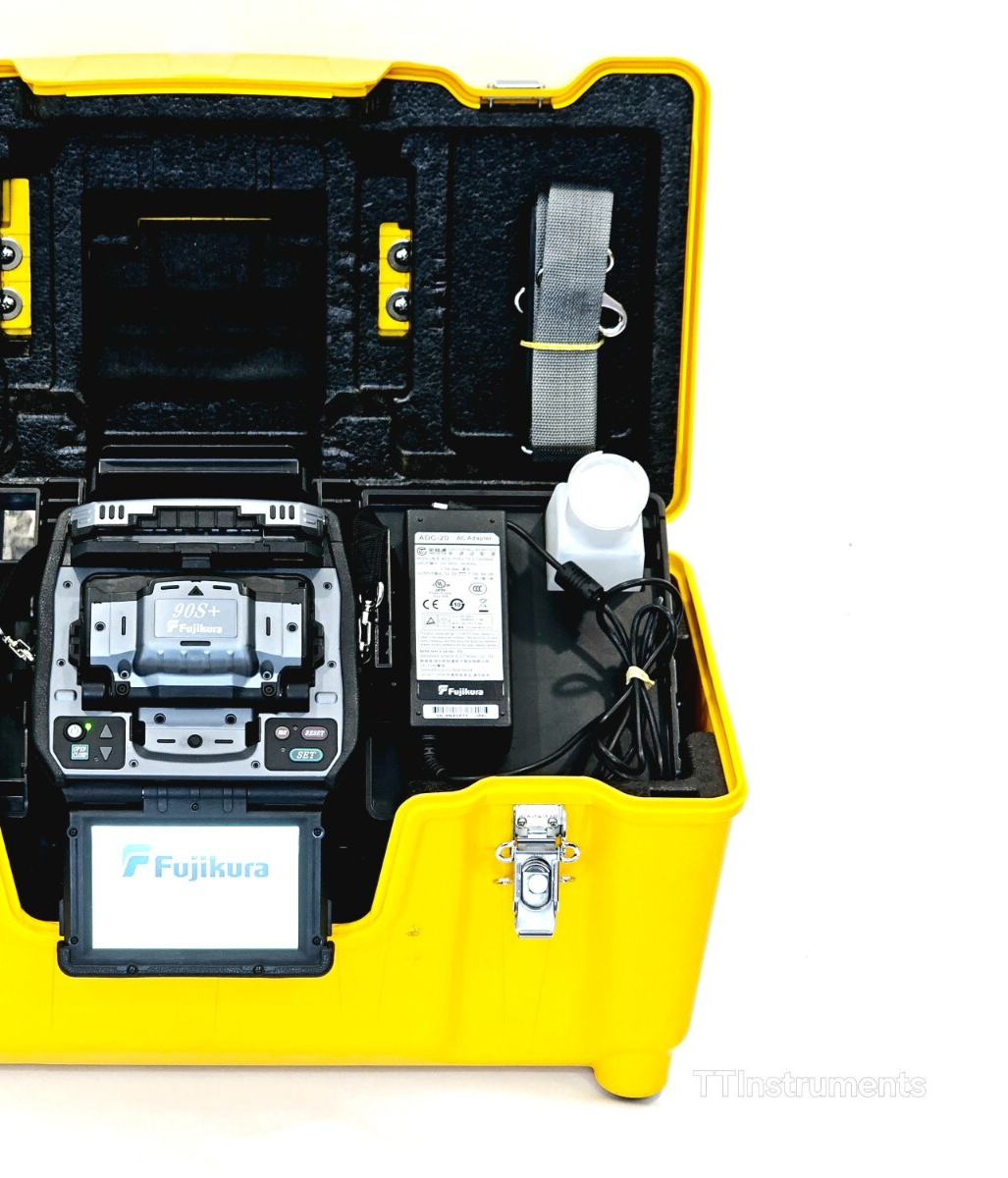

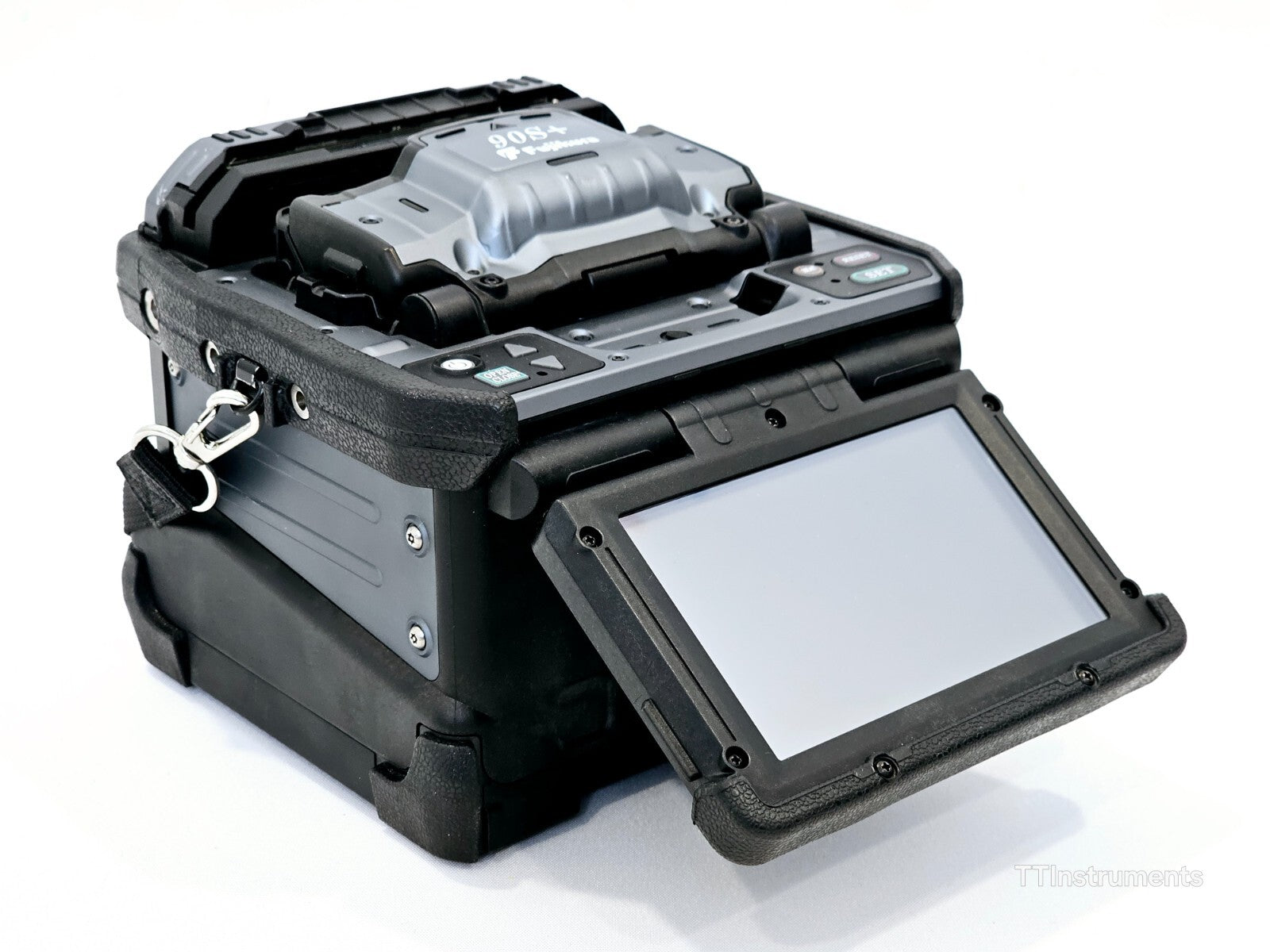

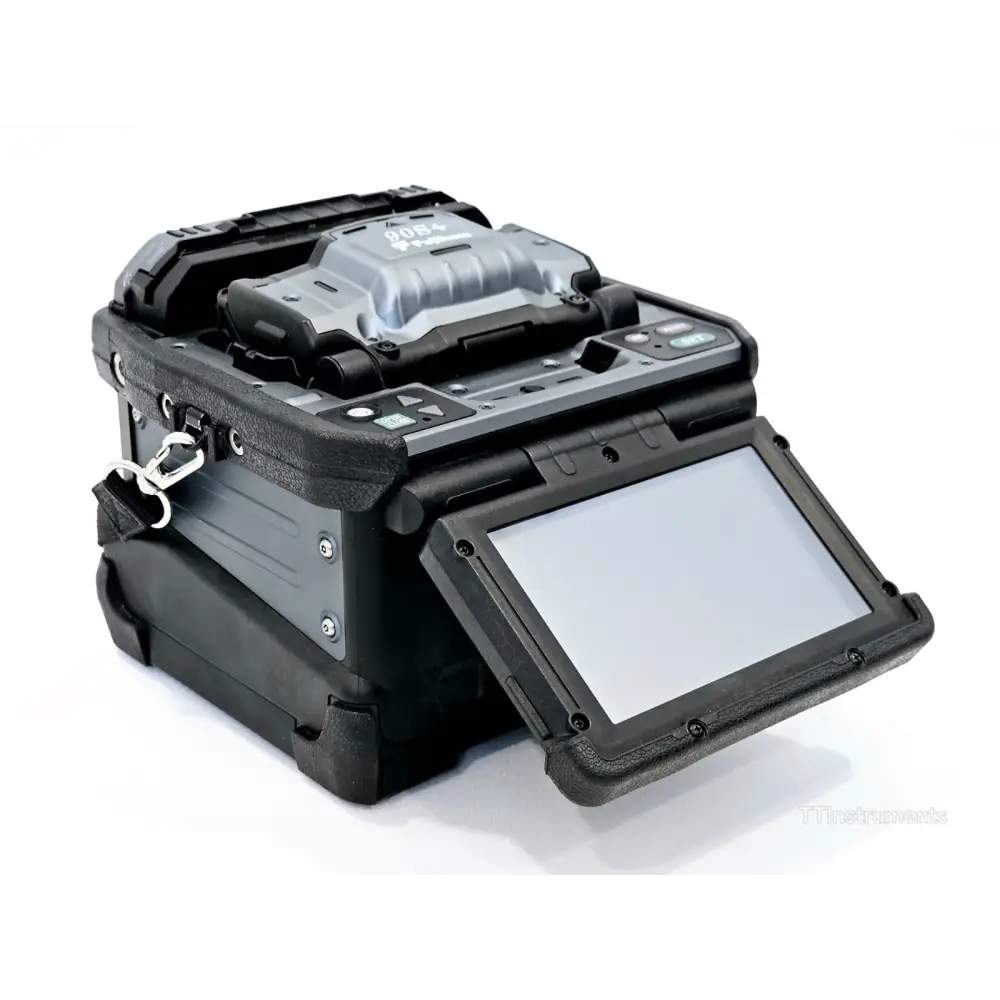

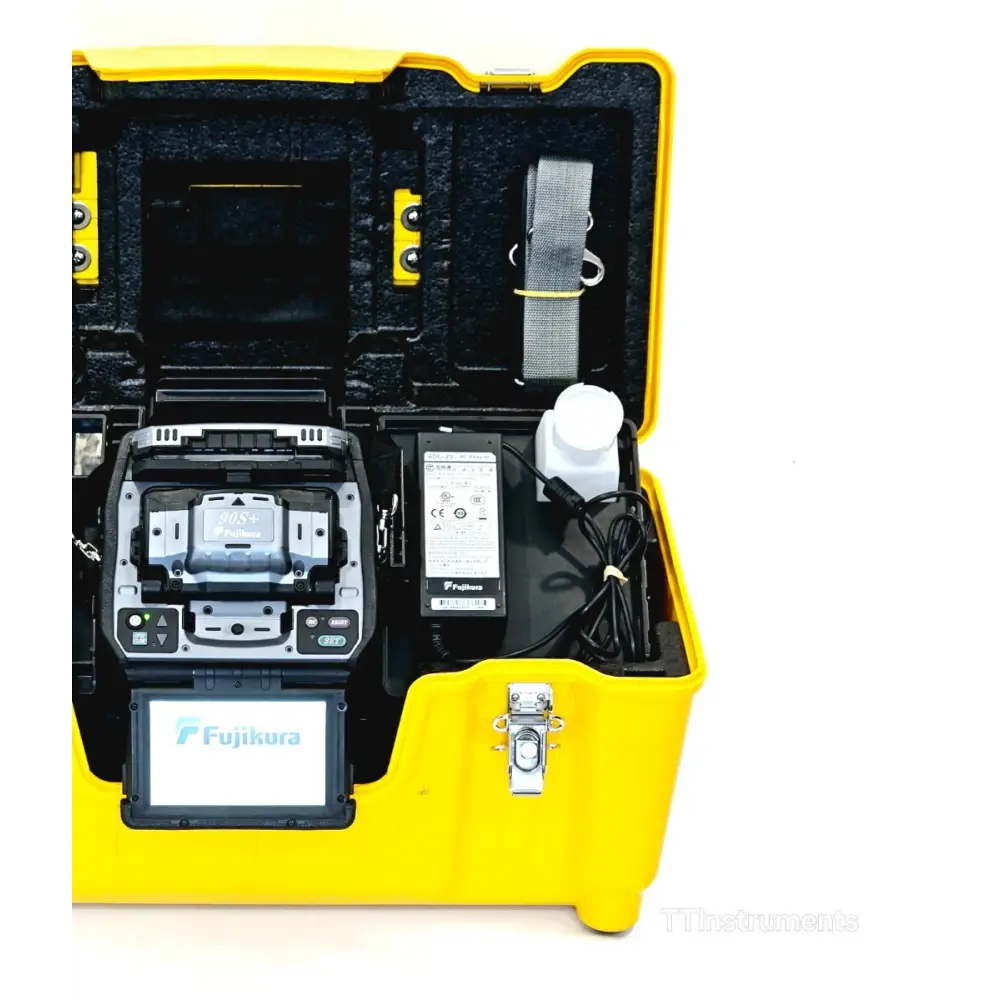

The 90S+ is a single fibre core alignment fusion splicer setting a new standard in the market for fusion splicing. The 90S+ is bristling with new and enhanced features specifically developed to help users work faster with higher precision.
With market-first fully automated features, the new 90S+ makes the splicing process faster and simpler. Its Active Blade Management Technology (ABMT) improves the efficiency of the CT50 cleaver, resulting in increased productivity and reduced costs. Thanks to Active Fusion Control Technology (AFCT), the 90S+ analyses the condition of the cleave end face to perform optimal fusion control and minimise splice loss.

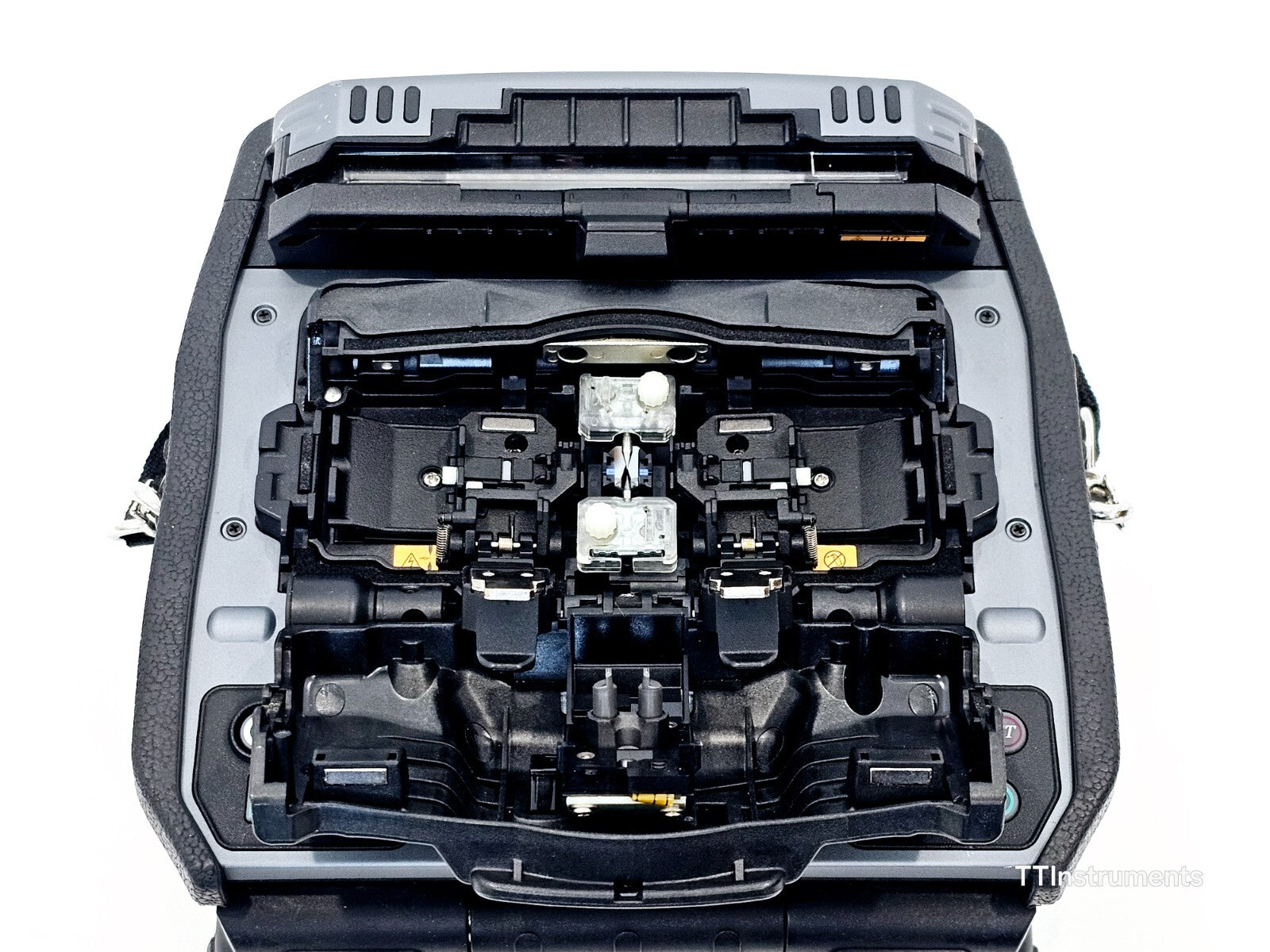

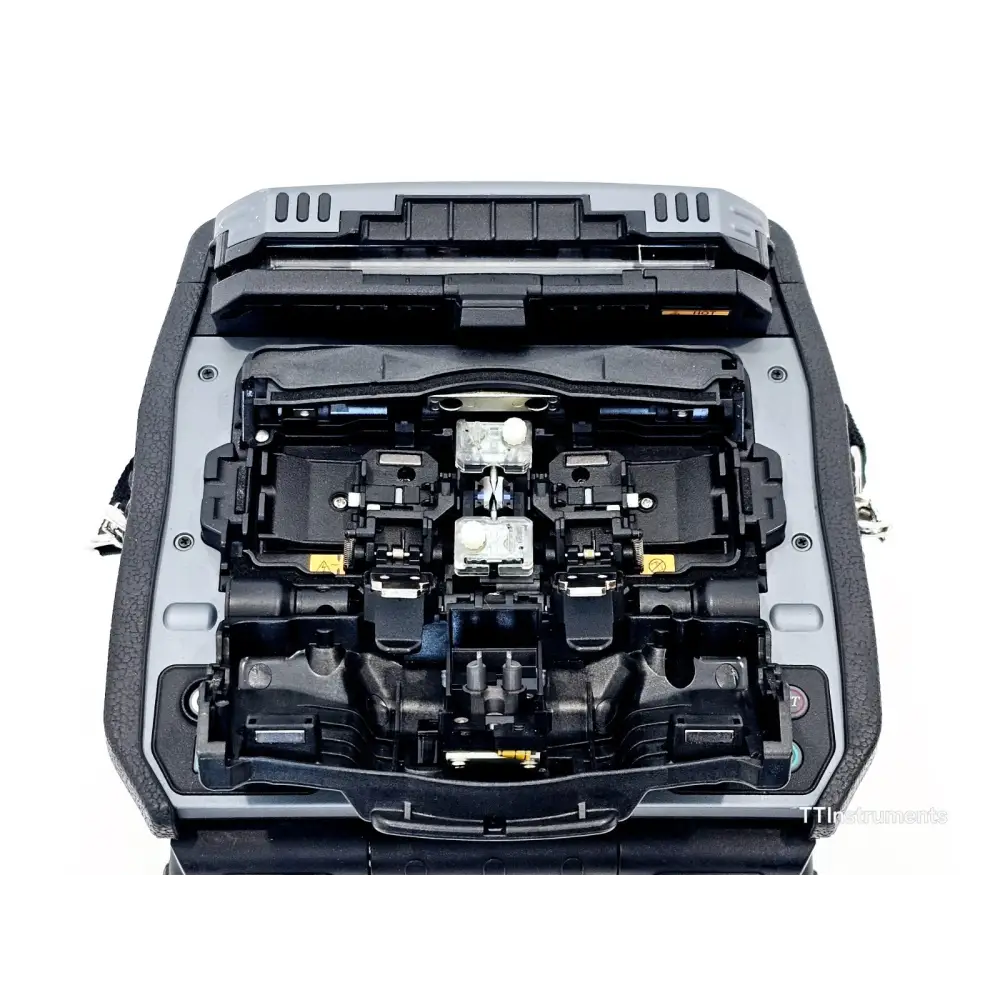

The 90S+ delivers a reduction in overall splice process time when compared to the previous 70S+ model. Such an achievement has been made possible thanks to a combination of improvements to the reaction time of the automated wind protectors and automated heater, new fibre retention clamps and improved universal sheath clamps. Thanks to a redesigned internal structure which matches the protection sleeve to the fusion splice point, successful splicing is accomplished without the need for the user to touch the 90S+ once the process has started.
Specifications:
FIBRE ALIGNMENT METHOD: Active core alignment
SPLICEABLE FIBRE COUNT: Single fibre
FIBRE TYPE: Single mode and multimode optical fibre
CLADDING DIAMETER: 80μm - 150μm
SHEATH CLAMP COATING: 3000μm maximum coating diameter
SHEATH CLAMP CLEAVE LENGTH¹: 5mm - 16mm
ITU-T G.652 SPLICE LOSS²: Avg. 0.02dB
ITU-T G.651 SPLICE LOSS²: Avg. 0.01dB
ITU-T G.653 SPLICE LOSS²: Avg. 0.04dB
ITU-T G.655 SPLICE LOSS²: Avg. 0.04dB
ITU-T G.657 SPLICE LOSS²: Avg. 0.02dB
SM FAST MODE SPLICE TIME³: Avg. 7 to 9 seconds
PROTECTION SLEEVE TYPE: Heat-shrinkable sleeve
SLEEVE LENGTH: Max. 66mm
SLEEVE DIAMETER: Max. 6mm before shrinking
60MM SLIM MODE HEAT TIME⁴: Avg. 9 to 10 seconds
60MM MODE HEAT TIME⁴: Avg. 13 to 15 seconds
FIBRE TENSILE TEST FORCE: Approx 2.0N
ELECTRODE LIFE⁵: Approx 5000 splices
WIDTH: Approx. 170mm without projection
DEPTH: Approx. 173mm without projection
HEIGHT: Approx. 150mm without projection
WEIGHT: Approx. 2.8kg including battery
OPERATING TEMPERATURE: -10 to 50 °C
STORAGE TEMPERATURE: -40 to 80 °C
OPERATING HUMIDITY: 0 to 95% RH non-condensing
OPERATING ALTITUDE: Max. 5000m
AC ADAPTOR INPUT: AC100 to 240V, 50/60Hz, Max. 1.5A
BATTERY TYPE: Rechargeable Lithium Ion
BATTERY OUTPUT: Approx. DC14.4V, 6,380mAh
BATTERY CAPACITY⁶: Approx. 300 splice and heat cycles
BATTERY RECHARGE TEMPERATURE RANGE: 0 to 40 °C
BATTERY STORAGE TEMPERATURE: -20 to 30 °C
BATTERY LIFE⁷: Approx. 500 recharge cycles

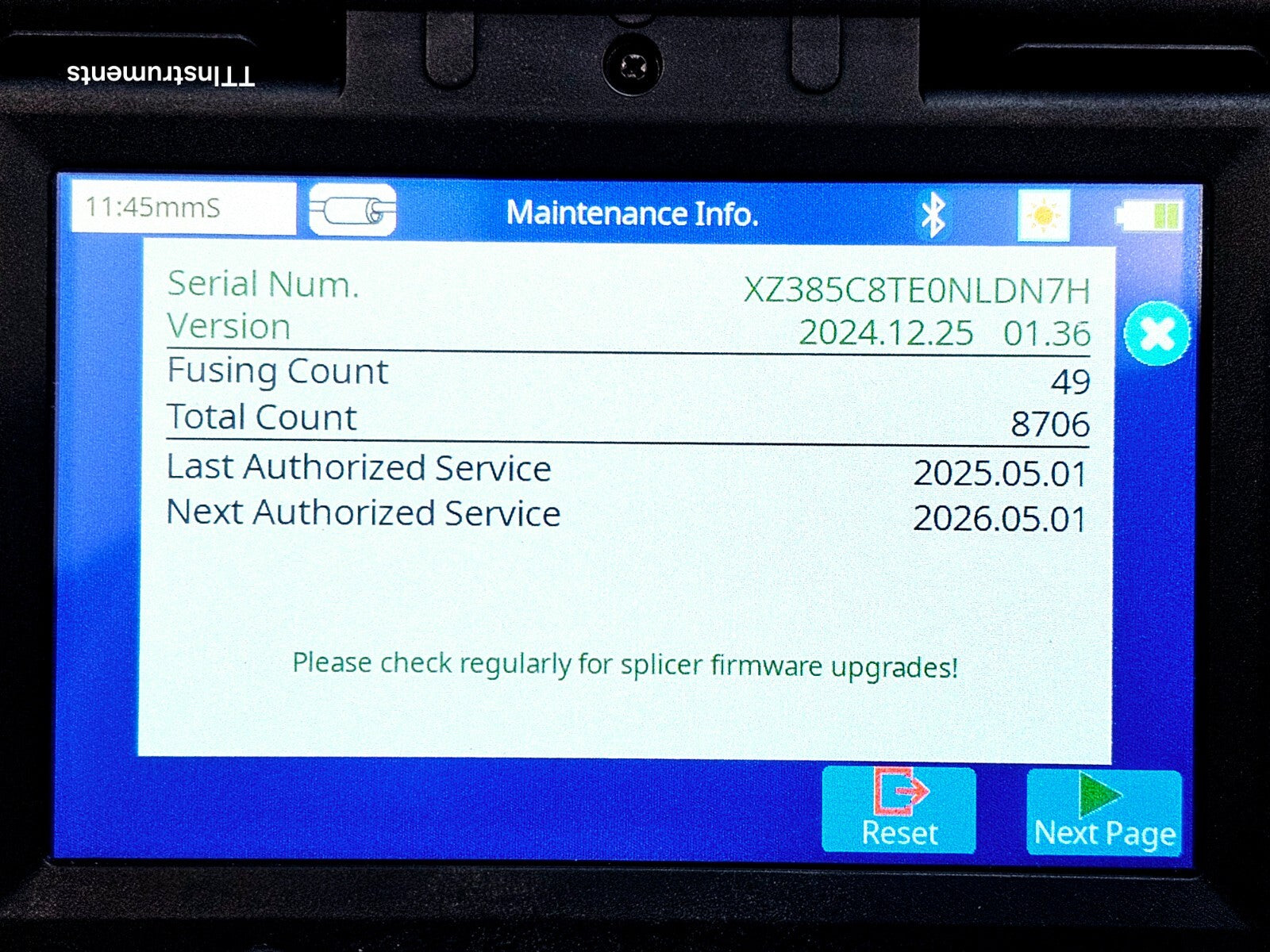

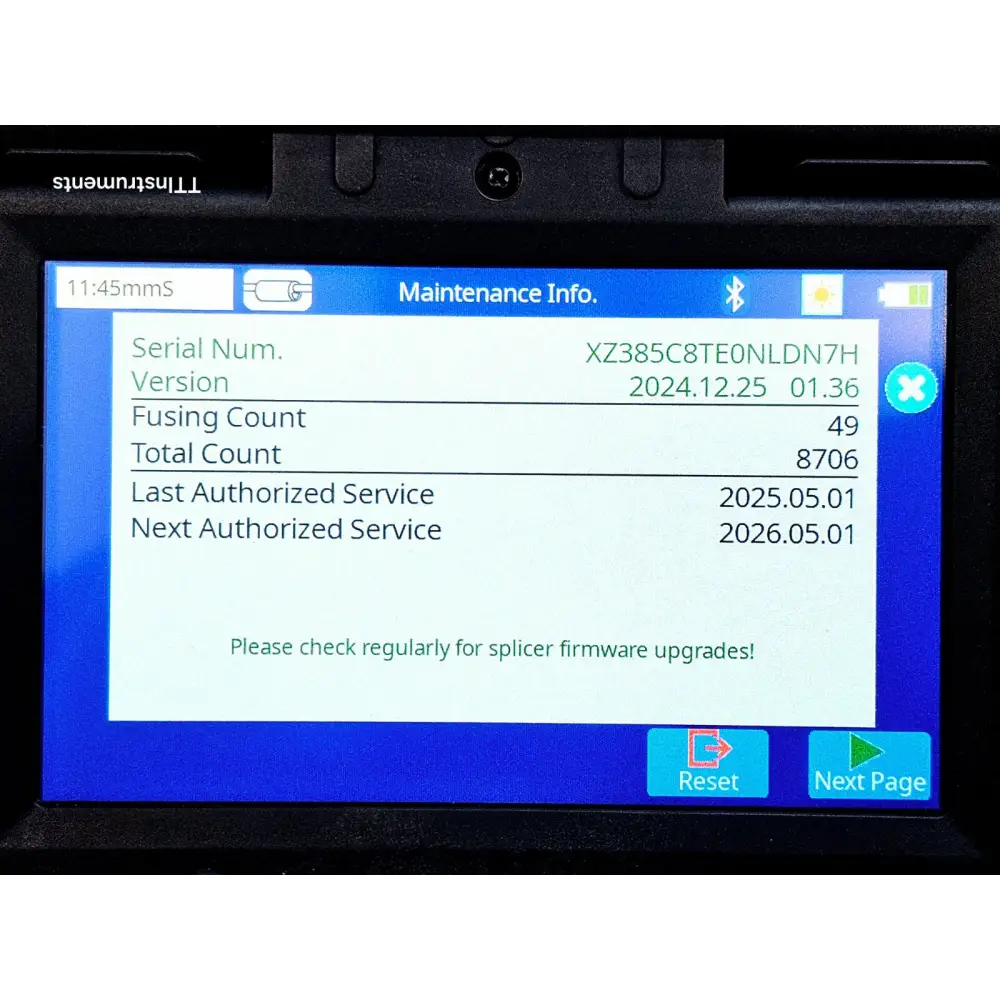

LCD DISPLAY: 4.9 inch TFT colour touch screen
DISPLAY MAGNIFICATION: Approx. 200x - 320x
V-GROOVE ILLUMINATION: LED lamp
PC INTERFACE: USB 2.0 Mini B connector
EXTERNAL LED LAMP INTERFACE: USB 2.0 A connector Approx. DC5V, 500mA
WIRELESS CONNECTIVITY⁸: Bluetooth 4.1 LE
SPLICE MODE DATA STORAGE⁷: 100 splice modes
HEAT MODE DATA STORAGE: 30 heat modes
SPLICE RESULT DATA STORAGE: 20000 splices
SPLICE IMAGE DATA STORAGE: 100 images
TRIPOD SCREW HOLE: 1/4-20UNC
