The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

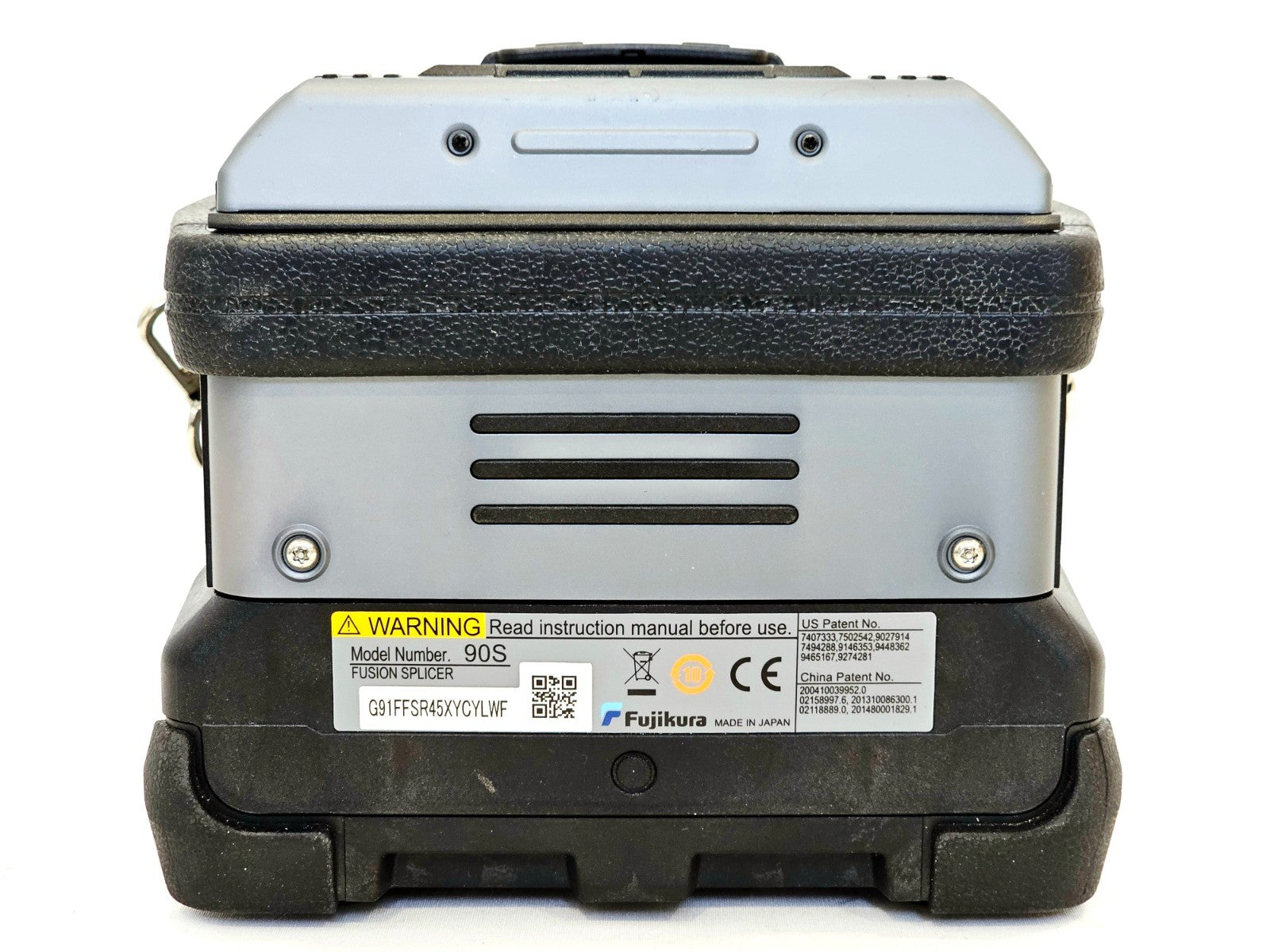

This Fujikura 90S single-fibre core alignment fusion splicer is in used condition and is cosmetically in very good condition throughout. The unit has been fully tested and is confirmed working.

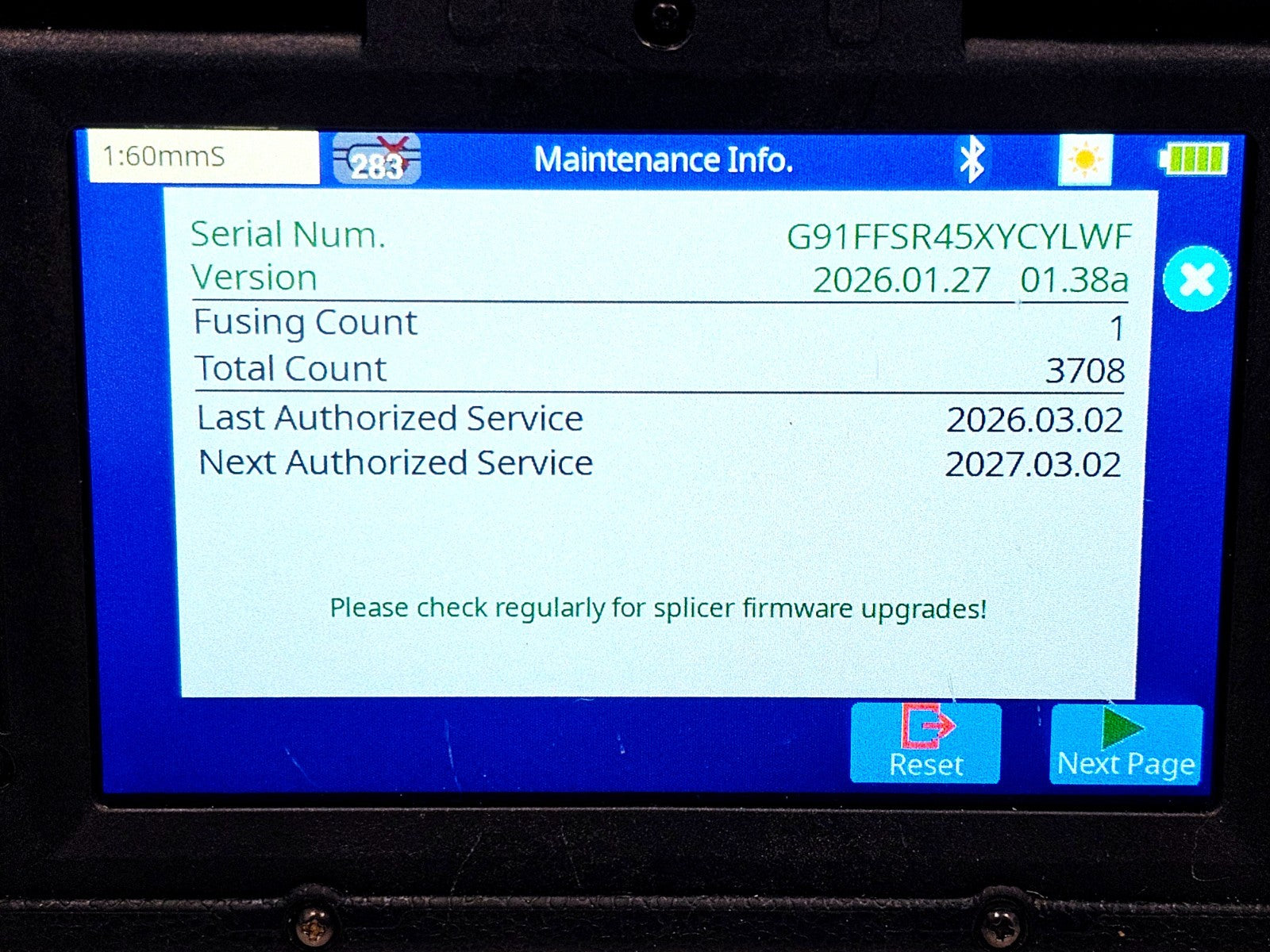

The on-screen Maintenance Info screen confirms a total arc count of 3,708. Firmware version is 01.38a. The last authorised service was completed on 2026.03.02 and the next authorised service is not due until 2027.03.02 — giving the buyer a full year of remaining service interval.

The following items are included:
• Fujikura 90S Fusion Splicer
• Fujikura CT50 Fibre Cleaver
• Fujikura Transit Case / Workstation
• BTR-15 Lithium-Ion Battery Pack
• AC Adapter

The Fujikura 90S is a single-fibre core alignment fusion splicer that sets a new standard for speed and precision in the field, suitable for everything from FTTx drop cable terminations and long-haul network installations to splice-on connector work and optical module assembly.

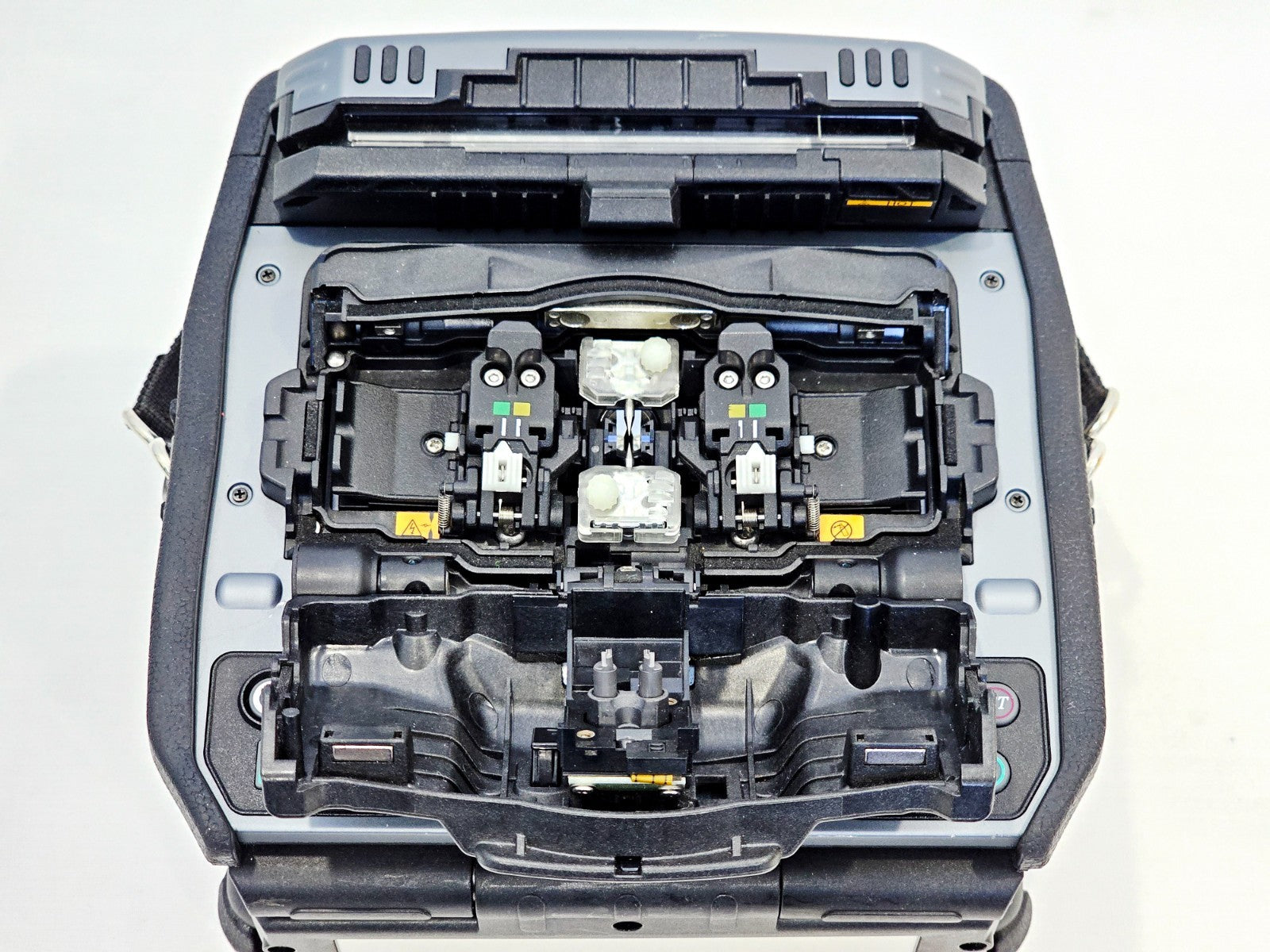

Designed to enable the operator to complete the entire splicing process — from splice to heat shrink — without touching the machine once the fibre is placed, the 90S combines a fully automated wind protector, fibre retention clamps, and auto-open sheath clamps into an intuitive, hands-free workflow. Active Fusion Control (AFC) technology analyses both cleave end-faces and applies real-time optimal arc power to deliver consistently low splice losses even on legacy or difficult fibre types. Active Blade Management communicates wirelessly via Bluetooth with the CT50 cleaver, automatically rotating the blade when wear is detected and displaying remaining blade life on-screen.

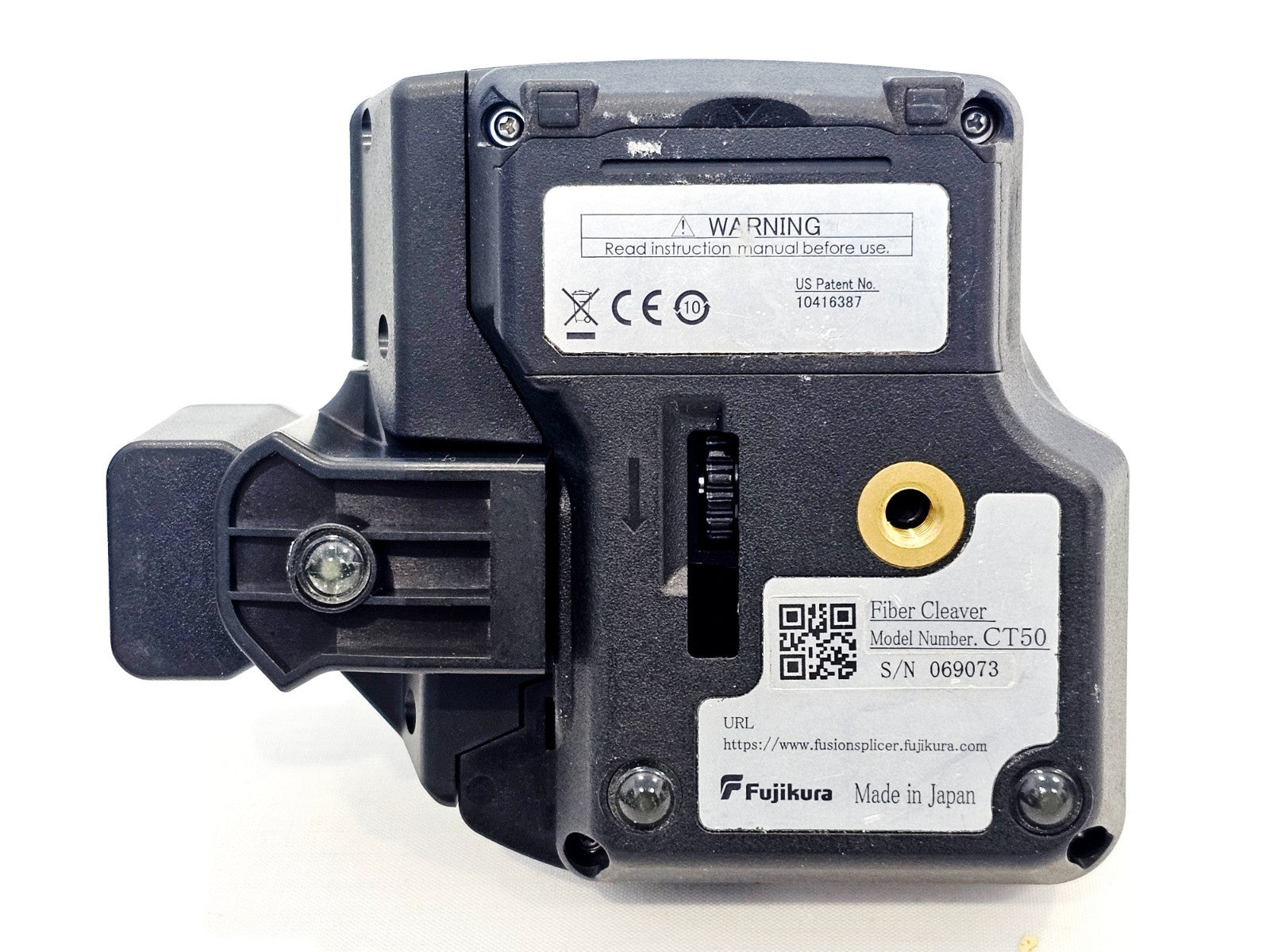

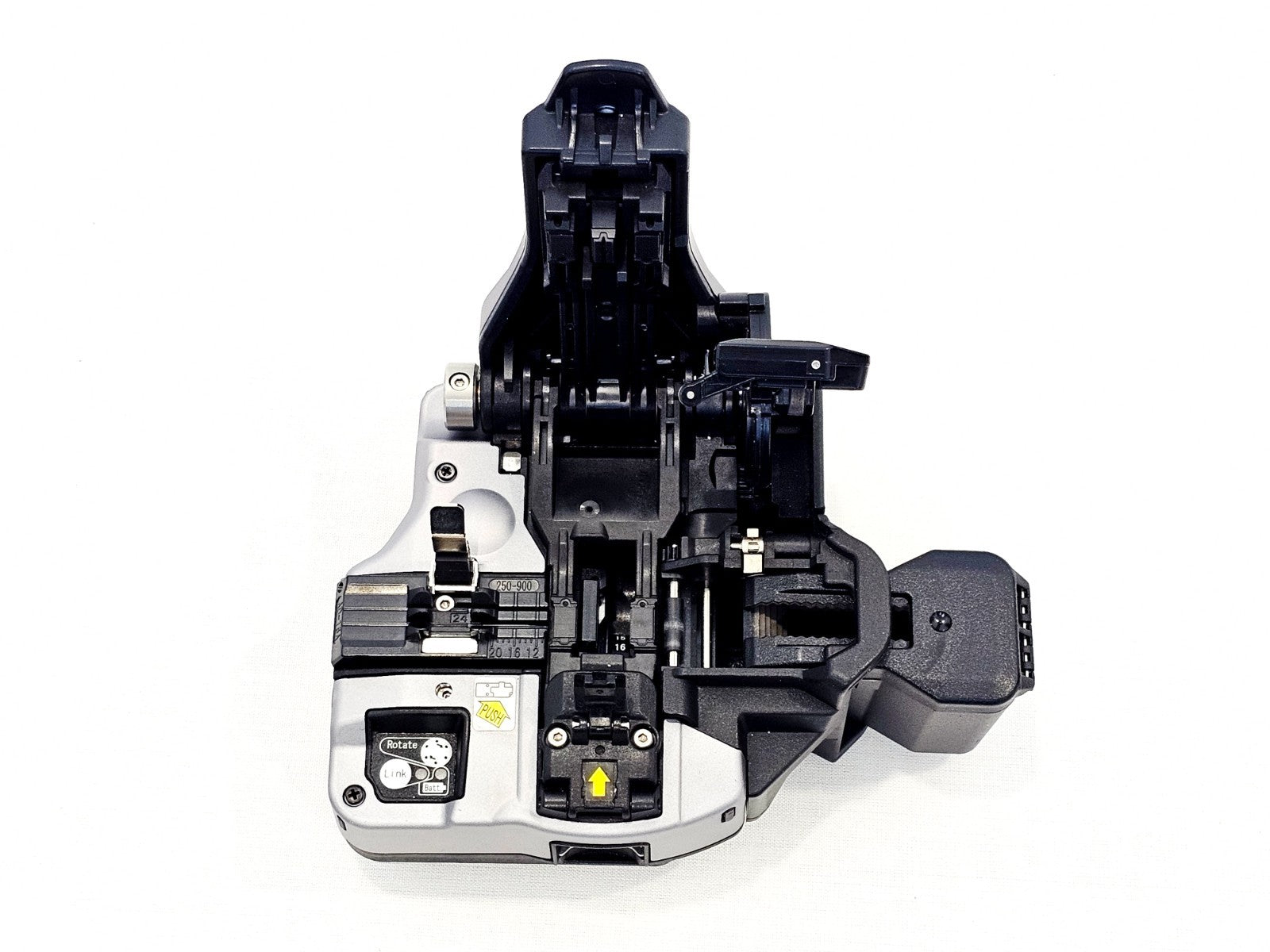

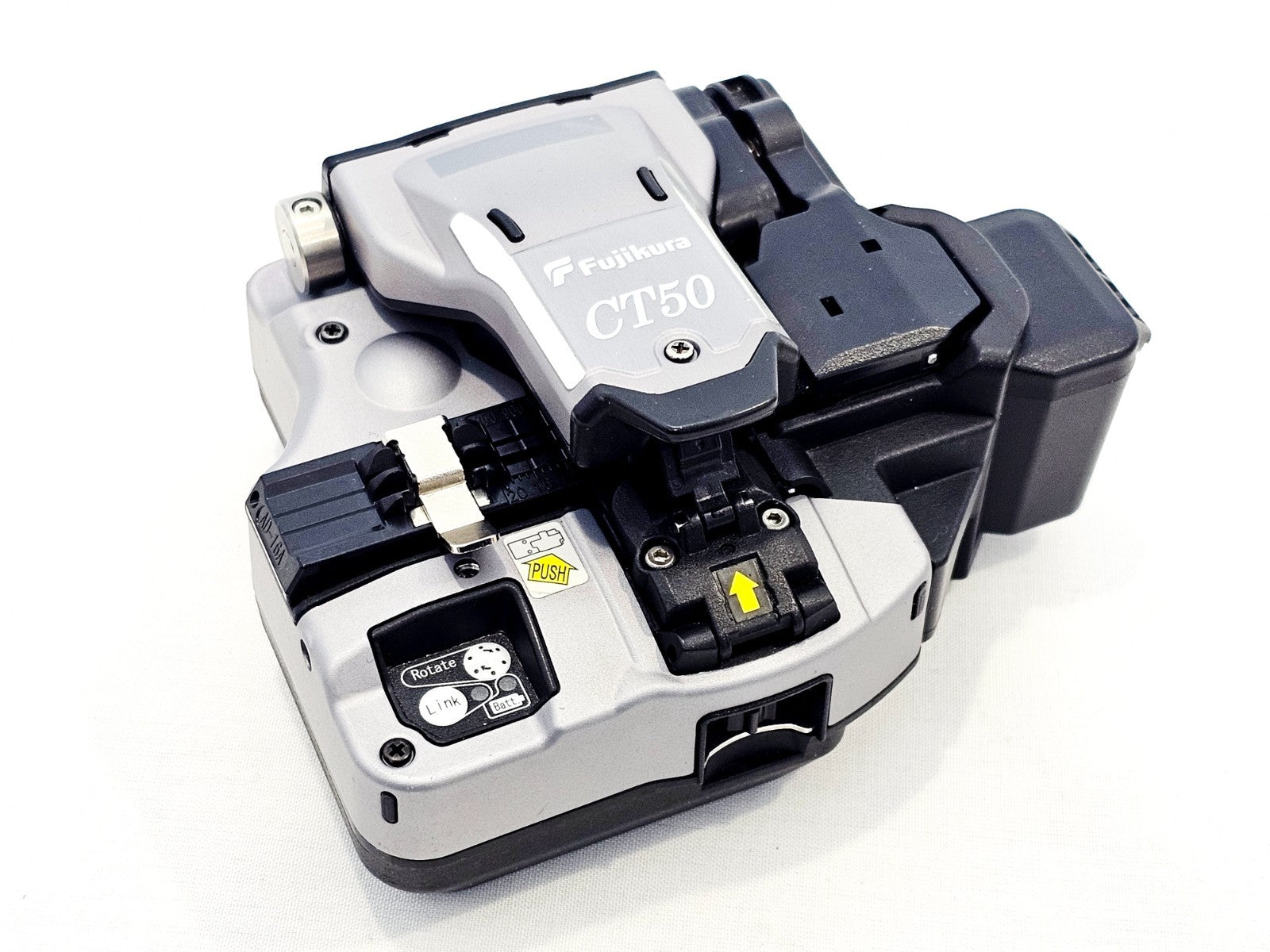

The CT50 cleaver itself features motorised automatic blade rotation, a 16-position blade rated for 60,000 single-fibre cleaves, a built-in fibre scrap collector, and ruggedised construction rated for drops up to 30 inches. Both the 90S and CT50 are made in Japan.

Fibre Alignment Method: Active core alignment
Fibre Count: Single fibre
Applicable Fibre Types: SM and MM (ITU-T G.651, G.652, G.653, G.655, G.657)
Cladding Diameter: 80 µm – 150 µm
Max Coating Diameter: 3,000 µm
Splice Loss (G.652 SM): Avg. 0.02 dB
Splice Loss (G.651 MM): Avg. 0.01 dB
Splice Time (SM FAST mode): 7–9 seconds
Heat Time (60 mm sleeve): 13–15 seconds
Battery Life: Approx. 300 splice and heat cycles
Display: 4.9-inch colour TFT touch screen
Wireless: Bluetooth (CT50 integration)
Data Storage: Up to 20,000 splice results
Magnification: Approx. 200×–320×
CT50 Blade Life: 60,000 single-fibre cleaves
CT50 Cleave Angle Error: ≤ 0.5°
CT50 Drop Resistance: Up to 30 inches

Fujikura 90S datasheet: Download PDF
