The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

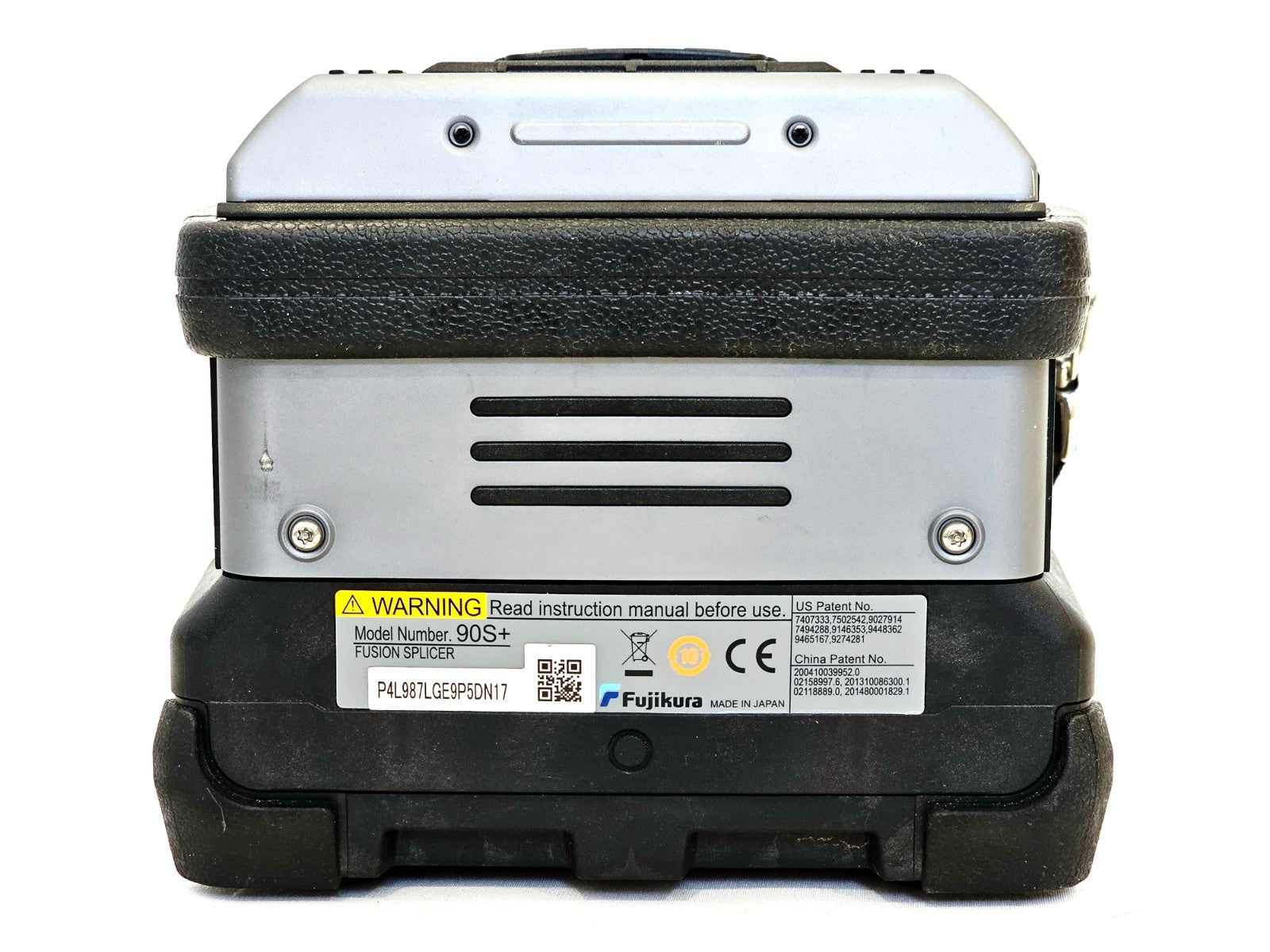

This Fujikura 90S+ fusion splicer kit is in used condition and in good cosmetic order. There is a minor scratch on the screen which does not affect functionality. The unit has been fully tested and is confirmed working.

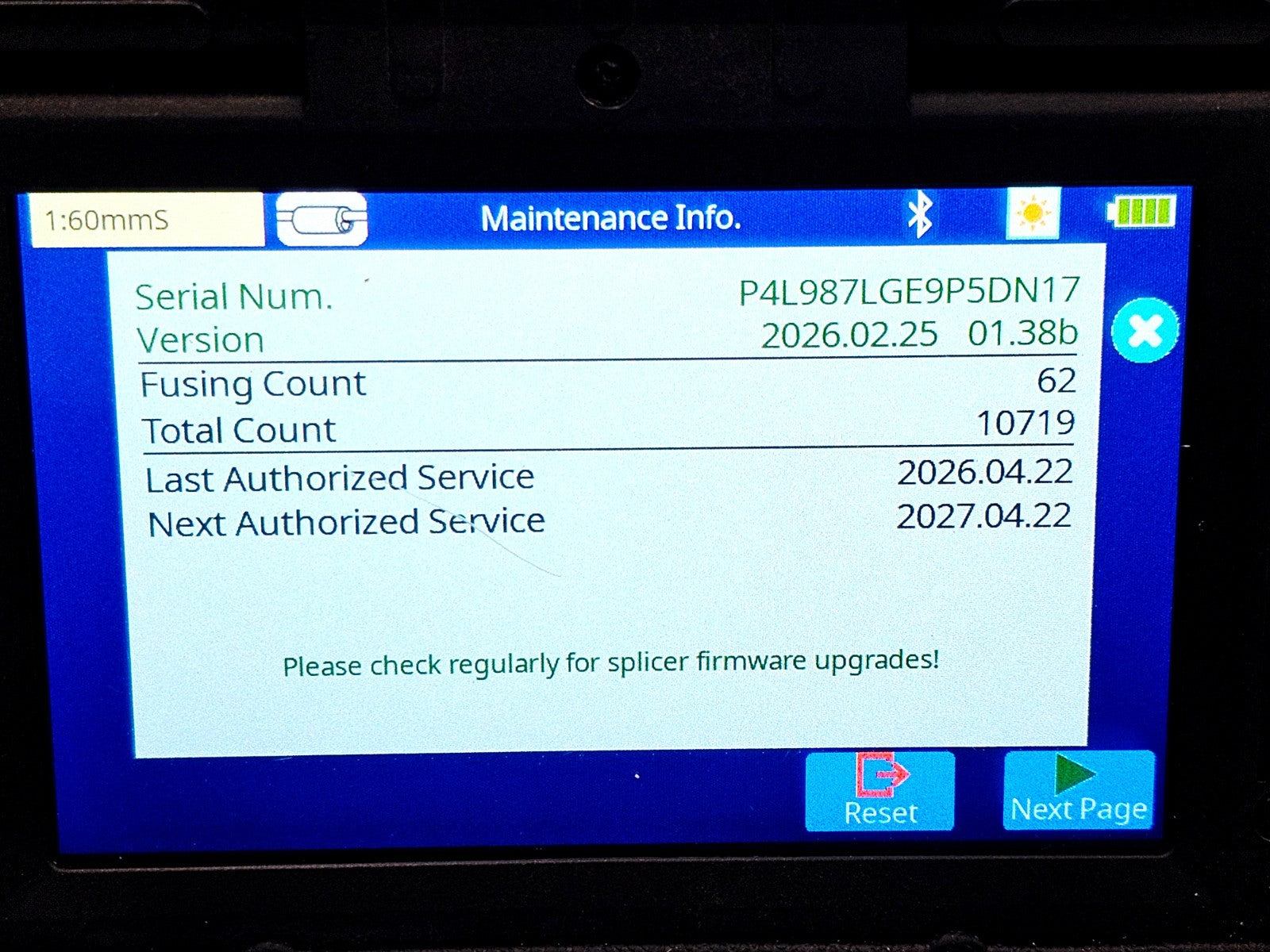

The splicer records a total arc count of 10,719 with a fusing count of 62 since last reset. Firmware version is 2026.02.25 / 01.38b. The unit was last serviced by a Fujikura authorised service centre on 22 April 2026, with the next scheduled service due 22 April 2027 — providing strong assurance of current mechanical condition.

This kit is supplied with:
• Fujikura 90S+ Core Alignment Fusion Splicer

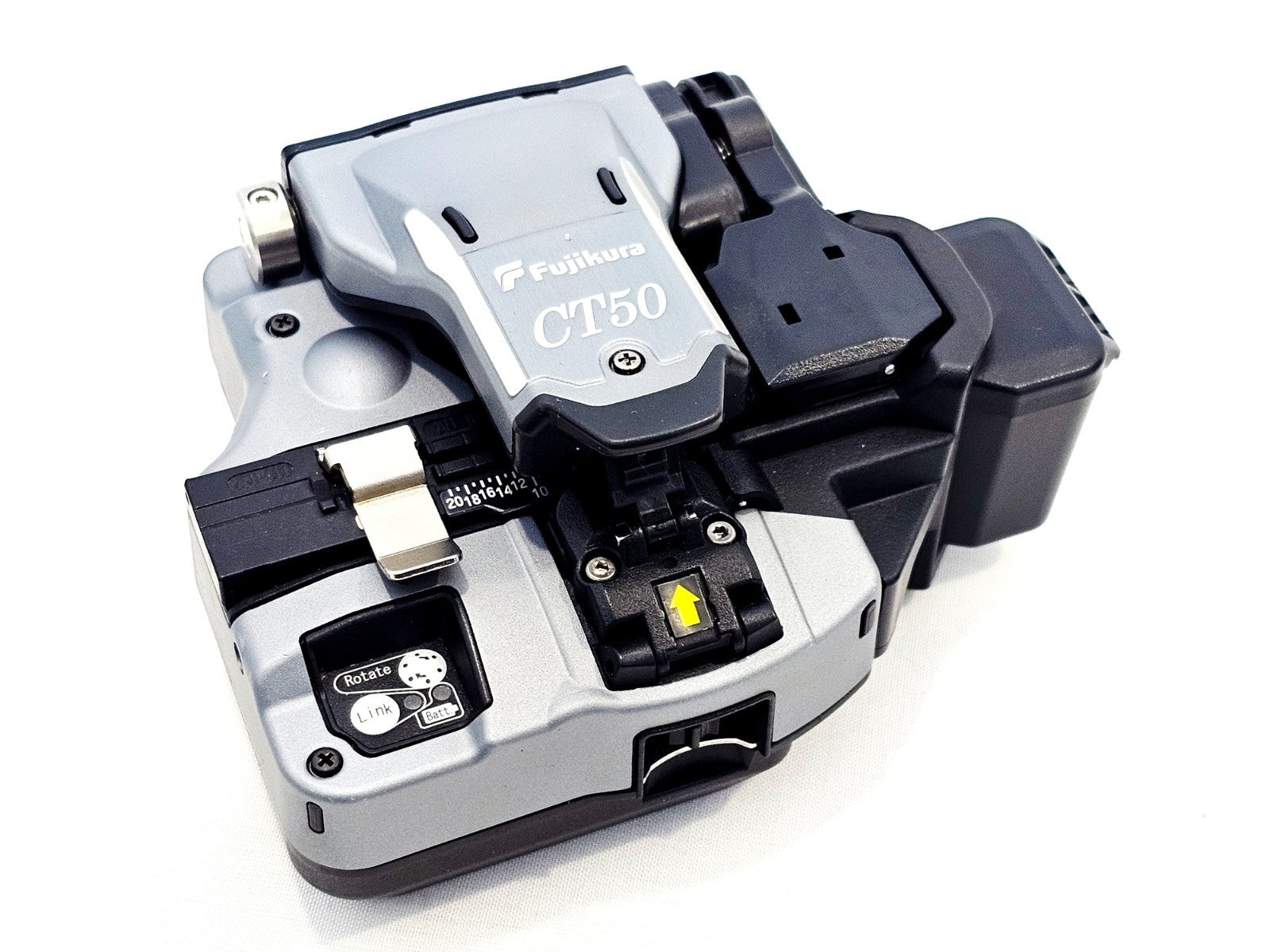

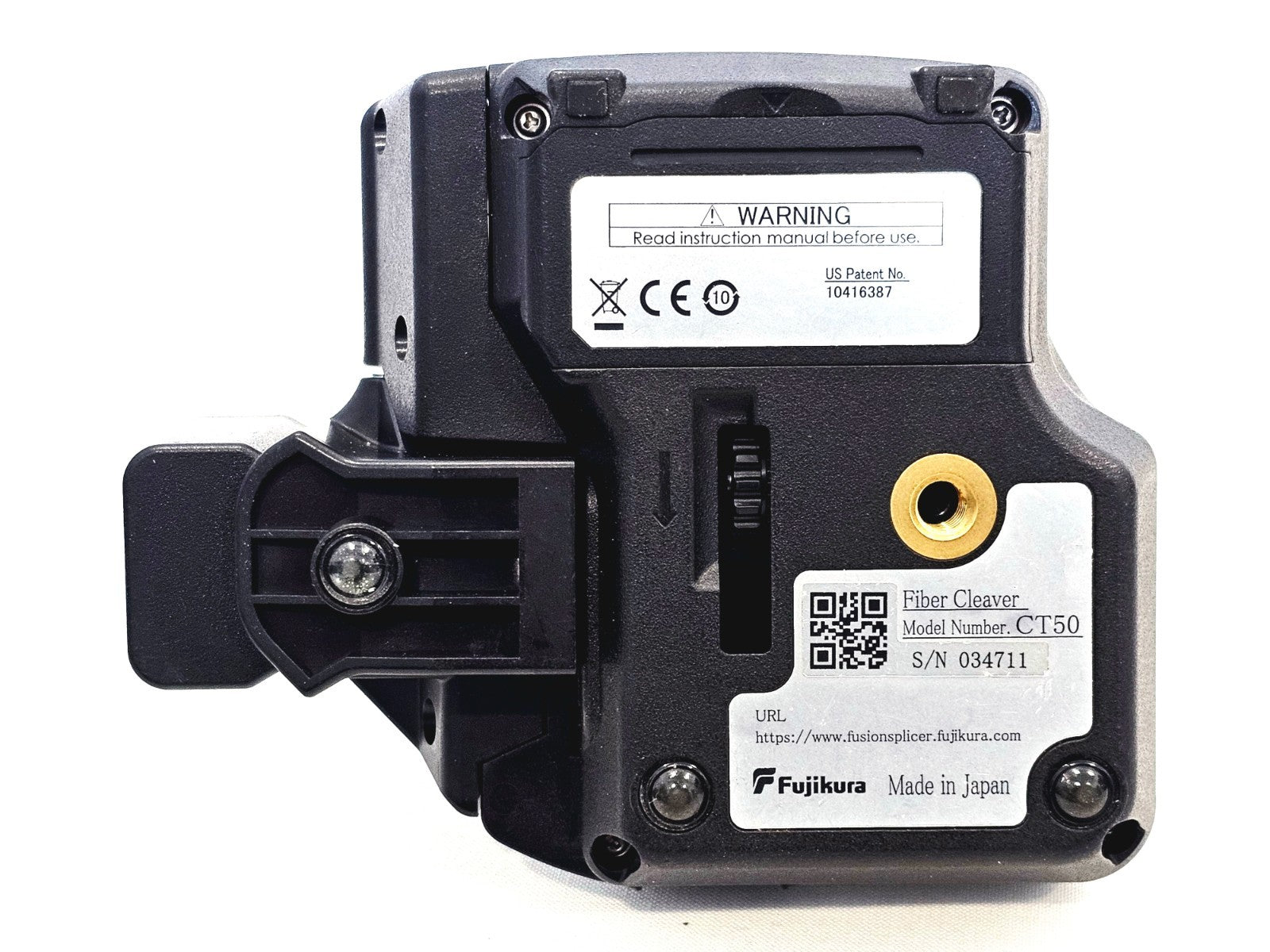

• Fujikura CT50 Automatic Fibre Cleaver
• BTR-15 Lithium-Ion Battery Pack
• CC-39 Yellow Transit / Workstation Case

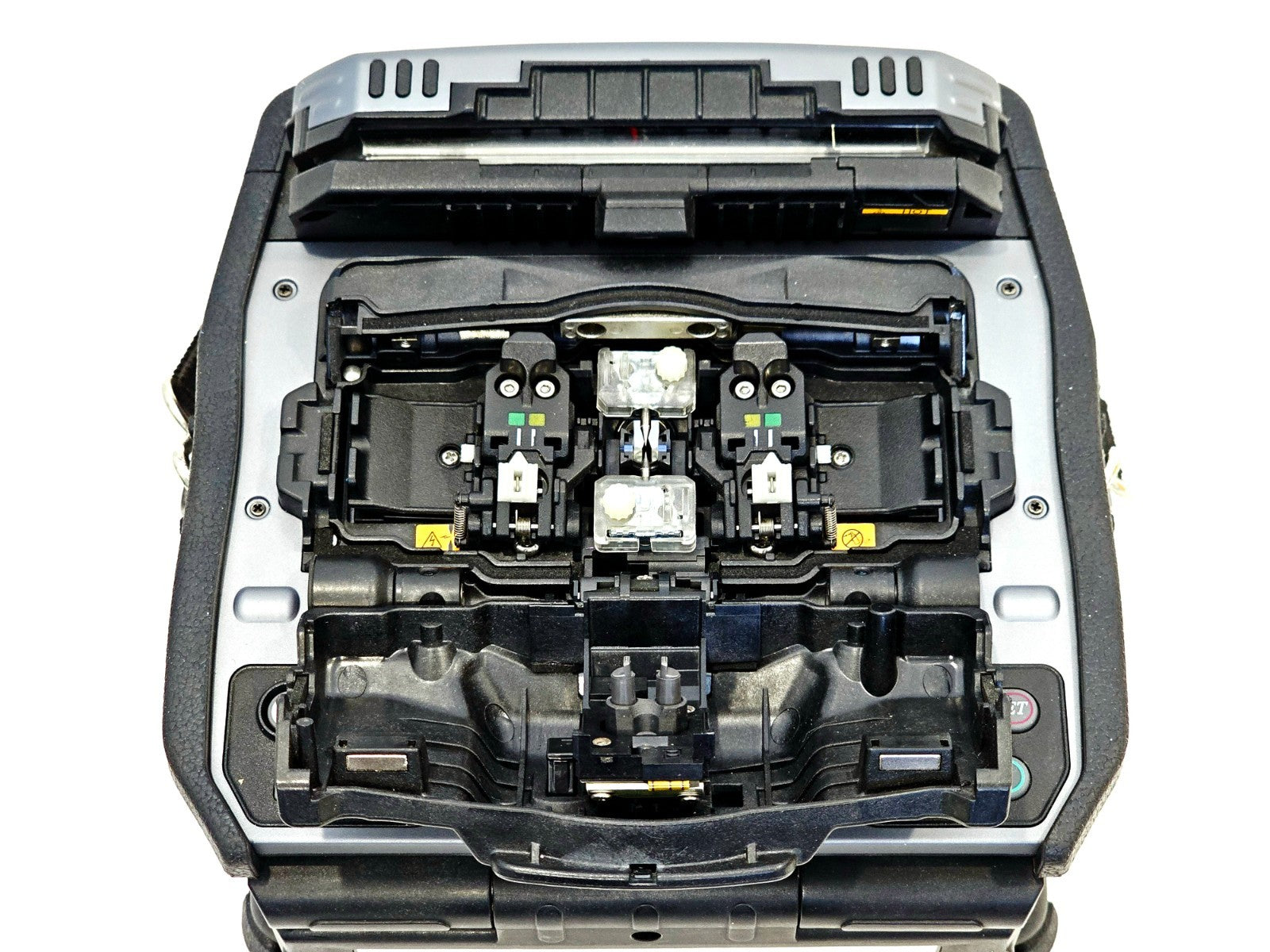

The Fujikura 90S+ is a single-fibre core alignment fusion splicer designed to solve common field splicing challenges — from legacy fibre to modern bend-insensitive and LEAF fibre types — while delivering fast cycle times, exceptional low-loss results, and minimal operator intervention.

Key highlights:
- Active Fusion Control (AFC): analyses both cleave end faces and applies real-time optimal fusion parameters, reducing splice loss even with poor cleave angles
- Active Blade Management (ABM): wireless Bluetooth link to CT50 cleaver enables automatic blade rotation tracking and triggered rotation when wear is detected; up to two CT50 cleavers can be linked simultaneously
- Automated wind protector, sheath clamps and heater — the entire splice-to-heat cycle completes without the operator needing to touch the machine
- Universal sheath clamp handles both 250 µm and 900 µm (loose tube) fibre without swapping
- Adjustable 4.9-inch colour TFT touch screen; tool-free electrode replacement
- High-capacity BTR-15 lithium-ion battery: approx. 300 splice and heat cycles per charge, up to 500 recharge cycles
- CC-39 multi-function yellow transit case doubles as an integrated field workstation
- Compatible with Splice+ app for device settings, firmware updates, GPS splice location logging and Google Drive upload

Fibre alignment method: Active core alignment
Fibre types: Single-mode and multimode (ITU-T G.651, G.652, G.653, G.654, G.655, G.657)
Cladding diameter range: 80 µm – 150 µm
Splice loss G.652 (SM): Avg. 0.02 dB
Splice loss G.651 (MM): Avg. 0.01 dB
Splice time (SM FAST mode): Avg. 7–9 seconds
Heat time (60 mm sleeve): Avg. 13–15 seconds
Electrode life: Approx. 5,000 splices per set
Battery: BTR-15 — DC 14.4 V, 6,380 mAh — approx. 300 splice/heat cycles per charge
AC input: 100–240 V, 50/60 Hz
Weight (with battery): Approx. 2.8 kg
Dimensions: Approx. 170 mm × 173 mm × 150 mm
Display: 4.9-inch adjustable colour TFT touch screen, 200x–320x magnification
Connectivity: Bluetooth, USB 2.0

Fujikura 90S+ datasheet: Download PDF
