Condition: Seller refurbished

Serviced in Feb 2026, supplied with pictured accessories, ARC count is 9,081.

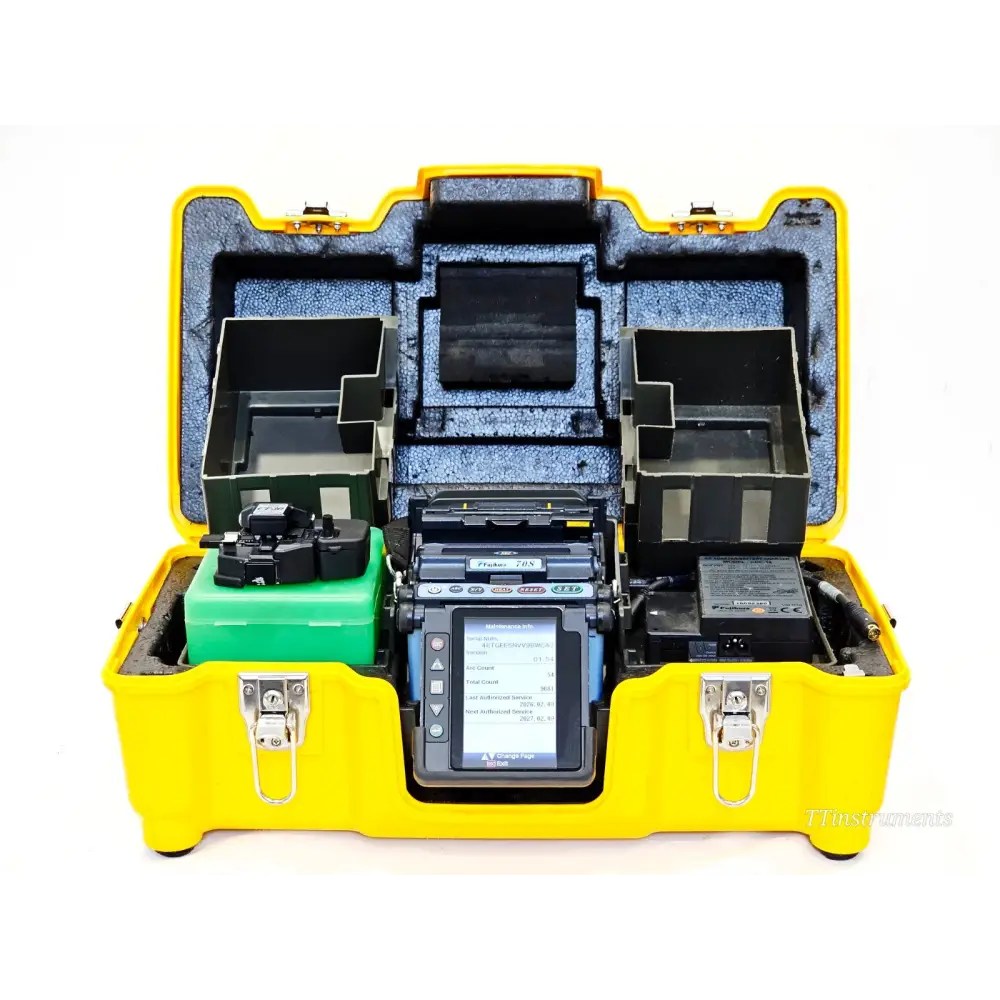

Included in the sale:

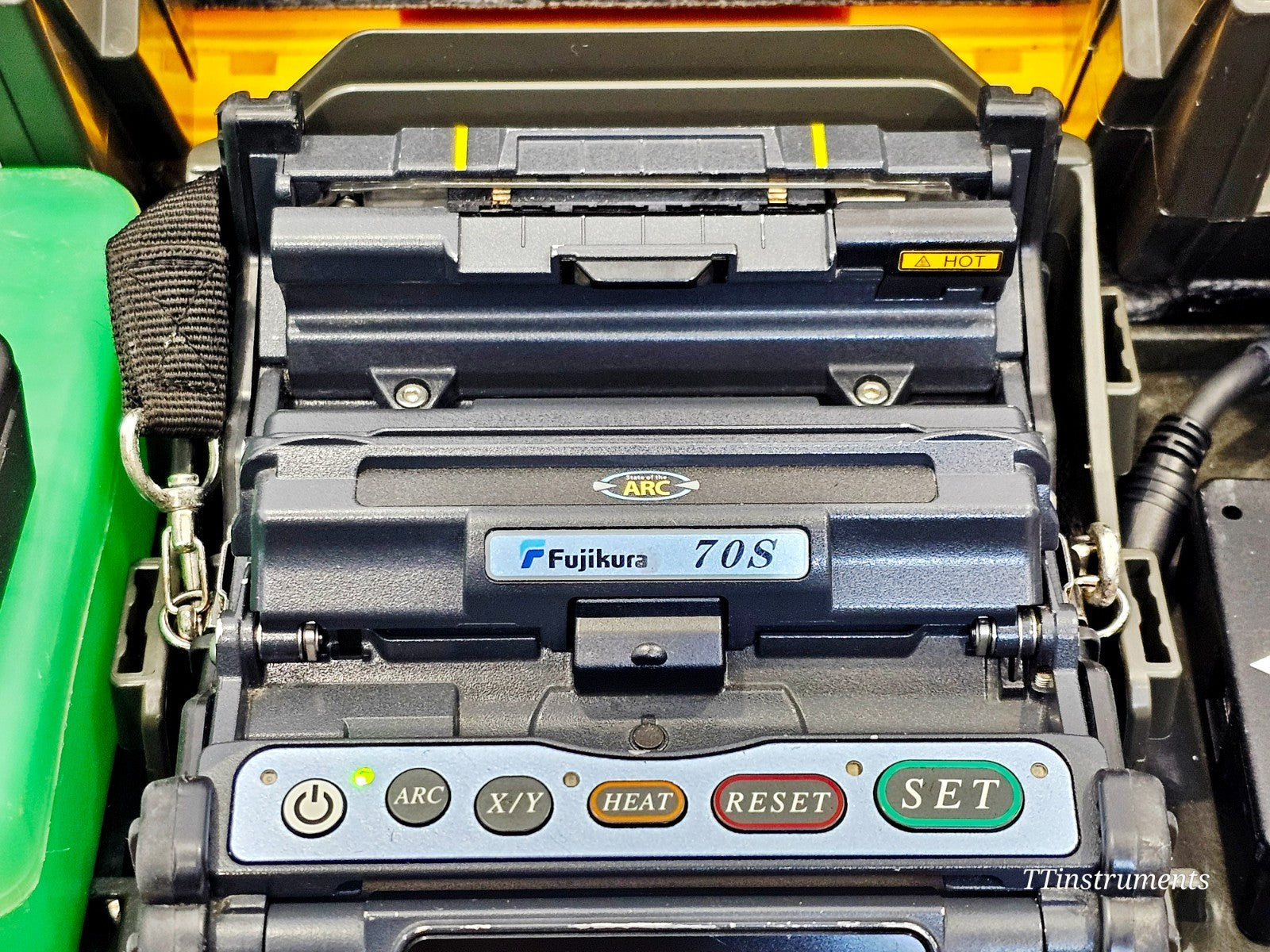

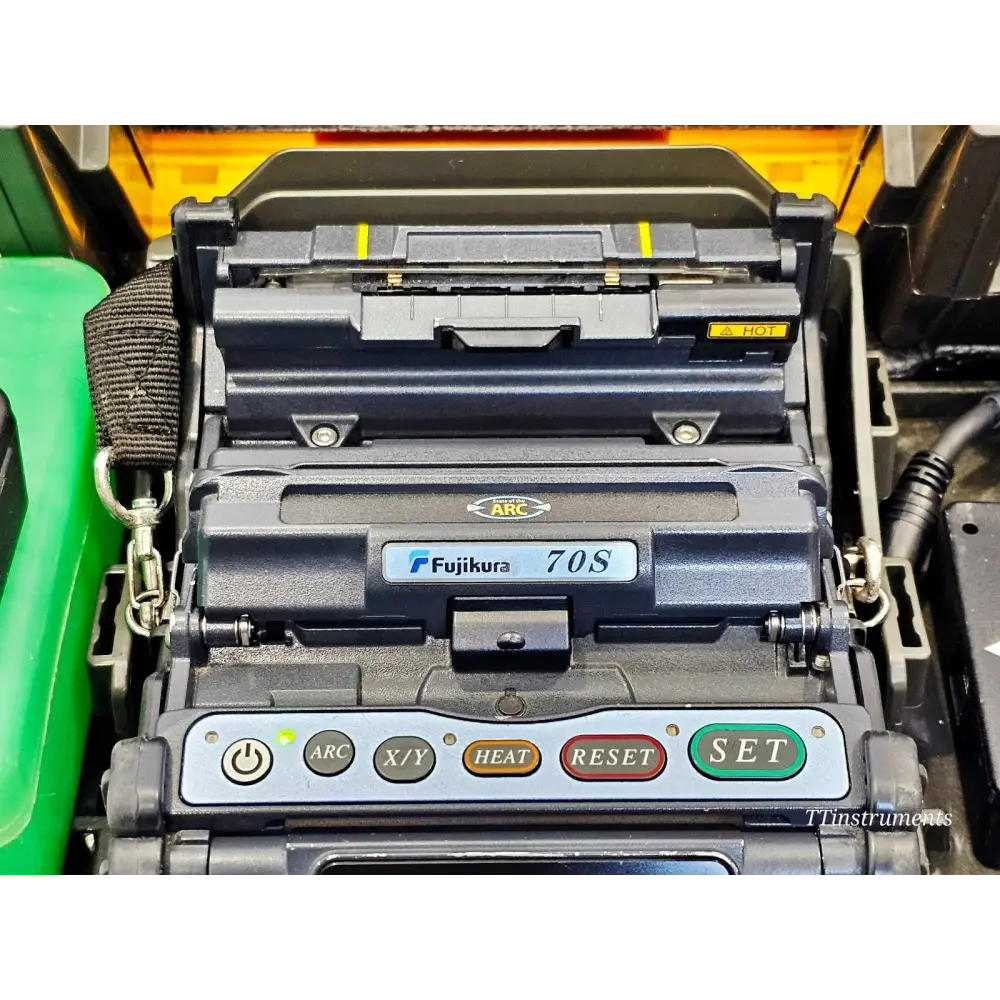

• Serviced Fujikura 70S Splicer ARC 9,081 with clamps

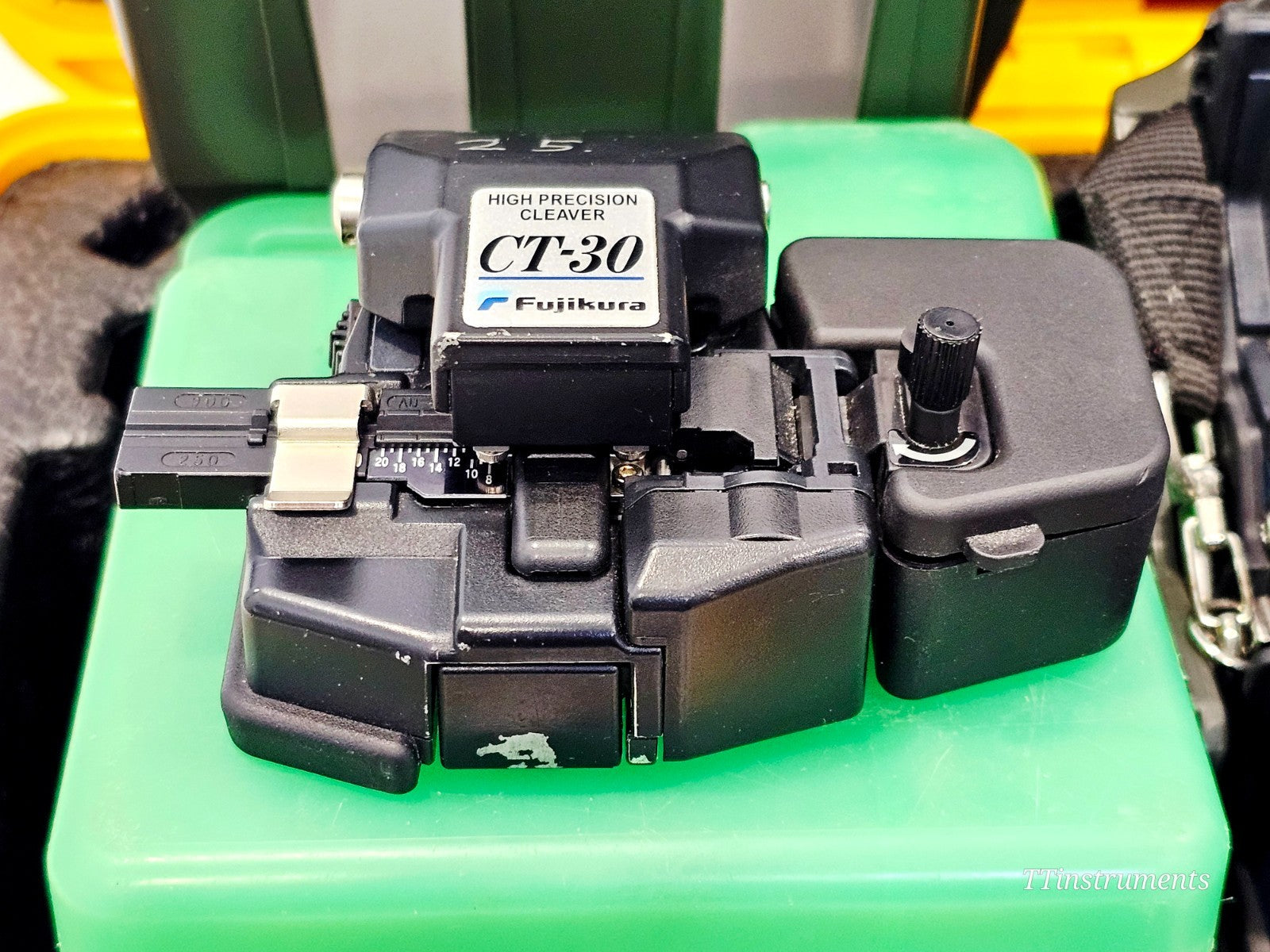

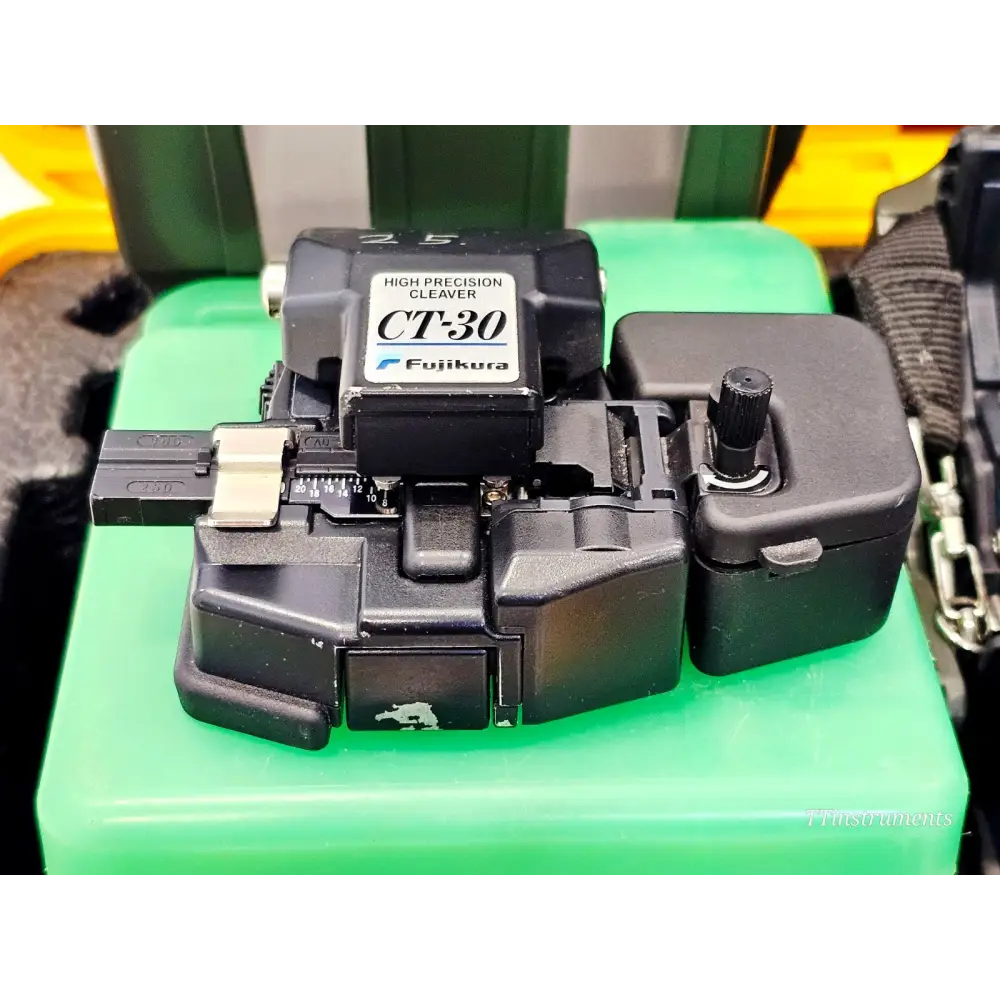

• CT-30 Cleaver with guide plate
• Battery and power adapter + connecting cable

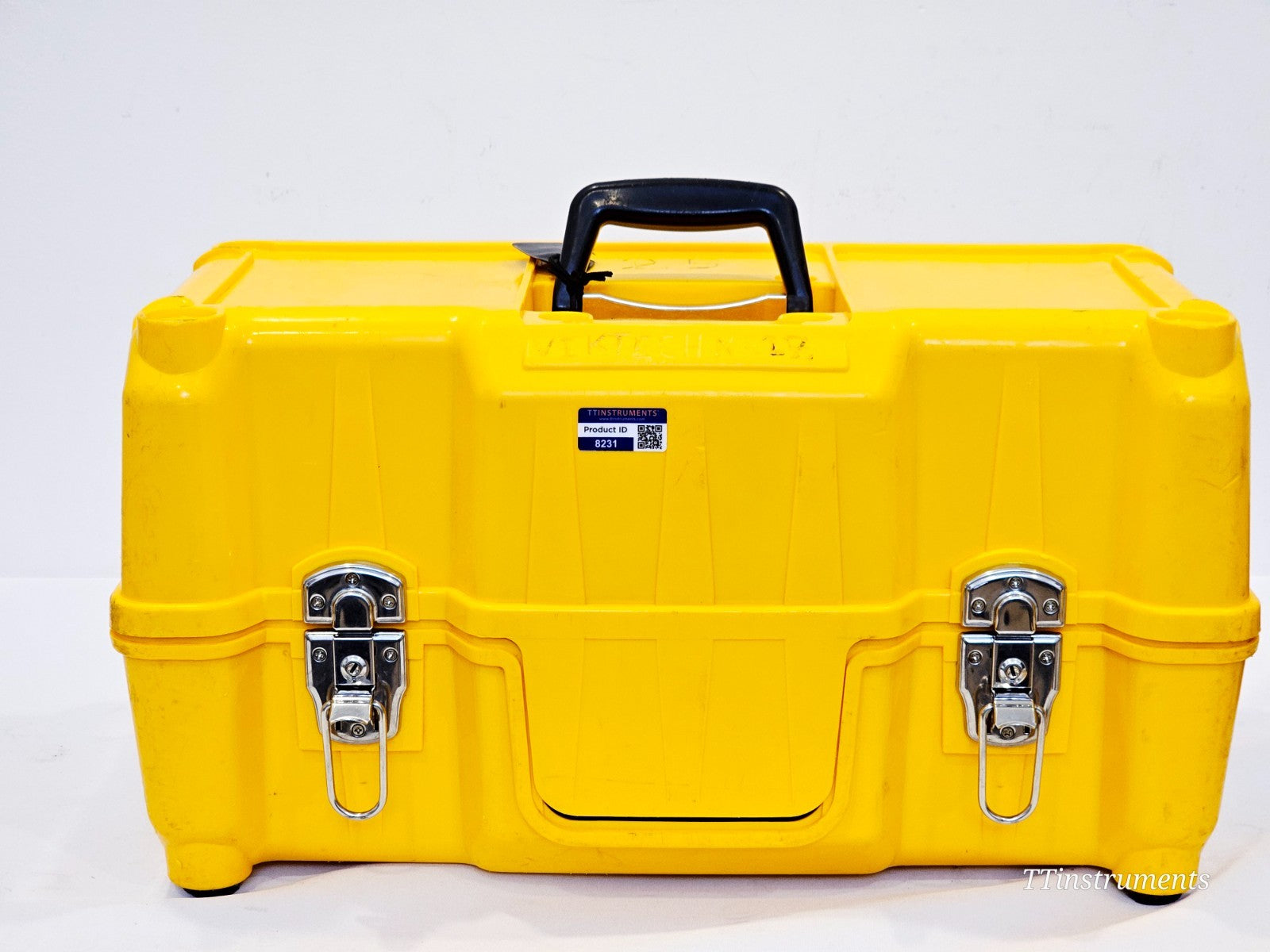

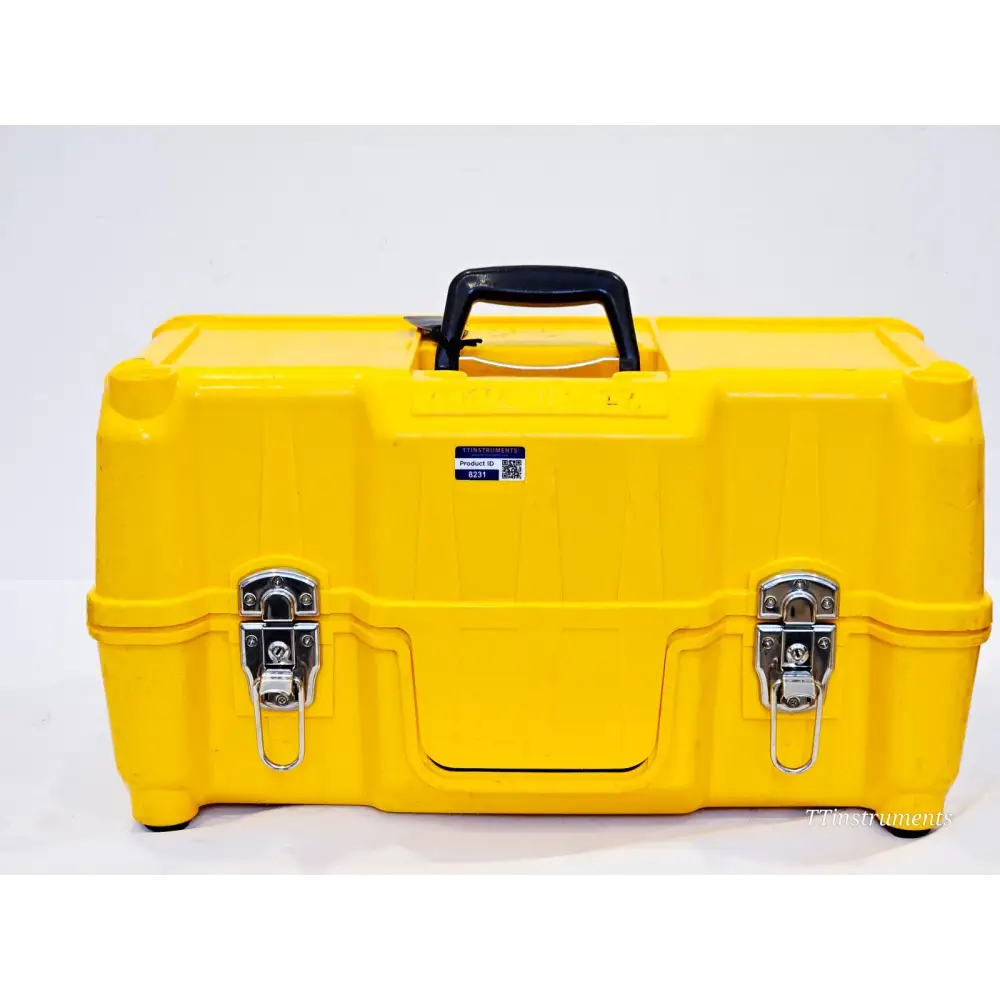

• Carry case

Fujikura 70S Core Alignment Fusion Splicer

The Fujikura 70S is the world’s fastest and most durable core alignment fusion splicer, engineered for high-volume splicing with unmatched speed, reliability, and ease of use. Designed with advanced automation and rugged performance, it delivers consistent results in demanding environments.

Key Features

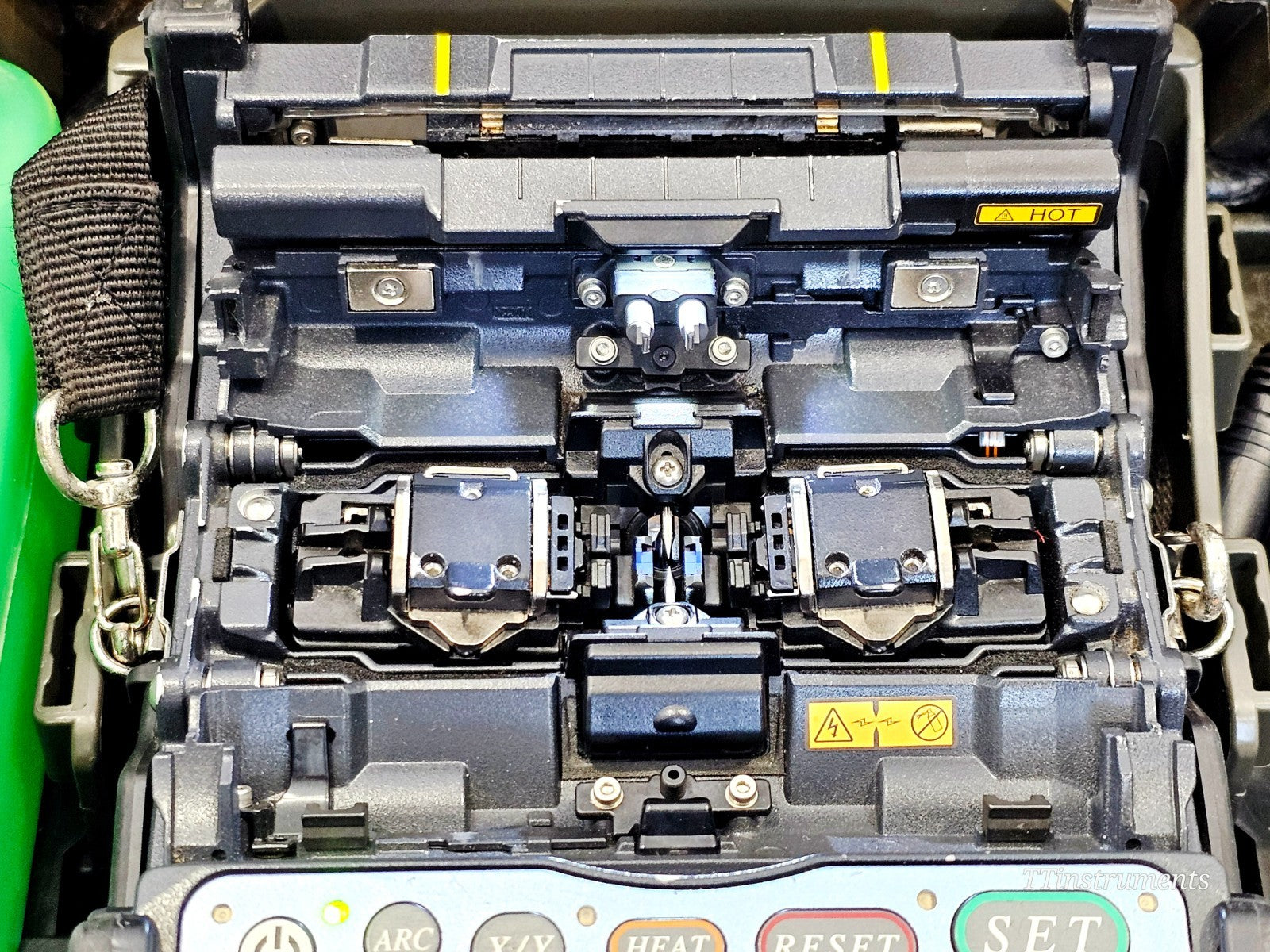

• Core alignment technology with ultra-fast 7-second splice time (SM)

• 14-second tube heating with clamshell heater design

• Total cycle time: approx. 21 seconds

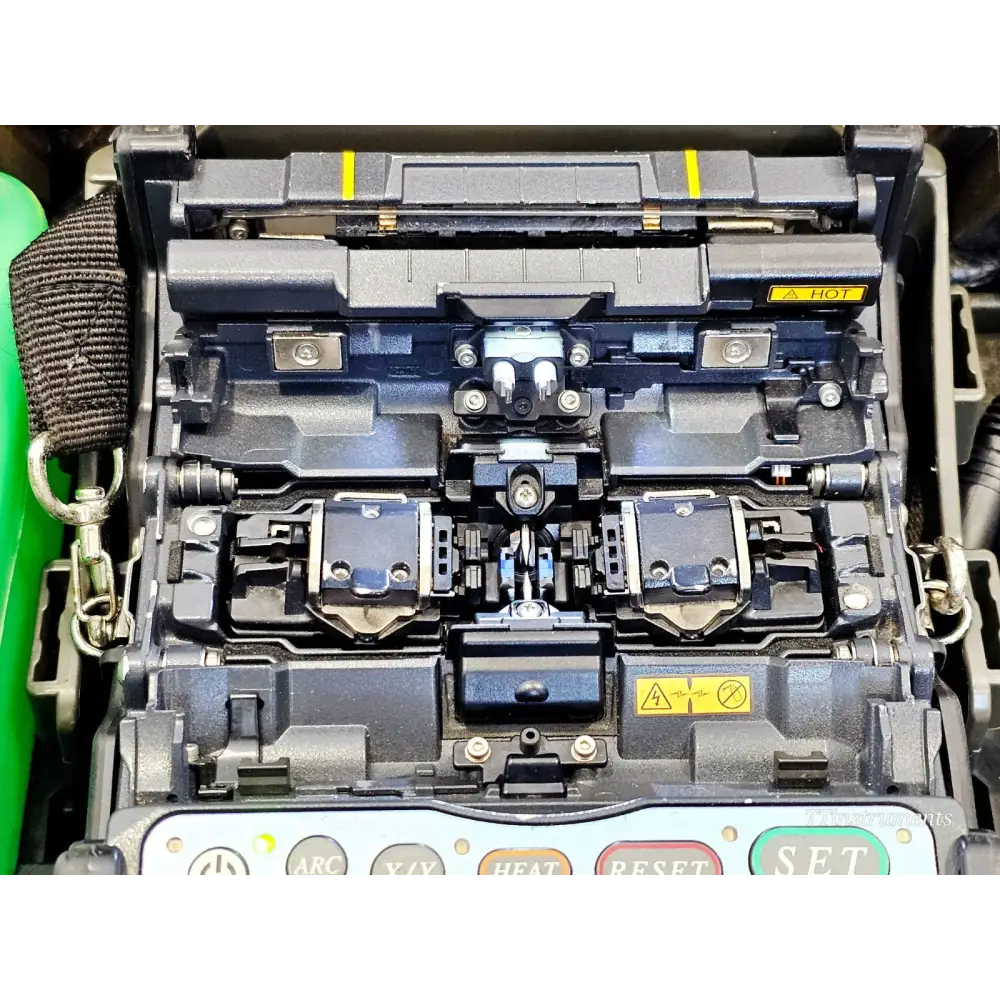

• Automated wind protector and sheath clamp system

• Rugged design with mirror-less optics and impact-resistant monitor

• 200 splice/heating cycles per battery charge

• Advanced transit case doubles as workstation

• Compatible with 60 mm, 40 mm, and micro sleeves

• 100 splice modes and 30 heating modes

• TIA/EIA and ITU-T compliant splice loss measurement

Specifications

• Applicable fibers: SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)

• Cladding/sheath diameter: 80–150 μm / 100–3000 μm

• Cleave length: 5–16 mm (with sheath clamp)

• Typical splice loss: SM: 0.02 dB, MM: 0.01 dB, DSF/NZDSF: 0.04 dB

• Attenuation splice function: 0.1–15 dB (0.1 dB steps)

• Storage: Last 2000 splices

• Camera: 2-axis CMOS with 4.73″ color LCD

• Magnification: 320× (X or Y), 200× (both X and Y)

• Tension test: 1.96 to 2.25 N

• Electrode life: 3000 splices

• Dimensions: 146 × 159 × 150 mm

• Weight: 2.7 kg (with battery)

• Altitude: 0–5000 m, Wind: up to 15 m/s

• Operating temperature: -10°C to +50°C

• Humidity: 0–95% RH (non-condensing)

• Shock resistance: 76 cm drop tested

• Dust resistance: IP5X, Rain resistance: IPX2

• Terminals: USB 2.0 Mini-B, 6-pin Mini-DIN

• Software upgrade and splice data management via PC

See product datasheet
