Condition: Seller Refurbished

This Fujikura 70S+ fusion splicer has been serviced in November 2025 and is supplied with the accessories pictured. The ARC count at time of listing is 5,730, reflecting light use relative to the rated service life of this splicer platform.

Included in the sale:

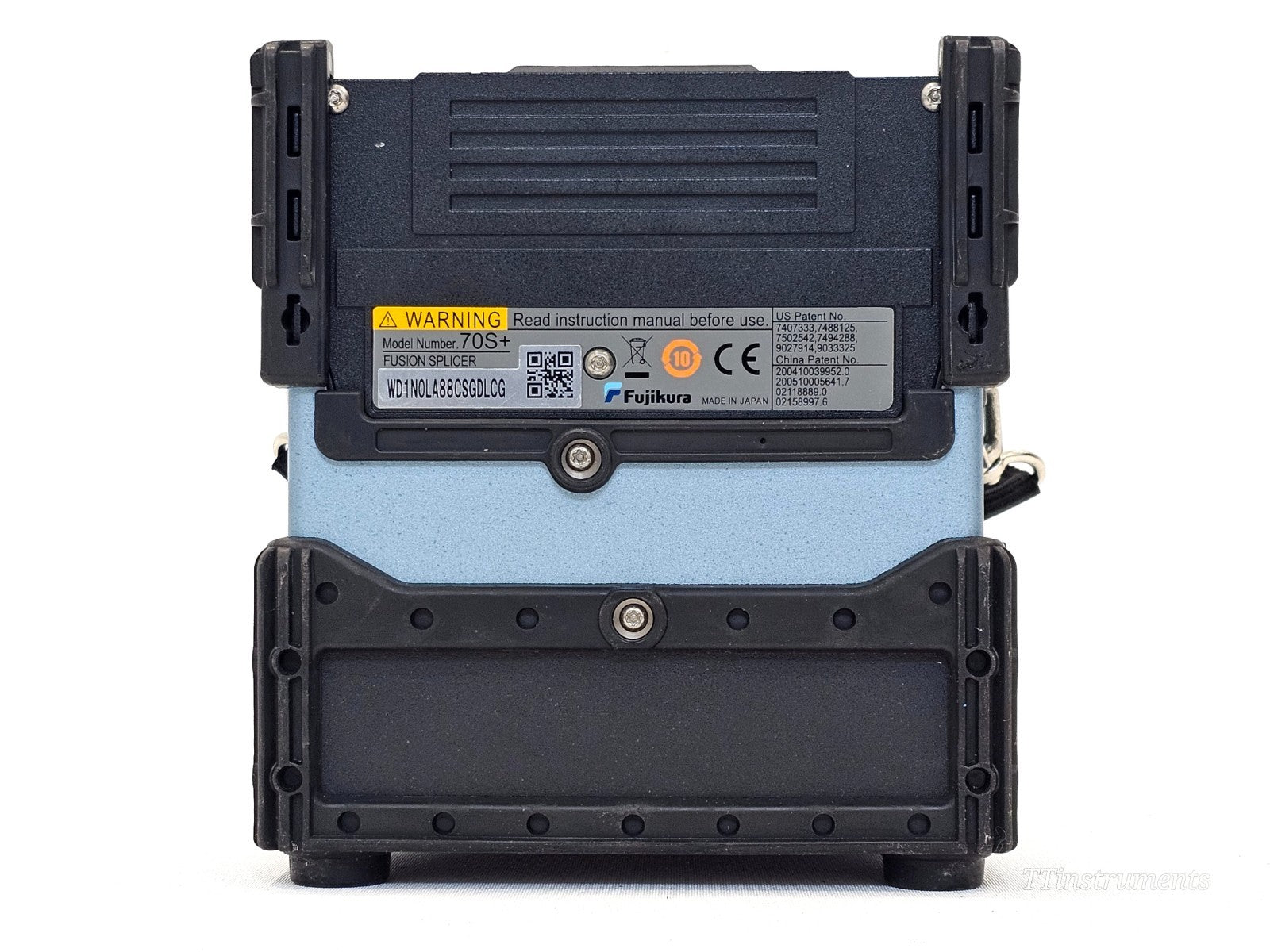

• Fujikura 70S+ Fusion Splicer with clamps (ARC count: 5,730)

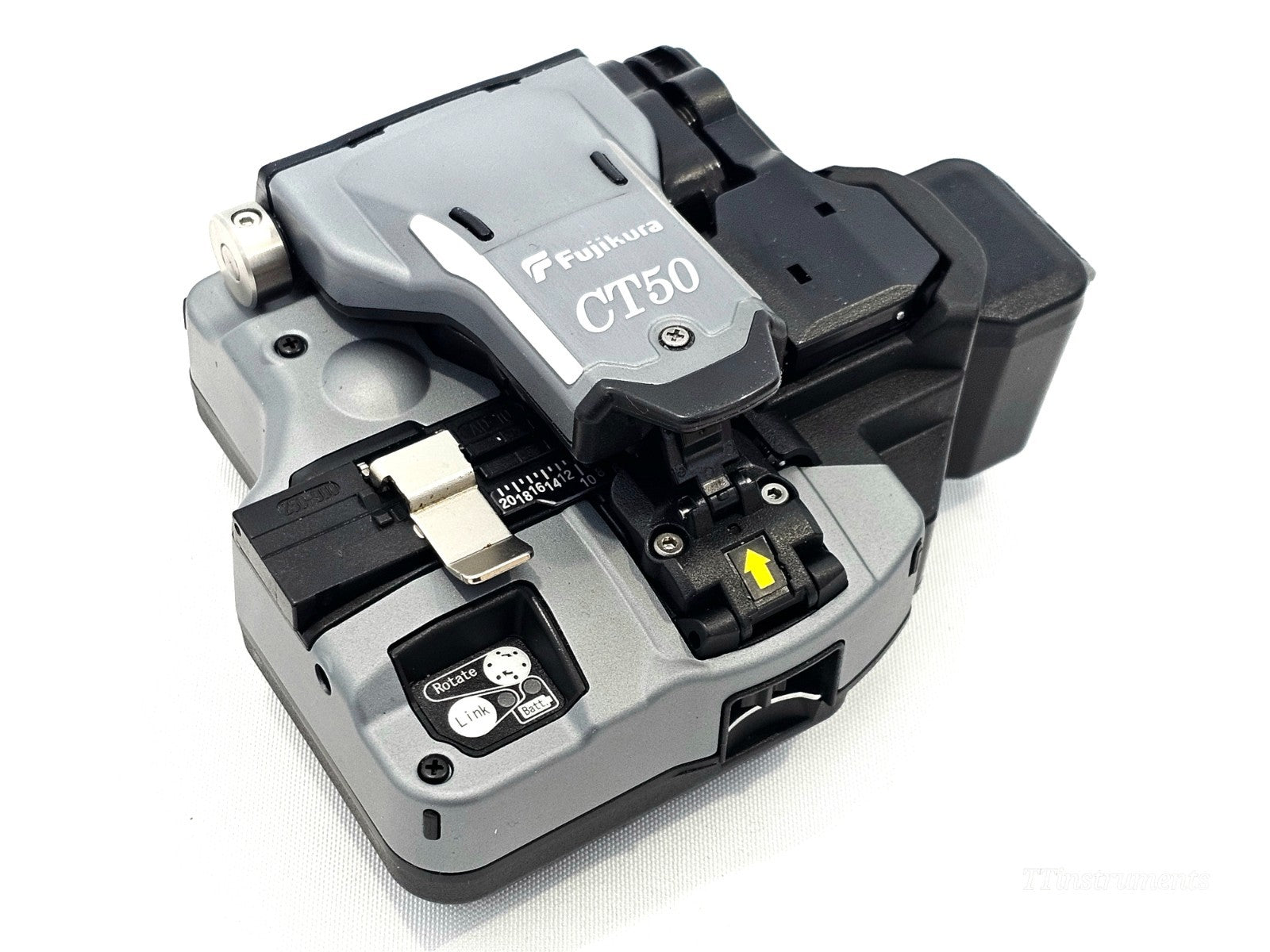

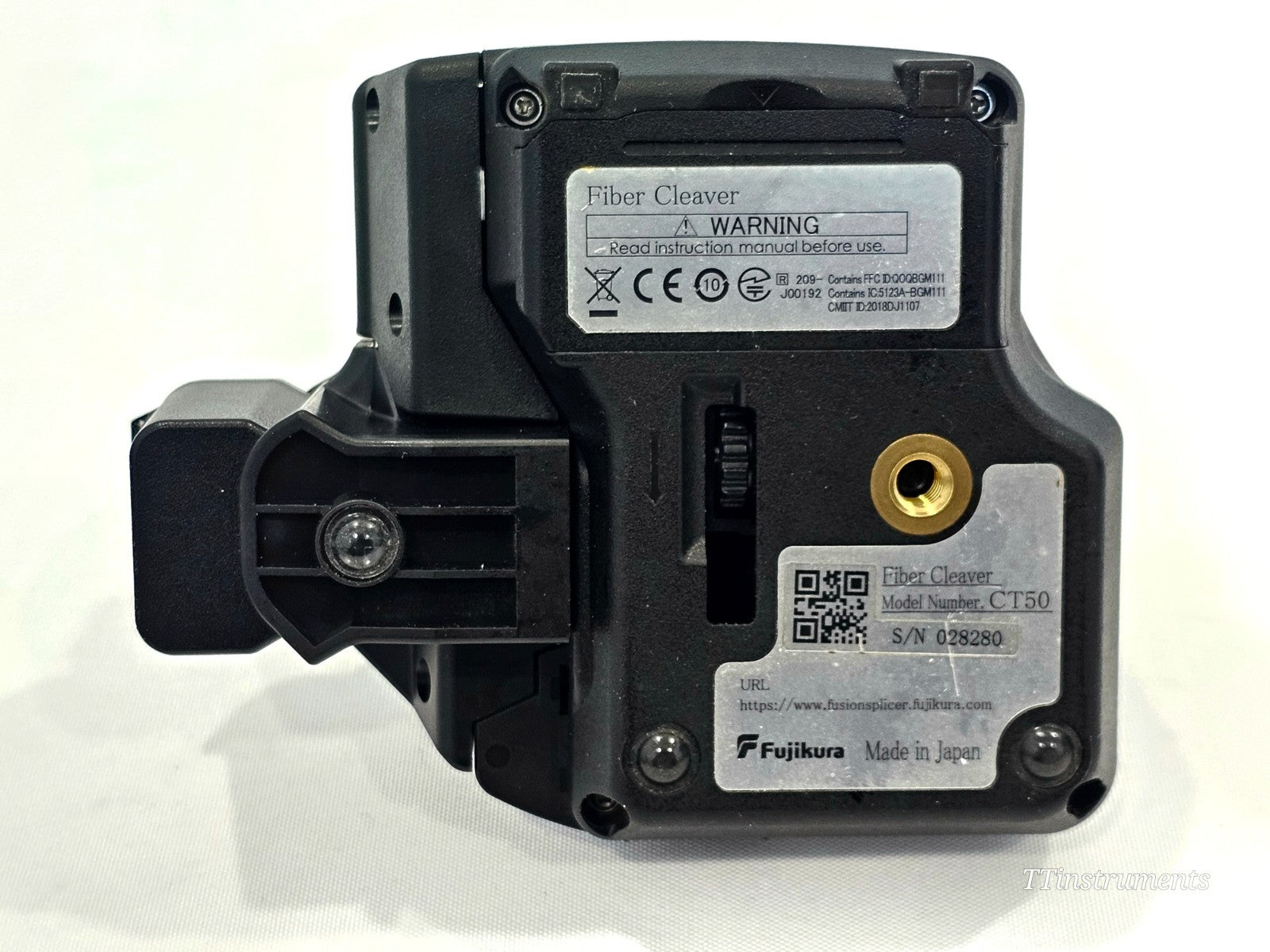

• CT-50 Cleaver with guide plate
• Battery
• Power adapter and connecting cable
• Carry case

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

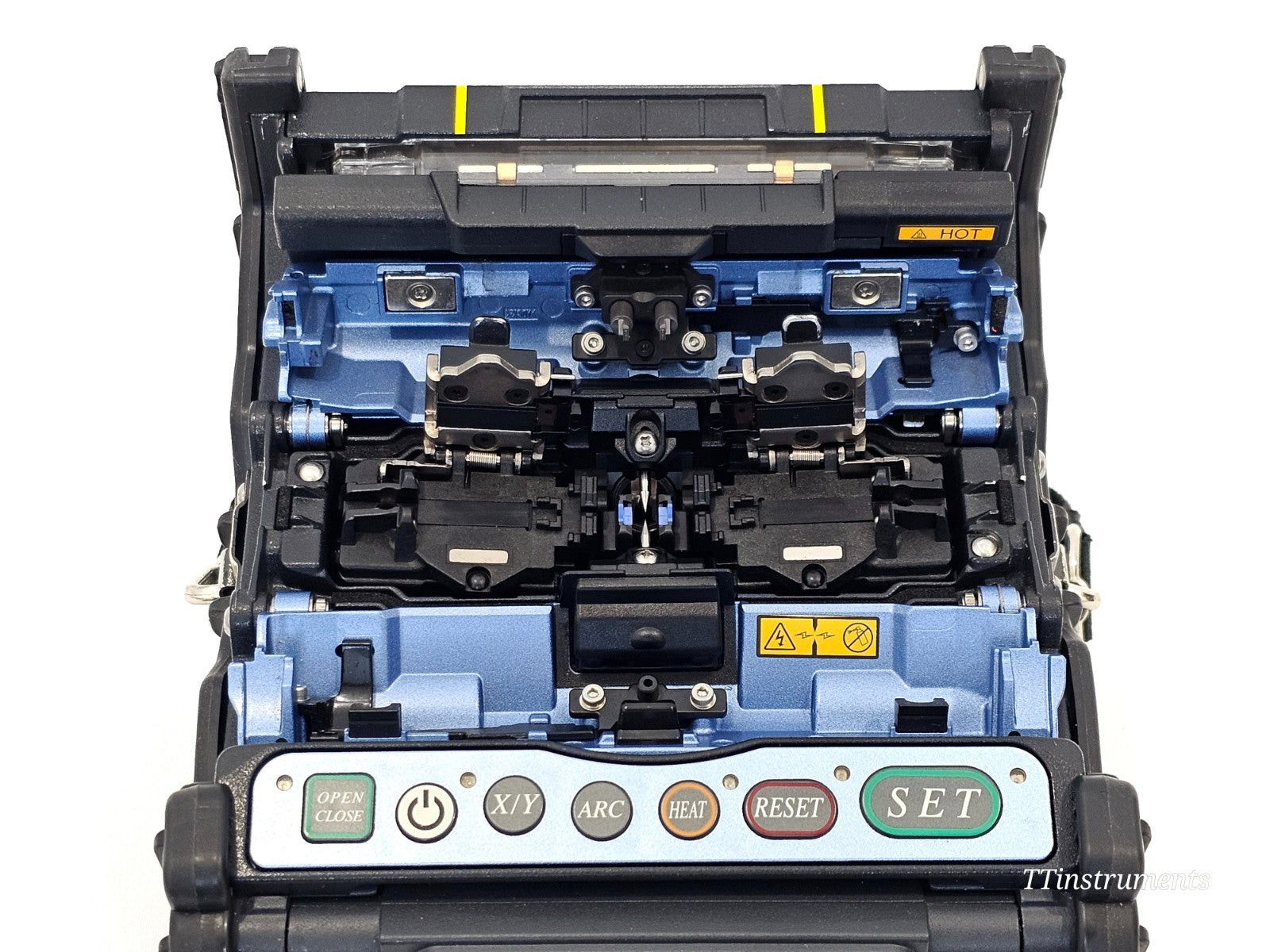

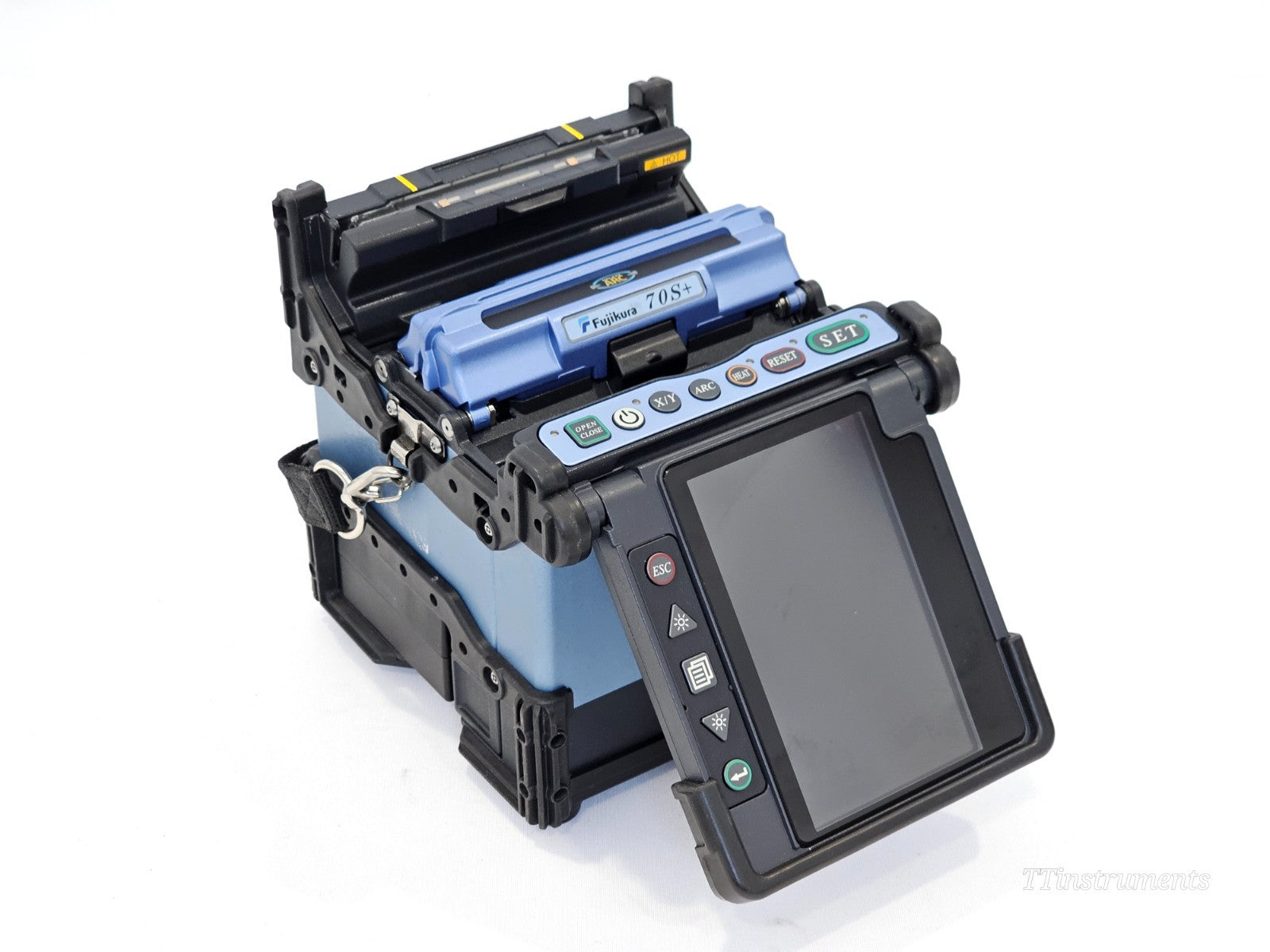

Fujikura 70S+ Core Alignment Fusion Splicer

The Fujikura 70S+ is a single-fibre core alignment fusion splicer engineered for high-speed, high-precision splicing in both field and laboratory environments. Building on the acclaimed 70S platform, it delivers one of the fastest splice cycles in its class at approximately 7 seconds per splice, with a 14-second tube heater shrink time yielding a total cycle time of around 21 seconds.

The 70S+ features a user-programmable automated wind protector that closes automatically to initiate the splice and opens upon completion, significantly streamlining the workflow. Fully programmable auto-open sheath clamps prepare the fibre for removal following the tensile test. The clamshell tube heater applies heat from both sides of the splice protection sleeve for consistent, reliable protection.

The mirrorless optical system provides accurate fibre alignment imagery, while the impact-resistant monitor ensures reliability in challenging field conditions. Compatible with single-mode (SM) and multimode (MM) optical fibres, the 70S+ is widely used in telecommunications infrastructure, FTTx deployment, enterprise data networks, and cable TV installation.

Key Specifications:
Splice Time: Approximately 7 seconds
Heating Time: Approximately 14 seconds
Total Cycle Time: Approximately 21 seconds
Fibre Compatibility: Single-mode (SM) and Multimode (MM)
Alignment Method: Core alignment
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Display: Colour LCD with dual-view optical system
Battery Life: Up to 200 splice and heat cycles per charge
Operating Temperature: -10°C to +50°C
Storage Temperature: -40°C to +80°C
Dimensions: Approximately 130 x 130 x 155 mm
Weight: Approximately 1.9 kg (with battery)

Fujikura 70S Fusion Splicer Datasheet (PDF): Download PDF
