Condition: Refurbished

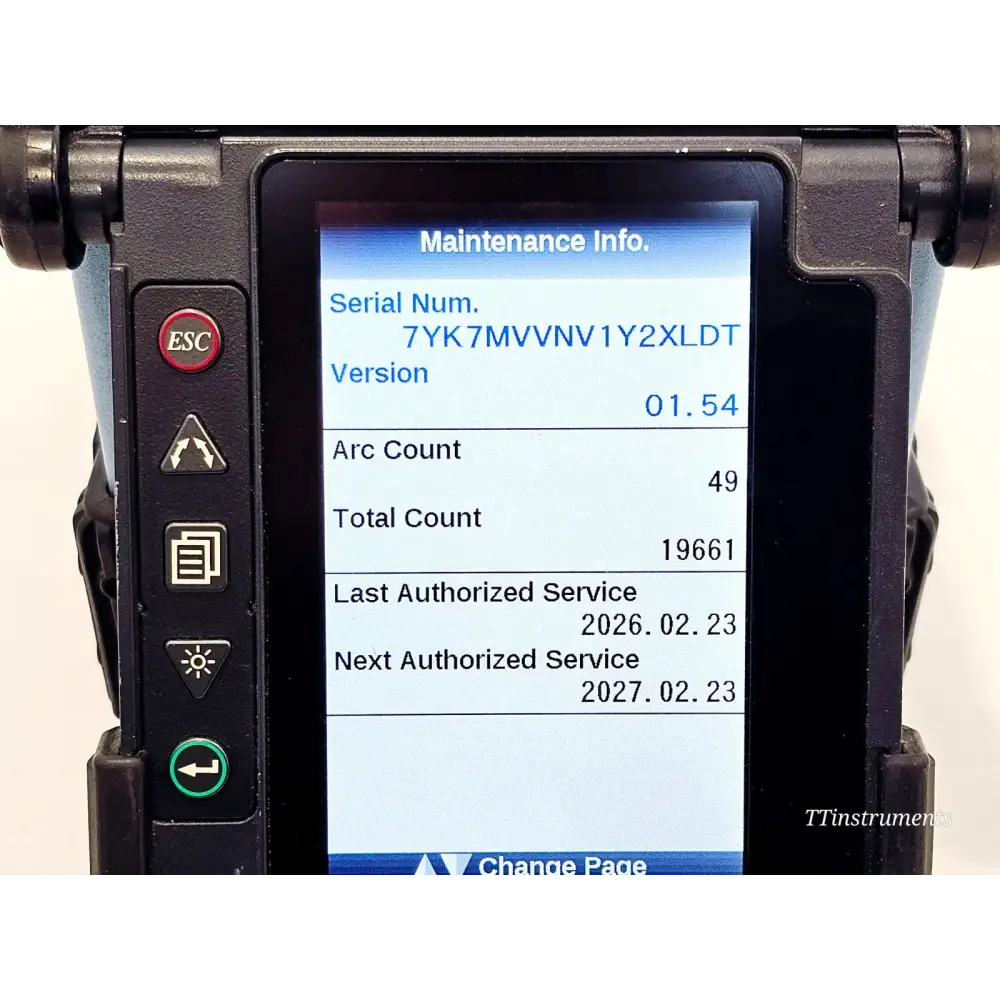

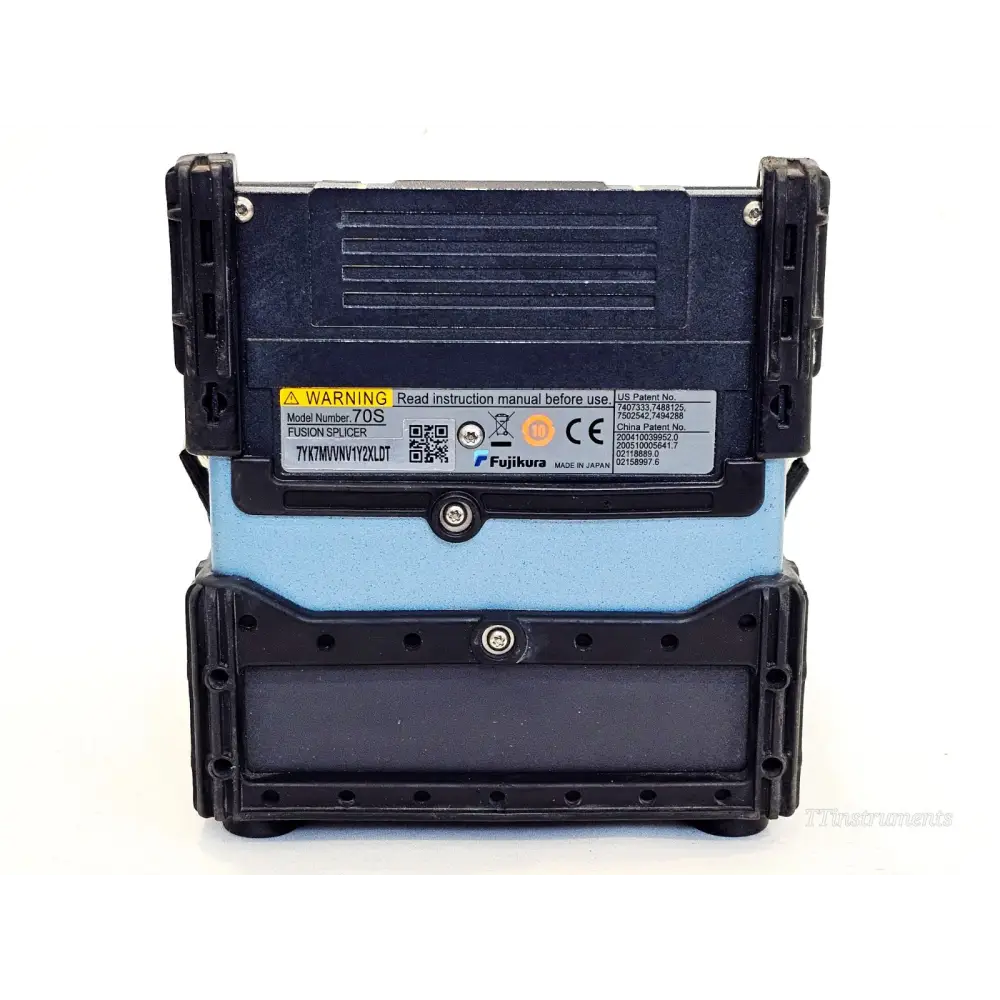

This Fujikura FSM-70S fusion splicer (S/N: 7YK7MVVNV1Y2XLDT) is running firmware v01.54 and has a total arc count of 19,661 with only 49 arcs since its last authorized Fujikura service on 23 February 2026. The next authorized service is due 23 February 2027, making this an exceptionally well-maintained unit.

Included in the sale:
• Fujikura FSM-70S fusion splicer with fibre clamps

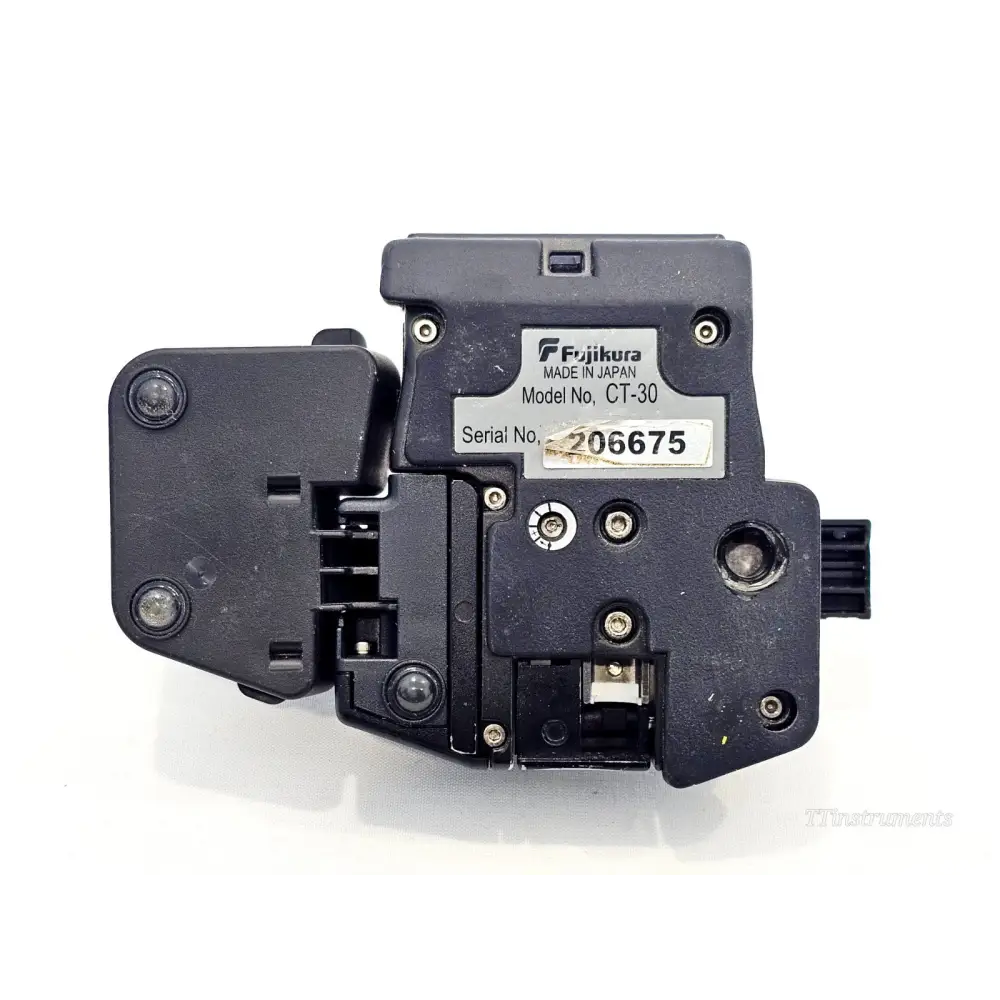

• Fujikura CT-30 high precision cleaver (S/N: 206675) with guide plate
• Rechargeable battery
• ADC-18 power adapter with connecting cable
• Yellow hard carry case
• Software/training CD

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

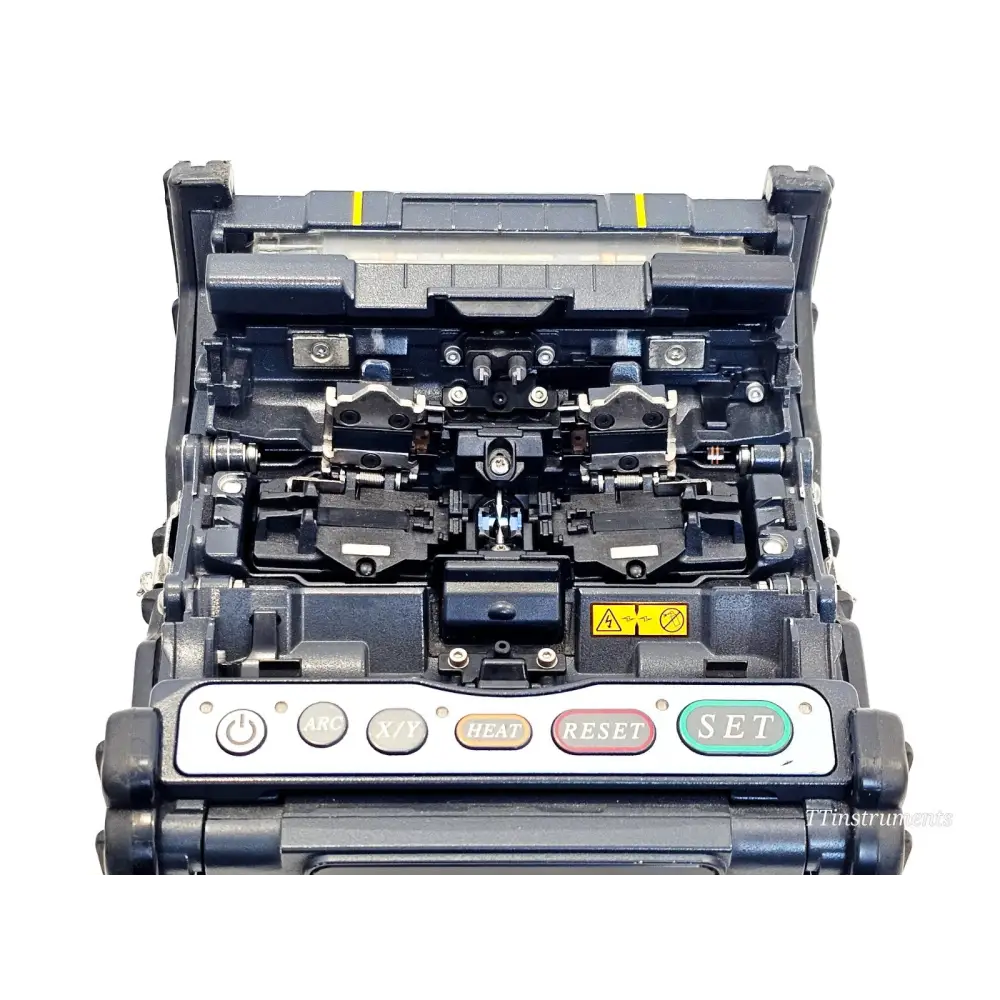

The Fujikura FSM-70S is a single-fibre core-alignment fusion splicer designed to be more ergonomic, faster, and more durable than its predecessor, the 60S series. It incorporates automated and enhanced user-control features to increase splicing efficiency in both field and laboratory environments.

Key features include a user-programmable automated wind protector that closes to initiate splicing and opens on completion, fully programmable auto-open sheath clamps, and an automated clamshell-design tube heater that heats both sides of the splice protection sleeve simultaneously. A mirrorless optical system and severe-impact-resistant monitor enhance ruggedness, while on-board training videos support field technicians. The unit is fully ruggedised for shock, dust, and moisture resistance and can withstand a 30-inch drop test.

Fibre Types Supported: Single-mode (ITU-T G.652, G.657), Multimode (G.651.1), DS (G.653), CS (G.654), NZDS (G.655, G.656), Erbium-doped fibre
Typical Average Splice Loss: 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) — measured by cut-back method per ITU-T/IEC standards
Splicing Time: SM FAST mode — 7 seconds; SM AUTO mode — 12 seconds; AUTO mode — 15 seconds
Tube Heating Time: ~14 seconds with FP-03 sleeve; 17 seconds with FP3(40); 5–16 seconds with Fujikura micro sleeves
Total Splice Process Time: Approximately 21 seconds
Arc Calibration: Automatic real-time; uses results of previous splice in AUTO mode; manual arc calibration also available
Fibre Alignment: X, Y, or simultaneous X and Y core alignment
Battery: BTR-09 Li-ion — up to 200 splices/shrinks per full charge
Power Supply: Auto voltage selection 100–240 V AC (ADC-18) or 10–15 V DC; 14.8 V DC with BTR-09
Connectivity: USB 1.1 (USB-B type) for PC communication; Mini-DIN 6-pin for HJS-02/03
Wind Resistance: Maximum wind velocity 15 m/s (34 mph)
Dimensions: 146 W × 159 D × 150 H mm (5.75 × 6.25 × 5.9 inches)
Weight: 2.5 kg with ADC-18 AC adapter; 2.7 kg with BTR-09 battery
Origin: Made in Japan

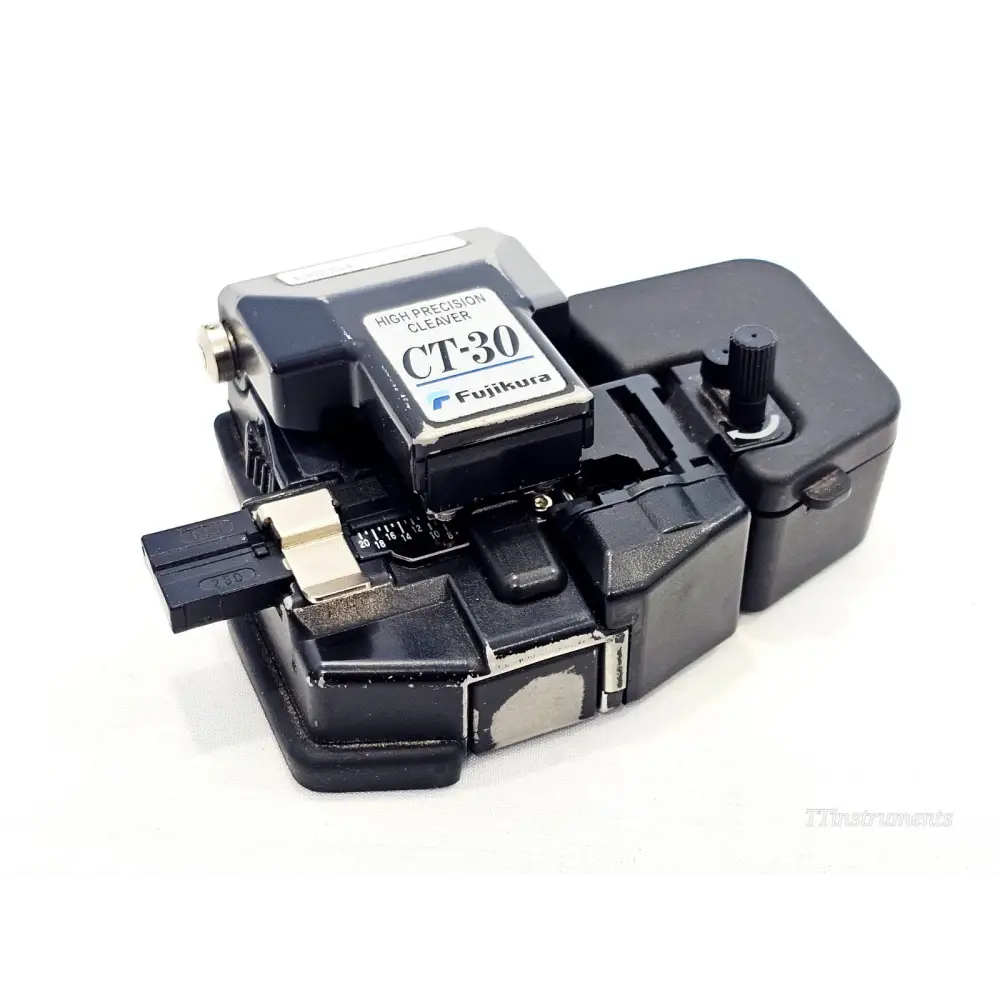

Fujikura CT-30 High Precision Cleaver
The CT-30 is a high-precision fibre cleaver supporting single-fibre and ribbon cleaving (up to 12 fibres). It features a 16-position blade rated for up to 48,000 single-fibre cleaves (or 4,000 twelve-fibre ribbon cleaves) before replacement. A built-in scrap collector safely stores fibre shards.

Cleave Angle: Typically <0.5°
Fibre Compatibility: Single fibres 250 µm to 900 µm coating, 125 µm cladding; ribbon up to 12 fibres
Cleave Length (900 µm fibre): 10 mm to 20 mm
Cleave Length (250 µm fibre): 6 mm to 20 mm
Blade Life: 48,000 single-fibre cleaves (16 positions × 3 height adjustments × 1,000 cleaves)
Dimensions: 69 × 82 × 41 mm
Origin: Made in Japan

Fujikura FSM-70S fusion splicer datasheet — technical specifications and key features: Download PDF

Fujikura FSM-70S+ fusion splicer datasheet — full specifications including splice modes, battery, and connectivity: Download PDF

Fujikura FSM-70S product brochure — product overview and feature highlights: Download PDF

Fujikura CT-30 series fibre cleaver datasheet — specifications and performance data: Download PDF

Fujikura FSM-70S fusion splicer datasheet — specifications from AAA Testers: Download PDF
