Condition: Refurbished

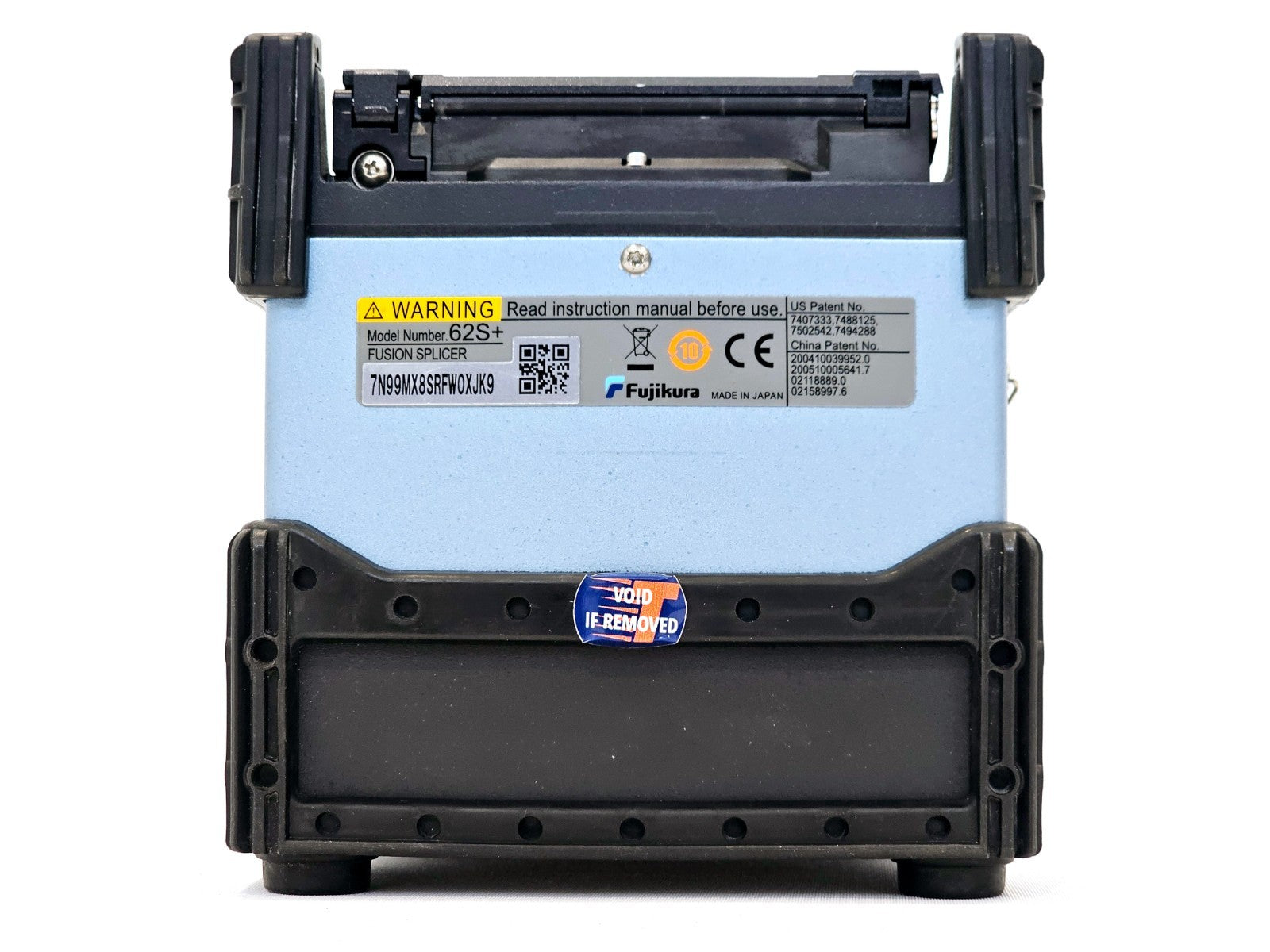

This Fujikura 62S+ SM/MM Core Alignment Fusion Splicer carries an arc count of 9226 and has been serviced by a Fujikura approved centre in June 2025, with new electrodes fitted. Tested and fully functional, the unit is in excellent cosmetic condition. This is an EU licenced model.

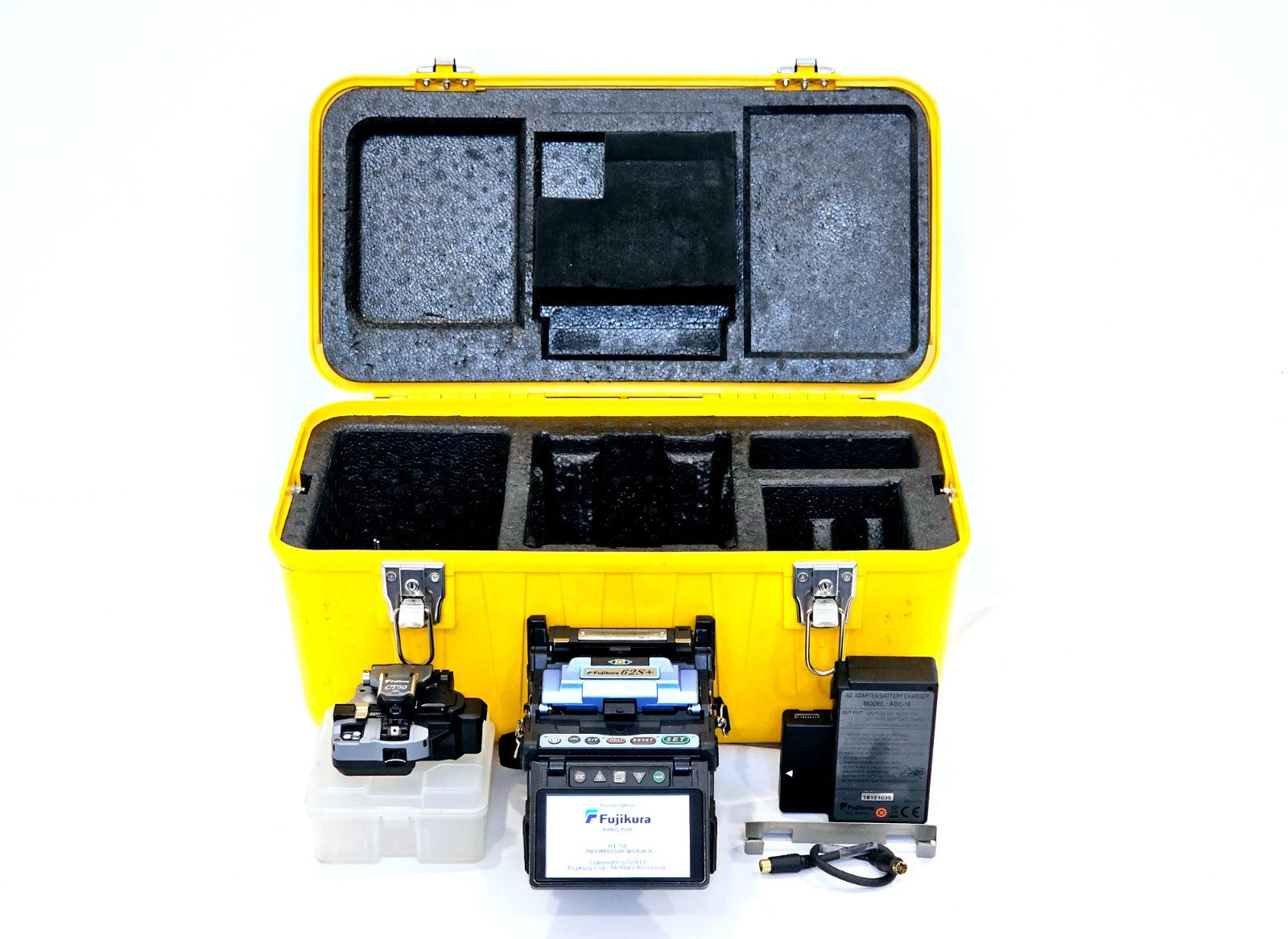

Included in the sale:
• Fujikura 62S+ SM/MM Core Alignment Fusion Splicer (ARC count 9226) with clamps and new electrodes

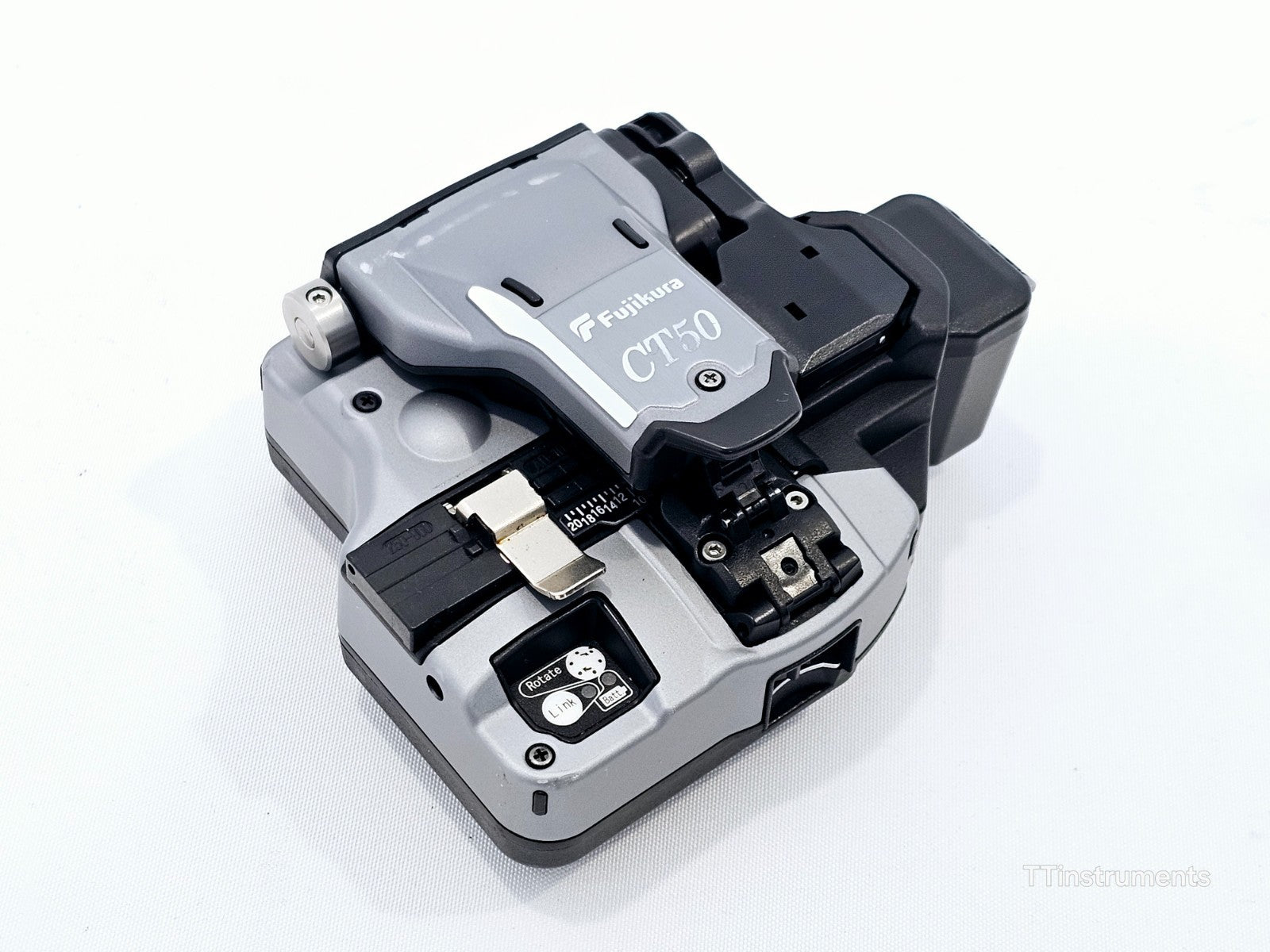

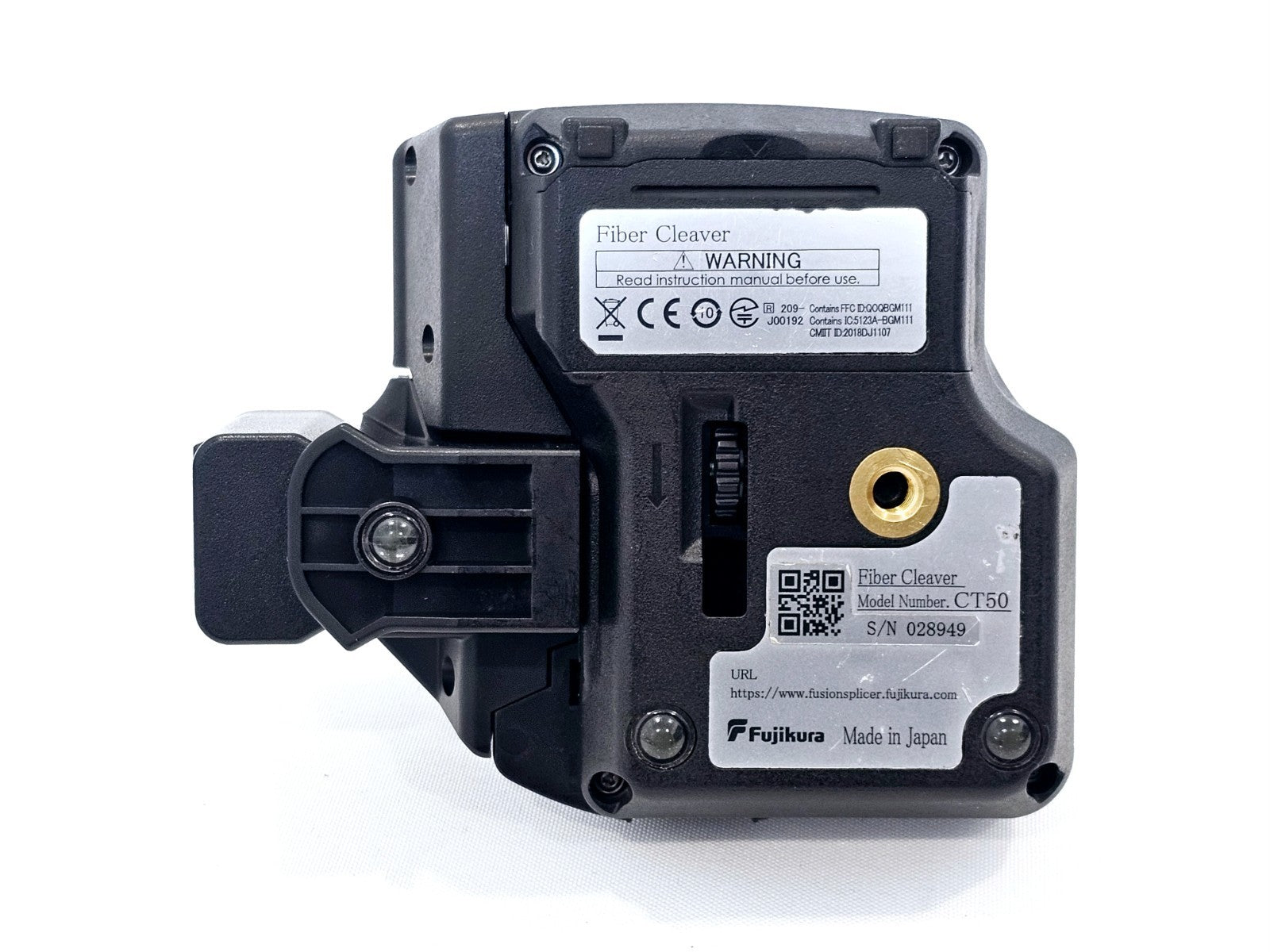

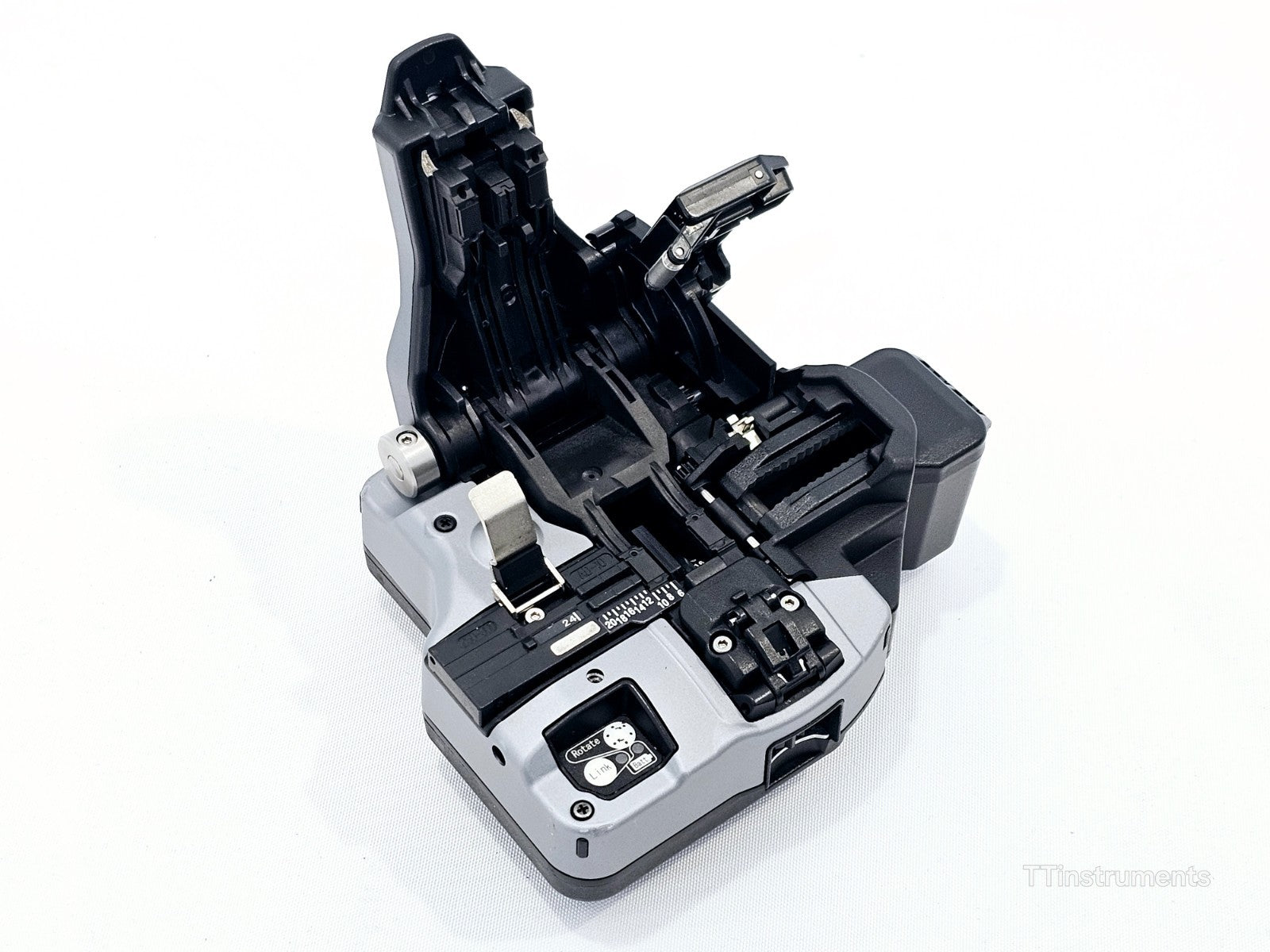

• Fujikura CT-50 cleaver with AD50 guide plate, case, and new blade
• AC adapter/charger
• Battery pack (BTR-09)
• Work tray
• Hard carrying case

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

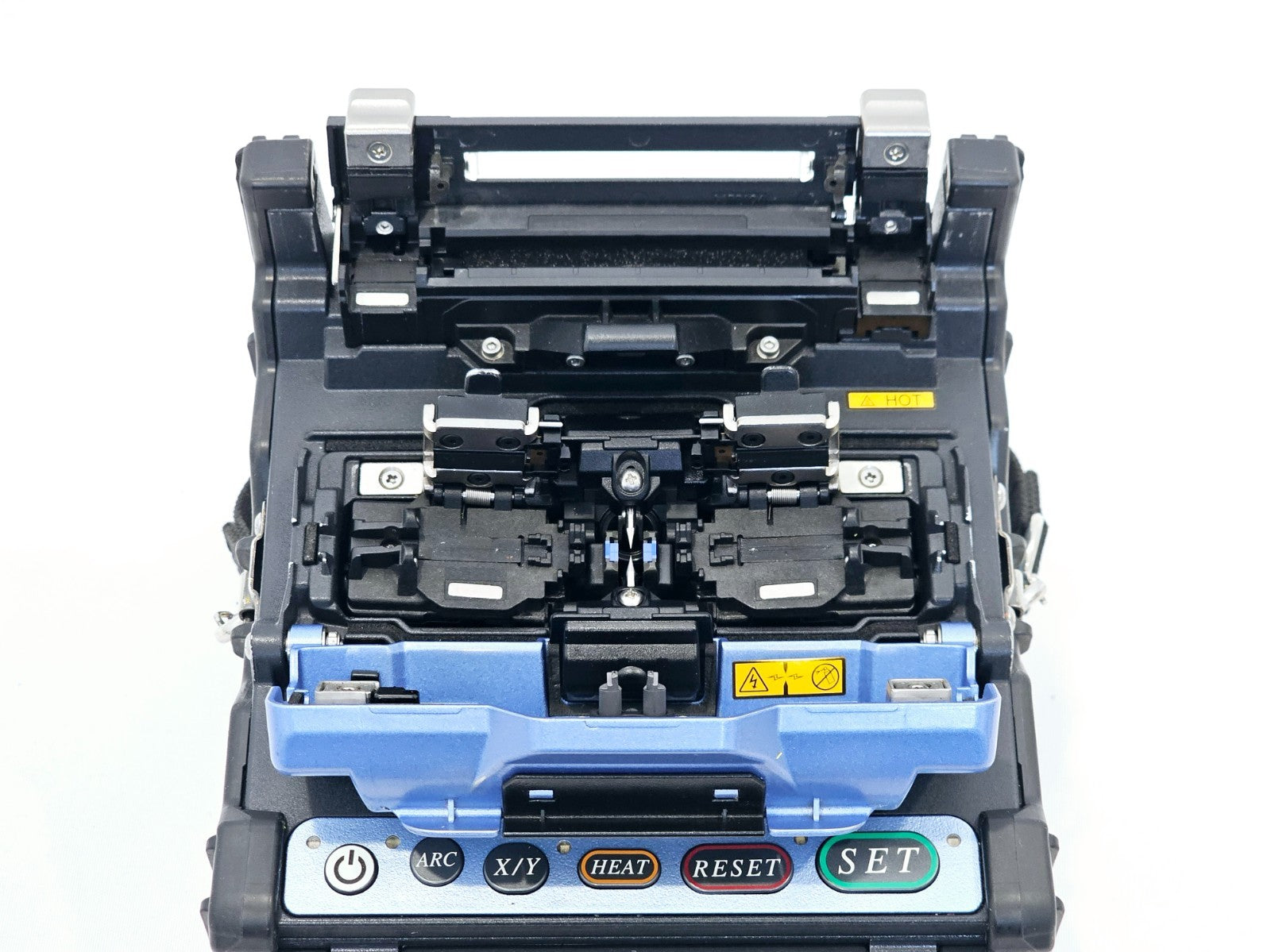

The Fujikura 62S+ provides active core alignment splice loss performance while utilising a conventional wind protector and tube heater design. An alternative to the fully automated core-alignment model 70S+, the 62S+ includes an auto-start feature for both the splicing and tube heating process that minimises the steps necessary to process splices. With a shrink time of 23 seconds with standard splice sleeves, the 62S+ ensures a high level of productivity.

Incorporating the proven ruggedised features pioneered by Fujikura, durability is greatly enhanced by a mirrorless optical system and severe-impact resistant monitor. Battery capacity is 200 splices/shrinks per charge. The transit case doubles as a built-in or mobile workstation, making splicing easier than ever in the field.

In an industry first, the 62S+ is also equipped with Bluetooth® technology, allowing the splicer to actively communicate with Bluetooth-enabled fibre preparation accessories — making maintenance of fibre preparation tools easier than ever.

Key Specifications:
Fibre Type: Single-mode and multimode
Splicing Method: Active core alignment
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Splice Time: Approx. 9 seconds
Heat Shrink Time: 23 seconds (standard sleeve)
Battery Capacity: 200 splices and shrinks per charge

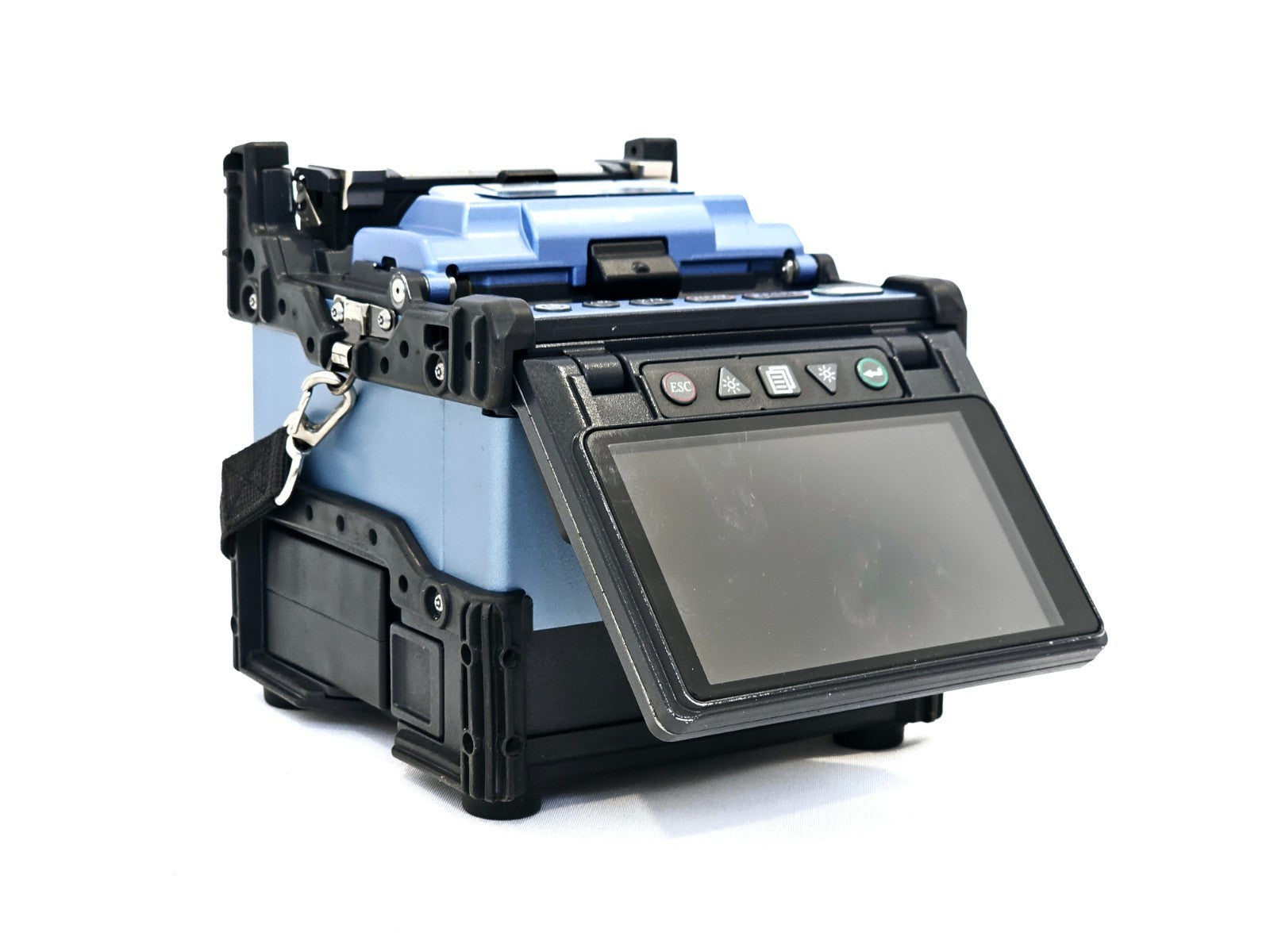

Monitor: Tilt-adjustable, severe-impact resistant
Optical System: Mirrorless
Connectivity: Bluetooth®
Ingress Protection: IP52
Operating Temperature: -10°C to +50°C
Dimensions: 130 mm x 158 mm x 154 mm
Weight: Approx. 3.1 kg (with battery)

Product datasheet
