Condition: Seller Refurbished

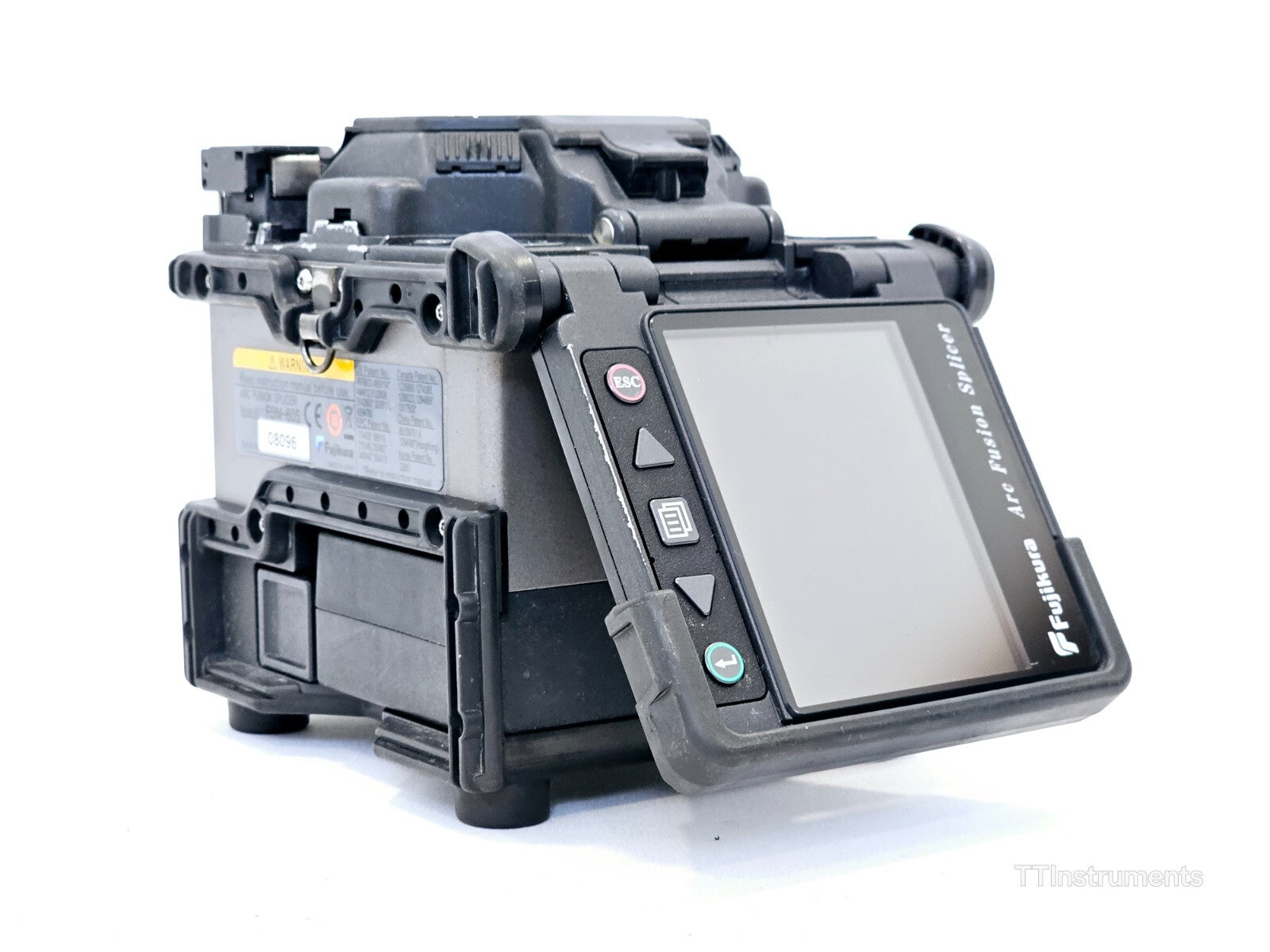

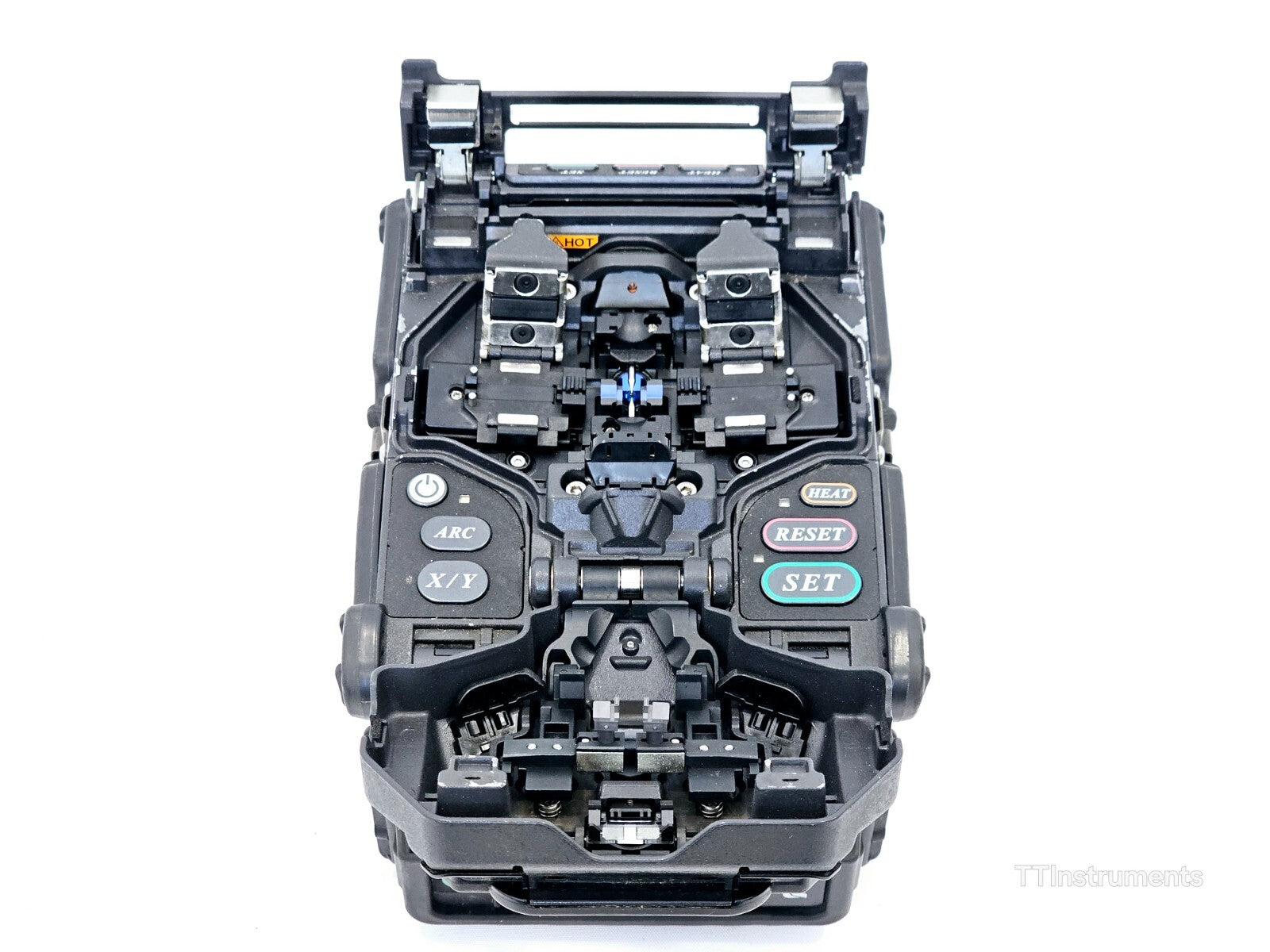

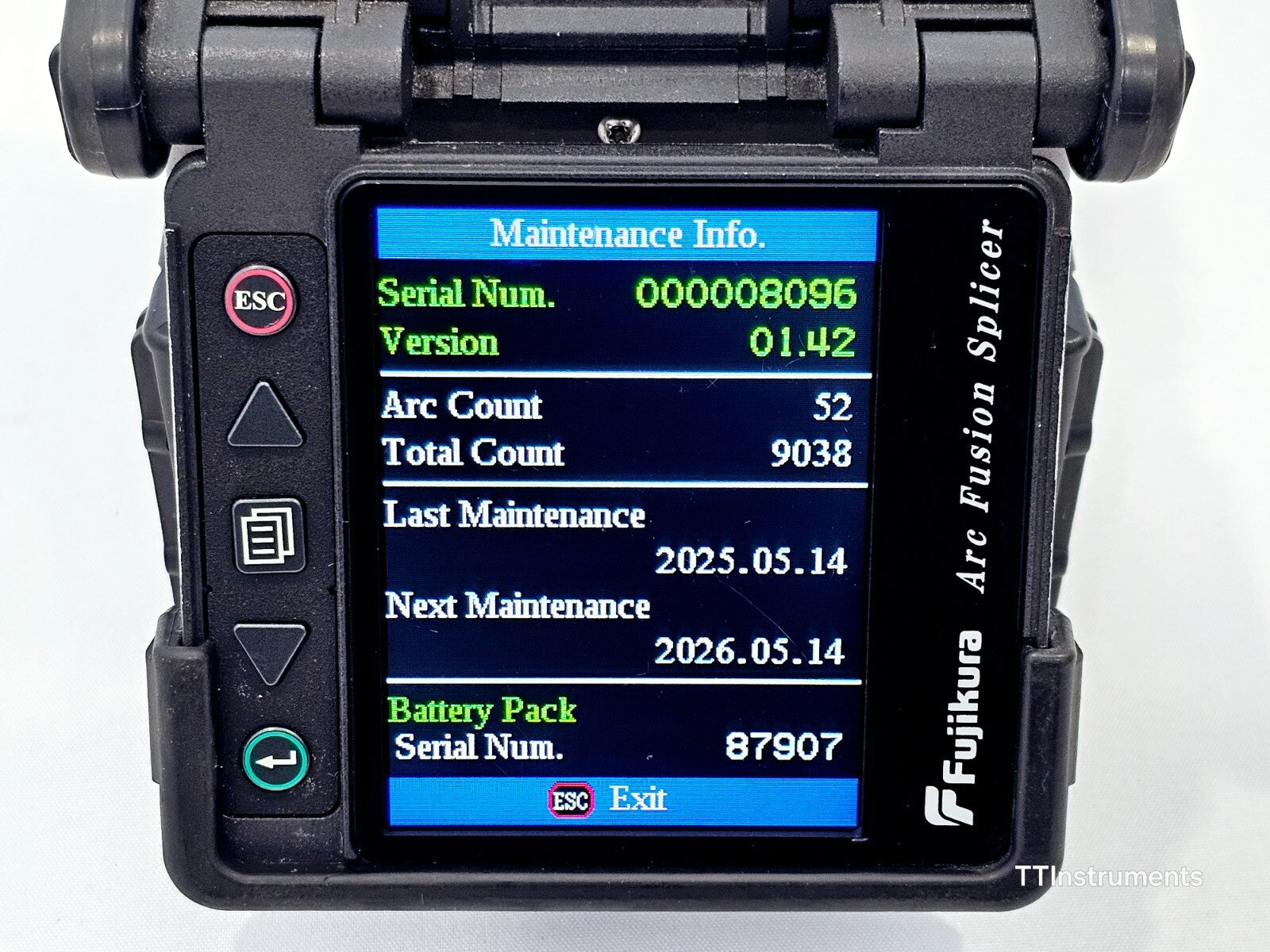

This Fujikura FSM-60S fusion splicer has been serviced in May 2025 and is supplied with a full set of accessories. The ARC count at the time of listing is 9038, indicating moderate use. The unit supports both single-mode and multimode fibre splicing using active core alignment technology.

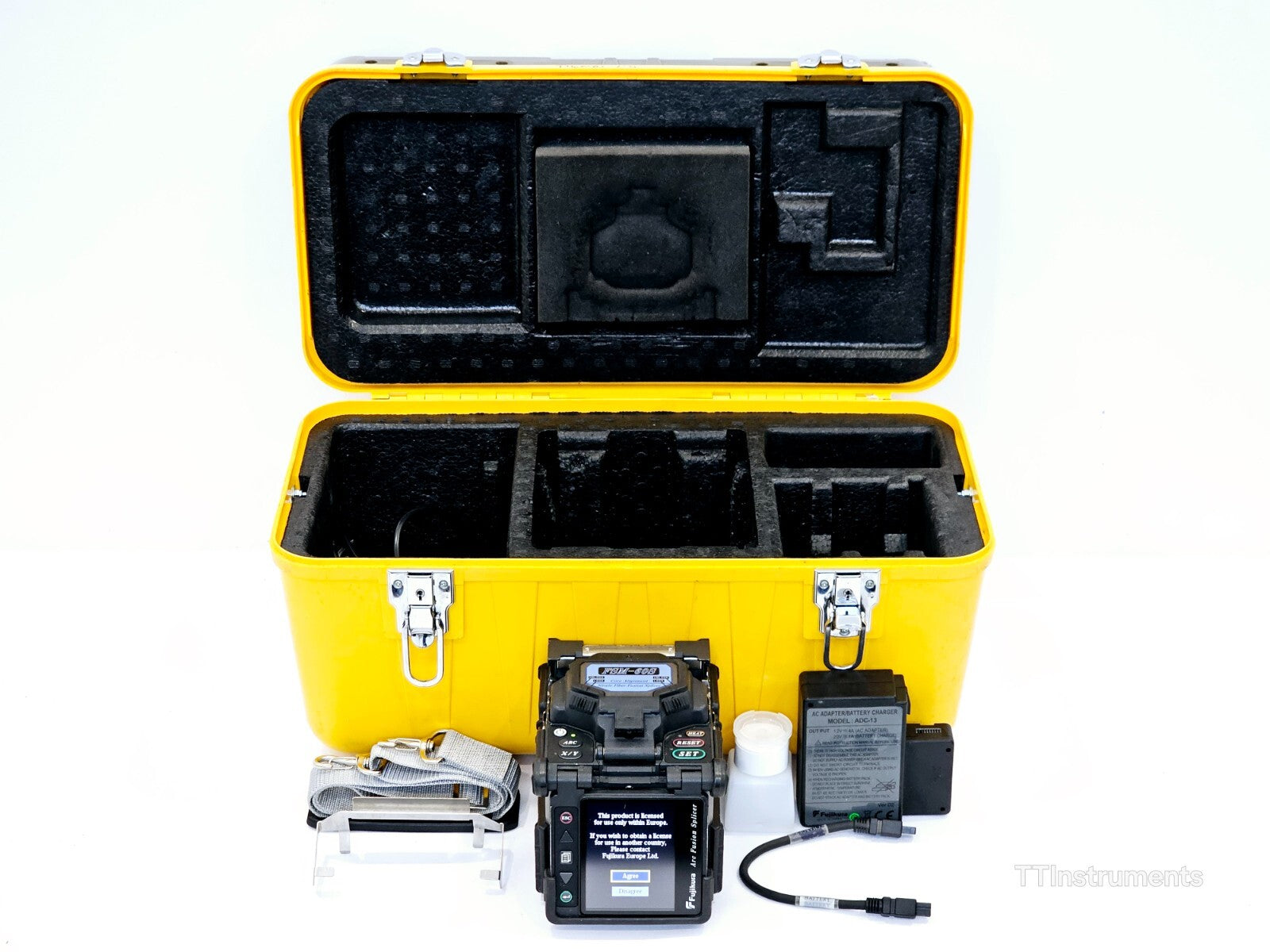

Included in the sale:
• Fujikura FSM-60S (60S) Splicer with fibre clamps — ARC count 9038

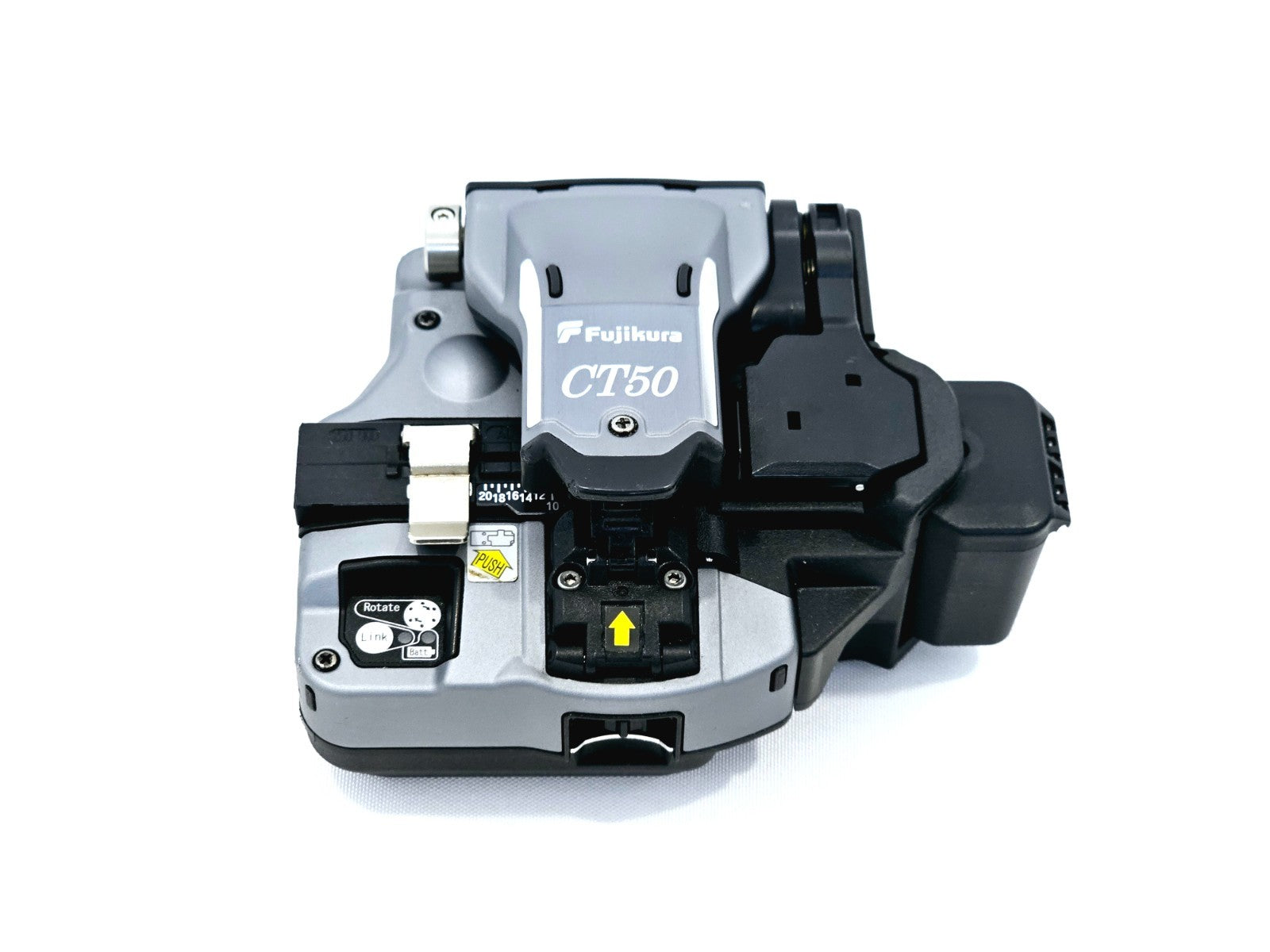

• CT-50 Fibre Cleaver
• Battery Charger
• Power Adapter
• Carry Case

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-60S is a core alignment fusion splicer developed for professional fibre optic network installation and maintenance. It supports both single-mode (SM) and multimode (MM) fibres and is widely used in telecommunications, FTTH deployment, and data centre cabling applications.

The FSM-60S uses active core alignment to achieve consistently low splice losses, automatically detecting fibre type and adjusting arc parameters accordingly. Its intuitive touchscreen interface, fast splice and heat shrink cycle times, and ruggedised construction make it a popular choice for field technicians working in demanding environments.

Key Specifications:
Splicing Method: Core alignment
Applicable Fibre: SM, MM, DS, NZDS
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Splice Time: Approx. 9 seconds
Heating Time: Approx. 35 seconds
Tension Test: 1.96 N (standard)
Battery Life: Approx. 200 splice and heat cycles per charge
Display: Large colour LCD touchscreen
Fibre Diameter (Cladding): 80–150 µm
Operating Temperature: -10°C to +50°C
Dimensions: Approx. 130 × 155 × 170 mm
Weight: Approx. 3.3 kg (with battery)

Please refer to the Fujikura manufacturer website for full and current specifications.
