Condition: Refurbished

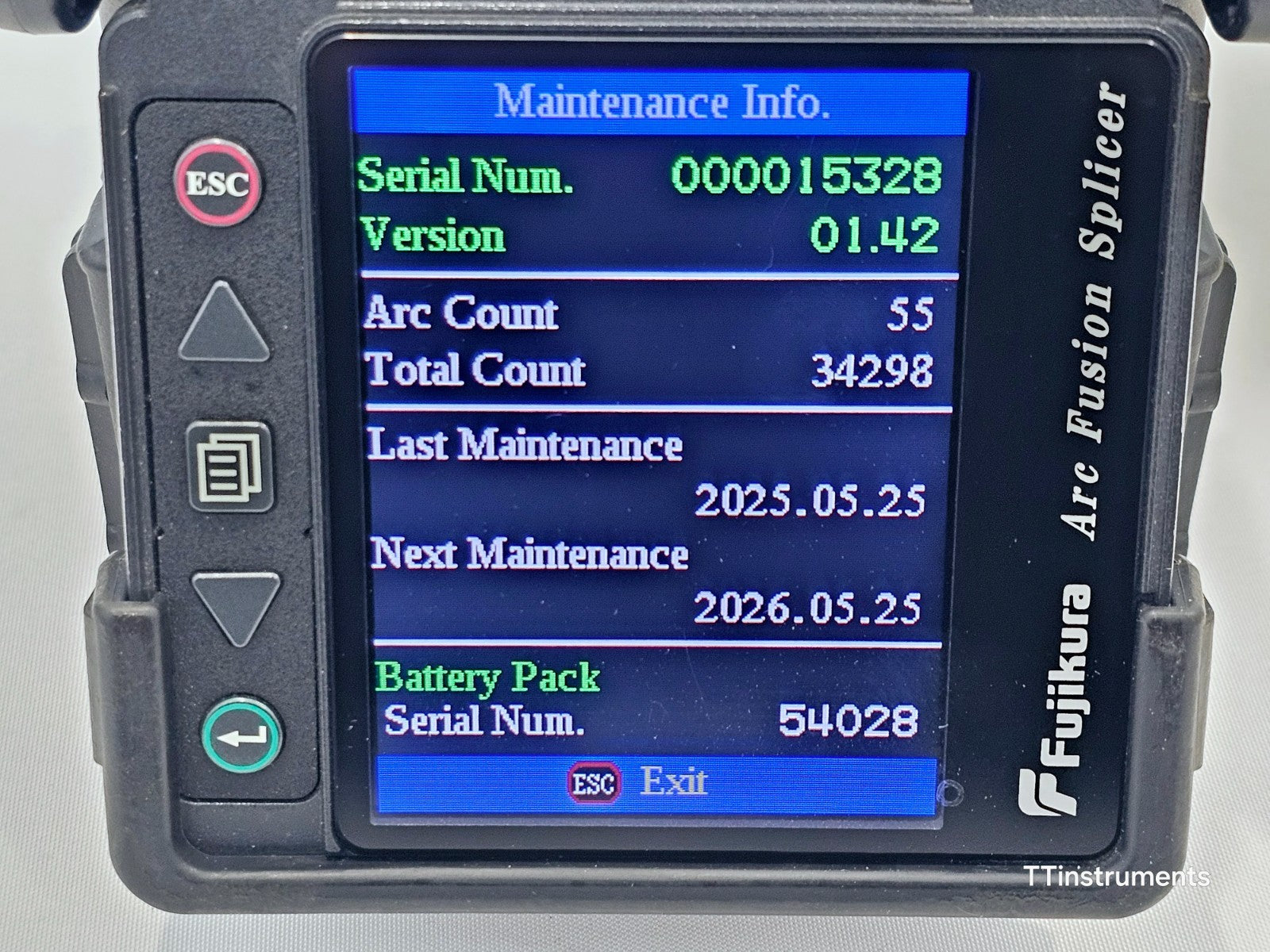

This Fujikura FSM-60S fusion splicer has been serviced in May 2025 and is supplied with the accessories listed below. The ARC count at the time of listing is 34,298, indicating a well-used but professionally maintained unit. The FSM-60S supports both single-mode and multimode fibre splicing using active core alignment technology.

Included in the sale:

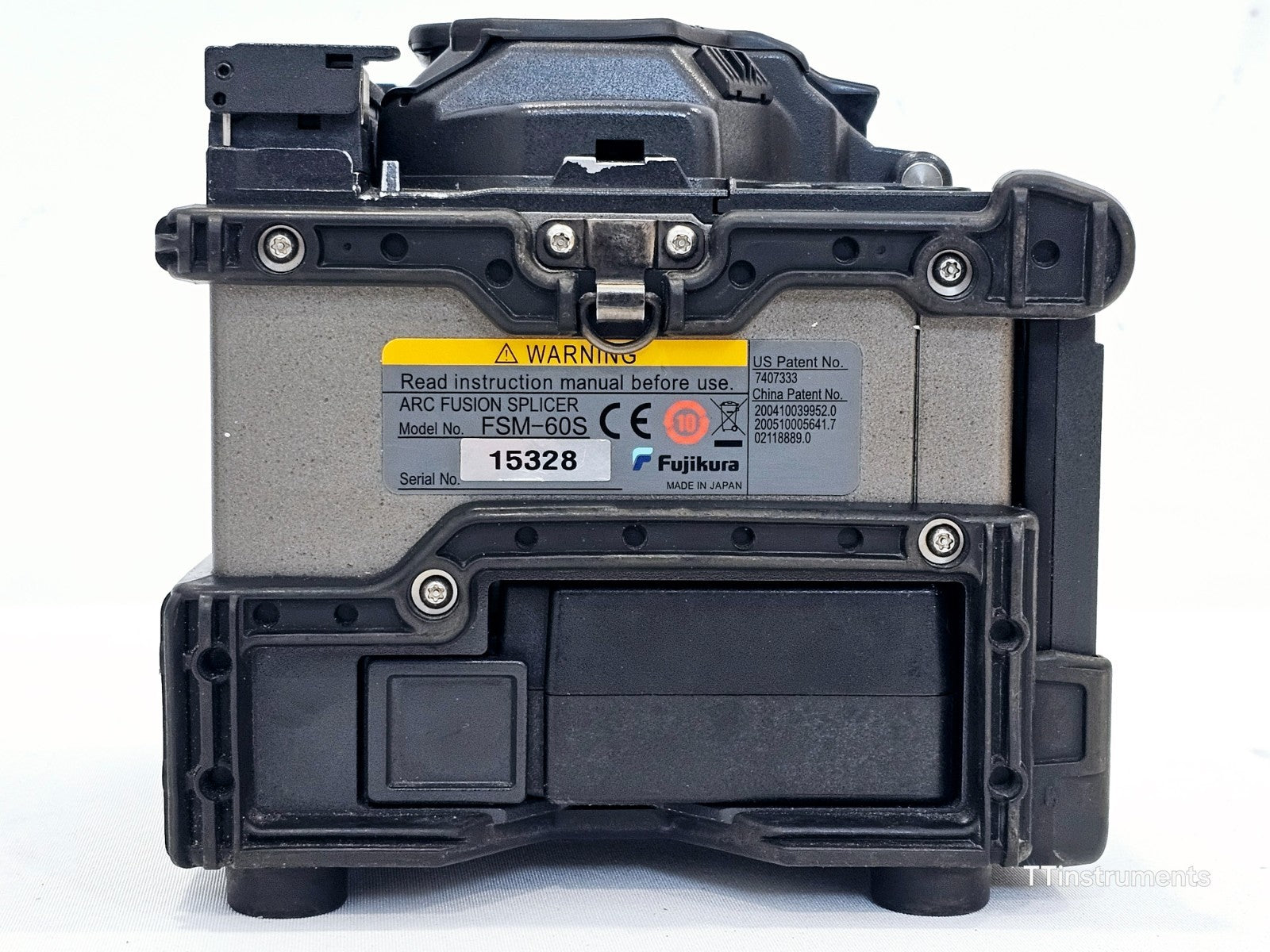

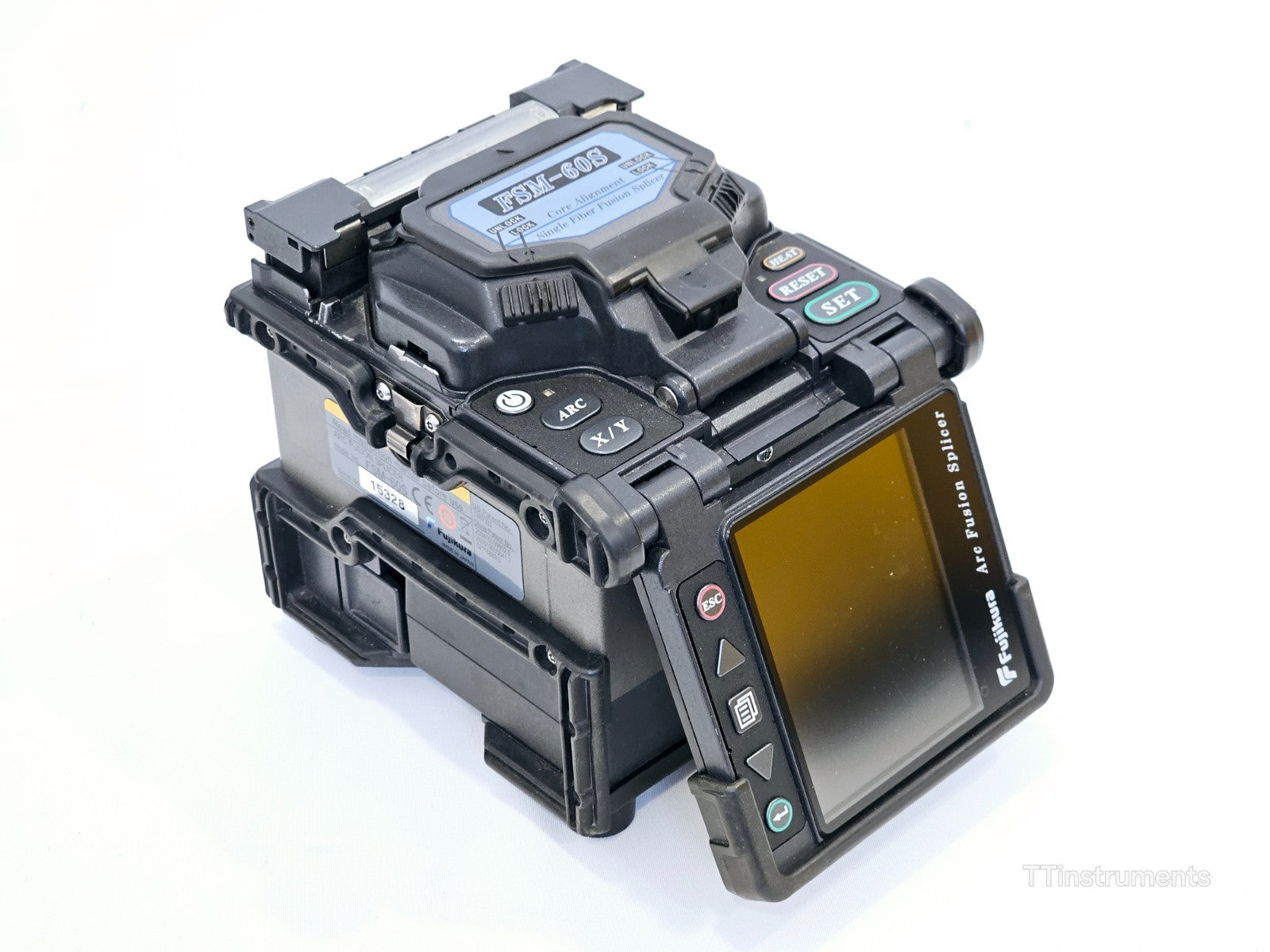

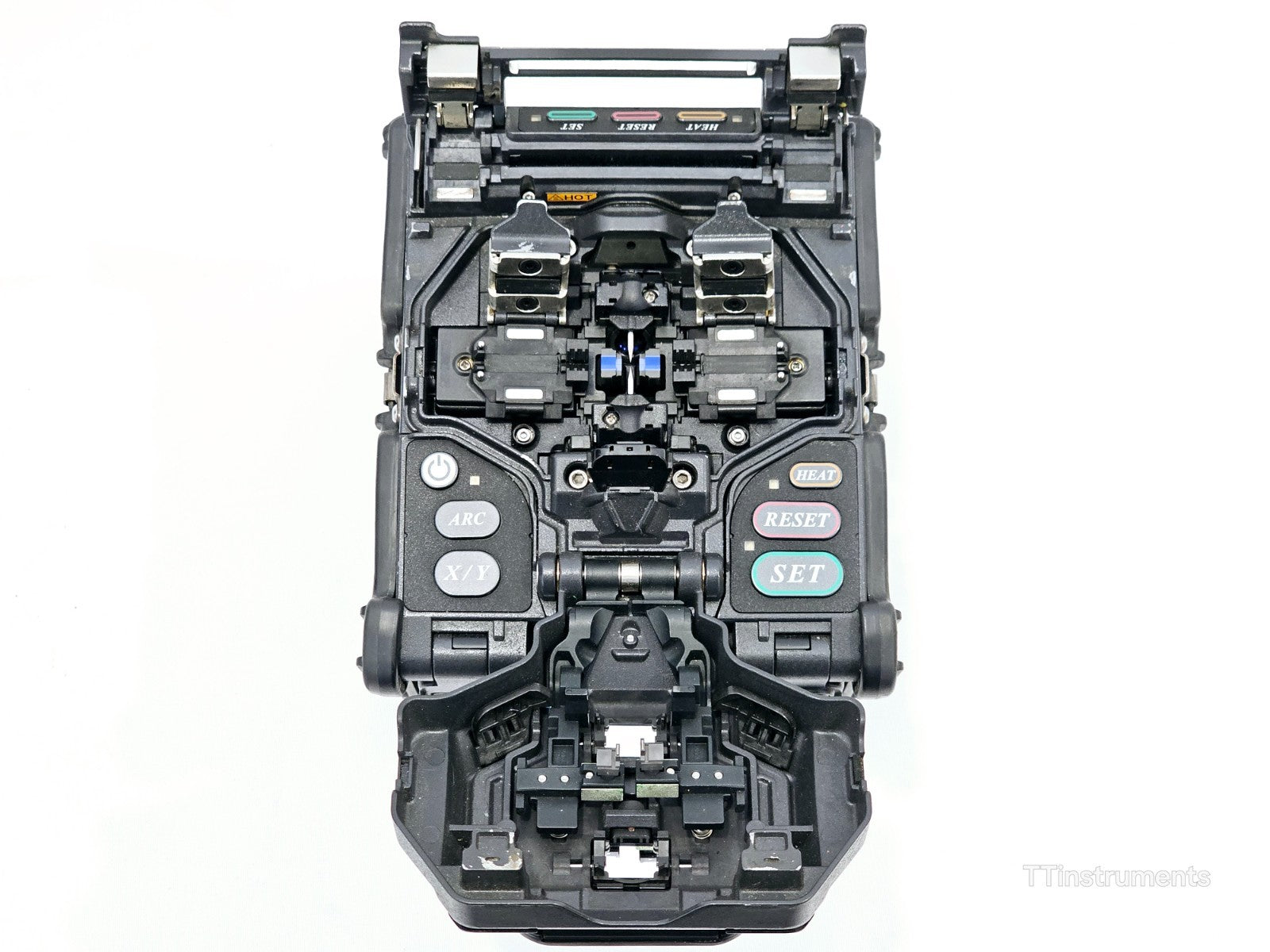

• Fujikura FSM-60S Splicer (ARC count: 34,298) with fibre clamps

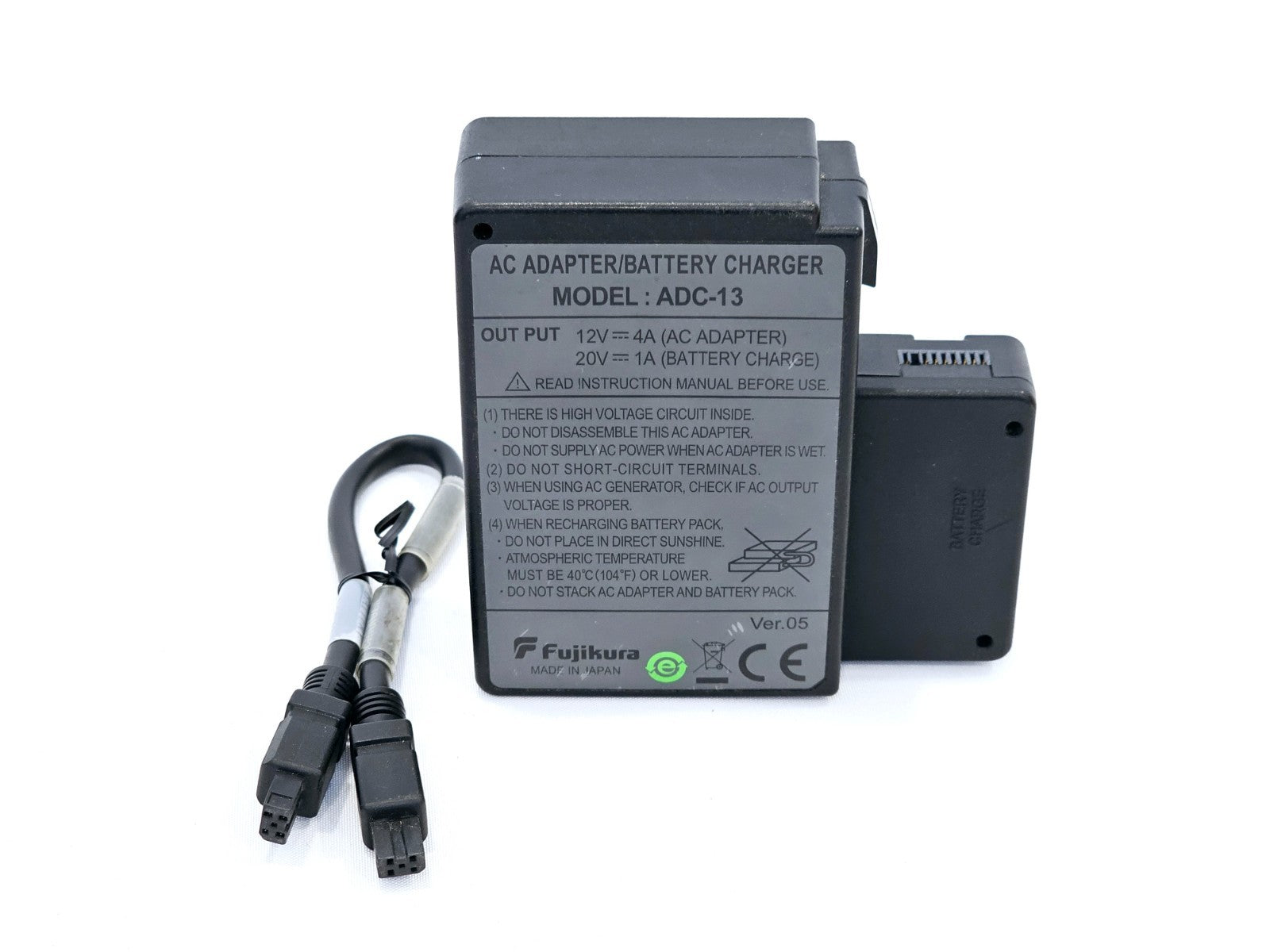

• Battery charger
• Power adapter

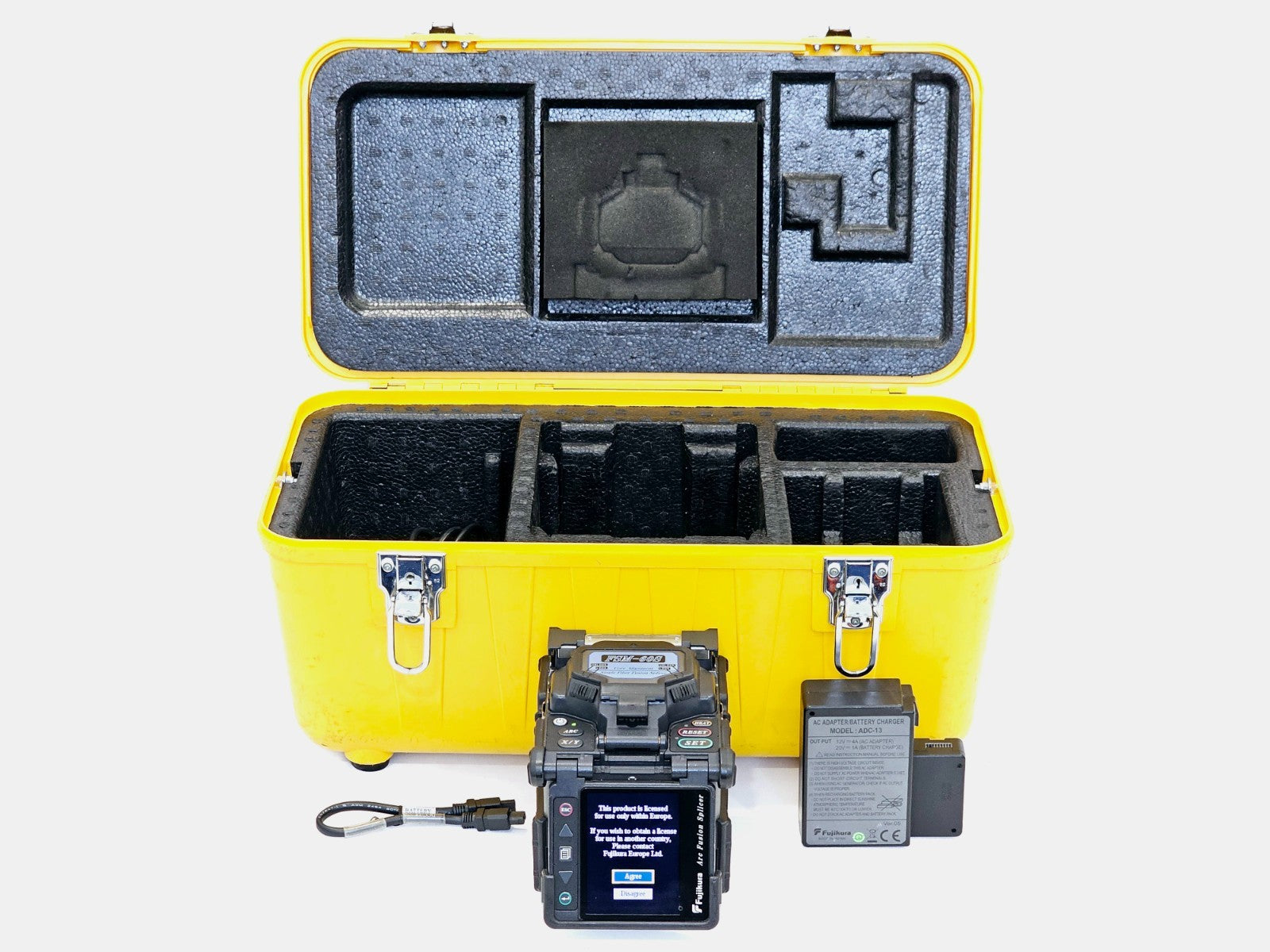

• Carry case

*Please note: No cleaver is included.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-60S is a core alignment fusion splicer developed for professional fibre optic network installation and maintenance. It supports both single-mode (SM) and multimode (MM) fibres and is widely used in telecommunications, FTTH deployment, and data centre cabling applications.

The FSM-60S uses active core alignment to achieve consistently low splice losses, automatically detecting fibre type and adjusting arc parameters accordingly. Its intuitive touchscreen interface, fast splice and heat shrink cycle times, and ruggedised construction make it a popular choice for field technicians worldwide.

Key Specifications:
Splicing Method: Core alignment
Applicable Fibre: SM, MM, DS, NZDS
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Splice Time: Approx. 9 seconds
Heating Time: Approx. 35 seconds
Tension Test: 1.96 N (standard)
Display: Colour LCD touchscreen
Magnification: 300x (X and Y axis)
Battery: Lithium-ion, approx. 200 splice and heat cycles per charge
Operating Temperature: -10°C to +50°C
Dimensions: Approx. 130 x 170 x 150 mm
Weight: Approx. 3.1 kg (with battery)

Please refer to the Fujikura manufacturer website for full and current specifications.

Product datasheet
