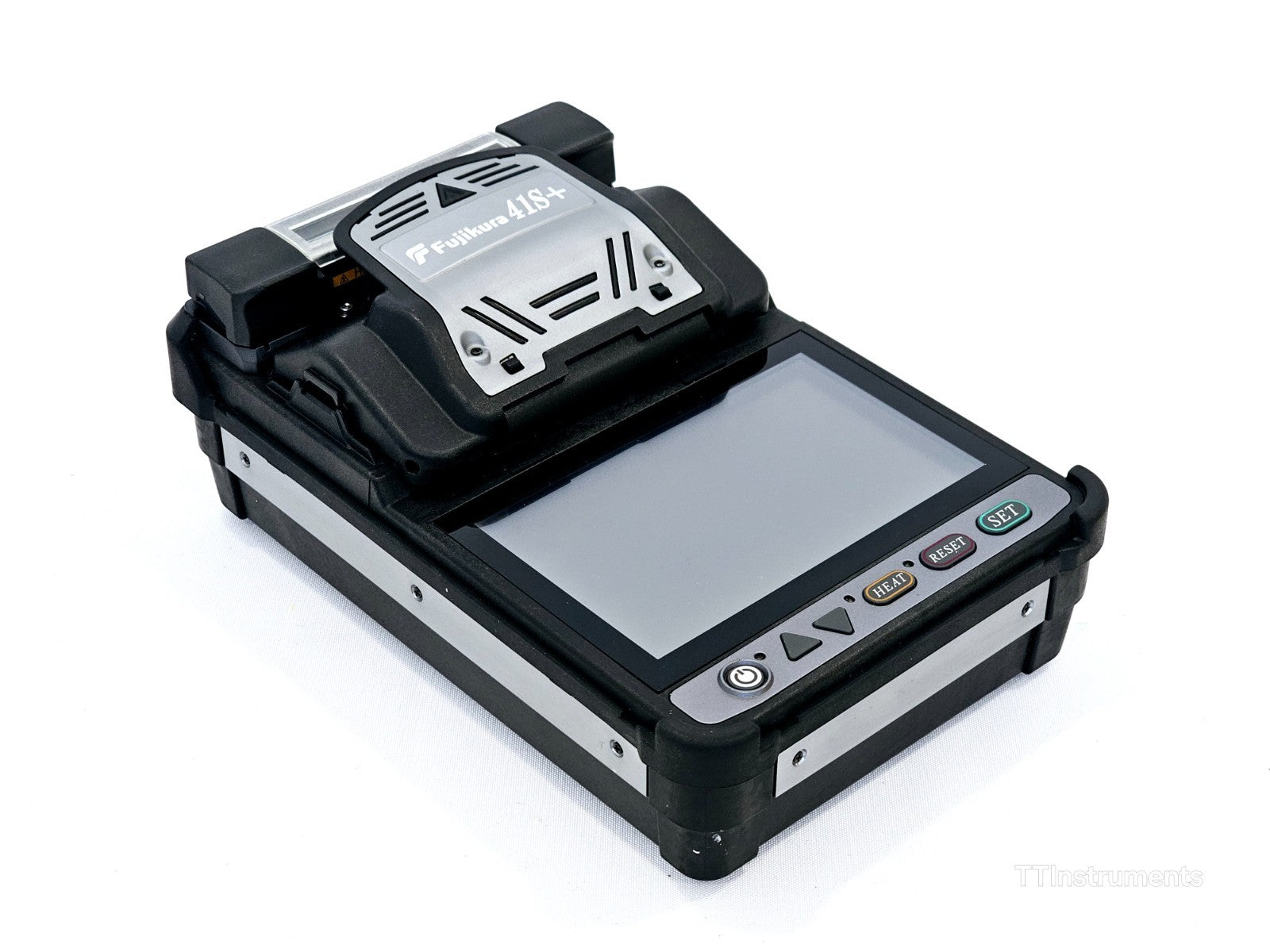

Designed for FTTx application, the 41S+ is our new active cladding alignment single fibre V-groove splicer, which takes a step beyond its predecessor with the inclusion of Active Fusion Control Technology and Active Blade Management Technology. These two proprietary Fujikura technologies allow customers to achieve more consistent and stable low-loss splicing, reducing the need for rework and re-splicing.

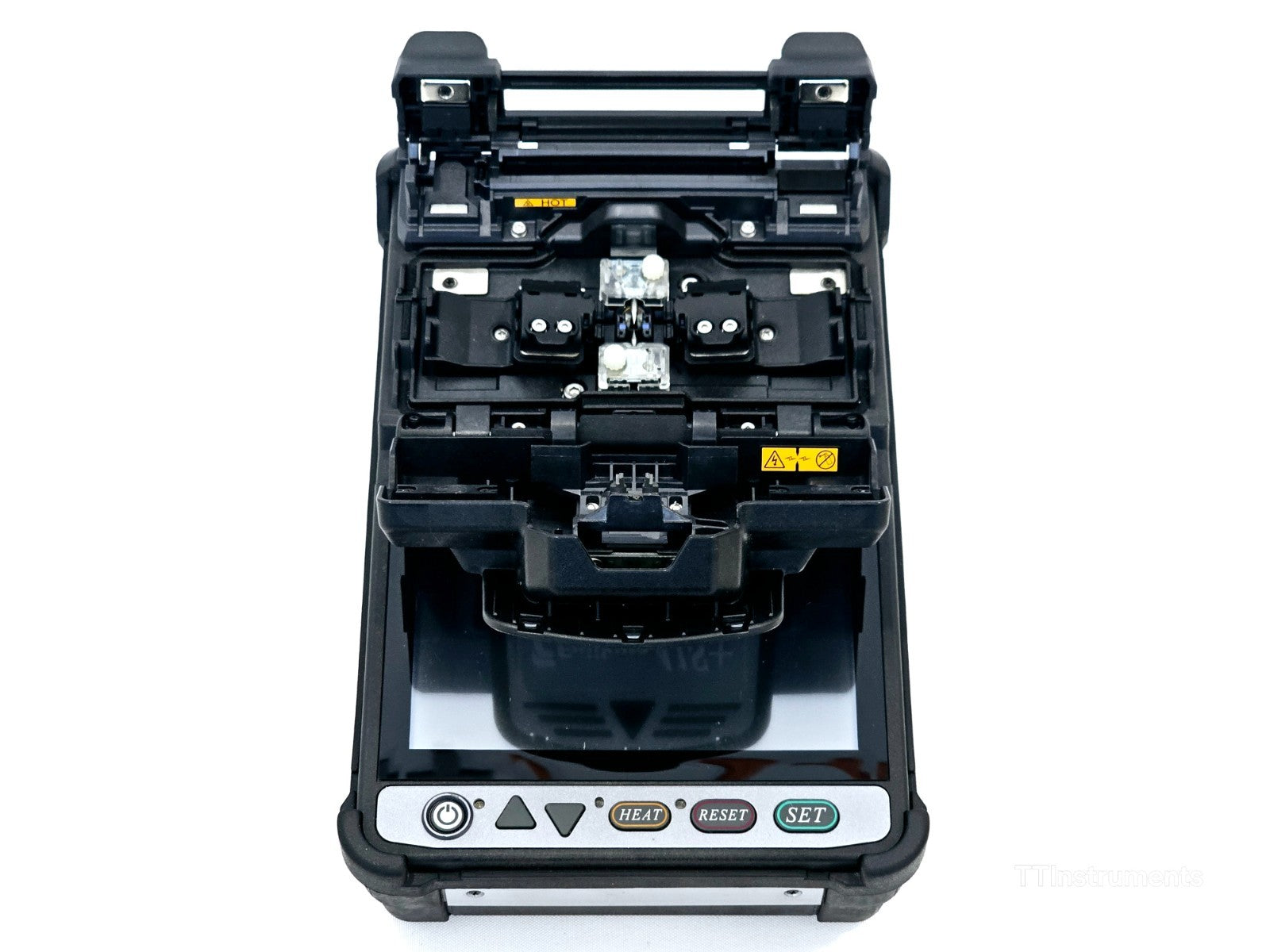

The 41S+ retains all the unique, class-leading features from the current high-performance flagship line-up of Fujikura splicers, including quick splice and heat times, fully ruggedized features, and user customizable settings. The 41S+ offers installers the convenience of a 5-inch colour touch-panel display and menu system but also maintains the traditional easy-to-use button navigation system. Convenience is further bolstered by the improved V-groove illumination and the benefit of easy splice protector positioning. The machine reassures users of reliable splice results using CORE loss estimation using Warm Image Splicing Technology.
Thanks to integrated Bluetooth connectivity, the 41S+ wirelessly connects to the CT50 fibre cleaver and enables a range of pioneering features that will improve the overall installation time, cost and efficiency for operators. The 41S+ also has the unique capability to estimate splice loss with greater accuracy, using its Core Loss Estimation Function.

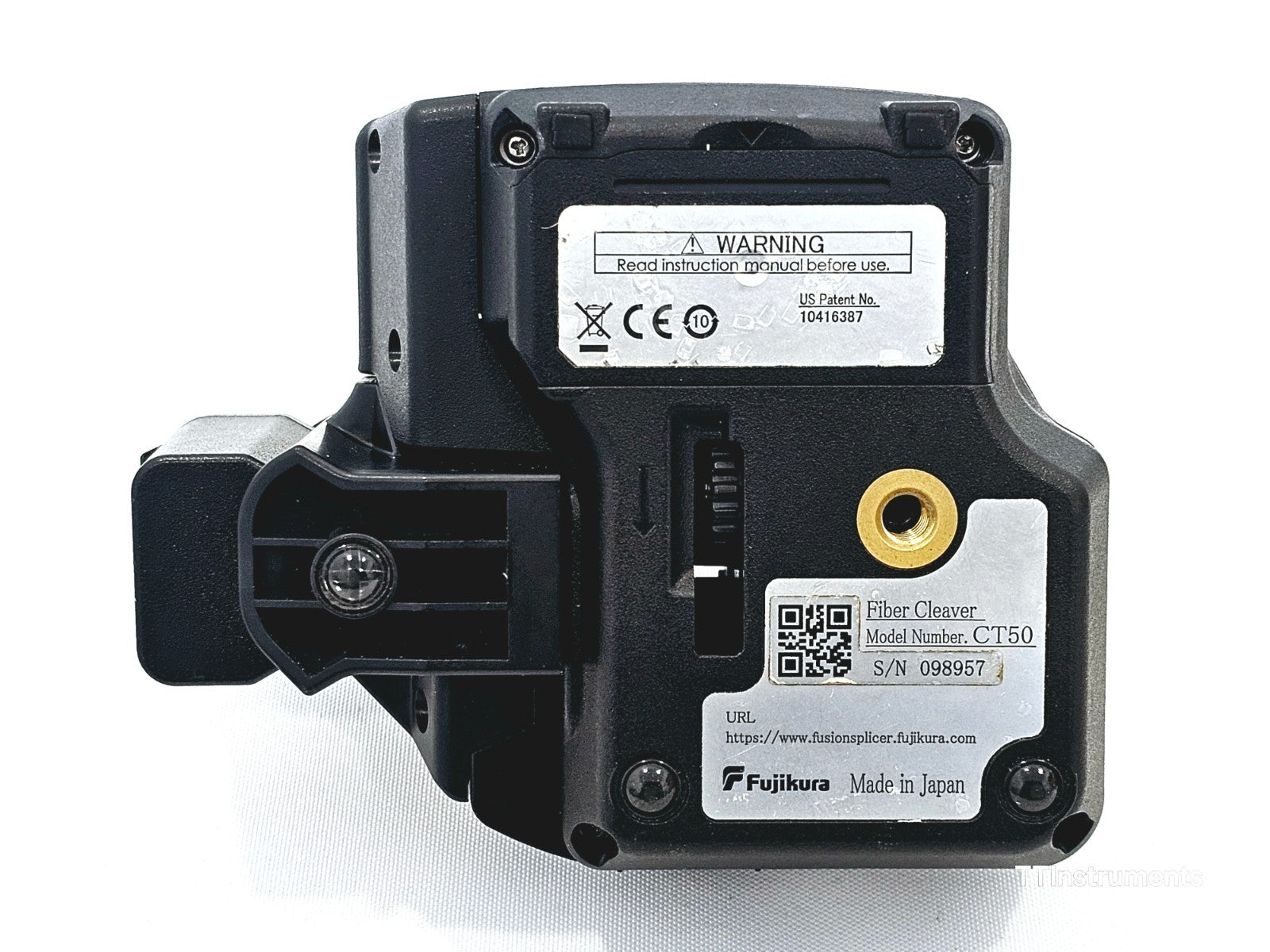

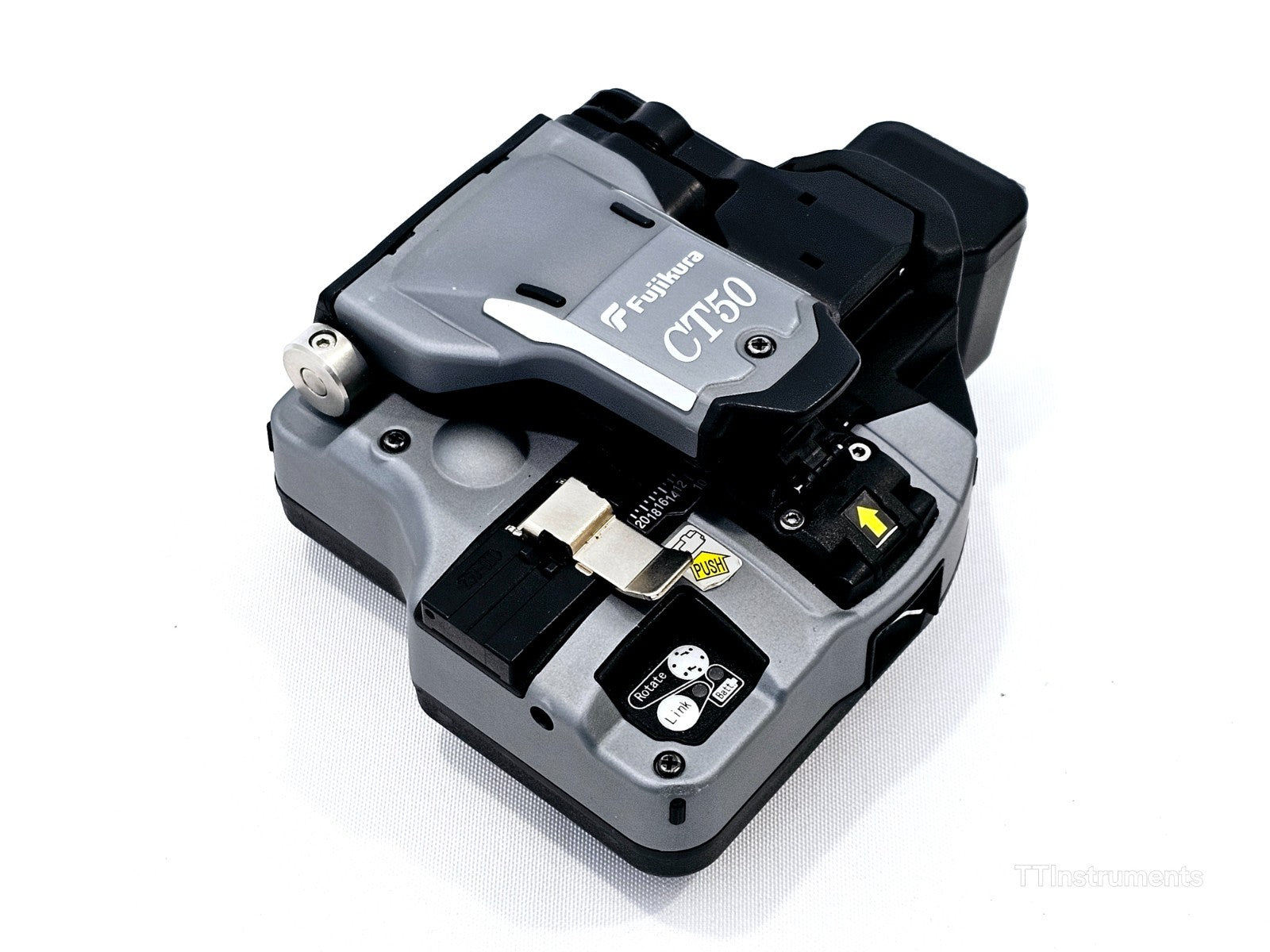

The issue of poor fibre cleaving due to worn, incorrectly adjusted or damaged cleaver blades is conveniently dealt with. When the 41S+ detects a high cleave angle or bad end shape, it sends a blade position change instruction to the cleaver. The CT50 cleaver then rotates the cleaver blade automatically to the next position, restoring optimum cleaving performance.
By utilising the low radio power of Bluetooth technology, other equipment nearby will not be interfered with. Operators can benefit from the "always on" technology due to the low power consumption of the Bluetooth, which means that batteries can last for several months. In addition to cleave performance, the smart splicer can also wirelessly monitor the battery and power usage of the CT50 cleaver.
As the latest addition to the Fujikura splicing family, the 41S+ is flexible, smart and efficient and is therefore capable of making a huge difference to efficiency of users. The easy-to-handle and operate qualities of this splicer means quick and simple splicing, with performance never being compromised.
FIBRE ALIGNMENT METHOD: Active clad alignment
SPLICEABLE FIBRE COUNT: Single fibre
FIBRE TYPE: Single mode and multimode optical fibre
CLADDING DIAMETER: Approx. 125μm
SHEATH CLAMP COATING: 3000μm maximum coating diameter
SHEATH CLAMP CLEAVE LENGTH¹: 5mm – 16mm
ITU-T G.652 SPLICE LOSS²: Avg. 0.03dB
ITU-T G.651 SPLICE LOSS²: Avg. 0.01dB
ITU-T G.653 SPLICE LOSS²: Avg. 0.05dB
ITU-T G.655 SPLICE LOSS²: Avg. 0.05dB
ITU-T G.657 SPLICE LOSS²: Avg. 0.03dB
SM FAST MODE SPLICE TIME³: Avg. 6 to 7 seconds
PROTECTION SLEEVE TYPE: Heat-shrinkable sleeve
SLEEVE LENGTH: Max. 66mm
SLEEVE DIAMETER: Max. 6mm before shrinking
60MM MODE HEAT TIME⁴: Avg. 25 to 27 seconds
FIBRE TENSILE TEST FORCE: Approx. 2.0N
ELECTRODE LIFE⁵: Approx. 5000 splices
WIDTH: Approx. 131mm without projection
DEPTH: Approx. 201mm without projection
HEIGHT: Approx. 79mm without projection
WEIGHT: Approx. 1.3kg including battery
OPERATING TEMPERATURE: -10 to 50°C
STORAGE TEMPERATURE: -40 to 80°C
OPERATING HUMIDITY: 0 to 95% RH non-condensing
OPERATING ALTITUDE: Max. 5000m
AC ADAPTOR INPUT: AC100 to 240V, 50/60Hz, Max. 1.5A
BATTERY TYPE: Rechargeable Lithium Ion
BATTERY OUTPUT: Approx. DC14.4V, 3,190mAh
BATTERY CAPACITY⁶: Approx. 200 splice and heat cycles
BATTERY RECHARGE TEMPERATURE RANGE: 0 to 40°C
BATTERY STORAGE TEMPERATURE: -20 to 30°C
BATTERY LIFE⁷: Approx. 500 recharge cycles
LCD DISPLAY: 4.9 inch TFT colour touch screen
DISPLAY MAGNIFICATION: Approx. 132x – 300x
V-GROOVE ILLUMINATION: LED lamp
PC INTERFACE: USB 2.0 Mini B connector
EXTERNAL LED LAMP INTERFACE: USB 2.0 A connector Approx. DC5V, 500mA
WIRELESS CONNECTIVITY⁸: Bluetooth 4.1 LE
SPLICE MODE DATA STORAGE⁷: 100 splice modes
HEAT MODE DATA STORAGE: 30 heat modes
SPLICE RESULT DATA STORAGE: 10,000 splices
SPLICE IMAGE DATA STORAGE: 100 images

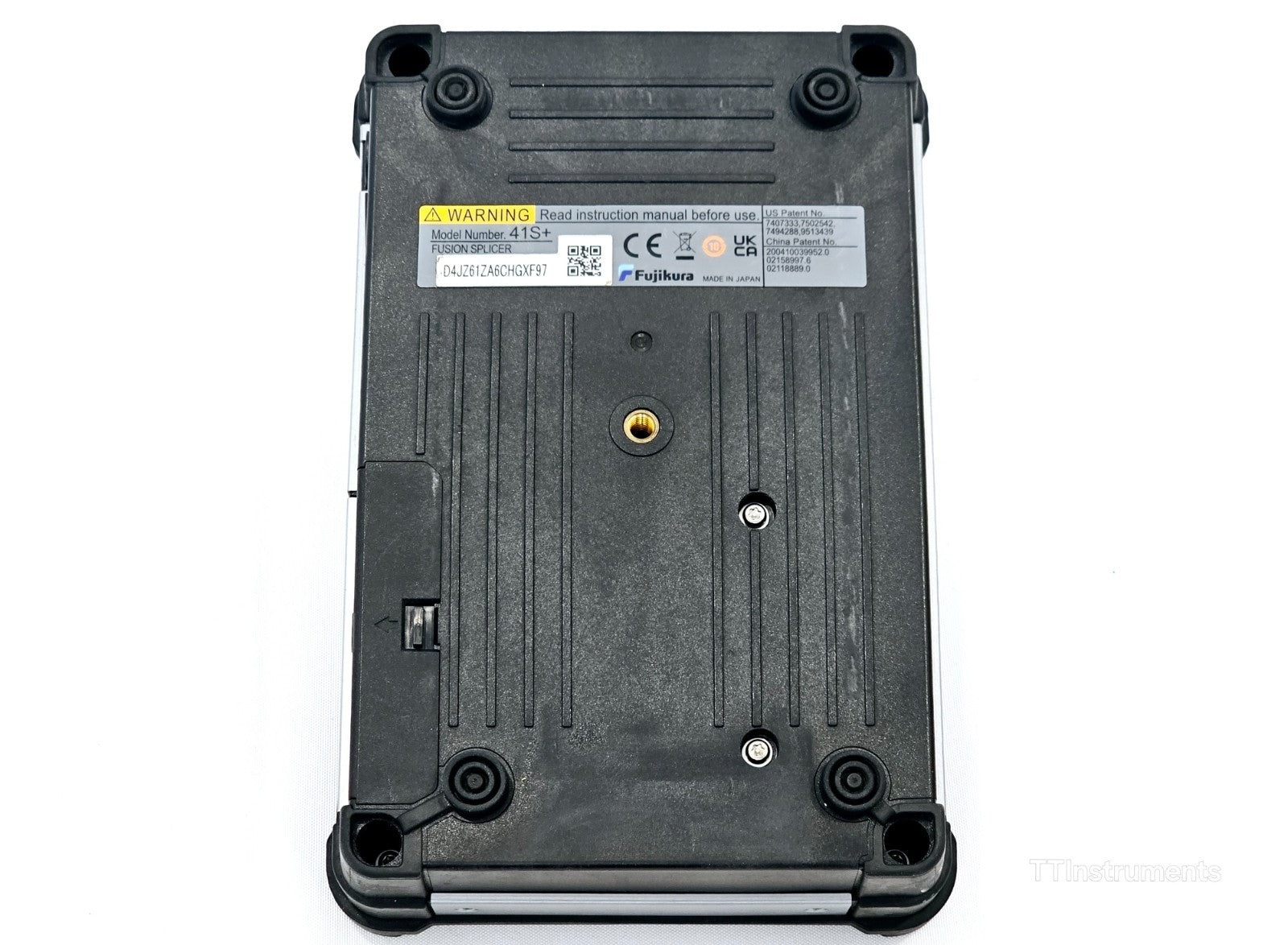

TRIPOD SCREW HOLE: 1/4-20UNC
AUTOMATIC FUNCTIONS: Fusion control
REFERENCE GUIDE: PDF file stored in splicer
SHEATH CLAMP: Easy sleeve positioning clamp
ELECTRODE: Replaceable without tools
