Condition: Refurbished — Seller Refurbished

This Fujikura 41S has been cleaned and serviced by an approved service centre in May 2025. ARC count is 1805 and the unit has been fitted with new electrodes. The battery is included and holds its charge. Please note there is a small mark/line on the screen in the top right corner — this does not affect functionality. This is an EU licensed model.

Included in the sale:

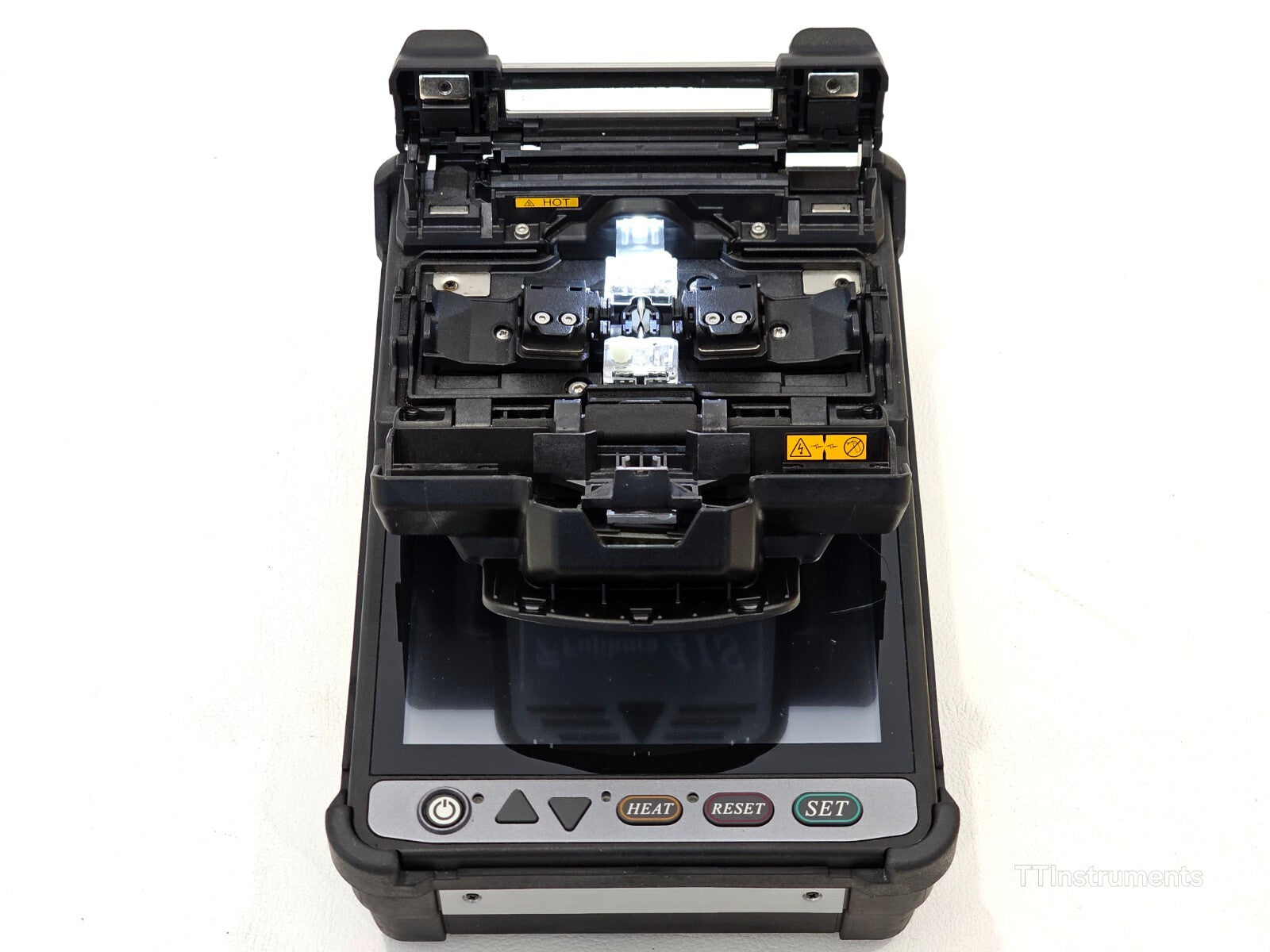

• Fujikura 41S SM/MM Active Cladding Fusion Splicer (ARC count 1805) with new electrodes

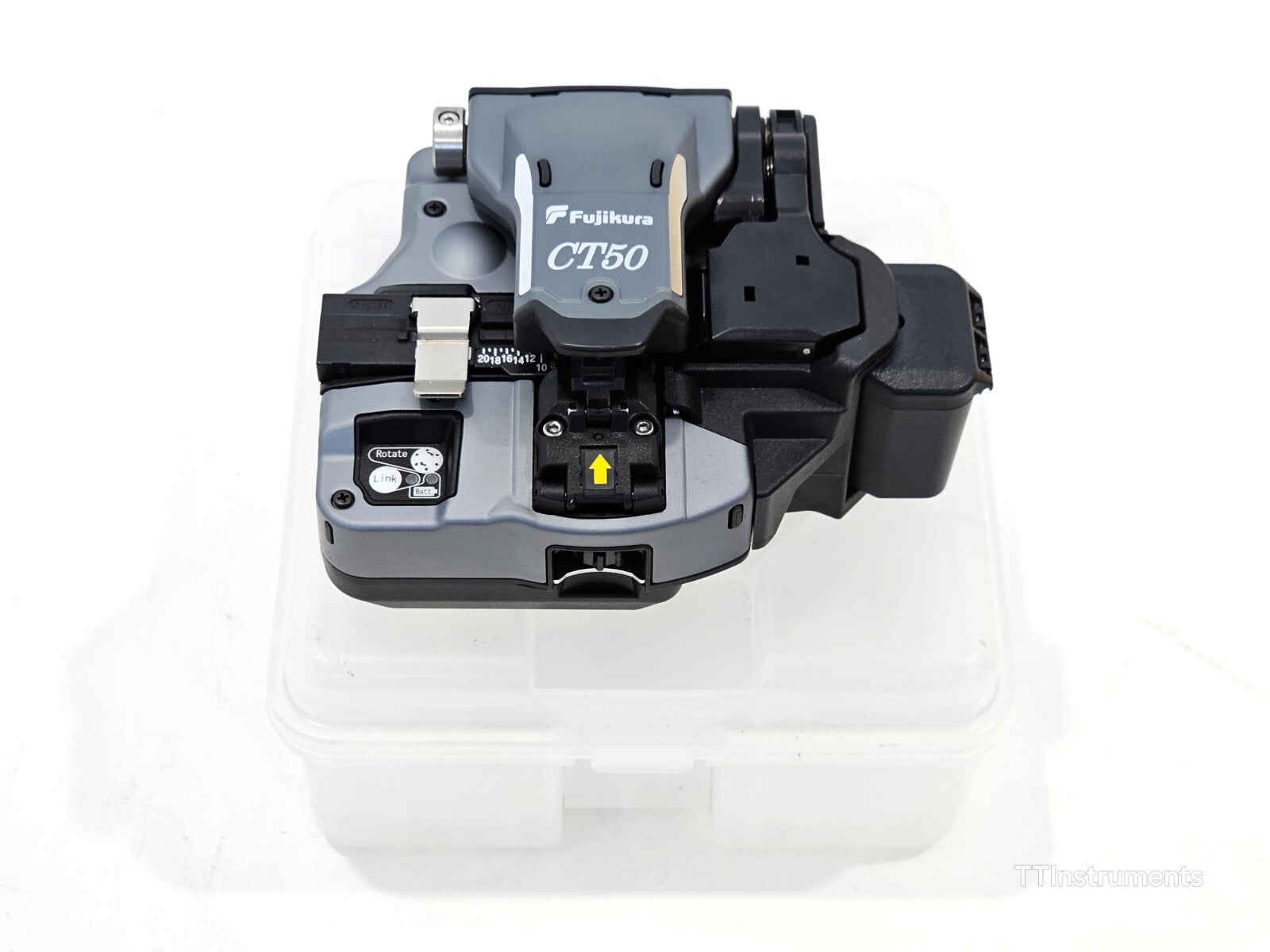

• Fujikura CT-50 High Precision Fibre Cleaver with AD50 guide plate, case, and new blade
• AC Adapter/Charger (ADC-19A)
• Battery Pack
• Hard Carrying Case
• Alcohol Pot
• Work Tray

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura 41S is a fully ruggedized, dual-camera, active cladding alignment fusion splicer designed for FTTx and demanding field splicing applications. Core sensing loss estimation technology — enabled by Warm Splice Imaging (WSI) — provides the most accurate assessment of splice loss available in any active cladding alignment splicer in the world. The 41S evaluates core alignment during the heating process itself, delivering splice loss estimates with greater accuracy than cladding-only methods. Bluetooth connectivity with the CT-50 fibre cleaver enables automated blade rotation when cleave quality degrades, reducing reburns and rework. The dual-camera, active V-groove system ensures consistent splicing performance in the most challenging field conditions, while a large 5-inch TFT touchscreen provides a clear, easy-to-use interface.

Model: 41S
Applicable Fibres: Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)
Cladding Diameter: 125 μm
Coating Diameter: 250 μm up to 3 mm
Fibre Cleave Length: 5 mm to 16 mm
Typical Average Splice Loss: 0.03 dB (SM), 0.01 dB (MM), 0.05 dB (DS), 0.05 dB (NZDS)
Splicing Time: Typical 6 sec with SM
ARC Calibration Method: Automatic, real-time, previous splice-based in AUTO mode; manual calibration available
Splicing Modes: 100 splice modes
Splice Loss Estimate: Cladding or core alignment based on user-selected method
Storage of Splice Results: 10,000 splice results
Fibre Display: 5-inch TFT colour LCD; X or Y view or both simultaneously
Magnification: 200X (single-camera), 132X (dual-camera)
Viewing Method: 2-axis CMOS camera
Operating Conditions: Altitude 0–5,000 m; Temp -10°C to +50°C; Humidity 0–95% RH (non-dew)
Mechanical Proof Test: 1.96 N
Tube Heater: 30 heating modes
Tube Heating Time: Typical 25 sec with FP-60 (60 mm sleeve)
Protection Sleeve Length: 60 mm, 40 mm, micro
Splice/Heat Cycles with Battery: Typical 200 cycles with BTR-11
Electrode Life: 5,000 splices
Power Supply: Auto-select 100 V–240 V AC adapter; 14.8 V DC with battery
Terminals: USB 2.0
Wind Protection: Max wind velocity 15 m/s (34 mph)
Dimensions: 131 × 201 × 79 mm
Weight: 1,300 g (2.85 lbs) with battery

Fujikura 41S Fusion Splicer Kit official datasheet (PDF): Download PDF
