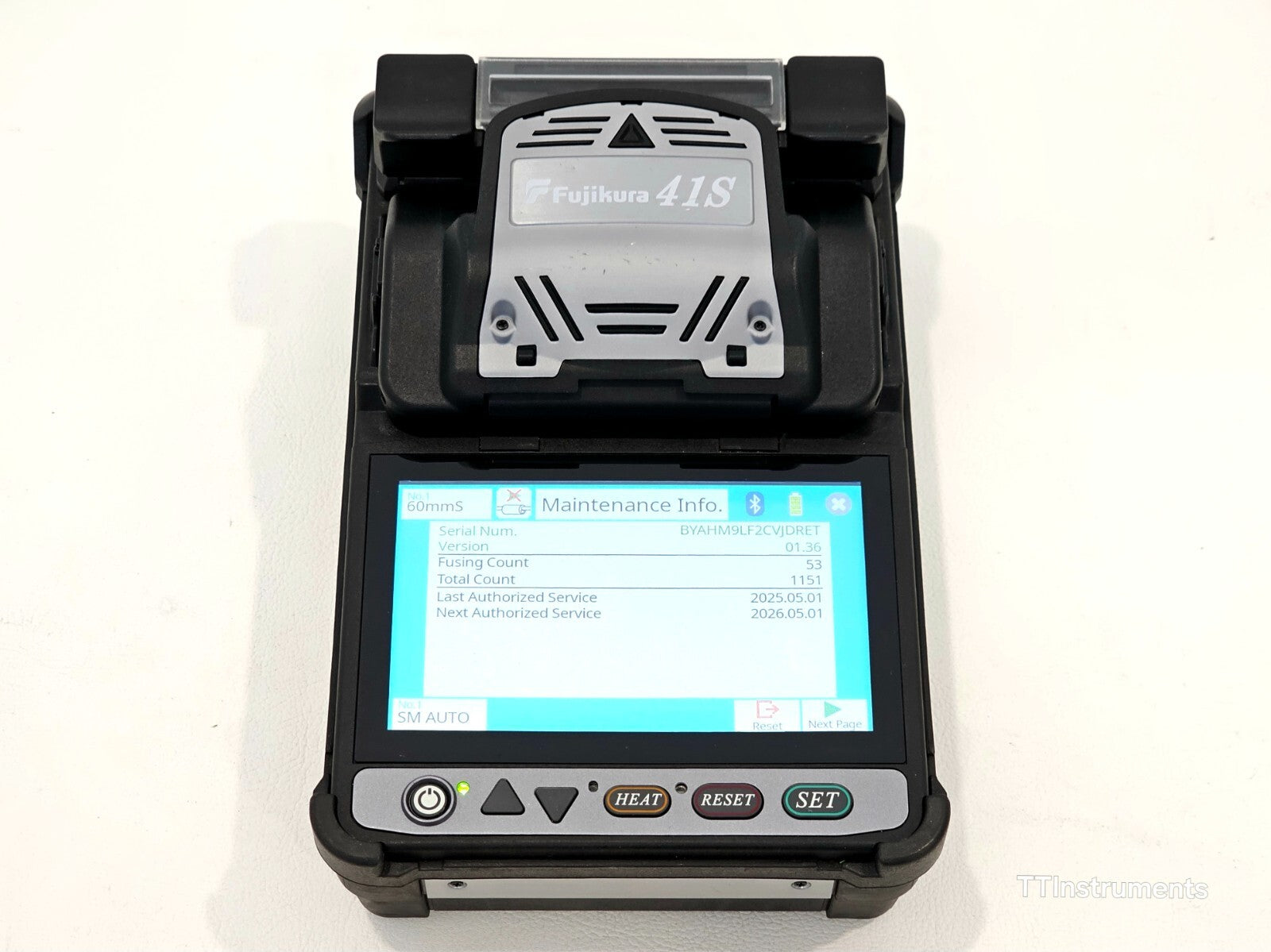

ARC Count 1151/1145.

See description below of what is included.

This item has been cleaned and serviced by an approved service center in May 2025.

Battery is included and holds its charge.

This is an EU licensed model.

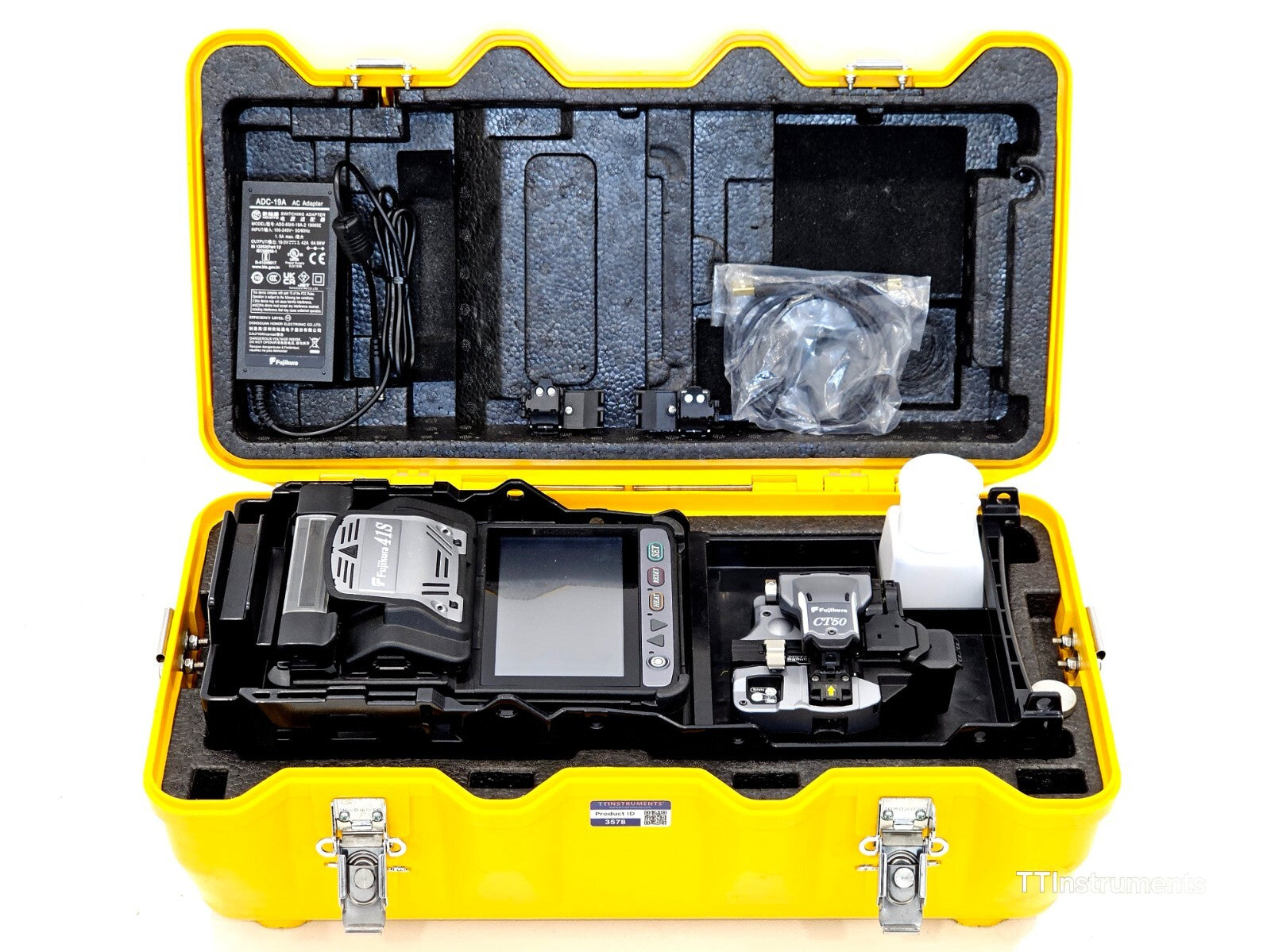

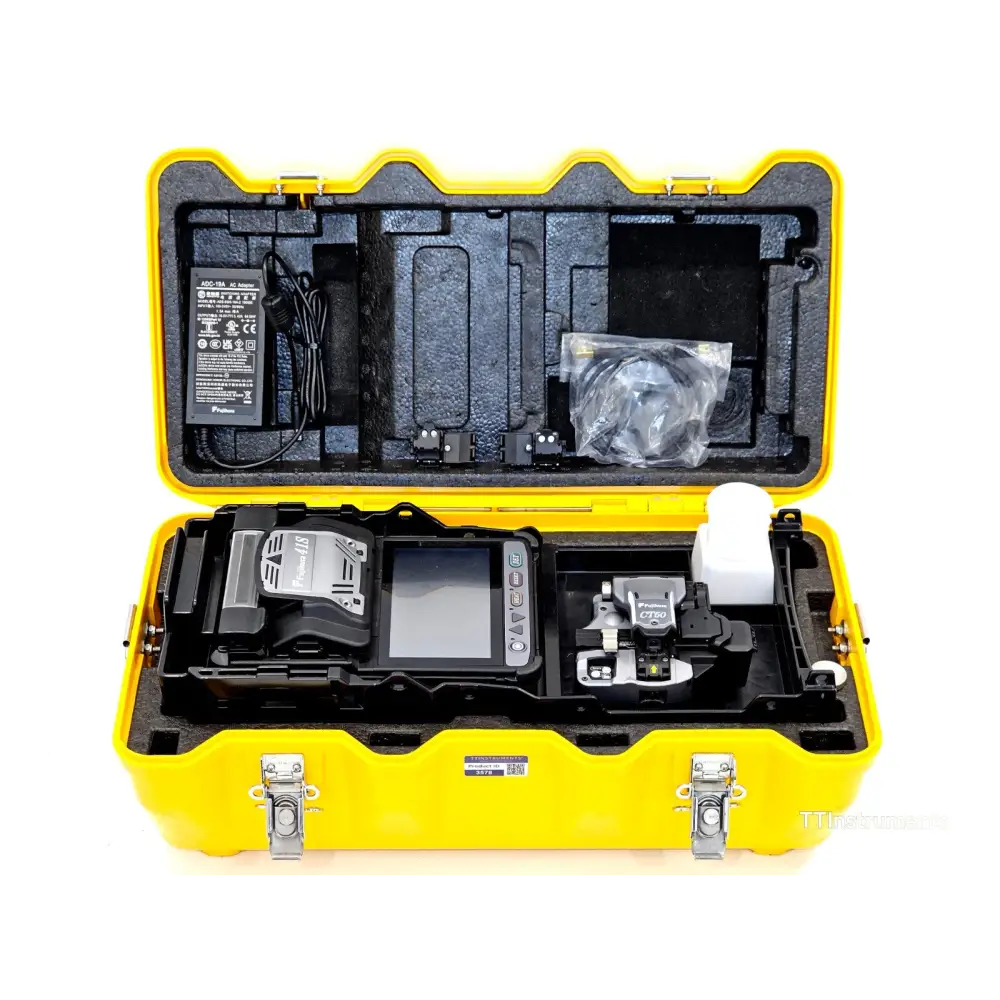

Included in the sale:

• Fujikura 41S SM MM Active Cladding Fusion Splicer (ARC count 1151) with new electrodes

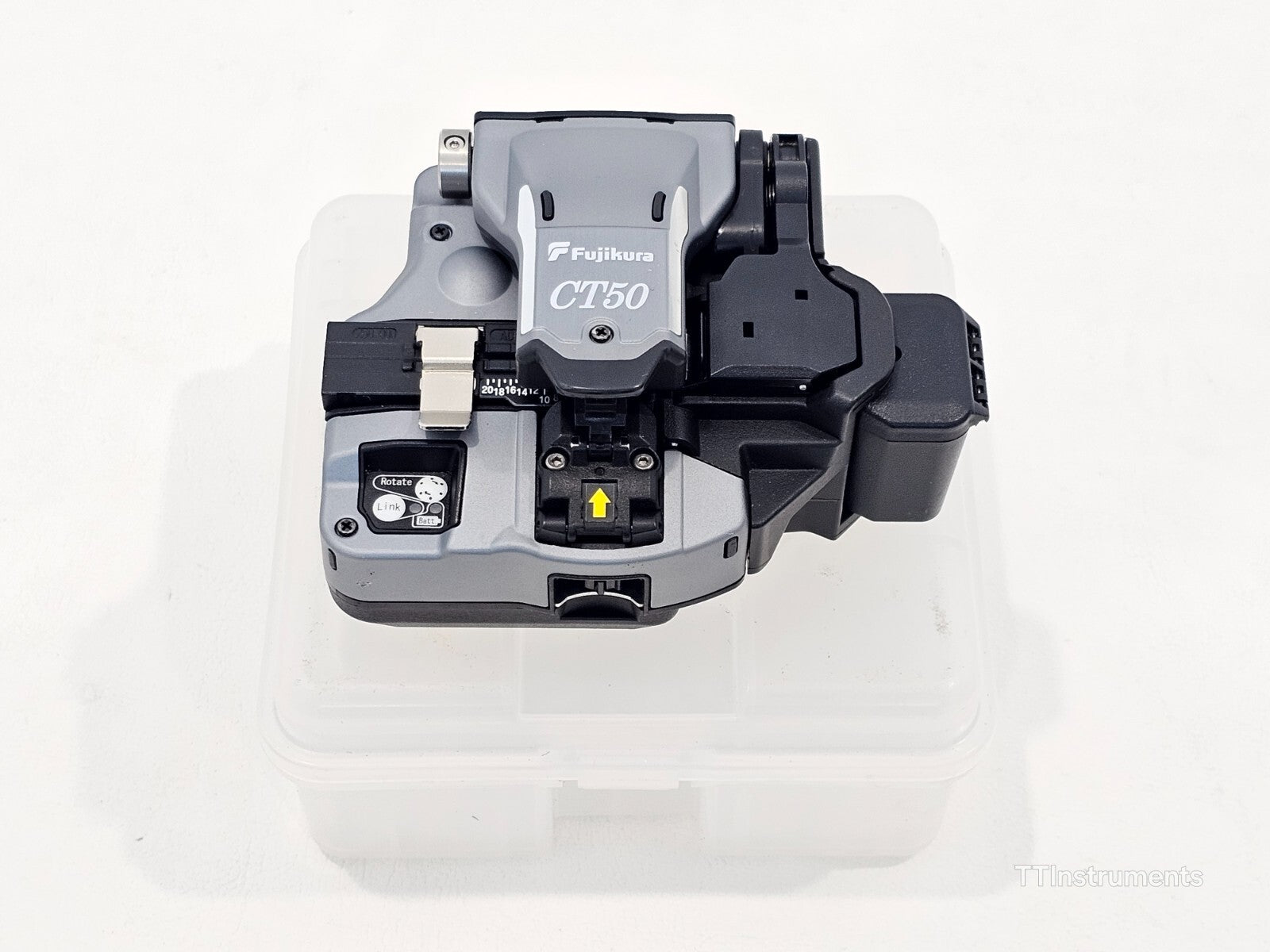

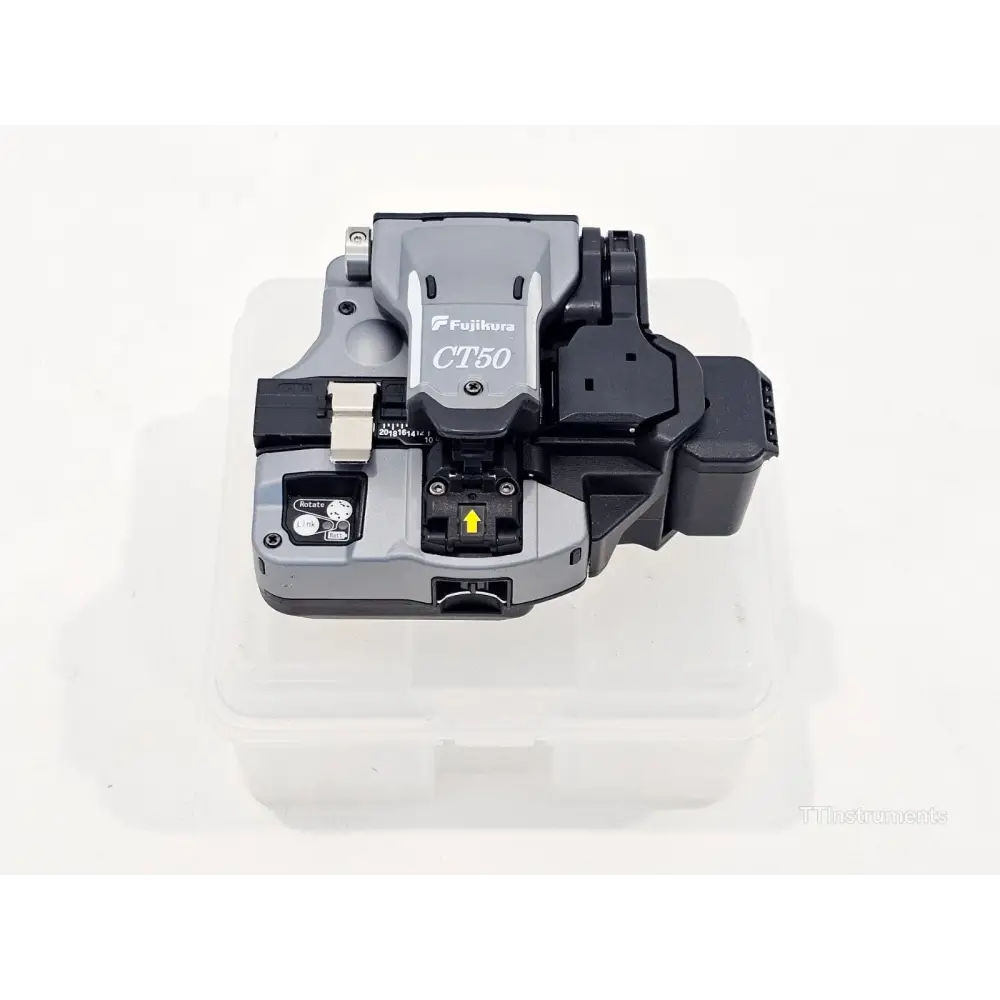

• Fujikura CT-50 High Precision Fiber Cleaver with AD50 guide plate + case and new blade
• AC Adapter/Charger (ADC-19A)
• Battery Pack
• Hard Carrying Case
• Alcohol Pot
• Work Tray

The Fujikura 41S is a fully ruggedized, active cladding alignment fusion splicer. Core sensing loss estimation technology provides the most accurate assessment of splice loss available in any active cladding alignment splicer in the world. Enabled by Warm Splice Imaging (WSI), the 41S can determine the accuracy of core alignment by evaluation of the splice during the heating process. This technology delivers splice loss estimates with a greater level of accuracy as those based on only cladding alignment. State-of-the-art cleaver management via Bluetooth® connection with the CT50 Cleaver tracks usage and enables automated blade rotation as needed. The dual-camera, active V-groove alignment system provides consistent splicing performance in the most challenging conditions. A 6-second splice time and 25-second shrink time offers unmatched speed and productivity, while an easy-to-use touchscreen monitor provides simple and intuitive menu navigation. Interchangeable sheath clamps or fiber holders provide versatility for user preference, and compatibility with fusion installable connectors. The extended-life battery is rated for up to 200 splice and heat cycles. Long-life electrodes, lasting 5,000 splices, help minimize downtime for replacement and stabilization. The large 5" monitor provides a crystal clear image, even in the brightest sunlight. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available. Backed by the best service team in the industry, the Fujikura 41S is the ideal splicer to use when portability, ruggedness, and reliability are needed for your splicing application.

Model: 41S

Applicable Fibers: Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)

Cladding Diameter: 125 μm

Coating Diameter: 250 μm up to 3 mm

Fiber Cleave Length: 5 mm to 16 mm

Typical Average Splice Loss: 0.03 dB (SM), 0.01 dB (MM), 0.05 dB (DS), 0.05 dB (NZDS)

Splicing Time: Typical 6 sec with SM

Arc Calibration Method: Automatic, real-time, previous splice-based in AUTO mode, manual calibration available

Splicing Modes: Total 100 splice modes

Splice Loss Estimate: Cladding or core alignment based on user-selected method

Storage of Splice Result: 10,000 splice results

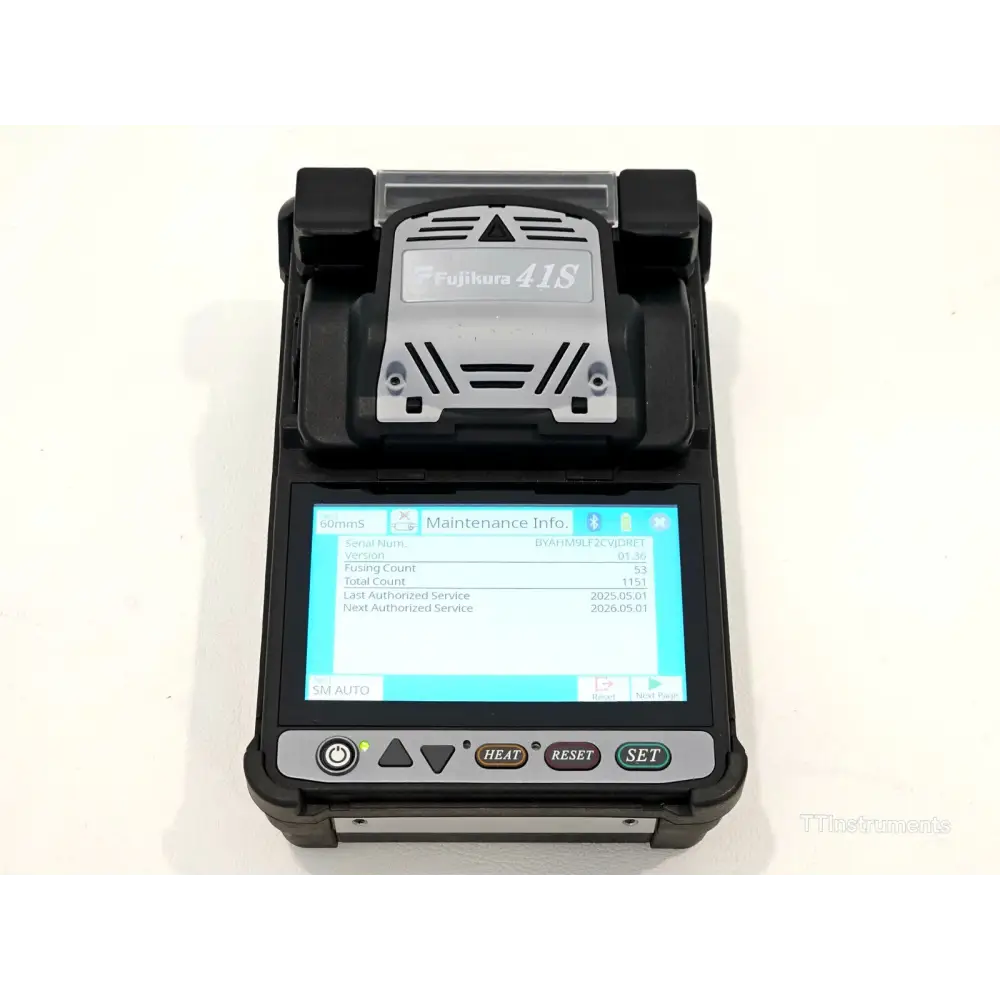

Fiber Display: 5 inch TFT colour LCD; X or Y view or both simultaneously

Magnification: 200X (single-camera), 132X (dual-camera)

Viewing Method: 2-axis CMOS camera

Operating Condition: Altitude: 0–5,000 m; Temp: -10° to +50° C; Humidity: 0–95% RH (non-dew)

Mechanical Proof Test: 1.96 N

Tube Heater: 30 heating modes

Tube Heating Time: Typical 25 sec with FP-60 (60 mm sleeve)

Protection Sleeve Length: 60 mm, 40 mm, micro

Splice/Heat Cycles with Battery: Typical 200 cycles with BTR-11

Electrode Life: 5,000 splices

Power Supply: Auto-select 100 V–240 V AC adapter, 14.8 V DC with battery

Terminals: USB 2.0

Wind Protection: Max wind velocity: 15 m/s (34 mph)

Dimensions: 131 × 201 × 79 mm

Weight: 1,300 g (2.85 lbs) with battery
