Condition: Refurbished

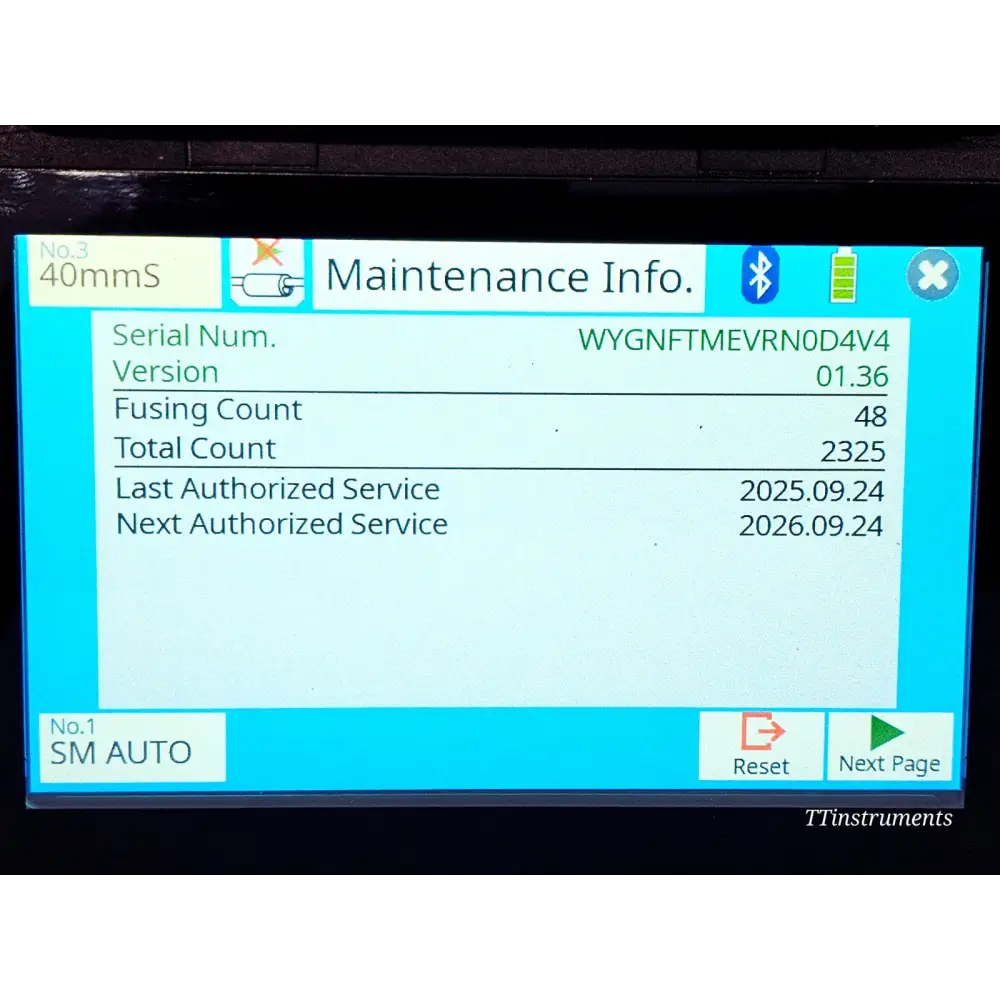

This Fujikura 41S Active Cladding Fusion Splicer has an ARC count of 2325 and was cleaned and serviced by an approved Fujikura service centre in September 2025, with the next authorized service due September 2026. Firmware version 01.36. Fitted with new electrodes. EU-licensed model. No cleaver included.

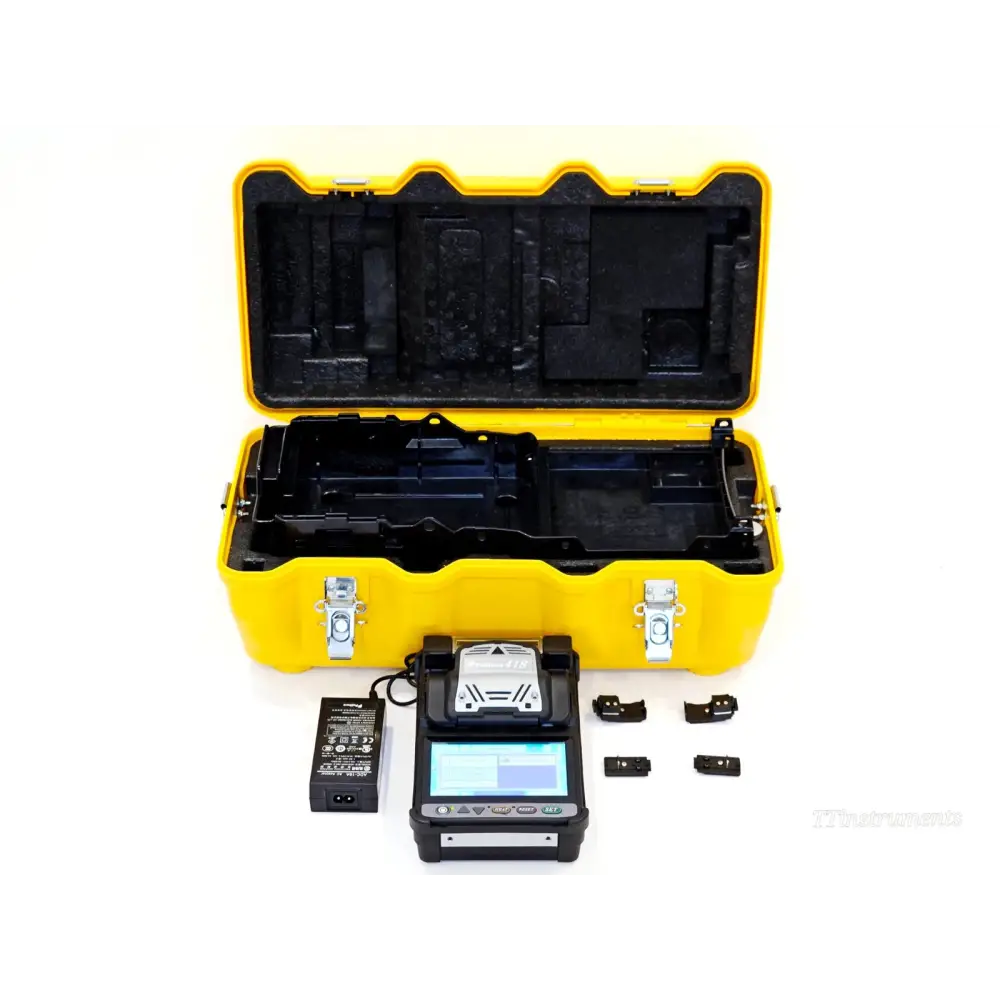

Included in the sale:
• Fujikura 41S SM/MM Active Cladding Fusion Splicer (ARC count 2325) with new electrodes
• AC Adapter/Charger (ADC-19A)
• Battery pack
• Hard carrying case
• Work tray
• Fibre holder clamps (visible in images)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

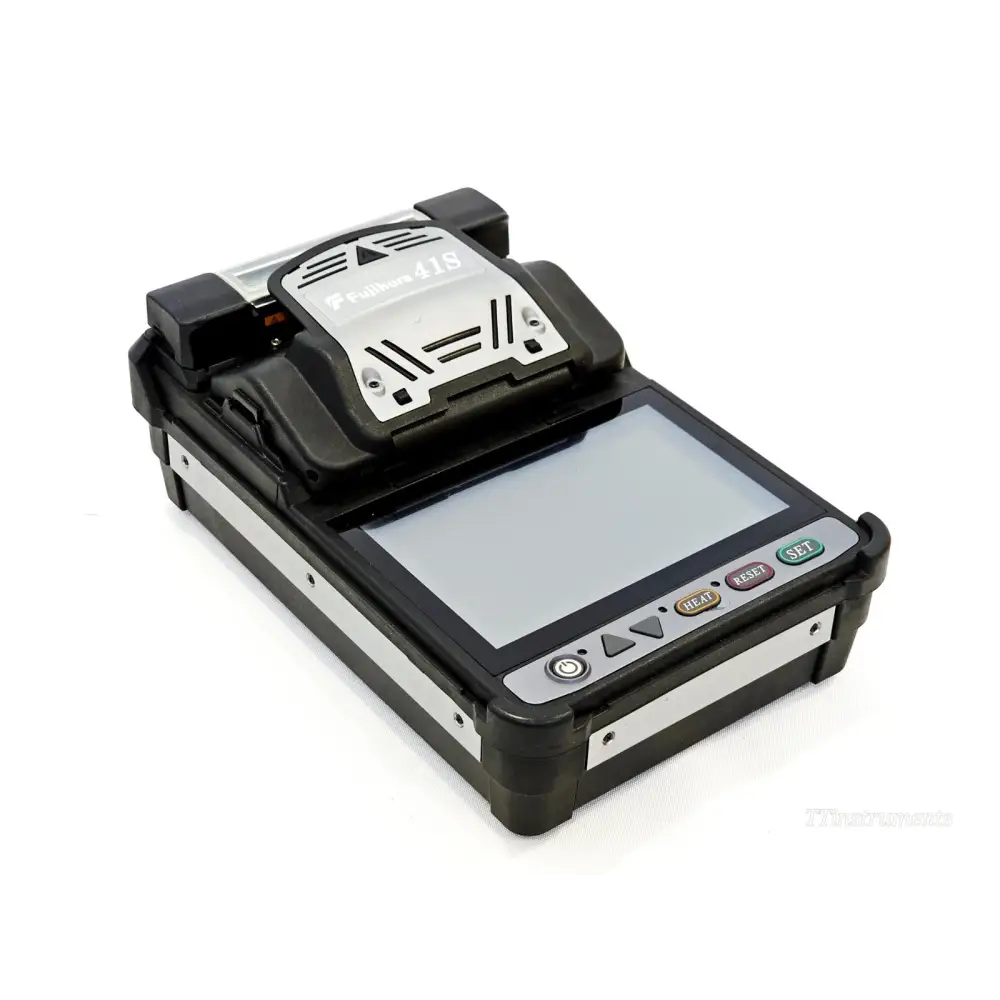

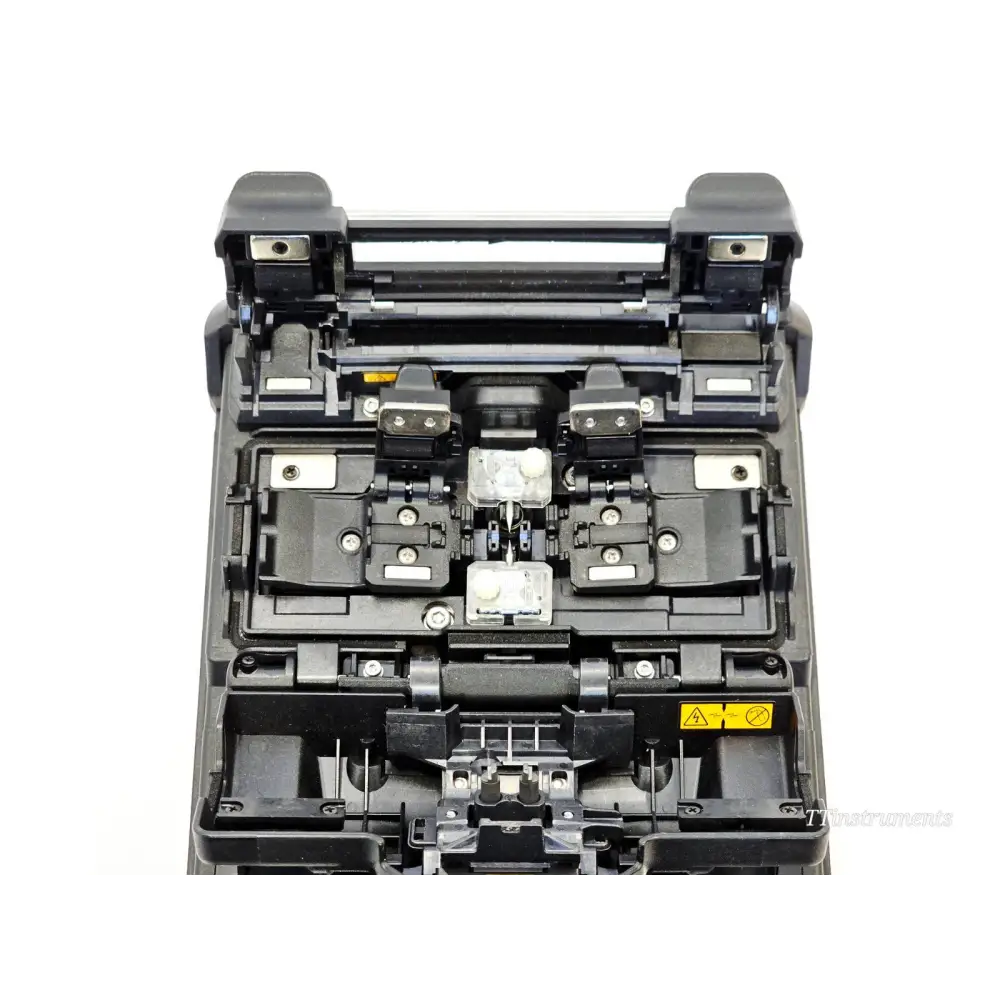

The Fujikura 41S is a fully ruggedized, two-camera, active cladding alignment fusion splicer designed for portability, ruggedness, and reliability in professional fibre splicing applications. Core sensing loss estimation technology provides the most accurate assessment of splice loss available in any active cladding alignment splicer. Enabled by Warm Splice Imaging (WSI), the 41S determines the accuracy of core alignment by evaluating the splice during the heating process, delivering splice loss estimates with greater accuracy than those based solely on cladding alignment. The dual-camera, active V-groove alignment system provides consistent splicing performance in the most challenging conditions. Active Blade Management (ABM) via Bluetooth connection with the CT50 Fibre Cleaver tracks cleaver blade usage and enables automated blade rotation as needed, helping to mitigate fibre reburns. A 6-second splice time and 25-second shrink time offer unmatched speed and productivity. The large 5-inch touchscreen monitor provides a crystal-clear image even in direct sunlight, with simple and intuitive menu navigation. Interchangeable sheath clamps or fibre holders provide versatility for user preference and compatibility with fusion-installable connectors. Software updates are available via the internet as new splice programs become available.

Fujikura 41S — Key Specifications:
Alignment Method: Active cladding (dual-camera, active V-groove)
Splice Loss — ITU-T G.652 (SM): Avg. 0.03 dB
Splice Loss — ITU-T G.651 (MM): Avg. 0.01 dB
Splice Loss — ITU-T G.653: Avg. 0.05 dB
Splice Loss — ITU-T G.655: Avg. 0.05 dB
Splice Loss — ITU-T G.657: Avg. 0.03 dB
Splice Time (SM FAST mode): Avg. 6 seconds
Splice Time (AUTO mode): Avg. 9 seconds
Shrink Time: Avg. 25 seconds
Protection Sleeve Diameter: Max. 6 mm (before shrinking)
Tension Test: Approx. 2.0 N
Electrode Life: Approx. 5,000 splices
Battery Life: Approx. 200 splice and heat cycles
Battery: DC 14.4 V, 3,360 mAh
AC Power Input: AC 100–240 V, 50/60 Hz, Max. 1 A
Weight: Approx. 1.3 kg (including battery)
Max. Operating Altitude: 5,000 m
Display: 5-inch colour touchscreen
Wireless: Bluetooth (for CT50 cleaver management)
Coating Diameter: Max. 3,000 µm

Fujikura 41S Fusion Splicer — official product brochure and technical datasheet (PDF): Download PDF

Fujikura 41S Fusion Splicer — AFL/Fujikura technical datasheet with full specifications (PDF): Download PDF

Fujikura 41S Kit — official Fujikura manufacturer brochure including CT50 cleaver features (PDF): Download PDF

Fujikura 41S Fusion Splicer — AFL specification sheet with splice loss and performance data (PDF): Download PDF

Fujikura CT50 Fibre Cleaver — technical specification sheet (PDF): Download PDF
