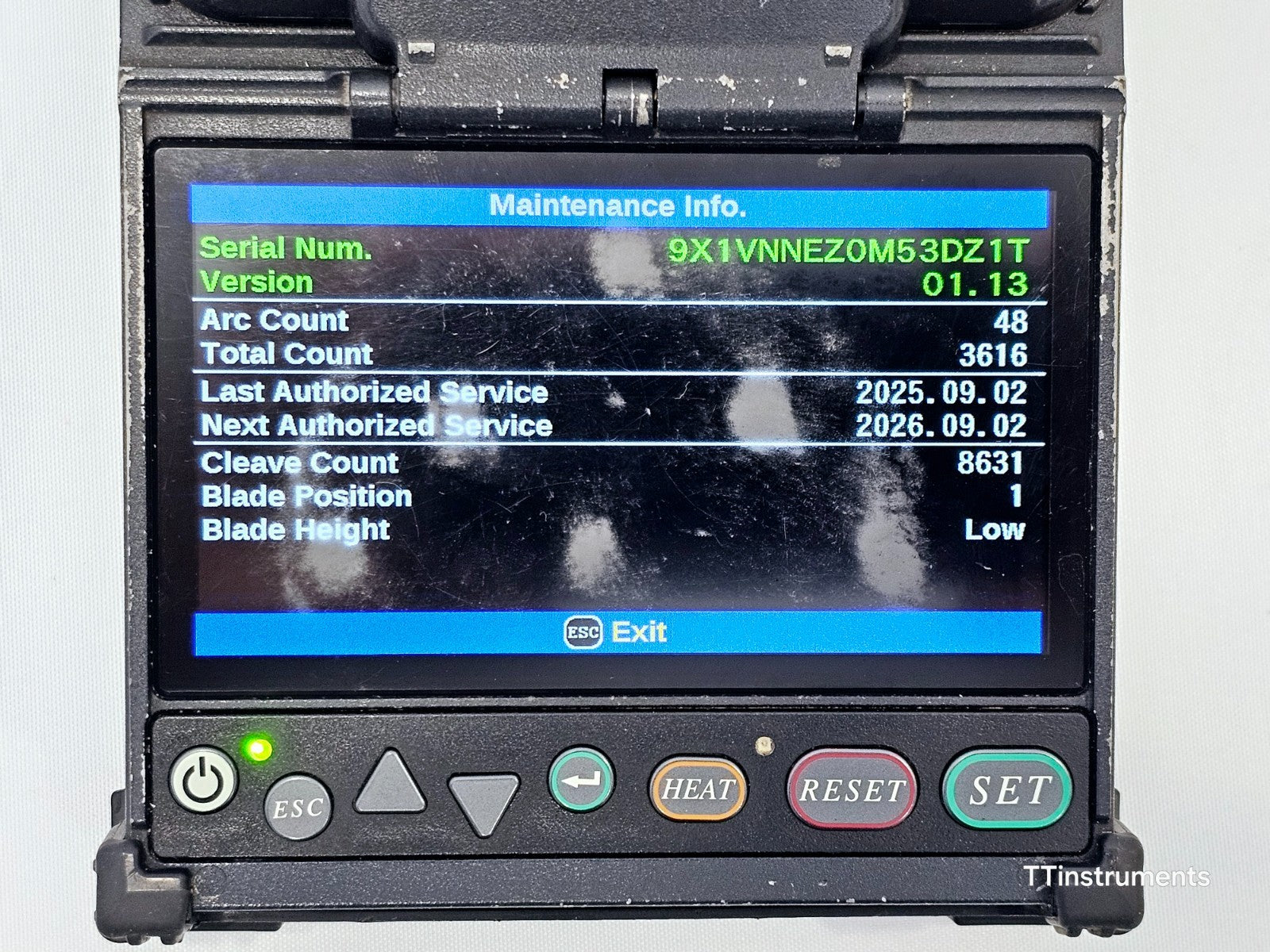

Condition: Refurbished — Seller refurbished, serviced in September 2025. ARC count at time of service: 3616.

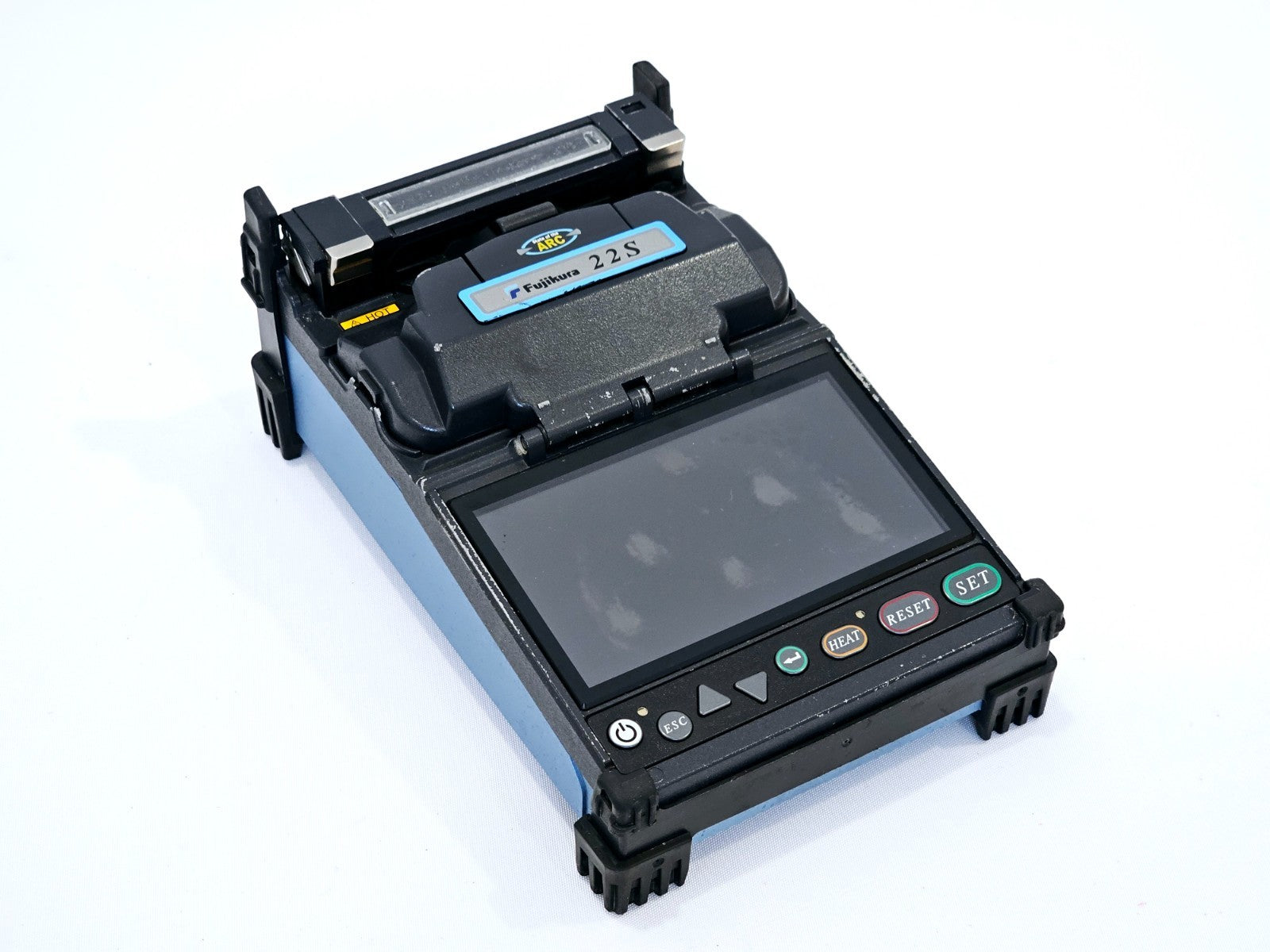

This is the Fujikura FSM-22S active cladding alignment fusion splicer, supplied as a complete field-ready kit. The unit has been serviced and is ready for deployment in telecom, FTTH, or data centre splicing applications.

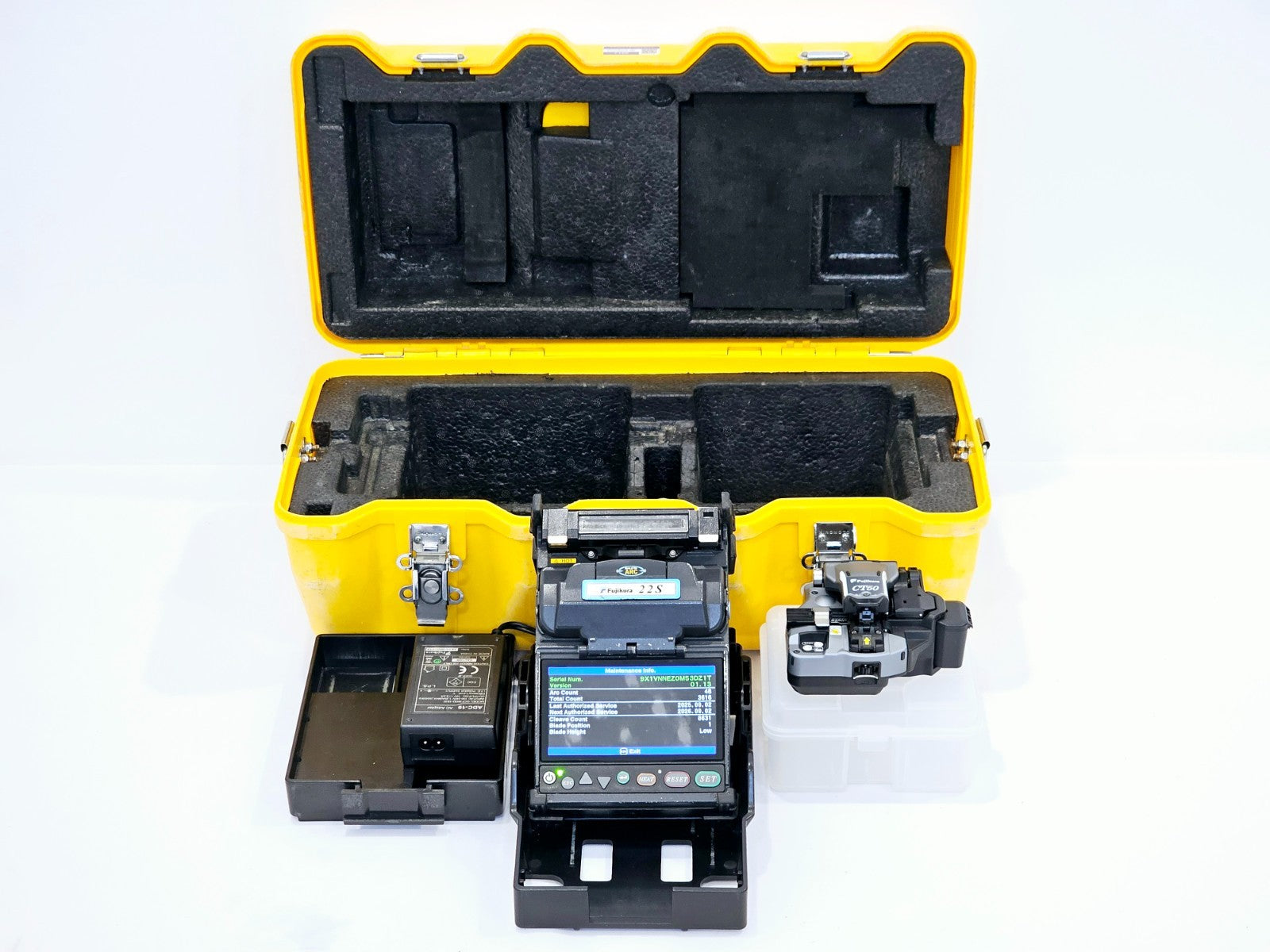

Included in the sale:

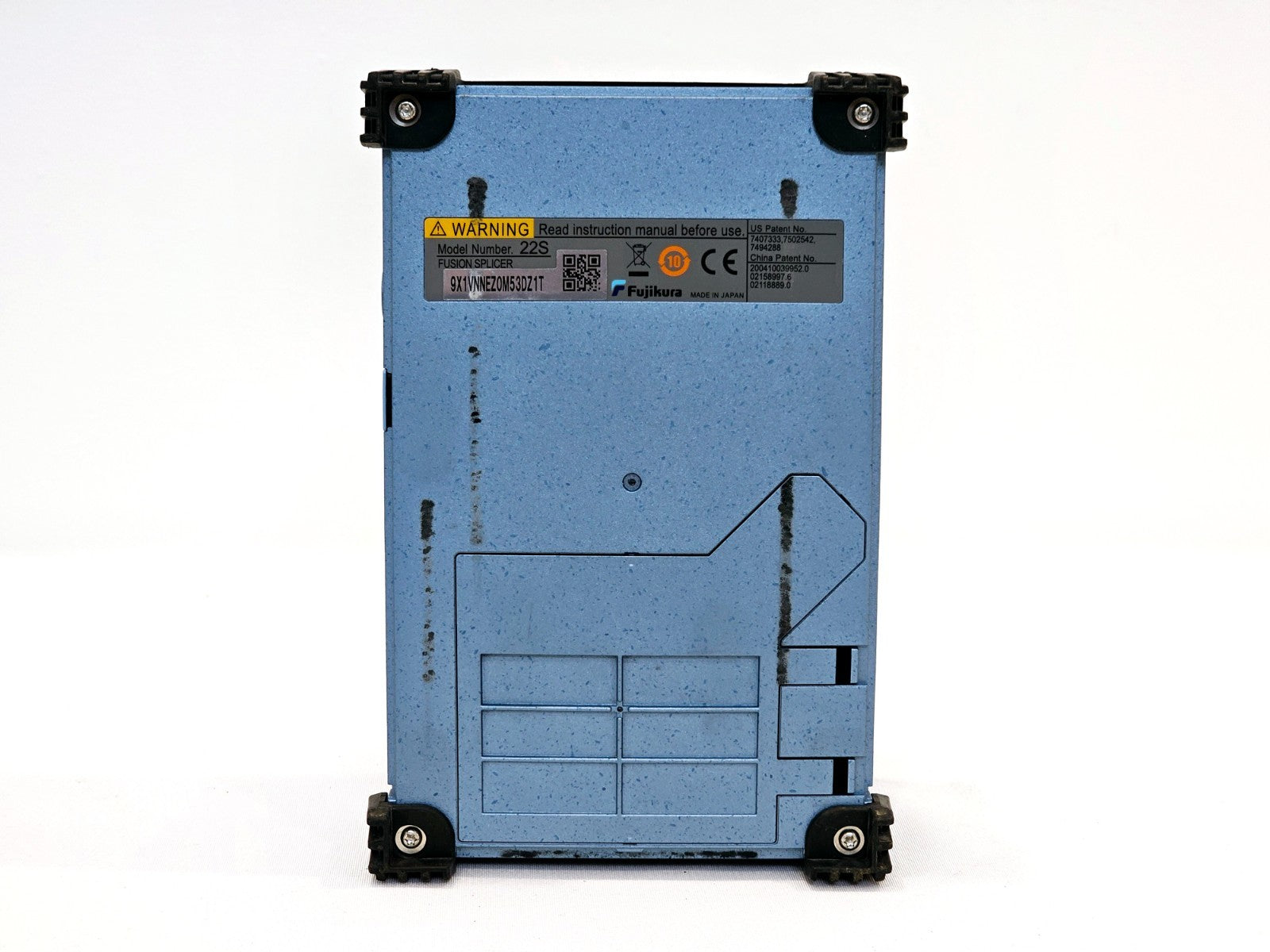

• Fujikura FSM-22S SM/MM arc fibre fusion splicer with sheath clamps (ARC count 3616)

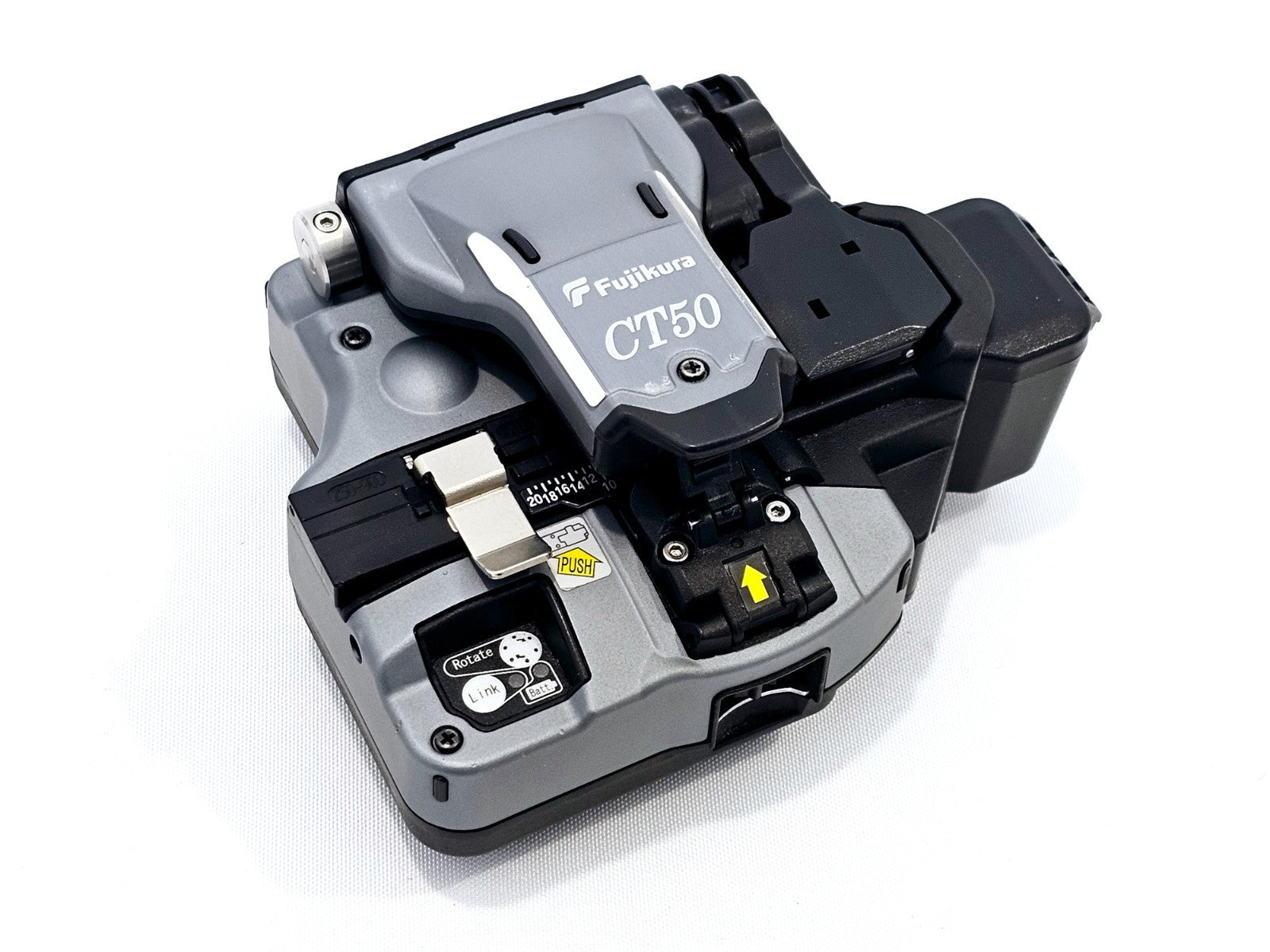

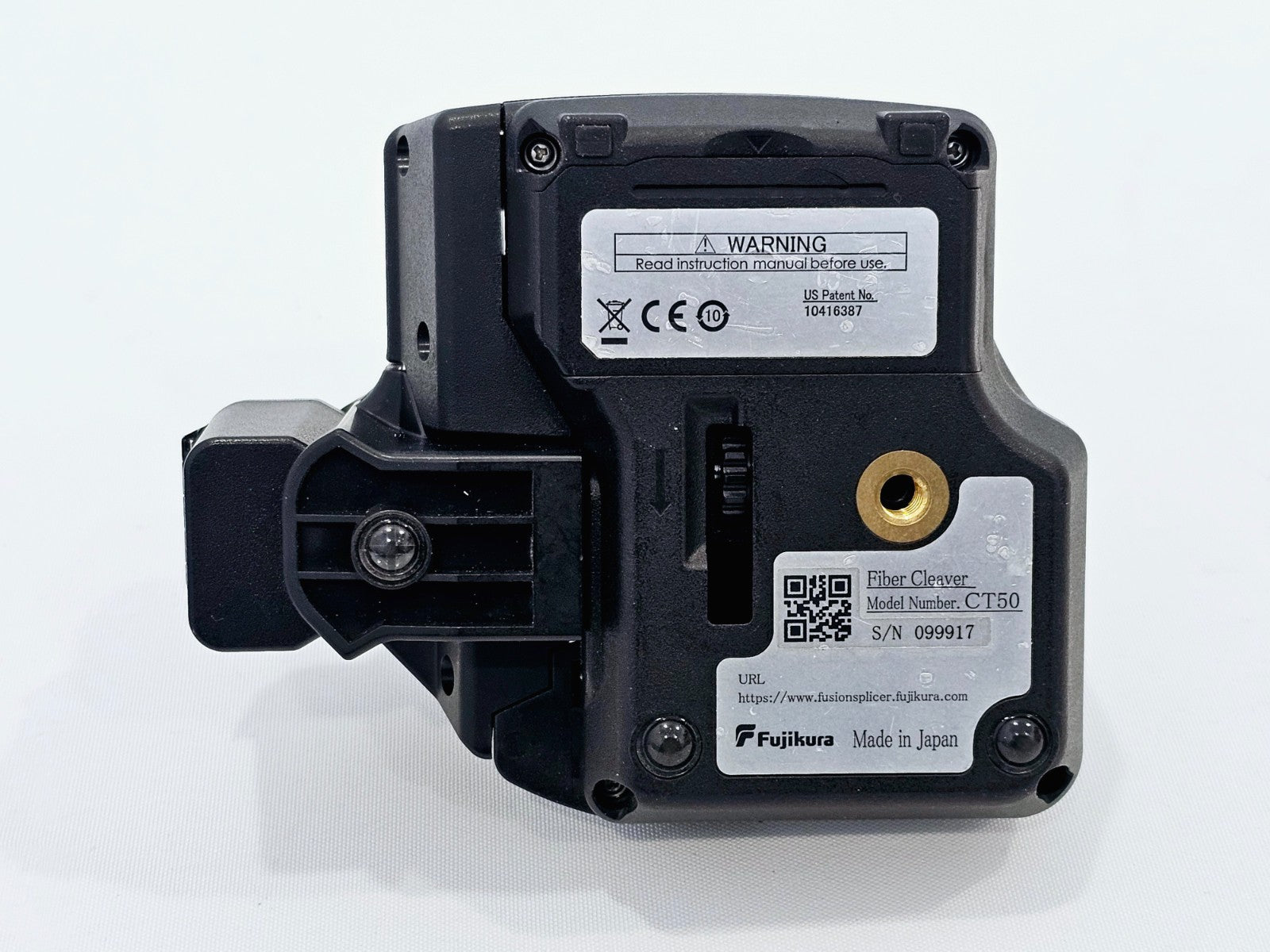

• Fujikura CT-50 High Precision Fibre Cleaver with case and guide plate
• AC adapter/charger
• Hard carrying case
• Work tray

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors caused by dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice and sleeve cycles. Removable sheath clamps allow the use of fibre holders if desired. The FSM-22S is well suited to field installation, network maintenance, and laboratory splicing across telecoms, data centre, and FTTH applications.

Key Specifications:
Splicer Type: Active cladding alignment fusion splicer
Fibre Compatibility: Single-mode (SM) and multi-mode (MM)

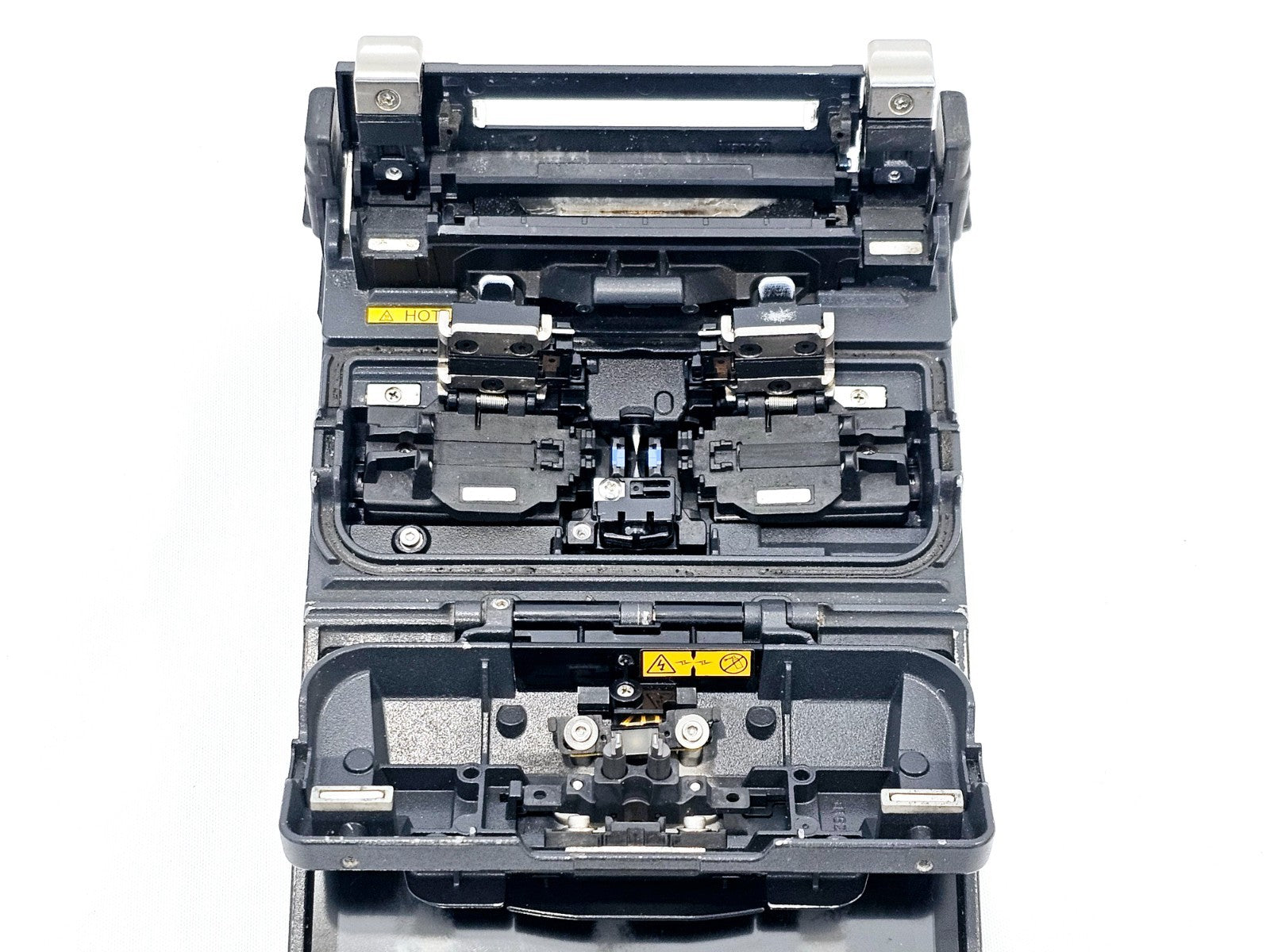

Groove Type: Moveable v-groove
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Splice Loss (SM): Typical 0.02 dB
Splice Loss (MM): Typical 0.01 dB
Battery Life: Up to 200 splice and heat cycles
Display: Colour LCD monitor
Dimensions: Compact field-portable form factor
Protection: Ruggedised for field use

Product datasheet
