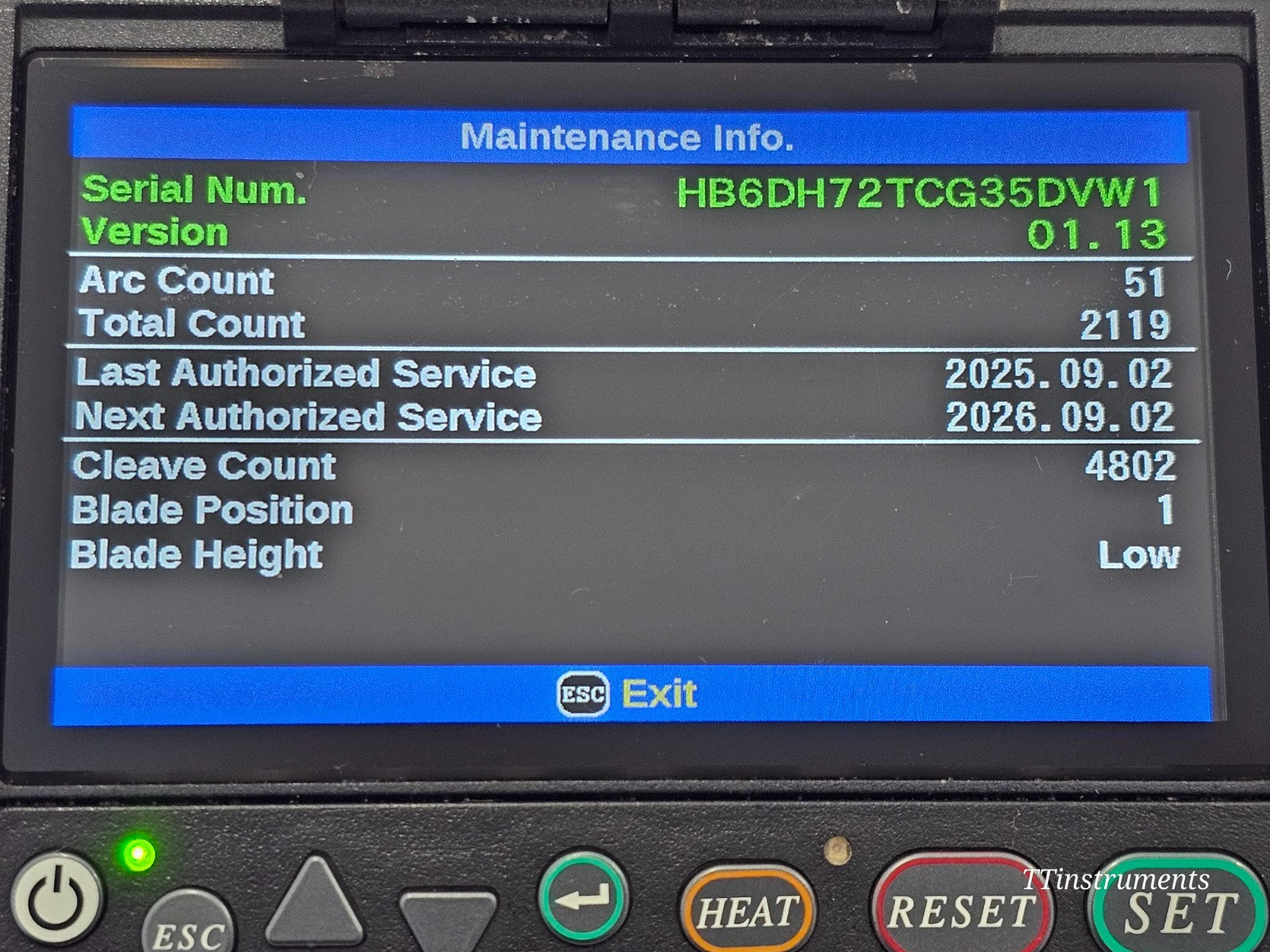

Condition: Seller refurbished — ARC count 2119, serviced in September 2025.

The Fujikura FSM-22S is an active cladding alignment fusion splicer offering reliable SM and MM splicing performance in a compact, field-ready package. This unit has been serviced and carries an ARC count of 2119 at the time of listing. Moveable v-grooves help eliminate splice errors caused by dust and contaminants, and the removable sheath clamps allow the use of fibre holders if preferred.

Included in the sale:

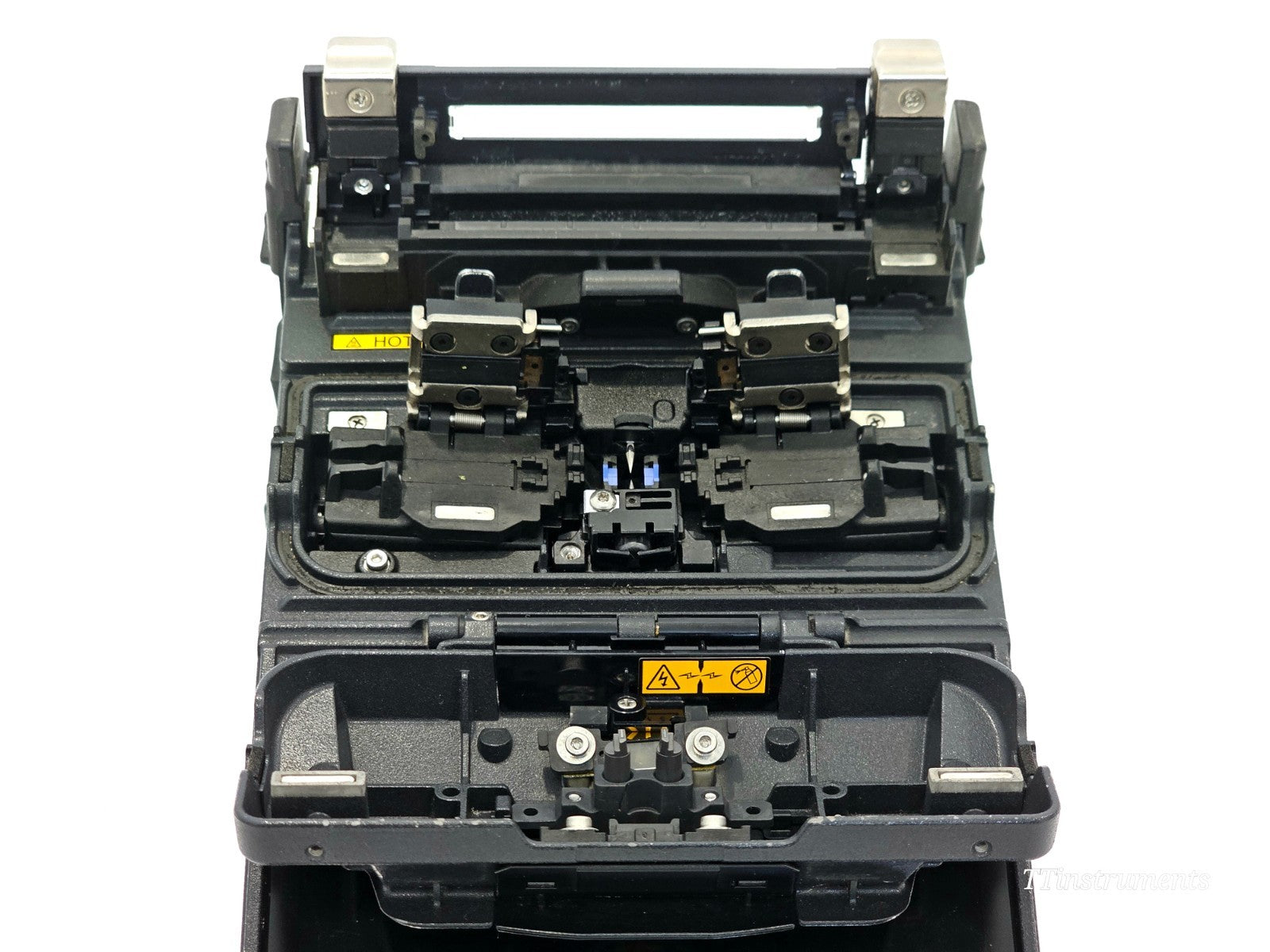

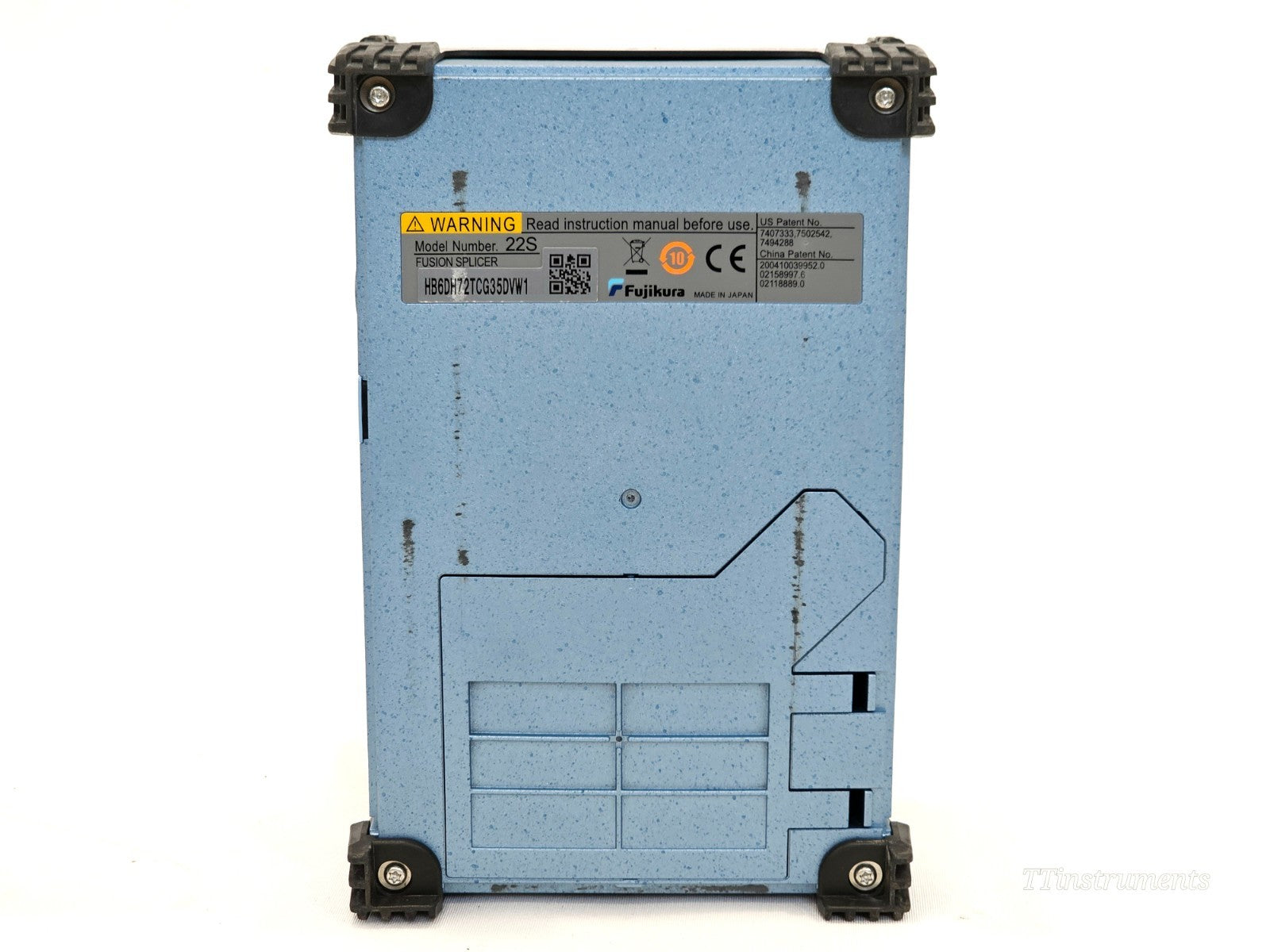

• Fujikura FSM-22S SM/MM Arc Fiber Fusion Splicer with clamps (ARC count 2119)

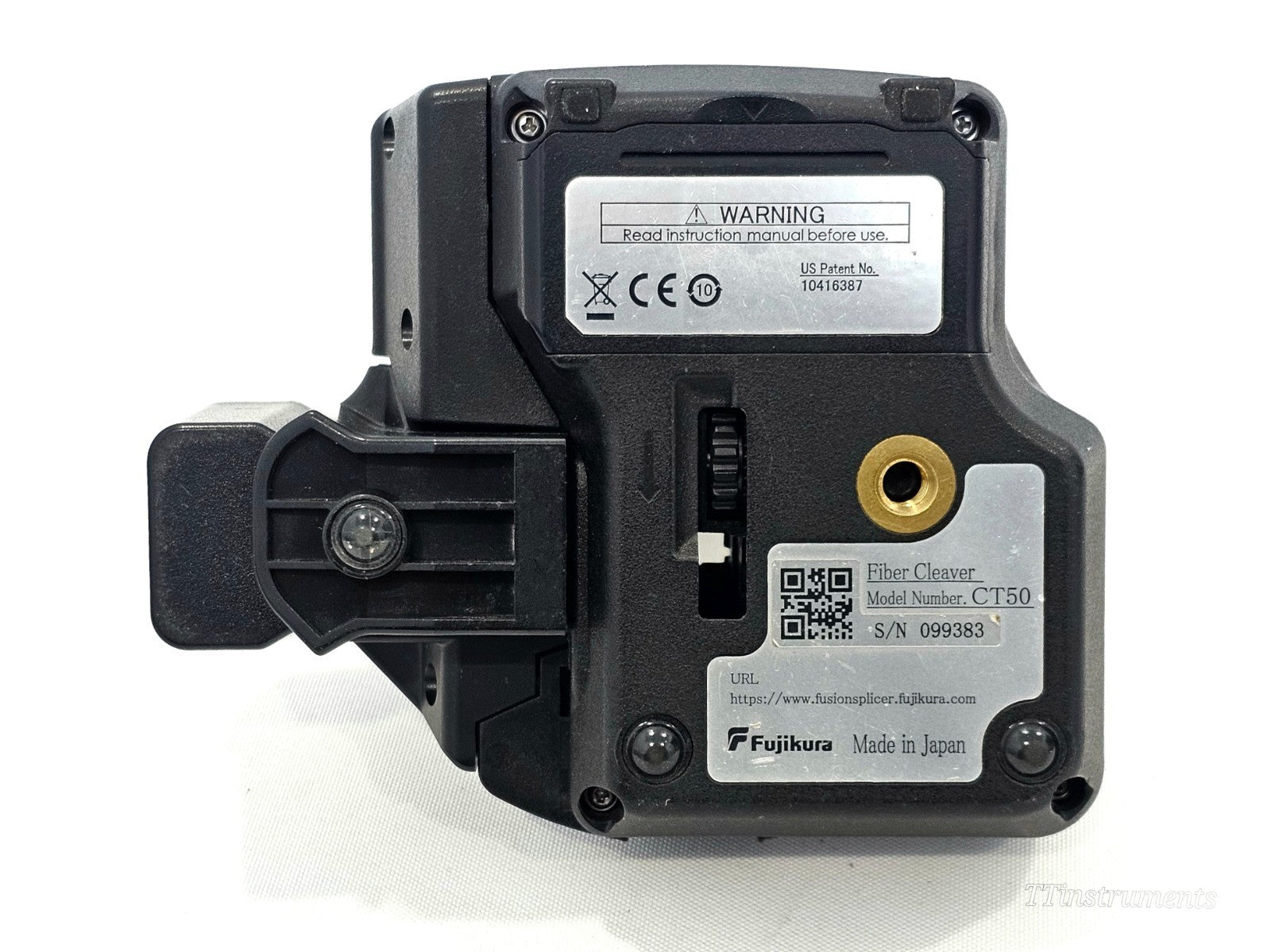

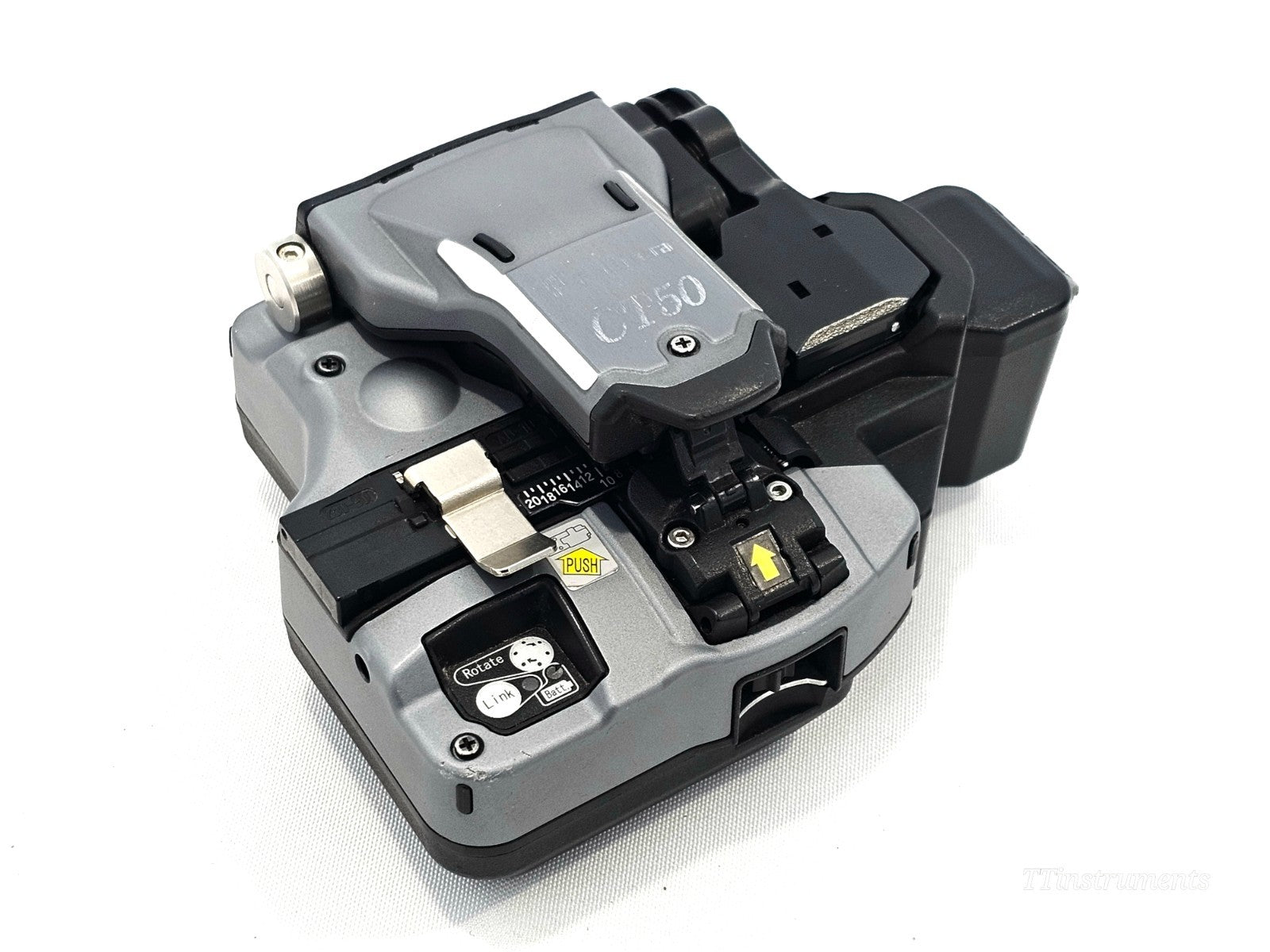

• Fujikura CT-50 High Precision Fiber Cleaver with case and guide plate
• AC Adapter/Charger
• Hard Carrying Case
• Work Tray

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors caused by dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice and sleeve cycles. Removable sheath clamps allow the use of fibre holders if desired. The FSM-22S is well suited to field installation, network maintenance, and laboratory splicing across telecoms, data centre, and FTTH applications.

Key Specifications:
Splicing Method: Active cladding alignment
Fibre Type: Single-mode (SM) and Multi-mode (MM)
Splice Time: Approx. 9 seconds
Heating Time: Approx. 35 seconds
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Battery Life: Up to 200 splice and heat shrink cycles
Display: Dual 3.5-inch colour LCD monitors
V-Groove Type: Moveable v-grooves
Dimensions: Approx. 115 x 115 x 145 mm
Weight: Approx. 1.1 kg (without battery)
Ingress Protection: IP52
Operating Temperature: -10°C to +50°C

Product datasheet
