Condition: Seller refurbished — ARC count 1693, serviced in September 2025.

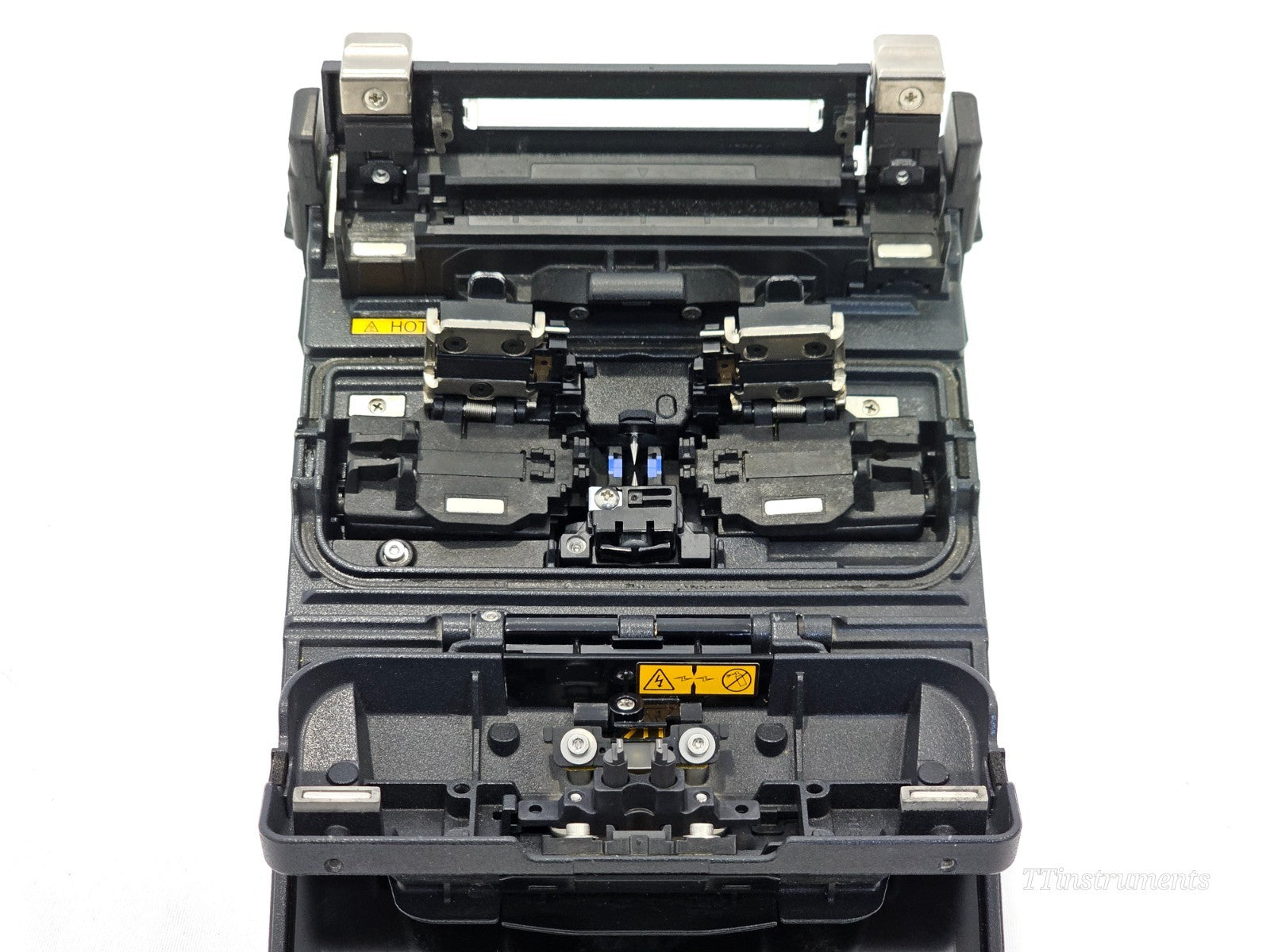

This Fujikura FSM-22S is a full-featured active cladding alignment fusion splicer suitable for single-mode and multi-mode fibre. Moveable v-grooves minimise splice errors caused by dust and contamination, and the compact ruggedised design makes it ideal for field installation, network maintenance, and laboratory use. The unit has been serviced and is supplied with a low arc count of 1693.

Included in the sale:

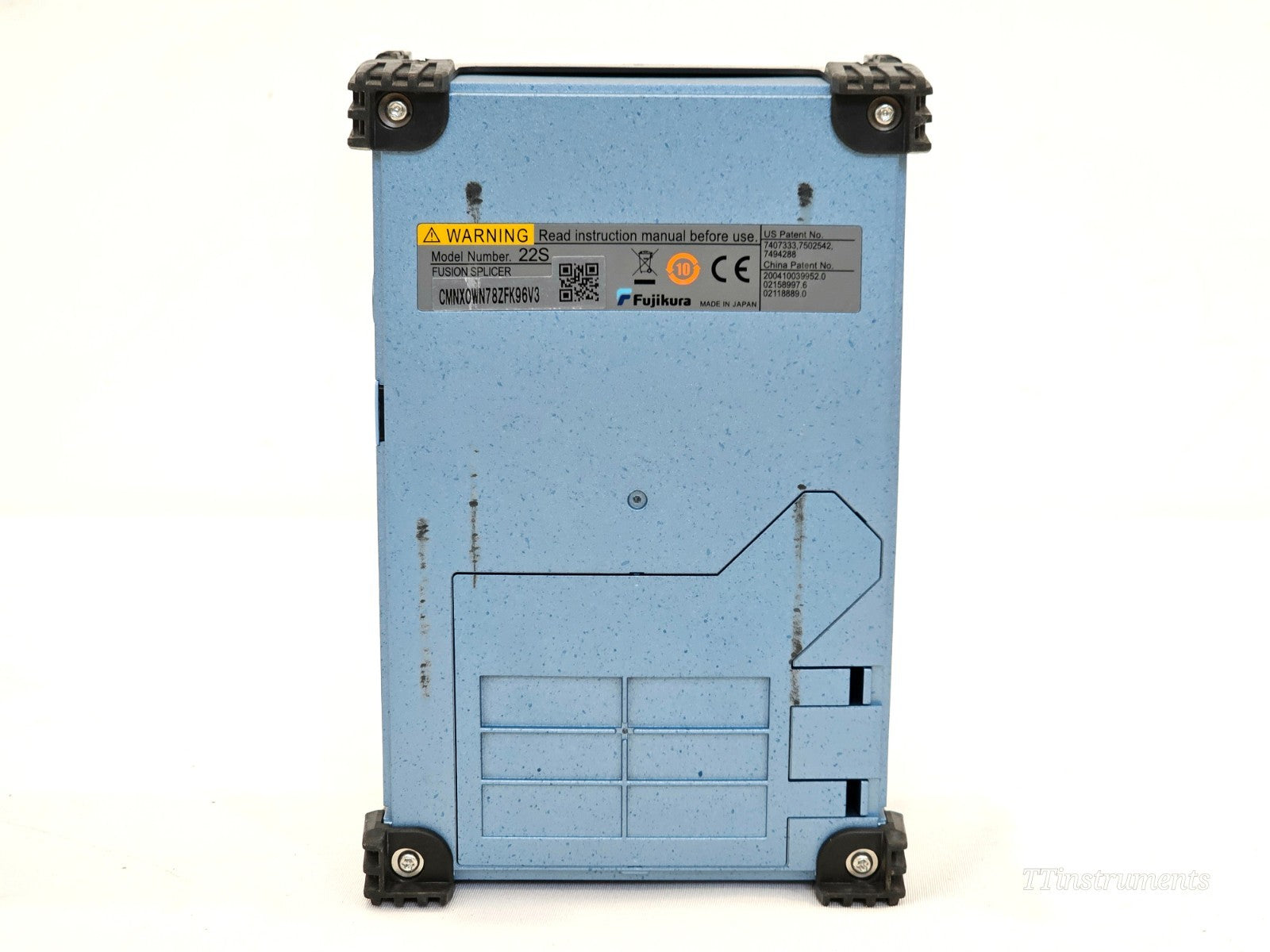

• Fujikura FSM-22S SM/MM Arc Fiber Fusion Splicer with clamps (ARC count 1693)

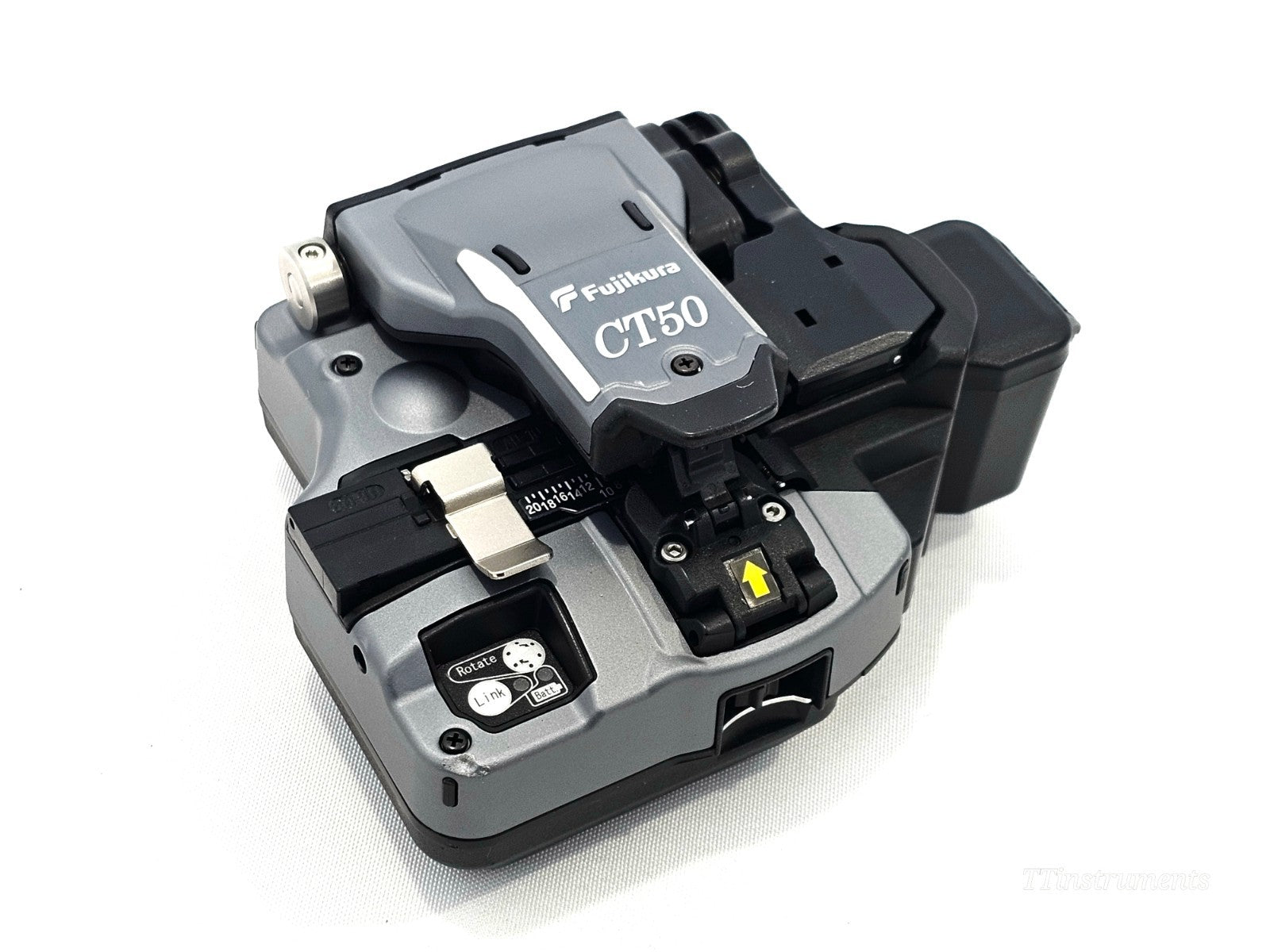

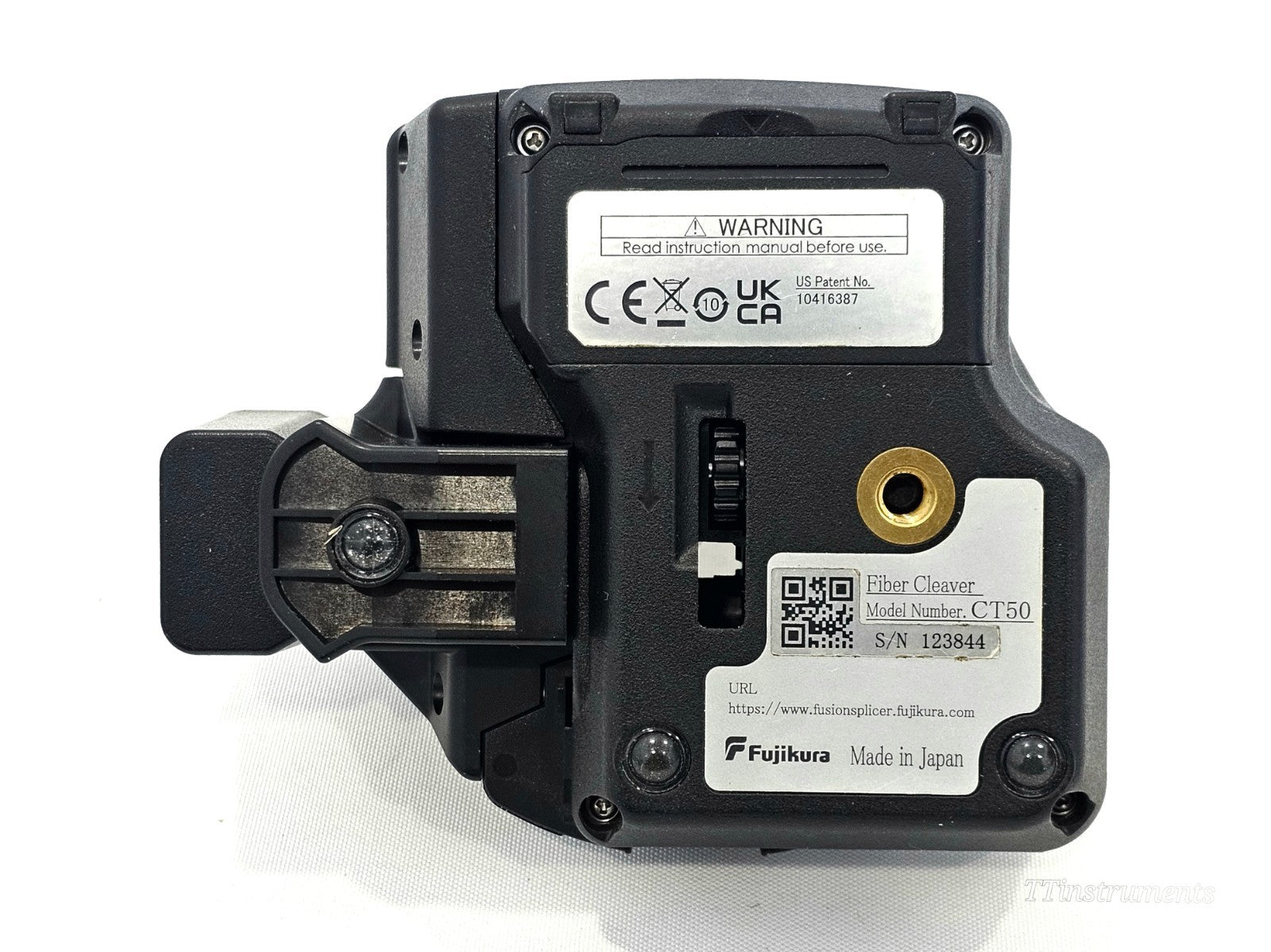

• Fujikura CT-50 High Precision Fiber Cleaver with case and guide plate
• AC Adapter/Charger
• Hard Carrying Case
• Work Tray

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors caused by dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice and sleeve cycles. Removable sheath clamps allow the use of fibre holders if desired. The FSM-22S is well suited to field installation, network maintenance, and laboratory splicing across telecoms, data centre, and FTTH applications.

Splice Type: Active Cladding Alignment
Fibre Compatibility: Single-mode (SM), Multi-mode (MM)
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds (standard sleeve)
Battery Life: Up to 200 splice and sleeve cycles
Display: Large colour LCD monitor
Fibre Diameter: 125 µm cladding
Protection Rating: IP52
Dimensions: Approximately 115 x 115 x 147 mm
Weight: Approximately 1.8 kg (with battery)

Product datasheet
