Condition: Refurbished — Seller refurbished, serviced in September 2025 with an ARC count of 1366, indicating very low use.

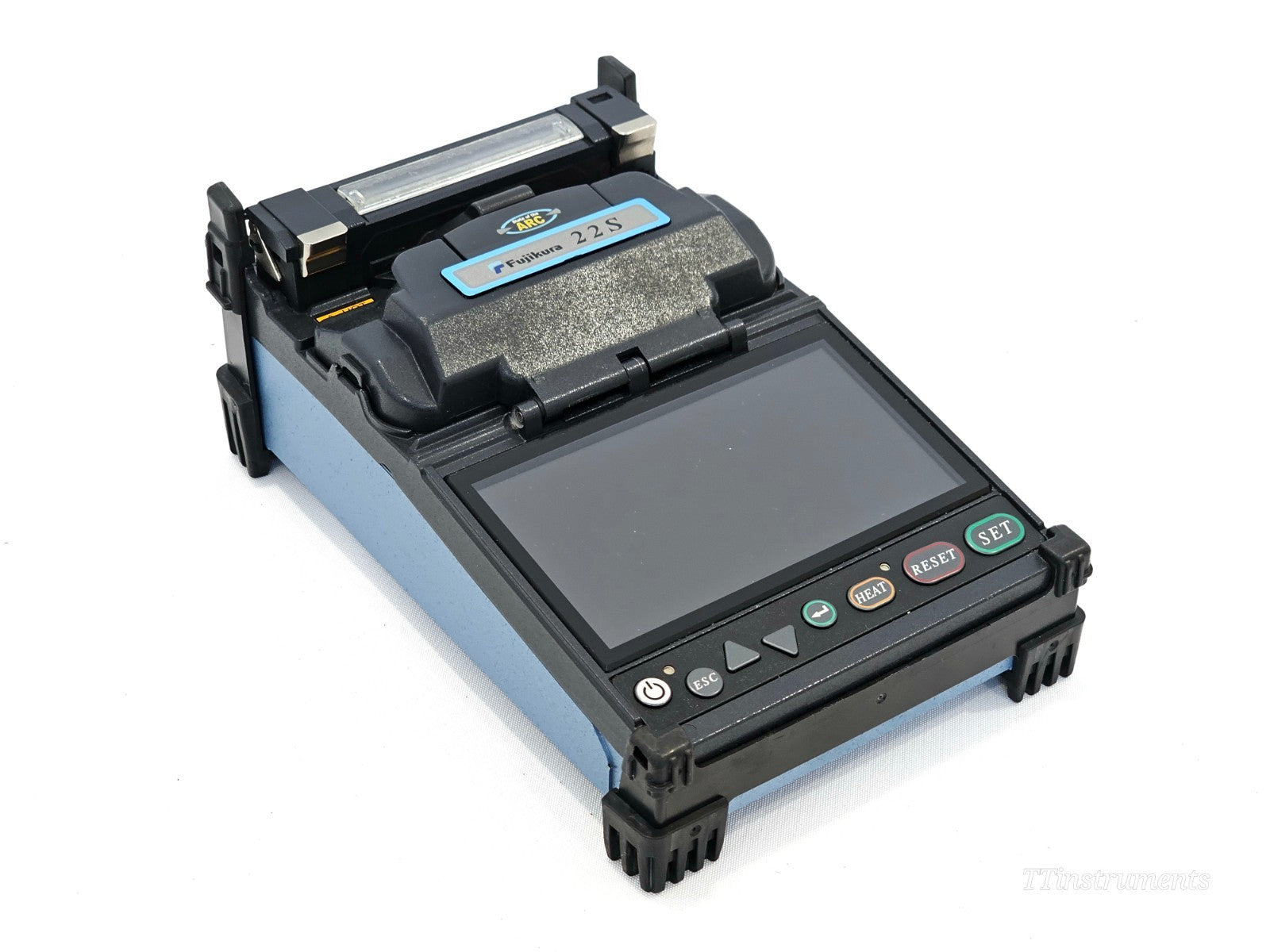

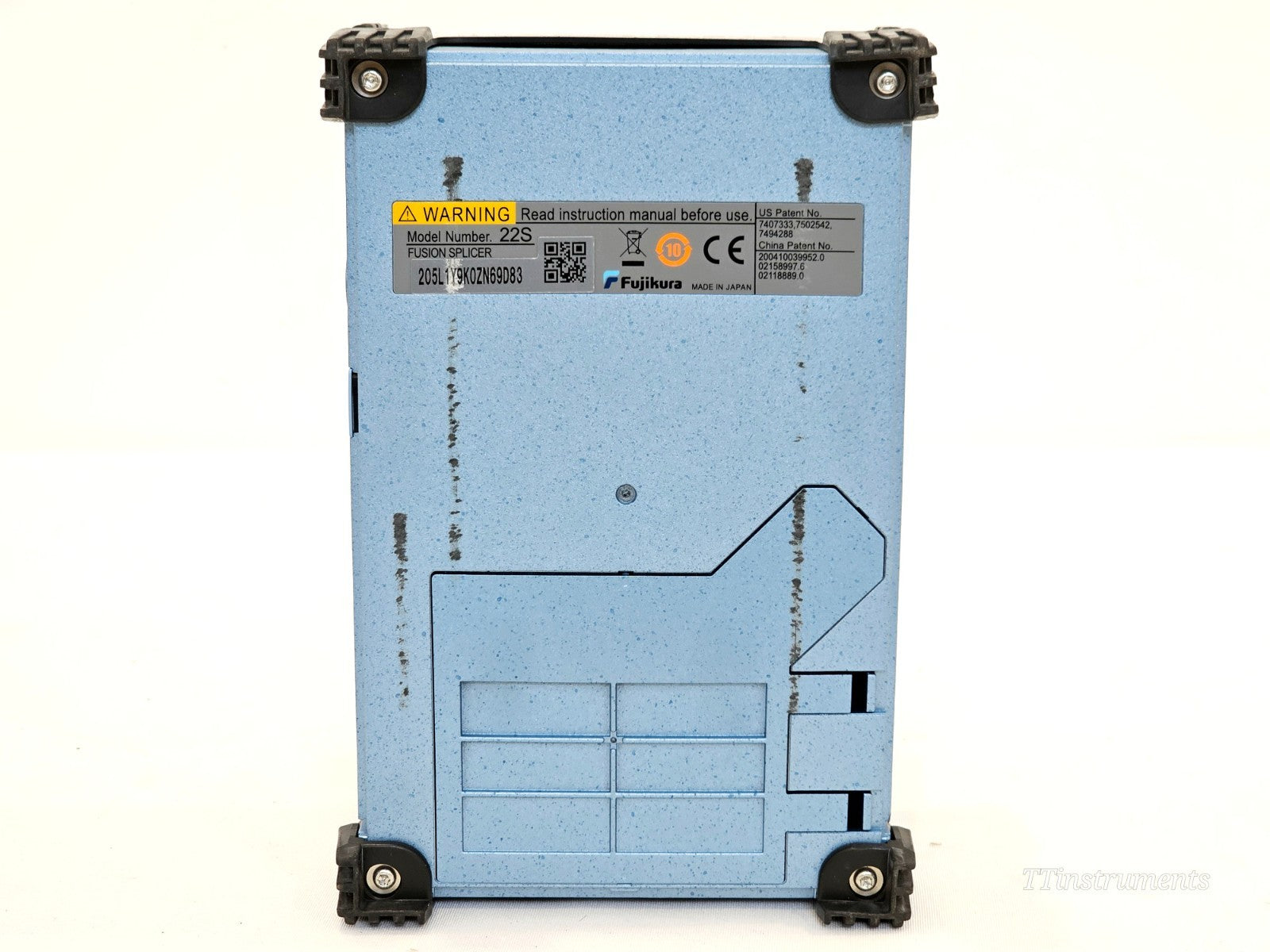

The Fujikura FSM-22S is an active cladding alignment fusion splicer with moveable v-grooves, offering versatile SM and MM splicing capability in a compact, ruggedised housing. This unit has been professionally serviced and is supplied with the Fujikura CT-50 High Precision Fiber Cleaver, making it a complete, field-ready splicing kit.

Included in the sale:
• Fujikura FSM-22S SM/MM Fusion Splicer with clamps (ARC count 1366)

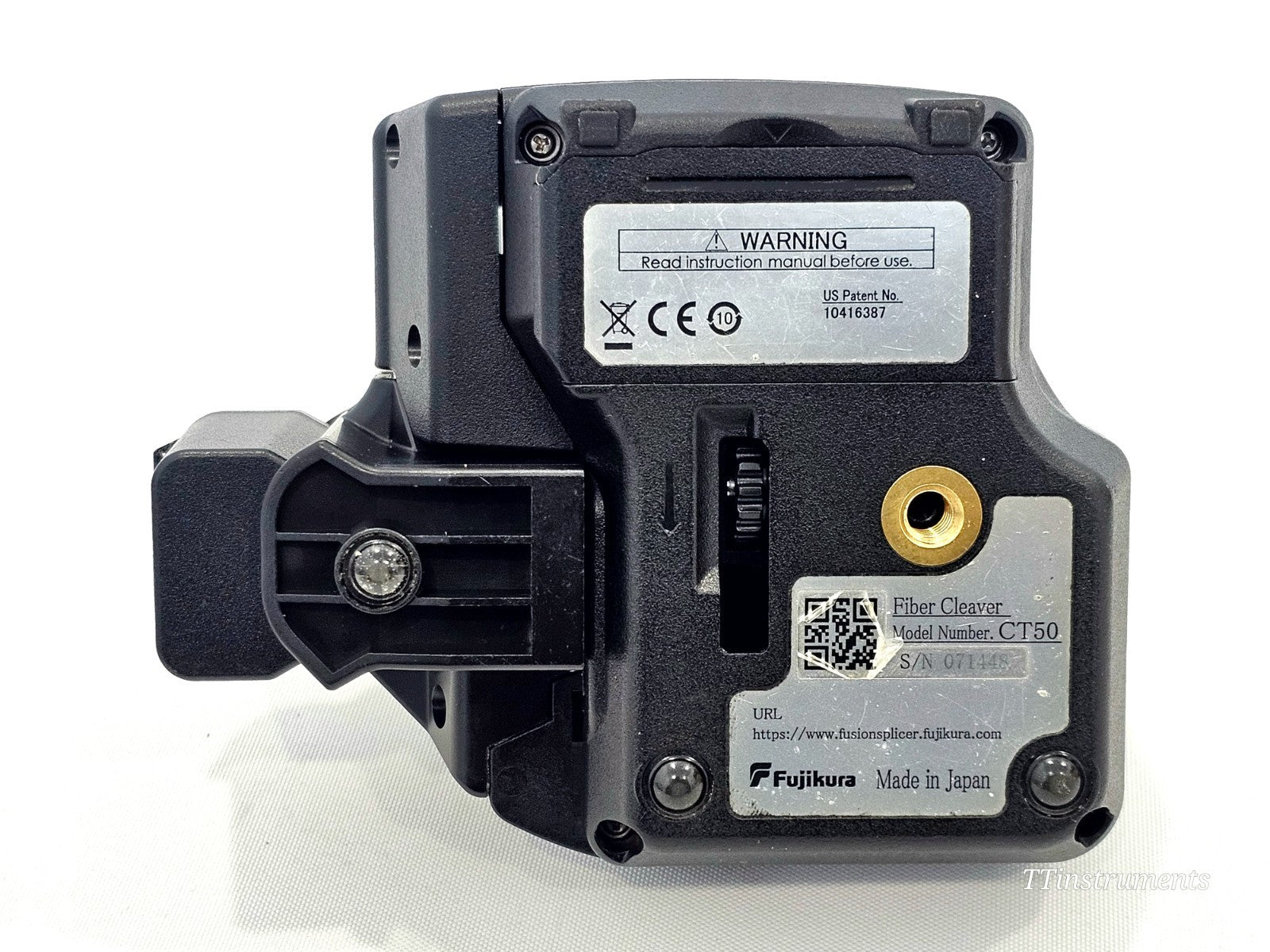

• Fujikura CT-50 High Precision Fiber Cleaver with case and guide plate
• AC Adapter/Charger
• Hard Carrying Case
• Work Tray

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

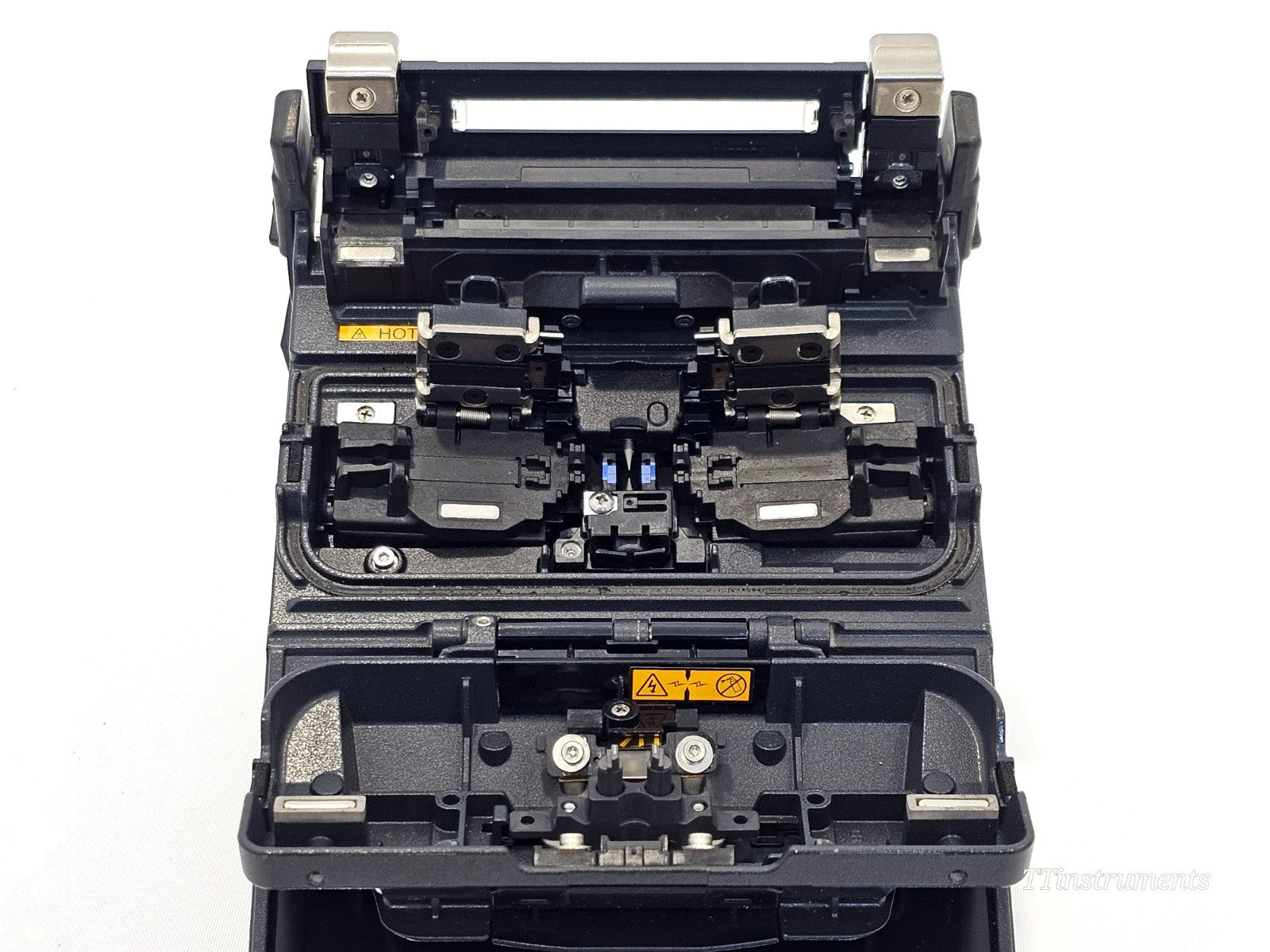

The Fujikura FSM-22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors caused by dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice and sleeve cycles. Removable sheath clamps allow the use of fibre holders if desired. The FSM-22S is well suited to field installation, network maintenance, and laboratory splicing across telecoms, data centre, and FTTH applications.

Splicing Method: Active cladding alignment with moveable v-grooves
Fibre Type: Single-mode (SM) and Multi-mode (MM)
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Splicing Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Battery Life: Up to 200 splice and sleeve cycles per charge
Display: Dual colour LCD monitors
Dimensions: Approximately 130 x 150 x 150 mm
Weight: Approximately 1.7 kg including battery
Ingress Protection: IP52 rated
Operating Temperature: -10°C to +50°C

Product datasheet
