Condition: Refurbished — Seller Serviced

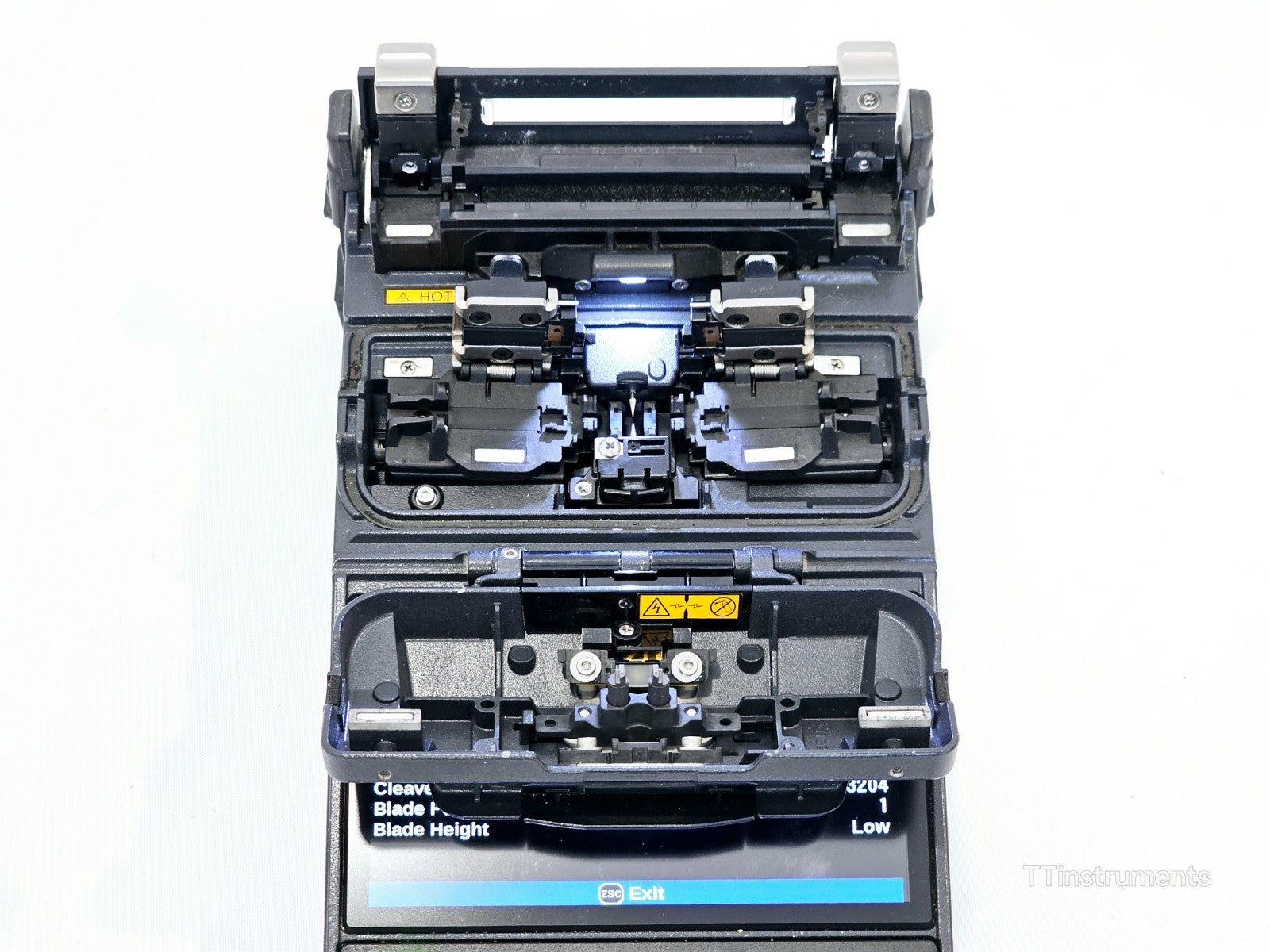

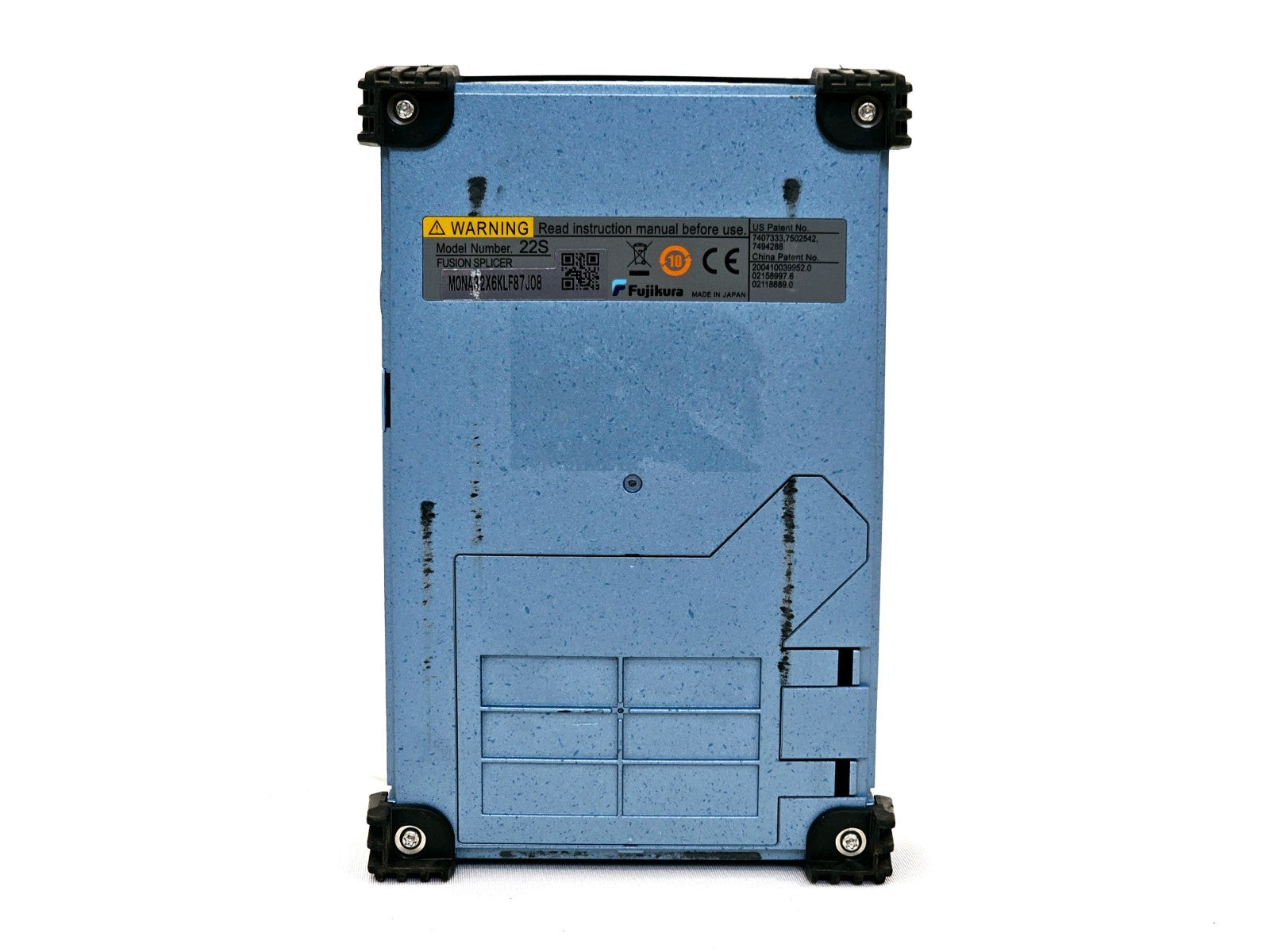

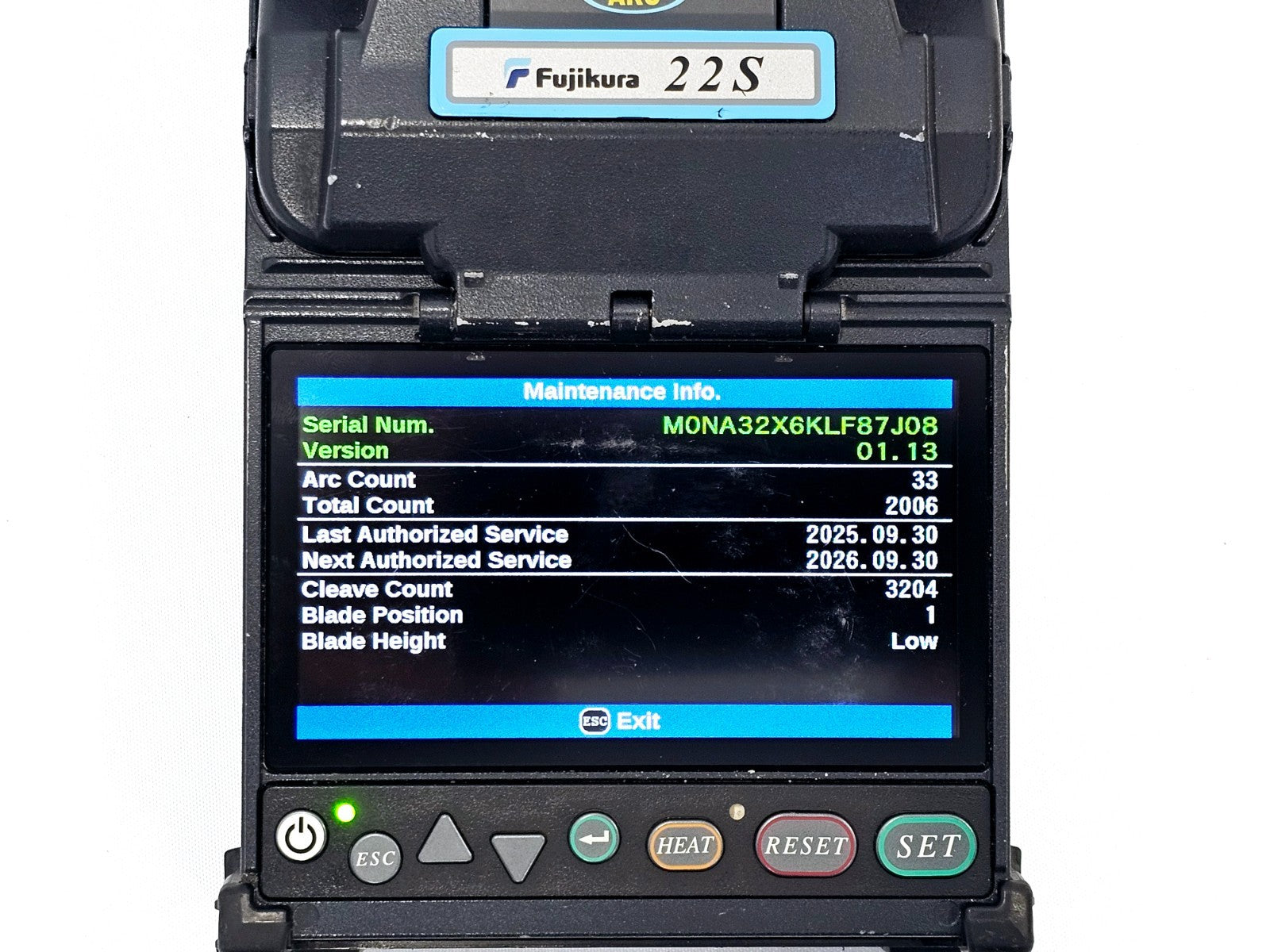

This Fujikura FSM-22S SM/MM Arc Fiber Fusion Splicer has an ARC count of 2006 and was professionally serviced in September 2025, making it a well-maintained unit ready for immediate field or lab use.

Included in the sale:
• Fujikura FSM-22S SM/MM Arc Fiber Fusion Splicer with clamps (ARC count 2006)
• AC Adapter/Charger
• Hard Carrying Case
• Work Tray

Please note: No cleaver is included.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors caused by dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice and sleeve cycles. Removable sheath clamps allow the use of fibre holders if desired. The FSM-22S is well suited to field installation, network maintenance, and laboratory splicing across telecoms, data centre, and FTTH applications.

Key Specifications:
Splicer Type: Active Cladding Alignment
Fibre Compatibility: Single-mode (SM) and Multi-mode (MM)
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Battery Life: Up to 200 splice and sleeve cycles per charge
Display: Colour LCD monitor
Fibre Alignment: Moveable V-groove active cladding alignment
Dimensions: Approx. 115 x 115 x 145 mm
Weight: Approx. 1.2 kg (excluding battery)
Protection: IP52 equivalent dust and drip resistance
