Condition: Refurbished

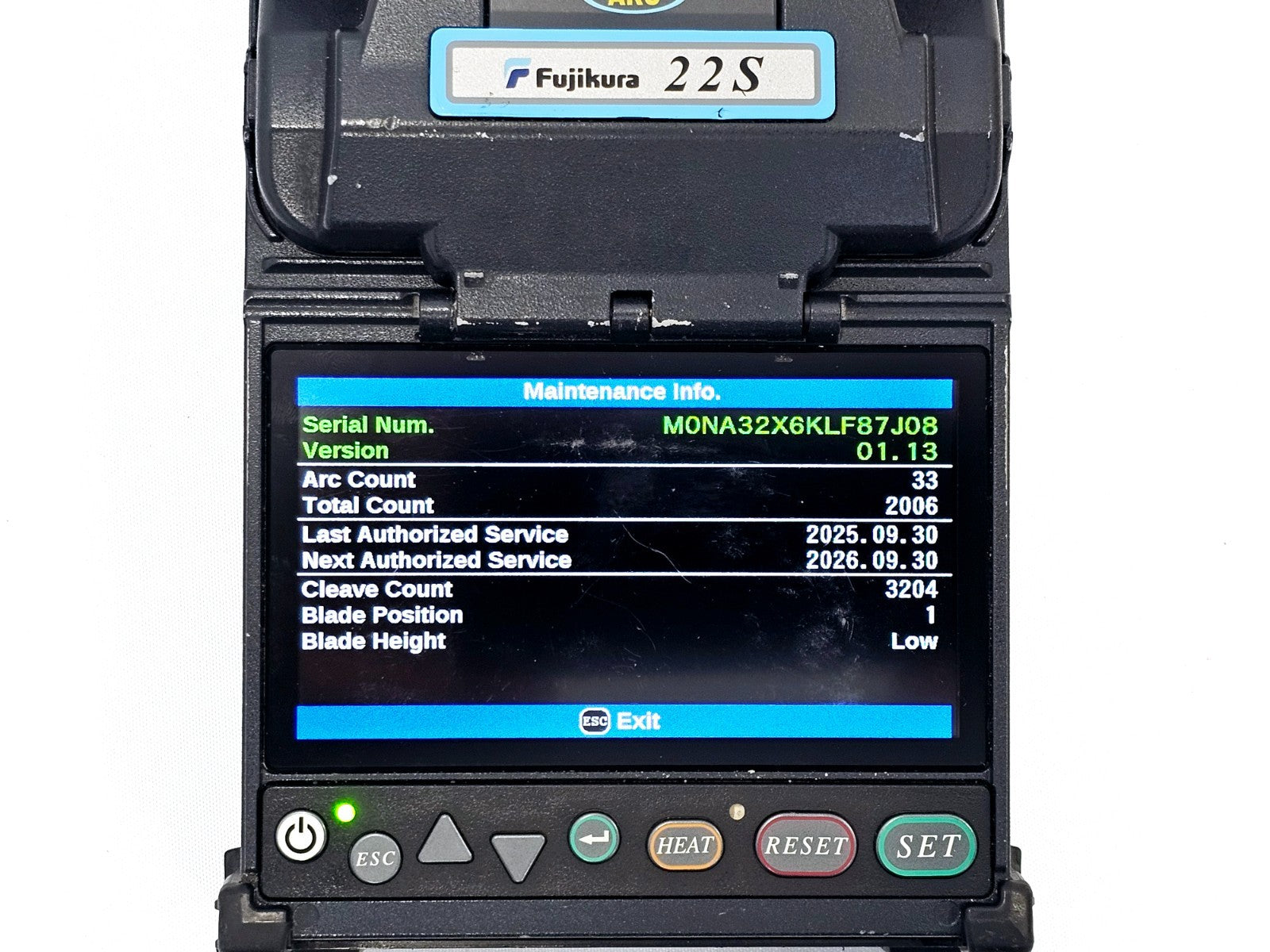

This Fujikura FSM-22S SM/MM Arc Fiber Fusion Splicer has been seller refurbished and serviced in September 2025. The ARC count at the time of servicing is 2006, reflecting very moderate use for a fusion splicer of this type.

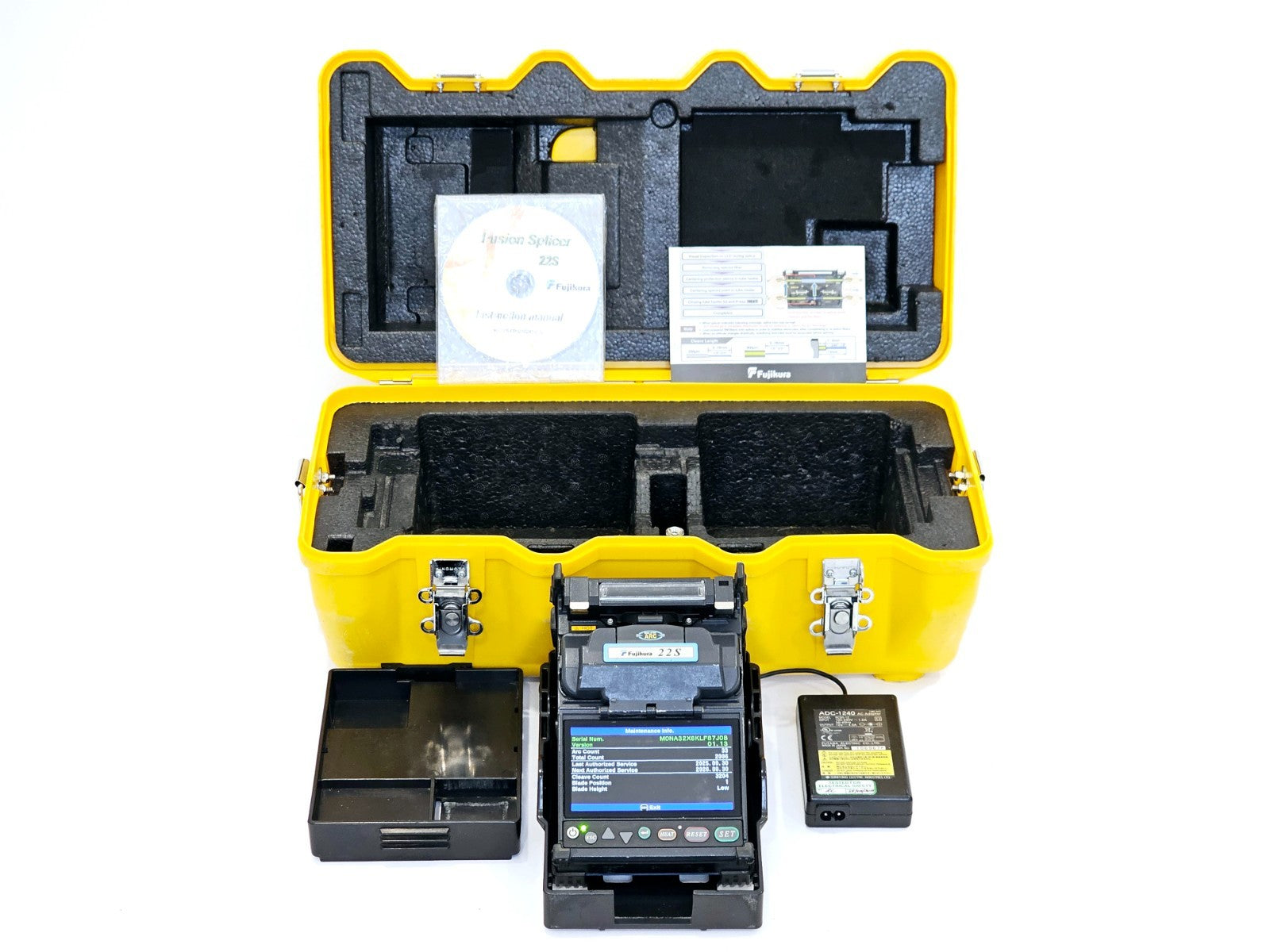

Included in the sale:

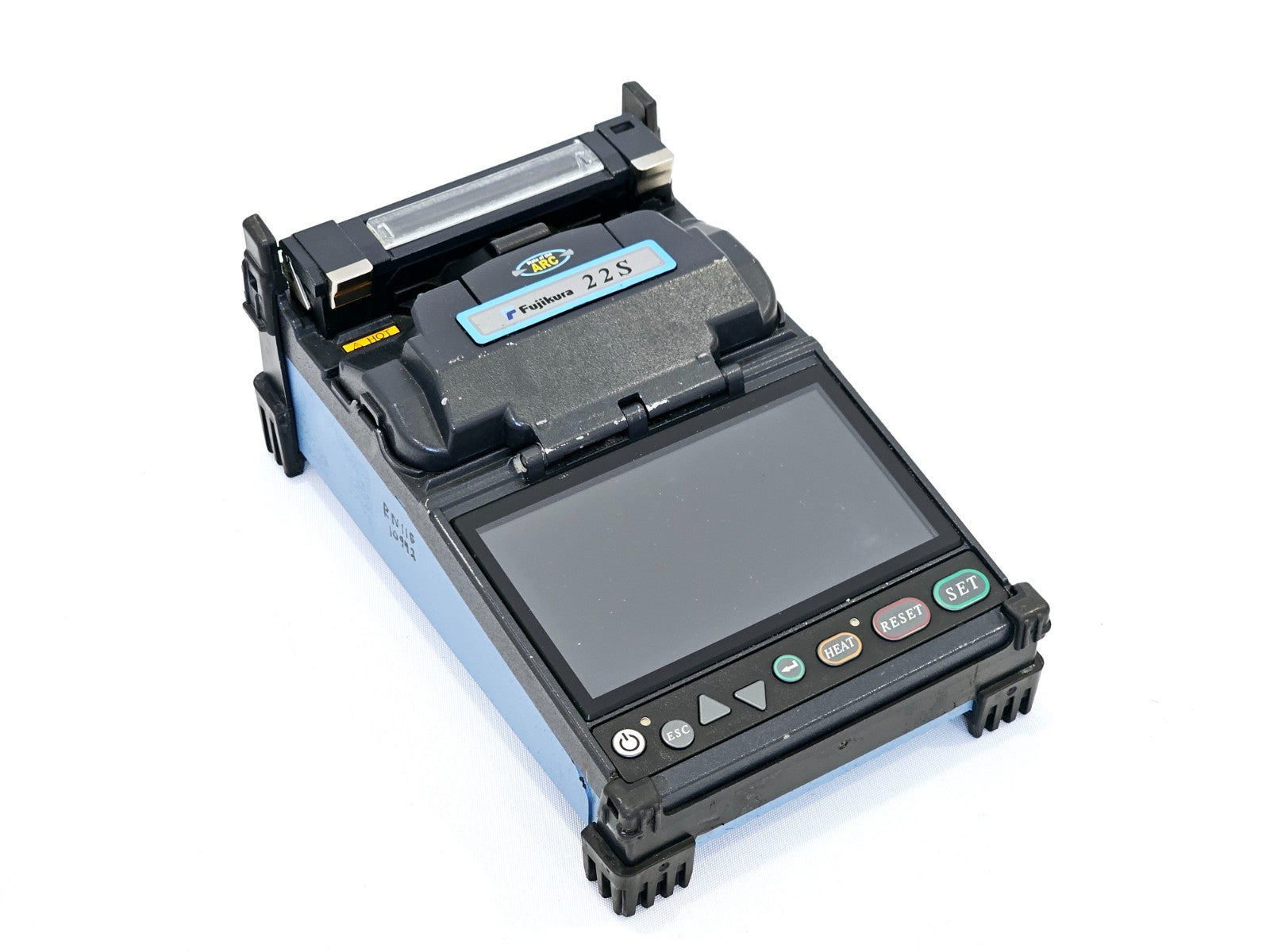

• Fujikura FSM-22S SM/MM Arc Fiber Fusion Splicer with clamps (ARC count 2006)
• AC Adapter/Charger
• Hard Carrying Case
• Work Tray

Please note: No cleaver is included.

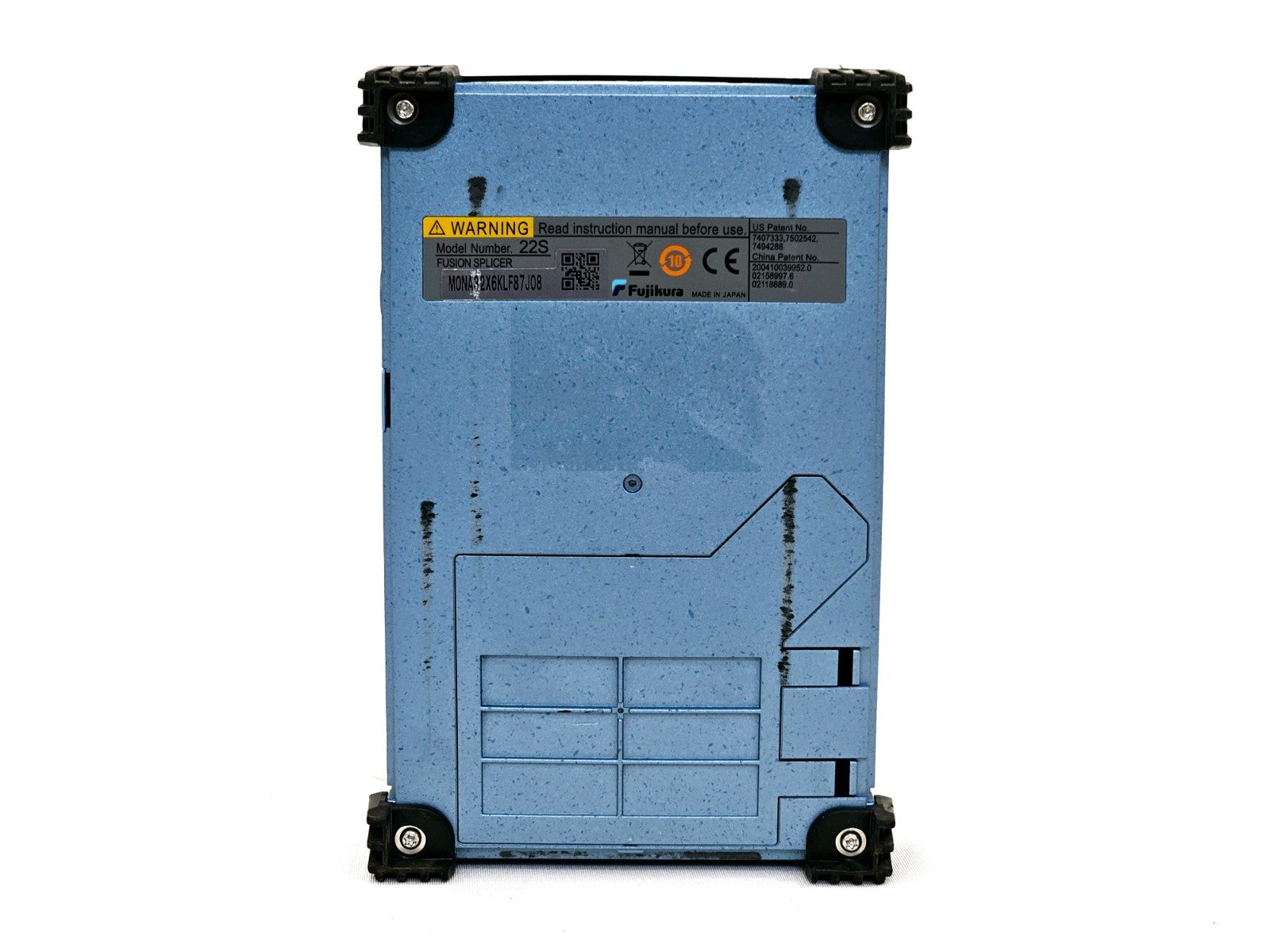

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

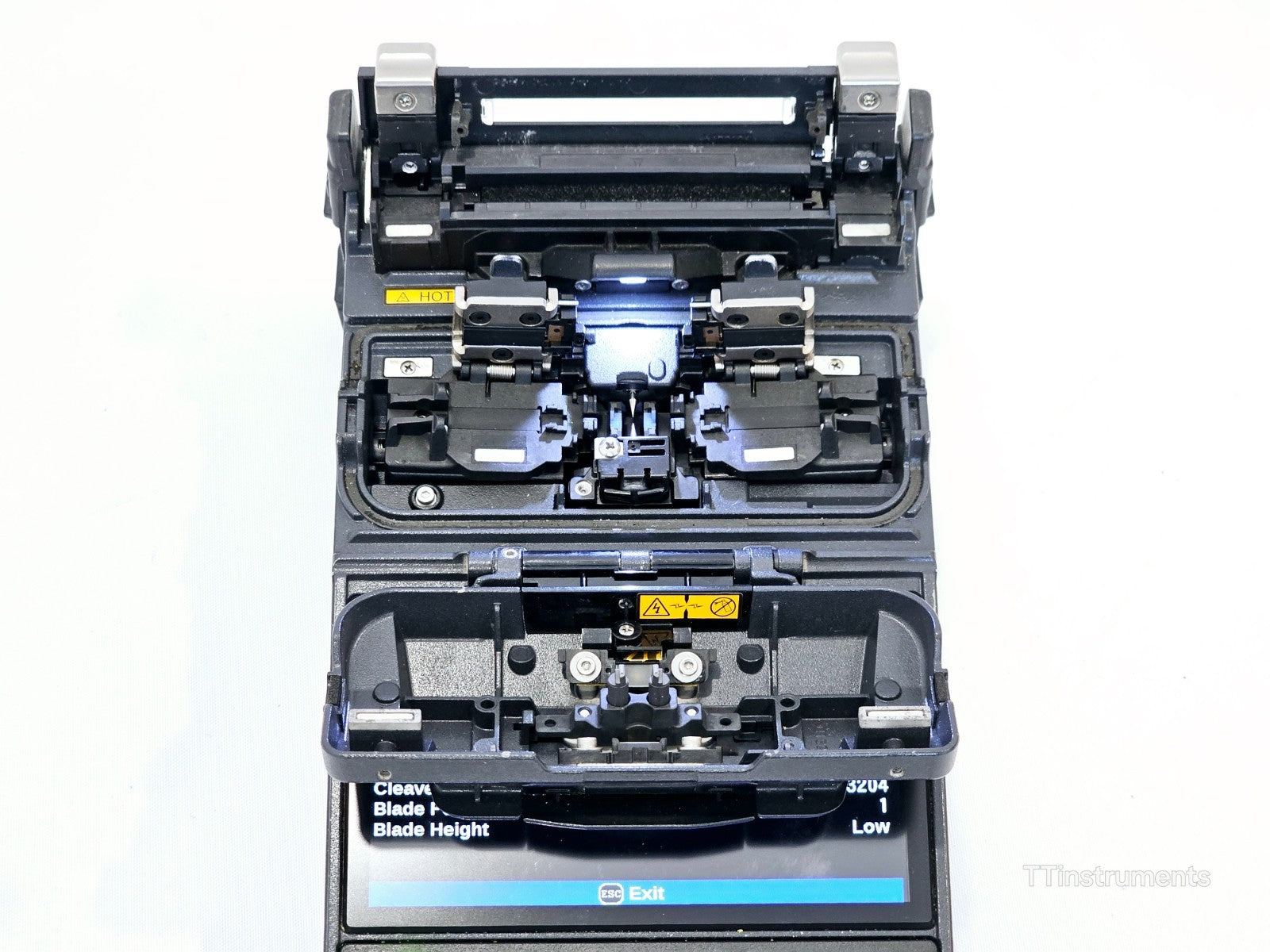

The Fujikura FSM-22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors caused by dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice and sleeve cycles. Removable sheath clamps allow the use of fibre holders if desired. The FSM-22S is well suited to field installation, network maintenance, and laboratory splicing across telecoms, data centre, and FTTH applications.

Key Specifications:
Splicing Method: Active cladding alignment
Applicable Fibre: Single-mode (SM) and Multi-mode (MM)
Splice Loss (SM): Typical 0.02 dB
Splice Loss (MM): Typical 0.01 dB
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds (60 mm sleeve)
Battery Life: Up to 200 splice and heat cycles per charge
V-Groove Type: Moveable v-grooves
Display: Large colour LCD monitor
Dimensions: Approximately 113 x 113 x 128 mm
Weight: Approximately 1.1 kg (including battery)
Ingress Protection: IP52
