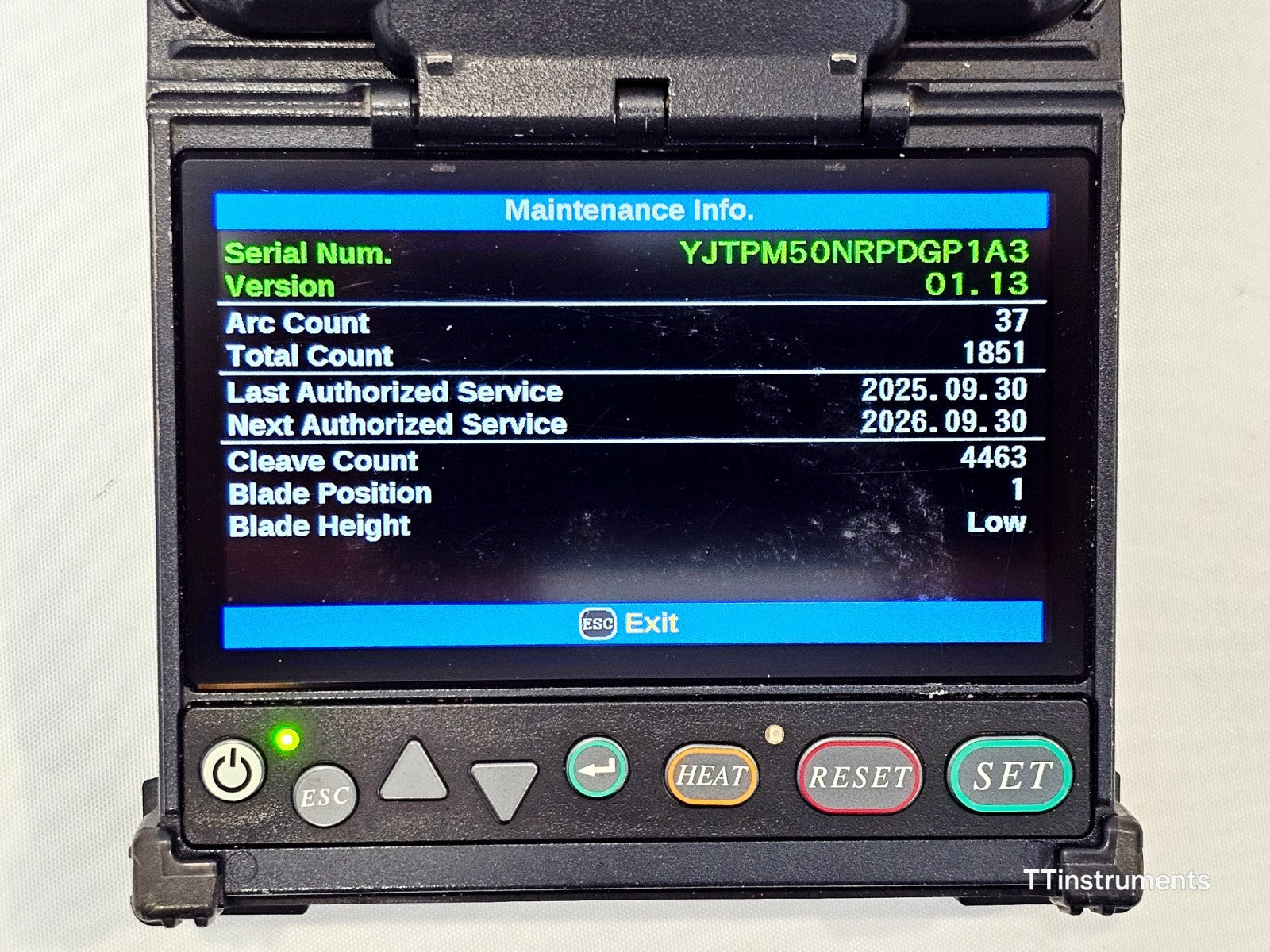

Condition: Refurbished — this unit has been seller refurbished and serviced in September 2025. ARC count at time of service: 1851. A low arc count for a splicer of this type, indicating light prior use. The FSM-22S offers active cladding alignment with moveable v-grooves, making it highly capable for field and lab splicing of single-mode and multimode fibre.

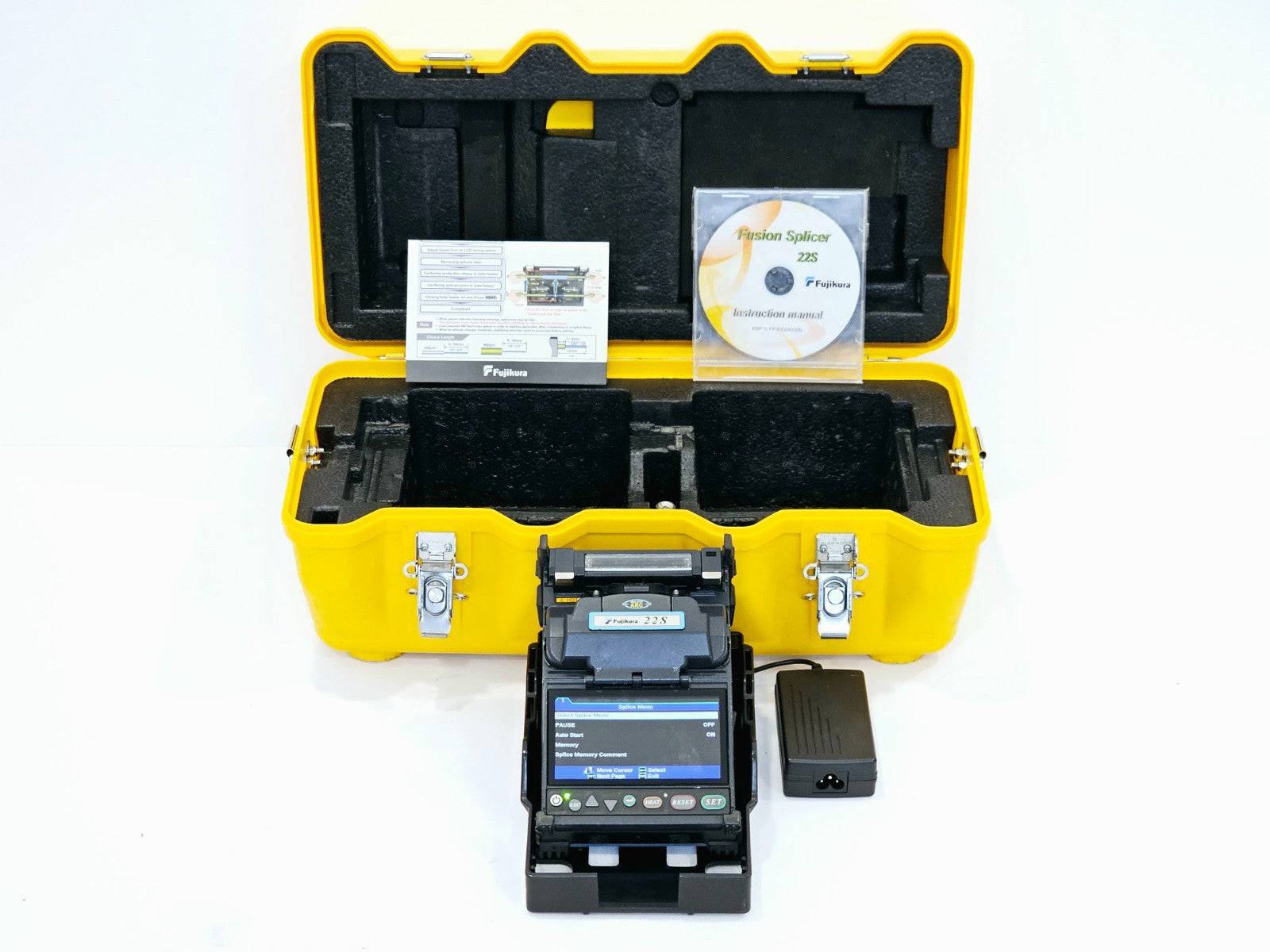

Included in the sale:
• Fujikura FSM-22S SM/MM Fiber Fusion Splicer with fibre clamps
• AC Adapter/Charger
• Hard Carrying Case
• Work Tray

Please note: No cleaver is included with this unit.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

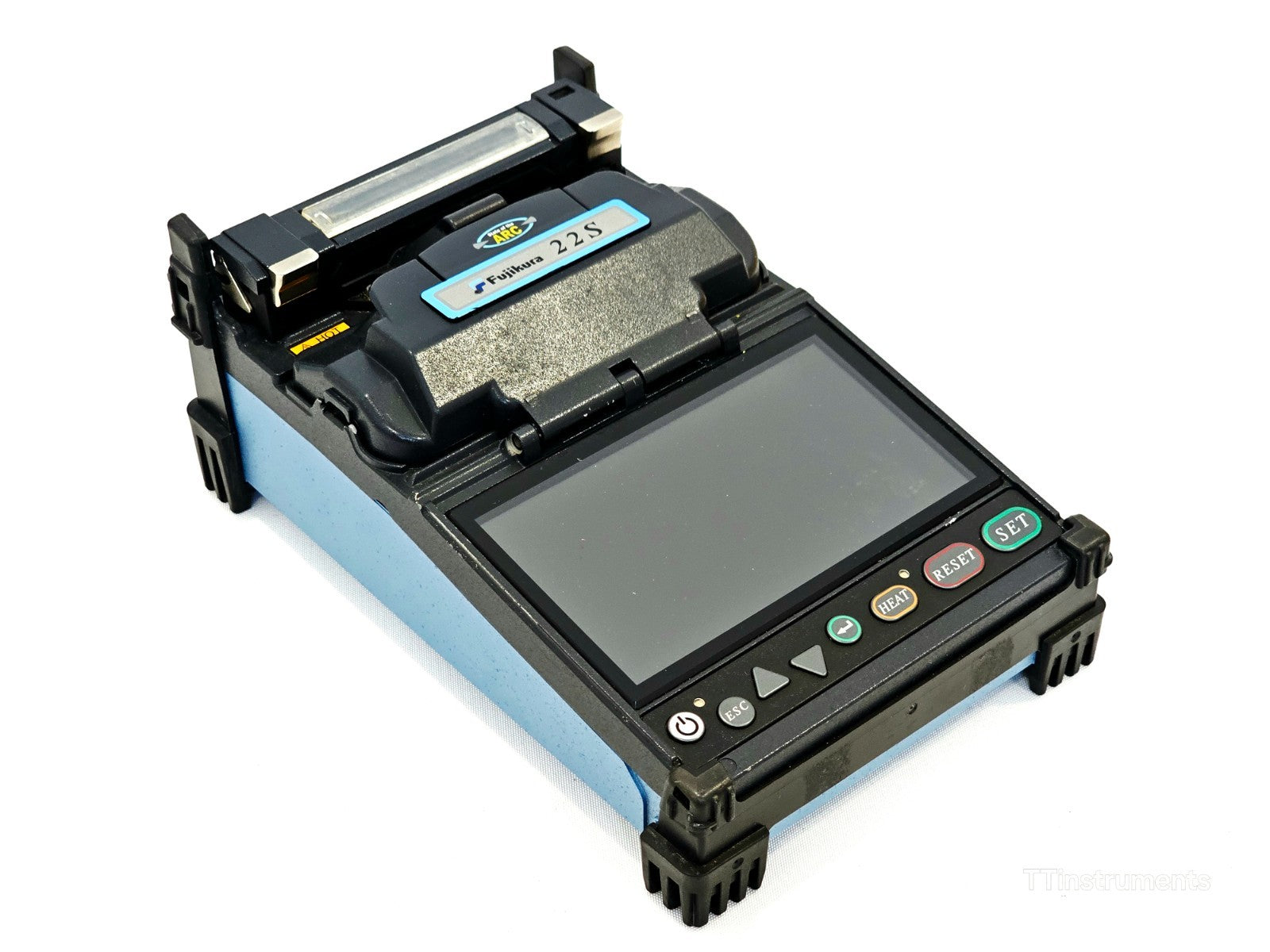

The Fujikura FSM-22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors caused by dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice and sleeve cycles. Removable sheath clamps allow the use of fibre holders if desired. The FSM-22S is well suited to field installation, network maintenance, and laboratory splicing across telecoms, data centre, and FTTH applications.

Typical Specifications:
Splicer Type: Active Cladding Alignment
Fibre Compatibility: Single-Mode (SM), Multimode (MM)
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Splicing Time: Approx. 9 seconds
Heating Time: Approx. 30 seconds
Battery Life: Up to 200 splice and sleeve cycles
Display: Colour LCD monitor

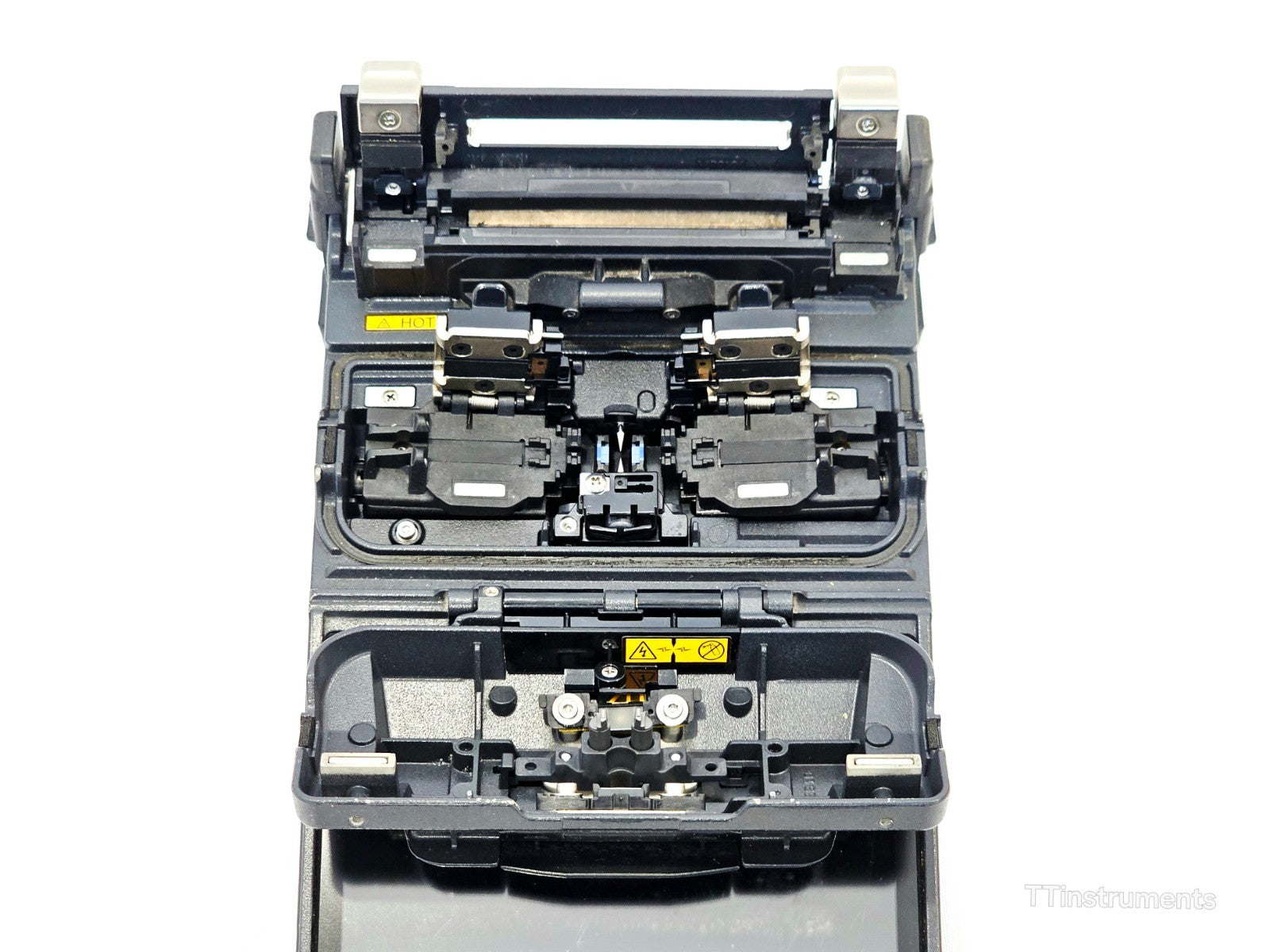

V-Groove Type: Moveable v-grooves
Dimensions: Approx. 115 x 110 x 145 mm
Weight: Approx. 1.8 kg (with battery)
Operating Temperature: -10°C to +50°C
Ingress Protection: IP52

Product datasheet
