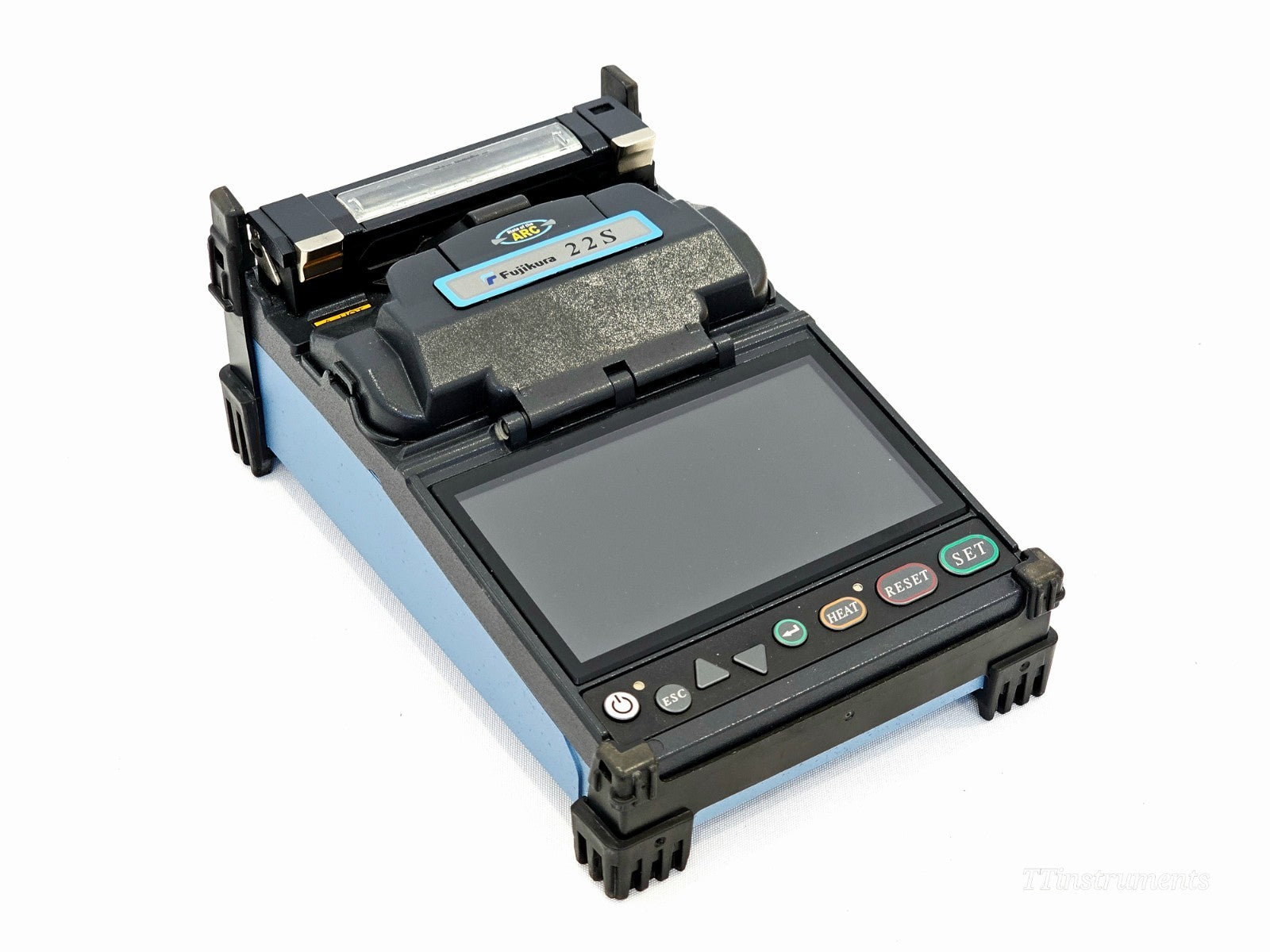

Fujikura FSM-22S fusion splicer side view showing compact ruggedised body and keypad

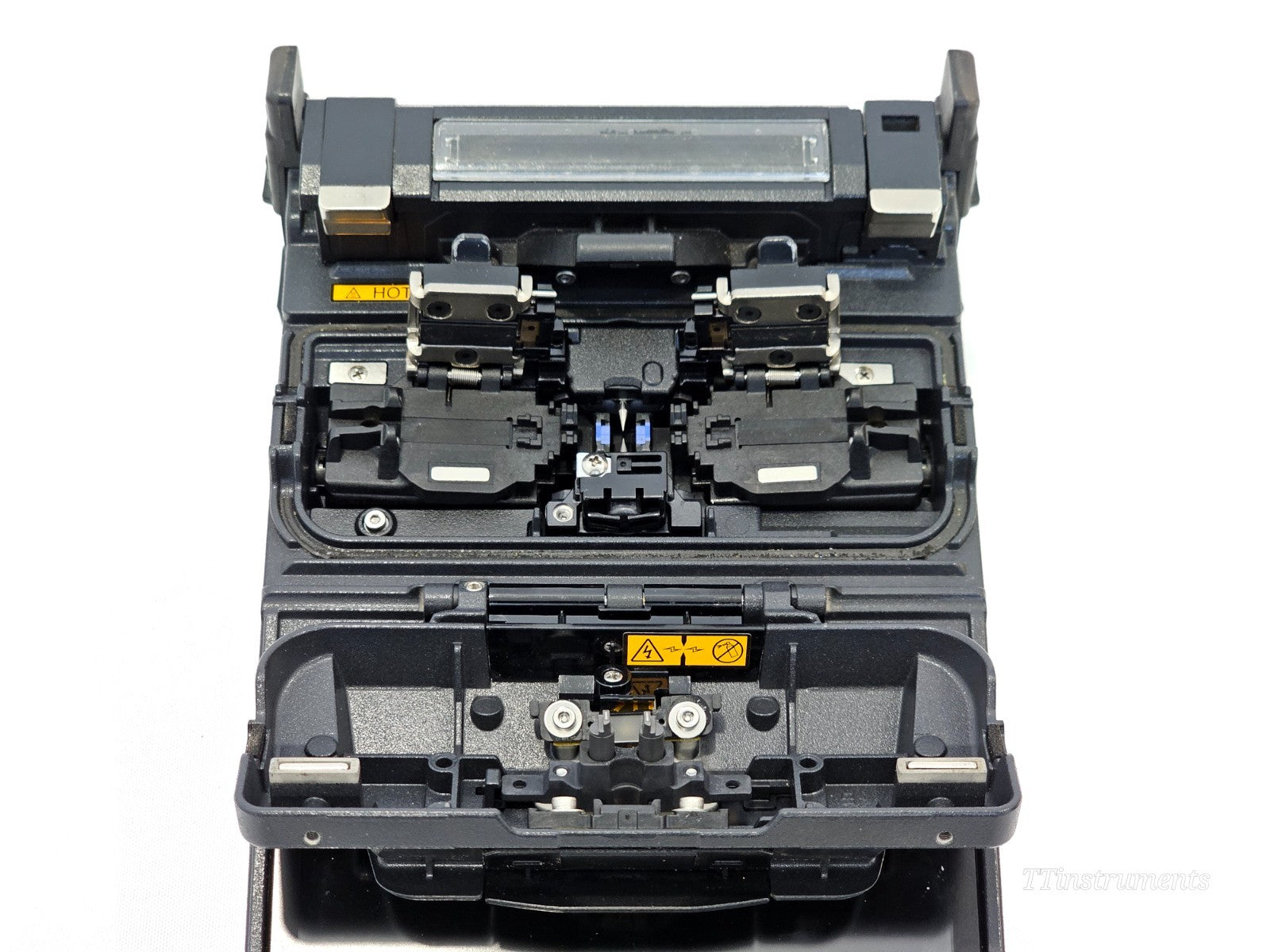

Fujikura FSM-22S splicer interior detail showing moveable v-grooves and fibre alignment area

Fujikura FSM-22S fusion splicer supplied with AC adapter, work tray and hard carrying case

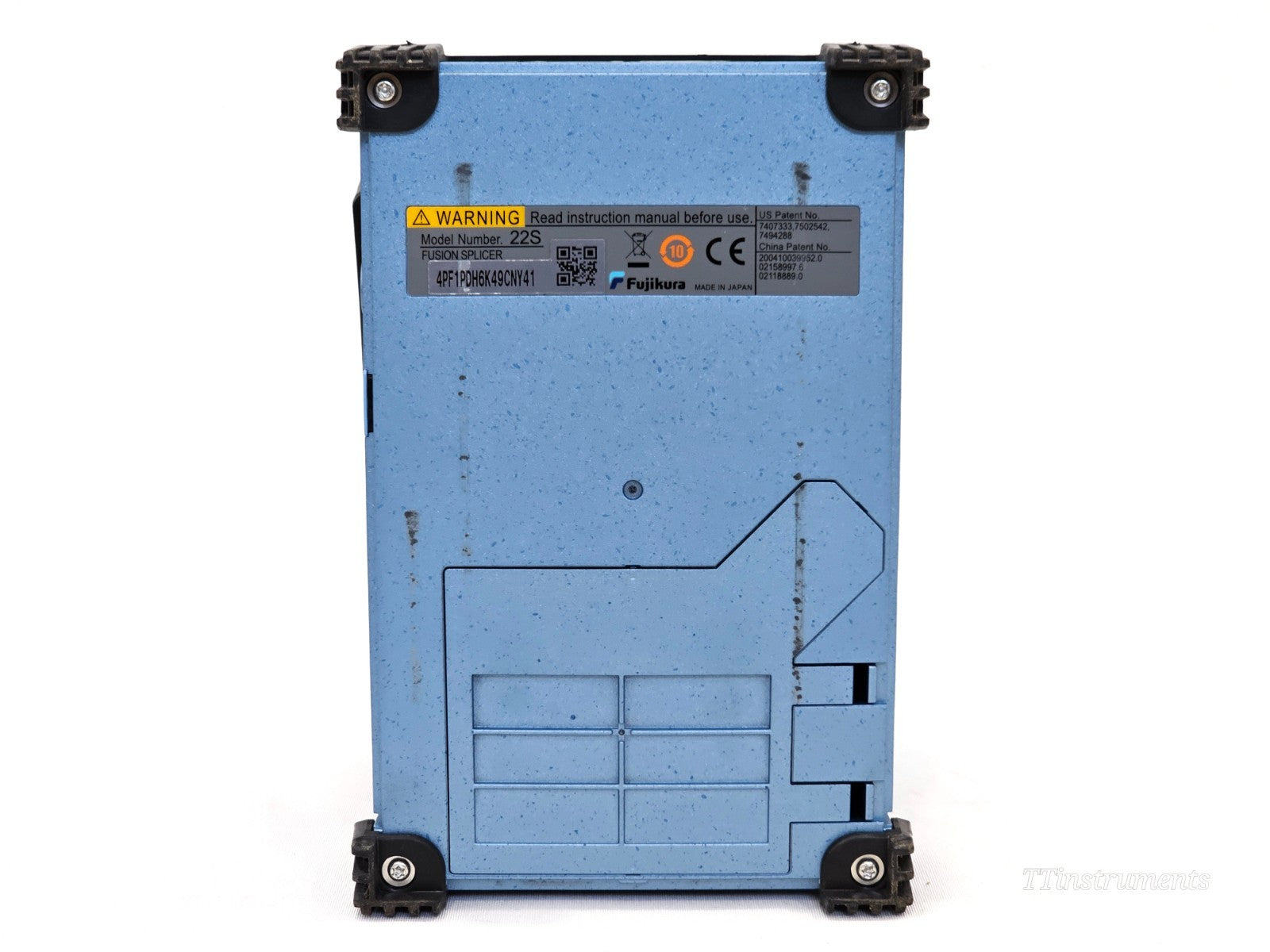

Fujikura FSM-22S splicer unit label showing serial number and model identification

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Serviced Fujikura 22S SM MM Fiber Fusion Splicer ARC 1583 FSM 22S NO CLEAVER

Name: Serviced Fujikura 22S SM MM Fiber Fusion Splicer ARC 1583 FSM 22S *NO CLEAVER*
Brand: Fujikura
SKU: 7625 5B03 BB03
Price: 552.5 GBP
Availability: OutOfStock

The Fujikura FSM-22S is a ruggedised active cladding alignment fusion splicer combining precision SM and MM splicing capability with an ultra-compact, field-ready design.
• Moveable v-grooves with active cladding alignment for exceptional, low-loss splice results
• Suitable for single-mode and multimode fibre — ideal for telecoms, data centres, and field use
• Compact and ruggedised with long-life battery supporting up to 200 splice cycles

Manufacturer

Fujikura

Model

22S

Condition

Seller refurbished

In stock

SKU

7625 5B03

£552.50

Fiber Optics
Fusion Splicers
Splicing

Make an Offer

Condition: Seller Refurbished

This Fujikura FSM-22S SM/MM Fiber Fusion Splicer has been serviced in September 2025 and has an ARC count of 1583, indicating relatively low use. It is a professional active cladding alignment splicer suitable for both single-mode and multimode optical fibre splicing in field and laboratory environments.

Included in the sale:
• Fujikura FSM-22S SM/MM Fiber Fusion Splicer with clamps
• AC Adapter/Charger
• Hard Carrying Case
• Work Tray

Please note: No cleaver is included with this unit.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Seller Refurbished

Included in the sale:
• Fujikura FSM-22S SM/MM Fiber Fusion Splicer with clamps
• AC Adapter/Charger
• Hard Carrying Case
• Work Tray

Please note: No cleaver is included with this unit.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

The Fujikura FSM-22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors caused by dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice and sleeve cycles. Removable sheath clamps allow the use of fibre holders if desired. The FSM-22S is well suited to field installation, network maintenance, and laboratory splicing across telecoms, data centre, and FTTH applications.

Key Specifications:
Splicing Method: Active cladding alignment
Compatible Fibre Types: Single-mode (SM), Multimode (MM)
V-Groove Type: Moveable v-grooves
Display: 4.7-inch colour LCD
Typical Splice Time: Approximately 9 seconds
Typical Heating Time: Approximately 30 seconds
Splice Loss (SM): 0.02 dB typical
Splice Loss (MM): 0.01 dB typical
Battery Life: Up to 200 splice and sleeve cycles per charge
Ingress Protection: IP52
Operating Temperature: -10°C to +50°C
Dimensions: Approximately 113 x 113 x 157 mm
Weight: Approximately 2.1 kg (including battery)
