Condition: Used

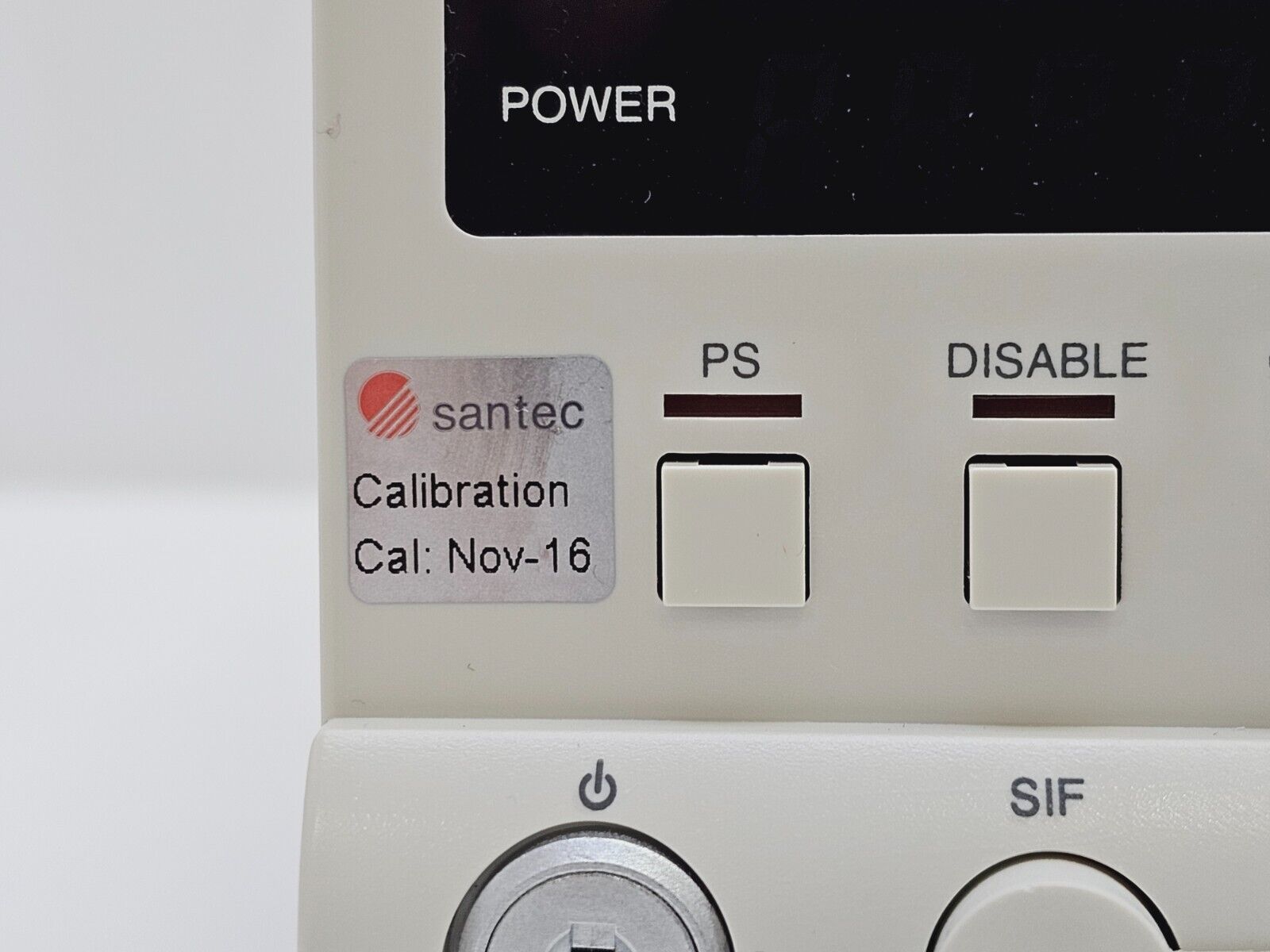

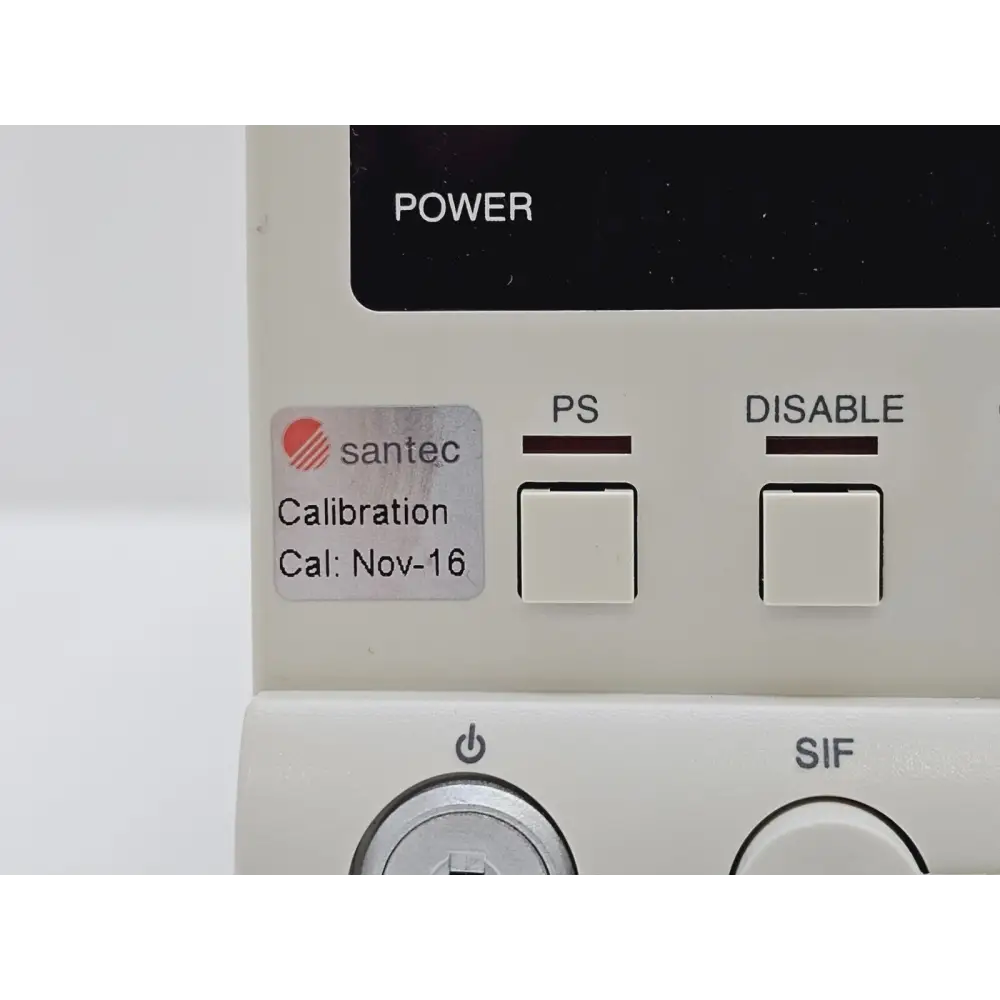

Please note the key barrel has been removed and so it powers on with the button.

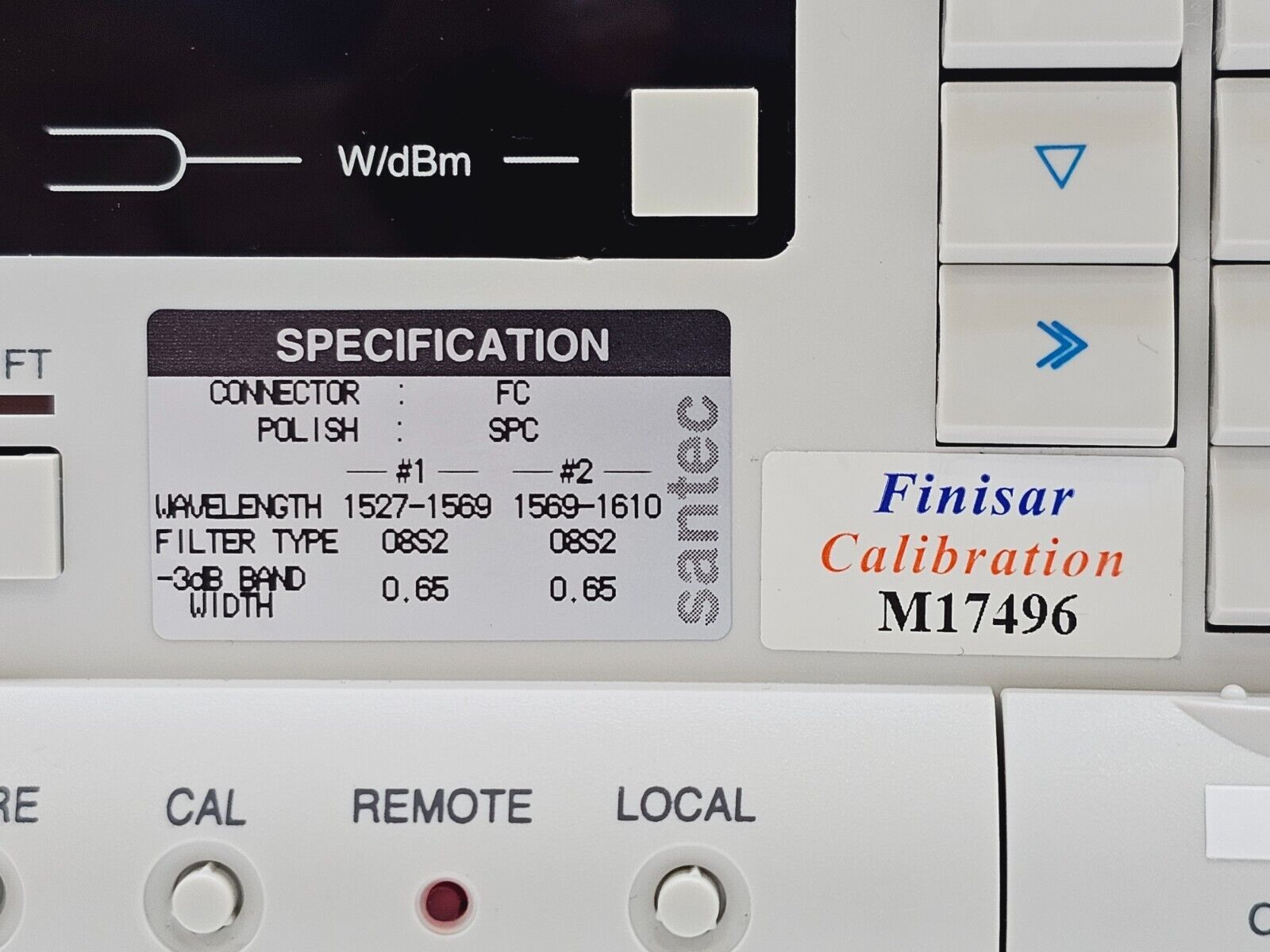

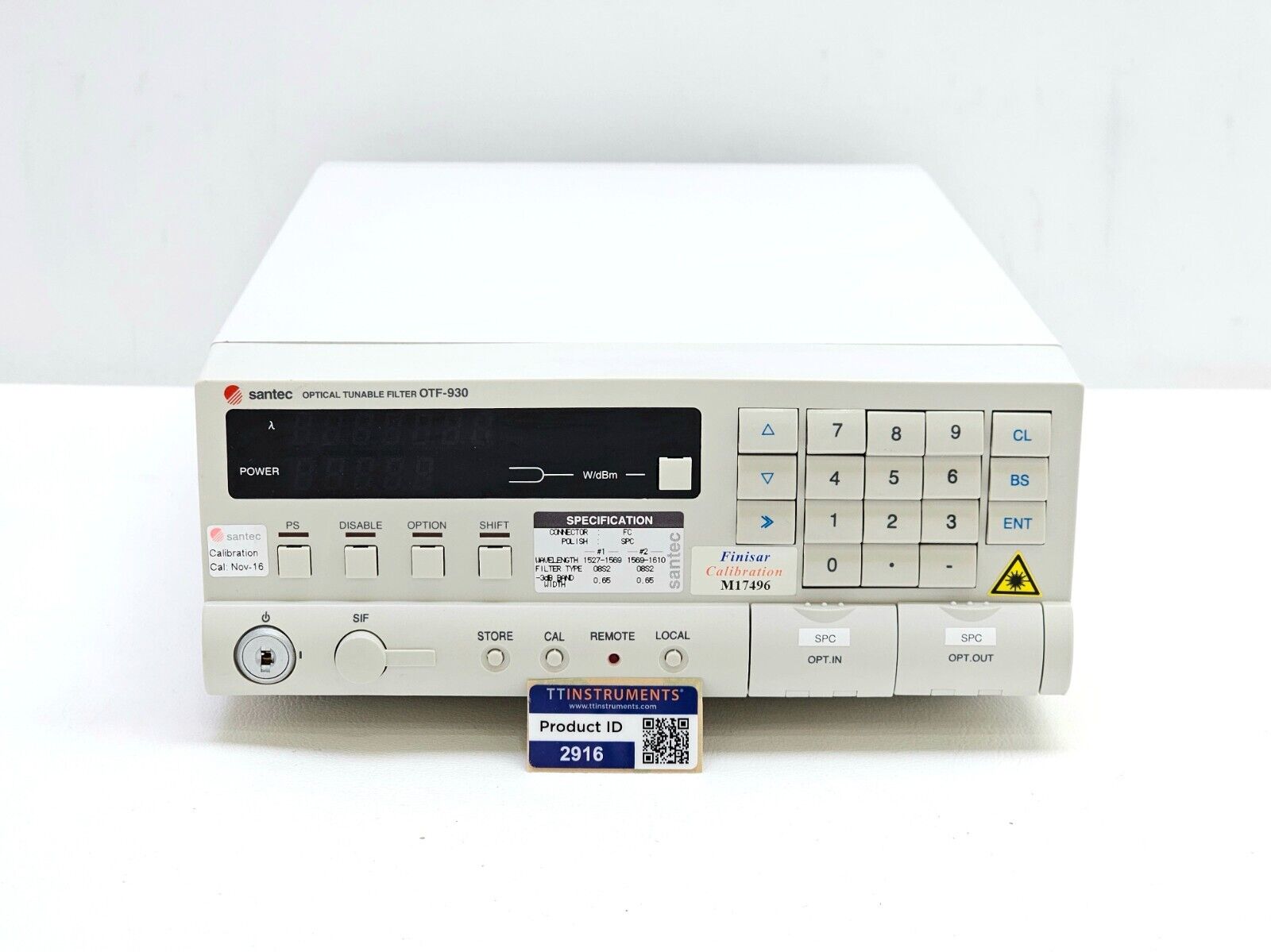

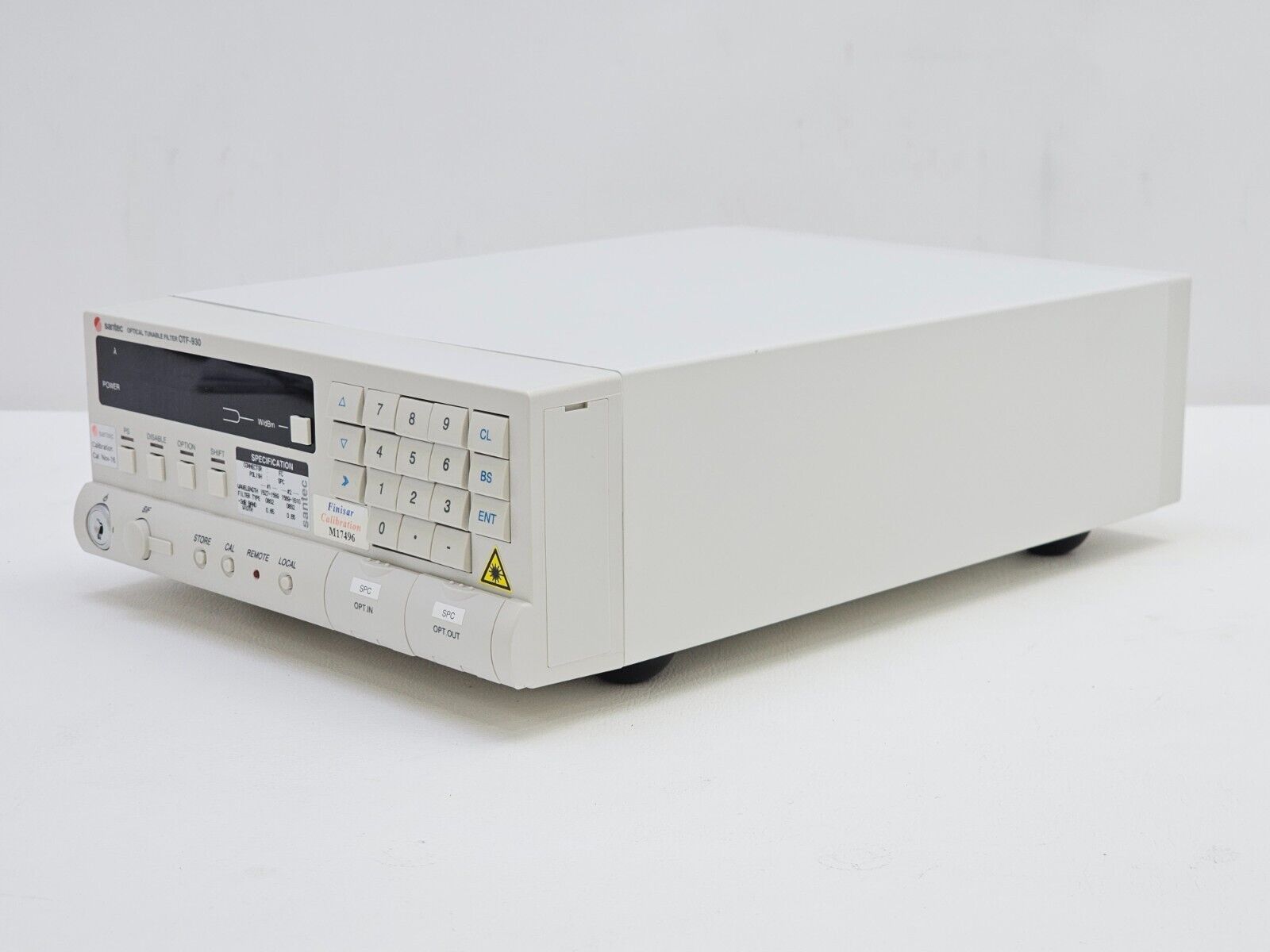

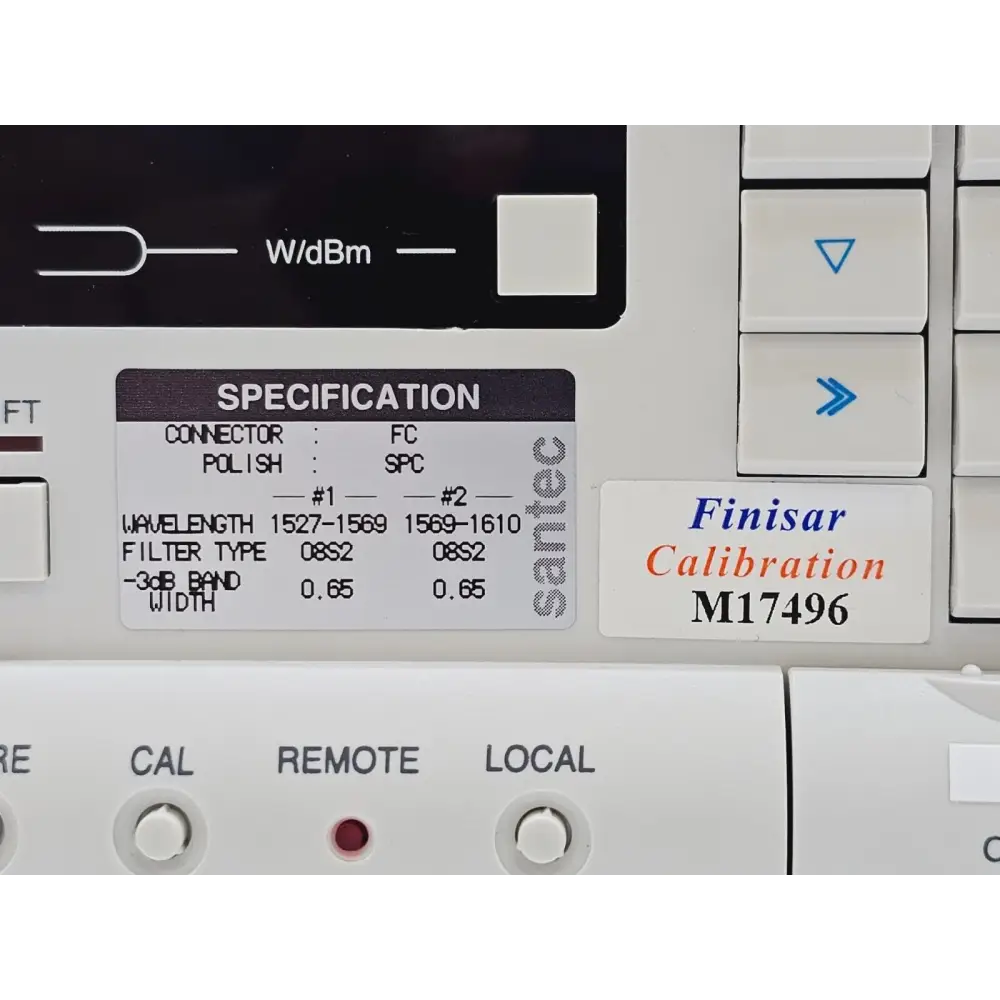

This Santec OTF-930 polarisation-independent optical tunable filter covers a dual-band wavelength range of 1527–1610 nm across two 2-stage filter elements (08S2 type), with FC/SPC connectors and a -3 dB bandwidth of 0.65 nm per channel. A Finisar Calibration label (M17496) is affixed to the front panel. Please note the key barrel has been removed; the unit powers on via the front-panel button.

Included in the sale:
• Santec OTF-930 optical tunable filter unit

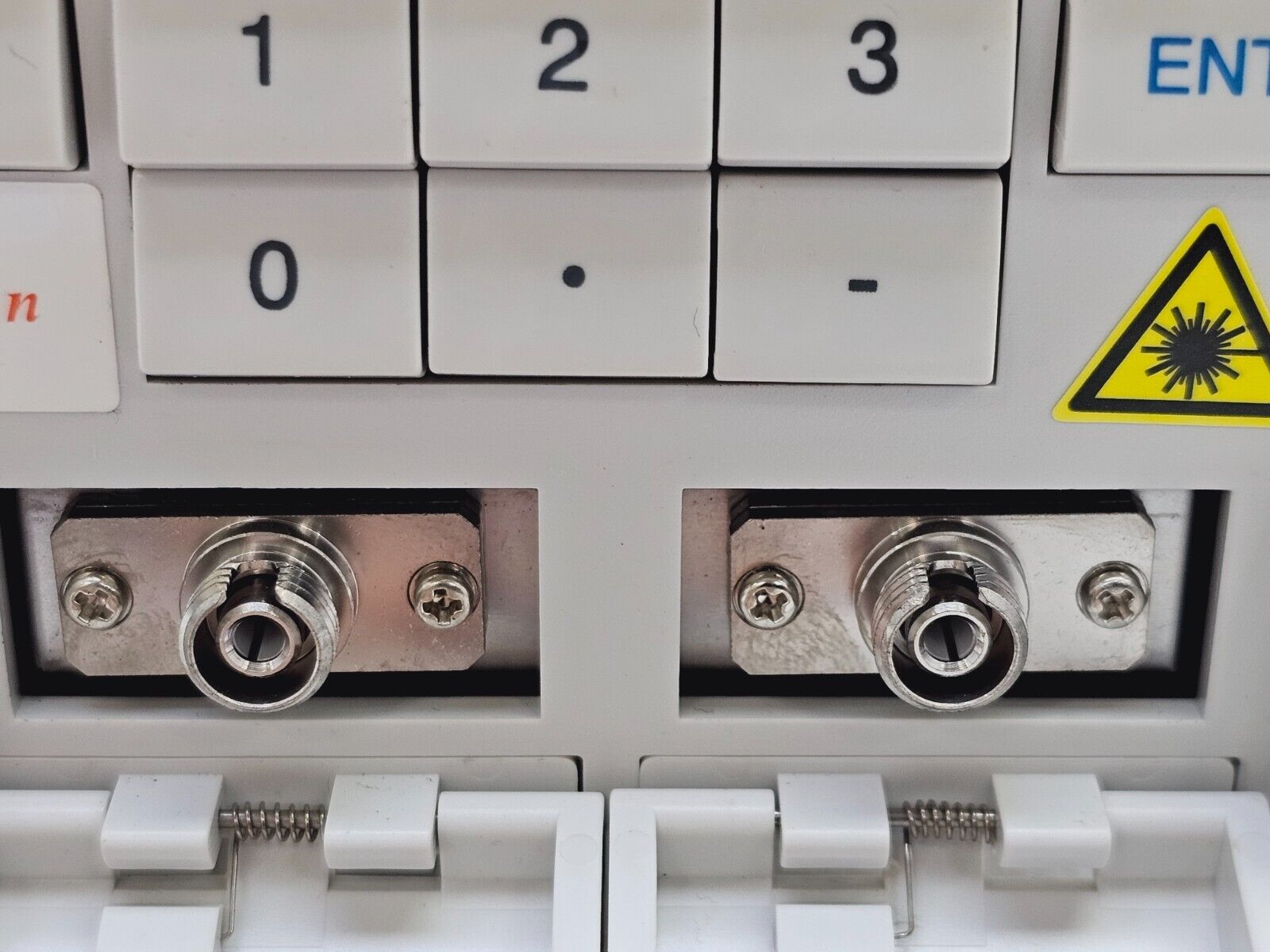

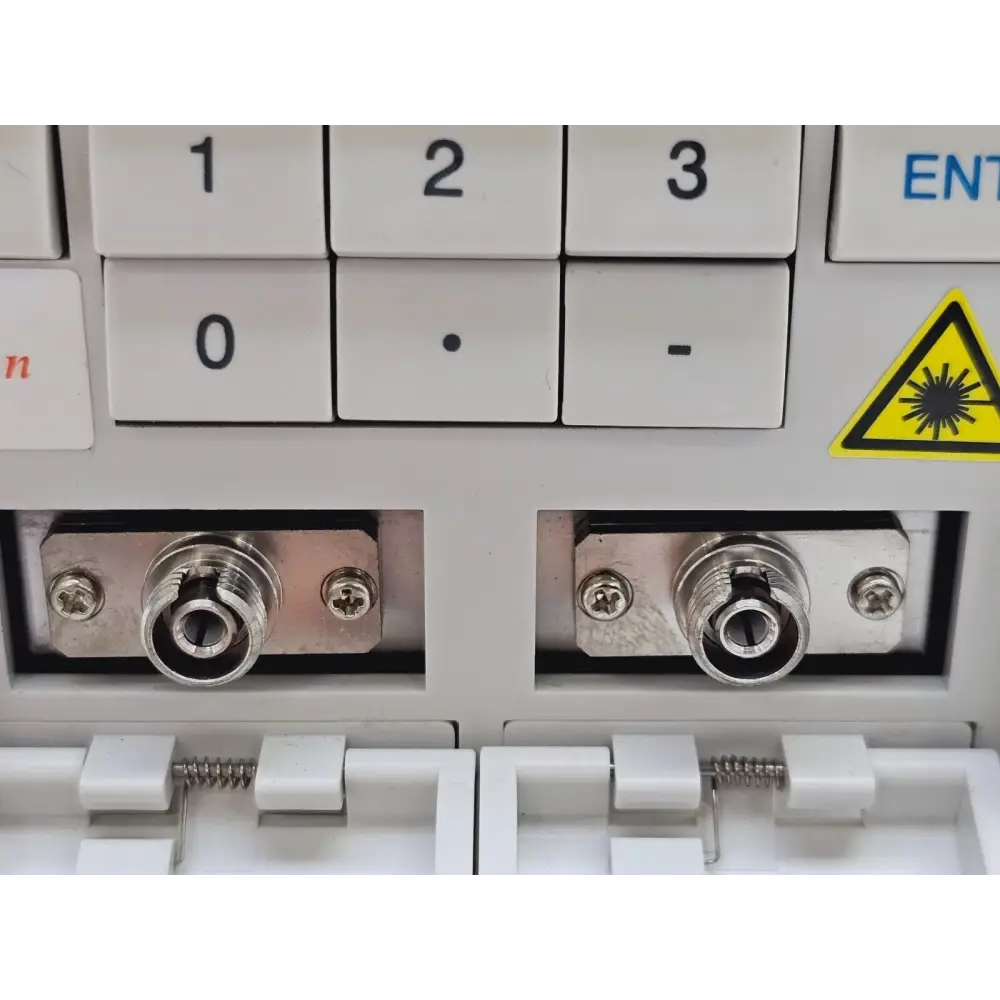

• FC/SPC optical connectors (OPT.IN and OPT.OUT on front panel)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Santec OTF-930 is a bench-top optical tunable filter employing Santec's proprietary Linear Sliding technology using dielectric thin-film filters. Two filter elements, each covering a 40 nm wavelength range, are mounted on a stepper motor-driven slider to provide seamless tuning across the full 80 nm range. The instrument does not require thermal control, ensuring excellent wavelength stability. A wide selection of filter profiles is available with 1, 2, or 3-stage cascade configurations (S1, S2, S3). The OTF-930 is suitable for laboratory and production environments and includes a built-in optical power monitor and peak search function.

Key Applications:
- ASE noise suppression in EDFA-amplified DWDM systems
- Individual ITU grid channel selection
- Tunable incoherent light source when combined with a broadband source
- Optical signal noise filtering for transmitter and system testing

Specifications:
Tuning Range: 1530–1610 nm (standard)
Wavelength Resolution: 0.01 nm
Wavelength Accuracy: < ±0.2 nm
Wavelength Repeatability: < ±0.1 nm
Input Power: < +20 dBm
Return Loss: > 45 dB
PMD: < 0.1 ps
PDL (SMF): < 0.2 dB
Insertion Loss: < 2.9 dB max (single stage, 5.5 nm bandwidth)
-3 dB Bandwidth: 5.5 ± 0.1 nm (typ), 6.5 nm (max) [filter-type dependent]
20 dB Bandwidth: < 6.0 nm (typ)
Connectors: FC/PC or FC/APC (front panel)

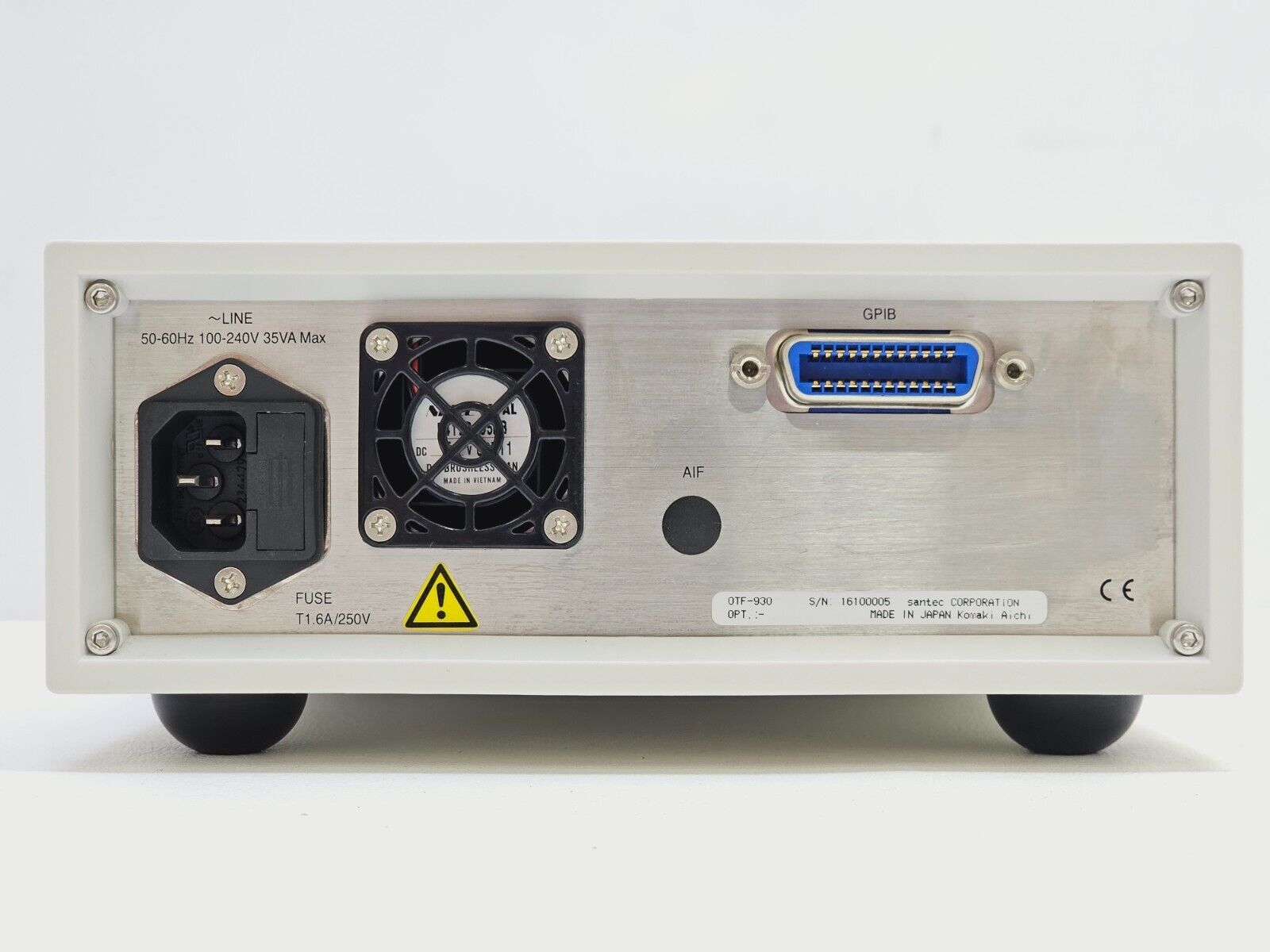

Control Interfaces: GPIB, RS-232C

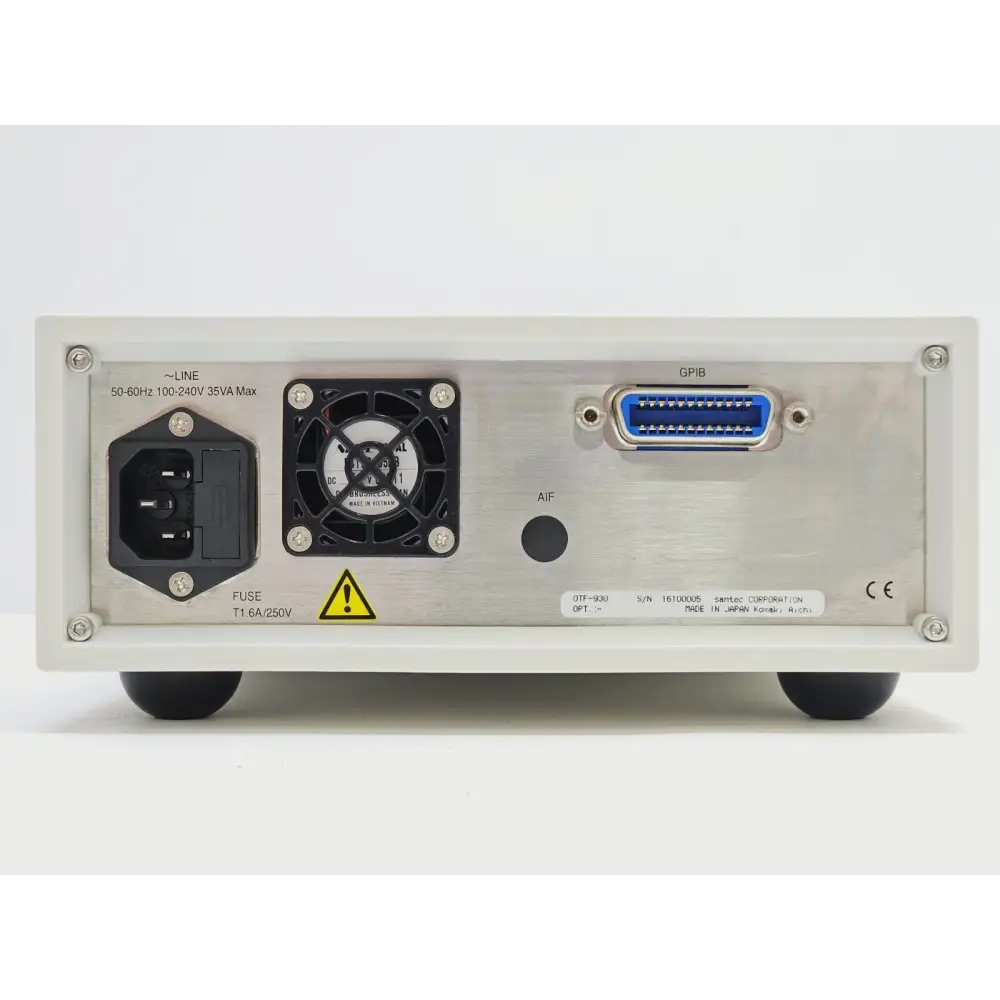

Power Supply: 100–240 V AC, 50–60 Hz, 35 VA max
Fuse: T1.6 A / 250 V
Dimensions (W x H x D): 210 x 80 x 300 mm

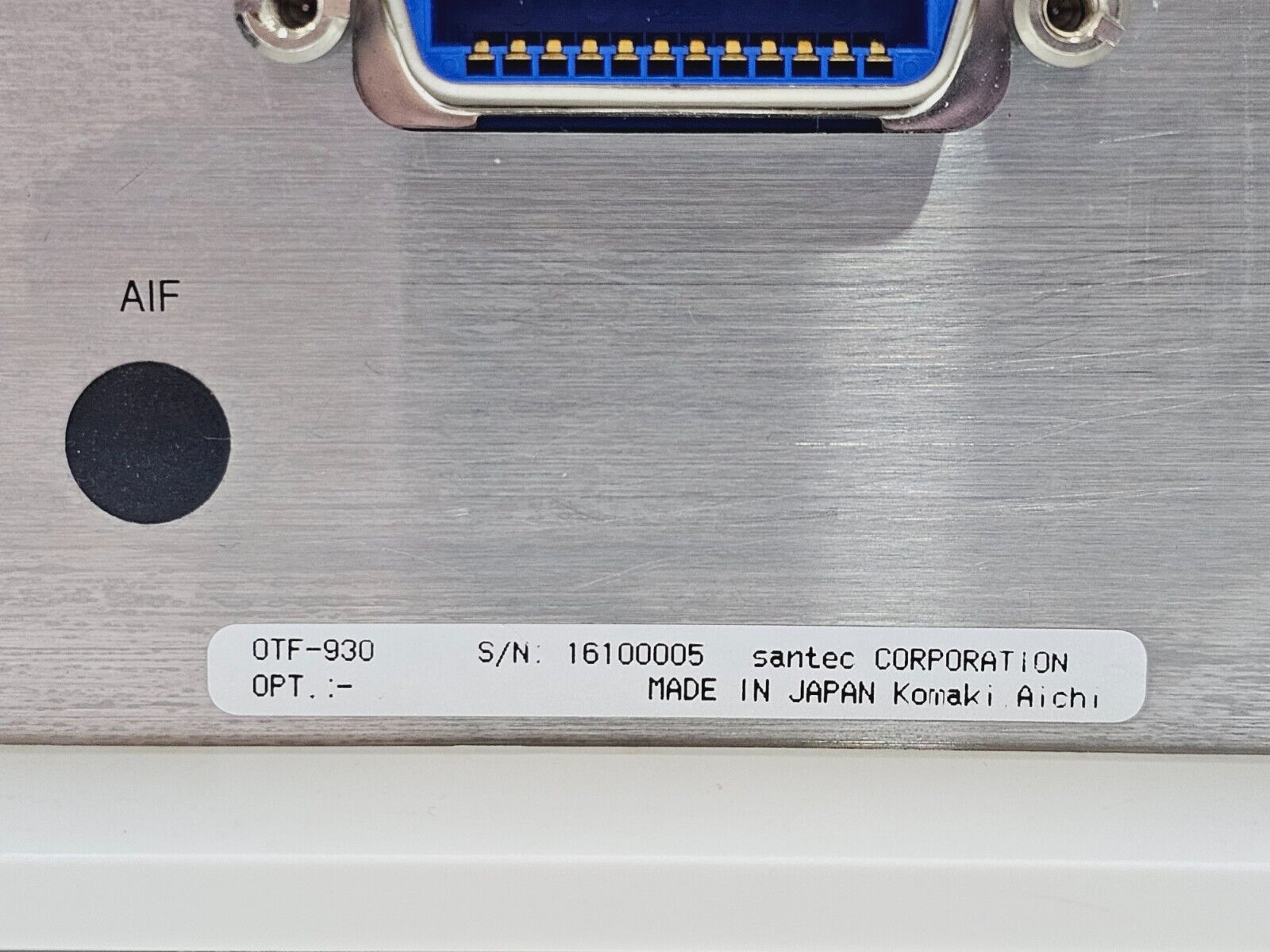

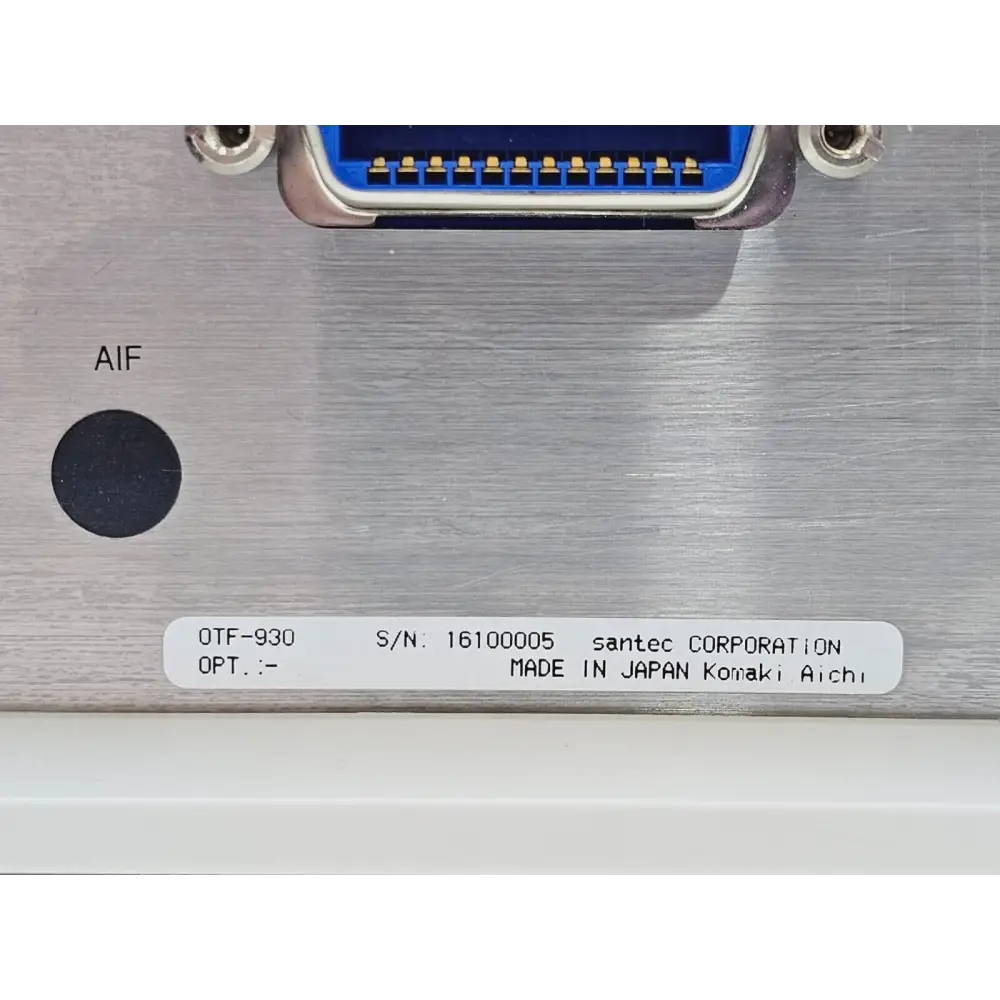

Manufacturer: Santec Corporation, Komaki, Aichi, Japan

Santec OTF-930 official product datasheet — technical specifications, ordering codes, and application notes: Download PDF
