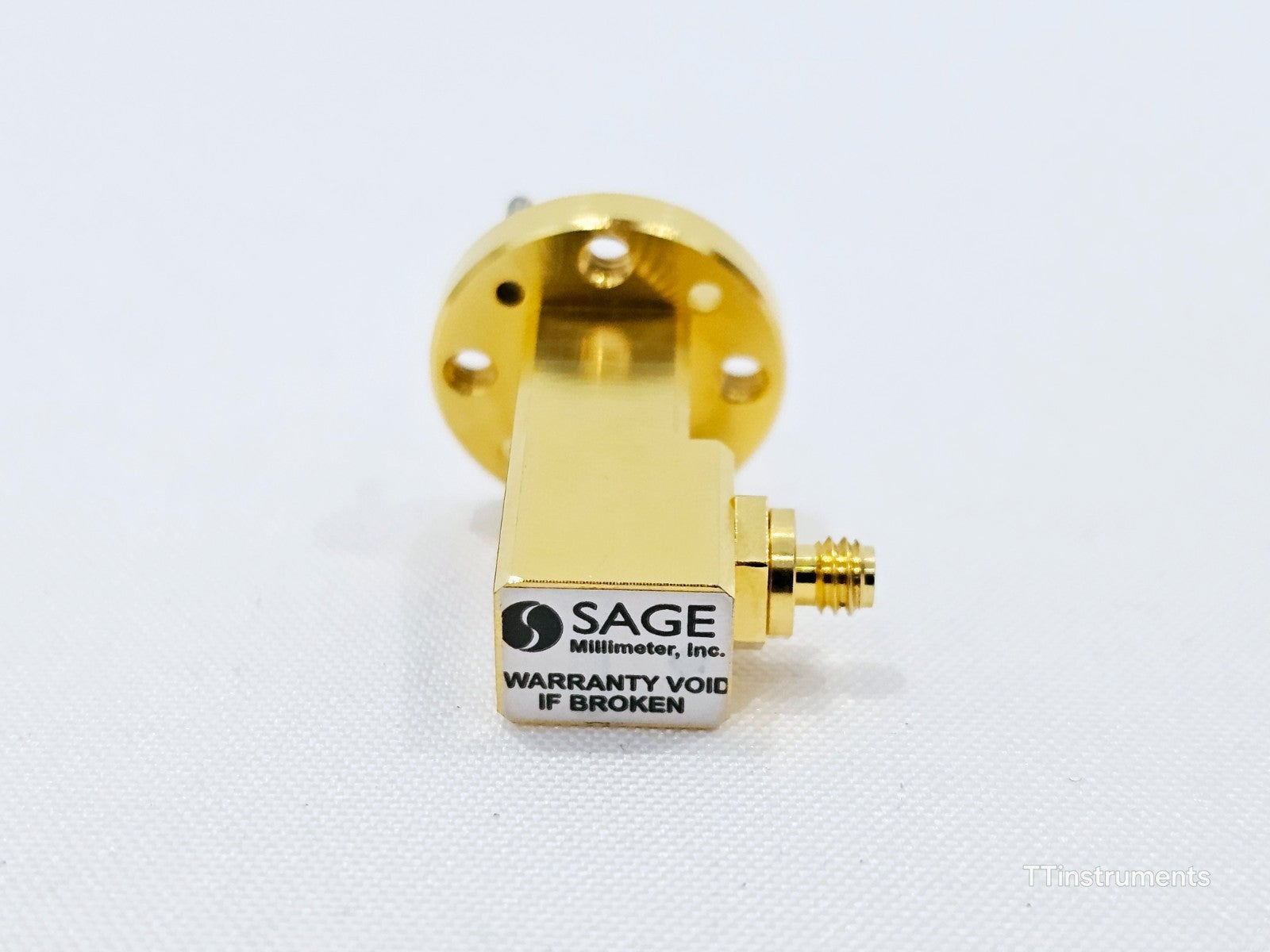

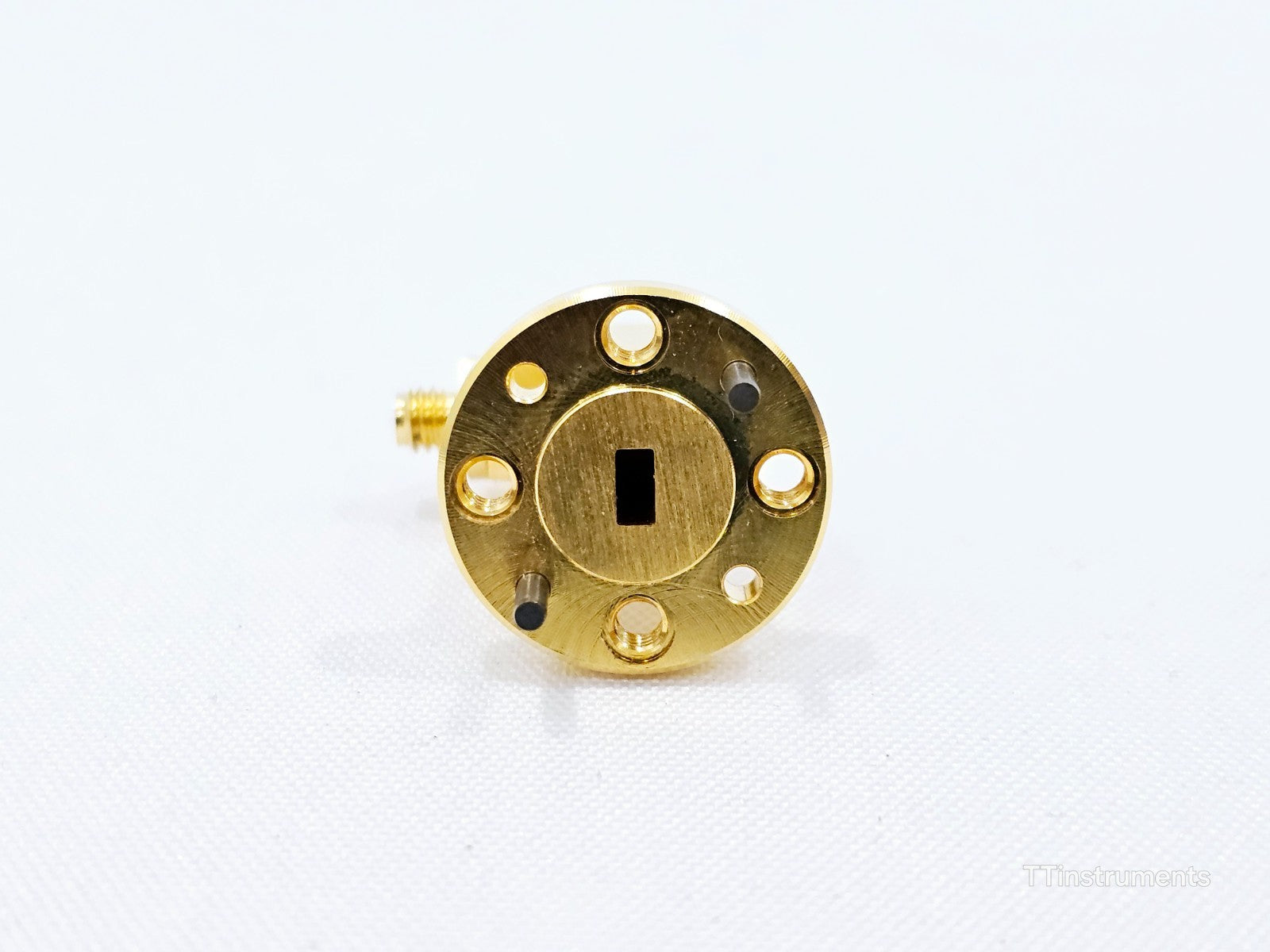

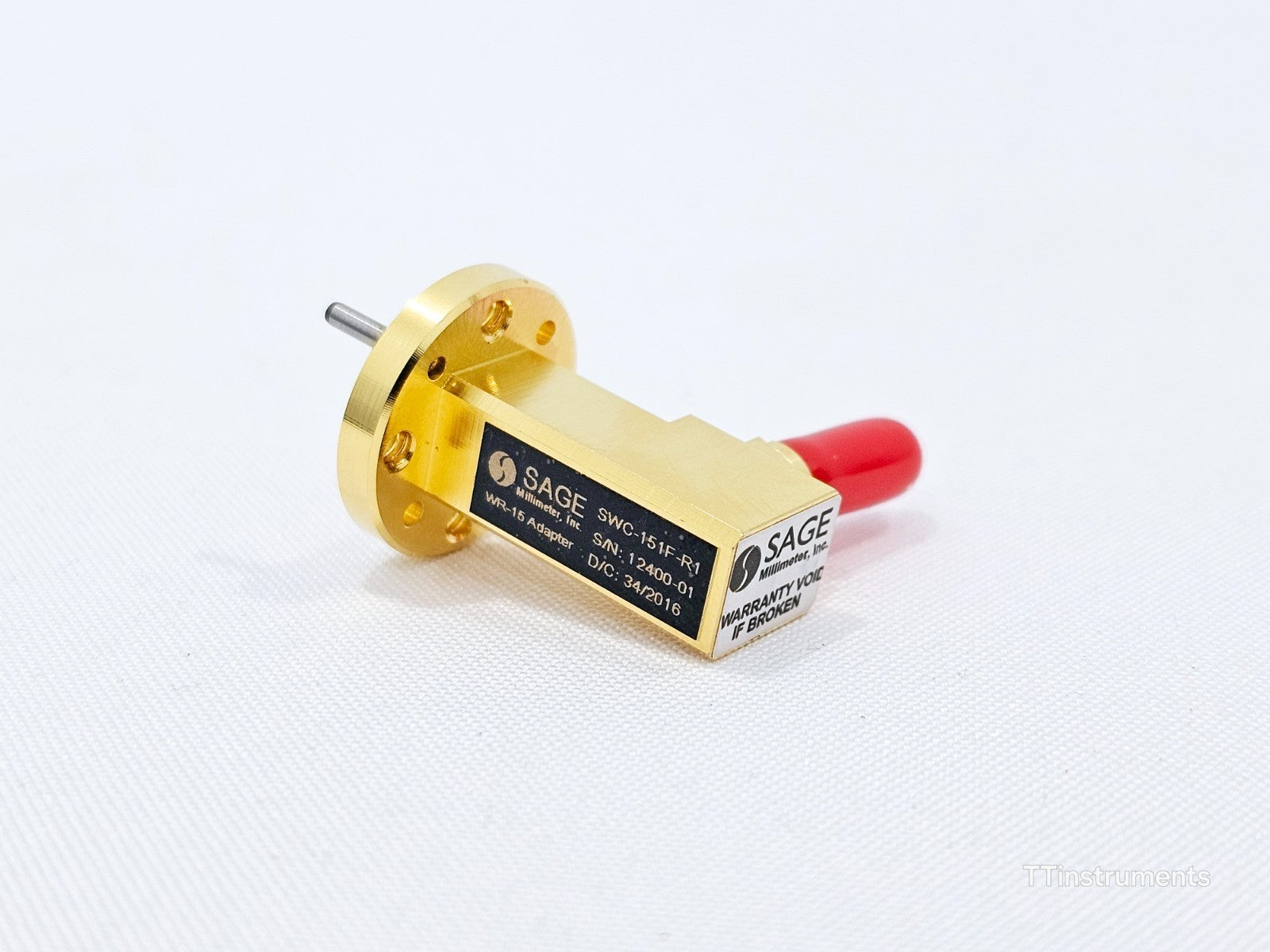

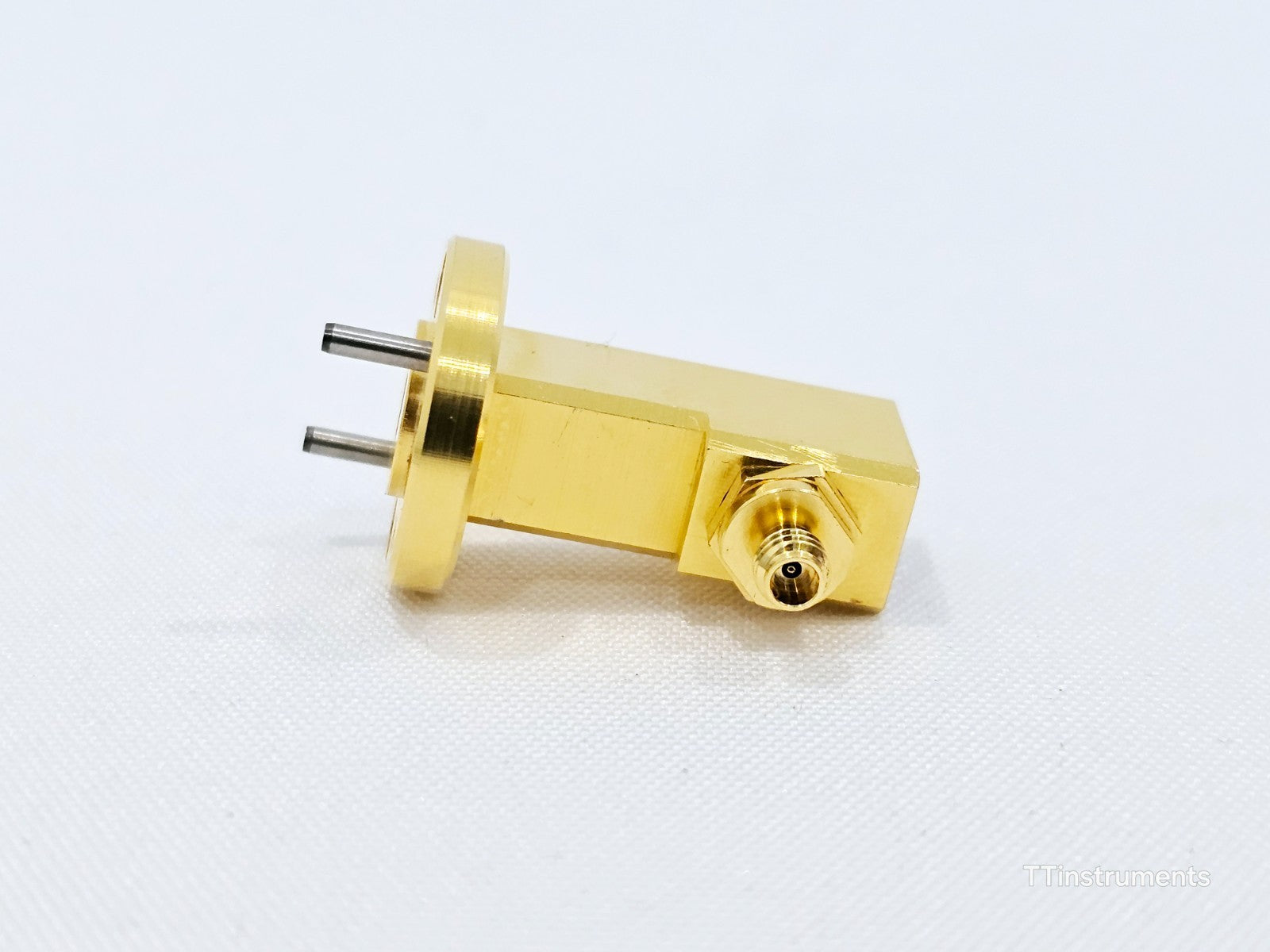

Condition: Used

Supplied as pictured.

SWC-151F-R1 are right angle (90°) V-Band waveguide to coax adapters that cover the frequency range of 50 to 75 GHz. They are designed and manufactured for instrumentation grade quality but offered at a commercial grade price, allowing for an efficient transition between the rectangular waveguide and 1.0 mm coax connector. The end launch (180°) versions are offered under model numbers SWC-151F-E1 and SWC-151M-E1.

TECHNICAL DETAILS

Minimum Frequency: 50 GHz

Maximum Frequency: 75 GHz

Insertion Loss: 0.70 dB

Return Loss: 16 dB

Power Handling: 10 W

Waveguide Port: WR-15 Waveguide

Coax Type: 1.0 mm

Coax Gender: Female

Configuration: Right Angle (90°)

Please refer to the manufacturers website for more information.
