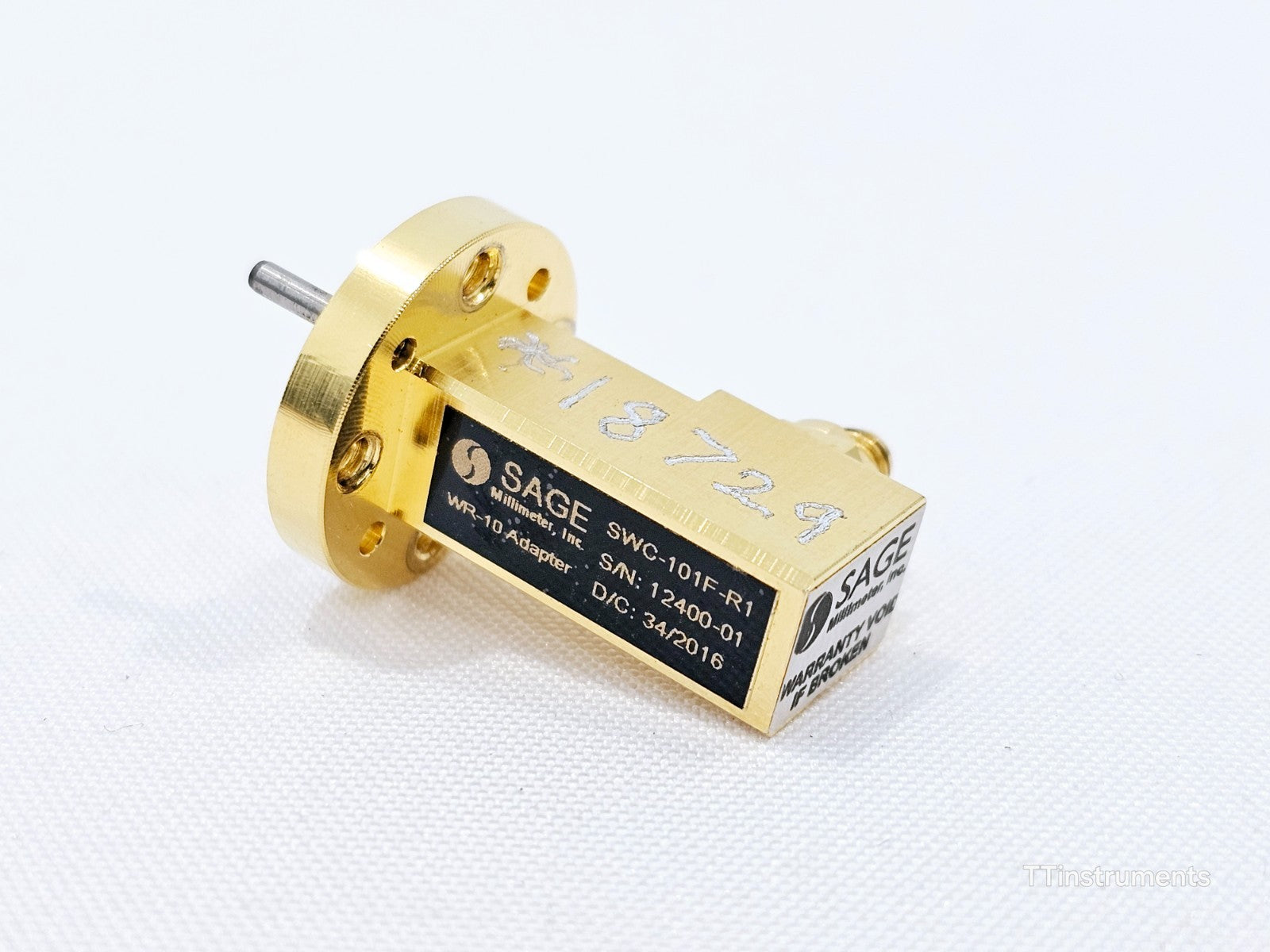

Sage Millimeter SWC-101F-R1 WR-10 waveguide to coax adapter, angled view showing model label S/N 12400-01 D/C 34/2016

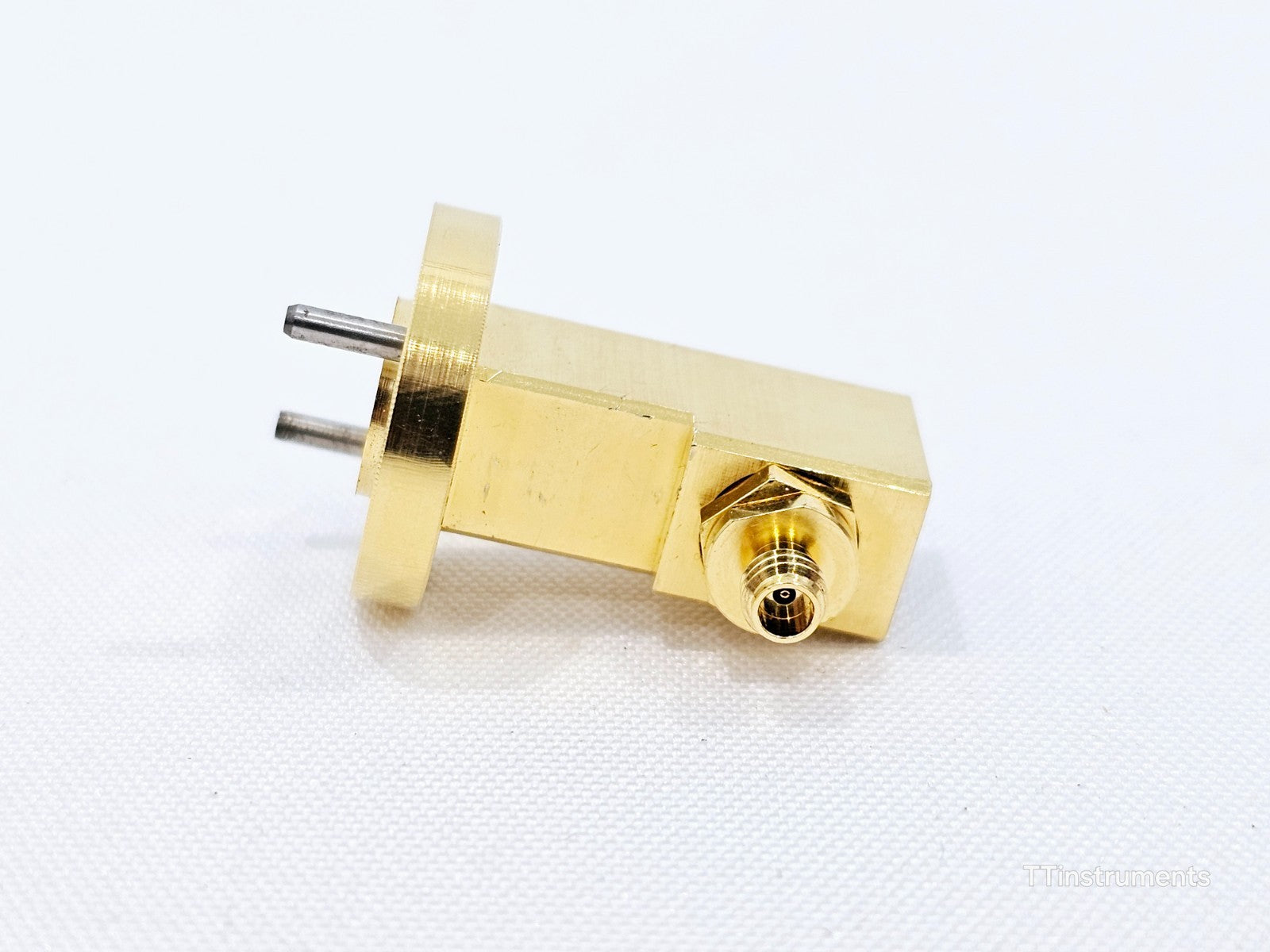

Sage Millimeter SWC-101F-R1 WR-10 adapter side view showing circular waveguide flange and 1.0 mm female coax connector port

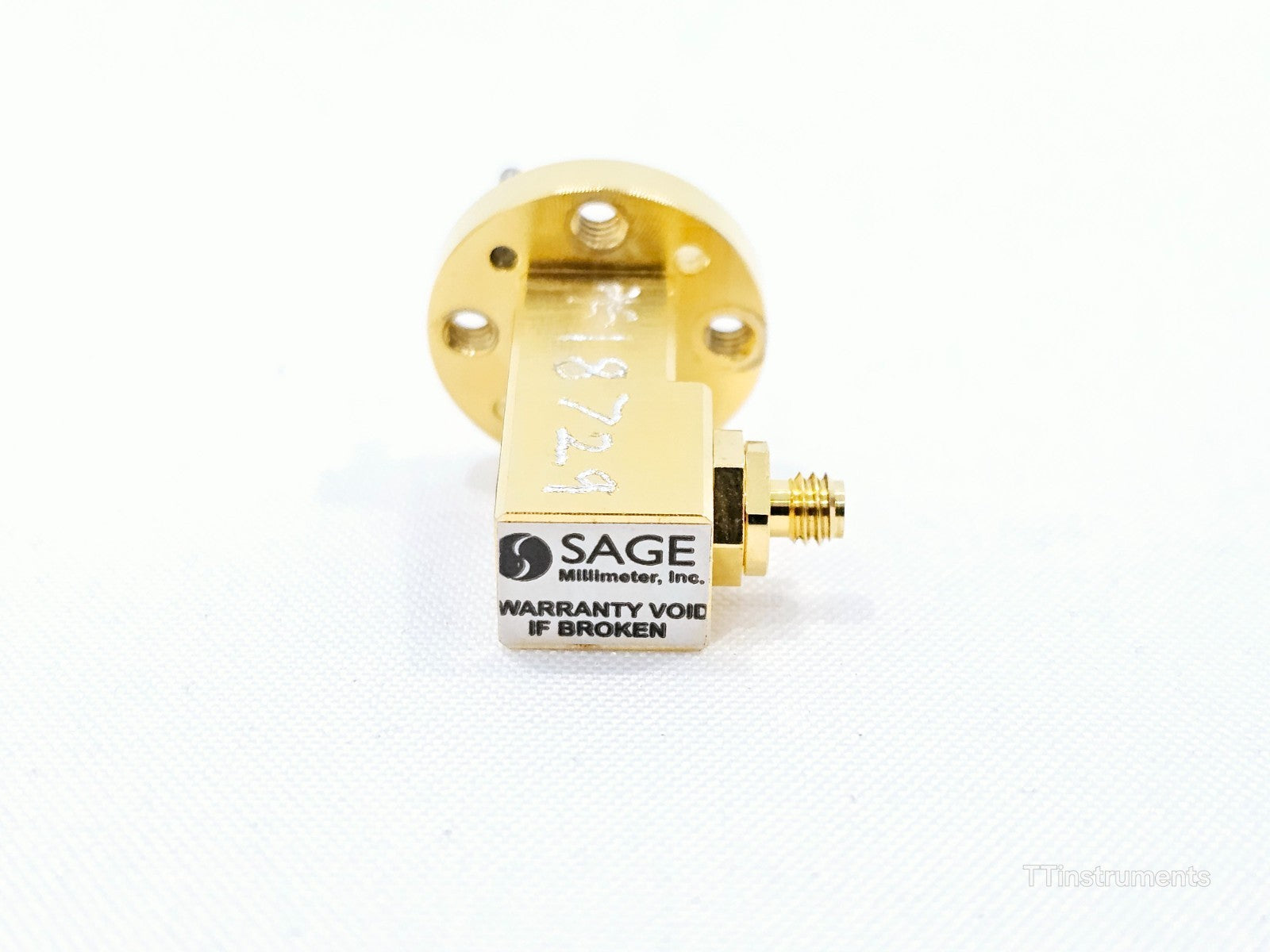

Sage Millimeter SWC-101F-R1 WR-10 adapter rear view showing gold-plated body, warranty void label and 1.0 mm coax port

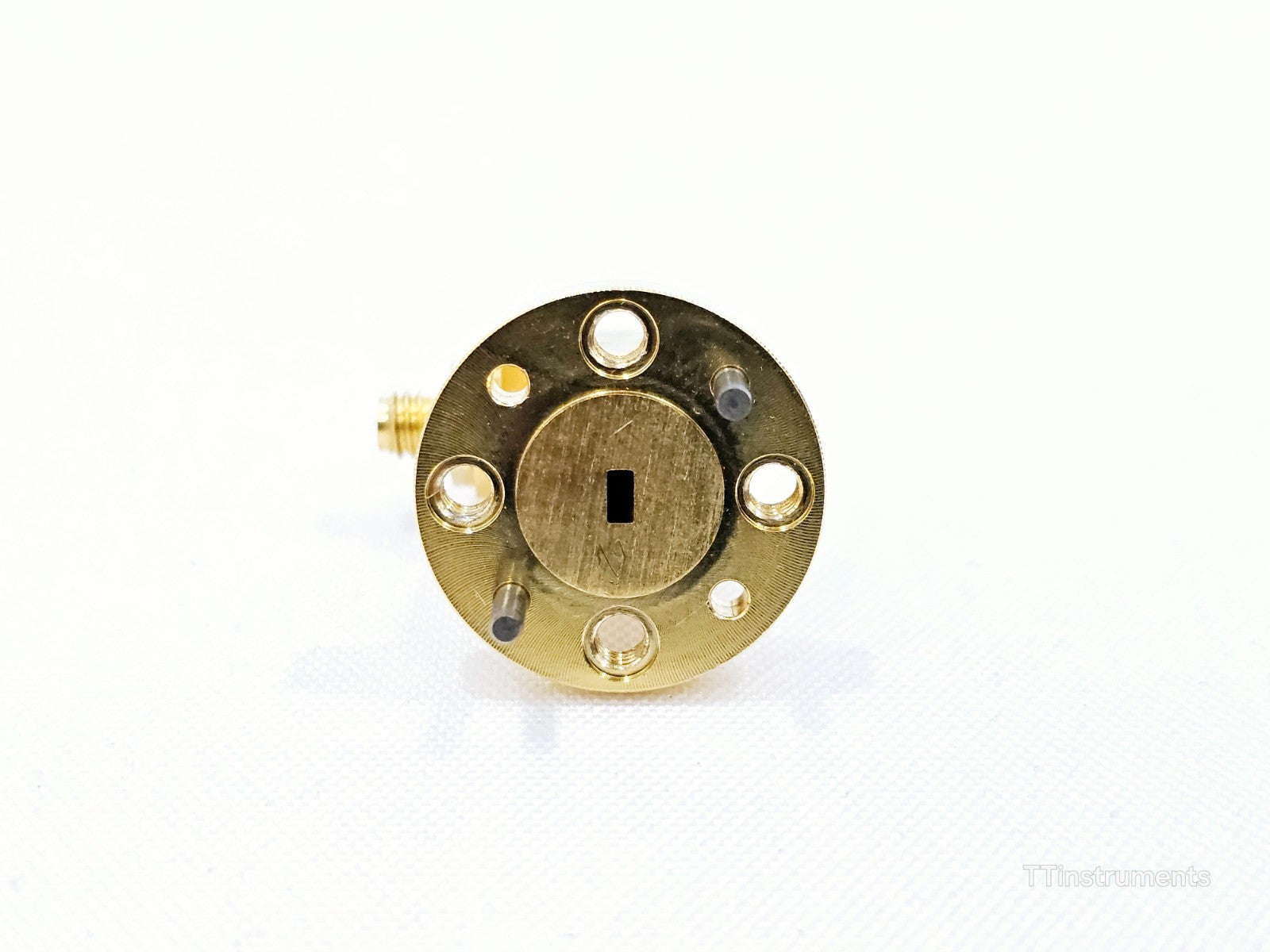

Sage Millimeter SWC-101F-R1 WR-10 adapter front face view showing UG-387 circular flange, waveguide aperture and alignment pins

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Sage Millimeter WR-10 Adapter SWC-101F-R1 Waveguide to Coax

Name: Sage Millimeter WR-10 Adapter SWC-101F-R1 Waveguide to Coax
Brand: Sage Millimeter
SKU: 3995 4E03 ER88
Price: 162.56 GBP
Availability: OutOfStock

The Sage Millimeter SWC-101F-R1 is a W-Band right angle (90°) WR-10 waveguide to 1.0 mm female coax adapter, covering 75–110 GHz for precision RF and microwave measurement.
• Full W-Band coverage: 75–110 GHz with low insertion loss and high return loss
• Instrumentation-grade construction in a compact 90° right angle form factor
• Gold-plated aluminium housing with UG-387/U-M anti-cocking flange

Manufacturer

Sage Millimeter

Model

SWC-101F-R1

Condition

Used

In stock

SKU

3995 4E03

£162.56

Connectors & cables
RF & Microwave
RF Components

Make an Offer

Condition: Used

This is a used Sage Millimeter SWC-101F-R1 WR-10 waveguide to 1.0 mm female coax adapter in right angle (90°) configuration. Manufactured in date code 34/2016 (week 34, 2016), serial number 12400-01. The gold-plated body shows typical signs of use consistent with lab service.

Included in the sale:
• 1x Sage Millimeter SWC-101F-R1 WR-10 to 1.0 mm (F) right angle adapter

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used

Included in the sale:
• 1x Sage Millimeter SWC-101F-R1 WR-10 to 1.0 mm (F) right angle adapter

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

The Sage Millimeter SWC-101F-R1 (now marketed by Eravant, formerly SAGE Millimeter, Inc.) is a right angle (90°) W-Band waveguide to coaxial adapter designed to provide an efficient and reliable transition between a WR-10 rectangular waveguide port and a 1.0 mm female coaxial connector. Designed and manufactured to instrumentation-grade quality standards but offered at a commercial-grade price point, the SWC-101F-R1 is suited to W-Band test and measurement setups, RF lab instrumentation, and sub-assembly integration. End-launch (180°) versions are available under model numbers SWC-101F-E1 and SWC-101M-E1.

Frequency Range: 75 – 110 GHz
Configuration: Right Angle (90°)
Waveguide Port: WR-10 with UG-387/U-M Anti-Cocking Flange
Coaxial Port: 1.0 mm Female (SWC-101F-R1)
Insertion Loss: 1.20 dB (max)
Return Loss: 15 dB (min)
Material: Aluminium
Finish: Gold Plated
Weight: 0.4 oz
ECCN: EAR99
Recommended Torque: 4.0 ± 0.15 inch-pounds (0.45 ± 0.02 Nm)

Features:
• Full waveguide band coverage
• Low insertion loss and VSWR
• Instrumentation grade construction
• DC open circuit

Applications:
• W-Band test and measurement laboratories
• RF and microwave instrumentation
• Waveguide-to-coax transitions in sub-assemblies
