Rohde & Schwarz ZVH4 Cable & Antenna Analyzer Option K39 100 kHz - 3.6 GHz CALIB
Model: ZVH4
Condition: Refurbished
In stock: 0
SKU: 2870 6A05
- Cable & antenna analysers
- RF & Microwave
Choose options
Condition: Refurbished — Calibrated August 2024, supplied with a power adapter and new battery.
This Rohde & Schwarz ZVH4 Cable and Antenna Analyser covers 100 kHz to 3.6 GHz and is fitted with Option K39. The unit was professionally calibrated in August 2024 and has been fitted with a new battery. It is a highly capable field instrument suitable for the installation and maintenance of antenna systems, capable of detecting cable faults, measuring filter and amplifier matching, and checking cable connection losses.
Included in the sale:
• Rohde & Schwarz ZVH4 Cable and Antenna Analyser (100 kHz – 3.6 GHz)

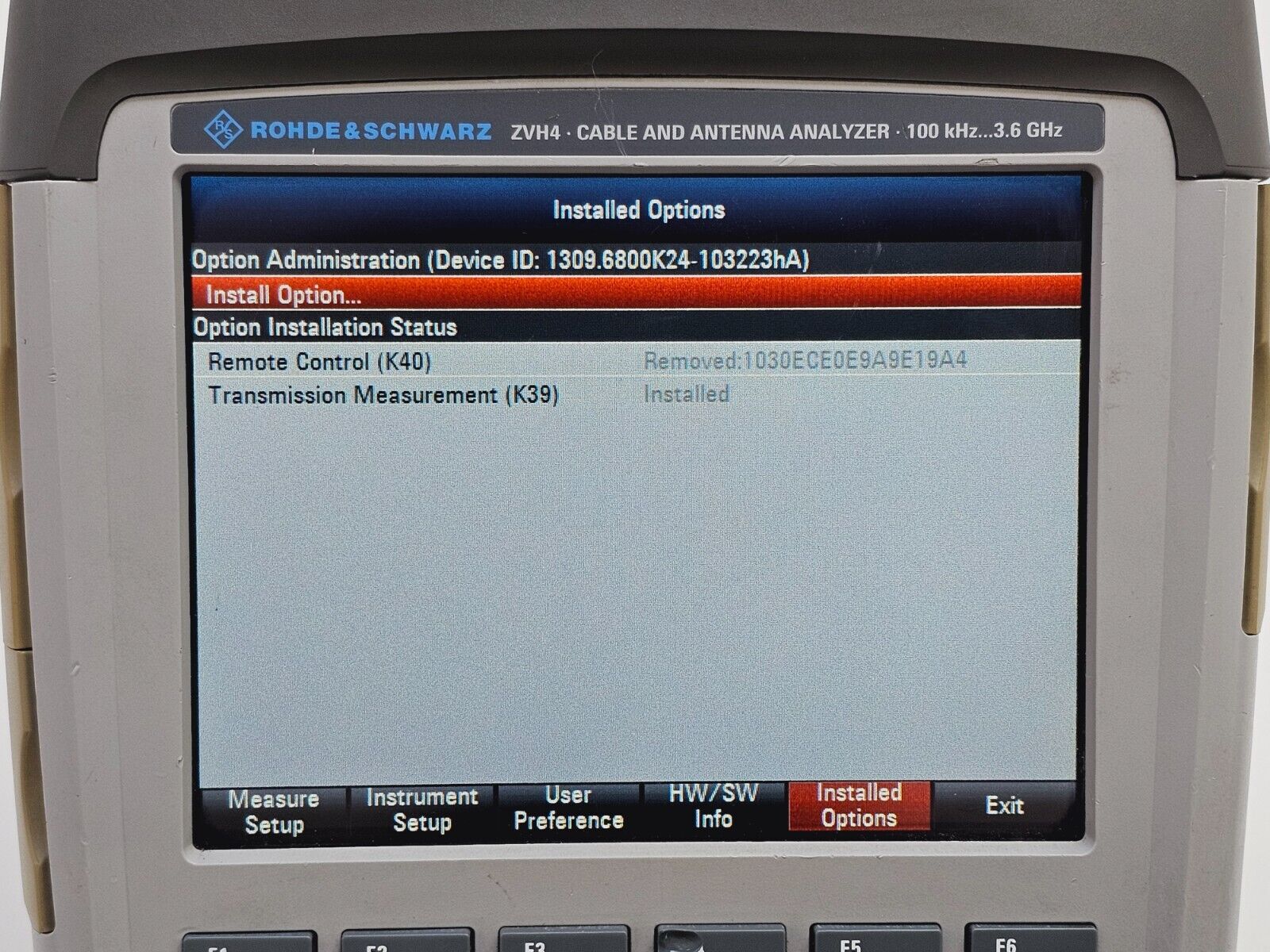

• Option K39 (active)

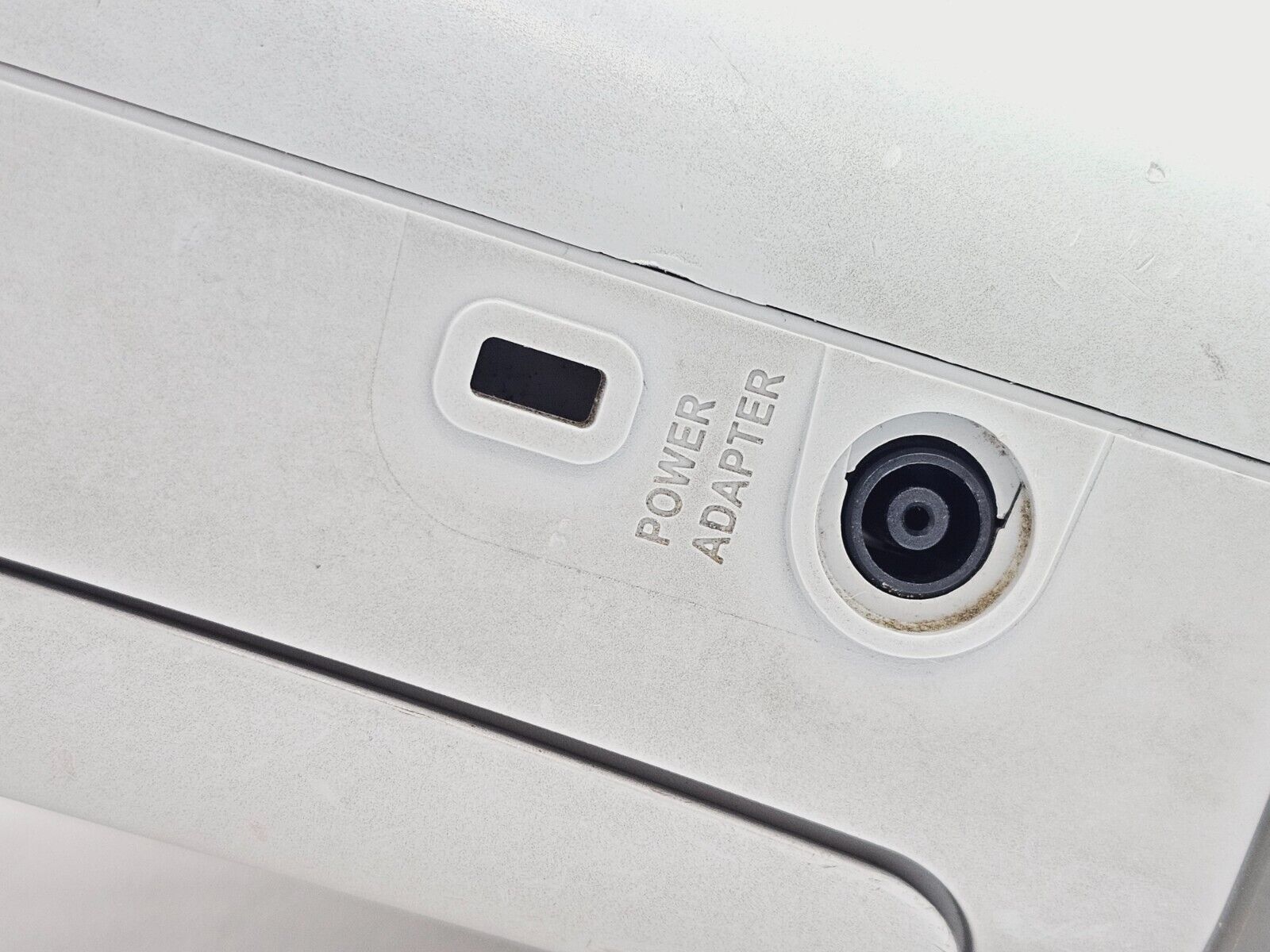

• Power adapter
• New battery

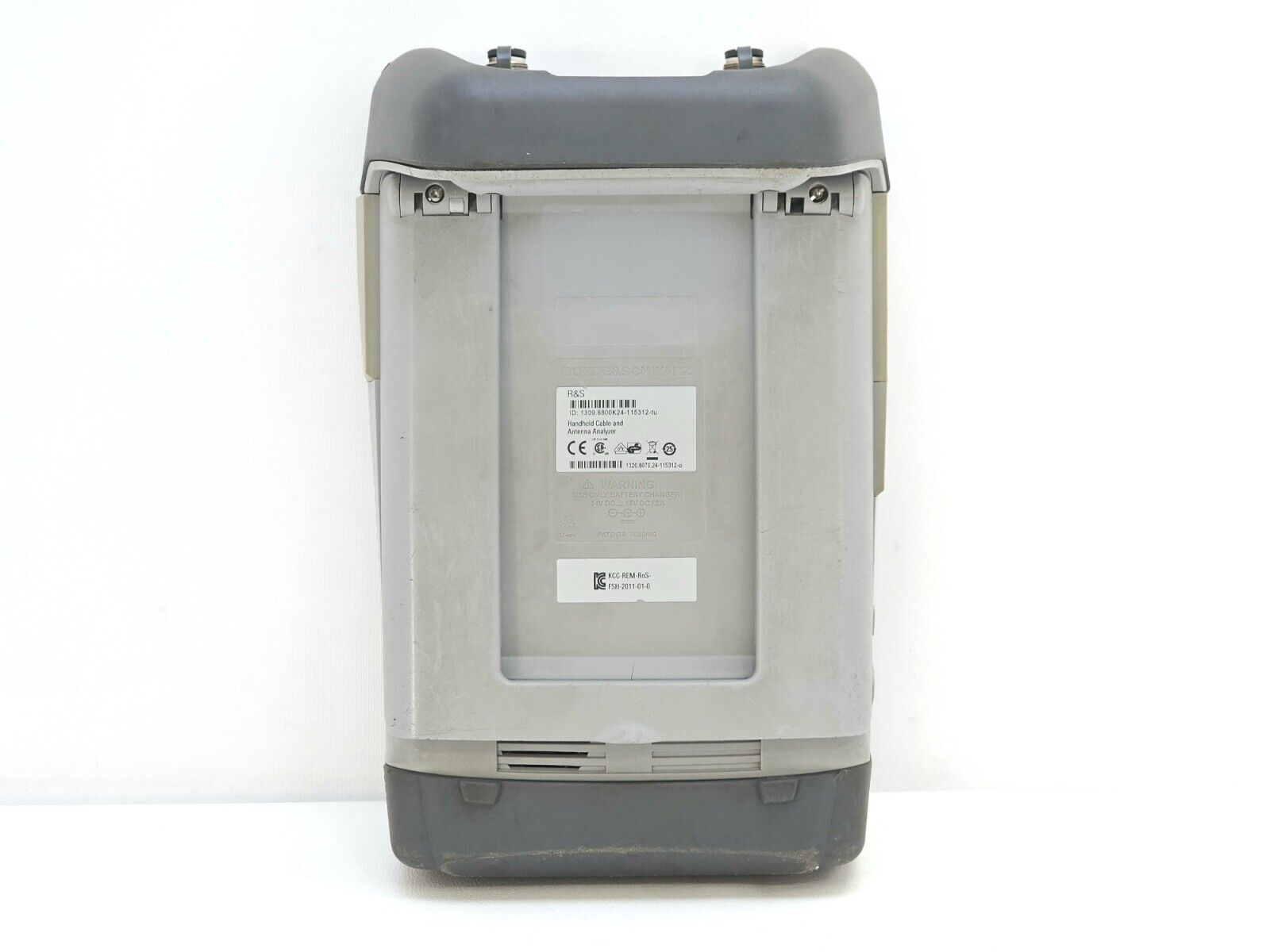

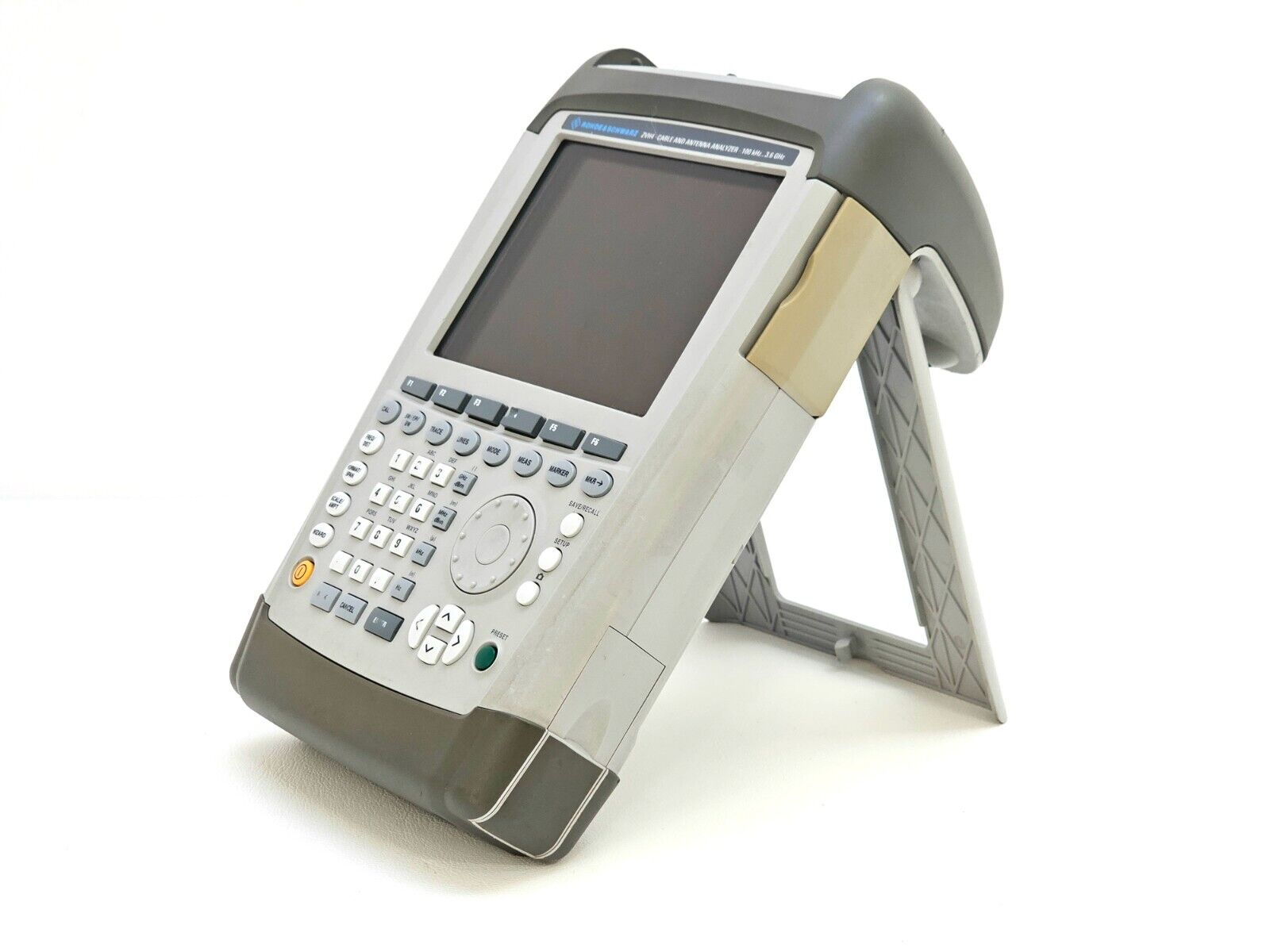

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

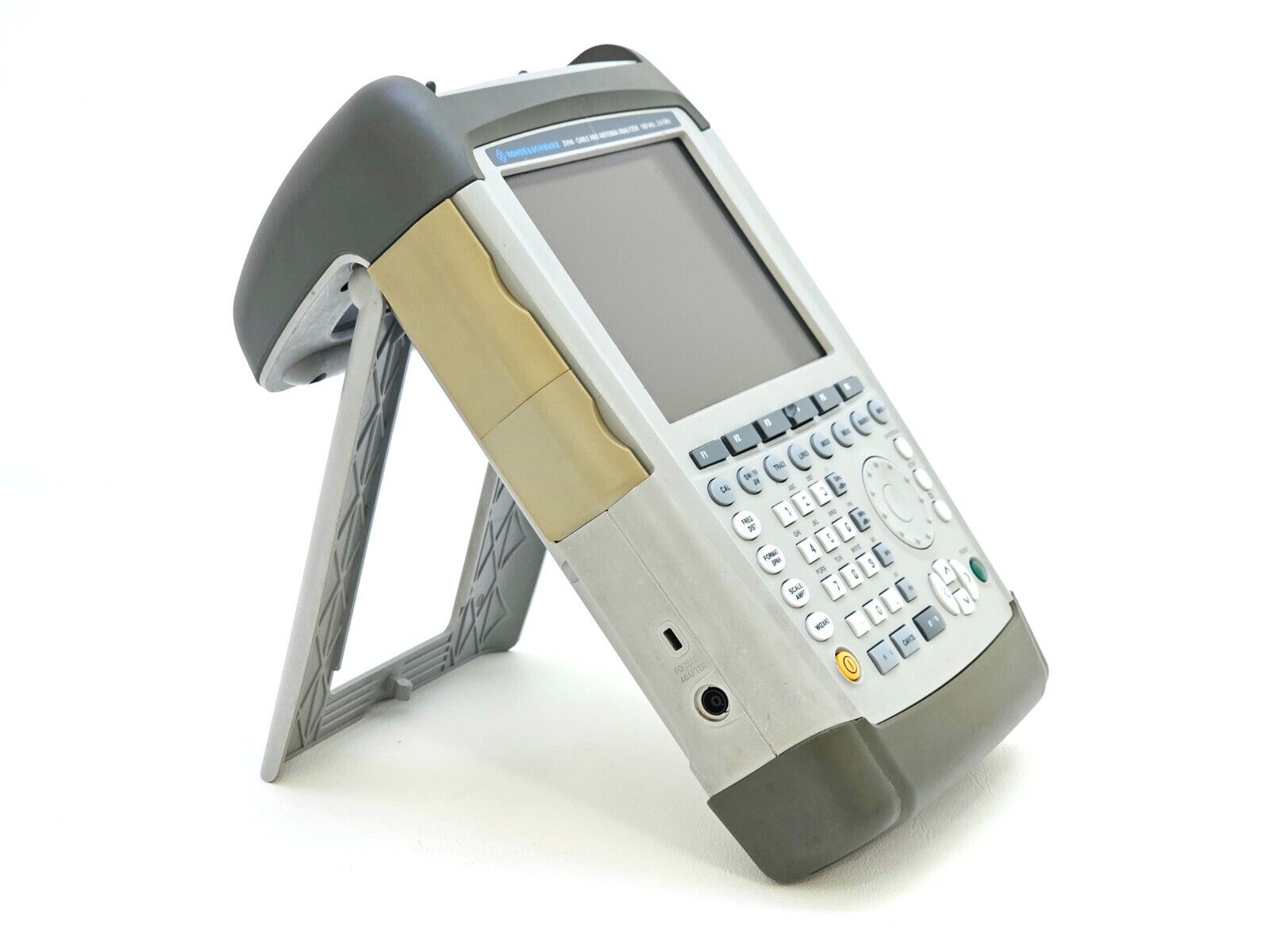

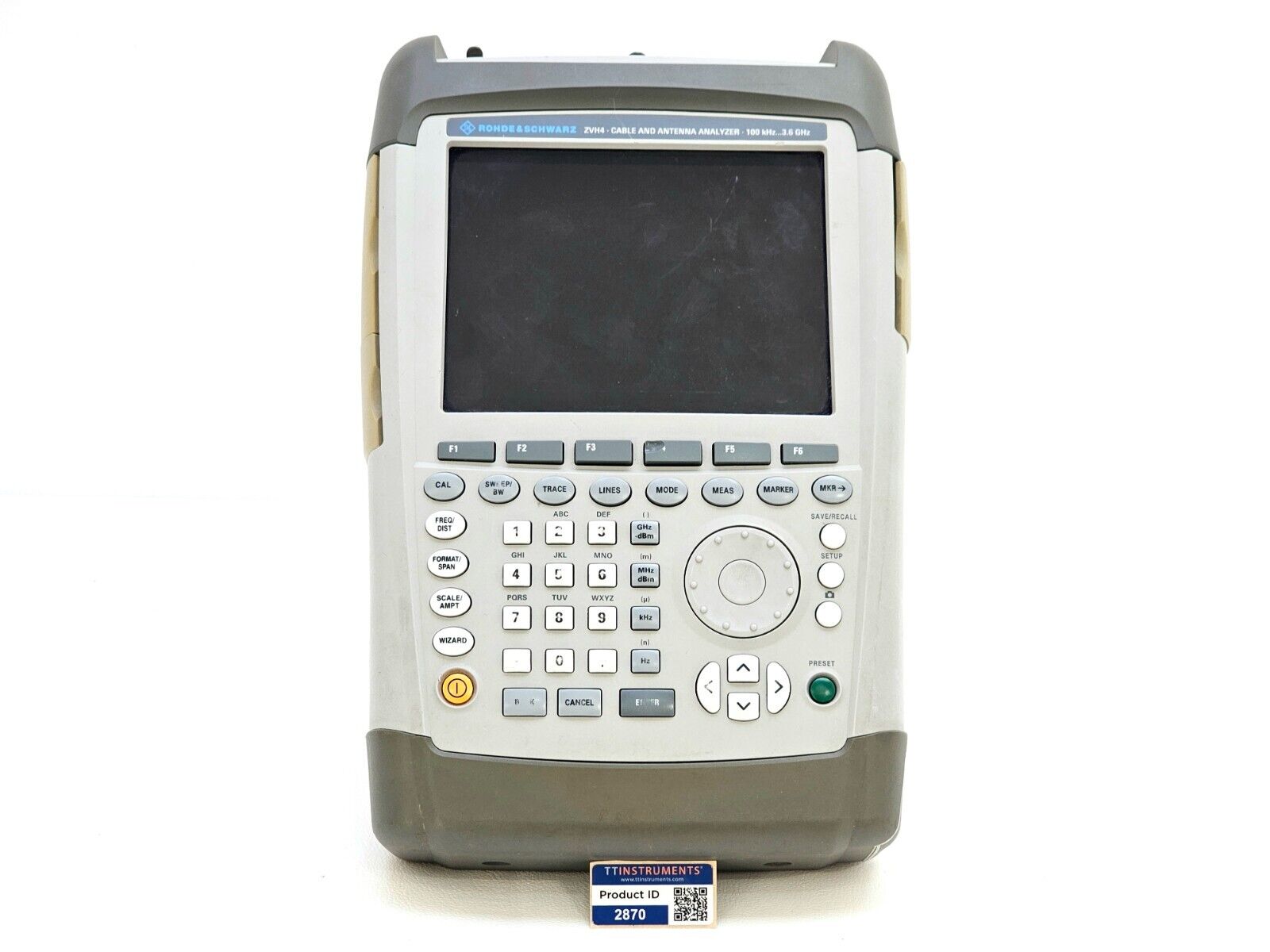

The Rohde & Schwarz ZVH4 is a handheld cable and antenna analyser designed for field use in the installation, maintenance, and troubleshooting of antenna systems, feedlines, and RF components. With a frequency range of 100 kHz to 3.6 GHz, it combines multiple measurement functions in a single rugged, portable instrument suited to demanding environments.

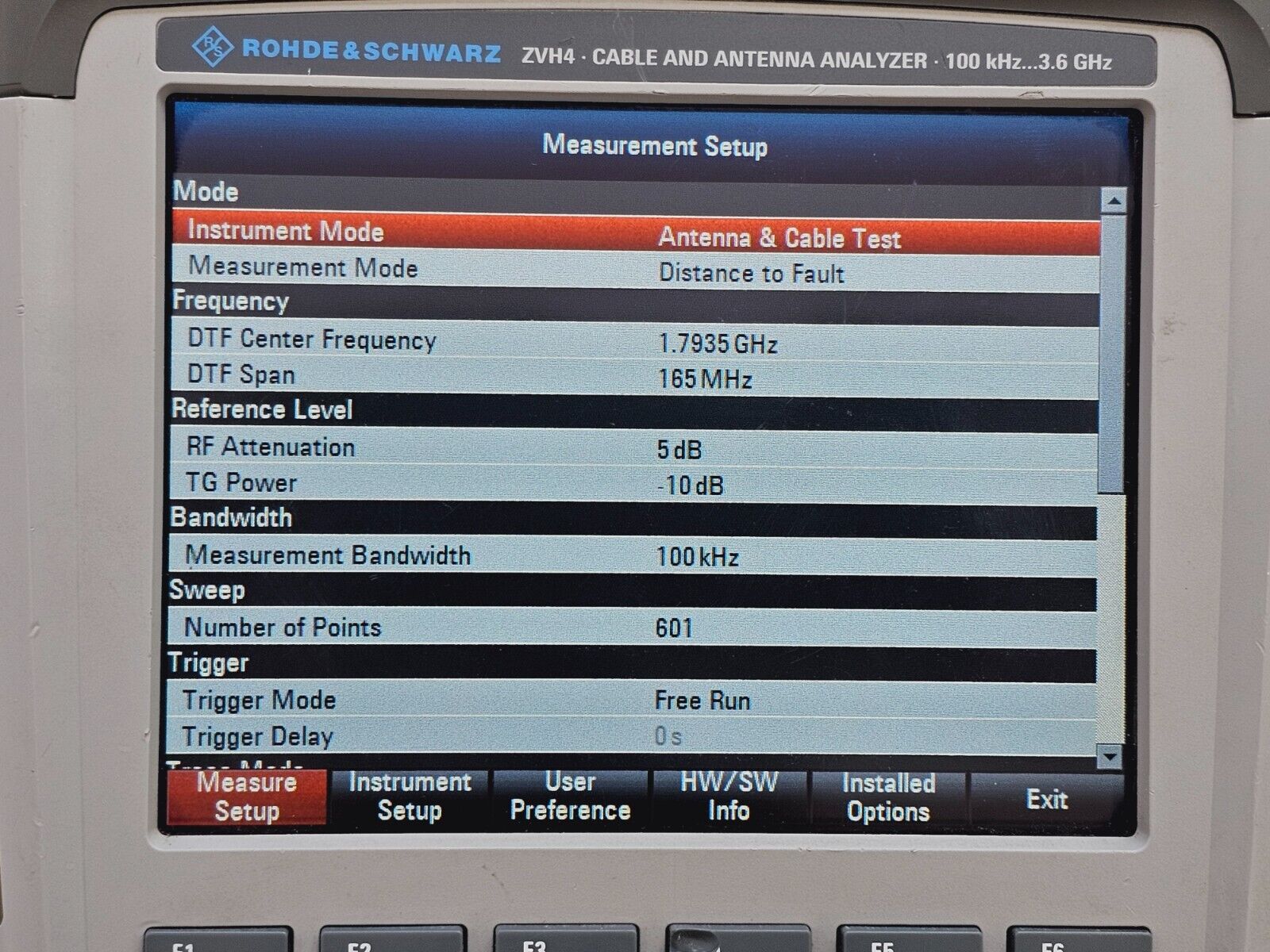

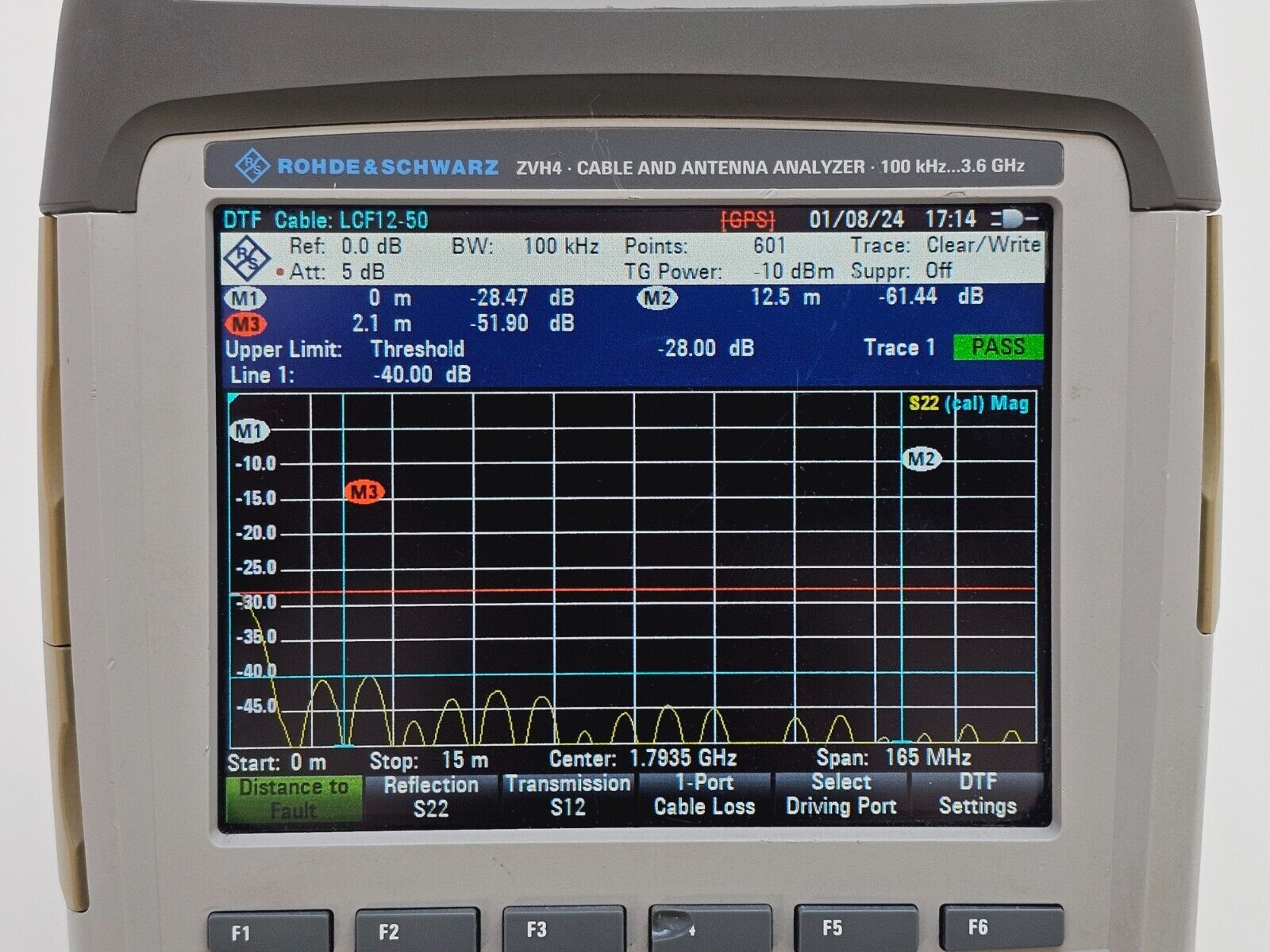

The ZVH4 supports vector network analysis, enabling accurate characterisation of return loss, VSWR, cable loss, distance-to-fault (DTF), and impedance. With the appropriate software options, it also functions as a spectrum analyser and supports transmission measurements. The instrument features a large colour display, internal memory for storing results and traces, and a USB interface for data transfer.
Even in its basic configuration, the R&S ZVH detects cable faults, measures the matching of filters and amplifiers, and checks the loss of cable connections — the three most important tasks involved in setting up transmitter systems and putting them into operation. For further measurements such as the isolation between transmit and receive antennas or the output power of output amplifiers, suitable options are available to the RF service engineer or maintenance team.
The brilliant colour display is easy to read even under poor lighting conditions, with a monochrome mode available for extreme environments. All connectors are splash-proof, and the built-in wizard allows users to perform extended test sequences quickly and accurately. Test reports can be generated using the R&S ZVHView software.
Key Specifications:
Frequency Range: 100 kHz to 3.6 GHz (ZVH4)
Dynamic Range: 100 dB (typical) for filter and antenna isolation measurements
Weight: 3 kg (with battery)
Battery Life: Up to 4.5 hours
Display: Colour LCD with monochrome mode
Calibration: Factory calibration over entire frequency range
Bias Supply: Built-in DC voltage supply for active components

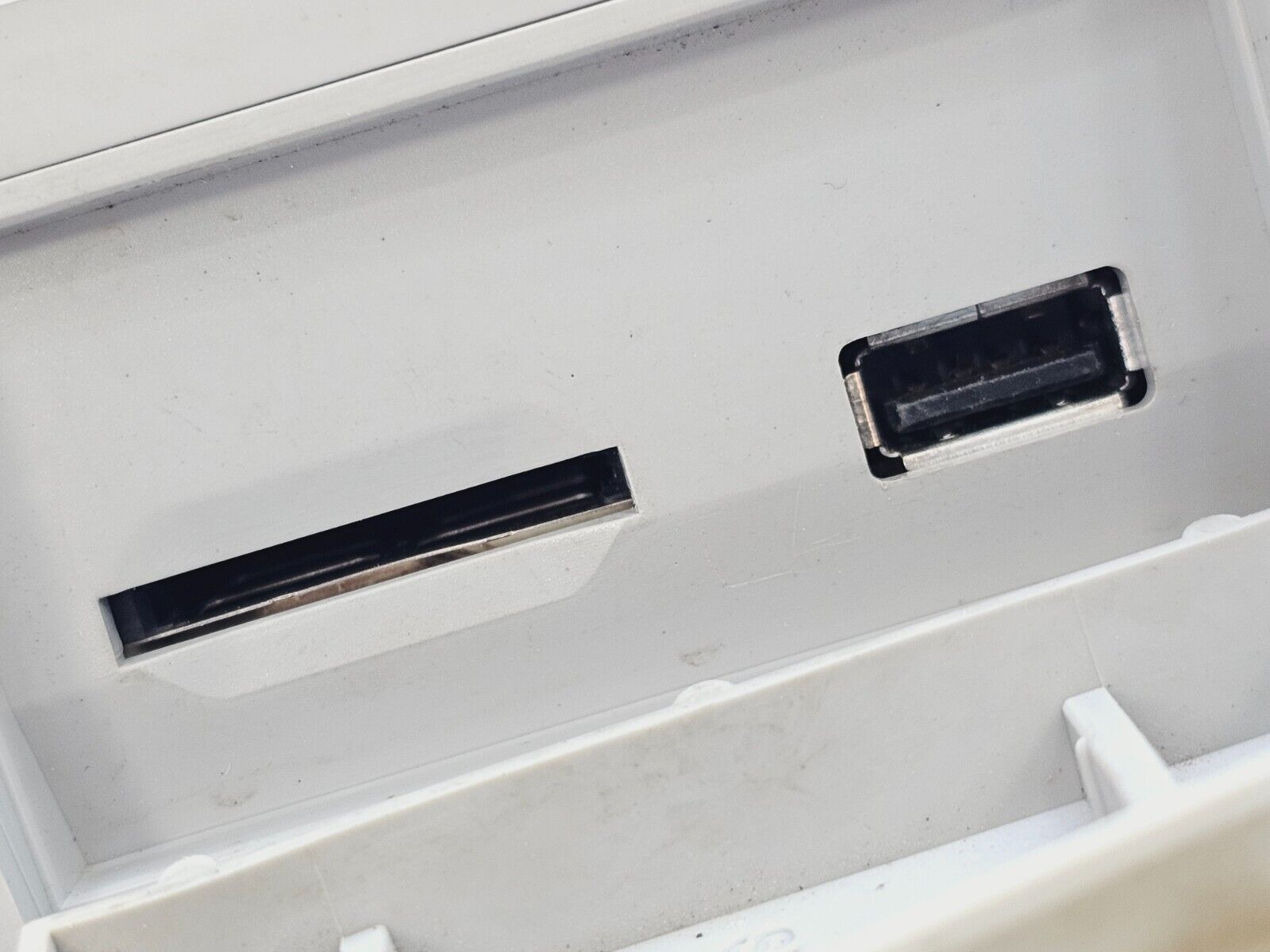

Storage: SD memory card and USB memory stick support
Housing: Rugged, splash-proof

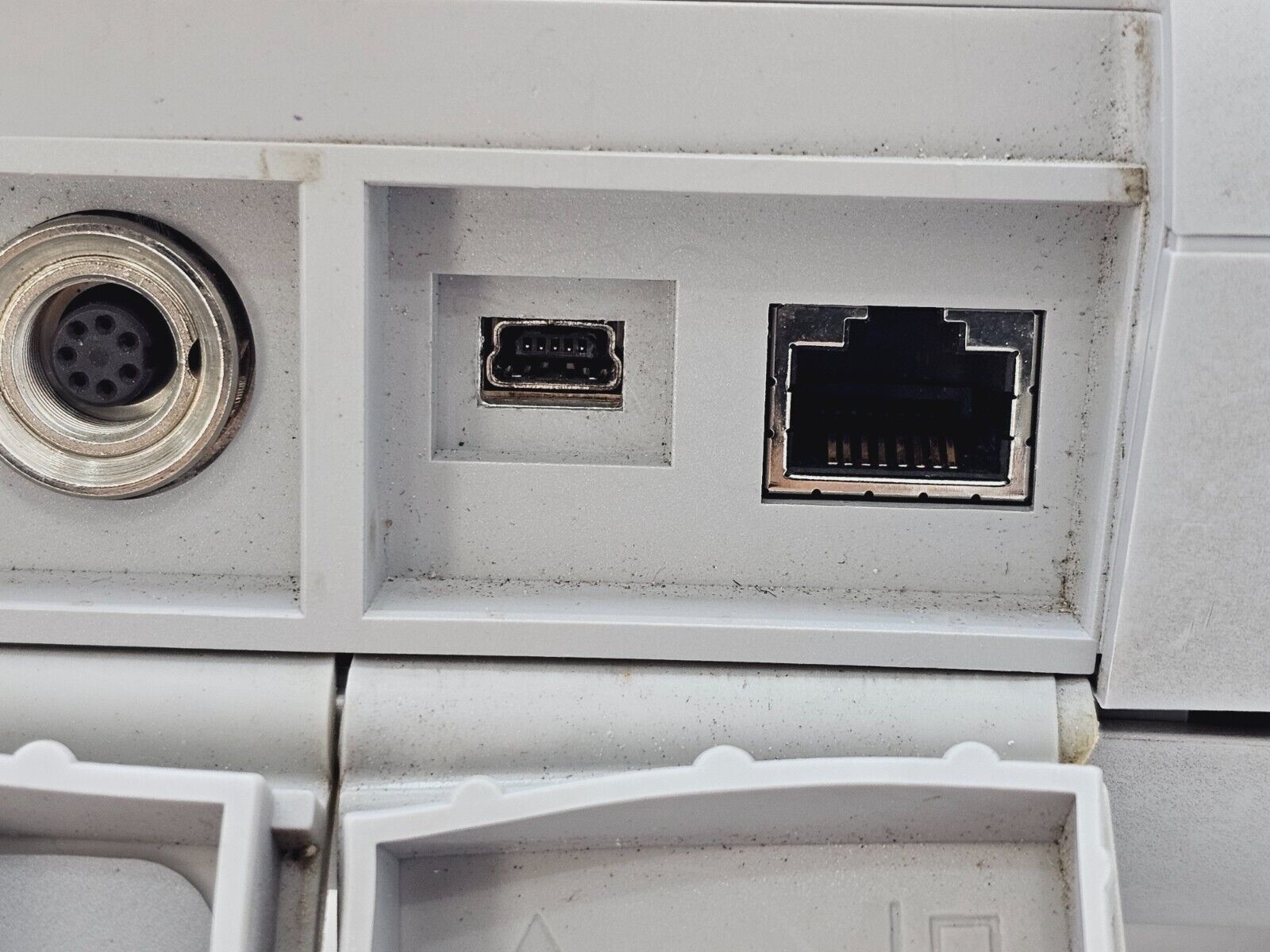

Interface: USB
Software: Compatible with R&S ZVHView for report generation
Rohde & Schwarz ZVH Cable and Antenna Analyser product brochure (PDF): Download PDF
Product Overview
Condition: Refurbished — Calibrated August 2024, supplied with a power adapter and new battery.
This Rohde & Schwarz ZVH4 Cable and Antenna Analyser covers 100 kHz to 3.6 GHz and is fitted with Option K39. The unit was professionally calibrated in August 2024 and has been fitted with a new battery. It is a highly capable field instrument suitable for the installation and maintenance of antenna systems, capable of detecting cable faults, measuring filter and amplifier matching, and checking cable connection losses.
Included in the sale:
• Rohde & Schwarz ZVH4 Cable and Antenna Analyser (100 kHz – 3.6 GHz)
• Option K39 (active)
• Power adapter
• New battery
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
The Rohde & Schwarz ZVH4 is a handheld cable and antenna analyser designed for field use in the installation, maintenance, and troubleshooting of antenna systems, feedlines, and RF components. With a frequency range of 100 kHz to 3.6 GHz, it combines multiple measurement functions in a single rugged, portable instrument suited to demanding environments.
The ZVH4 supports vector network analysis, enabling accurate characterisation of return loss, VSWR, cable loss, distance-to-fault (DTF), and impedance. With the appropriate software options, it also functions as a spectrum analyser and supports transmission measurements. The instrument features a large colour display, internal memory for storing results and traces, and a USB interface for data transfer.
Even in its basic configuration, the R&S ZVH detects cable faults, measures the matching of filters and amplifiers, and checks the loss of cable connections — the three most important tasks involved in setting up transmitter systems and putting them into operation. For further measurements such as the isolation between transmit and receive antennas or the output power of output amplifiers, suitable options are available to the RF service engineer or maintenance team.
The brilliant colour display is easy to read even under poor lighting conditions, with a monochrome mode available for extreme environments. All connectors are splash-proof, and the built-in wizard allows users to perform extended test sequences quickly and accurately. Test reports can be generated using the R&S ZVHView software.
Key Specifications:
Frequency Range: 100 kHz to 3.6 GHz (ZVH4)
Dynamic Range: 100 dB (typical) for filter and antenna isolation measurements
Weight: 3 kg (with battery)
Battery Life: Up to 4.5 hours
Display: Colour LCD with monochrome mode
Calibration: Factory calibration over entire frequency range
Bias Supply: Built-in DC voltage supply for active components
Storage: SD memory card and USB memory stick support
Housing: Rugged, splash-proof
Interface: USB
Software: Compatible with R&S ZVHView for report generation
Resources
Rohde & Schwarz ZVH Cable and Antenna Analyser product brochure (PDF): Download PDF
