Condition: Refurbished — Calibrated August 2024.

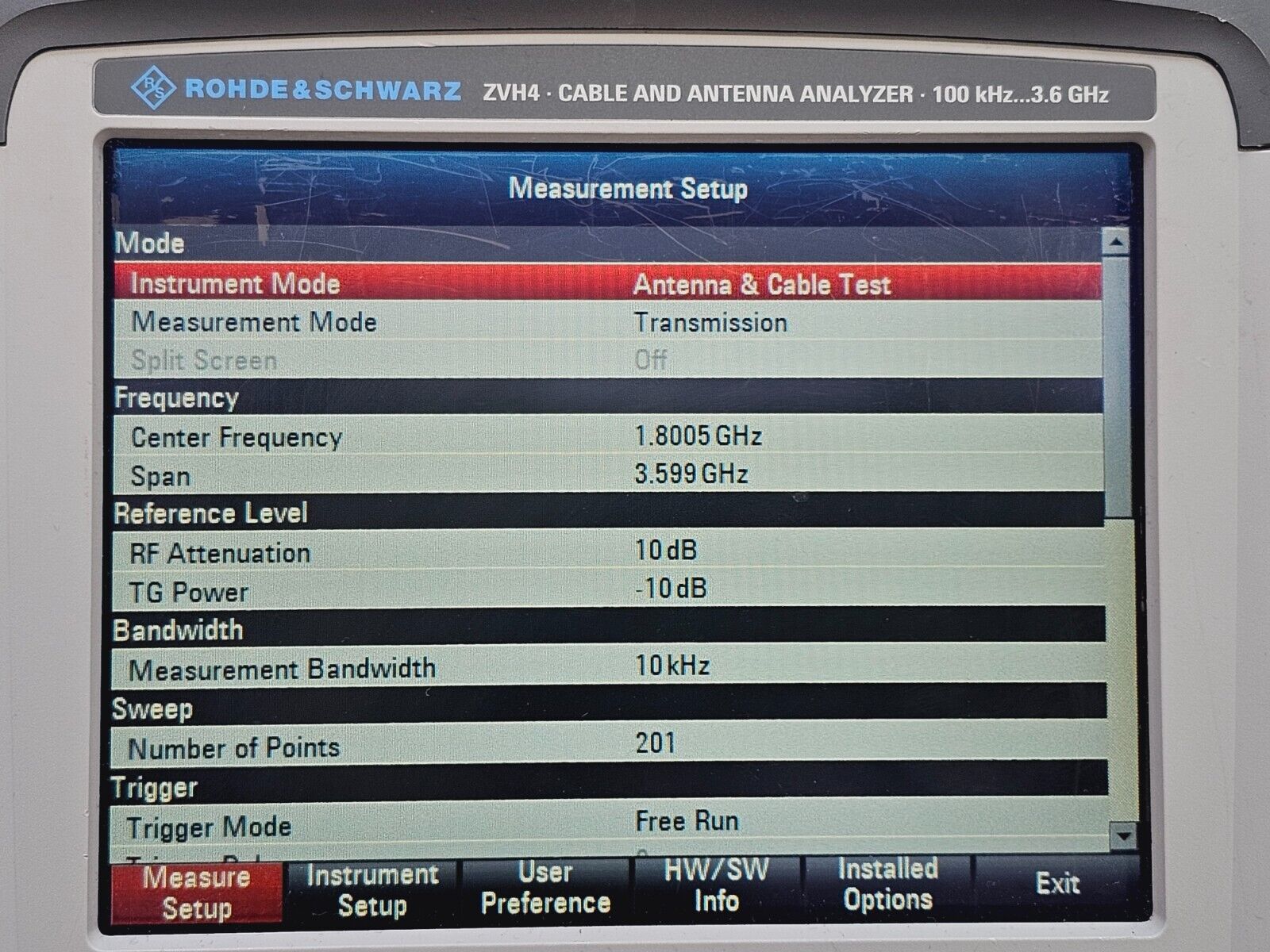

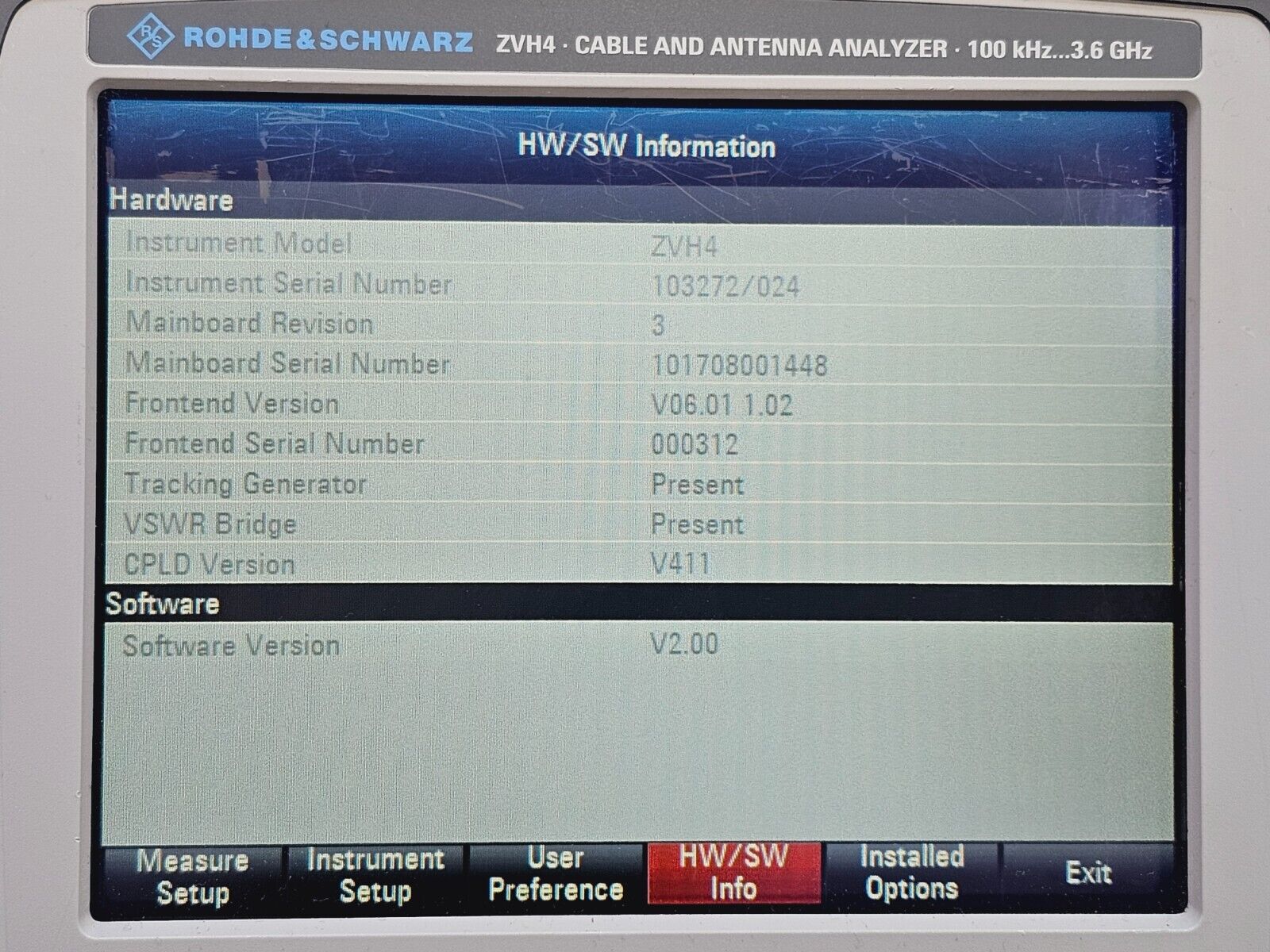

This Rohde & Schwarz ZVH4 Cable and Antenna Analyser is supplied in refurbished condition and has been professionally calibrated in August 2024. The unit is fitted with Option K1 (cable and antenna analysis) and Option K39 (vector voltmeter), and also supports spectrum analysis and transmission measurement functionality. Please refer to the images for full details of installed options and cosmetic condition.

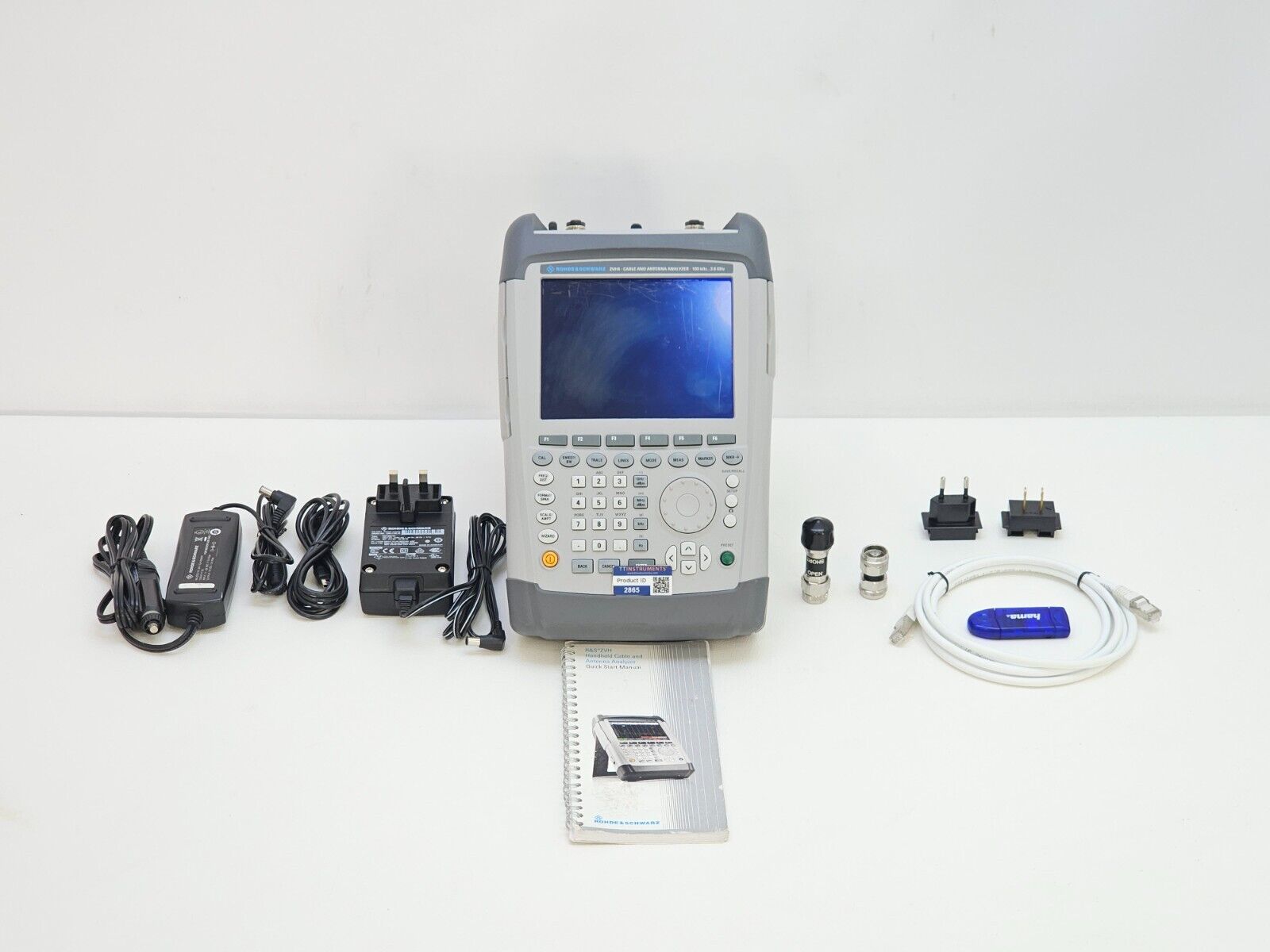

Included in the sale:

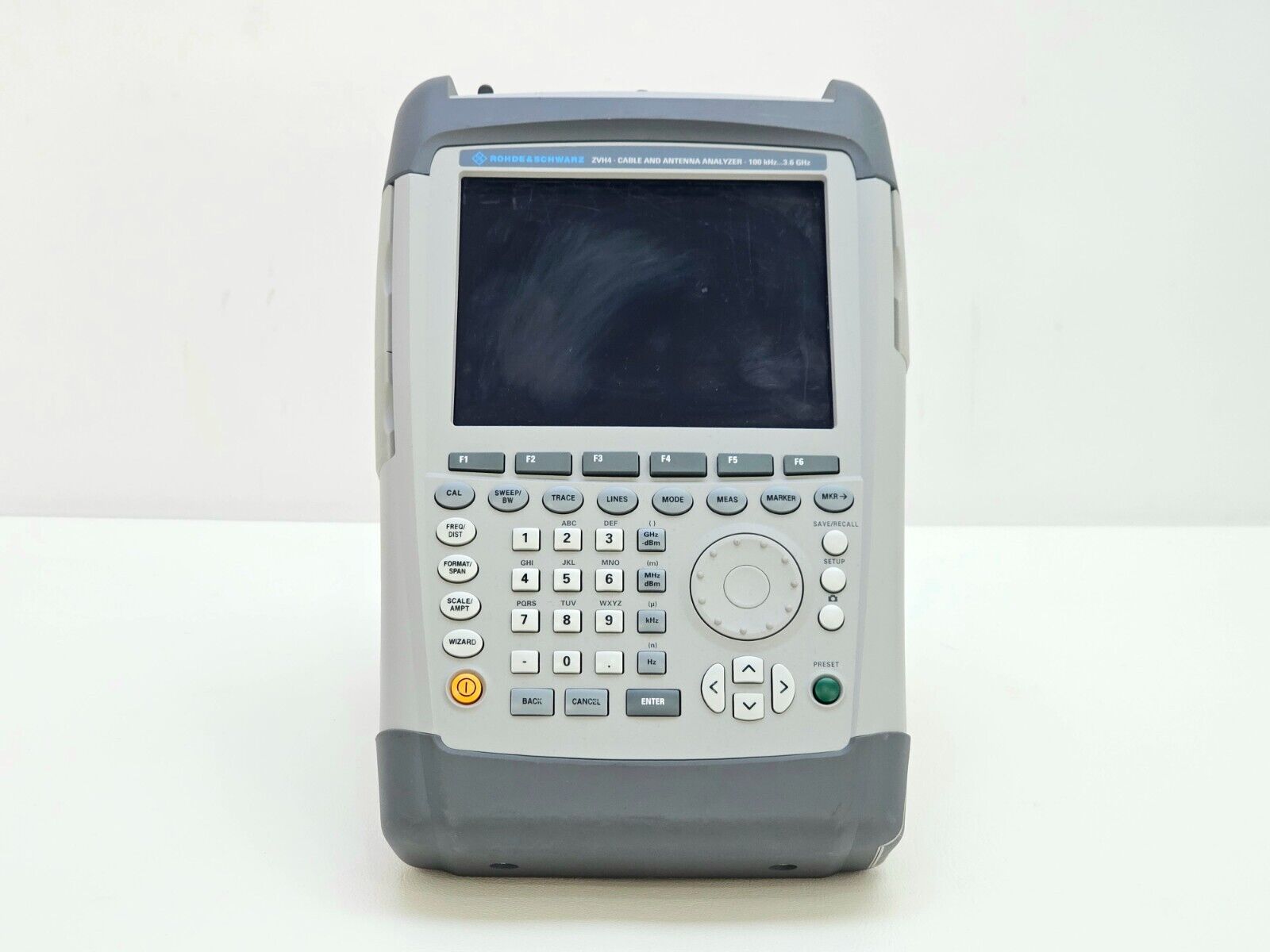

• Rohde & Schwarz ZVH4 Cable and Antenna Analyser

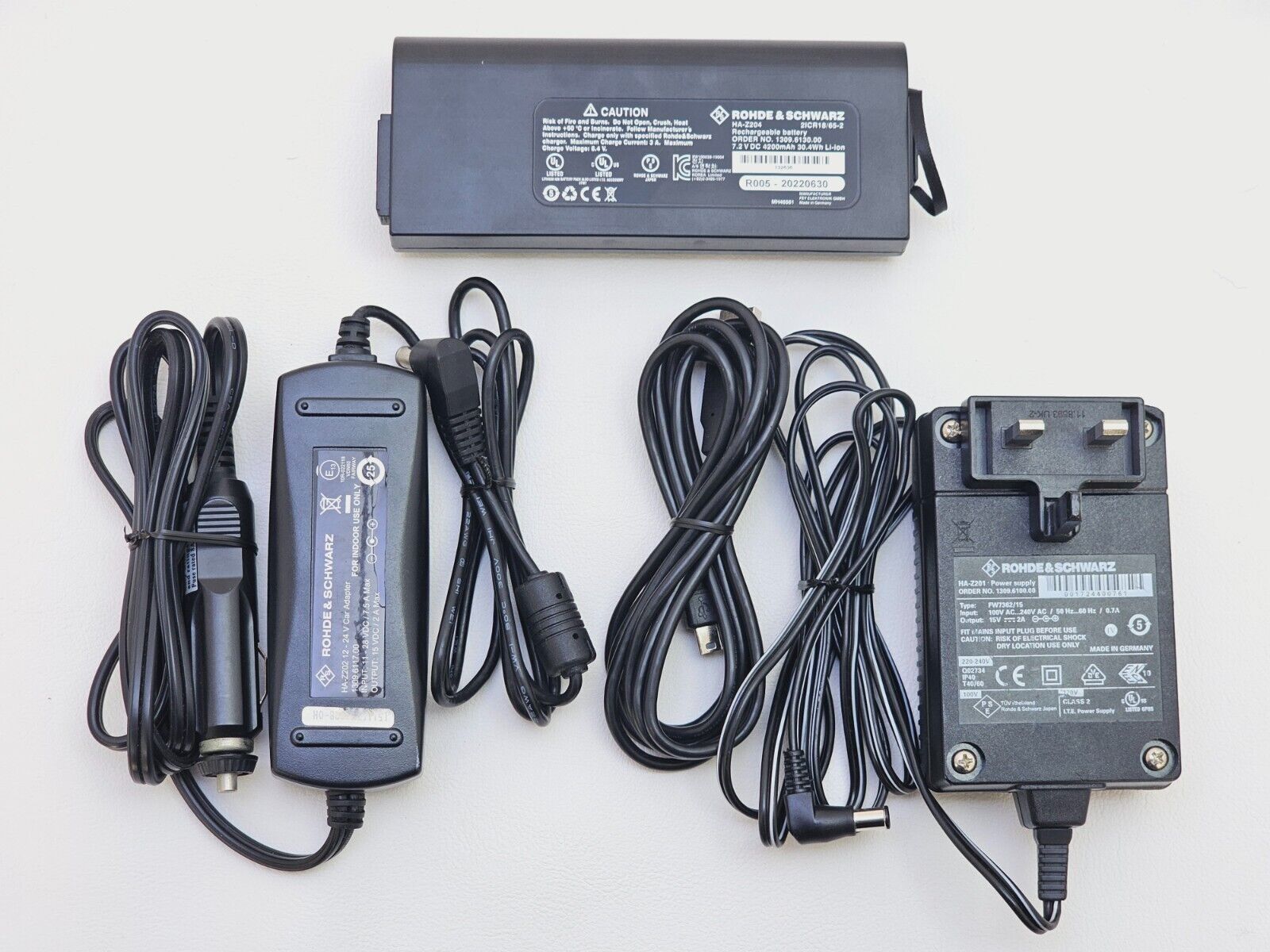

• Power adapter

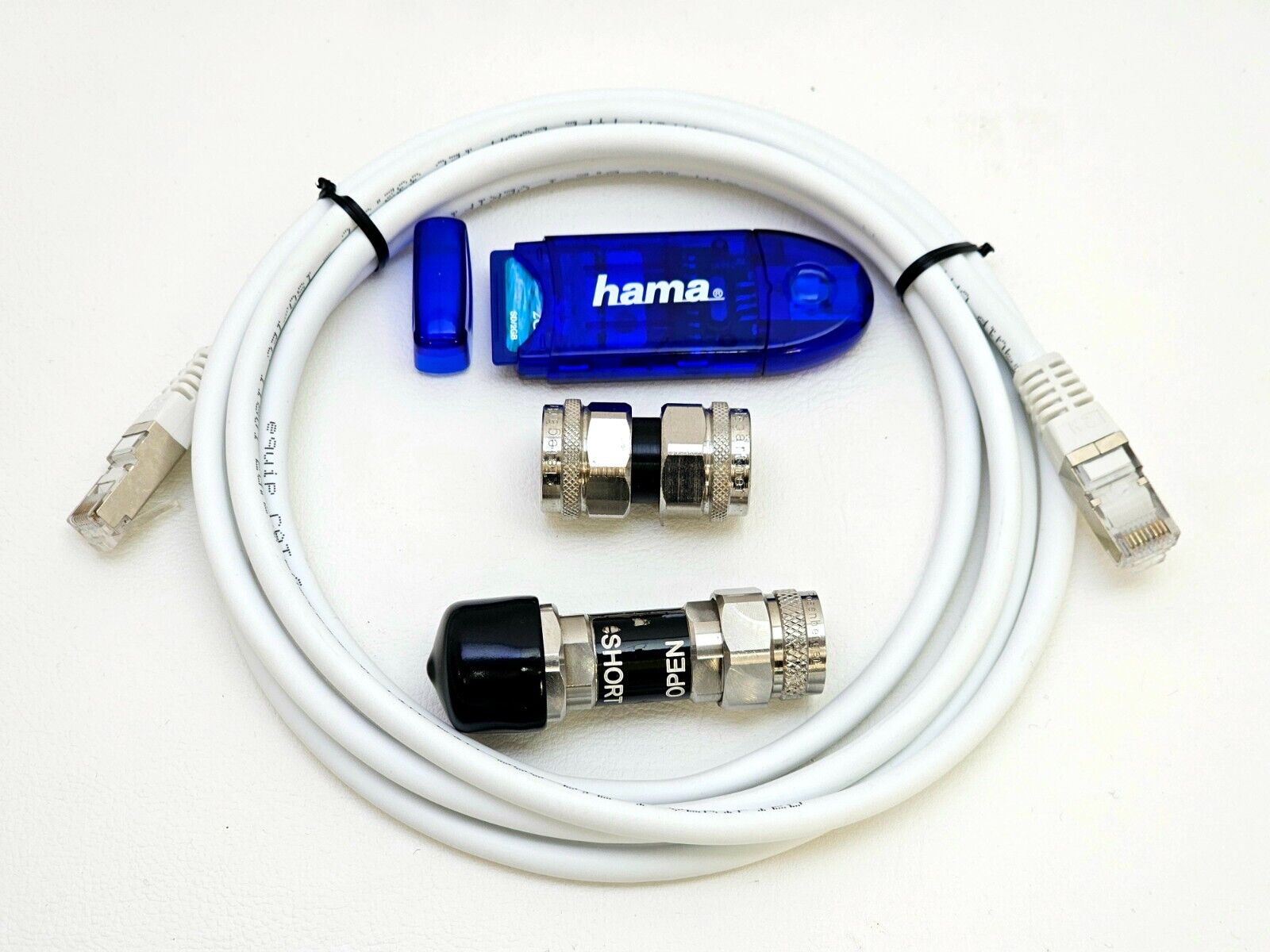

• Pictured accessories

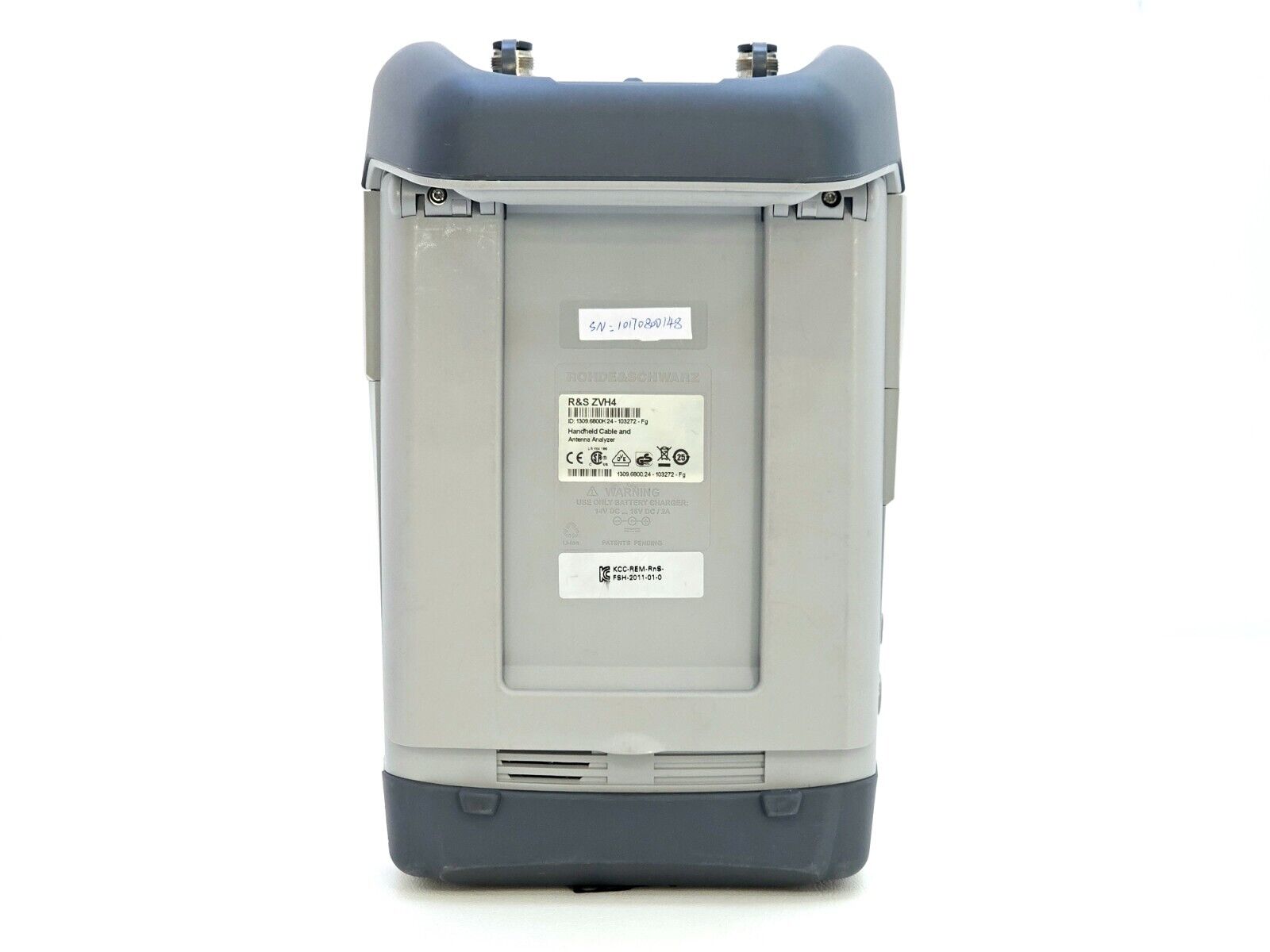

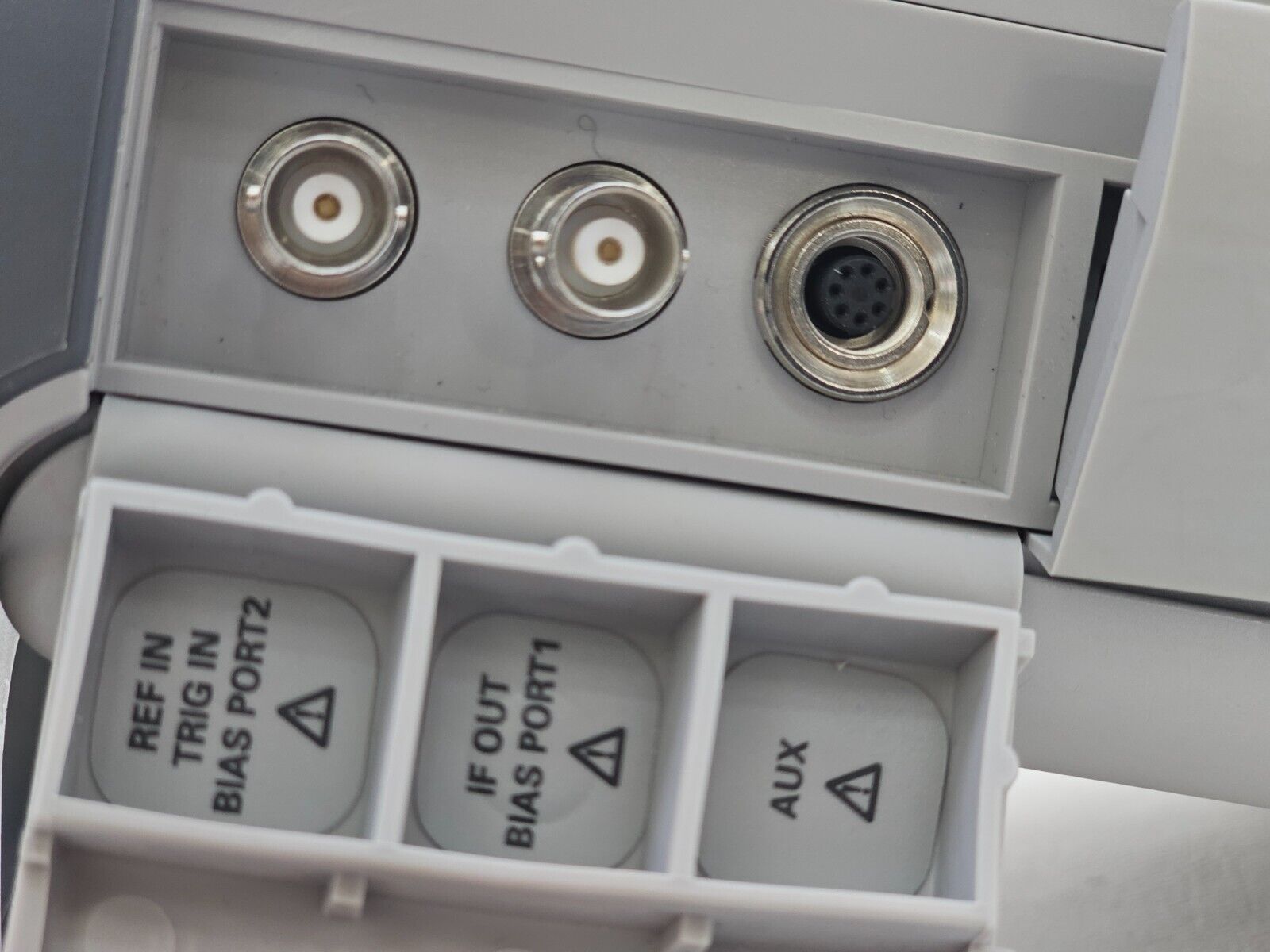

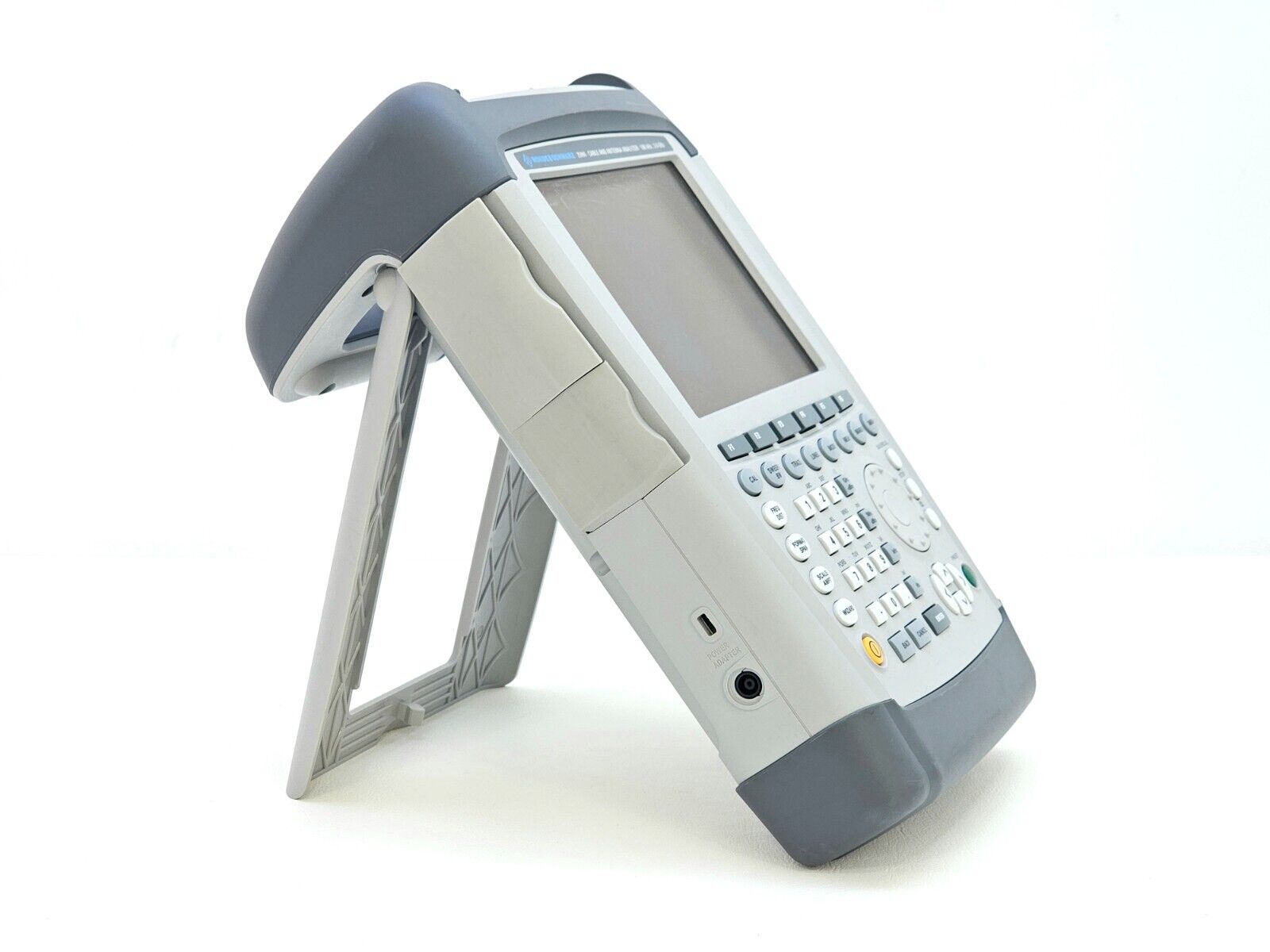

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

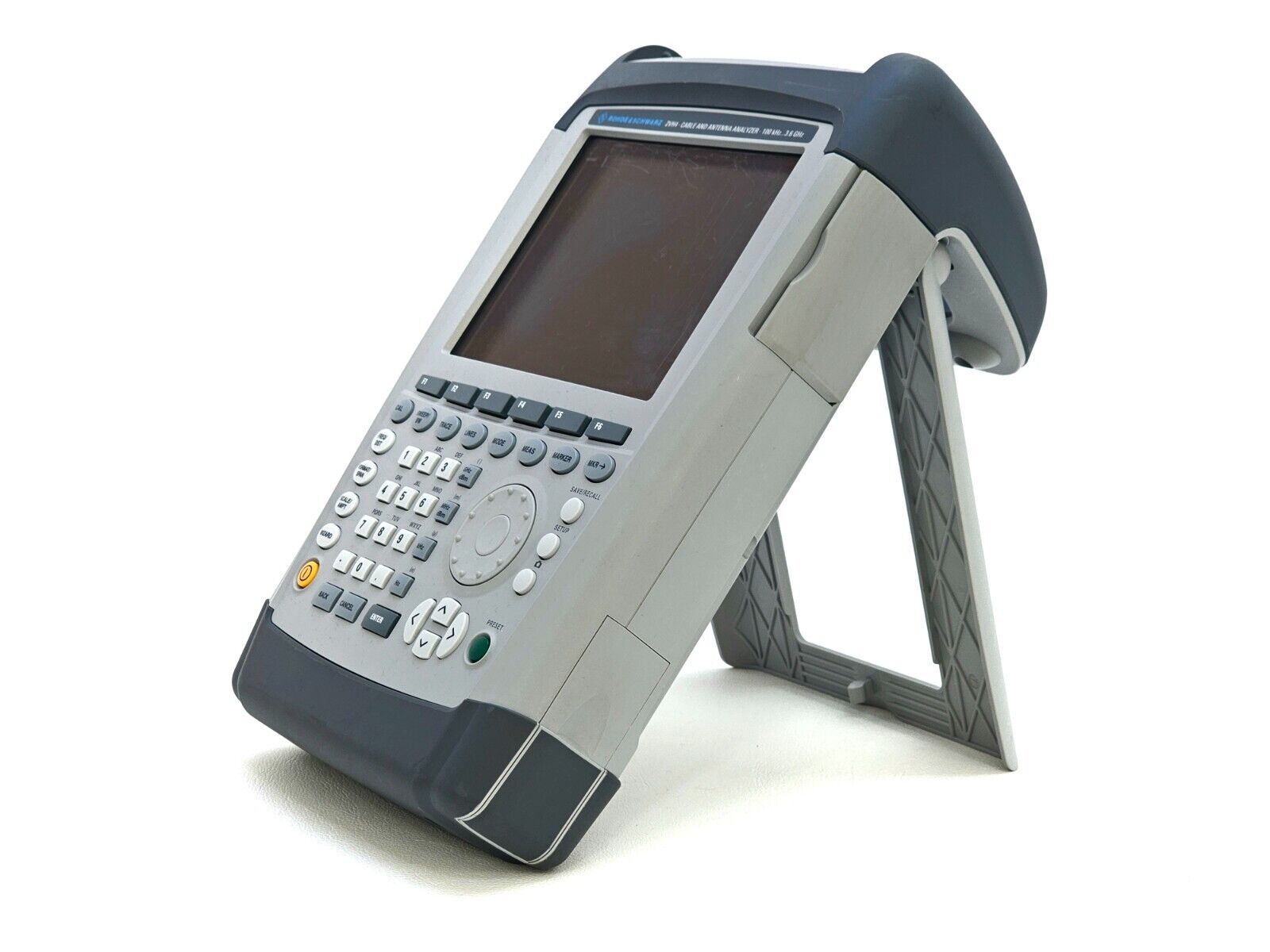

The Rohde & Schwarz ZVH4 is a handheld cable and antenna analyser designed for field use in the installation, maintenance, and troubleshooting of antenna systems, feedlines, and RF components. With a frequency range of 100 kHz to 3.6 GHz, it combines multiple measurement functions in a single rugged, portable instrument suited to demanding environments.

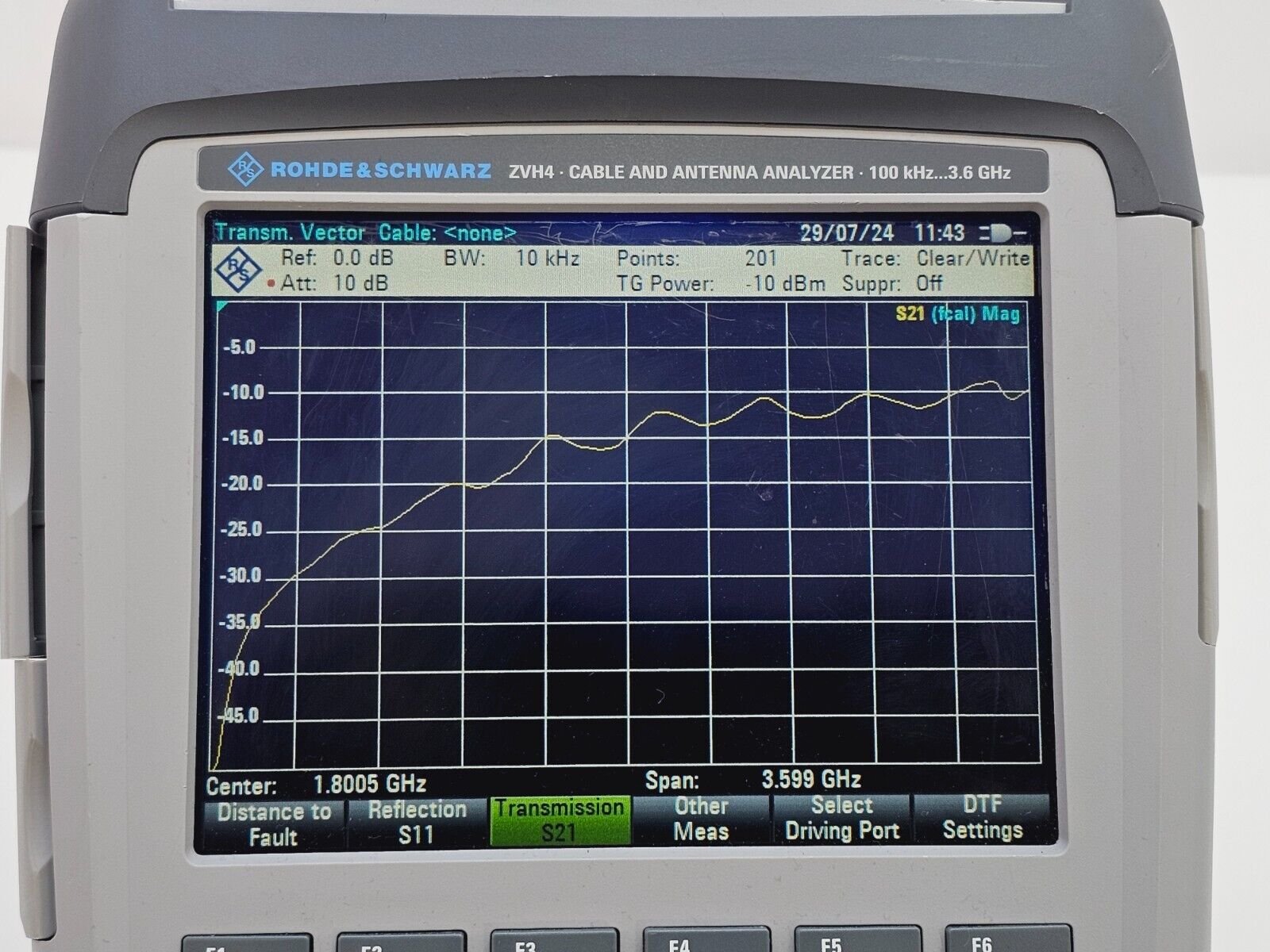

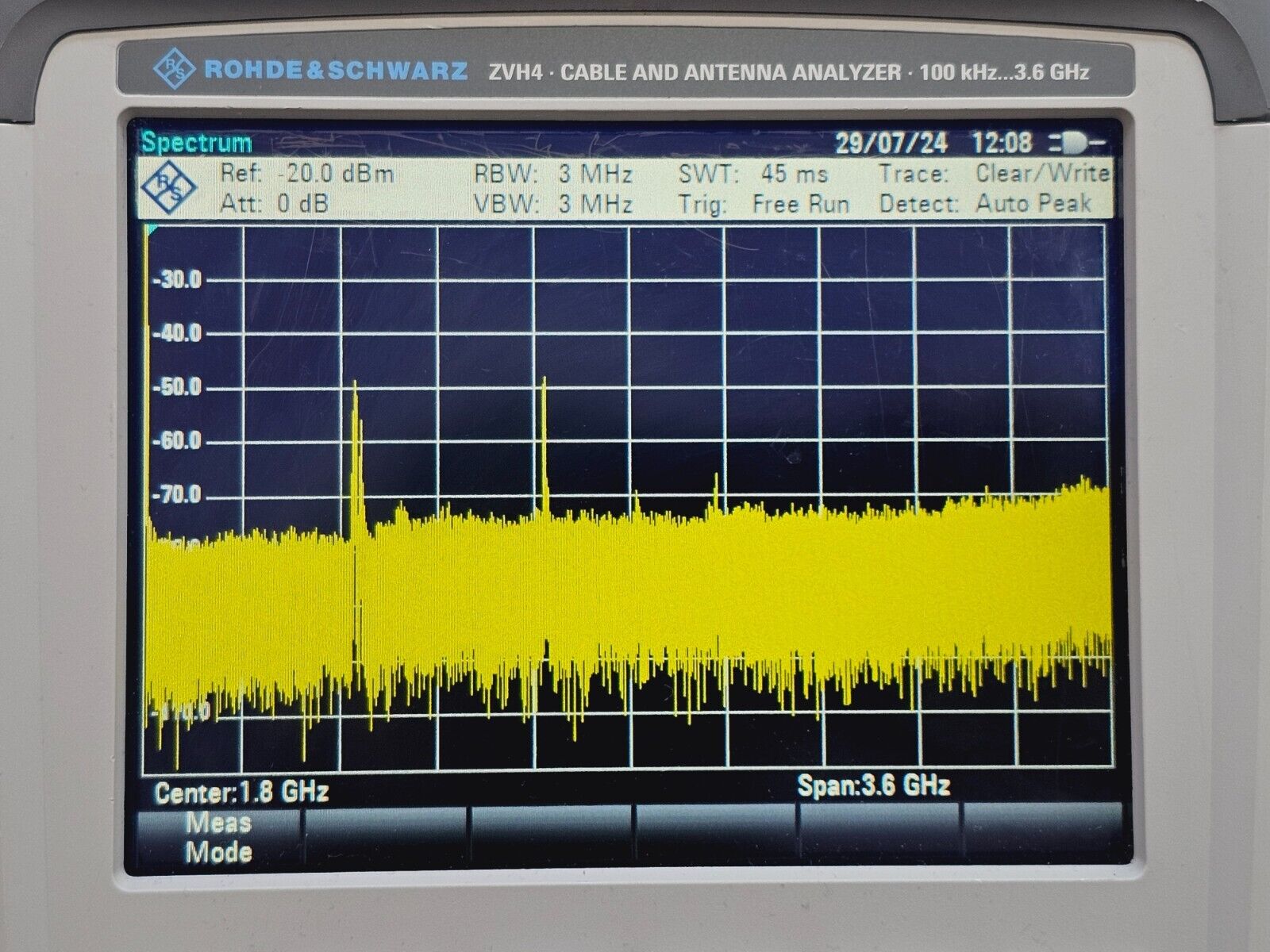

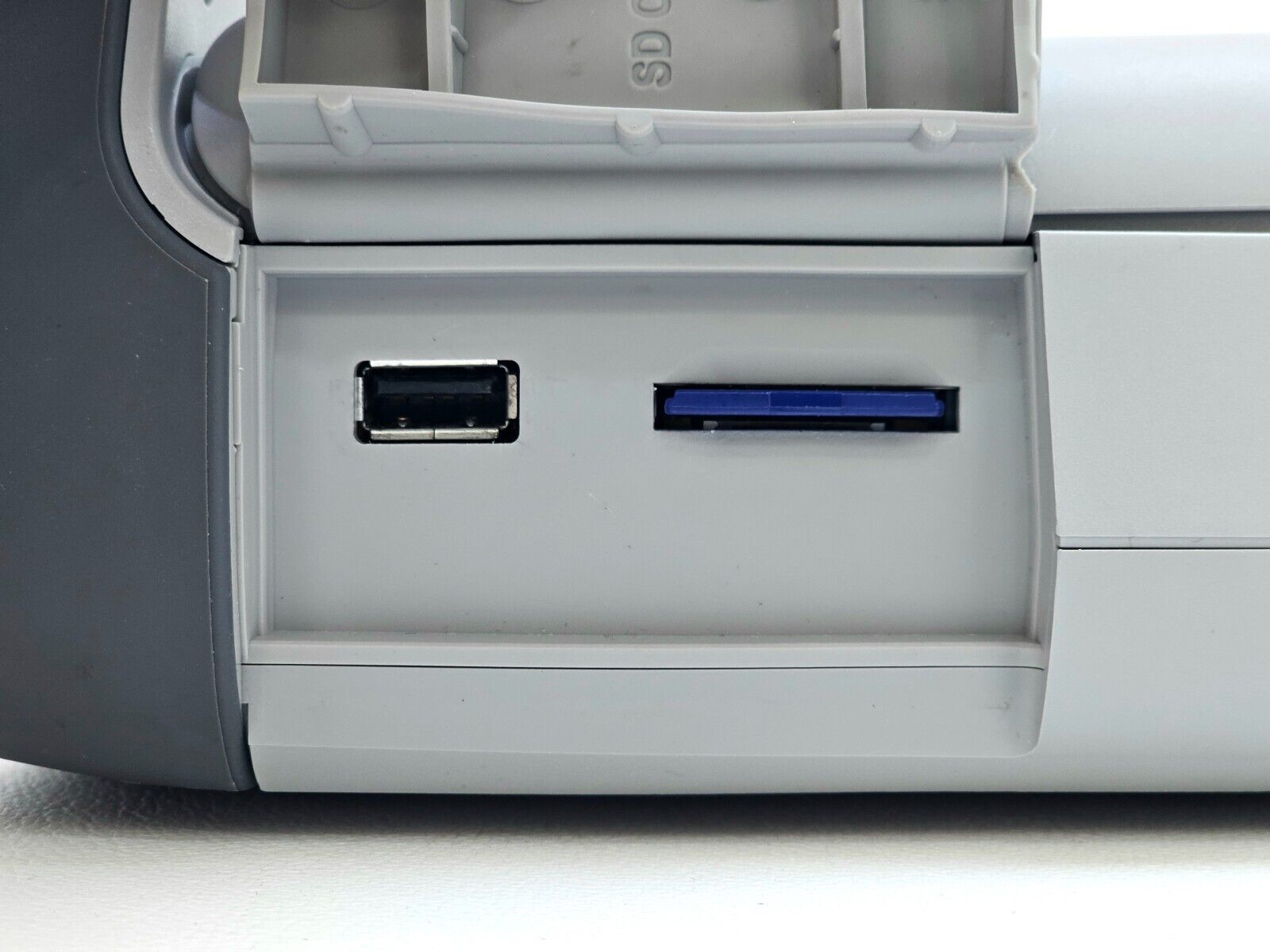

The ZVH4 supports vector network analysis, enabling accurate characterisation of return loss, VSWR, cable loss, distance-to-fault (DTF), and impedance. With the appropriate software options, it also functions as a spectrum analyser and supports transmission measurements. The instrument features a large colour display, internal memory for storing results and traces, and a USB interface for data transfer.

Key Specifications:
Frequency Range: 100 kHz to 3.6 GHz
Measurement Functions: Cable and antenna analysis, spectrum analysis, transmission measurement
Option K1: Cable and antenna analysis (return loss, VSWR, DTF, cable loss, impedance)
Option K39: Vector voltmeter
Dynamic Range: Typically >95 dB
Display: Colour TFT LCD

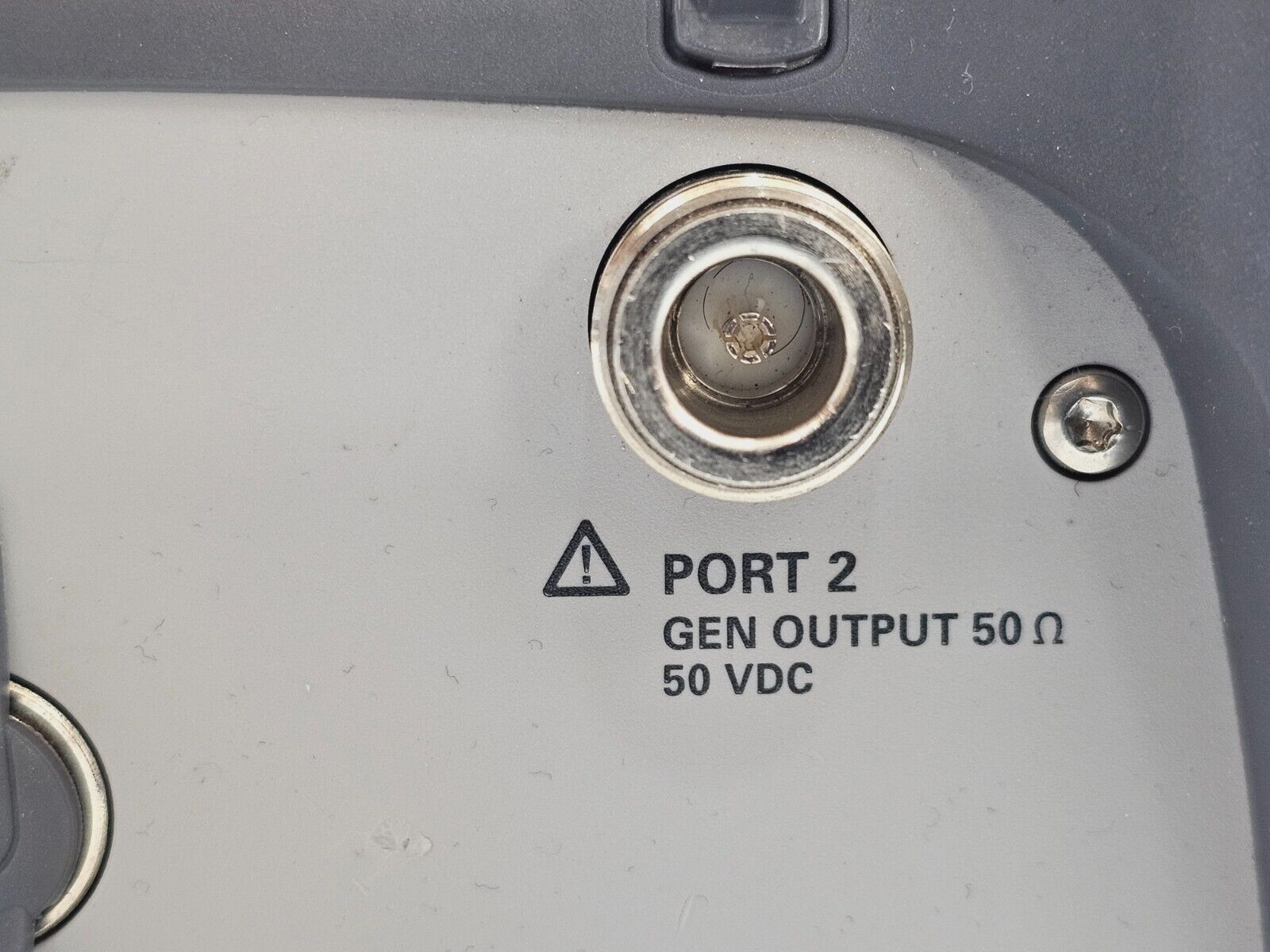

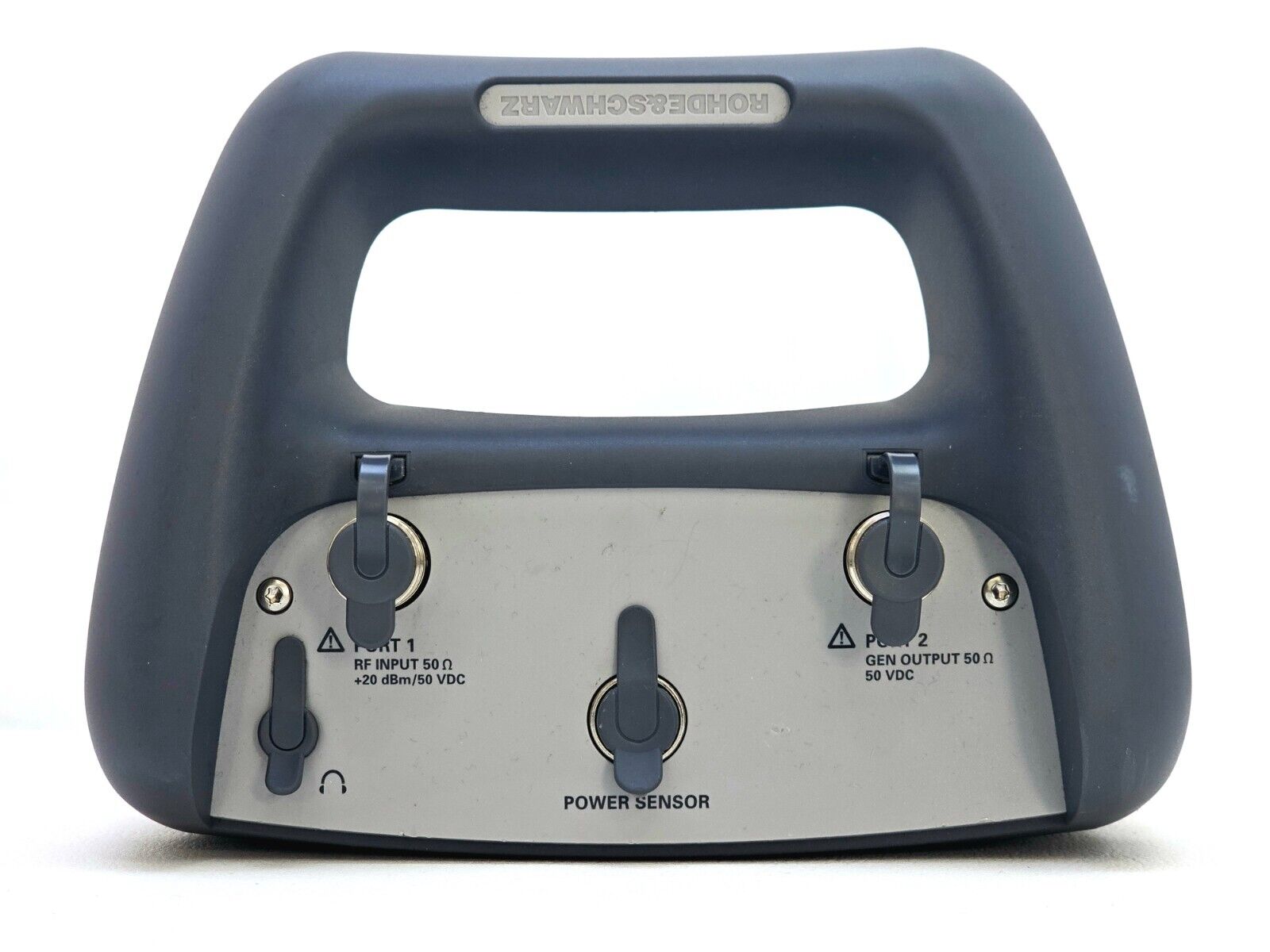

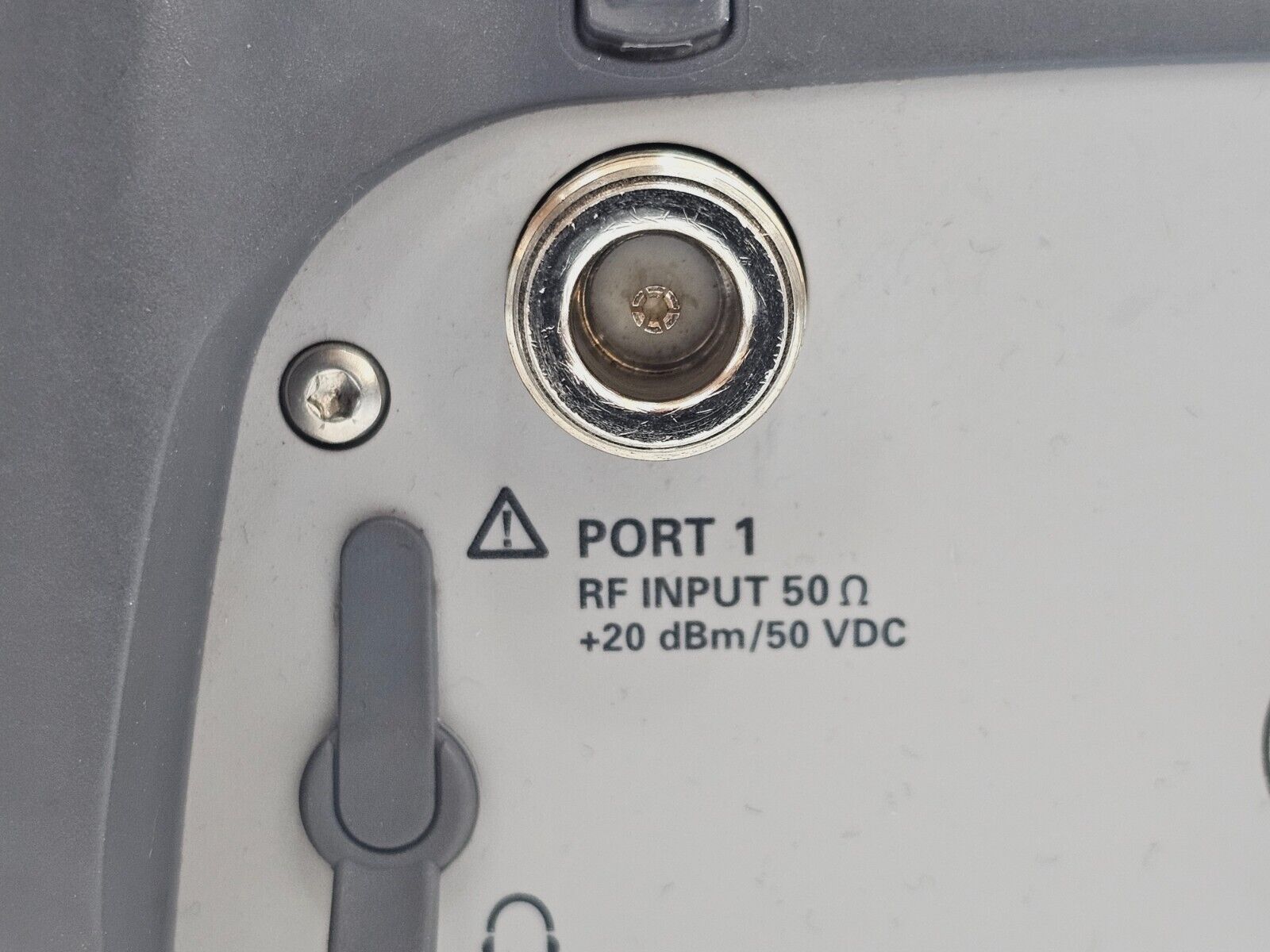

Connector: N-type (RF input/output)

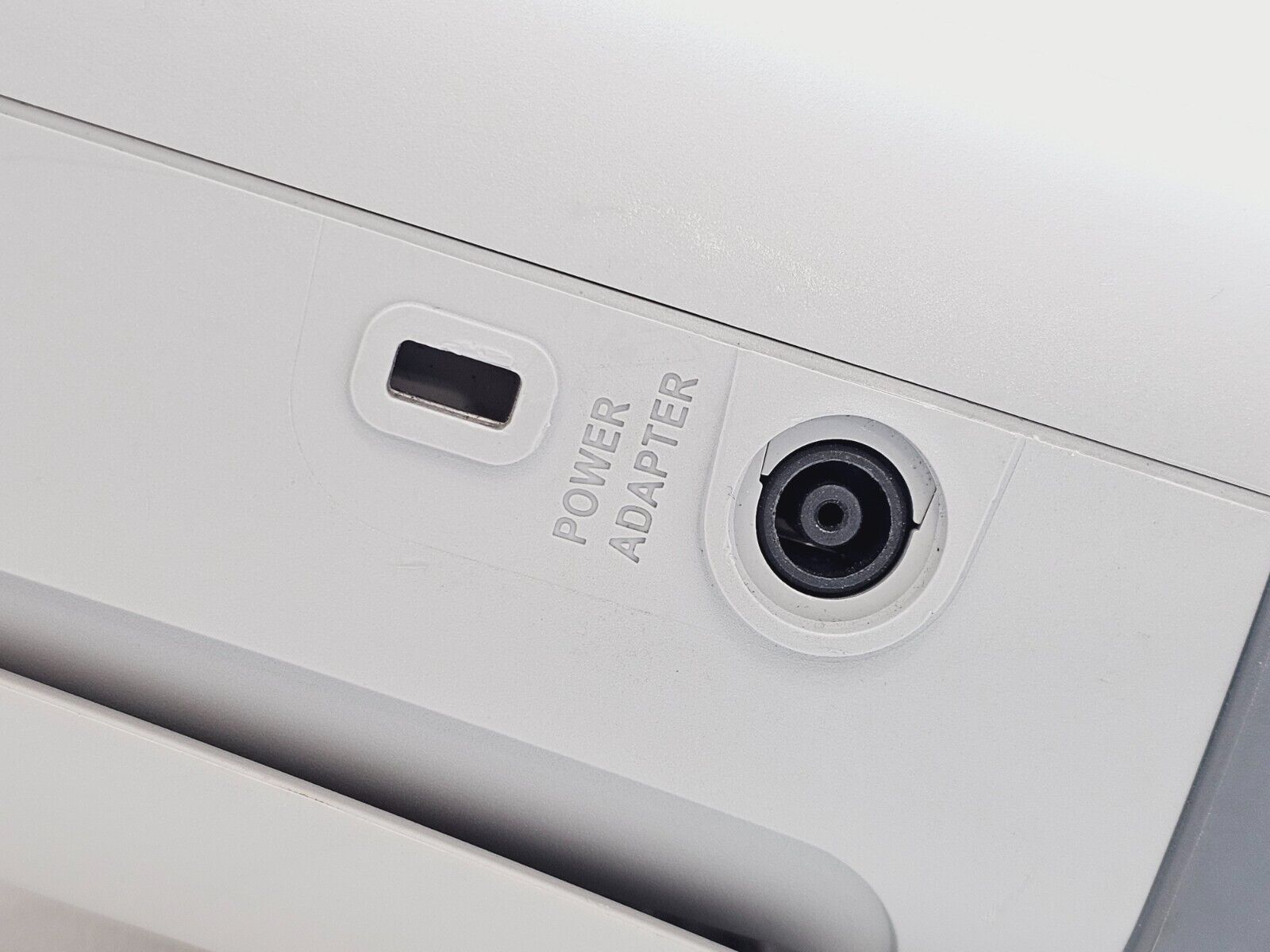

Power Supply: AC adapter or internal Li-ion battery
Dimensions: Approx. 270 mm x 190 mm x 70 mm
Weight: Approx. 2.9 kg (with battery)

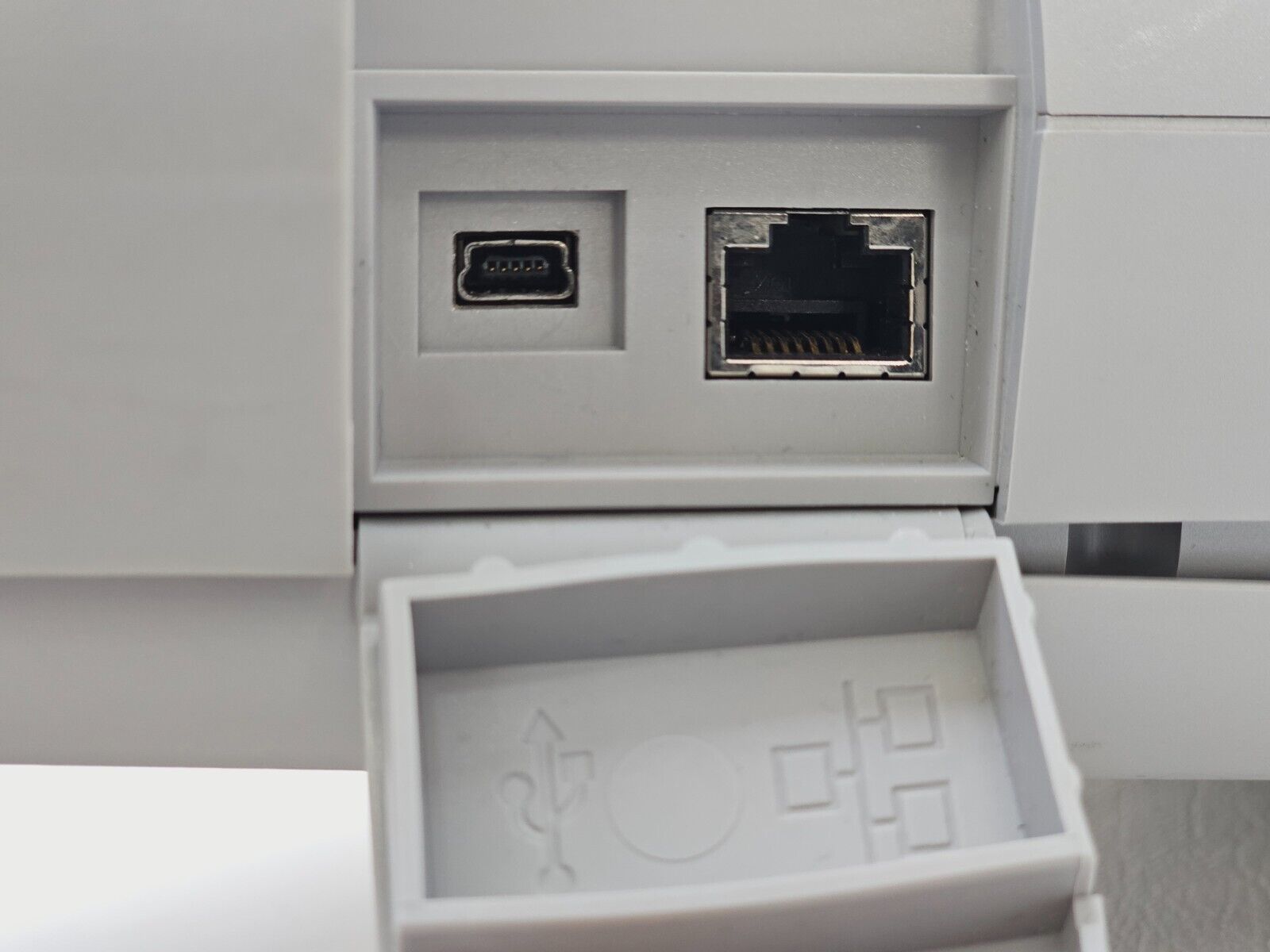

Interface: USB, LAN (model dependent)
Operating Temperature: 0 °C to +50 °C

The ZVH4 is widely used by antenna engineers, field service technicians, and broadcast and telecoms professionals requiring a portable, accurate, and versatile RF line analyser.

Rohde & Schwarz ZVH4 Cable and Antenna Analyser product brochure (PDF): Download PDF
