Condition: Used

Tested and fully functional.

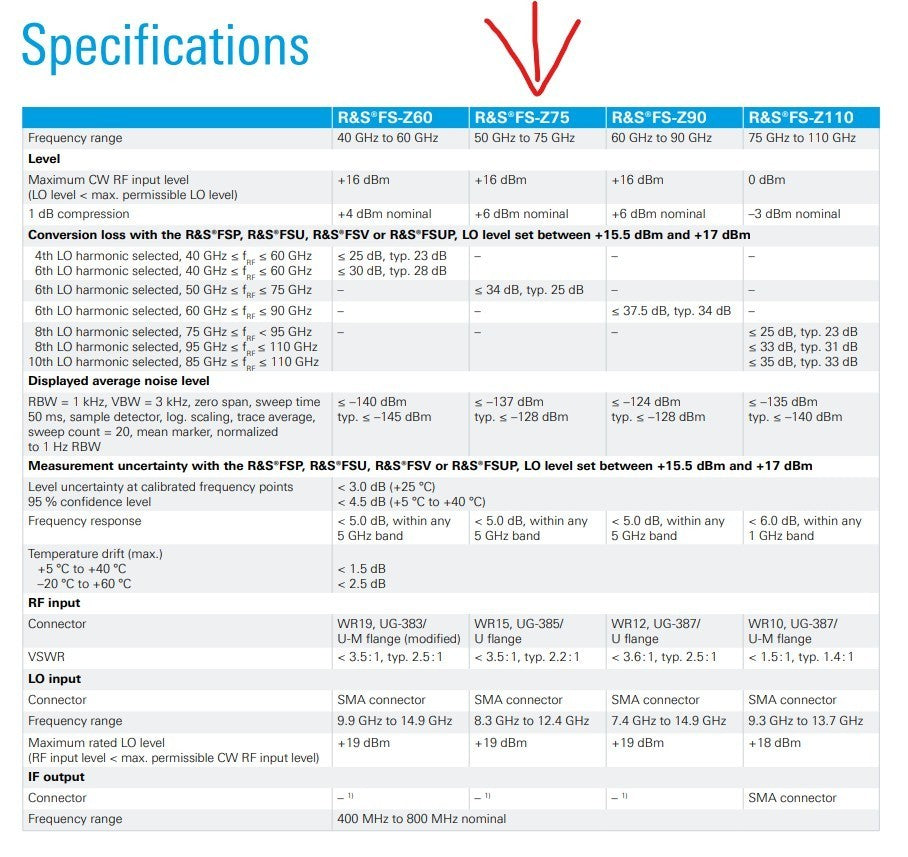

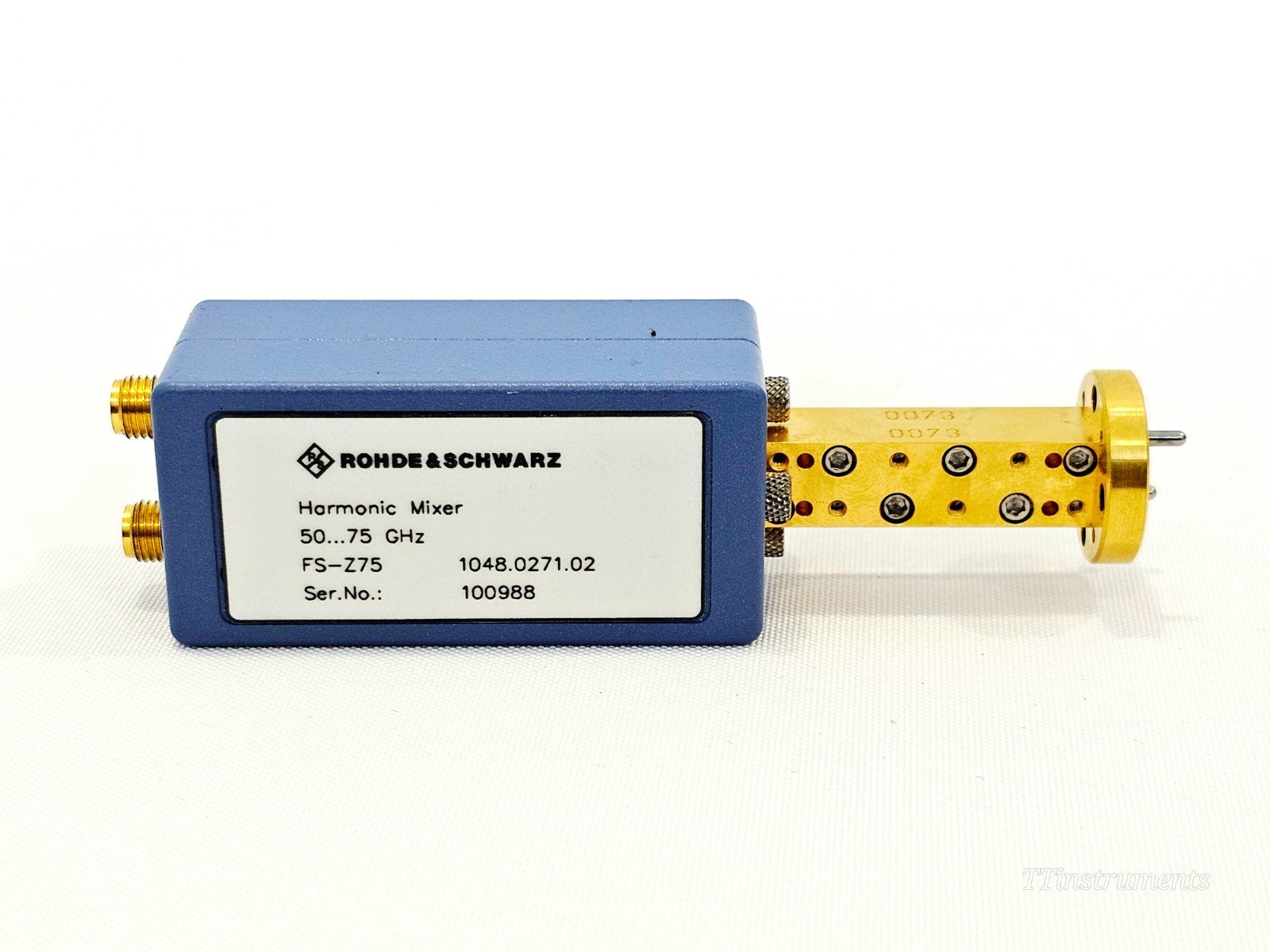

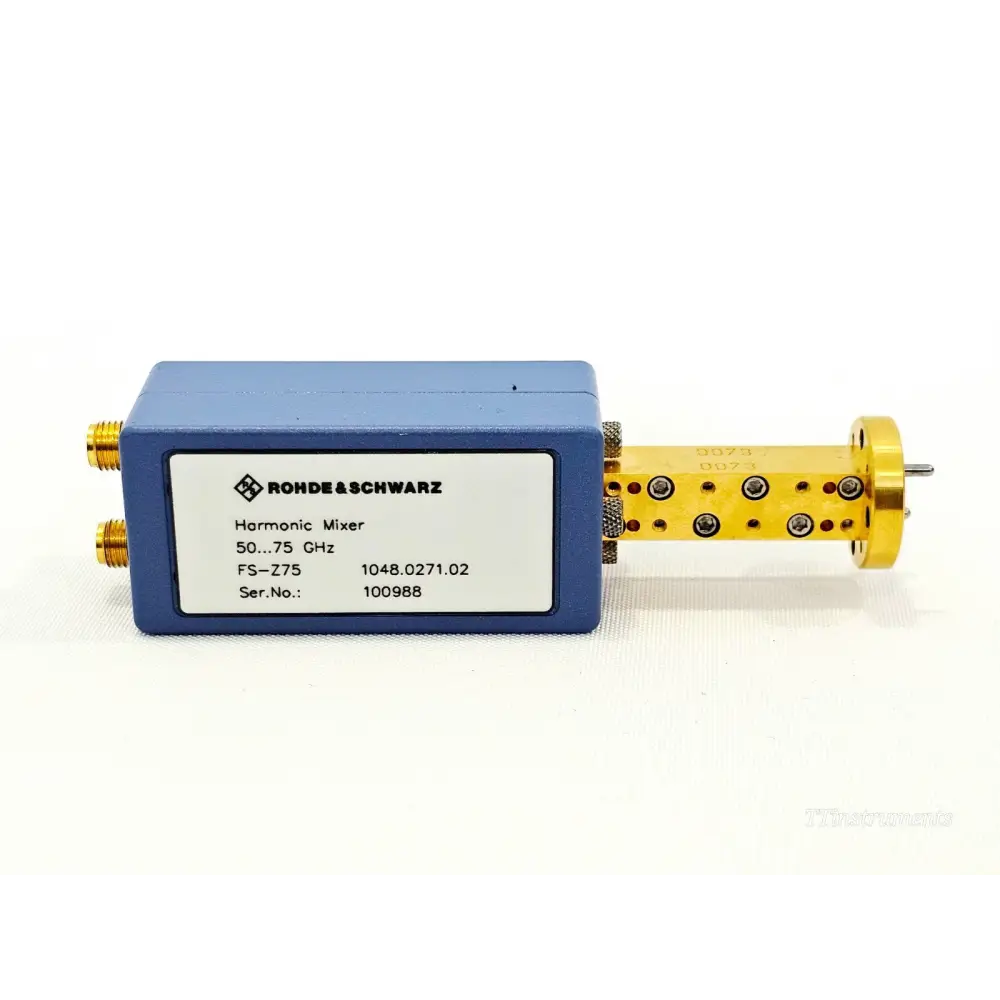

The R&S®FS-Z60/-Z75/-Z90/-Z110 harmonic mixers extend the frequency range of the R&S®FSU/FSQ/ FSP/FSV spectrum and signal analyzers as well as of the R&S®FSUP signal source analyzer up to 110 GHz.

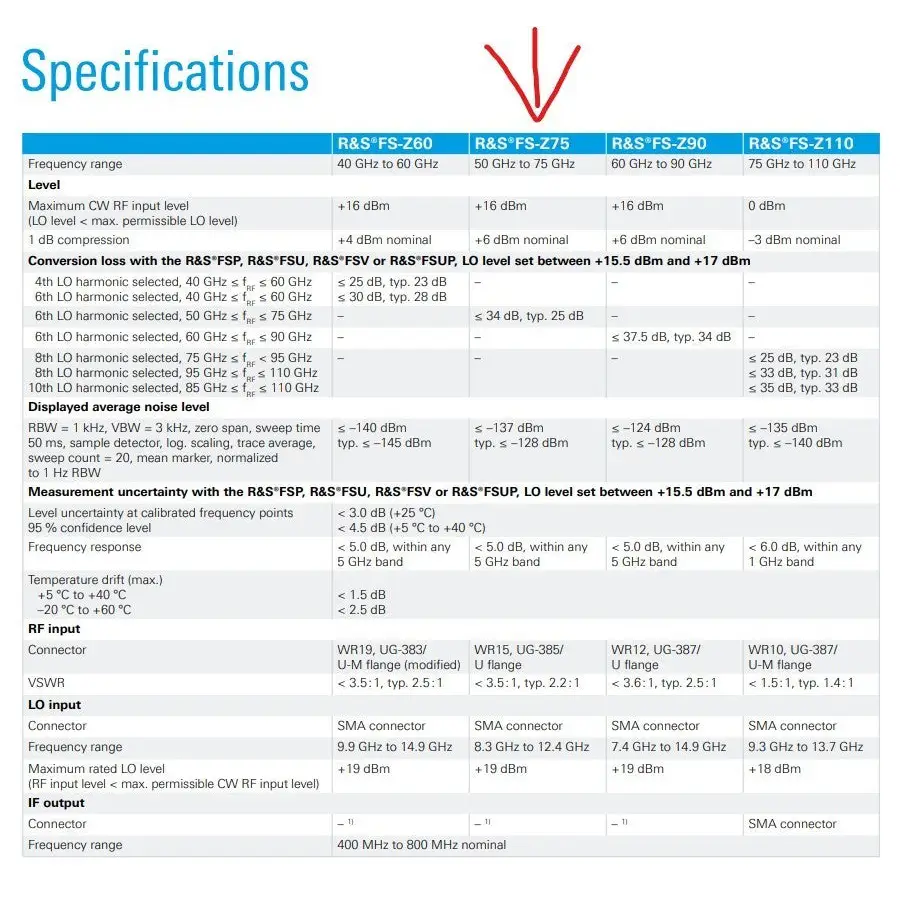

The mixers additionally feature the following: J Low conversion loss J High 1 dB compression point J High LO frequency range J No biasing required J Conversion loss data provided in file format

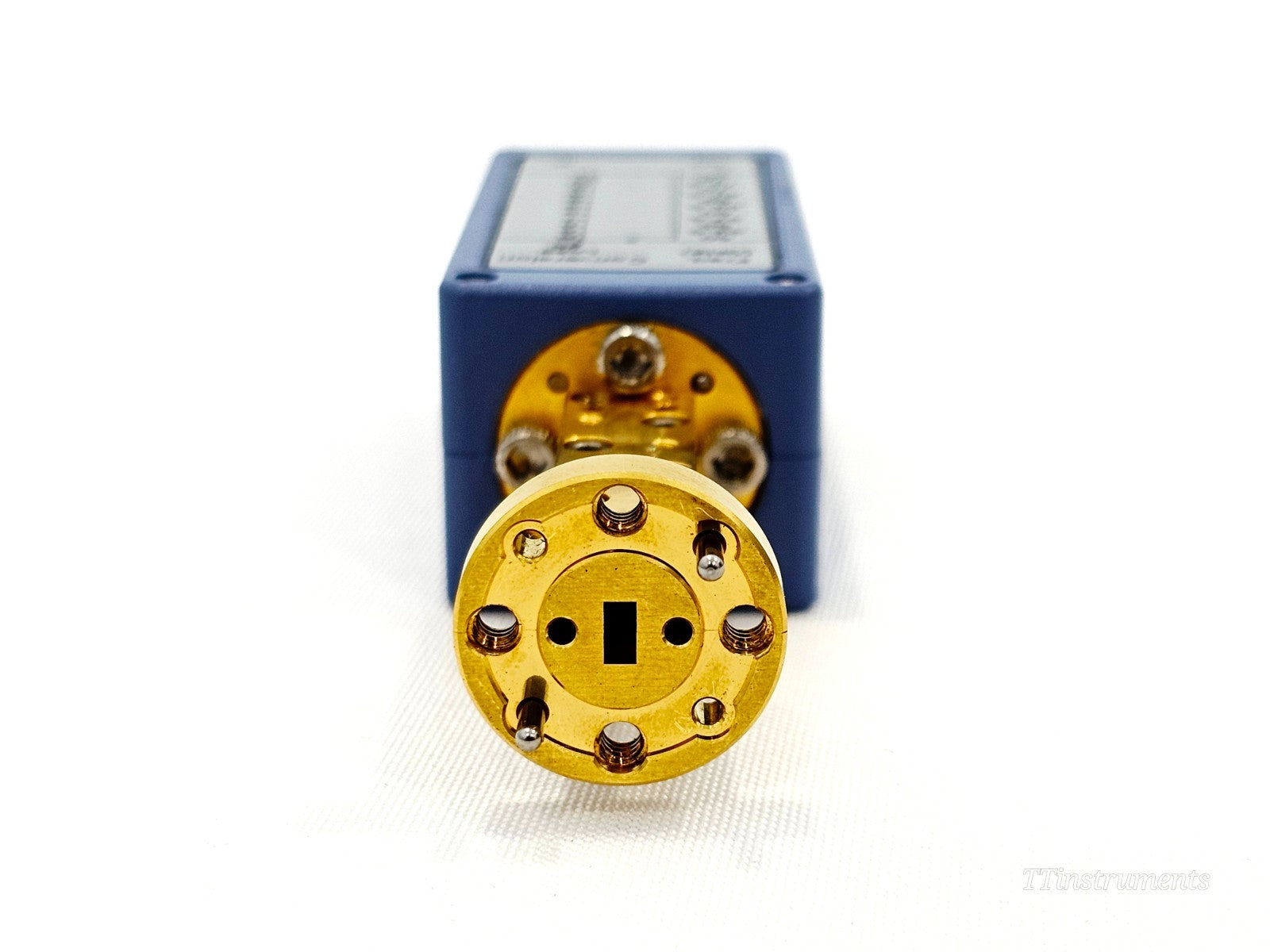

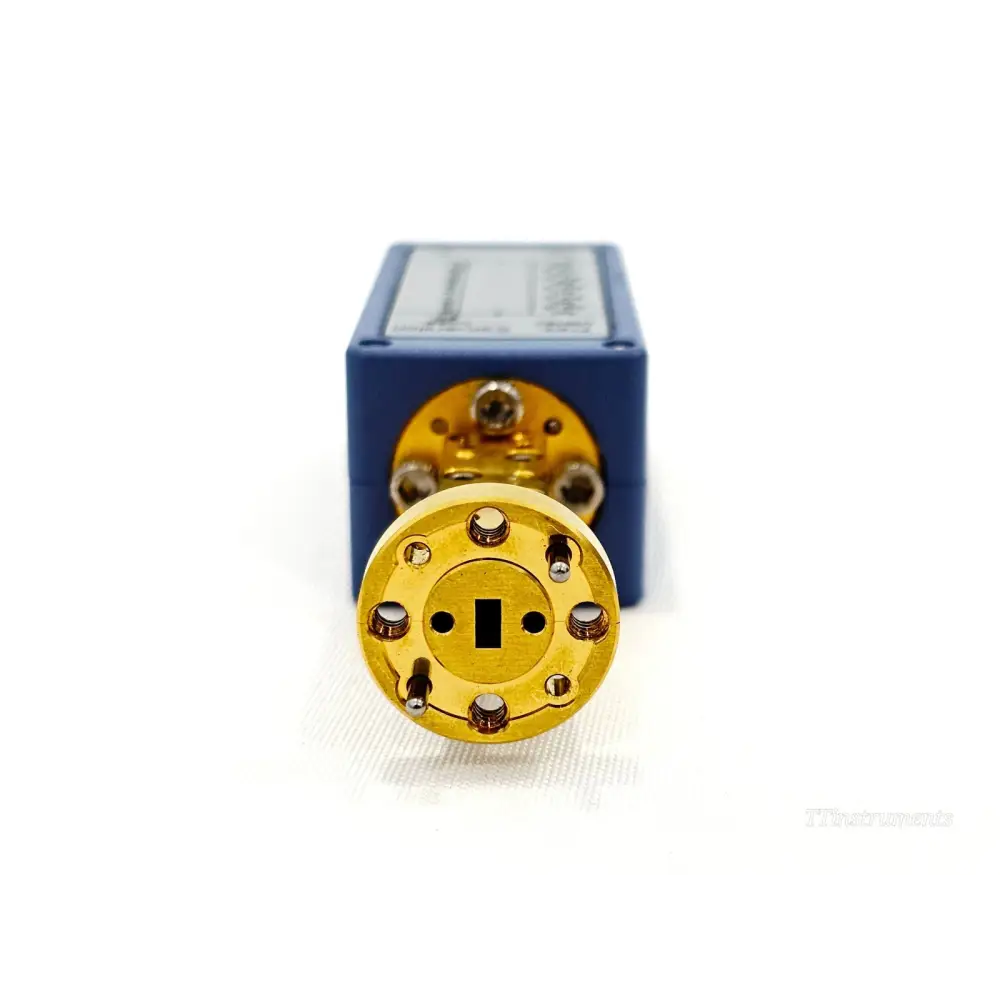

Covered waveguide bands: J R&S®FS-Z60: 40 GHz to 60 GHz (U band) J R&S®FS-Z75: 50 GHz to 75 GHz (V band) J R&S®FS-Z90: 60 GHz to 90 GHz (E band) J R&S®FS-Z110: 75 GHz to 110 GHz (W band)

Due to their double-diode design, the mixers are operated without any additional biasing. No frequency-dependent adjustment of bias current is needed – an invaluable feature for automated measurements.

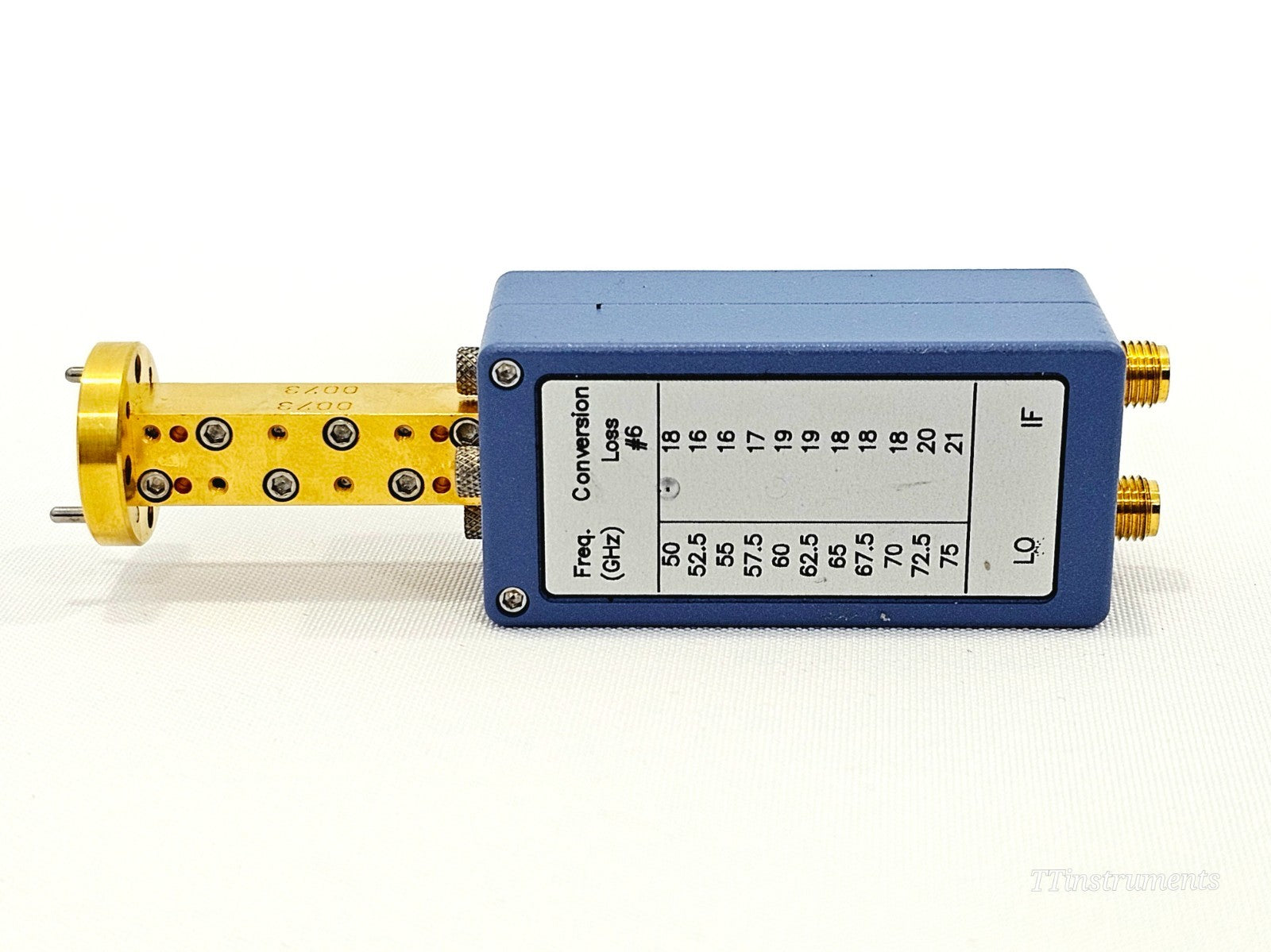

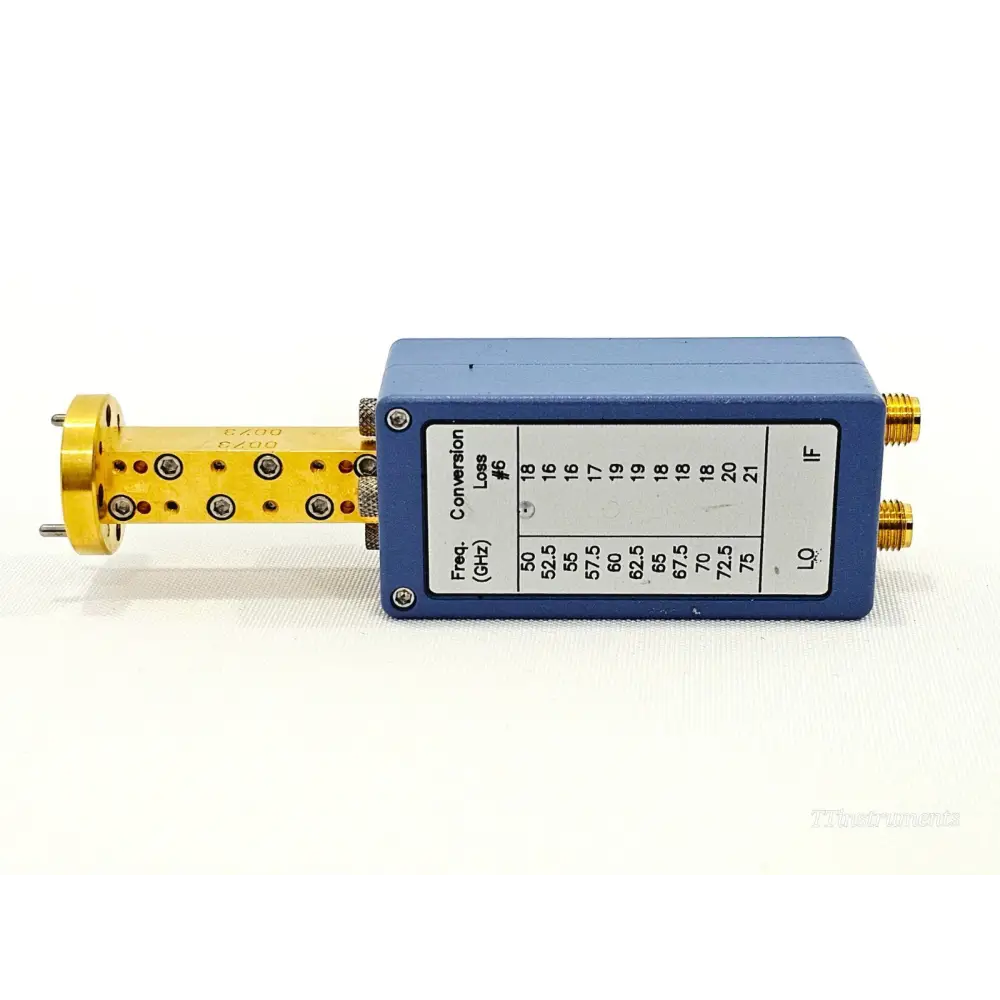

The frequency-dependent conversion loss is calibrated over the entire frequency range. The large number of frequency points included in the resulting conversion loss table provides high level accuracy during measurements. The conversion loss table comes in file format with each mixer and can be loaded directly into the analyzer, which makes mixer configuration very easy.

The following instrument models support the harmonic mixers (R&S®FSx-B21 option required): J R&S®FSP40 J R&S®FSU26/43/46/50/67 J R&S®FSQ26/40 J R&S®FSUP26/50 J R&S®FSV30/40
