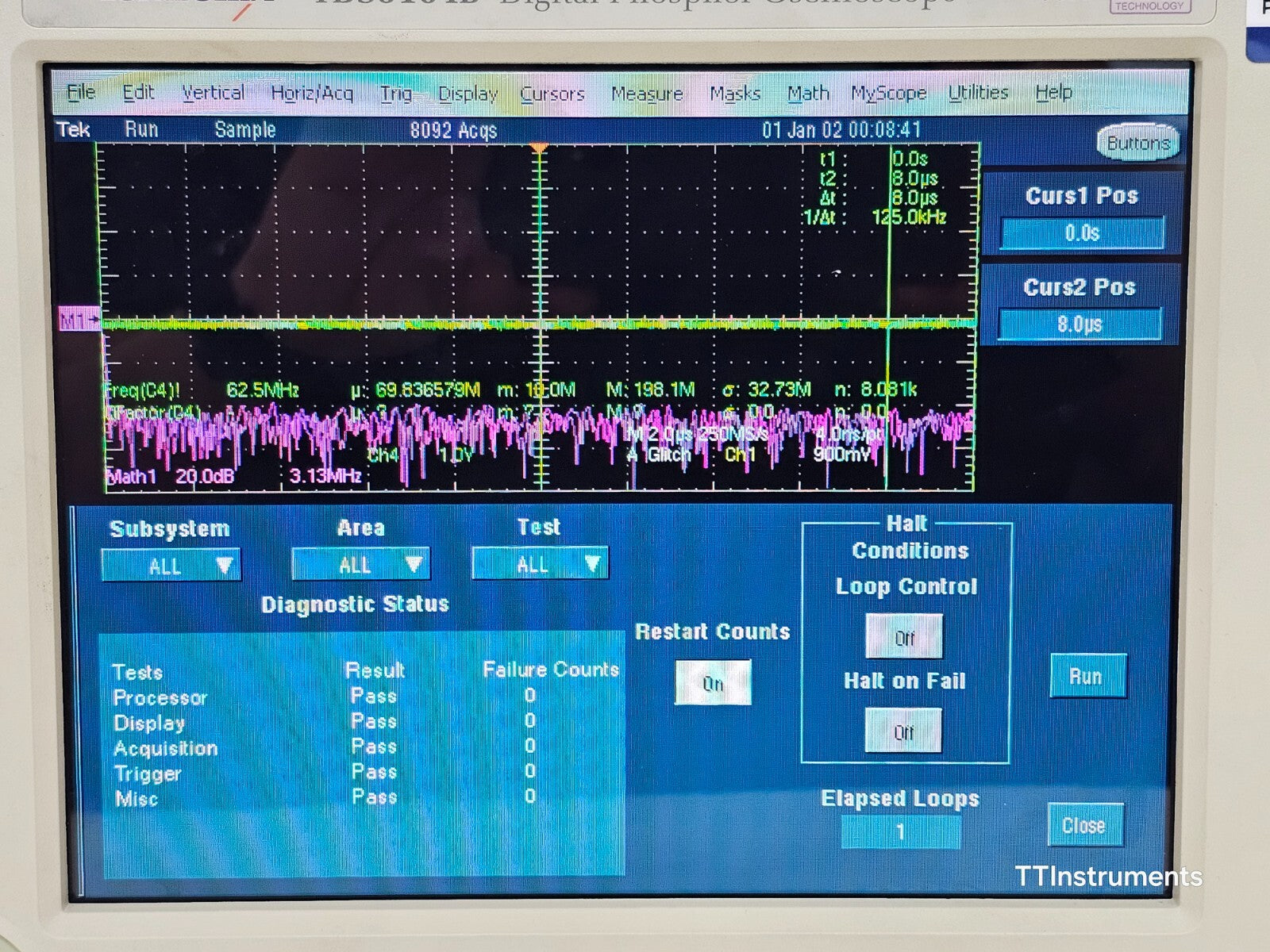

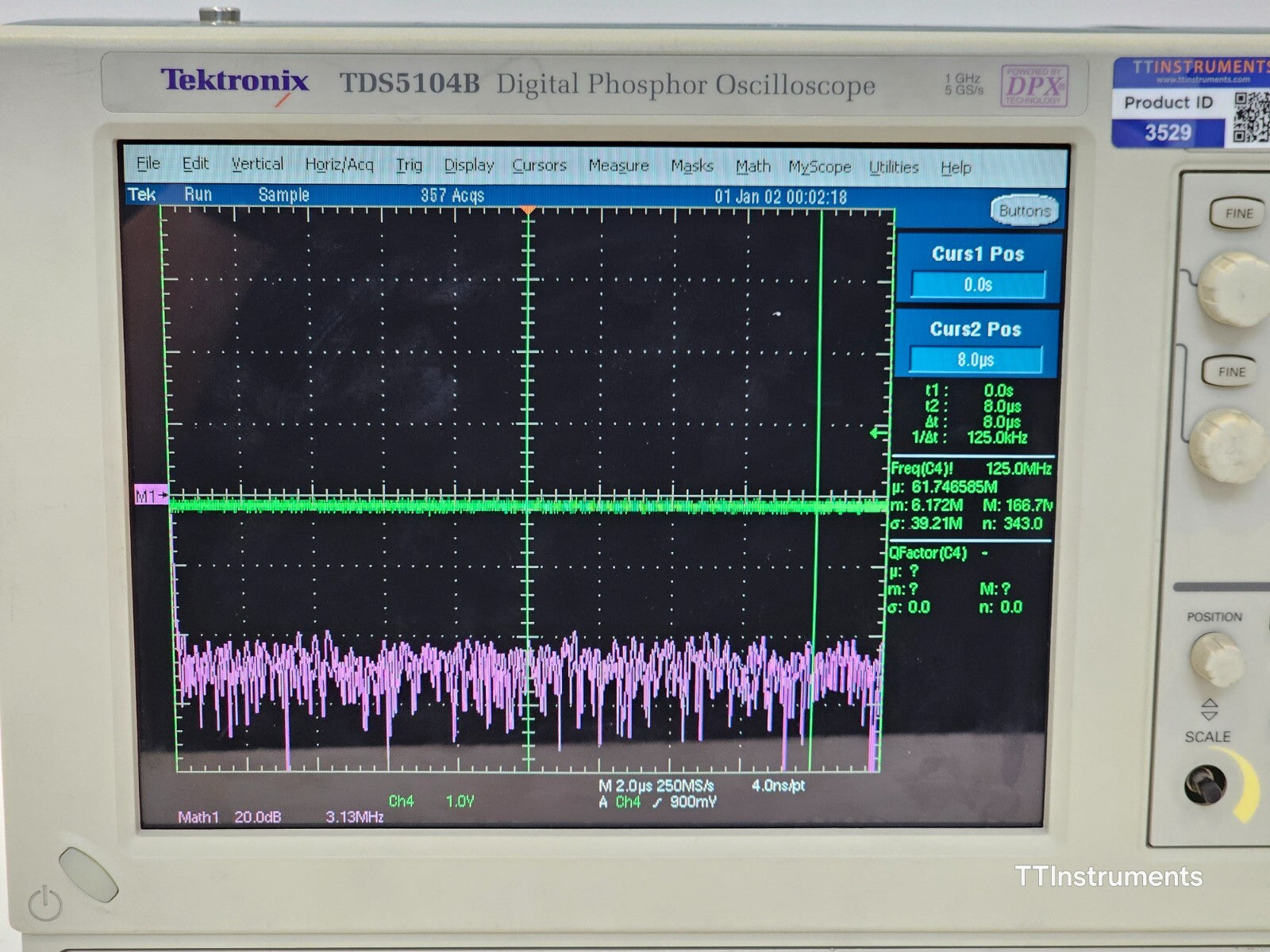

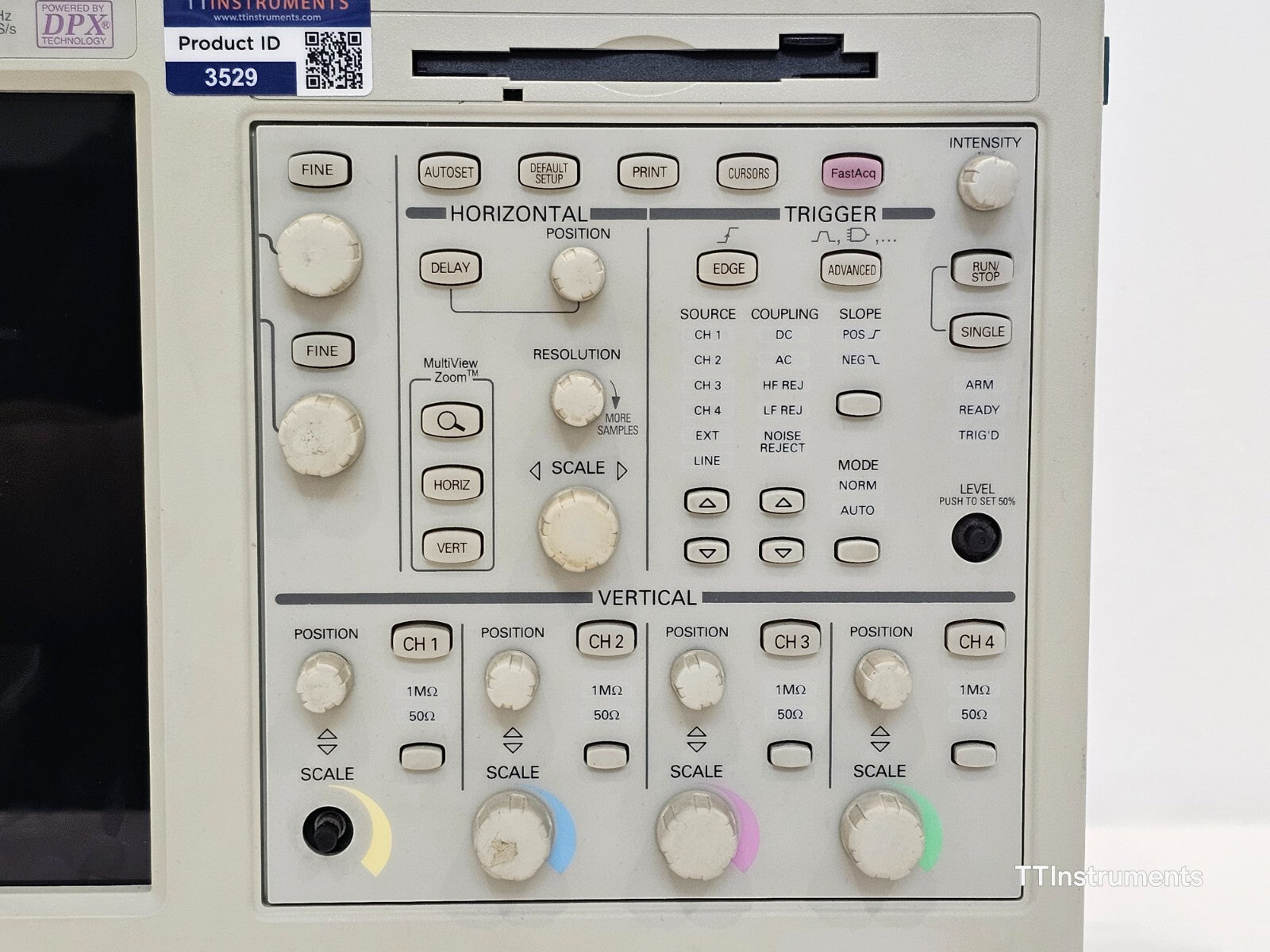

Condition: Used — 2 of the knobs are missing. Basic tests have been carried out and the unit appears functional.

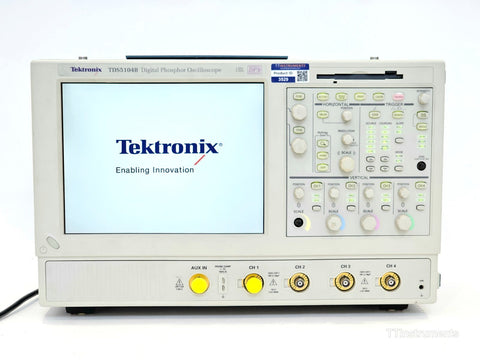

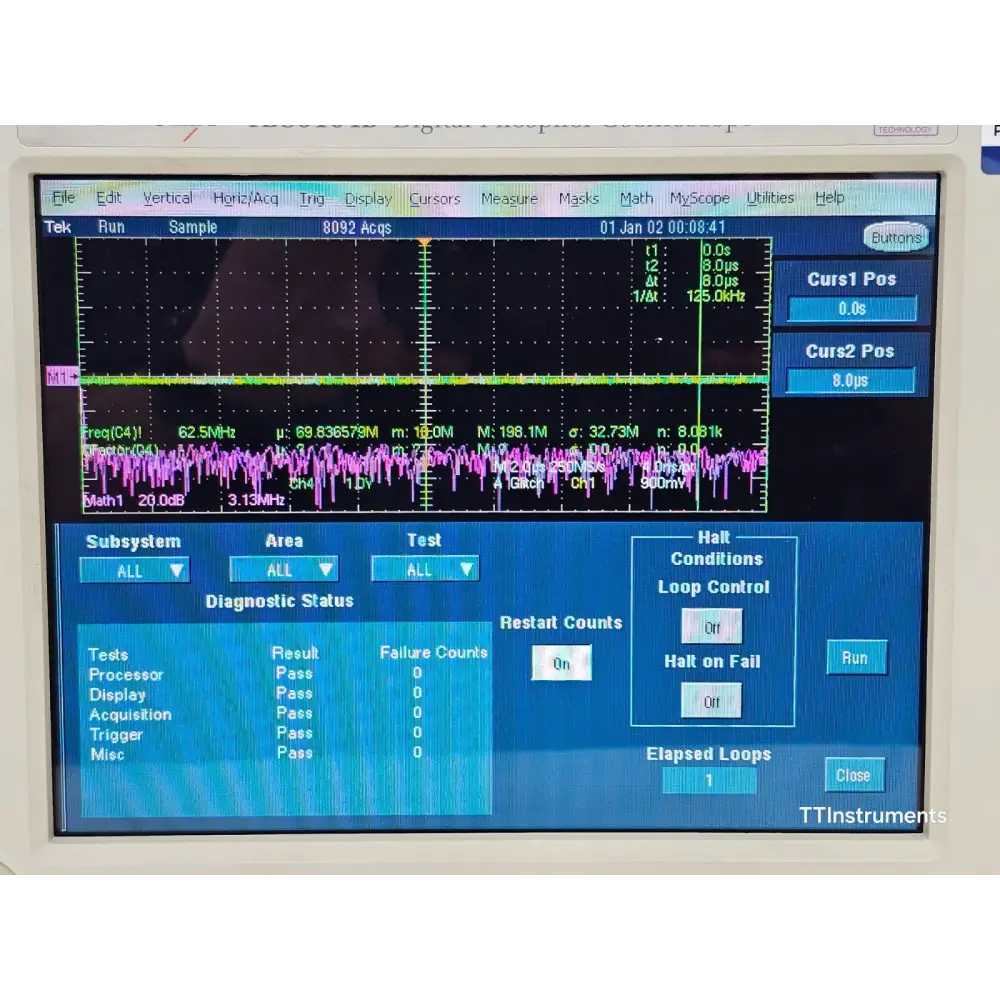

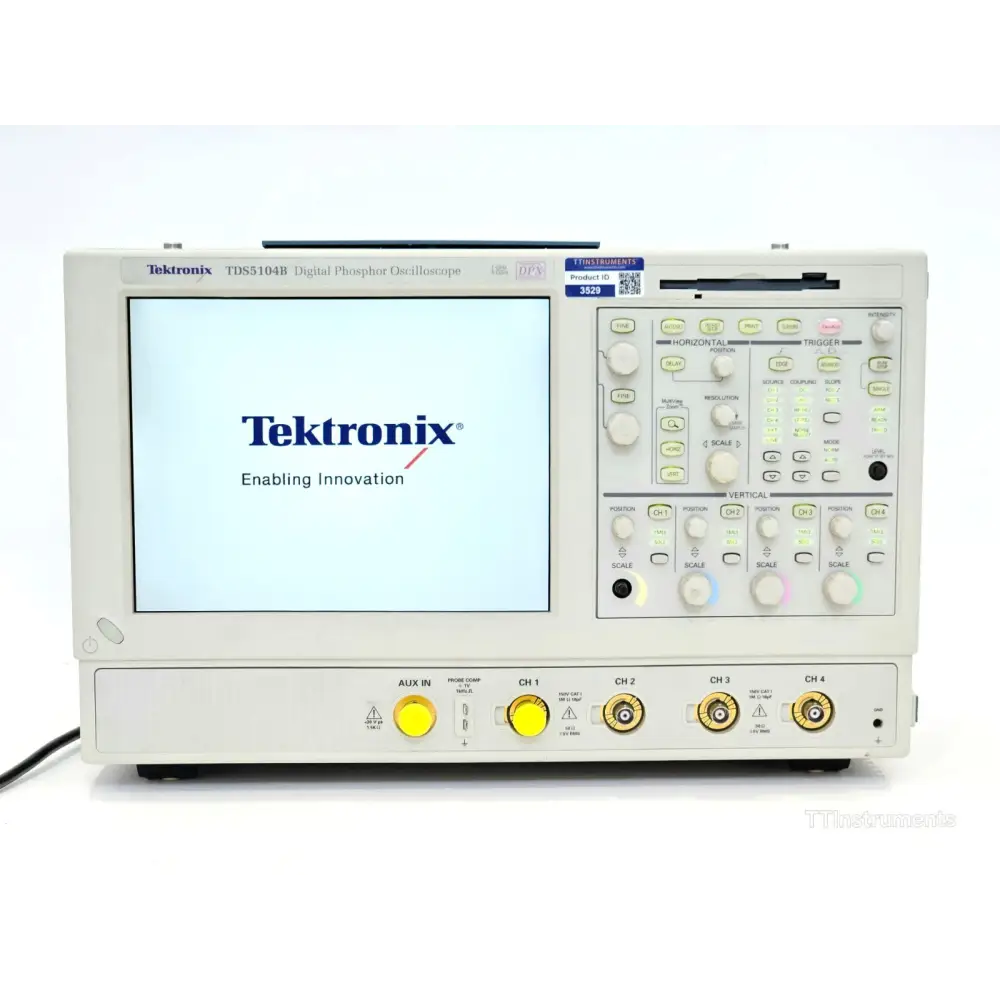

The Tektronix TDS5104B is a 4-channel, 1 GHz Digital Phosphor Oscilloscope with a 5 GS/s sample rate. This unit has been tested and found to be operational. Please note that 2 of the front panel knobs are missing, which should be taken into account when assessing suitability.

Included in the sale:

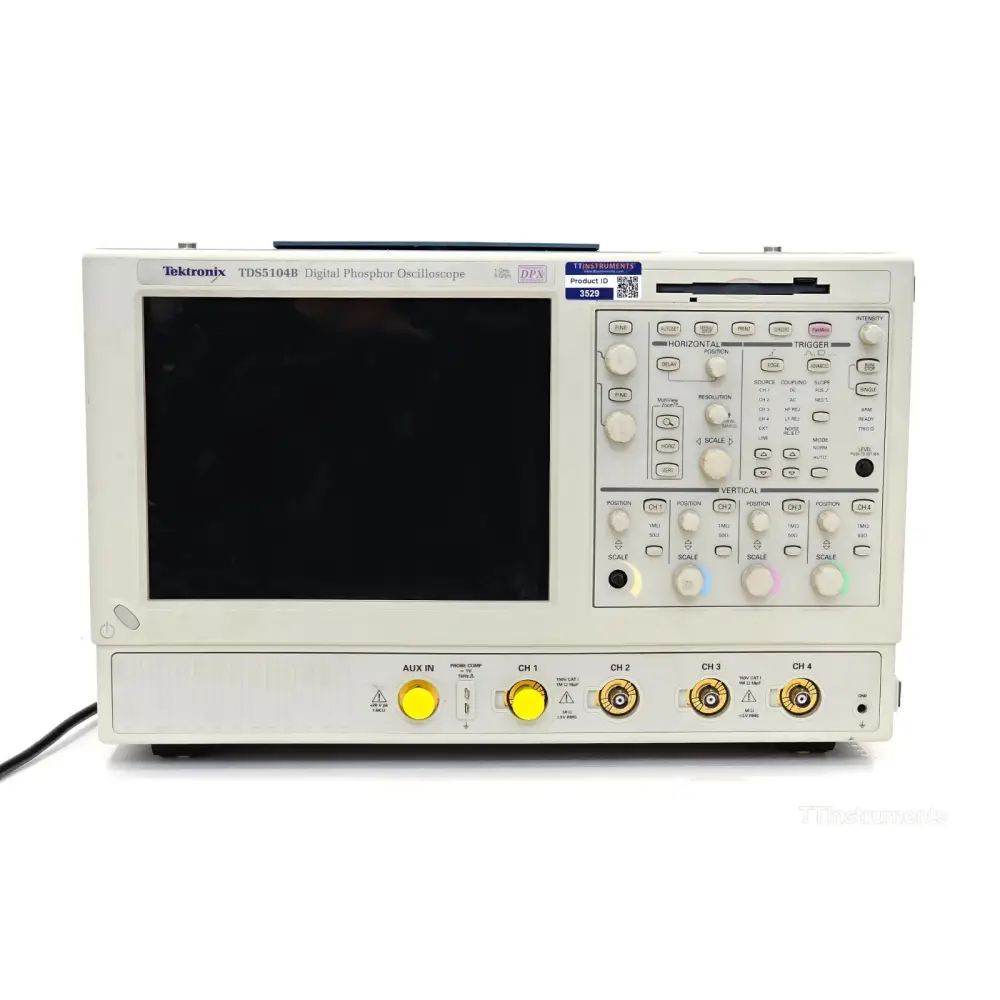

• Tektronix TDS5104B oscilloscope main unit

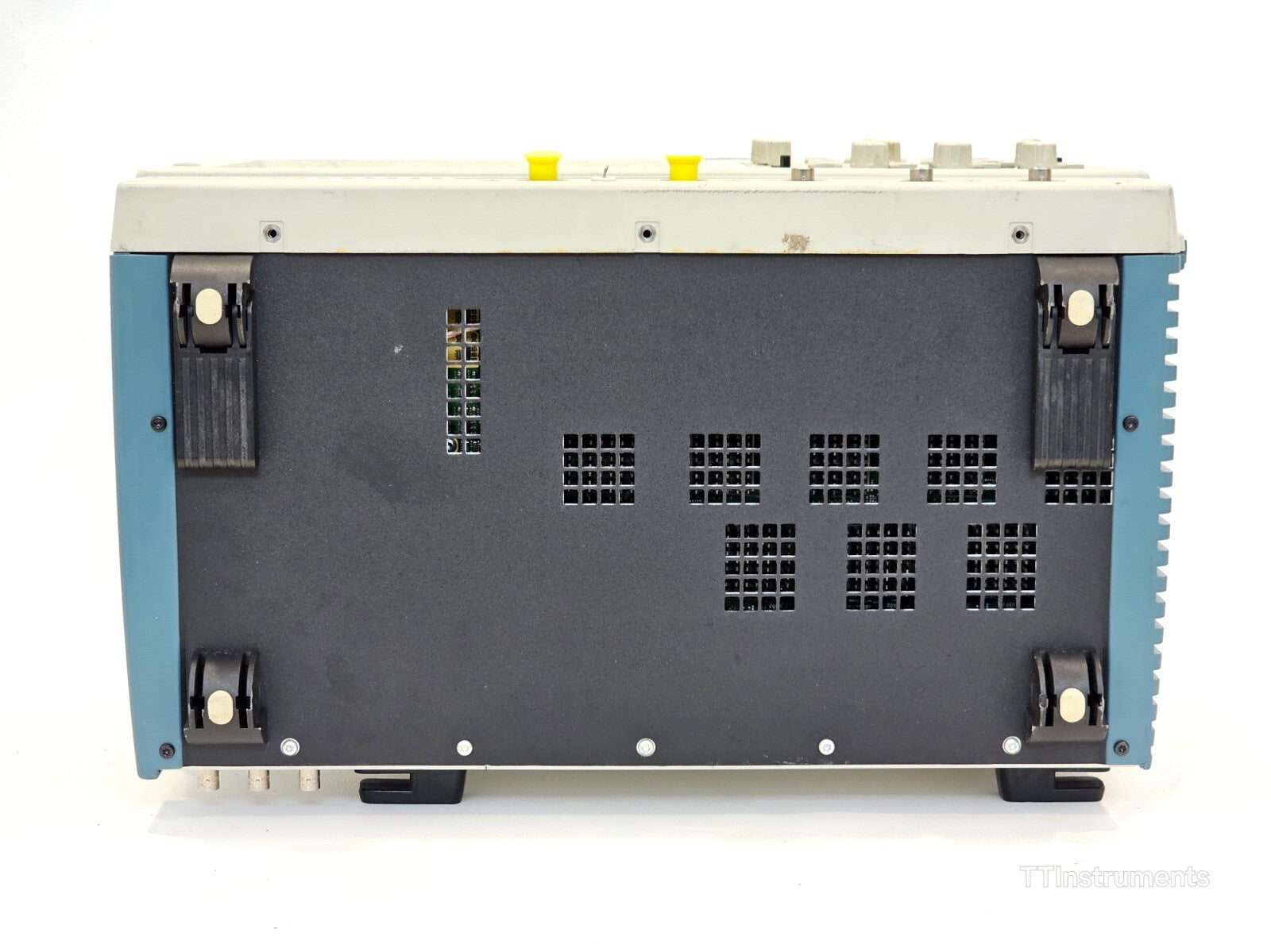

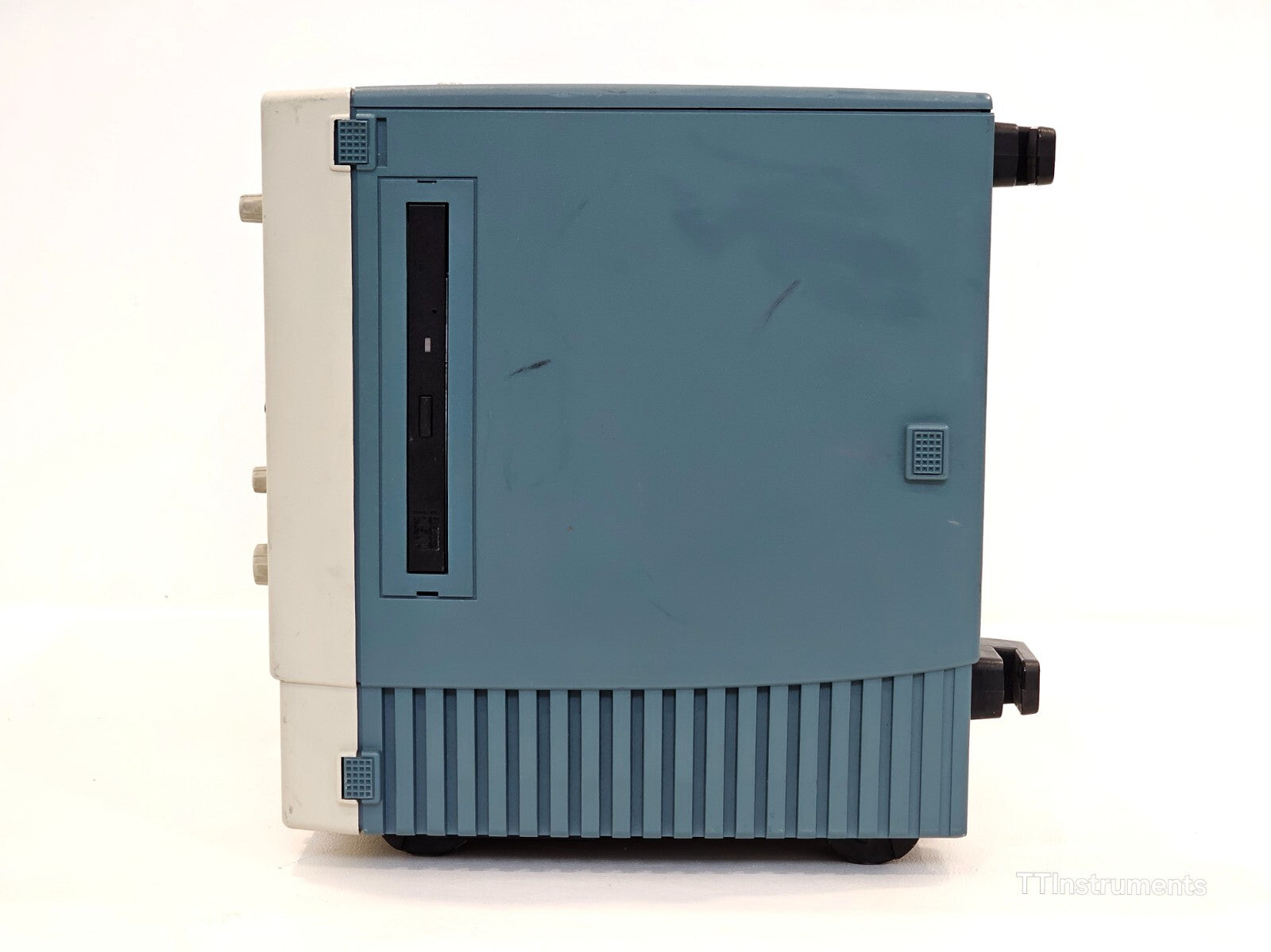

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Tektronix TDS5104B is a high-performance Digital Phosphor Oscilloscope (DPO) designed for engineers requiring deep insight into complex, high-speed signals. It delivers 1 GHz bandwidth across four channels with a maximum sample rate of 5 GS/s, making it well suited for characterising fast edges, glitches, and transient events in demanding applications including embedded design, power electronics, telecommunications, and research.

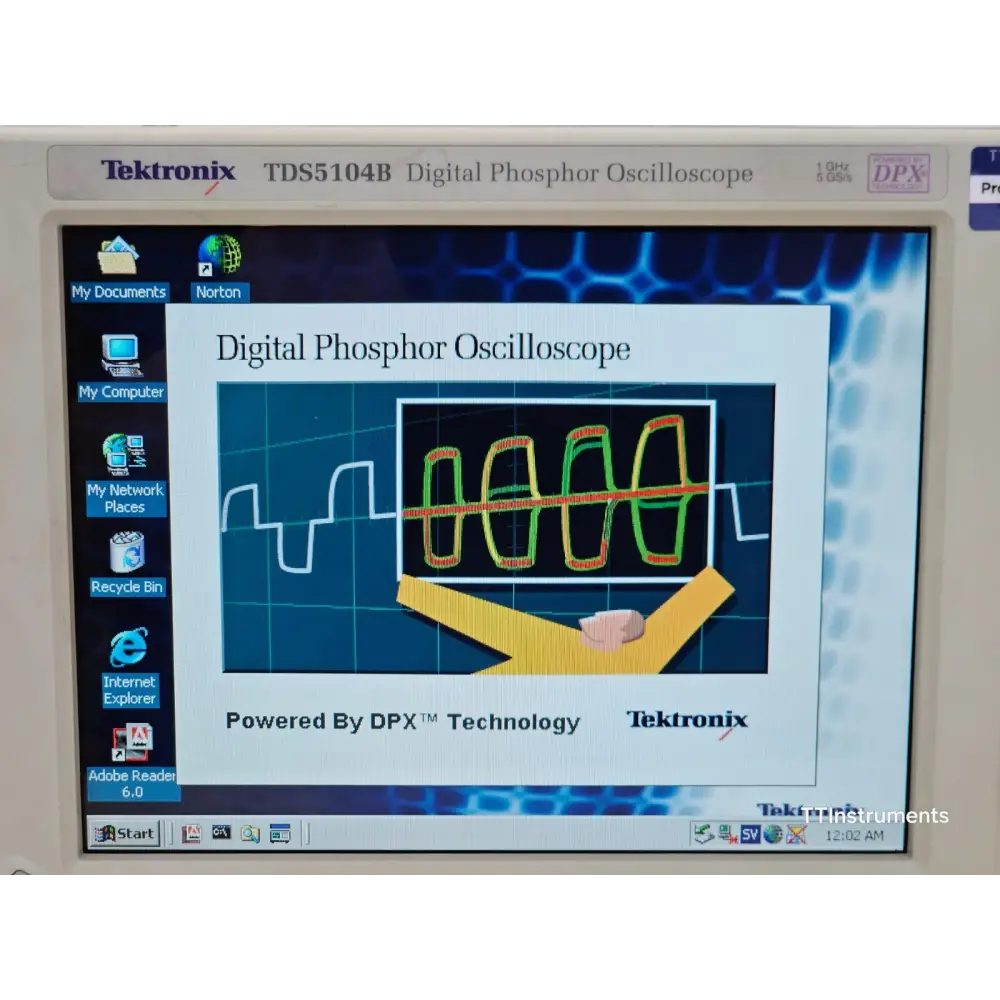

Digital Phosphor technology provides three-dimensional waveform information — amplitude, time, and occurrence frequency — in real time, enabling users to detect and visualise rare or intermittent signal anomalies that traditional DSOs may miss.

Bandwidth: 1 GHz
Channels: 4
Sample Rate: 5 GS/s (single channel), 2.5 GS/s (all channels)
Record Length: Up to 16 M points
Vertical Resolution: 8-bit
Vertical Sensitivity: 1 mV/div to 10 V/div
Time Base Range: 40 ps/div to 1000 s/div
Display: 10.4 inch TFT colour LCD with touchscreen

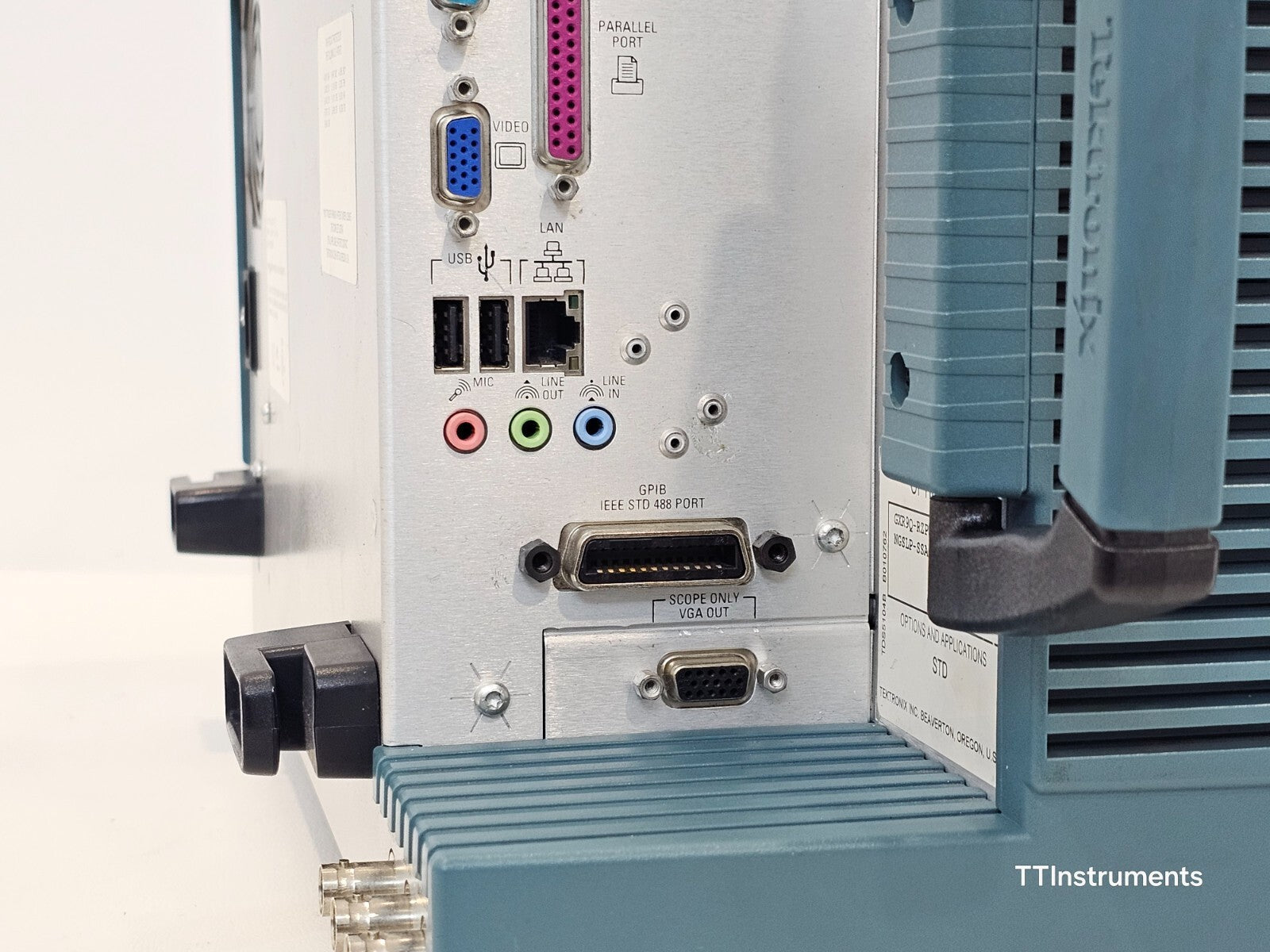

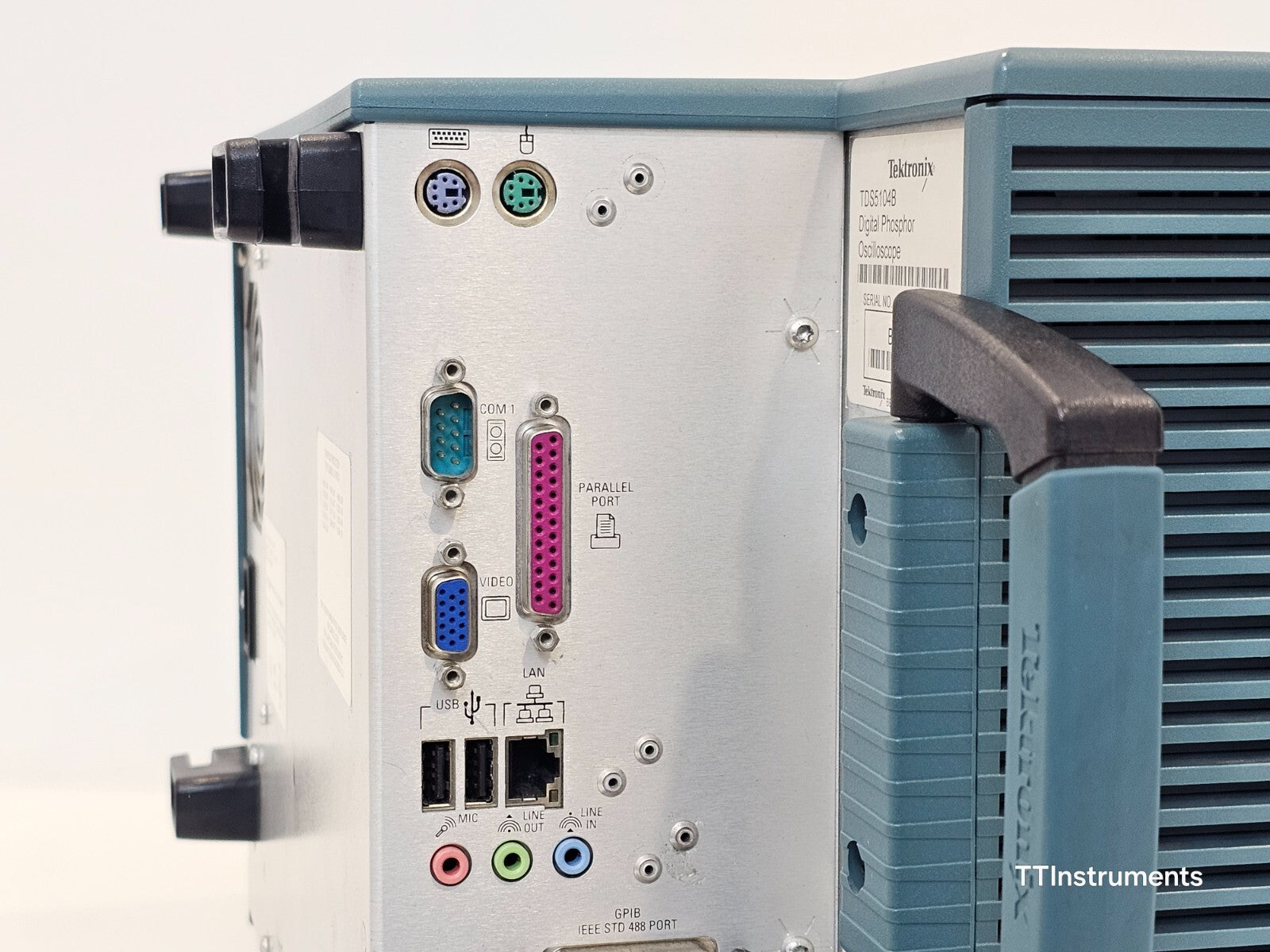

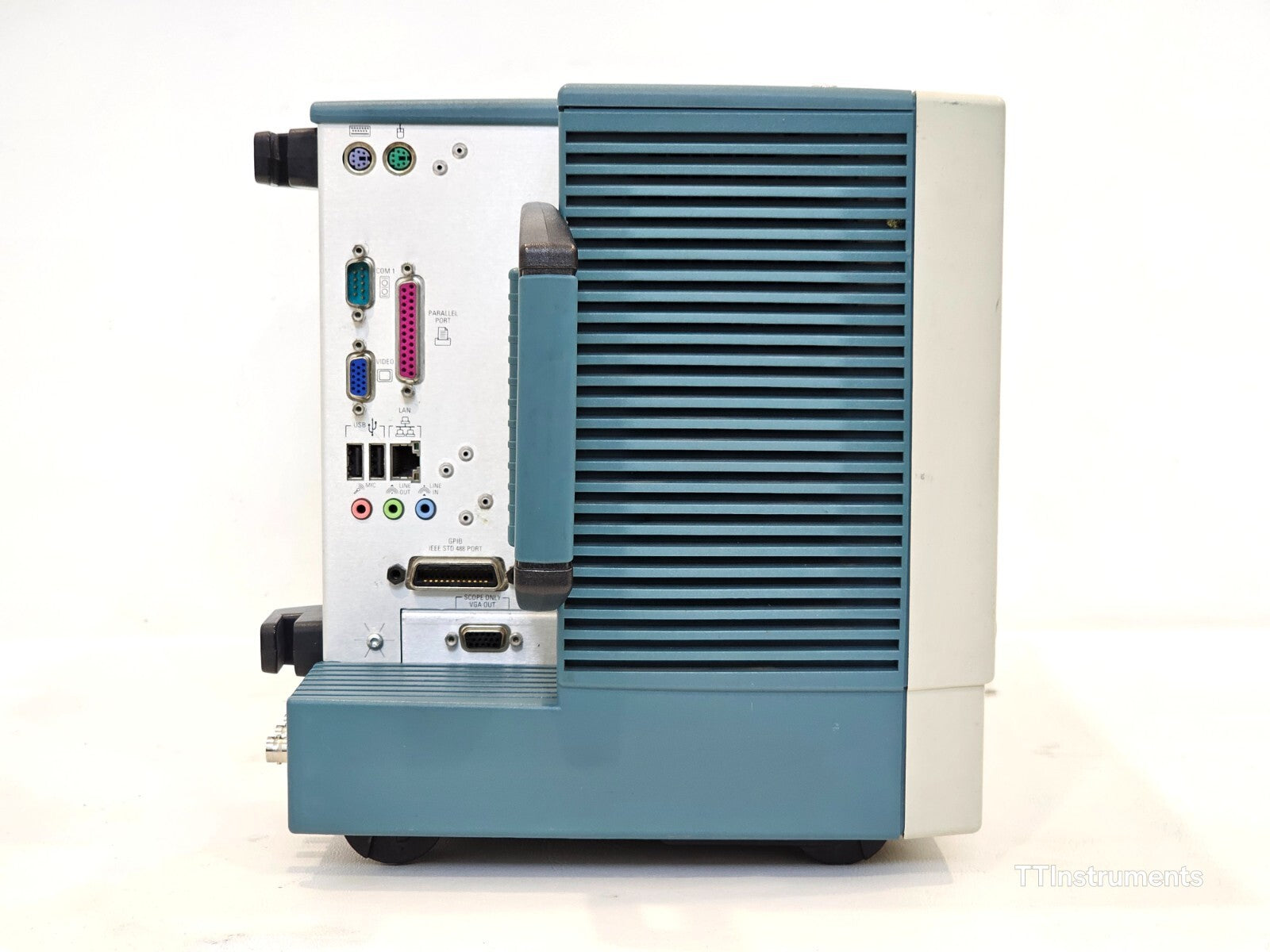

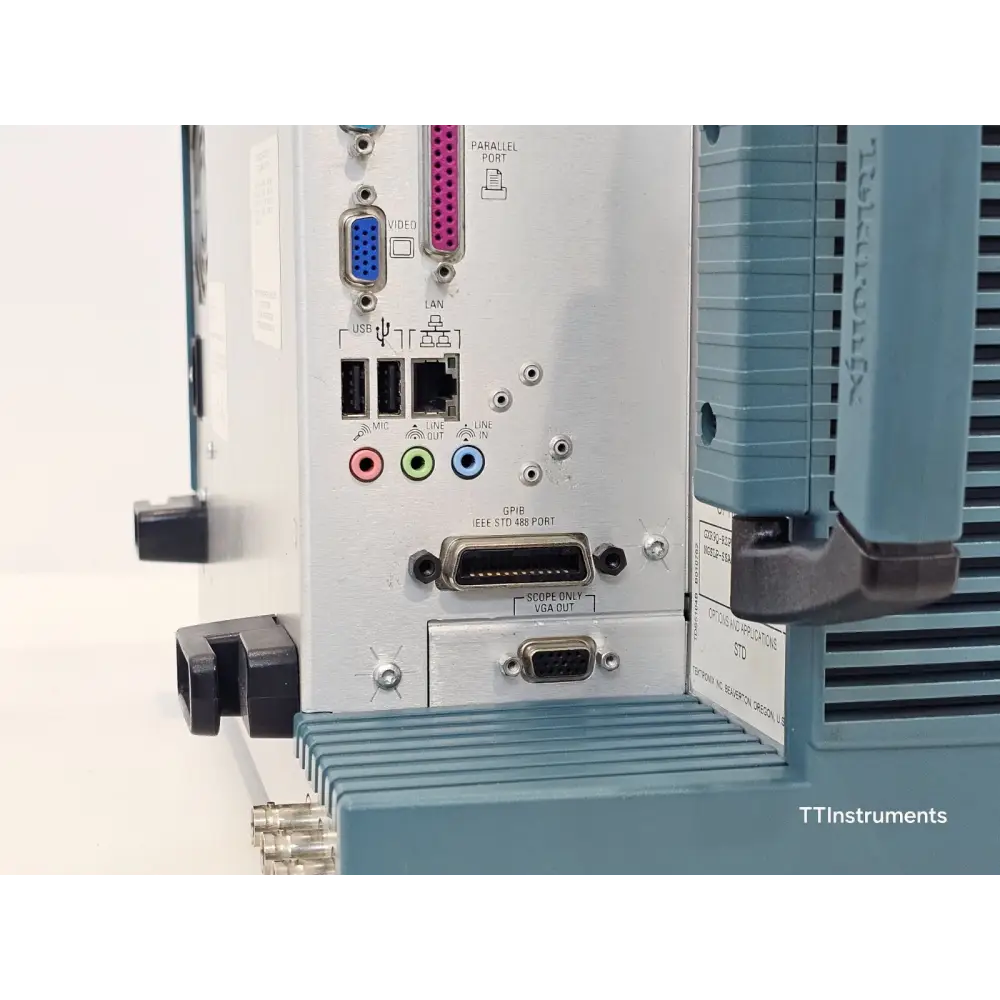

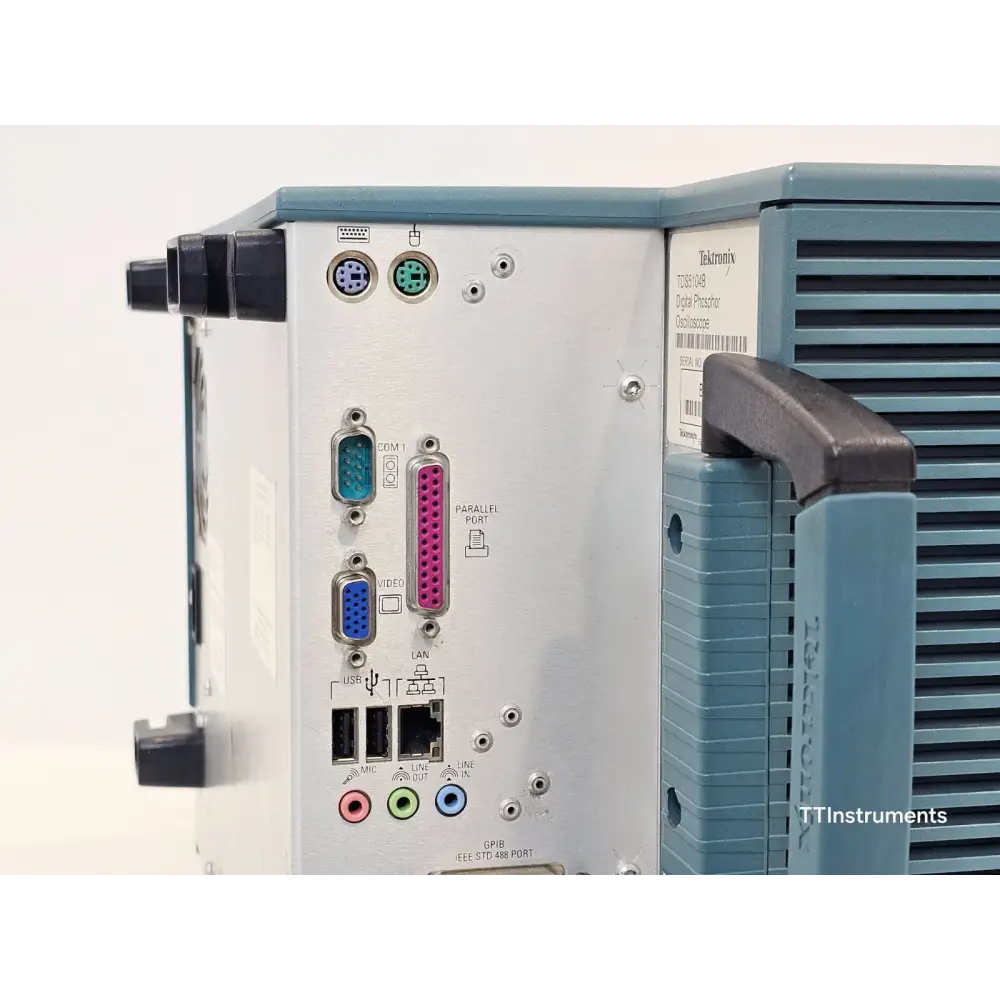

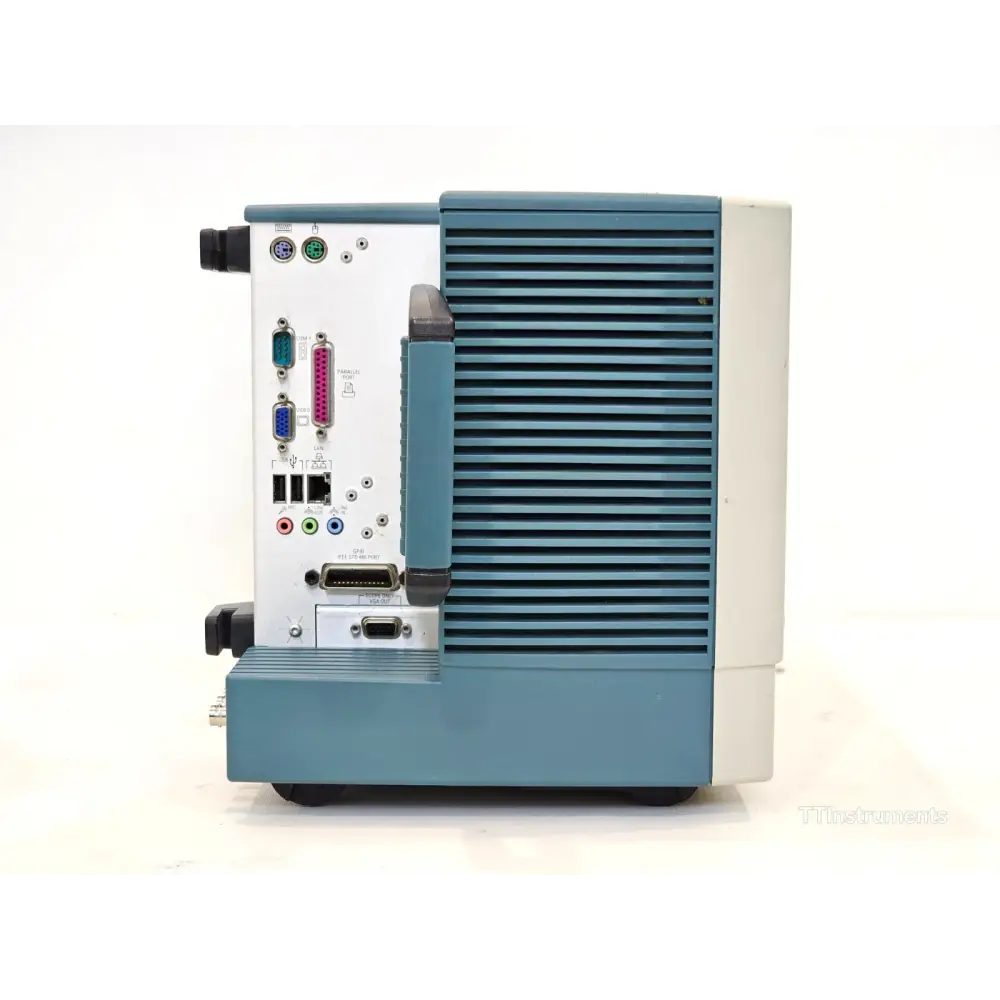

Connectivity: USB, GPIB, Ethernet, VGA

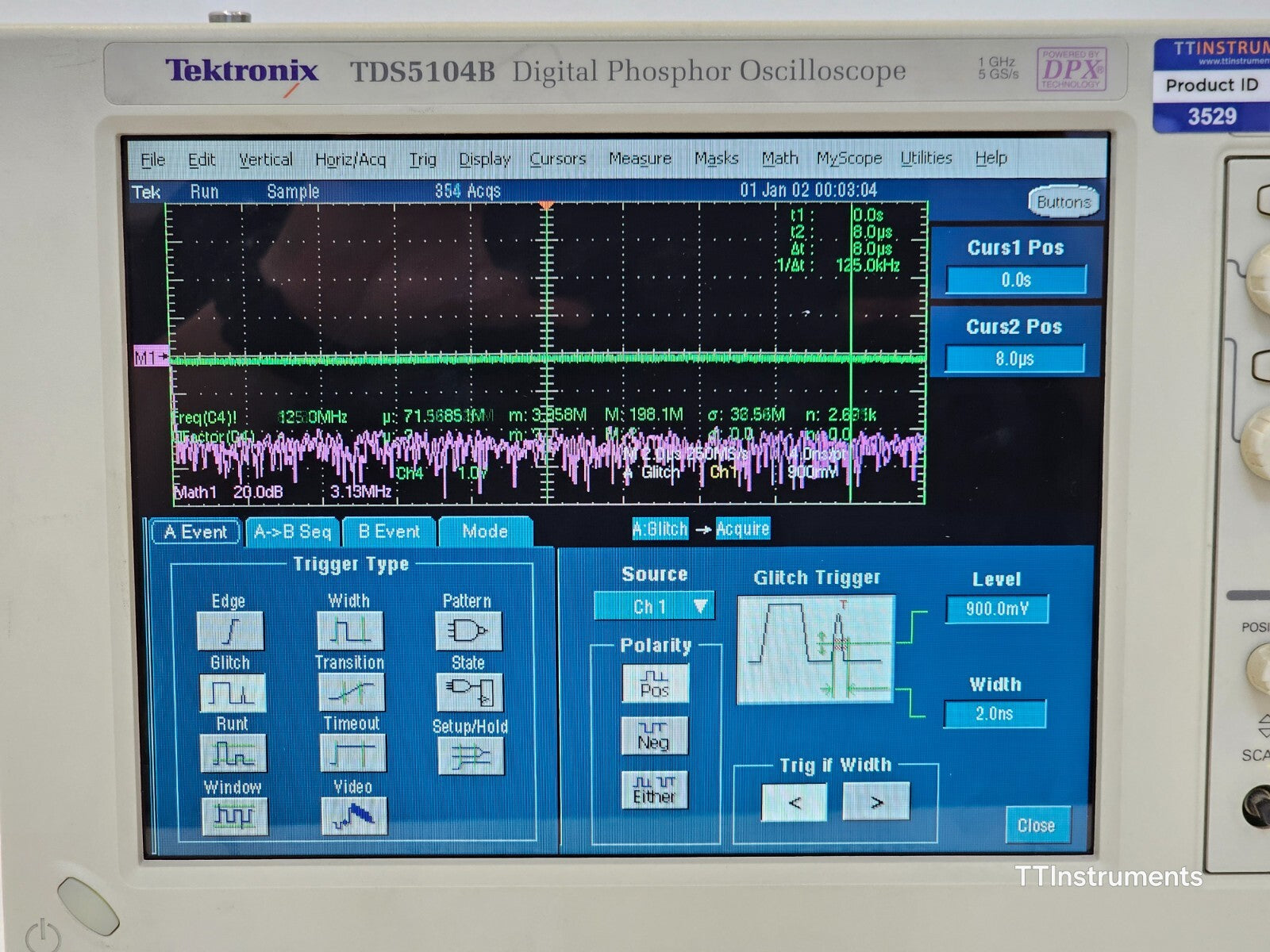

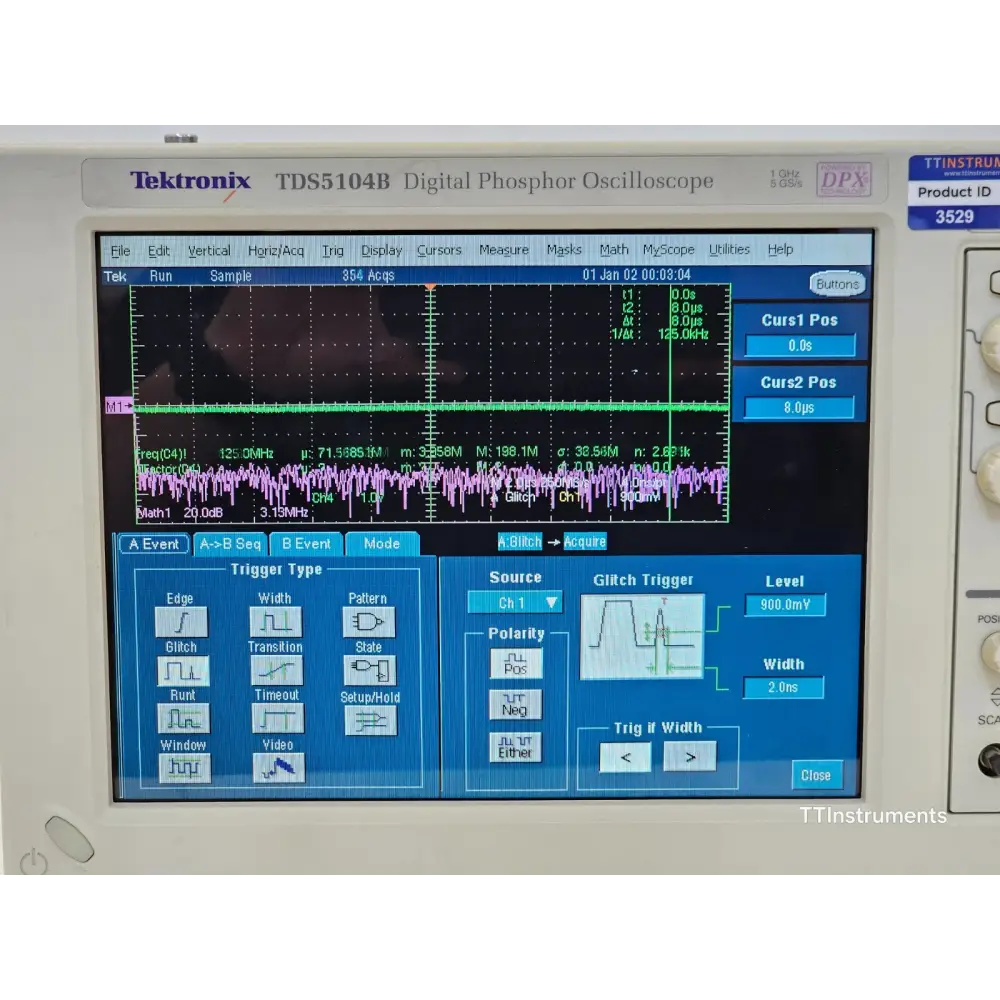

Trigger Types: Edge, glitch, runt, logic, setup/hold, window, timeout, serial

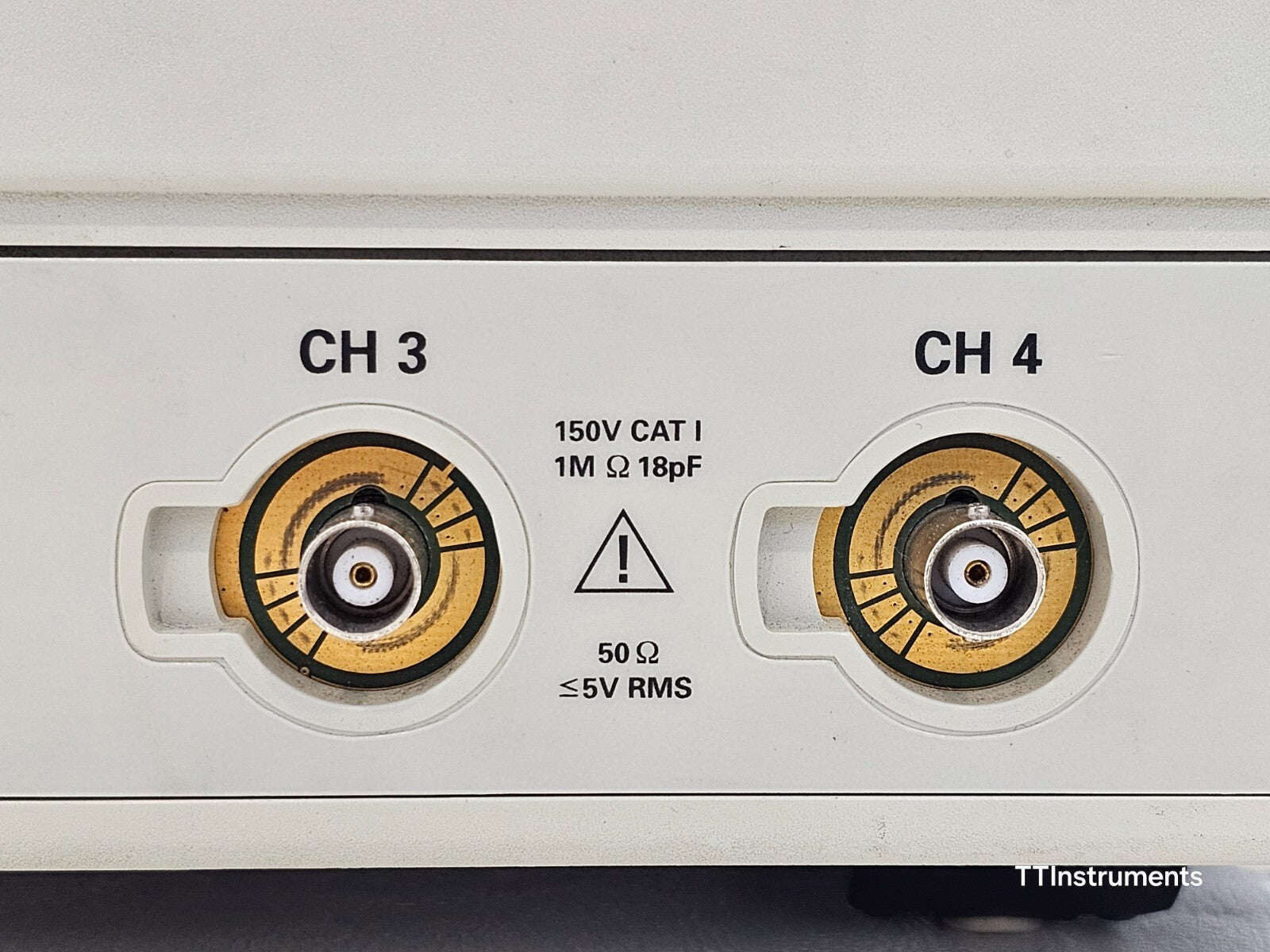

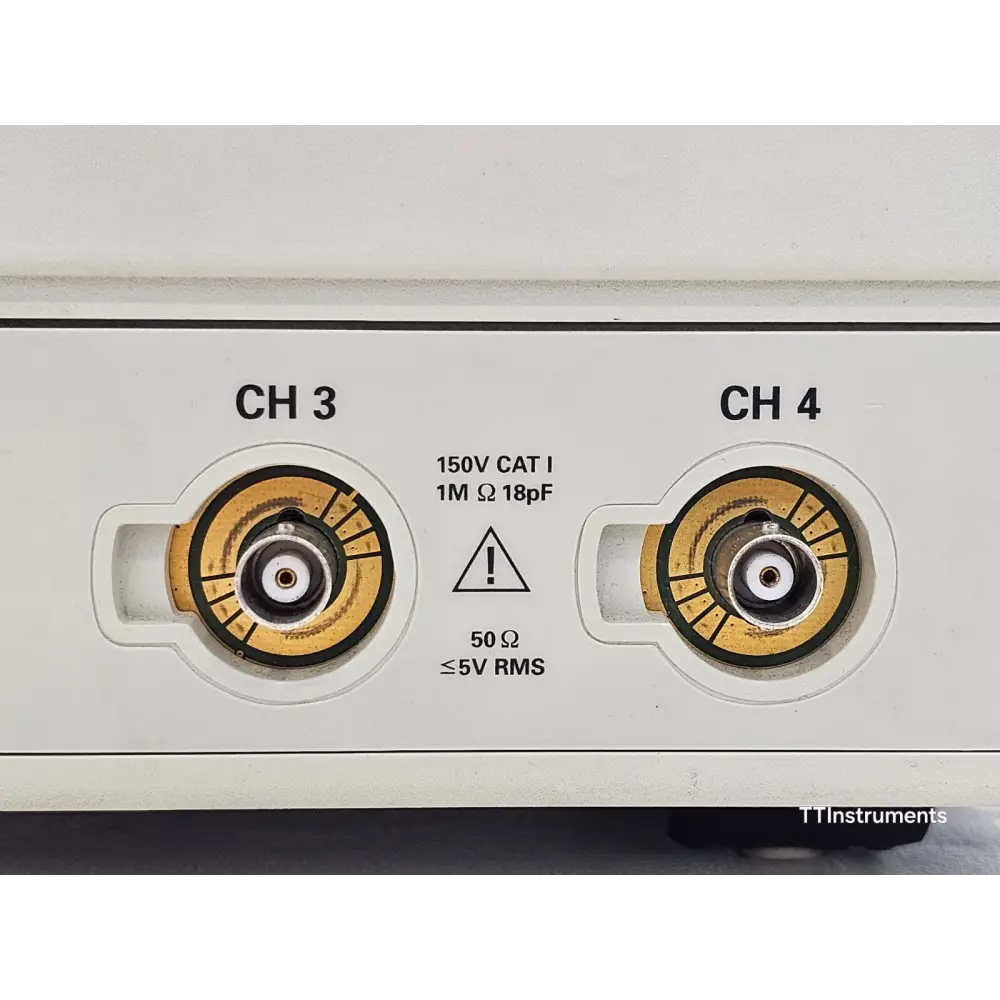

Input Impedance: 1 MΩ or 50 Ω
Max Input Voltage: 300 V RMS (1 MΩ), 5 V RMS (50 Ω)

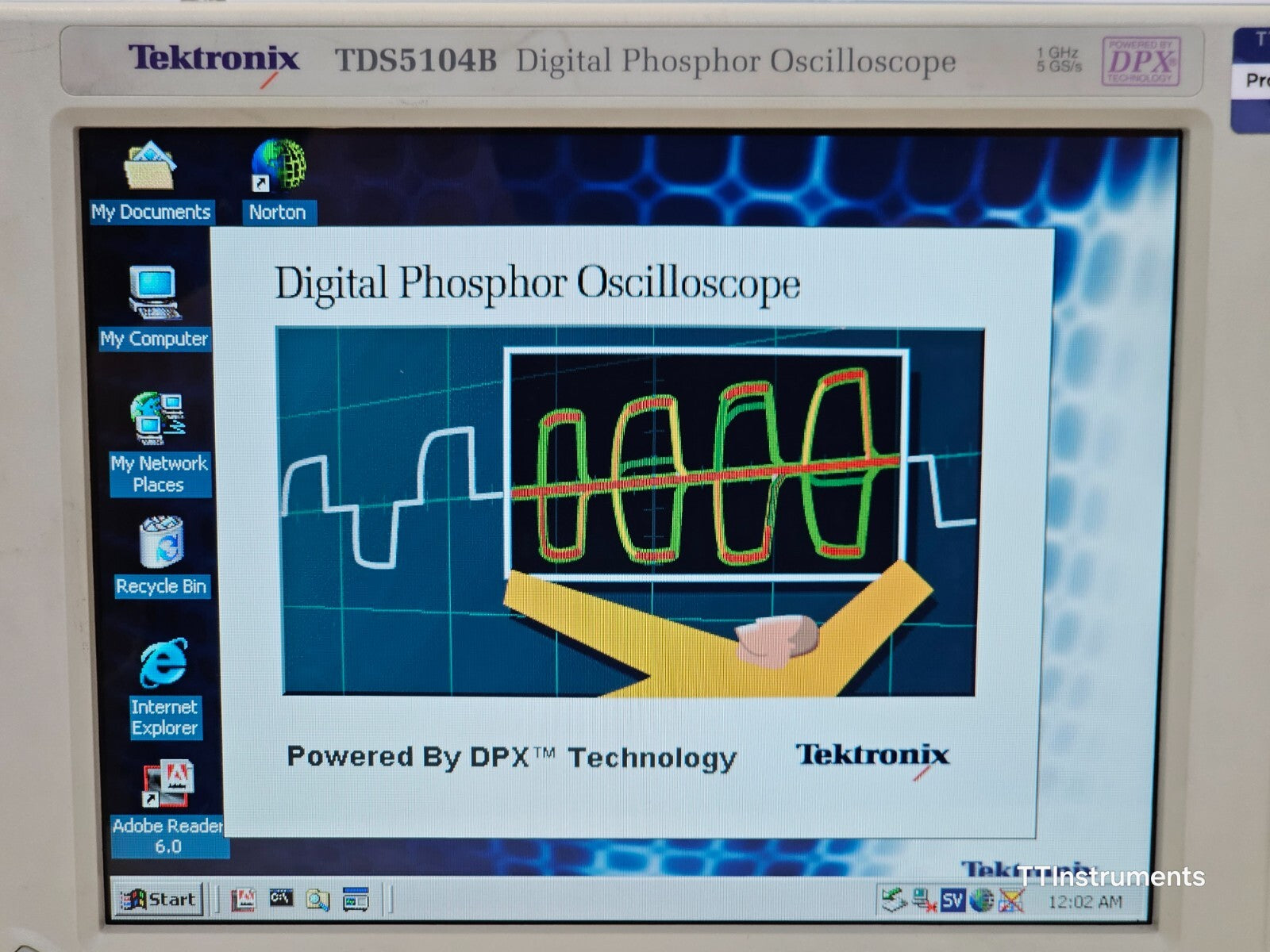

Operating System: Windows XP Embedded
Dimensions: 432 mm W × 266 mm H × 279 mm D
Weight: Approximately 11 kg
