Condition: Used

The Quasar RA14MZH is a waveguide to coaxial adaptor operating across the 5.8–8.2 GHz frequency range. This passive RF transition component is used to interface rectangular waveguide systems with coaxial transmission lines, making it a practical component for microwave test setups, antenna measurements, and RF system integration.

Included in the sale:
• Quasar RA14MZH Waveguide to Coax Adaptor

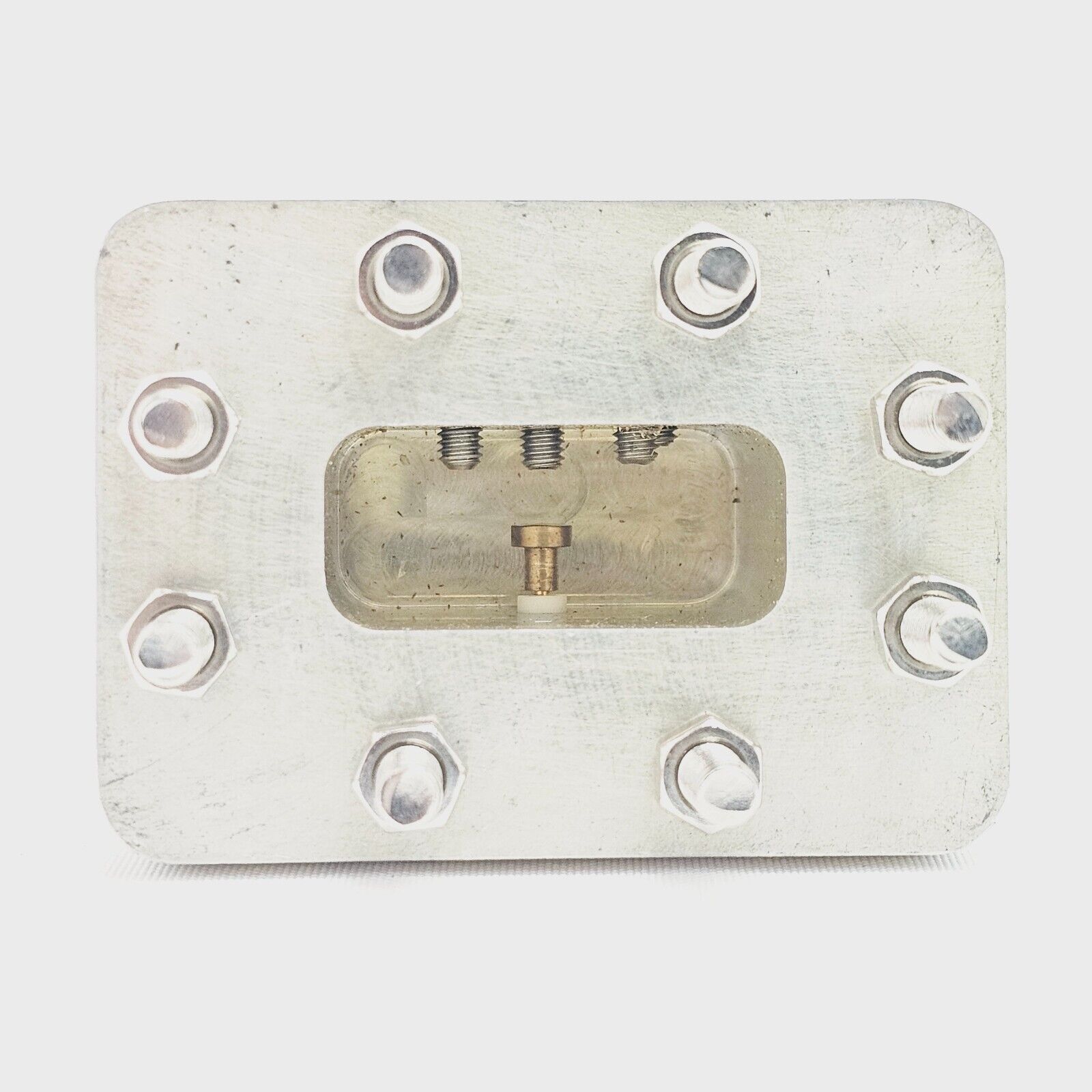

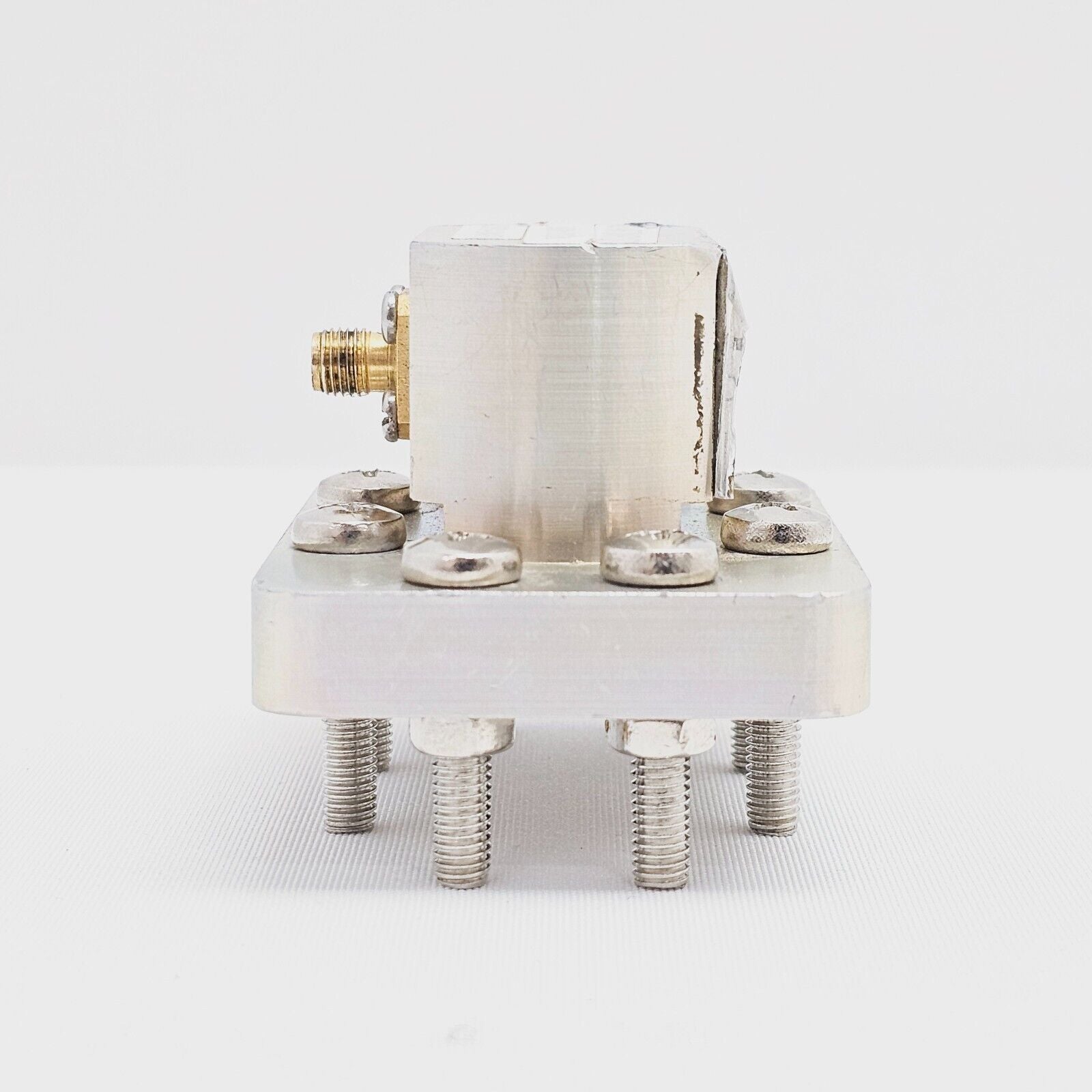

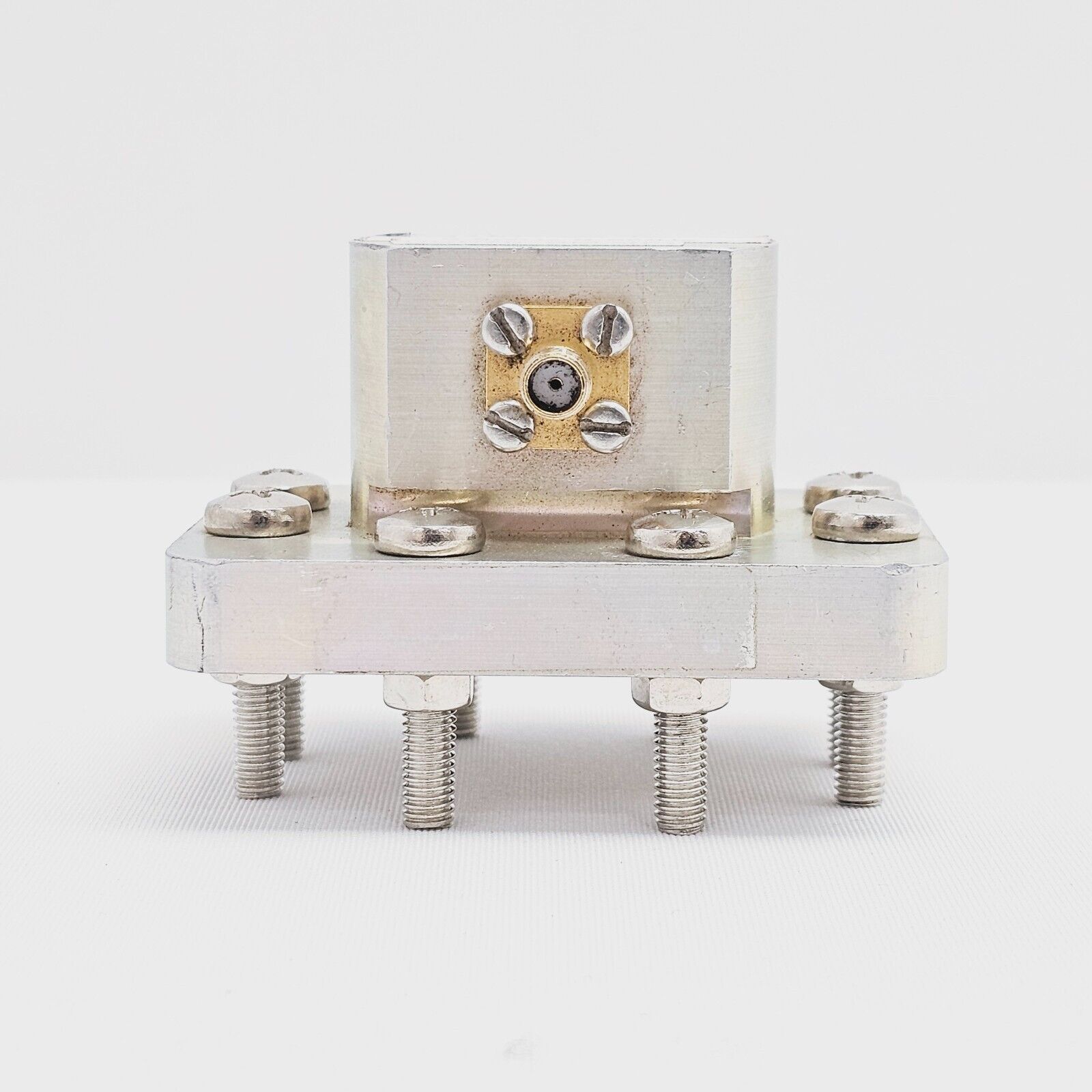

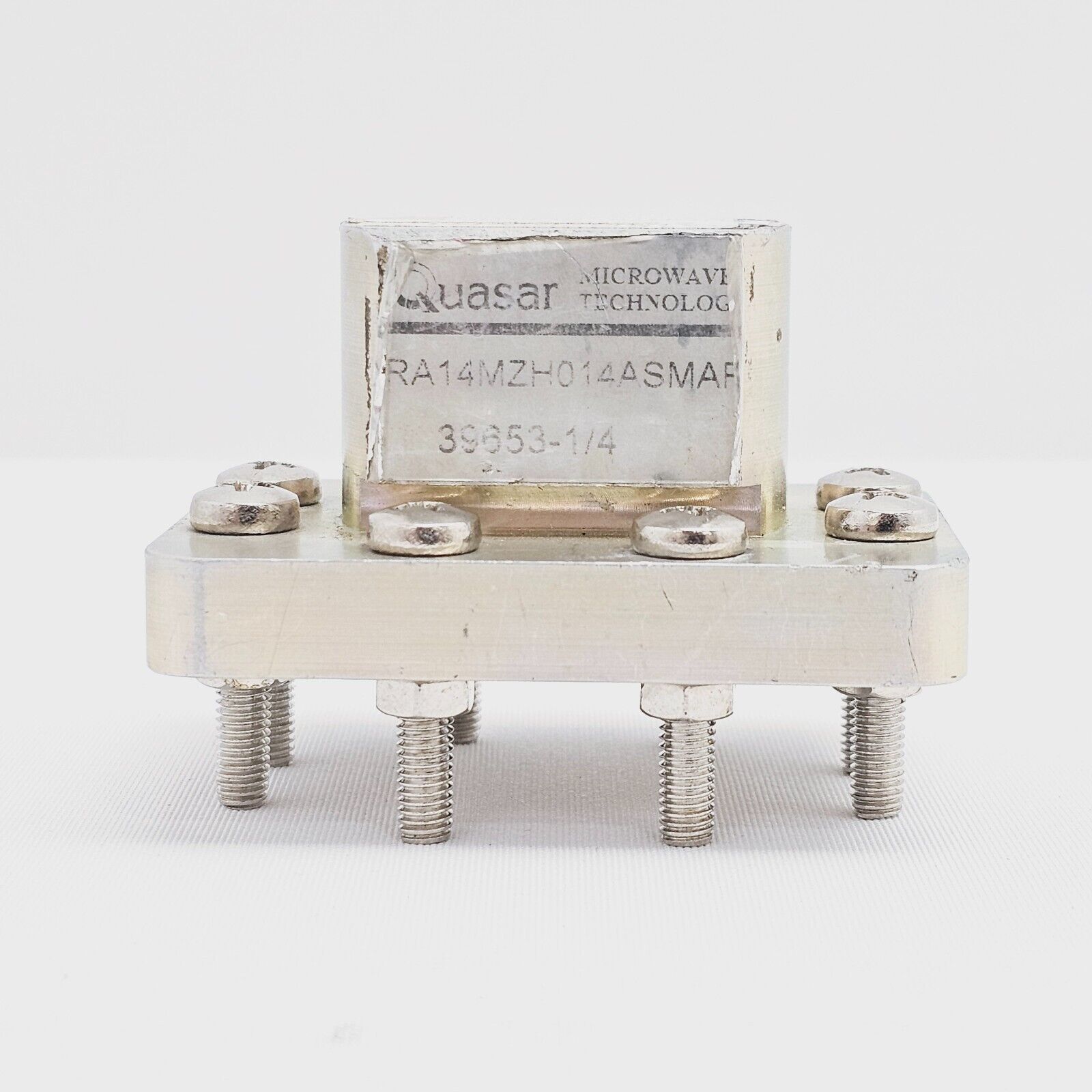

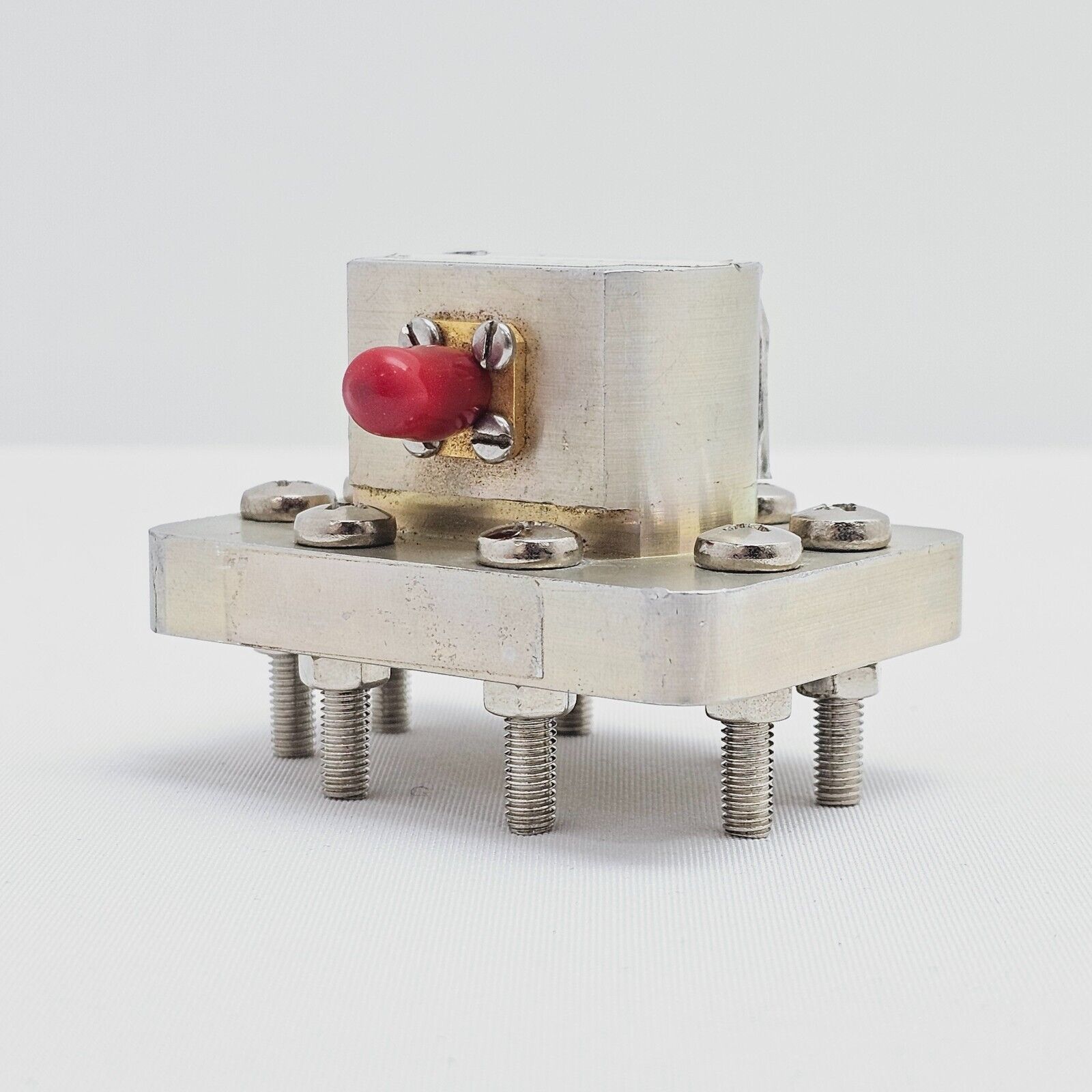

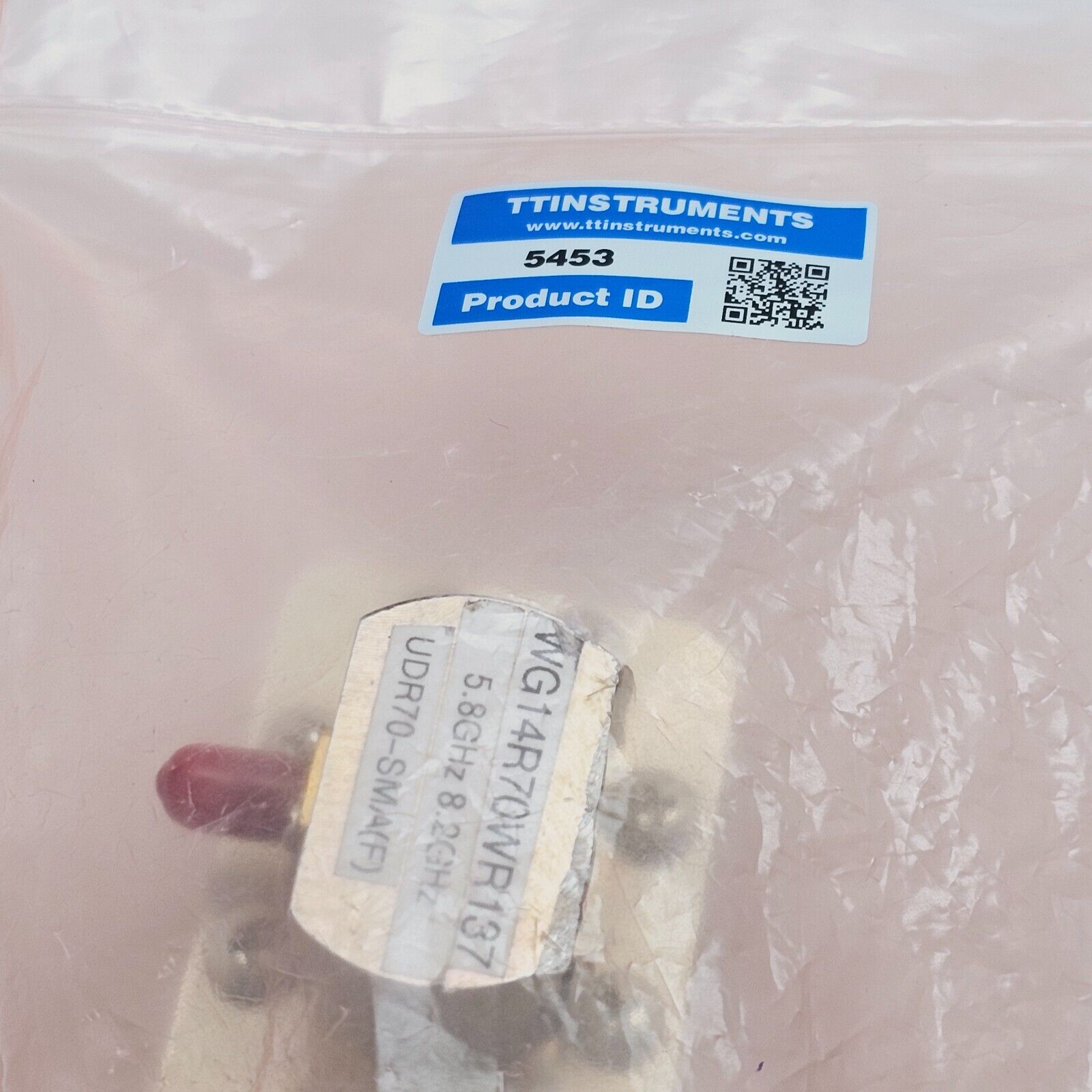

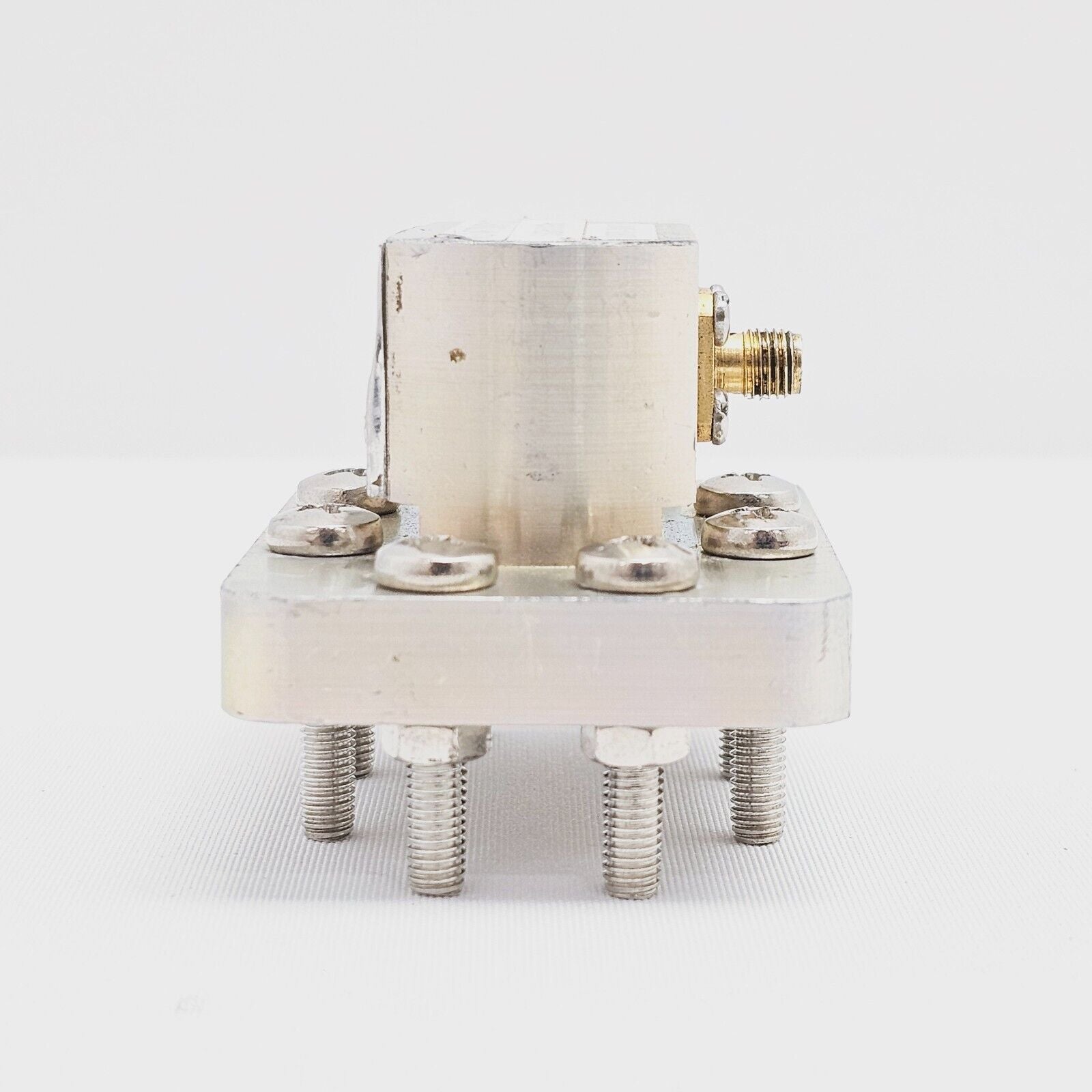

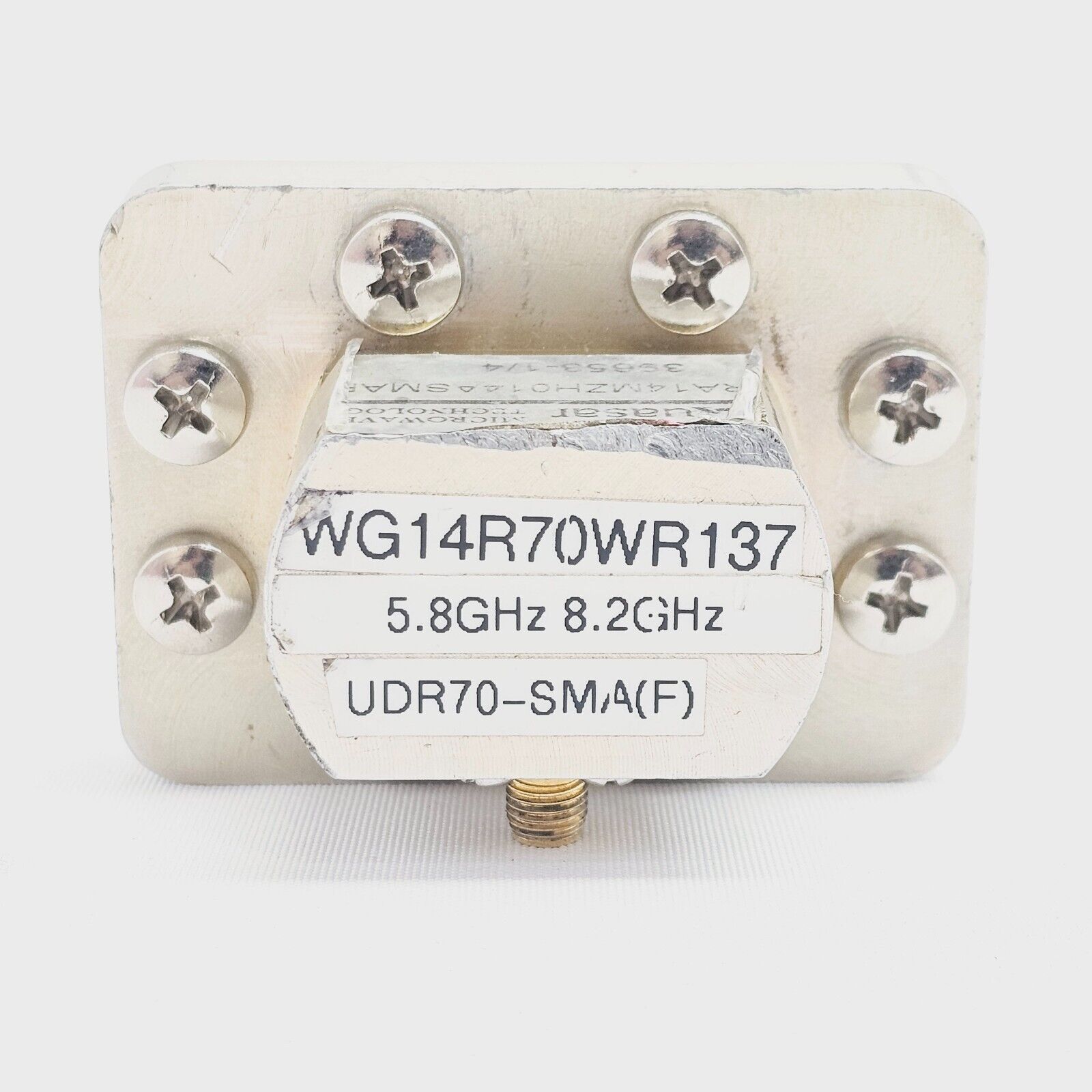

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Quasar RA14MZH is a waveguide to coaxial adaptor designed to provide a low-loss, reliable transition between rectangular waveguide and coaxial line over the 5.8–8.2 GHz frequency band. This range corresponds to the WR137 waveguide band and spans portions of the C-band and lower X-band, making it suitable for a wide range of microwave applications including signal generation, spectrum analysis, antenna test systems, and radar component characterisation.

Waveguide to coax adaptors of this type are passive, reciprocal two-port devices that allow standard coaxial test equipment (such as network analysers and signal generators with N-type or SMA outputs) to be connected directly to waveguide-based components and assemblies.

Typical Specifications:
Frequency Range: 5.8–8.2 GHz
Waveguide Interface: WR137 (compatible with C/X-band waveguide)
Coaxial Connector Type: Please refer to manufacturer documentation for specific connector type
Device Type: Passive waveguide to coaxial transition adaptor
Application: Microwave test, antenna measurement, radar, and RF system integration

Please refer to the manufacturer's website or documentation for full technical specifications.
