Condition: Used

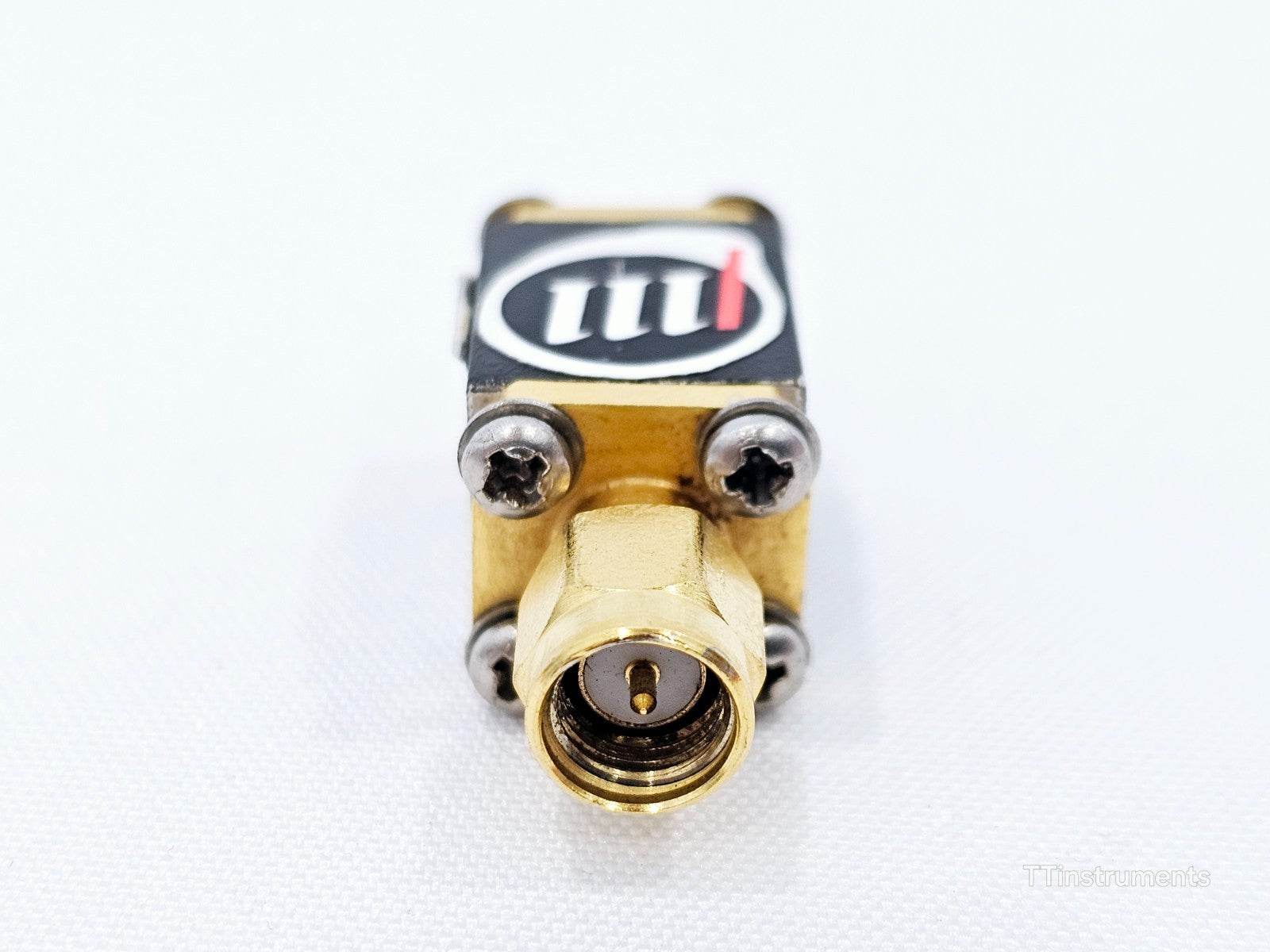

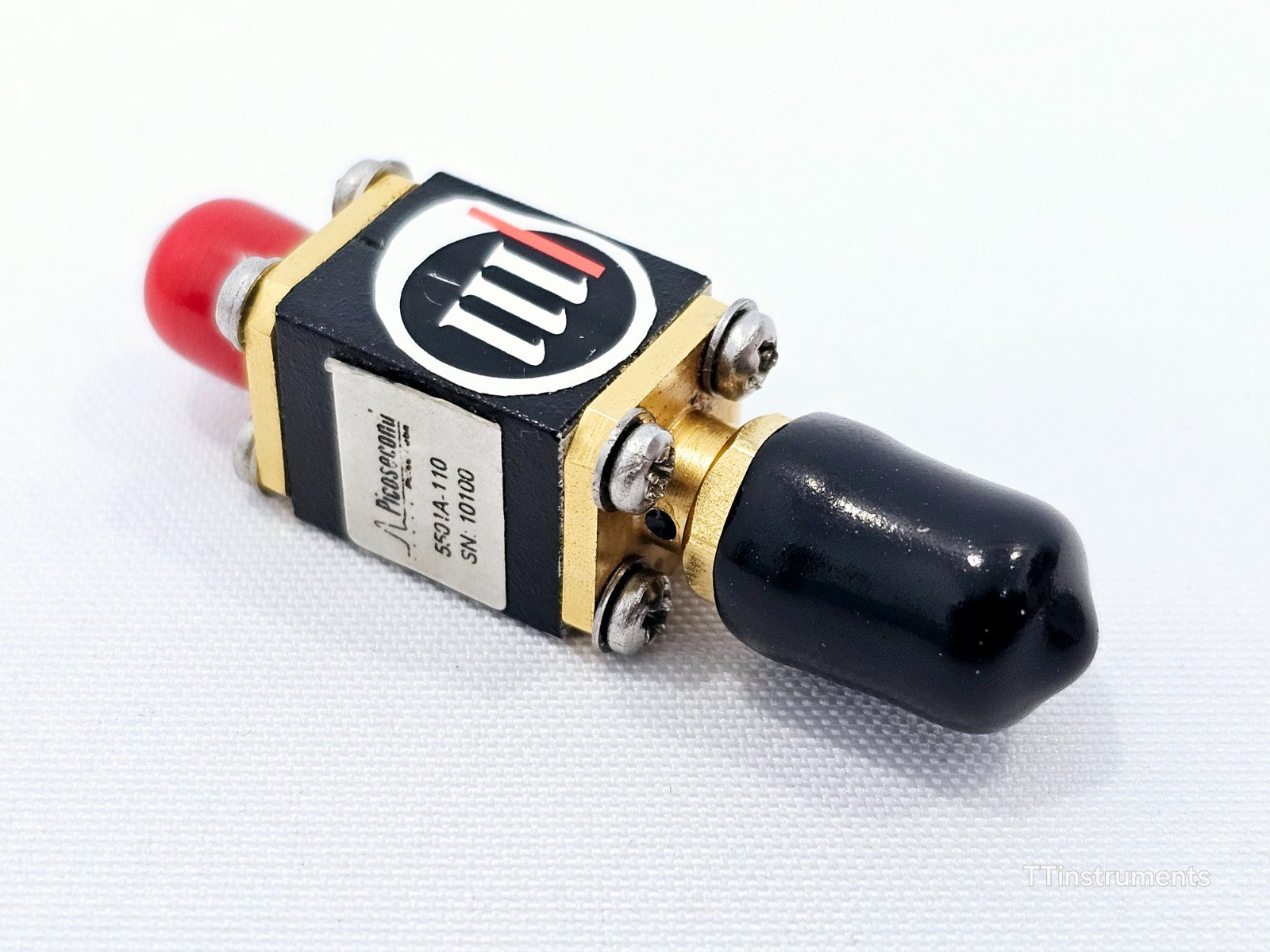

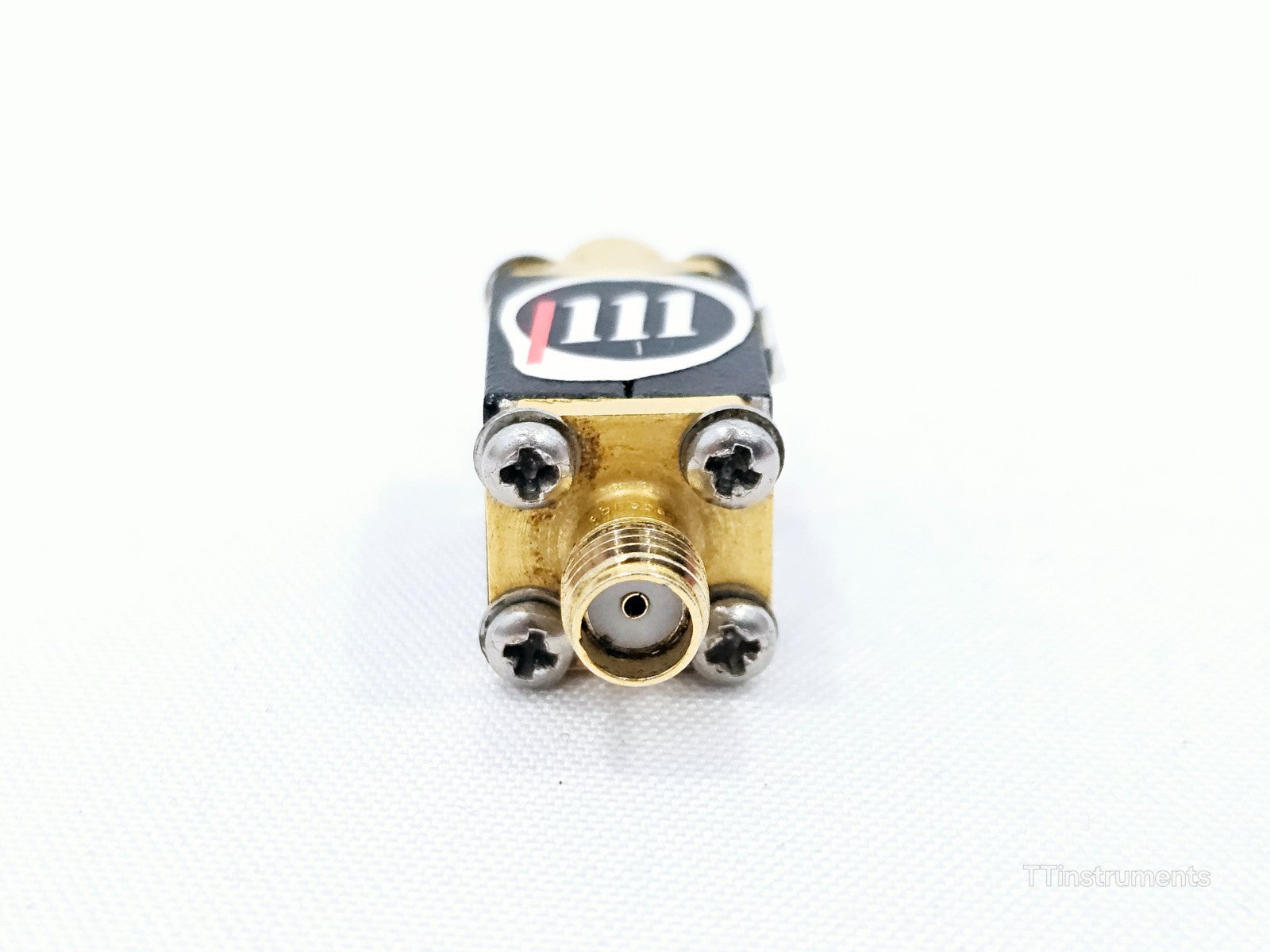

The Picosecond Pulse Labs 5501A-110 is a broadband DC block covering 0.7 kHz to 26 GHz with an 8 ps risetime, suitable for high-speed RF, microwave, and time-domain measurement applications. It is rated for extended temperature operation from -55°C to +125°C, making it suitable for demanding test environments.

Included in the sale:
• Picosecond 5501A-110 DC Block unit

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Picosecond Pulse Labs (PSPL) 5501A-110 is a precision broadband DC block designed for use in high-speed digital, RF, and microwave test systems. It provides effective DC isolation while maintaining excellent signal fidelity across an exceptionally wide frequency range.

Key features include an ultra-fast 8 ps risetime and a broad frequency coverage from 0.7 kHz to 26 GHz, making it well suited for time-domain reflectometry (TDR), network analysis, and pulse measurement applications. The rugged construction and wide operating temperature range make it appropriate for both laboratory and field-deployed test systems.

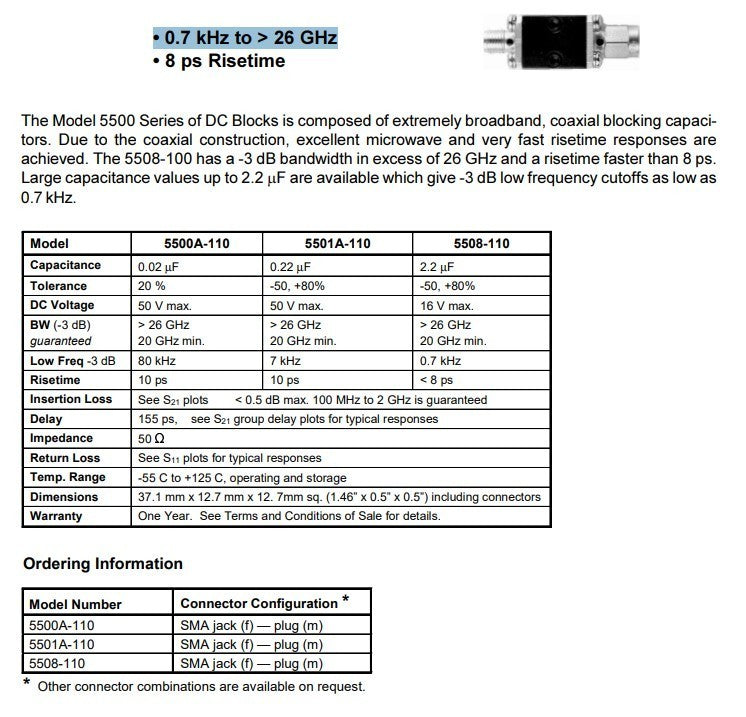

Specification Name: Value
Frequency Range: 0.7 kHz to 26 GHz
Risetime: 8 ps
Operating Temperature: -55°C to +125°C
Connector Type: SMA (female–female, typical for this series)
Impedance: 50 Ohm
Insertion Loss: Typically <1 dB across passband
DC Blocking Voltage: Refer to manufacturer datasheet
Housing: Rugged coaxial inline format

Please refer to the Picosecond Pulse Labs (now Tektronix) website or datasheet for full and authoritative specifications.

Please refer to the manufacturers website for more information.
