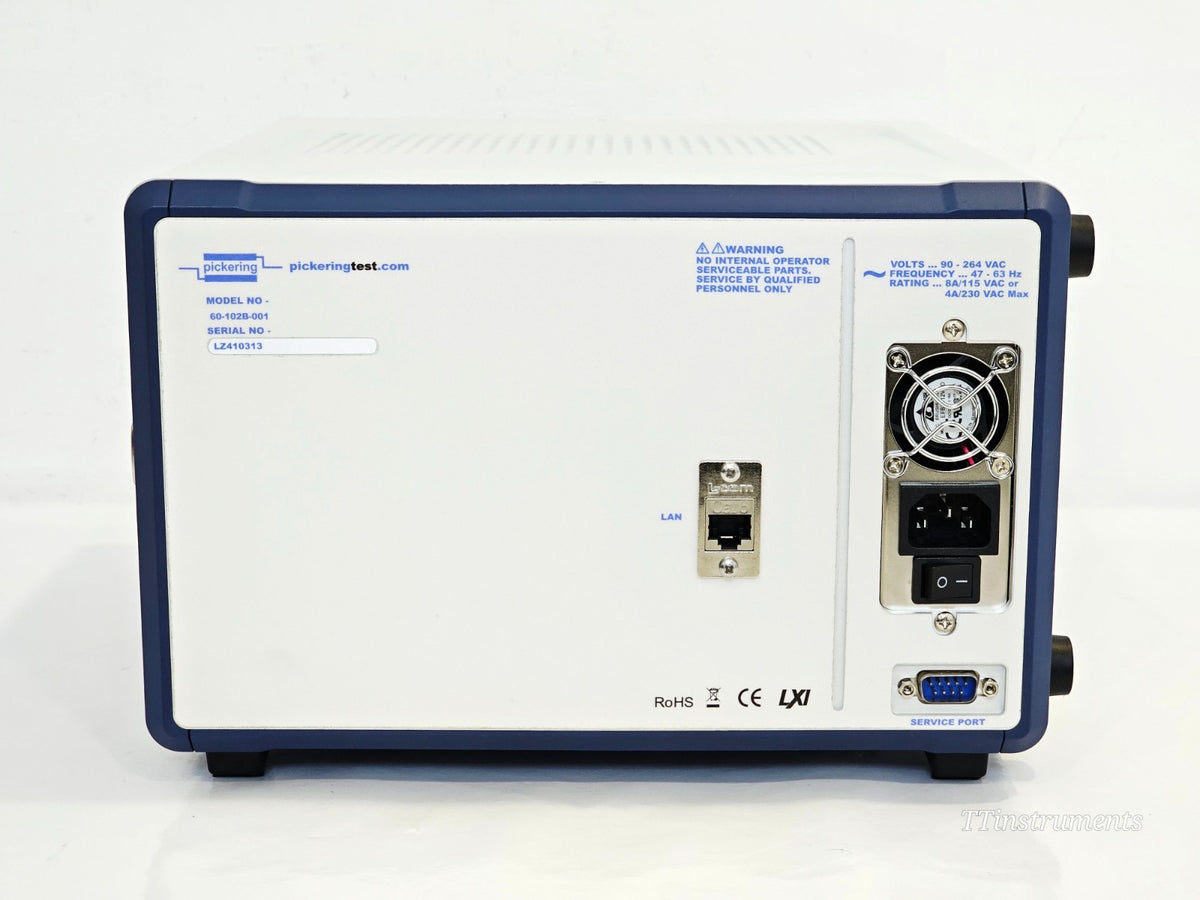

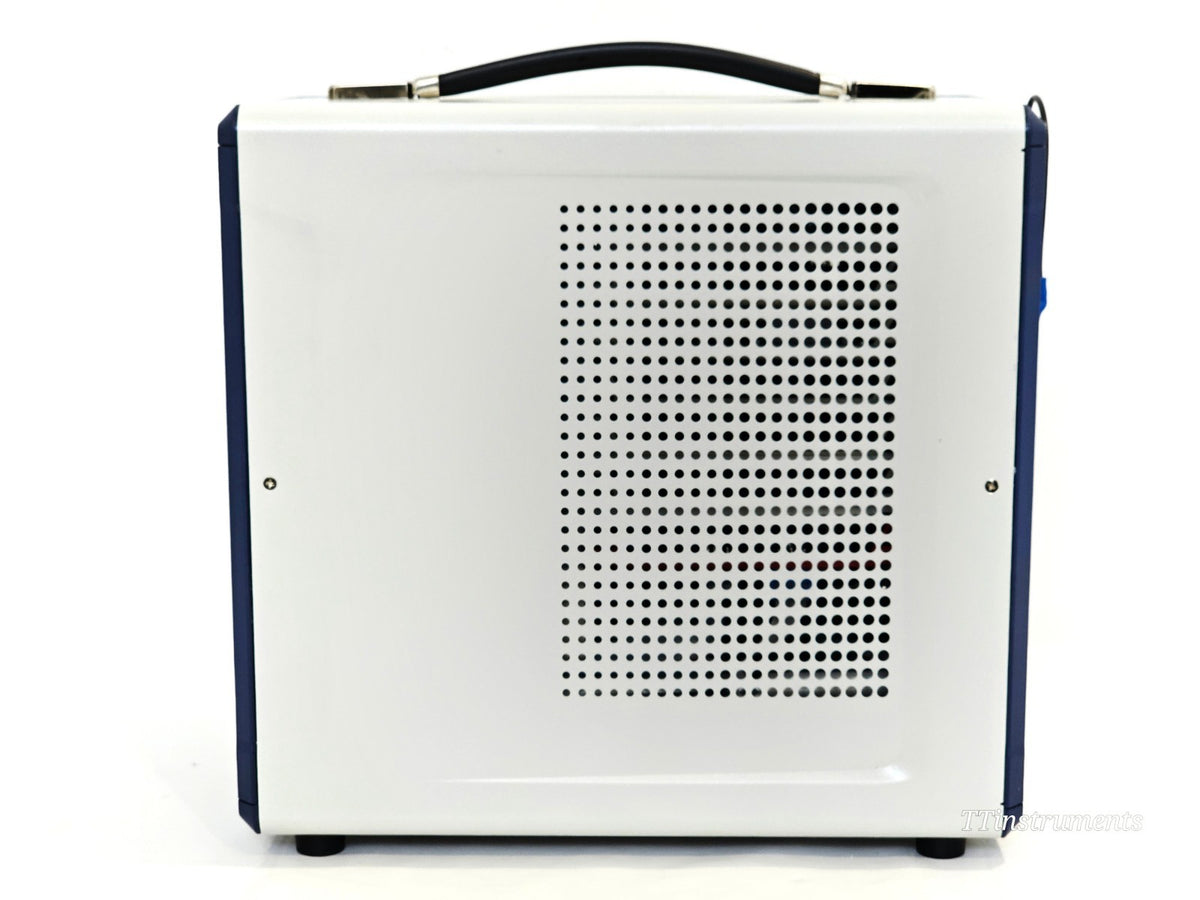

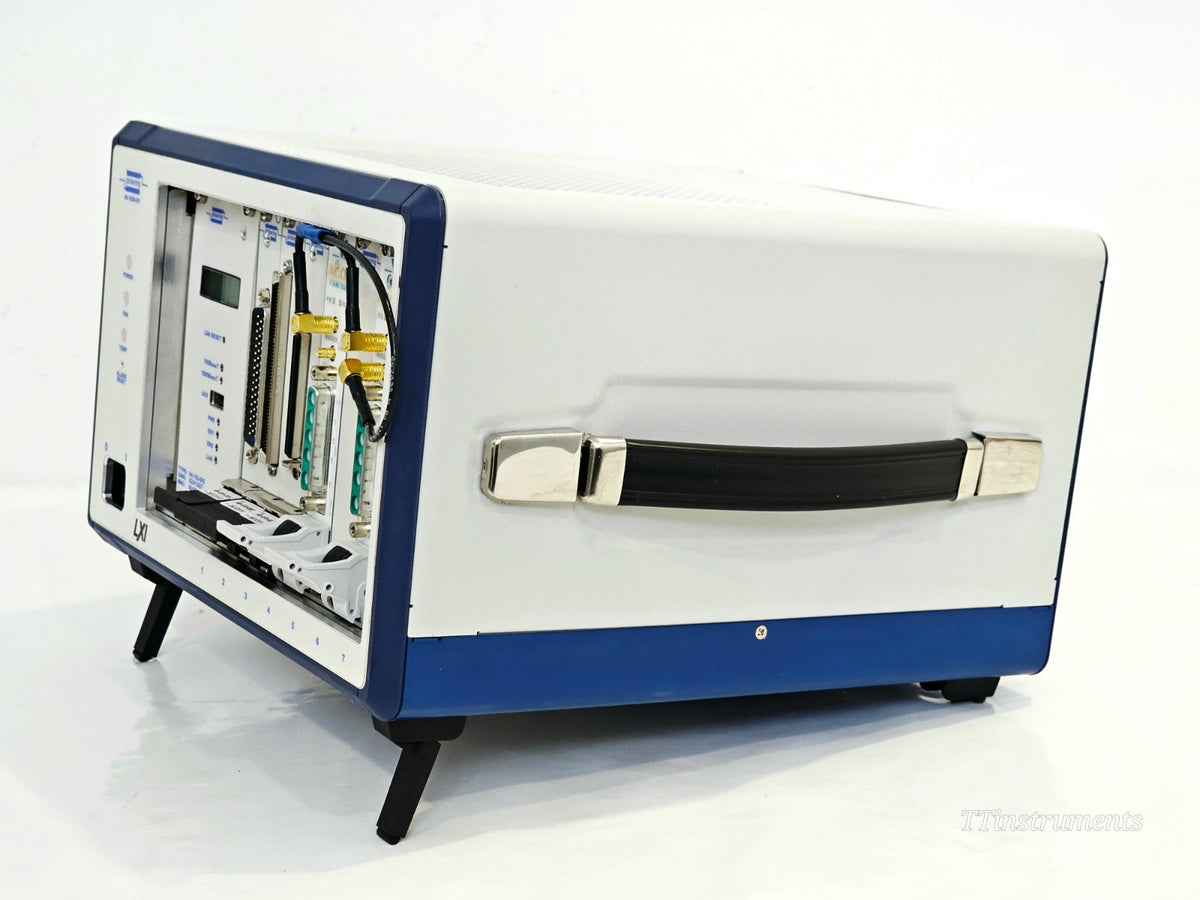

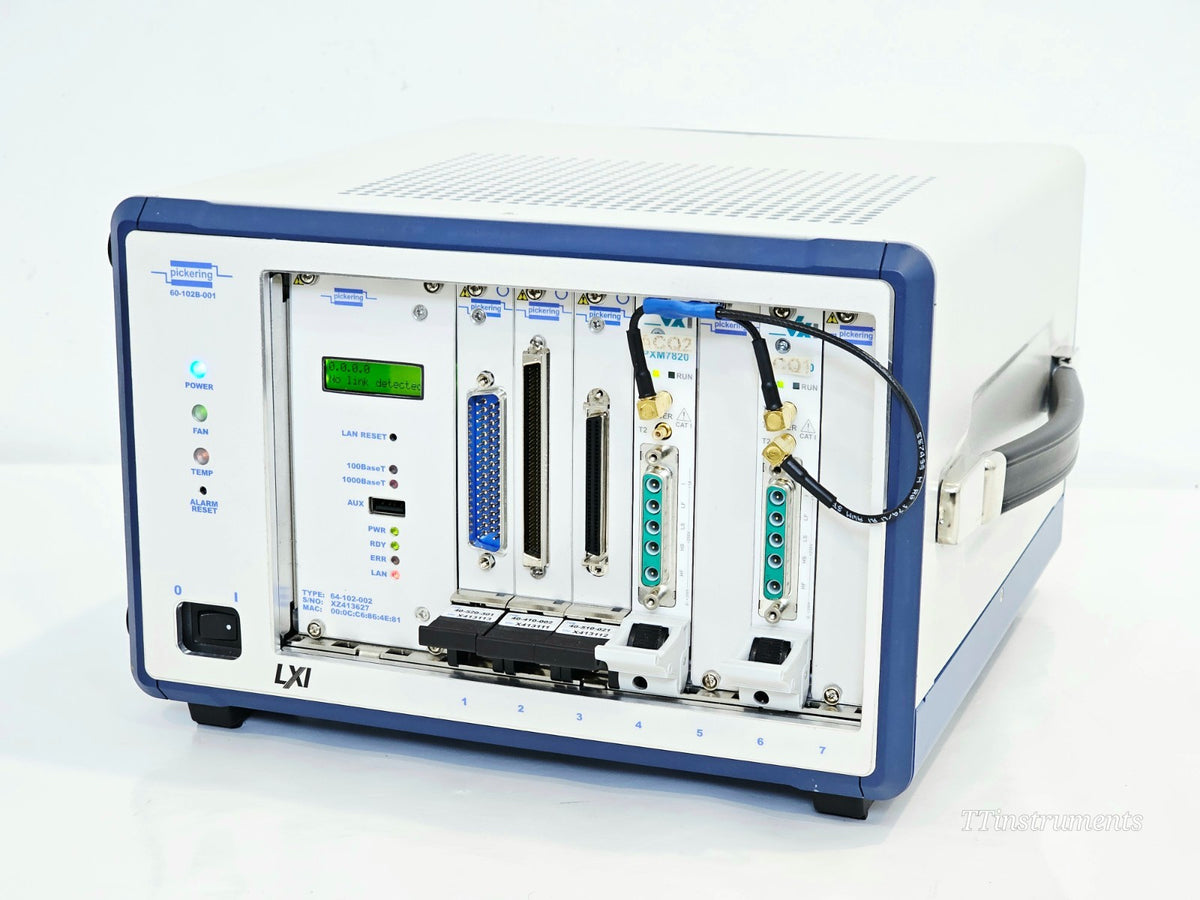

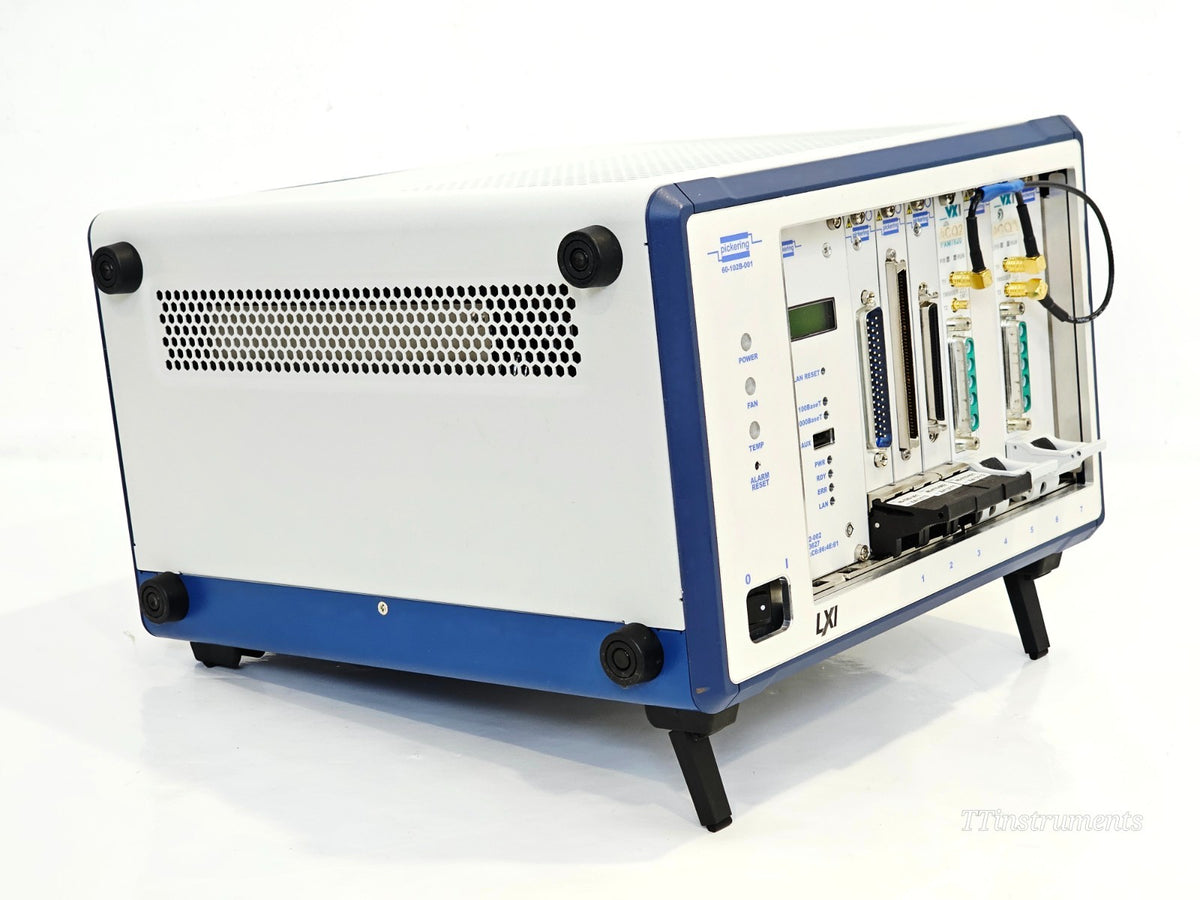

This Pickering 60-102B-001 LXI 7-Slot Modular Switching Chassis is in excellent cosmetic and functional condition. The complete system has been tested and is in full working order with no faults or errors.

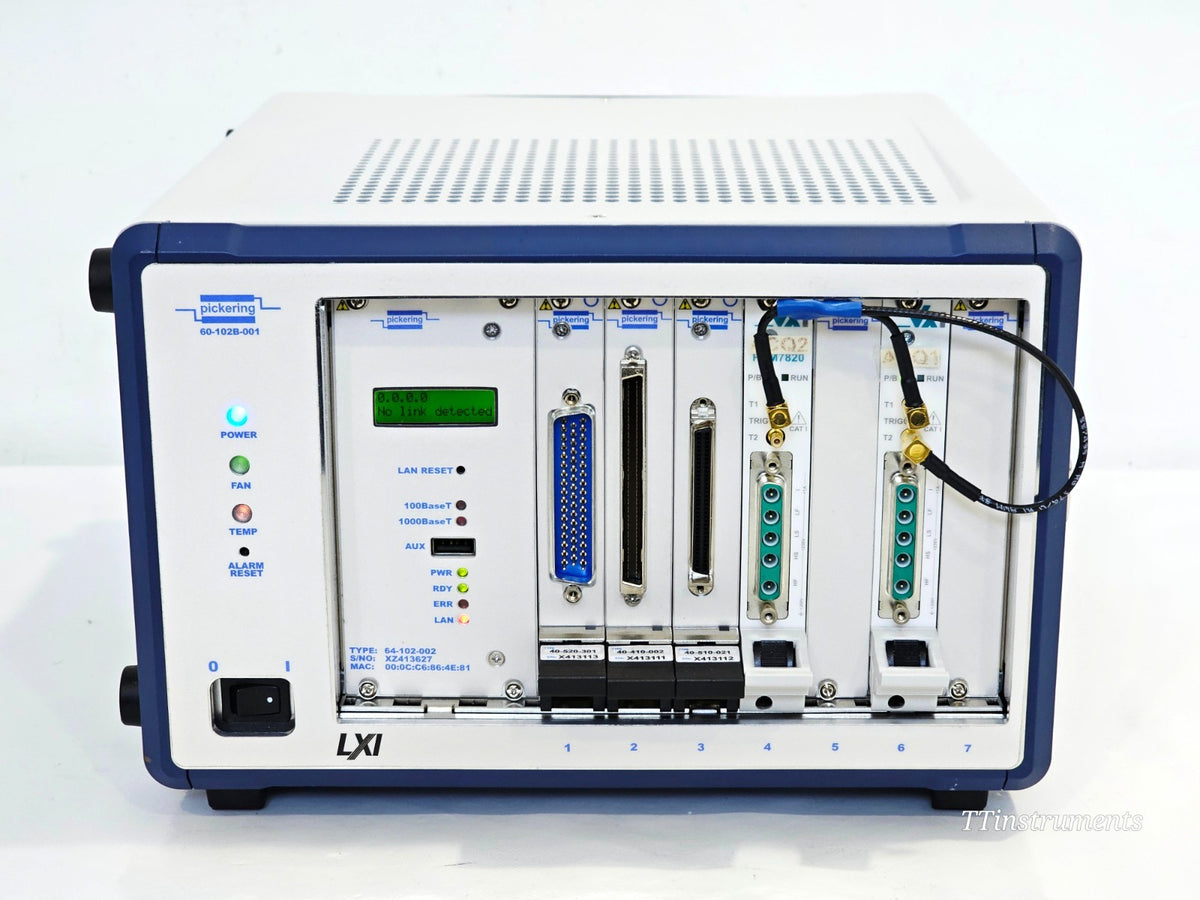

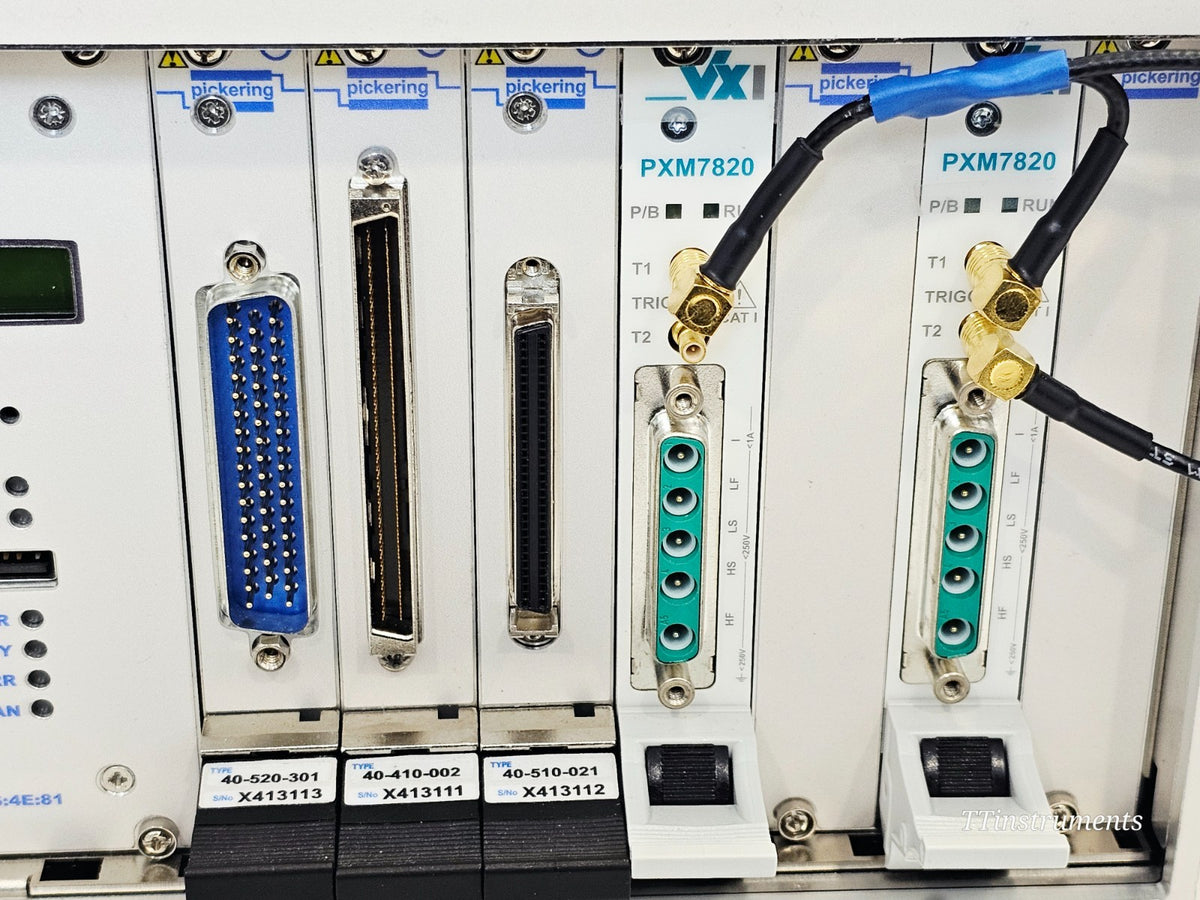

The chassis is fitted with the following installed modules:

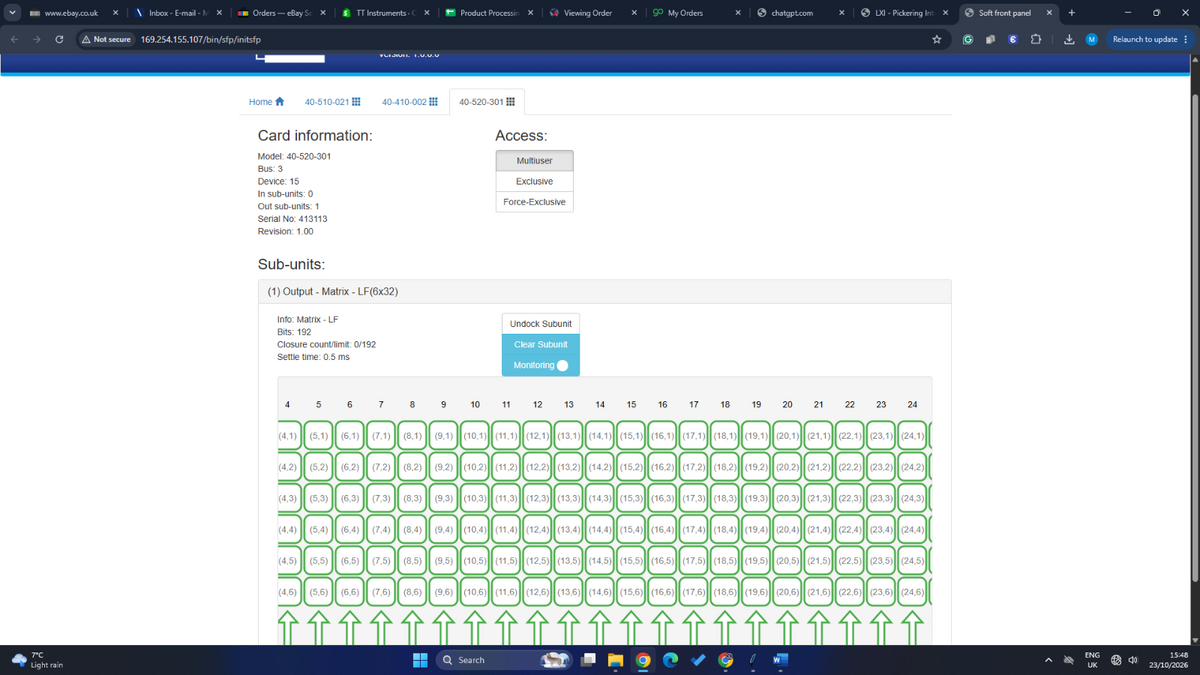

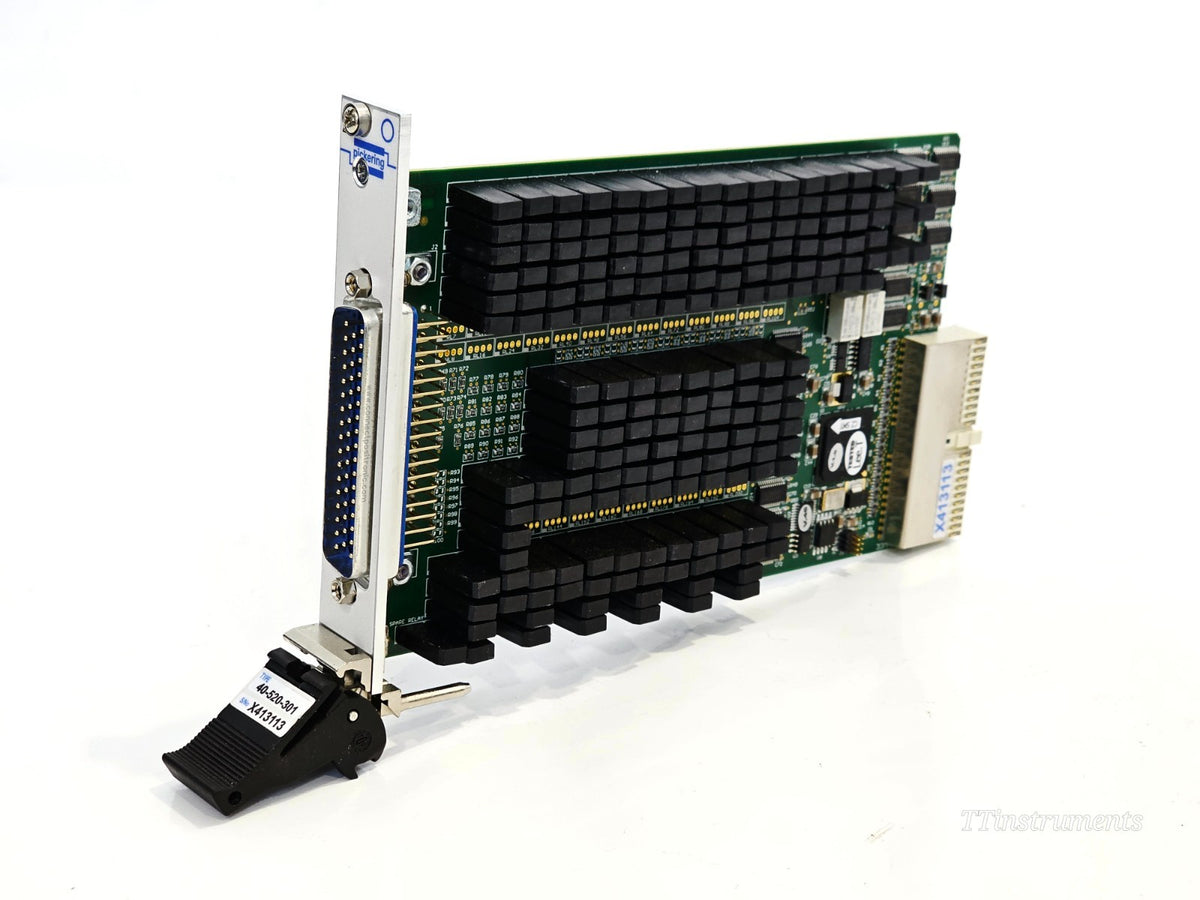

• Pickering 40-520-301 — Single 32x6 1-Pole High-Density PXI Matrix Module (192 crosspoints, Ruthenium reed relays)

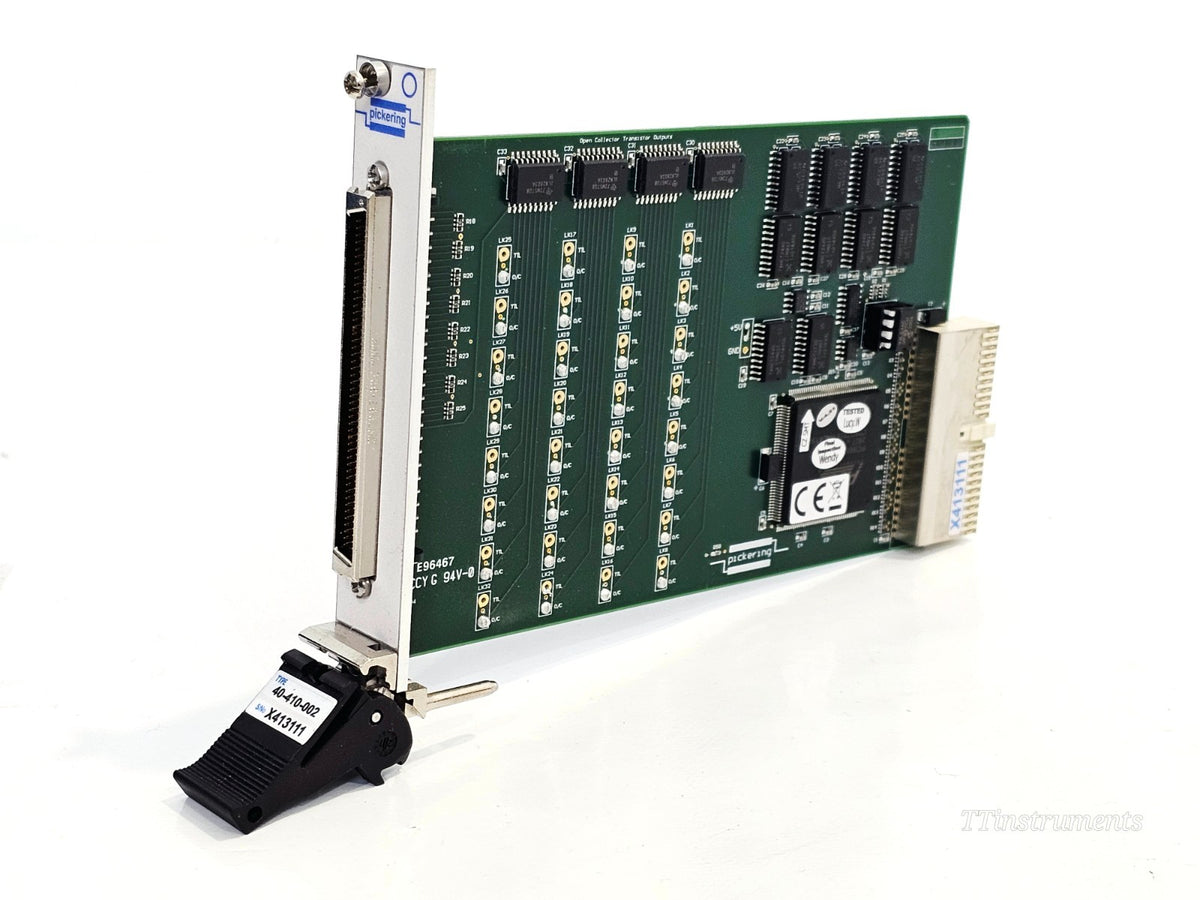

• Pickering 40-410-002 — PXI High Density Digital I/O Module, 32-bit Open Collector (32 outputs / 32 inputs, up to 50 VDC / 500 mA per channel)
• Pickering 40-510-021 — PXI 12x4 Matrix, 1-Pole Switching Module (48 crosspoints, reed relay)

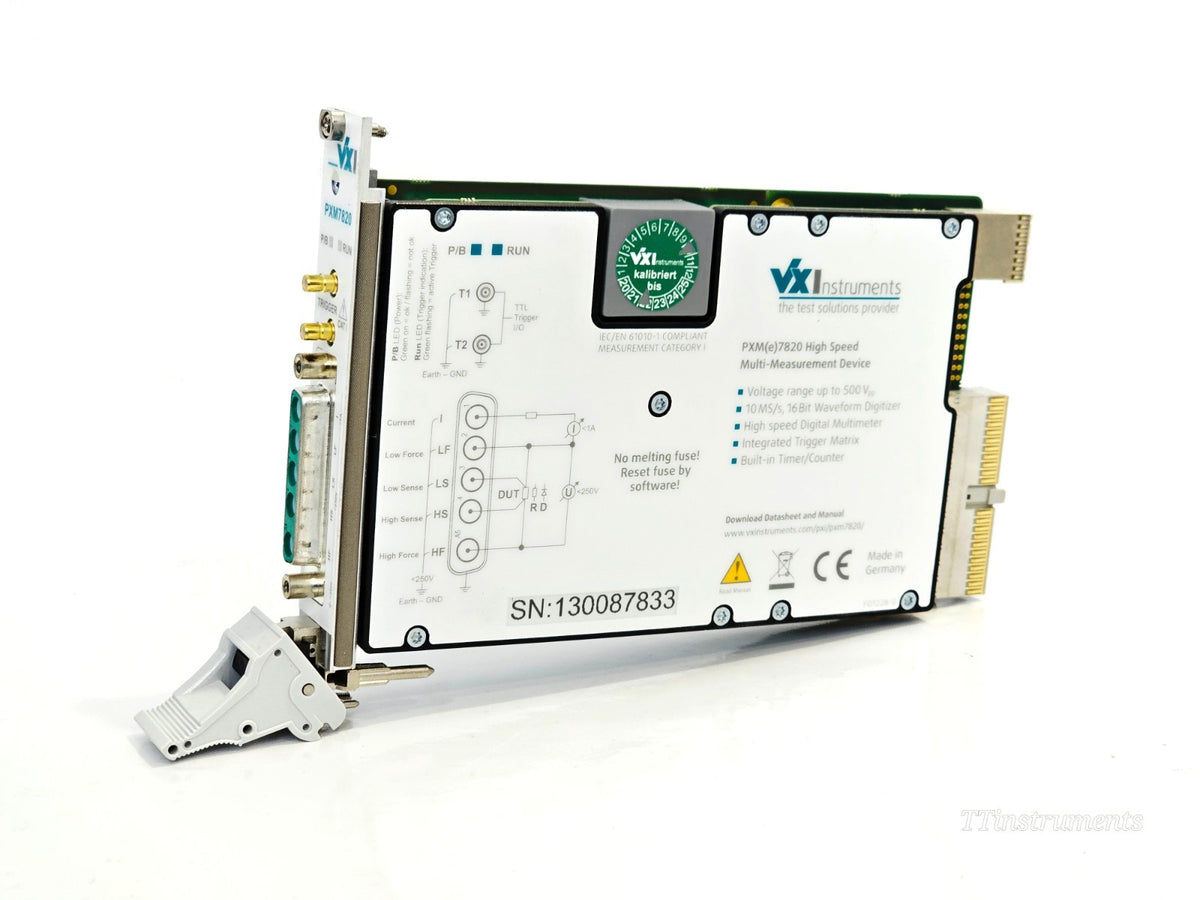

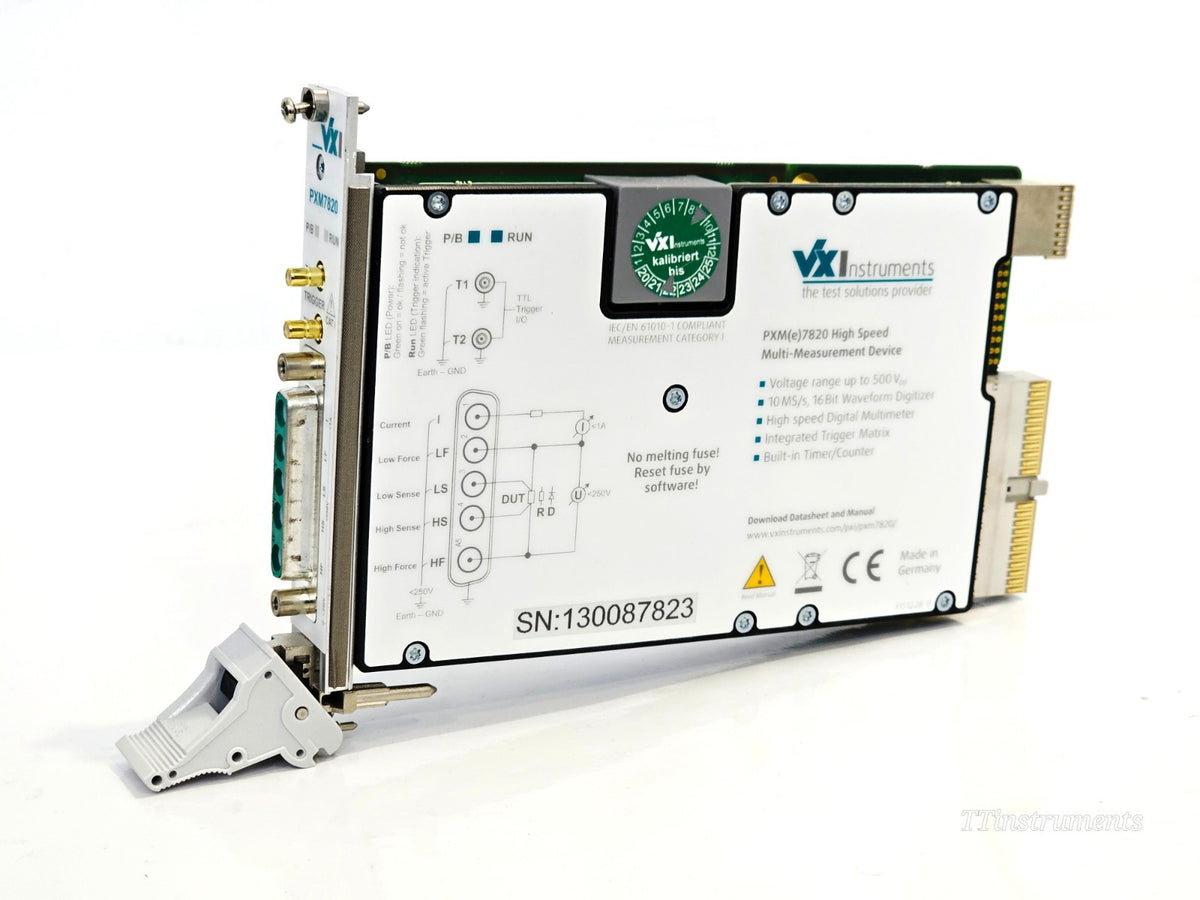

• VXI Instruments PXM7820 — PXI High Speed Multi-Measurement Device (x2 units): 16-bit DMM, 10 MS/s digitizer, configurable trigger matrix, timer/counter, up to 500 Vpp, fully isolated

The lot is sold as a complete configured system comprising:
• Pickering 60-102B-001 chassis with all five modules installed as listed above

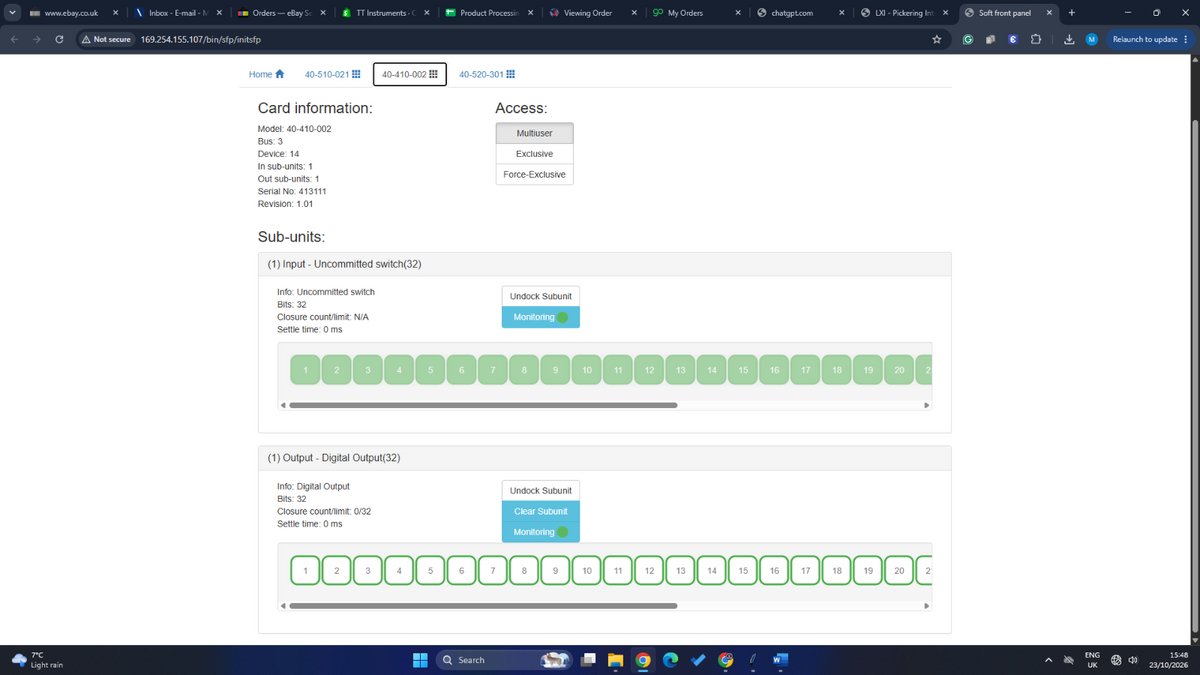

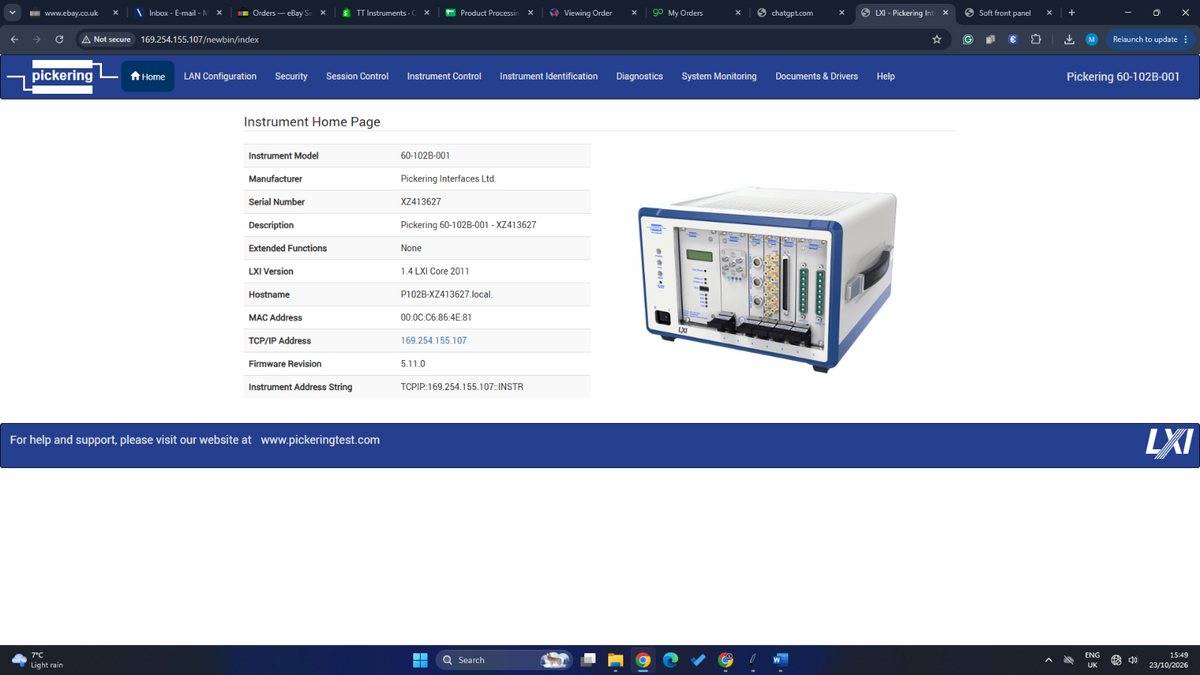

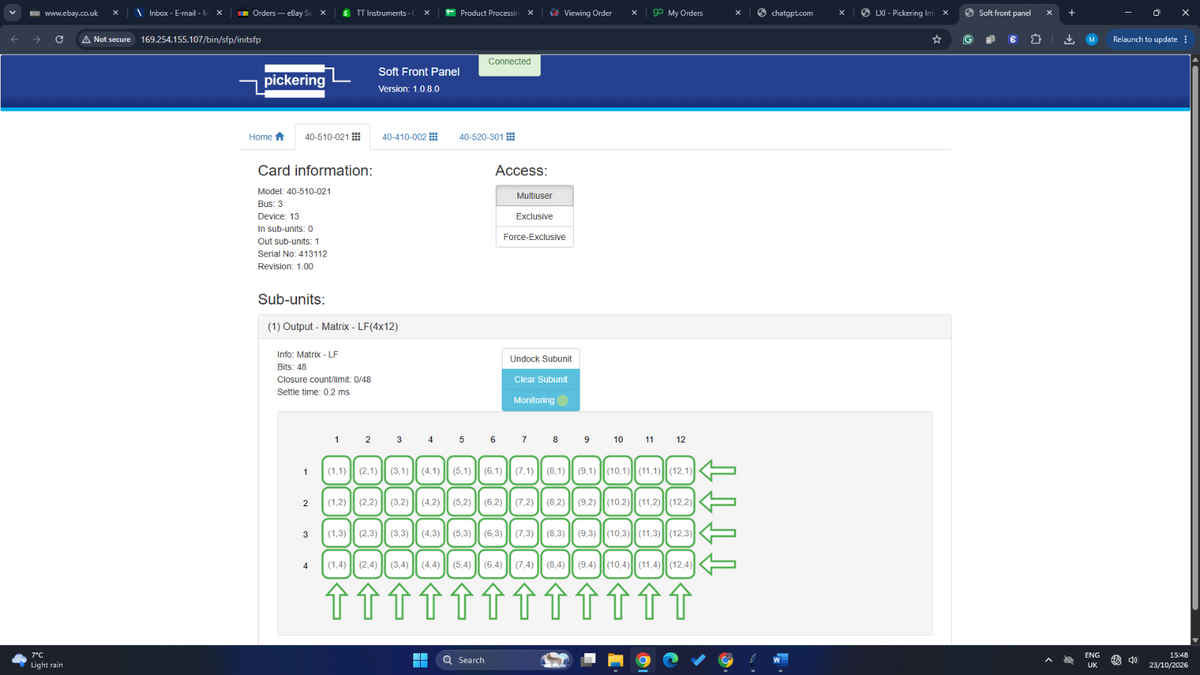

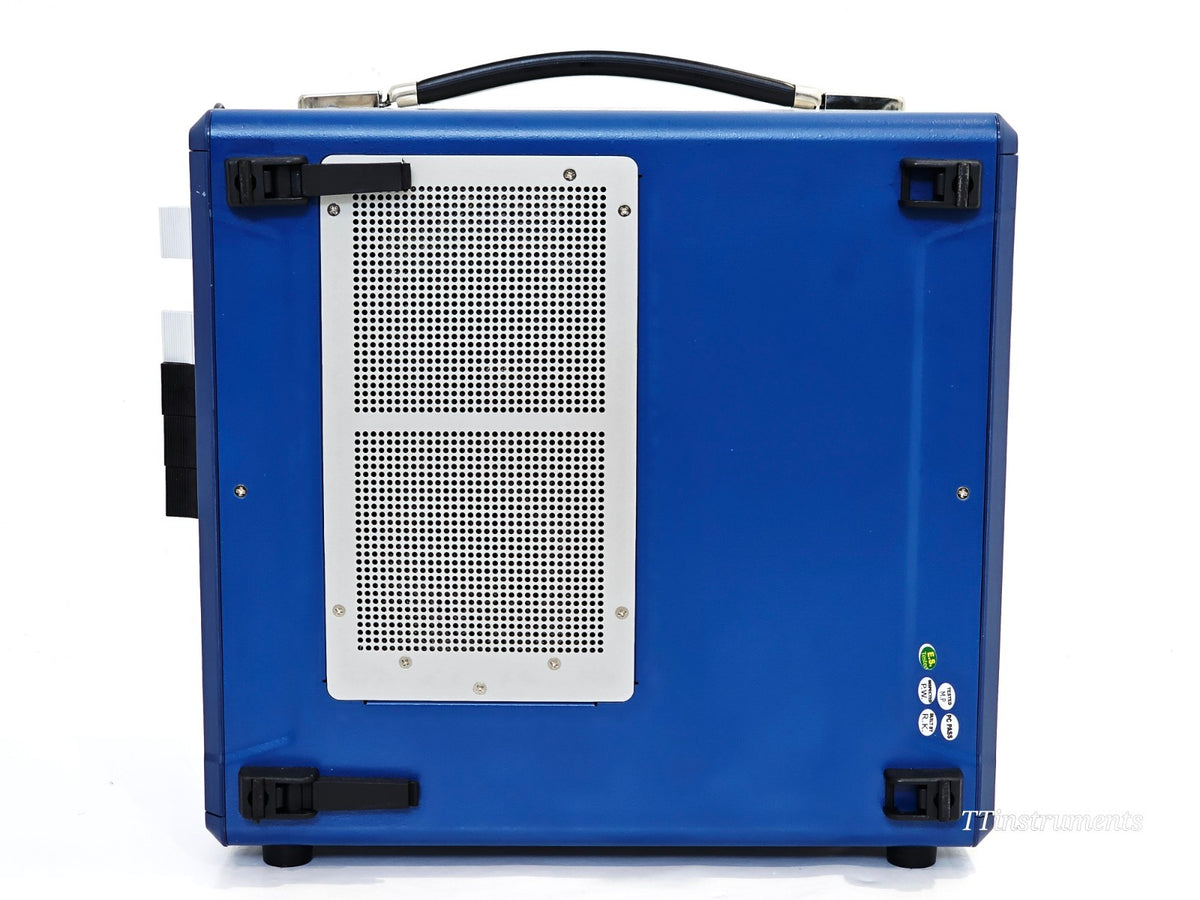

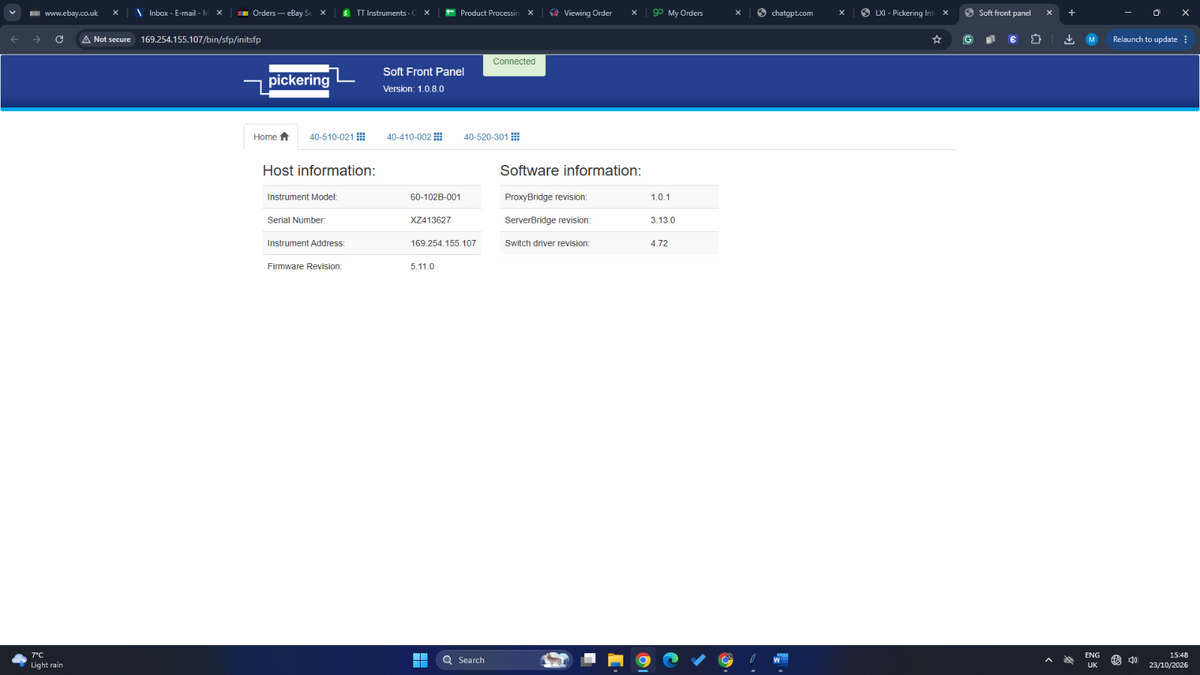

The Pickering 60-102B-001 is a 7-slot LXI modular switching chassis that allows Pickering 3U PXI switching, simulation, and instrumentation modules to be installed and controlled through a standardised Gigabit Ethernet interface, fully compliant with LXI Standard 1.4. Each installed module is supported as an LXI-compliant device, complete with a driverless soft front panel accessible from any web browser — a simple Ethernet lead is the only physical control connection required.

The chassis hosts a high-density 32x6 reed relay matrix (40-520-301) for precision ATE signal routing, a 32-bit open-collector digital I/O module (40-410-002) for driving external relays, solenoids, and logic interfaces, a 12x4 reed relay matrix (40-510-021) for additional signal routing, and two VXI Instruments PXM7820 high-speed multi-measurement devices combining a 16-bit DMM, 10 MS/s waveform digitizer, configurable trigger matrix, and timer/counter in a single 1-slot PXI module.

Chasis platform: LXI Standard 1.4
Number of slots: 7 x 3U PXI
Ethernet interface: Gigabit (1000BaseT)
Power rating: 350 W
Input voltage: 90–264 VAC, 47–63 Hz
Form factor: 4U half rack
Compliance: CE, RoHS, LXI

40-520-301 Matrix: 32x6 1-pole, 192 crosspoints, Ruthenium reed, 150 VDC / 1 A / 15 W max, 25 MHz bandwidth
40-410-002 Digital I/O: 32-bit out (open collector) / 32-bit in, 50 VDC / 500 mA max, <10 µs operate time
40-510-021 Matrix: 12x4 1-pole, 48 crosspoints, reed relay, 150 VDC / 1.2 A / 20 W max
PXM7820 DMM: 16-bit, 10 MS/s digitizer, up to 500 Vpp, fully isolated, 2- and 4-wire resistance, <1 ms range switching
