PCTel SeeGull MXflex Scanning Receiver 07904S-U NR LTE TD-LTE FD-LTE WCDMA 6-GHz

Condition: Used — Good condition. This is the PCTEL SeeGull MXflex scanning receiver (07904S-U) with 30 installed options enabled and a perpetual active licence. Calibration date is 04/12/2019 and bootup status is Passed. Software is not provided.

Unit Level Information:
• ESN: 0000-0000-7131-1002
• Software Release Version: 5.7.1.0
• API Version: 2.5.0.0
• Interfaces: USB

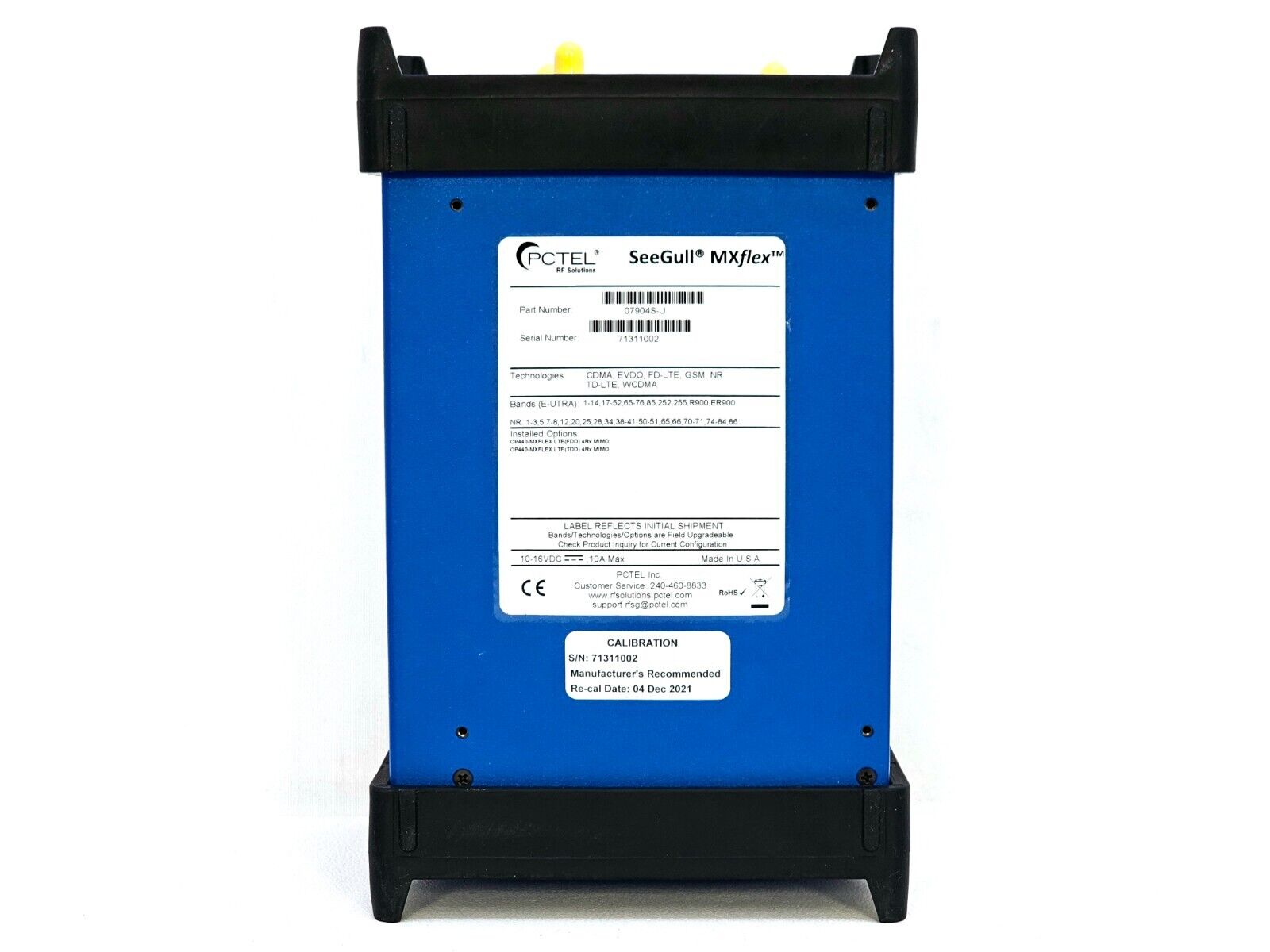

• Calibration Date: 04/12/2019
• Licence Type: Perpetual | Licence State: Active

Protocol / Band Summary:
• Band Options: 159
• GSM: 12 | CDMA(95): 18 | WCDMA: 24
• CDMA: 18 | EV-DO: 18
• LTE: 336 | TD-LTE: 88 | NR: 48

Installed Options (Active):
• GPS Navigation
• Absolute Time Stamp
• MIMO RF Ports 1–4
• GSM Support, GSM BSIC, GSM BCCH C/I
• IS-95 Support, IS-95 Pilot, IS-95 Extended Dynamic Range
• WCDMA Support, WCDMA Pilot, WCDMA Extended Dynamic Range
• CDMA Support, CDMA Pilot, CDMA Extended Dynamic Range
• EVDO Support, EVDO Pilot, EVDO Extended Dynamic Range
• LTE Support, LTE Enhanced Signal Scan, LTE Enhanced Signal 4Rx MIMO
• TDLTE Support, TDLTE Enhanced Signal Scan, TDLTE Enhanced Signal 4Rx MIMO
• New Radio Support, New Radio MIB Decoding, New Radio Blind Scan, New Radio Top N Signal Scanning
• 30 MHz–6000 MHz Capability

Included in the sale:

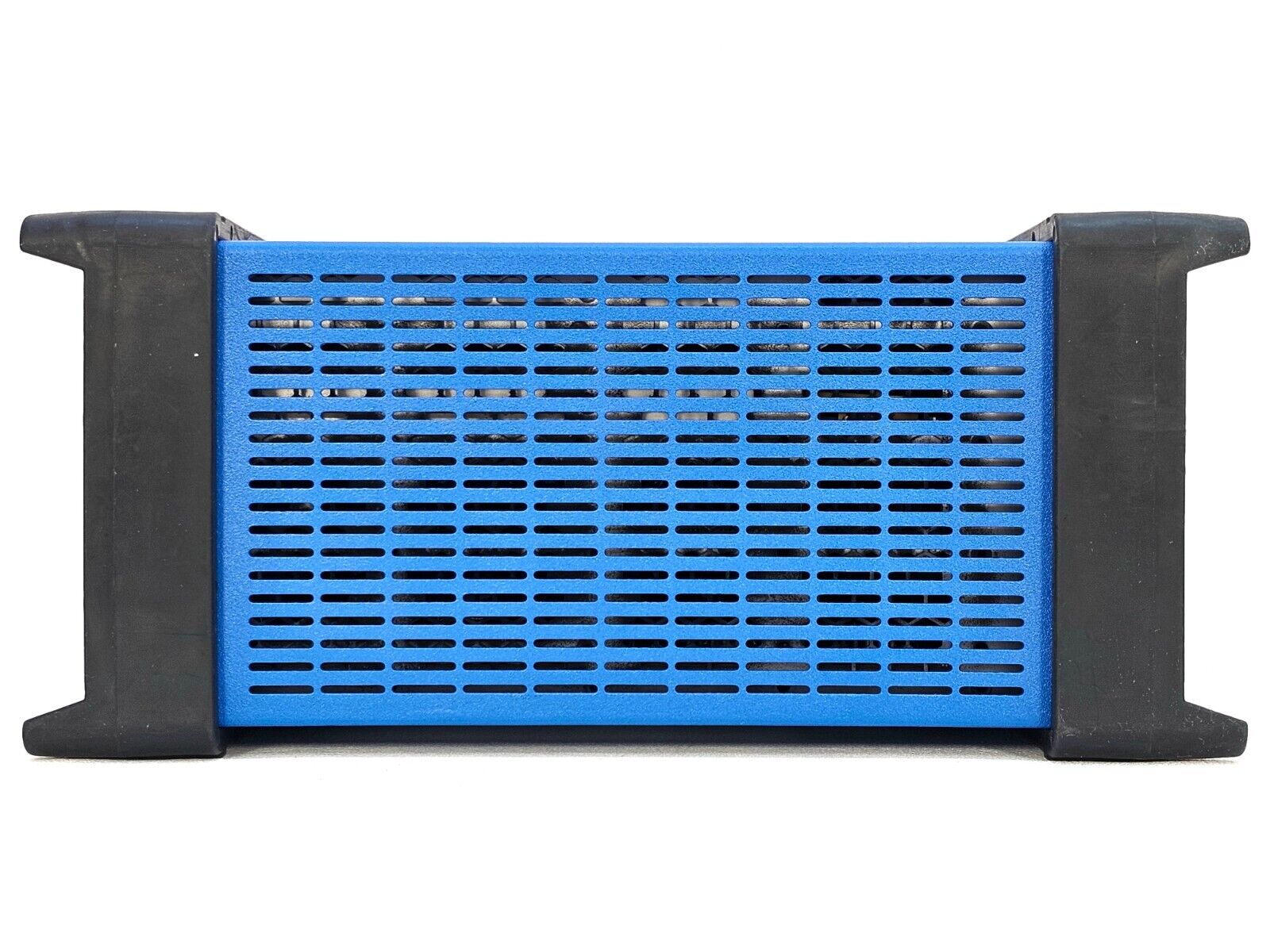

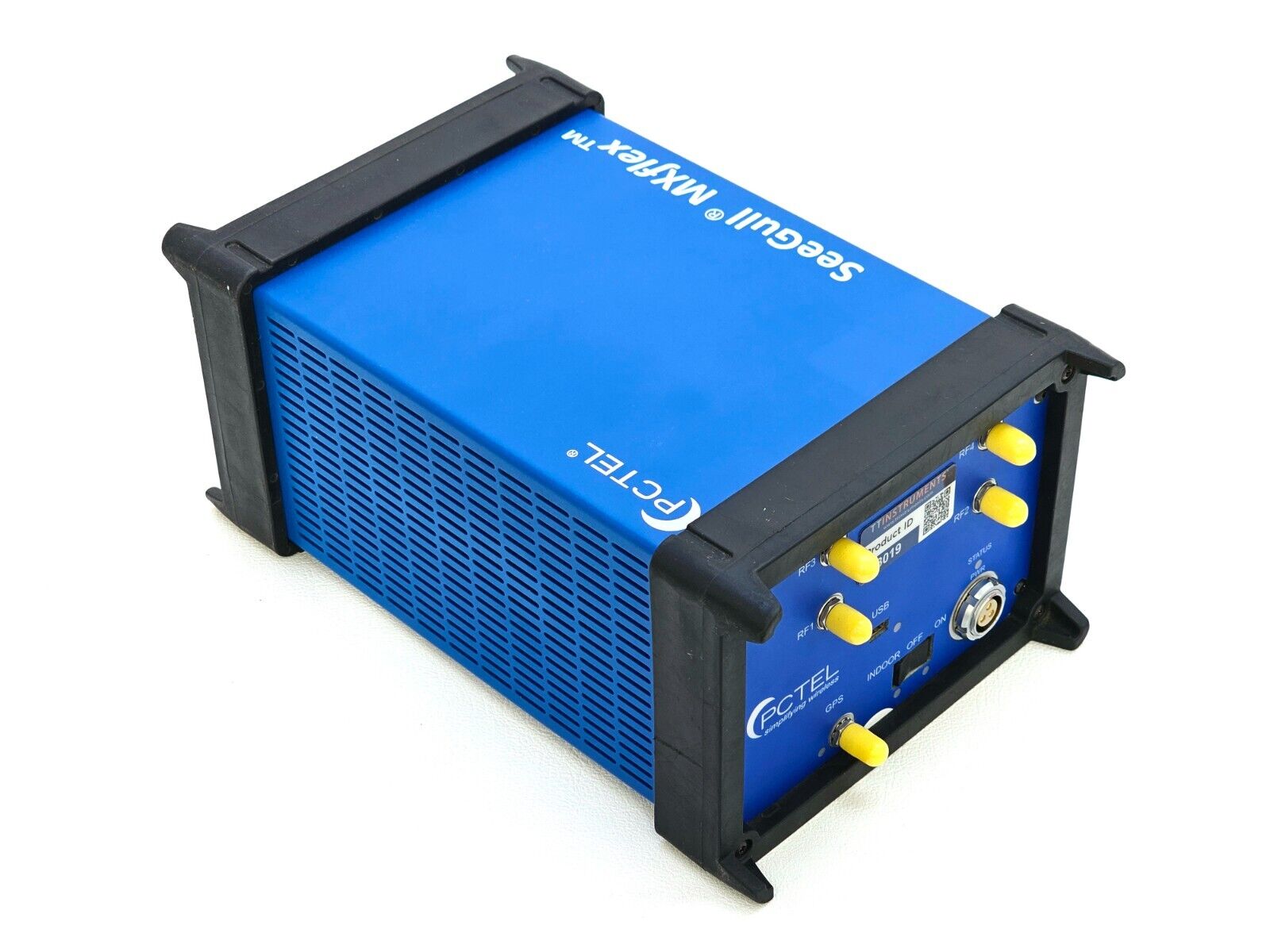

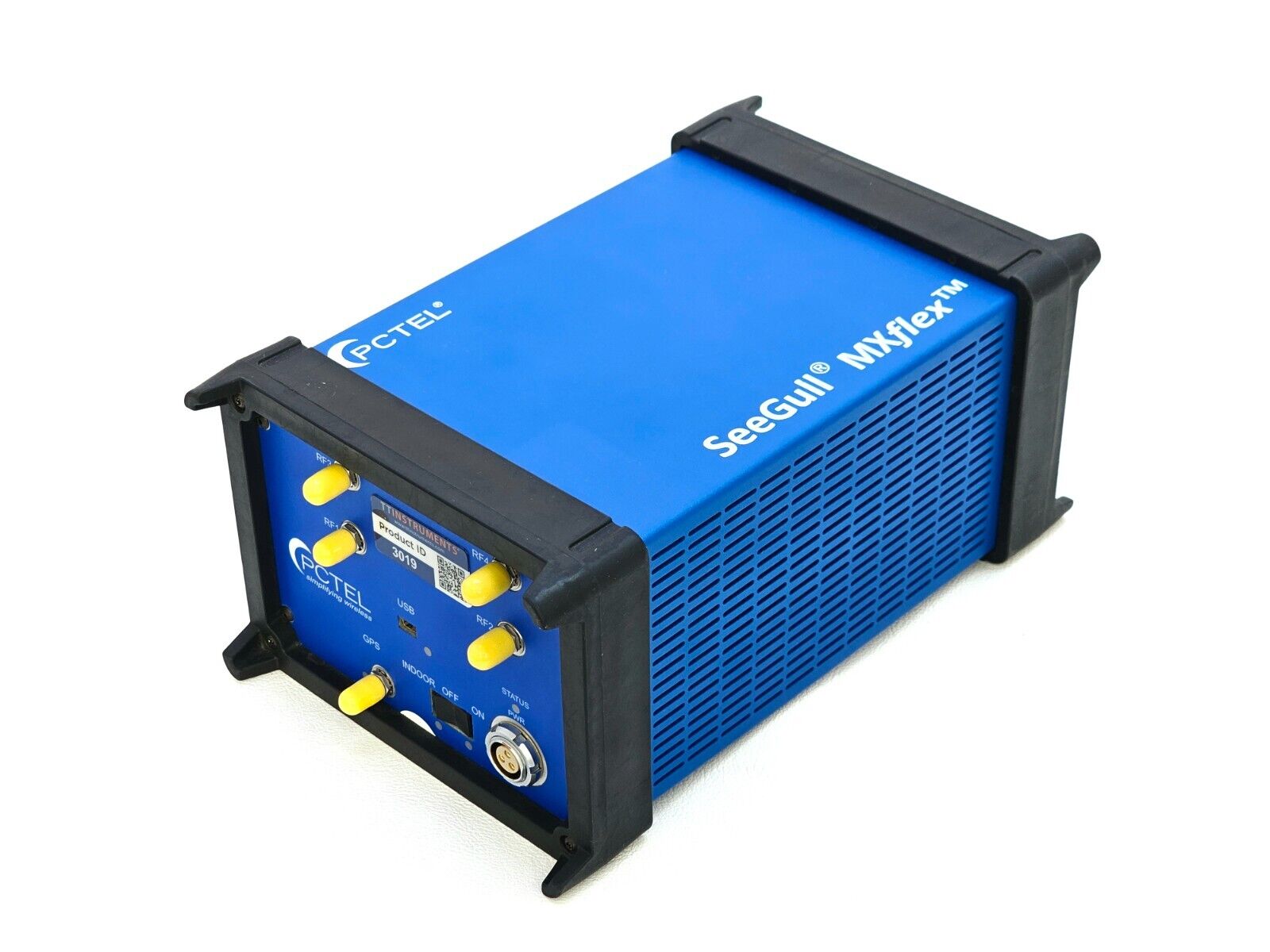

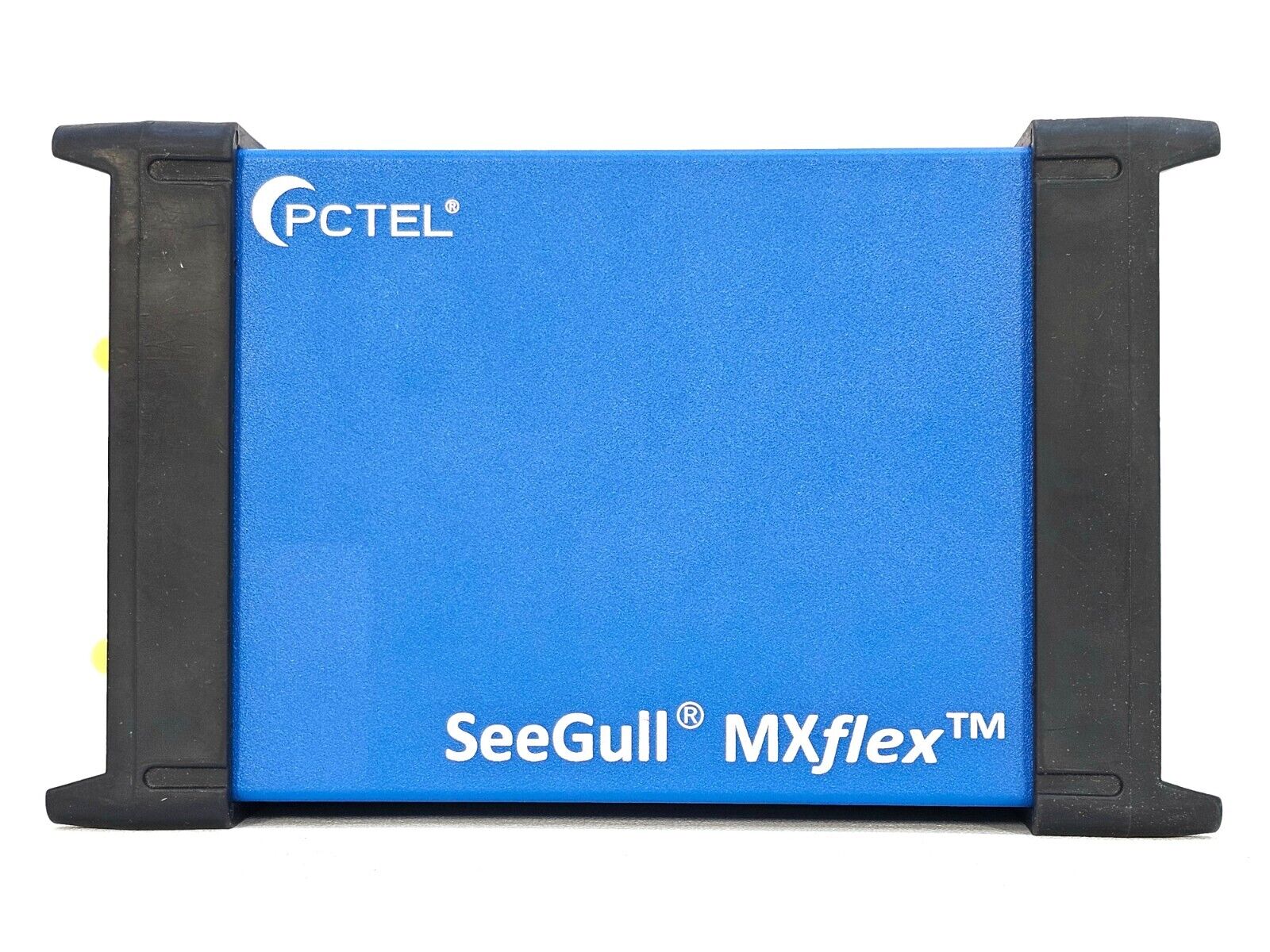

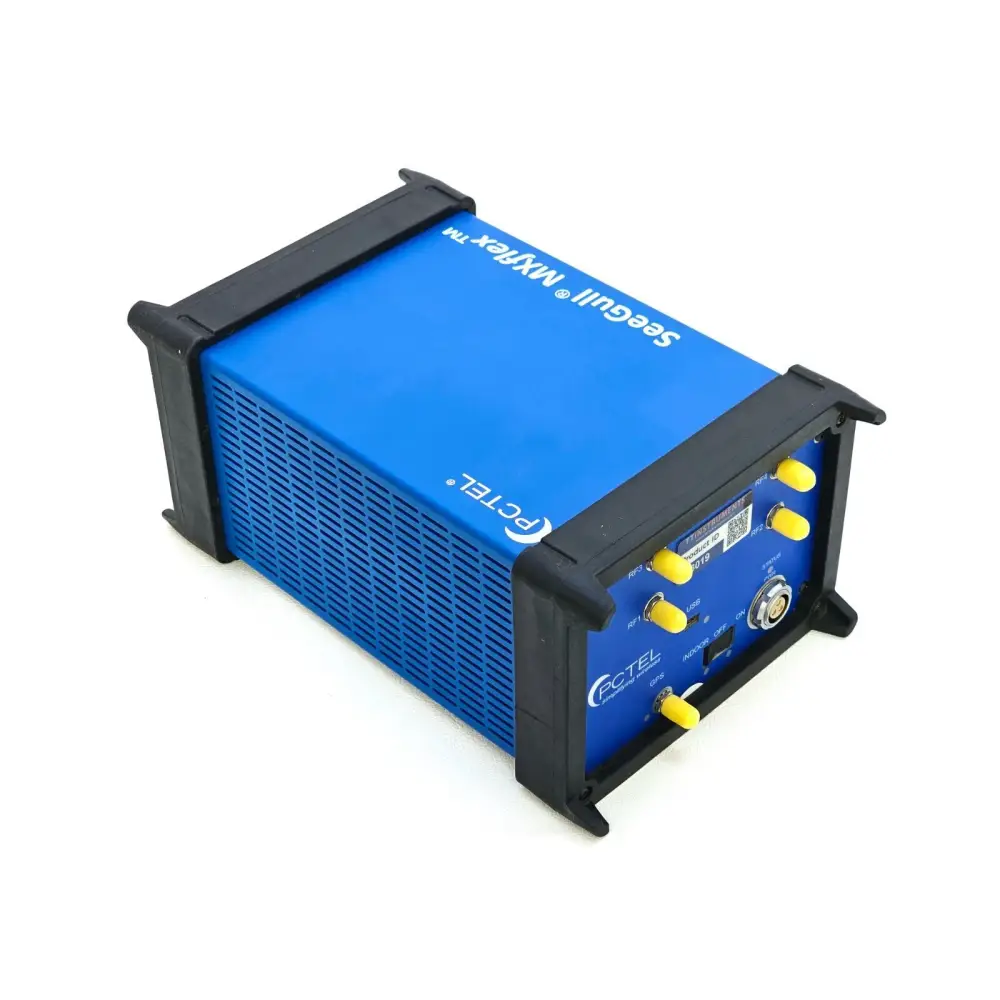

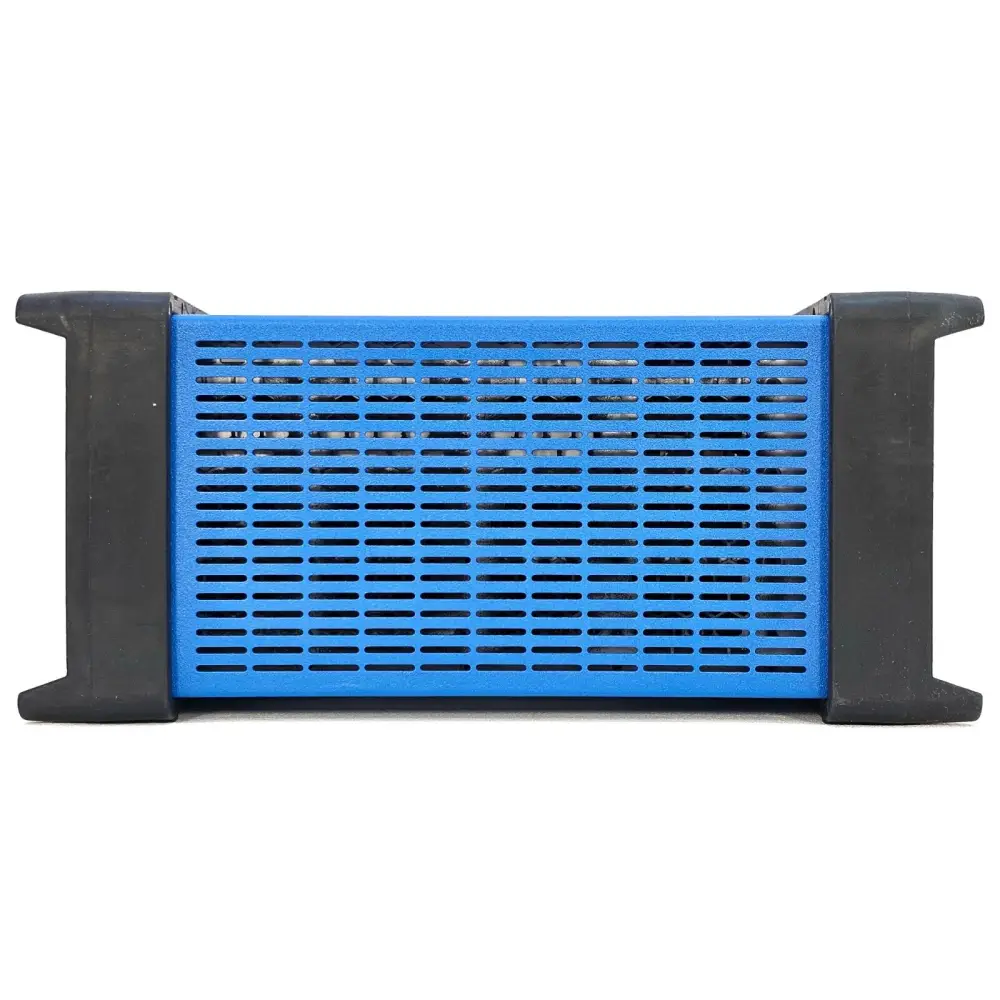

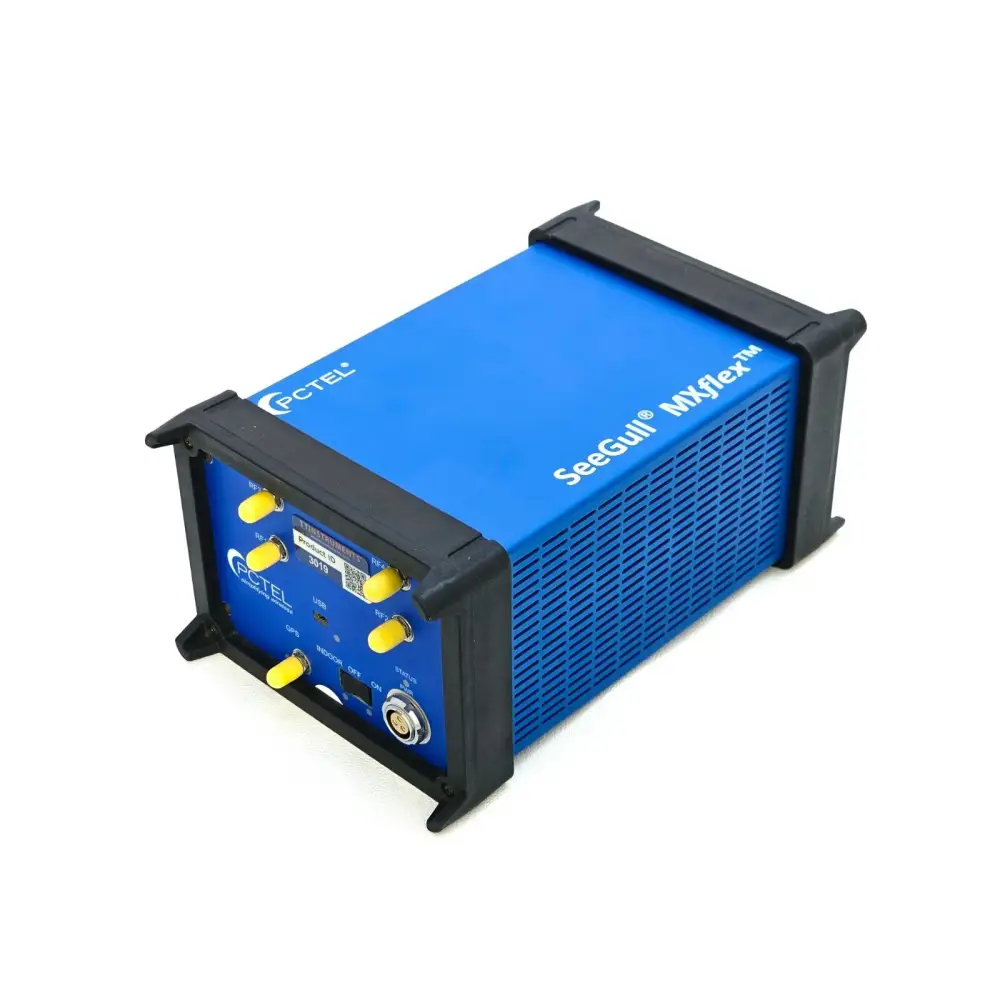

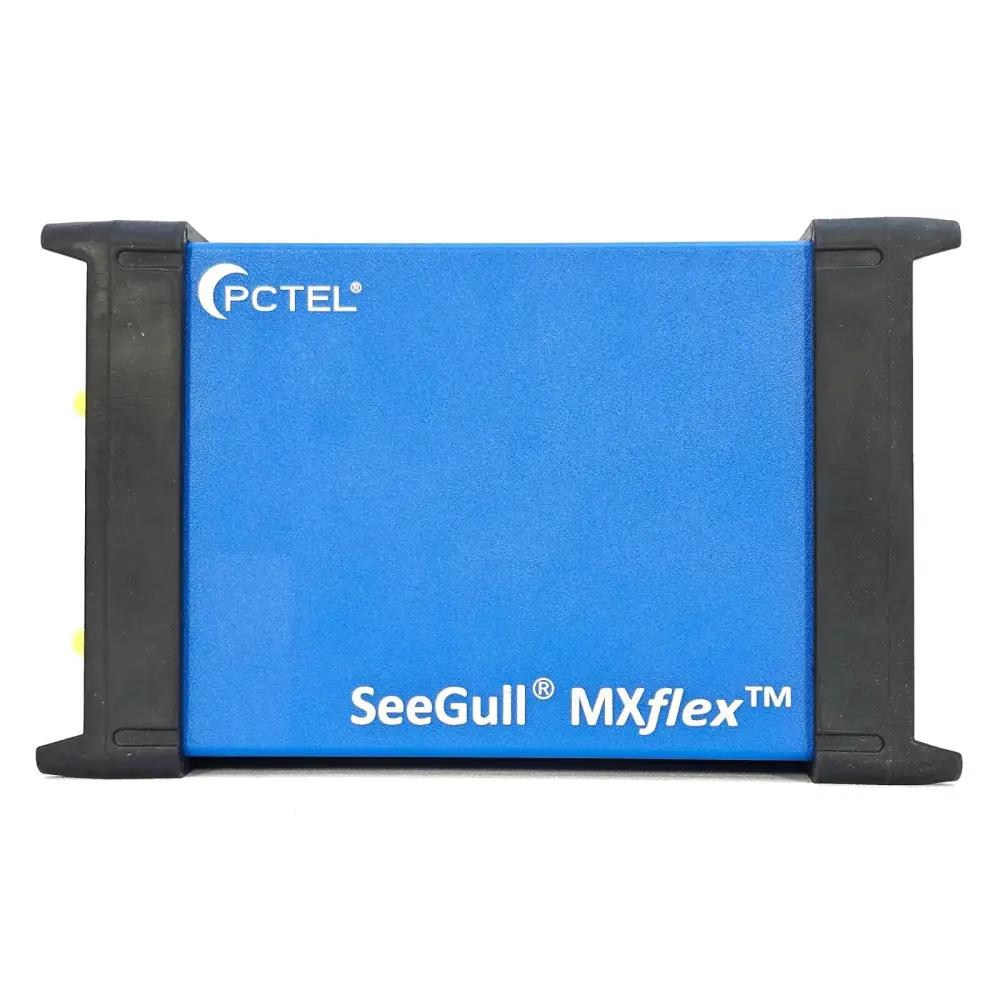

• PCTel SeeGull MXflex receiver

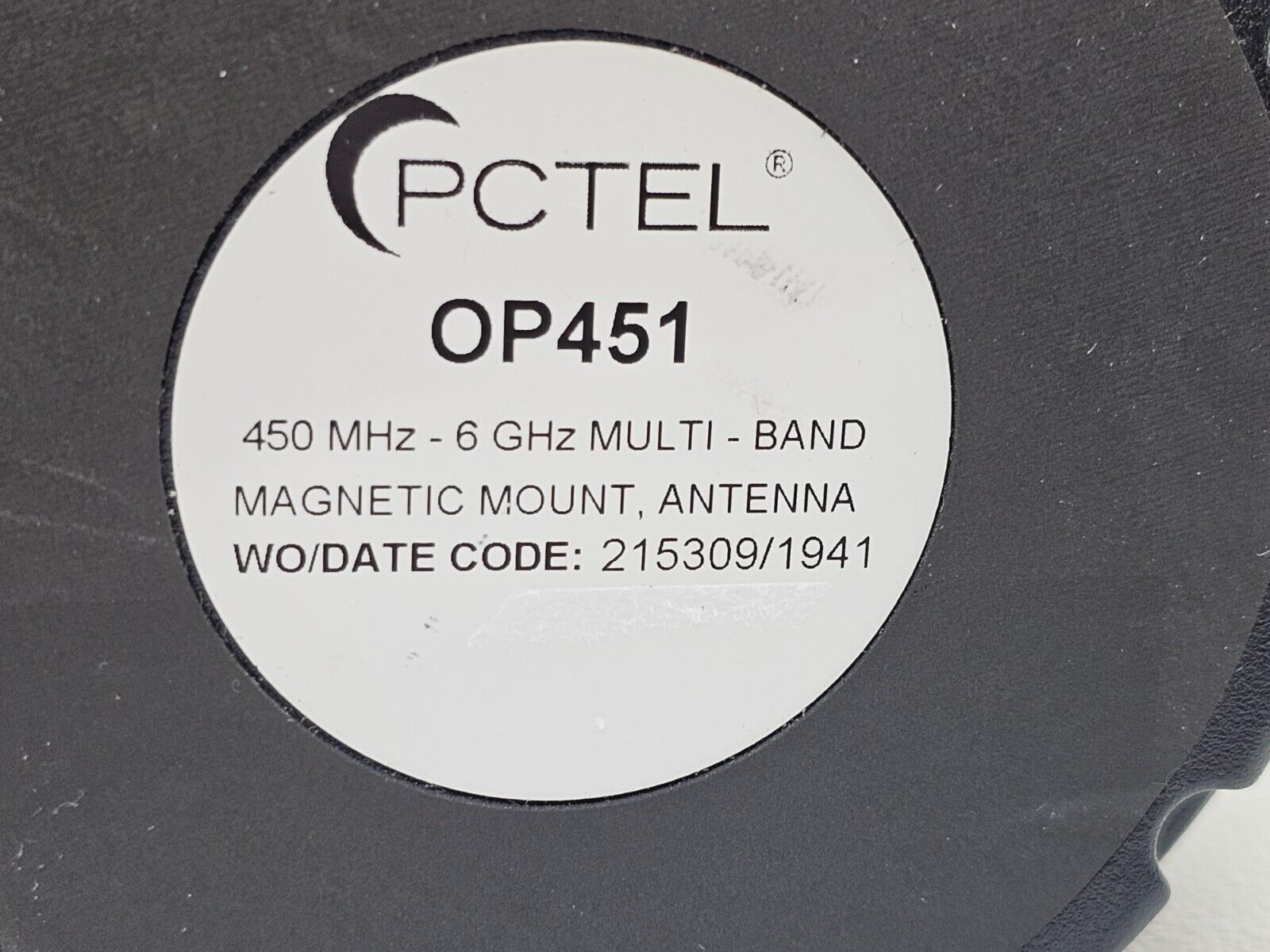

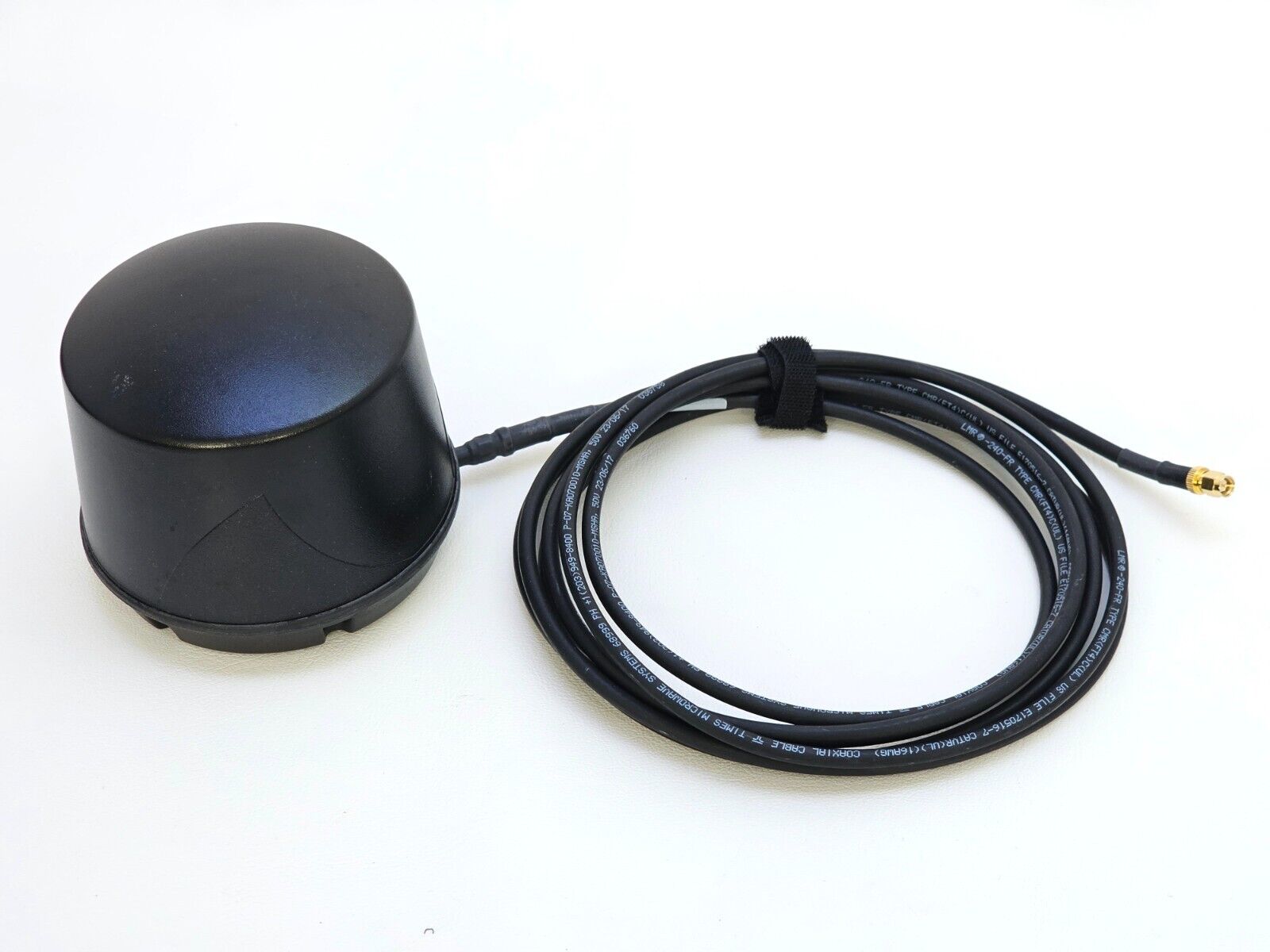

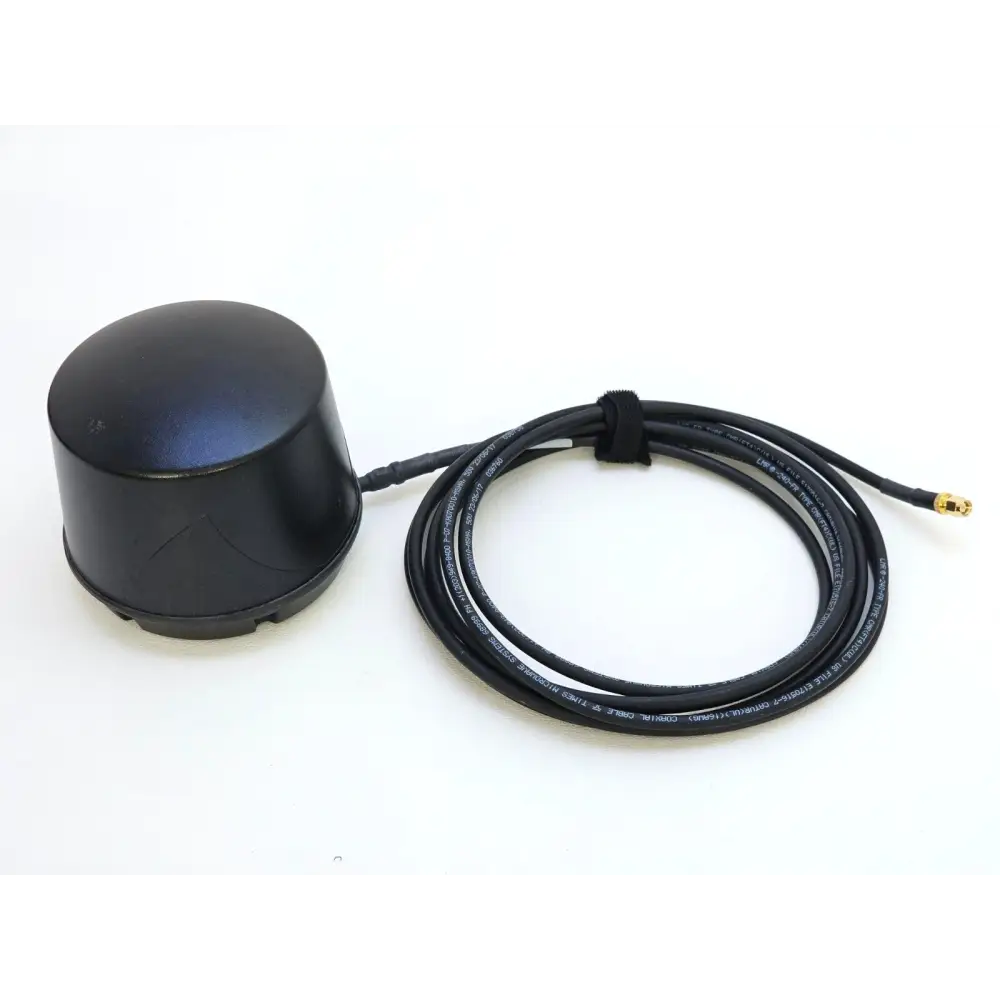

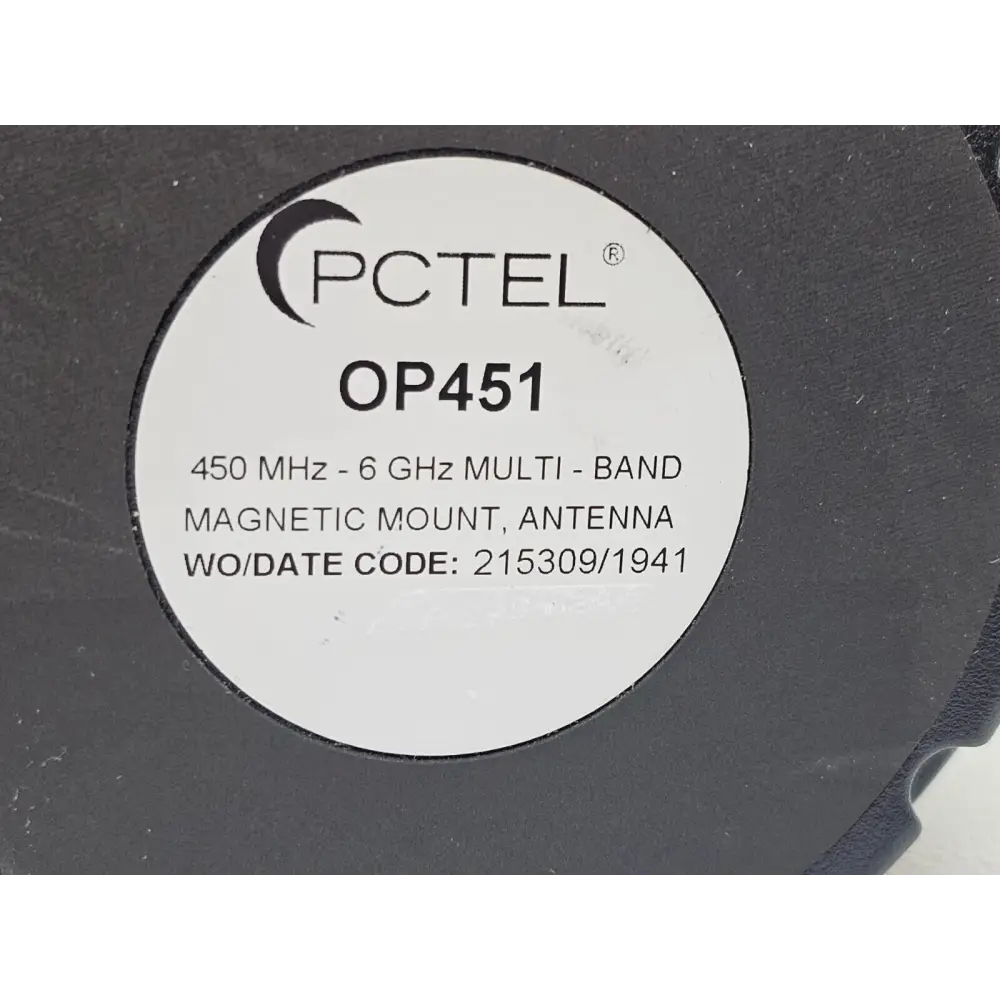

• Antennas x4

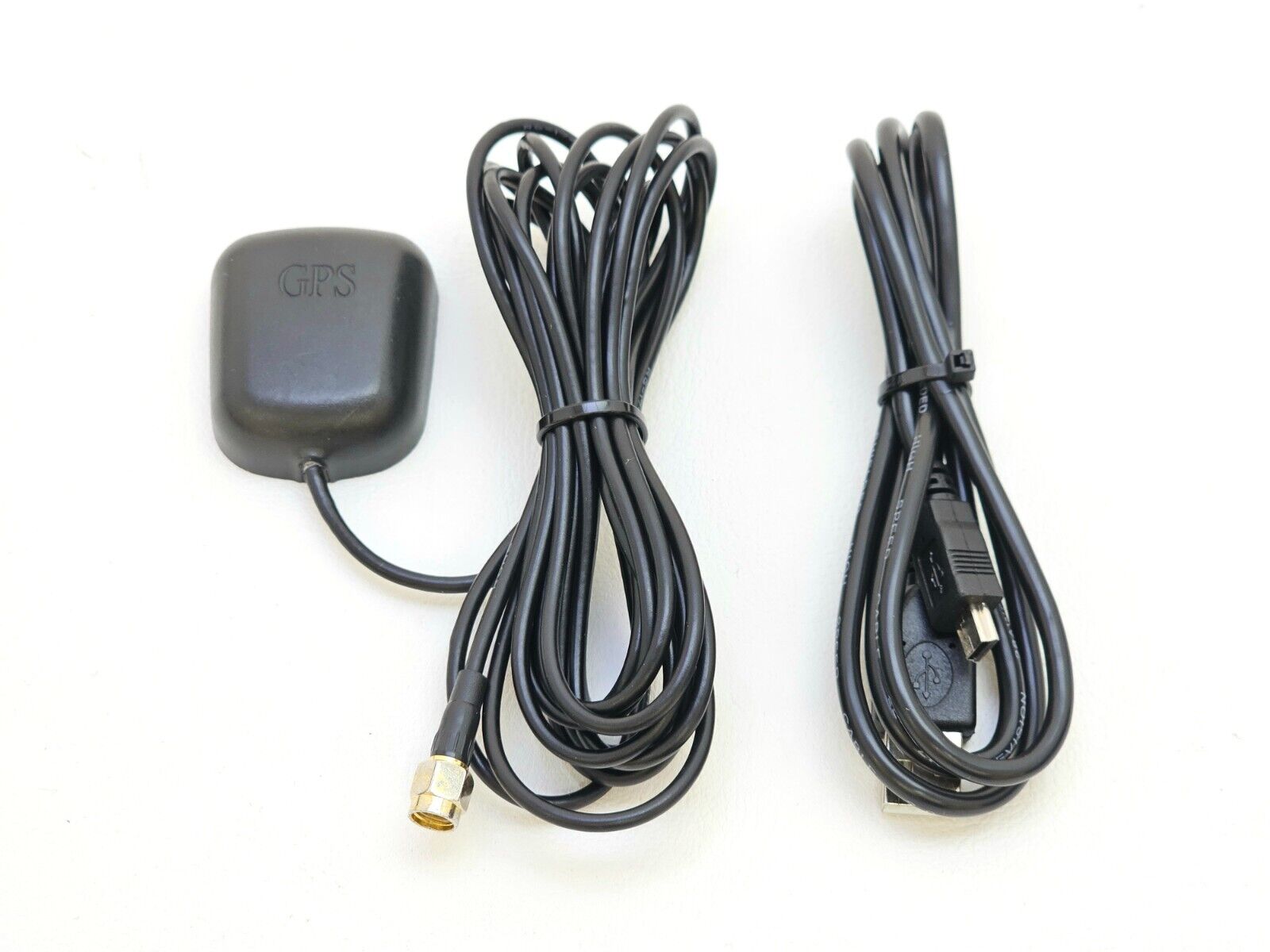

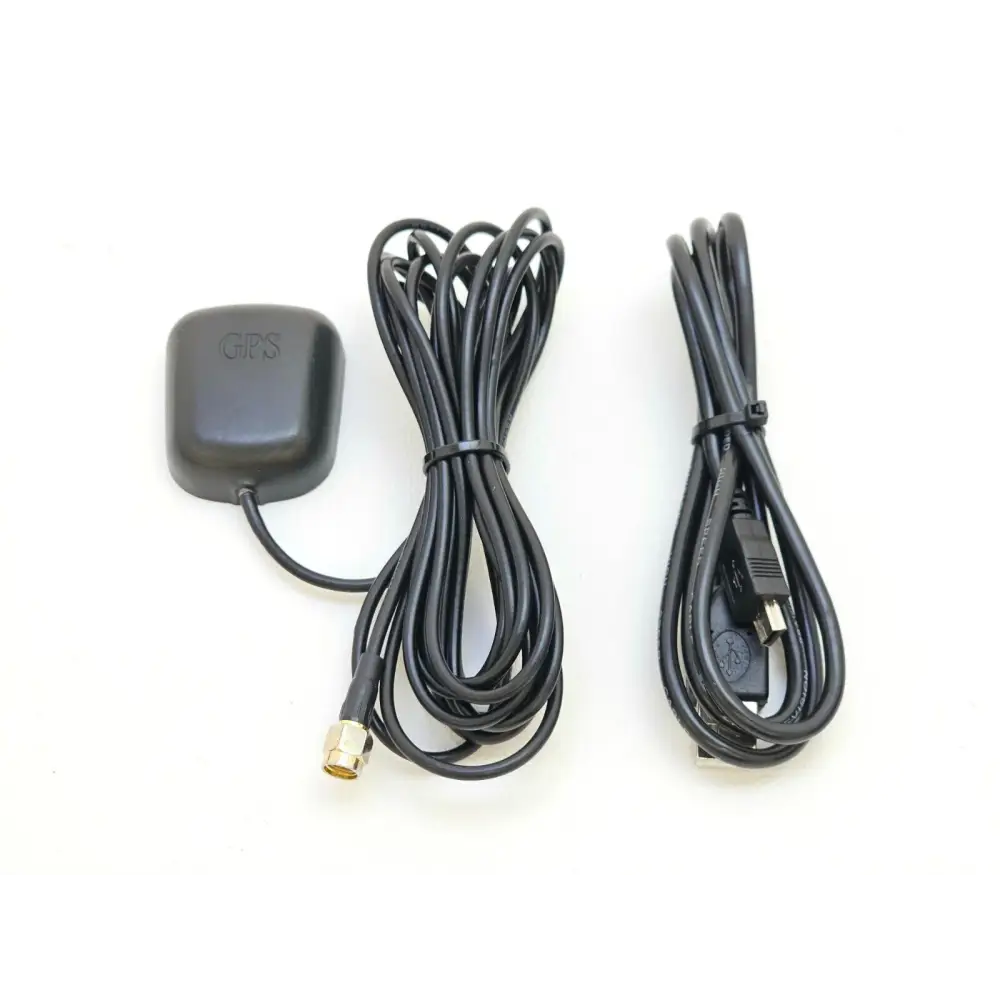

• GPS antenna x1

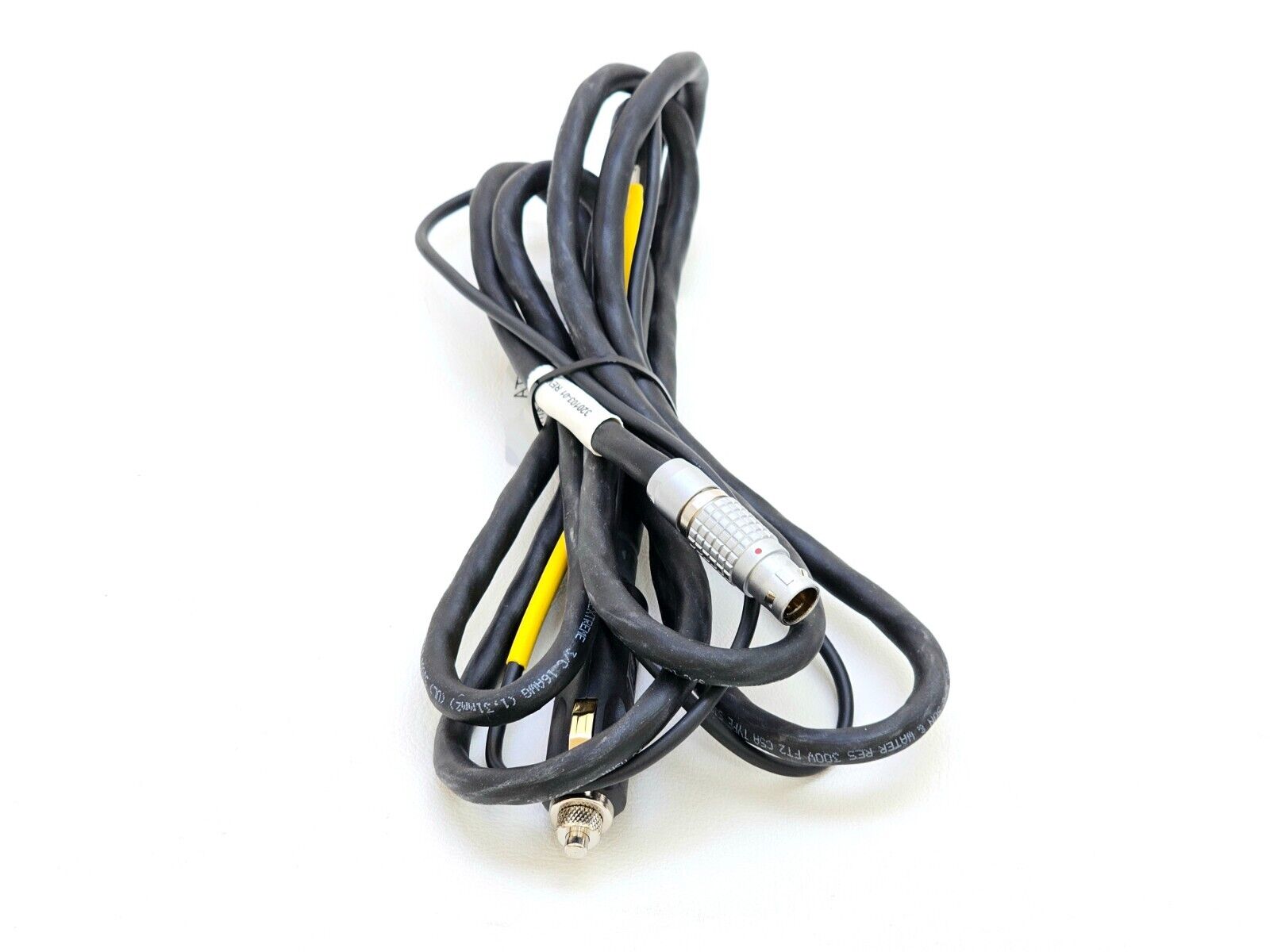

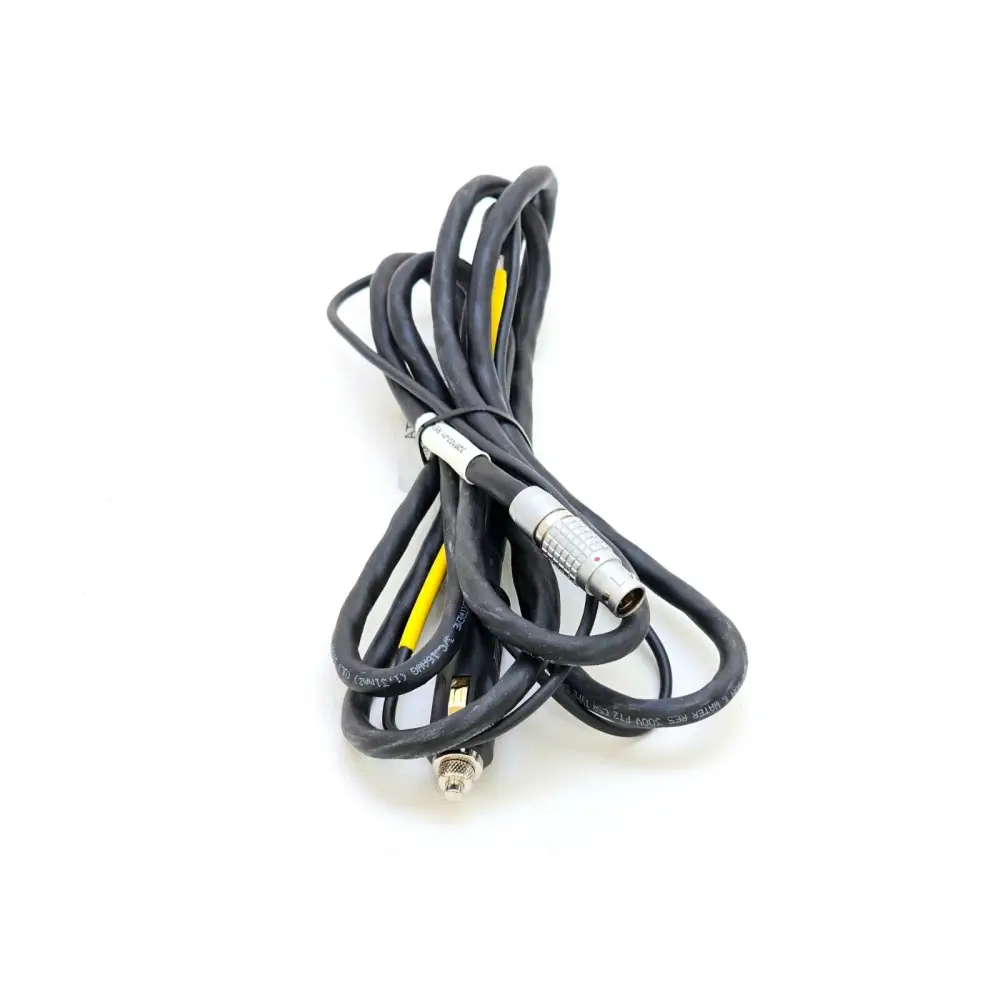

• In-car charger x1

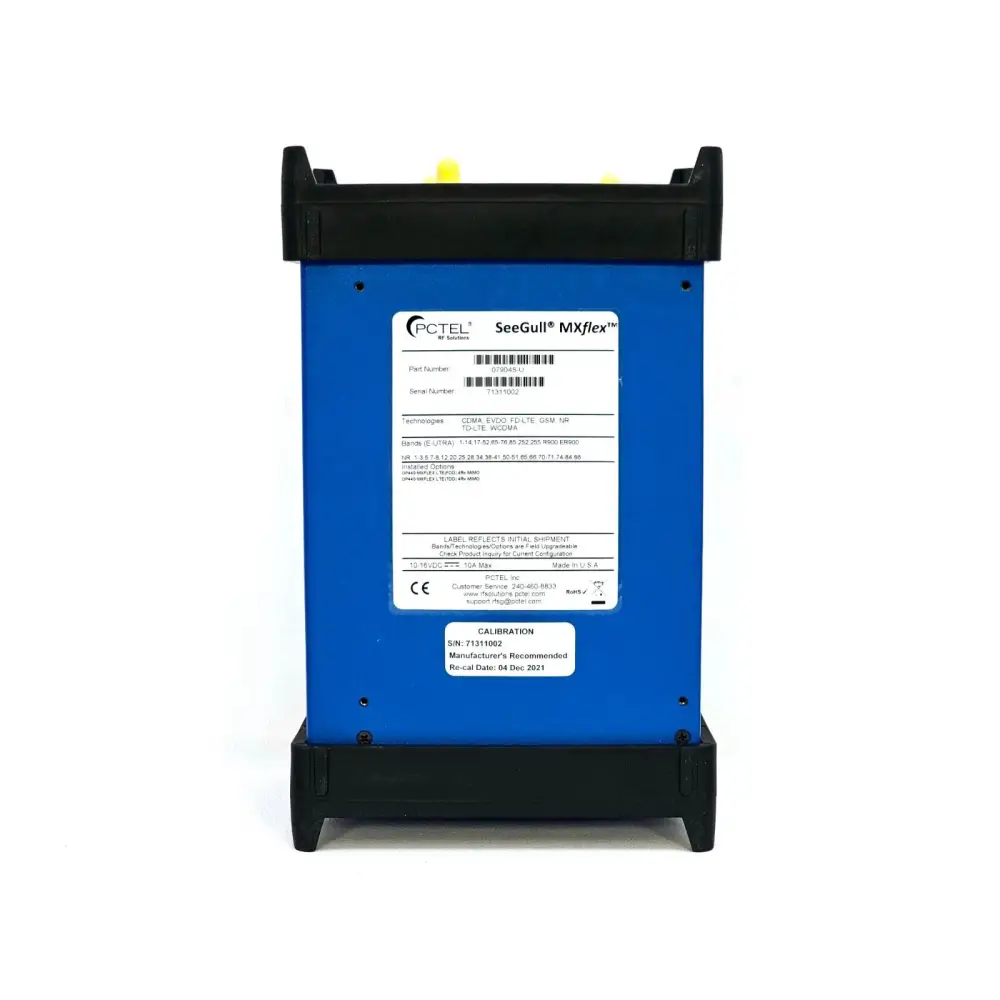

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The PCTEL SeeGull MXflex is a professional-grade scanning receiver designed for benchmarking and co-managing multiple wireless network technologies across sub-6 GHz spectrum. It combines the concurrent data collection capabilities of the SeeGull MX platform with a flexible, software-definable band architecture, enabling engineers to acquire, process, and report data from all 3GPP-defined RF bands across all major technologies simultaneously. The MXflex features a modular front end and parallel high-performance signal processing engines, delivering high data density without the need for repeat test runs or multiple receivers.

Key Features:
• Concurrent multi-technology scanning — collect data from up to 8 technologies in a single test pass
• 5G NR (3GPP FR1) support with MIB decoding, blind scan, and Top-N signal scanning
• 4×4 LTE and TD-LTE MIMO measurement capability across 4 RF input ports
• Software-definable band architecture covering 30 MHz to 6 GHz
• Compact, portable form factor suited for drive test, walk test, and in-building survey applications
• Compatible with PCTEL's SeeGull software suite for post-processing and reporting

Typical Specifications:
Frequency Range: 30 MHz to 6000 MHz
RF Input Ports: 4 (MIMO)
Supported Technologies: 5G NR, LTE FD, LTE TD, WCDMA, CDMA2000, EV-DO, IS-95, GSM
LTE Bands: 336
TD-LTE Bands: 88
NR Bands: 48
Band Options: 159
Interface: USB
Licence Type: Perpetual
Form Factor: Portable scanning receiver

PCTEL SeeGull MXflex product datasheet (PDF): Download PDF
