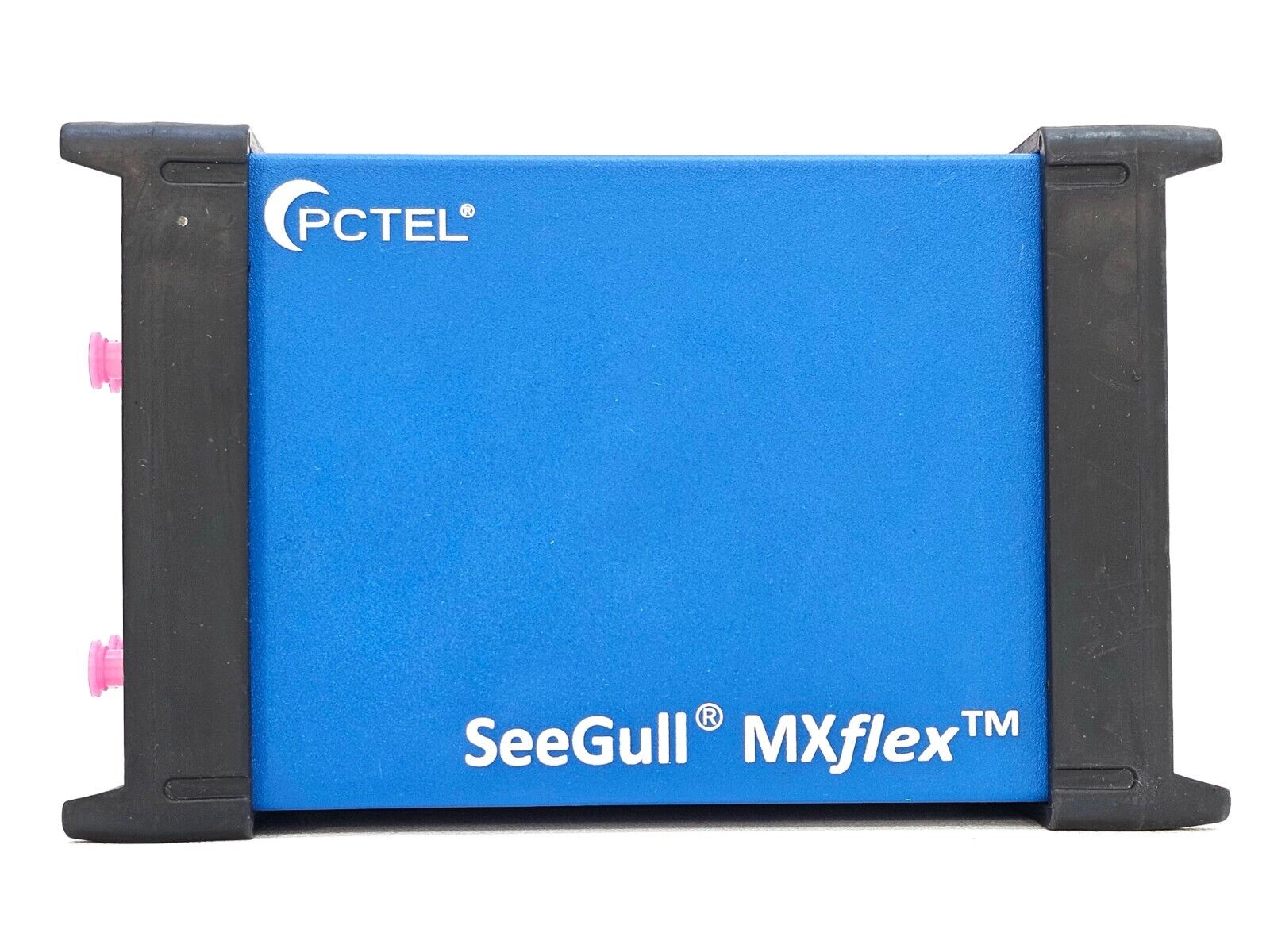

PCTel SeeGull MXflex Scanning Receiver 07904S-U 5G NR New Radio 6 GHz MANY Opts

Condition: Refurbished

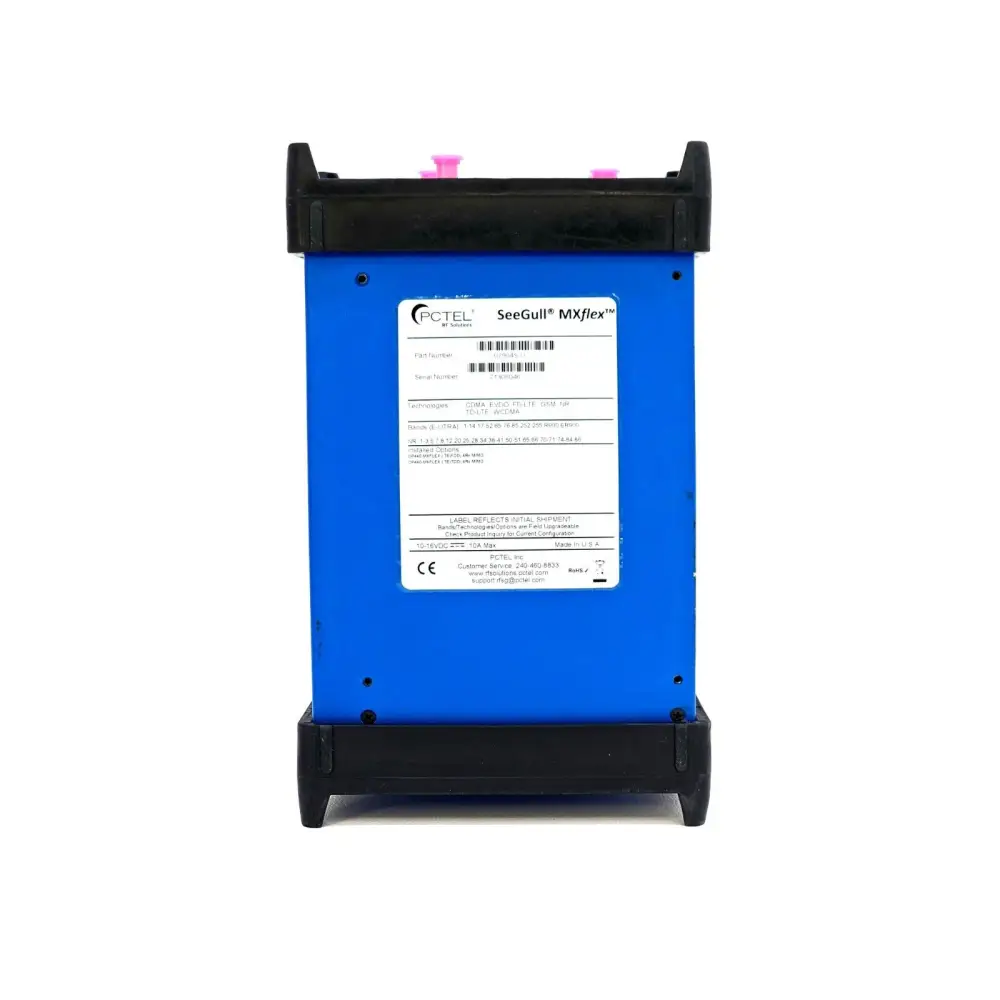

This PCTEL SeeGull MXflex (ESN: 0000-0000-7130-6046) is a refurbished unit in good condition carrying 32 installed options, including full 5G New Radio support, 4×4 MIMO RF ports, LTE/TD-LTE enhanced signal scanning, 5G/4G spectrum sharing, and 30 MHz–6000 MHz capability. Calibration date recorded as 12/12/2019. Software is not included.

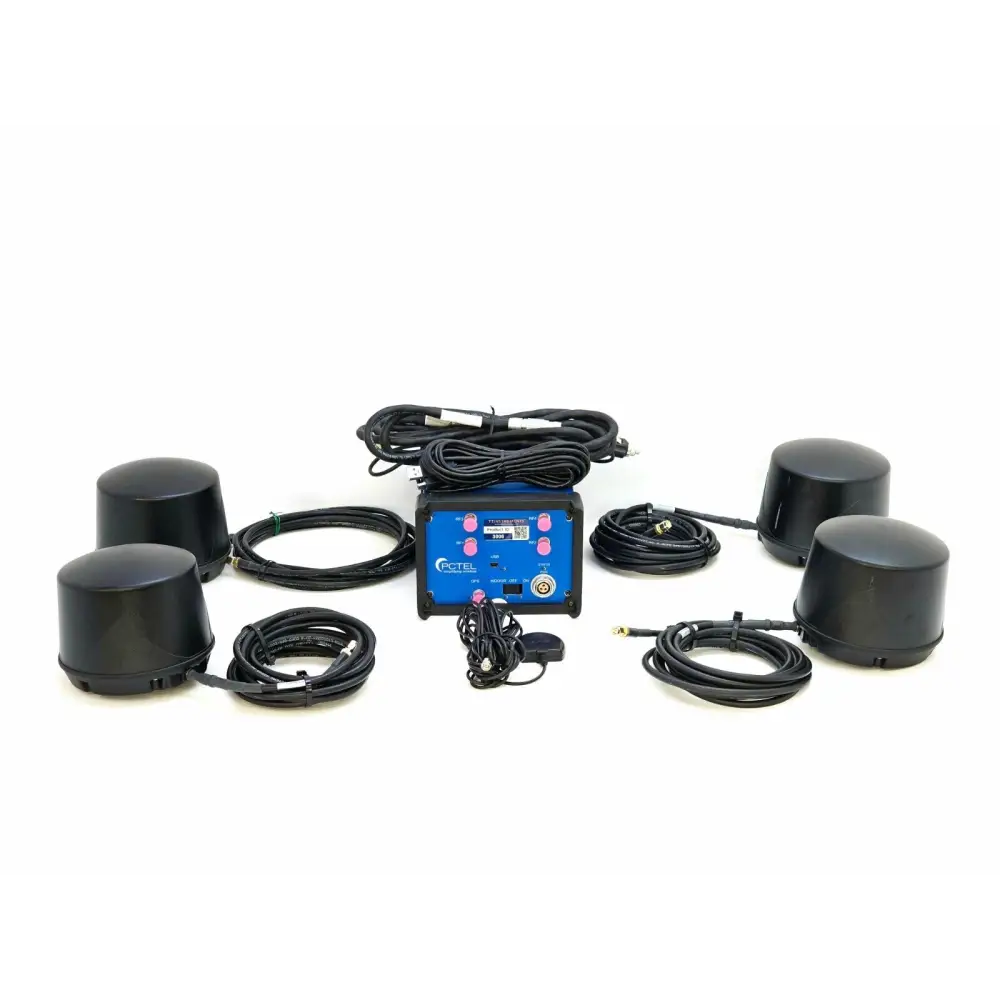

Included in the sale:

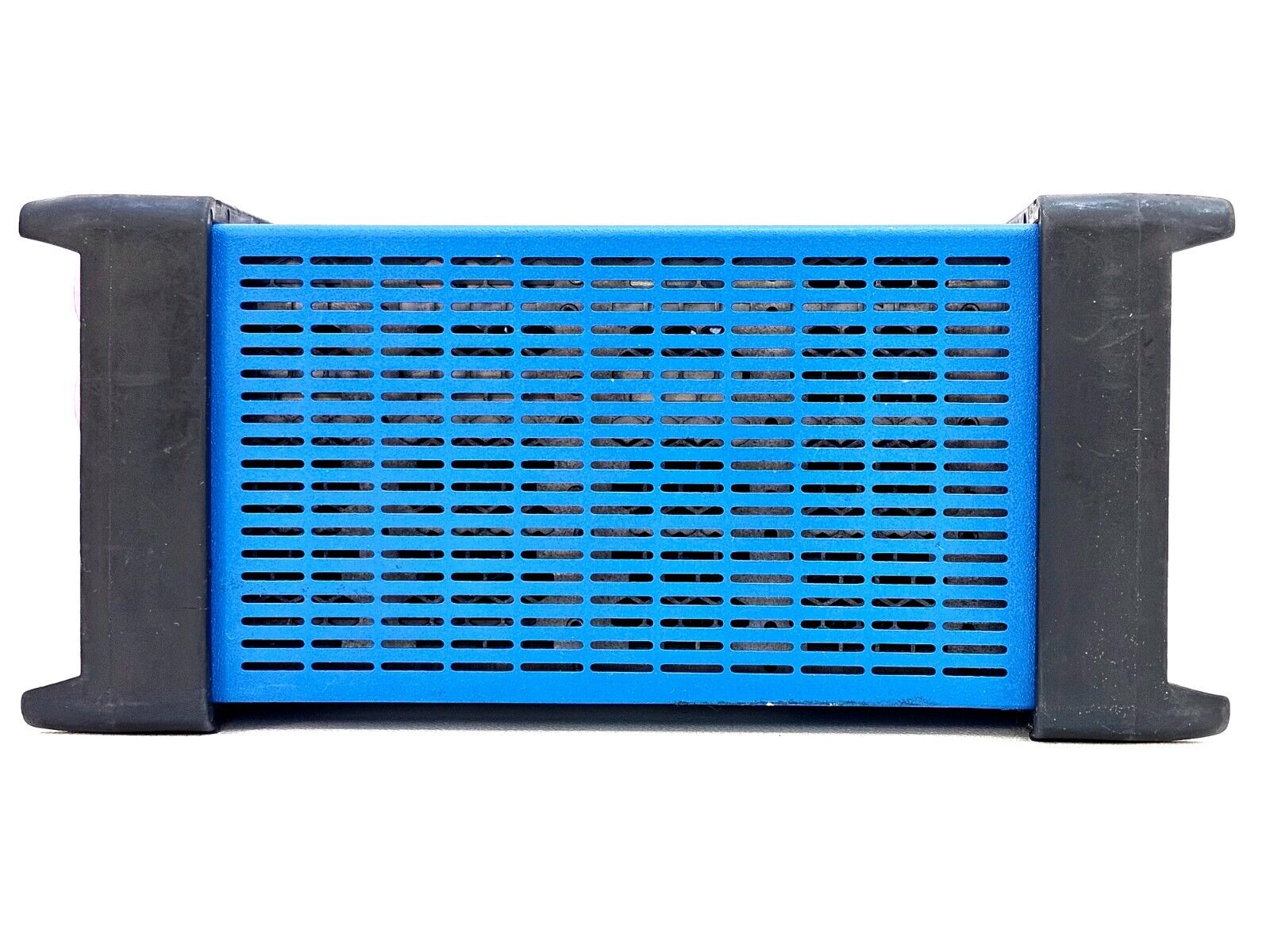

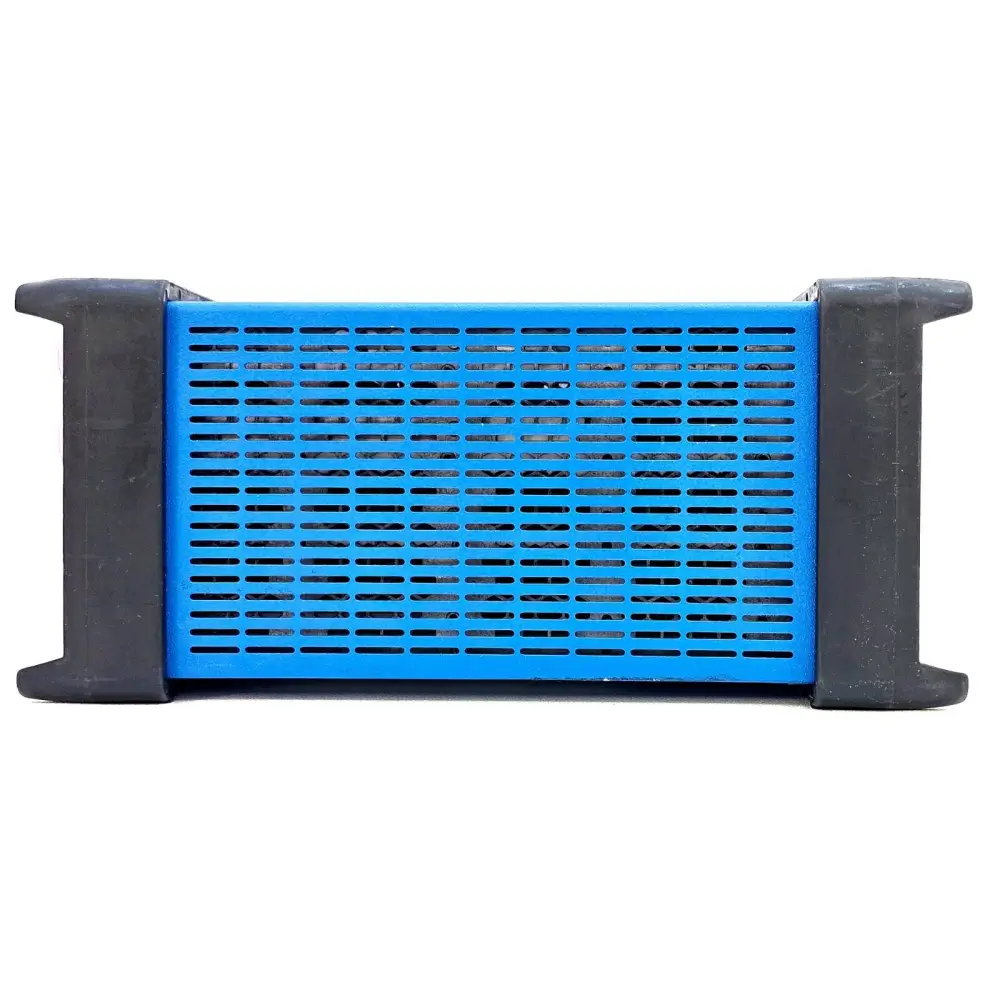

• MXflex scanning receiver

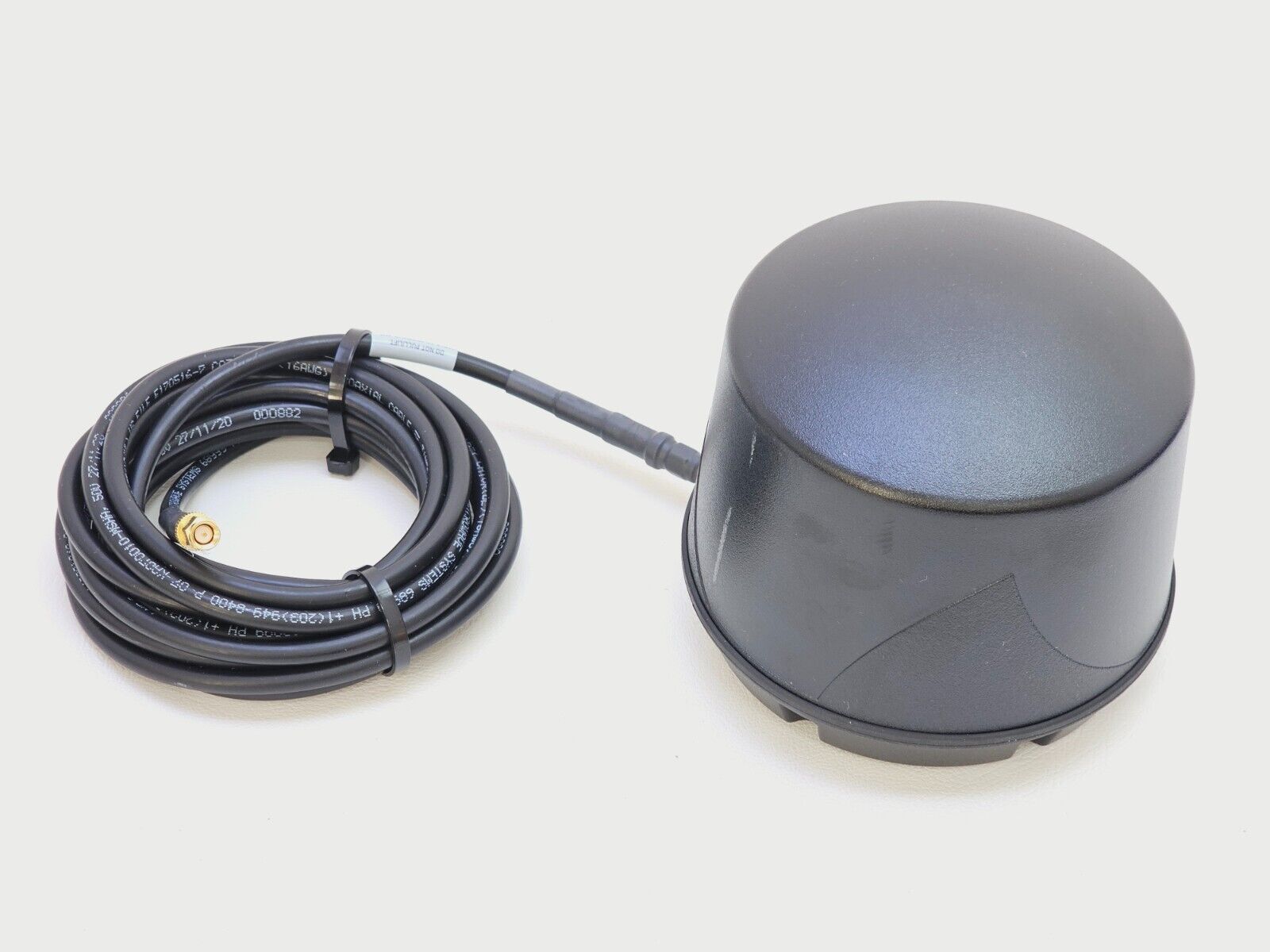

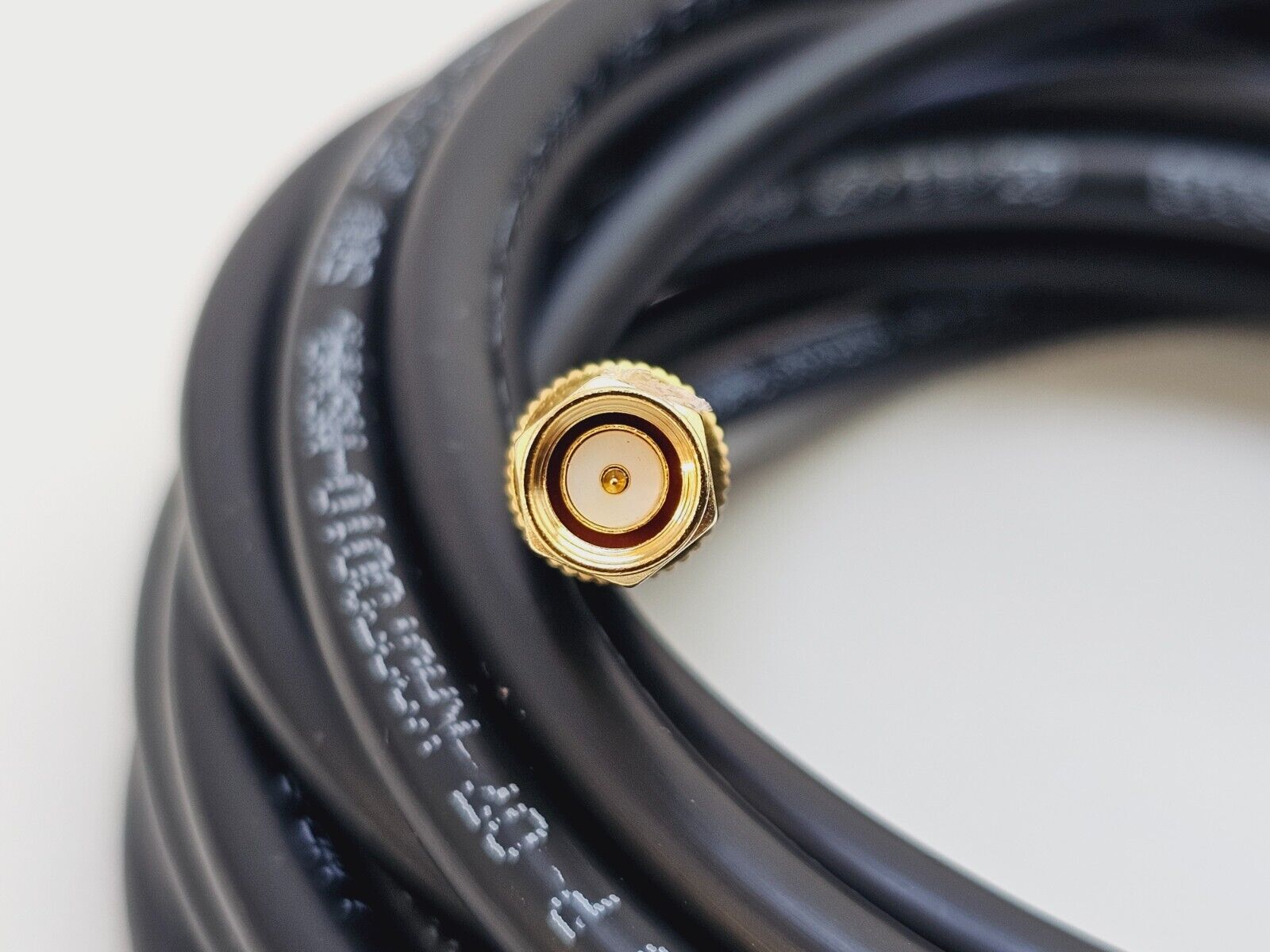

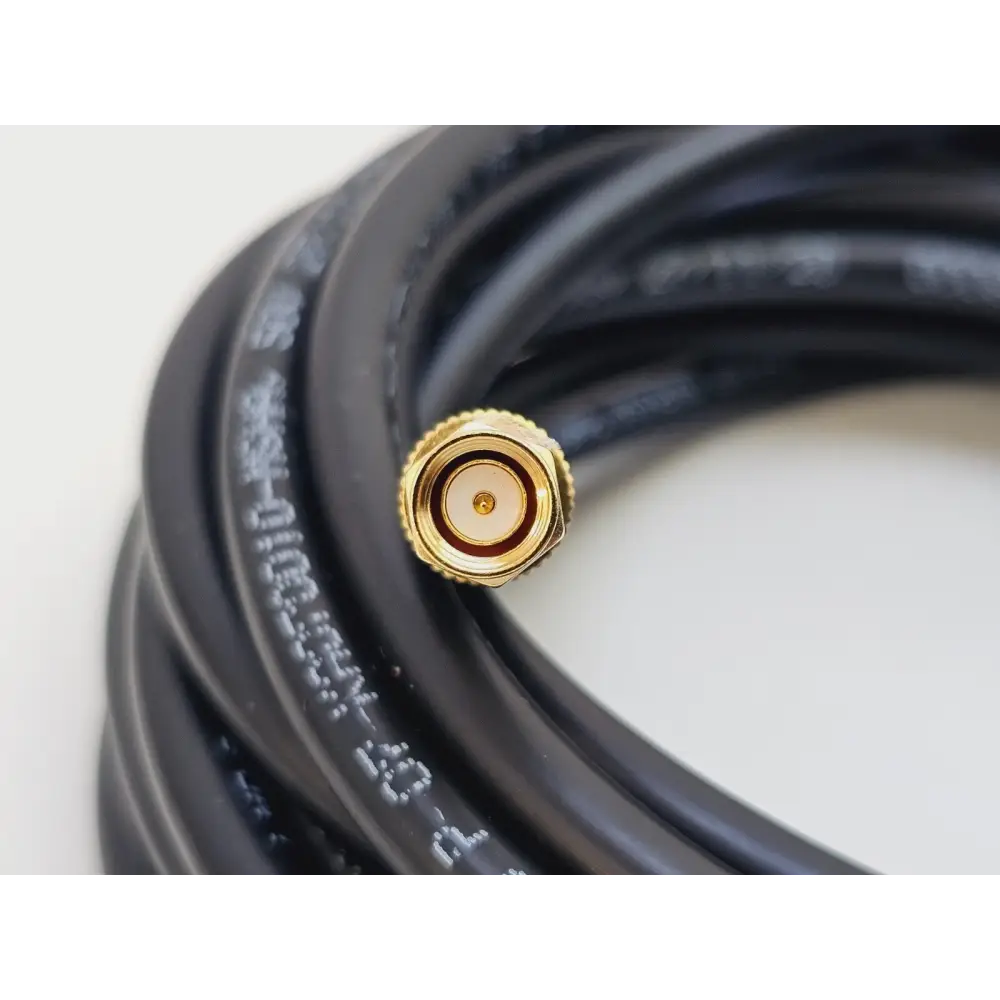

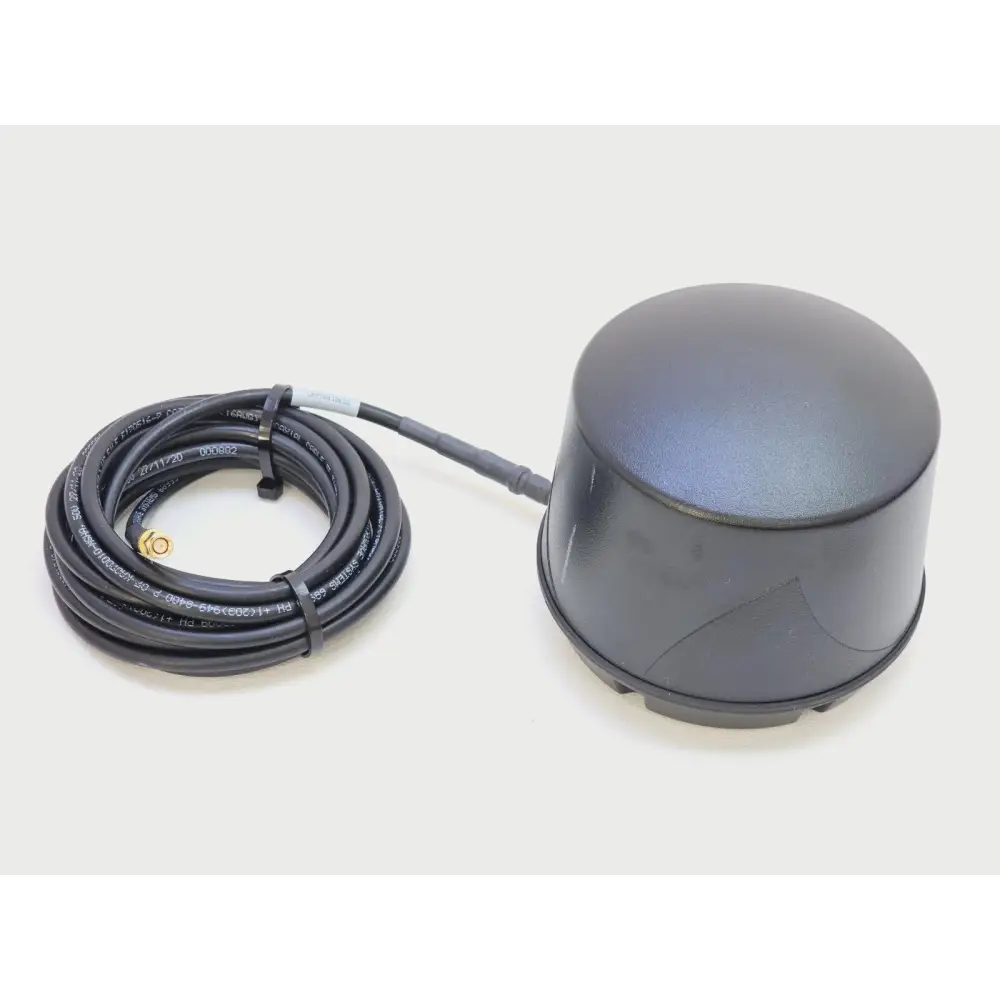

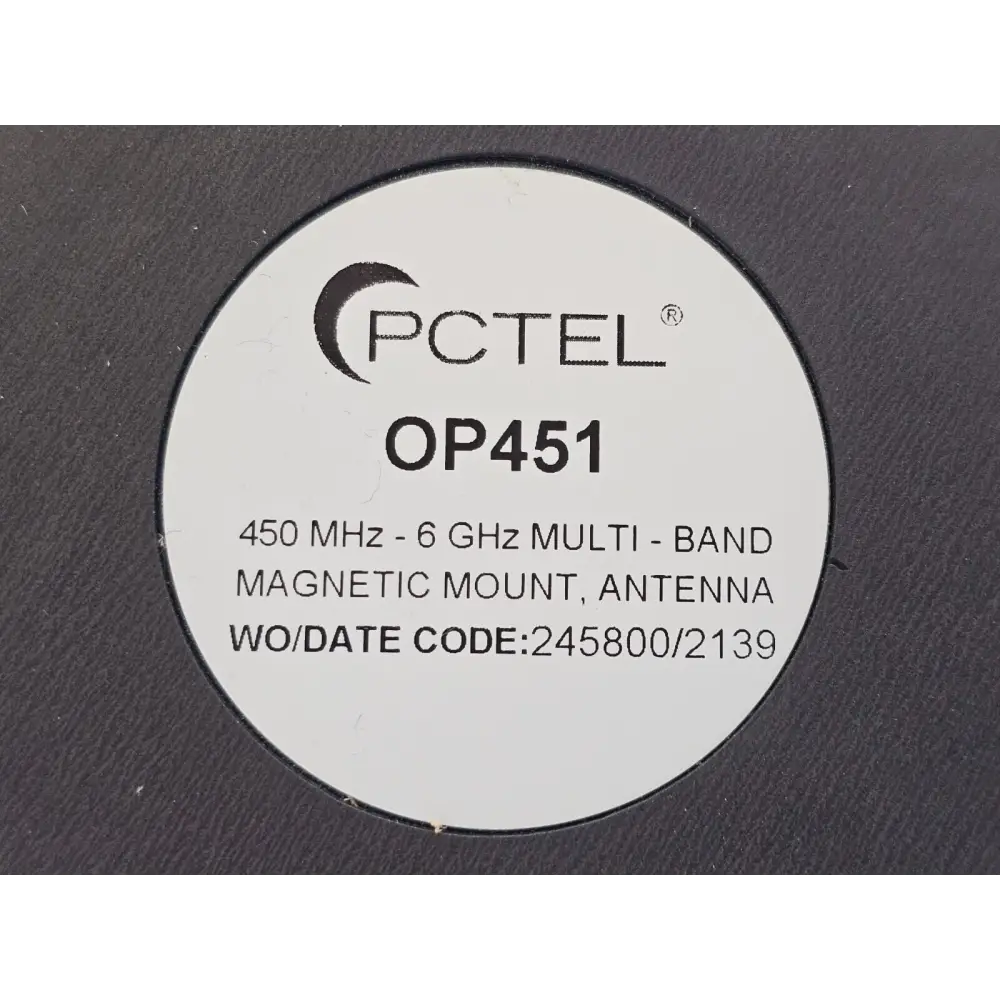

• 4× antennas

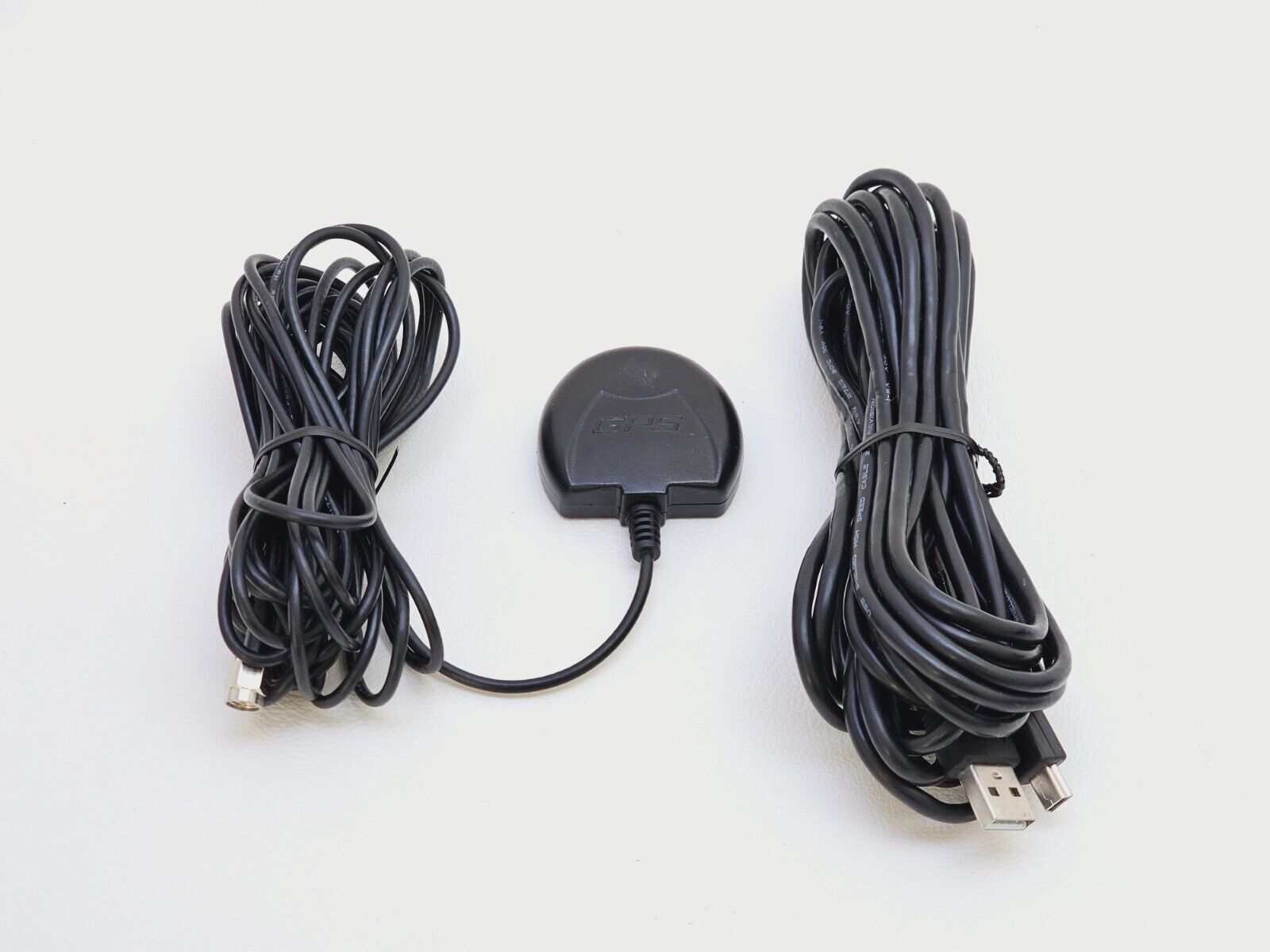

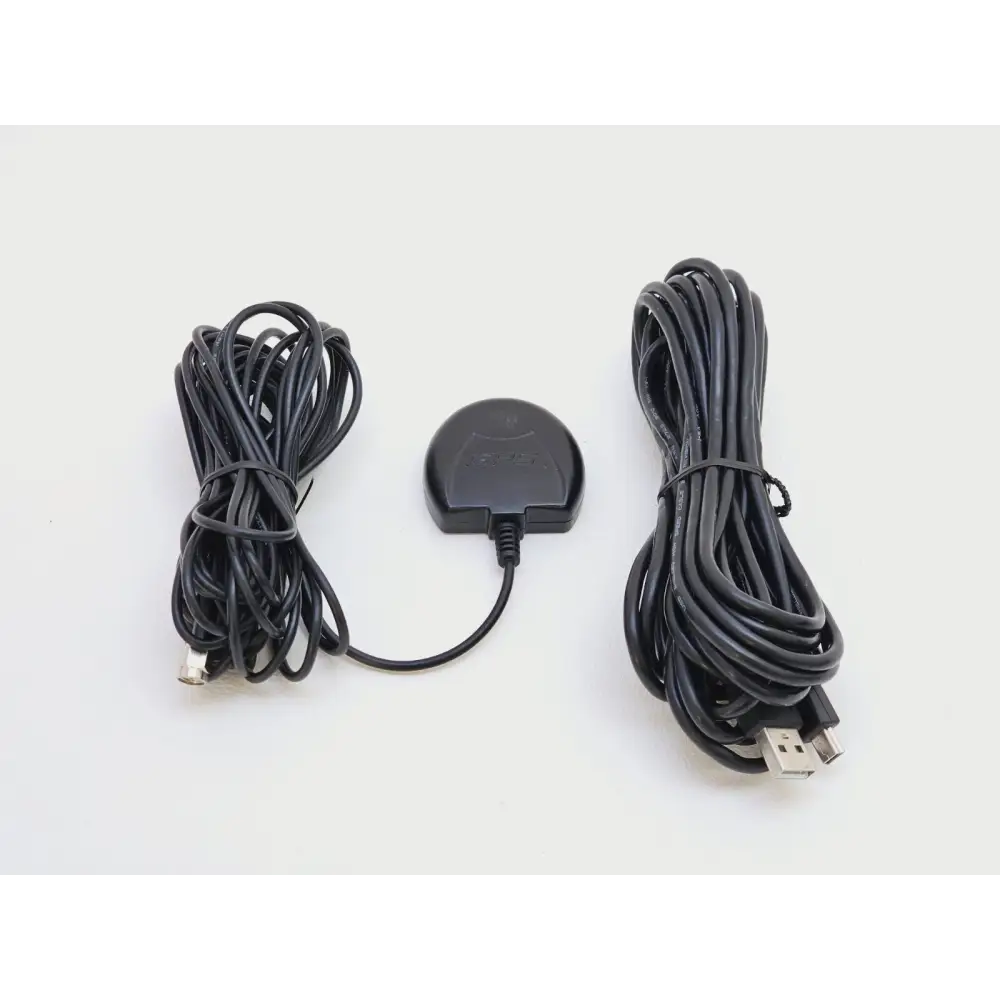

• 1× GPS antenna

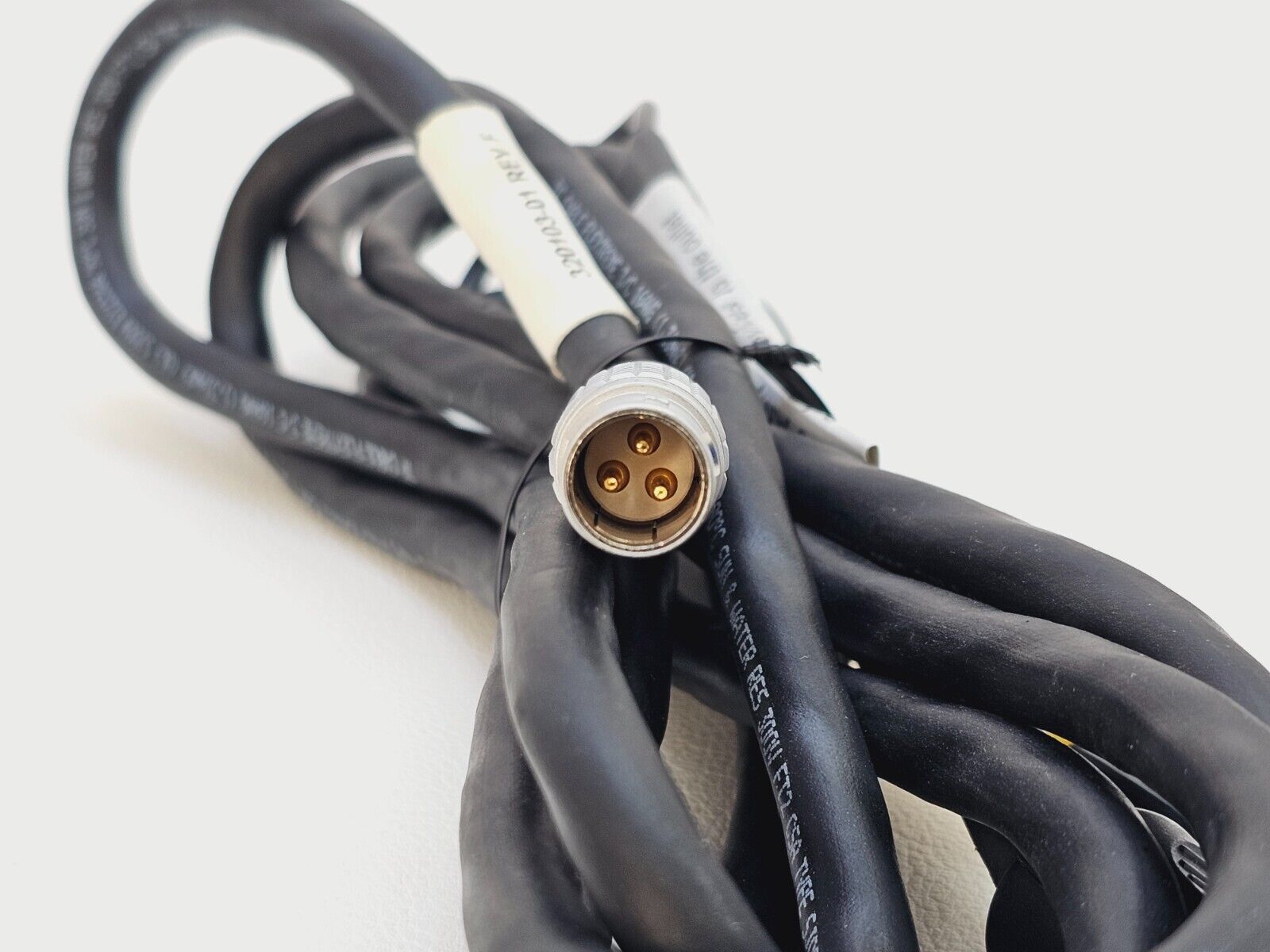

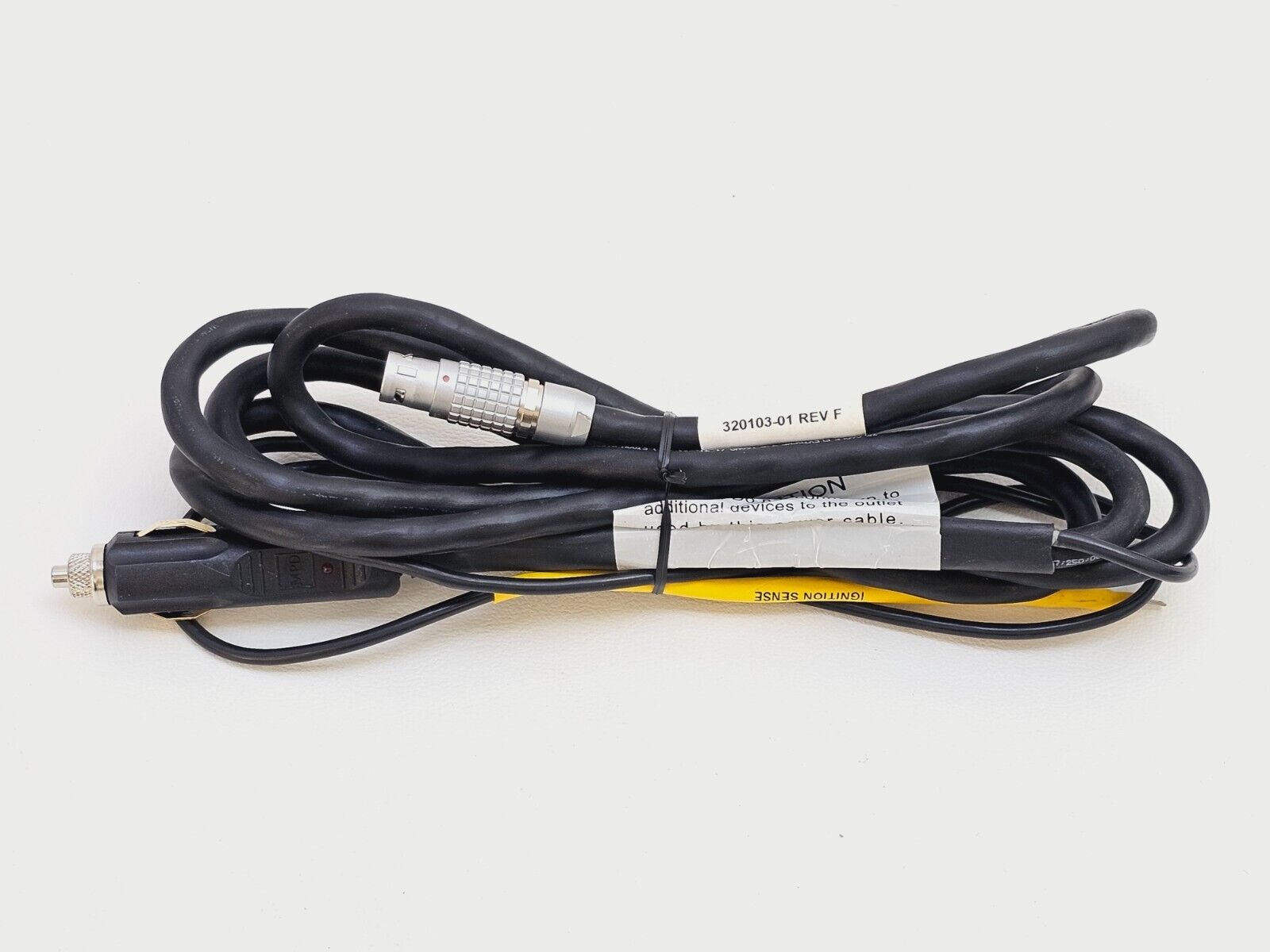

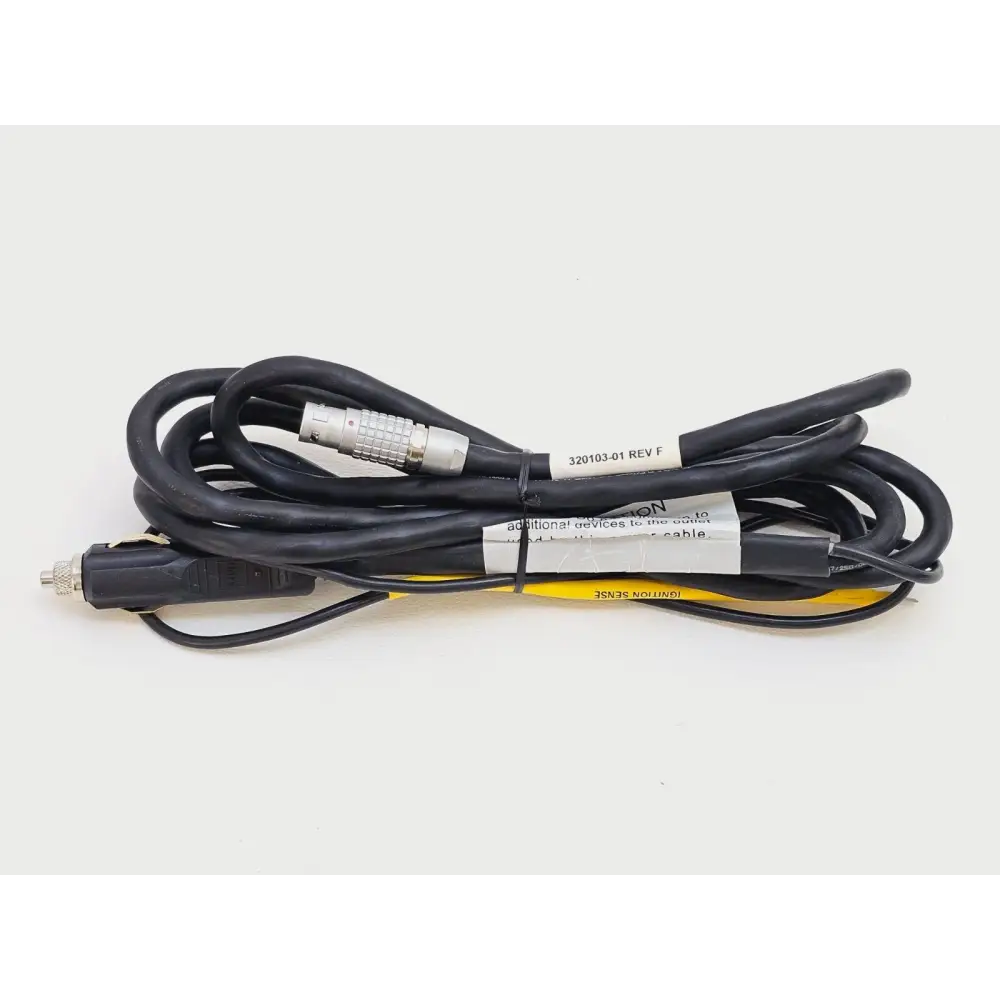

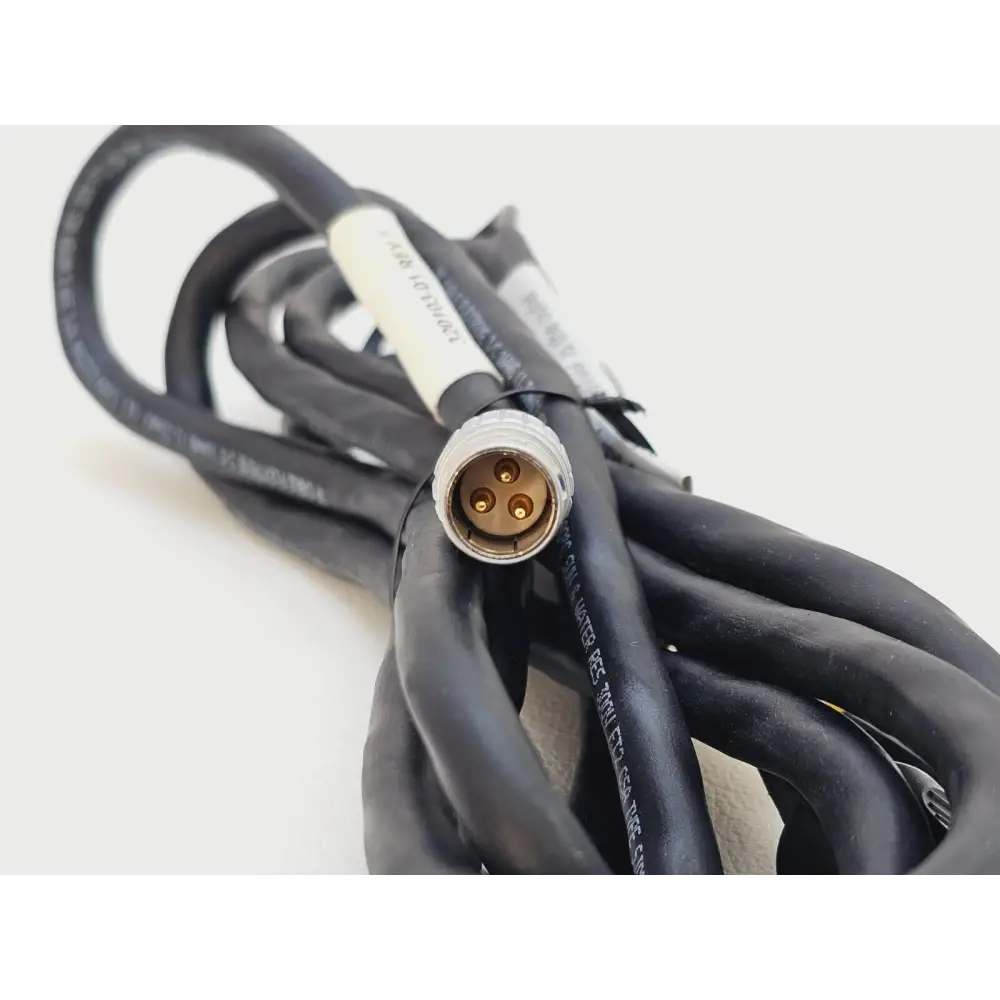

• 1× in-car charger

Active licensed options include:
• GPS Navigation
• Absolute Time Stamp
• MIMO RF Ports 1–4
• GSM Support, GSM BSIC, GSM BCCH C/I
• IS-95 Support, IS-95 Pilot, IS-95 Extended Dynamic Range
• WCDMA Support, WCDMA Pilot, WCDMA Extended Dynamic Range
• CDMA Support, CDMA Pilot, CDMA Extended Dynamic Range
• EVDO Support, EVDO Pilot, EVDO Extended Dynamic Range
• LTE Support, LTE Enhanced Signal Scan, LTE 5G/4G Spectrum Sharing Signal, LTE Enhanced Signal 4Rx MIMO
• TDLTE Support, TDLTE Enhanced Signal Scan, TDLTE 5G/4G Spectrum Sharing Signal, TDLTE Enhanced Signal 4Rx MIMO
• New Radio Support, New Radio MIB Decoding, New Radio Blind Scan, New Radio Top N Signal Scanning
• 30 MHz–6000 MHz Capability

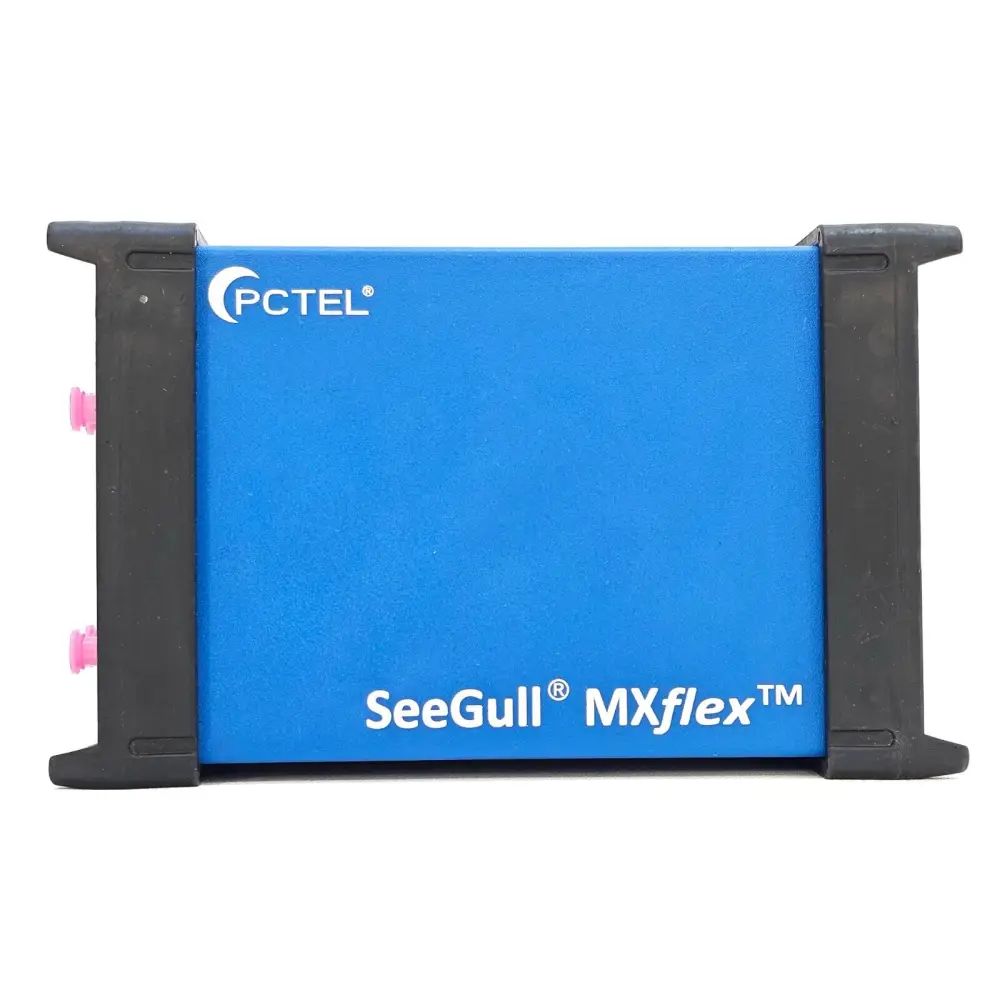

The PCTEL SeeGull MXflex is PCTEL's most advanced multi-technology scanning receiver, designed for benchmarking and co-managing multiple wireless network technologies across the sub-6 GHz spectrum. It combines the concurrent data collection capability of the SeeGull MX platform with the flexible, software-definable configuration of PCTEL's flex scanner line.

The MXflex features a modular front end and parallel high-performance signal processing engines, enabling it to acquire, process, and report data from all 3GPP-defined RF bands across all major cellular technologies simultaneously. Engineers can collect measurements from up to eight different technologies in a single drive or walk test — eliminating the need for multiple passes or multiple scanners.

Key Features:
• Concurrent multi-technology scanning: 5G NR, LTE FDD, TD-LTE, NB-IoT, WCDMA/UMTS, GSM, CDMA, EV-DO
• True 4×4 LTE MIMO measurements (also supports 4×2 and 2×2)
• 5G NR measurements including MIB decoding, blind scan, and Top N signal scanning
• Software-definable, field-upgradeable frequency band support
• Automatic Channel Detection (Blind Scan) and Mobile Blind Scan
• LTE 5G/4G spectrum sharing signal support
• Power measurements across 30 MHz–6 GHz

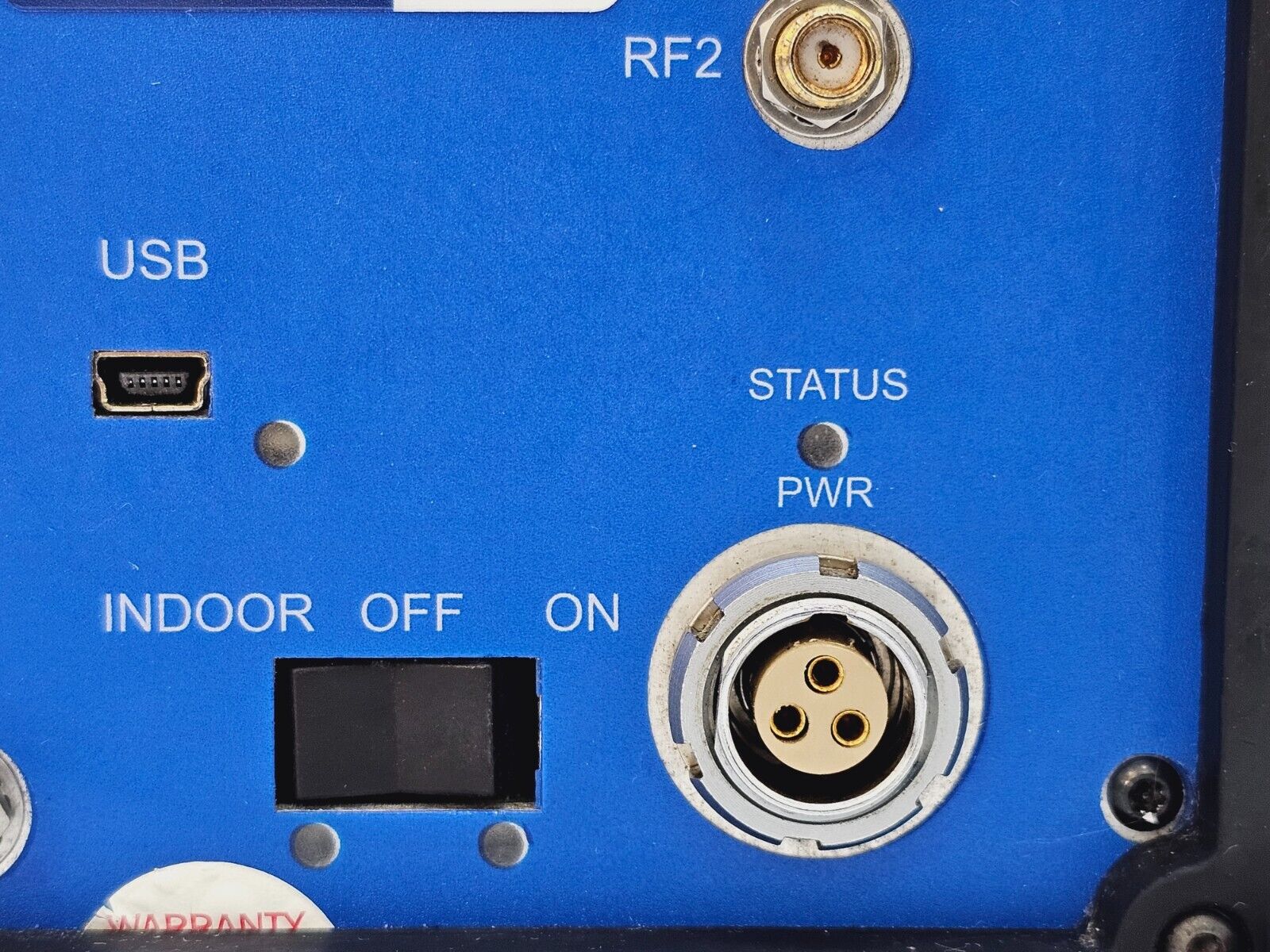

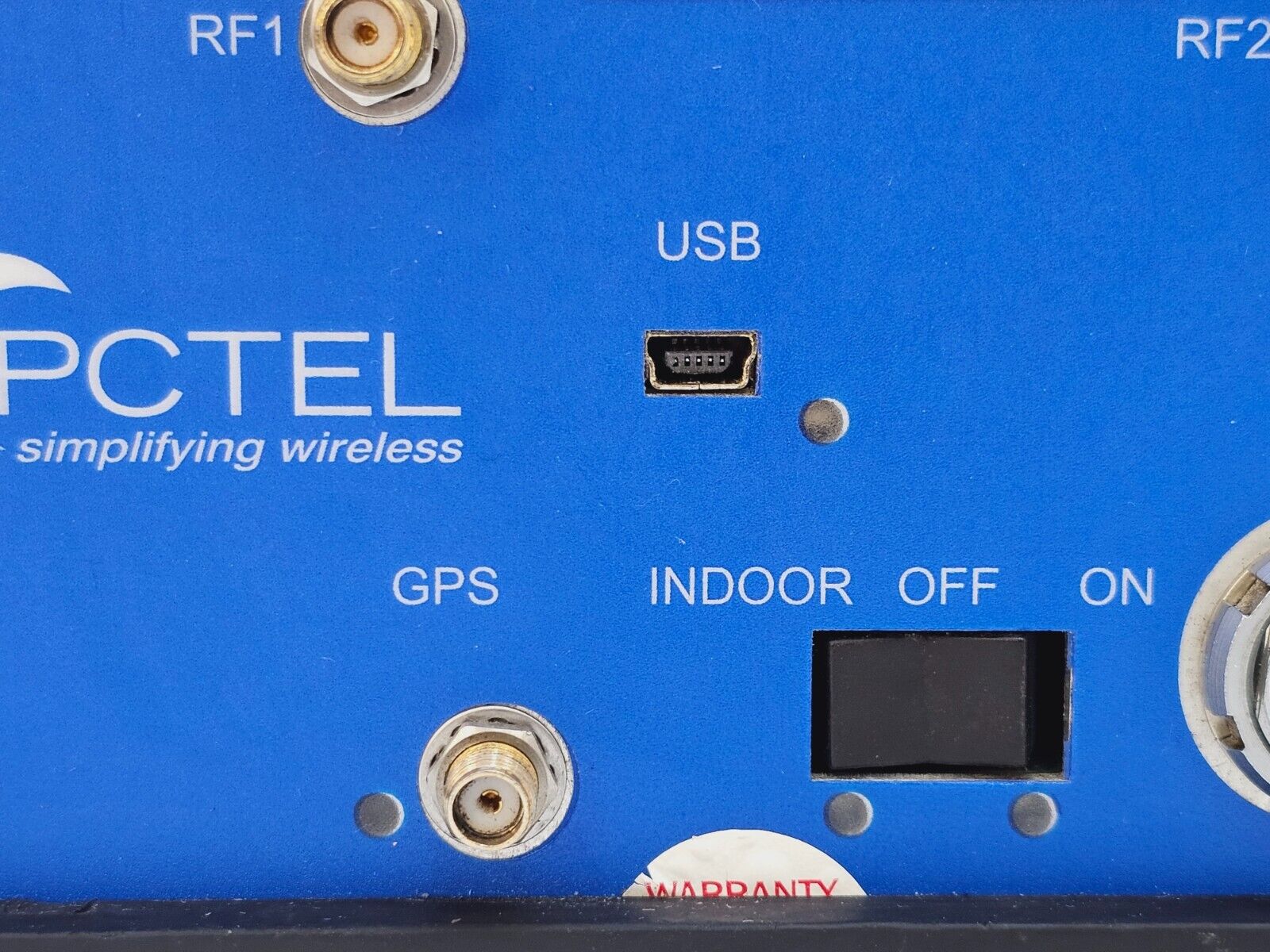

• USB interface for PC-controlled operation via PCTEL SeeHawk software
• Supports RF coverage, interference, and MIMO capacity analysis

Typical Applications:
• 5G NR network deployment and optimisation
• Multi-operator drive and walk testing
• 4G-to-5G transition benchmarking
• MIMO capacity and interference testing
• Baseline, integration, and optimisation testing

Protocol/Band Support (unit-dependent, subject to installed options):
Frequency Range: 30 MHz – 6000 MHz
LTE (FDD) Bands: Up to 336 channels
TD-LTE Bands: Up to 88 channels
5G NR (FR1 sub-6 GHz): Up to 48 channels
WCDMA: Up to 24 channels
GSM: Up to 12 channels
CDMA / IS-95 / EV-DO: Up to 18 channels each
Total Band Options: 159

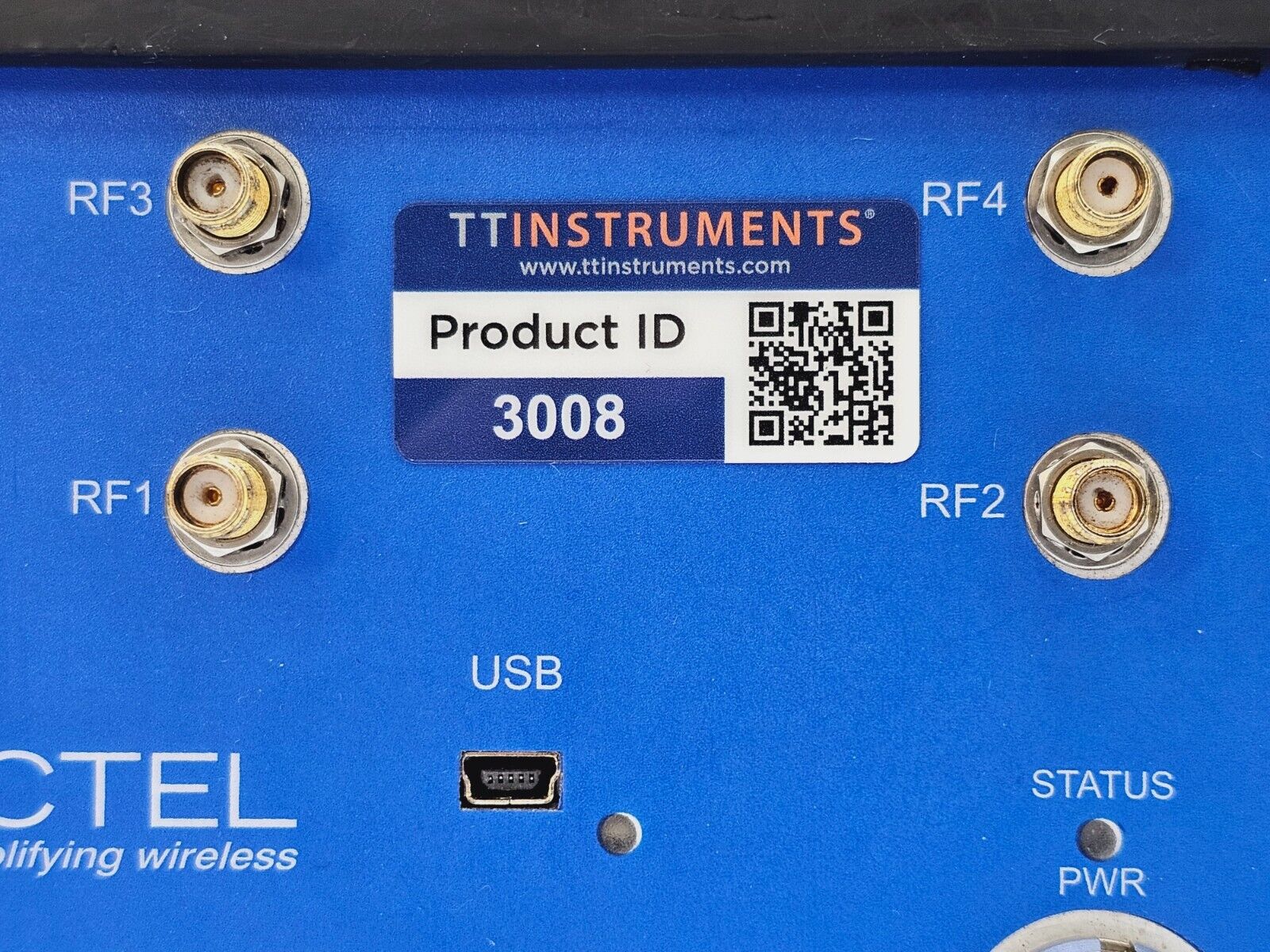

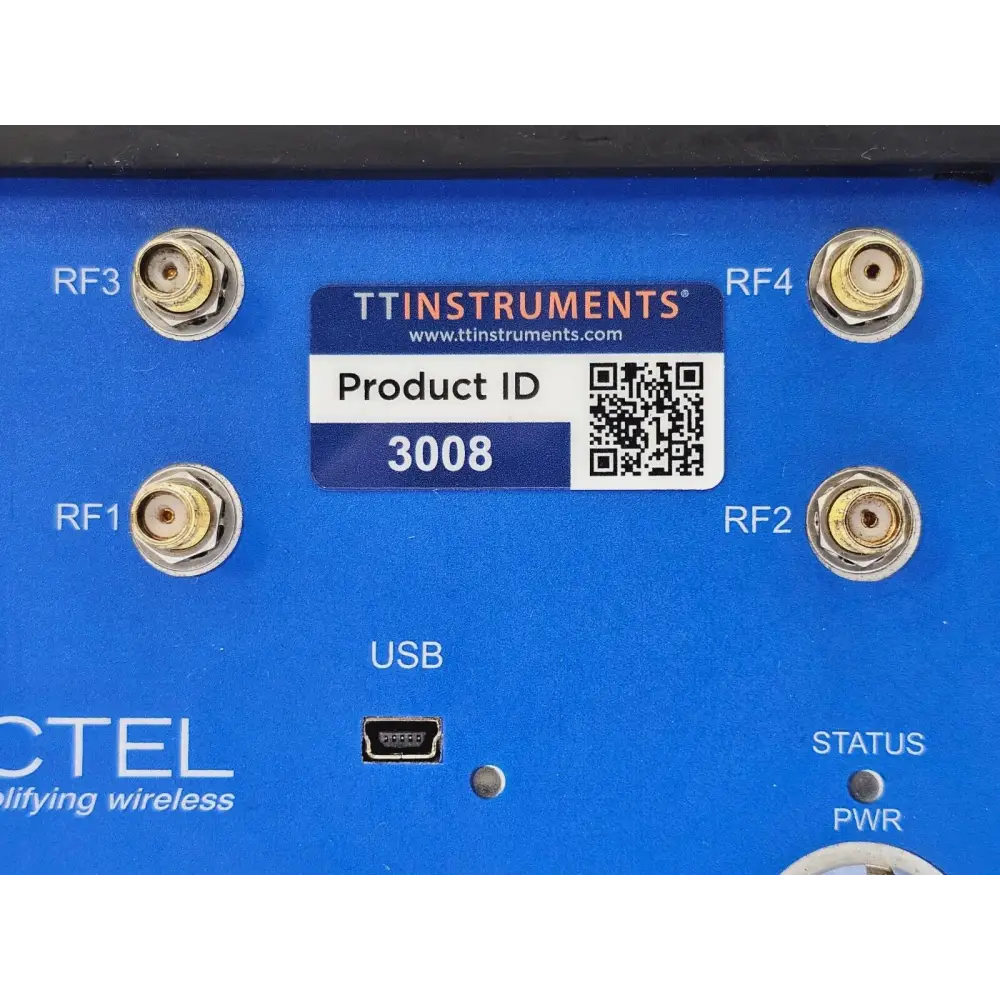

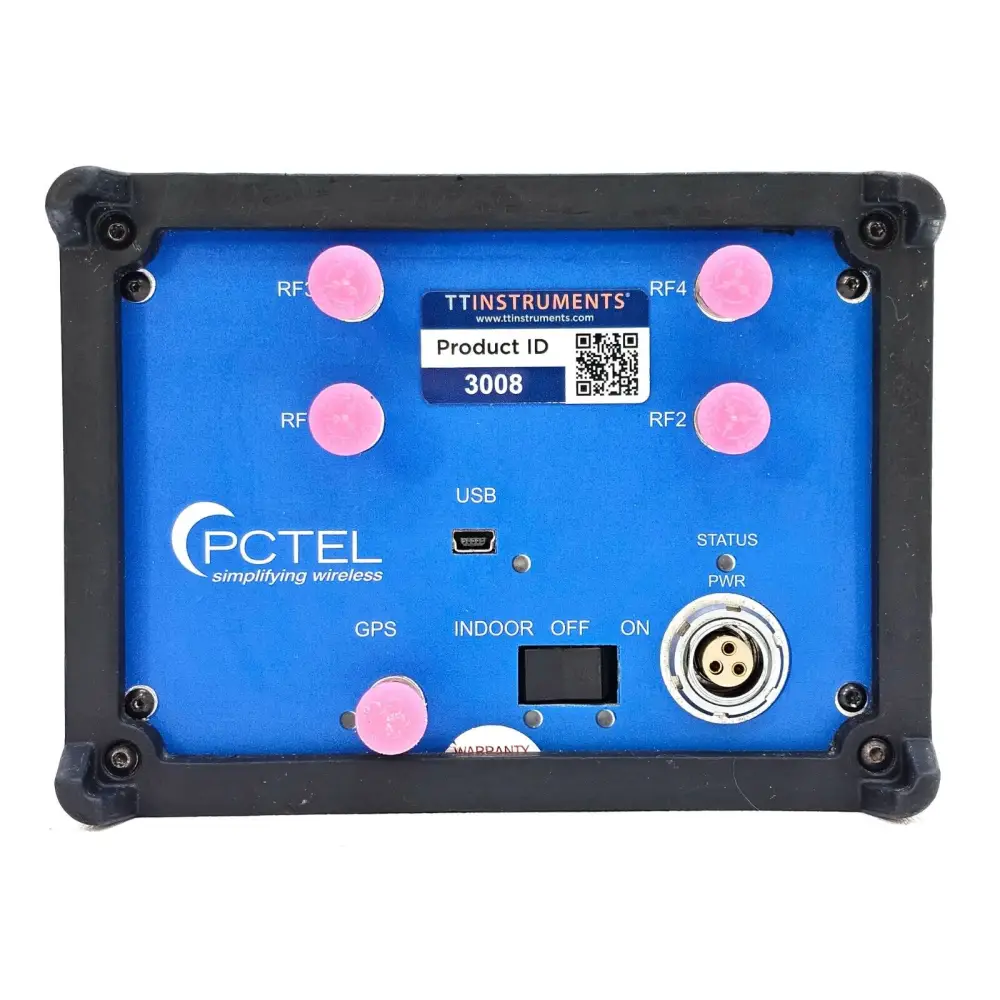

MIMO RF Ports: 4 (MIMO RF Ports 1–4)

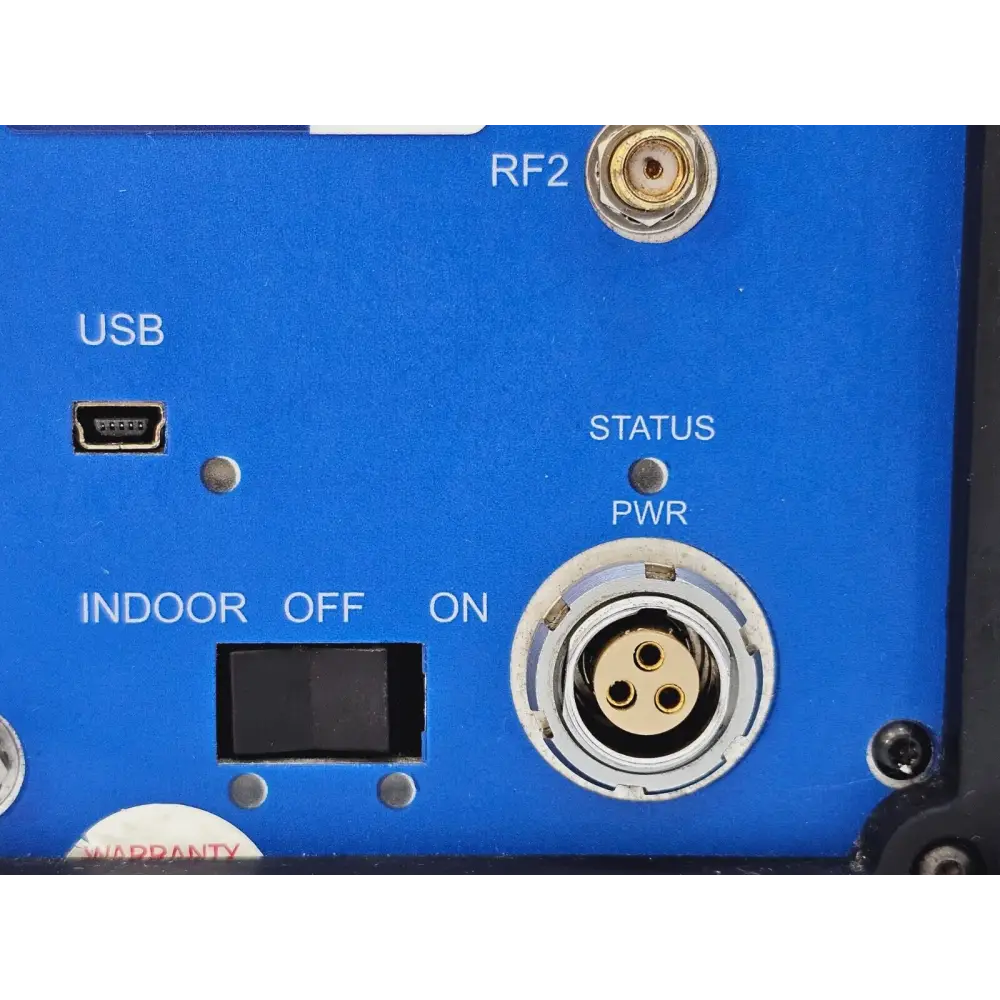

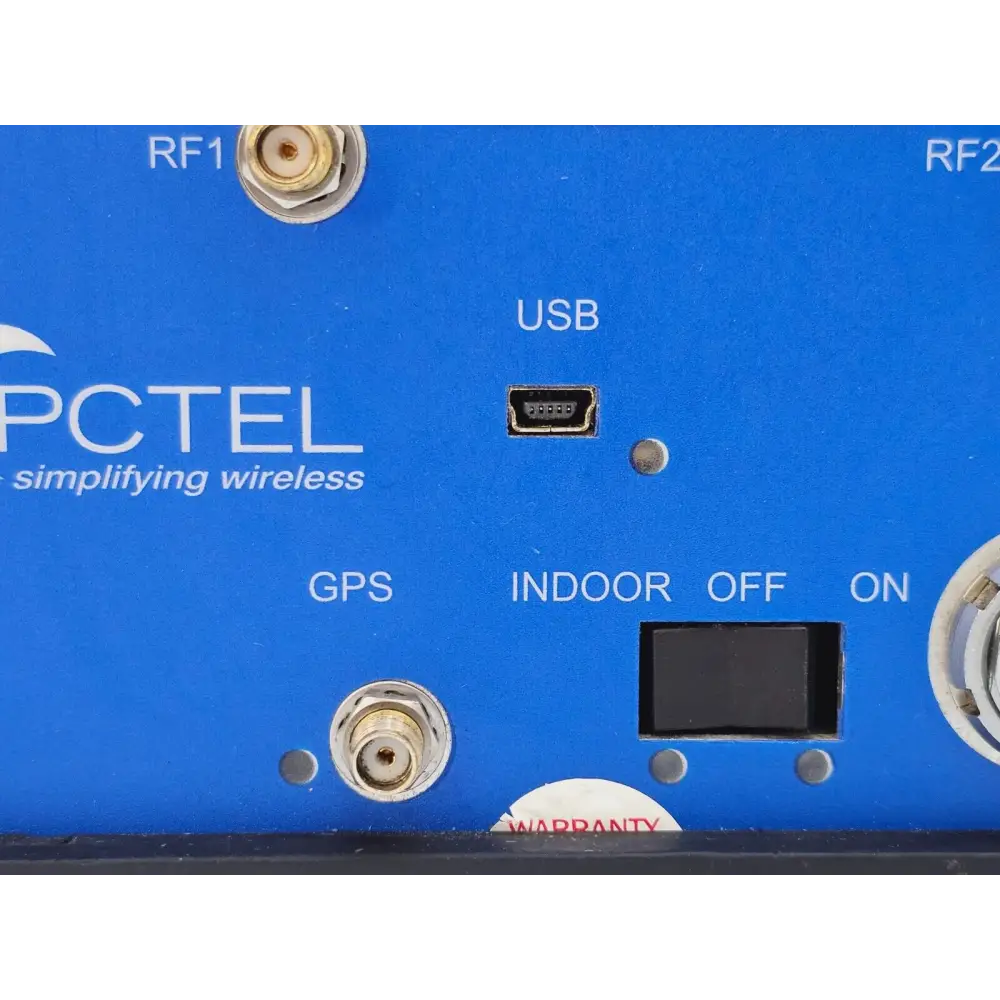

Interface: USB
Software: PCTEL SeeHawk (sold separately)

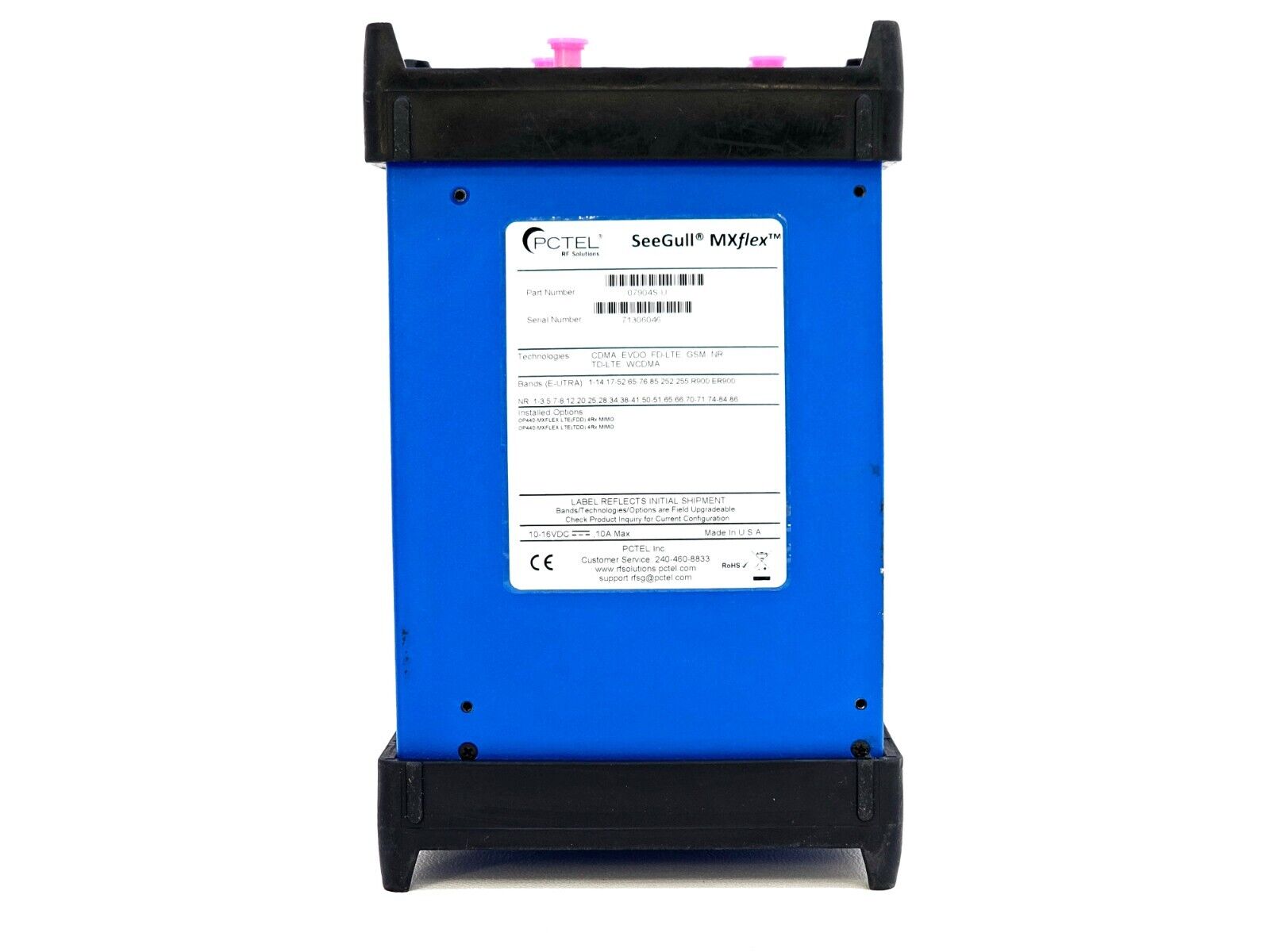

Part Number: 07904S-U (4-port super configuration)

PCTEL SeeGull MXflex Hardware Reference Manual (28 pages) — via ManualsLib: Download PDF

PCTEL SeeGull MXflex Scanning Receiver Brochure — hosted by Avalon Test Equipment: Download PDF

PCTEL MXflex Scanning Receiver Datasheet 2025 — hosted by Covertel: Download PDF
