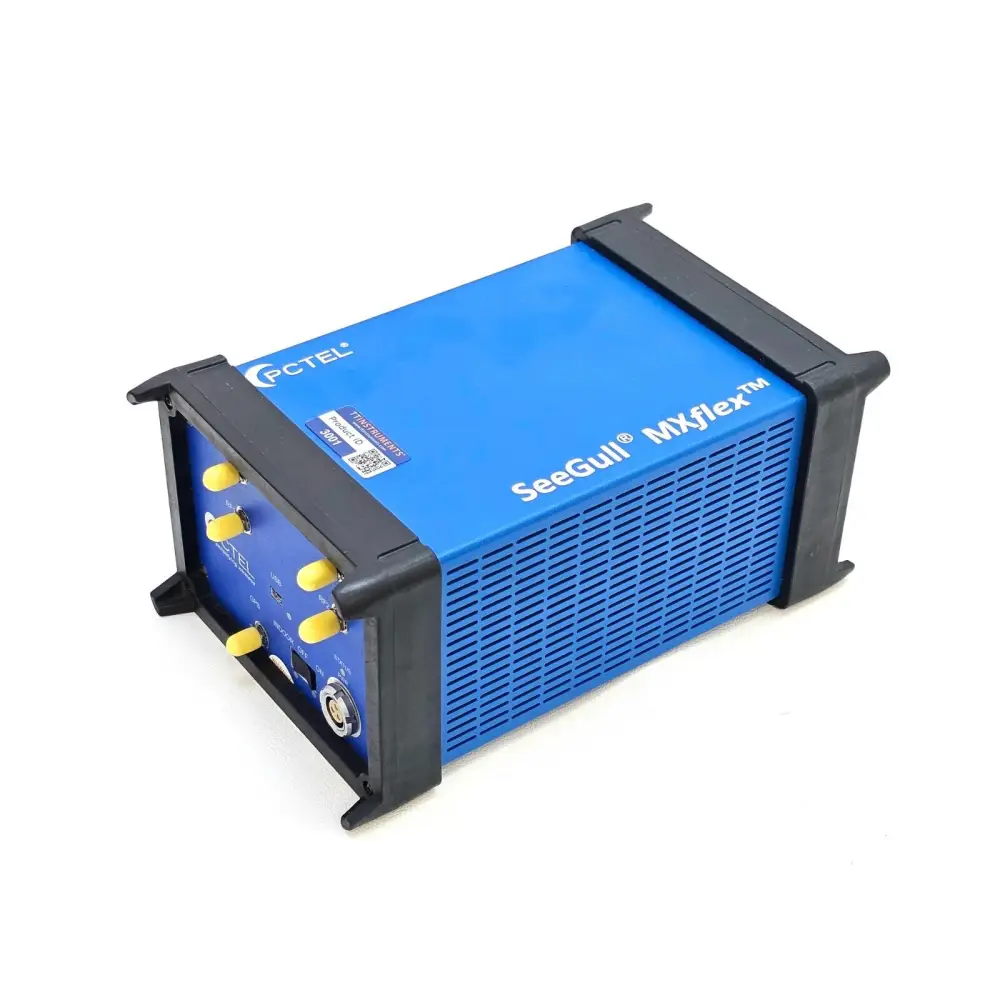

PCTel SeeGull MXflex 30-6000 MHz Scanning Receiver 07904S-U LOADED with Options

Condition: Refurbished

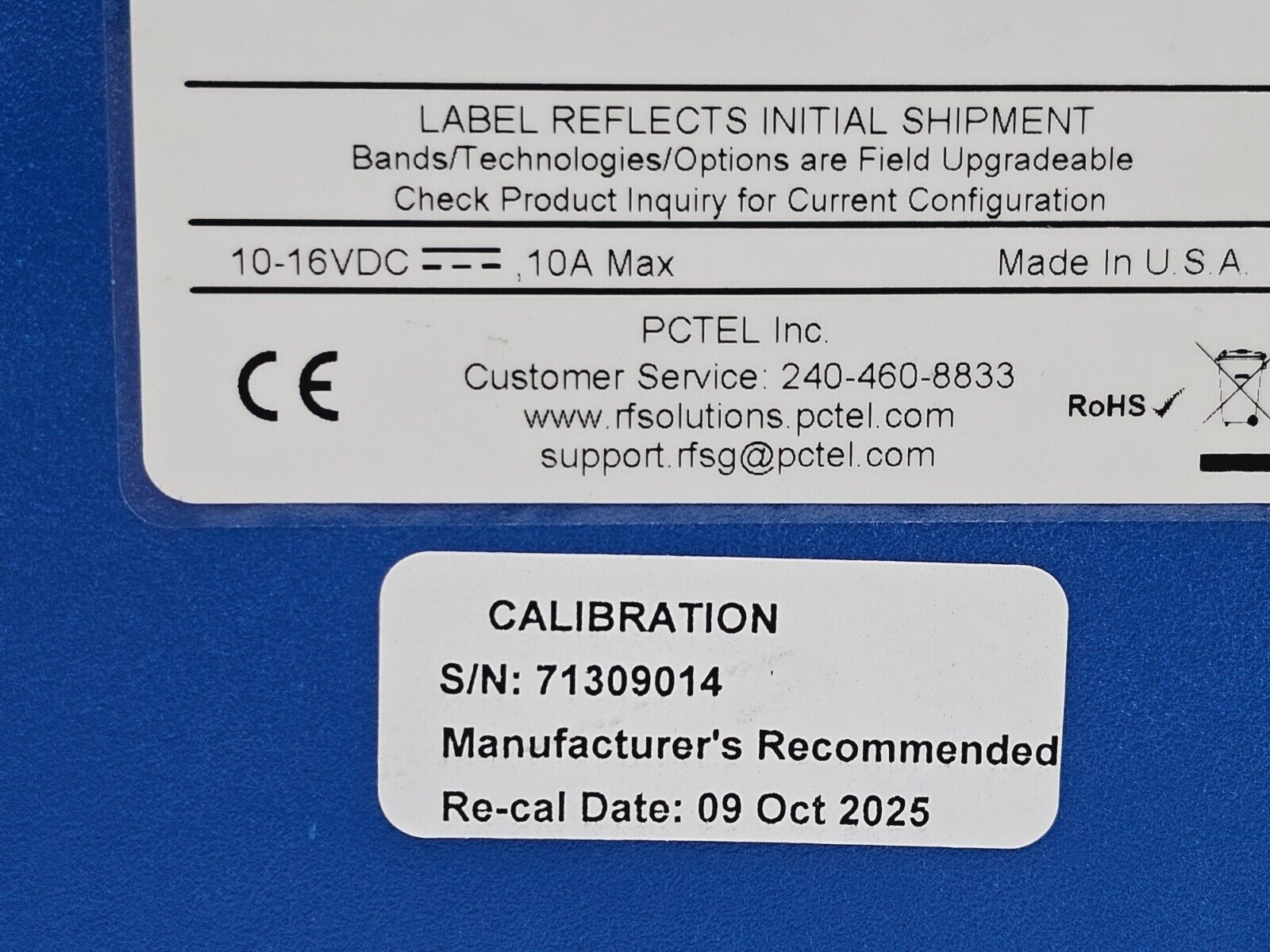

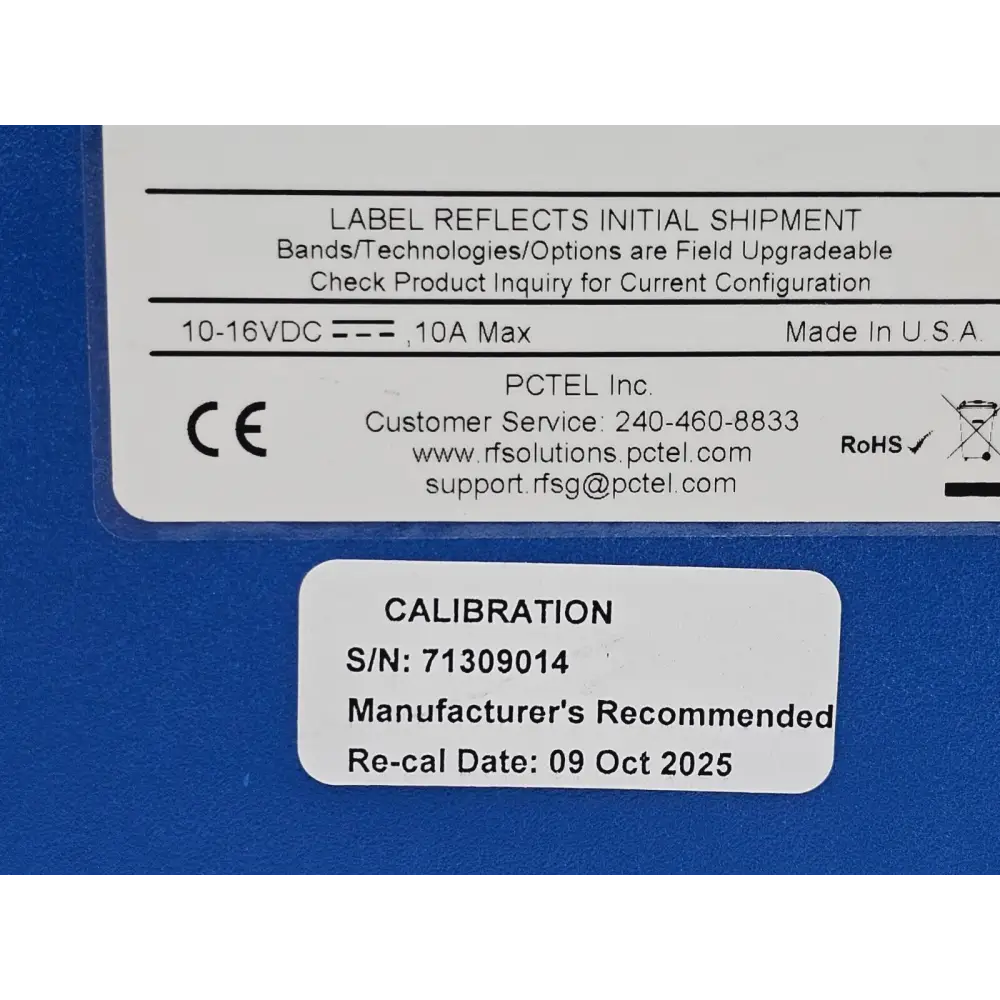

PCTEL SeeGull MXflex 07904S-U scanning receiver in excellent working condition, tested and calibrated October 2023 with calibration expiry October 2025. This unit carries a substantial suite of 34 perpetual licensed options covering the full 30 MHz–6 GHz range and is loaded with 5G NR, LTE, TD-LTE, CDMA, WCDMA, EV-DO, and GSM options including Extended Dynamic Range and 4Rx MIMO. Software is not included.

Included in the sale:

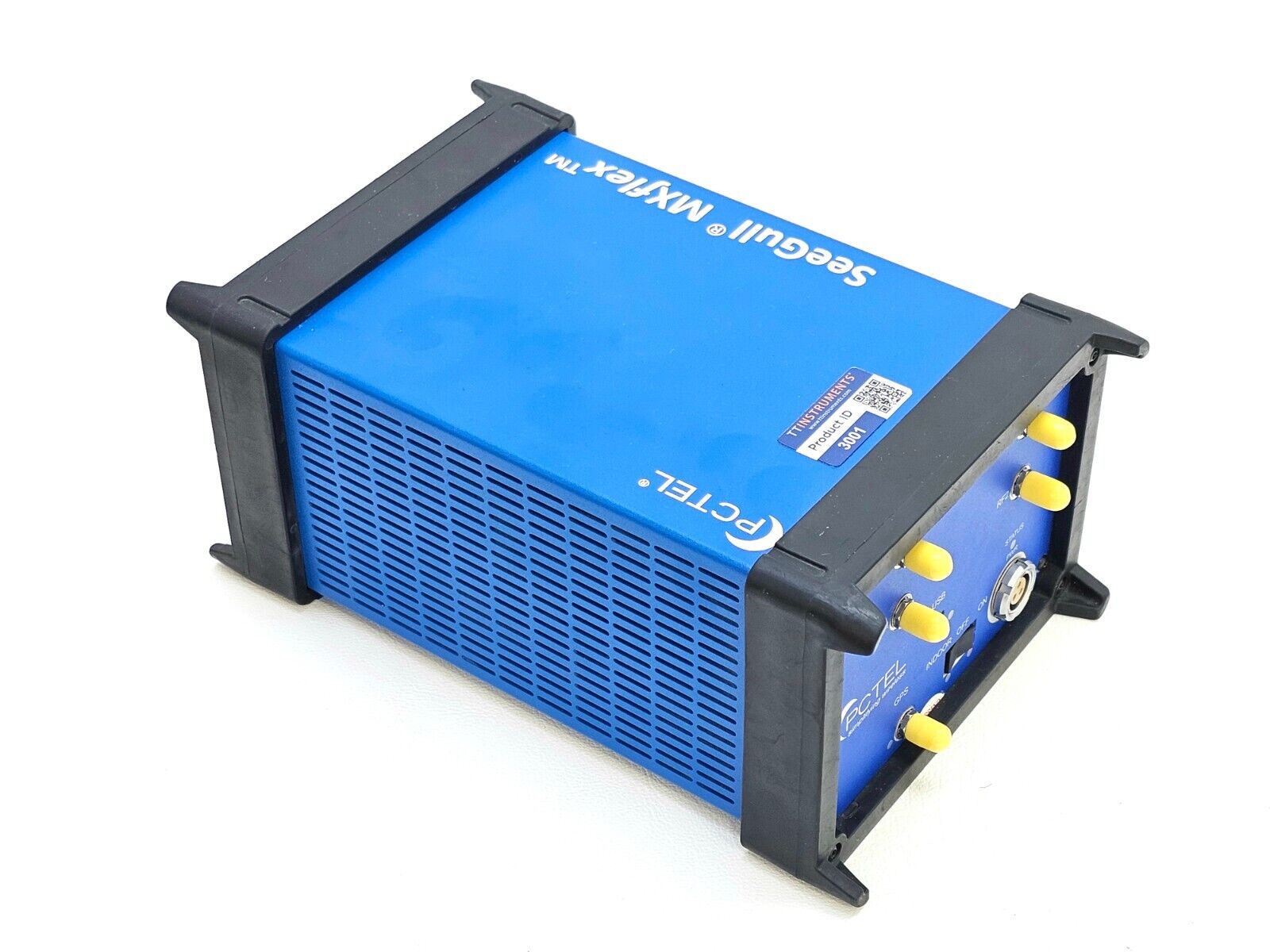

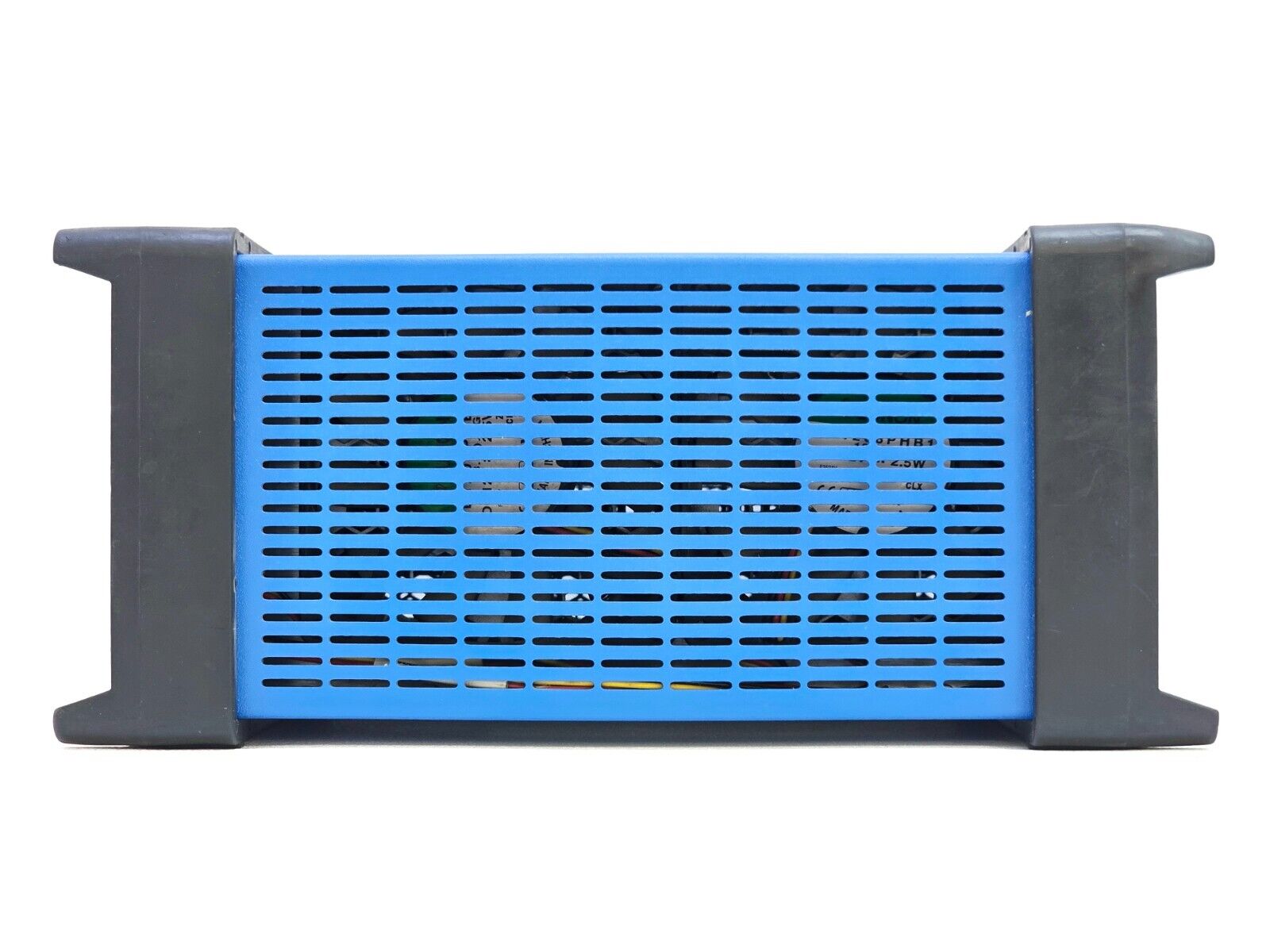

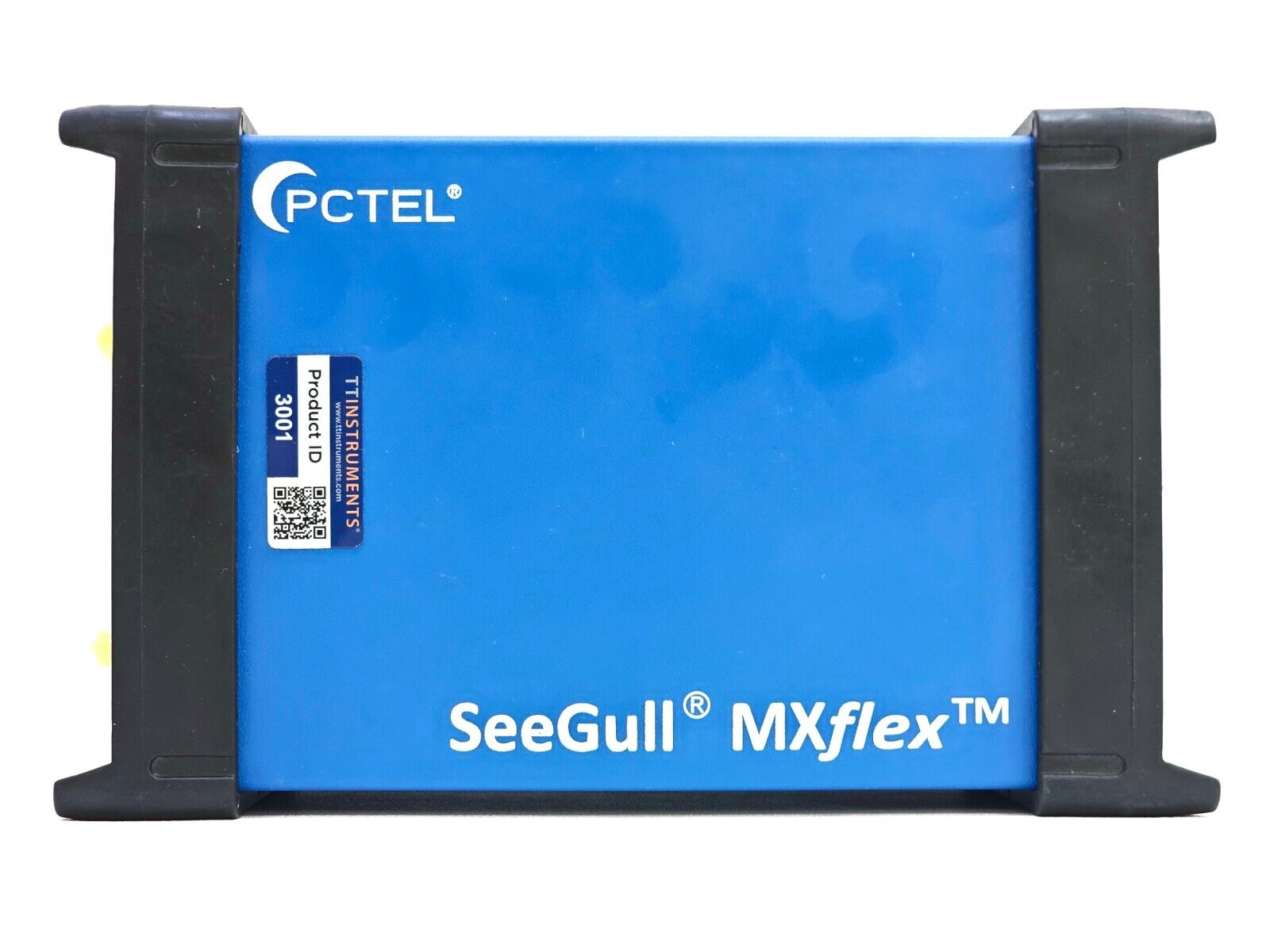

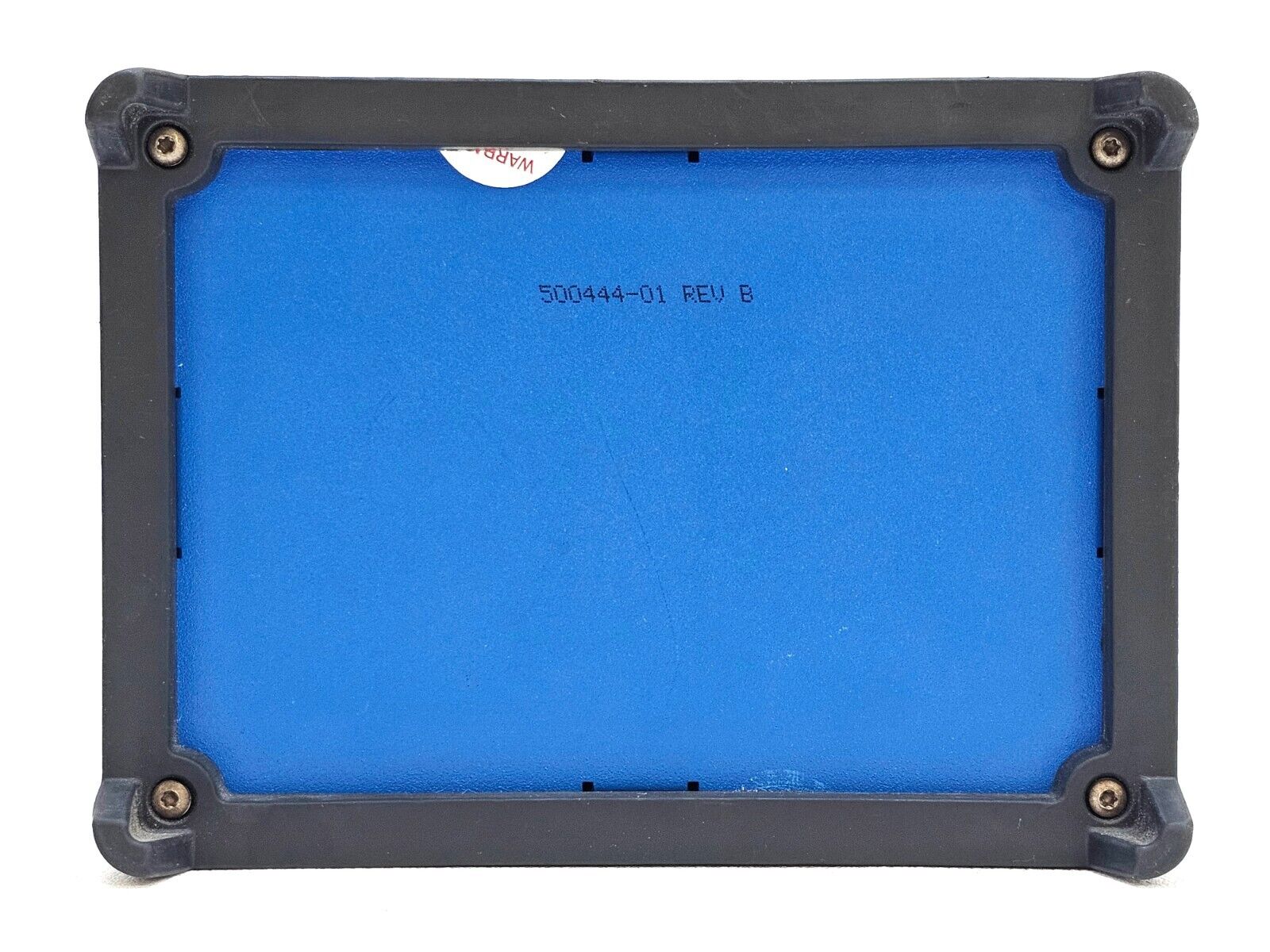

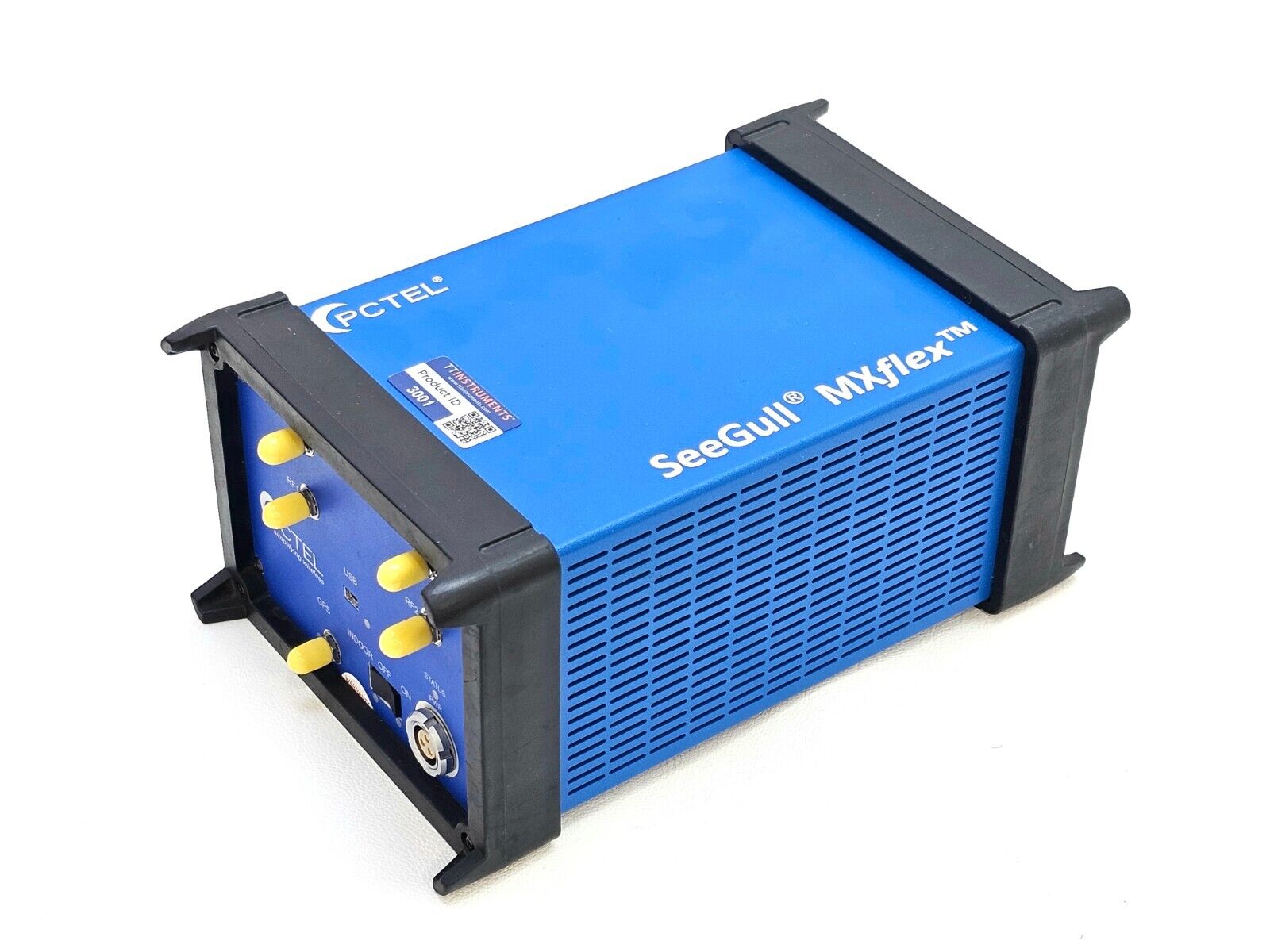

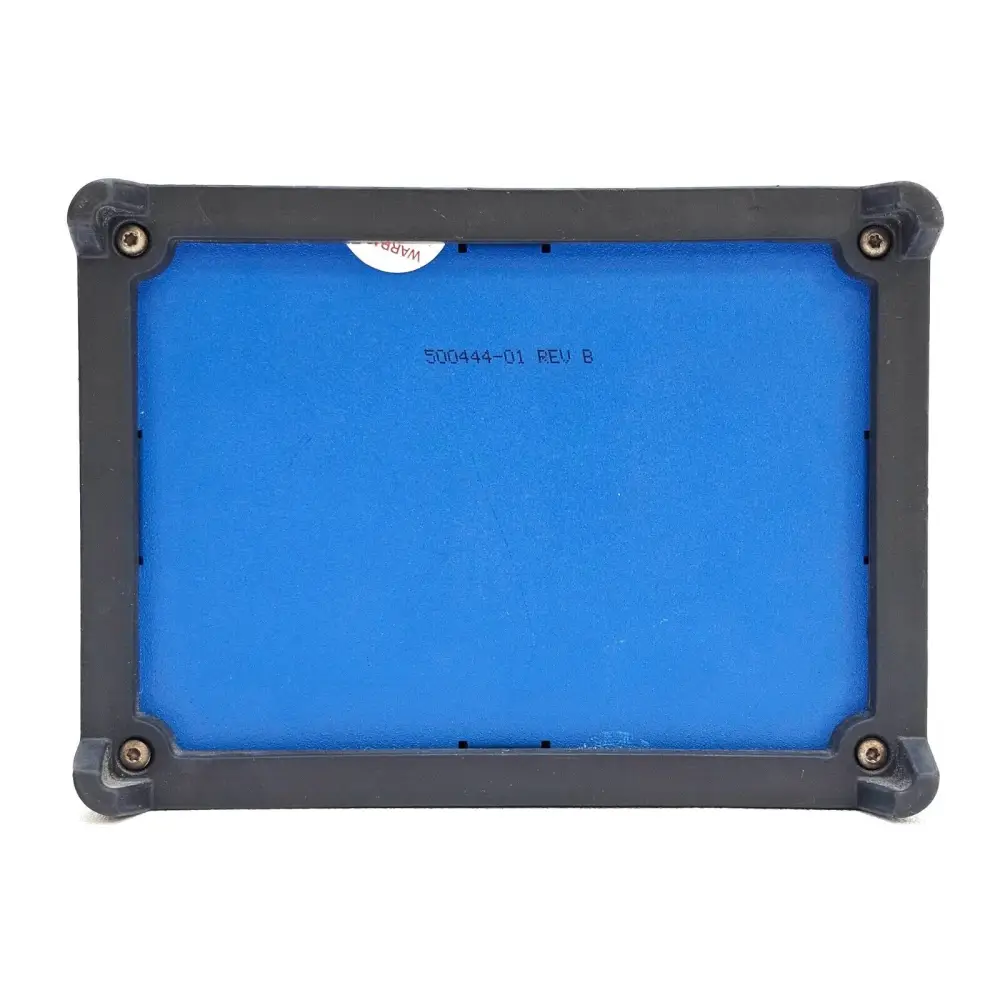

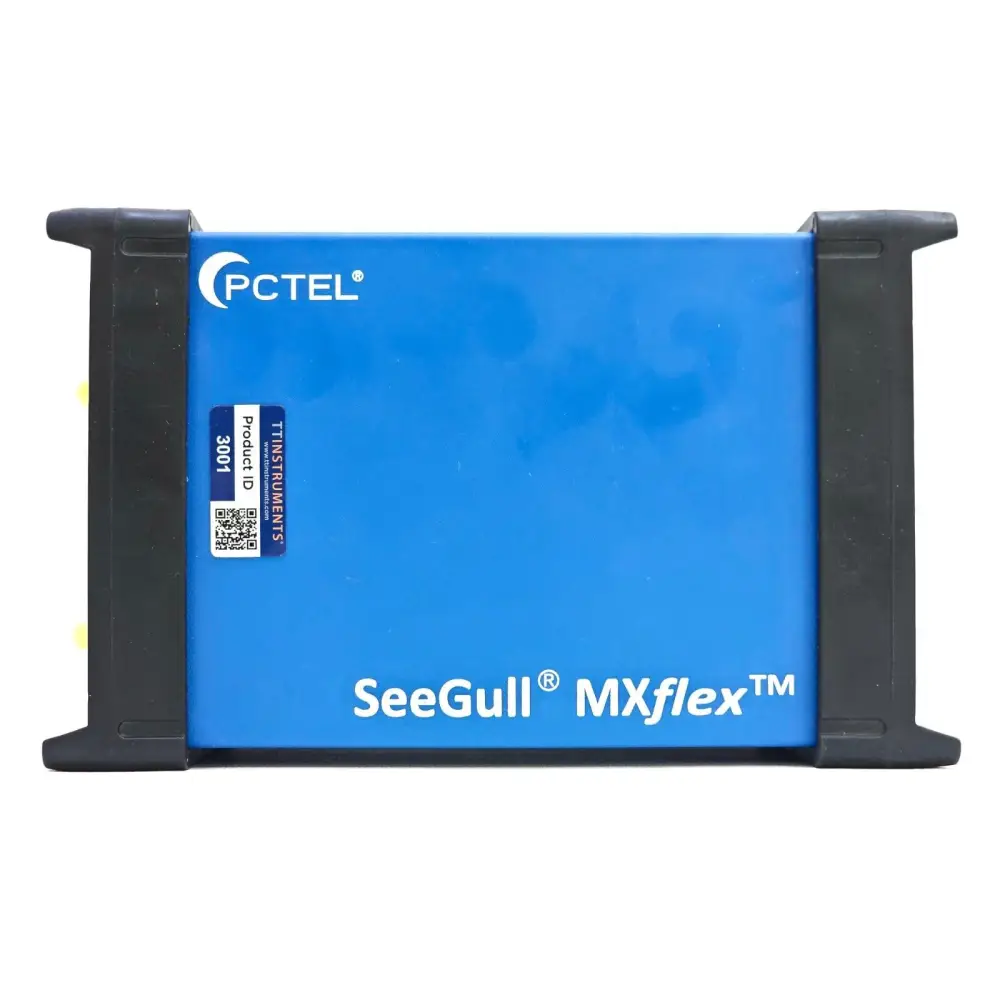

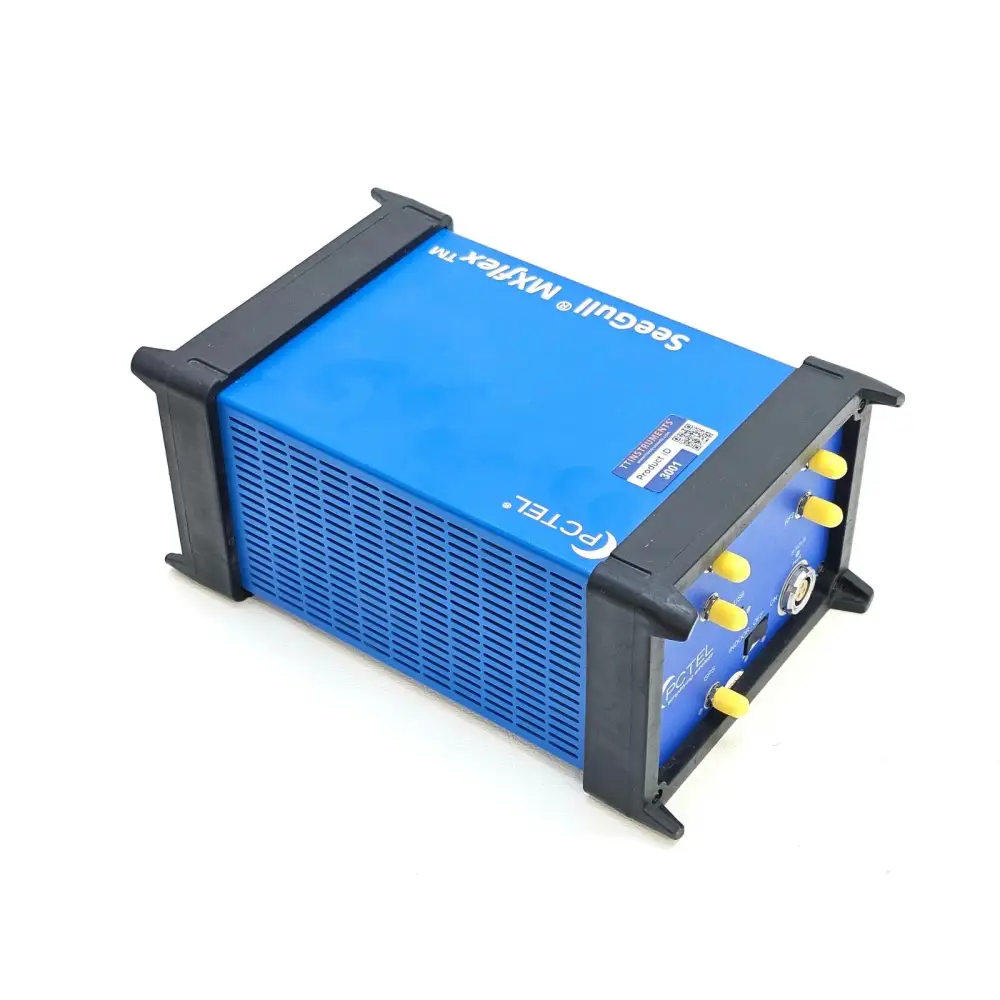

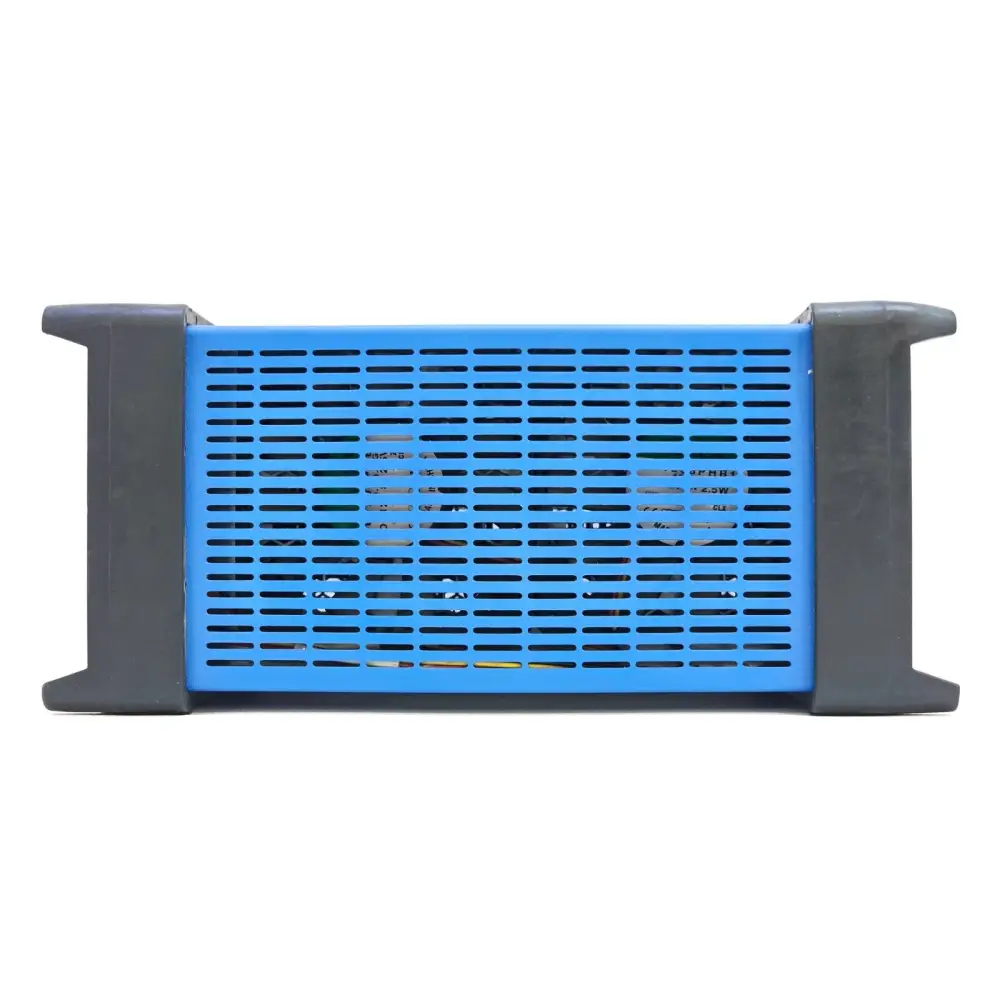

• PCTEL SeeGull MXflex 07904S-U scanning receiver

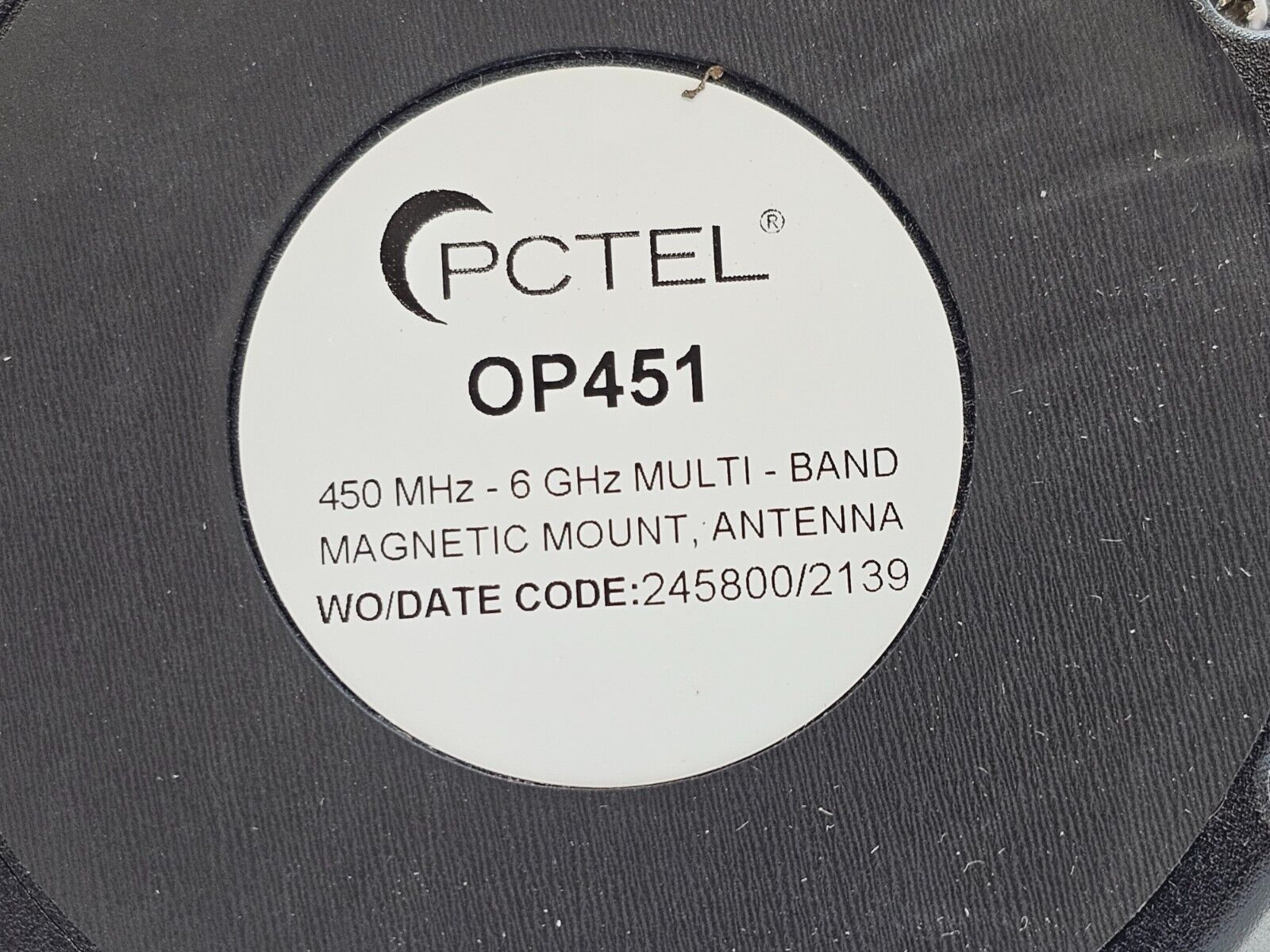

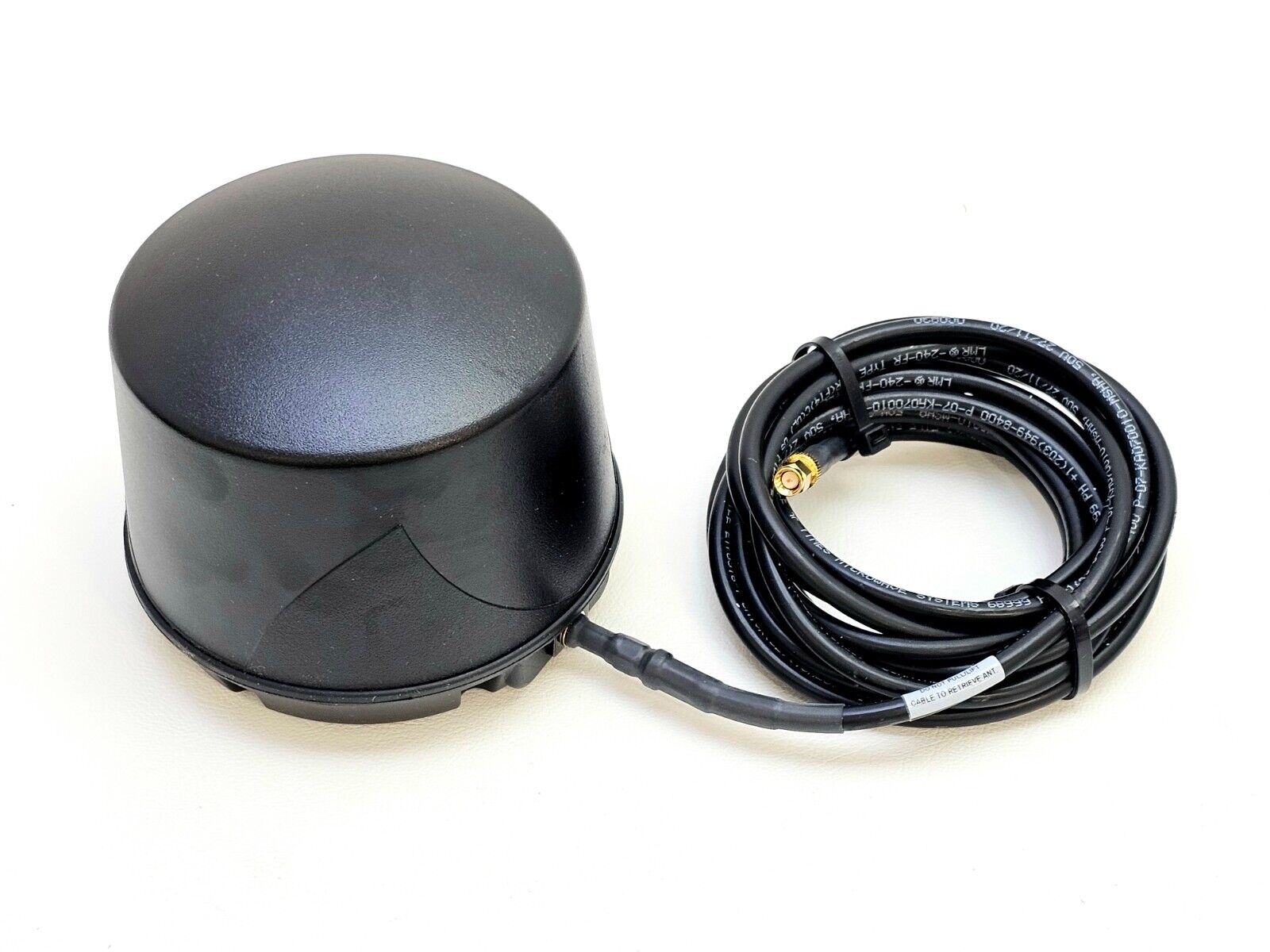

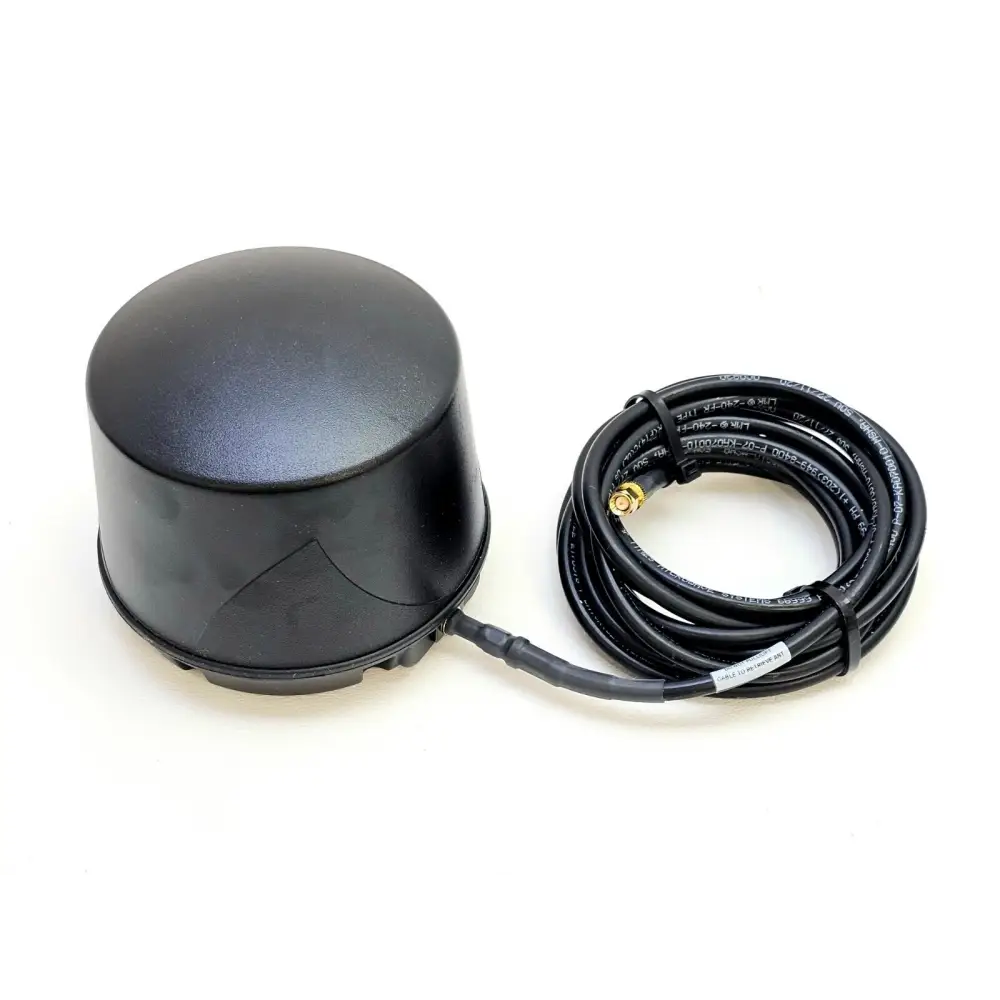

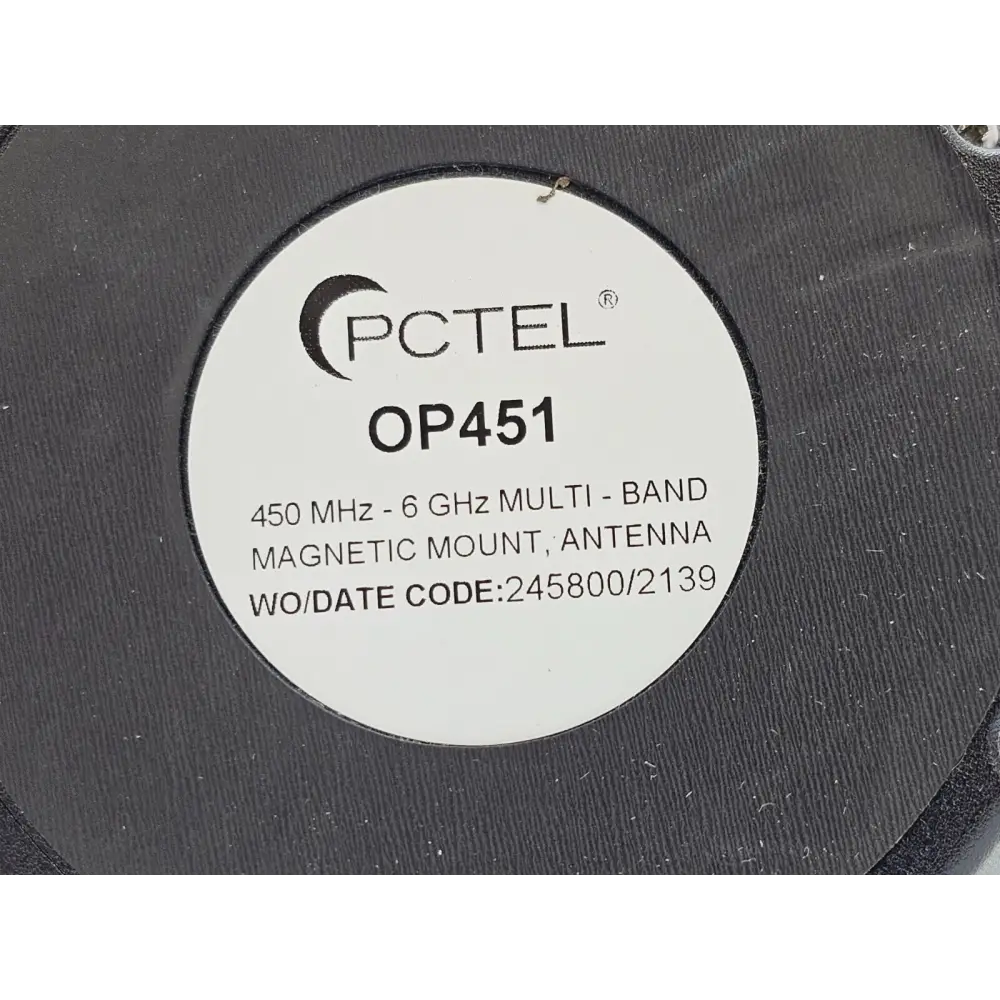

• OP451 multi-band magnetic mount antennas x4 (450 MHz – 6 GHz)

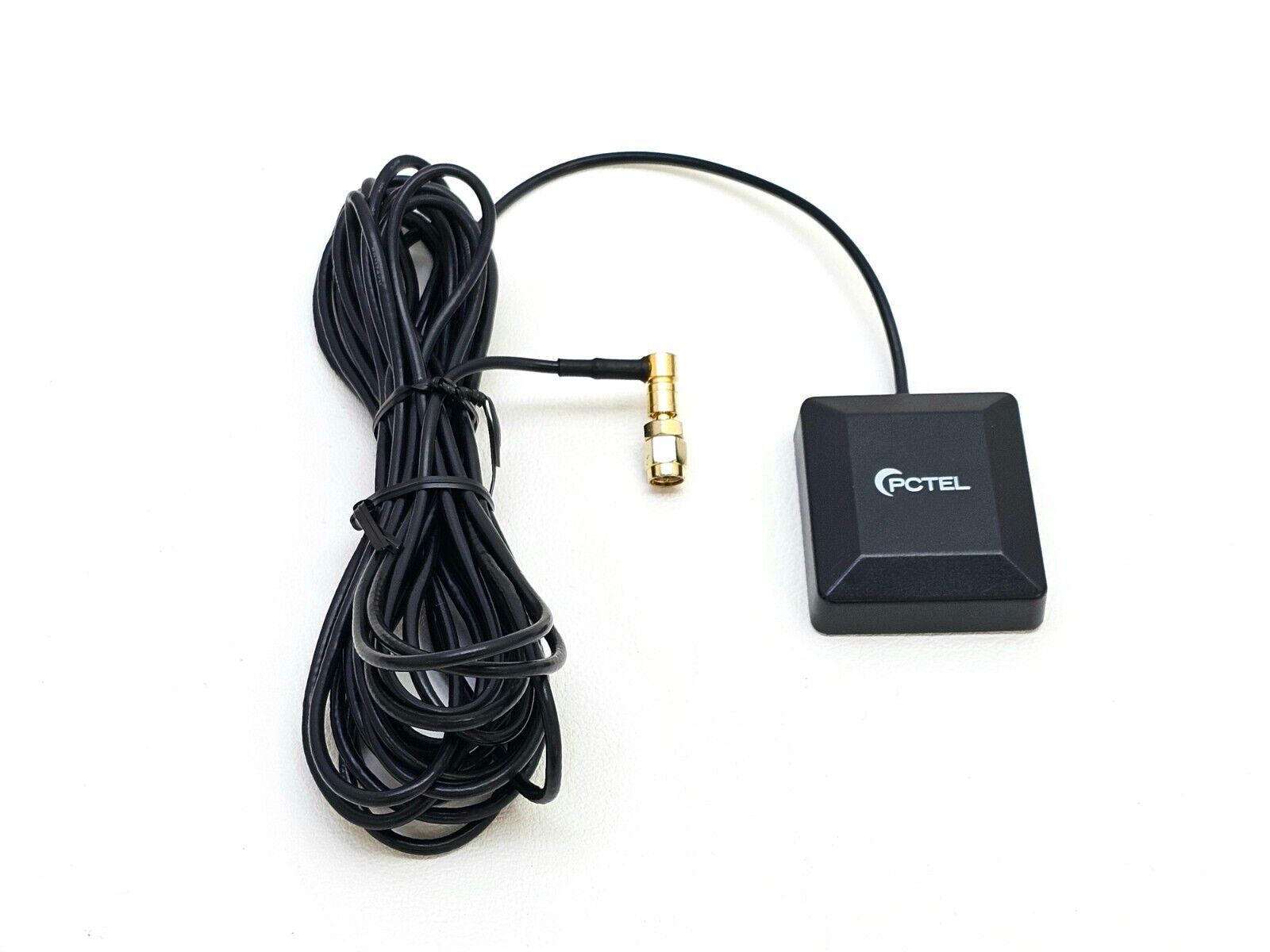

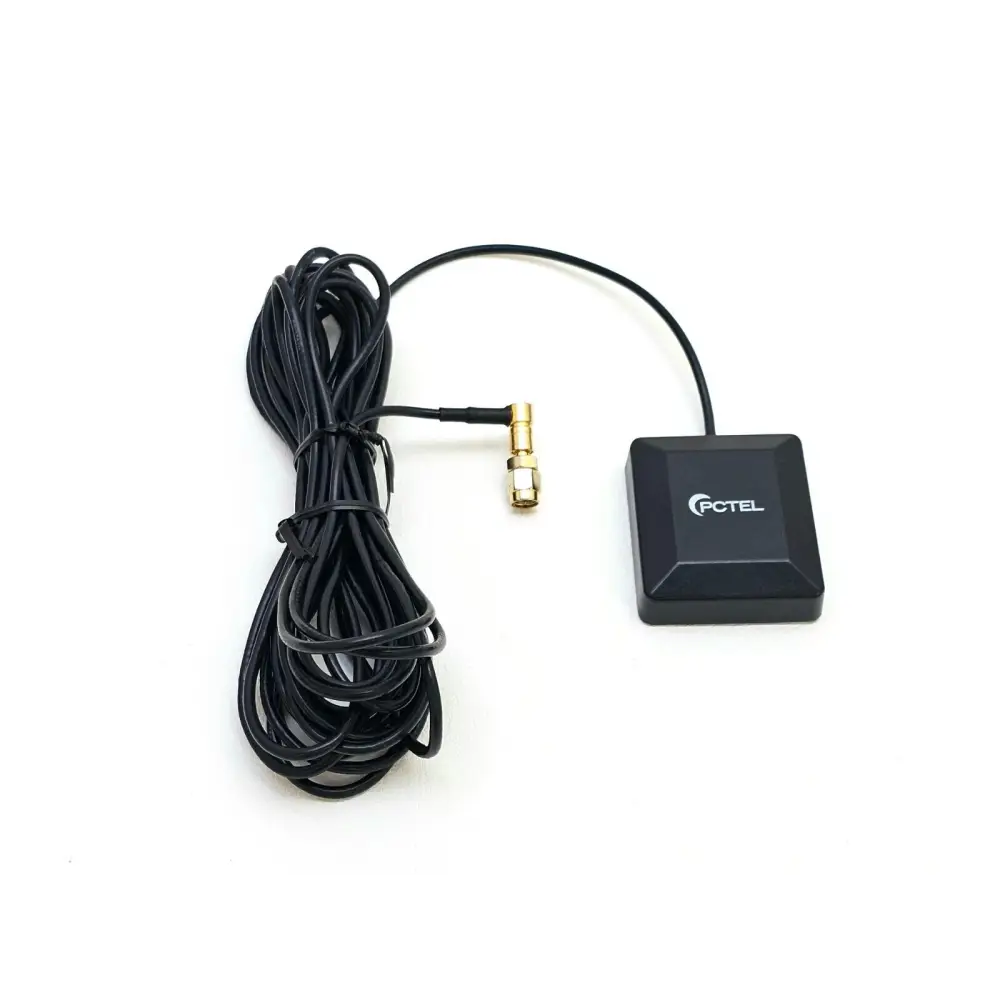

• GPS antenna x1

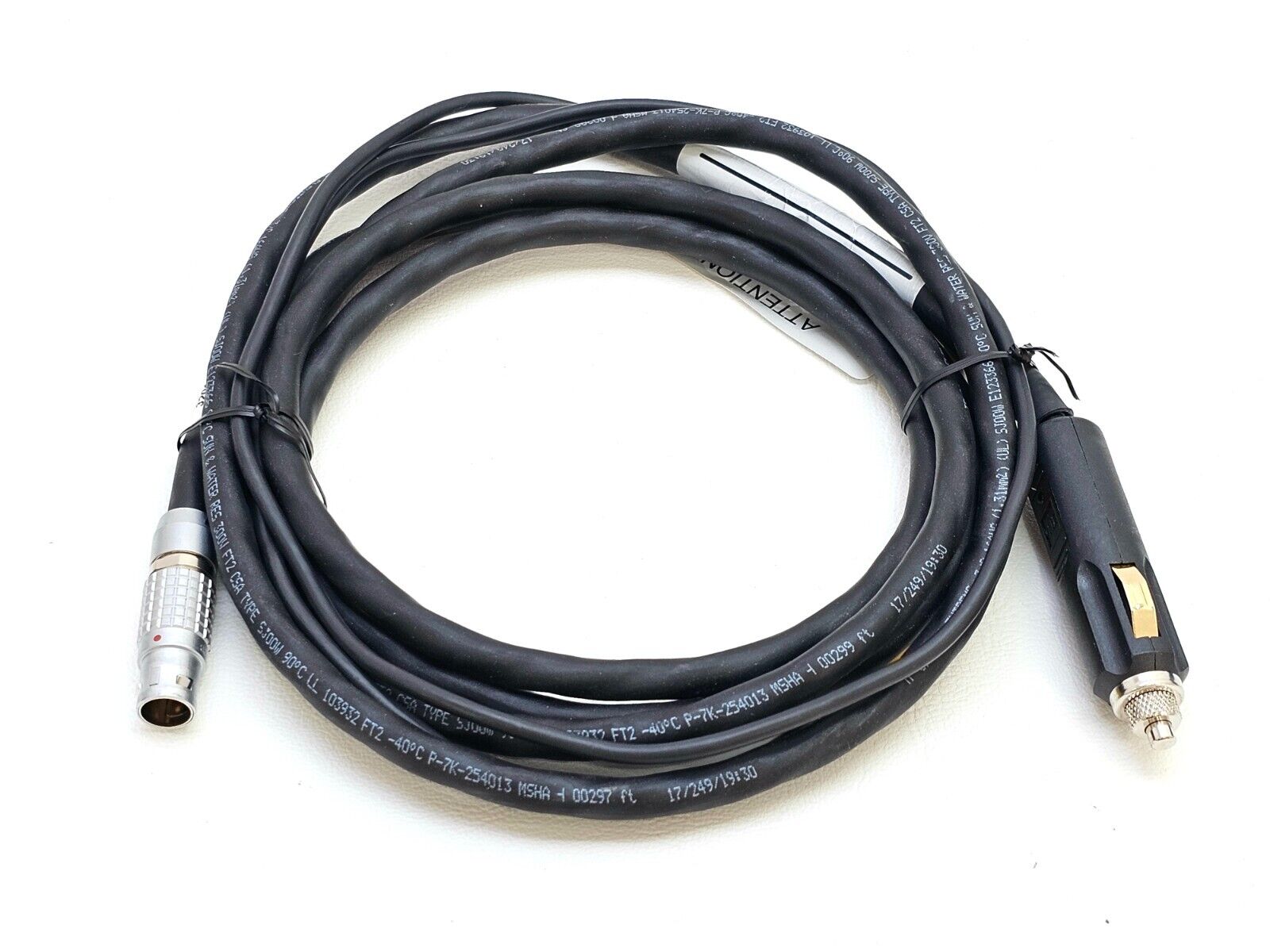

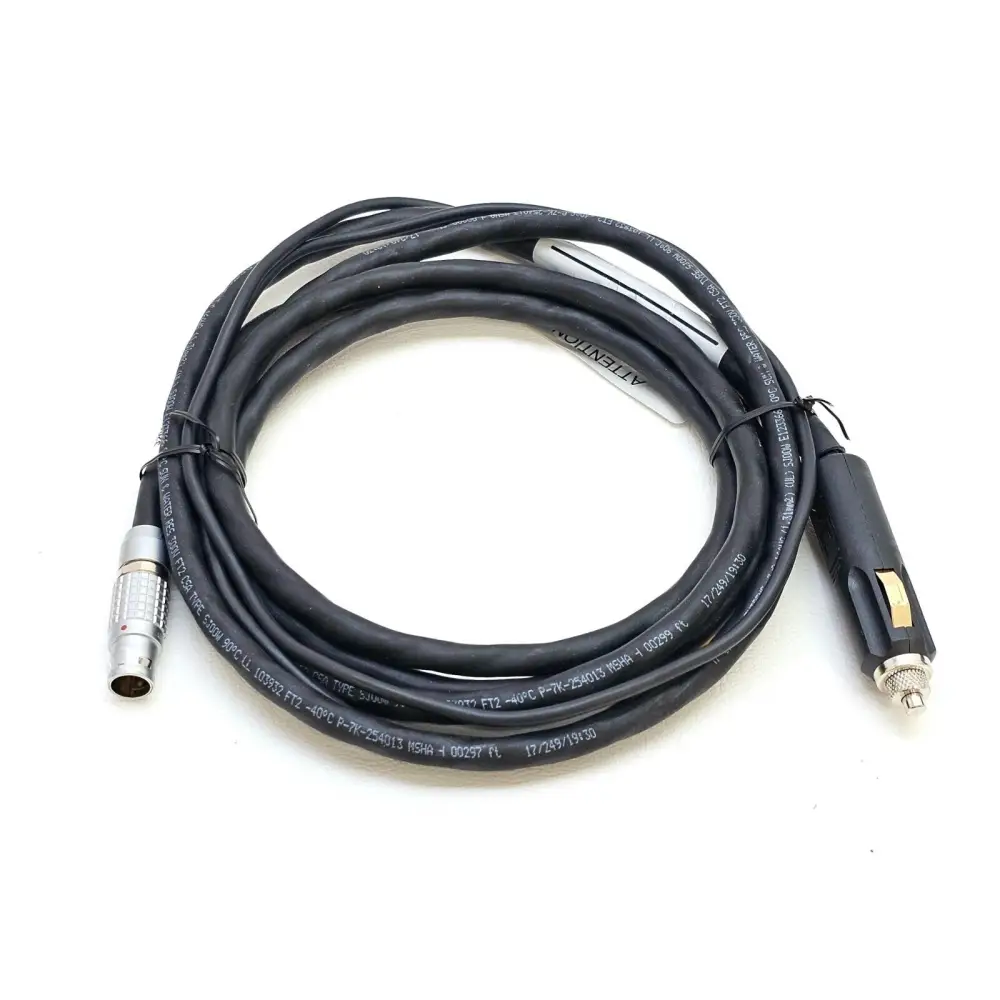

• In-car charger x1

Installed (active perpetual) options:
• GPS Navigation (0001-0000)
• Absolute Time Stamp (0005-0000)
• MIMO RF Ports 1–4 (0014-0000)
• 30 MHz–6000 MHz Capability (7000-0000)
• GSM Support, BSIC, BCCH C/I
• IS-95 Support, Pilot, Extended Dynamic Range
• WCDMA Support, Pilot, Extended Dynamic Range
• CDMA Support, Pilot, Extended Dynamic Range
• EVDO Support, Pilot, Extended Dynamic Range
• LTE Support, Enhanced Signal Scan, 5G/4G Spectrum Sharing Signal, Enhanced Signal 4Rx MIMO
• TDLTE Support, Enhanced Signal Scan, 5G/4G Spectrum Sharing Signal, Enhanced Signal 4Rx MIMO
• New Radio Support, MIB Decoding, Blind Scan, Top N Signal Scanning

The PCTEL SeeGull MXflex is a professional-grade scanning receiver designed for benchmarking and co-managing multiple wireless network technologies across sub-6 GHz spectrum. It combines the concurrent data collection capabilities of the SeeGull MX platform with a flexible, software-definable band architecture, enabling engineers to acquire, process, and report data from all 3GPP-defined RF bands across all major technologies simultaneously. The MXflex features a modular front end and parallel high-performance signal processing engines, delivering high data density without the need for repeat test runs or multiple receivers.

Key Features:
• Concurrent multi-technology scanning — collect data from up to 8 technologies in a single test pass
• 5G NR (3GPP FR1) and 4×4 LTE MIMO measurements for next-generation network optimisation
• Automatic Channel Detection (Blind Scan) and Mobile Blind Scan for fast channel discovery
• 4G/5G Dynamic Spectrum Sharing (DSS) measurement support
• Software-definable, field-upgradeable band and technology options

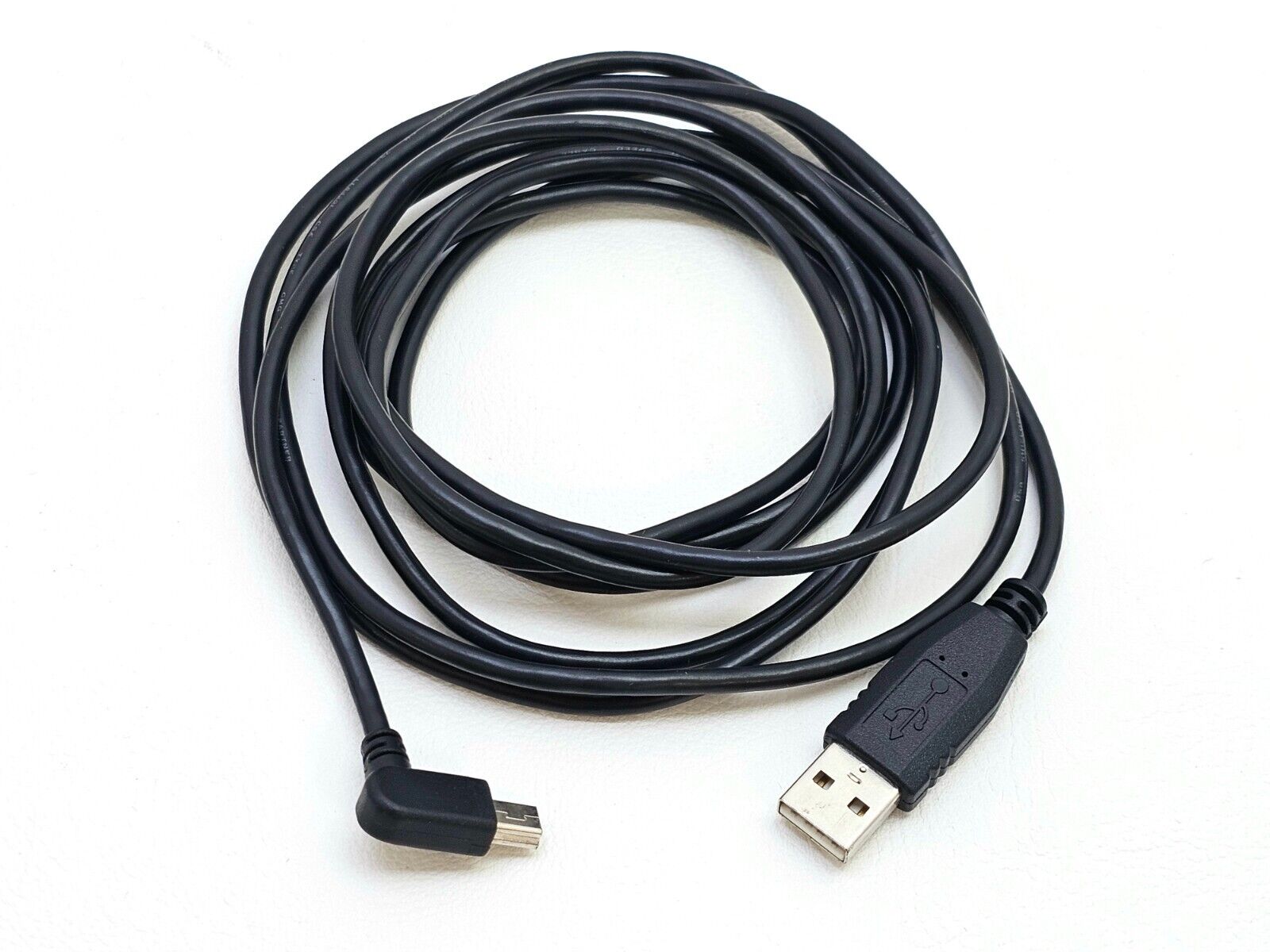

• USB interface for PC connection; compatible with PCTEL SeeHawk collection and analysis software
• Suitable for drive testing, walk testing, benchmarking, baseline testing, integration testing, and optimisation

Supported Technologies (option-dependent):
• 5G NR (FR1, sub-6 GHz)
• LTE FDD
• TD-LTE
• NB-IoT
• UMTS / WCDMA
• GSM
• CDMA
• EV-DO
• Custom Channel Power: P25, TETRA, DMR, LAA, and others

Frequency Range: 30 MHz – 6000 MHz (with 7000-0000 option)

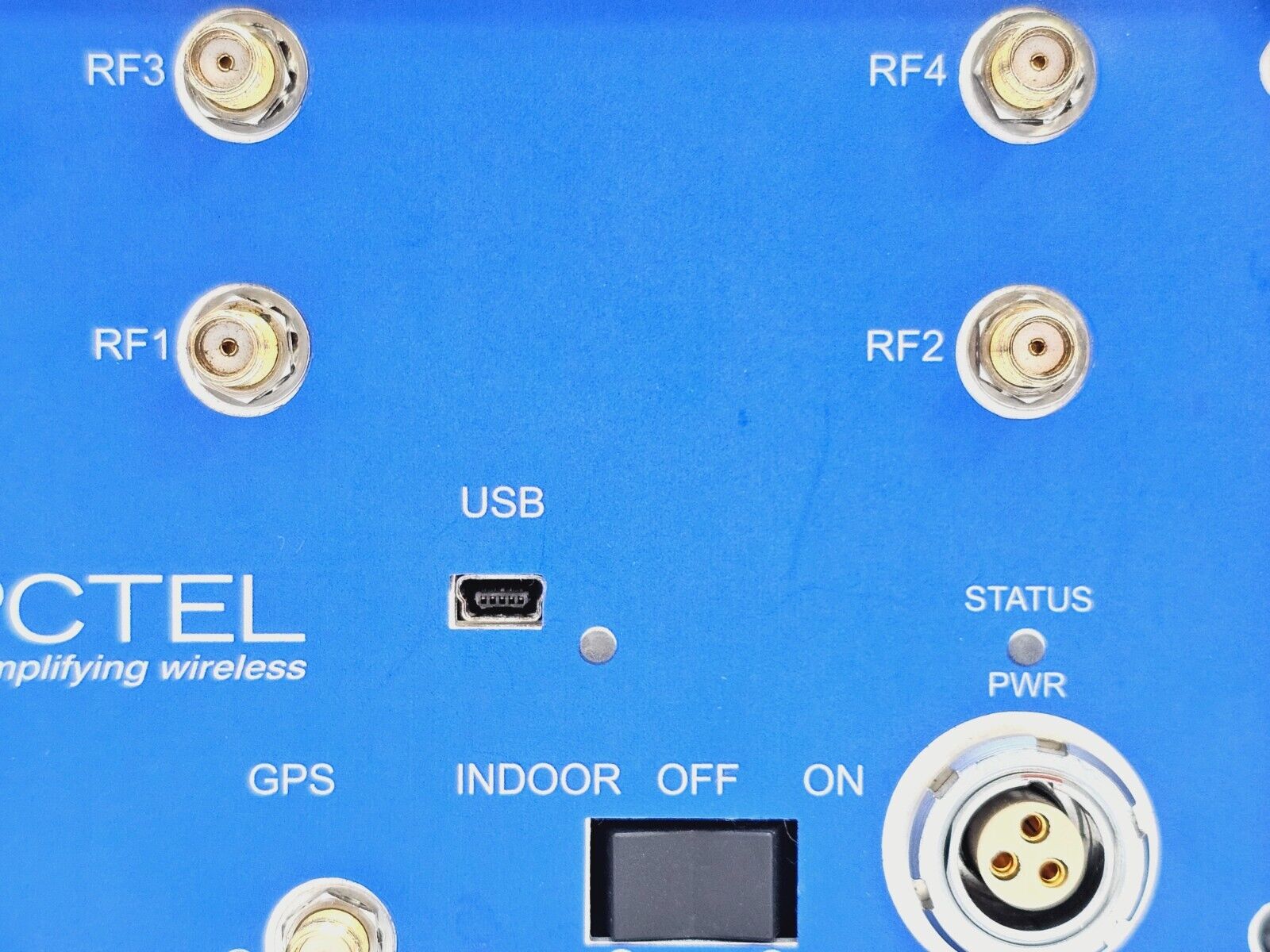

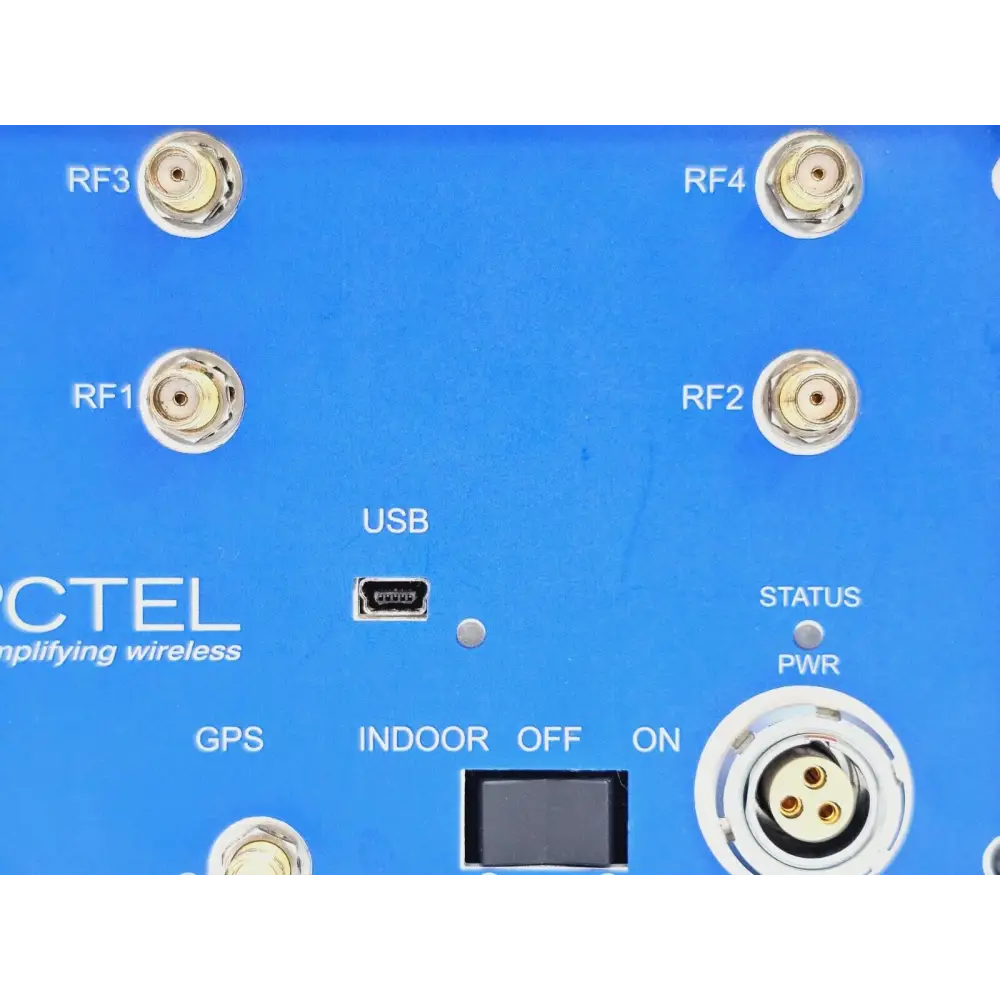

RF Ports: 4 (MIMO-capable)
Band Options (super configuration): All 3GPP (MXFLX-BD-xx) bands across sub-6 GHz

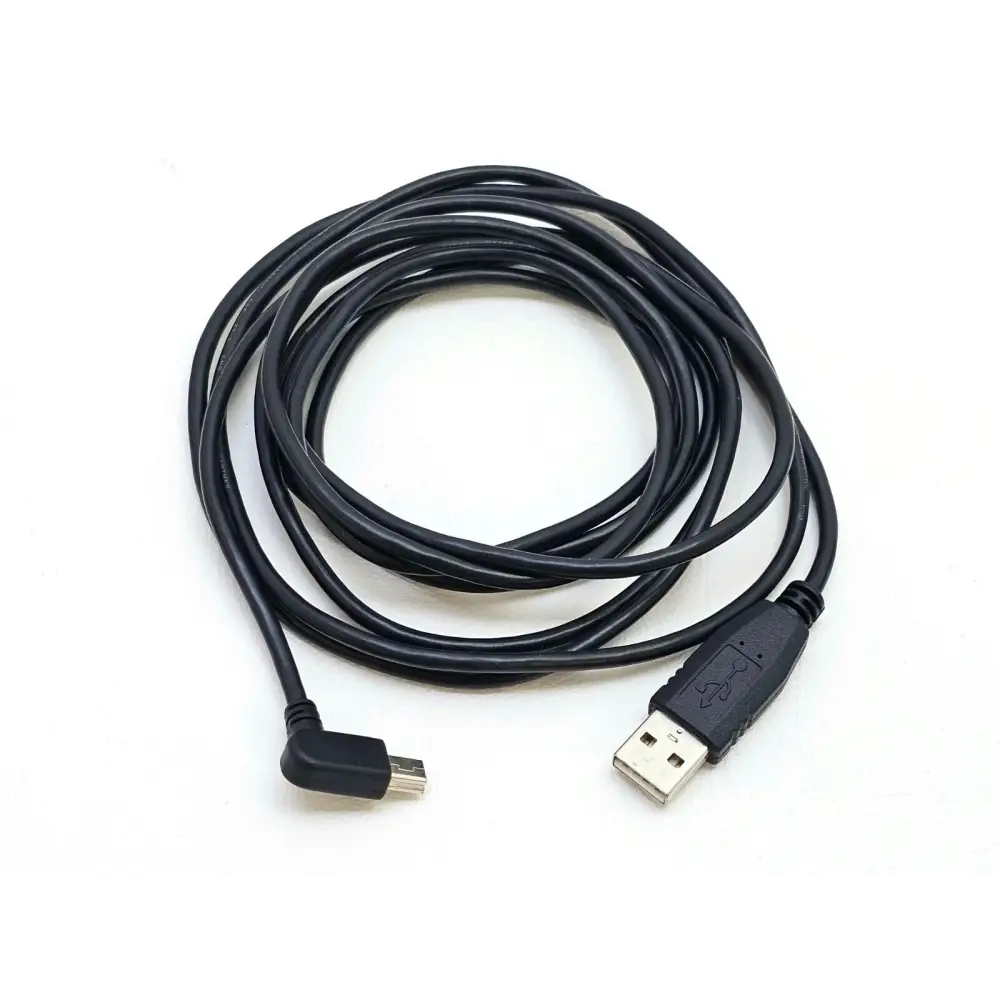

Interface: USB
Typical Applications: Multi-operator drive testing, 5G NR deployment verification, LTE MIMO capacity testing, network benchmarking, spectrum co-existence analysis
Compatible Antennas: OP451 (450 MHz – 6 GHz multi-band magnetic mount), OP697, and others
Compatible Software: PCTEL SeeHawk Touch, SeeHawk Collect, SeeWave

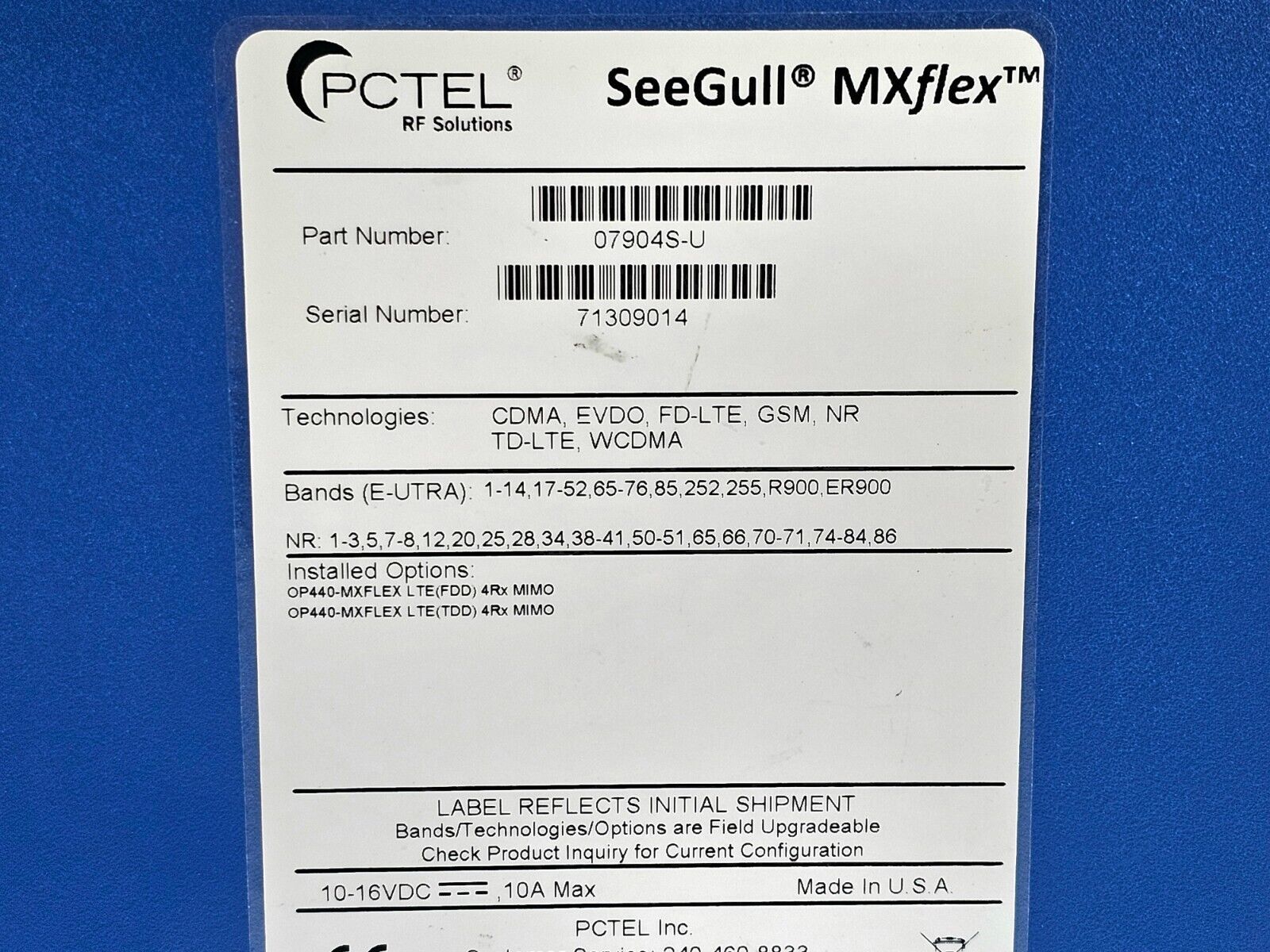

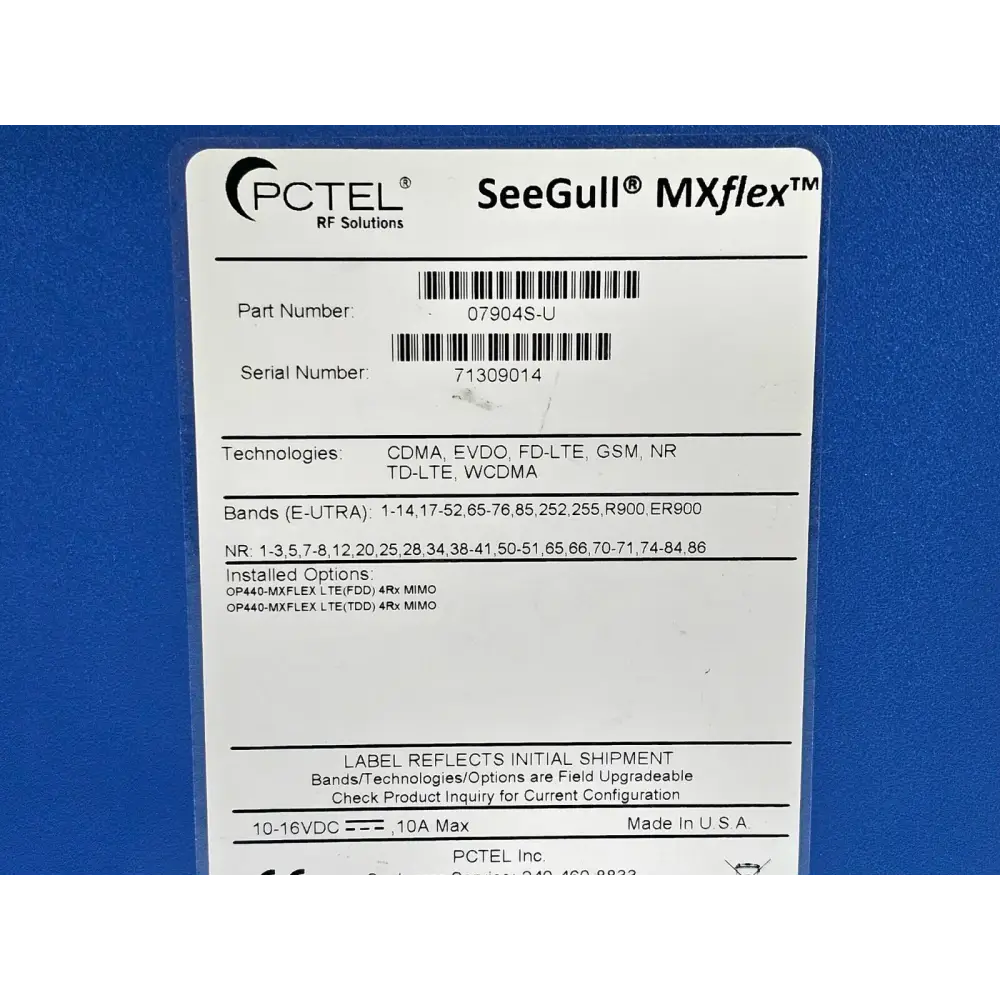

Part Number: 07904S-U (4-port super configuration with 30–6000 MHz capability)
