Condition: Used

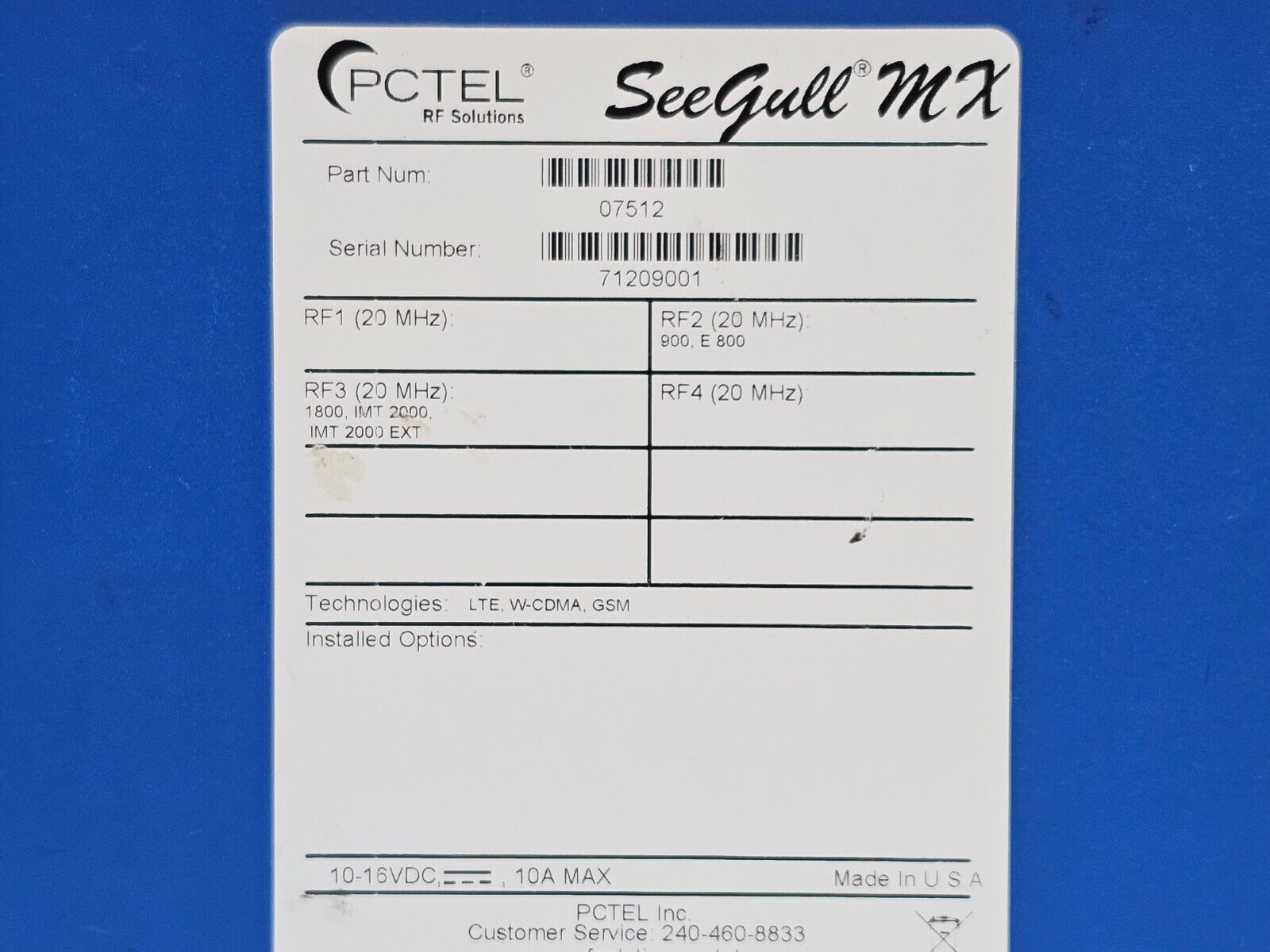

PCTEL SeeGull MX scanning receiver in good condition, ESN 0000-0000-7120-9001, carrying 10 active licensed options across GSM, WCDMA, and LTE. Unit firmware shows Software Release Version 2.4.0.0 and passed bootup self-test. Calibration date on record: 12/09/2012. Software is not provided.

Included in the sale:
• SeeGull MX receiver

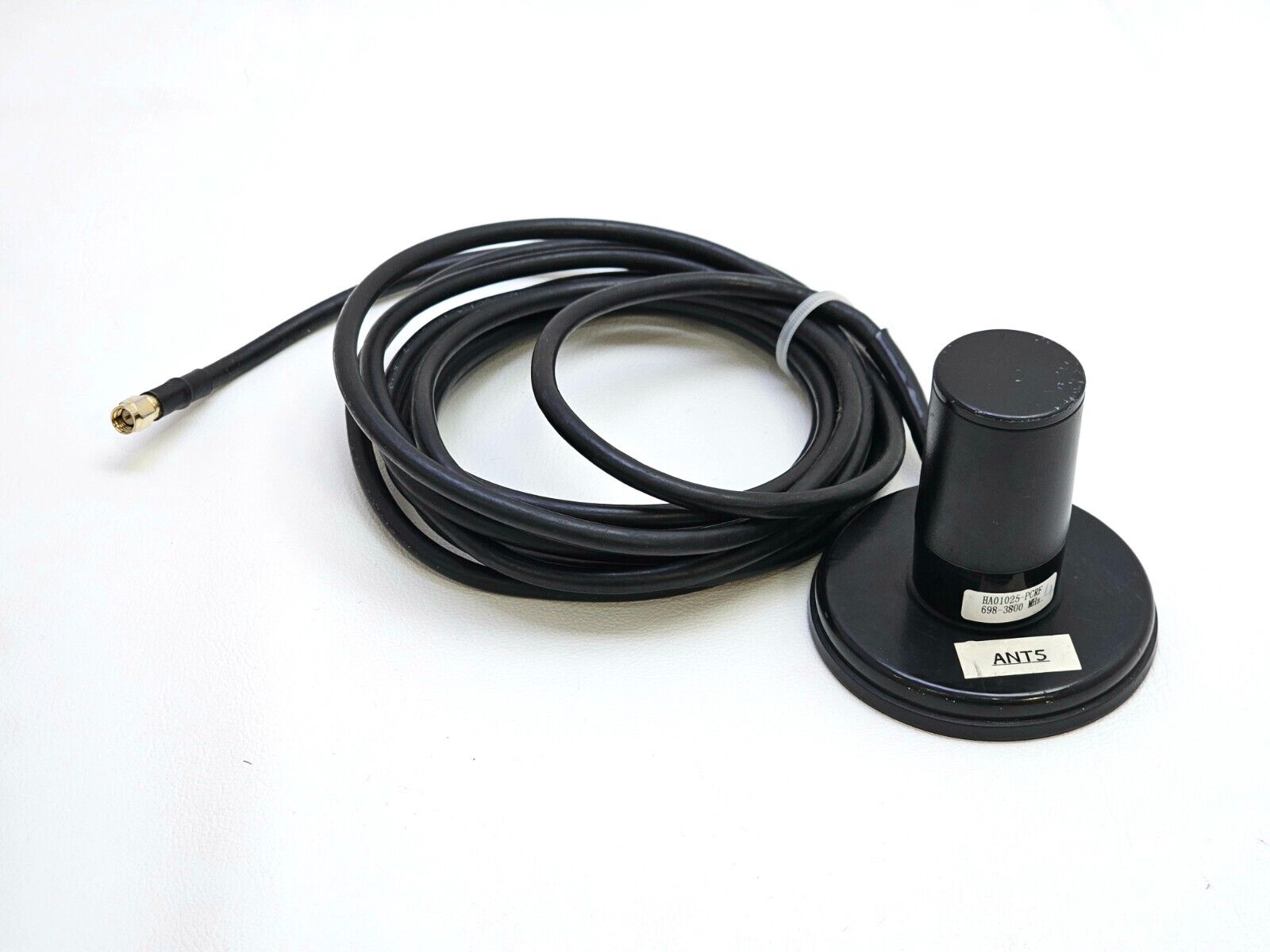

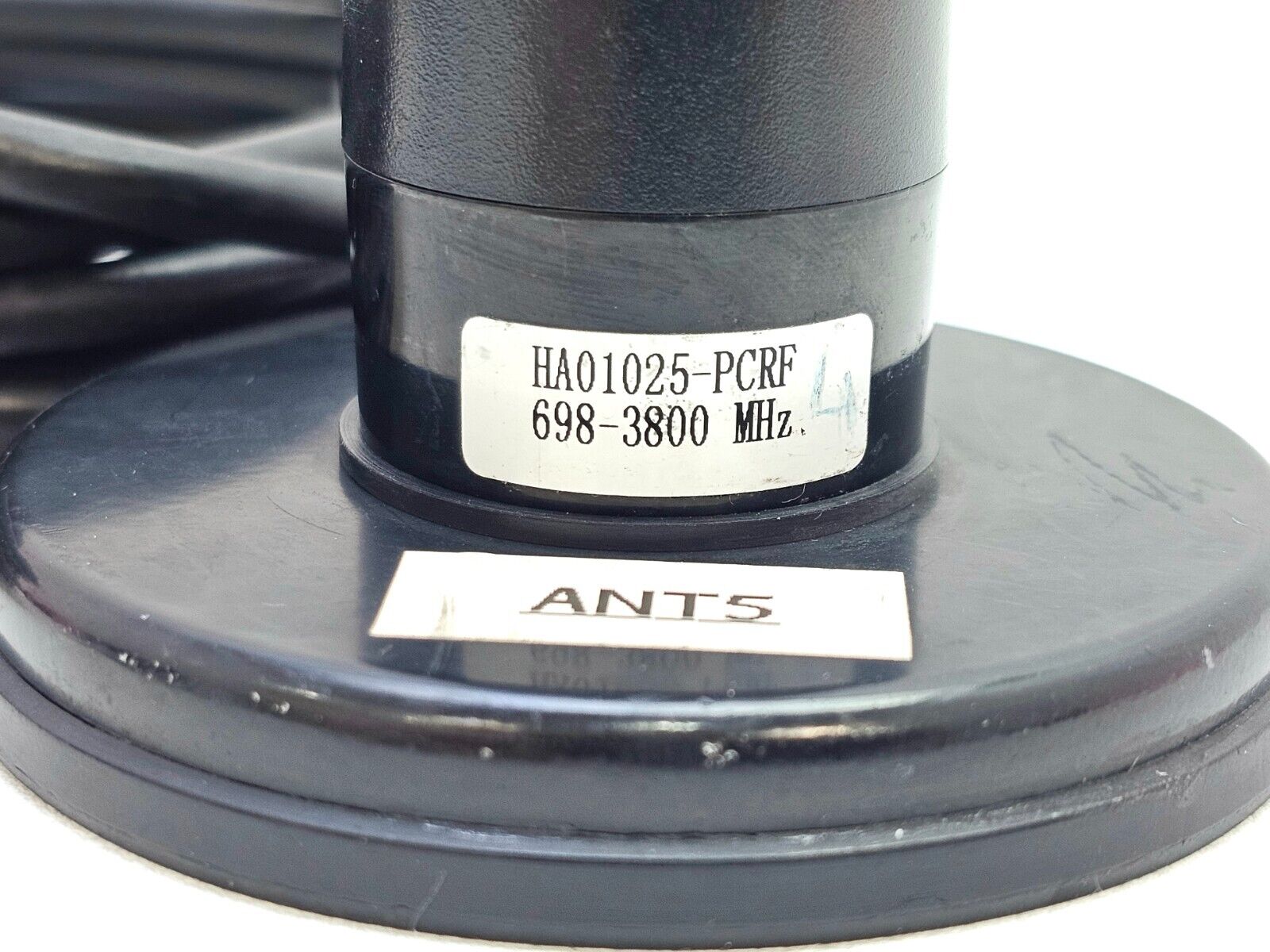

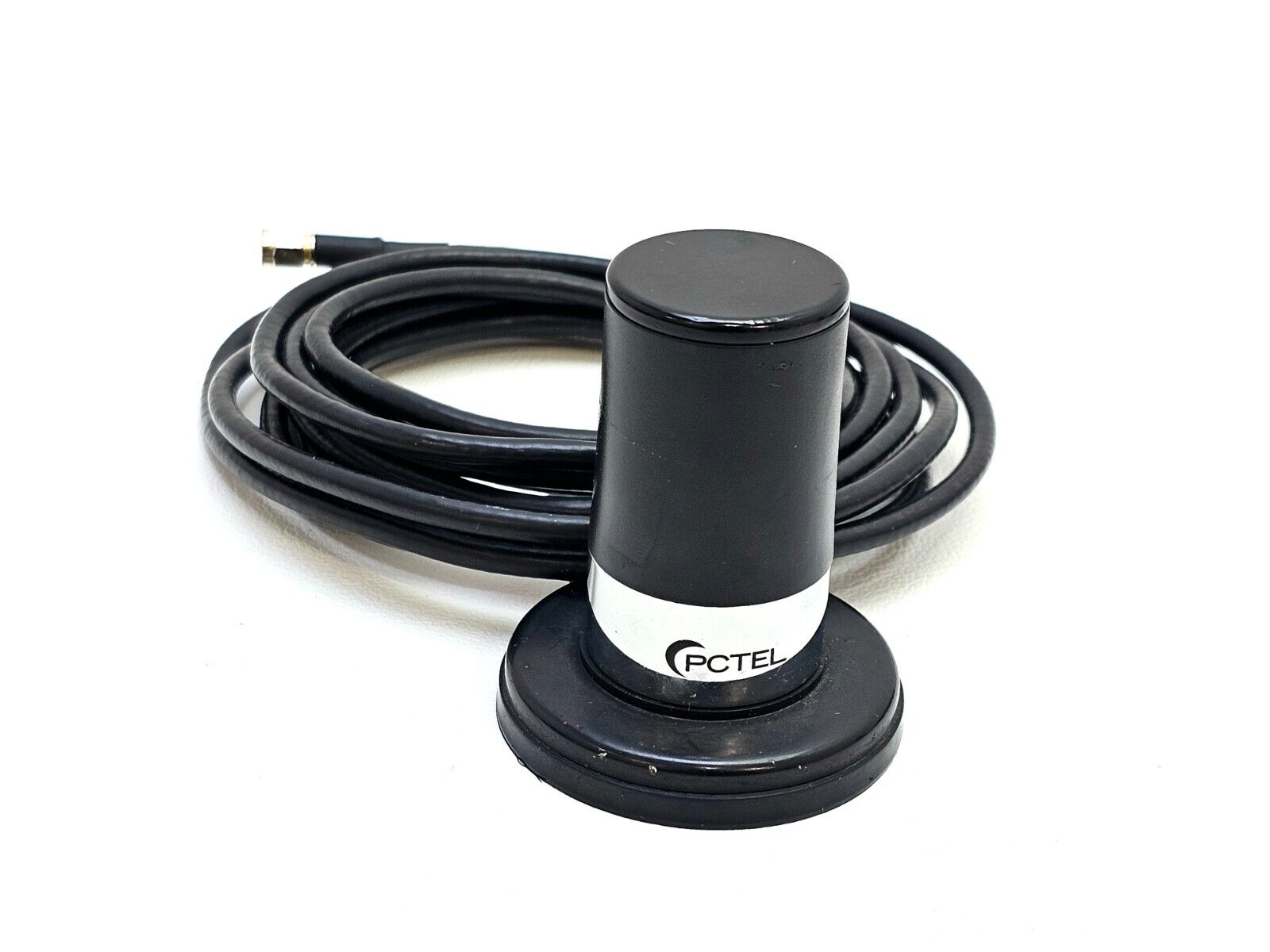

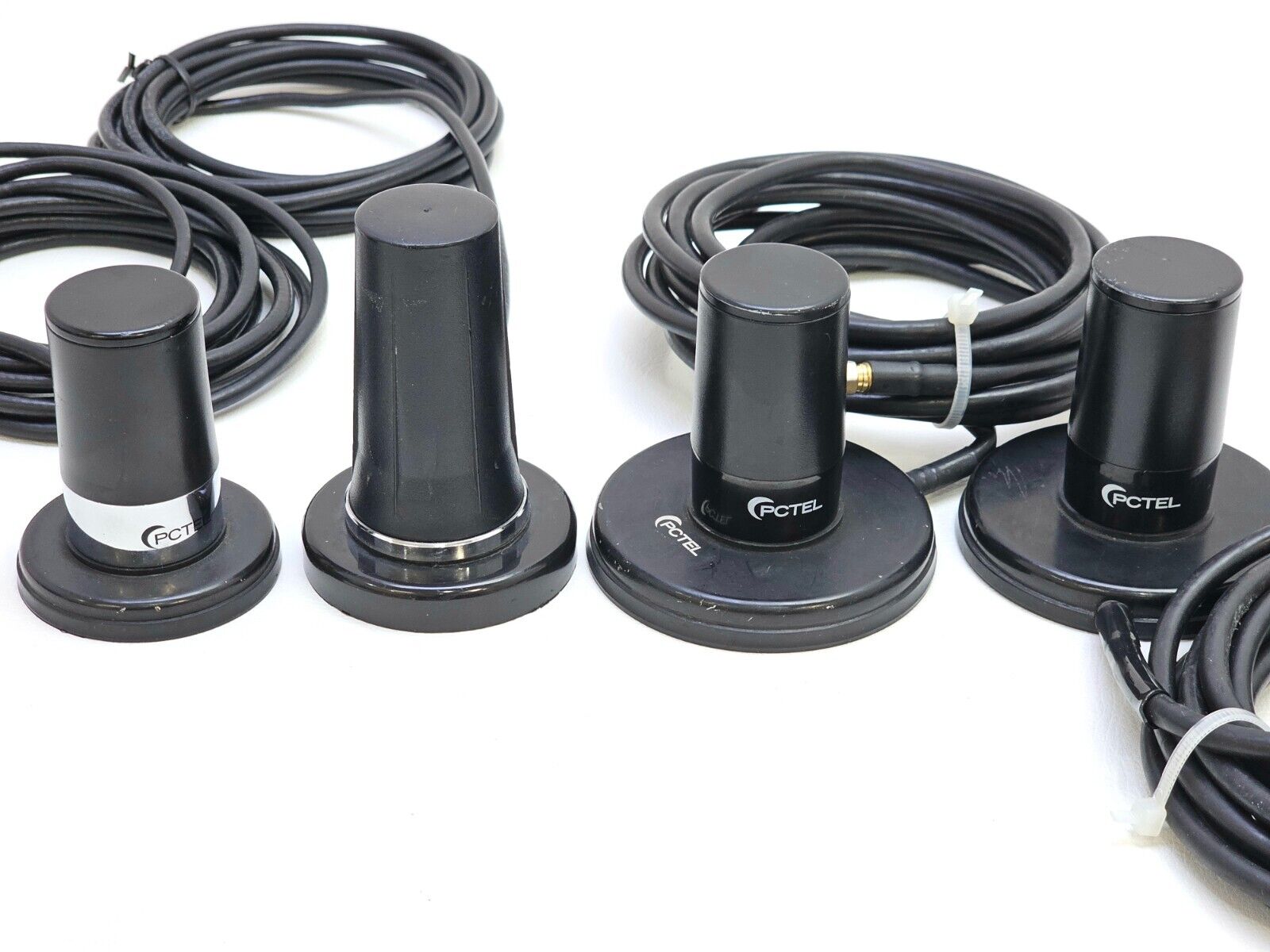

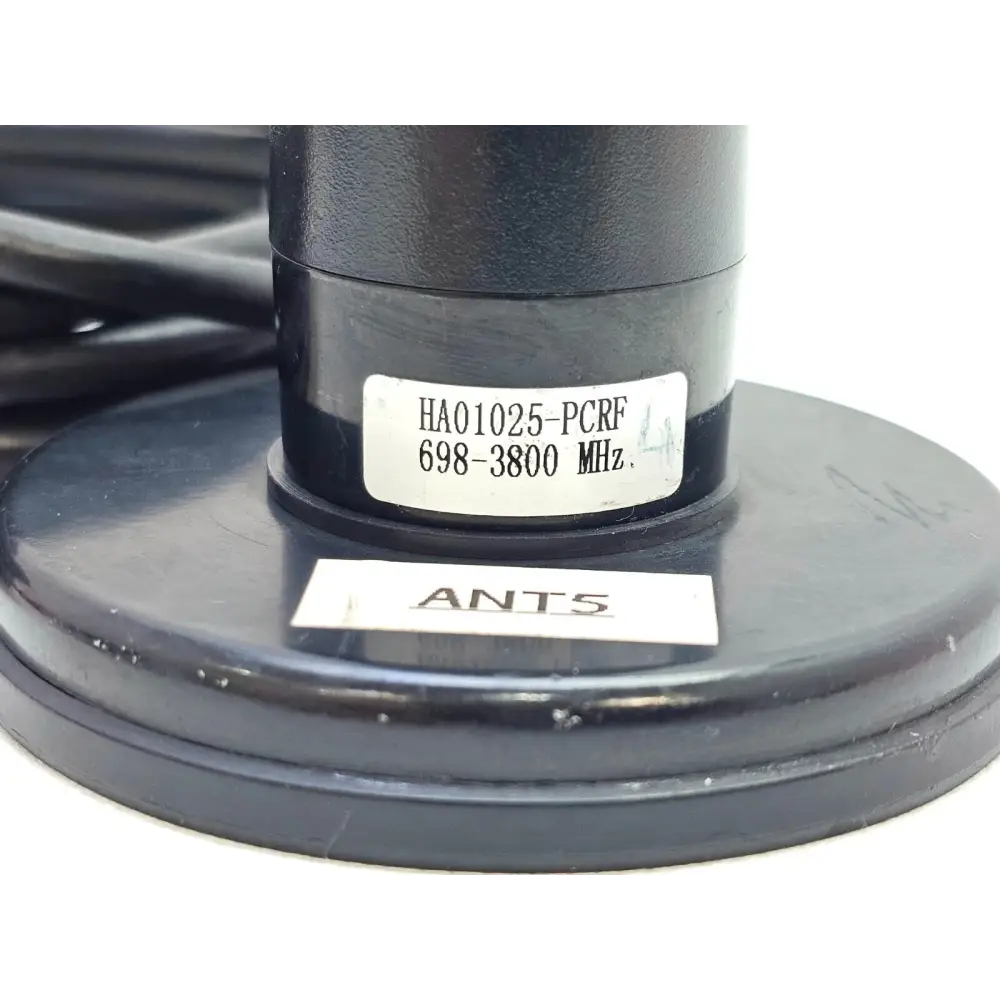

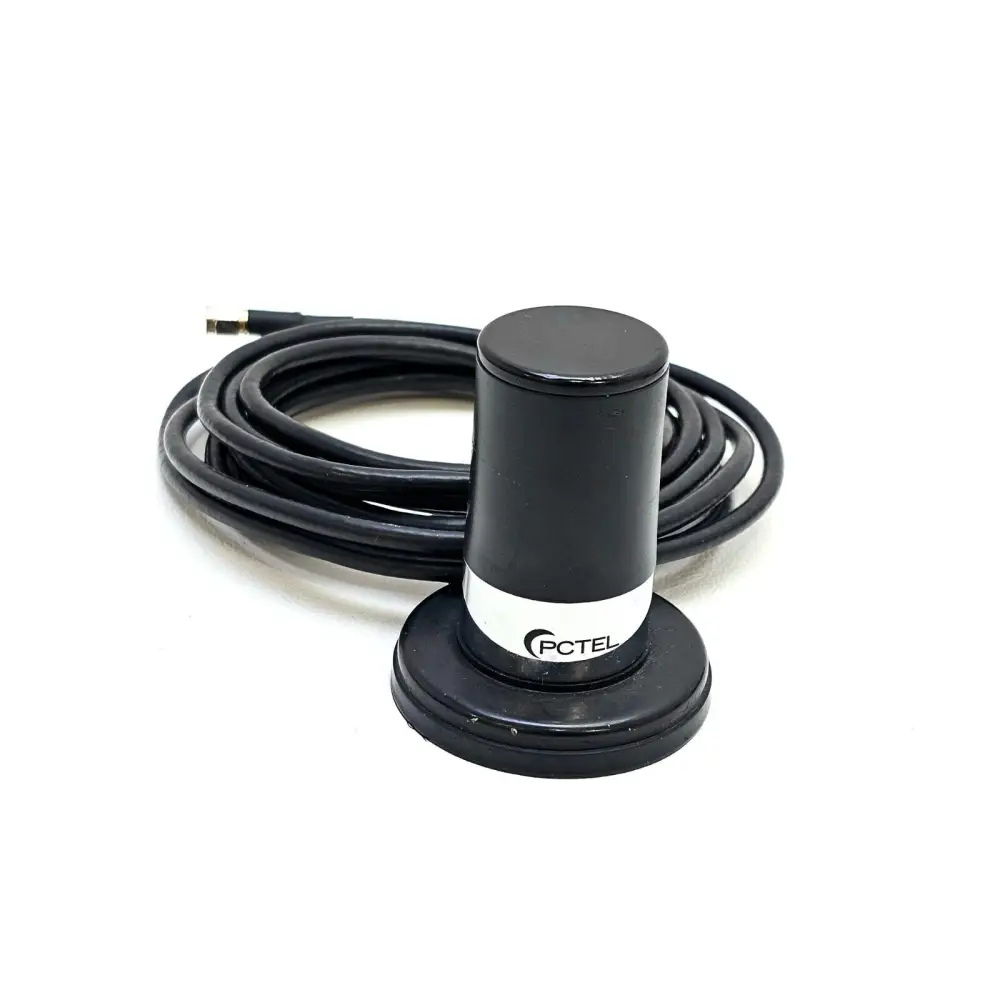

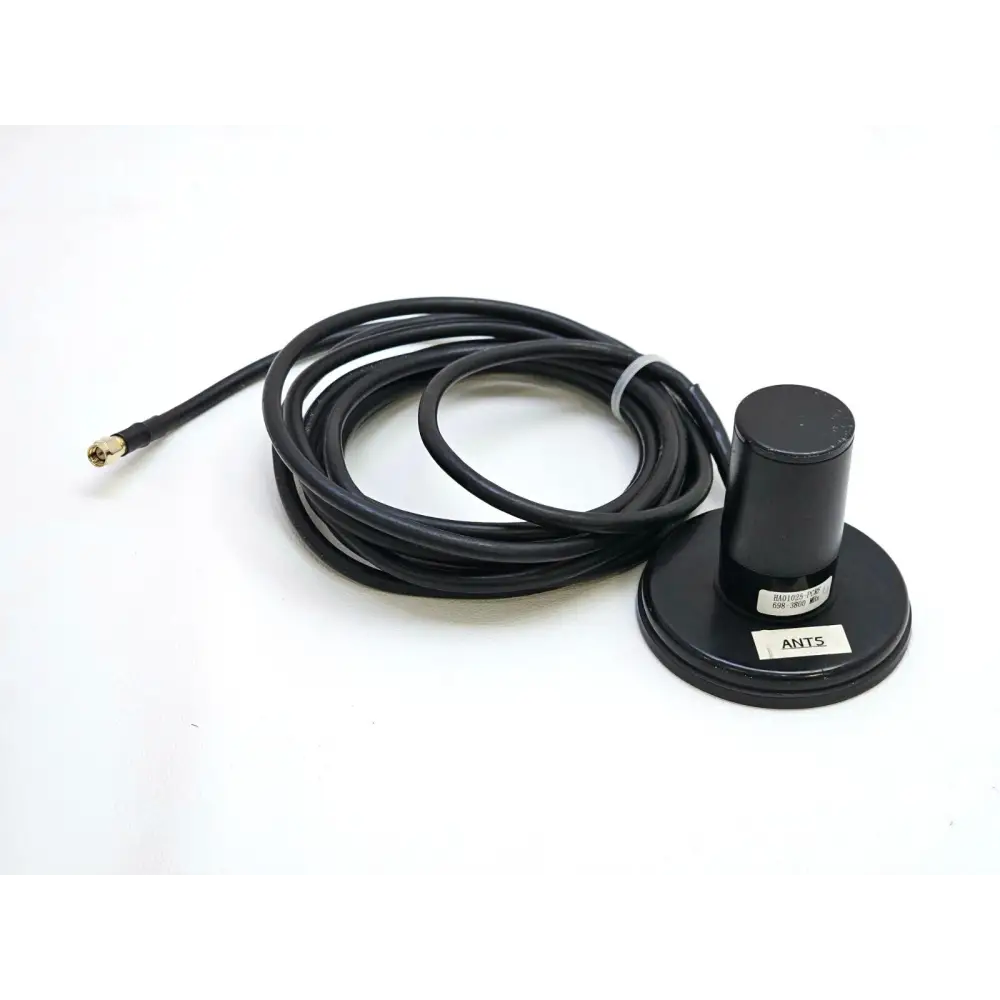

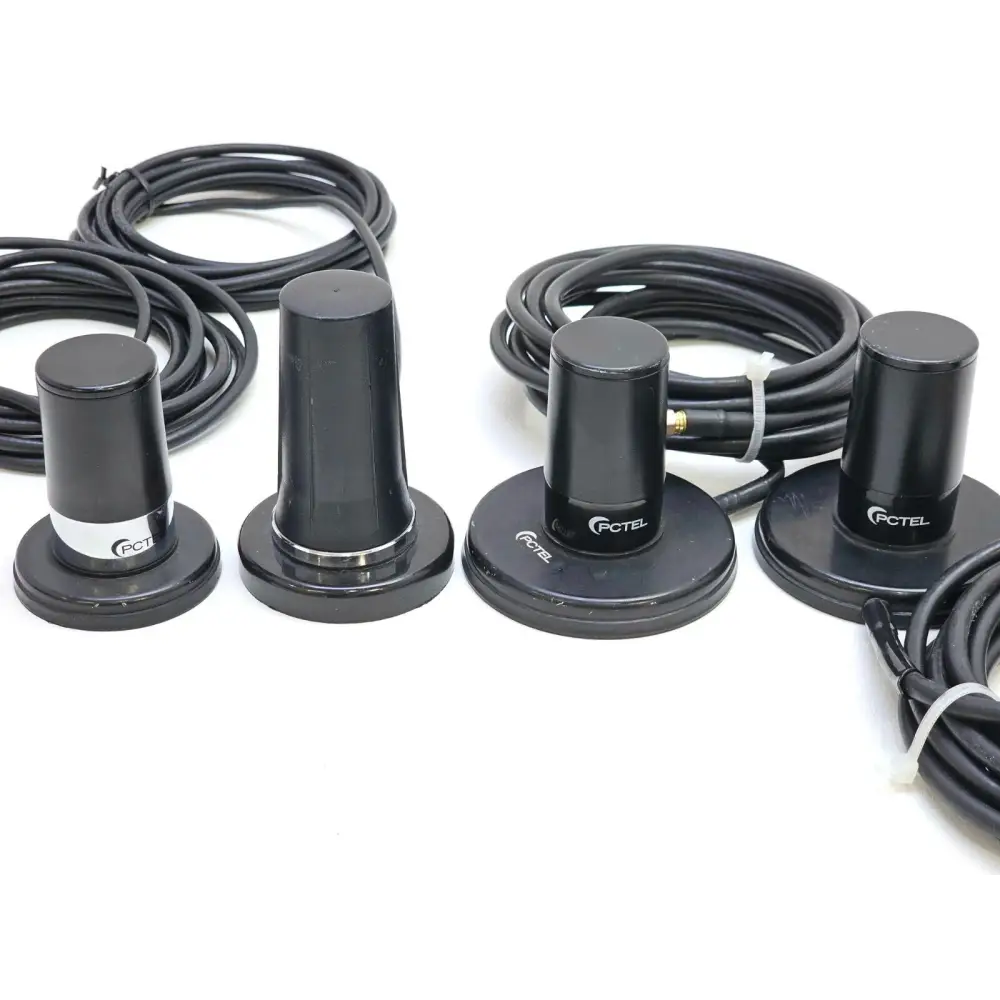

• Antennas x4

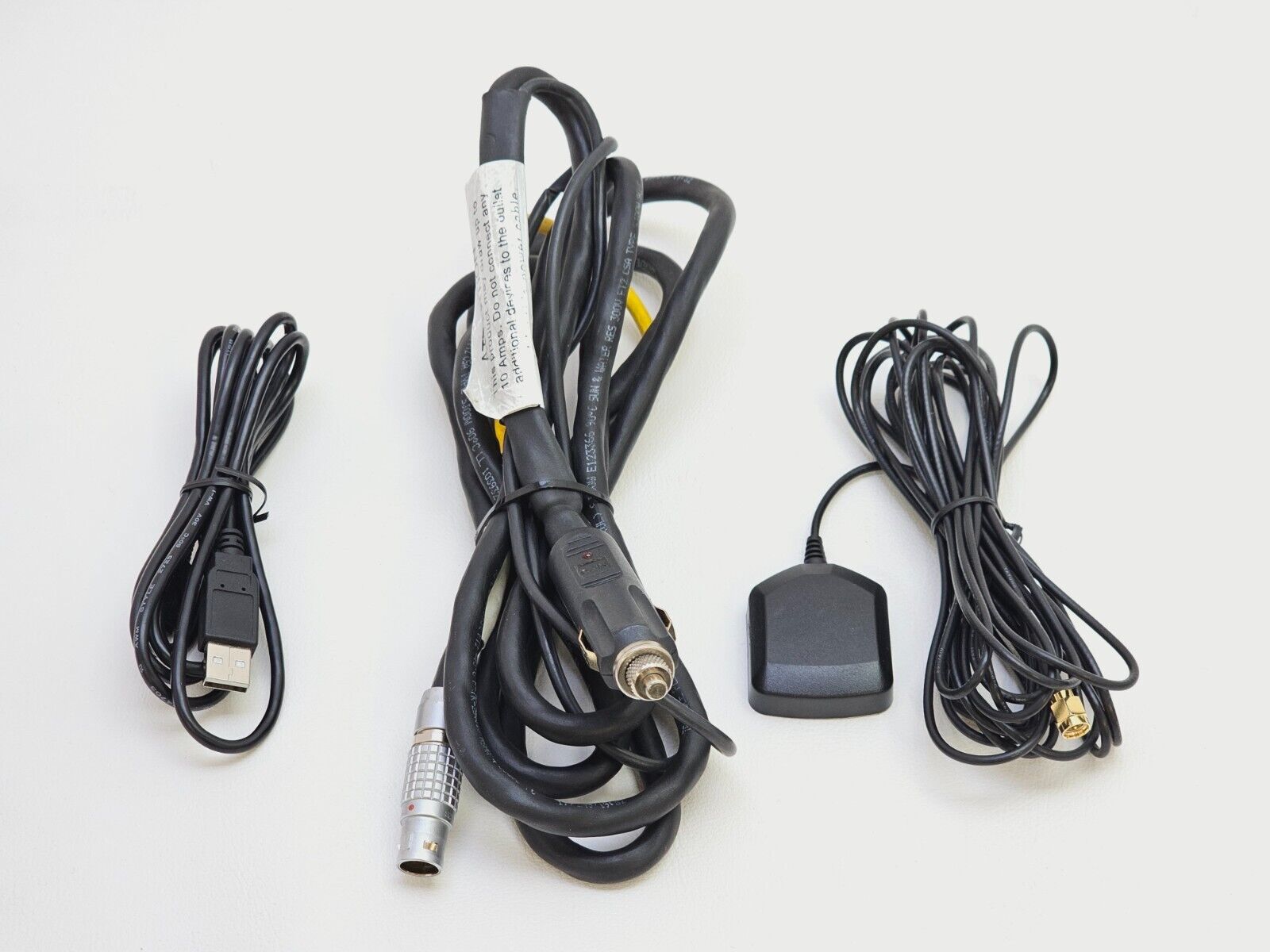

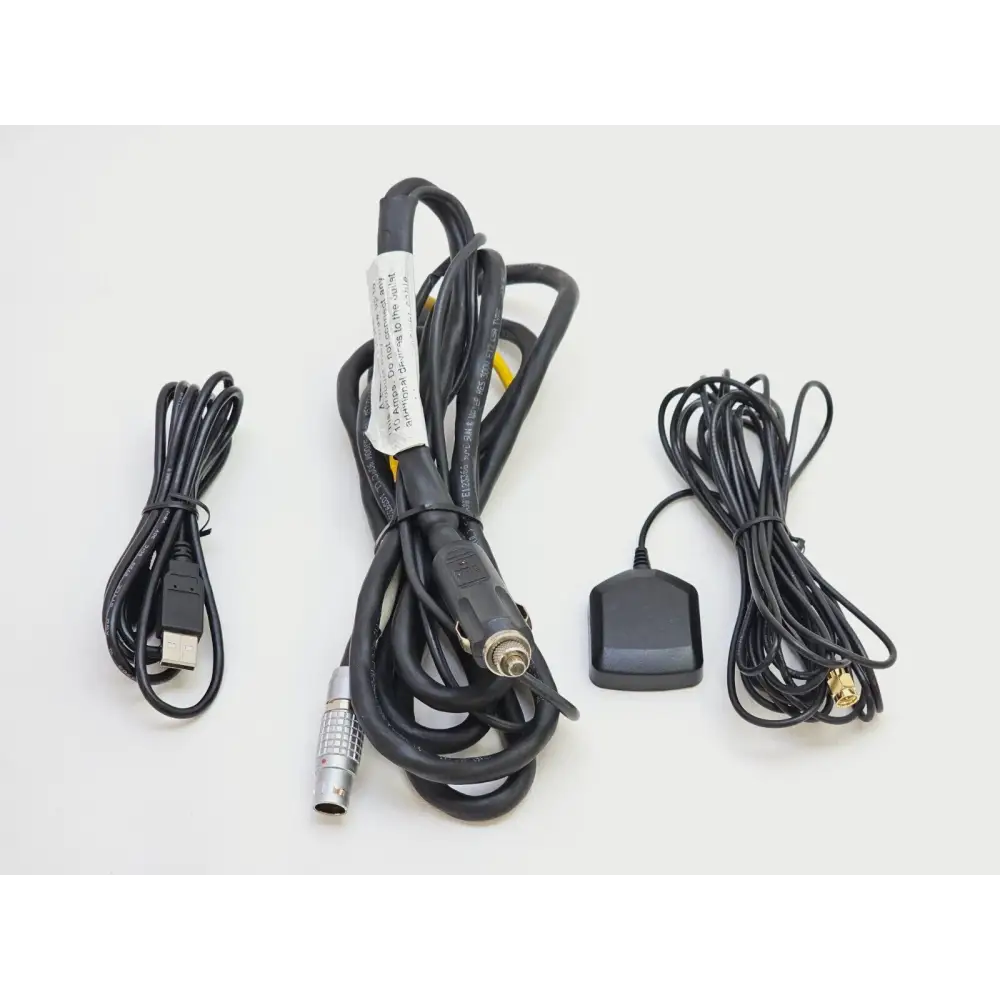

• GPS antenna x1
• In-car charger x1

Active installed options on this unit:
• GPS Navigation
• Absolute Time Stamp
• GSM Support
• GSM BSIC
• GSM BCCH C/I
• WCDMA Support
• WCDMA Pilot
• WCDMA Extended Dynamic Range
• LTE Support
• LTE Enhanced Signal Scan

Active band configurations:

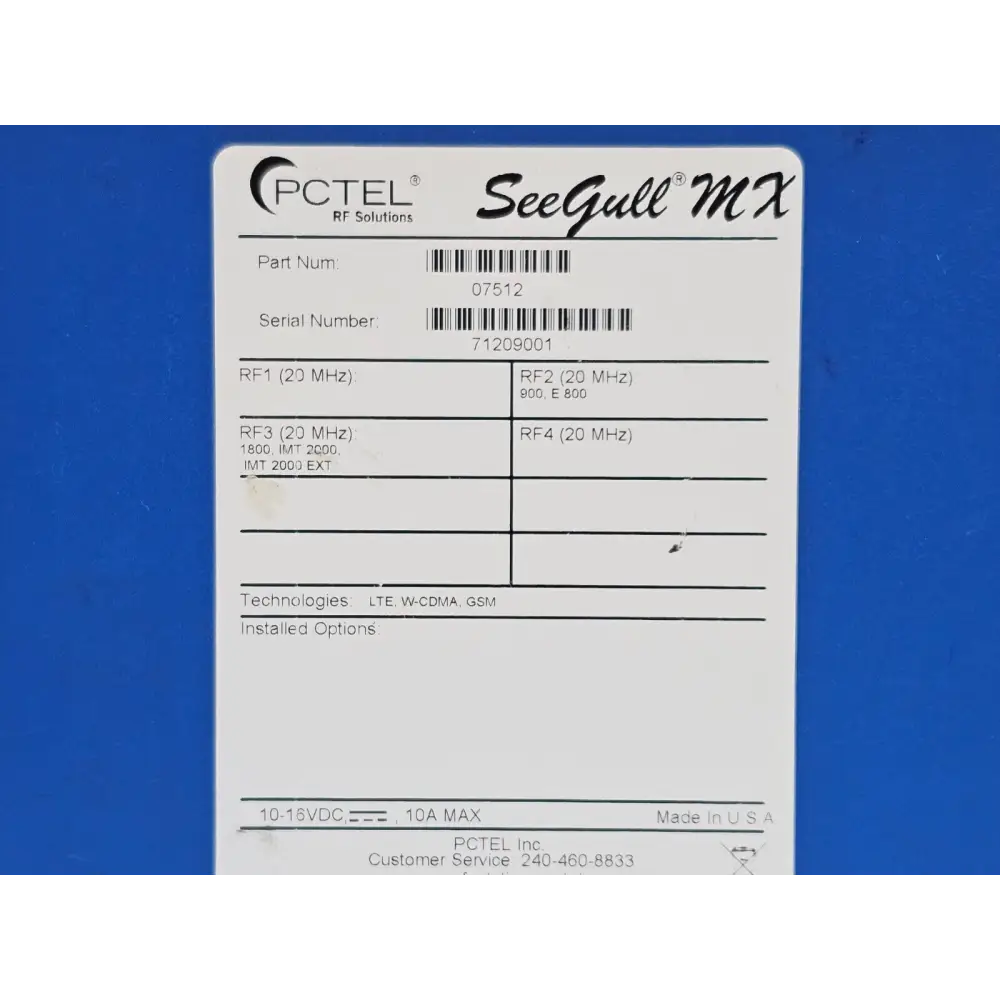

• GSM: EB-08 European 900 MHz, EB-03 1800 MHz (DCS)
• WCDMA: EB-01 2100 MHz (IMT-2000), EB-08 European 900 MHz, EB-03 1800 MHz (DCS)
• LTE: EB-01 2100 MHz (IMT-2000), EB-08 European 900 MHz, EB-03 1800 MHz (DCS), EB-07 2600 MHz IMT Extension, EB-20 European 800 MHz

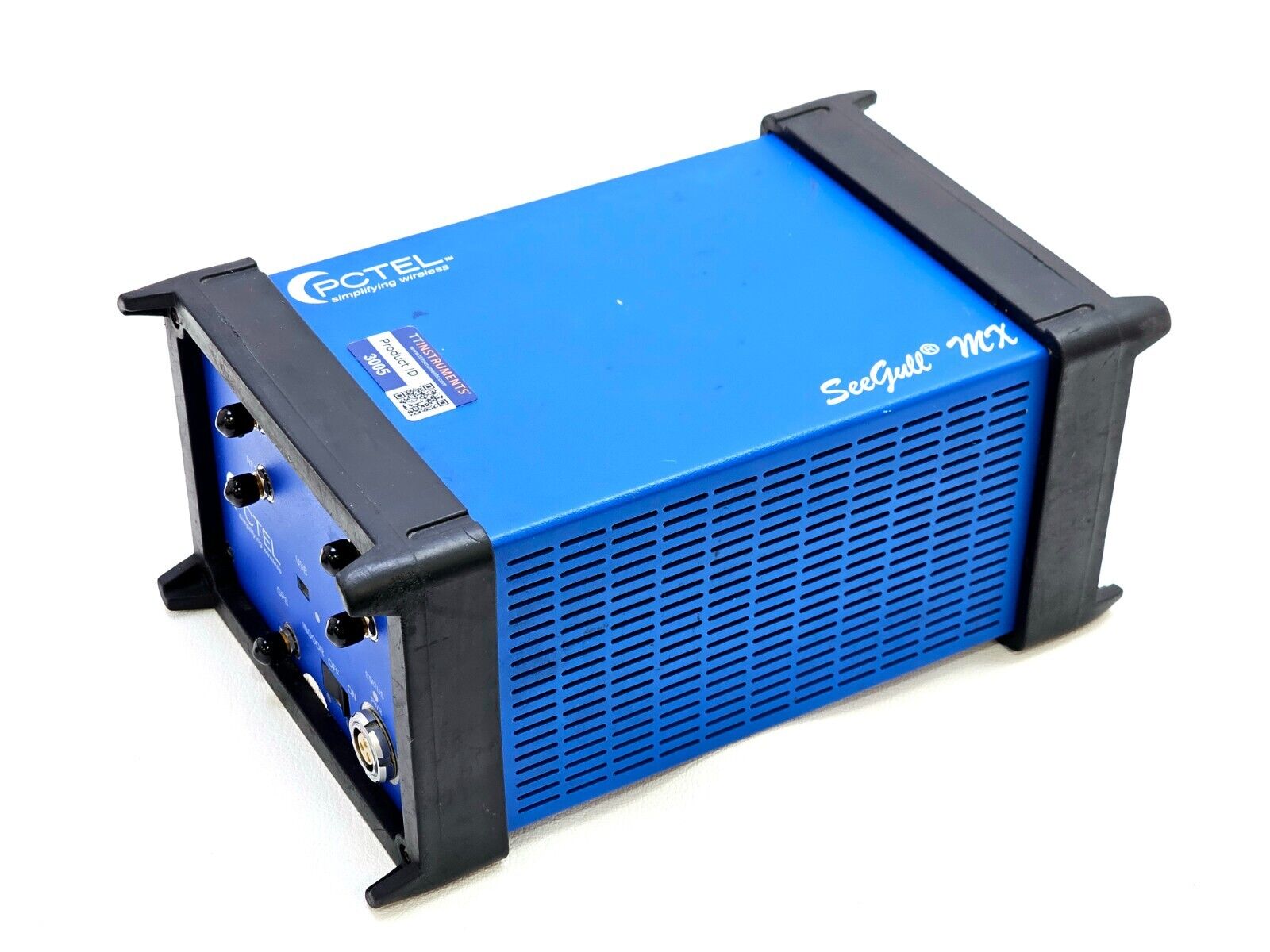

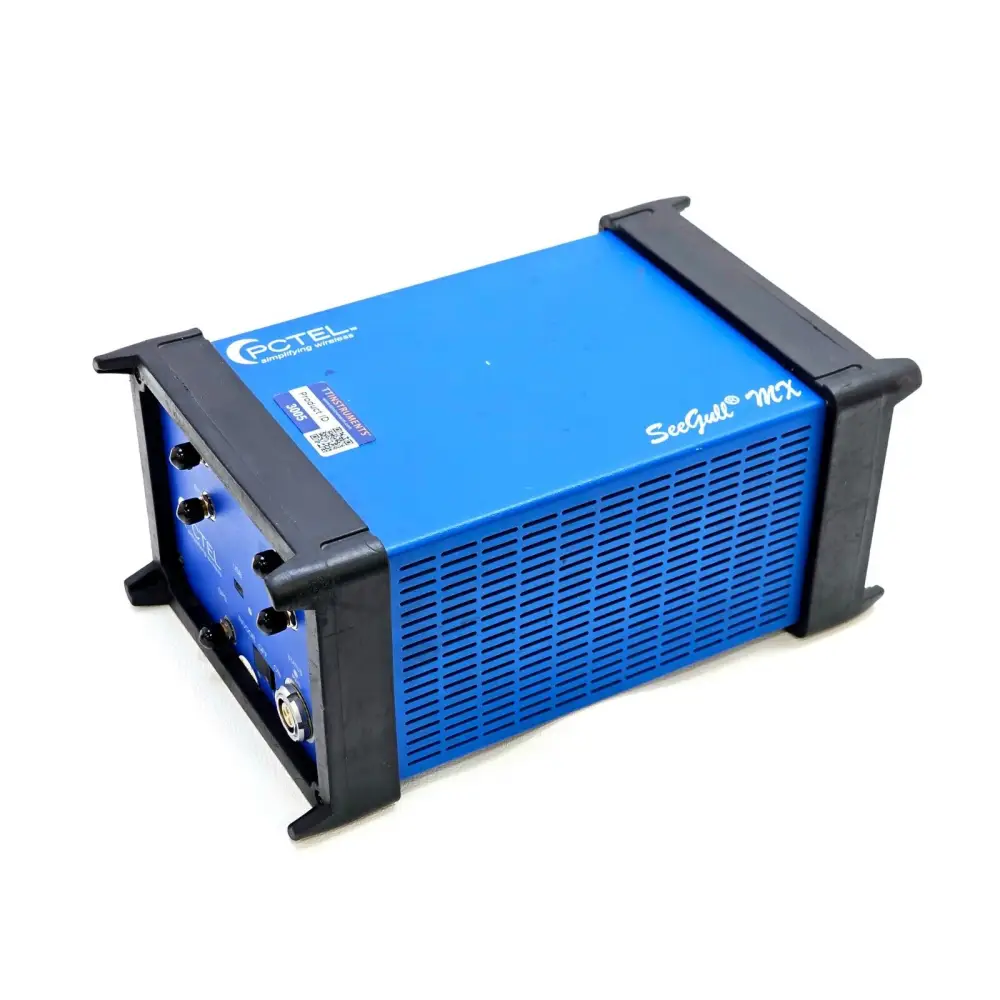

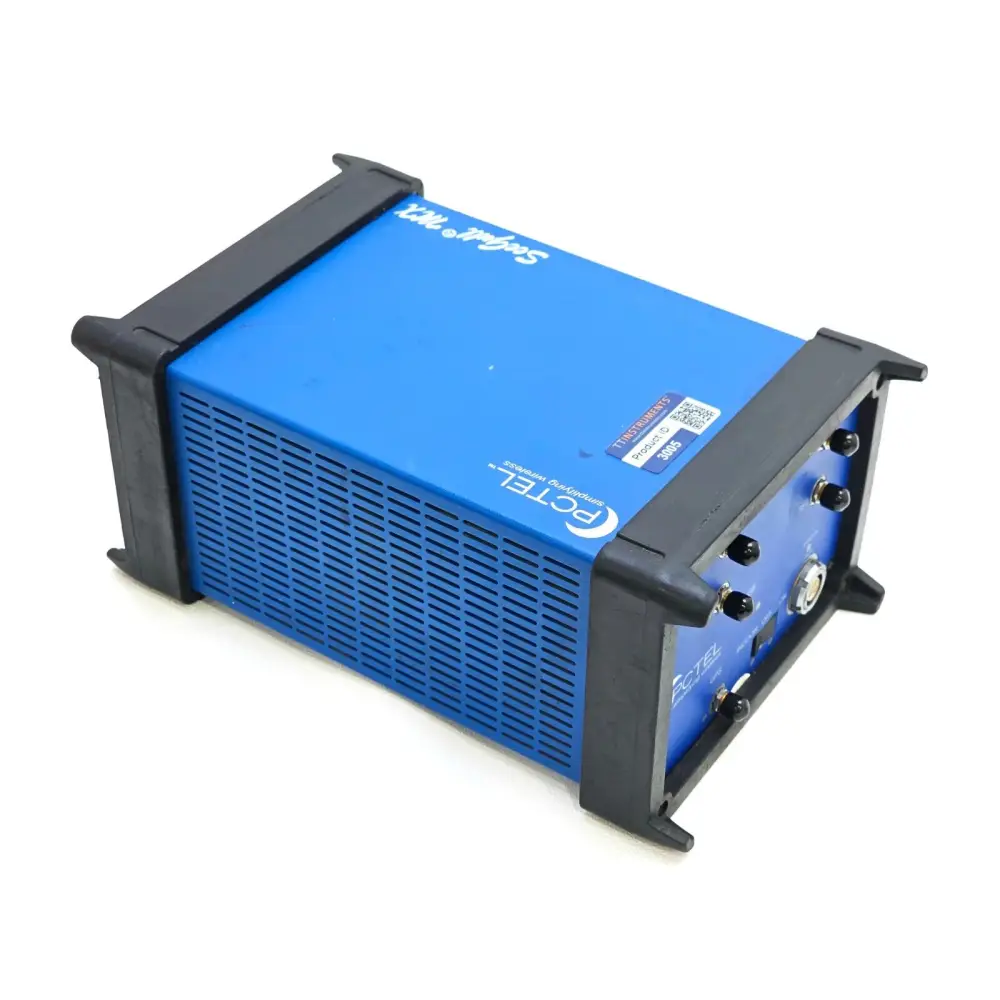

The PCTEL SeeGull MX is PCTEL's multi-band scanning receiver for professional cellular network drive testing, commissioning, and optimisation. It features a modular RF front end and high-performance Signal Processing Engines that enable it to acquire, process, and report data from up to eight distinct RF operating bands with zero performance degradation when measuring up to three technologies concurrently.

The SeeGull MX is fully compliant with 3GPP and 3GPP2 specifications and supports GSM, WCDMA/HSPA, and LTE (FDD/TD-LTE) network technologies. Layer 3 decoding is available for GSM, WCDMA, and TD-LTE, enabling operators to extract neighbour list data, optimise handovers, and manage multi-technology network interoperability. The scanner communicates with a host PC via USB and is controlled by software such as PCTEL SeeHawk Collect, as well as third-party drive-test platforms including TEMS, Nemo Outdoor, and Dingli.

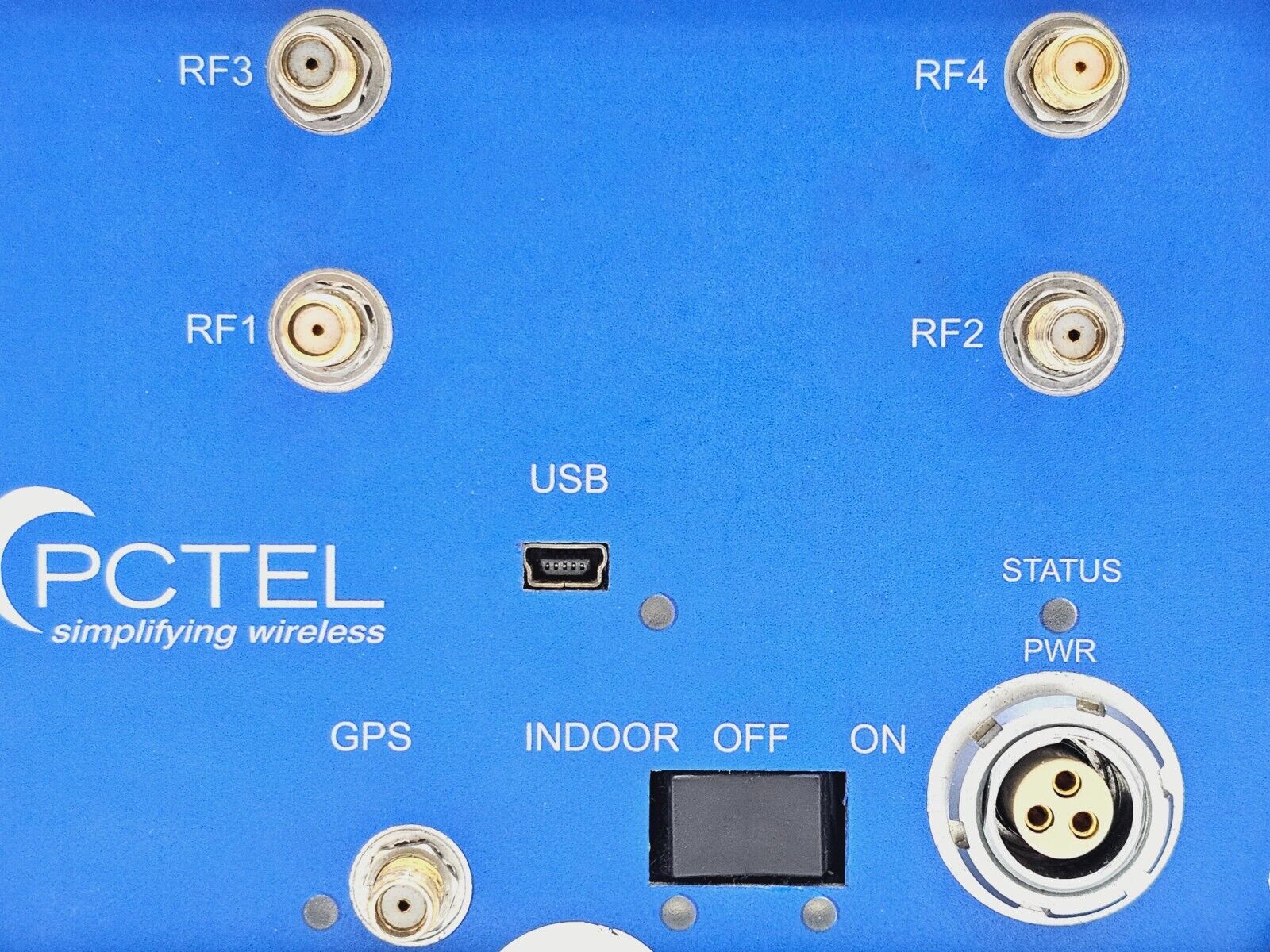

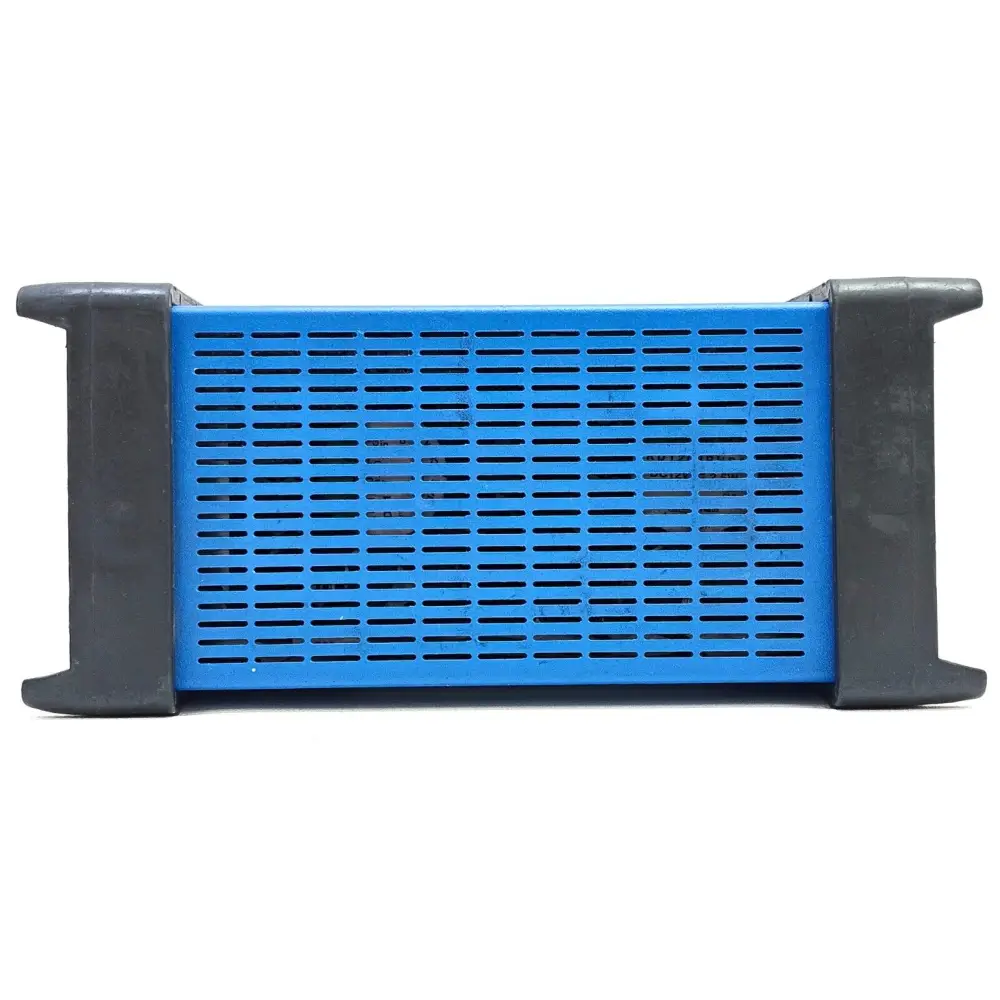

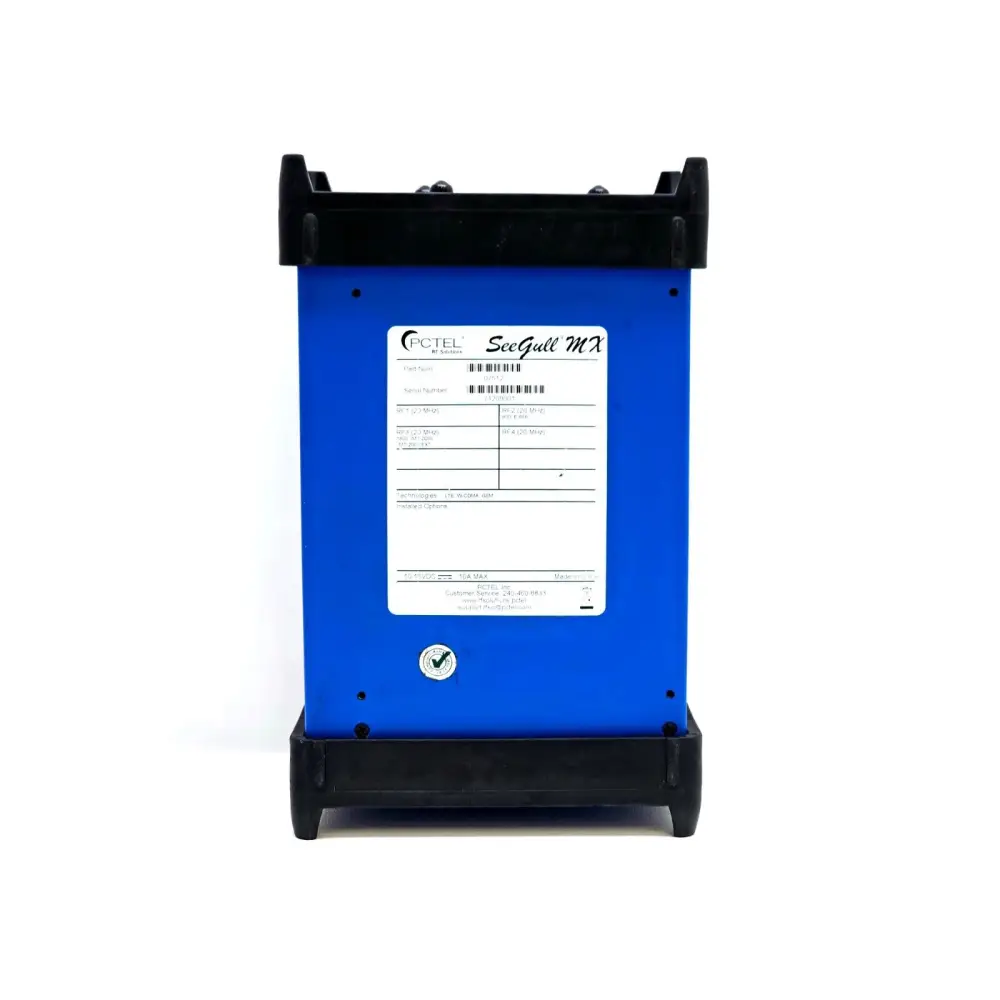

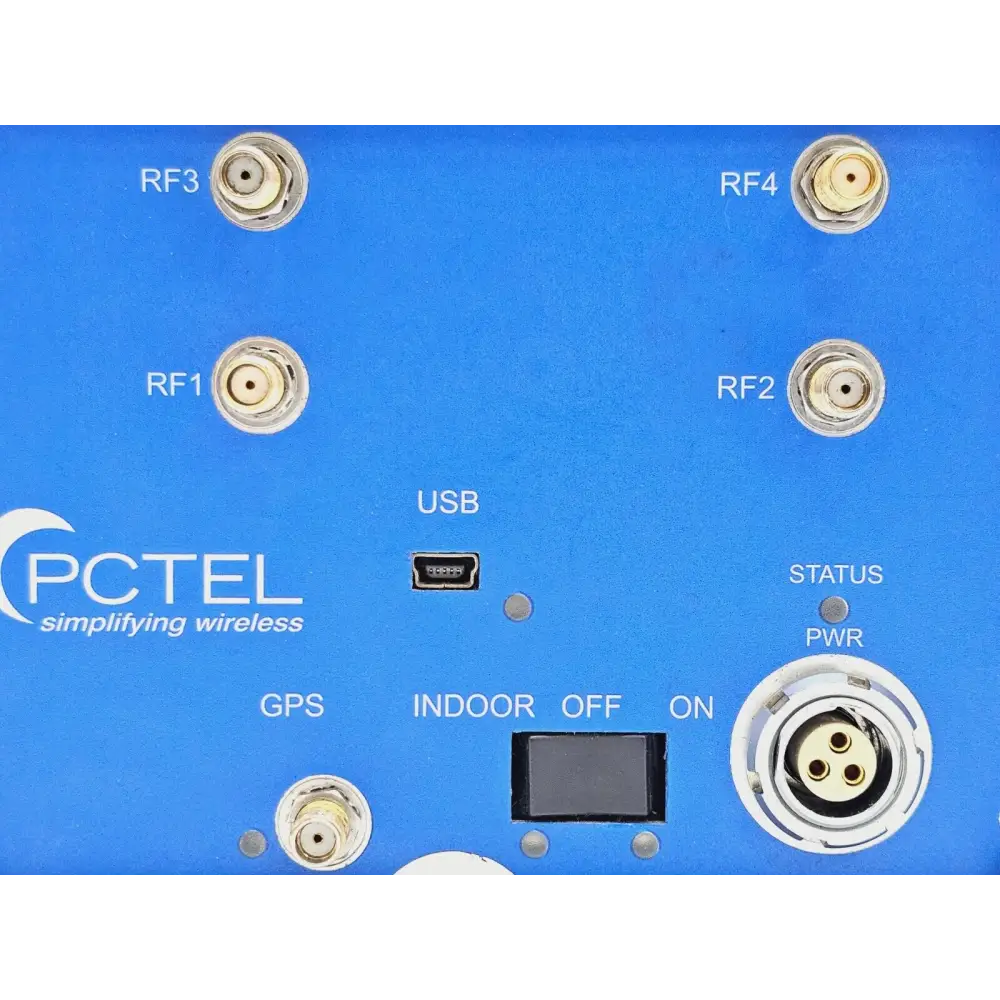

The chassis features four mounting holes for integration into a vehicle enclosure or rack, an Indoor/Outdoor mode switch, SMA antenna connectors, and a dedicated GPS antenna port. Power is supplied via a 12 V DC vehicle adapter or AC/DC converter.

Device Type: MX Scanning Receiver
Supported Technologies: GSM, WCDMA/HSPA, LTE FDD, TD-LTE
Maximum RF Bands: Up to 8 simultaneous RF operating bands
Concurrent Technology Measurement: Up to 3 technologies simultaneously
Host Interface: USB (Mini-USB data cable)
Power Input: 12 V DC (vehicle lighter socket or AC/DC adapter)
Compliance: CE, ISO 9001:2008, 3GPP, 3GPP2
Operating Mode: Indoor / Outdoor switchable
Chassis Mounting: Four 4-40 screw mounting holes
Compatible Software: PCTEL SeeHawk Collect, TEMS, Nemo Outdoor, Dingli, and other major drive-test platforms
Calibration: Factory calibration recommended biennially
Warranty (new): 3 years from date of shipment

Available option categories include: GSM Support, GSM BSIC, GSM BCCH C/I, GSM Layer 3, WCDMA Support, WCDMA Pilot, WCDMA Extended Dynamic Range, WCDMA Layer 3, LTE Support, LTE Enhanced Signal Scan, LTE Layer 3, GPS Navigation, Absolute Time Stamp, and Clarify interference options.

PCTEL SeeGull MX Hardware Reference Manual (ManualsLib): Download PDF

PCTEL SeeGull MX Product Brochure (PDF): Download PDF
