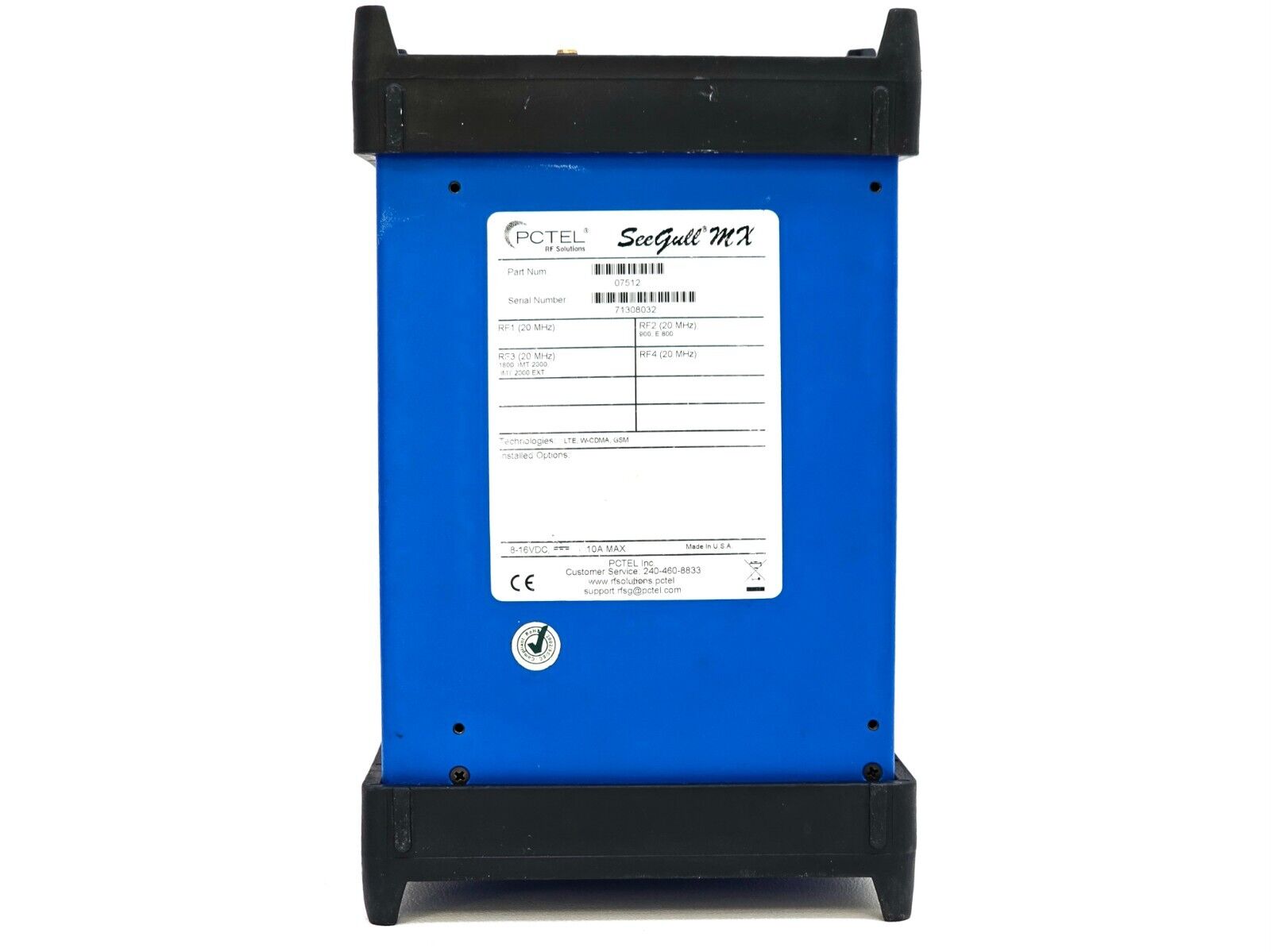

PCTel SeeGull MX Scanning Receiver 07512 GSM WCDMA LTE 800/900/1800/2100 MHz
Model: MX
Condition: refurbished
In stock: 0
SKU: 3004 4B04
- Mobile Network Scanners
- RF & Microwave
Choose options













Condition: Refurbished

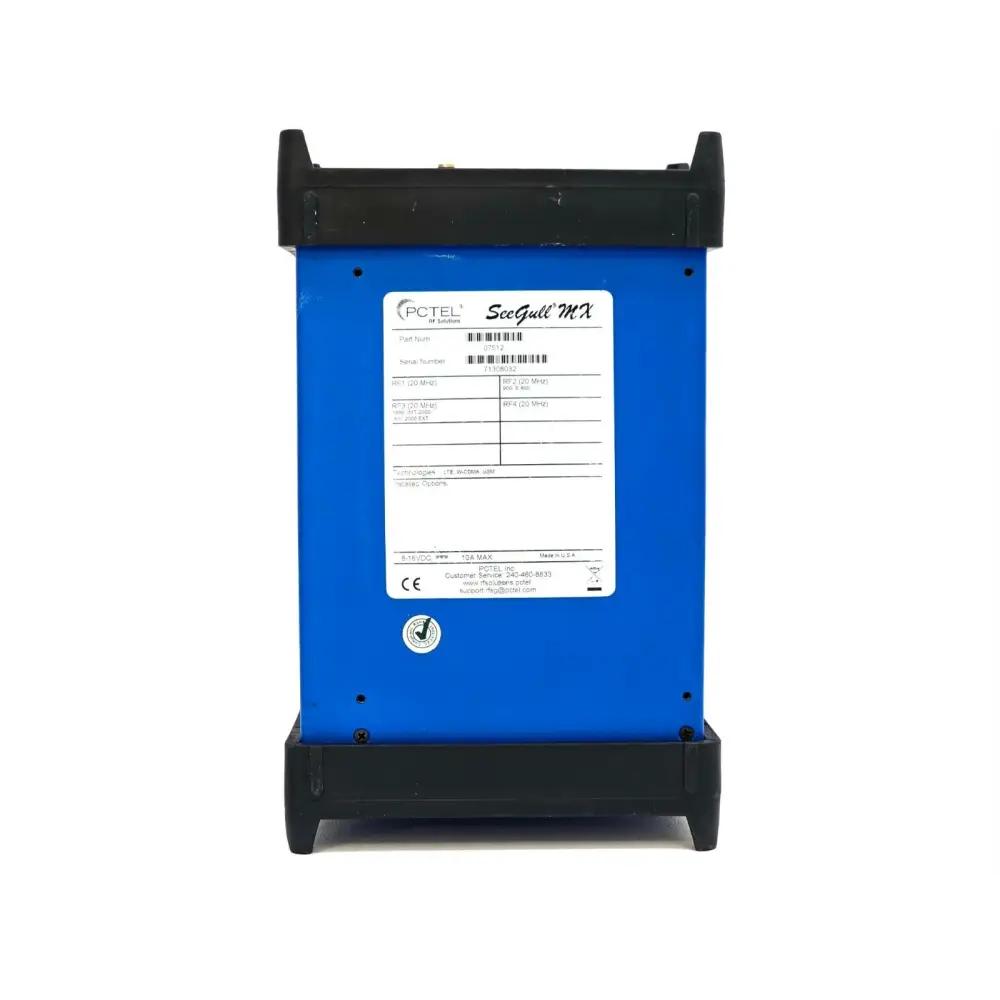

This PCTEL SeeGull MX scanning receiver (ESN: 0000-0000-7130-8032) is supplied in good condition with 10 installed software options active, covering GSM, WCDMA, and LTE across five LTE bands. Software release version 2.6.5.0. Calibration date on record: 09/02/2015. Software is not provided.
Included in the sale:

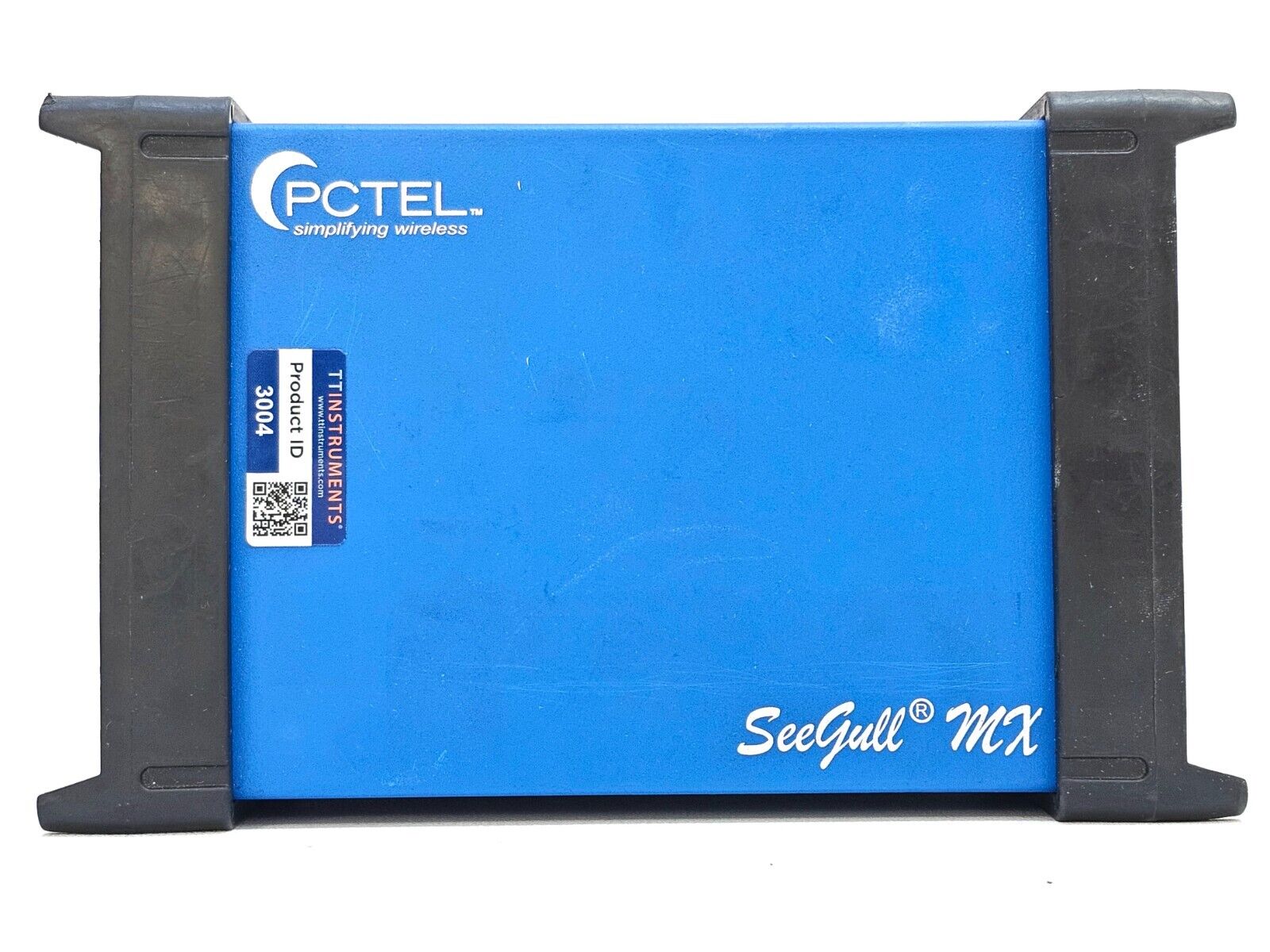

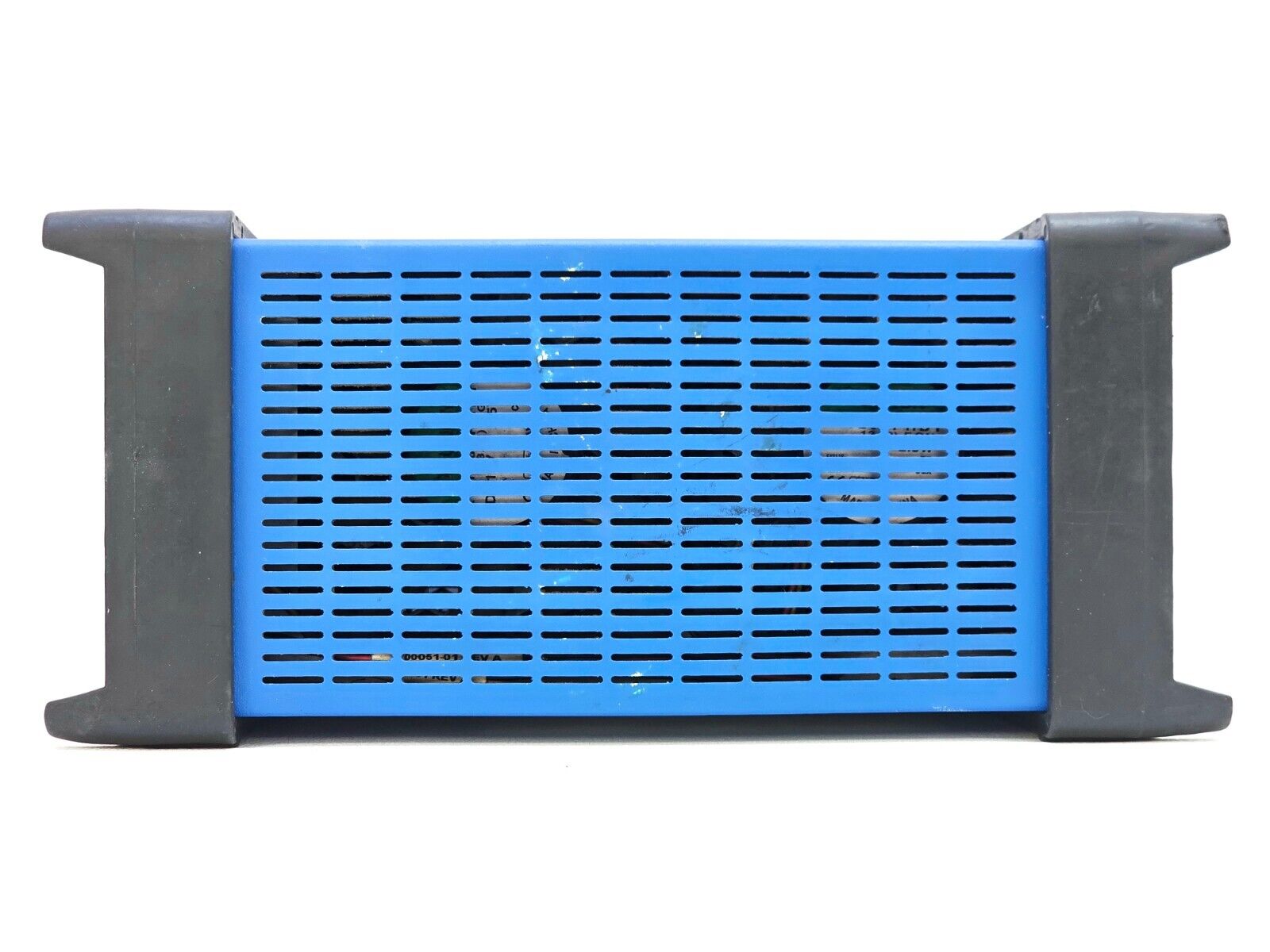

• SeeGull MX receiver

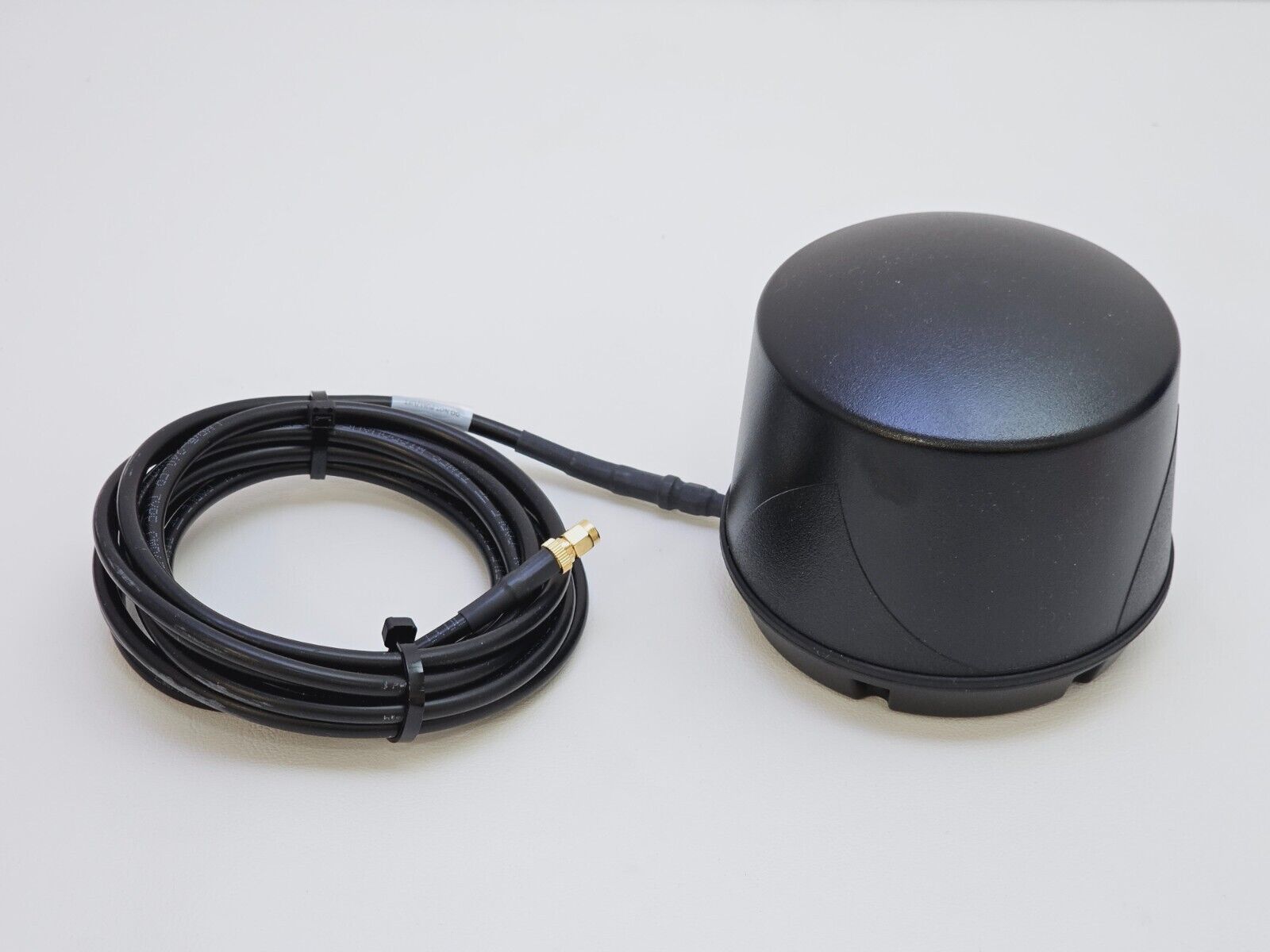

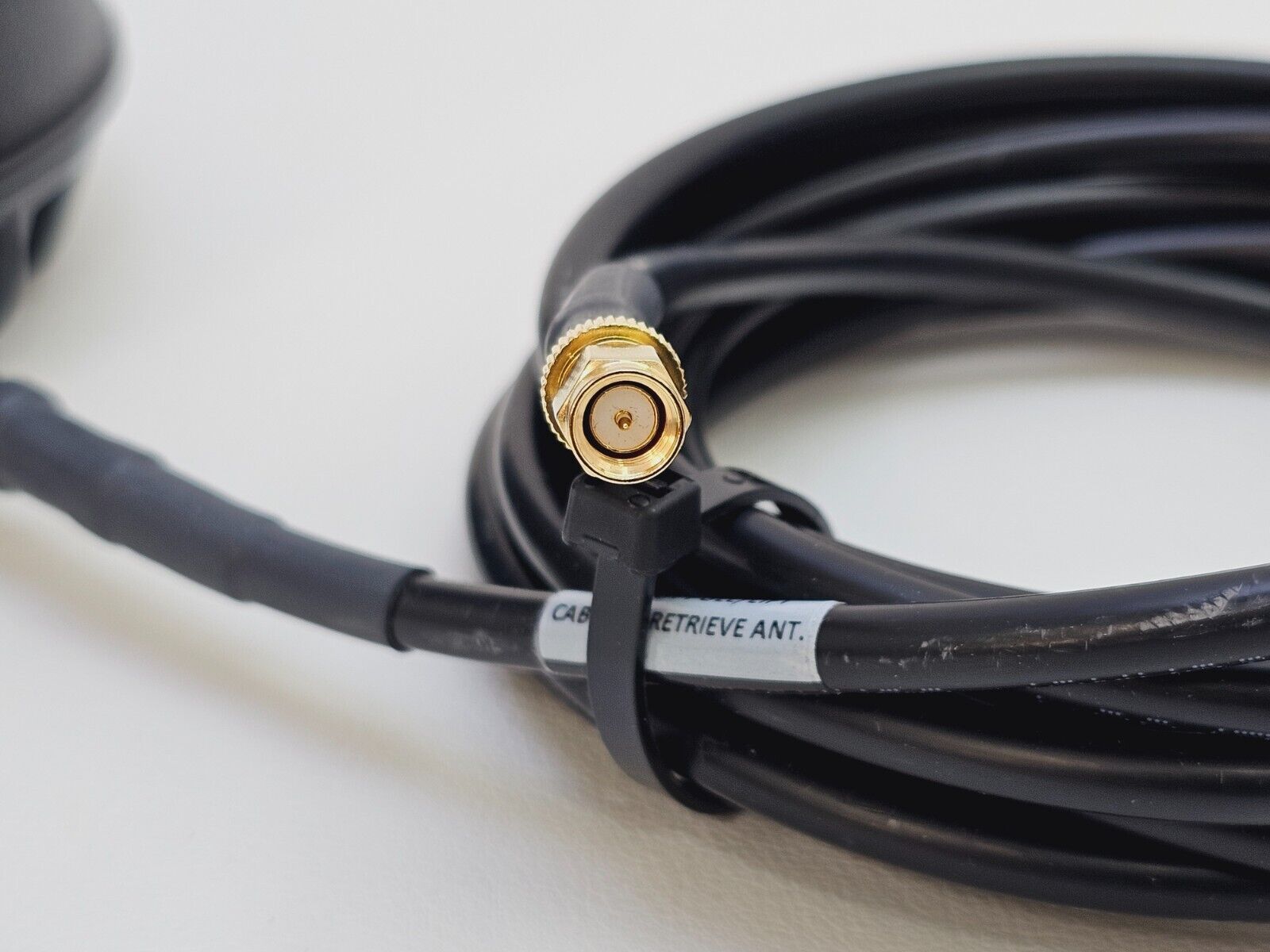

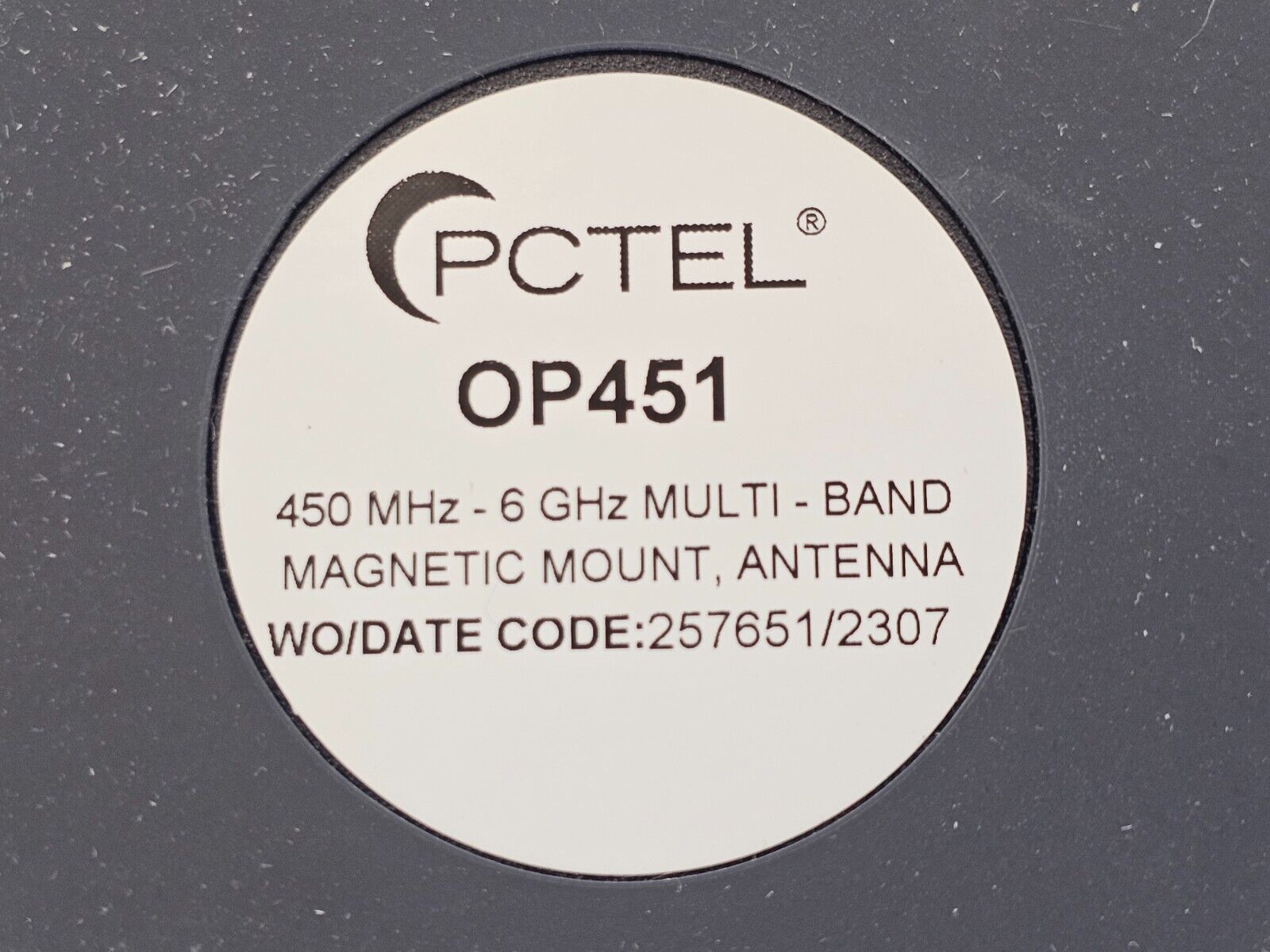

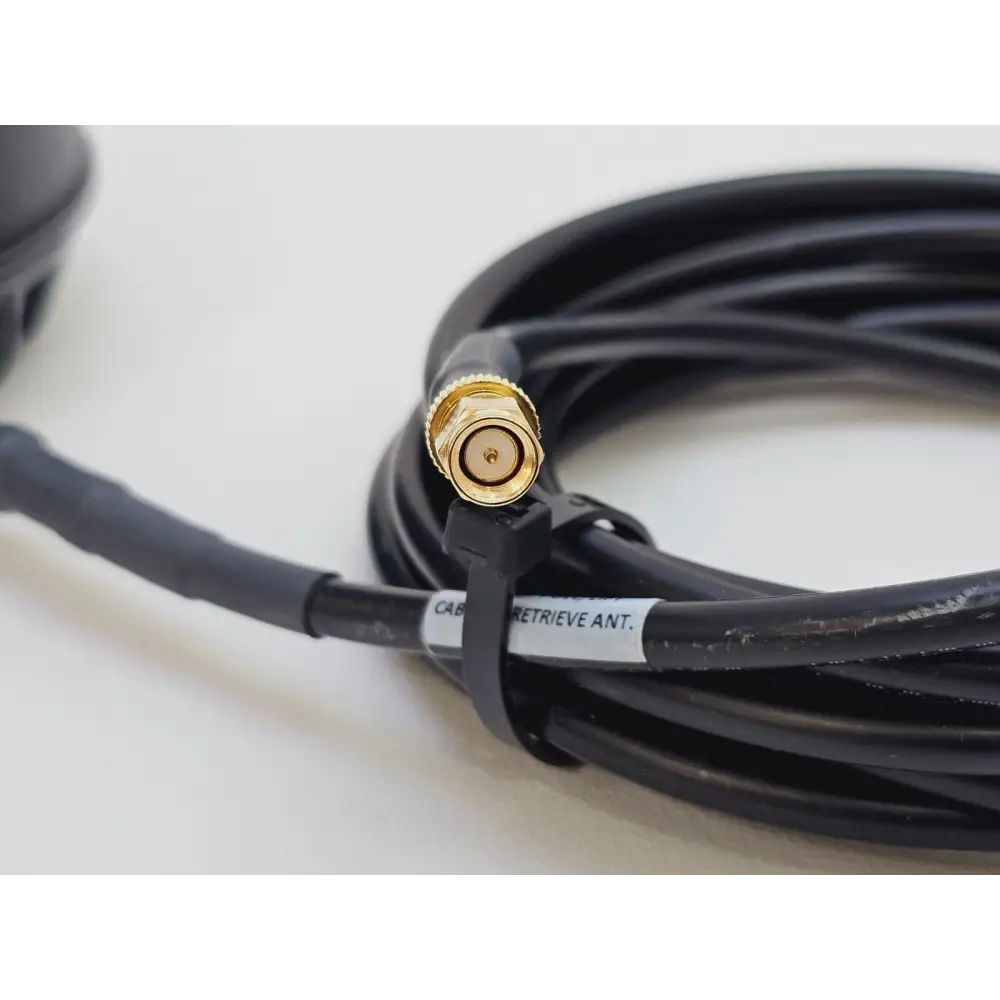

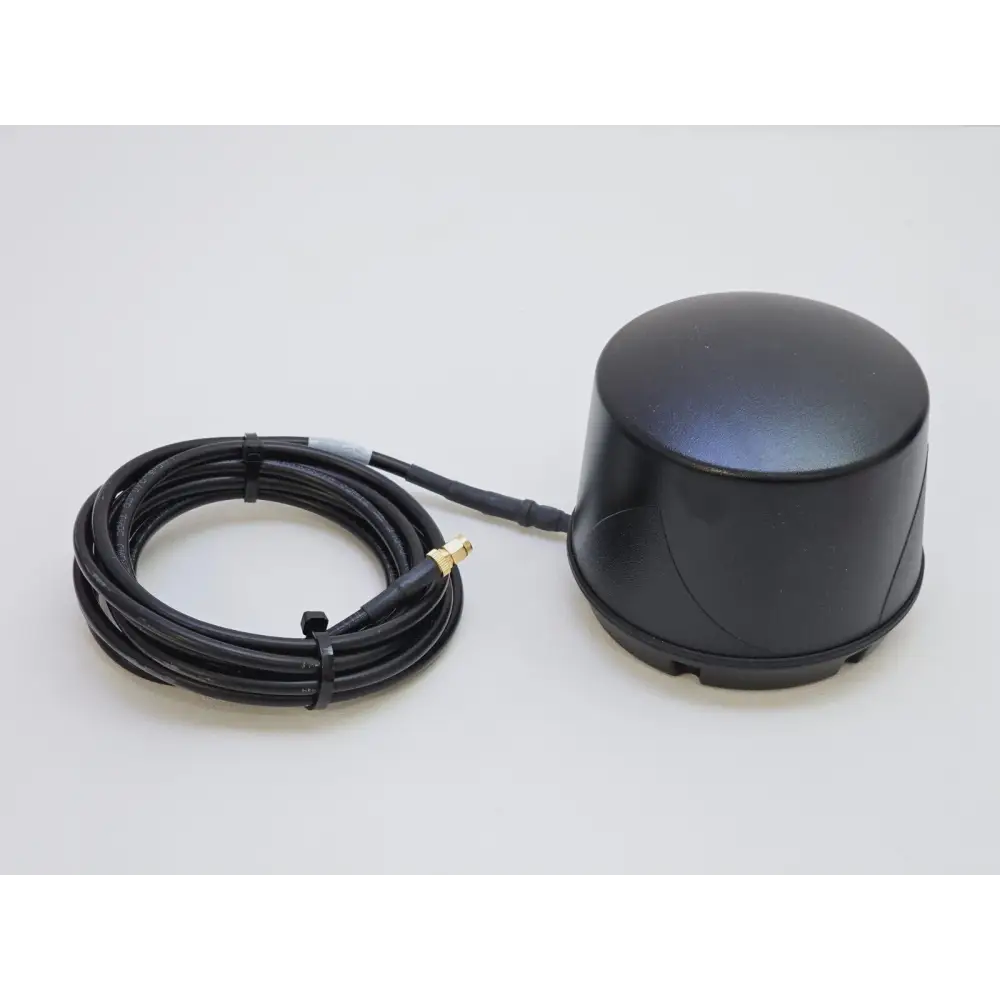

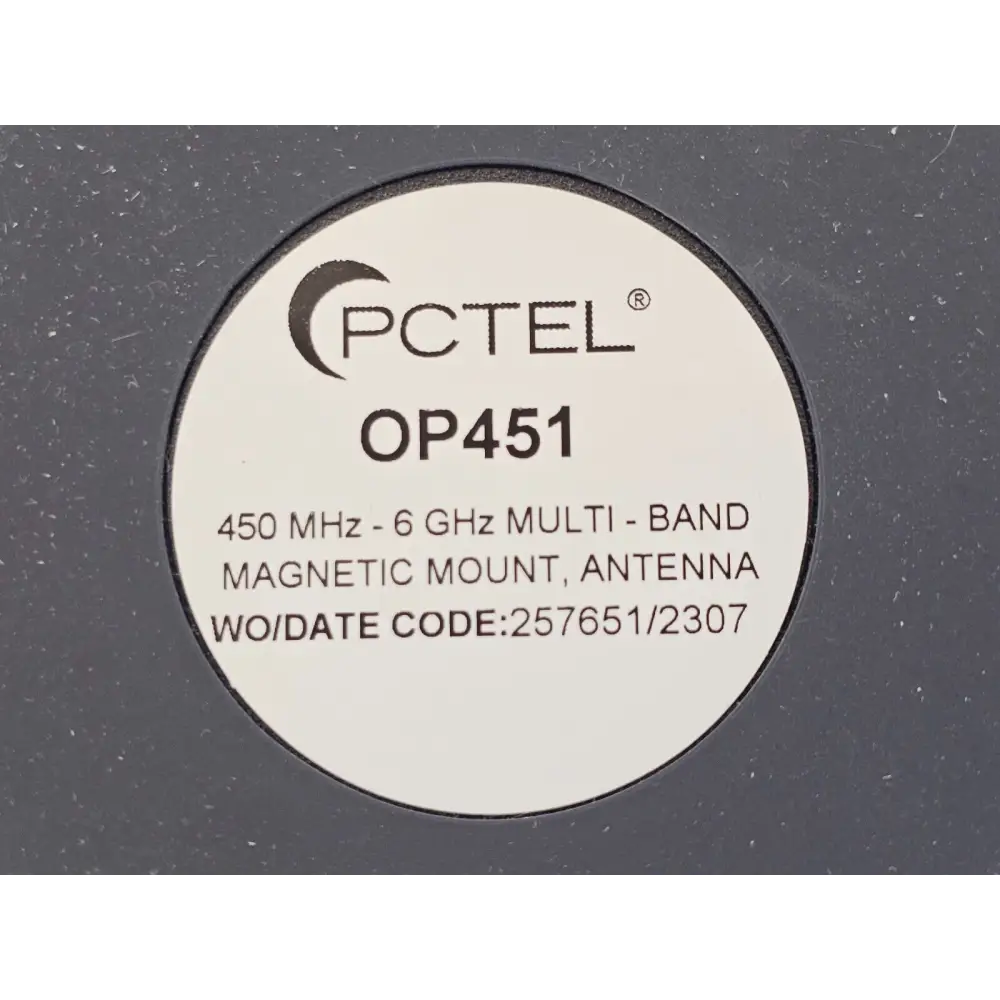

• OP451 multi-band antenna x4

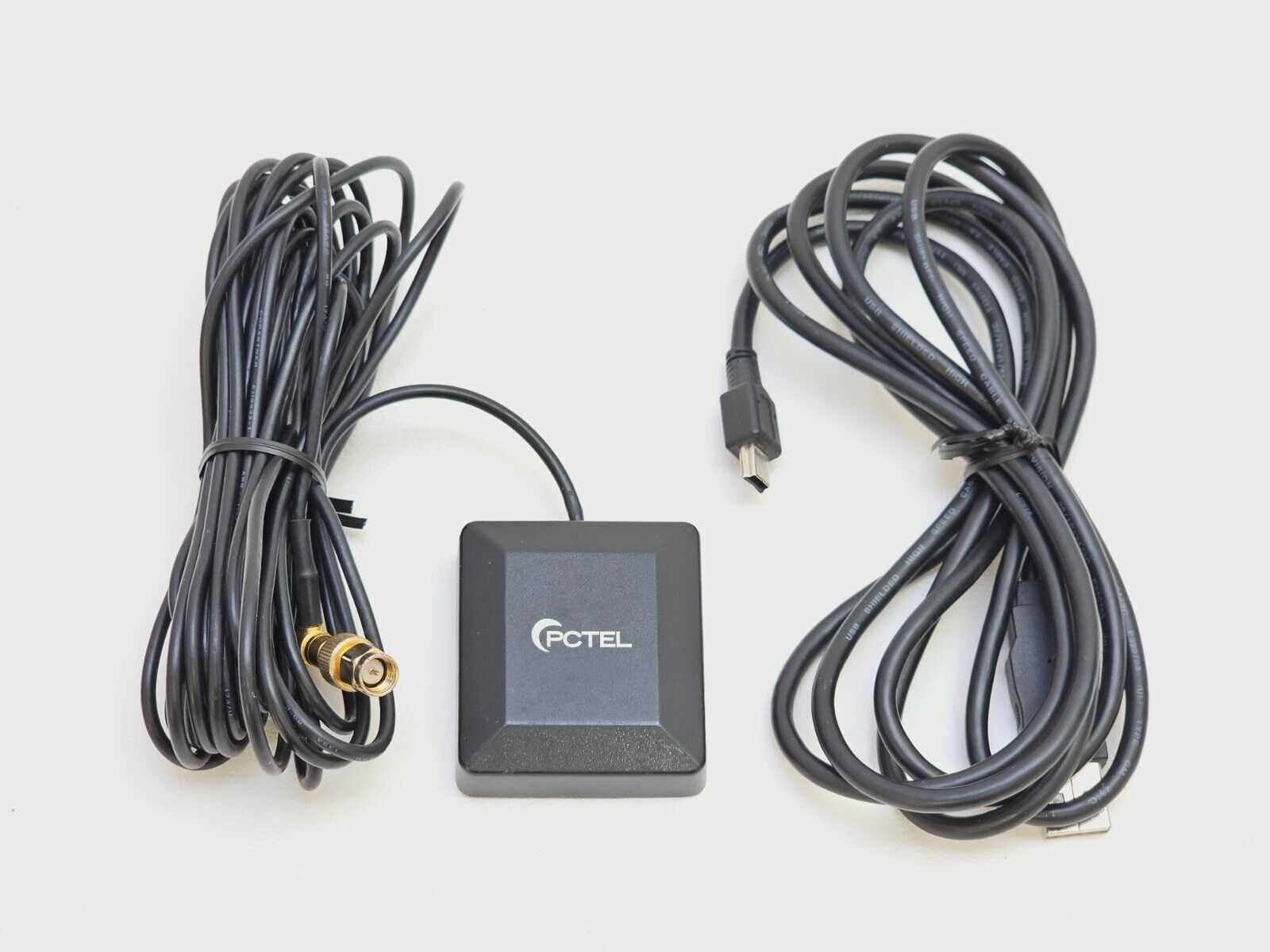

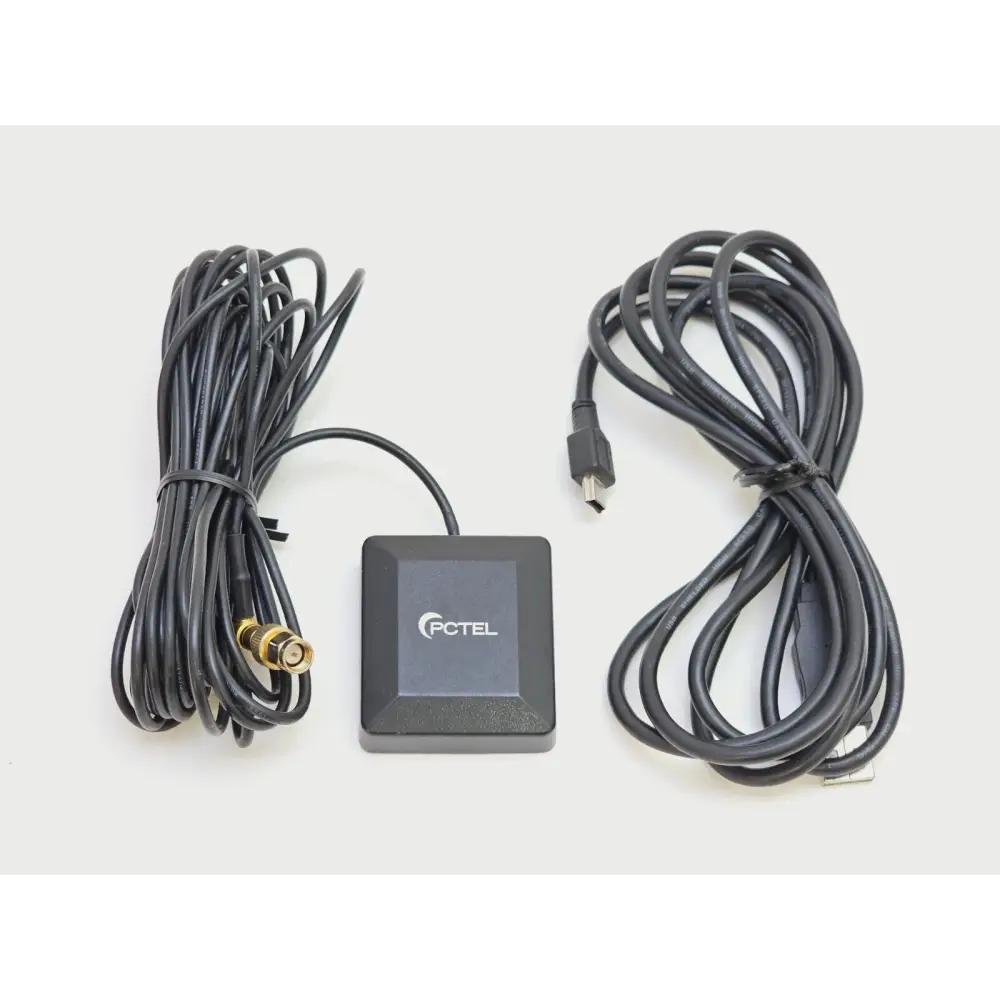

• GPS antenna x1

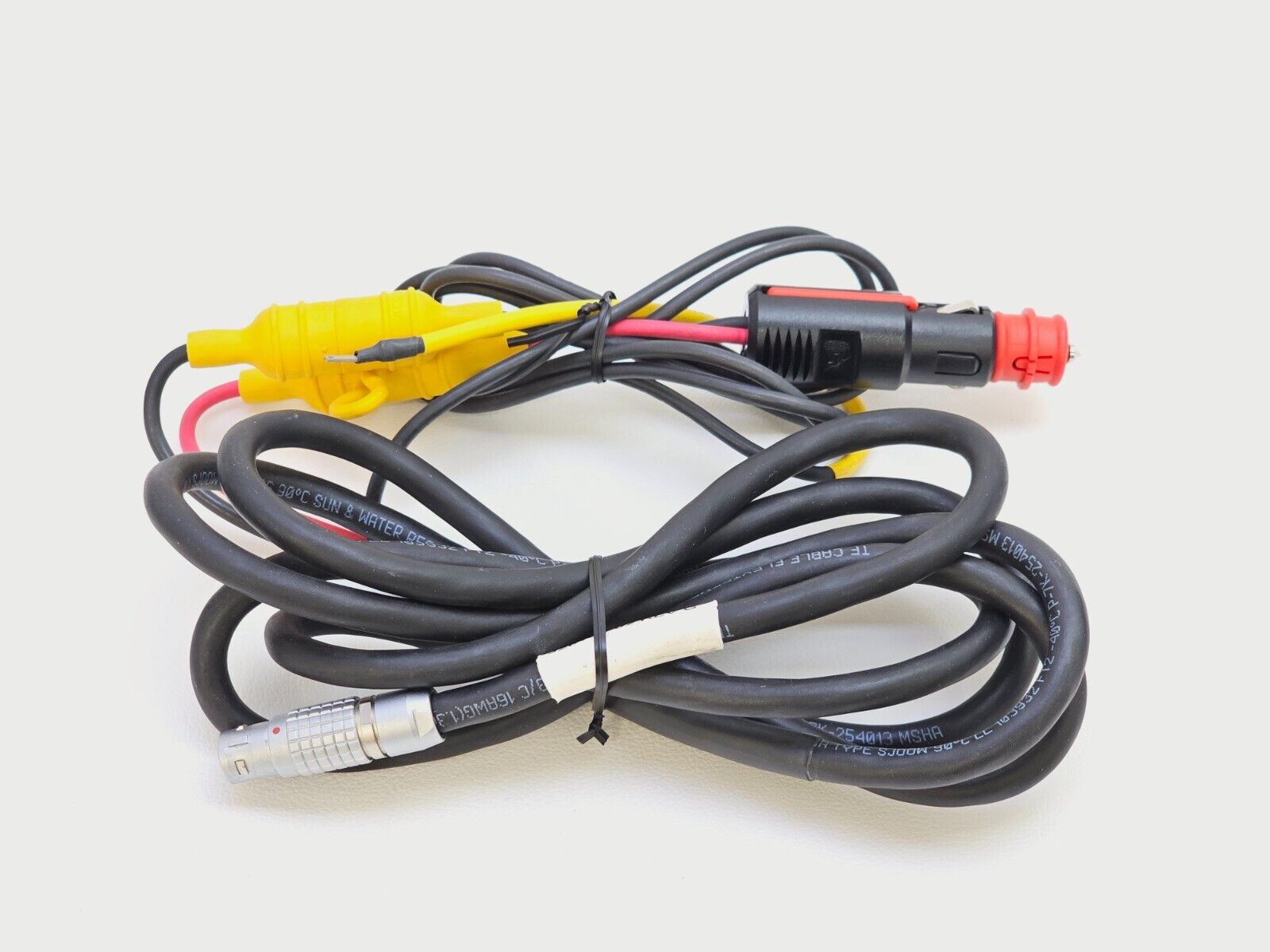

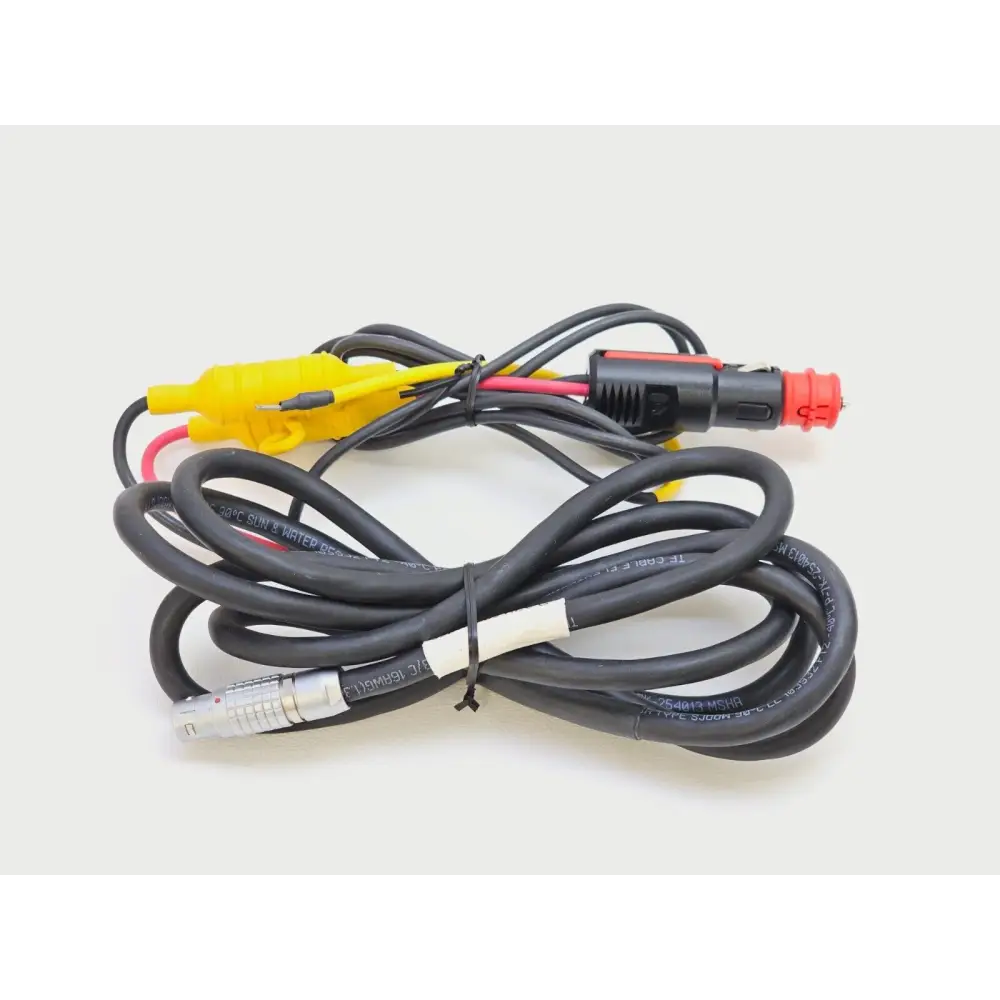

• In-car charger x1
Installed Options (active):
• GPS Navigation
• Absolute Time Stamp
• GSM Support
• GSM BSIC
• GSM BCCH C/I
• WCDMA Support
• WCDMA Pilot
• WCDMA Extended Dynamic Range
• LTE Support
• LTE Enhanced Signal Scan

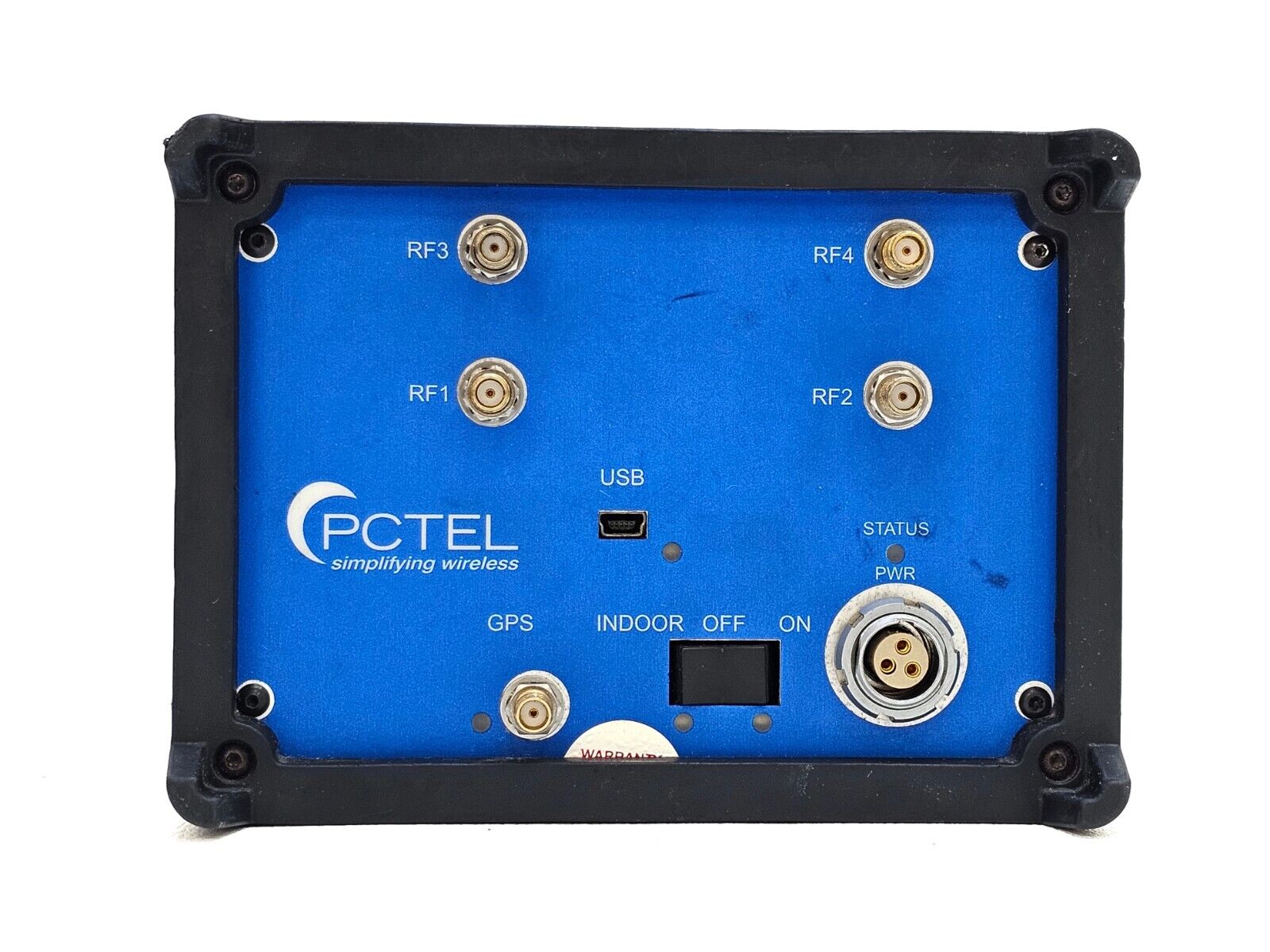

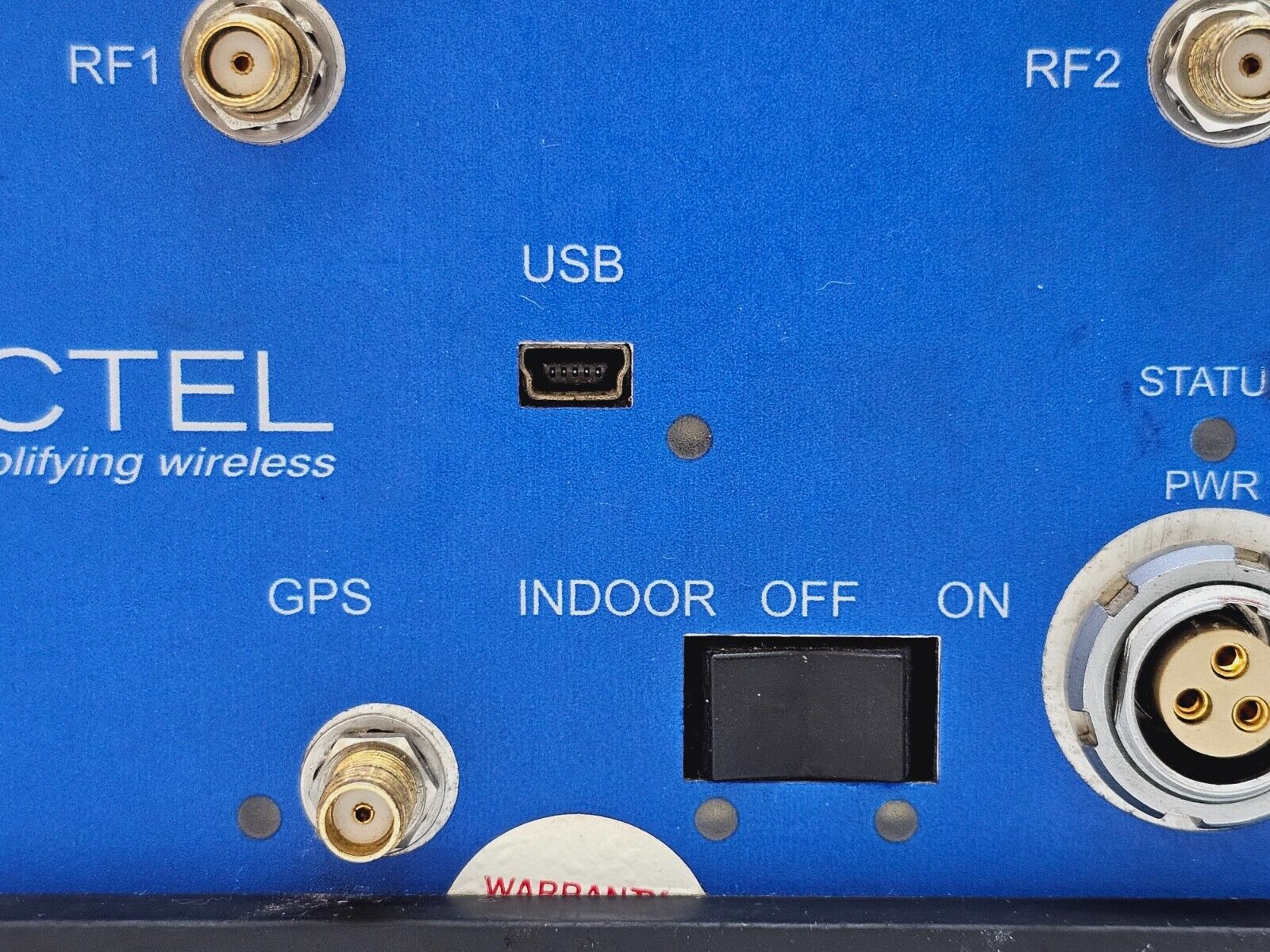

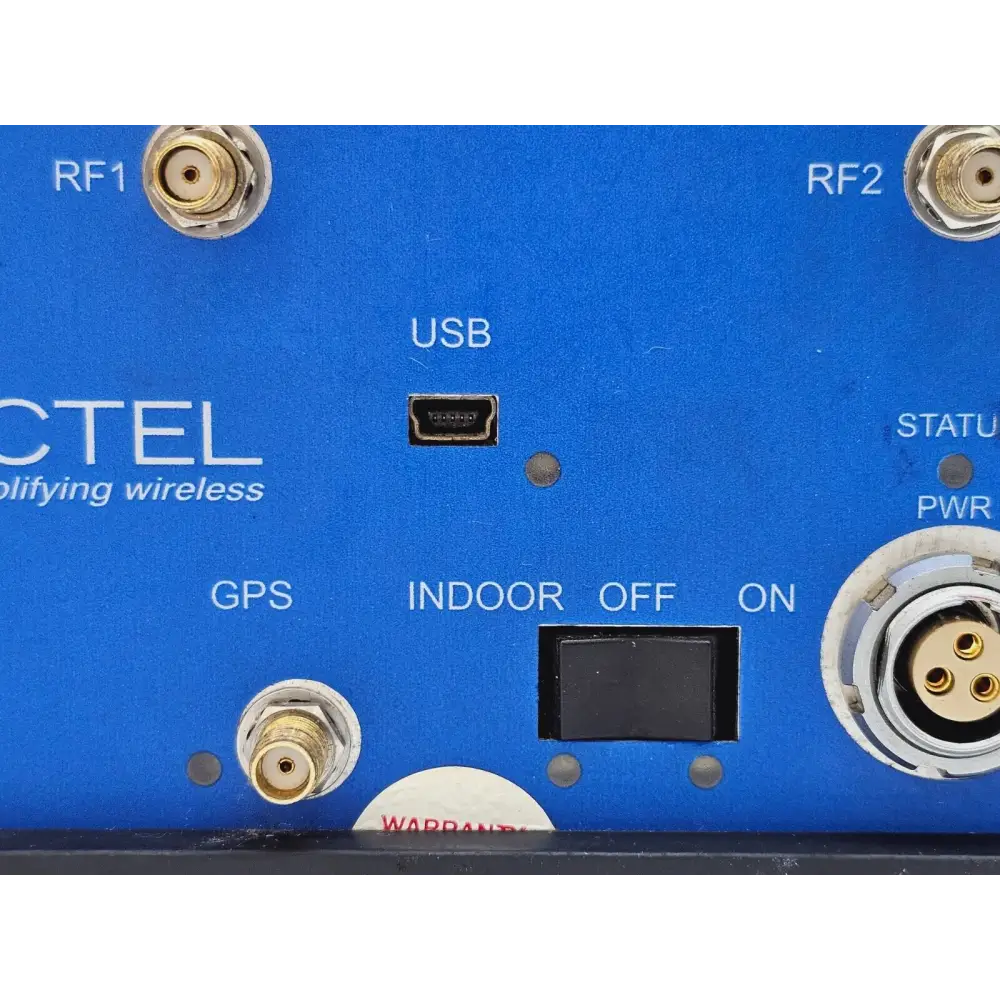

The PCTEL SeeGull MX is a professional multi-band scanning receiver for cellular network drive testing, featuring a modular RF front end and high-performance Signal Processing Engines. It is capable of acquiring, processing, and reporting data from up to eight distinct RF operating bands with zero performance degradation when measuring up to three technologies concurrently. The SeeGull MX is fully compliant with 3GPP and 3GPP2 specifications and supports Layer 3 message decoding for GSM, WCDMA/HSPA, and LTE networks, enabling operators to optimise neighbour lists, improve handovers, and manage multi-technology network interoperability. The scanner is controlled via a USB communication link and is compatible with PCTEL SeeHawk data collection and visualisation software. It supports an indoor/outdoor operating mode switch and features SMA connectors for RF antennas and an ignition sense input for vehicle integration.
Device Type: MX
Interface: USB
Supported Technologies: GSM, WCDMA, LTE
GSM Bands (this configuration): EB-08 European 900 MHz, EB-03 1800 MHz (DCS)
WCDMA Bands (this configuration): EB-01 2100 MHz (IMT-2000), EB-08 European 900 MHz, EB-03 1800 MHz (DCS)
LTE Bands (this configuration): EB-01 2100 MHz (IMT-2000), EB-08 European 900 MHz, EB-03 1800 MHz (DCS), EB-07 2600 MHz IMT Extension, EB-20 European 800 MHz
Max RF Operating Bands: Up to 8
Max Concurrent Technologies: 3

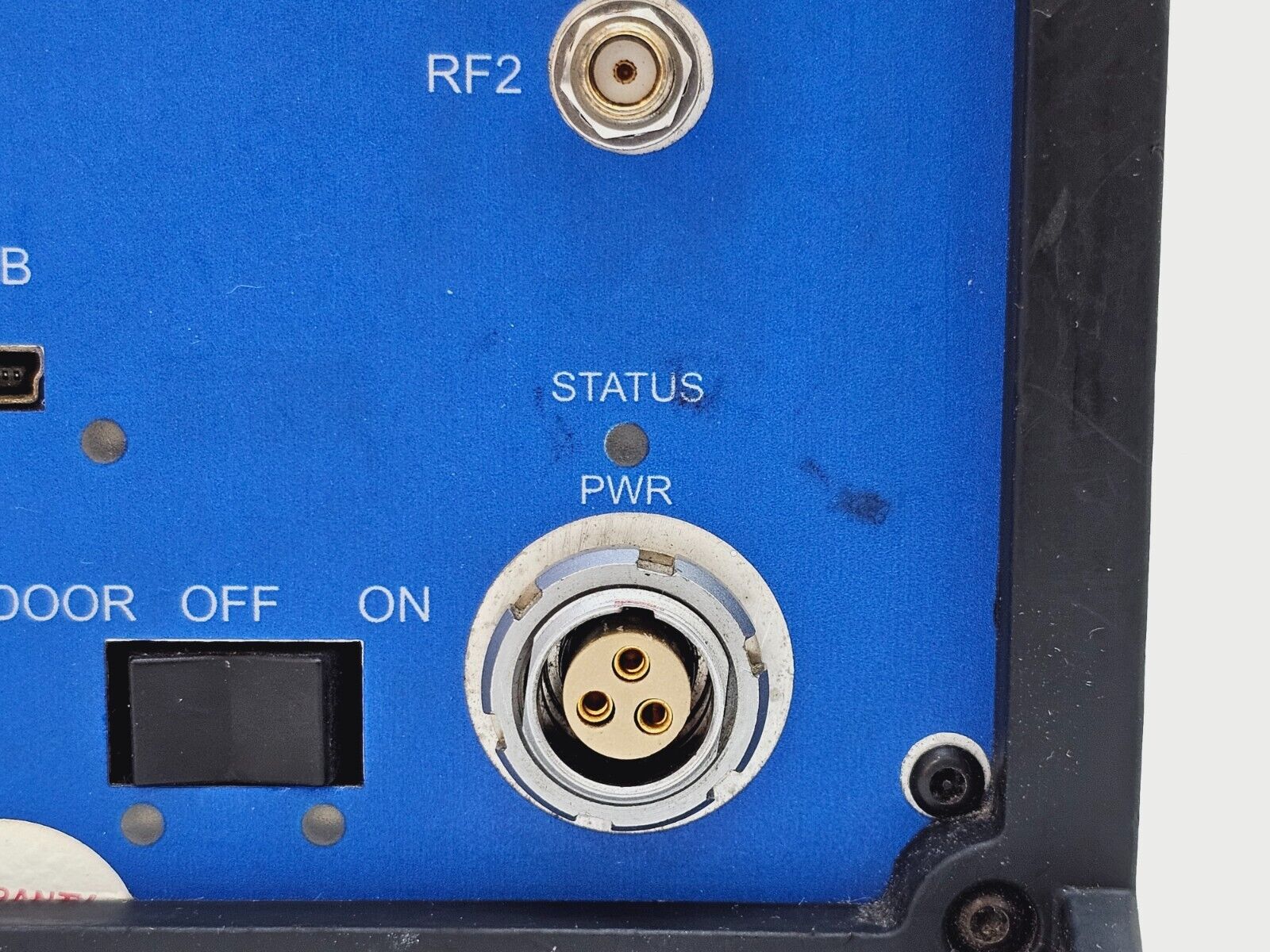

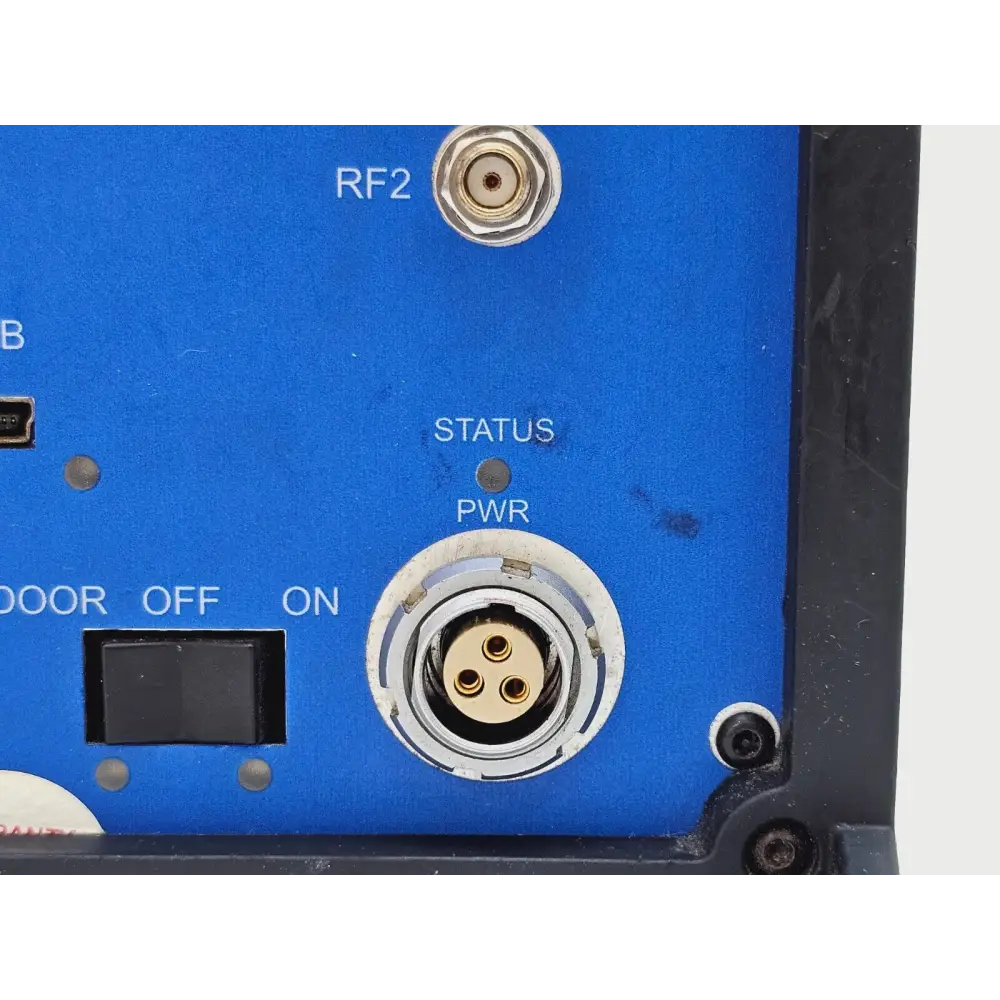

Power Input: 12 V DC (vehicle power / in-car charger)

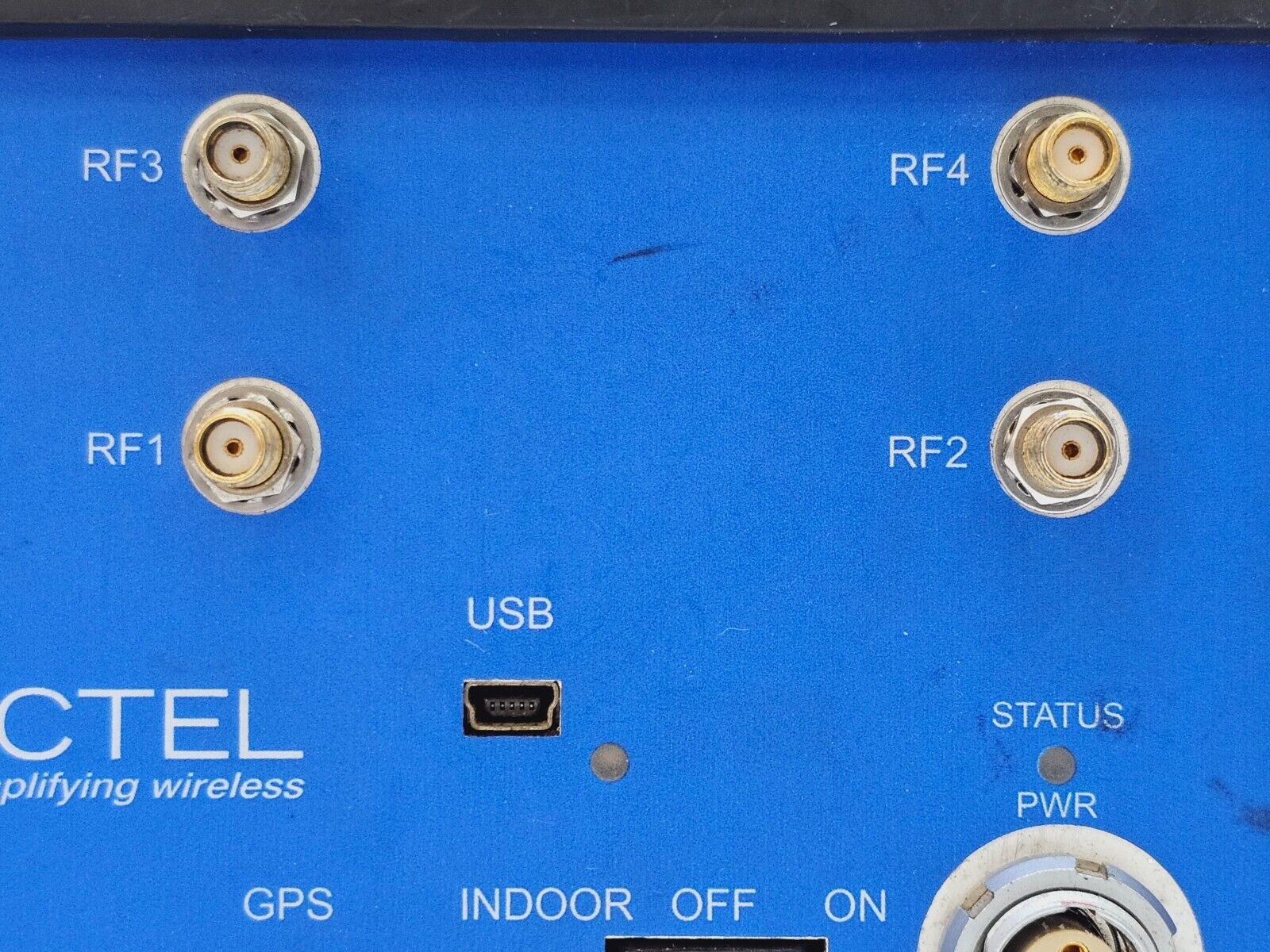

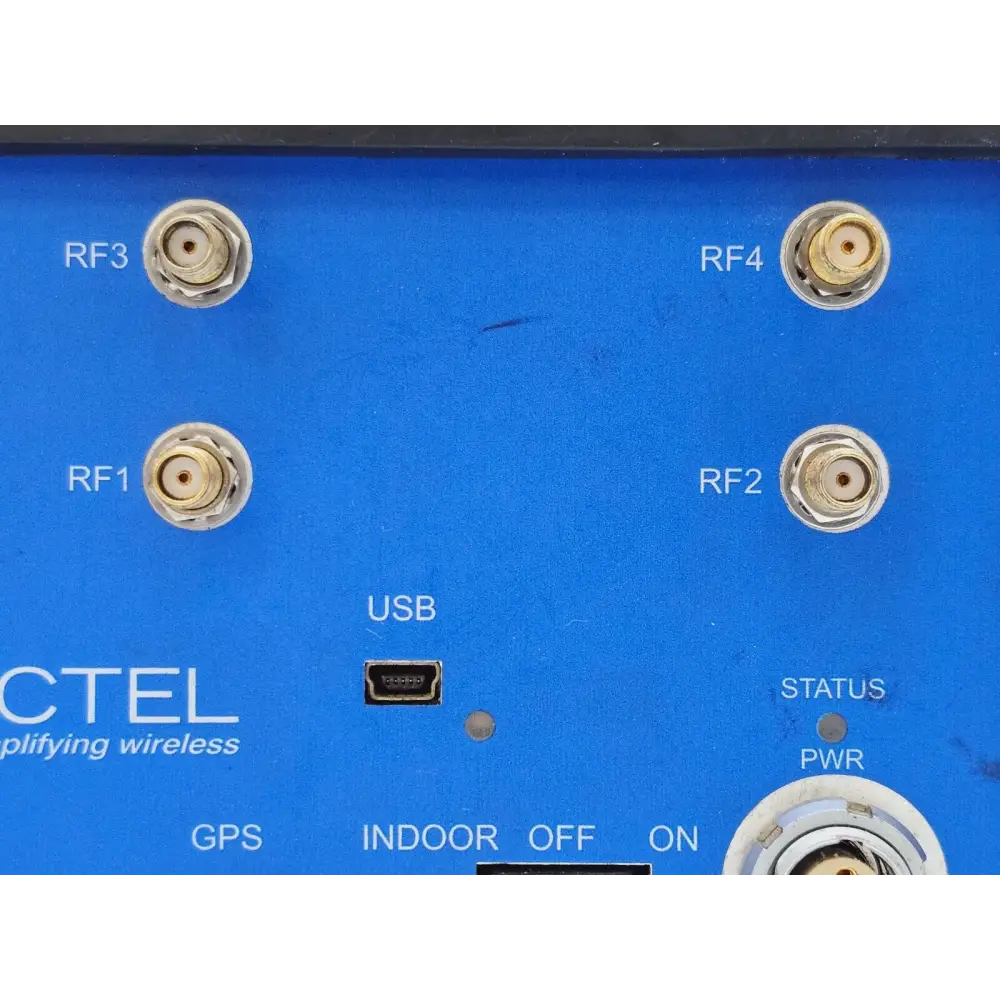

Antenna Connectors: SMA
GPS: Supported (optional GPS antenna)
Compliance: 3GPP, 3GPP2
Control Software: PCTEL SeeHawk (sold separately)
API: Windows OS compatible SDK available
Calibration: Factory calibration; biennial recalibration recommended
Product Reference Version: 1.0.0.10
API Version: 1.4.0.1
PCTEL SeeGull MX Hardware Reference Manual — official product manual covering setup, operation, specifications and accessories: Download PDF
PCTEL SeeGull MX Product Brochure — manufacturer overview and key feature summary (PDF): Download PDF
Product Overview
Condition: Refurbished
This PCTEL SeeGull MX scanning receiver (ESN: 0000-0000-7130-8032) is supplied in good condition with 10 installed software options active, covering GSM, WCDMA, and LTE across five LTE bands. Software release version 2.6.5.0. Calibration date on record: 09/02/2015. Software is not provided.
Included in the sale:
• SeeGull MX receiver
• OP451 multi-band antenna x4
• GPS antenna x1
• In-car charger x1
Installed Options (active):
• GPS Navigation
• Absolute Time Stamp
• GSM Support
• GSM BSIC
• GSM BCCH C/I
• WCDMA Support
• WCDMA Pilot
• WCDMA Extended Dynamic Range
• LTE Support
• LTE Enhanced Signal Scan
Manufacturer's Description
The PCTEL SeeGull MX is a professional multi-band scanning receiver for cellular network drive testing, featuring a modular RF front end and high-performance Signal Processing Engines. It is capable of acquiring, processing, and reporting data from up to eight distinct RF operating bands with zero performance degradation when measuring up to three technologies concurrently. The SeeGull MX is fully compliant with 3GPP and 3GPP2 specifications and supports Layer 3 message decoding for GSM, WCDMA/HSPA, and LTE networks, enabling operators to optimise neighbour lists, improve handovers, and manage multi-technology network interoperability. The scanner is controlled via a USB communication link and is compatible with PCTEL SeeHawk data collection and visualisation software. It supports an indoor/outdoor operating mode switch and features SMA connectors for RF antennas and an ignition sense input for vehicle integration.
Device Type: MX
Interface: USB
Supported Technologies: GSM, WCDMA, LTE
GSM Bands (this configuration): EB-08 European 900 MHz, EB-03 1800 MHz (DCS)
WCDMA Bands (this configuration): EB-01 2100 MHz (IMT-2000), EB-08 European 900 MHz, EB-03 1800 MHz (DCS)
LTE Bands (this configuration): EB-01 2100 MHz (IMT-2000), EB-08 European 900 MHz, EB-03 1800 MHz (DCS), EB-07 2600 MHz IMT Extension, EB-20 European 800 MHz
Max RF Operating Bands: Up to 8
Max Concurrent Technologies: 3
Power Input: 12 V DC (vehicle power / in-car charger)
Antenna Connectors: SMA
GPS: Supported (optional GPS antenna)
Compliance: 3GPP, 3GPP2
Control Software: PCTEL SeeHawk (sold separately)
API: Windows OS compatible SDK available
Calibration: Factory calibration; biennial recalibration recommended
Product Reference Version: 1.0.0.10
API Version: 1.4.0.1
Resources
PCTEL SeeGull MX Hardware Reference Manual — official product manual covering setup, operation, specifications and accessories: Download PDF
PCTEL SeeGull MX Product Brochure — manufacturer overview and key feature summary (PDF): Download PDF
