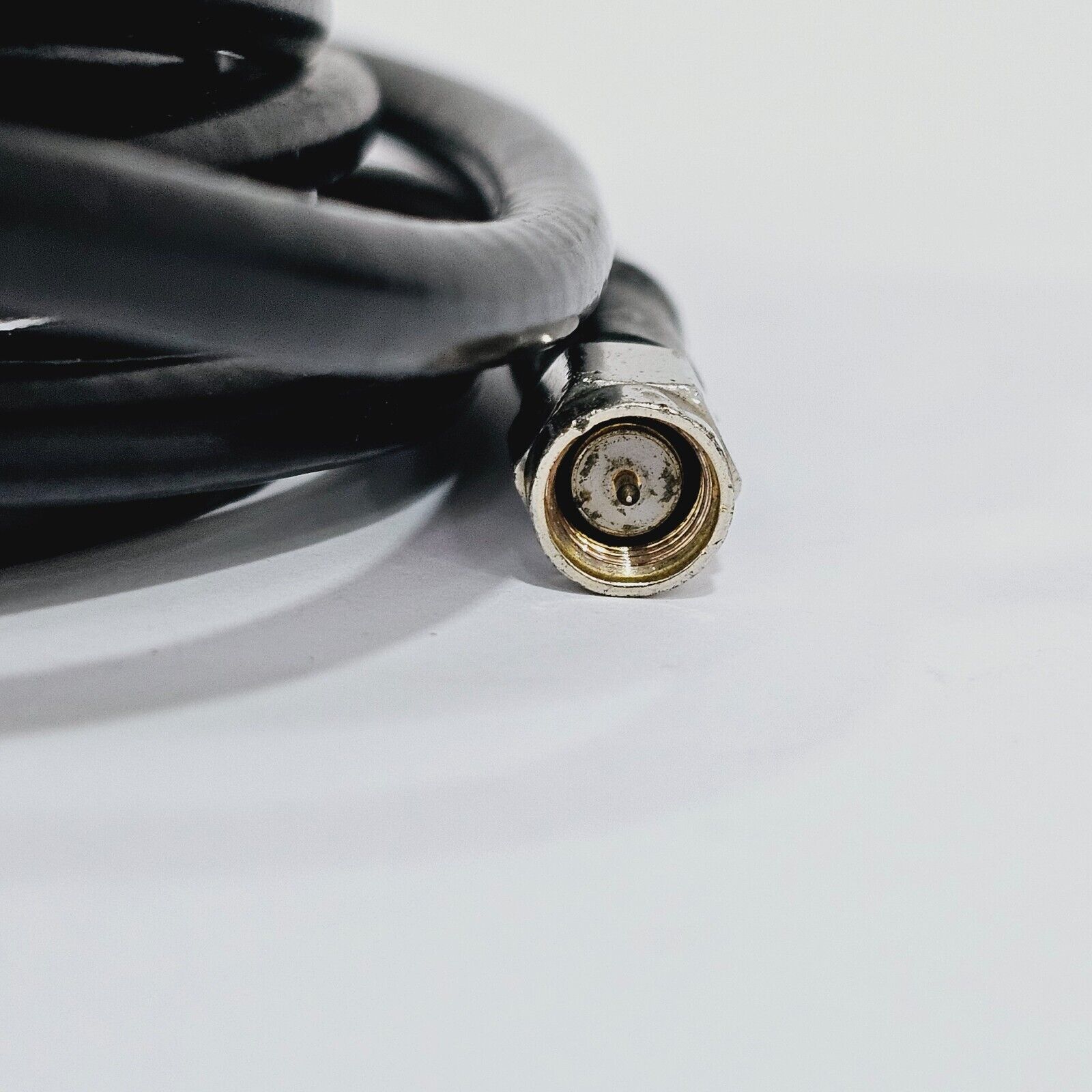

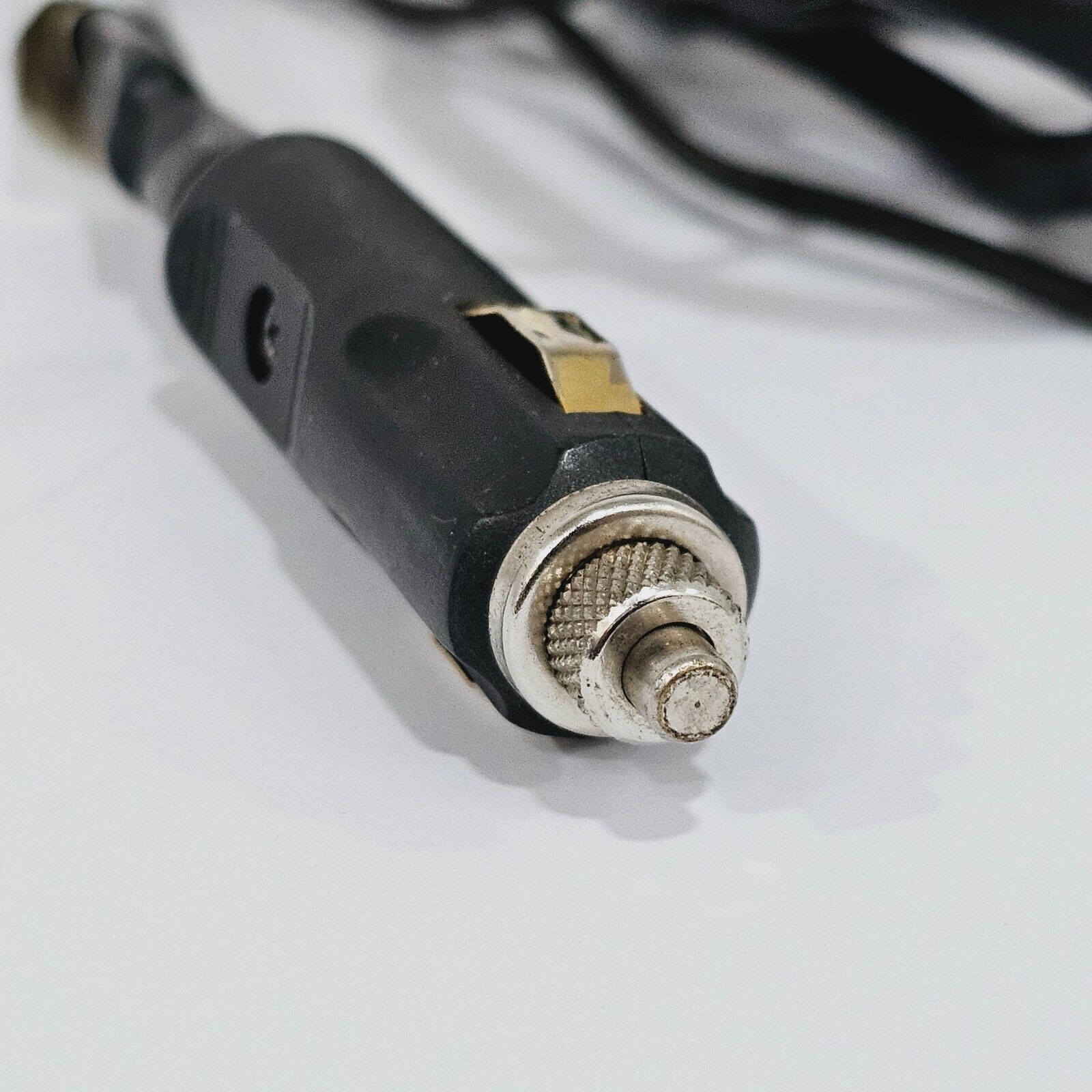

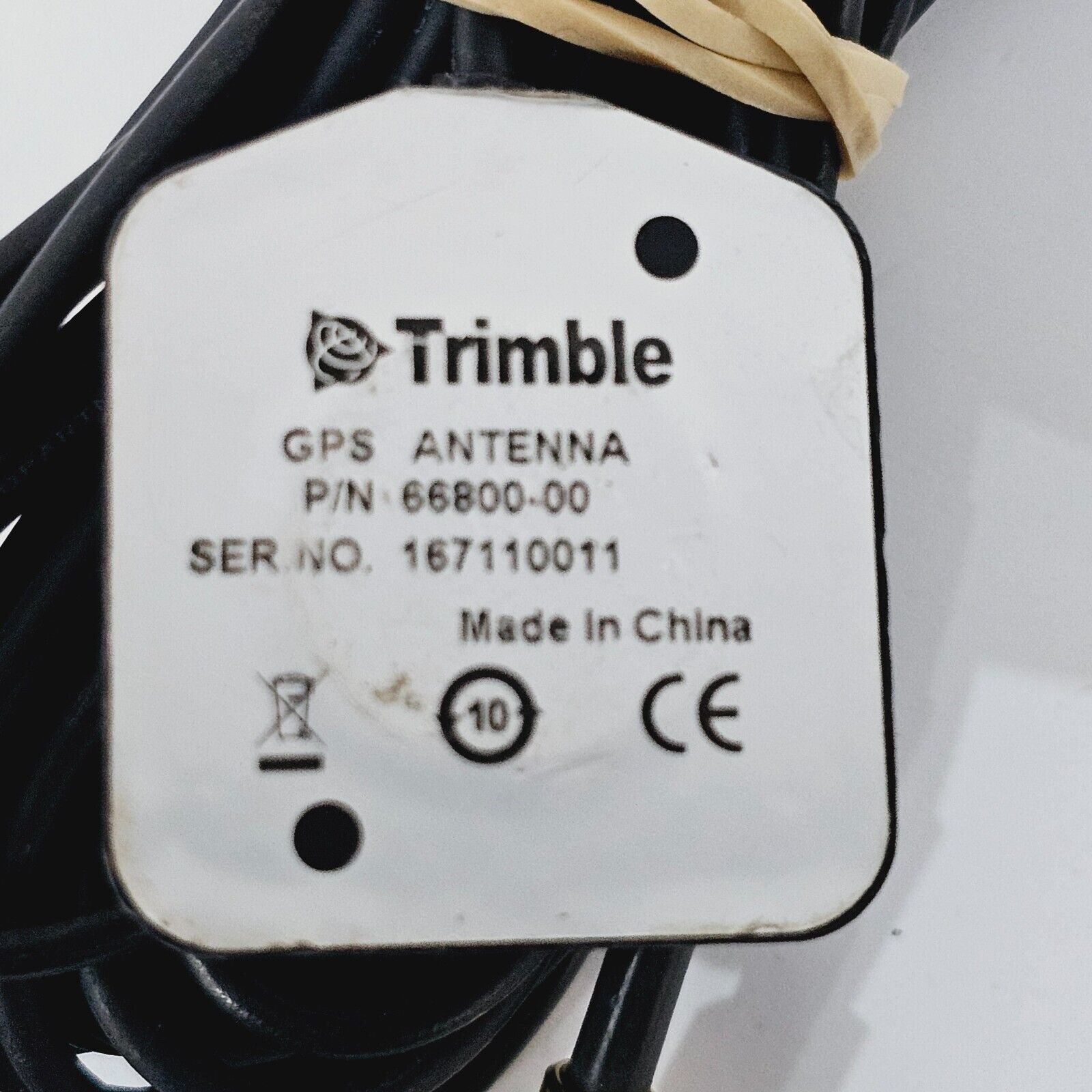

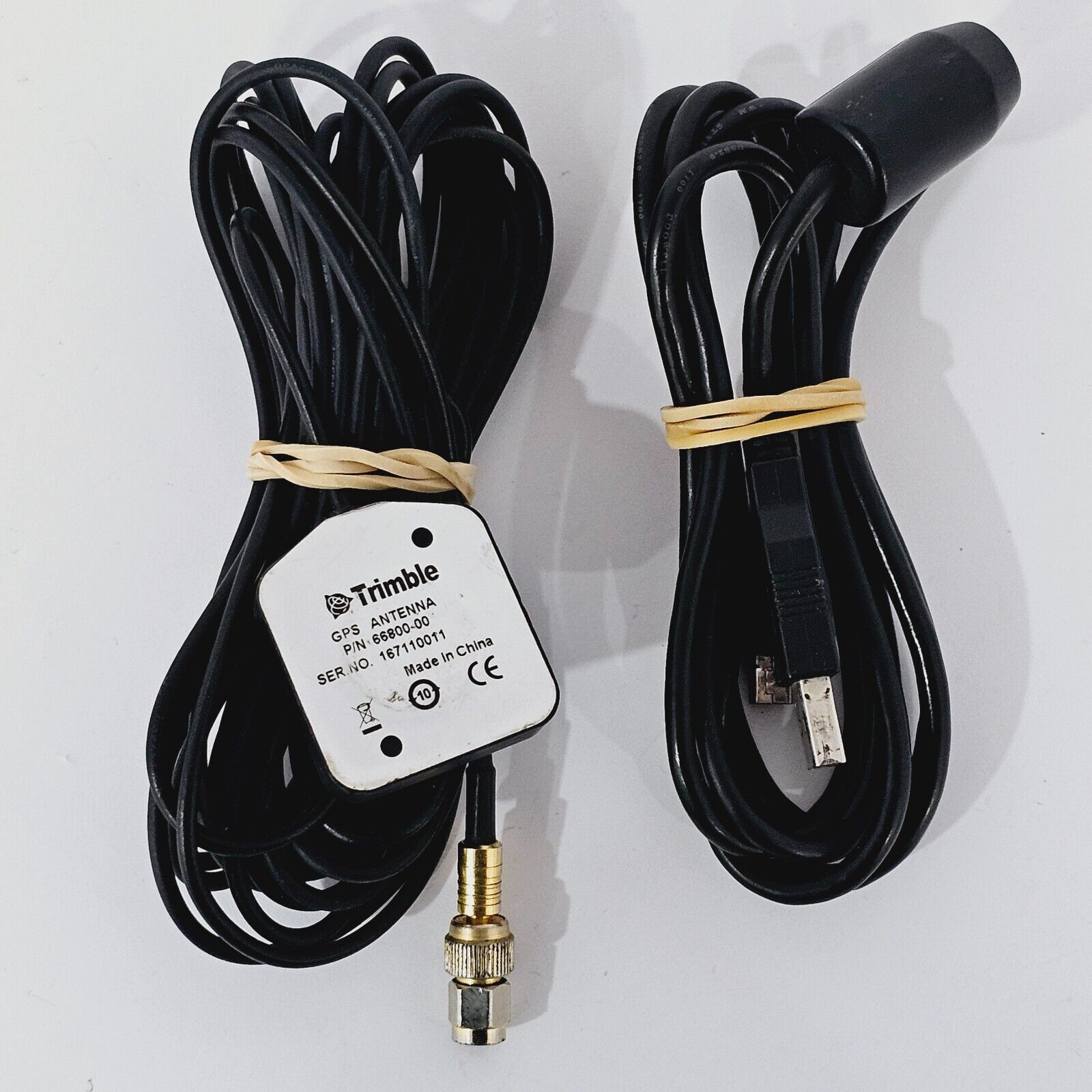

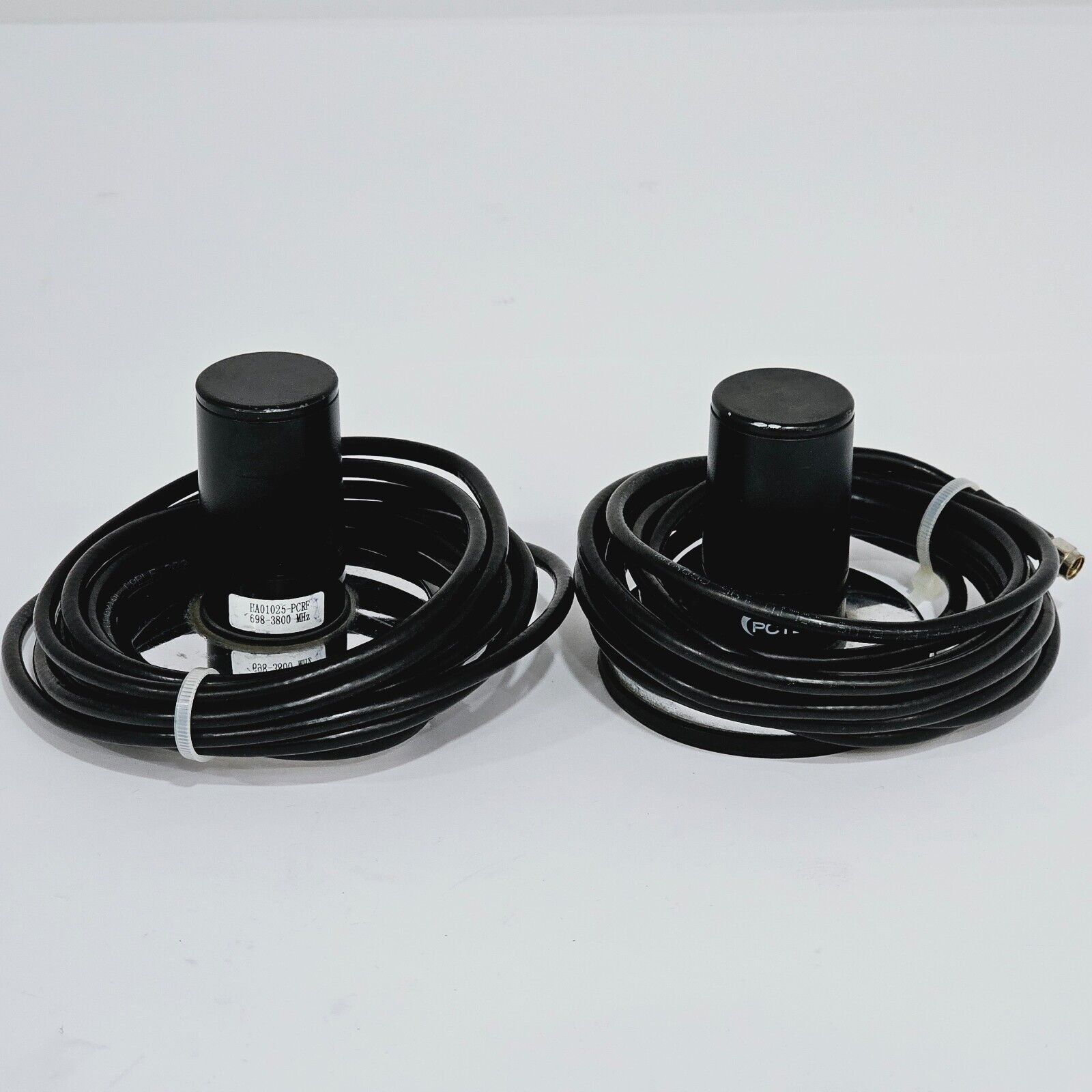

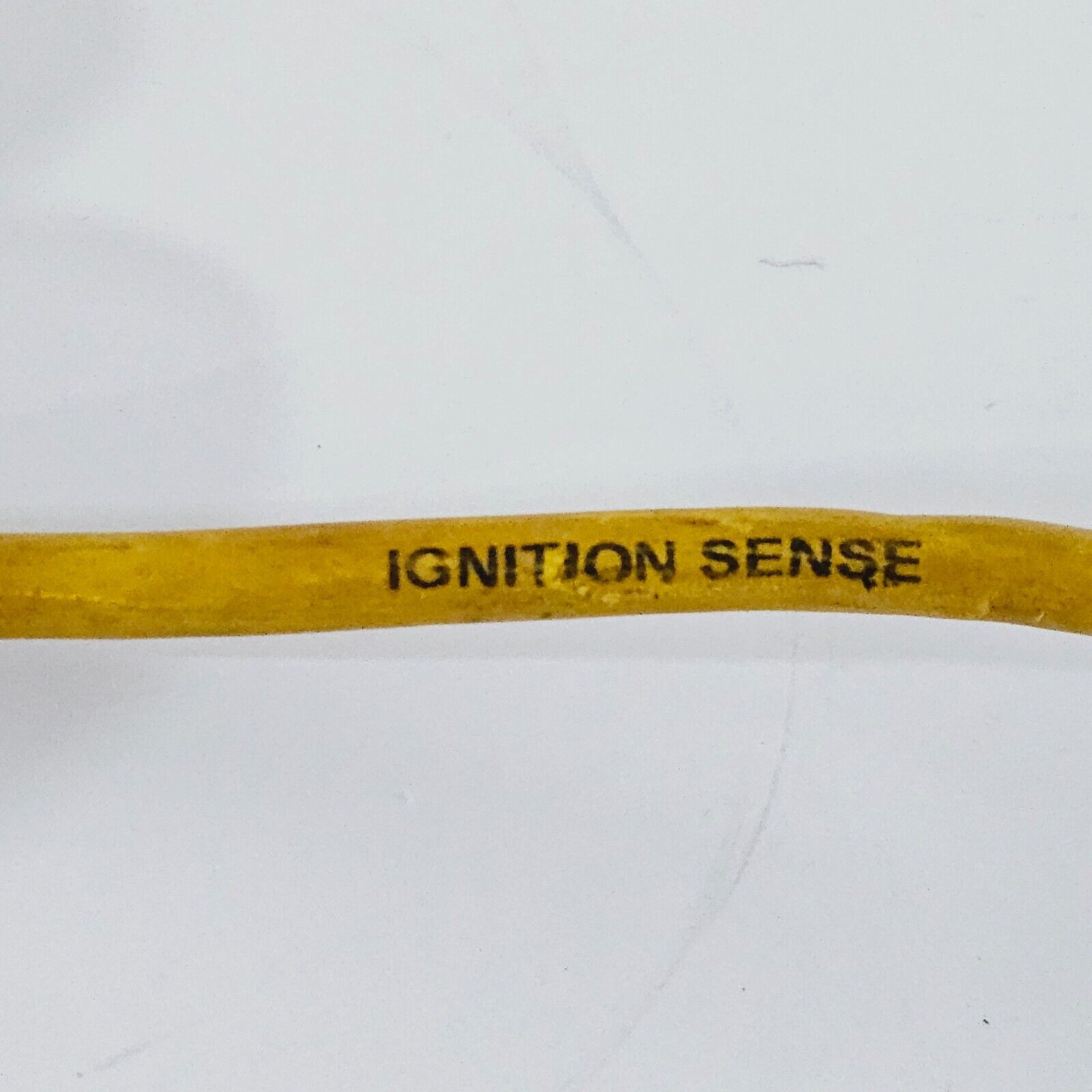

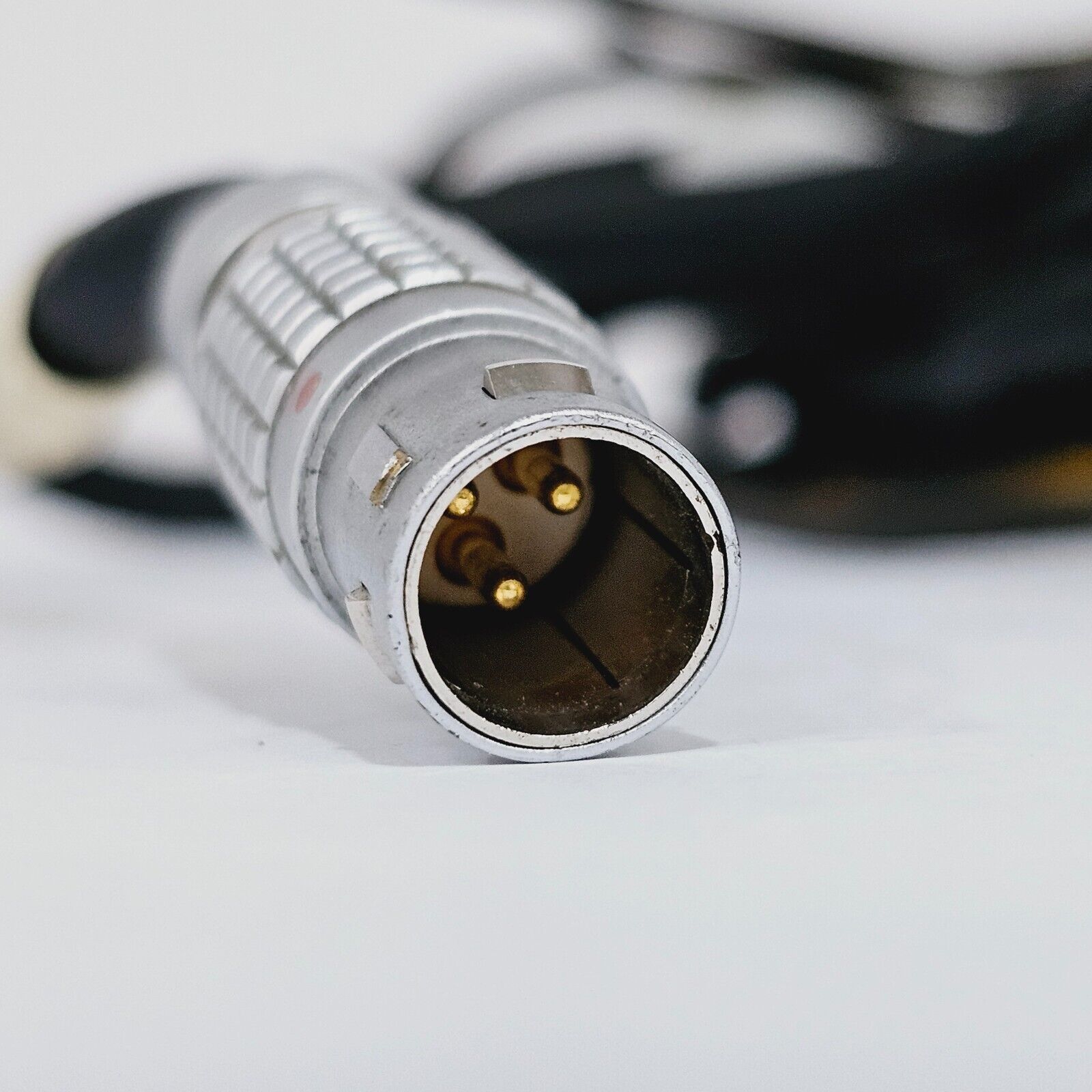

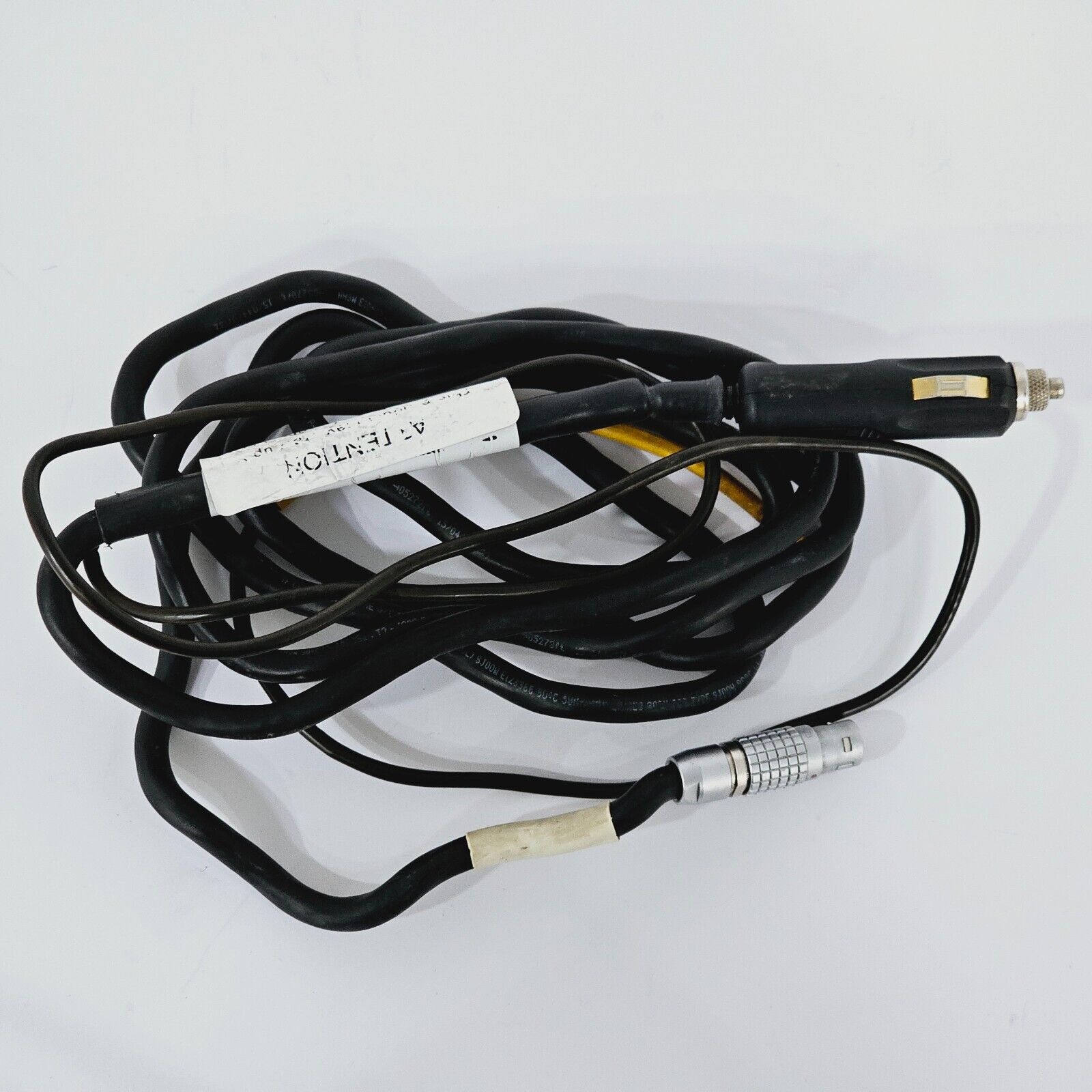

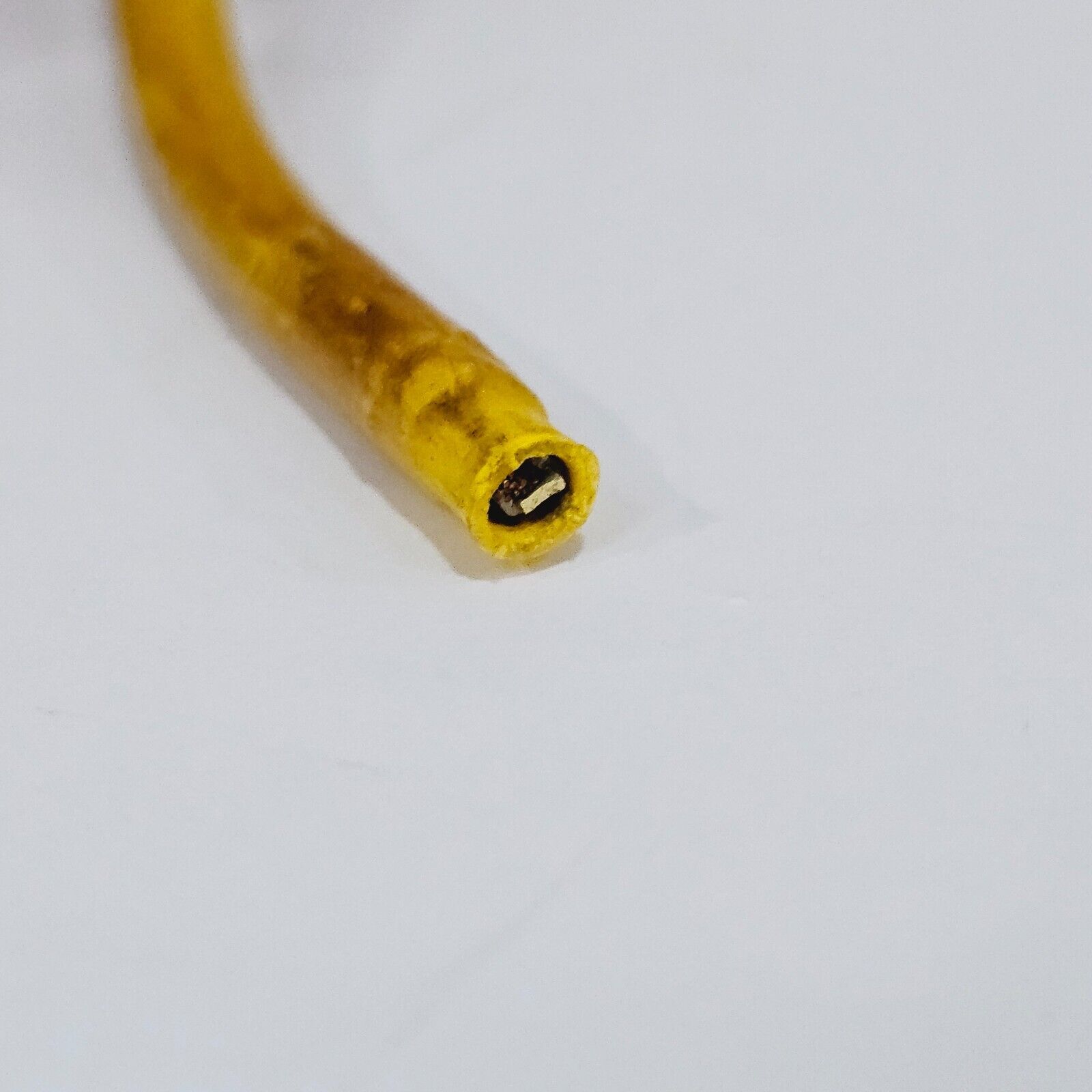

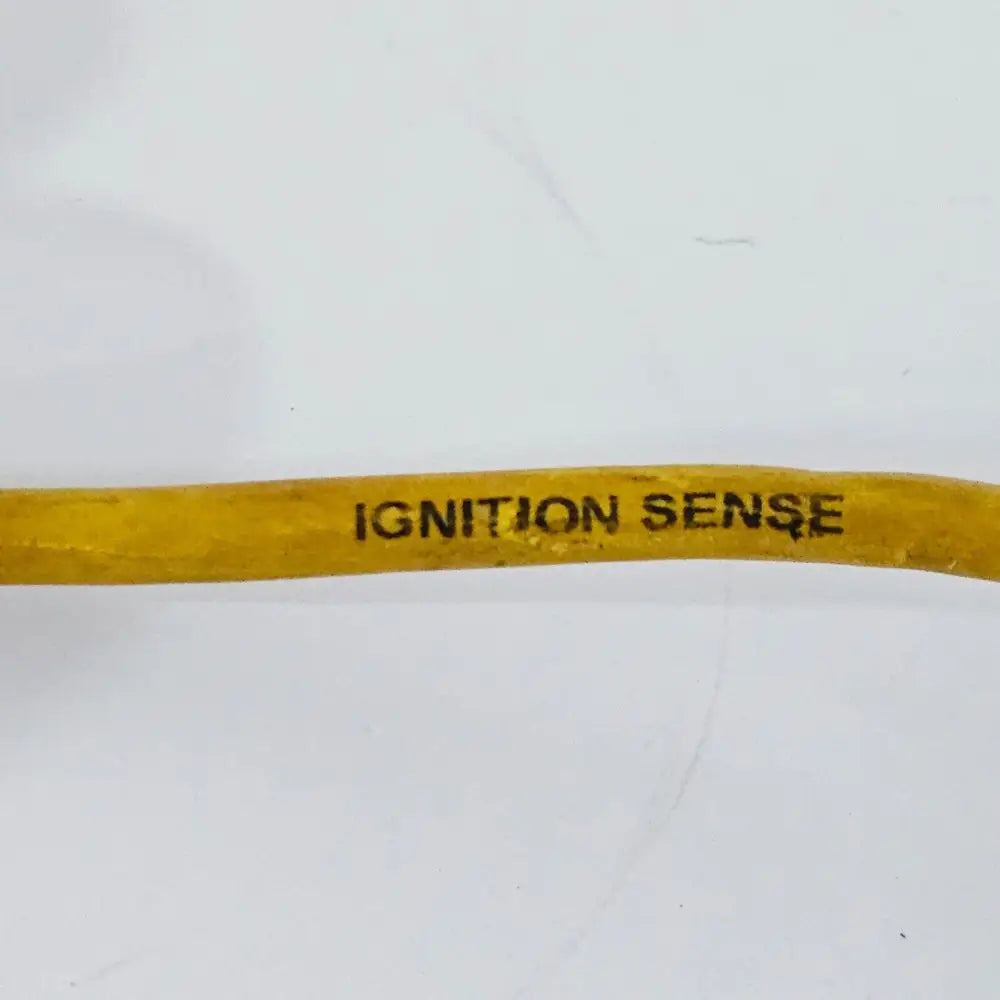

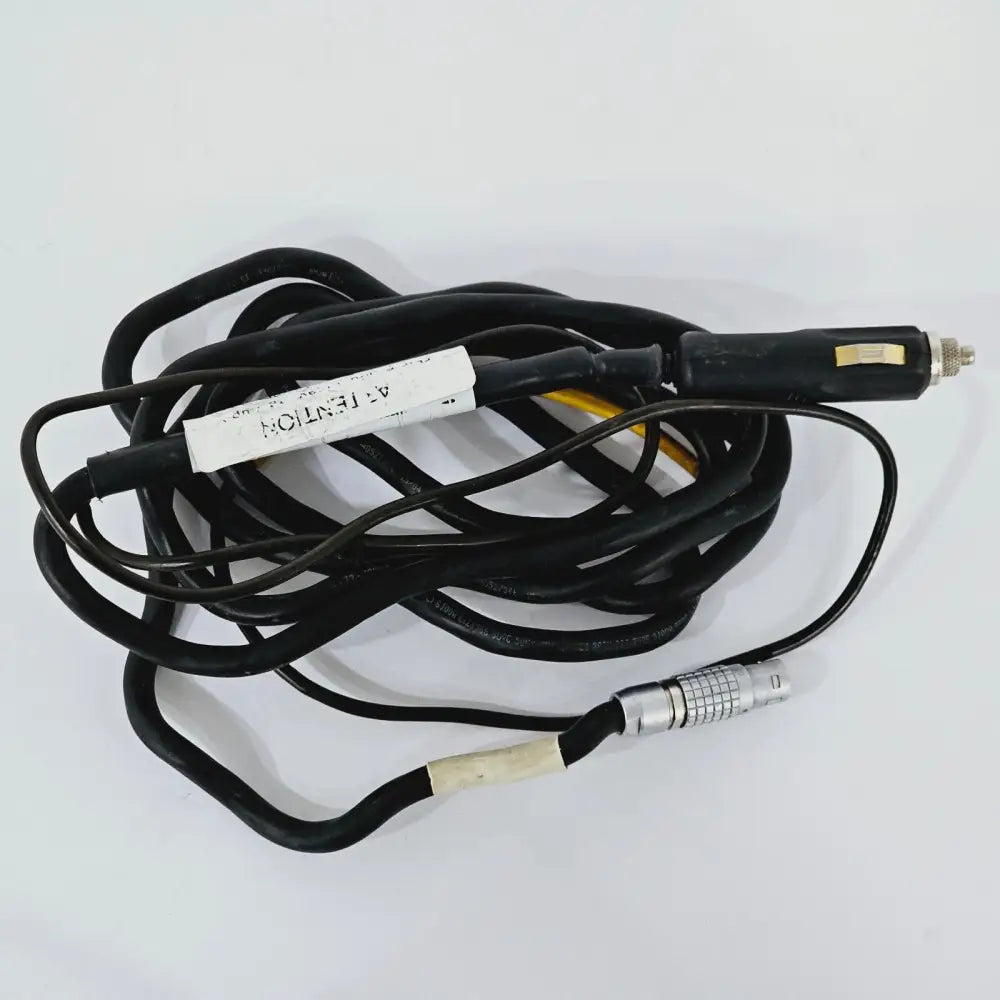

Condition: Used Note we have multiple units so cosmetically they may differ a little. Included in the sale: Seegull MX receiver - refer to images for installed options GPS  2x antennas In car charger

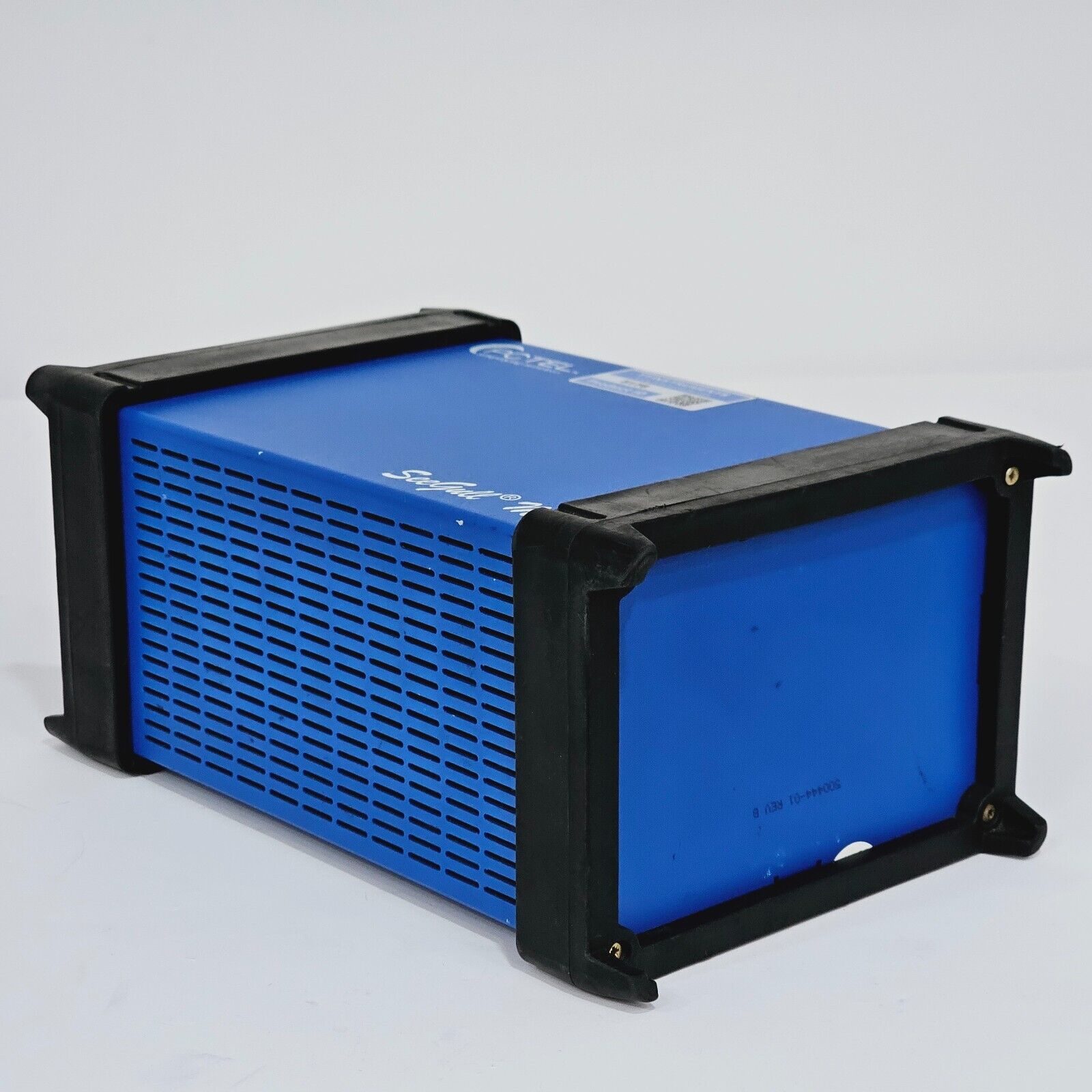

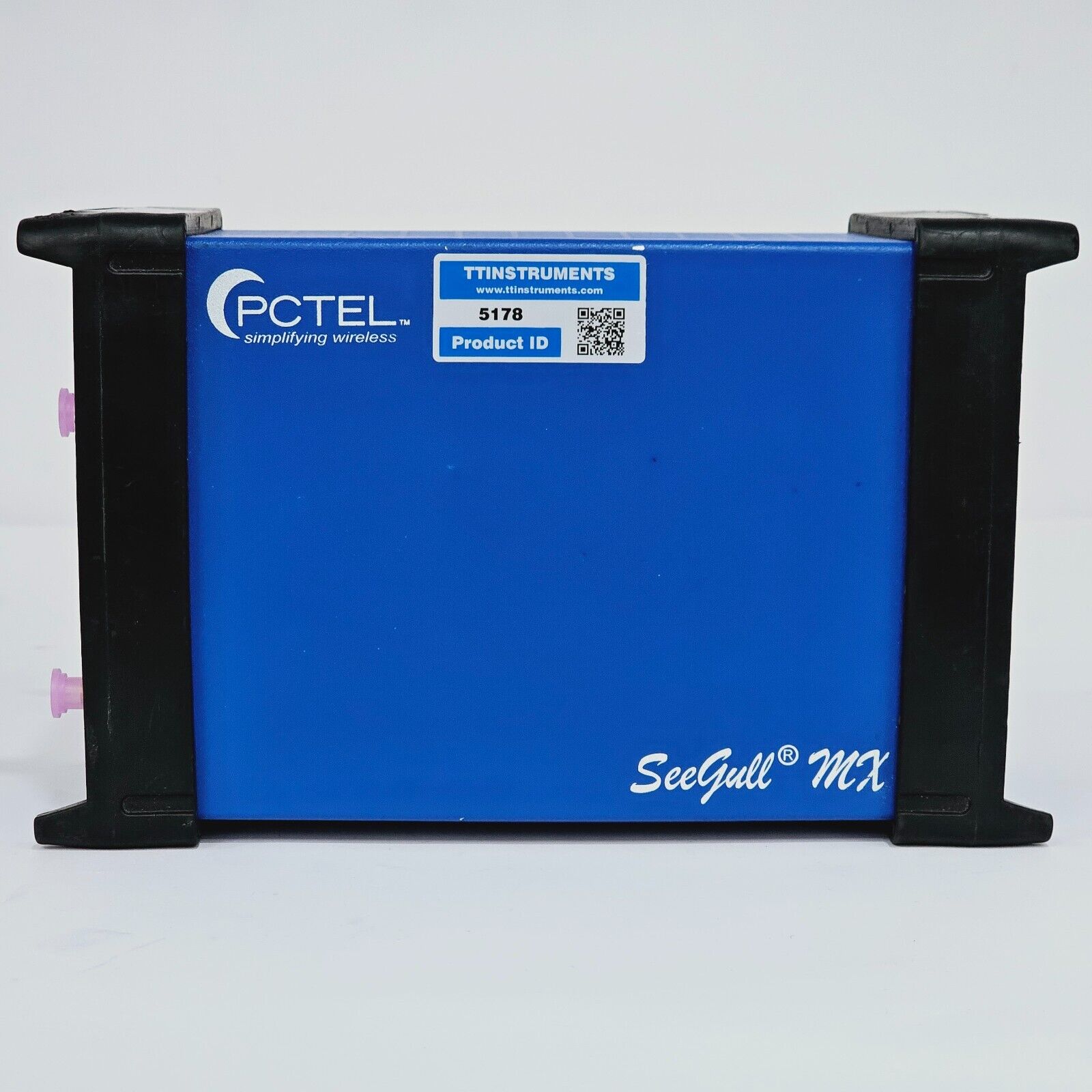

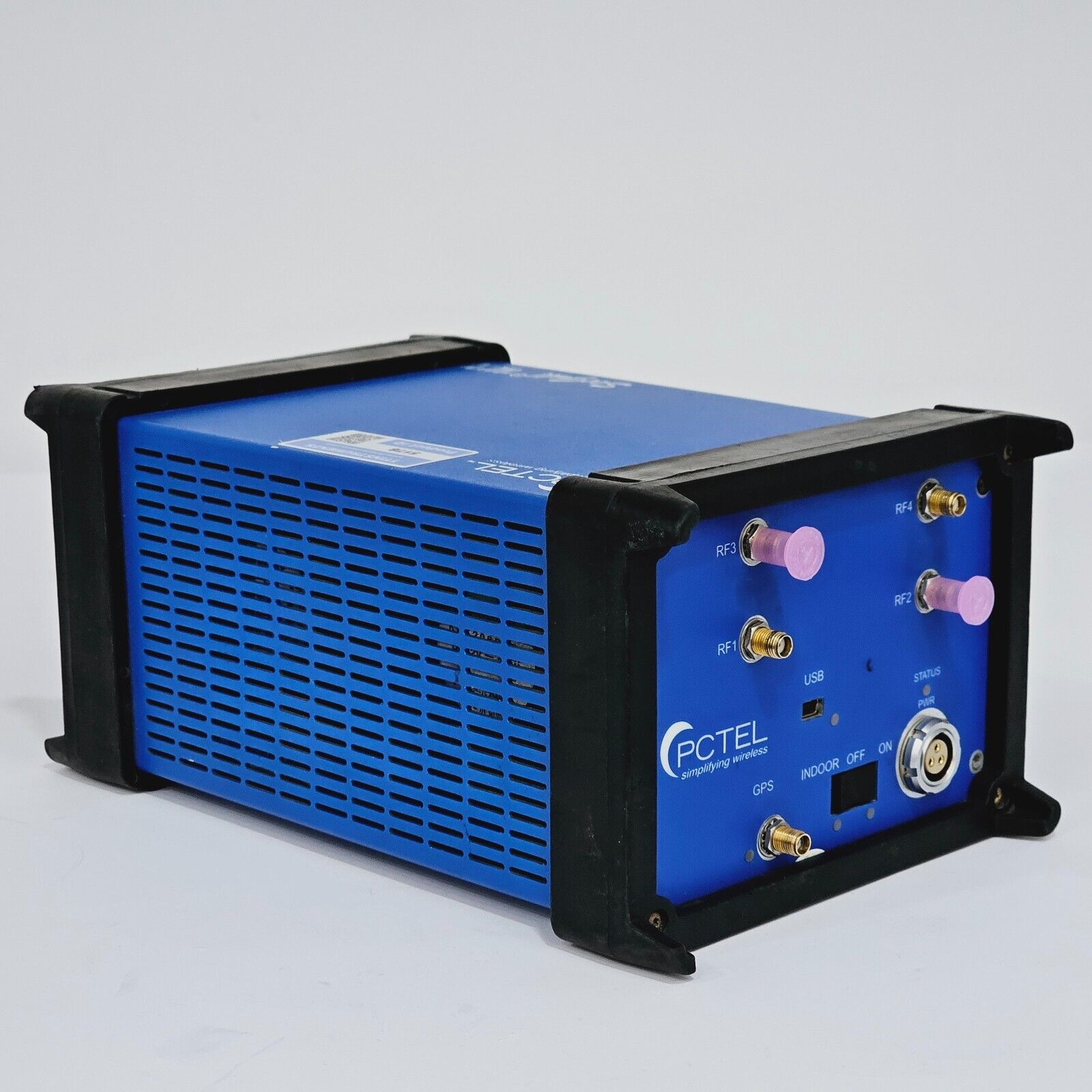

The PCTEL SeeGull MX is a high-performance multi-band scanning receiver designed for professional cellular network drive testing, coverage measurement, and network optimisation. It features a modular RF front end and high-performance Signal Processing Engines that enable simultaneous acquisition, processing, and reporting of data from up to eight distinct RF operating bands with zero performance degradation when measuring up to three technologies concurrently.

The SeeGull MX is fully compliant with 3GPP and 3GPP2 specifications and supports GSM, WCDMA/HSPA, LTE FDD, and TD-LTE network technologies. It is controlled via a USB interface and is compatible with PCTEL's SeeHawk software as well as third-party drive test platforms including TEMS Investigation, Nemo, and Dingli.

Key features include a high-performance integrated GPS receiver, Layer 3 message decoding for GSM, WCDMA, and LTE, spectrum analyser capability, RSSI channel scanning, Enhanced Power Scan (EPS), and support for MIMO measurements. The unit supports field-upgradeable band and technology options, allowing expansion without returning the unit to the factory.

Technical Specifications:
PCTEL Device Type: MX
Part Number: 07512
Technologies Supported: LTE (FDD), WCDMA/HSPA, GSM

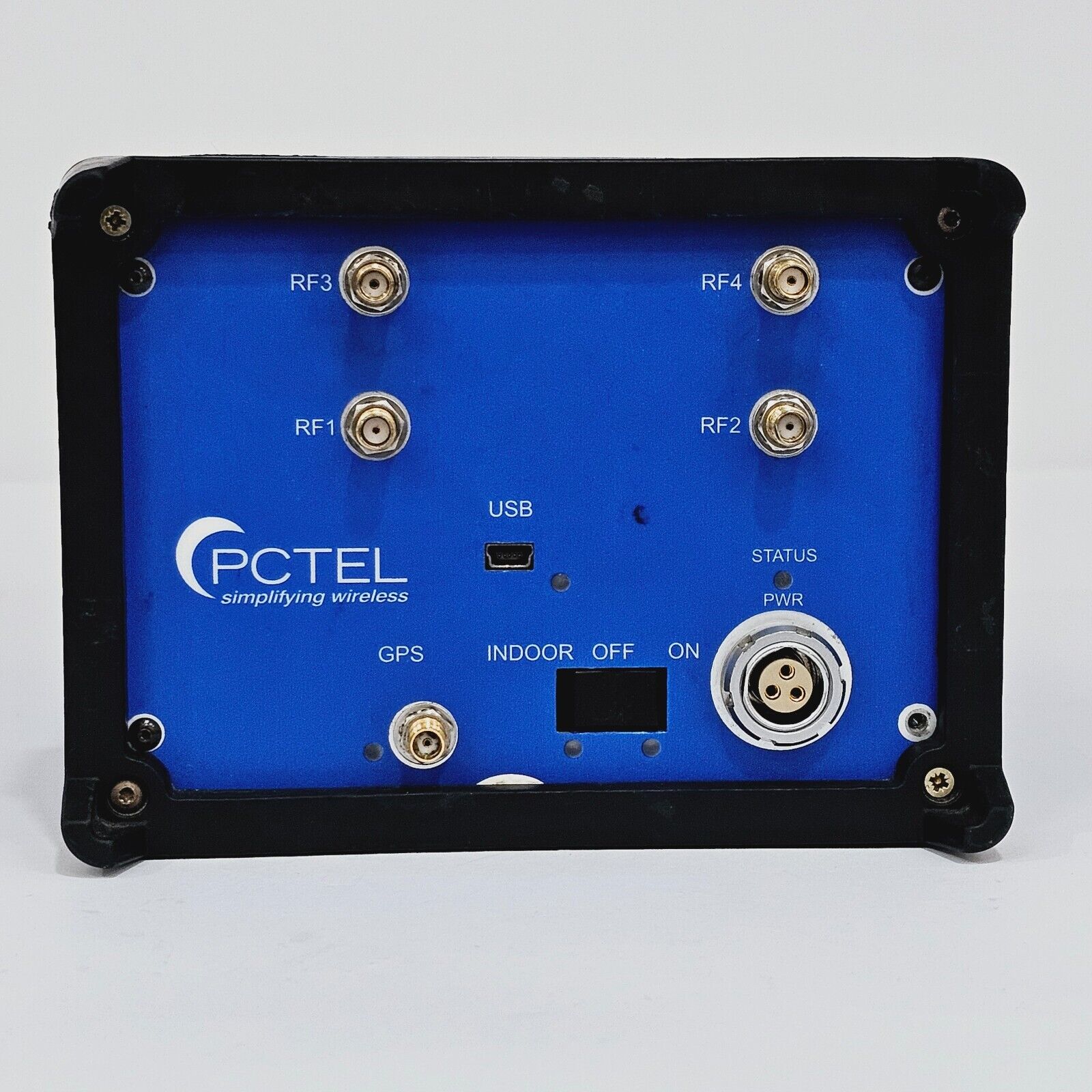

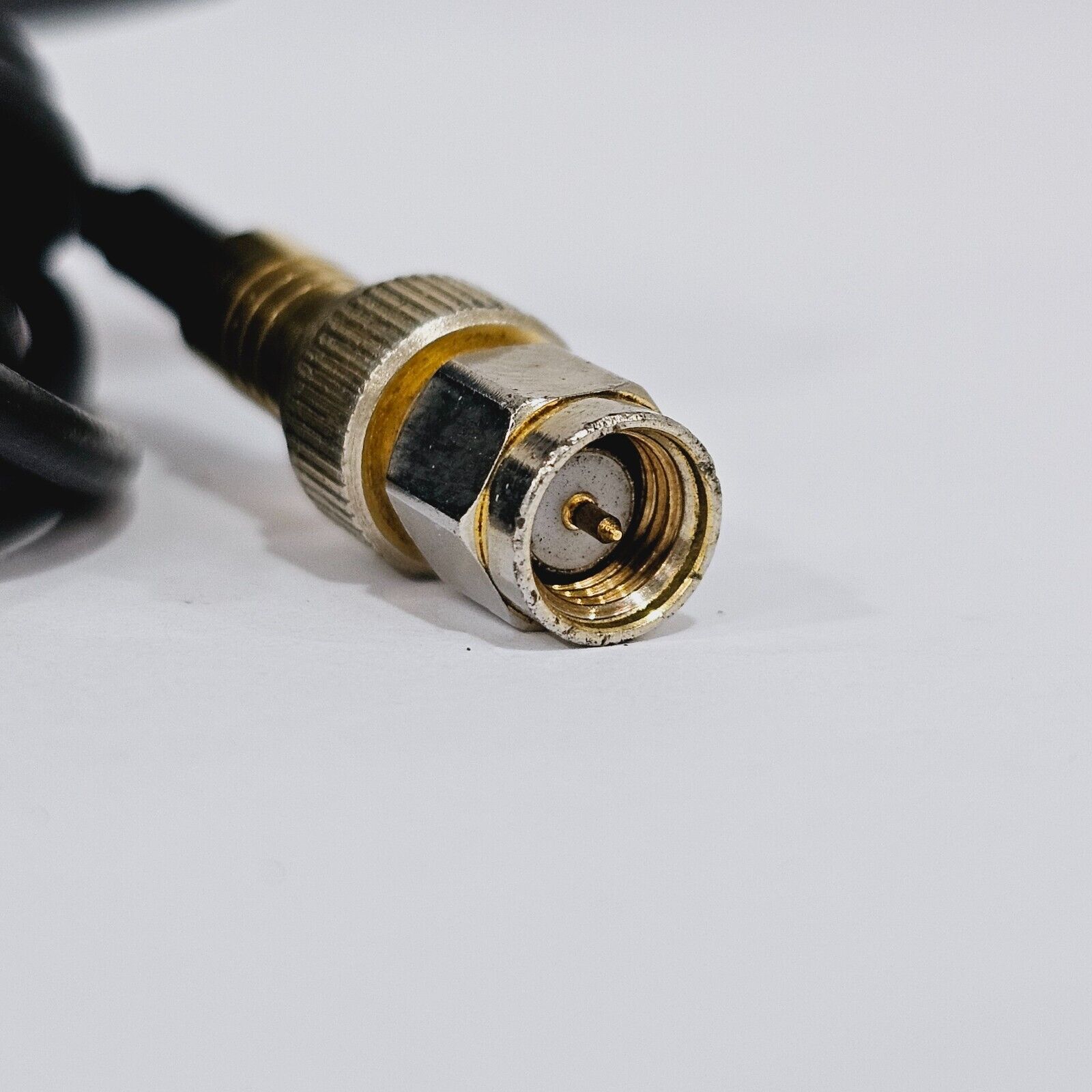

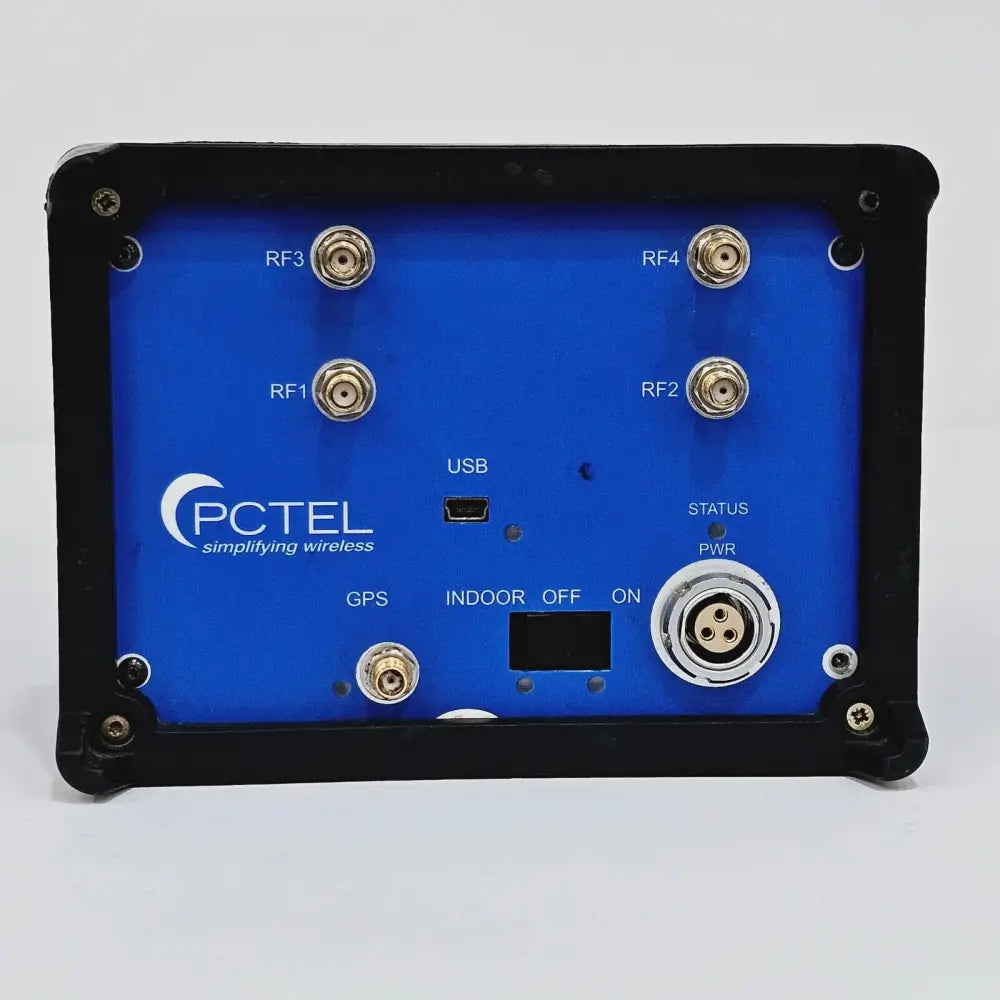

RF Ports: Up to 4 SMA connectors (RF1, RF2, RF3, RF4)
Channel Bandwidth: 20 MHz per RF port
Interface: USB (Mini-USB)
GPS: Integrated GPS input (SMA connector)
Power Input: 10–16 VDC, 10 A MAX
Operating Mode Switch: INDOOR / OFF / ON
Compliance: CE, RoHS
Country of Manufacture: USA
Software Compatibility: PCTEL SeeHawk, TEMS Investigation, Nemo Outdoor, Dingli
Calibration Interval: Recommended every 2 years

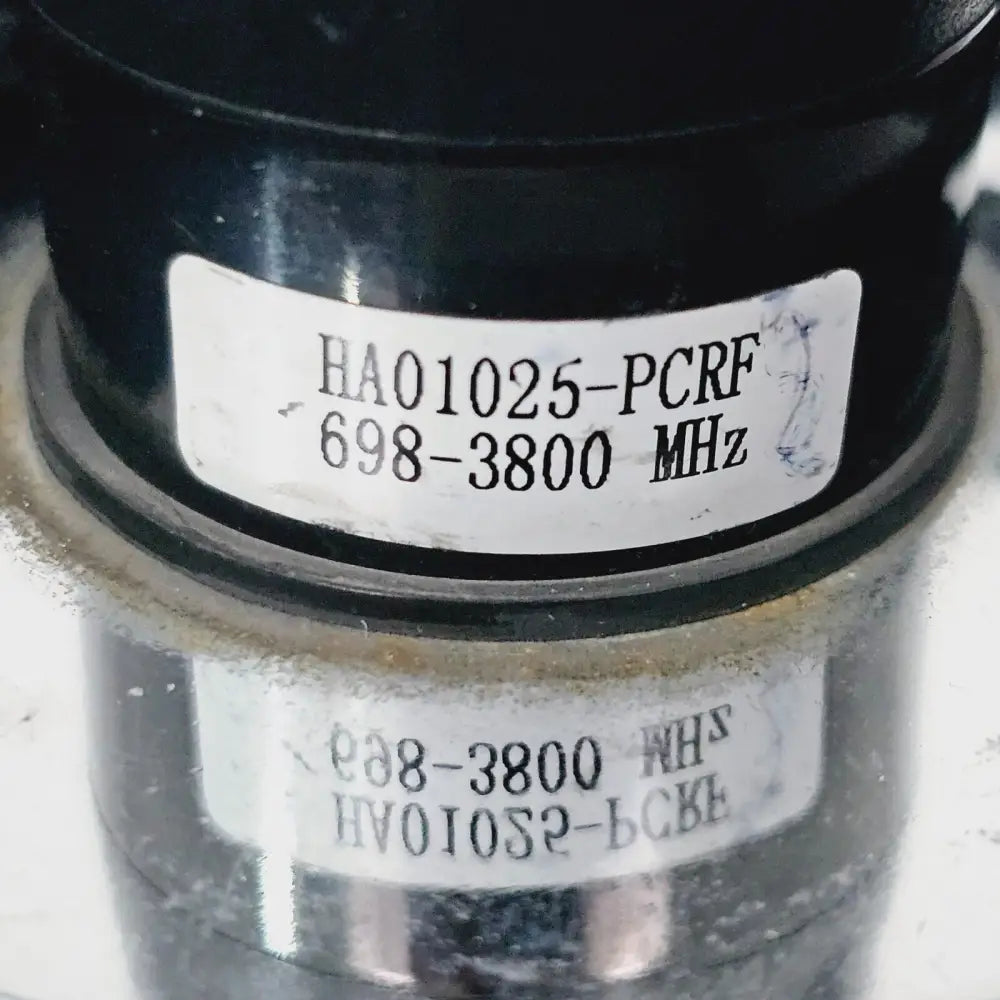

Antenna Frequency Range (compatible antennas): 698 MHz to 3.0 GHz

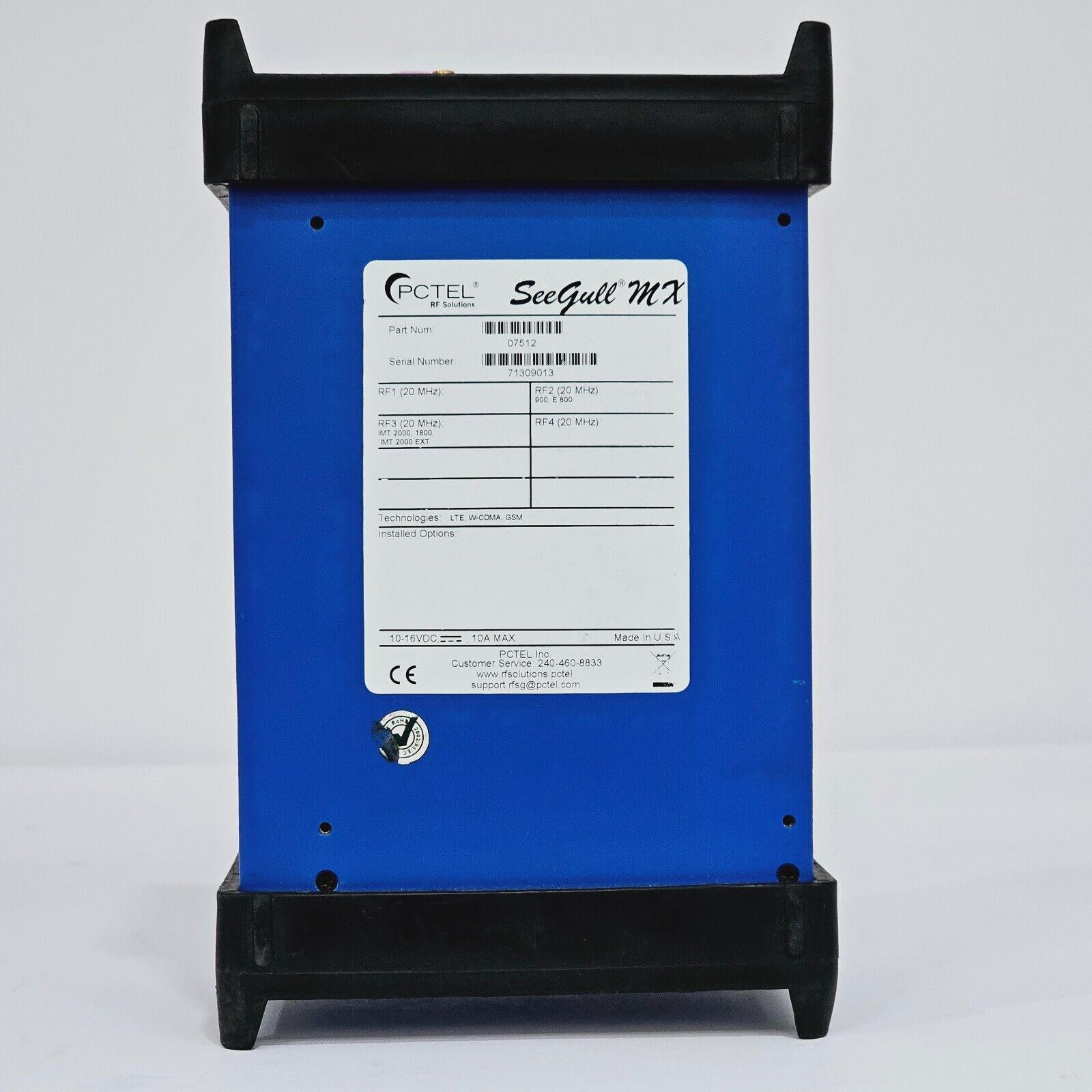

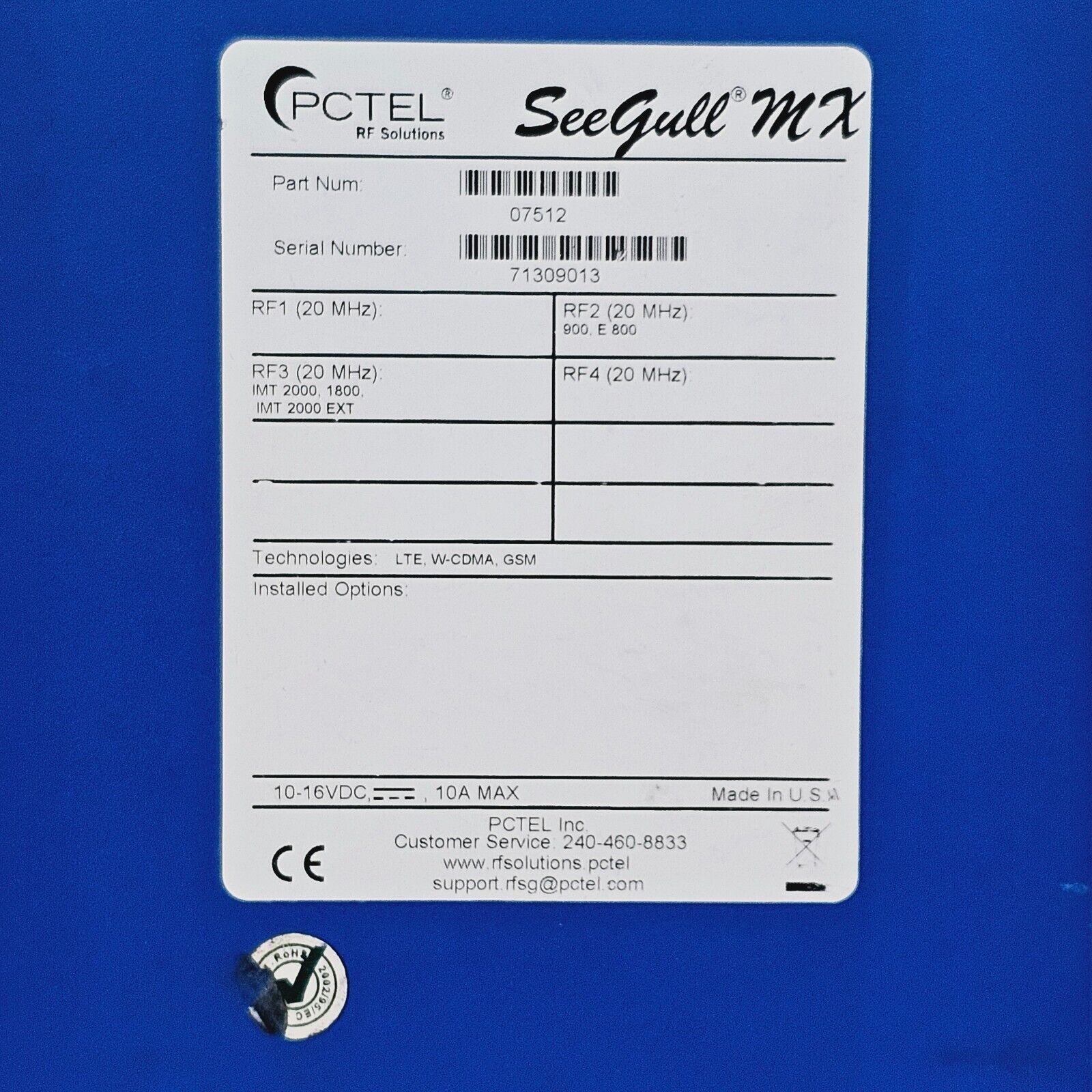

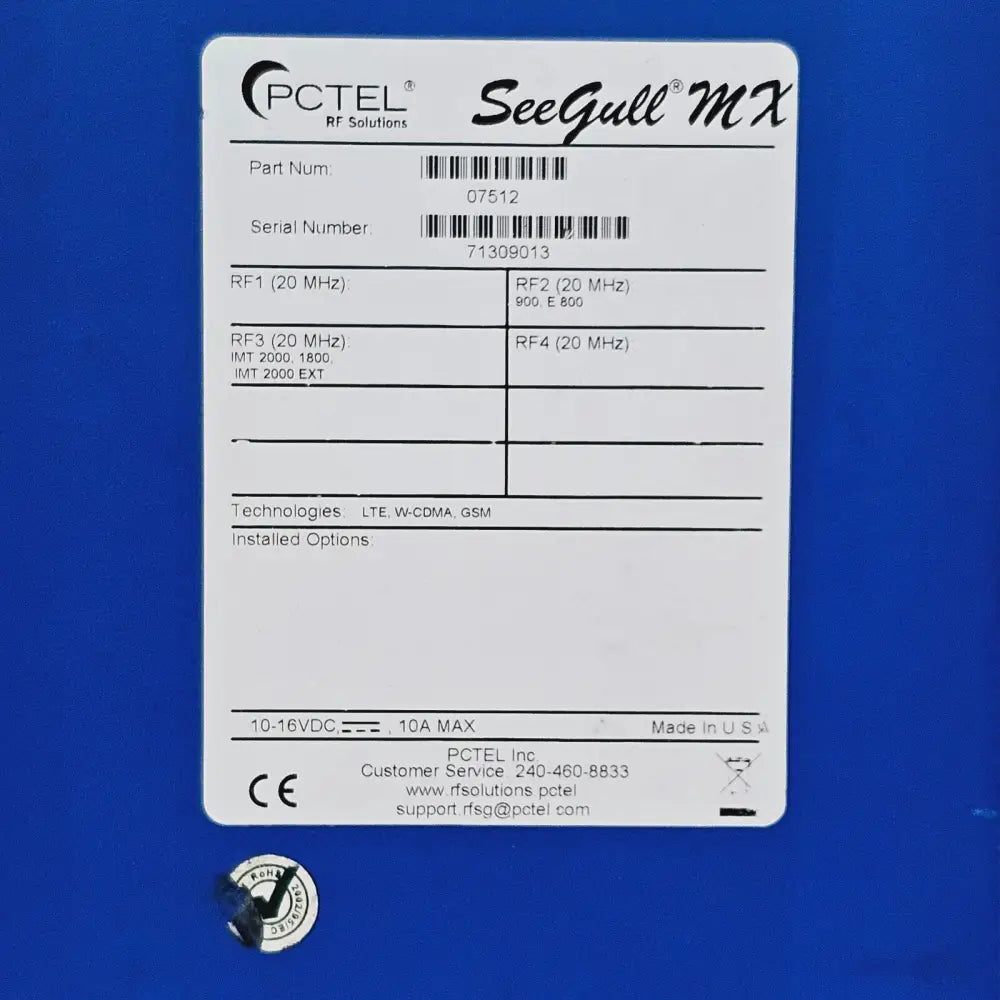

Supported European Bands (this unit, Part No. 07512):
RF2: 900 MHz (EB-08), E800 MHz (EB-20)
RF3: IMT 2000 (2100 MHz), 1800 MHz (DCS), IMT 2000 EXT (2600 MHz)

Note: Downlink and uplink RF operating bands are configured at the time of manufacture. Please refer to the unit label and system inquiry report for the exact band configuration of each individual unit.

PCTEL SeeGull MX Hardware Reference Manual — setup, operation, maintenance and specifications: Download PDF
