Condition: Used

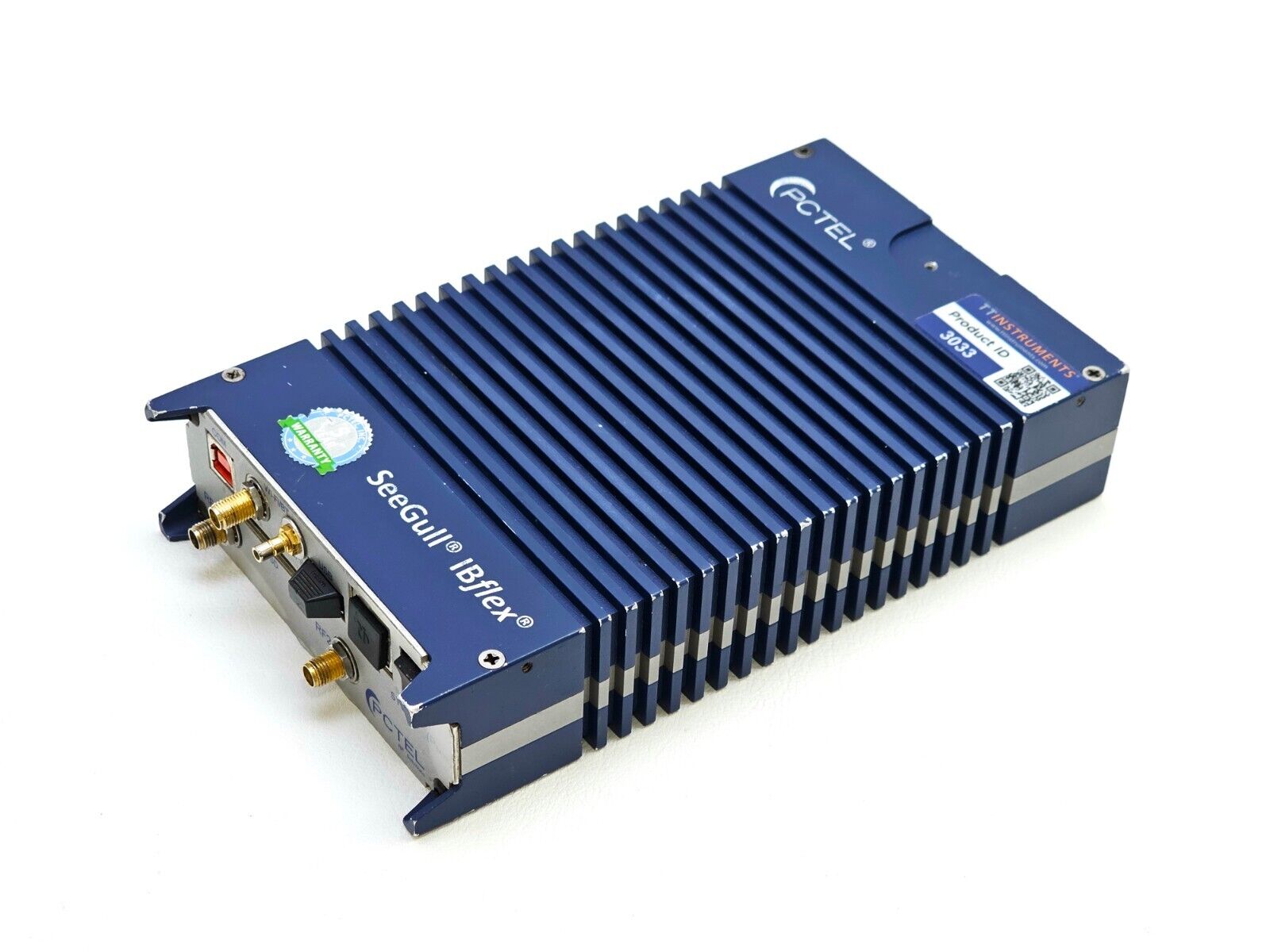

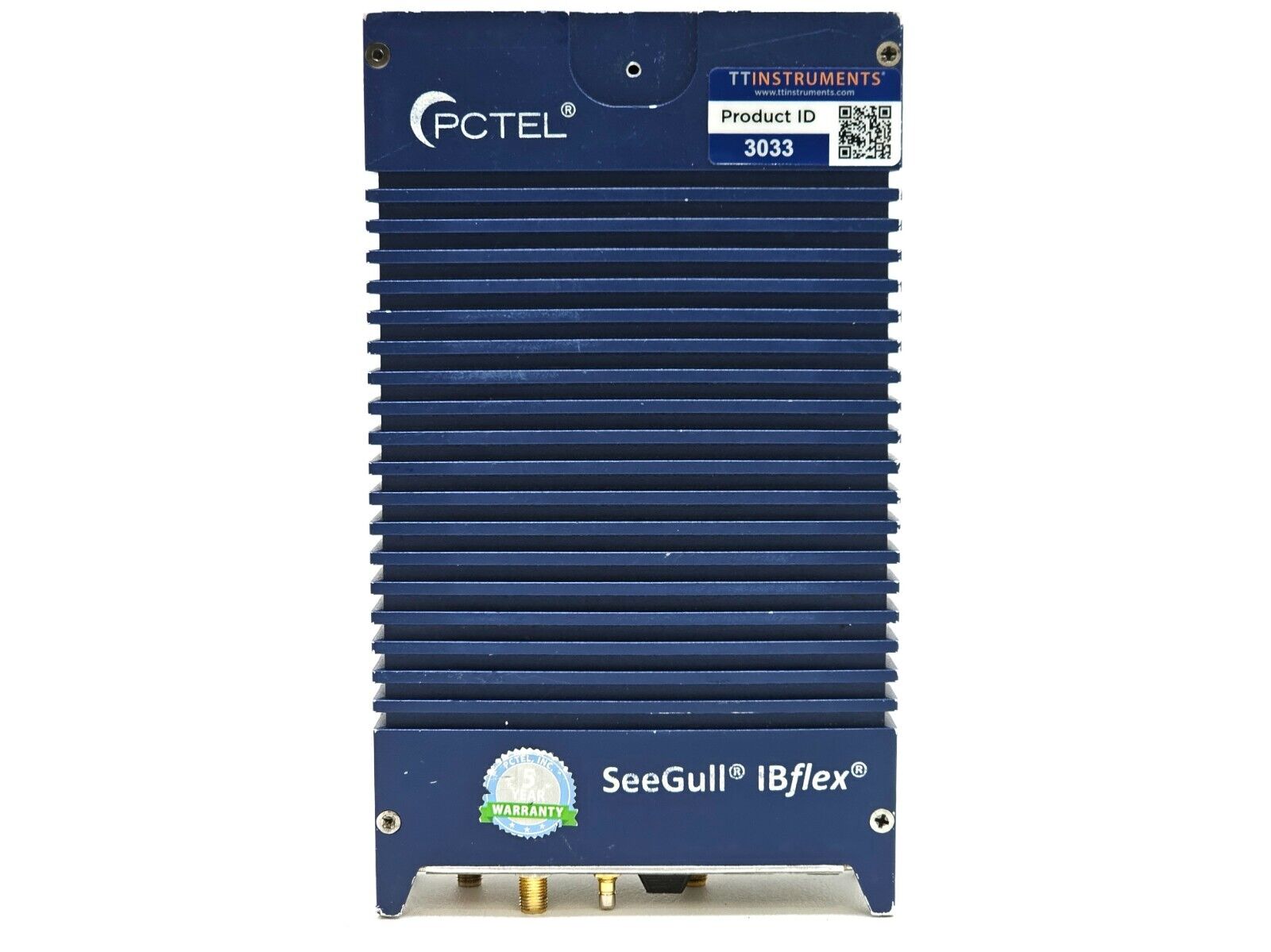

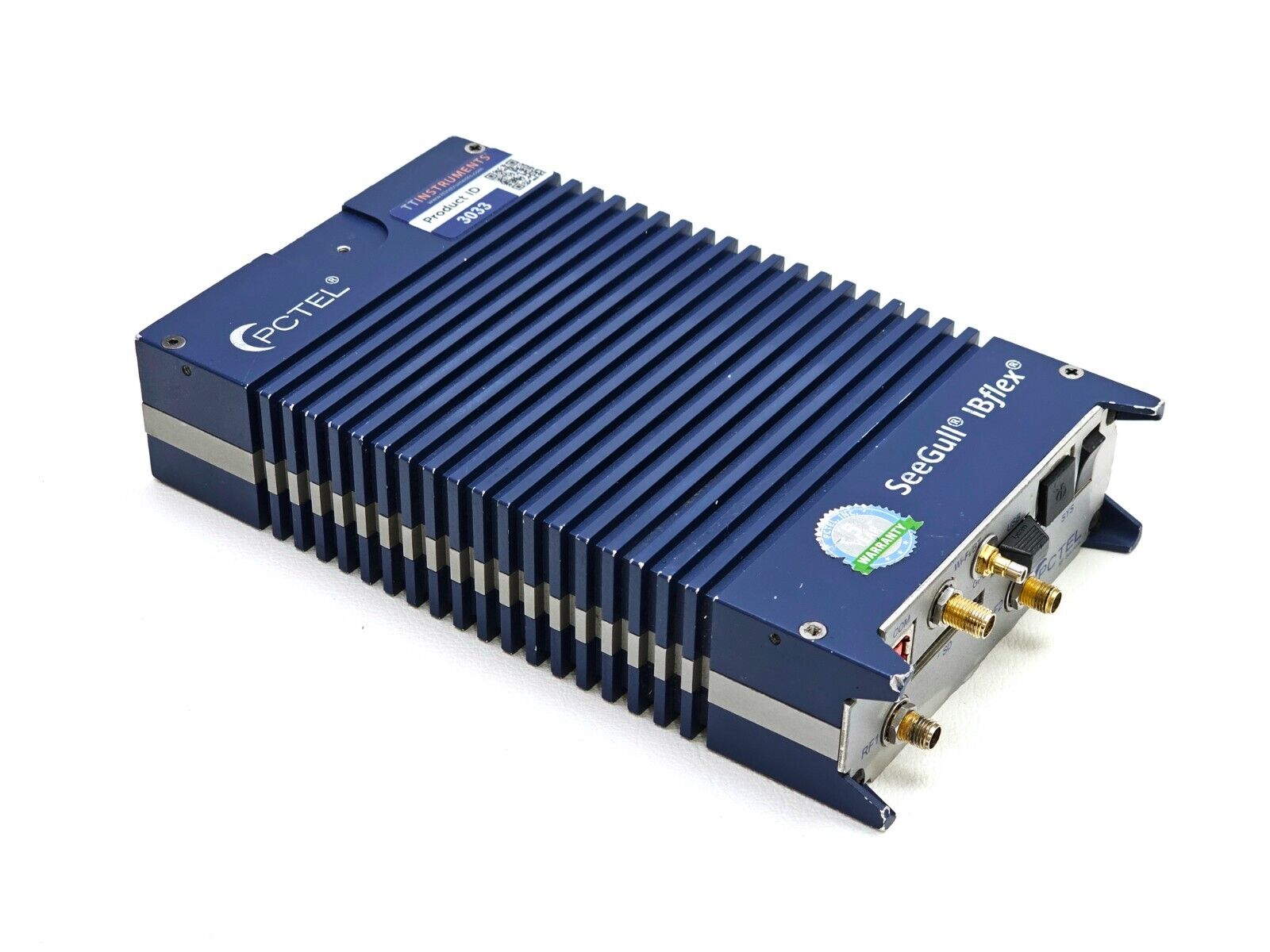

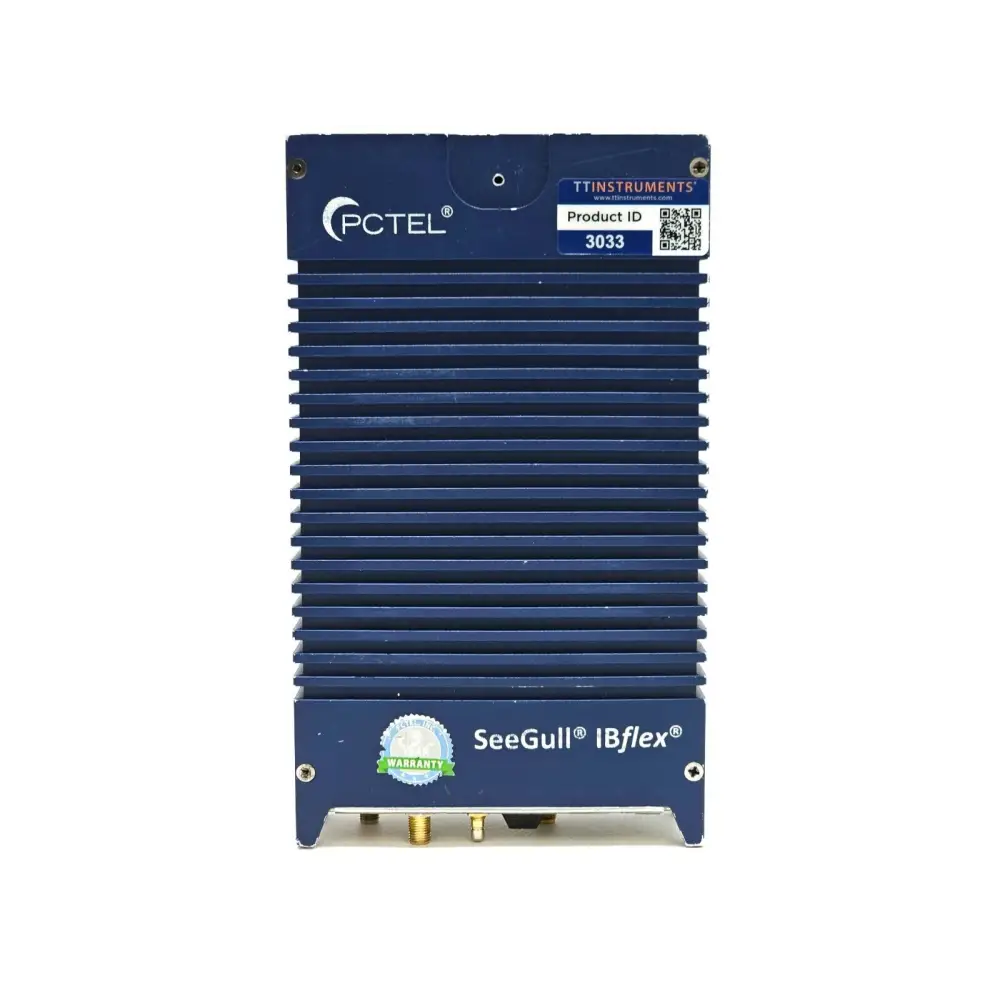

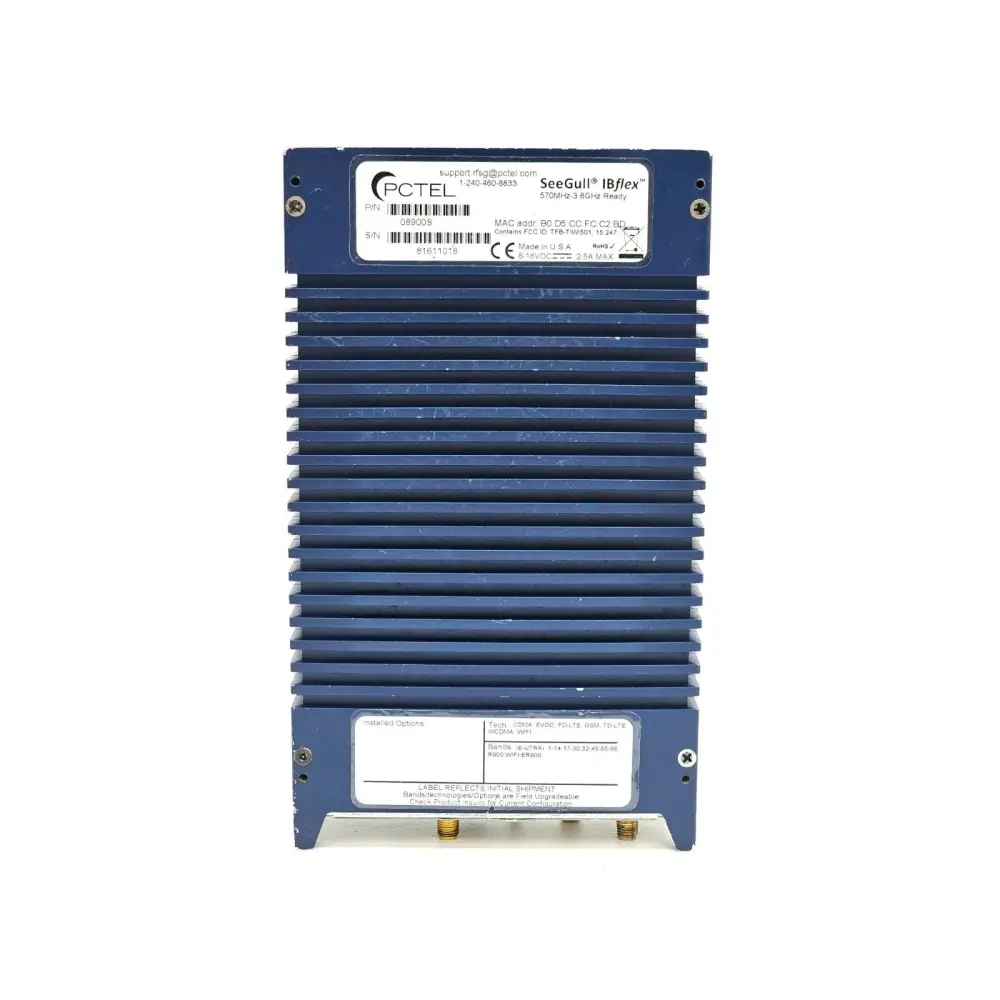

The PCTEL SeeGull IBflex 08900S scanning receiver covers 570 MHz to 3.8 GHz and carries 36 active perpetual licensed options. Calibrated September 2020 (Calibration Version 17), the unit has been tested and confirmed in excellent working condition. Interfaces include USB, Bluetooth, AOA, and Ethernet.

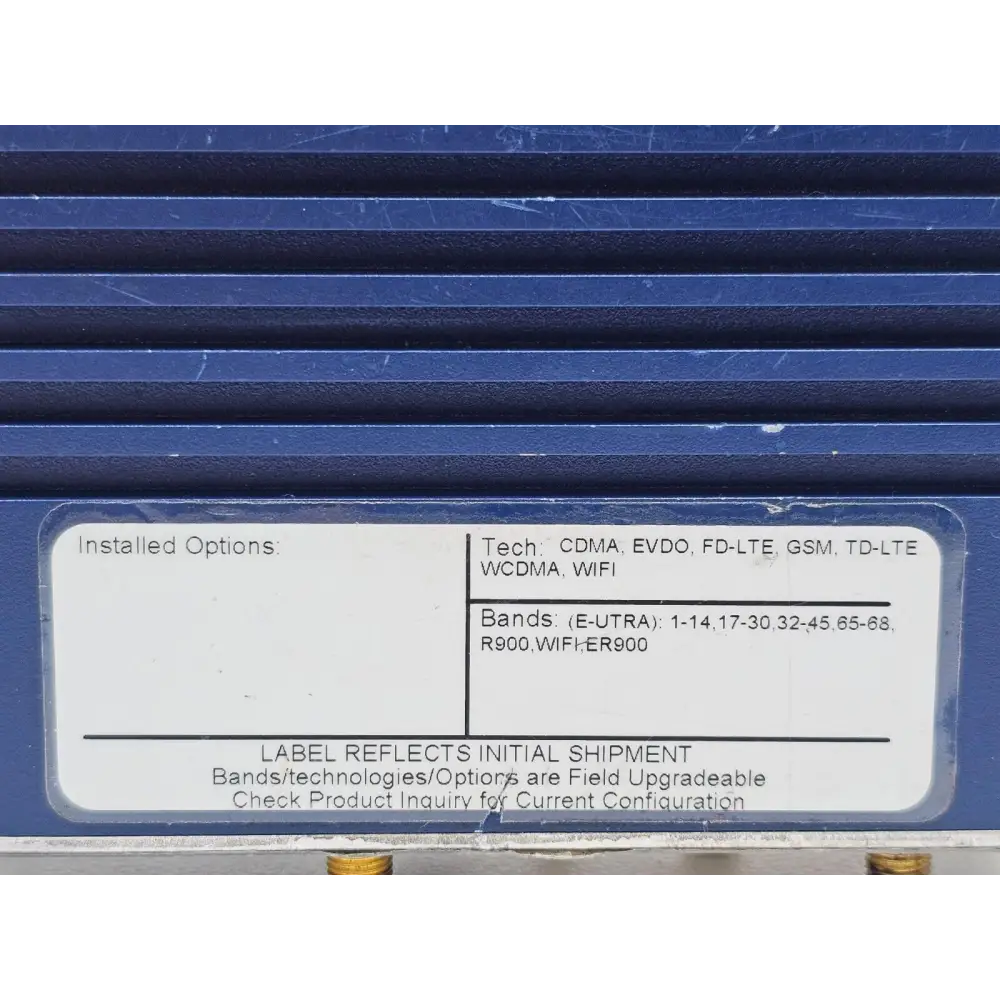

Active licensed options include:
• 570 MHz – 3800 MHz Capability
• Dual RF Port
• Recording to SD Card
• GPS Navigation
• Absolute Time Stamp
• WiFi USB Adaptor
• Bluetooth Interface
• Ethernet Interface
• GSM Blind Scan
• IS-95 Blind Scan
• WCDMA Blind Scan
• CDMA Blind Scan
• EVDO Blind Scan
• LTE Blind Scan
• TD-LTE Blind Scan
• WiFi Support
• WiFi Blind Scan
• LTE Support
• LTE Enhanced Signal Scan
• IS-95 Support
• IS-95 Pilot
• IS-95 Extended Dynamic Range
• CDMA Support
• CDMA Pilot
• CDMA Extended Dynamic Range
• EVDO Support
• EVDO Pilot
• EVDO Extended Dynamic Range
• TD-LTE Support
• TD-LTE Enhanced Signal Scan
• GSM Support
• GSM BSIC
• GSM BCCH C/I
• WCDMA Support
• WCDMA Pilot
• WCDMA Extended Dynamic Range

The PCTEL IBflex scanning receiver combines portability and accuracy with the power to test multiple wireless technologies and frequency bands simultaneously. Designed primarily for in-building and small cell walk testing, it is equally capable for outdoor drive test applications without compromising performance or accuracy.

The IBflex supports deployment of LTE and legacy 2G/3G networks, and can be used to verify coverage, optimise dense small cell deployments, improve in-building wireless network reliability, and conduct interference hunting. Its hot-swap battery system and low power consumption make it well suited to extended field use.

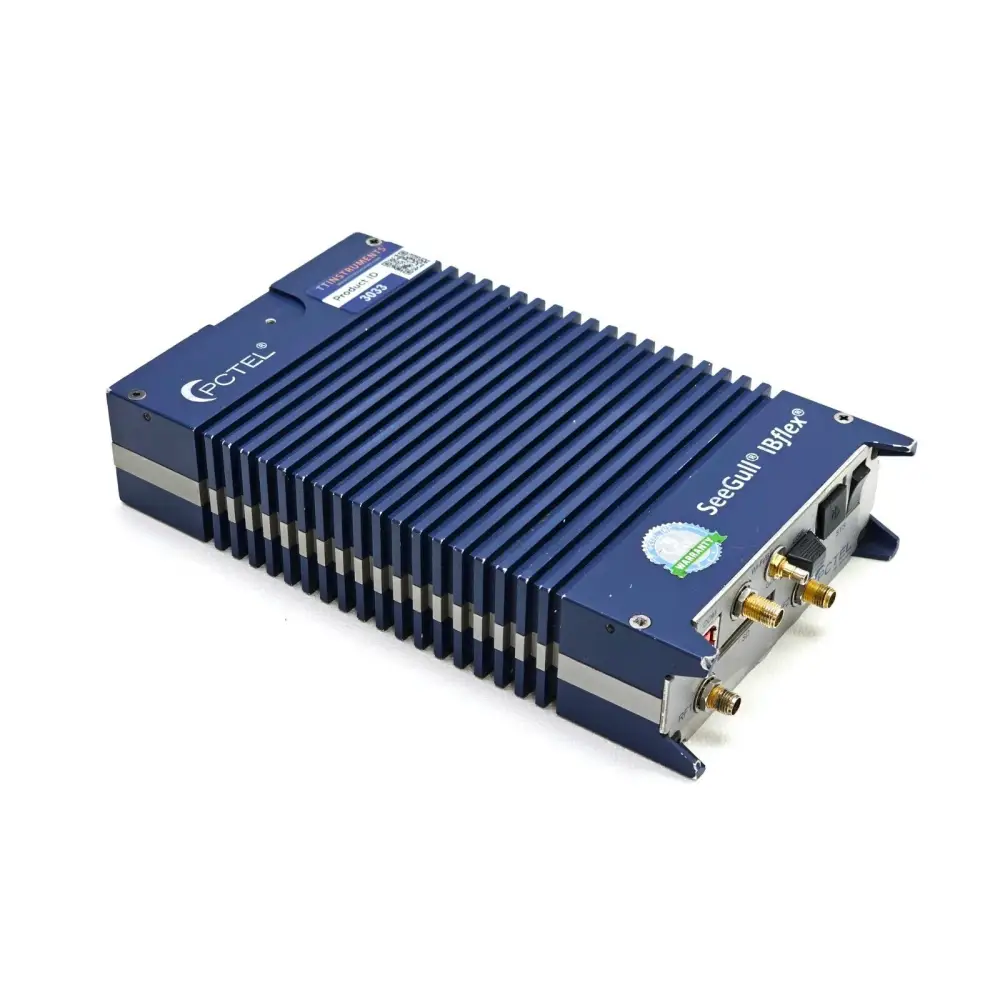

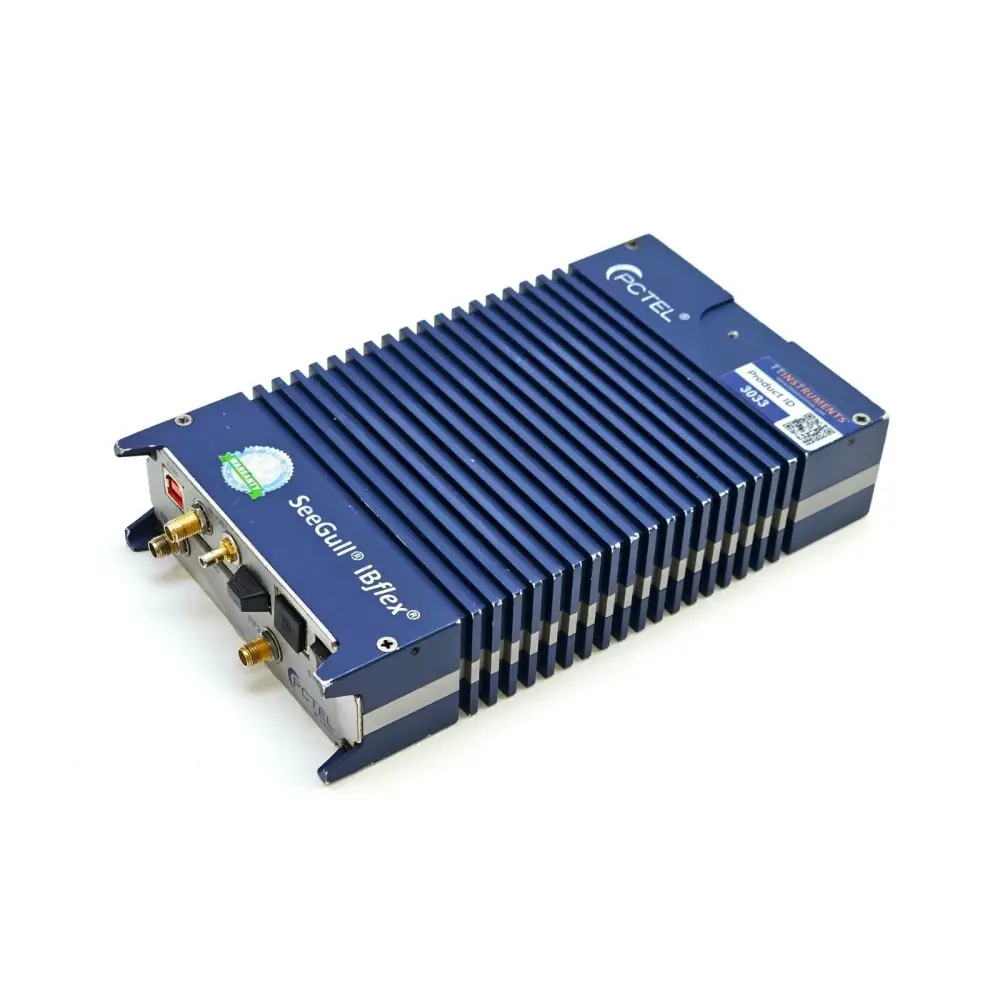

Connectivity options include USB, Bluetooth (for Android tablet or PC), and Ethernet. SD card recording enables standalone data logging. The scanner is controlled via PCTEL SeeGull Assistant or SeeHawk Collect software.

Supported Technologies:
GSM, CDMA (IS-95), WCDMA/UMTS, CDMA2000, EV-DO, LTE FDD, TD-LTE, Wi-Fi (2.4 GHz and 5 GHz), NB-IoT (with appropriate options)

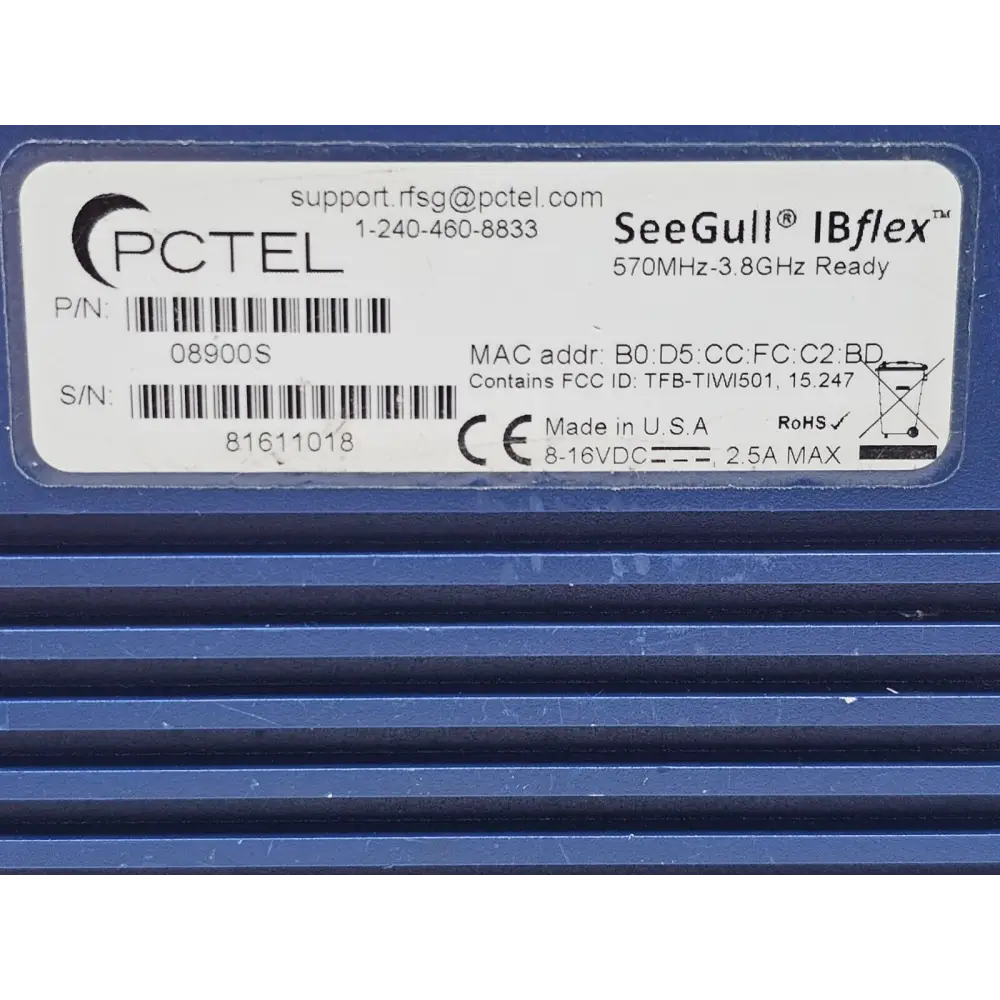

Frequency Range (08900S model): 570 MHz – 3800 MHz

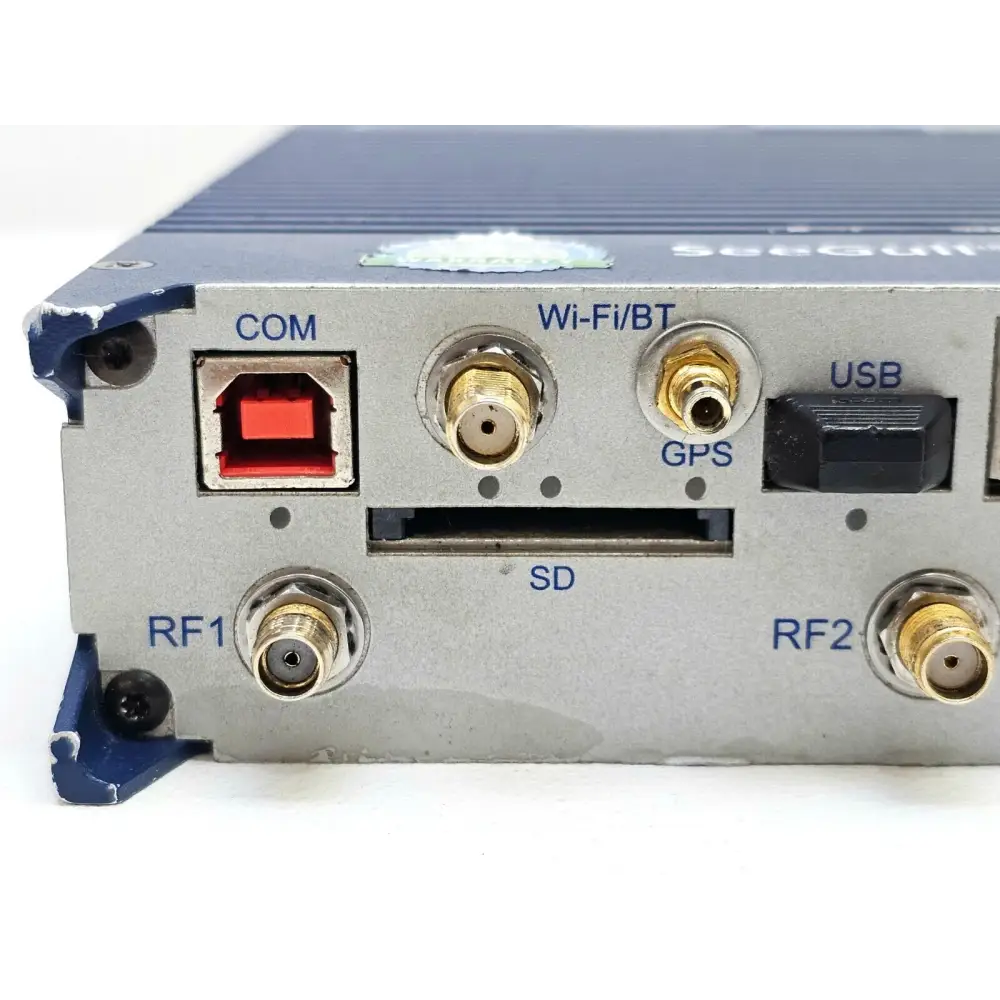

Dual RF Input Ports: Yes (standard on 08900S)

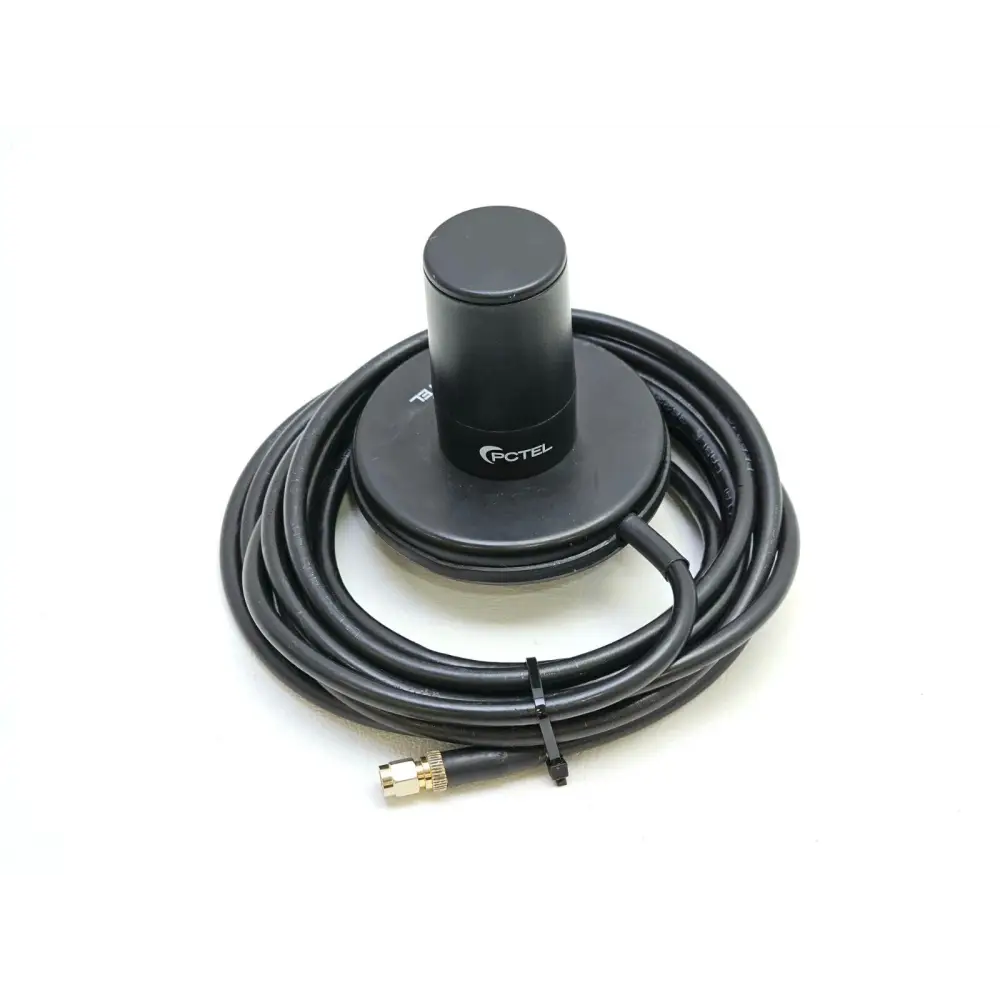

GPS Receiver: 56-channel internal, ±2.5 m position accuracy, cold start <30 sec
Power Measurement Accuracy: ±1 dB (across basic RF input power range)
Dynamic Range: -120 to -20 dBm @ 30 kHz RSSI
LTE/5G NR Scan Speed: Up to 11,050 channels/sec (maximum, contiguous channels)
NB-IoT/UMTS/GSM Scan Speed: Up to 4,250 channels/sec (maximum, contiguous channels)
CDMA/EV-DO Scan Speed: Up to 8,500 channels/sec (maximum, contiguous channels)
Enhanced Power Scan (EPS): 5 kHz to 20 MHz in 2.5 kHz increments; ~1,000 MHz/sec @ 5 MHz
Spectrum Analysis Dynamic Range: >90 dB

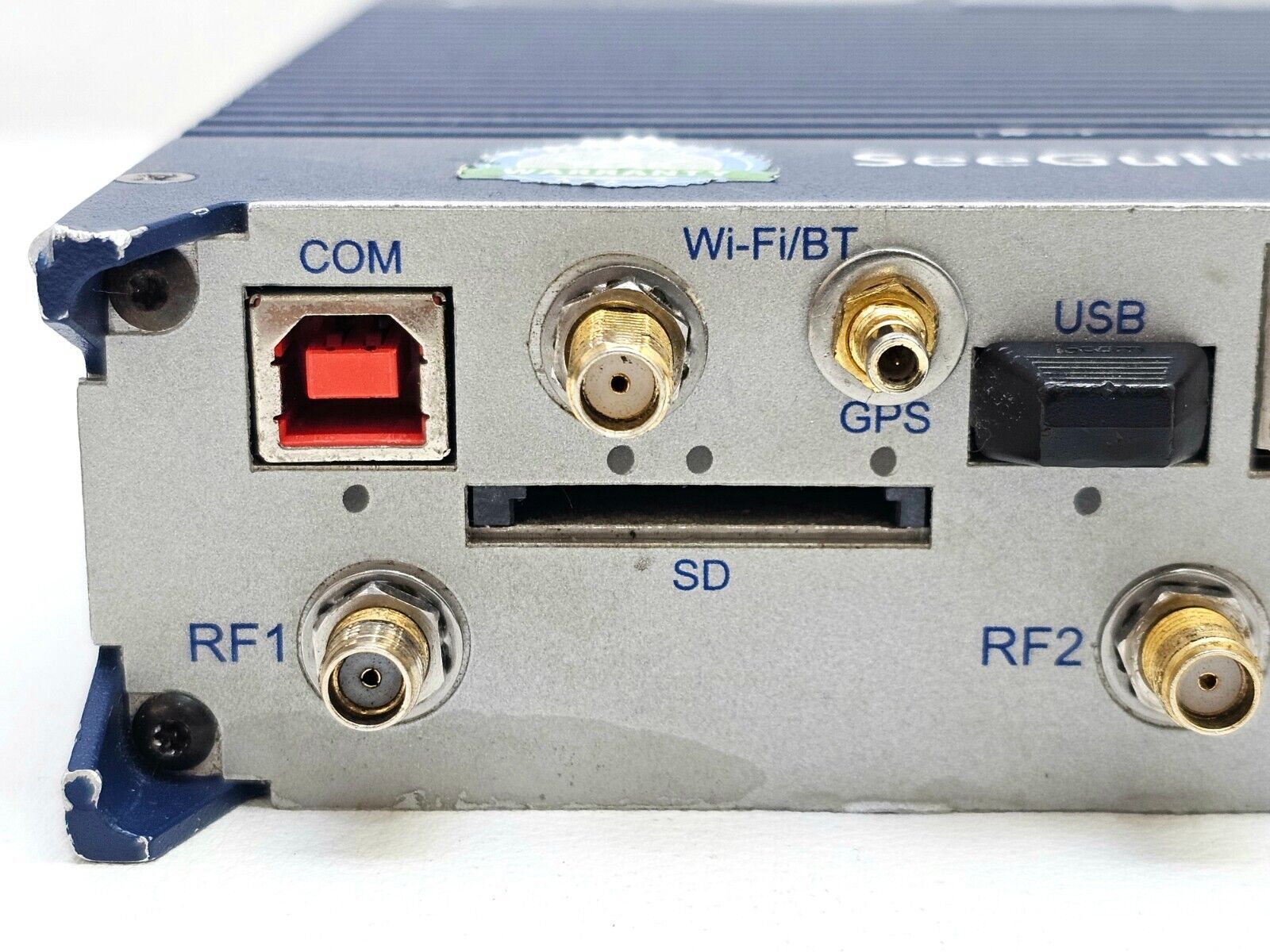

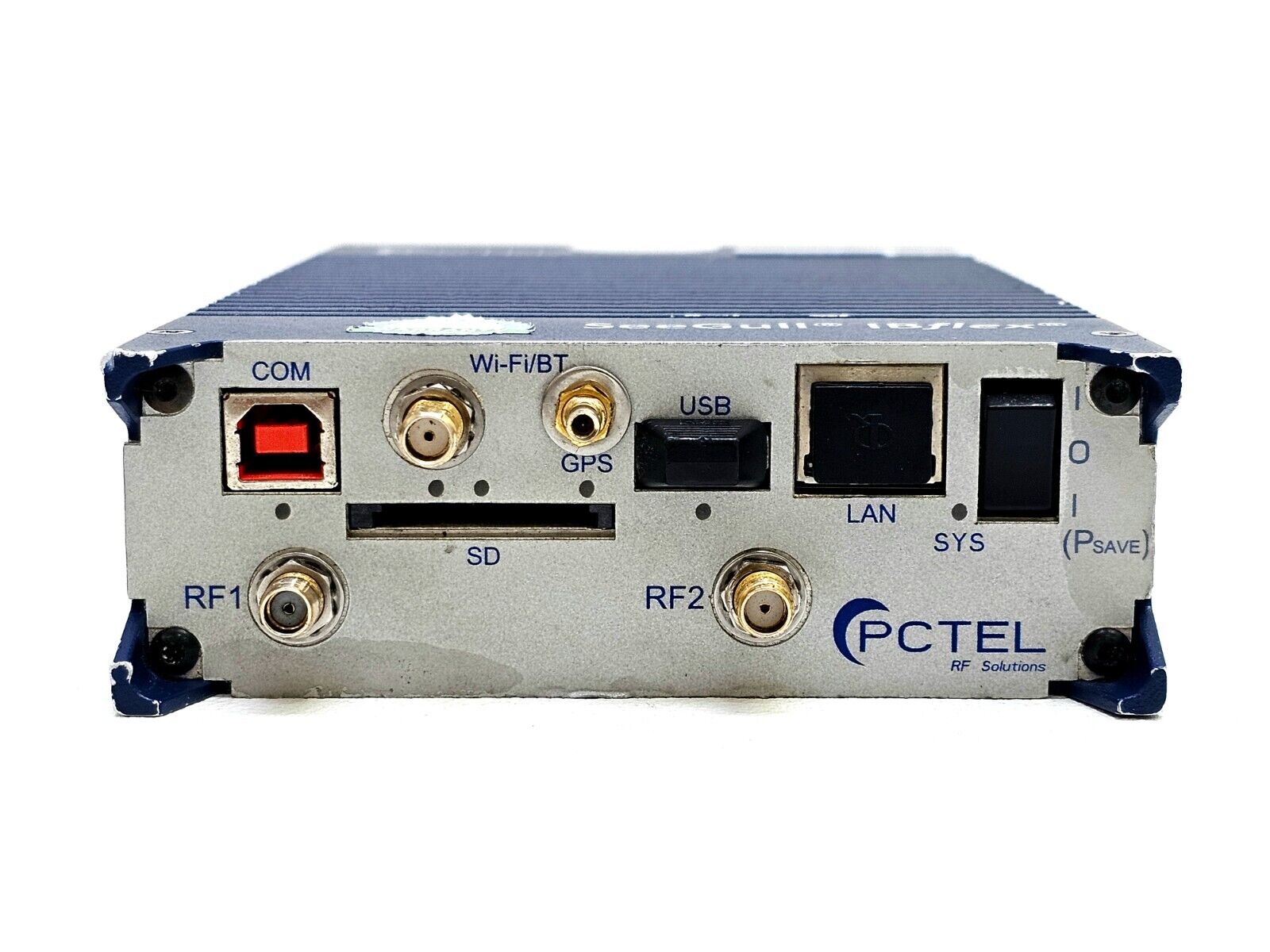

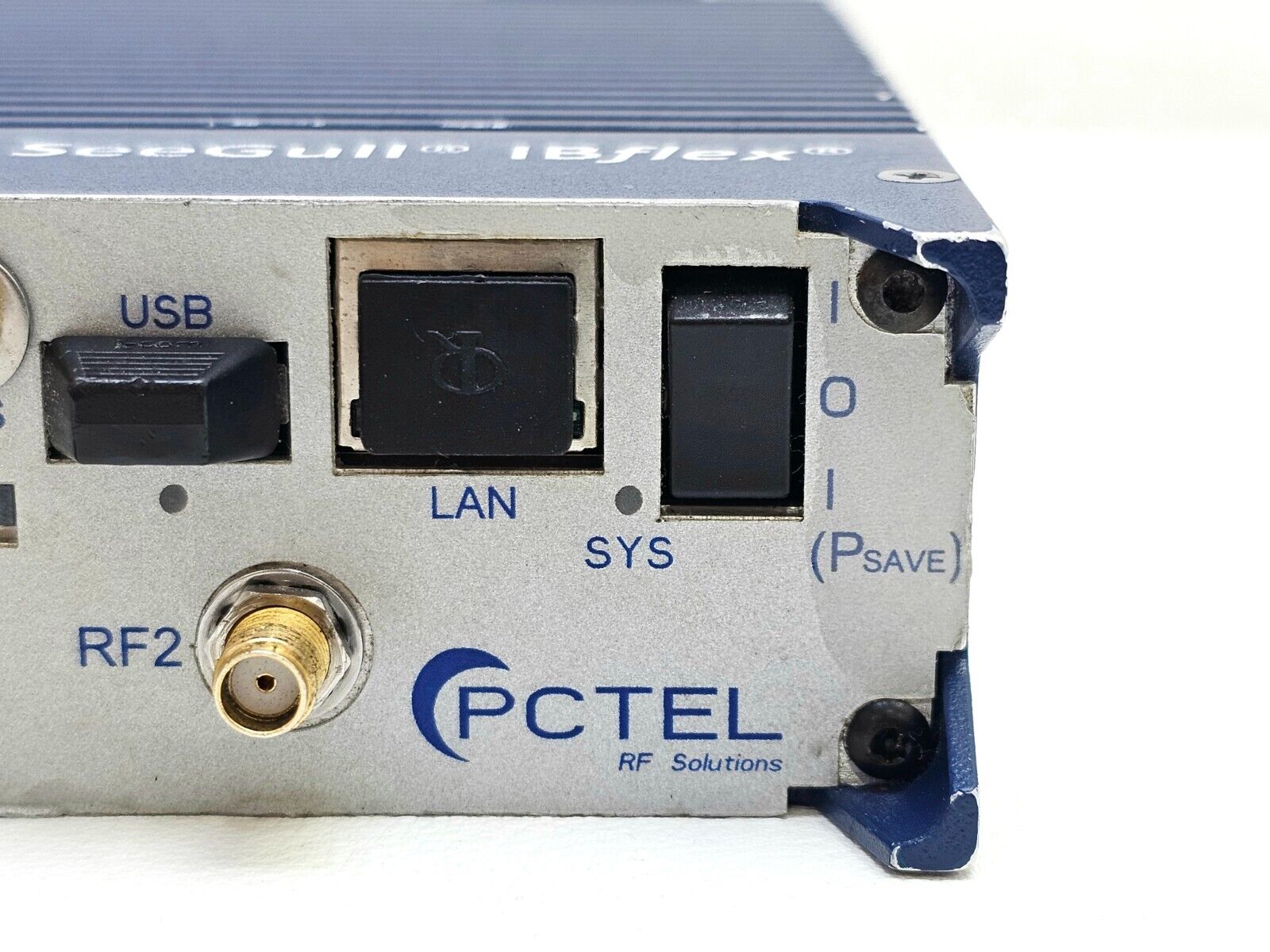

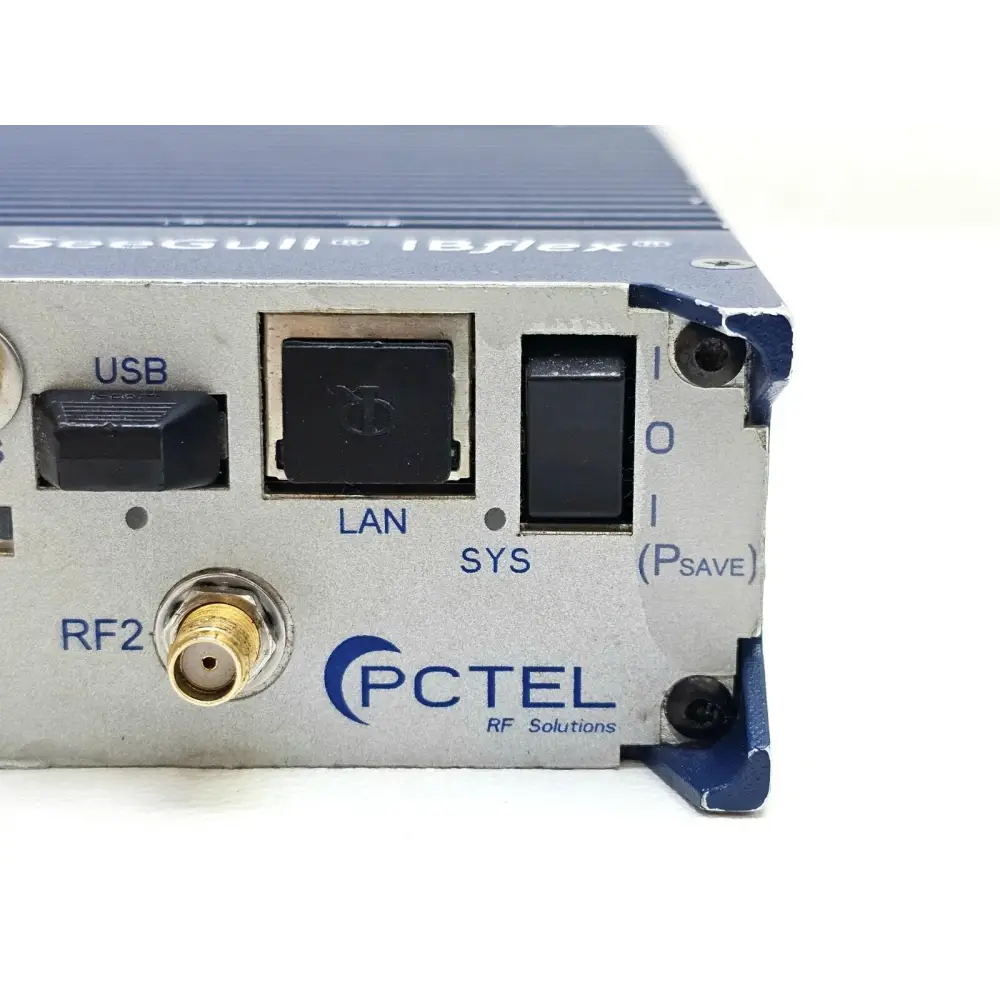

Interfaces: USB, Bluetooth, Ethernet, SD Card (recording), AOA

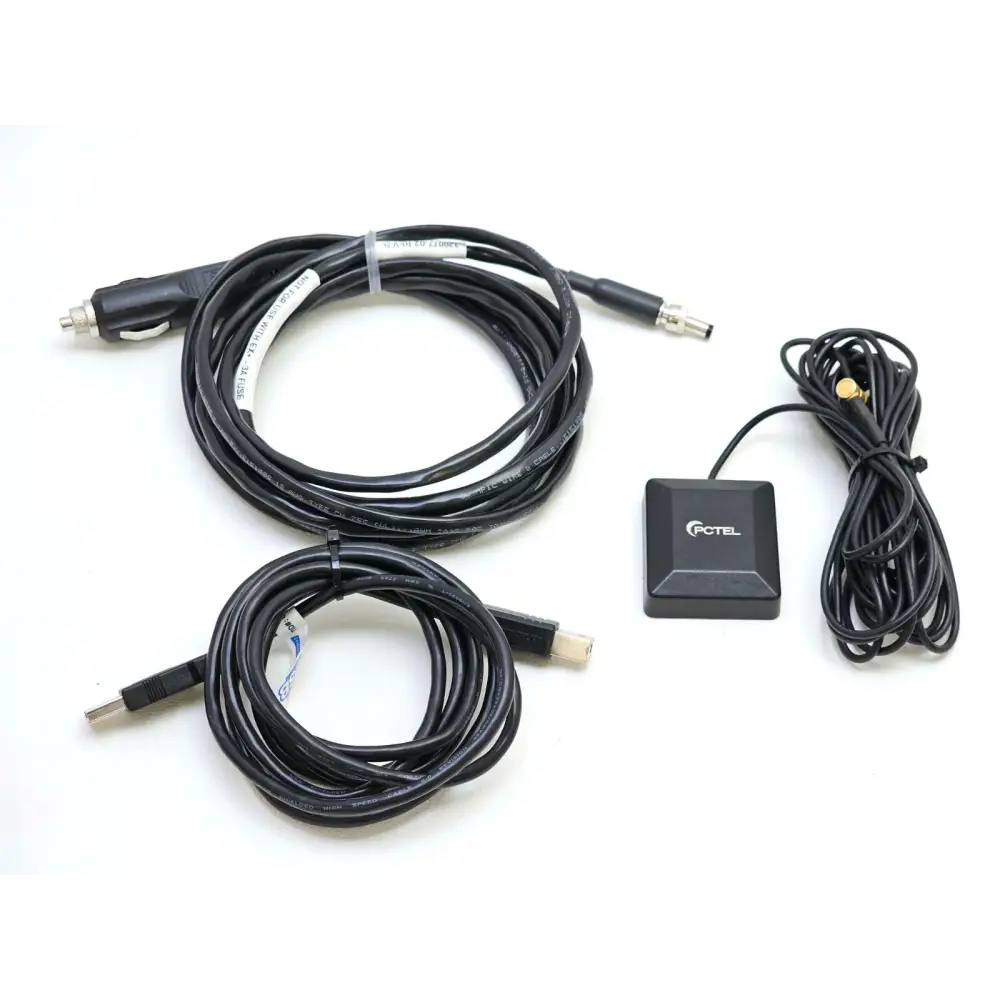

Power Input: 9–17 VDC (AC/DC adapter or vehicle power)
License Type: Perpetual (field-upgradeable software-defined options)
Calibration Interval: Recommended every 2 years
Compatible Software: PCTEL SeeGull Assistant, SeeHawk Collect (Windows PC or Android tablet)

PCTEL SeeGull IBflex Hardware Reference Manual (Rev T) – official hardware guide covering setup, operation, specifications and maintenance: Download PDF

PCTEL SeeGull IBflex Hardware Reference Manual (Rev M) – earlier revision covering IBflex and IBflex Lite specifications and accessories: Download PDF

PCTEL IBflex Scanning Receiver Datasheet (Rev O, 2020) – product brochure with full technical specifications: Download PDF

PCTEL SeeGull IBflex Brochure – product overview brochure covering features, use cases and supported technologies: Download PDF

PCTEL IBflex Quick Start Guide (Doc 130058-01 Rev A) – step-by-step setup and activation instructions: Download PDF
