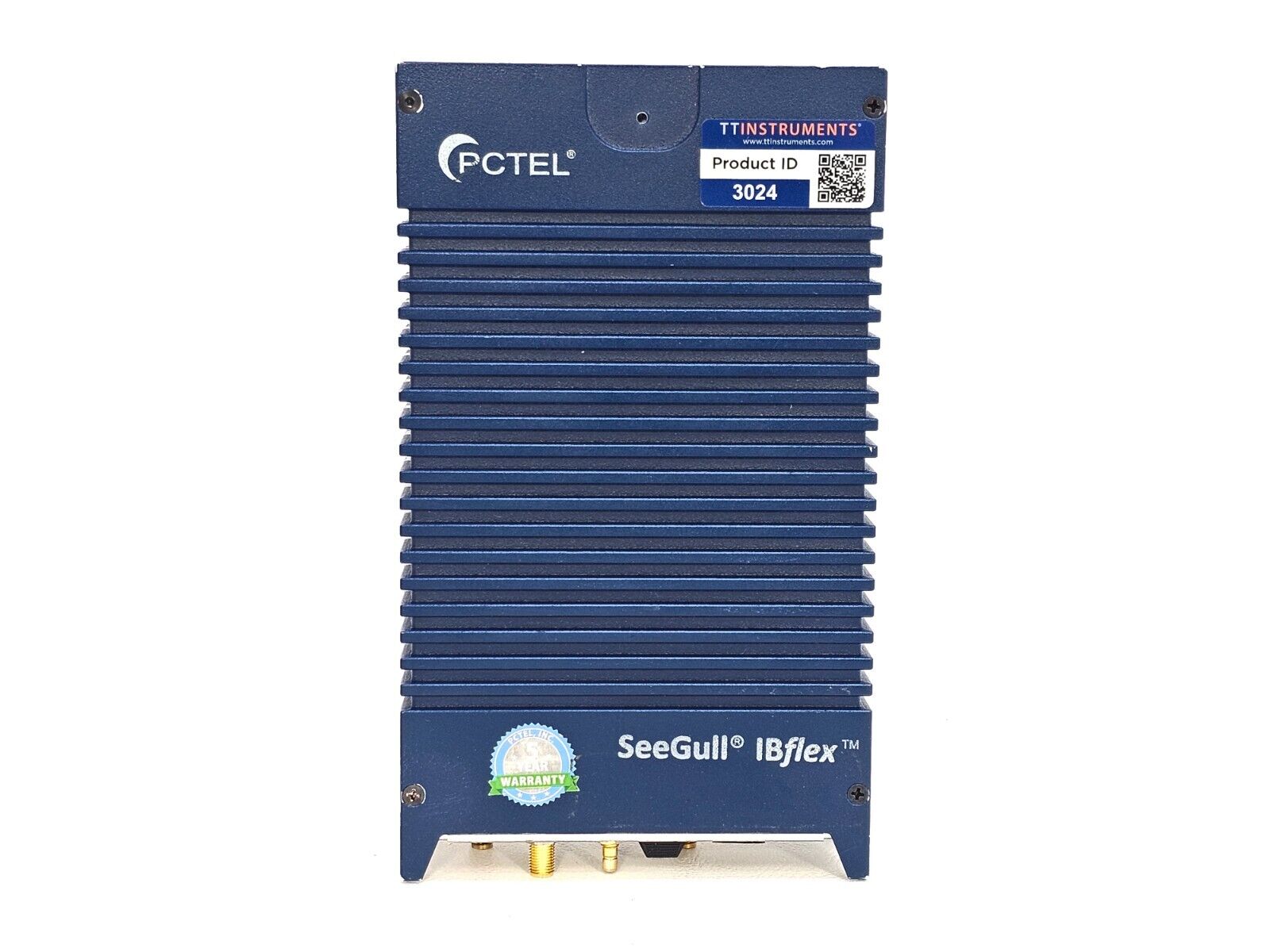

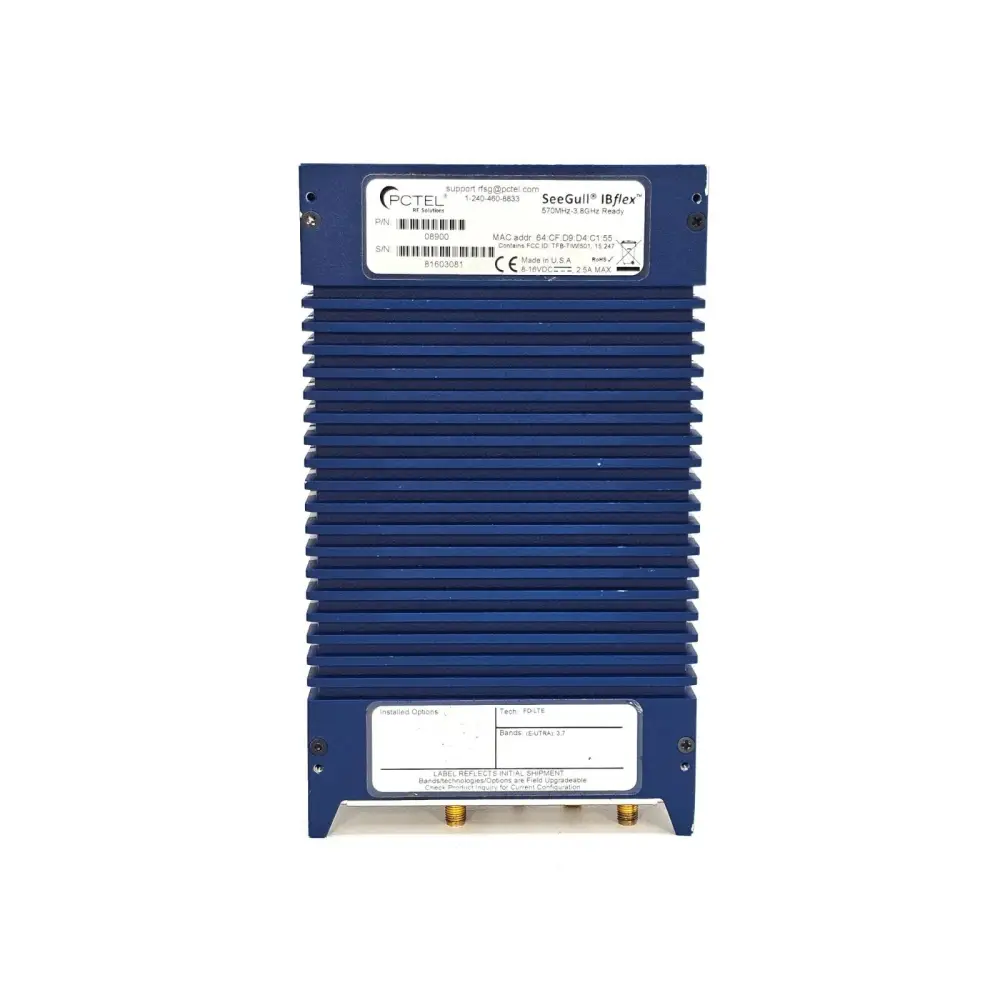

PCTEL SeeGull IBflex 570MHz - 3.8GHz Scanning Receiver 08900 LTE 4G 10 Options

Condition: Used

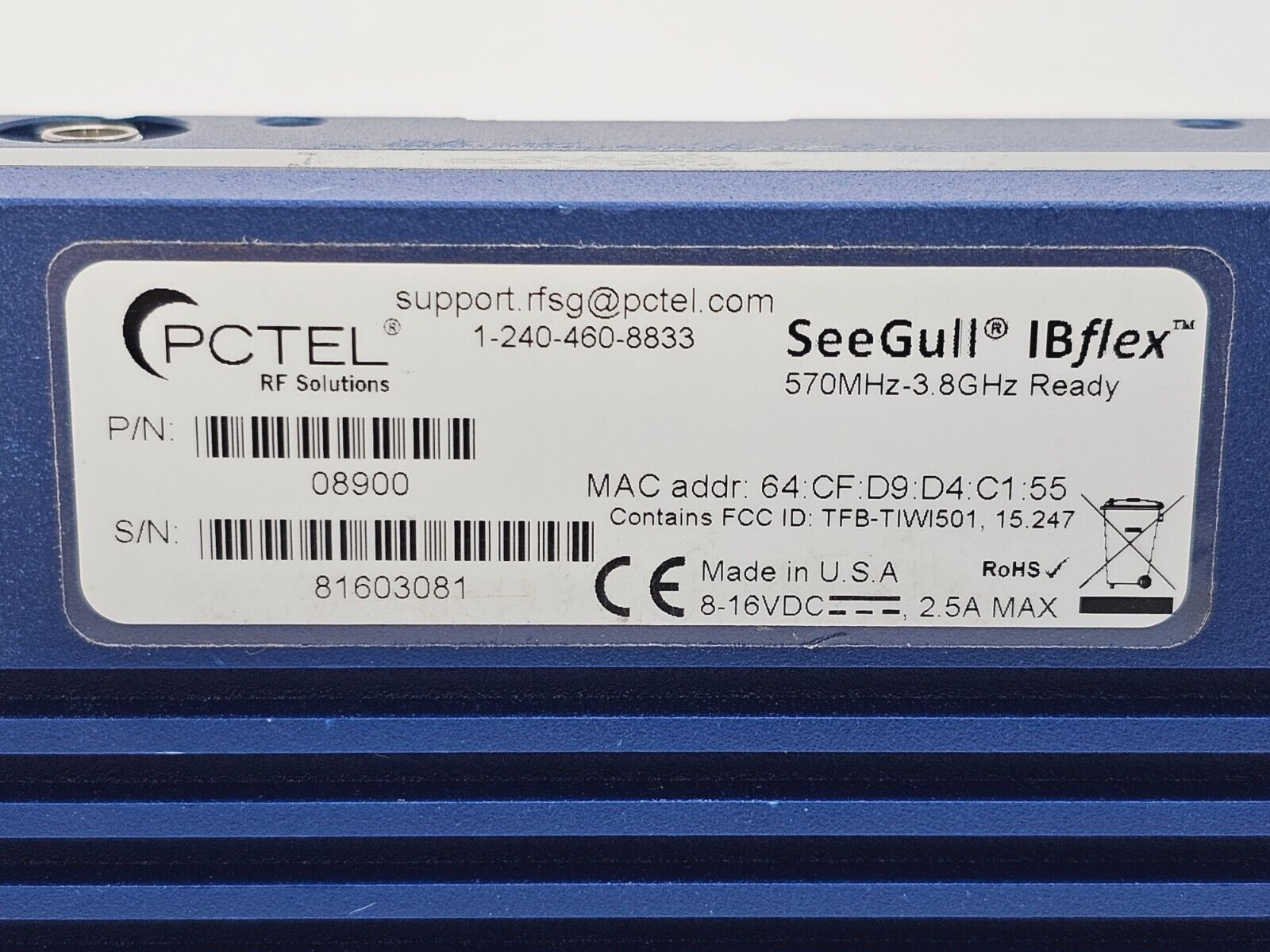

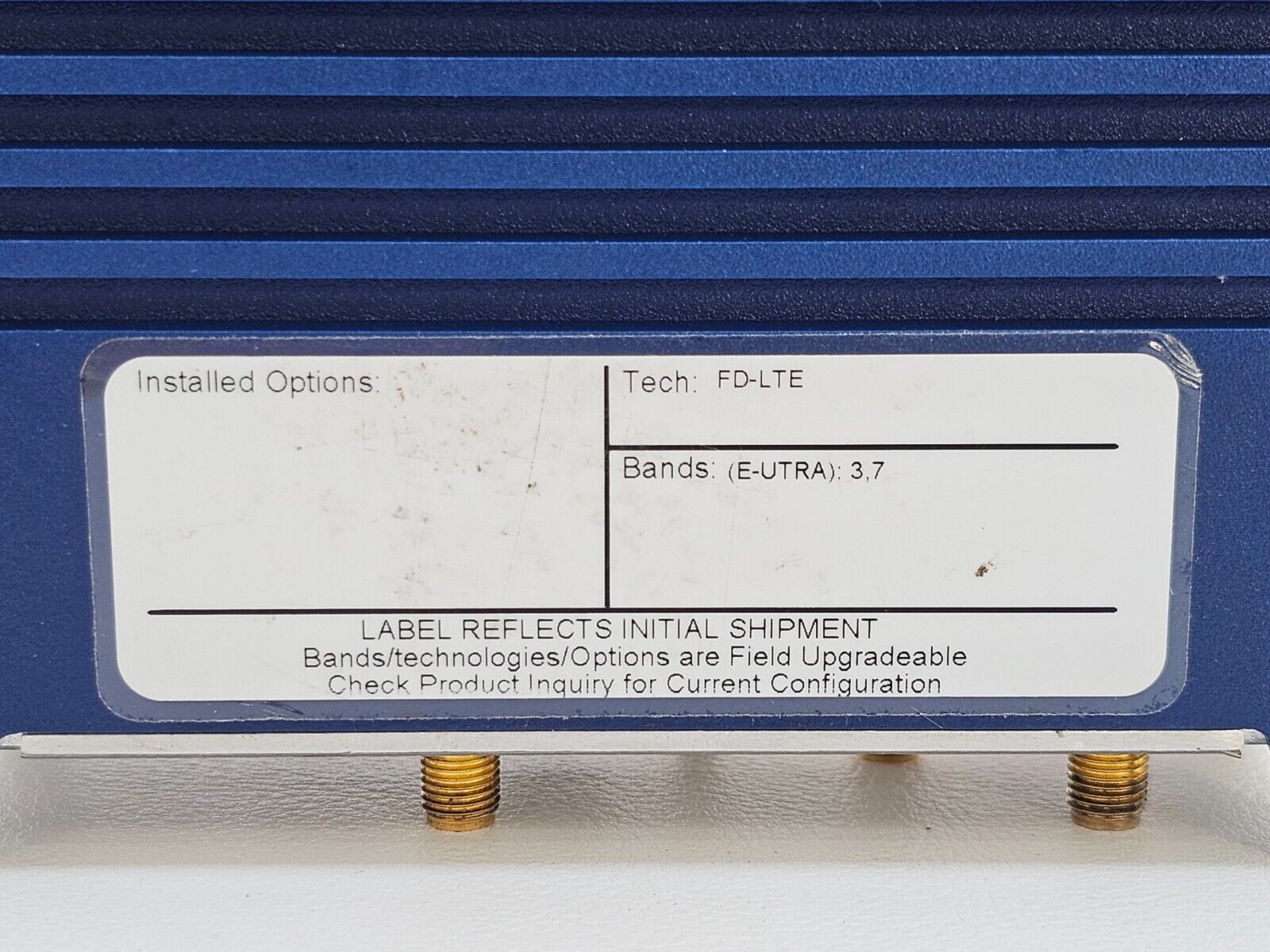

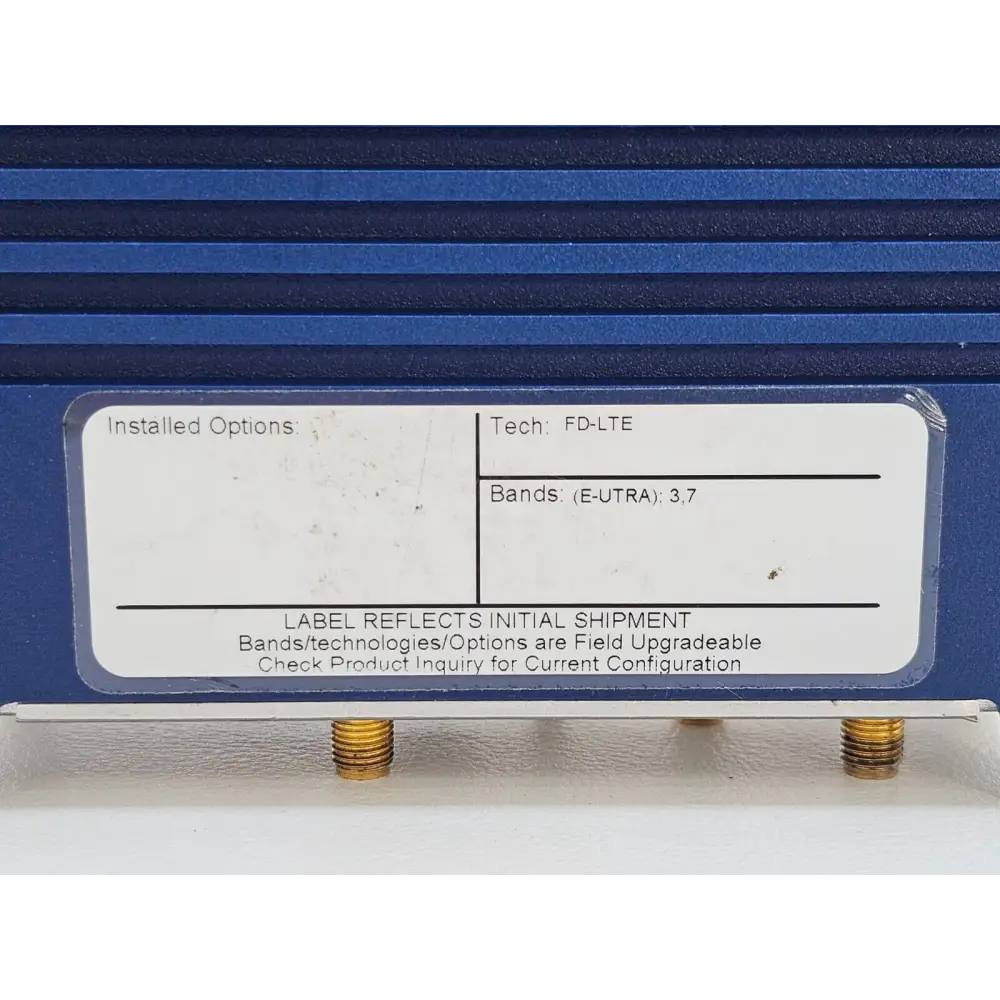

PCTEL SeeGull IBflex scanning receiver, part number 08900, covering 570 MHz to 3.8 GHz. Tested and confirmed in excellent working condition. Carries 10 installed options including LTE (EB-03 and EB-07 bands, DL and UL), GPS Navigation, Dual RF Port, and SD Card recording. Calibration date: 20/04/2016. Perpetual licence — Active. Software Release Version 3.2.1.0.

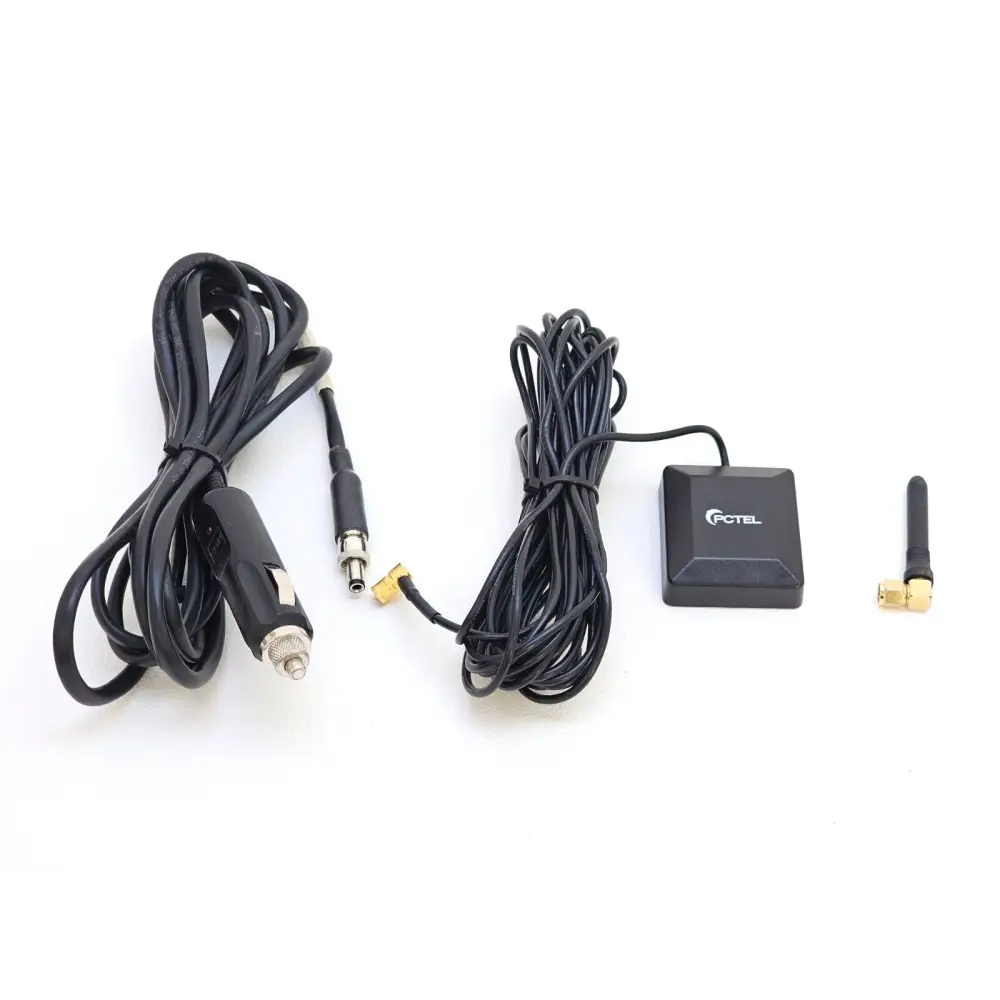

Included in the sale:

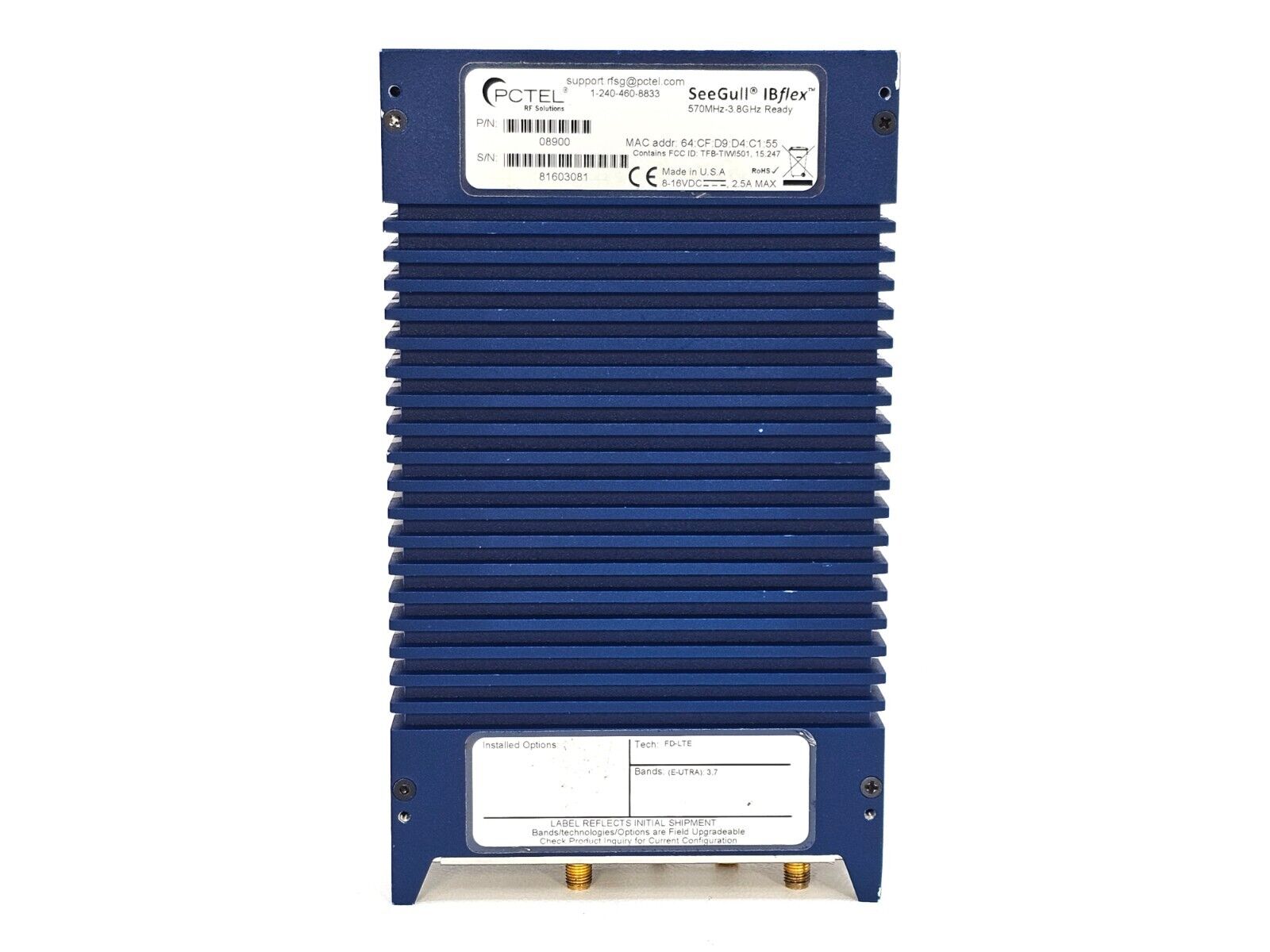

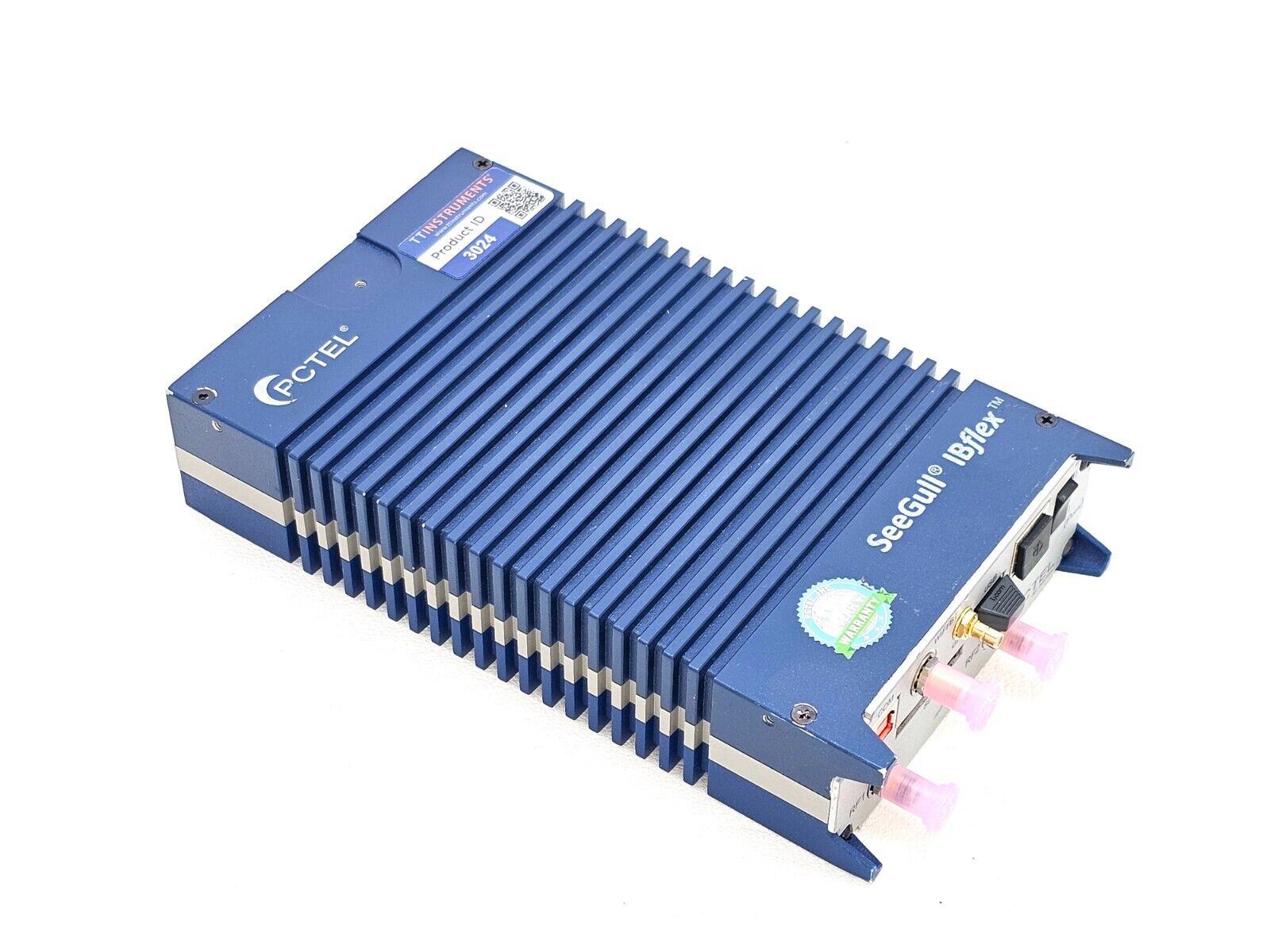

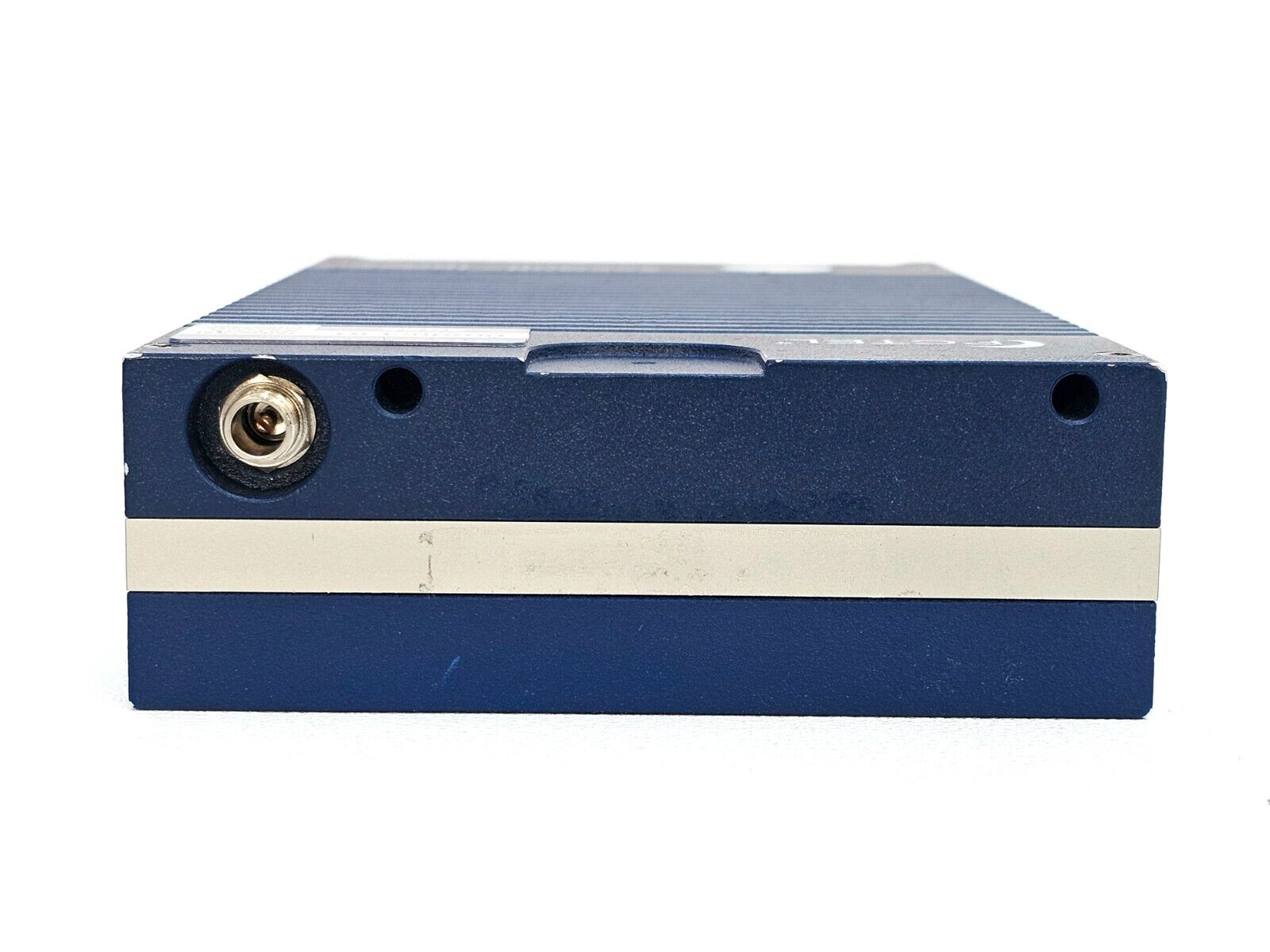

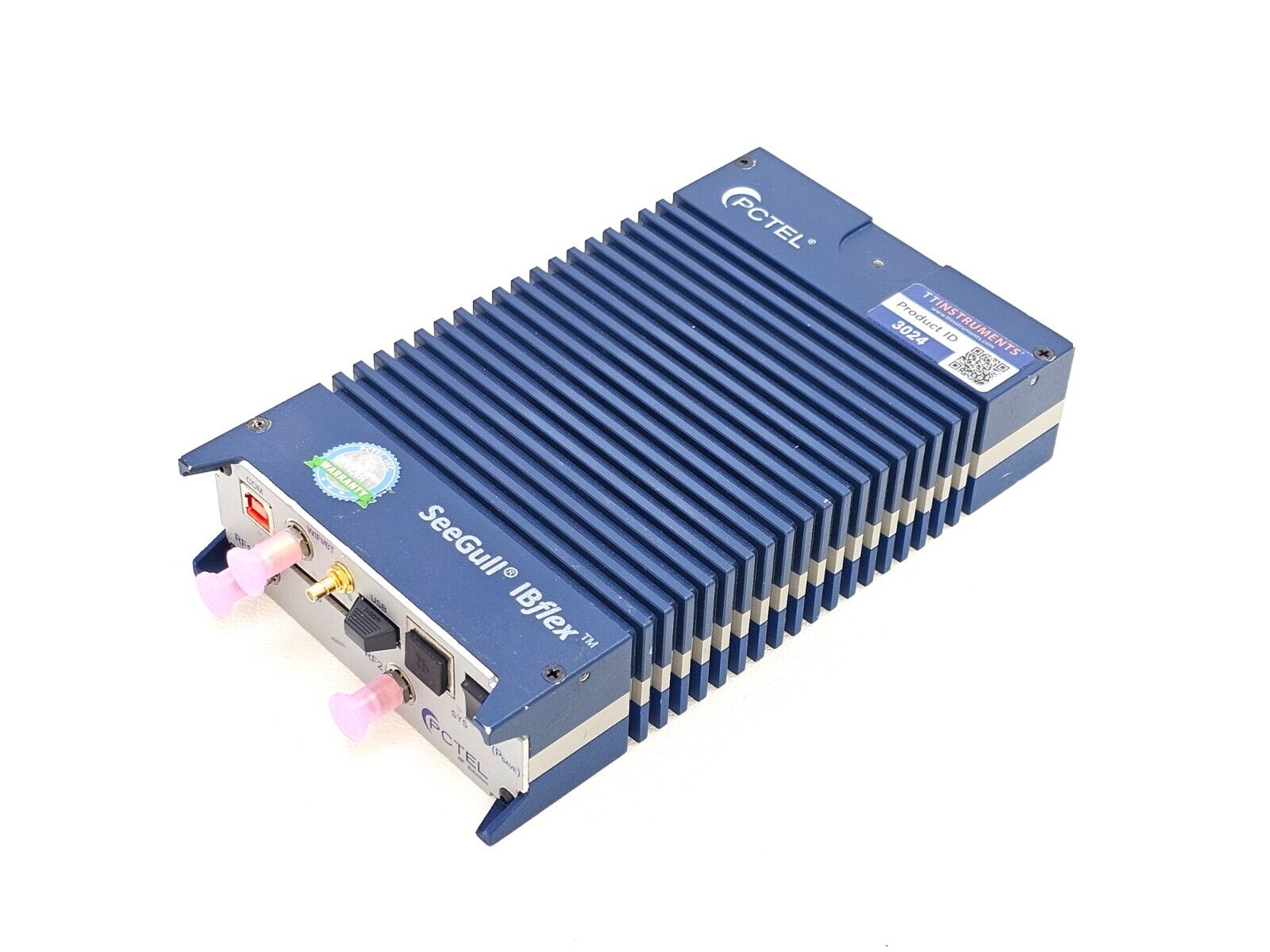

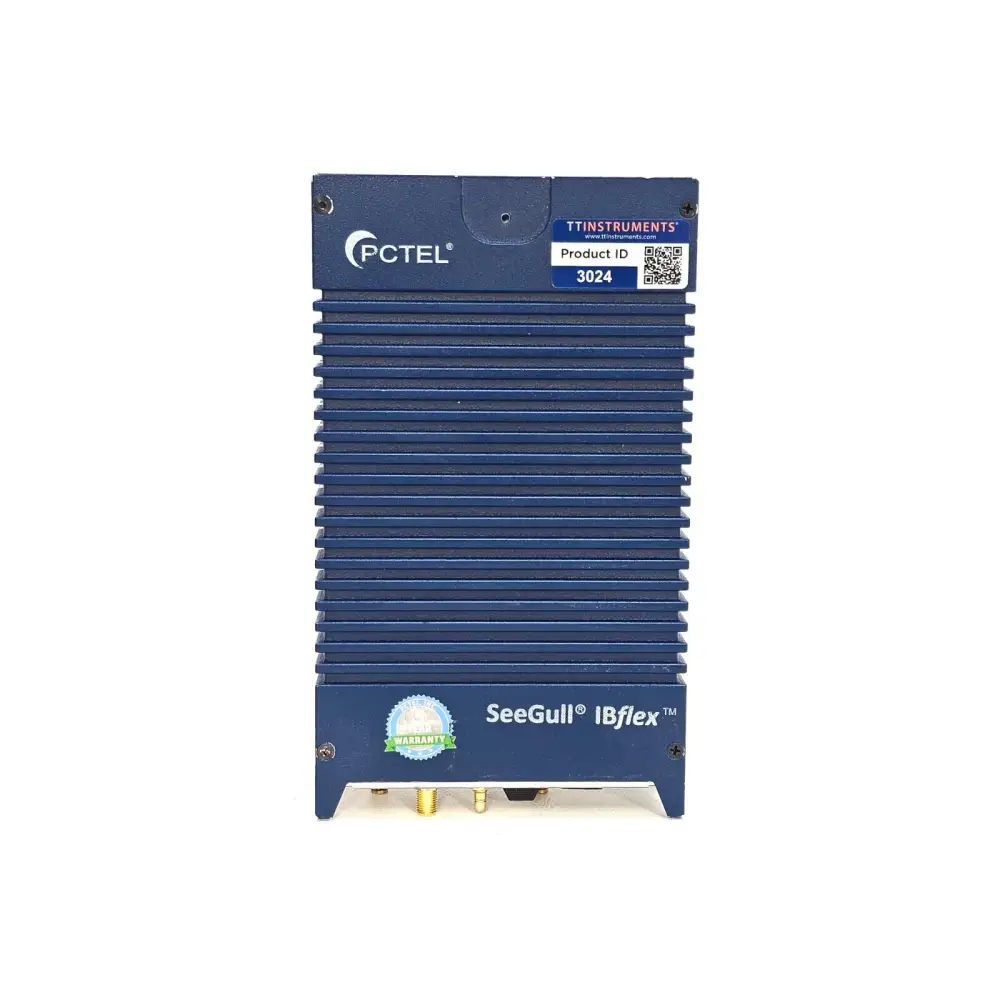

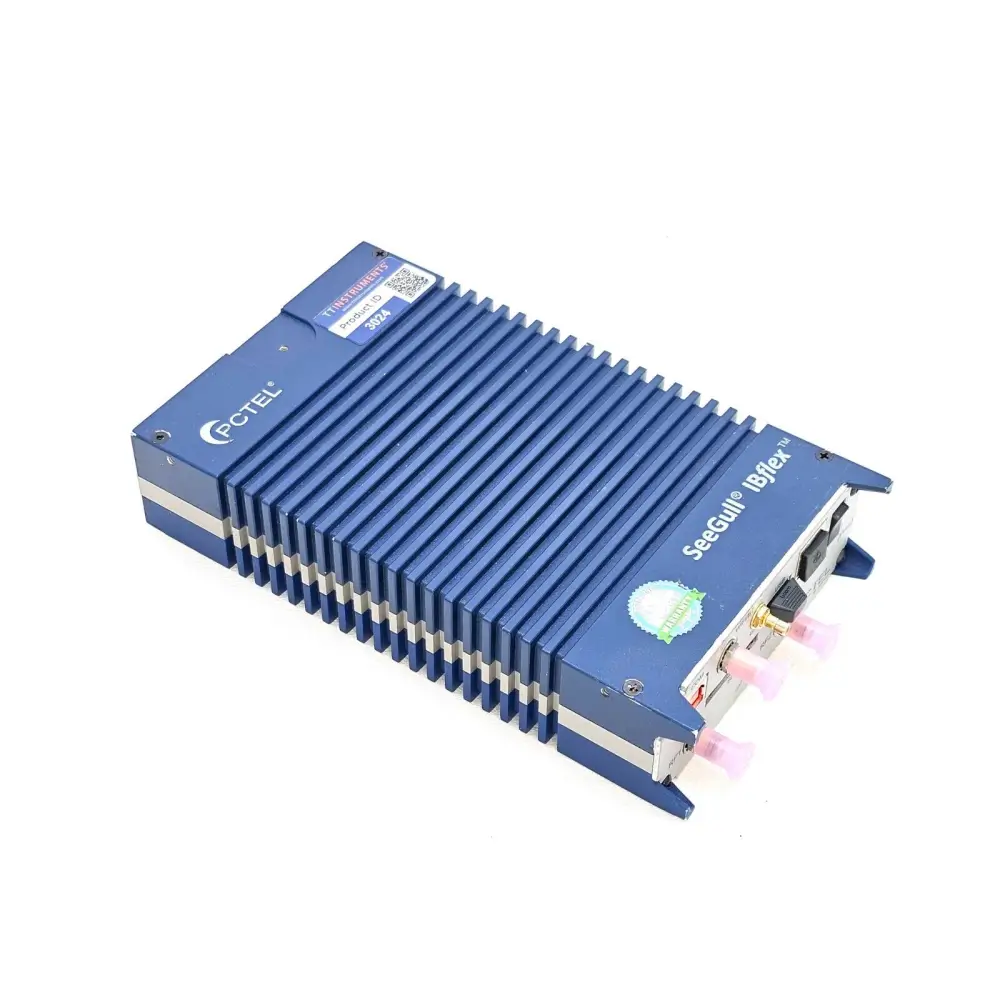

• PCTEL SeeGull IBflex 570 MHz – 3.8 GHz (08900)

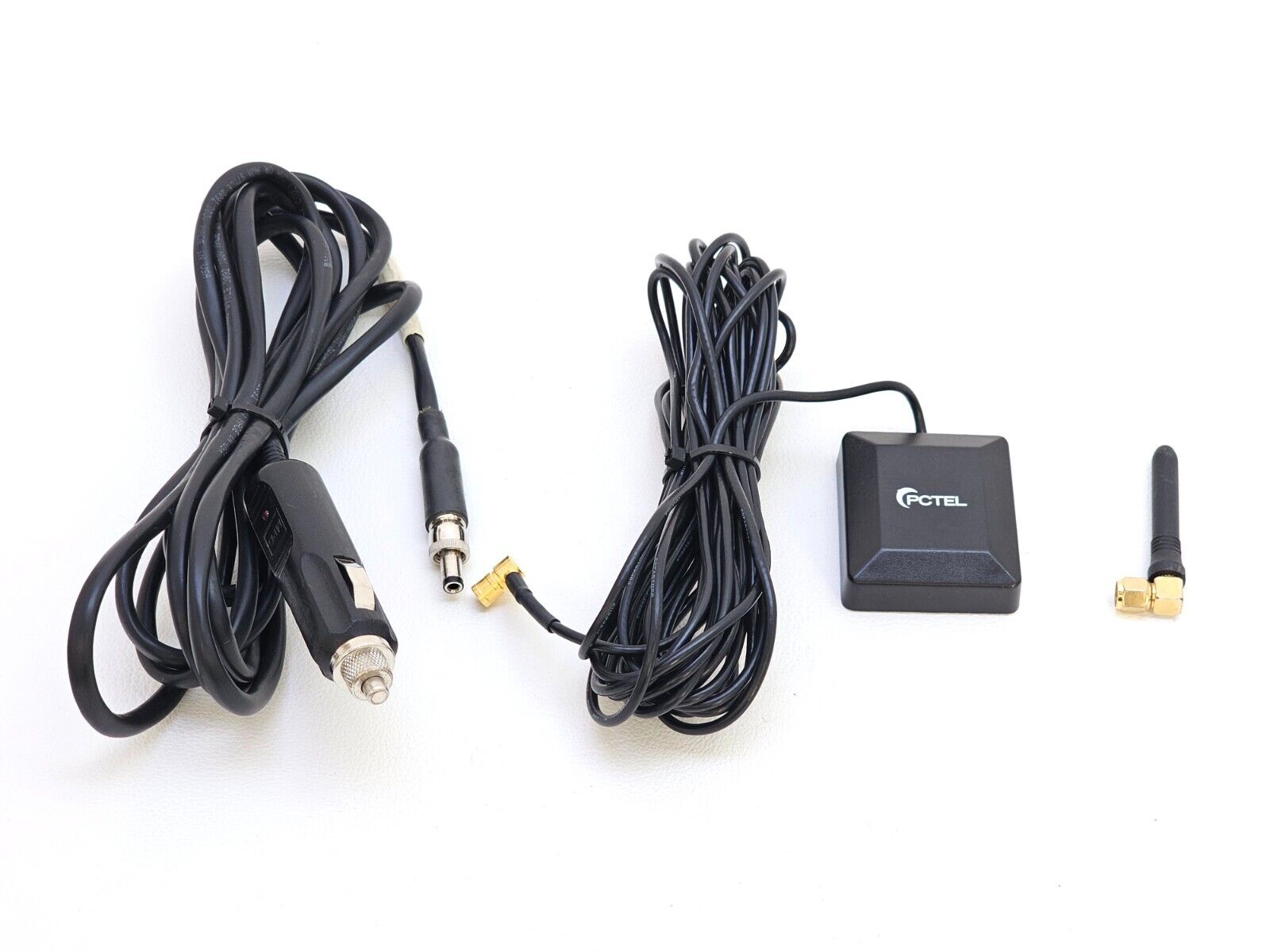

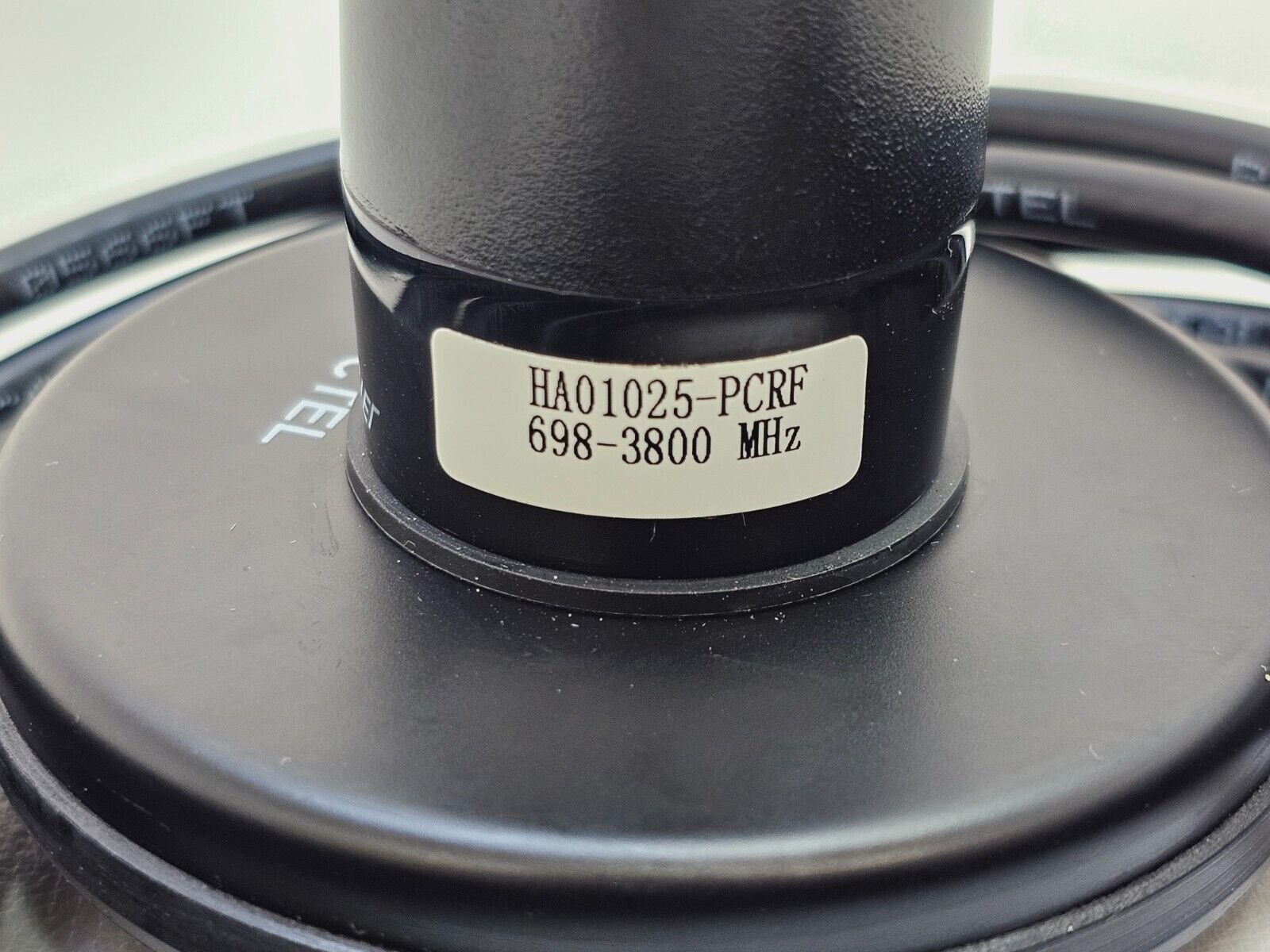

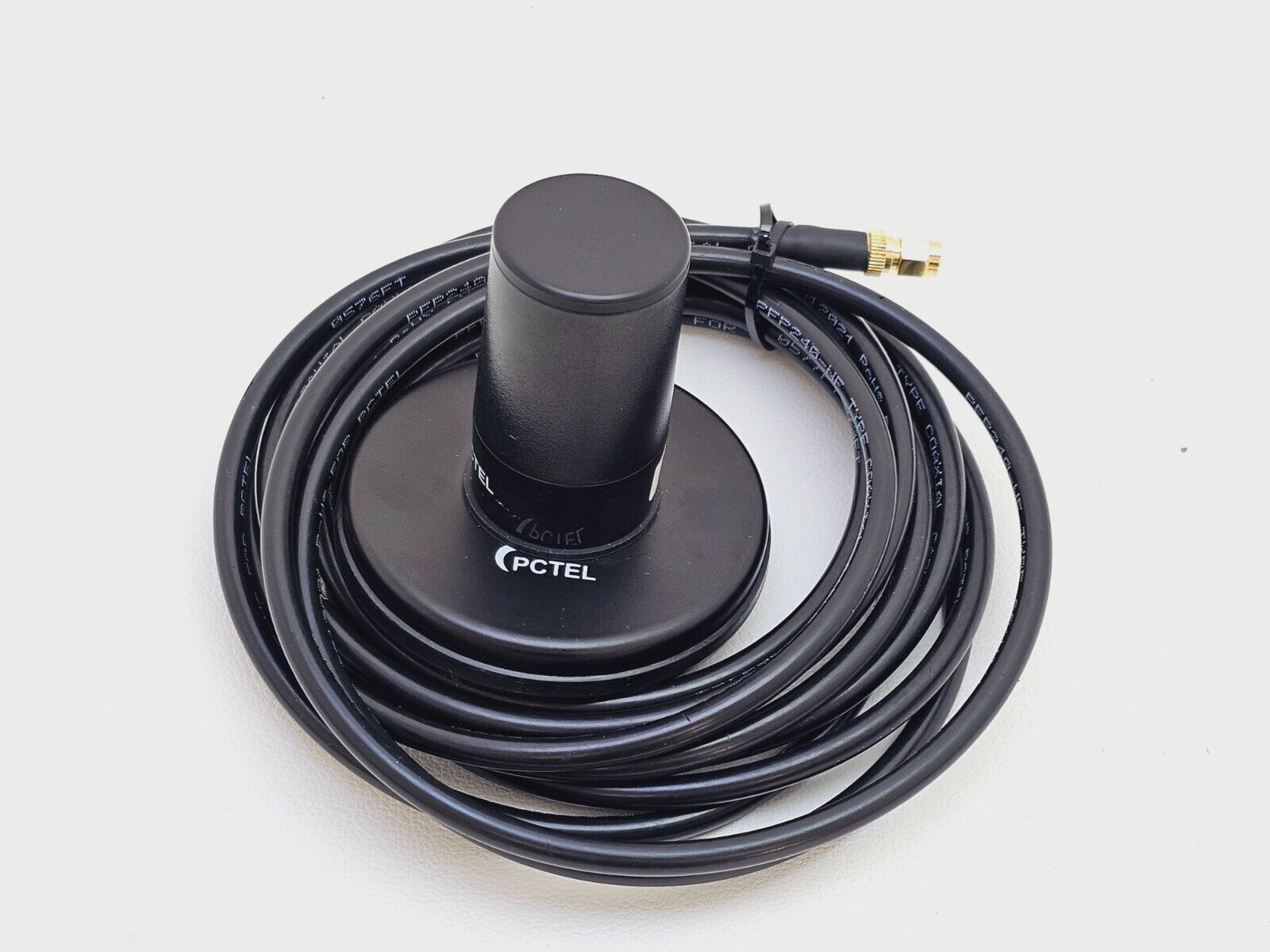

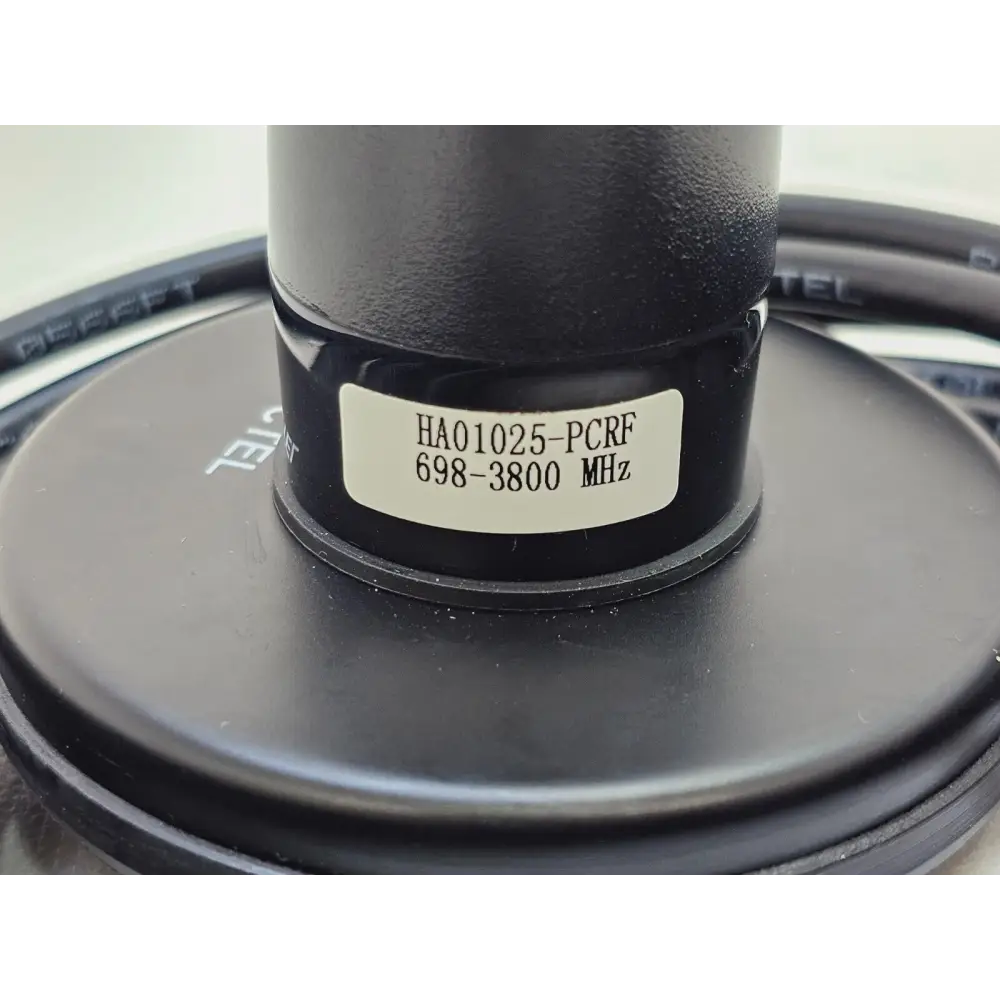

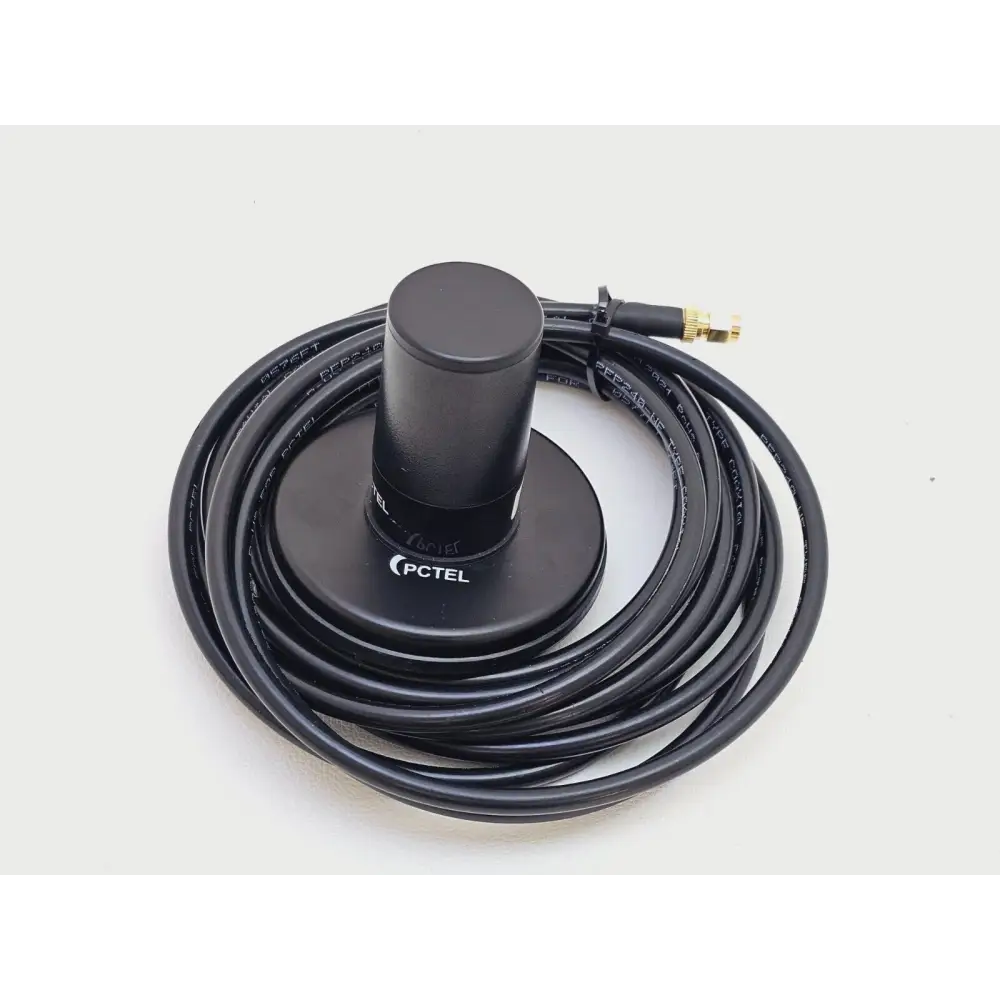

• 2x antennas
• USB data cable
• Power adapter / in-car charger
• GPS

Active installed options (10):
• 570 MHz–3800 MHz Capability

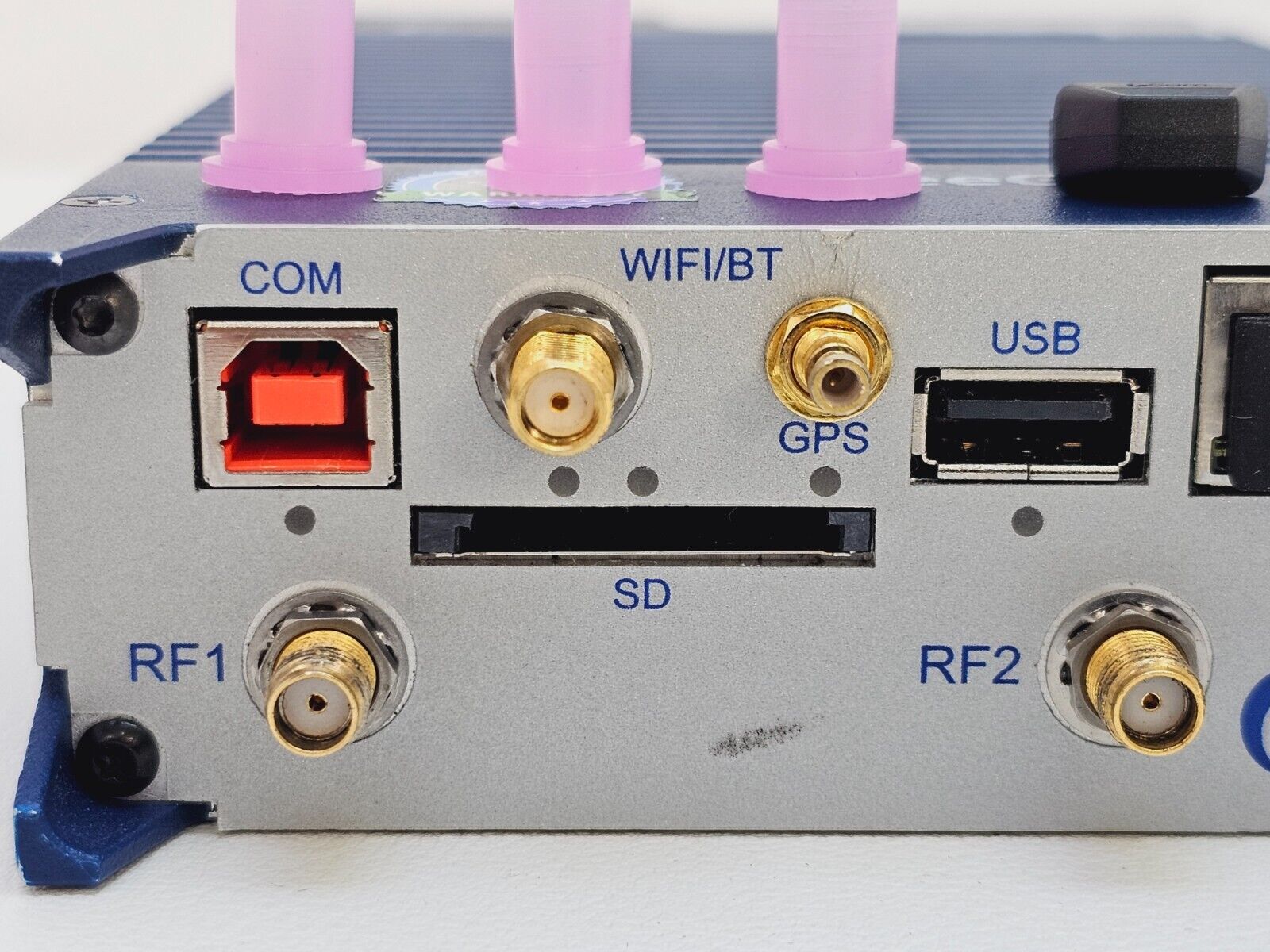

• Dual RF Port
• Recording to SD Card
• GPS Navigation
• Absolute Time Stamp
• Bluetooth Interface
• Ethernet Interface
• LTE Blind Scan
• LTE Support
• LTE Enhanced Signal Scan

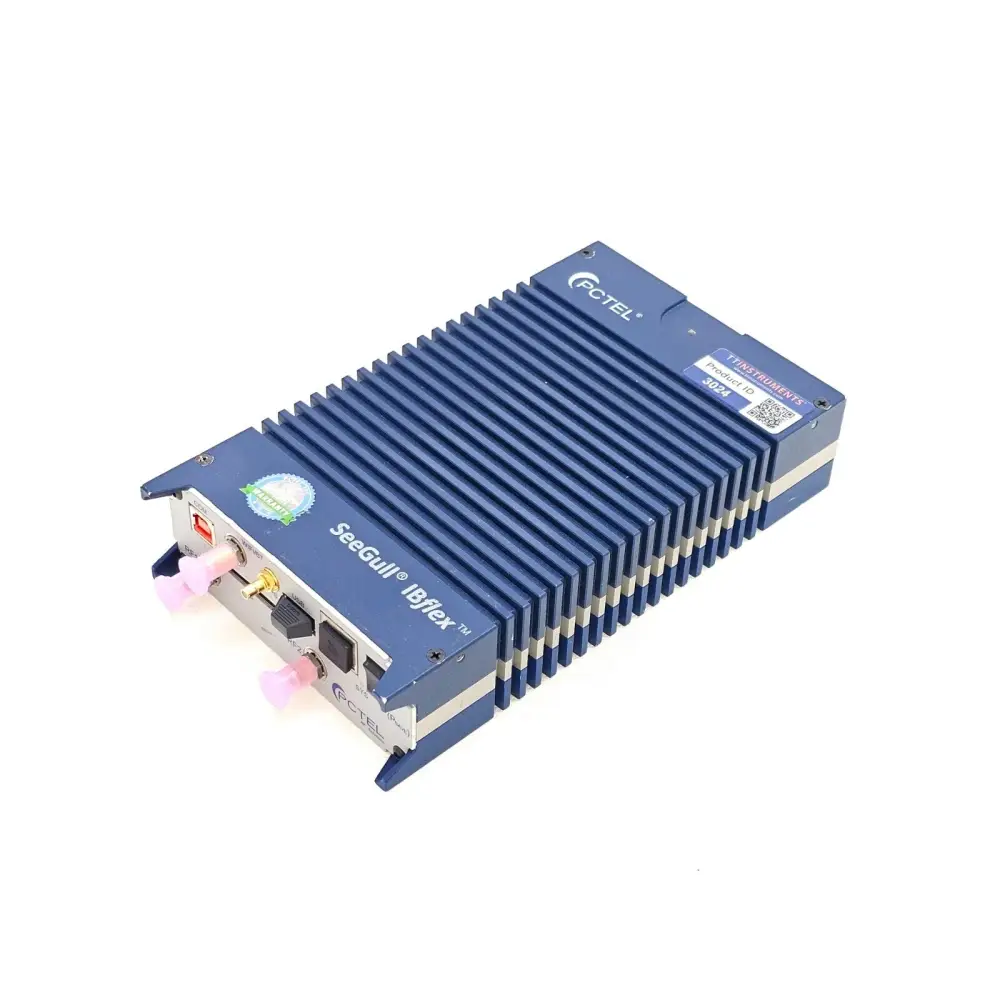

The PCTEL SeeGull IBflex is a portable, software-defined scanning receiver designed for in-building walk testing and outdoor drive testing of cellular and wireless networks. It combines a lightweight form factor with the ability to test multiple technologies and frequency bands simultaneously, making it suitable for network deployment, coverage verification, interference hunting, small cell optimisation, and public safety network validation.

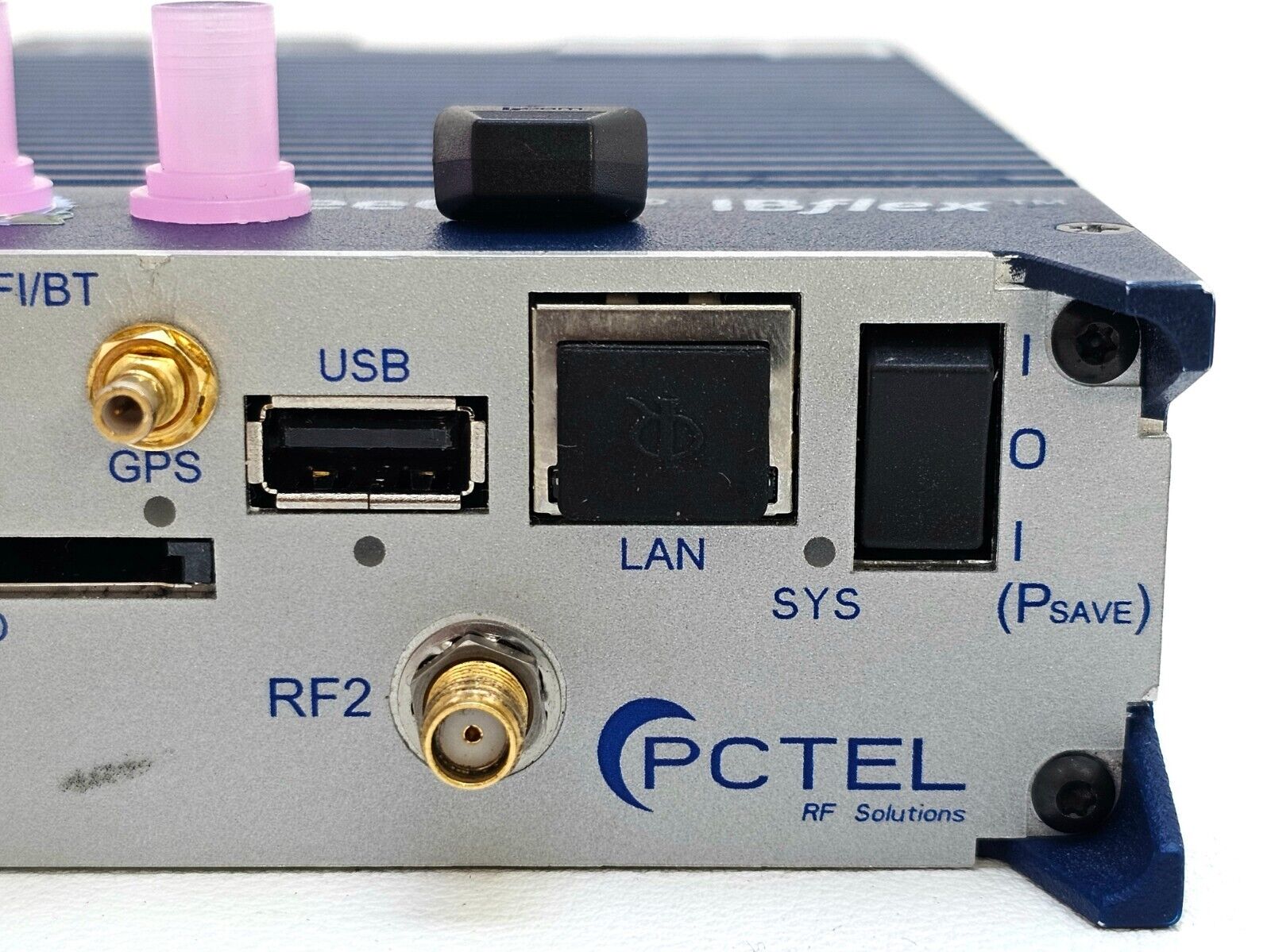

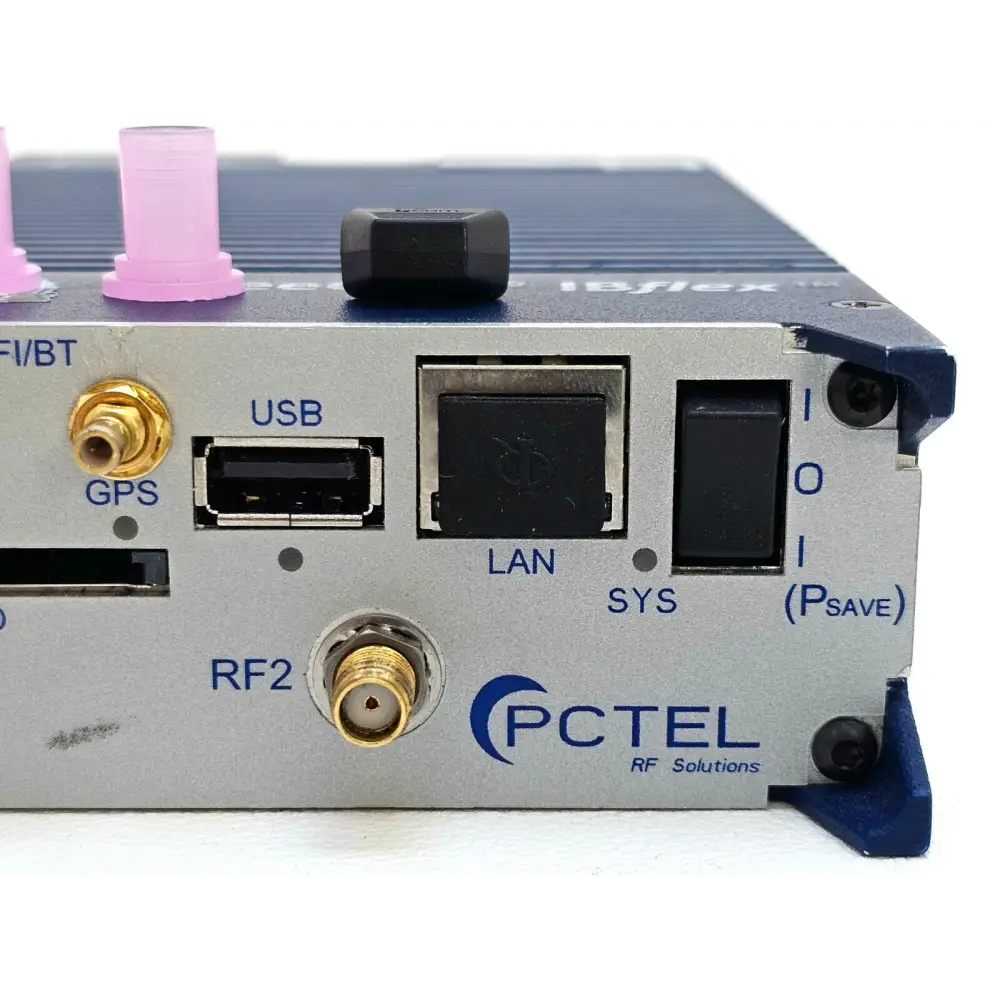

The IBflex features a hot-swap battery system and low power consumption for extended field use. It connects to host software via USB, Bluetooth, or Ethernet, and is compatible with PCTEL SeeHawk Collect and SeeGull Assistant software on Windows PC or Android tablet.

Key Features:
• Software-defined, field-upgradeable frequency band and technology support
• Simultaneous multi-technology and multi-band scanning
• Hot-swap battery system for uninterrupted walk testing
• Dual RF port capability
• Integrated GPS receiver
• SD card recording for standalone data capture
• Bluetooth and Ethernet interfaces for flexible host connectivity
• Supports LTE FDD, TD-LTE, LTE Blind Scan, WCDMA, GSM, CDMA, EV-DO, Wi-Fi, NB-IoT, and (on supported configurations) 5G NR

Technical Specifications:
Frequency Range: 570 MHz – 3.8 GHz (08900 base configuration; software-defined options available from 10 MHz to 6 GHz)
Power Measurement Accuracy: ±1 dB (across basic RF input power range)
Dynamic Range: -120 to -20 dBm @ 30 kHz RSSI
LTE/5G NR Scan Rate: 11,050 channels/sec (maximum, contiguous)
NB-IoT / UMTS / GSM Scan Rate: 4,250 channels/sec (maximum, contiguous)
CDMA / EV-DO Scan Rate: 8,500 channels/sec (maximum, contiguous)
GPS Type: 56-channel internal receiver
GPS Position Accuracy: ±2.5 metres
GPS Acquisition Time: Cold start <30 sec; Hot start <2 sec
GPS Tracking Sensitivity: >-150 dBm
Spectrum Analysis Range: >90 dB

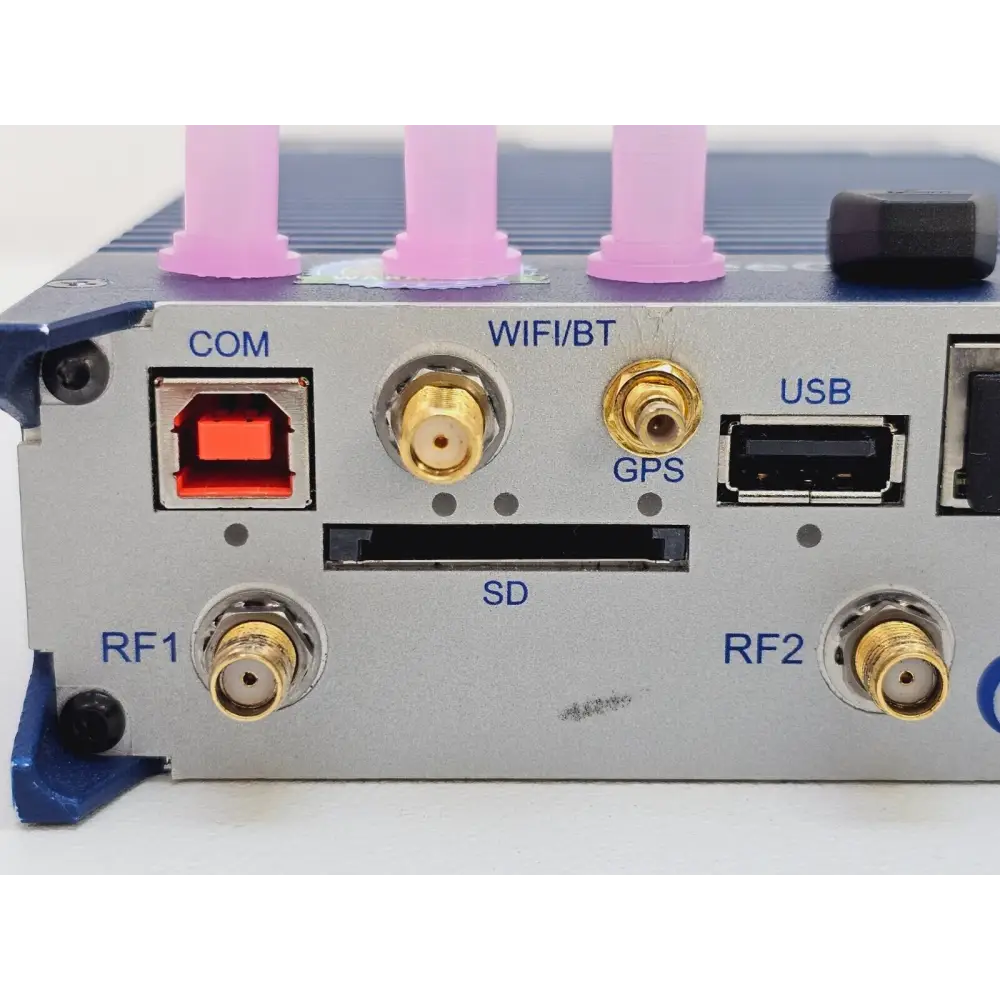

Interfaces: USB, Bluetooth, Ethernet, AOA
Band Options: Field-upgradeable; supported configurations vary by installed options
Licence Type: Perpetual
Compatible Software: PCTEL SeeHawk Collect, SeeGull Assistant
Operating System Compatibility: Windows (PC/laptop), Android (tablet)
Product Reference (this unit): 1.1.27.0
API Version (this unit): 2.3.0.0
