Condition: Used

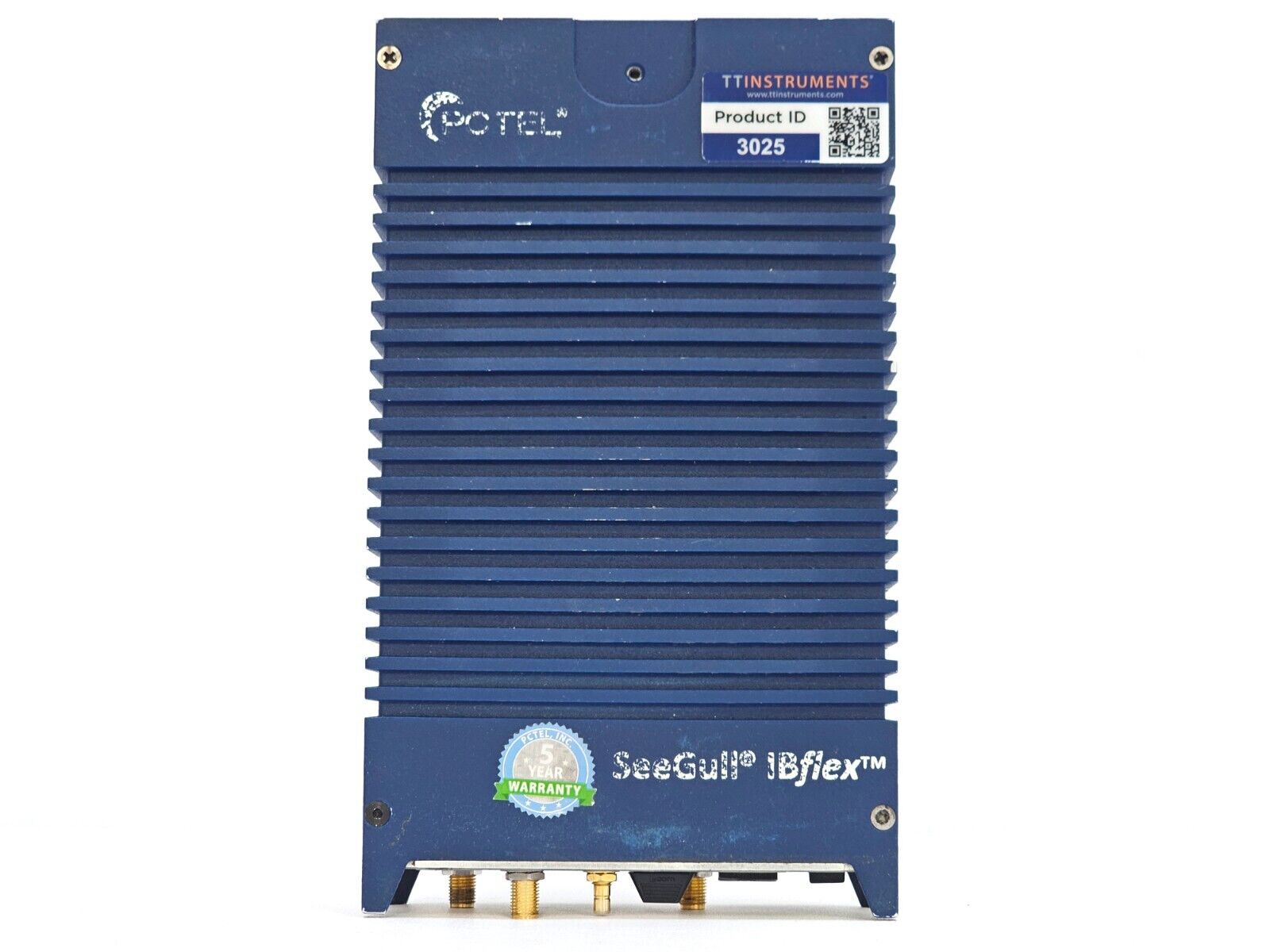

The PCTEL SeeGull IBflex 08900 is in excellent working condition and has been tested. It carries 14 installed options including LTE Enhanced Signal 2Rx MIMO, LTE and WCDMA Blind Scan, GPS Navigation, Dual RF Port, SD Card recording, Ethernet Interface, WCDMA Pilot, and WCDMA Extended Dynamic Range. Calibration date: 28/06/2016. Perpetual licence, licence state active. Software Release Version 3.2.1.0.

Included in the sale:

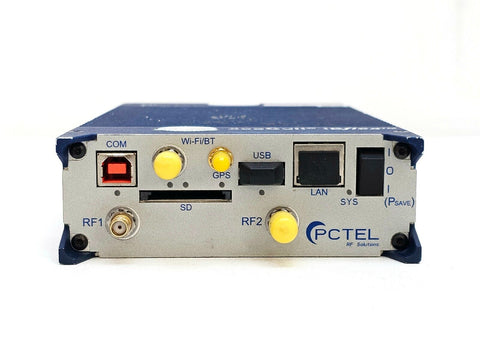

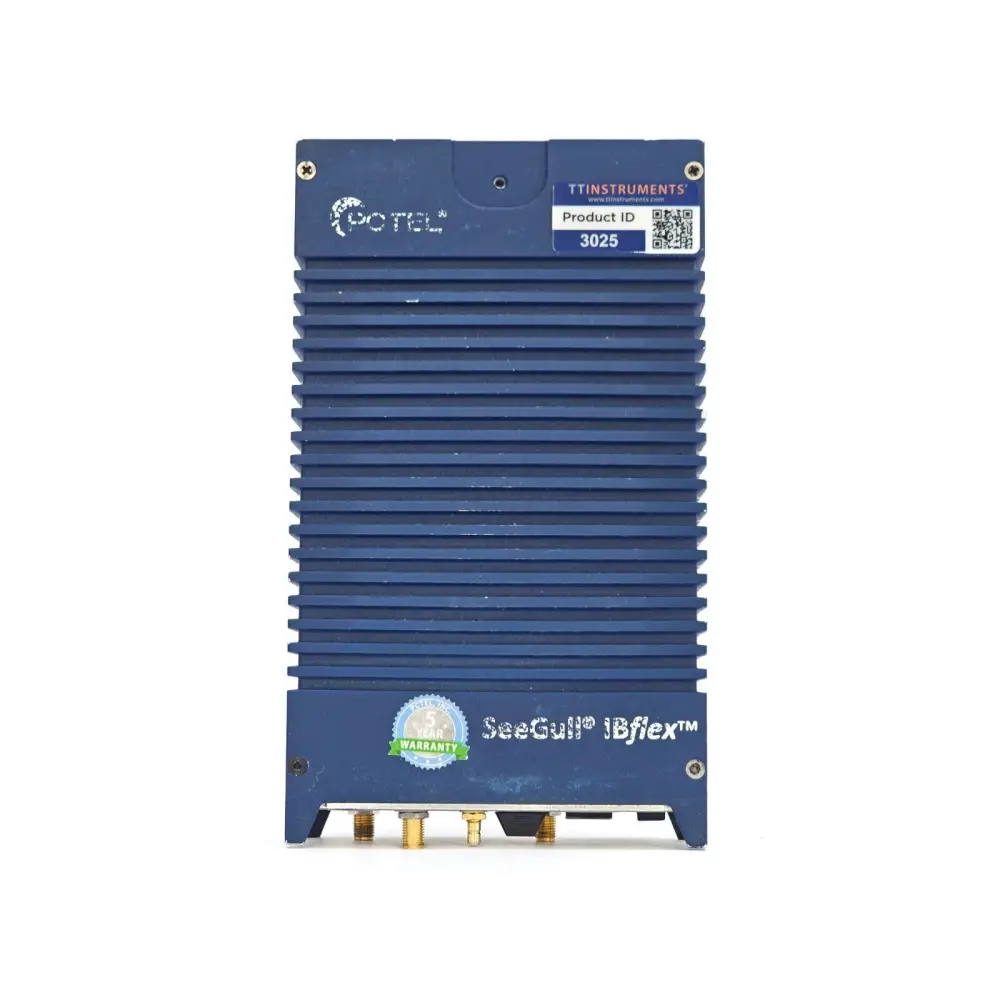

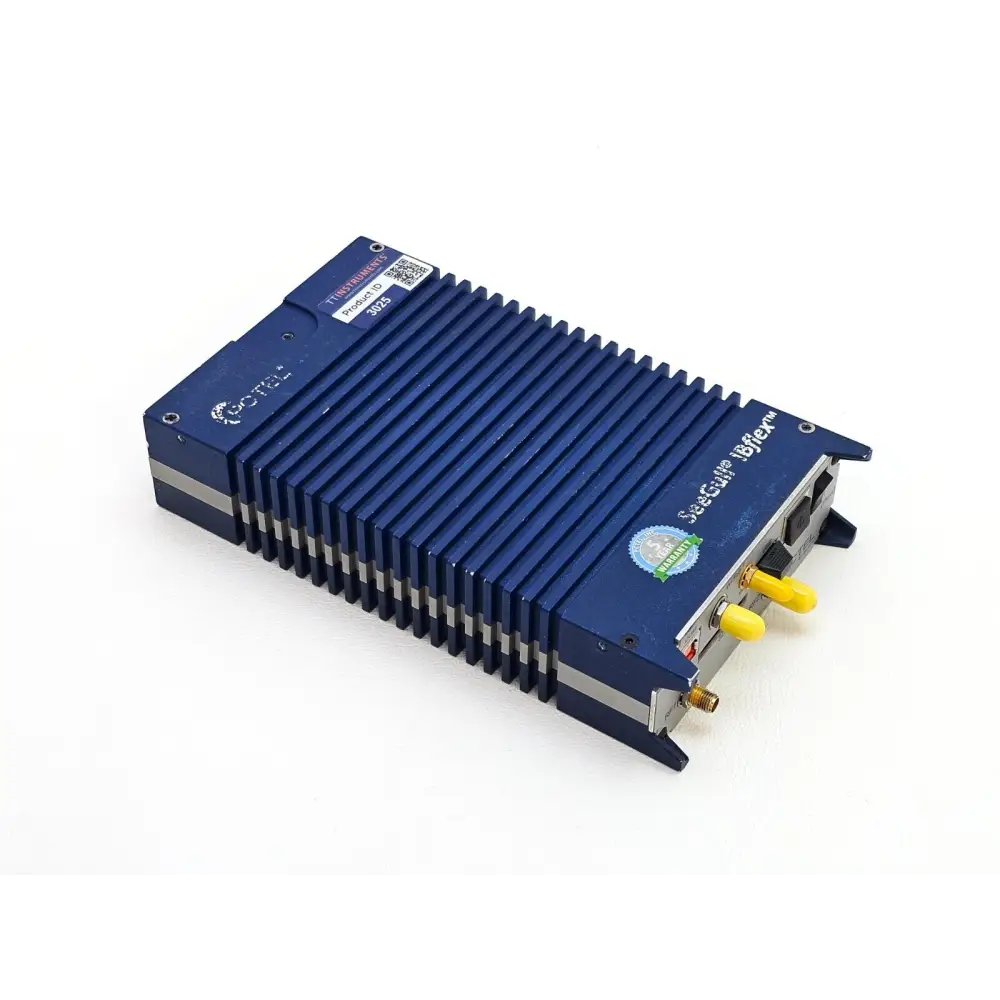

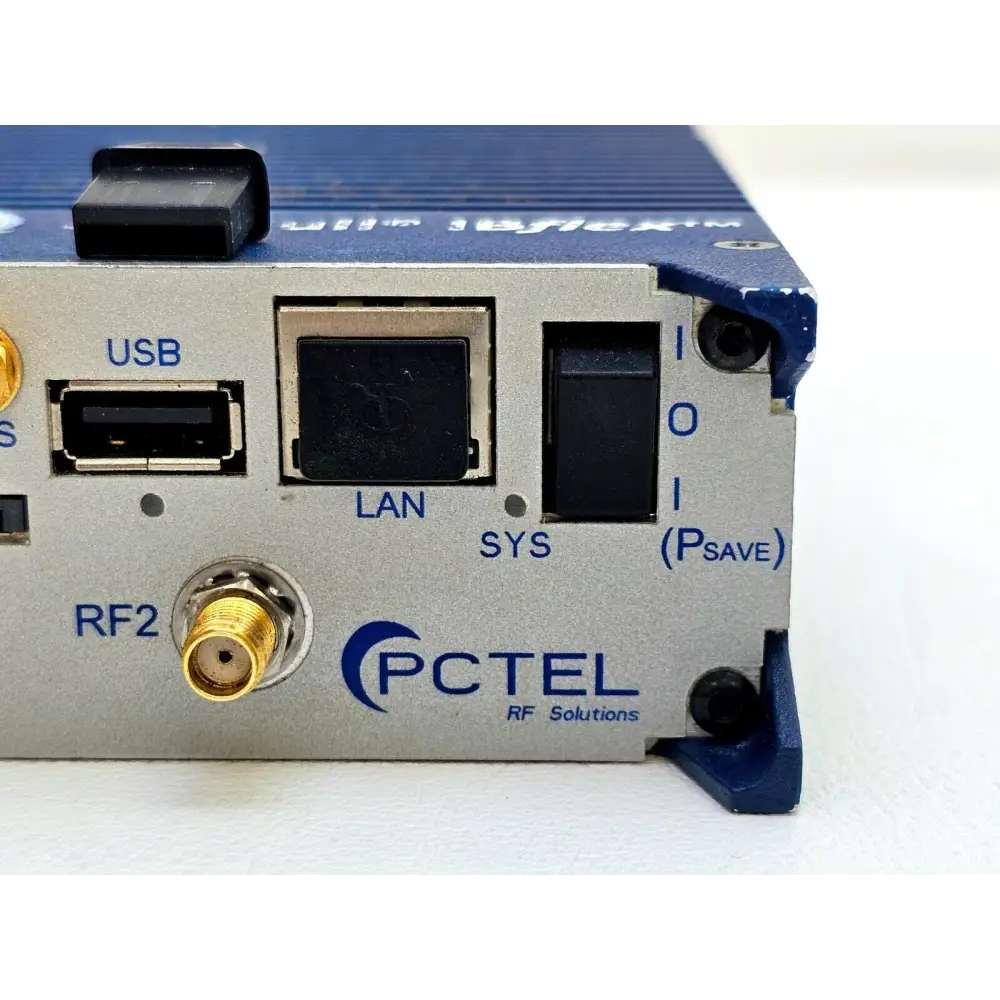

• IBflex 570 MHz - 3.8 GHz 08900 unit

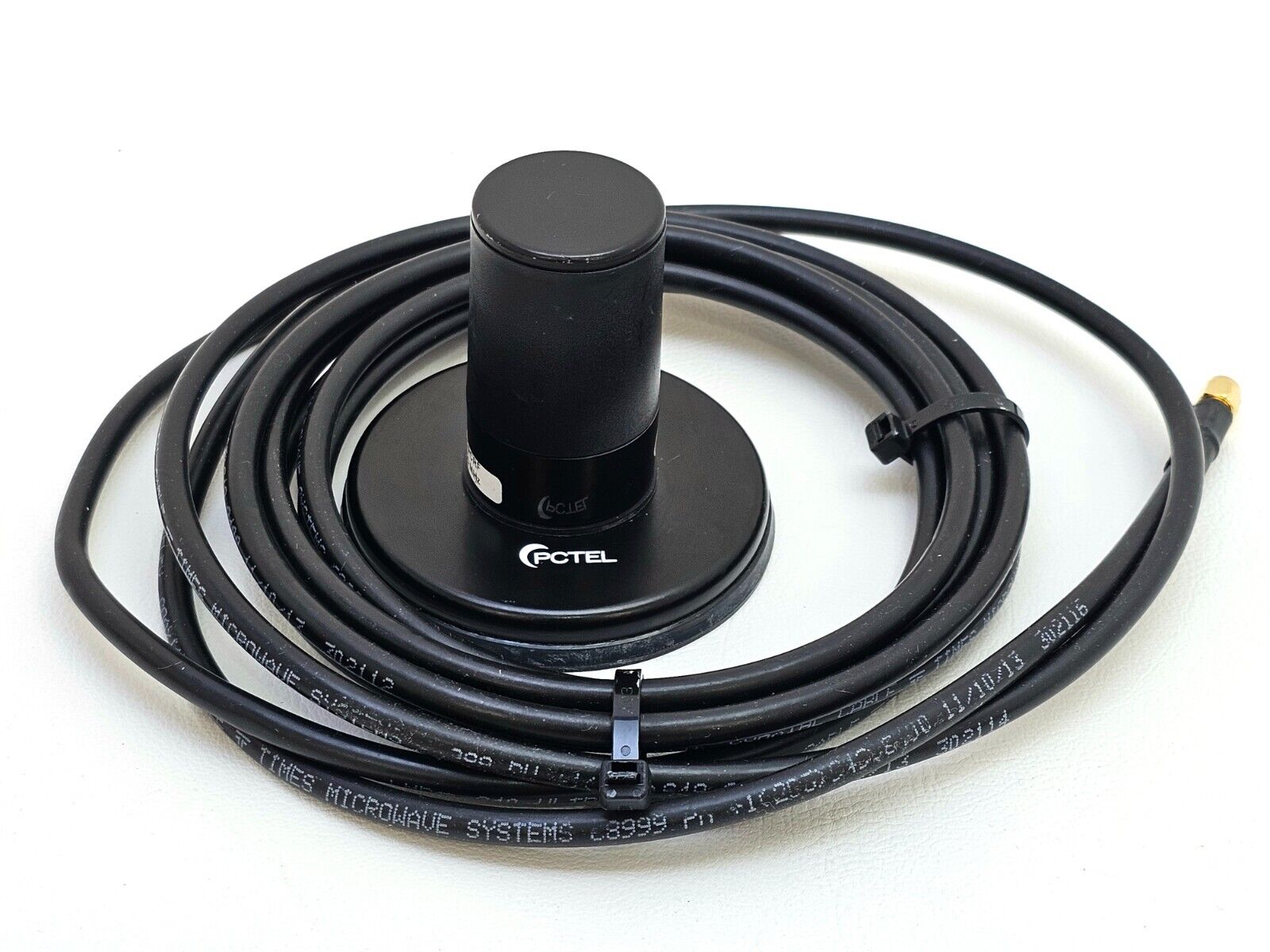

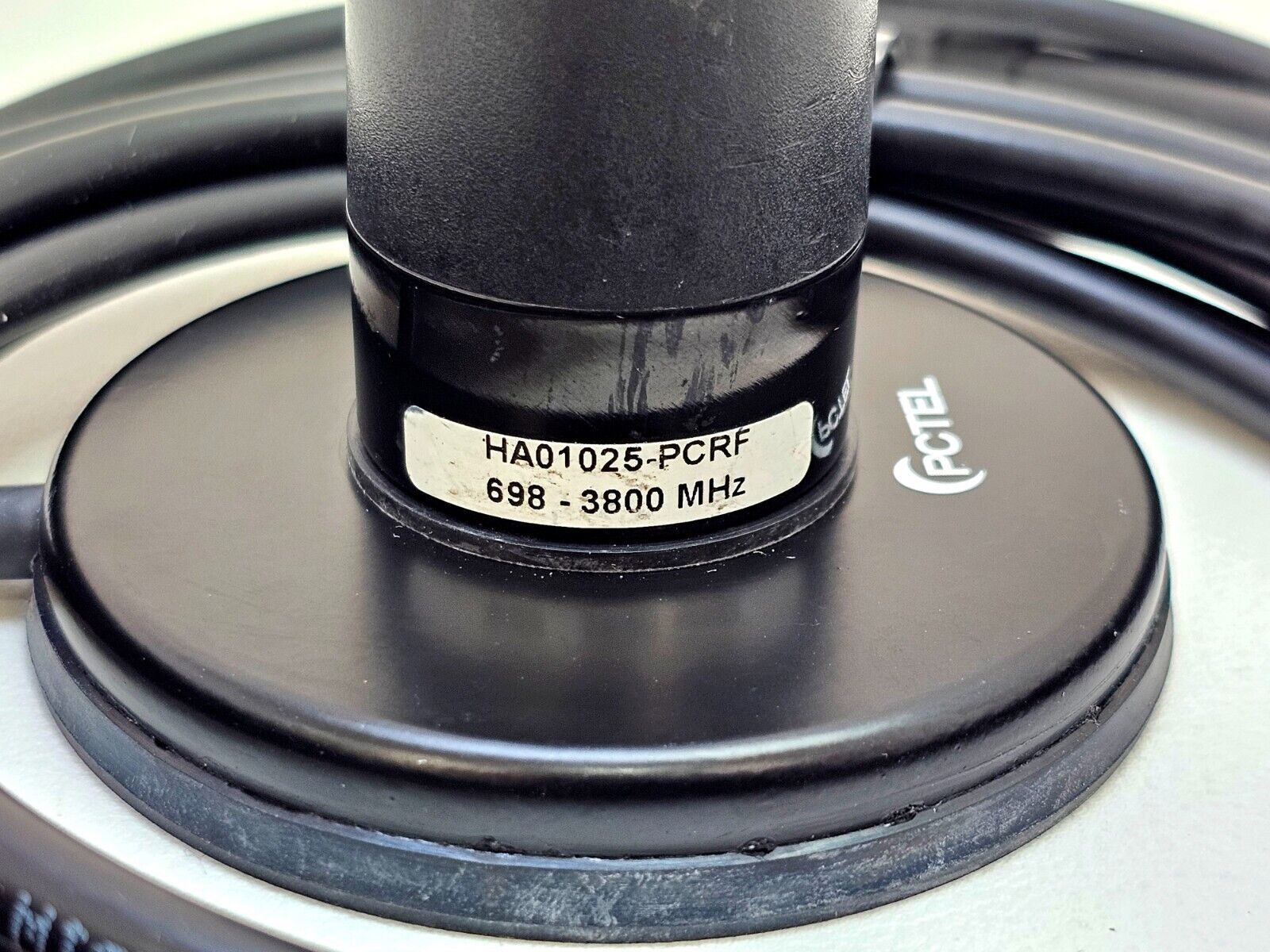

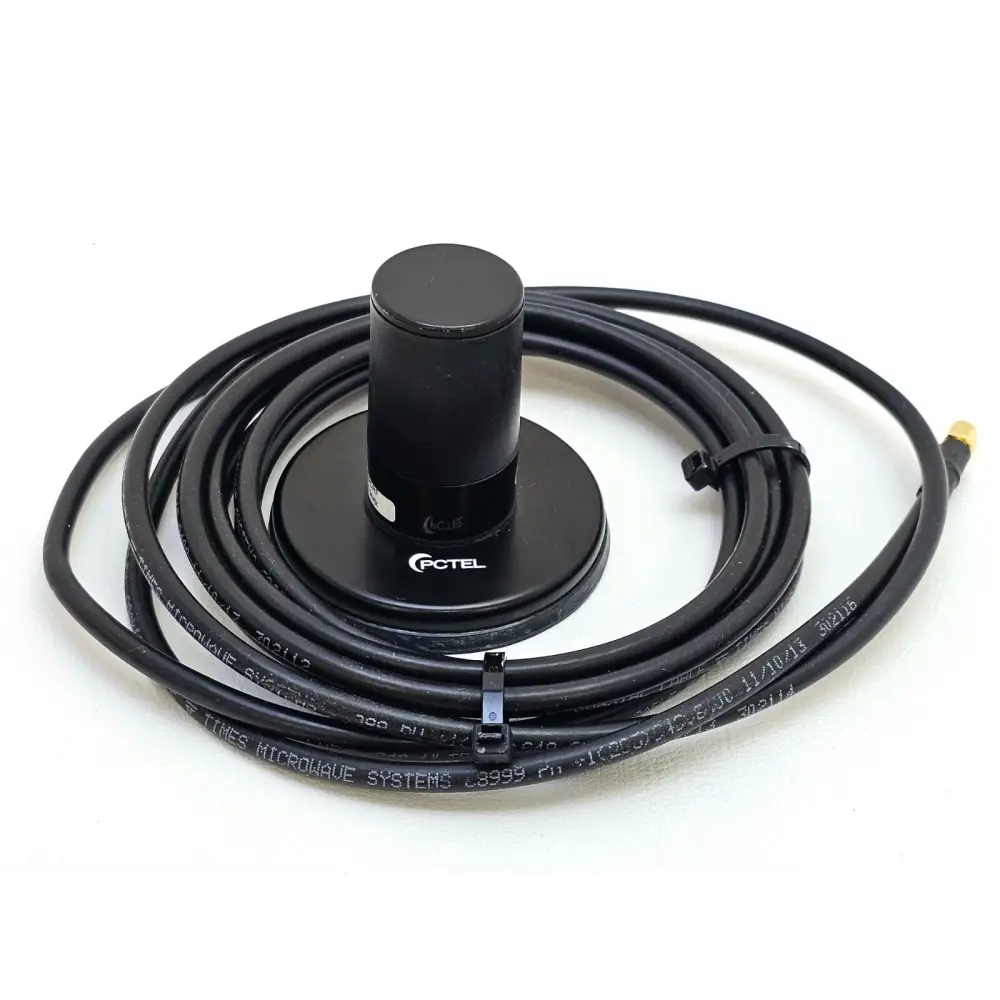

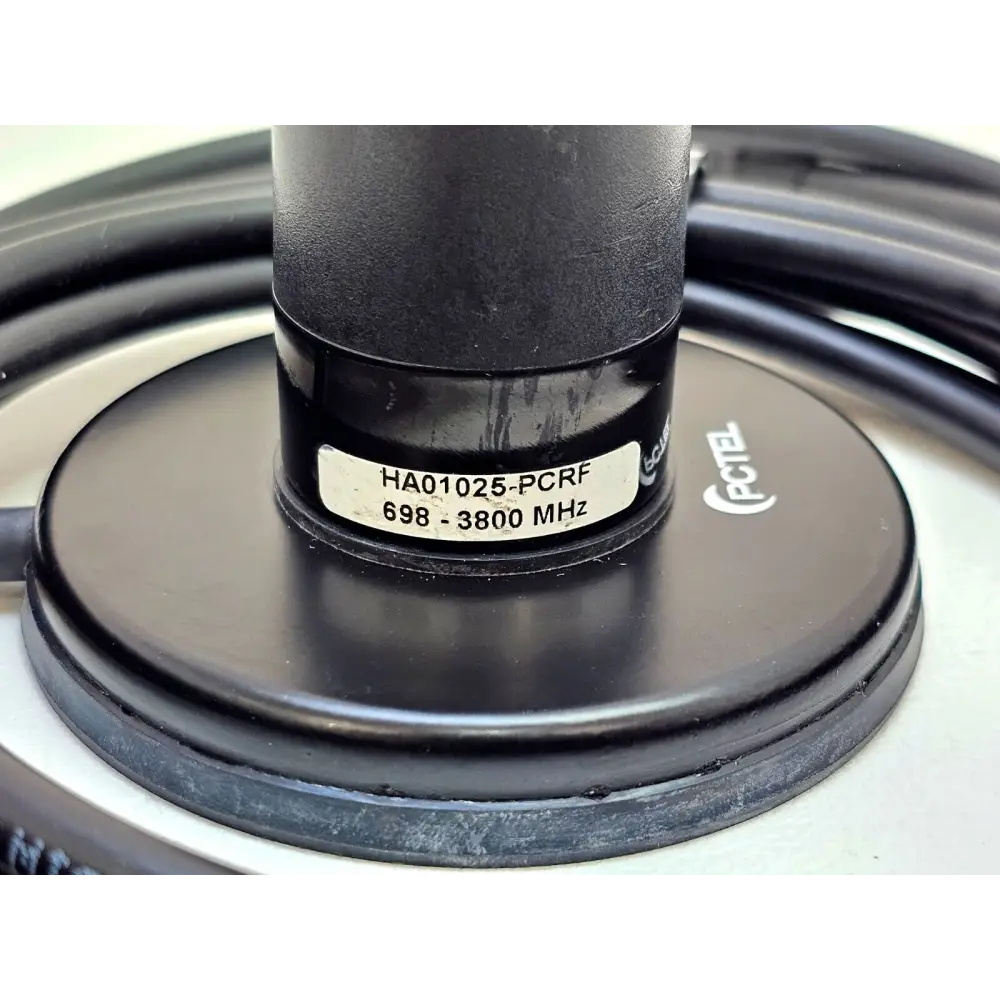

• 2x antennas

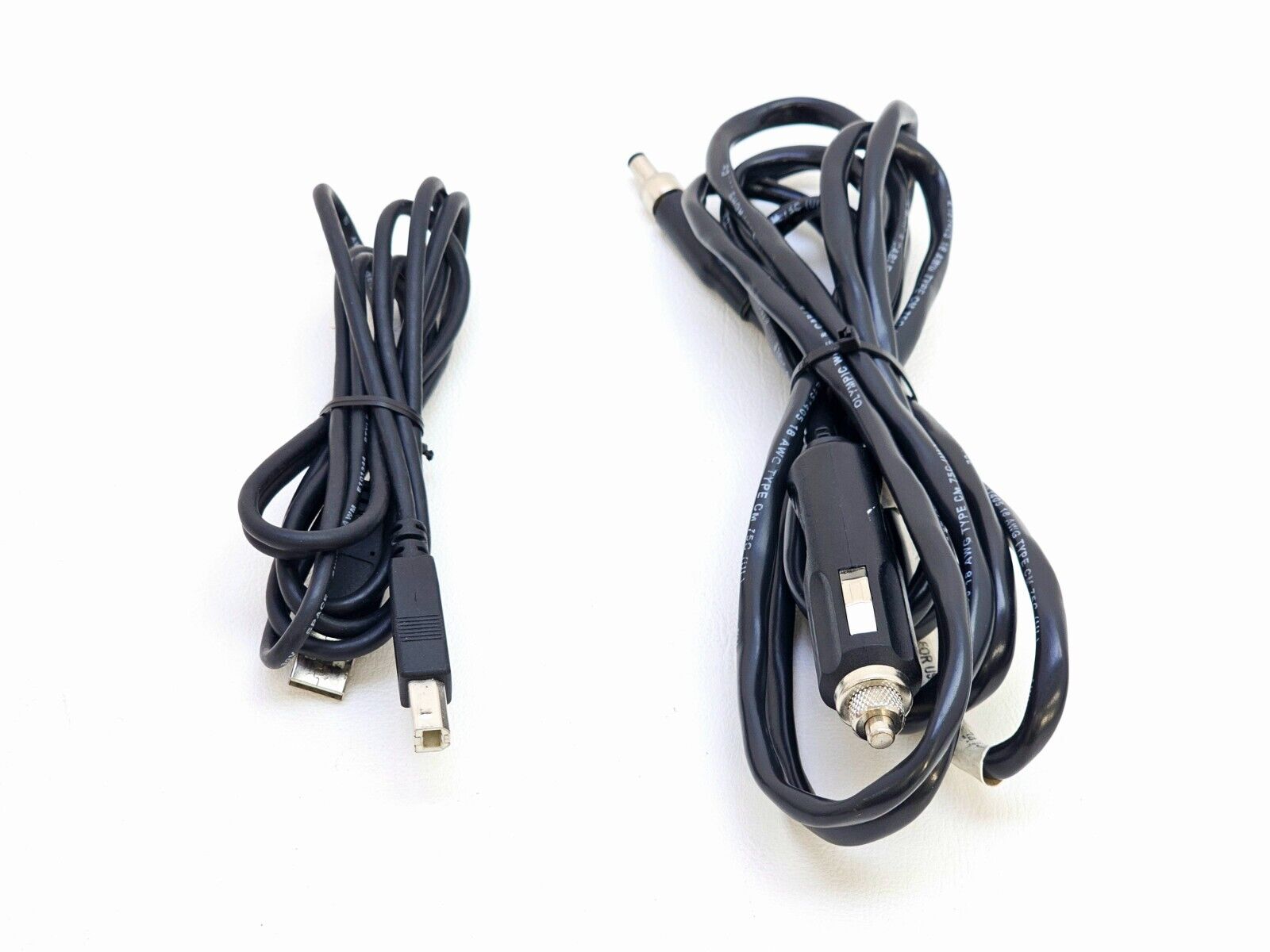

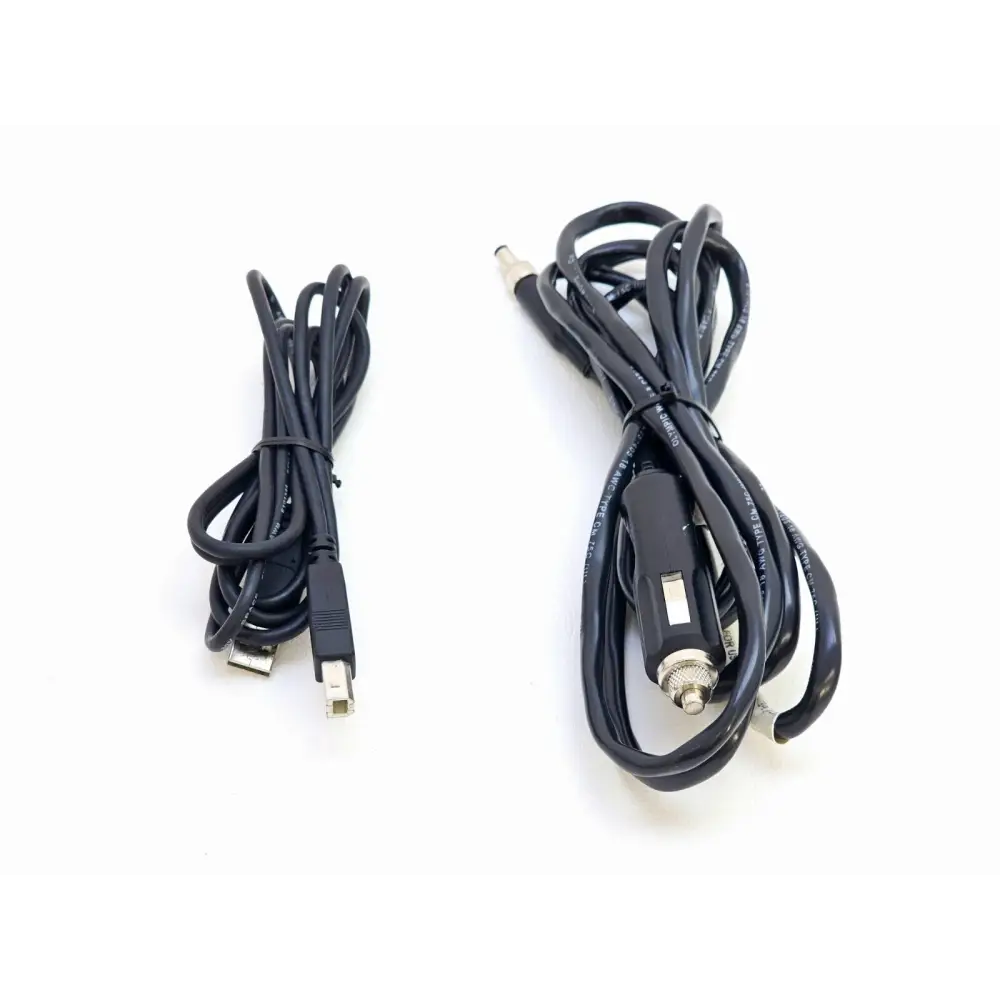

• USB data cable
• Power adapter / in-car charger

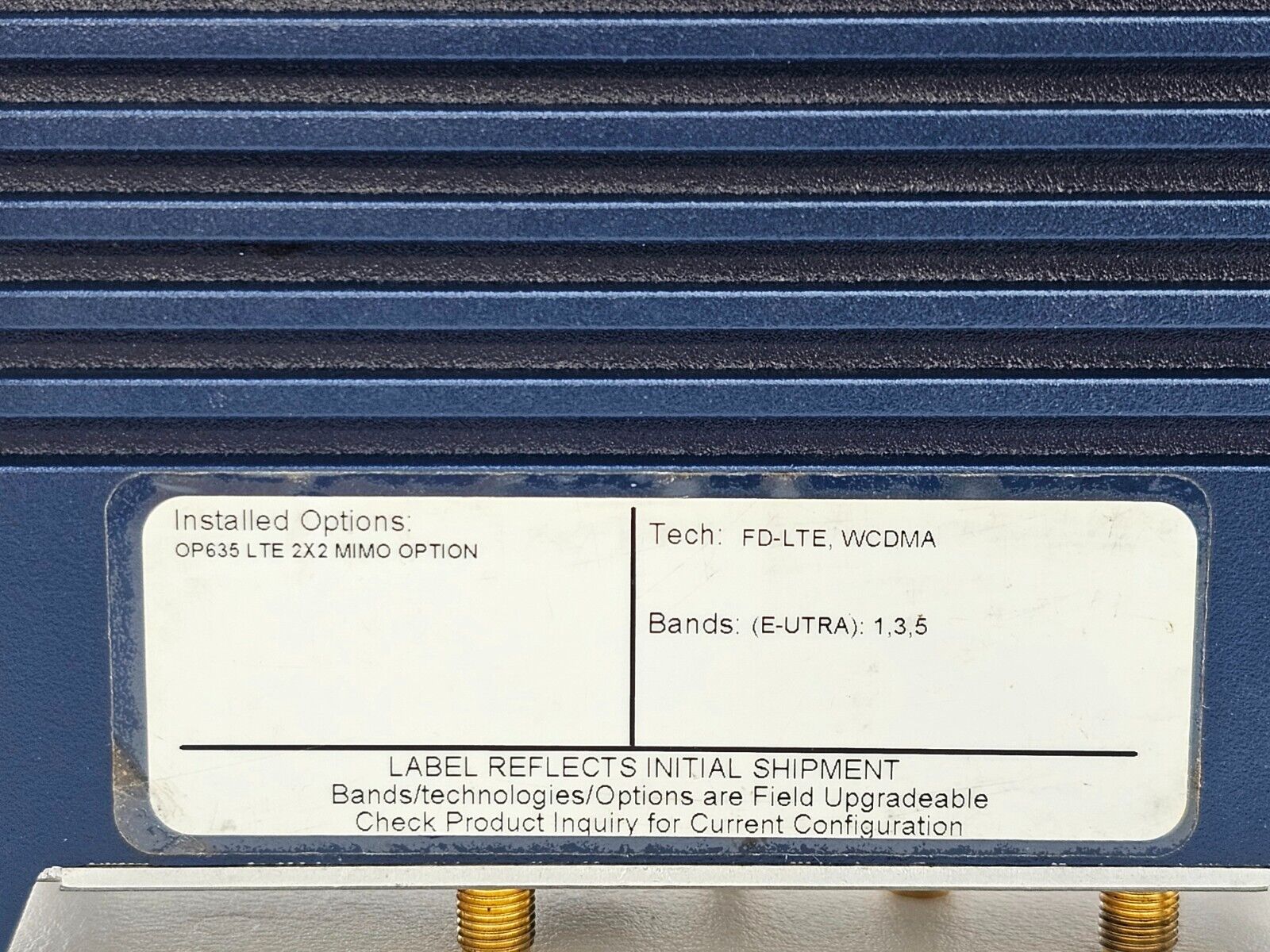

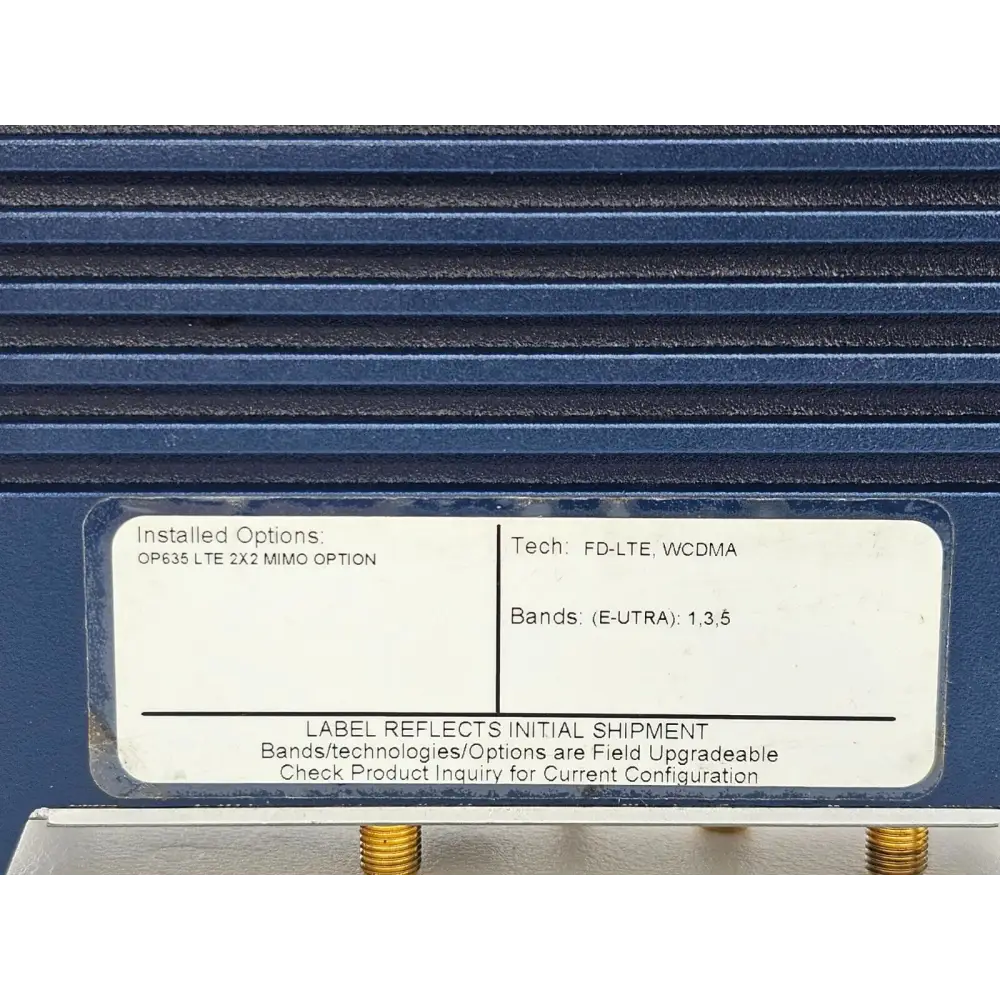

Active installed options:
• 570MHz–3800MHz Capability
• Dual RF Port
• Recording to SD Card
• GPS Navigation
• Absolute Time Stamp
• Ethernet Interface
• WCDMA Blind Scan
• LTE Blind Scan
• LTE Support
• LTE Enhanced Signal Scan
• LTE Enhanced Signal 2Rx MIMO
• WCDMA Support
• WCDMA Pilot
• WCDMA Extended Dynamic Range

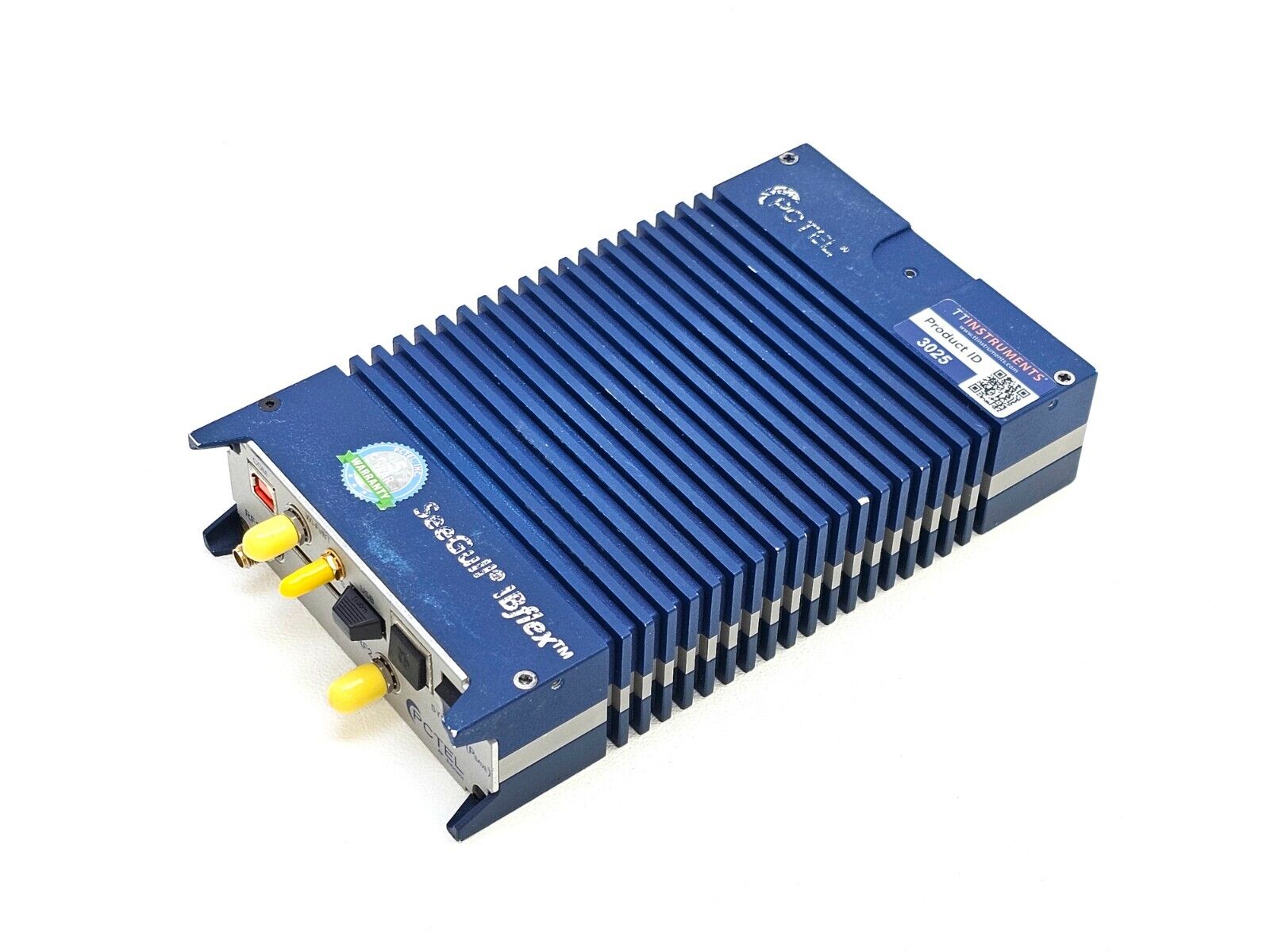

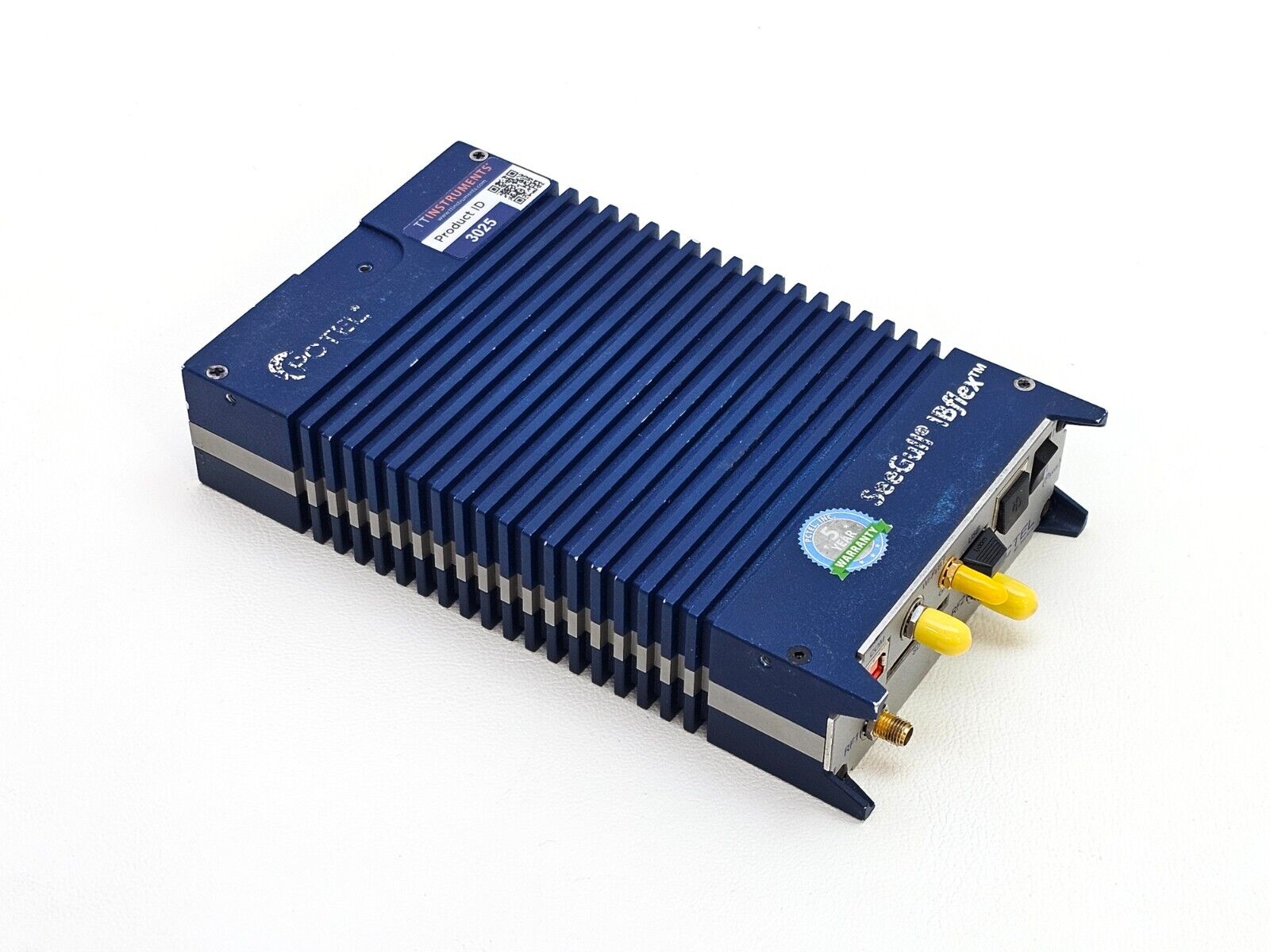

The PCTEL SeeGull IBflex is a portable, multi-technology scanning receiver engineered for both in-building walk tests and outdoor drive tests. It combines a lightweight, small form factor with the capability to scan multiple wireless technologies and bands simultaneously, making it well suited to network planning, deployment optimisation, coverage verification, and interference hunting.

The IBflex features a field-upgradeable, software-defined architecture. Supported cellular technologies include LTE FDD, TD-LTE, WCDMA, CDMA, EV-DO, TD-SCDMA, and GSM, with Wi-Fi coverage across 2.4 GHz and 5 GHz bands. The unit is MIMO-ready with dual RF port scanning for advanced LTE optimisation including 2x2 and 4x2 LTE MIMO measurements. A hot-swap battery system and low power consumption ensure extended field operation without interruption.

Key Features:
• Simultaneous multi-technology, multi-band scanning
• Dual RF port with LTE 2x2 and 4x2 MIMO capability
• Blind Scan for automatic channel detection (LTE and WCDMA)
• GPS integration (56-channel internal receiver, ±2.5 m accuracy)
• SD card on-board data recording

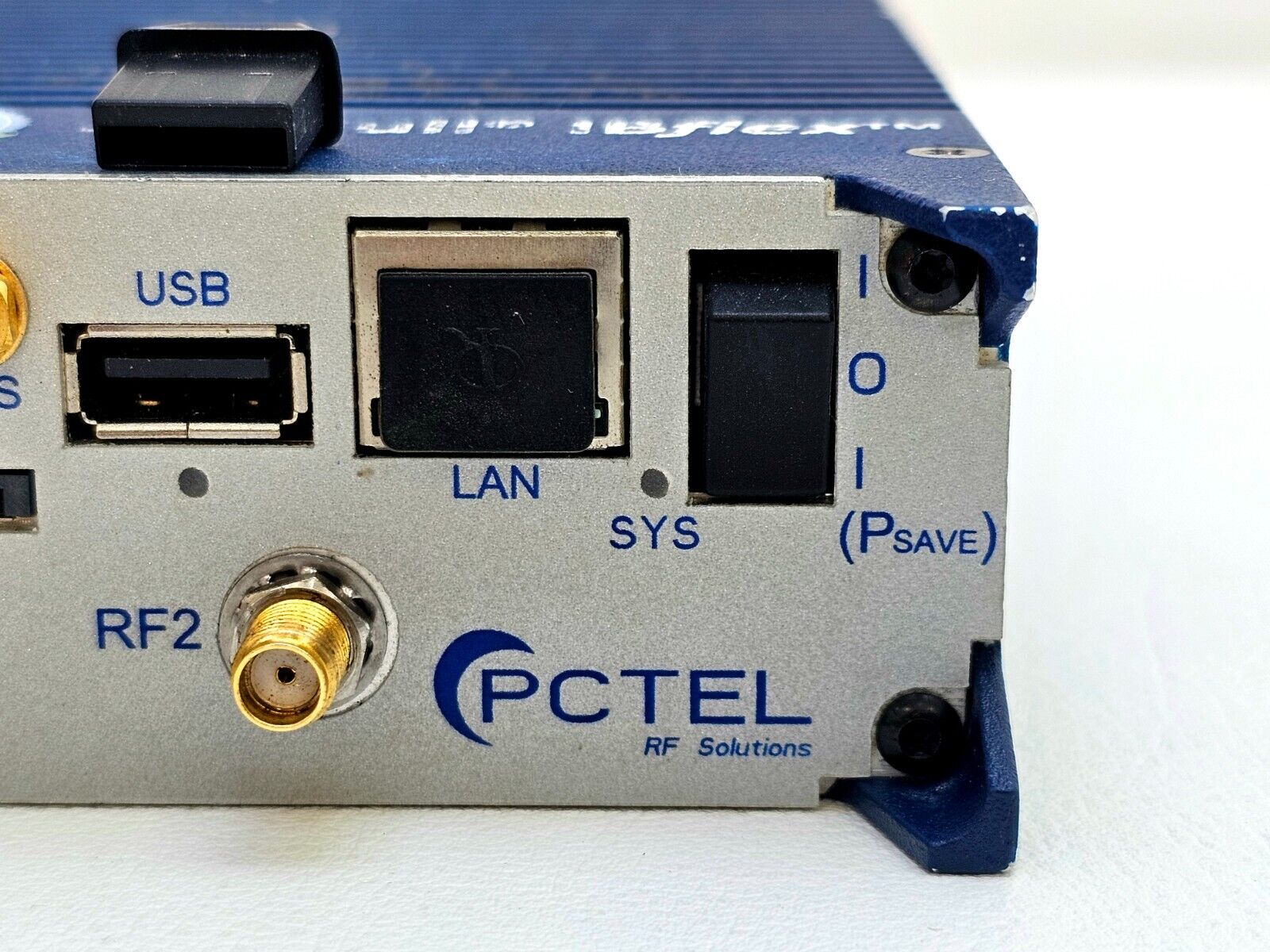

• Multiple connectivity interfaces: USB, Bluetooth, Ethernet, AOA
• Windows laptop and Android tablet/UE support
• Hot-swap battery system for uninterrupted walk testing
• Field-upgradeable software options and band licensing

Specifications:
Frequency Range: 570 MHz to 3.8 GHz (cellular); 2.4 GHz and 5 GHz (Wi-Fi)
Supported Technologies: LTE FDD, TD-LTE, WCDMA, CDMA, EV-DO, TD-SCDMA, GSM, NB-IoT, Wi-Fi
MIMO Support: 2x2 and 4x2 LTE MIMO measurements

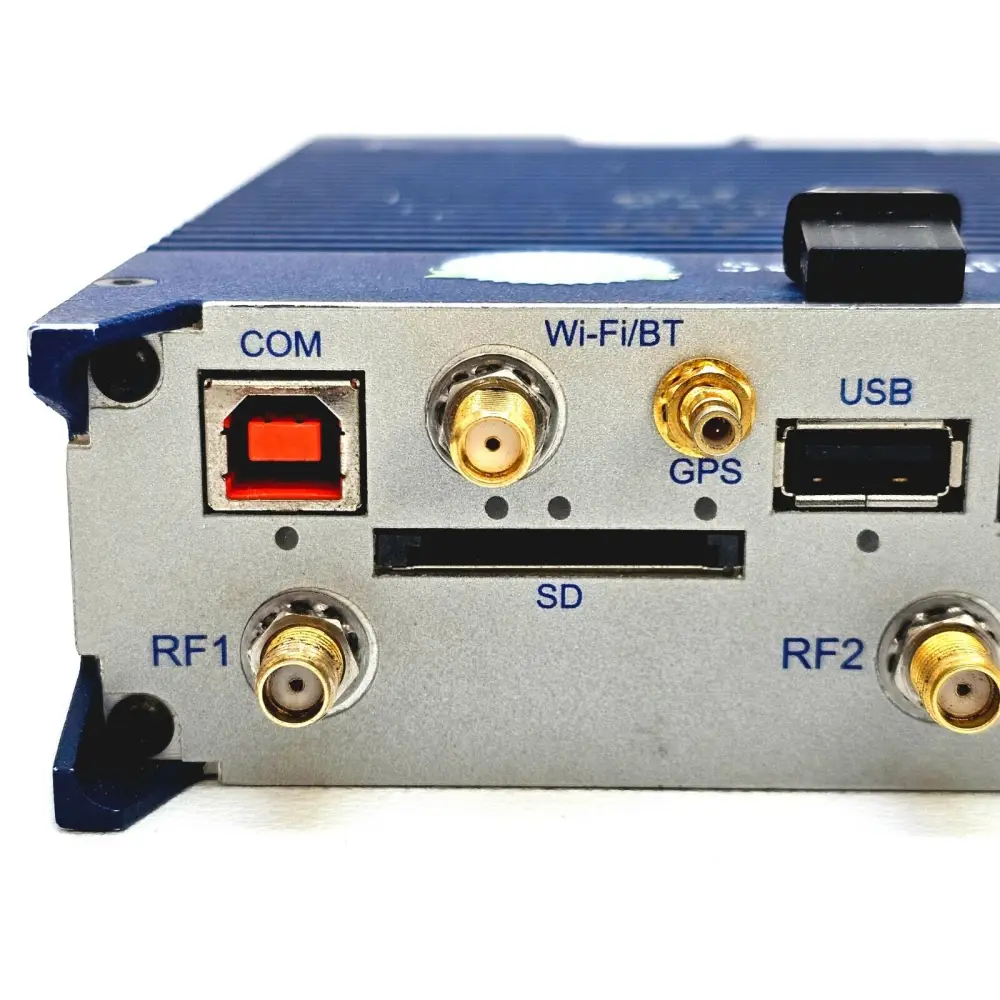

RF Ports: Dual
Power Measurement Accuracy: ±1 dB (across basic RF input power range)
Dynamic Range: -120 to -20 dBm @ 30 kHz RSSI
Scanning Speed (5G NR / LTE): up to 11,050 ch/sec (maximum, contiguous channels)
Scanning Speed (UMTS / GSM / NB-IoT): up to 4,250 ch/sec (maximum, contiguous channels)
GPS Type: 56-channel internal receiver
GPS Position Accuracy: ±2.5 metres
GPS Acquisition Time: Cold start <30 sec; Hot start <2 sec
GPS Sensitivity (tracking): >-150 dBm

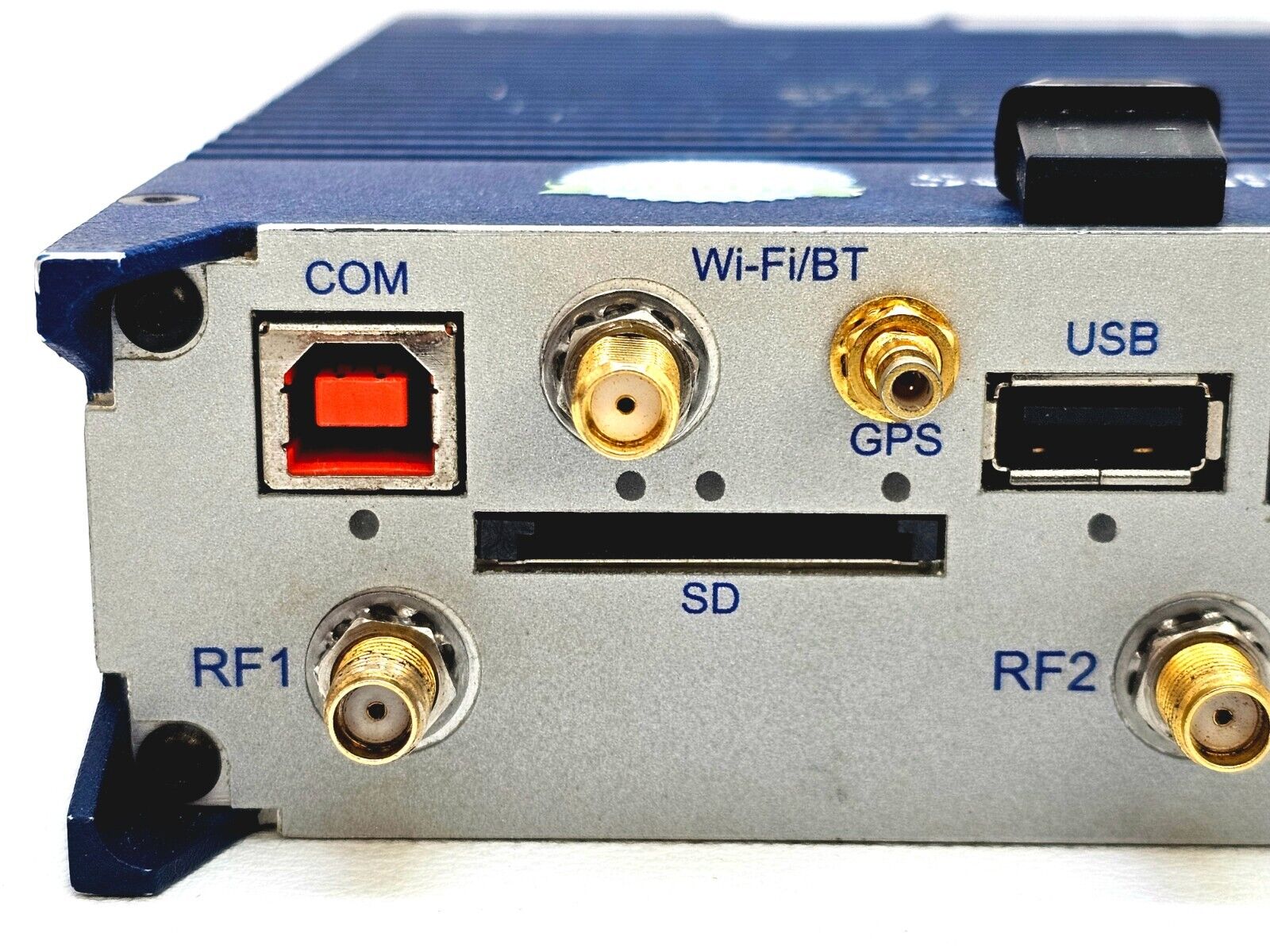

Interfaces: USB, Bluetooth, Ethernet, AOA
Data Storage: On-board SD card
Software Compatibility: Windows (laptop), Android (tablet/UE)
Product Reference (08900): 570 MHz–3.8 GHz base configuration

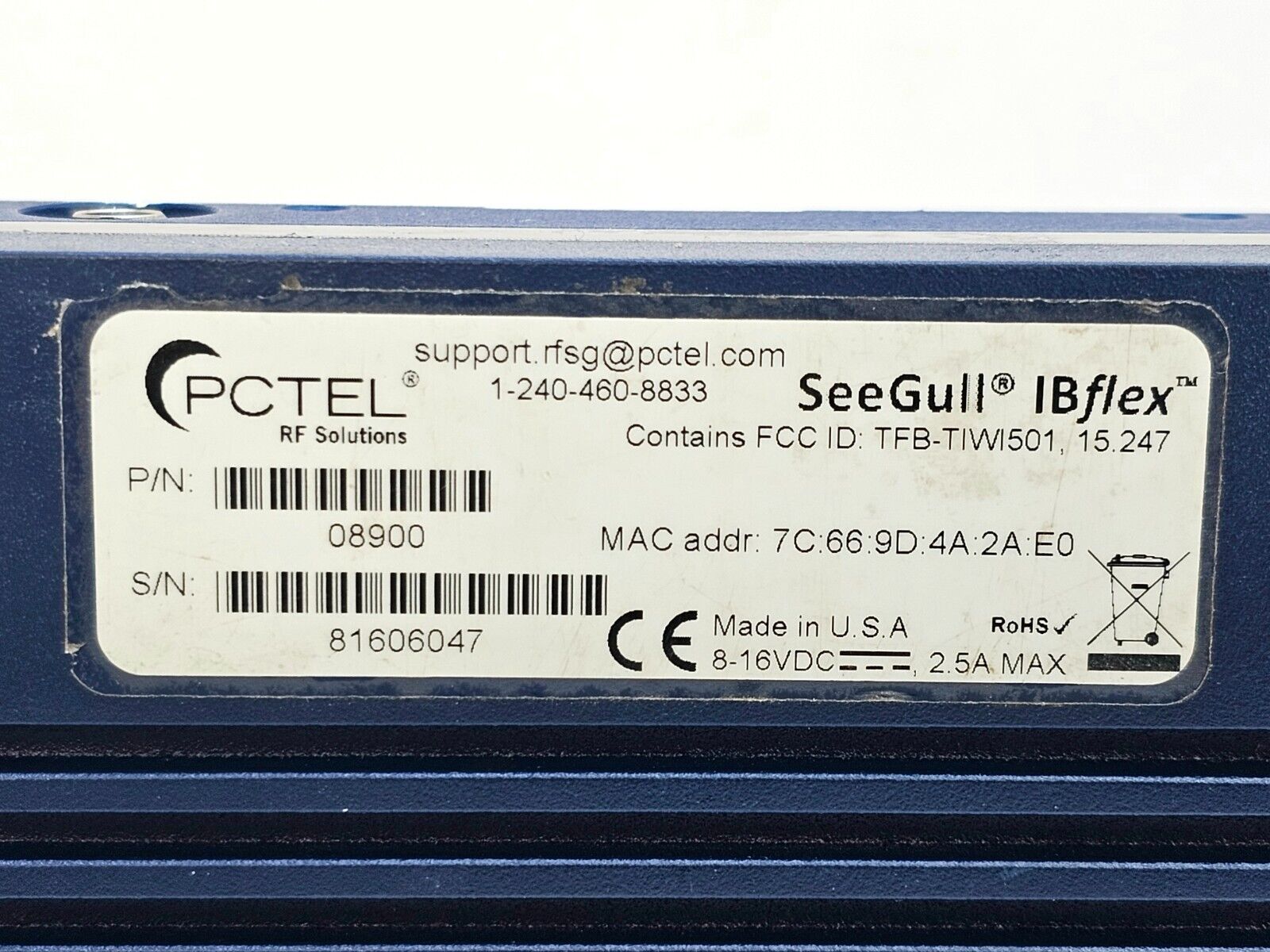

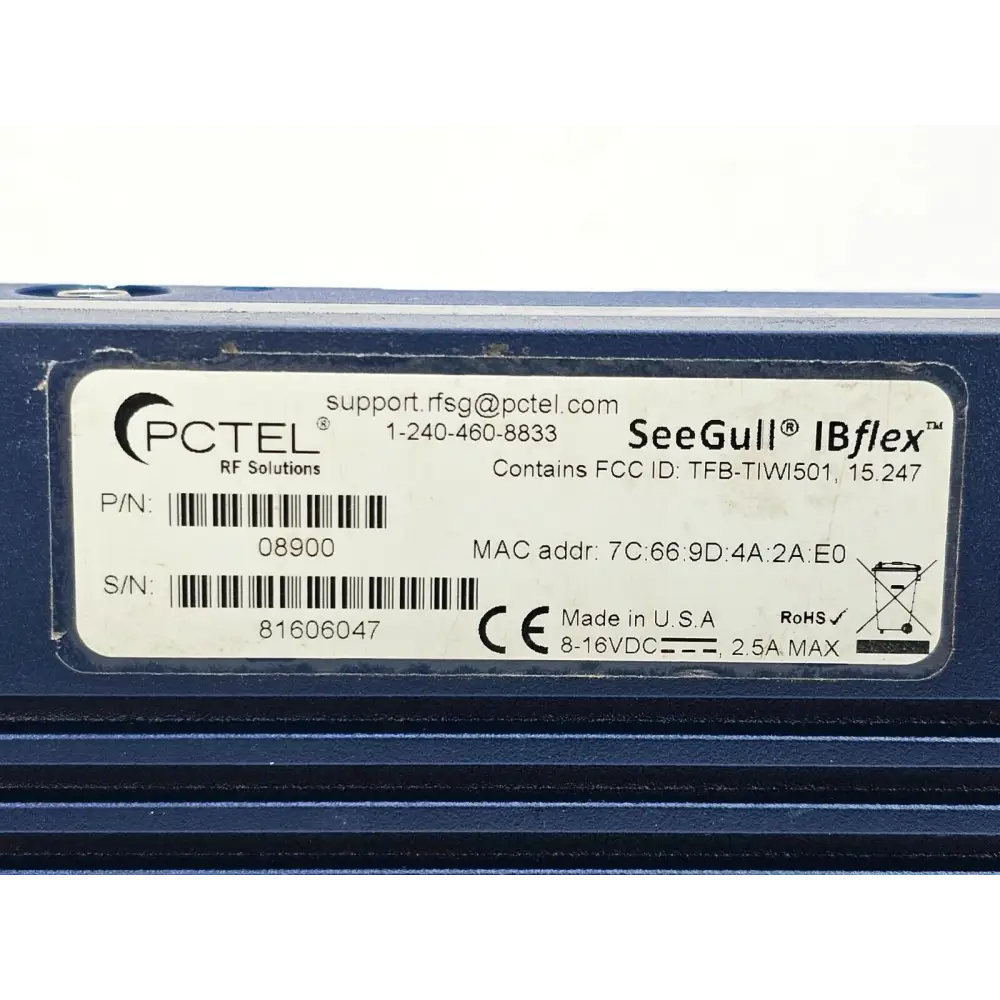

Part Number: 08900
Licence Type: Perpetual (field-upgradeable options)

Typical applications include in-building wireless network verification, small cell deployment, LTE/WCDMA coverage optimisation, MIMO path testing, public safety network verification, and outdoor drive testing.

PCTEL SeeGull IBflex Hardware Reference Manual (Rev T) — full hardware and setup guide: Download PDF

PCTEL SeeGull IBflex Hardware Reference Manual (Rev M) — hardware reference including specifications appendix: Download PDF

PCTEL IBflex Scanning Receiver Brochure (official PCTEL PDF) — product overview and specifications: Download PDF

PCTEL SeeGull IBflex Brochure (Talley distribution) — product capabilities and frequency coverage overview: Download PDF

PCTEL IBflex Brochure (TRS Rentelco) — in-building and outdoor network testing specifications: Download PDF

PCTEL IBflex Datasheet (Tower IQ) — product specifications and key feature summary: Download PDF
