Condition: Used

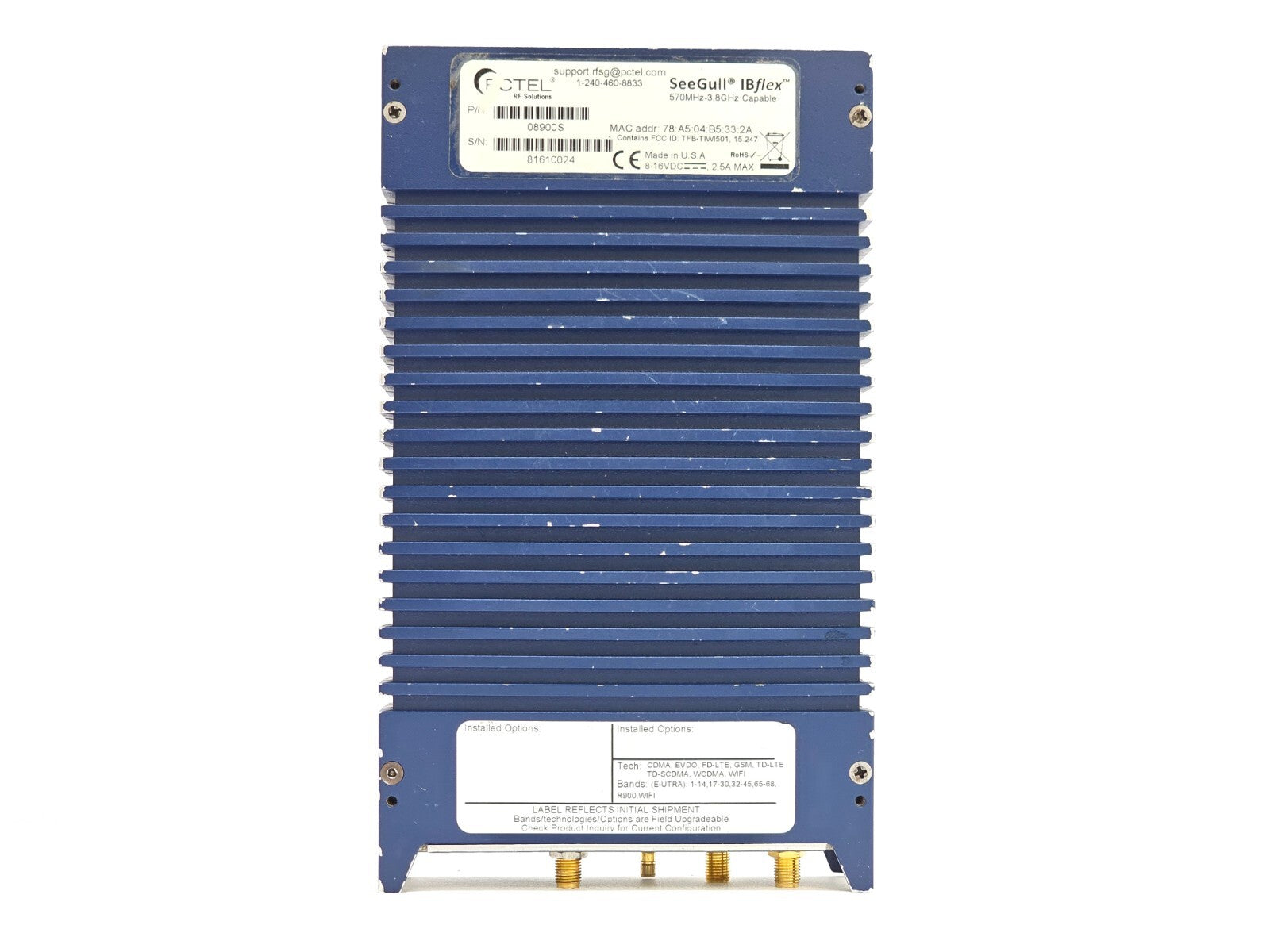

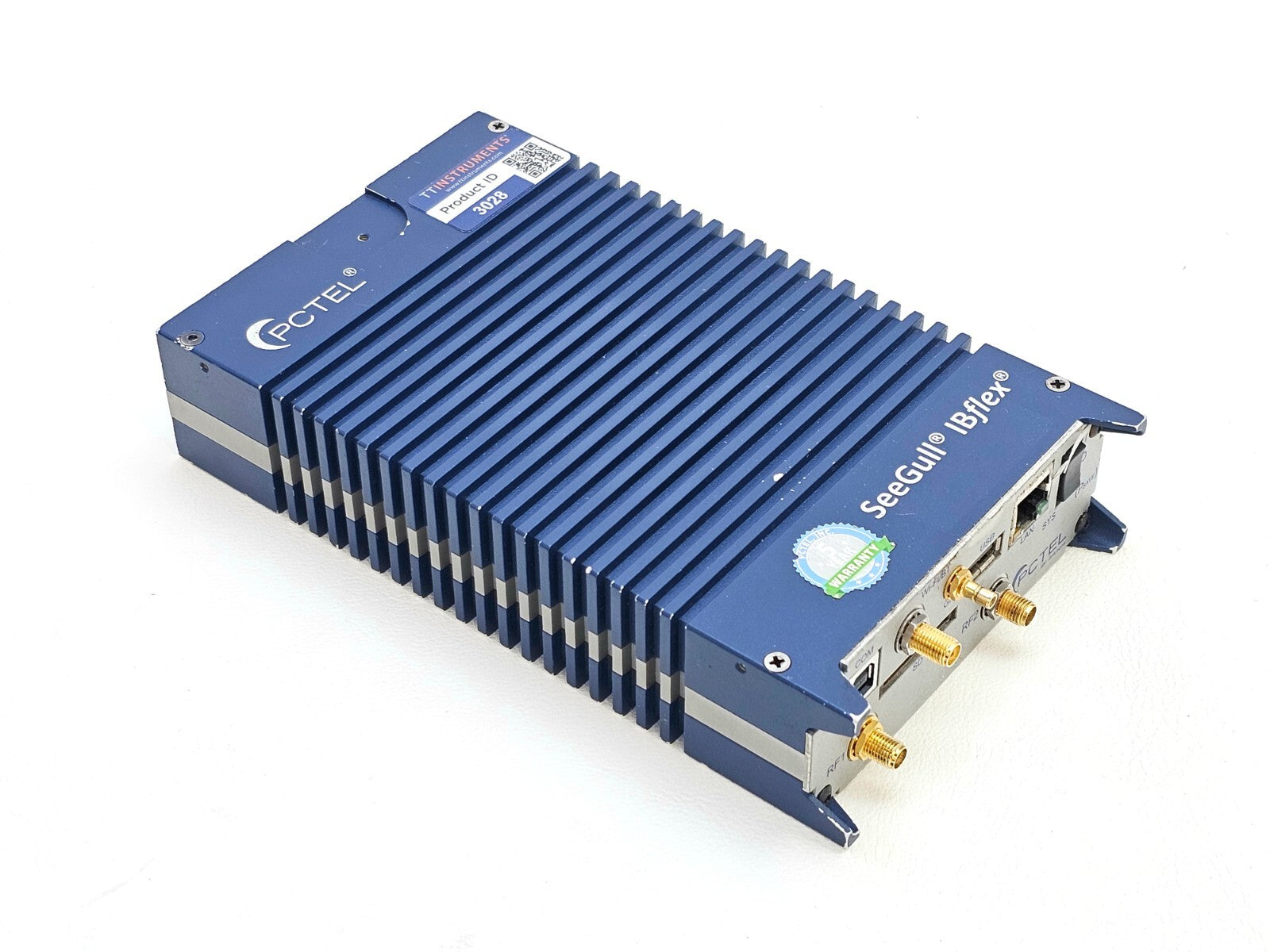

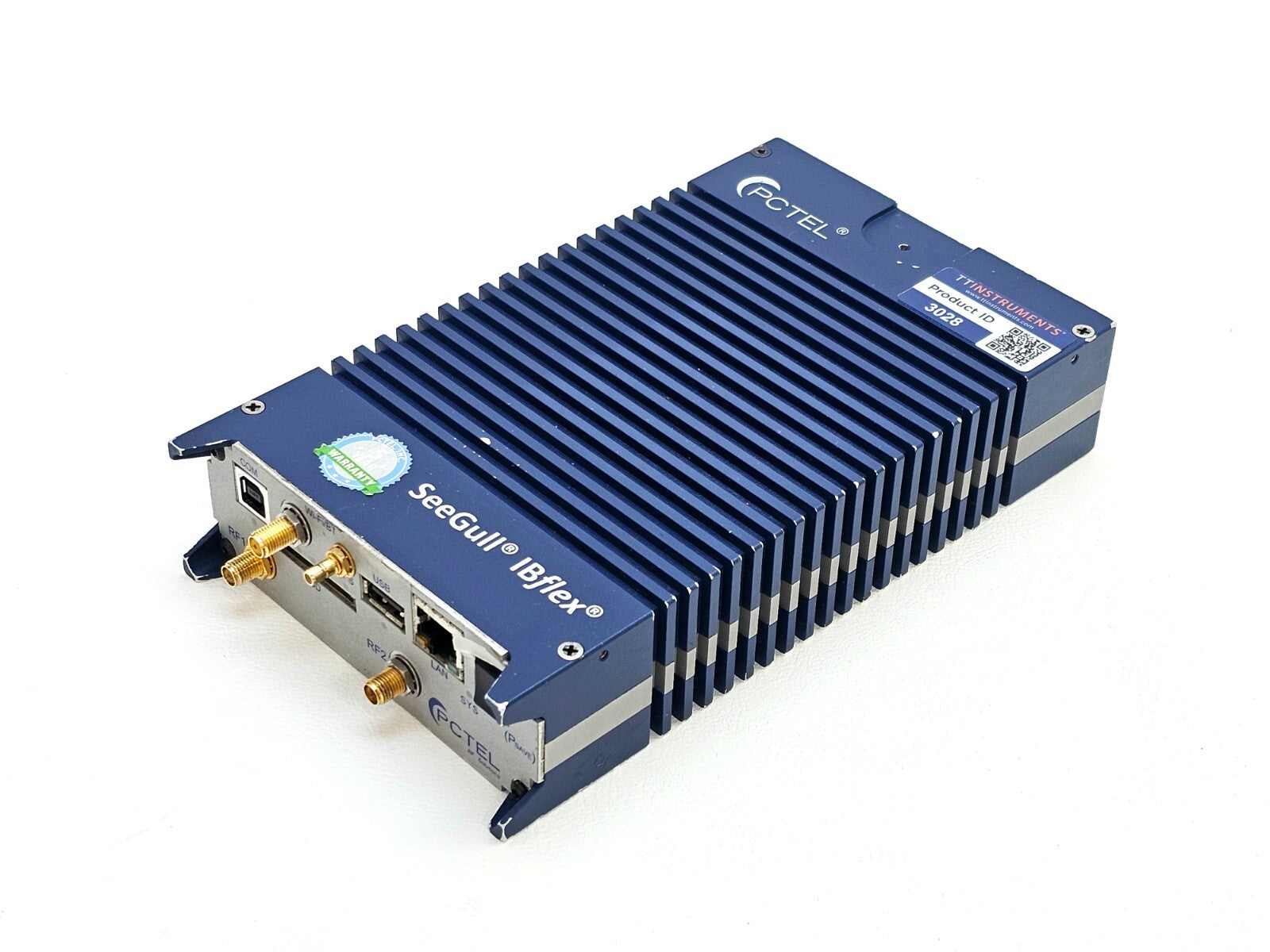

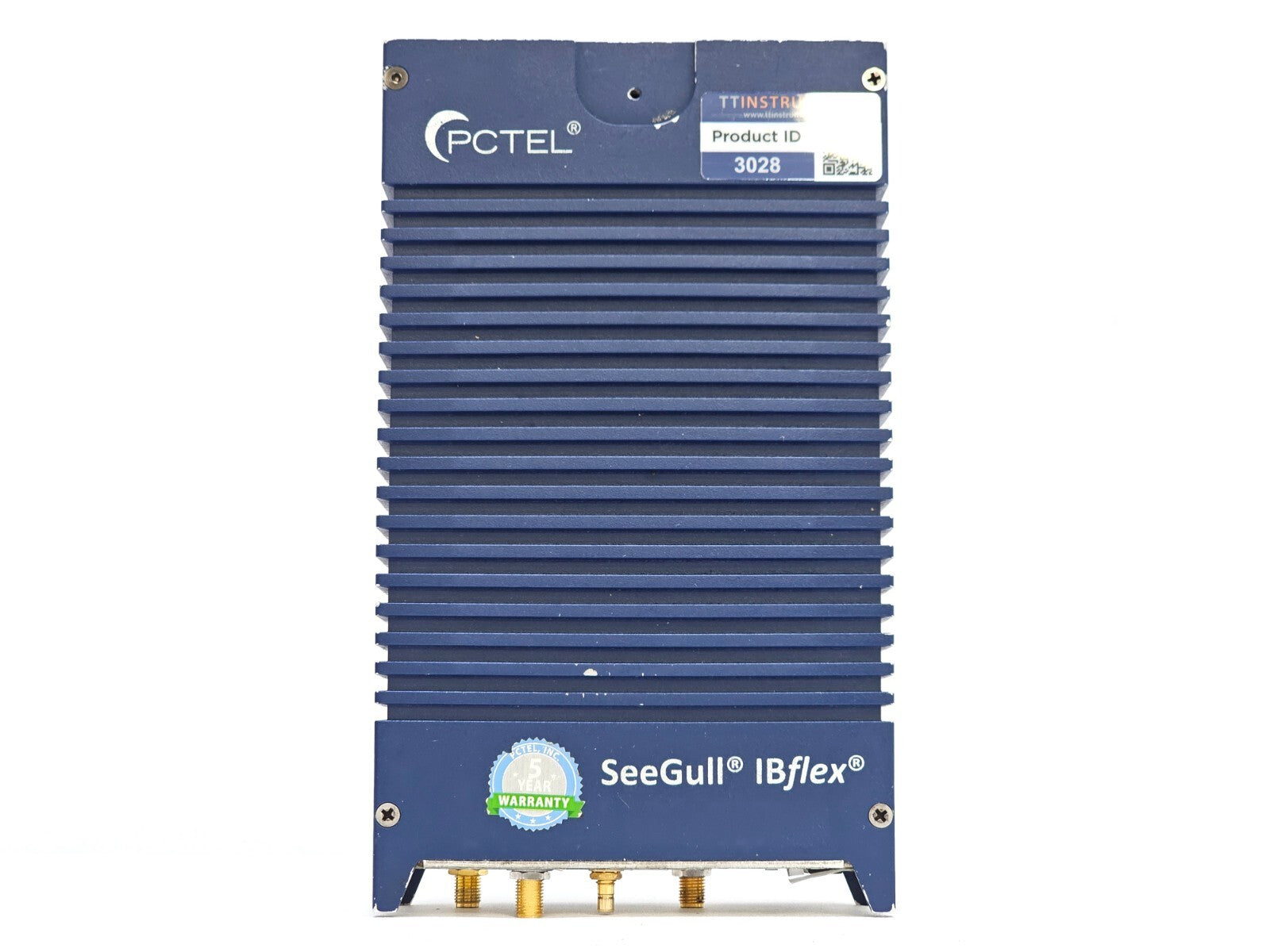

This PCTEL SeeGull IBflex 08900S scanning receiver covers 570 MHz to 3.8 GHz and has been tested and confirmed in excellent working condition. It carries 37 installed perpetual software options (licence state: Active) including full blind scan capability across GSM, IS-95, WCDMA, CDMA, EVDO, LTE, TD-LTE, TDSCDMA, and Wi-Fi, plus LTE and TD-LTE Enhanced Signal Scan. Calibration date: 03/11/2016 (Calibration Version 17).

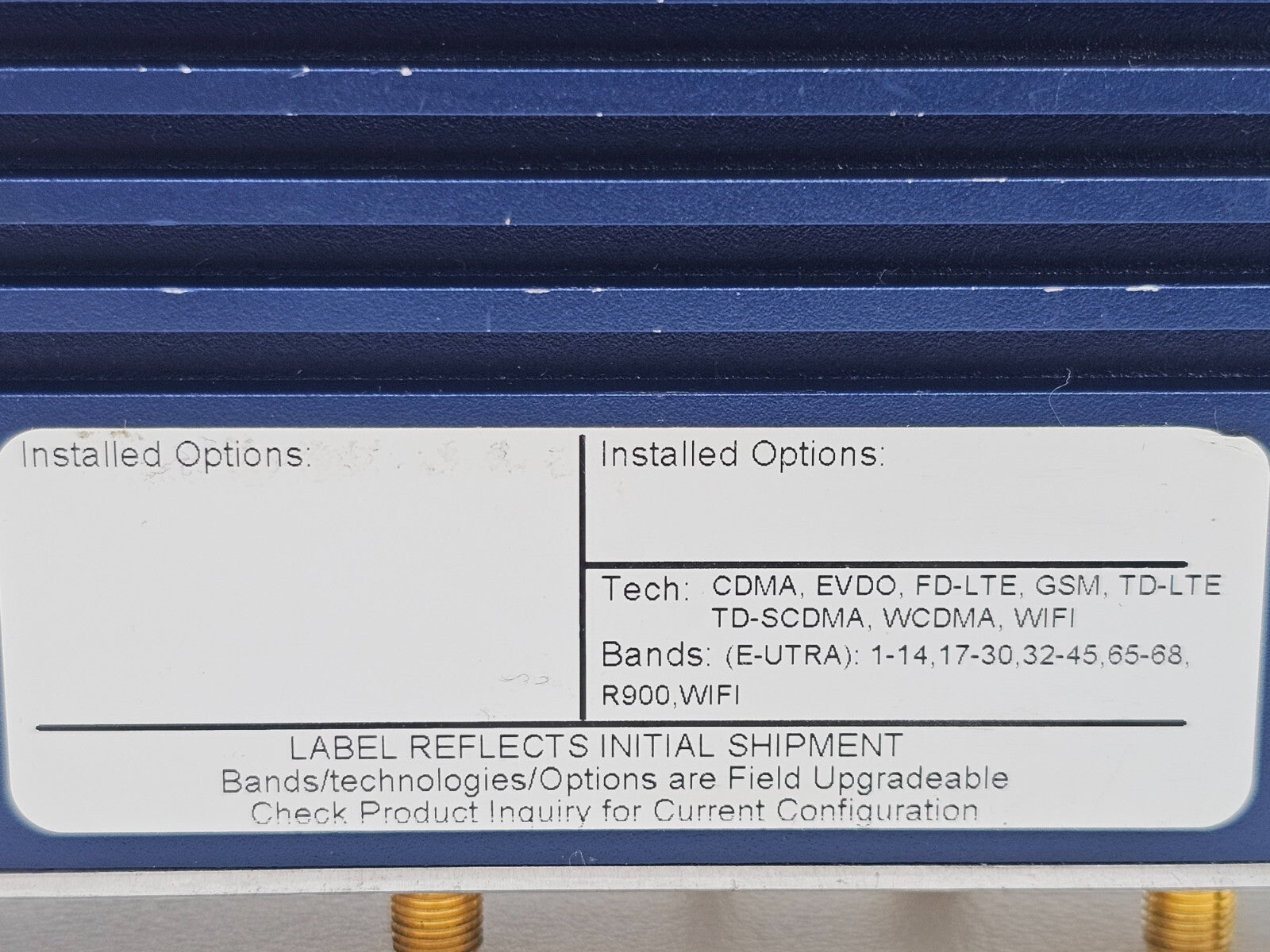

Installed options active on this unit:
• 570 MHz–3800 MHz Capability (7030-0000)
• Dual RF Port (000F-0000)
• GPS Navigation (0001-0000)
• Absolute Time Stamp (0005-0000)
• WiFi USB Adaptor (0009-0000)
• Ethernet Interface (000C-0000)
• Recording to SD Card (000A-0000)
• GSM Blind Scan (000B-0001)
• IS-95 Blind Scan (000B-0003)
• WCDMA Blind Scan (000B-0004)
• CDMA Blind Scan (000B-0005)
• EVDO Blind Scan (000B-0006)
• LTE Blind Scan (000B-000A)
• TDLTE Blind Scan (000B-000B)
• TDSCDMA Blind Scan (000B-0008)
• WiFi Support (0001-000C)
• WiFi Blind Scan (000B-000C)
• LTE Support (0001-000A)
• IS-95 Support (0001-0003)
• IS-95 Pilot (0003-0003)
• IS-95 Extended Dynamic Range (0008-0003)
• CDMA Support (0001-0005)
• CDMA Pilot (0003-0005)
• CDMA Extended Dynamic Range (0008-0005)
• EVDO Support (0001-0006)
• EVDO Pilot (0003-0006)
• EVDO Extended Dynamic Range (0008-0006)
• TDSCDMA Support (0001-0008)
• TDSCDMA Pilot (0003-0008)
• LTE Enhanced Signal Scan (000C-000A)
• TDLTE Support (0001-000B)
• TDLTE Enhanced Signal Scan (000C-000B)
• GSM Support (0001-0001)
• GSM BSIC (0002-0001)
• WCDMA Support (0001-0004)
• WCDMA Pilot (0003-0004)
• WCDMA Extended Dynamic Range (0008-0004)

The PCTEL SeeGull IBflex is a software-defined, multi-technology scanning receiver designed for in-building and outdoor network testing. It combines portability with the capability to test multiple wireless technologies and frequency bands simultaneously. The IBflex is well suited to in-building walk tests, outdoor drive tests, small cell deployments, public safety network verification, IoT system testing, and interference hunting. Its hot-swap battery system and low power consumption make it practical for extended field sessions.

The IBflex scanning receiver can be configured to support LTE FDD, TD-LTE, NB-IoT, UMTS (WCDMA/HSPA+), GSM, CDMA, EV-DO, TD-SCDMA, Wi-Fi (2.4 GHz and 5 GHz), P25, and other technologies — all of which can be measured simultaneously. The base 08900S hardware model covers 570 MHz to 3.8 GHz; the extended 08900S-E variant supports 10 MHz to 6 GHz. Options are field-upgradeable via software licences.

Product: PCTEL SeeGull IBflex Scanning Receiver

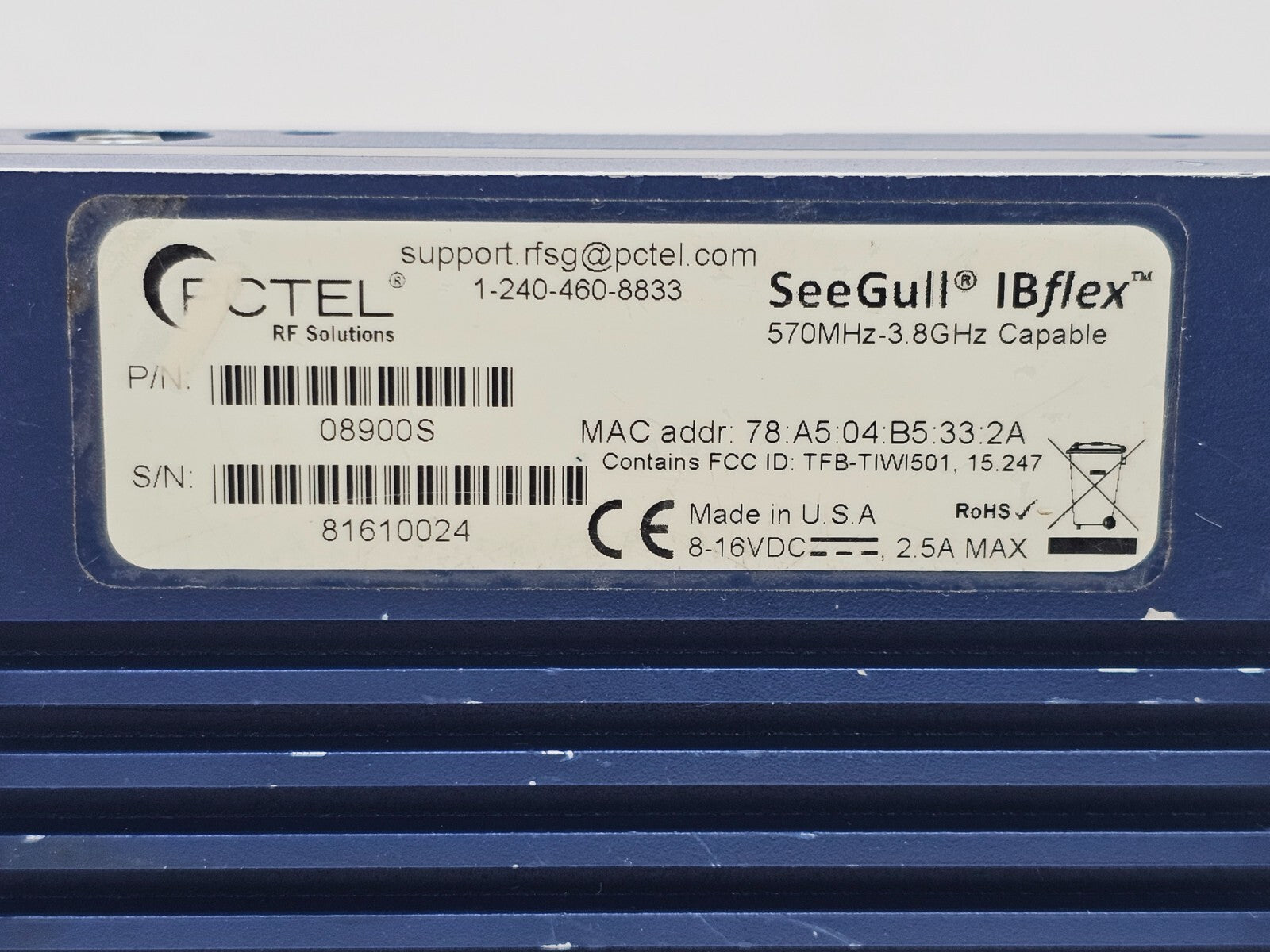

Model: 08900S (570 MHz – 3.8 GHz configuration)
Frequency Range: 570 MHz – 3.8 GHz (08900S); 10 MHz – 6 GHz (08900S-E extended)
Technologies Supported: LTE FDD, TD-LTE, NB-IoT, WCDMA/UMTS/HSPA+, GSM, CDMA, EV-DO, TD-SCDMA, Wi-Fi (2.4 & 5 GHz), P25, DMR, TETRA (option-dependent)
Power Measurement Accuracy: ±1 dB (across basic RF input power range)
Dynamic Range: -120 to -20 dBm @ 30 kHz RSSI
GPS: 56-channel internal receiver; Position accuracy ±2.5 m; Cold start <30 sec; Hot start <2 sec; Sensitivity (tracking) >-150 dBm
Scan Rate (LTE/5G NR): Up to 11,050 channels/sec (maximum, contiguous channels)
Scan Rate (UMTS/GSM/NB-IoT): Up to 4,250 channels/sec (maximum, contiguous channels)
Scan Rate (CDMA/EV-DO): Up to 8,500 channels/sec (maximum, contiguous channels)

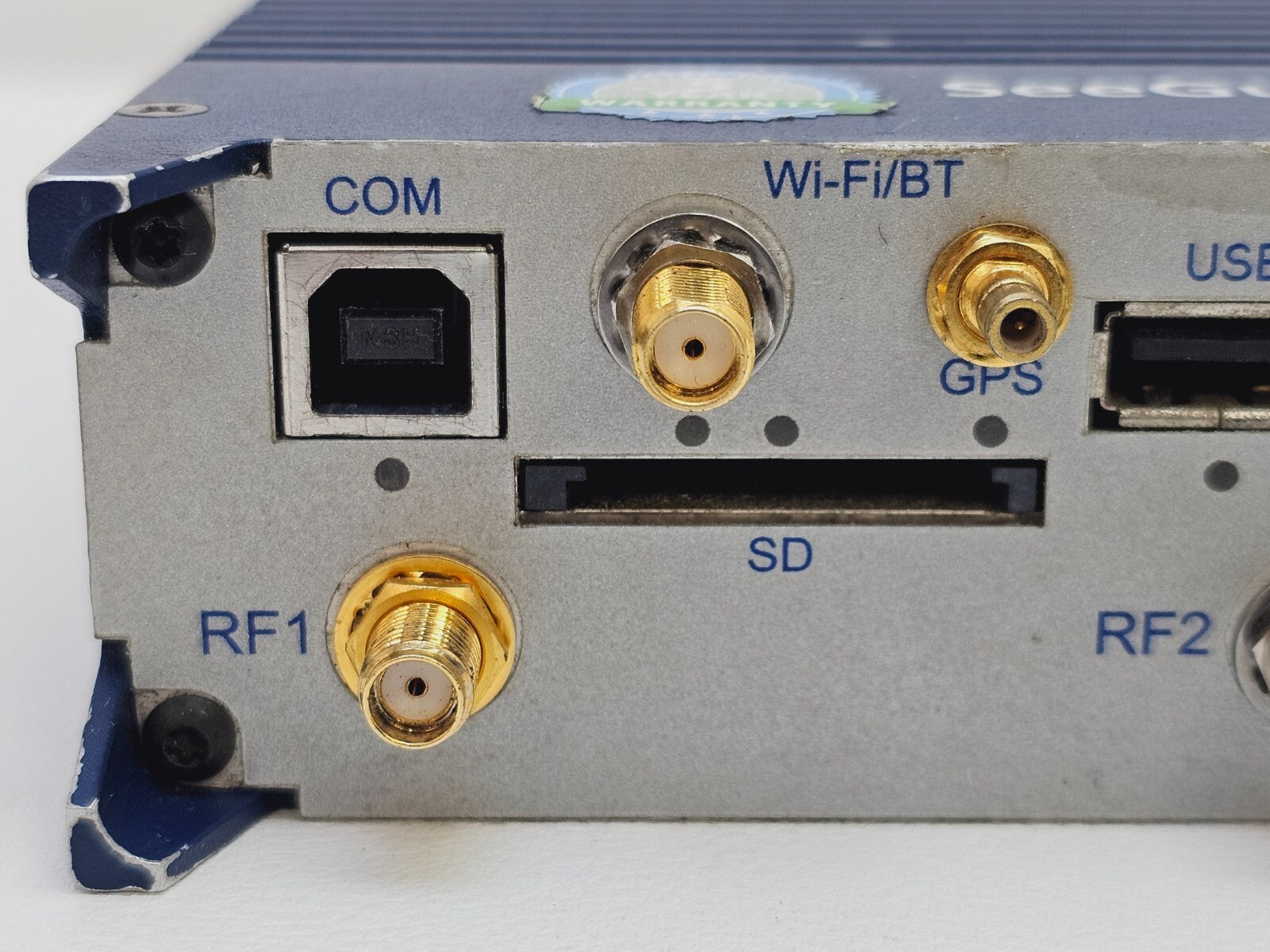

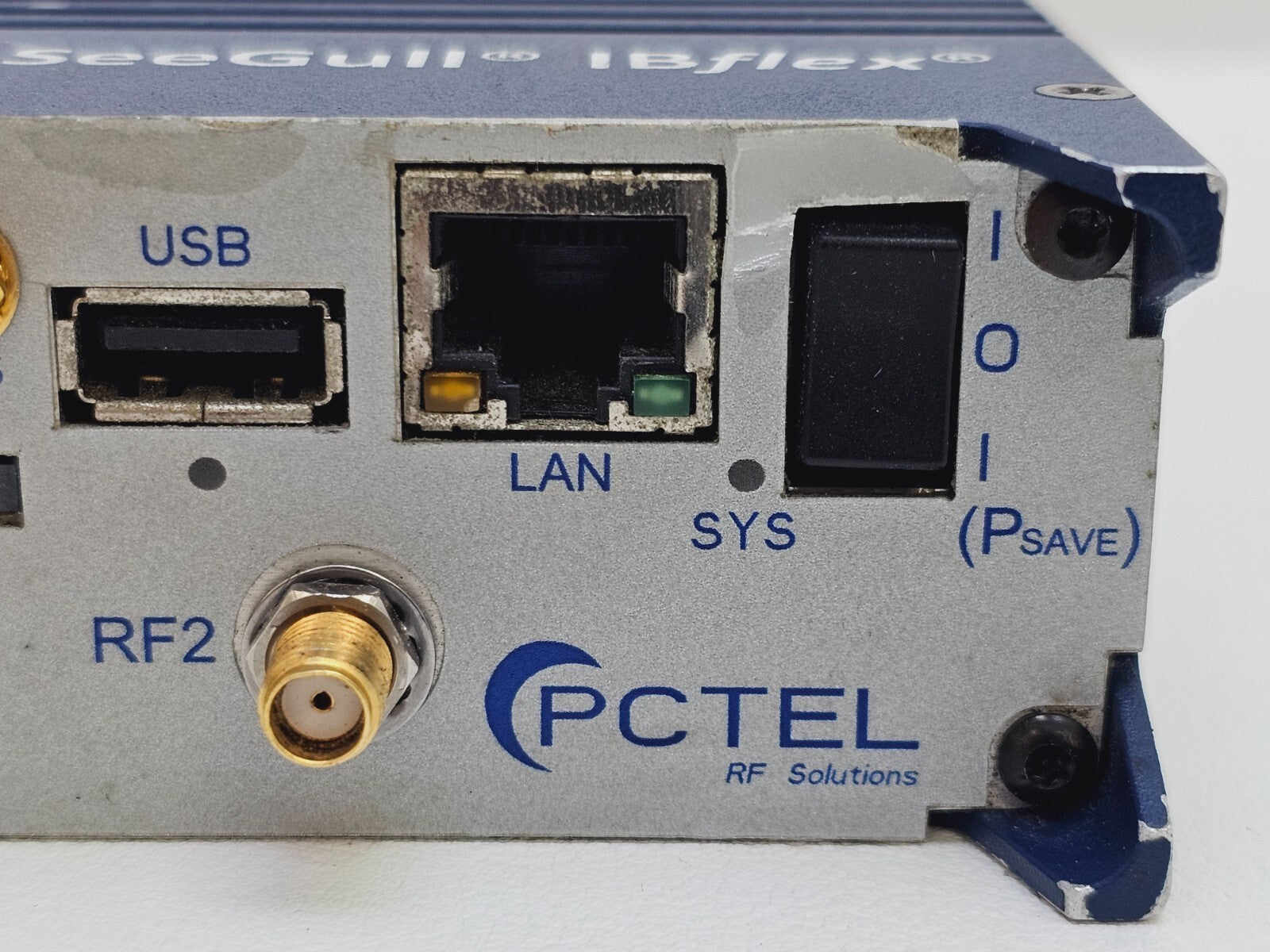

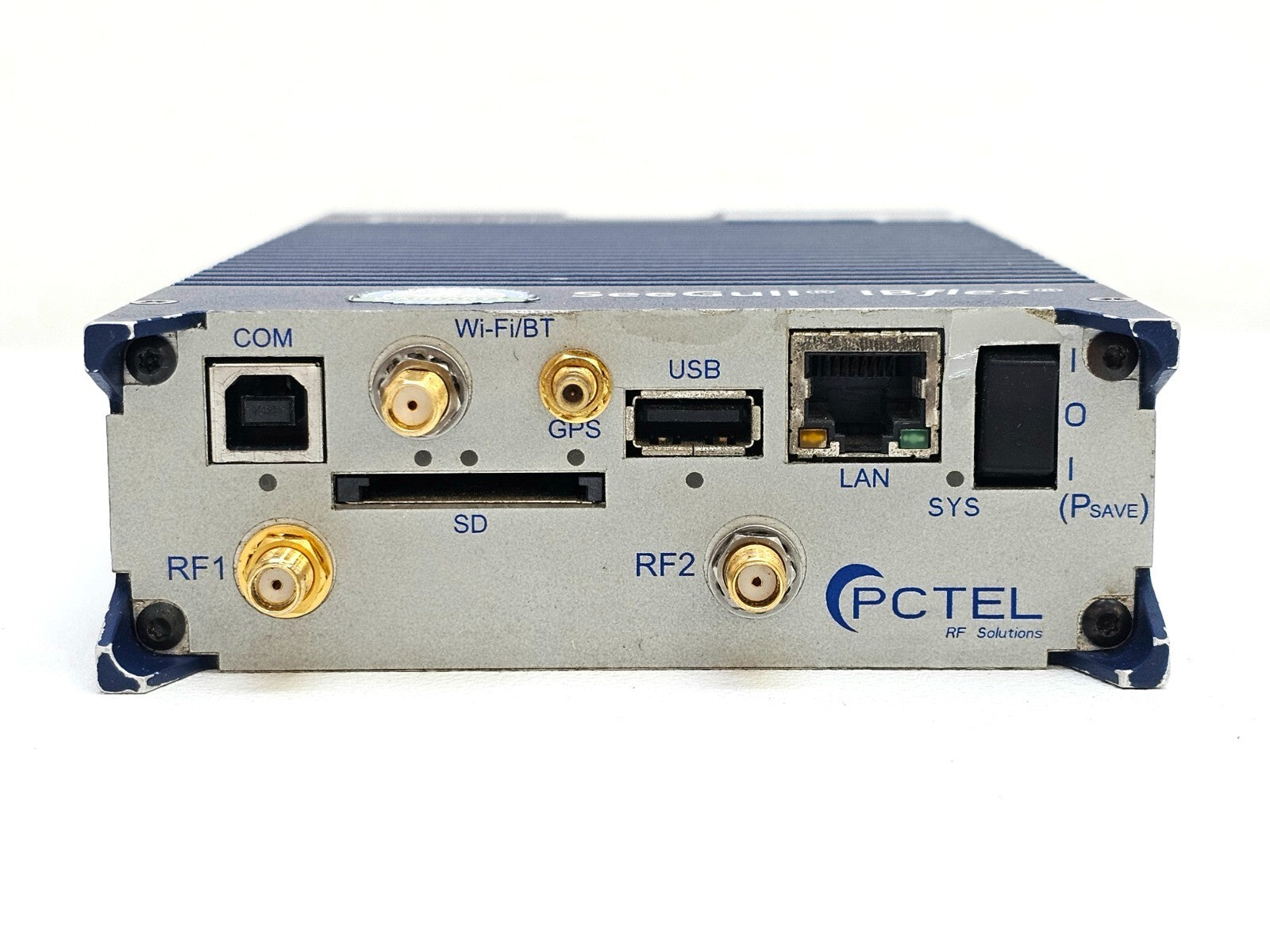

Interfaces: USB, Bluetooth, Ethernet, AOA (Android Open Accessory)
Connectivity: USB to Windows PC; Bluetooth to Android tablet; Ethernet
Data Storage: SD card recording (option)
Battery: Hot-swap battery system
Software Compatibility: PCTEL SeeHawk Collect, SeeGull Assistant, third-party drive test software
Licence Type: Perpetual (options are licence-key activated)
Compliance: RoHS; ISO
Calibration: Factory calibration; recalibration recommended every 2 years

PCTEL SeeGull IBflex Hardware Reference Manual Rev M (PDF) — tele-tools.com: Download PDF

PCTEL SeeGull IBflex Hardware Reference Manual Rev T (PDF) — webfactore CDN: Download PDF

PCTEL SeeGull IBflex Scanning Receiver Brochure (PDF) — talleycom.com: Download PDF

PCTEL IBflex In-Building and Outdoor Network Testing Brochure (PDF) — trsrentelco.com: Download PDF

PCTEL IBflex Scanning Receiver Datasheet (PDF) — tower-iq.com: Download PDF

PCTEL SeeGull IBflex Scanning Receiver Brochure — avalontest.com (PDF): Download PDF
