Condition: Used

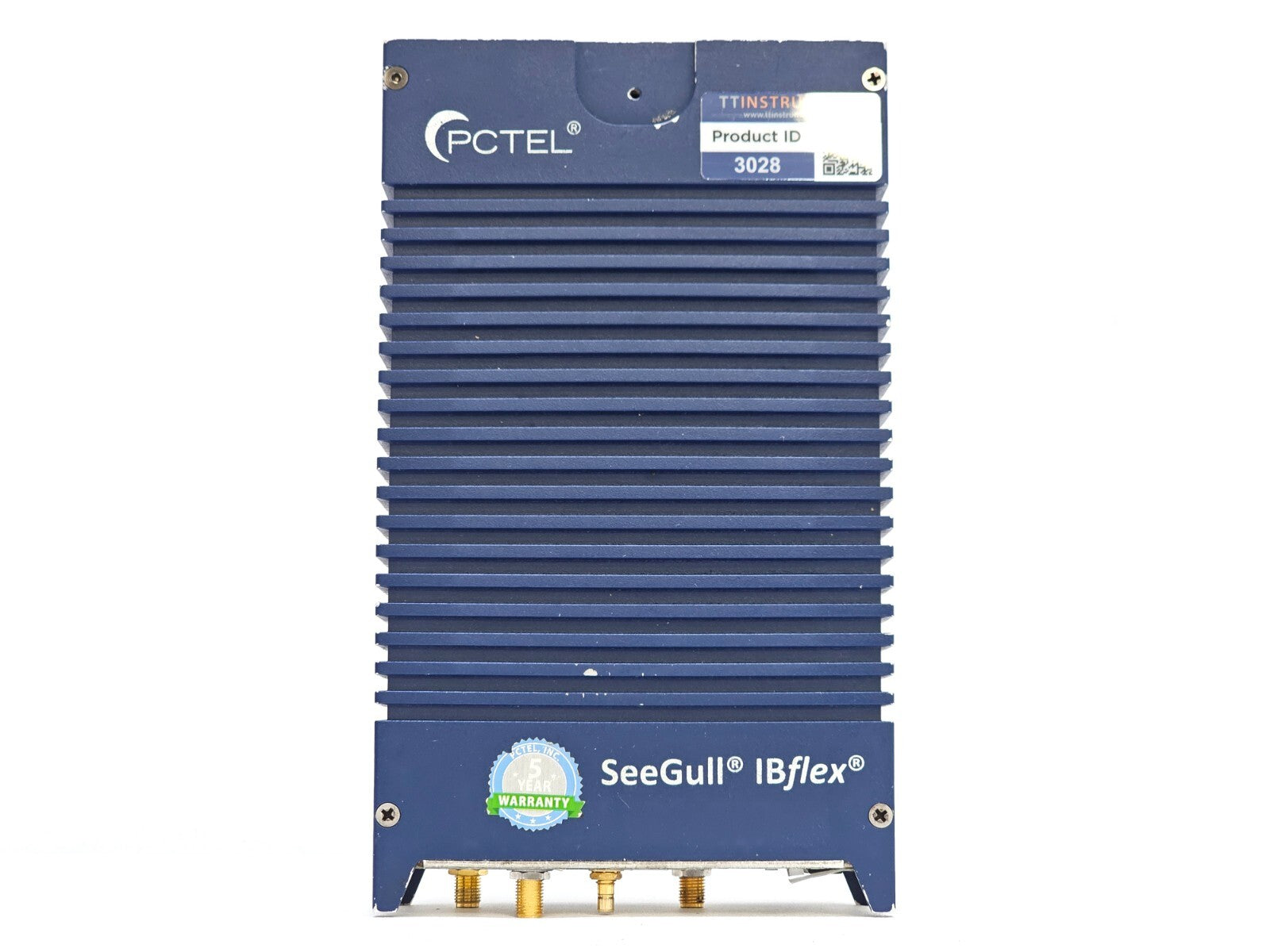

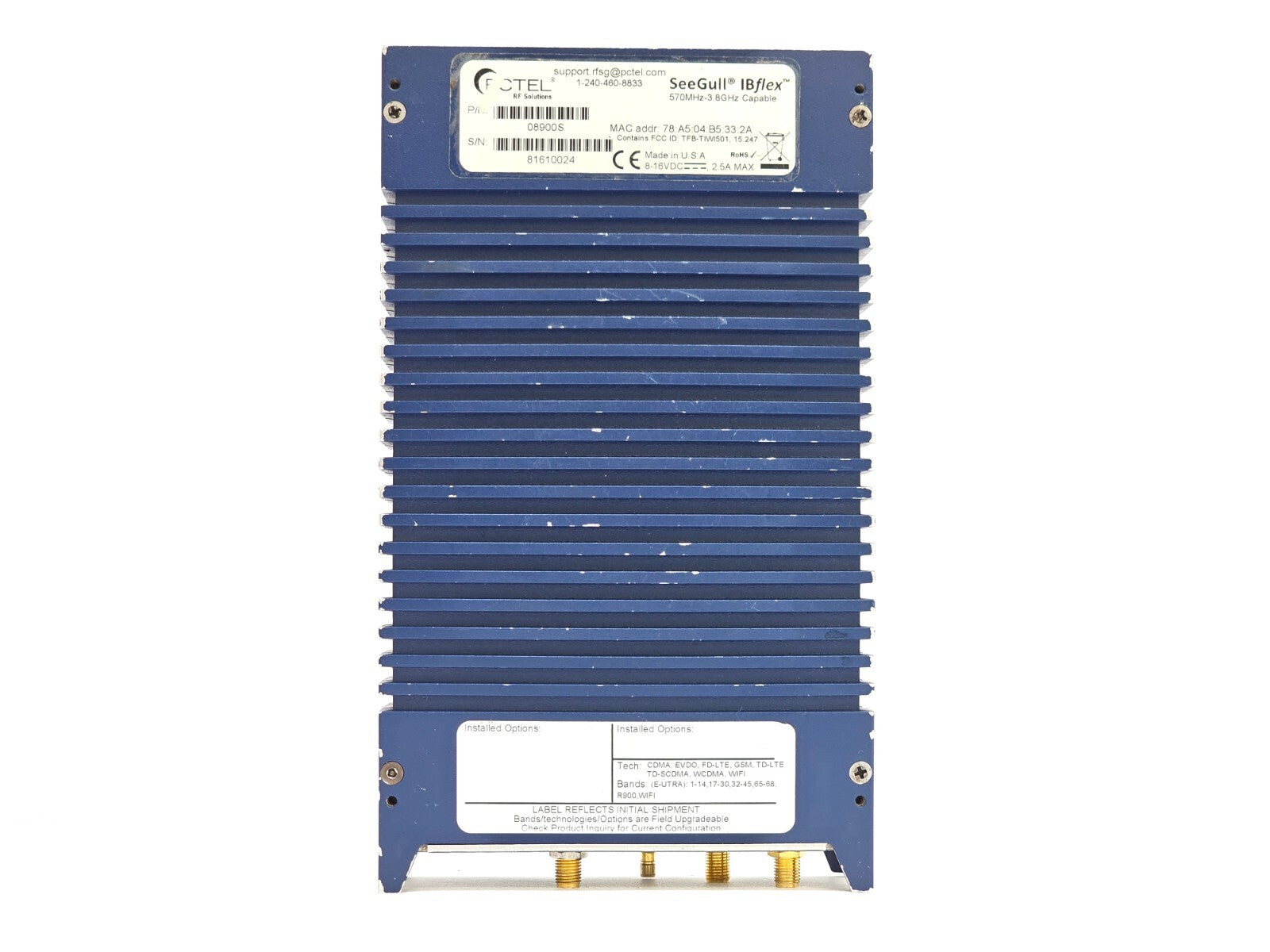

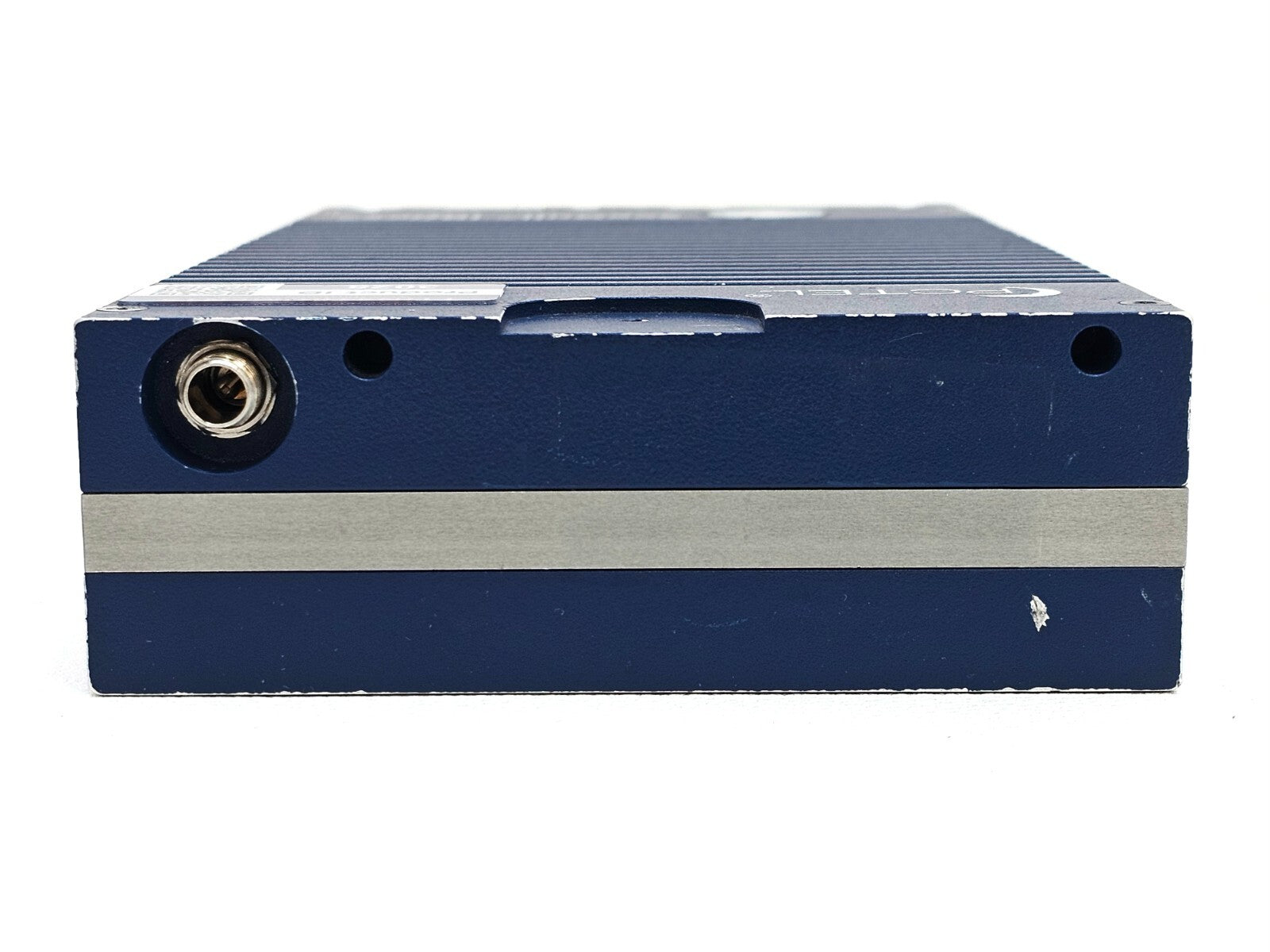

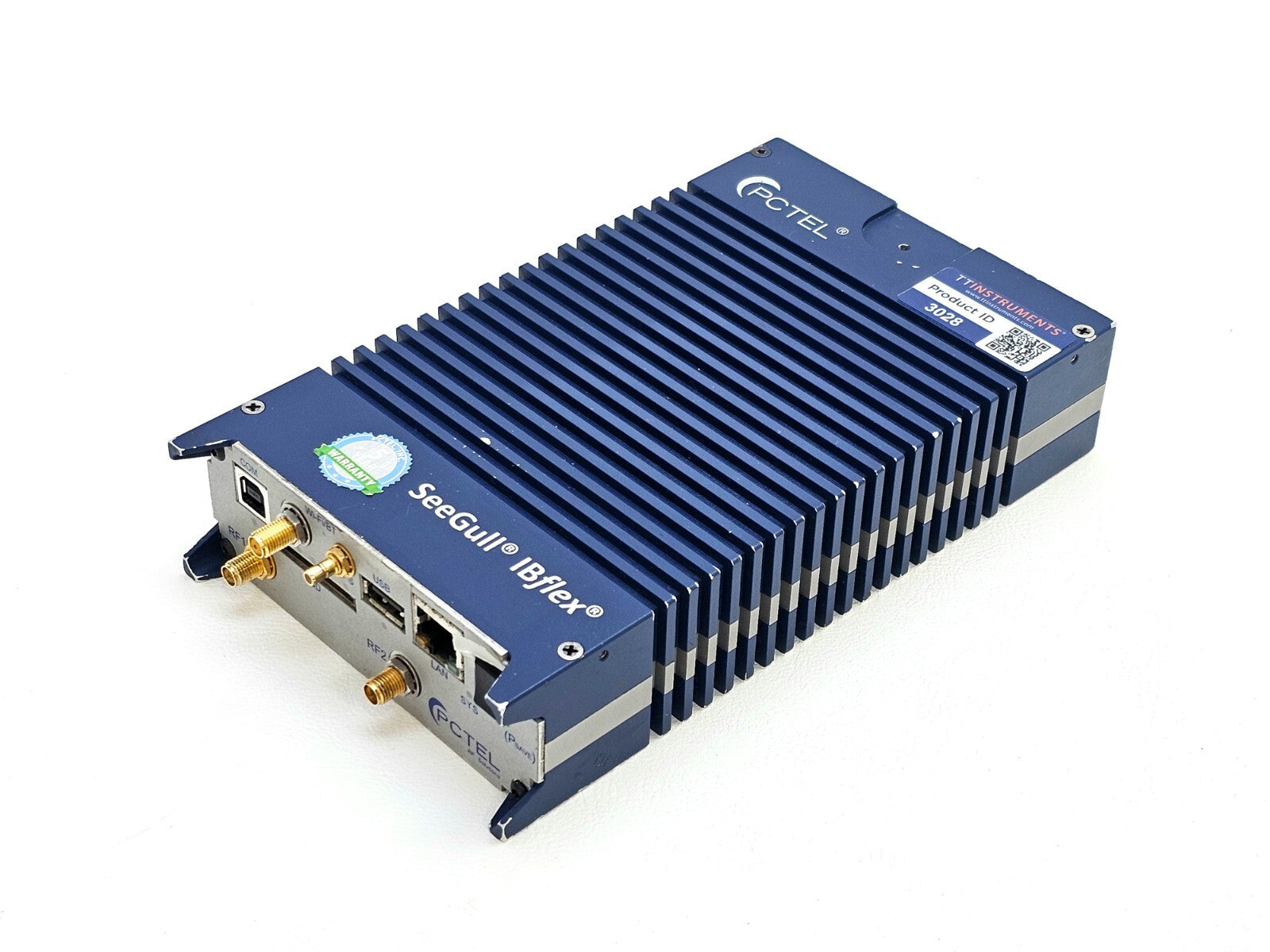

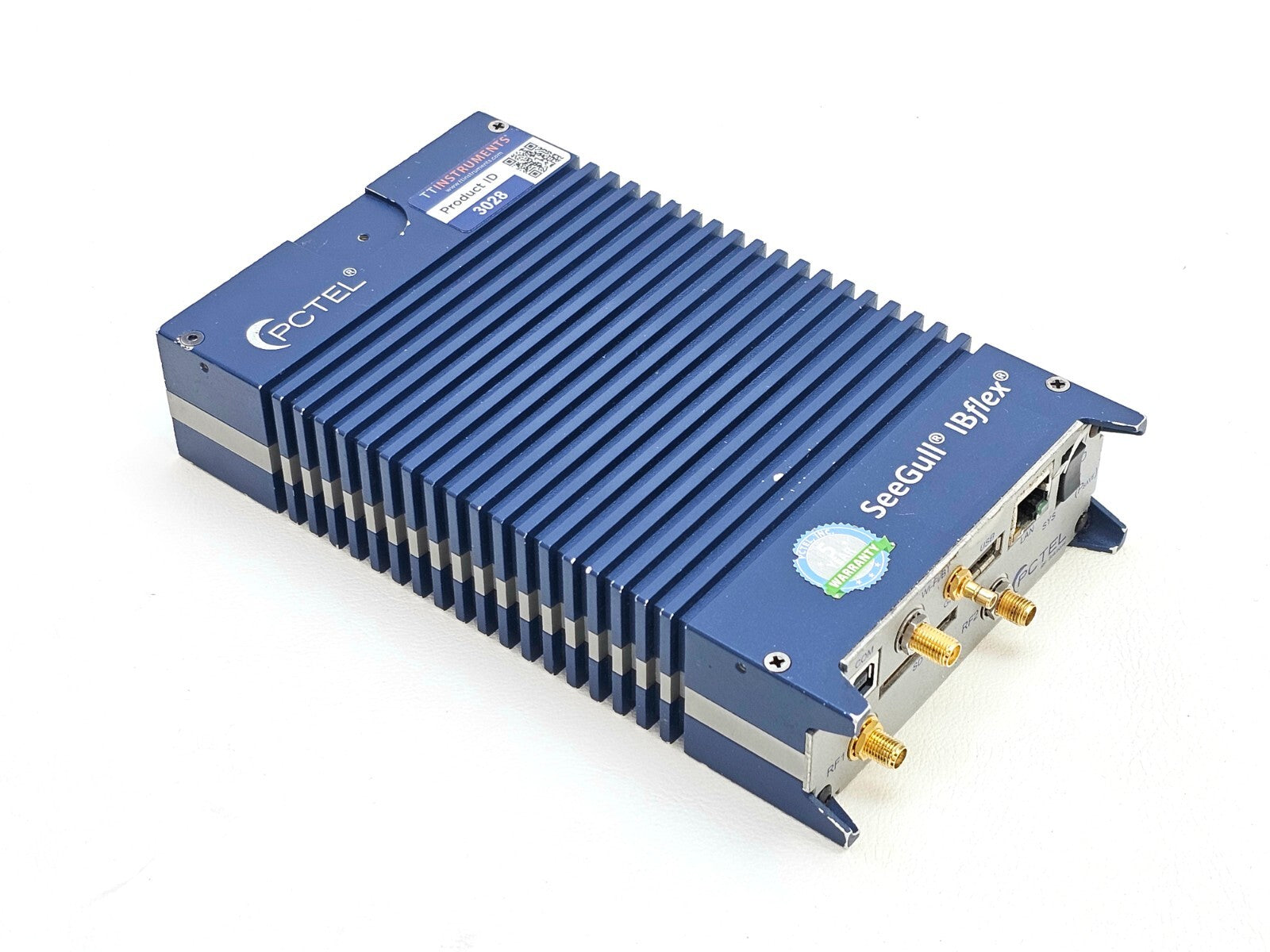

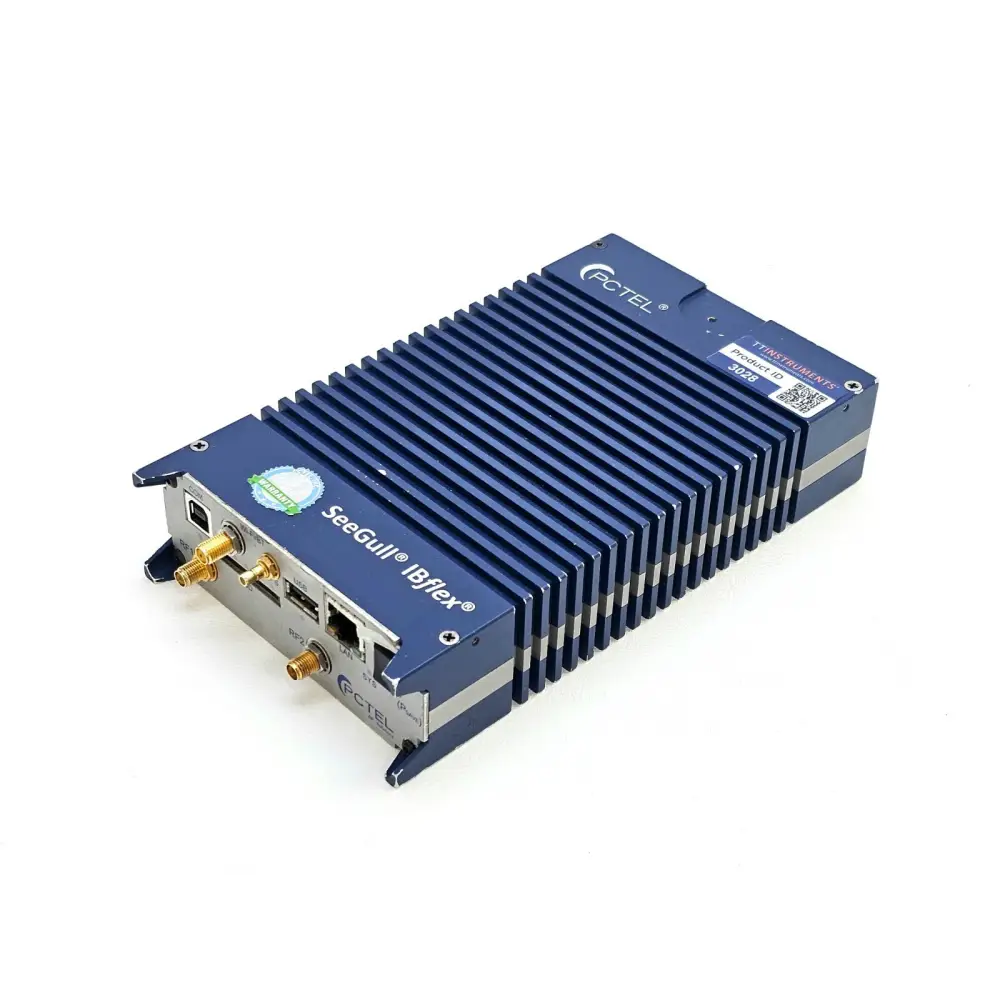

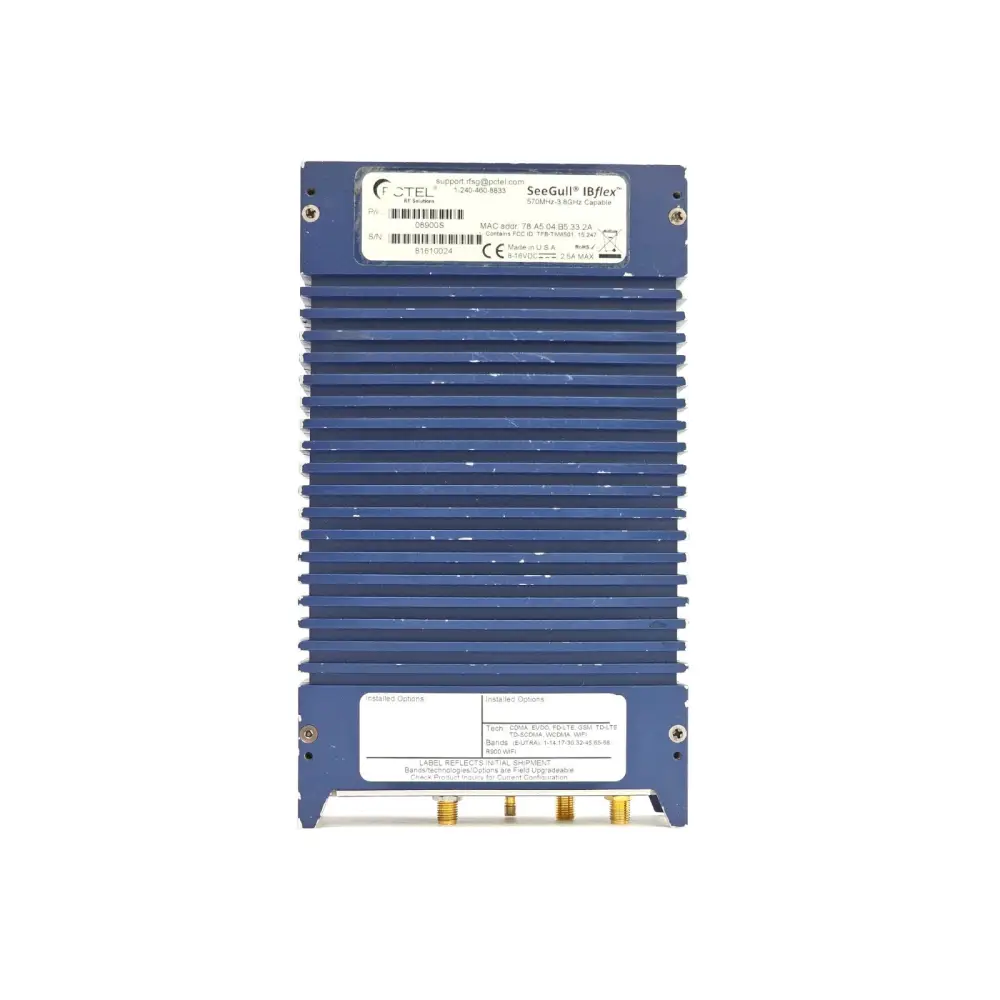

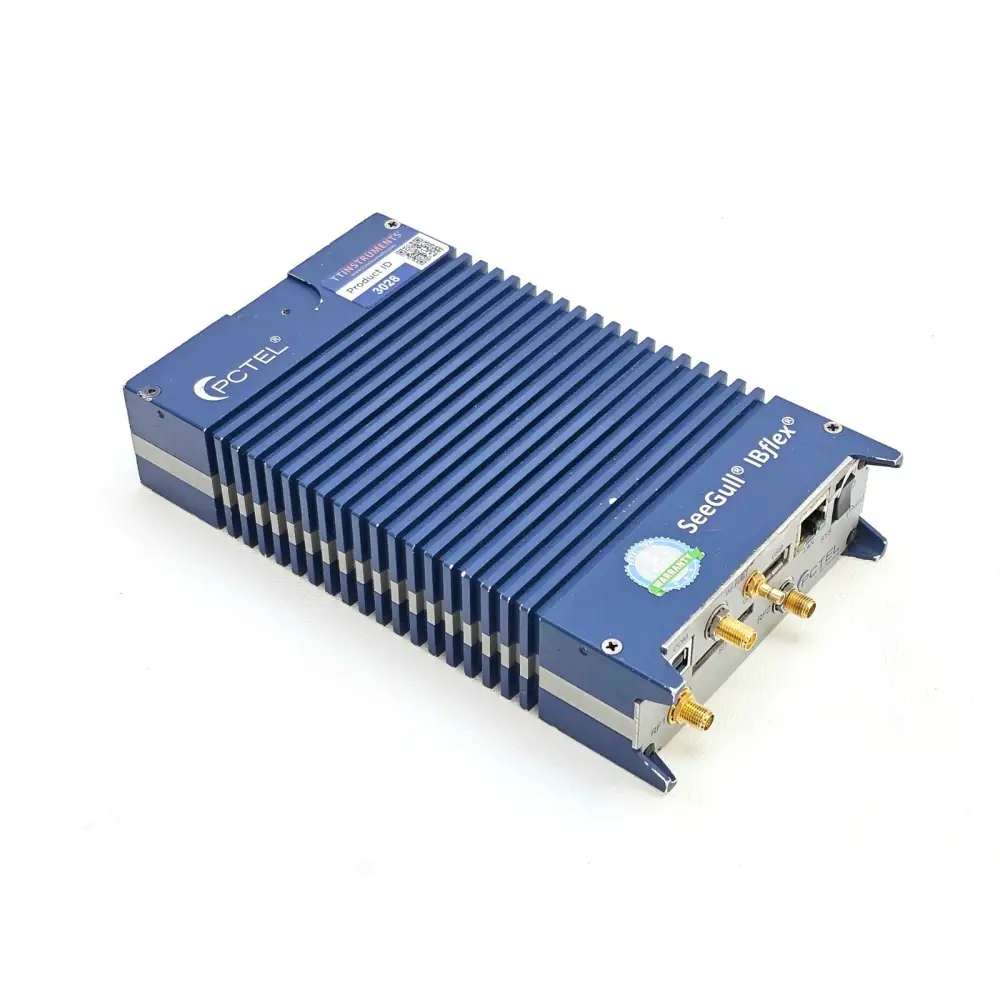

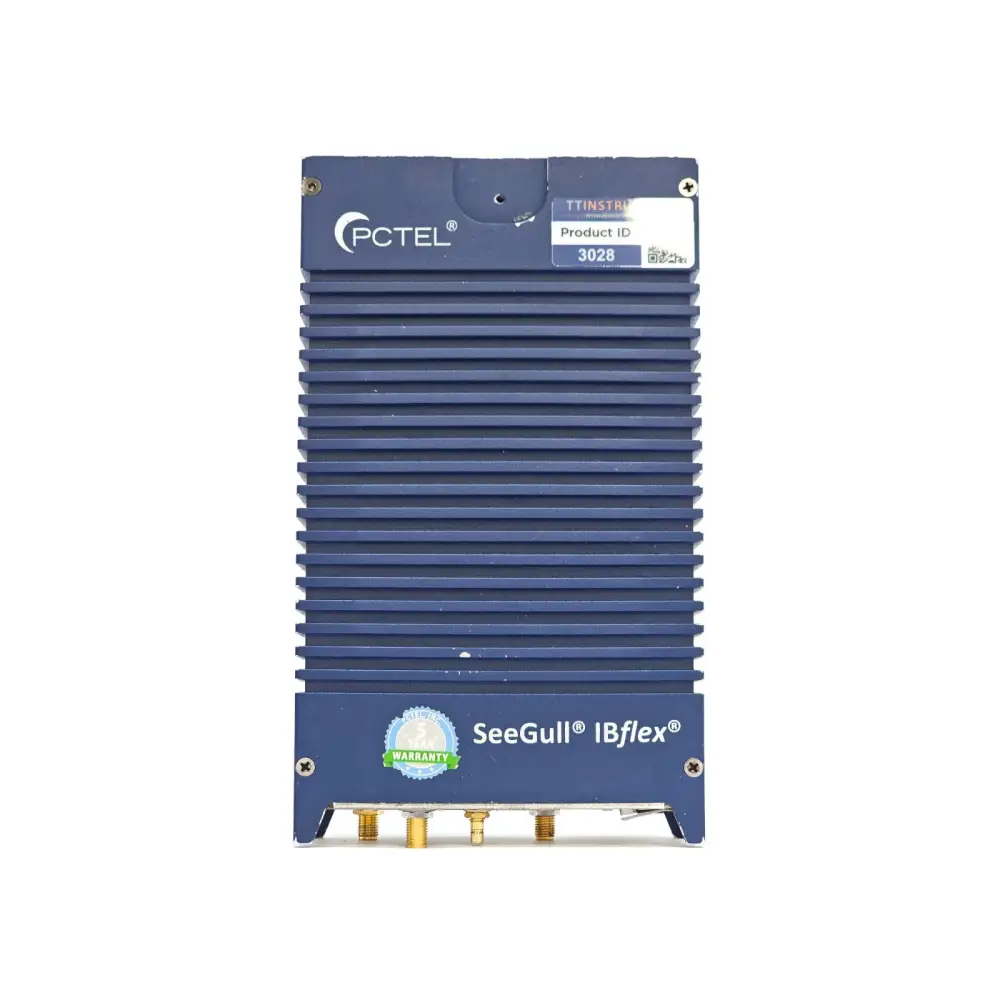

The PCTEL SeeGull IBflex 08900S scanning receiver operating across 570 MHz to 3.8 GHz. This unit carries 37 active installed options including comprehensive LTE, TD-LTE, WCDMA, CDMA, EV-DO, TDSCDMA, and GSM support with Blind Scan enabled for all major protocols. Calibrated 03/11/2016. Perpetual licence, Active licence state. Software Release Version 2.1.0.0.

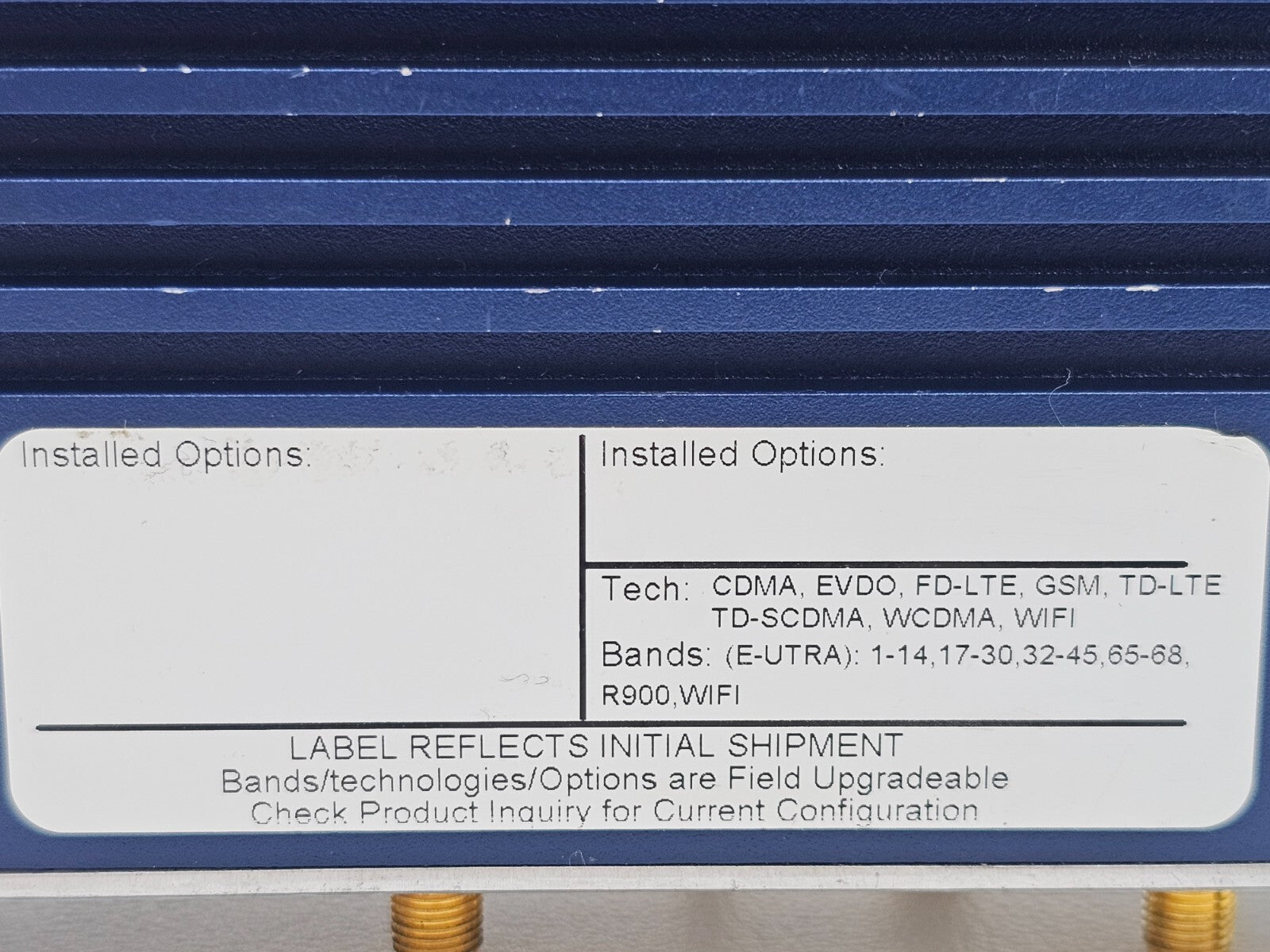

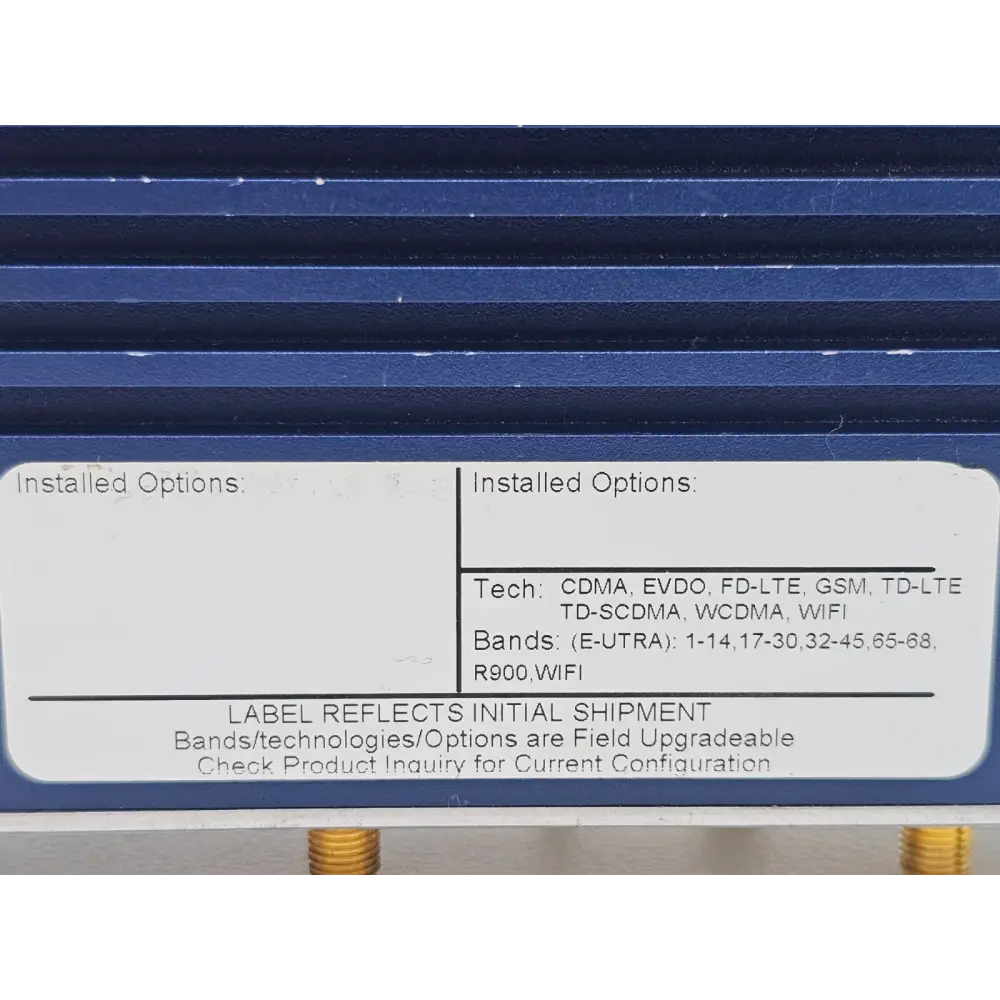

Installed options include:
• 570 MHz–3800 MHz Capability (7030-0000)
• Dual RF Port (000F-0000)
• GPS Navigation (0001-0000)
• Absolute Time Stamp (0005-0000)
• WiFi USB Adaptor (0009-0000)
• Ethernet Interface (000C-0000)
• Recording to SD Card (000A-0000)
• GSM Blind Scan (000B-0001)
• GSM Support (0001-0001)
• GSM BSIC (0002-0001)
• IS-95 Blind Scan (000B-0003)
• IS-95 Support (0001-0003)
• IS-95 Pilot (0003-0003)
• IS-95 Extended Dynamic Range (0008-0003)
• CDMA Blind Scan (000B-0005)
• CDMA Support (0001-0005)
• CDMA Pilot (0003-0005)
• CDMA Extended Dynamic Range (0008-0005)
• EVDO Blind Scan (000B-0006)
• EVDO Support (0001-0006)
• EVDO Pilot (0003-0006)
• EVDO Extended Dynamic Range (0008-0006)
• WCDMA Blind Scan (000B-0004)
• WCDMA Support (0001-0004)
• WCDMA Pilot (0003-0004)
• WCDMA Extended Dynamic Range (0008-0004)
• TDSCDMA Blind Scan (000B-0008)
• TDSCDMA Support (0001-0008)
• TDSCDMA Pilot (0003-0008)
• LTE Blind Scan (000B-000A)
• LTE Support (0001-000A)
• LTE Enhanced Signal Scan (000C-000A)
• TDLTE Blind Scan (000B-000B)
• TDLTE Support (0001-000B)
• TDLTE Enhanced Signal Scan (000C-000B)
• WiFi Support (0001-000C)
• WiFi Blind Scan (000B-000C)

The PCTEL SeeGull IBflex is a software-defined scanning receiver combining portability and accuracy for testing multiple wireless technologies and bands simultaneously. It is designed primarily for in-building walk tests and small cell deployments but is equally capable for outdoor drive testing without compromising performance or accuracy. The IBflex can be used to verify network coverage, optimise dense small cell deployments, identify and resolve network performance issues, and conduct interference hunting.

The scanner is configured for LTE FDD, TD-LTE, NB-IoT, UMTS (WCDMA/HSPA+), GSM, CDMA, EV-DO, TD-SCDMA, and Wi-Fi technologies, which can all be measured simultaneously. Its hot-swap battery system and low power consumption make it suited for extended walk test sessions.

General Specifications:
Device Type: Software-defined multi-technology scanning receiver

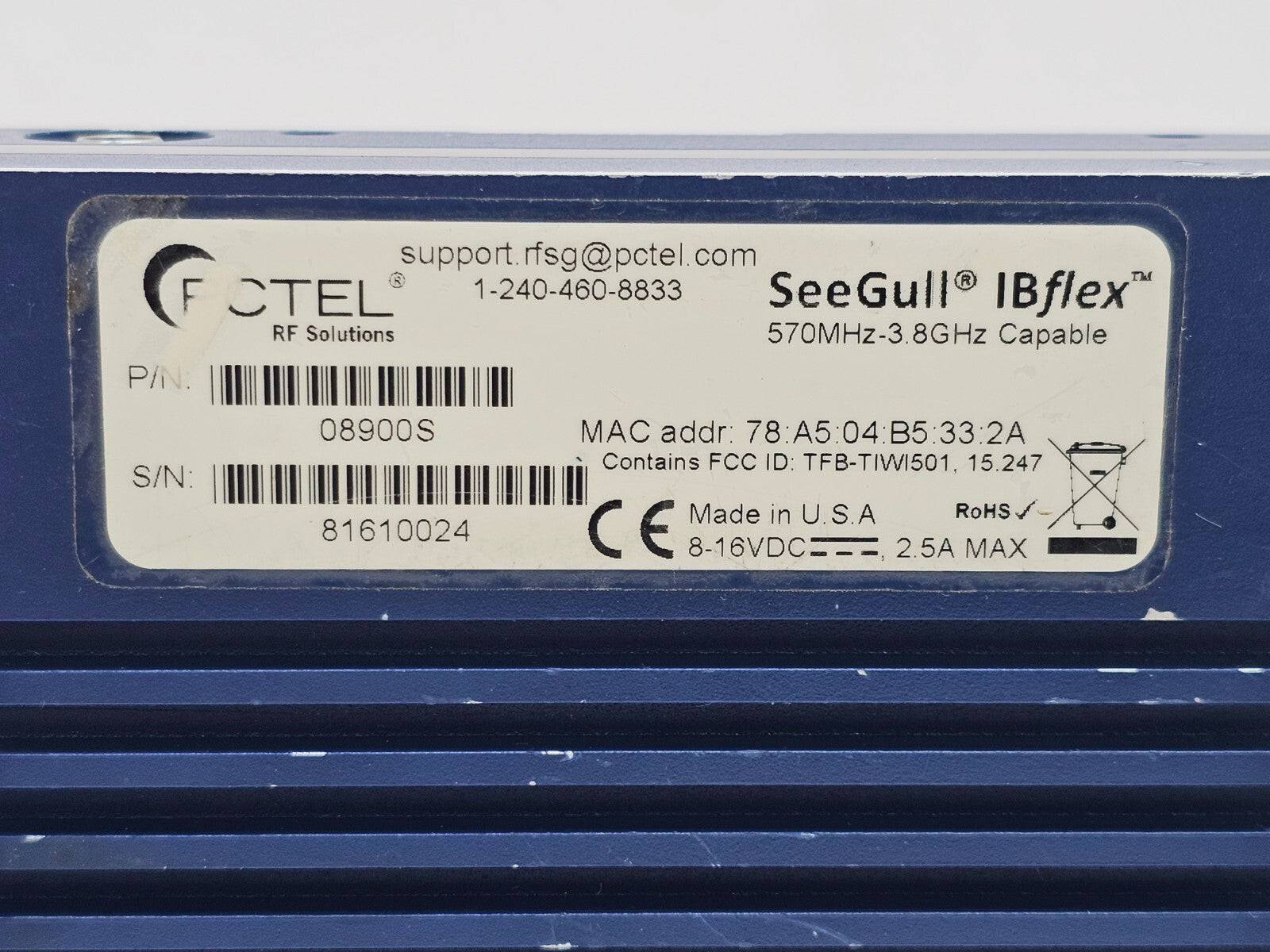

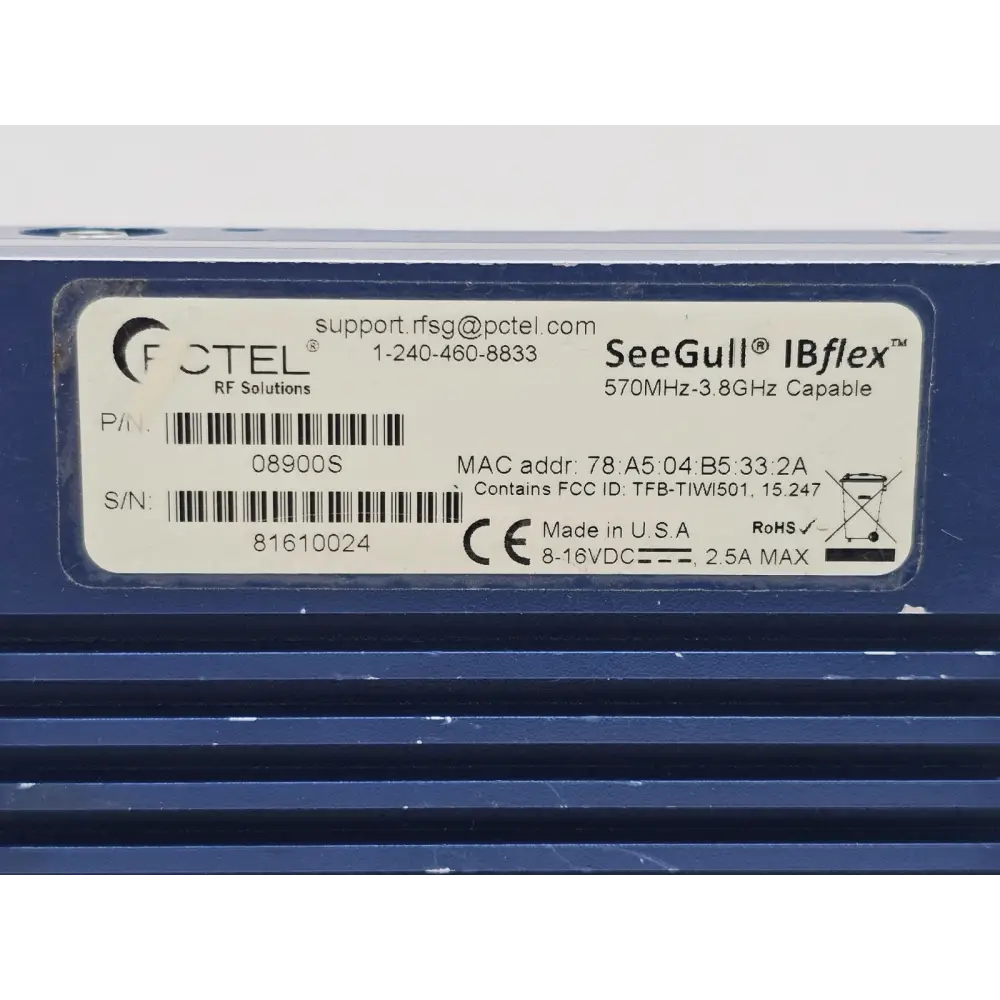

Model/Part Number: 08900S (570 MHz–3.8 GHz configuration)
Frequency Range: 570 MHz to 3.8 GHz (08900S); hardware supports 10 MHz to 6 GHz on -E variant
Supported Technologies: LTE FDD, TD-LTE, NB-IoT, WCDMA/UMTS/HSPA+, GSM, CDMA, EV-DO, TD-SCDMA, Wi-Fi (2.4 GHz & 5 GHz), P25

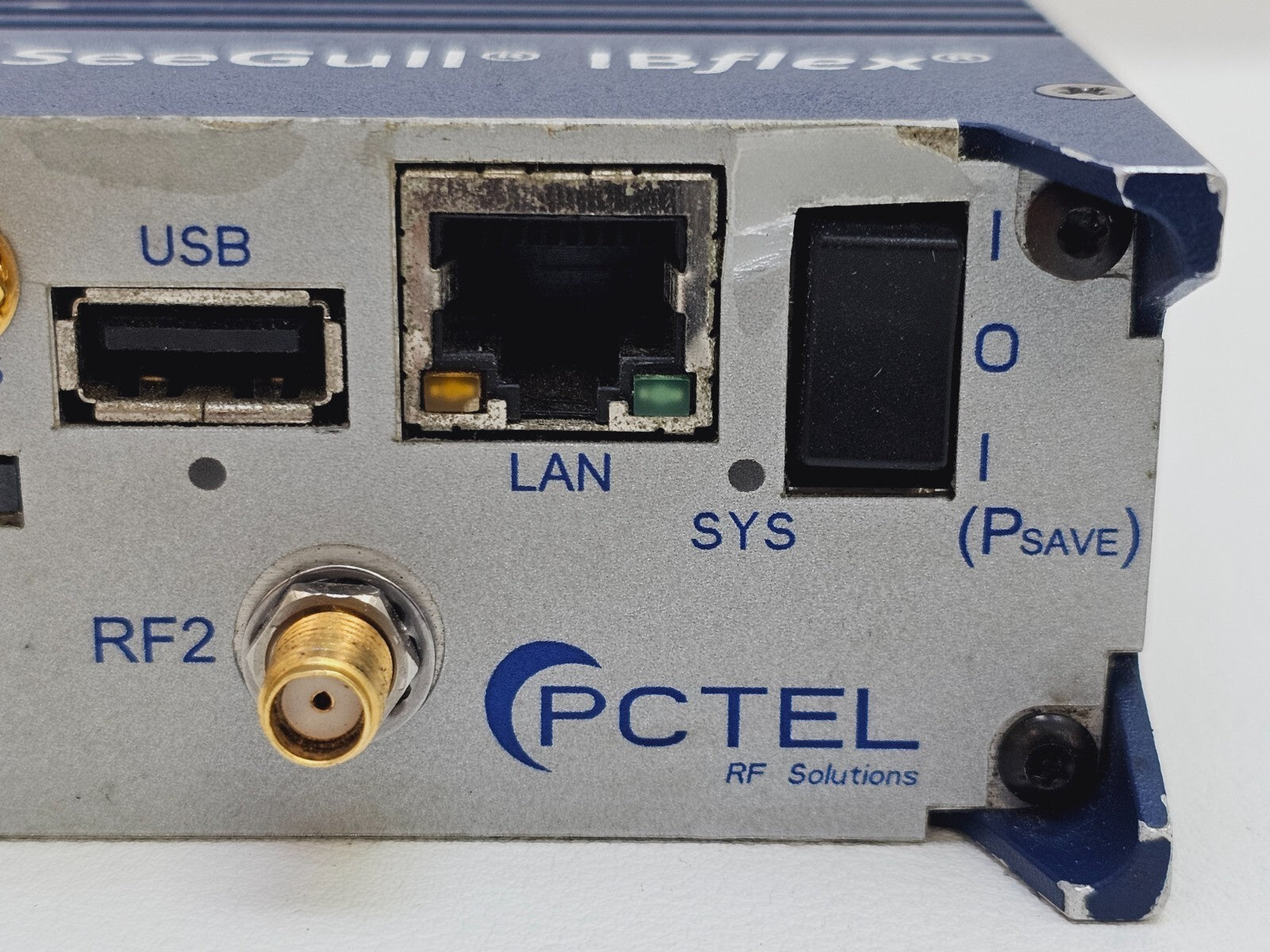

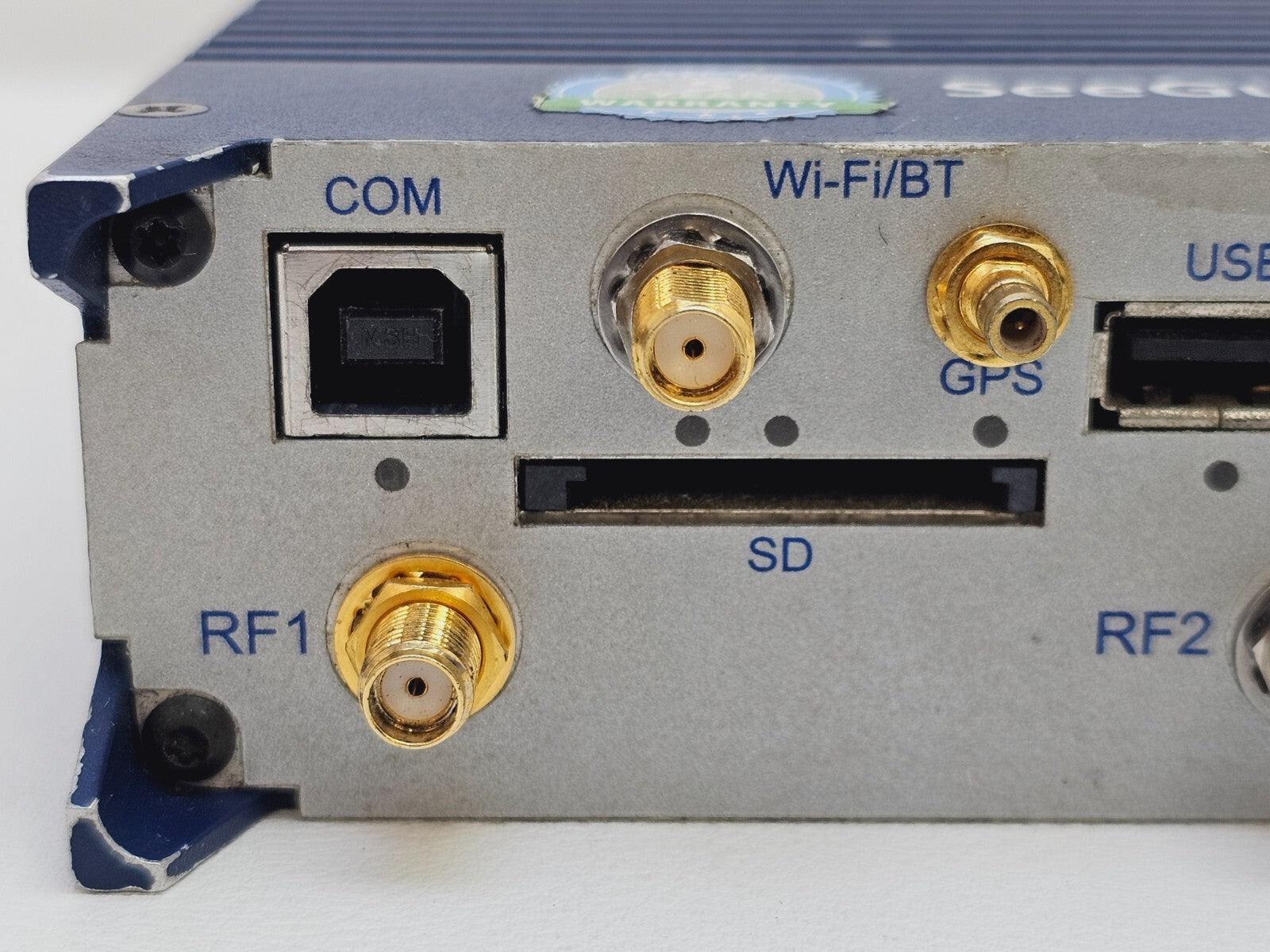

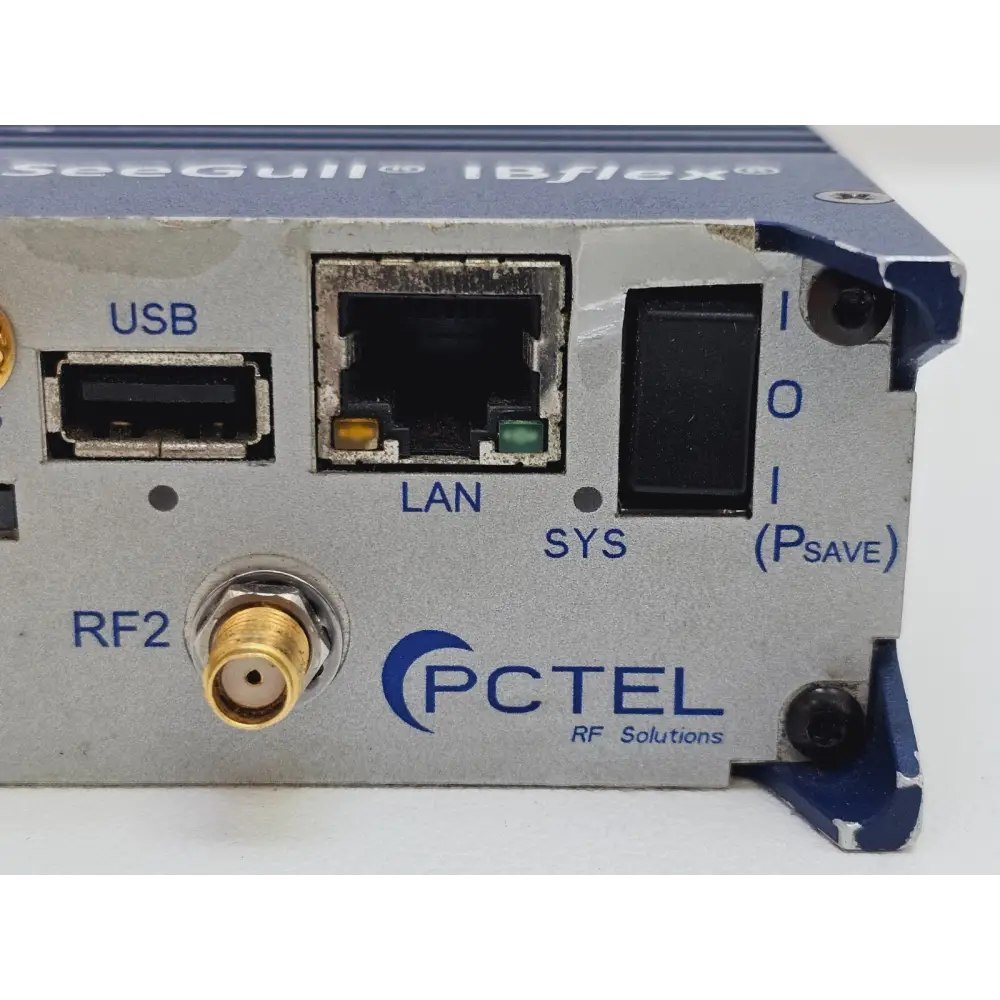

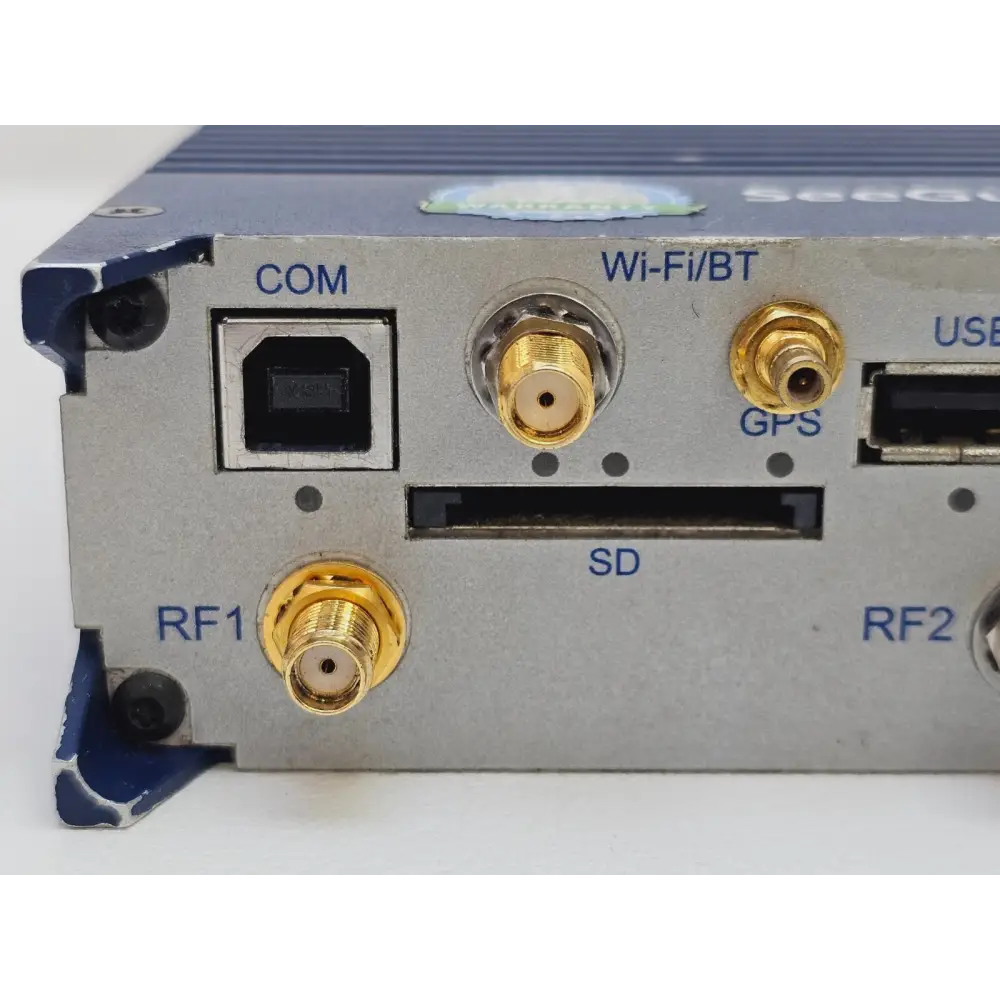

Interfaces: USB, Bluetooth, Ethernet, AOA

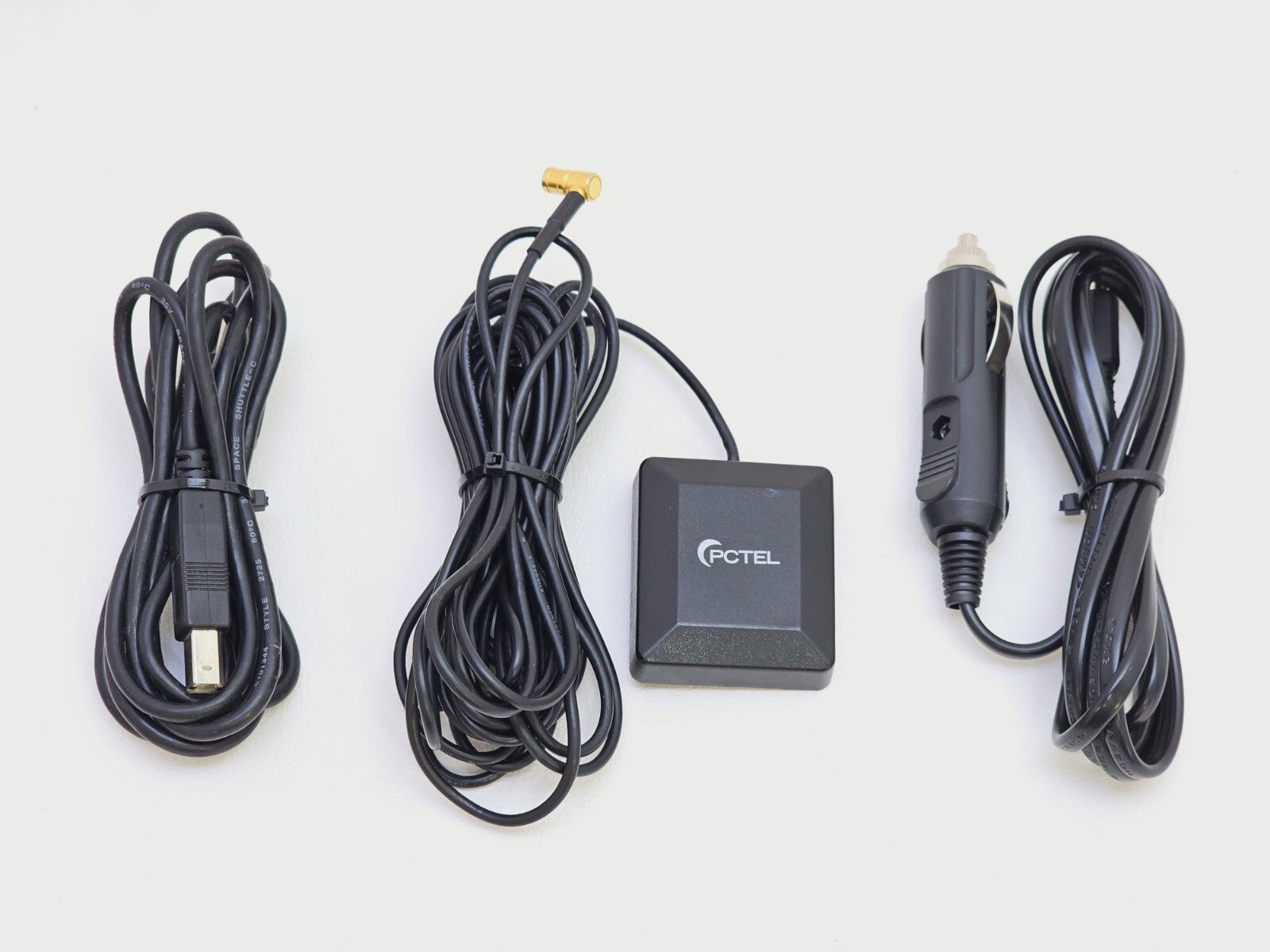

GPS: 56-channel internal receiver; position accuracy ±2.5 m; cold start <30 sec; hot start <2 sec; sensitivity >−150 dBm
Power Measurement Accuracy: ±1 dB (across basic RF input power range)
Dynamic Range: −120 to −20 dBm @ 30 kHz RSSI
Scan Rate (LTE/5G NR): Up to 11,050 channels/sec (maximum, contiguous channels)
Scan Rate (UMTS/GSM/NB-IoT): Up to 4,250 channels/sec (maximum, contiguous channels)
Scan Rate (CDMA/EV-DO): Up to 8,500 channels/sec (maximum, contiguous channels)
Enhanced Power Scan (EPS): 5 kHz to 20 MHz in 2.5 kHz increments; ~1,000 MHz/sec @ 5 MHz typical
Data Storage: SD card recording supported
Licence Type: Perpetual (field-upgradeable software options)
Primary Use Cases: In-building walk testing, outdoor drive testing, small cell deployment verification, public safety coverage verification, interference hunting, network optimisation
Software Compatibility: PCTEL SeeHawk Collect; SeeGull Assistant (Windows PC or Android tablet via Bluetooth/USB)

PCTEL SeeGull IBflex Hardware Reference Manual (Rev M) — features, setup, operation, specifications: Download PDF

PCTEL SeeGull IBflex Hardware Reference Manual (Rev T) — latest revision covering IBflex and IBflex Lite: Download PDF

PCTEL SeeGull IBflex Scanning Receiver Brochure — product overview and key specifications: Download PDF

PCTEL SeeGull IBflex Brochure (Avalon Test) — features, use cases and supported technologies: Download PDF
