PCTel SeeGull IBflex 570 MHz - 3.8 GHz Scanning Receiver 08900 OP635 LTE 2x2/4x2

Condition: Used

In excellent working condition, tested. Multiple options enabled as per images and description below.

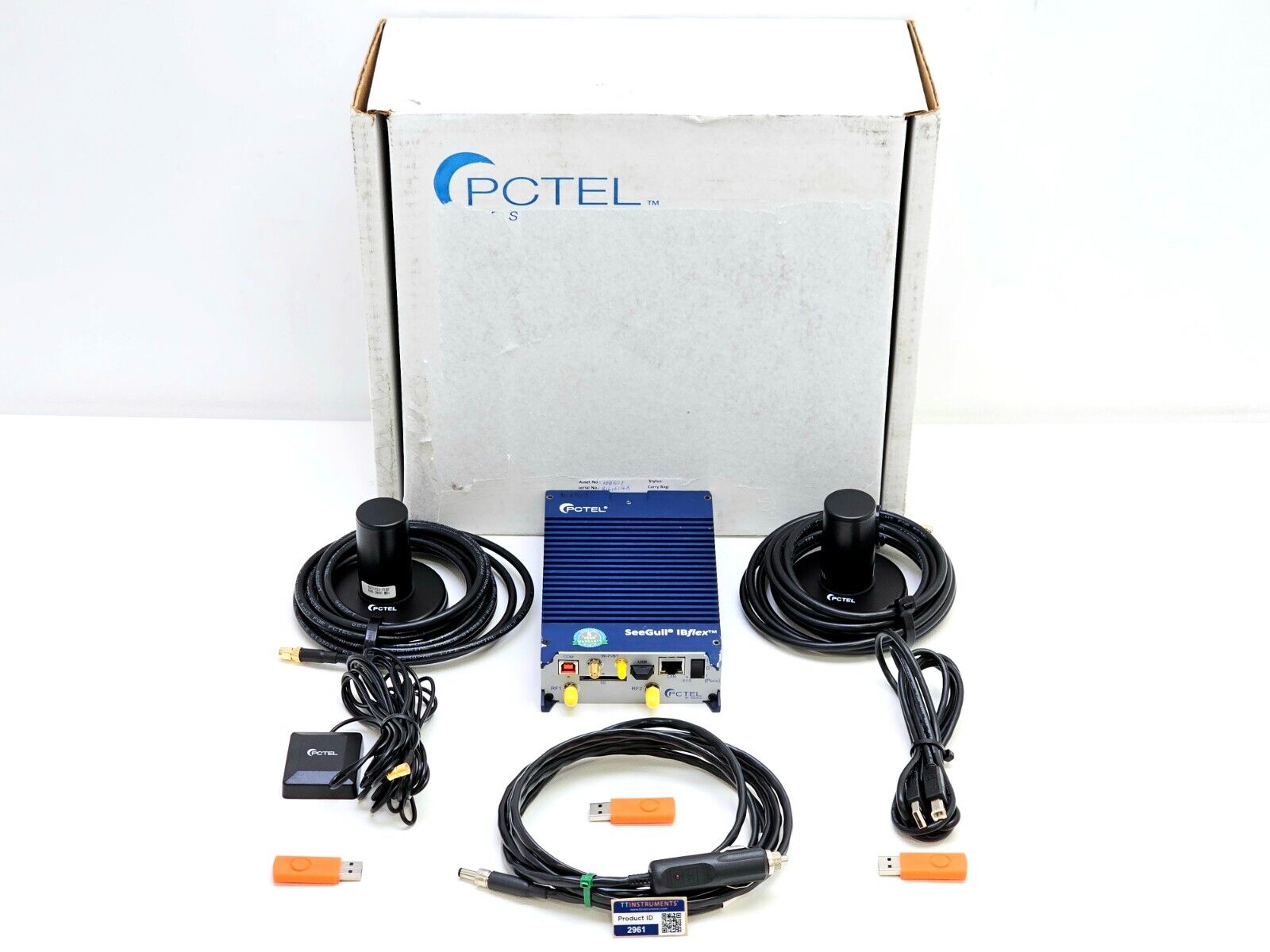

Included in the sale:

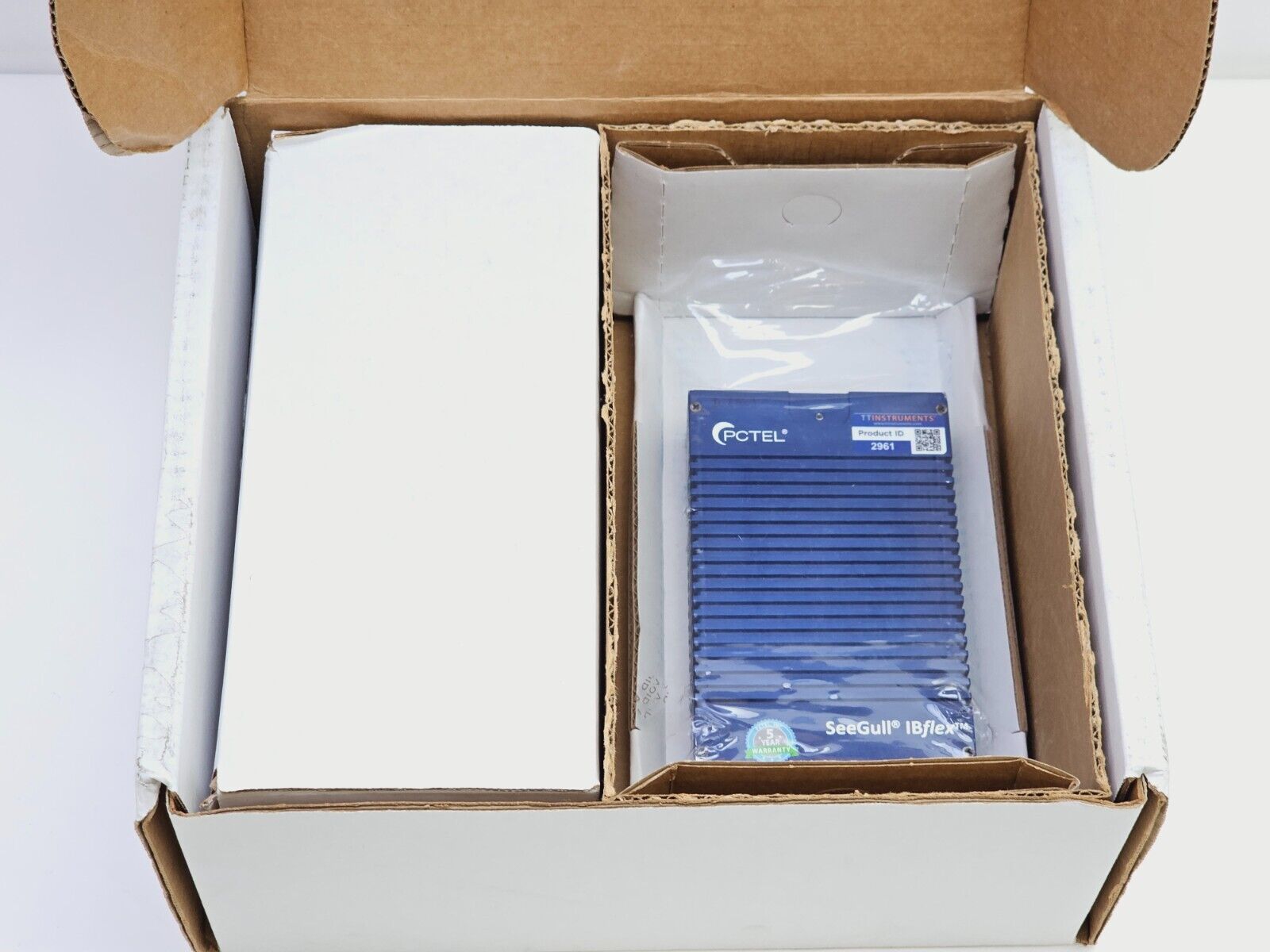

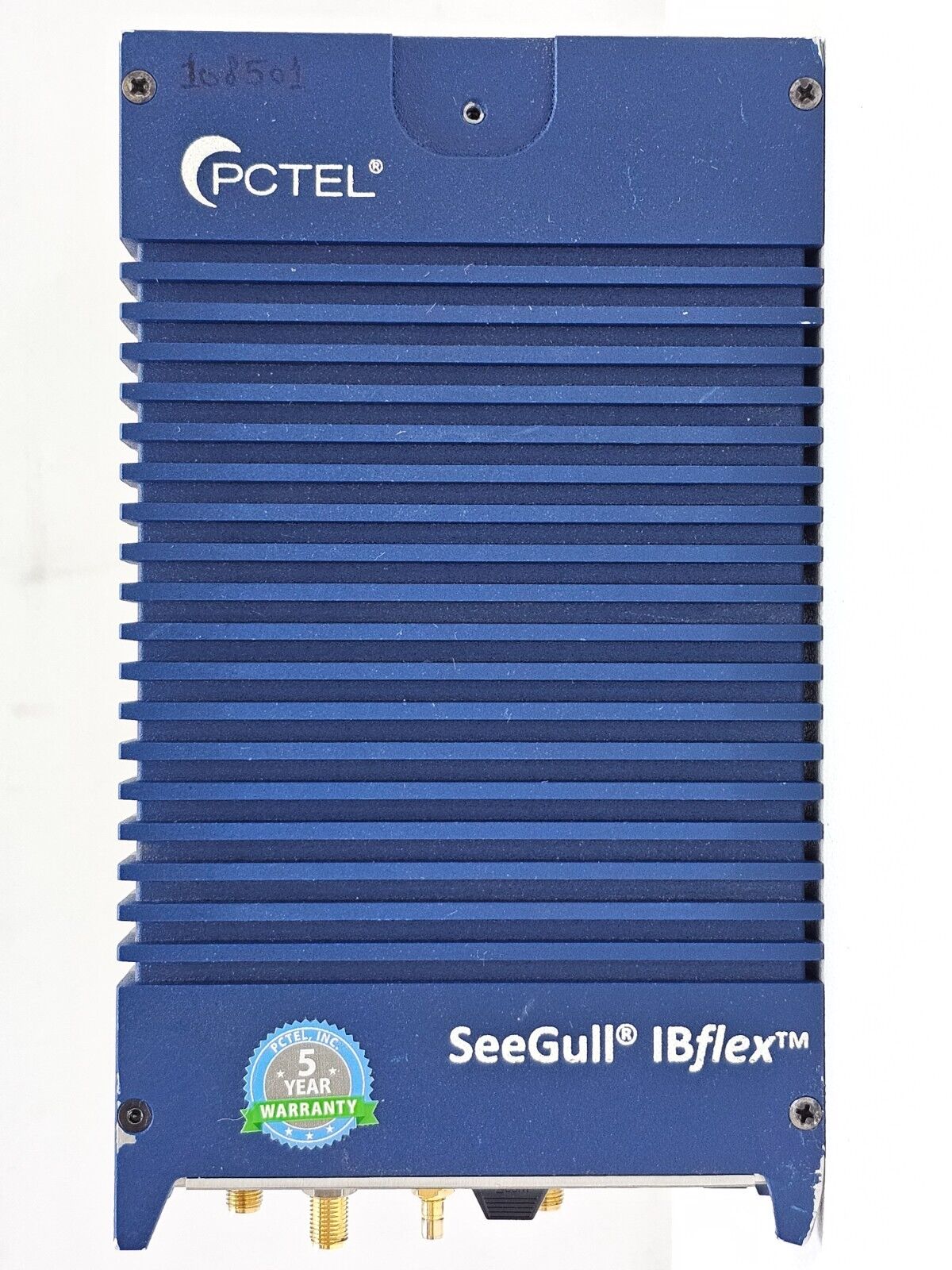

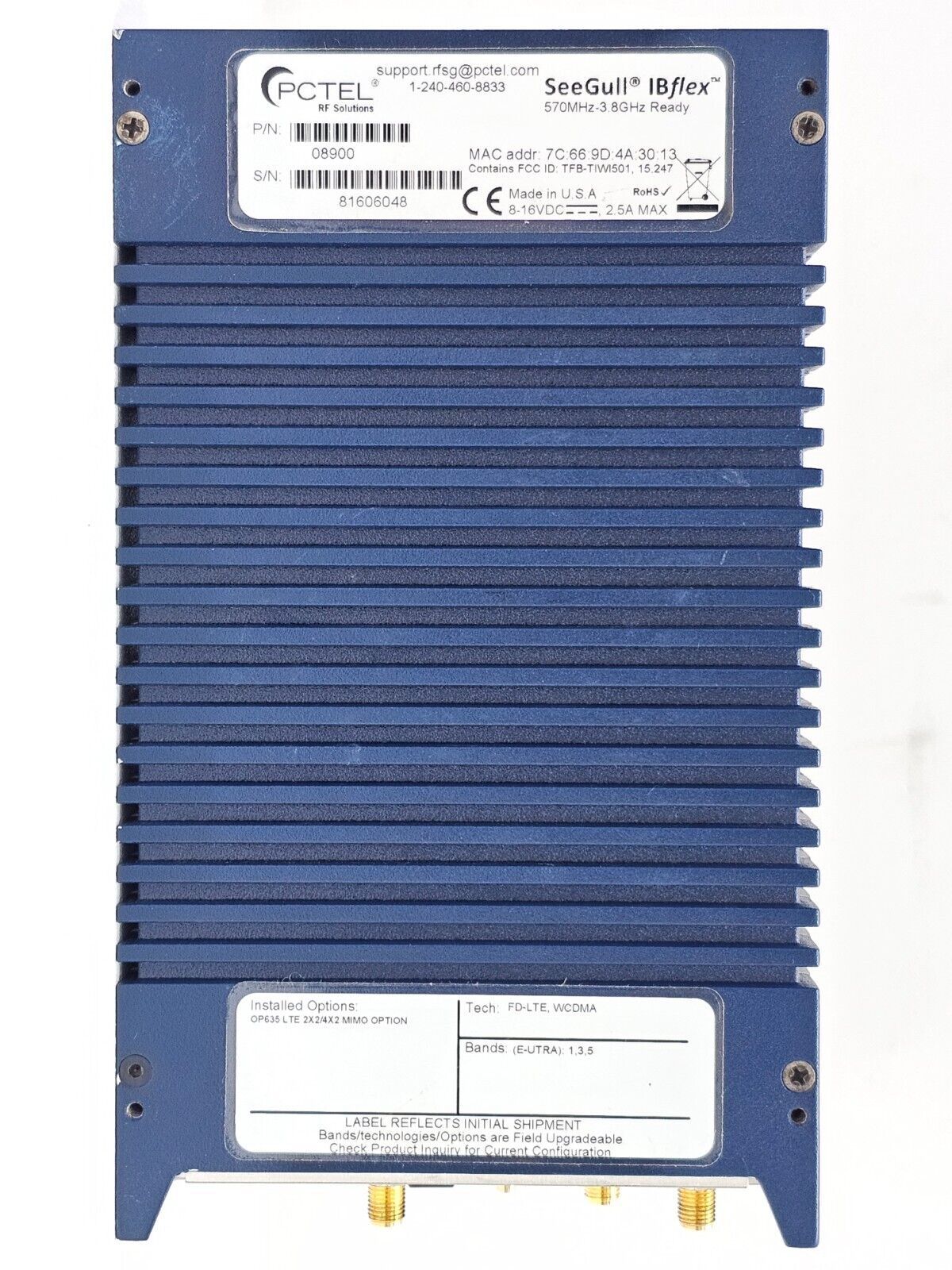

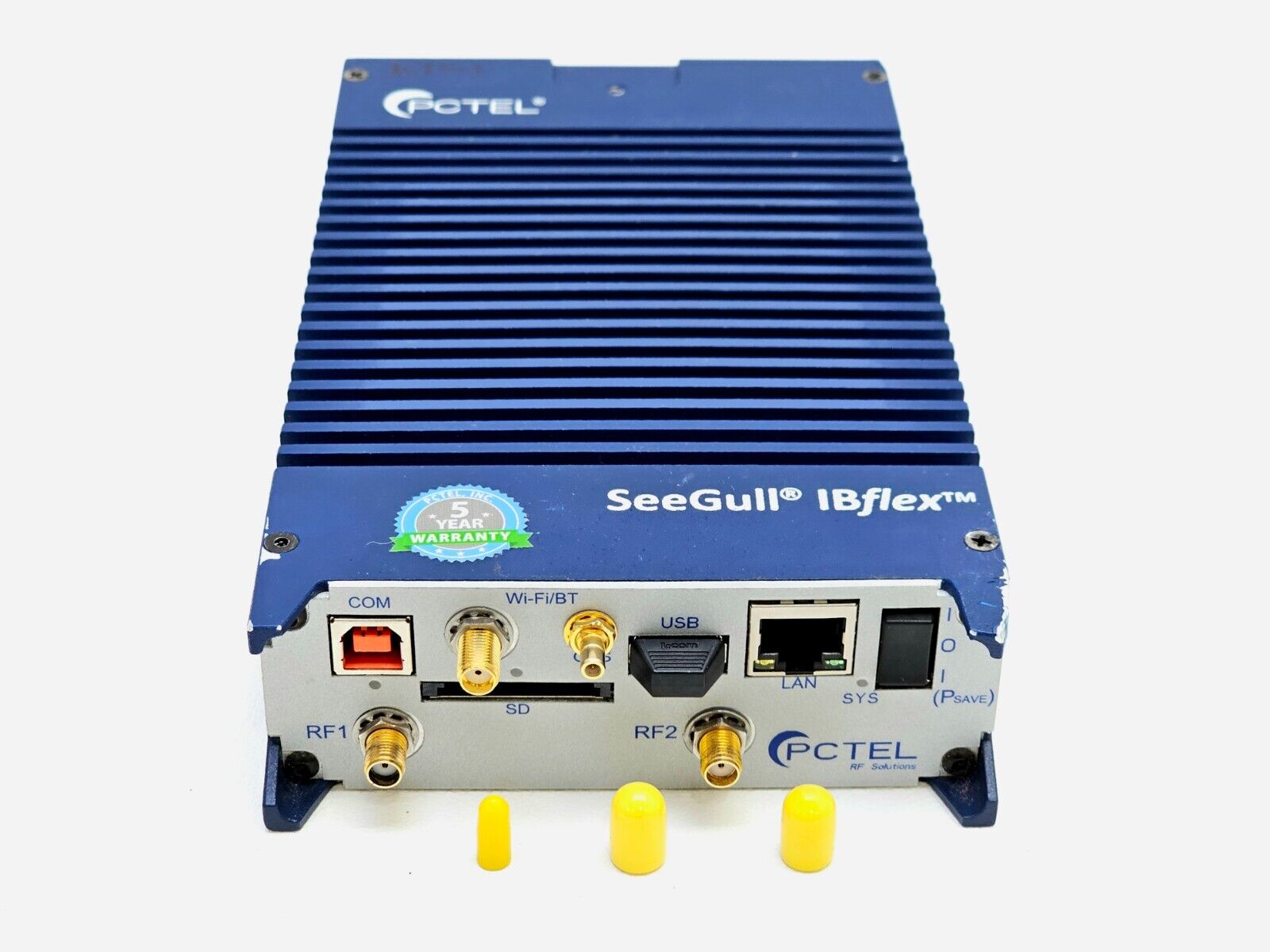

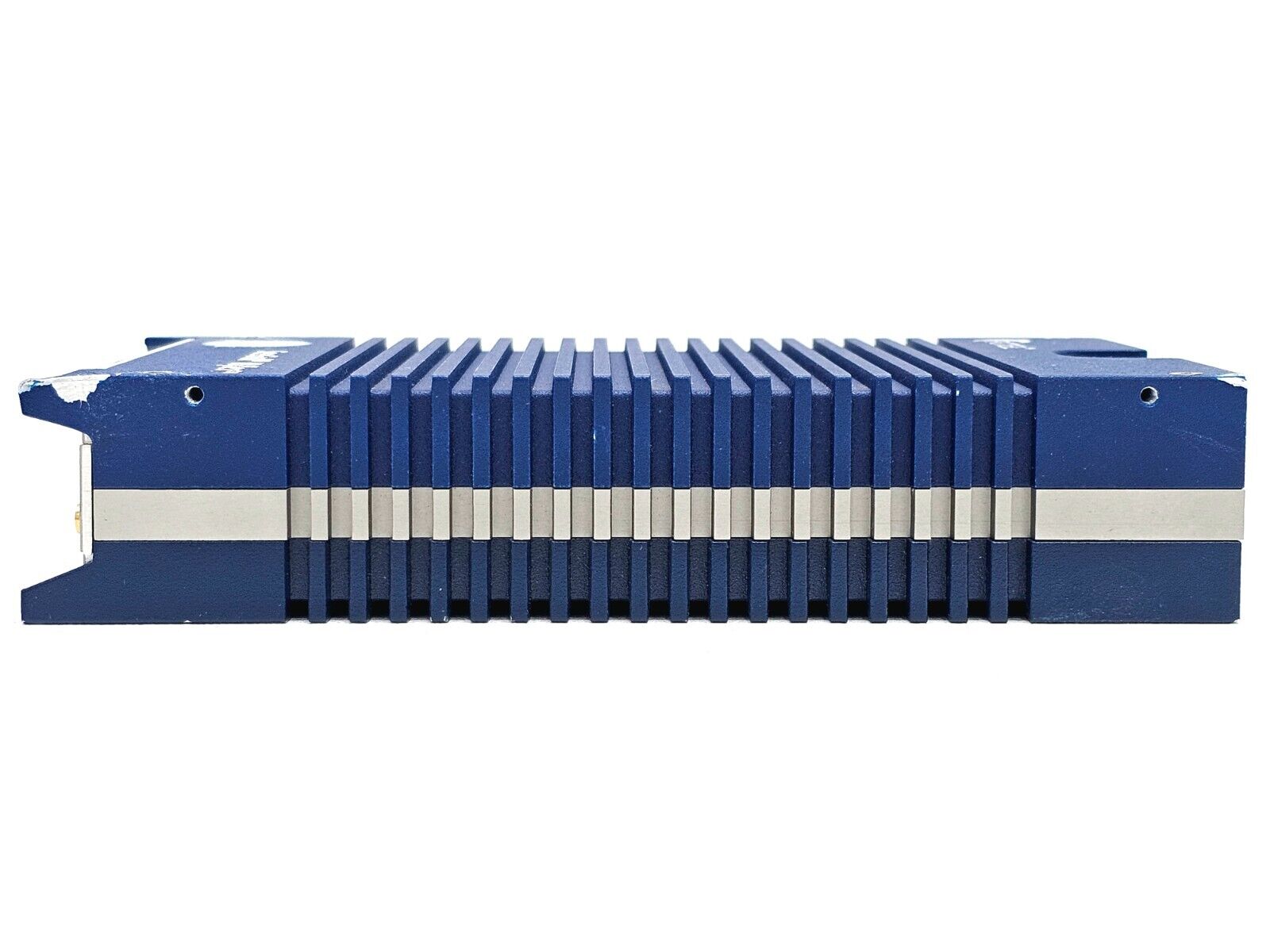

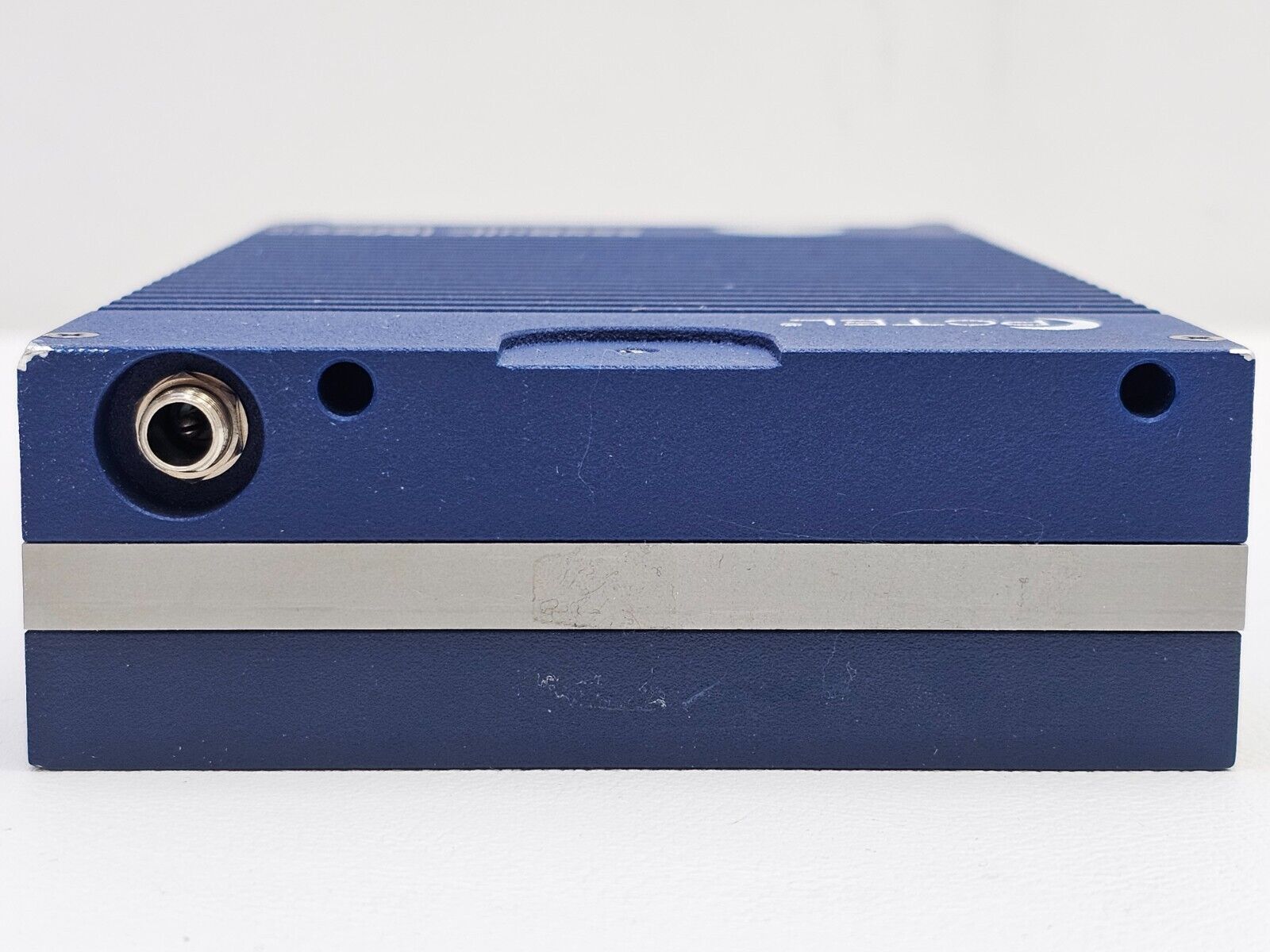

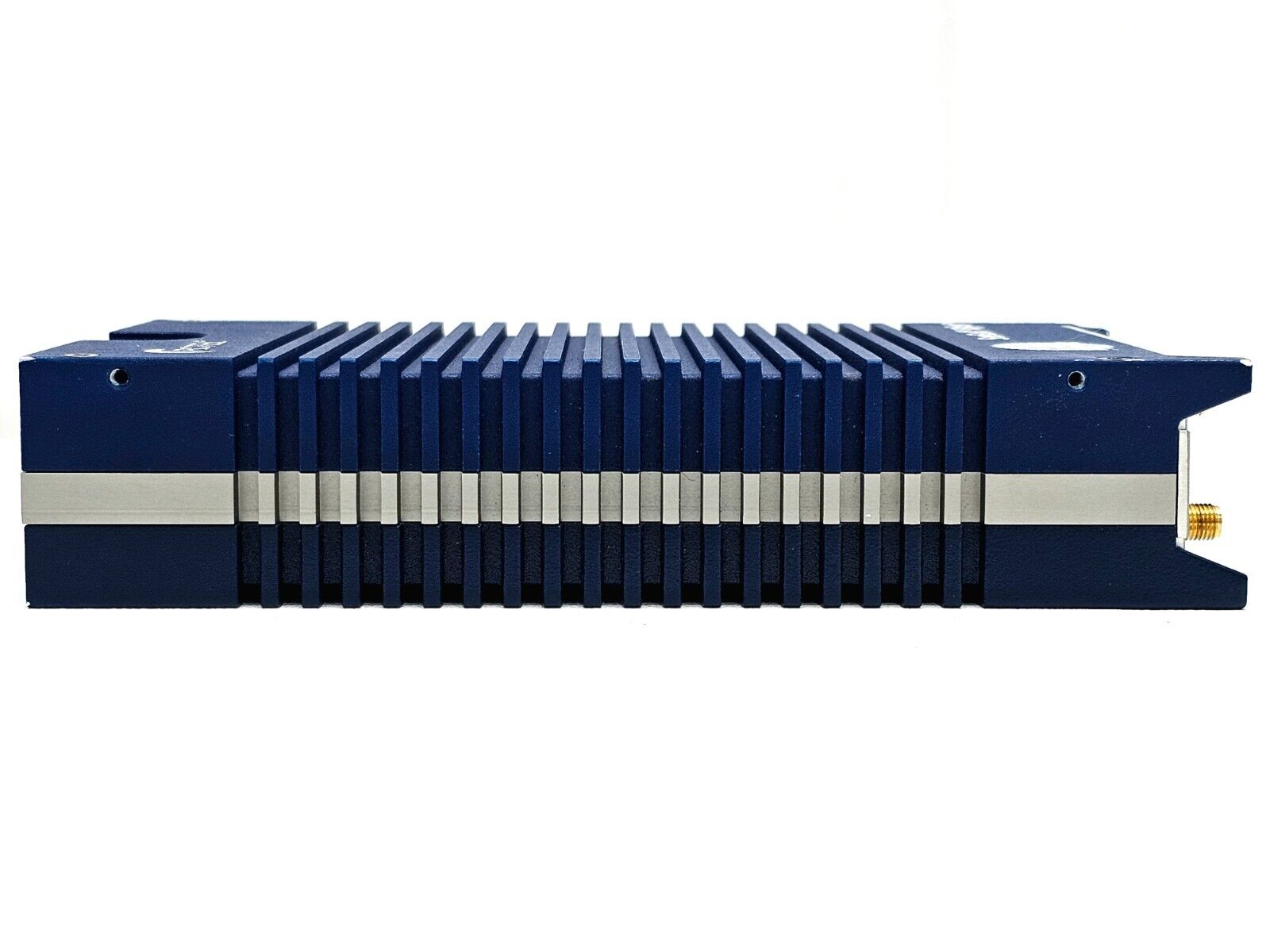

IBflex 570 MHz - 3.8 GHz 08900

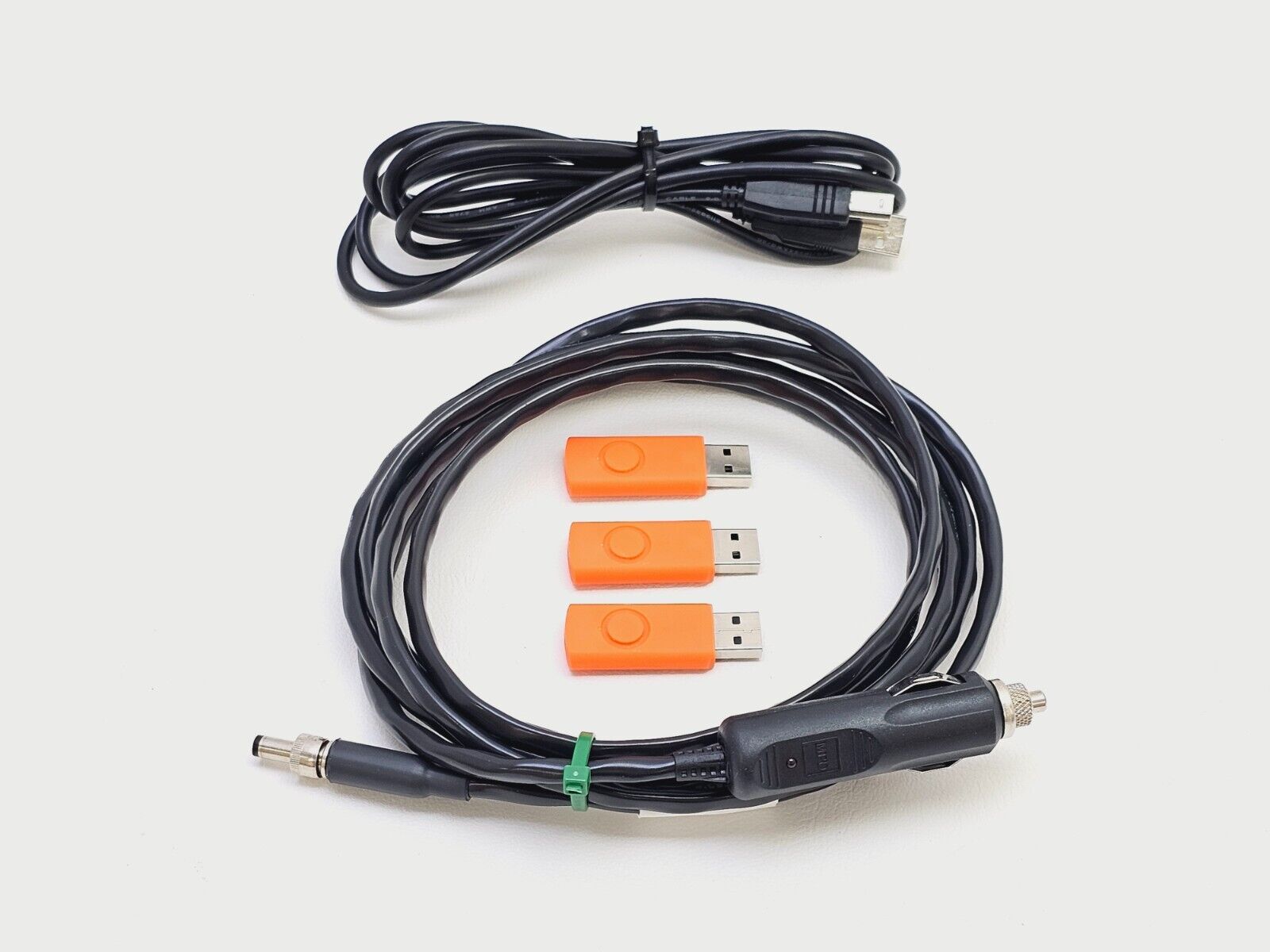

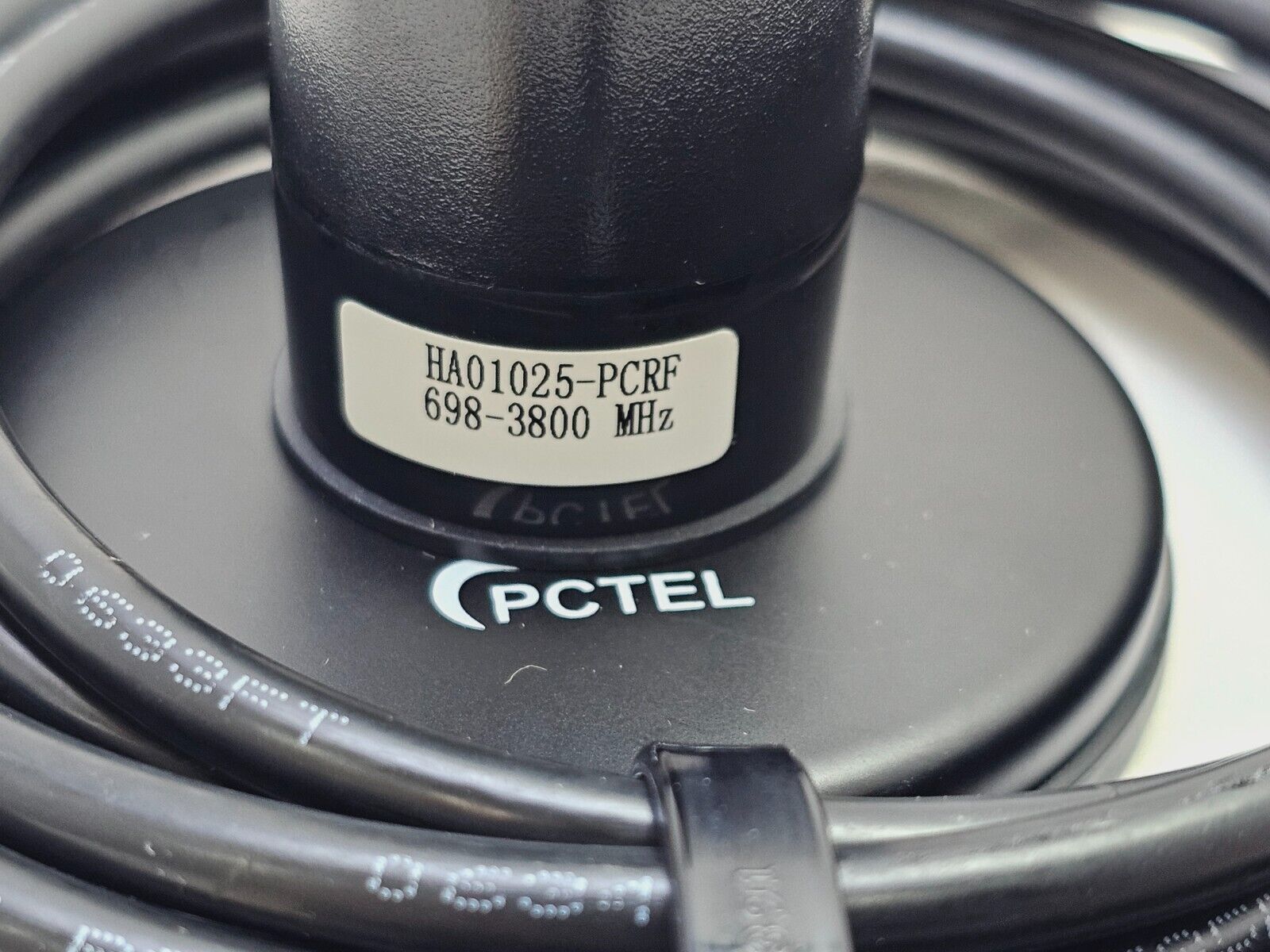

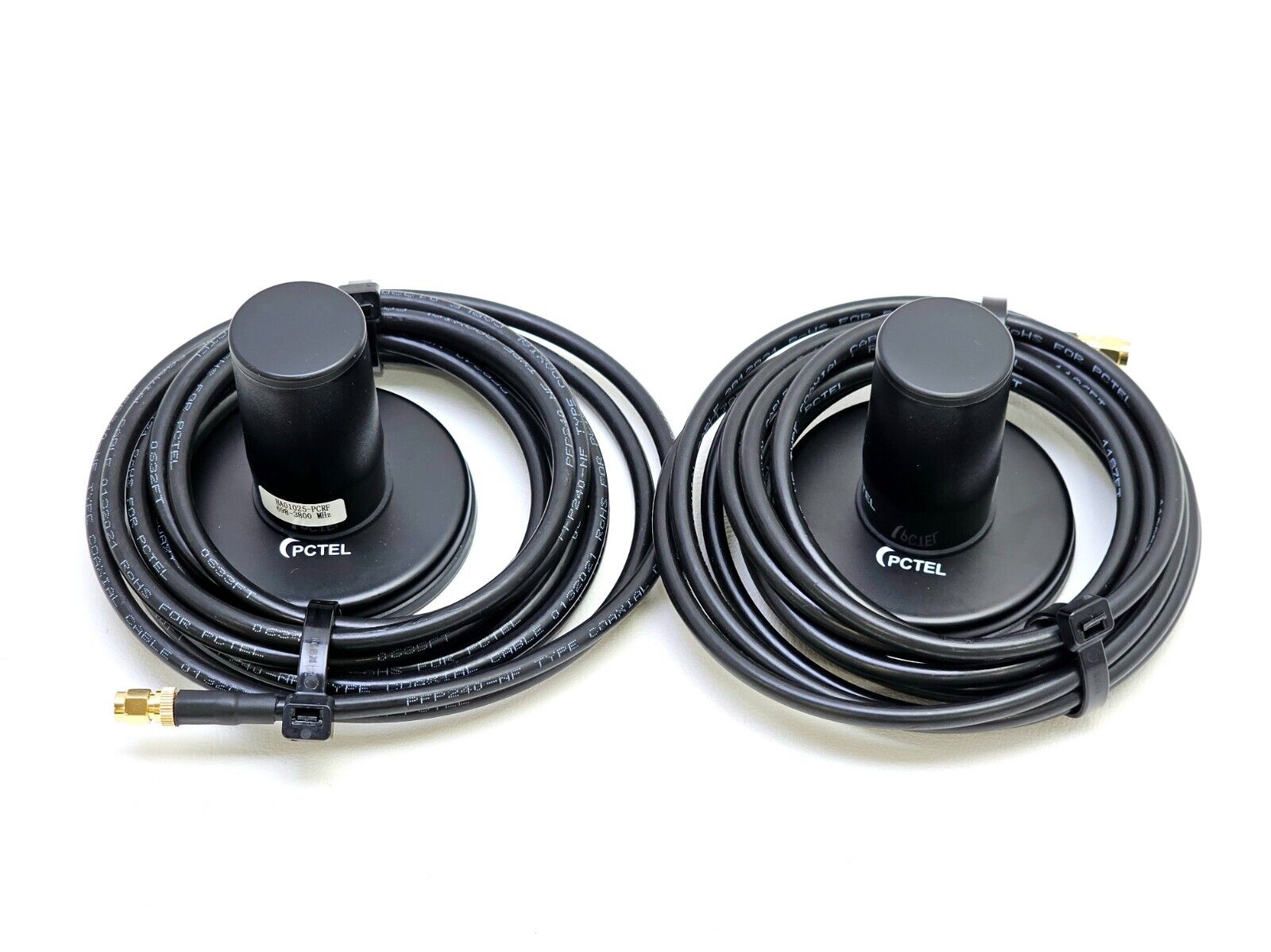

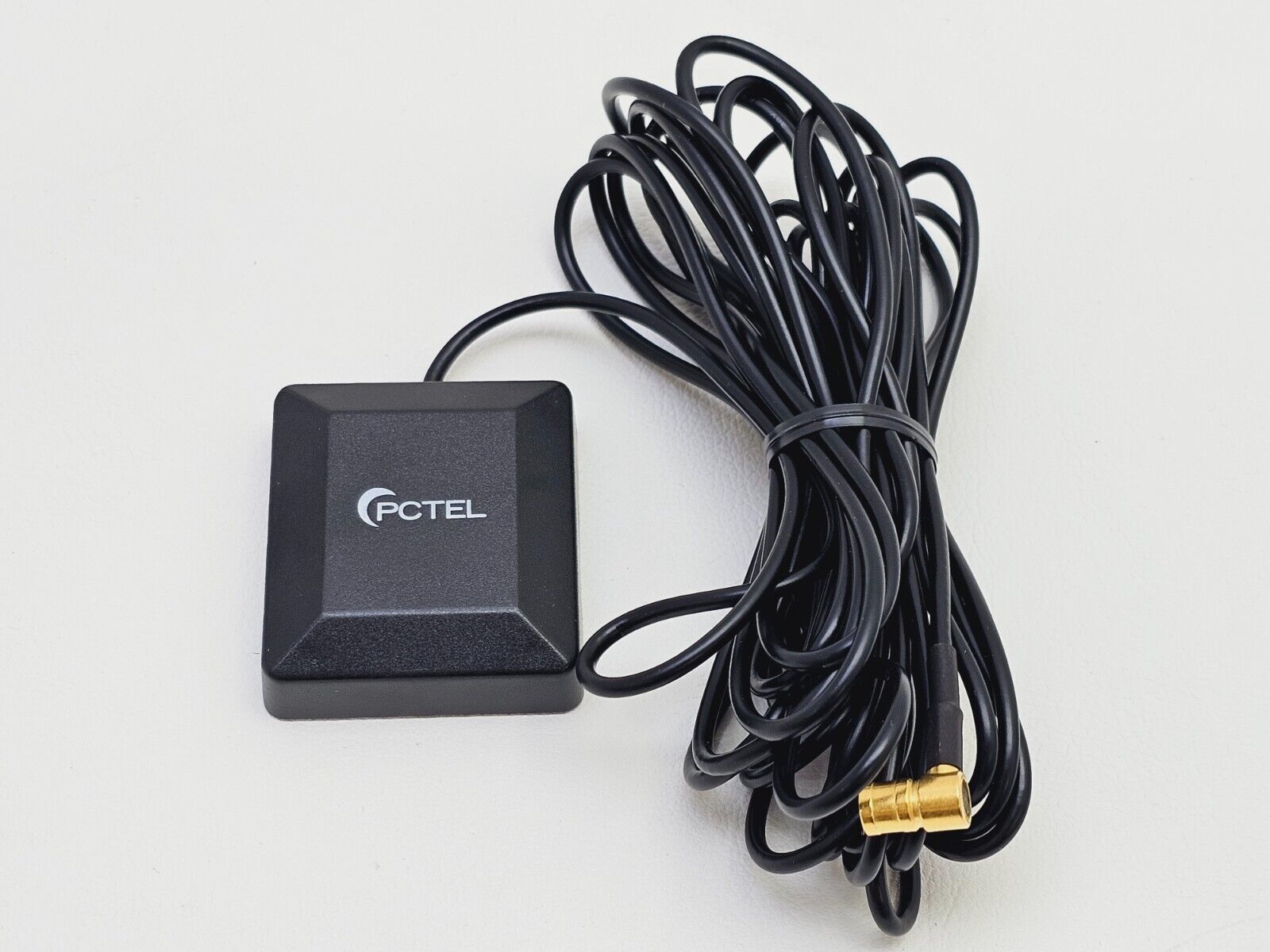

1 GPS receiver, 2x PCTel 698 to 3800 MHz antennas, USB data cable, power adapter/in car charger.

Please see below information we have extracted from the system and INSTALLED OPTIONS.

File Name:                           Version:

PCTEL? Upgrade Assistant             3.2.1.0

ScannerInterface.dll                 1.7.0.1

SGACommon.dll                    1.3.0.0

SeeGullMaster.dll                    3.4.0.0

winusb.dll                           6.0.6000.16386 (vista_rtm.061101-2205)

SplashScreen.dll         1.0.0.0

DevComponents.DotNetBar2.dll         8.9.0.2

05/09/2024 12:55:59: Inquiry Response

Unit Level Information

---------------------------------------------------------------------

PCTEL Device Type..................: IBflex

Unit ESN...........................: 0000-0000-8160-6048

Number of Options..................: 14

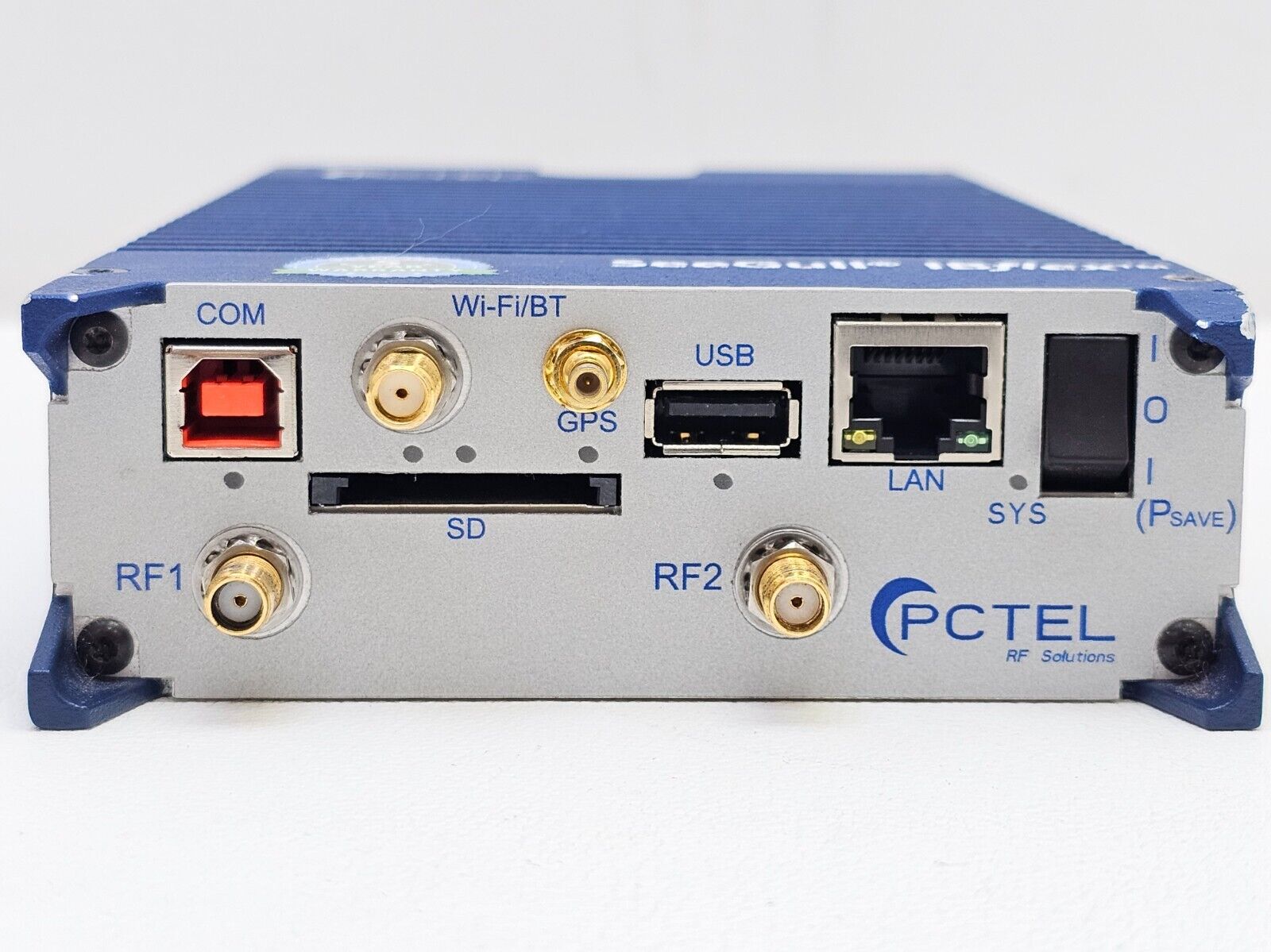

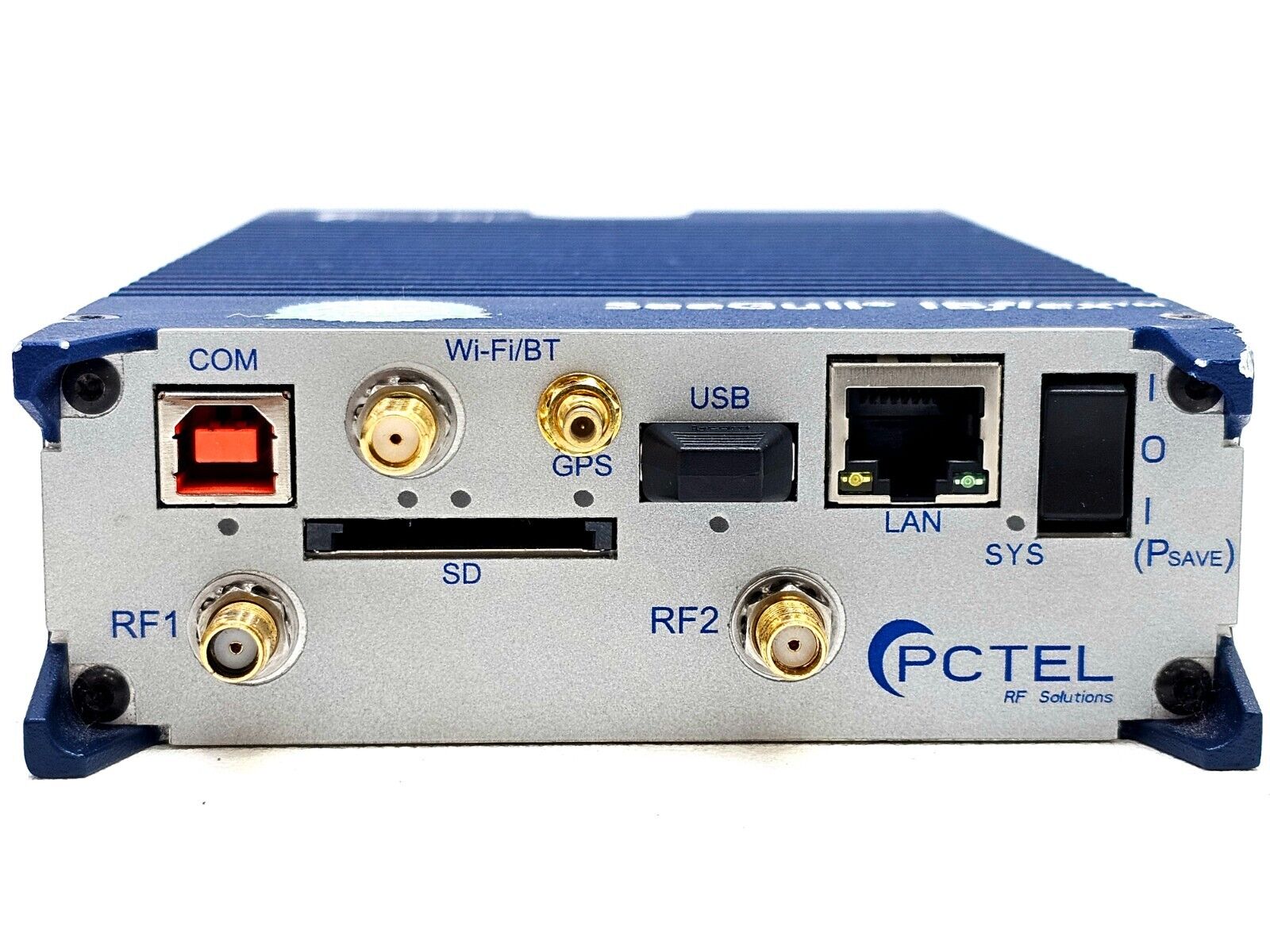

Interfaces.........................: USB, AOA, Ethernet

Product Reference Version..........: 1.1.33.0

API Version........................: 2.5.0.0

Software Release Version...........: 3.5.0.0

ASN.1 ICD Version..................: 2.5.0.0

Calibration Date...................: 15/07/2020

Bootup Status......................: Passed

Supported Configurations

Protocol       Band                                   Band Code Port

---------------------------------------------------------------------

Band Option    EB-05 DL: American Cellular             0x0100    1

Band Option    EB-05 UL: American Cellular             0x0101    1

 Band Option    EB-01 DL: 2100 (IMT-2000)               0x0300    1

Band Option    EB-01 UL: 2100 (IMT-2000)               0x0301    1

Band Option    EB-03 DL: 1800 MHz (DCS)                0x0700    1

 Band Option    EB-03 UL: 1800 MHz (DCS)                0x0701    1

WCDMA          EB-05 DL: American Cellular             0x0100    1

  WCDMA          EB-05 UL: American Cellular             0x0101    1

WCDMA          EB-01 DL: 2100 (IMT-2000)               0x0300    1

WCDMA          EB-01 UL: 2100 (IMT-2000)               0x0301    1

WCDMA          EB-03 DL: 1800 MHz (DCS)                0x0700    1

WCDMA          EB-03 UL: 1800 MHz (DCS)                0x0701    1

LTE            EB-05 DL: American Cellular             0x0100    1

LTE            EB-05 UL: American Cellular             0x0101    1

LTE            EB-01 DL: 2100 (IMT-2000)               0x0300    1

 LTE            EB-01 UL: 2100 (IMT-2000)               0x0301    1

LTE            EB-03 DL: 1800 MHz (DCS)                0x0700    1

  LTE            EB-03 UL: 1800 MHz (DCS)                0x0701    1

 Protocol/Band Summary

Protocol            Count---------------------------------------------------------------------

Band Option.......: 6

WCDMA.............: 6

LTE...............: 6

Installed Options---------------------------------------------------------------------

570MHz-3800MHz Capability...........................: 7030-0000

Dual RF Port........................................: 000

F-0000

Recording to SD Card................................: 000

A-0000

GPS Navigation......................................: 0001-0000

Absolute Time Stamp.................................: 0005-0000

Ethernet Interface..................................: 000C-0000

WCDMA Blind Scan....................................: 000B-0004

LTE Blind Scan......................................: 000B-000A

LTE Support.........................................: 0001-000A

LTE Enhanced Signal Scan............................: 000C-000A

LTE Enhanced Signal 2Rx MIMO........................: 002C-000A

WCDMA Support.......................................: 0001-0004

WCDMA Pilot.........................................: 0003-0004

WCDMA Extended Dynamic Range........................: 0008-0004

License Information--------------------------------------------------------Calibration Date..............: 2020-7-15

Calibration Version...........: 17

Warranty Expiration Date......: 12/07/2021 23:59:59 GMT

License Type..................: Perpetual

License State.................: Active

Current Time..................: 05/09/2024 11:53:45 GMT

License Number................: 1

License Expiration Date.......: 12/07/2017 23:59:59 GMT

License Remaining Time........: NA

From the manufacturer:

In-Building and Outdoor Network Testing

The PCTEL® IBflex scanning receiver combines portability and accuracy with the power to test multiple technologies and bands simultaneously. It can be used to deploy 5G New Radio networks in sub-6 GHz spectrum, verify public safety coverage, optimize dense small cell deployments, and improve the reliability of IoT systems. Low power consumption and a hot-swap battery system make the IBflex scanner a convenient tool for a long day of walk testing or interference hunting.
BANDS: 5G: 3GPP FR1 • All existing 2G, 3G, and 4G • CBRS • Public safety • WiFi (2.4 and 5 GHz) • Other bands currently deployed around the world B
Features: • 4G/5G Dynamic Spectrum Sharing (DSS) • Dual polarization beamforming measurements • 2x2 and 4x2 LTE MIMO measurements • Hot-swap battery system • Windows® laptop and Android™ tablet support • Connect with Bluetooth® or USB • Blind Scan for automatic channel detection • LMR active channel scan F
Technologies: • 5G NR • LTE FDD • TD-LTE • NB-IoT • UMTS • GSM Custom Channel Power Measurements for additional technologies • CDMA • EV-DO • WiFi • LAA • P25 • DMR • TETRA
